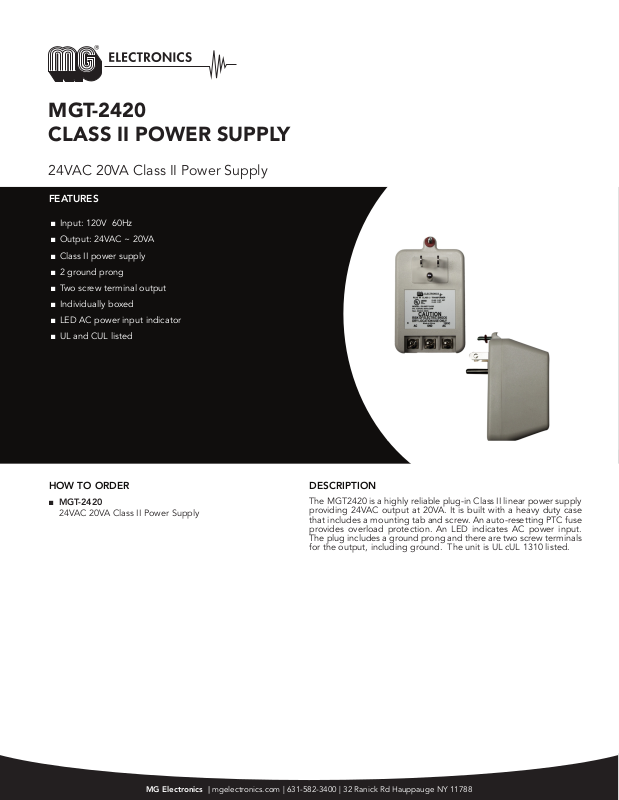

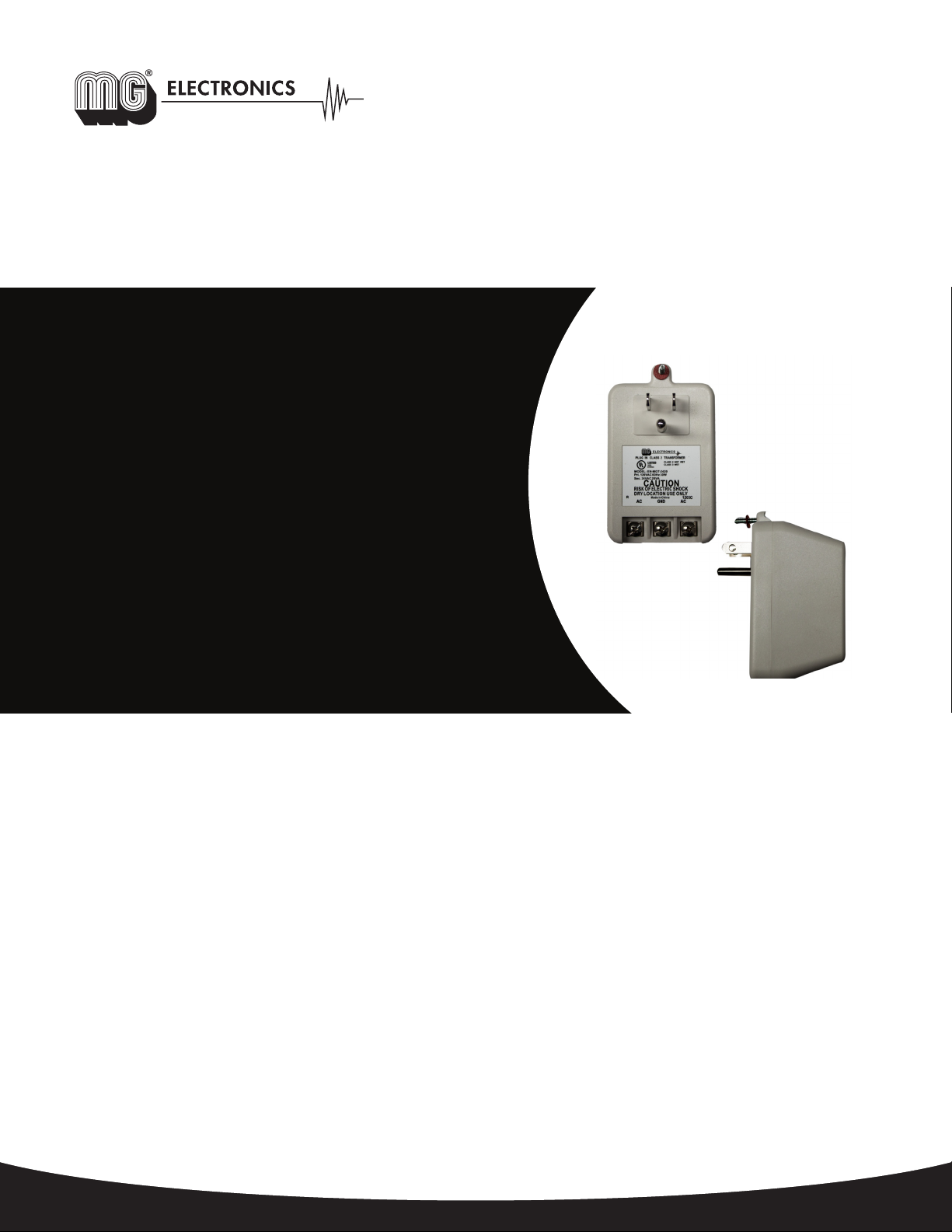

MGT-2420
CLASS II POWER SUPPLY
24VAC 20VA Class II Power Supply
FEATURES
■ Input: 120V 60Hz
■ Output: 24VAC ~ 20VA
■ Class II power supply
■ 2 ground prong
■ Two screw terminal output
■ Individually boxed
■ LED AC power input indicator
■ UL and CUL listed
HOW TO ORDER
■ MGT-2420
24VAC 20VA Class II Power Supply
DESCRIPTION
The MGT2420 is a highly reliable plug-in Class II linear power supply
providing 24VAC output at 20VA. It is built with a heavy duty case
that includes a mounting tab and screw. An auto-resetting PTC fuse
provides overload protection. An LED indicates AC power input.
The plug includes a ground prong and there are two screw terminals
for the output, including ground. The unit is UL cUL 1310 listed.
MG Electronics | mgelectronics.com | 631-582-3400 | 32 Ranick Rd Hauppauge NY 11788
Page 2
MGT-2420
CLASS II POWER SUPPLY
SPECIFICATIONS
■ Input voltage: 120VAC 60Hz
■ Rate current: 830mA
■ Output voltage: AC 24 V +/- 5%
■ No load voltage: AC 28.5VMax
■ Exciting current (Io): 70mA Max. at input 120VAC 60Hz
without secondary load.
■ Insulation test: 500 VDC 100MΩ Min. between input
plug and output terminal and case.
■ AC blade pull test: Pull AC blades by 35lb for one
minute without pull out from the case.
■ Temperature rise: Input120VAC 60Hz with secondary
load 2400 mA, shall not exceed 40deg on case surface
(By them10meter) 72deg for primary winding (By
resistance method). At ambient temp. 25°C
■ Normal operating temperature at: -10°C ~ +40°C
■ Storage temperature at: -20°C ~ +70°C
■ Normal operating humidity at: 30% ----- 85% R.H.
■ Net Weight (APPROX.): 430g.

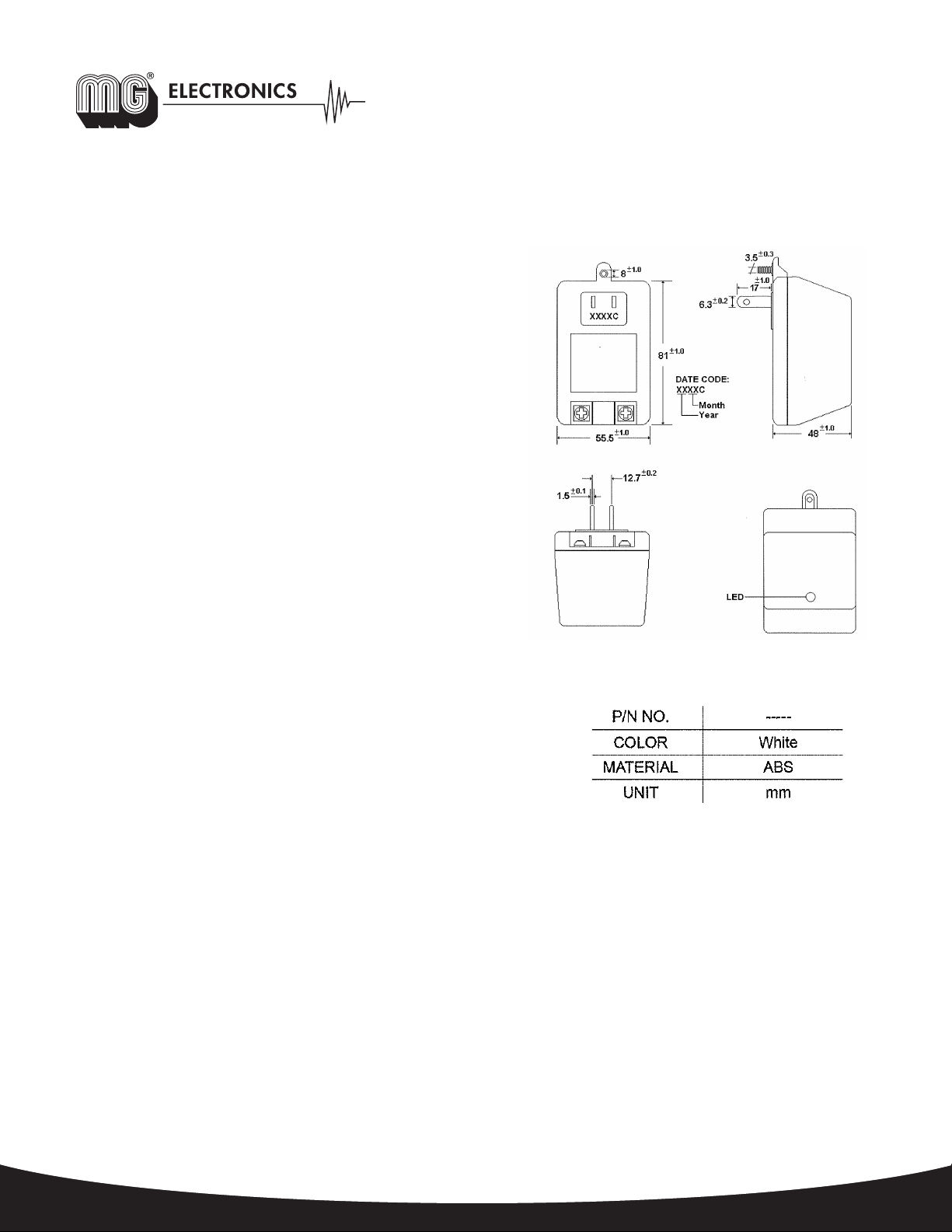

ENCLOSURE DIMMENSIONS
