MG MG3 Quick Manual

MG3 Quick Guide

CONTENTS

01

CONTENTS 01

KEY FEATURES 02

DRIVING CONTROLS 03

KEYS 04

SEATS 05

DRIVER CONTROLS

STEERING WHEEL 06

INSTRUMENT PANEL 07

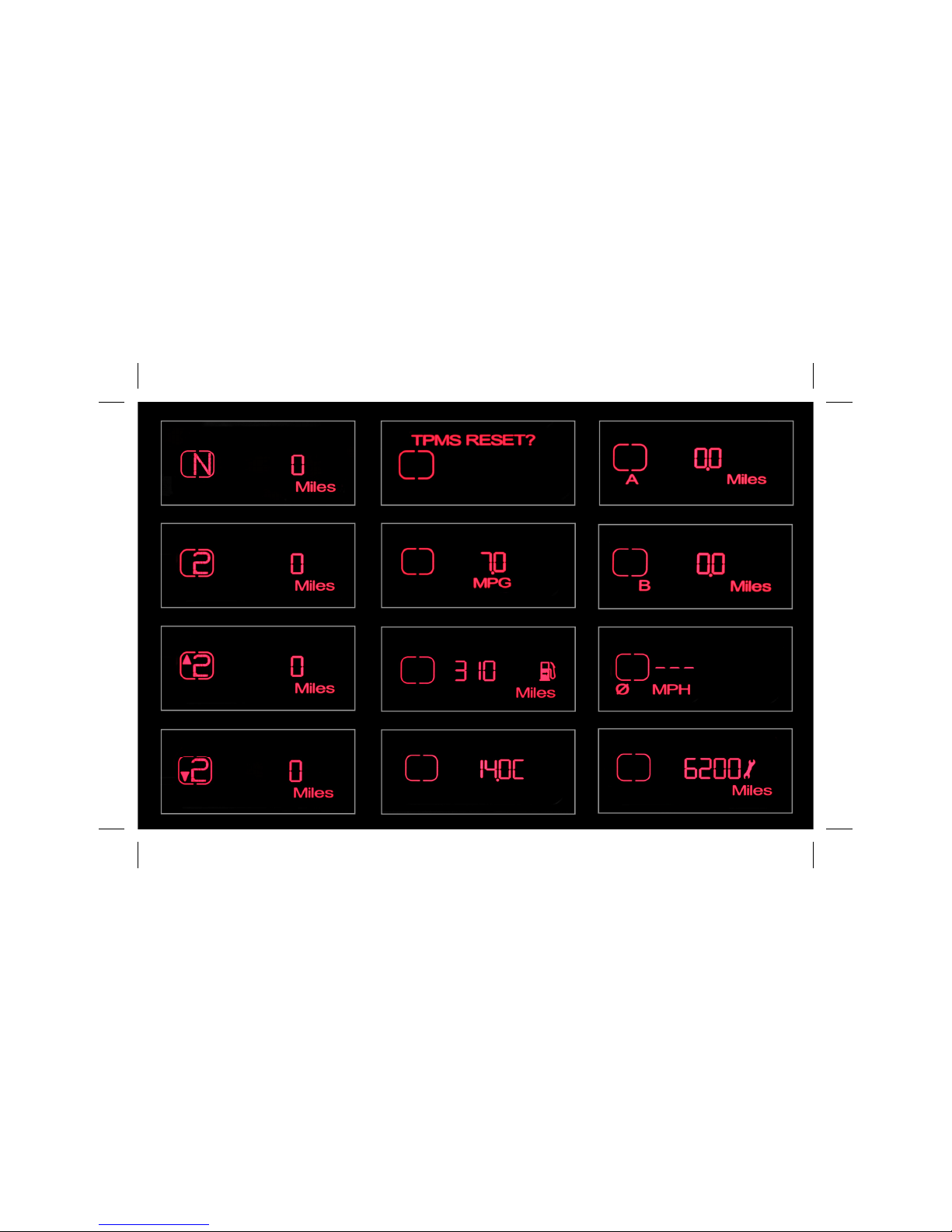

MESSAGE CENTRE 08

ELECTRIC DOOR MIRRORS AND WINDOWS 09

STALK SWITCHES 10

CLIMATE CONTROL 11

HEATER 12

AUDIO SYSTEM 13

AUDIO SYSTEM DAB 14

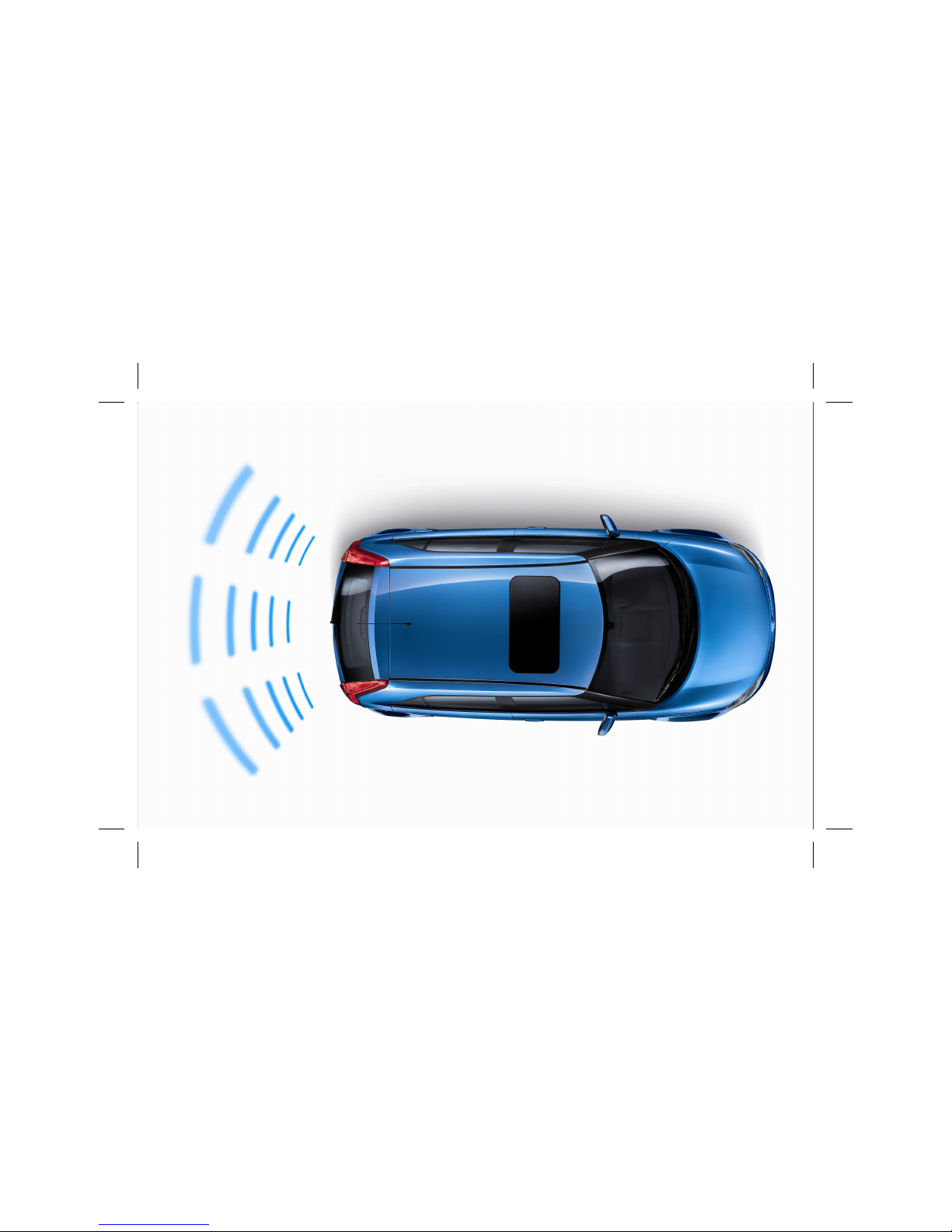

PARKING DISTANCE CONTROL 15

ENGINE COMPARTMENT - RHD 16

ENGINE COMPARTMENT - LHD 17

SERVICE INFORMATION 18

FORECOURT INFORMATION 19

KEY FEATURES

02

• 1.5 VTI TECH PETROL ENGINE

• 5 SPEED MANUAL TRANSMISSION

• ANTI-LOCK BRAKING SYSTEM (ABS)

• STABILITY CONTROL SYSTEM (SCS)

• HYDRAULIC POWER ASSISTED STEERING

• THATCHAM CAT 2 ALARM AND IMMOBILISER

SYSTEM.

• DRIVER & PASSENGER FRONT AIRBAGS

• SIDE AND CURTAIN AIRBAGS

• REAR ISOFIX CHILD SEAT ANCHORAGE

• RAIN SENSING WIPERS WITH AUTOMATIC

HEADLAMPS*

• AIR CONDITIOING (ETC)*

• DEADLOCKS

• ICE SYSTEM WITH MP3 COMPATIBILITY (INCLUDES

IPOD DOCK AND BLUETOOTH COMPATIBILTY.*

• CRUISE CONTROL*

• TYRE PRESSURE MONITORING SYSTEM

• HEADLAMP DELAY/DRIVEWAY LIGHTING*

• DAB RADIO*

• TRIP COMPUTER

* CERTAIN MODELS

1

2

3

5

6

4

7

8

9

10

11

12

17

14

15

16

13

DRIVING CONTROLS

03

1. WIPER/WASHER CONTROL

2. CRUISE CONTROL*

3. HORN, DRIVER'S AIRBAG

4. INSTRUMENT PANEL

5. STEERING WHEEL ICE CONTROLS

6. MAIN LIGHT SWITCH, DIRECTION INDICATORS /
MAIN BEAM & TRIP COMPUTER

7. ICE SYSTEM

8. I POD/ I PHONE DOCK/CUBBY

9. PASSENGER AIRBAG

10. BONNET RELEASE

11. HEATING & AIR CONDITIONING CONTROLS

12. GEAR LEVER

13. SCS ISOLATION SWITCH

14. CLUTCH PEDAL

15. BRAKE PEDAL

16. ACCELERATOR PEDAL

17. IGNITION SWITCH

* CERTAIN MODELS

1

2

3

KEYS

04

IGNITION KEY

1. KEY BLADE RELEASE

2. LOCK BUTTON

3.

UNLOCK BUTTON

Position 0 (LOCK)

• Insert or remove handset.

• Rotate steering wheel to activate lock.

Position 1 (ACC)

• Stop the engine, the handset can not be pulled out.

• Limited electrical equipment operation (wipers etc).

Position 2 (ON)

• All electrical equipment operation.

• Engine run after starting

Position 3 (START)

• Start the engine.

• Release the handset immediately after the engine is started, the ignition switch

will return to position 2 automatically.

1

3

4

2

SEATS

05

FRONT SEATS

1. HEADREST

2. FORWARD/REARWARD ADJUSTMENT

LIFT THE LEVER (1) AND SLIDE THE SEAT INTO POSITION. MAKE SURE

THE SEAT IS LOCKED IN POSITION BEFORE DRIVING.

3. SEAT CUSHION HEIGHT (DRIVER'S SEAT ONLY)*

PULL THE LEVER (2) UPWARDS WITH A PUMPING ACTION TO RAISE THE

SEAT AS REQUIRED. PRESS DOWN ON THE LEVER WITH A PUMPING
ACTION TO LOWER THE SEAT.

4. BACKREST ADJUSTMENT

LIFT THE LEVER (3) AND ALLOW THE SEAT TO MOVE, TILT THE

BACKREST TO THE DESIRED POSITION.

* CERTAIN MODELS

2

3

5

1

4
