Operating Instructions

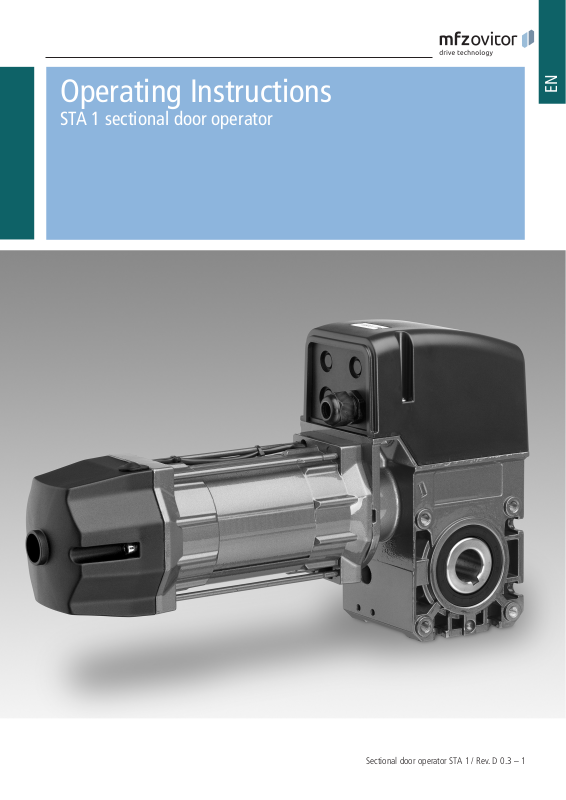

STA 1 sectional door operator
EN
Sectional door operator STA 1 / Rev. D 0.3 – 1
1. Contents
DANGER!
2. Information in this document
1. Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. Information in this document . . . . . . . . . . . . .2
3. General safety instructions . . . . . . . . . . . . . . .3
4. Overview of products. . . . . . . . . . . . . . . . . . . .4
5. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5.1 Preparation.........................5
5.2 Push-on assembly....................5
5.3 Installation of the emergency hand chain
(only for operators with emergency hand
chain).............................6
6. Initial Operation. . . . . . . . . . . . . . . . . . . . . . . .7
6.1 Preparation.........................7
6.2 Connection.........................7
6.3 Manual settings .....................9
6.4 Digital settings –
Limit switch and safety circuit for drive ...10
6.5 Check the system ...................11
7. Emergency operation. . . . . . . . . . . . . . . . . . .12
8. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .13
9. Technical data . . . . . . . . . . . . . . . . . . . . . . . .14
10. Manufacturer‘s Declaration . . . . . . . . . . . . . .22
Original operating instructions
− Copyright.
− No part of these instructions may be reproduced without
our prior approval.
− Subject to alterations in the interest of technical progress.
− All dimensions given in mm.
− The diagrams in this manual are not to scale.
Key to symbols
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
WARNING!
Indicates a hazard with a medium level of risk which, if not
avoided, could result in death or serious injury.
CAUTION!
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
ATTENTION!
Indicates an imminent danger of damage or destruction.
CHECK
Indicates a check to be performed.
REFERENCE
Reference to separate documents which must be complied
with.
☞ Action request
− List, itemisation
➔ Reference to other sections of this document
2 – Sectional door operator STA 1 / Rev. D 0.3
2 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 3
3. General safety instructions
EN
DANGER!
Failure to observe the instructions in this
document can result in mortal danger!
☞ Observe all safety information contained in this
document.
Warranty
The function and safety of the equipment is only guaranteed
if the warning and safety instructions included in these operating instructions are adhered to.
MFZ Antriebe GmbH & Co. KG is not liable for personal
injury or damage to property if these occur as a result of the
warnings and safety advice being disregarded.
MFZ does not accept any liability or warranty for damage due
to the use of non-approved spare parts and accessories.
Intended use
The operators of the STA 1 range are designed exclusively for
opening and closing weight counterbalanced sectional doors.
Instructions regarding installation, connection and
maintenance
− The controls must be disconnected from the electricity
supply before carrying out electrical works. It must be
ensured that the electricity supply remains disconnected
during the works.
− Local protective regulations must be complied with.
− Mains cables and control cables must be laid separately.
Observe the valid standards and regulations!
Target group
Only qualied and trained specialists are permitted to install
and service the operator. Qualied and trained professionals
full the following requirements:
− knowledge of the general and specic safety and accident
prevention regulations,
− knowledge of the relevant regulations,
− trained in the use and care of appropriate safety
equipment,
− Capable of recognising the dangers associated with
installation.
Only qualied and trained electricians may connect the
operator and carry out electrical maintenance.
Qualied and trained electricians full the following
requirements:
− knowledge of the general and specic safety and accident
prevention regulations,
− knowledge of the relevant electrical regulations,
− trained in the use and care of appropriate safety
equipment,
− capable of recognising the dangers associated with
electricity.
4. Overview of products
The following package options are available for the STA 1
operator:
− STA/STAW 1 E (external control unit with release
mechanism)
− STA/STAW 1 KE (external control unit with chain)
− STA/STAW 1 KU (external control unit with emergency hand
crank)
− STA/STAW 1 E - HD (external control unit with release
mechanism, HD*)
− STA/STAW 1 KE - HD (external control unit with chain, HD*)
− STA/STAW 1 KU - HD (external control unit with emergency
hand crank, HD*)
− STAC/STAWC 1 E (integrated control unit with release
mechanism)
− STAC/STAWC 1 KE (integrated control unit with chain)
− STAC/STAWC 1 KU (integrated control unit with emergency
hand crank)
* HD = Operators with this sufx have a higher duty cycle.
The precise values for all operators can be found in
➔ „9. Technical data“
Additional product combinations are possible.
Information about these combinations can be obtained from
the manufacturer.
4 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 5
5. Installation
ATTENTION!
ATTENTION!
EN
5.1 Preparation
WARNING!
Incorrect installation of the drive can result in
serious injury!
− The drive must be installed free of any tension.
− The drive must not move on the shaft.
− The design and subsurface of all components must be
suitable for the forces encountered.
− Installation must only be carried out from a safe
standing position (e. g. scaffolding).
Incorrect installation of the drive can result in
damage to property!
To avoid damage to the drive and the door, the drive must
only be tted if
− the drive is undamaged,
− the ambient temperature is -20 ºC to +60ºC.,
− the altitude of the location does not exceed 1,000 m,
− a suitable protection type has been selected.
5.2 Push-on assembly
Damage due to improper installation of the drive!
To avoid damage to the drive and to the door, the drive
must be mounted on a console or a torque support bracket
so that it is vibration damped.
REFERENCE
The relevant instructions for the door must be observed
when tting the drive to the door.
Solid shaft
5.2 / 1
☞ Before installation, ensure that
– the drive is not blocked,
– the drive has been newly prepared after a lengthy storage
period,
– all connections have been carried out correctly
– the direction of rotation of the drive motor is correct,
– all motor protective devices are active
– no other sources of danger exist,
– the installation site has been cordoned off over a wide
area.
Check whether the feather key is suitable for the spring shaft
on site.
Installation
ATTENTION!
Mounting with torque support bracket
5.2 / 2
B
D
5.3 Installation of the emergency hand chain (only for operators with emergency hand chain)
To ensure that they work correctly, the chain links must not
be twisted.
A
C
5.3 / 1
Fit the torque support bracket/console (A).
☞ Grease the spring shaft (B) around the operator seating.
☞ Insert the feather key (C) into the spring shaft (B).
☞ Place the operator (D) on the spring shaft (B).
☞ Secure the feather key (C) against any movement.
The feather key can be secured with two hose clamps or
adjusting rings.
☞ Fix the operator to the torque support bracket with 4 screws.
☞ Join the ends of the emergency hand chain together with
the chain connecting link.
Incorrect operation of the drive can result in
damage to property!
To avoid damage to the drive and the door, the emergency
hand chain must be secured while the door is operated
electrically.
6 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 7
DANGER!
6. Initial Operation
EN
6.1 Preparation
Danger of fatal electric shock!
☞ Before commencing cabling works, you MUST disconnect
the drive system from the mains supply. Ensure that the
electricity supply remains disconnected throughout the
cabling works.
ATTENTION!
Damage due to improper installation of the drive!
To avoid damage to the drive, the following points must be
observed:
− The types of cable and their diameters must be selected
according to current regulations.
− The nominal currents and the type of connection must
correspond to those on the motor type plate.
− The drive details must agree with the connected loads.
6.2 Connection
Open the operator
6.2 / 1
☞ Remove the cover from the operator.
REFERENCE
When operated with electronic control units, the
corresponding start-up instructions and circuit diagrams
must be complied with.
Insert the cables
6.2 / 2
☞ Feed the cables through the screw tting into the operator.
Initial Operation
Limit switch connections (plug-in, standard)
6.2 / 3
6.2 / 4
A
S1 Additional limit switch, OPEN (standard only for
operators without integrated control unit)
S2 Limit switch, OPEN
S3 Safety limit switch, OPEN
S4 Safety limit switch, CLOSED
S5 Limit switch, CLOSED
S6 Additional limit switch, CLOSED (standard only for
operators without integrated control unit)
S7 Safety limit switch for emergency manual operation
F2 Thermal overload protection for motor
Limit switch connections
6.2 / 5
1
4 2
B
C
D
E
F
A Potential-free connection OPEN
B Potential-free connection CLOSE
C Switch off safety circuit
D Switch off OPEN end position
E Switch off CLOSED end position
F Internal safety circuit
6.2 / 6
S1 OPEN additional limit
switch (standard only in
the case of operators
without integrated control
unit)
S2 Limit switch, OPEN
S3 Safety limit switch, OPEN
S4 Safety limit switch, CLOSE
S5 Limit switch CLOSED
S6 CLOSED additional limit
switch (standard only
in the case of operators
without integrated control
unit)
8 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 9
EN
3 x 400 V star connection (standard)
The motor is factory-wired for connection to a 3 x 400 V
mains supply in star connection.
6.2 / 7
☞ Connect all the cables required.
Identication of wires
U1 Red
V1 Blue
W1 White
V2 Black
W2 Brown
U2 Green
3 x 230 V delta connection
To connect the operator to a 3 x 230 V mains supply, please
consult the manufacturer.
1 x 230V connection
The motor is factory-wired for connection to a 230V/1-phase
mains supply.
6.3 Manual settings
6.3 / 1
A
A
B
B
C
C
D
D
E
E
F
F
A OPEN additional limit switch - S1
(potential-free change-over contact)
B Limit switch, OPEN - S2
C Safety limit switch, OPEN - S3
D Safety limit switch, CLOSED - S4
E Limit switch, CLOSED - S5
F Additional limit switch, CLOSED - S6
(potential-free change-over contact)
G Control cam for additional limit switch, OPEN (green)
H Control cam for limit switch, OPEN (green)
I Control cam for safety limit switch, OPEN (red)
J Control cam for safety limit switch, CLOSED (red)
K Control cam for limit switch, CLOSED (white)
L Control cam for additional limit switch, CLOSED
(white)
KJIH
KJIH
LG
LG
6.2 / 8
☞ Connect all the cables required.
Identication of wires
AUF (OPEN) blue
ZU (CLOSE) blue
N red
AUF
ZU
PE
N
Initial Operation
REFERENCE
6.3 / 2
Set the OPEN end position
☞ Drive the door to the OPEN end position.
☞ Set the control cam (H) so that the OPEN limit switch (B) is
actuated.
☞ Tighten the locking screw (N).
The OPEN safety limit switch (C) must be set in such a way
that it switches immediately when the OPEN limit switch (B)
is passed over.
M
N
M Fine adjustment screw
N Locking screw
Each control cam has a locking screw (N) and a ne adjustment screw (M).
The locking screw (N) is used to lock the corresponding
control cam in the desired position. Finer adjustment can be
made with the ne adjustment screw (M).
Set the CLOSED end position
☞ Drive the door to the CLOSED end position.
☞ Set the control cam (K) so that the CLOSED limit switch (E)
is actuated.
☞ Tighten the locking screw (N).
☞ Adjust the OPEN safety limit switch (C).
6.4 Digital settings – Limit switch and safety circuit for drive
Electronic interface
6.4 / 1
A
B
A: AVE plug (absolute value encoder plug)
B: AVE plug terminal (absolute value encoder plug
terminal)
The CLOSED safety limit switch (D) must be set in such a way
that it switches immediately when the CLOSED limit switch(E)
is passed over.
Please refer to the control unit operating manual for
instructions on setting the end positions.
☞ Adjust the CLOSED safety limit switch (D).
10 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 11
EN
REFERENCE
Wiring allocation, AVE (absolute value encoder) plug
6.4 / 2
The numbers on the plug are also the wire-numbers.
4: Safety circuit input
5: RS 485 B
6: GND
7: RS485 A
8: Safety circuit output
9: 7...18V
AVE (absolute value encoder) plug terminal (7-12)
6.4 / 3
DC
6.5 Check the system
Check the direction of travel
☞ Drive the door in the CLOSED direction.
The operator must close the door.
☞ Drive the door in the OPEN direction.
The drive must open the door.
If the direction of movement of the door does not match the
button commands, change the direction of rotation.
The direction of movement must then be checked again.
Please refer to the control unit operating manual for
instructions on changing the direction of rotation.
Check the limit switch settings
☞ Drive the door to the CLOSED end position.
The drive must stop in the desired position.
C: Thermal element in the drive
D: Manual emergency control
(emergency crank or emergency chain)
☞ Drive the door to the OPEN end position.
The operator must stop in the desired position.
☞ Check the seat of the xing screws.
Check the mechanical functions
After assembling and installing all components the functions
of the system must be checked.
☞ Check all the functions of the system.
☞ Check that the operator runs smoothly.
☞ Check whether the operator is leaking oil.
If the operator makes unusual noises or leaks oil:
− The operator must be taken out of service immediately,
− The customer service must be informed.
7. Emergency operation
WARNING!
Improper use may result in serious injury!
To avoid injury, the following points must be observed:
− Emergency operation must only be carried out from a
safe standing position.
− Emergency operation must only be carried out when the
motor is stationary.
− The system must be disconnected from the power supply
during emergency operation.
During maintenance works or in the case of an electrical fault,
the door can be moved towards the OPEN or CLOSED positions with the help of the emergency operation equipment.
If the door is moved beyond the CLOSED or OPEN
end positions, the drive can no longer be activated
electrically.
Operation with emergency hand chain
7 / 1
☞ Release the emergency hand chain from its xing.
☞ Move the door in the OPEN or CLOSE direction by pulling on
the emergency hand chain on the side concerned.
Operation with emergency hand crank
7 / 2
☞ Push the emergency hand crank into the operator as far as
it will go.
☞ Move the door in the OPEN or CLOSE direction by turning
the emergency hand crank.
☞ Remove the emergency hand crank from the operator after
completing emergency manual operation.
12 – Sectional door operator STA 1 / Rev. D 0.3 Sectional door operator STA 1 / Rev. D 0.3 – 13
8. Maintenance
EN
Operation with release mechanism
WARNING!
Risk of serious injury due to uncontrolled
movement of the door!
To avoid injury, drive units with a release mechanism
require that a fall protection is mounted on the door.
Without a fall protection, the door does not comply with
directive ASR A1.7.
7 / 3
DANGER!
Danger of fatal electric shock!
☞ Before commencing cabling works, you MUST disconnect
the drive system from the mains supply. Ensure that the
electricity supply remains disconnected throughout the
cabling works.
ATTENTION!
Improper maintenance of the drive can result in
property damage!
To avoid damage to the drive and door, the following points
must be observed:
− Maintenance must only be carried out by authorized
persons.
− Directive ASR A1.7 must be complied with.
− Worn or faulty parts must be replaced.
− Only approved parts must be installed.
− All maintenance work must be documented.
☞ Pull on the red loop.
The gate can be moved manually.
☞ Pull on the green loop.
The door can be moved with the operator.
The drive unit has lifetime lubrication and is maintenancefree.
The hollow shaft must be kept rust-free.
☞ Check that all mountings have been securely tightened.
☞ Check the spring tension on the door.
The springs must be adjusted so that they are weight counterbalanced.
☞ Check the brake (if available).
☞ Check the limit switches and safety switches.
☞ Check for noises and oil leaks.
☞ Check the mounting of the drive for corrosion.
☞ Check the housing for damage.
Faulty parts that have been replaced must be disposed of
properly in accordance with the regulations.
Sectional door operator STA 1 / Rev. D 0.3 – 13
9. Technical data
Type (E / KU / KE):
Driving torque (Nm): 110 100 130 120 110 100
Static holding torque (Nm): 600 600 600 600 600 600
Driving motor speed (min -1): 19 24 15 19 24 30
Motor output (kw): 0.37 0.37 0.55 0.55 0.55 0.55
Operating voltage (V): 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~
Mains frequency Hz: 50 50 50 50 50 50
Control voltage: (V): 24 24 24 24 24 24
Nominal motor current (A): 3.5 / 2.0 3.5 / 2.0 3.1 / 1.8 4.1 / 2.4 4.1 / 2.4 3.5 / 2.0
Maximum no. of operating
cycles per hour *:
Fuse protection on site (A): 10,0 10,0 10,0 10,0 10,0 10,0
Protection type (IP) 54 54 54 54 54 54
STA 1-11-19
STAC 1-11-19
20 20 20 20 20 20
STA 1-10-24
STAC 1-10-24
STA 1-13-15
STAC 1-13-15
STA 1-12-19
STAC 1-12-19
STA 1-11-24
STAC 1-11-24
STA 1-10-30
STAC 1-10-30
Temperature range (°C)**: -20 / +60 -20 / +60 -20 / +60 -20 / +60 -20 / +60 -20 / +60
Continuous sound pressure level
(dB (A)):
Weight per piece (kg): 15 15 15 15 15 15
Maximum number of
revolutions of driven shaft:
Hollow shaft (mm): 25.4 25.4 25.4 25.4 25.4 25.4
< 70 < 70 < 70 < 70 < 70 < 70
20 20 20 20 20 20
* 1 cycle = 1 complete door movement (open and then close the door).
The values given assume an even distribution.
** Temperature ranges < -5 °C: Type of oil and electric heater on request.
14 – Sectional door operator STA 1 / Rev. D 0.3
EN
Type (E / KU / KE):
Driving torque (Nm): 130 120 110 100 70
Static holding torque (Nm): 600 600 600 600 600
Driving motor speed (min -1): 15 19 24 30 19
Motor output (kw): 0.55 0.55 0.55 0.55 0.37
Operating voltage (V): 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~ 230 / 400 / 3~ 230 / 1~
Mains frequency Hz: 50 50 50 50 50
Control voltage: (V): 24 24 24 24 24
Nominal motor current (A): 3.1 / 1.8 3.0 / 1.7 3.0 / 1.7 3.0 / 1.7 6.2
Maximum no. of operating
cycles per hour *:
Fuse protection on site (A): 10,0 10,0 10,0 10,0 10,0
Protection type (IP) 54 54 54 54 54
STA 1-13-15HDSTA 1-12-19
HD
30 30 30 30 8
STA 1-11-24HDSTA 1-10-30HDSTAW 1-7-19
STAWC 1-7-19
Temperature range (°C)**: -20 / +60 -20 / +60 -20 / +60 -20 / +60 -20 / +60
Continuous sound pressure level
(dB (A)):
Weight per piece (kg): 23 23 23 23 23
Maximum number of
revolutions of driven shaft:
Hollow shaft (mm): 25.4 25.4 25.4 25.4 25.4
< 70 < 70 < 70 < 70 -
20 20 20 20 20
* 1 cycle = 1 complete door movement (open and then close the door).
The values given assume an even distribution.
** Temperature ranges < -5 °C: Type of oil and electric heater on request.
Sectional door operator STA 1 / Rev. D 0.3 – 15
Technical data
STA/STAW 1 E
9 / 1
104
A 4x M8x16 deep, on both sides
6.35
3.5
245
140
105
55
25.4
55
108
145
120
369102
A
166
50
STA/STAW 1 KE
9 / 2
102
104
6.35
3.5
245
140
105
25.4
55
409
120
55
108
145 90
A
166
A 4x M8x16 deep, on both sides
16 – Sectional door operator STA 1 / Rev. D 0.3
STA/STAW 1 KU
EN
9 / 3
102
104
A 4x M8x16 deep, on both sides
6.35
3.5
245
140
105
55
25.4
55
108
145
399
120
A
166
80
STA/STAW 1 E - HD
9 / 4
136
104
6.35
3.5
245
140
105
25.4
55
120
55
108
145
336
A
183
A 4x M8x16 deep, on both sides
Sectional door operator STA 1 / Rev. D 0.3 – 17
55
55
108
120
6.35
3.5
25.4
105
140
245
145
A
104
136
180
396
63
Technical data
STA/STAW 1 KE - HD
9 / 5
191 105
104
A 4x M8x16 deep, on both sides
3.5
245
140
6.35
105
25.4
120
55
55
438
180150
A
108
145
STA/STAW 1 KU - HD
9 / 6
A 4x M8x16 deep, on both sides
18 – Sectional door operator STA 1 / Rev. D 0.3
STAC/STAWC 1 E
EN
9 / 7
104
A 4x M8x16 deep, on both sides
6.35
3.5
245
140
105
25.4
55
369102
120
A
55
108
145 50
166
STAC/STAWC 1 KE
9 / 8
104
6.35
3.5
245
140
105
25.4
55
406102
120
55
108
145 90
A
166
A 4x M8x16 deep, on both sides
Sectional door operator STA 1 / Rev. D 0.3 – 19
Technical data
STAC/STAWC 1 KU
9 / 9
102
104
A 4x M8x16 deep, on both sides
6.35
3.5
245
140
105
55
25.4
55
108
145
399
120
A
166
80
20 – Sectional door operator STA 1 / Rev. D 0.3
EN
Sectional door operator STA 1 / Rev. D 0.3 – 21
10. Manufacturer‘s Declaration
Declaration of incorporation
within the context of Machinery Directive 2006/42/EC for incorporation in an
incomplete machine according to Appendix II, Part 1B
MFZ Antriebe GmbH & Co.KG
Neue Mühle 4
D - 48739 Legden
Declaration of conformity
within the context of the directives on Electromagnetic Compatibility 2014/30/EU and RoHS 2011/65/EU
We hereby declare that the following listed product
Product designation: Sectional door operator
Type designation: STA1
as an incomplete machine specied exclusively for integration with a door system and designed, constructed, and produced in
conjunction with the following directives:
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/EU
RoHS Directive 2011/65/EU
Furthermore, the requirements of the Low-Voltage Directive 2014/35/EU are met according to Appendix I Part 1.5.1
of the Machinery Directive 2006/42/EC.
Applied and consulted standards:
EN 12453 Doors - Safety in use of power operated doors: Requirements and test methods
EN 12604 Doors - Mechanical aspects: Requirements and test methods
EN 60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements
EN 60335-2-103 Household and similar electrical appliances - Safety - Part 2-103: Particular requirements for drives for gates, doors and windows
EN 61000-6-2 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity standard for industrial environments
EN 61000-6-3 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and
light-industrial environments
The special technical documents were created according to Appendix VII Part B of the Machinery Directive (2006/42/EC).
We are obligated to transmit these to market monitoring agencies in a timely manner upon justied request in electronic form.
Authorised representative for compiling the technical documents:
MFZ Antriebe GmbH & Co. KG - Neue Mühle 4 - 48739 Legden - Germany
Incomplete machines within the context of EC Directive 2006/42/EC are therefore only specied for incorporation with other machines
or with other incomplete machines or systems or combined with them to form a machine within the contact of the directive indicated
above. For this reason, this product may only be commissioned once it has been determined that the complete machine /system into
which it has been incorporated corresponds with the indicated EC guidelines.
22 – Sectional door operator STA 1 / Rev. D 0.3
In case of changes to the product that are not conrmed by us, this declaration is void.
Legden, dated 01.07.2018
Dirk Wesseling, General Manager
EN
Sectional door operator STA 1 / Rev. D 0.3 – 23
#1700007835
#97609
Loading...
