MF Digital SA 3000 User Manual

Scribe SA Standalone Series Operator’s Guide
(With SA Client Application)
Page 1
Scribe SA Standalone Series Operator’s Guide
Table of Contents
WELCOME TO THE SCRIBE SA STANDALONE SYSTEM .............................................................................4
COPYRIGHT NOTICE ...................................................................................................................................................4
RECORDER WARRANTY POLICY .................................................................................................................................4
PIRACY .......................................................................................................................................................................4
END USER LICENSE AGREEMENT ...............................................................................................................................5
ABOUT MF DIGITAL ................................................................................................................................................ 6
WHAT TO EXPECT FROM YOUR MF DIGITAL CD / DVD DUPLICATOR ...................................................................6
ABOUT THIS MANUAL................................................................................................................................................ 6
GETTING STARTED.................................................................................................................................................7
WHAT’S IN THE BOX.................................................................................................................................................. 7
PACKING MATERIALS.................................................................................................................................................7
THE BEST PLACE TO PUT THE SCRIBE SA STANDALONE ...........................................................................................7
SAFETY PRECAUTIONS................................................................................................................................................8
LOCATION OF CD-R/RW AND DVD ±R/±RW RECORDER PARTS AND CONTROLS..............................9
LCD DISPLAY SCREEN AND KEYPAD ........................................................................................................................ 9
MF DIGITAL DRIVE .................................................................................................................................................... 9
REMOVING PACKING RESTRAINTS................................................................................................................10
INPUT BIN AND OUTPUT SPINDLE .............................................................................................................................10
SYSTEM STARTUP ................................................................................................................................................. 10
GENERAL OPERATION ........................................................................................................................................13
FUNCTION KEYS .......................................................................................................................................................13
THE COPY AND COMPARE BUTTONS ............................................................................................................. 23
ALIGNING THE DRIVES – IF NEEDED (PRE-ALIGNED AT FACTORY) ..........................................................................27
SELECTING THE PRINTER ..........................................................................................................................................29
ALIGNING THE PRINTER – IF NEEDED (PRE-ALIGNED AT FACTORY)......................................................................... 30
CREATING A HARD DISK IMAGE .....................................................................................................................32
CREATING A SINGLE HARD DISK IMAGE.................................................................................................................. 32
CREATING MULTIPLE HARD DISK IMAGES ............................................................................................................... 35
COPYING FROM A HARD DISK IMAGE...........................................................................................................39
MULTIPLE IMAGES DISABLED ..................................................................................................................................39
MULTIPLE IMAGES ENABLED ...................................................................................................................................41
COMPARING FROM A HARD DISK IMAGE .................................................................................................... 44
MULTIPLE IMAGES DISABLED ..................................................................................................................................44
MULTIPLE IMAGES ENABLED ...................................................................................................................................46
ENABLING VERIFY AFTER COPY ..............................................................................................................................48
ERASING CD-RW/DVD-RW DISCS .....................................................................................................................50
Page 2
Scribe SA Standalone Series Operator’s Guide
CREATING .PRN FILES (PRISM PLUS PRINTER) ..........................................................................................51
CREATING .PRN FILES (INKJET PRINTER) ...................................................................................................52
UTILIZING .PDF FILES FOR PRINTING (COMMAND MODULE CLIENT ONLY)..................................53
UTILIZING THE PRINTER OPTION...................................................................................................................55
COPY AND PRINT ......................................................................................................................................................55
PRINT ONLY .............................................................................................................................................................56
VIEWING DEVICE INFORMATION ...................................................................................................................60
SETTING THE INTERNAL CLOCK ....................................................................................................................61
FIRMWARE UPDATES ..........................................................................................................................................63
QUICK SETUP GUIDE FOR THE SCRIBE SA STANDALONE SERIES CLIENT APPLICATION .......... 65
UTILIZING THE SCRIBE SA STANDALONE SERIES CLIENT ....................................................................66
CONFIGURING THE SCRIBE SA STANDALONE SERIES ...............................................................................................66
INSTALLING THE SA CLIENT APPLICATION ..............................................................................................................68
UTILIZING THE SA CLIENT APPLICATION .................................................................................................................69
Page 3
Scribe SA Standalone Series Operator’s Guide
Welcome to the Scribe SA Standalone System
Copyright Notice
Copyright ©2003,2004,2005 by MF DIGITAL. All rights reserved.
This manual and the accompanying illustrations may not be copied, reproduced, electronically transmitted, or translated into another language, in whole, or in part, without the written consent of MF DIGITAL.
MF DIGITAL, 5000 series, Director EC, Scribe EC, Scribe EC Standalone, are trademarks of MF DIGITAL.
Other trademarks referred to are the property of their respective trademark or registered trademark holders.
Recorder Warranty Policy
Individual CD-R/RW recorder manufacturers are responsible for the products they provide. As a convenience, MF DIGITAL will honor any service issue related to a defective recorder while under its respective manufacturer’s warranty providing that the recorder has been purchased from MF DIGITAL either directly or indirectly. MF DIGITAL assumes no responsibility for products NOT purchased through MF DIGITAL.
Piracy
The copying of audio, video, or software without the permission of the copyright holder is illegal. MF DIGITAL. accepts no responsibility for the copyright use or misuse of this equipment. It is the sole responsibility of the user to ensure that the legal rights of copyright in duplicating are respected.
Corporate Headquarters: MF DIGITAL
155 Sherwood Avenue Farmingdale, NY 11735 Tel: 001 631 249 9393 Fax: 001 631 249 9273 Email: mailto:documentation@mfdigital.com
http://www.MFDIGITAL.com
Page 4
Scribe SA Standalone Series Operator’s Guide
End User License Agreement
• You have acquired a device (“Scribe SA Standalone Series CD-R/RW duplicator”) that includes software licensed by MF
DIGITAL from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THIS DEVICE OR
COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT MF DIGITAL FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE (S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT.)
• GRANT OF SOFTWARE LICENSE. This EULA grants you the following license: ⇒ You may use the SOFTWARE only on the DEVICE. ⇒ NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. MF DIGITAL HAS
INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON MF DIGITAL TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.
⇒ NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “AS IS” and with all faults.
THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE
DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
⇒ Note on Java Support. The SOFTWARE may contain support for programs written in Java. Java technology is
not fault tolerant and is not designed, manufactured, or intended for use or resale as online control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life-support machines, or weapons systems, in which the failure of Java technology could lead directly to death, personal injury, or severe physical or environmental damage. Sun Microsystems. has contractually obligated MS to make this disclaimer.
⇒ No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO-HUNDRED FIFTY DOLLARS (U.S. $250.00).
⇒ Limitations on Reverse Engineering, De-compilation, and Disassembly. You may not reverse engineer, de-
compile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding the limitation.
⇒ SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights
under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE.
⇒ EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is of US-origin. You agree to comply with
all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and country destination restrictions issued by U.S. and other governments. For additional information on exporting the SOFTWARE, see http://www.microsoft.com/exporting/.
Page 5
Scribe SA Standalone Series Operator’s Guide
About MF DIGITAL
Thank you for purchasing MF DIGITAL’s Scribe SA Standalone auto­loading CD / DVD duplicator. MF DIGITAL manufactures a wide variety of CD / DVD duplication equipment, including manual and fully automated CD and DVD duplicators and printers. We hope you will consider us for all of your duplication needs.
What To Expect From Your MF DIGITAL CD / DVD Duplicator
Your MF DIGITAL Scribe SA Standalone duplicator is professionally designed and manufactured to give you years of trouble free operation. To avoid accidental damage to your new duplicator, please read and understand this manual thoroughly before operating the unit.
About This Manual
This manual is written for both novice and experienced users. Please read through this Operator’s Guide from beginning to end before using the unit. Once having read the manual, follow along chapter by chapter. This will provide the necessary understanding of your new Scribe SA Standalone duplicator.
Page 6
Getting Started
Carefully remove the Scribe SA Standalone duplicator from the shipping container. Inspect the contents, and verify them against the packing slip. Report any errors in shipping as soon as possible.
What’s In The Box
Your new Scribe SA Standalone duplicator includes:
• Scribe SA Standalone duplicator
• Power cord
• Firmware CD
• Manuals CD
• Operator’s Guide (on CD)
• Quick Connect Guide
Packing Materials
Please retain the original box and packaging in the event that the unit requires future servicing. This will help to reduce the possibility of damage occurring in transit. Should you lose or misplace your carton, a new one will need to be purchased from MF Digital.
The Best Place To Put The Scribe SA Standalone
The best operating location for the Scribe SA duplication system is in a climate controlled area, free of dirt, dust, humidity, excessive heat, and electronic or electromagnetic interference. Room temperature should be between 65 and 75 degrees Fahrenheit, or between 18 and 23 degrees Celsius. Place the Scribe SA on a solid, steady work surface and allow sufficient room for all incidental work materials. Provide at least six inches of clearance on all sides of the unit for ventilation.
Like all automated copiers, the Scribe uses photo sensors that can be adversely affected by direct light sources. Avoid placing the system in direct sunlight, under halogen or mercury vapor lights, or other close and very bright light sources. If your Scribe is behaving erratically, and it is in close proximity to bright light, or focused lighting such as spot lights, try moving it to an area with more subdued lighting. If the unit operates normally, then you may need to remove or adjust the light source, or relocate the Scribe to a different spot.
Page 7
Scribe SA Standalone Series Operator’s Guide
Safety Precautions
The system is shipped with a three-prong power connector, and must be used with a properly grounded AC receptacle. DO NOT try to defeat the third “ground” prong. All computer peripherals must be properly grounded, and the Scribe SA Standalone is no exception. The use of a power conditioner, such as an Uninterruptible Power Supply (UPS) or a surge protector, is highly recommended. The minimum required size is 500VA.
Repairs or alterations should only be attempted by authorized, factory­trained technicians. MF DIGITAL reserves the right to void the warranty if unauthorized service is performed.
Page 8
Scribe SA Standalone Series Operator’s Guide
Location Of CD-R/RW and DVD ±R/±RW Recorder Parts And Controls
LCD Display Screen And Keypad
Note: For the purposes of this manual. The above screen shot will be used for
demonstration purposes only. Your LCD and keypad will differ slightly but all the functions explained in this manual are identical
MF Digital Drive
Legend
1. Disc tray - Discs are loaded and removed from this tray. Pressing the eject button will open the tray when the
power is switched on to the Scribe EC Standalone.
2. Emergency eject pinhole - In the event that the disc tray will not open by pressing the eject button, insert the
tip of a large paper clip into this hole and push.
3. Read and write status LEDs - These indicators light up when the recorder is reading or writing.
4. Eject button - This button is used to open or close the disc tray.
Page 9
Scribe SA Standalone Series Operator’s Guide
Removing Packing Restraints
The Scribe SA Standalone ships with a picker arm restraint to reduce the possibility of damage in transit. This restraint must be removed before operation or power-on. Gently remove the zip tie and foam from around the transfer arm. Save the foam tube, as you will need to return it to its place when transporting the unit in the future.
Input Bin and Output Spindle
The input bins and the output spindle serve as the containers to store from 250 discs up to 600 discs depending on printer option. The input bins become output bins once the output spindle is full.
System Startup
Before duplicating can begin it is necessary to review a few details.
0
• Verify that the voltage selector switch is set correctly. It is located
between the two power receptacles. The Scribe SA Standalone supports both 115 VAC and 230 VAC at 50 ~ 60 Hz. Please confirm that the appropriate voltage (115 VAC for North America) has been selected.
• Next, plug one end of the supplied power cord into the receptacle at the
rear of the unit.
CAUTION
Always use properly grounded receptacles or severe damage to
your system may result. The use of a surge protector or
Uninterruptible Power Supply (UPS) is highly recommended.
Page 10
Scribe SA Standalone Series Operator’s Guide
• Make sure you power on the unit using the primary power switch
located on the back of the Scribe SA Standalone. You must also power on the drive bay. That switch is located at the front of the drive bay itself.
• Once the proper voltage setting has been confirmed, it is time to turn on
the unit. Wait a minute or two while the system starts up. The screen will now read:
Page 11
Scribe SA Standalone Series Operator’s Guide
After the startup routine is complete, a series of self-diagnostics will be performed. The screen will now read in sequence:
Once complete, the unit will display the main operating screen:
Page 12
Scribe SA Standalone Series Operator’s Guide
General Operation
The Scribe SA Standalone is extremely versatile and offers many useful and powerful features.
Function Keys
Various uses for the Scribe SA Standalone will be explained throughout this Operator’s Guide. The following section explains the purpose of the function keys.
The numeric keys on the keypad have special functions. When the main operating screen is displayed:
• Press the “0” key on the keypad. The screen will now read:
The factory setting for this function is “Copy”. The “Simulate” mode is a diagnostic tool, which is useful for testing the readability of a master disc, without actually writing to blank discs loaded into the recorders. It is also helpful for training purposes, and for experimenting with various system functions.
• Press the “1” key to select “Copy” or the “2” key to select
“Simulate”. After pressing either key, you will be returned to the main operating screen.
Page 13
Scribe SA Standalone Series Operator’s Guide
• Press the “1” key on the keypad. Something similar to the following will be
displayed on the screen in sequence:
• As indicated by the red square, this is the version information of the
firmware currently installed on the Scribe SA Standalone.
• This displays the image size on the internal hard disk, time and date.
• This displays the Verify After status of the Scribe SA Standalone.
The Verify After function will verify a copied disc against the master disc immediately after it has been copied.
Page 14
Scribe SA Standalone Series Operator’s Guide
• This displays the Multiple Images status of the Scribe SA
Standalone. Multiple images allows the user to store up to 6 separate master images on the internal Hard Drive.
• This displays the Installed Memory of the Scribe SA Standalone.
• This displays the number of good and bad copies that were produced
to date on the system
• Press the “2” key on the keypad. You will see several functions
scroll across the screen. Select a function by pressing the corresponding number on the keypad. Enable or disable the function by pressing the “Start/Yes” or “Stop/No” key.
• 0- The factory setting for this function is disabled. When enabled,
the Verify After feature automatically compares discs to the master disc or hard disk image after copying is completed. Due to the nature of the various compact disc formats, only CD-ROM Mode 1, CD-
Page 15
Scribe SA Standalone Series Operator’s Guide
ROM Mode 2, CD-ROM XA Mode 2 Form 1, and audio (CD-DA) discs can be compared.
• 1- The factory setting for this function is disabled. When enabled,
the Multiple Images feature allows up to six images to be stored on the hard disk drive at one time. This setting will remain in effect until disabled, even after restarting the Scribe SA Standalone.
• 5- Pressing the “5” key will give you the option to choose a printer
or disable the printer option. See the Utilizing the Printer Option section of this manual for more information.
• 7-Pressing the “7” key will give you the option to seperate the bins
for DVDs and CDs. This is called Spindle Selection. When this selection is enabled, the bins are separated as follows. Input Bin #1 is for for CDs, Input Bin #2 is for DVDs. Input #3 (if no printer is used) is disabled. The Output Spindle will be used for both CDs and DVDs.
• Not used.
Page 16
Scribe SA Standalone Series Operator’s Guide

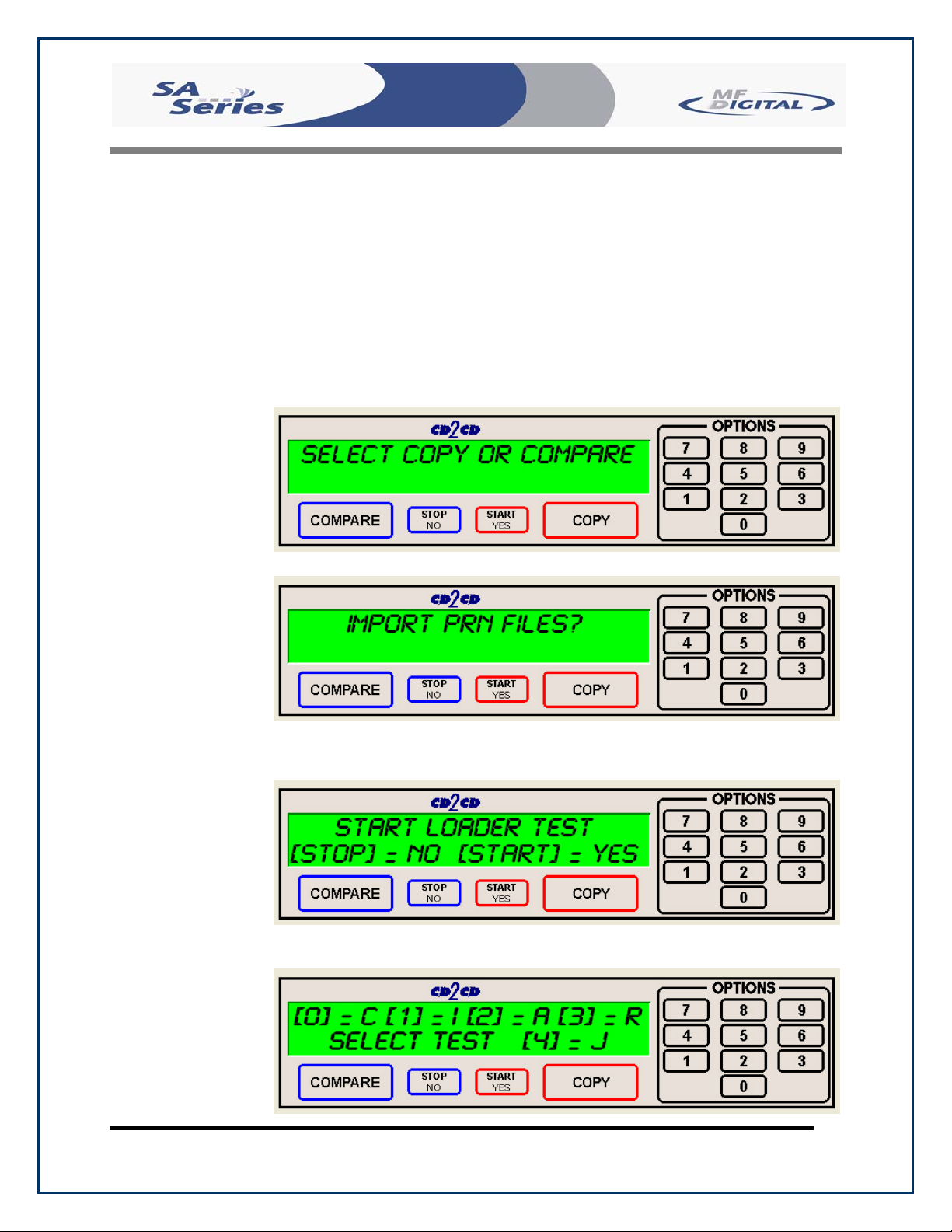

• Pressing the “4” key on the keypad will first display the option for
importing PRN files.
• Pressing “Stop/No” Button will now display
• When selected, the Loader Test Mode function allows you to
manually control the robotic functions of the system, this features aids you in troubleshooting the robotic functions. The commands are explained below.
• “C”- calibrates the picking arm
• “I”- loads a disc into the open drive from the input spindle
• “A”- unloads the disc and places it on the accept spindle.
• “R”- key puts the disc in the rejection area in front of the drive
tower.
• “J” – retrieves a disc from the input hopper and hovers above
an open drive tray.
• Press the “Stop/No” key to exit
Page 17
Scribe SA Standalone Series Operator’s Guide
• If you pressed the “Stop/No” key for Loader Tester you will be
prompted to align the printer.
• Please see the Aligning the Printer section of this manual for further
instructions.
• Press the “5” key on the keypad. The screen will now read:
• By using the Audio Track Import feature, audio compilation discs
can be created one track at a time from one or more masters.
• Manually place an audio master disc into drive number 1.
• Press the “Start/Yes” key
• Press the number of the track you wish to import and press the
“Start/Yes” key. Only one track may be imported at a time. All of the tracks will create one master image on the hard drive.
• Once you have imported all of the tracks, copy the image you just
created from the hard drive as you normally would.
• Press the “6” key on the keypad. Something similar to the following
will be displayed in sequence:
•
Page 18
Scribe SA Standalone Series Operator’s Guide
This display is the device information for each of the recorders installed in the Scribe SA Standalone. This includes their host number, model name, and firmware version.
• Press the “7” key on the keypad. The screen will now read:
• Press the “Start/Yes” key to clear the hard drive.
If the “Stop/No” key is pressed you will be prompted to set the
“System Time.”
• Press the “Start/Yes” key to set the system time.
If the “Stop/No” key is pressed you will be prompted to “Read
ATIP.”
When selected, the ATIP function allows you to determine the manufacturer of the CD-R placed in drive 1 of the Scribe SA Standalone. (Not available on DVD)
Page 19
Scribe SA Standalone Series Operator’s Guide
• If you pressed the “Stop/No” key at you will be prompted to “Set the Drive Order”:
• Press the “Stop/No” key if you do not want to reset the drive order. Press the “Start/Yes” key and you will then see the following screen:
• All of the drives will open at this time:
• Close the drive tray of the drive you would like to be drive number
“1”. It can be any one of the drives. You will then see the following screen:
• Close the remaining drives in the order that you would like them to read and the Scribe SA Standalone will reboot.
Page 20
Scribe SA Standalone Series Operator’s Guide

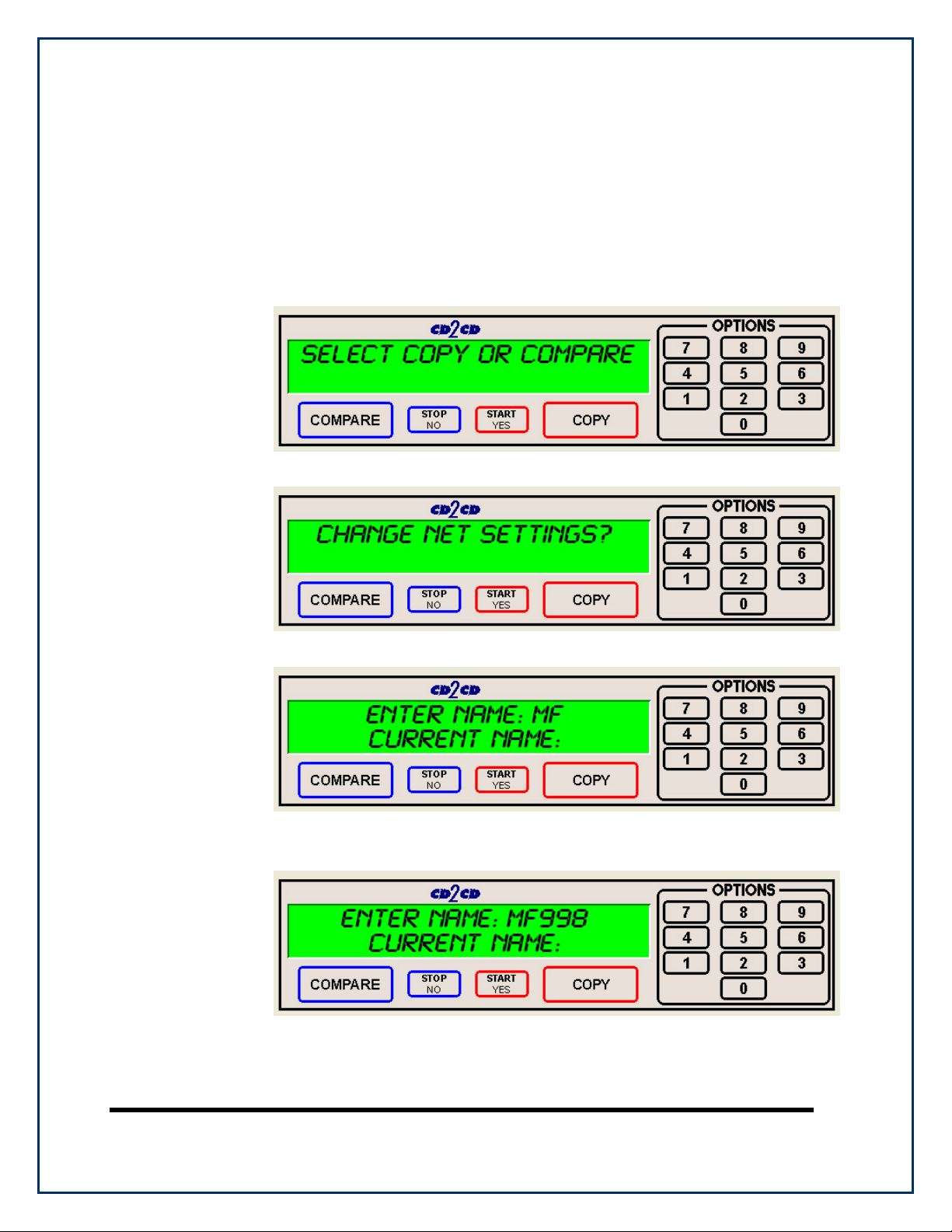

• If you pressed “Stop/No” to “Set Drive Order”, you will be prompted to “Change Network Settings”. Pressing “Start/Yes” will allow you to set-up the network client feature. Please see Utilizing the SA Client Application section (p. 65) for further details. Pressing “Stop/No” will bring you back to the “Select Copy or Compare” screen.
• Press the “8” key on the keypad. The screen will now read:
The factory setting for this function is “MAX” for CD and DVD. When selected, the Select Recording Speed feature allows you to set the copying speed as determined by the capabilities of the recorders installed in the Scribe SA Standalone. Drive manufacturer approved media is also an important factor. You will be prompted to select the CD-R Recording Speed first, then DVD-R Speed. The “Stop/No” button will not function for this option.
• CDR Speed = Press the “0” key, the “1” key or “2” key depending on your choice. After your selection the screen will now read:
Page 21
Scribe SA Standalone Series Operator’s Guide
• DVD Speed = Press the “0” key, the “1” key or “2” key depending on your choice. After your selection the screen will now read:
:
• You will then be returned to the main operating screen that reads, “Select Copy or Compare”
Note: There is no option to skip past the CD-R recording speed, if
you are merely selecting this option to slow down the recording speed for DVD-R Recording, you will need to first select the CD-R recording speed to advance to next screen to do so.

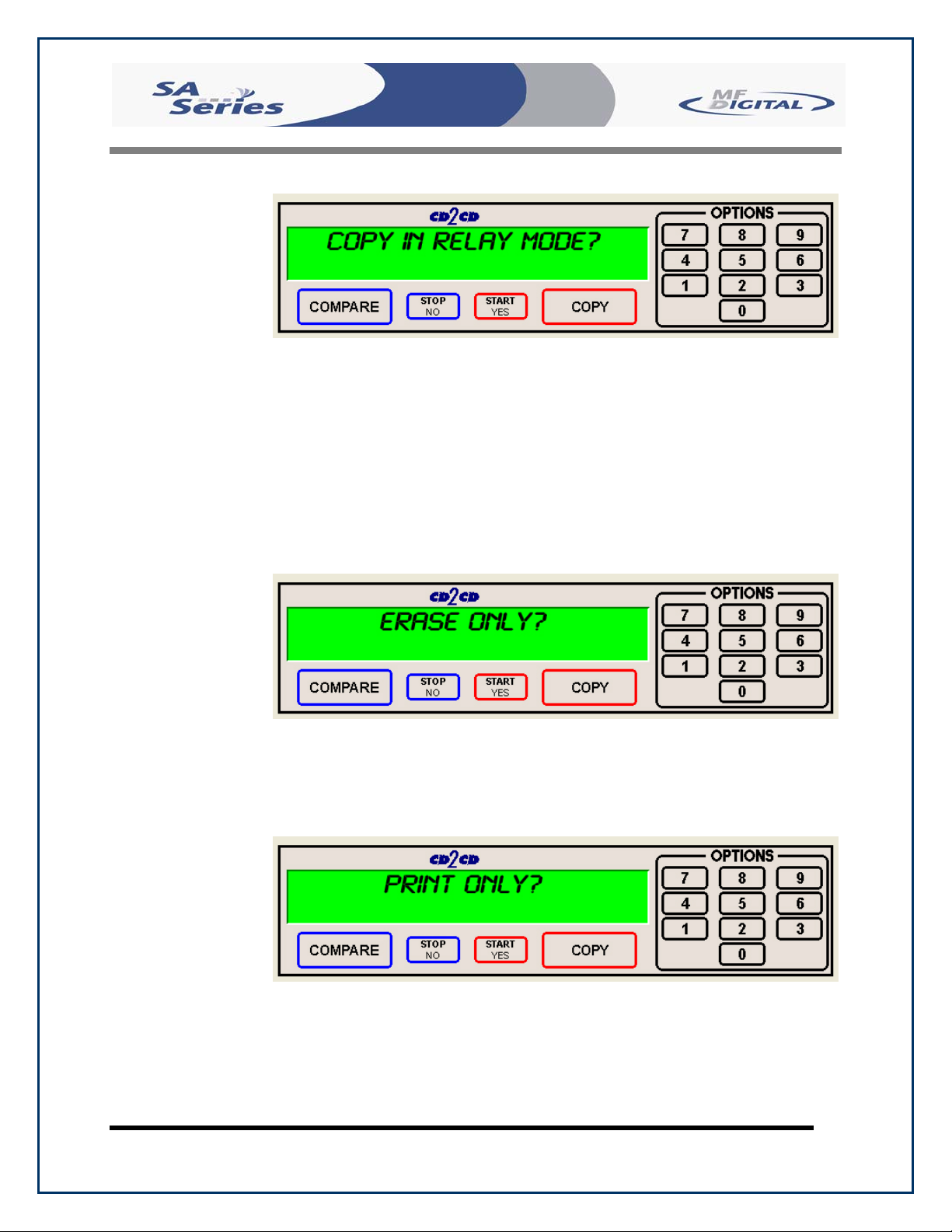

• Press the “9” key on the keypad. Something similar to the following
will be displayed in sequence:
Page 22
Loading...
+ 50 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
