Scribe EC Standalone Series
Operator’s Guide
Scribe EC Standalone Series
Document Revision: 011804
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Table of Contents
WELCOME TO THE SCRIBE EC STANDALONE SYSTEM.............................................................................6
COPYRIGHT NOTICE ...................................................................................................................................................6
CD-R/RW RECORDER WARRANTY POLICY ...............................................................................................................6
PIRACY .......................................................................................................................................................................7
END USER LICENSE AGREEMENT ...............................................................................................................................8
ABOUT MF DIGITAL.............................................................................................................................................. 11
WHAT TO EXPECT FROM YOUR MF DIGITAL CD DUPLICATOR............................................................................11
ABOUT THIS MANUAL.............................................................................................................................................. 11
GETTING STARTED...............................................................................................................................................12
WHAT’S IN THE BOX................................................................................................................................................ 12
PACKING MATERIALS...............................................................................................................................................12
THE BEST PLACE TO PUT THE SCRIBE EC STANDALONE .........................................................................................12
SAFETY PRECAUTIONS..............................................................................................................................................13

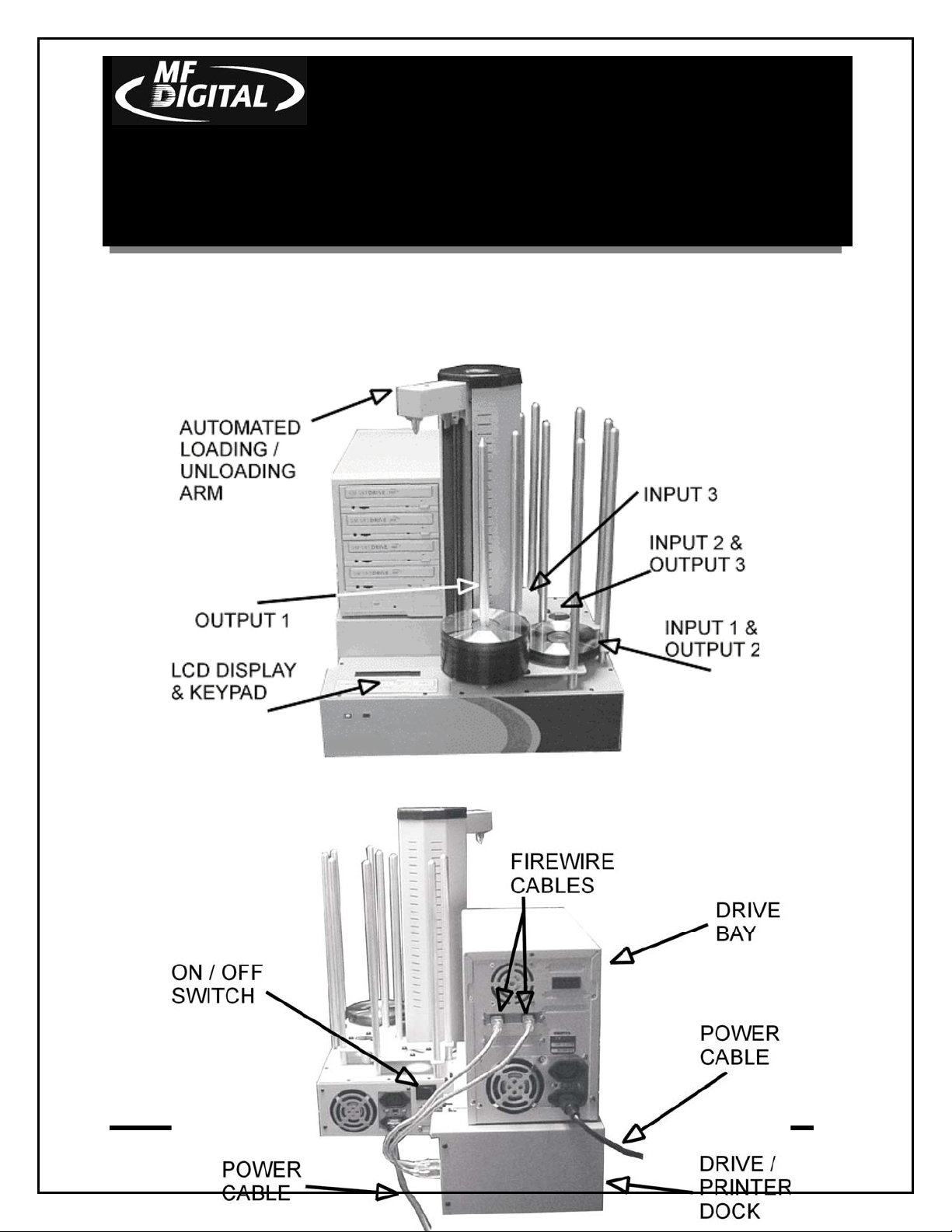

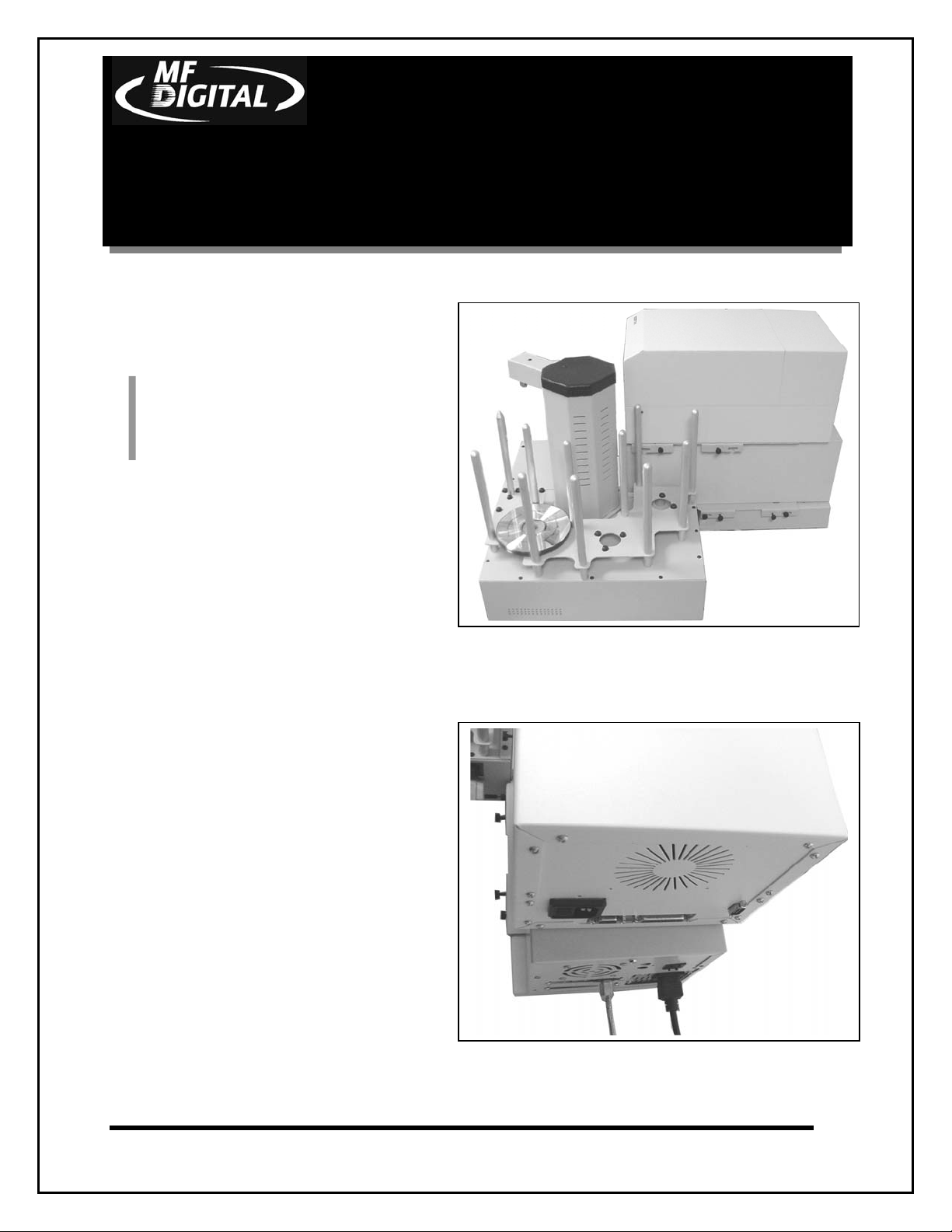

LOCATION OF SCRIBE EC STANDALONE COMPONENTS........................................................................14
FRONT VIEW.............................................................................................................................................................14

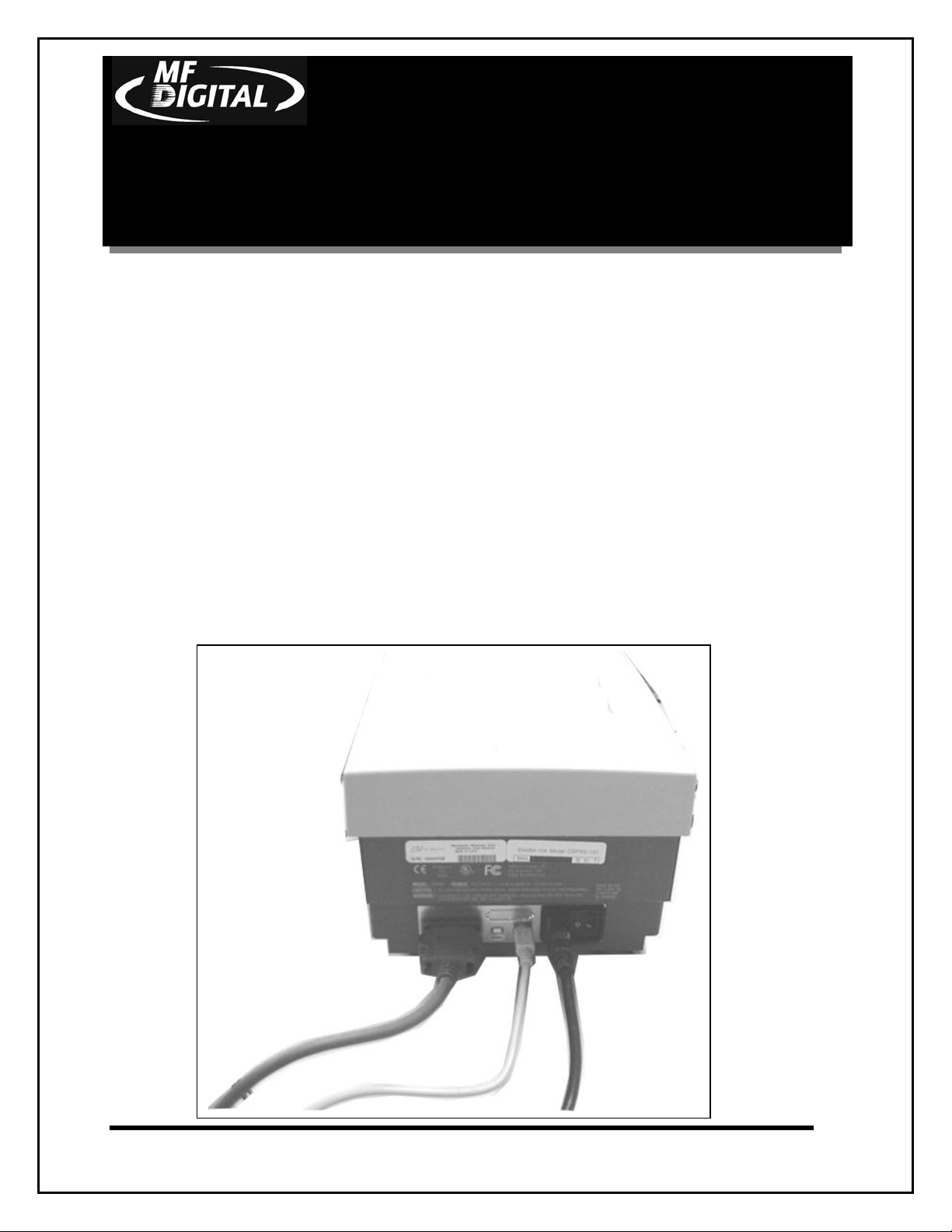

REAR VIEW ..............................................................................................................................................................14
LOCATION OF CD-R/RW AND DVD ±R/±RW RECORDER PARTS AND CONTROLS............................15

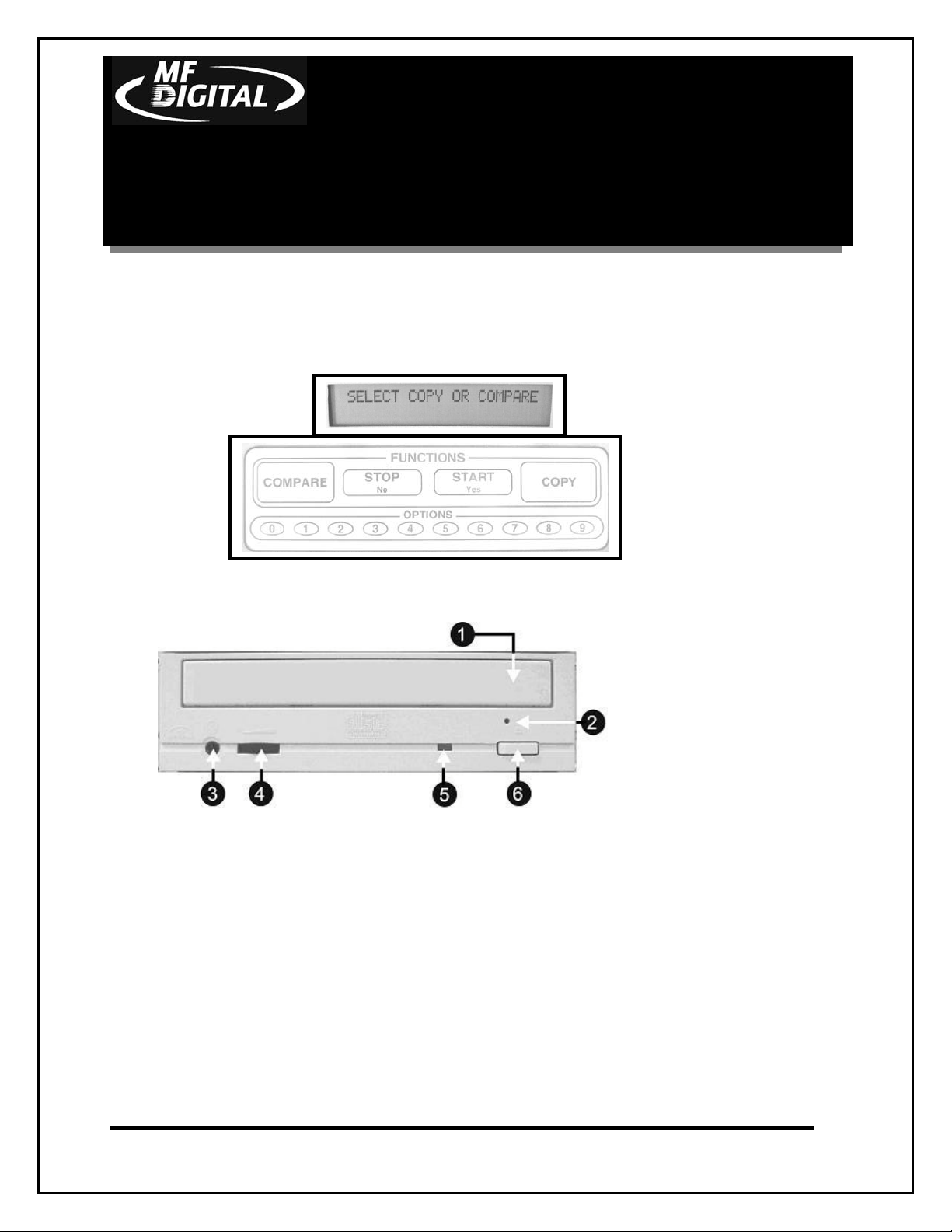

LCD DISPLAY SCREEN AND KEYPAD ......................................................................................................................15
MF DIGITAL PRODRIVE 52X ..................................................................................................................................15

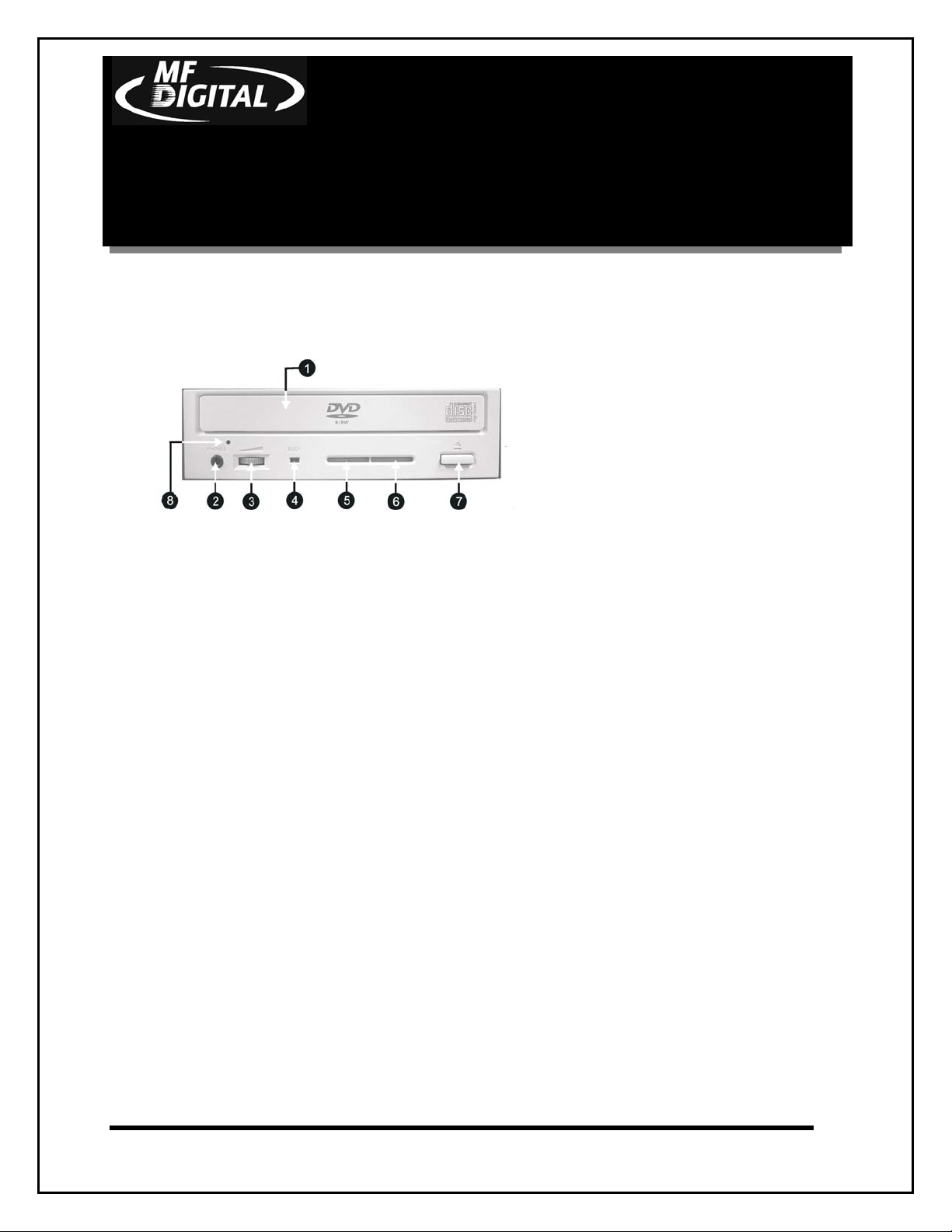

PIONEER A06 DVD-R/RW ......................................................................................................................................16

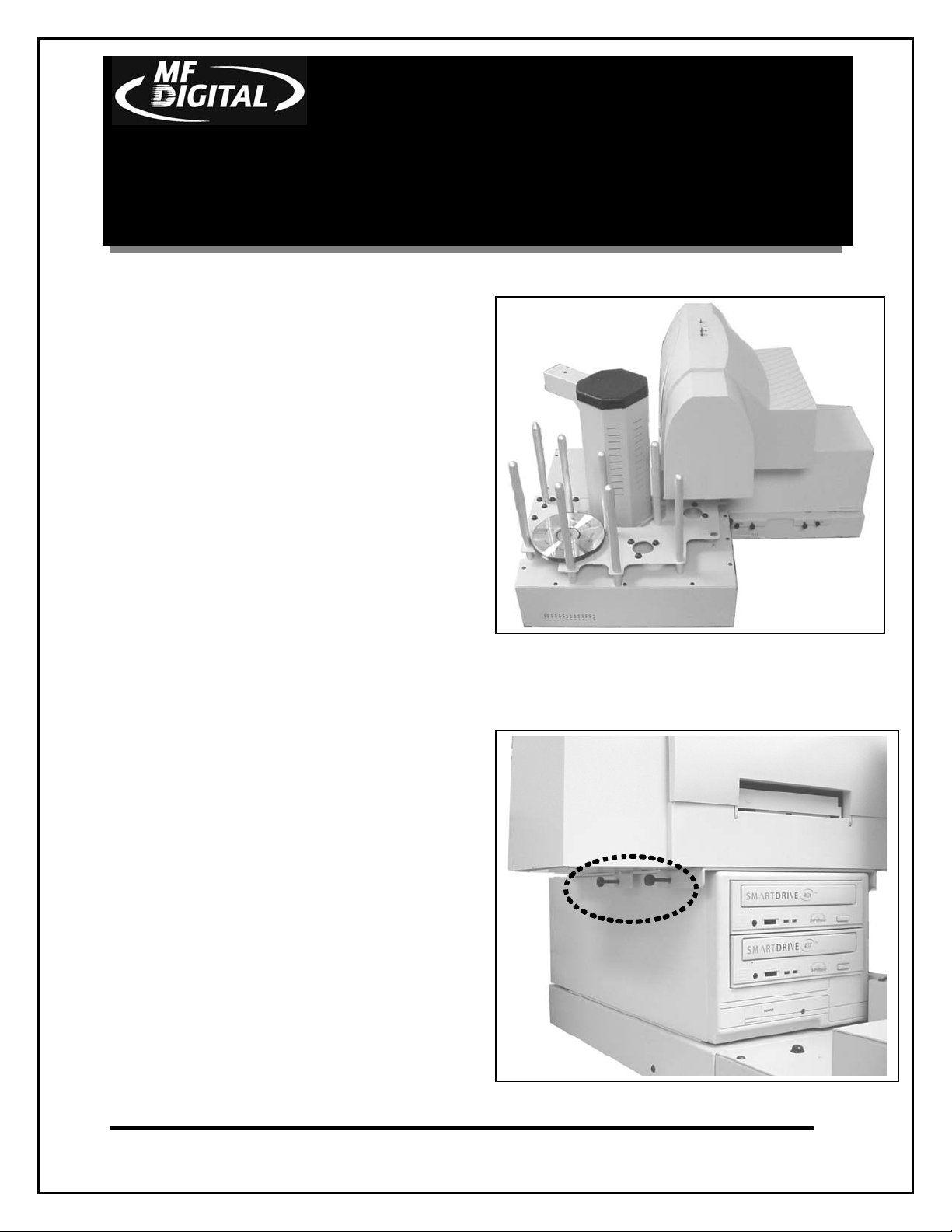

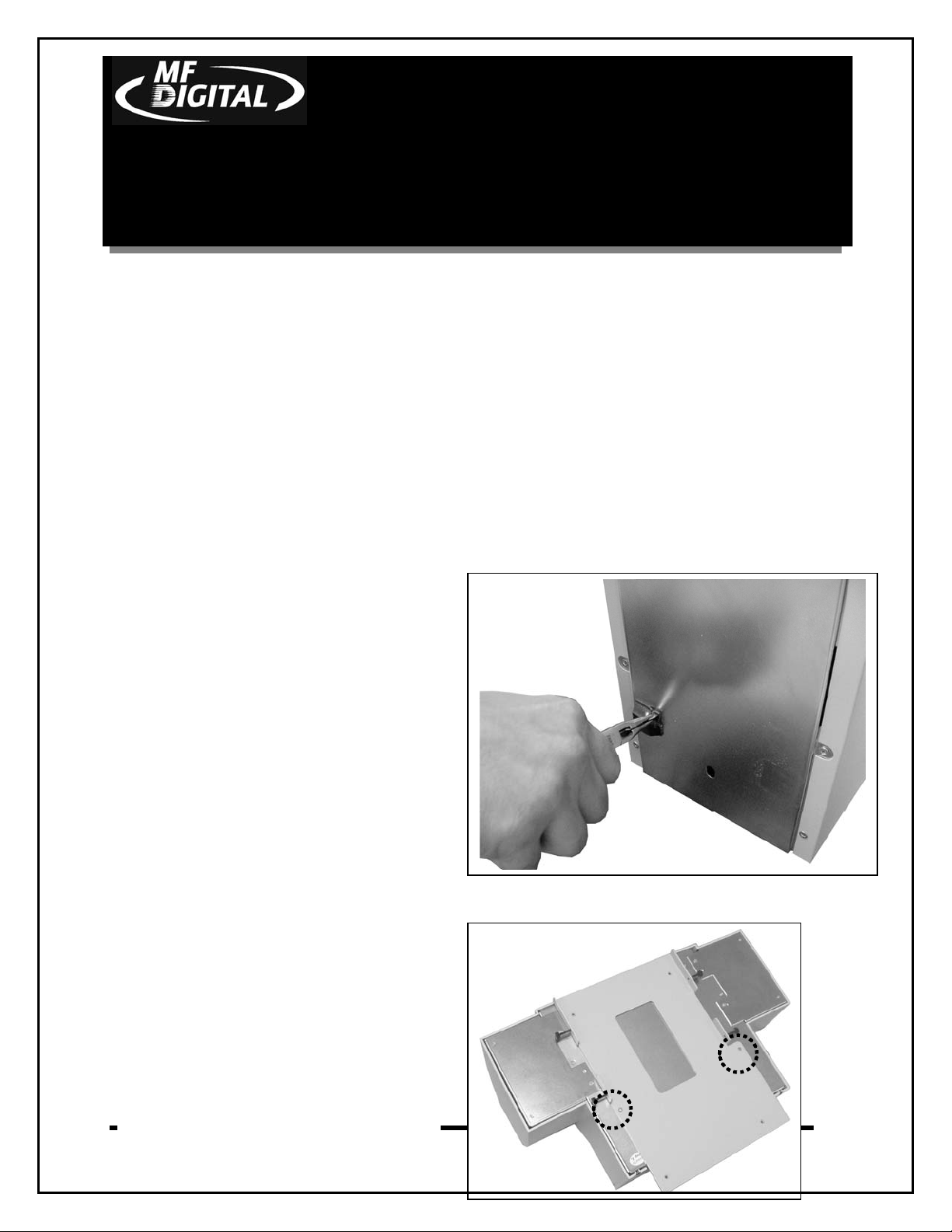

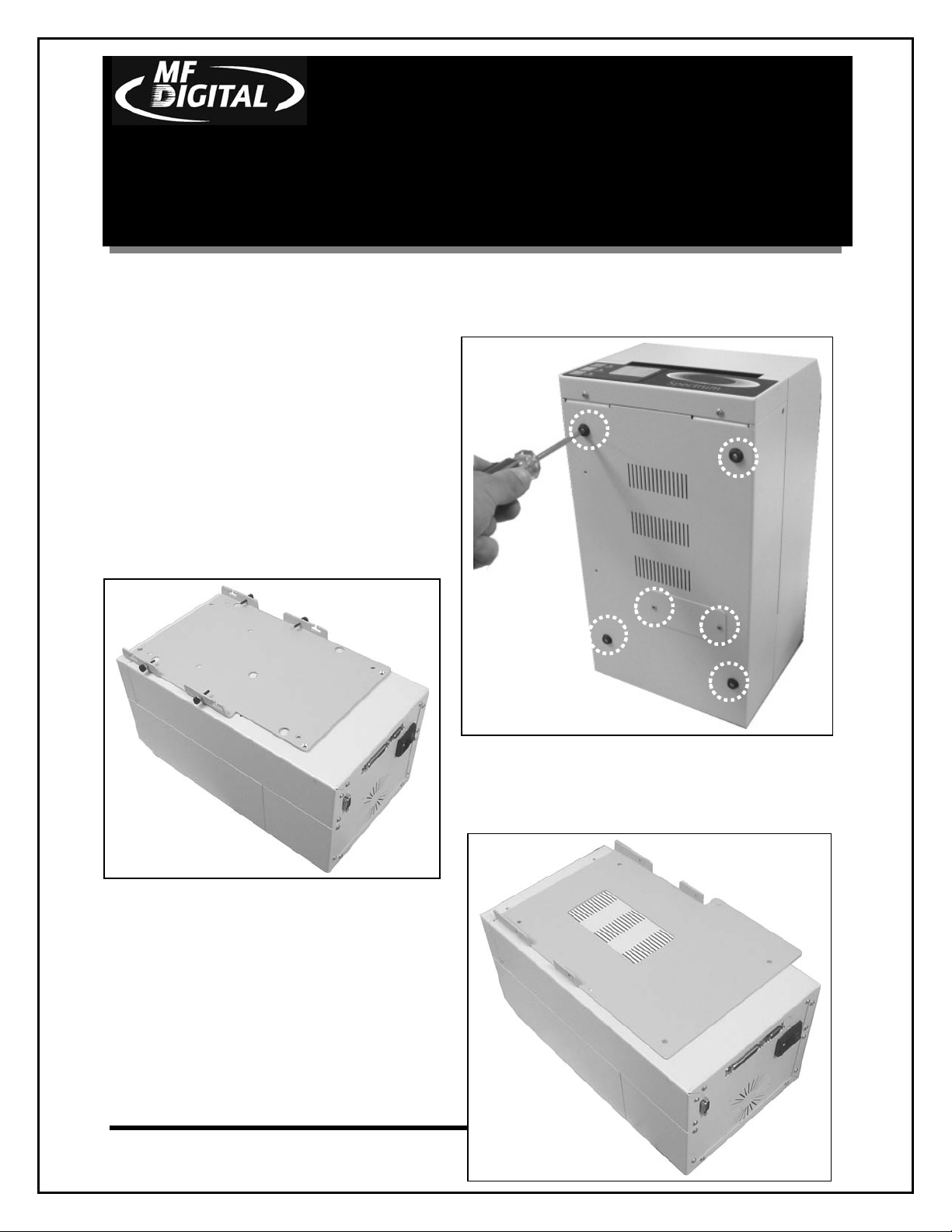

REMOVING PACKING RESTRAINTS................................................................................................................17
INPUT BIN AND OUTPUT SPINDLE ............................................................................................................................17

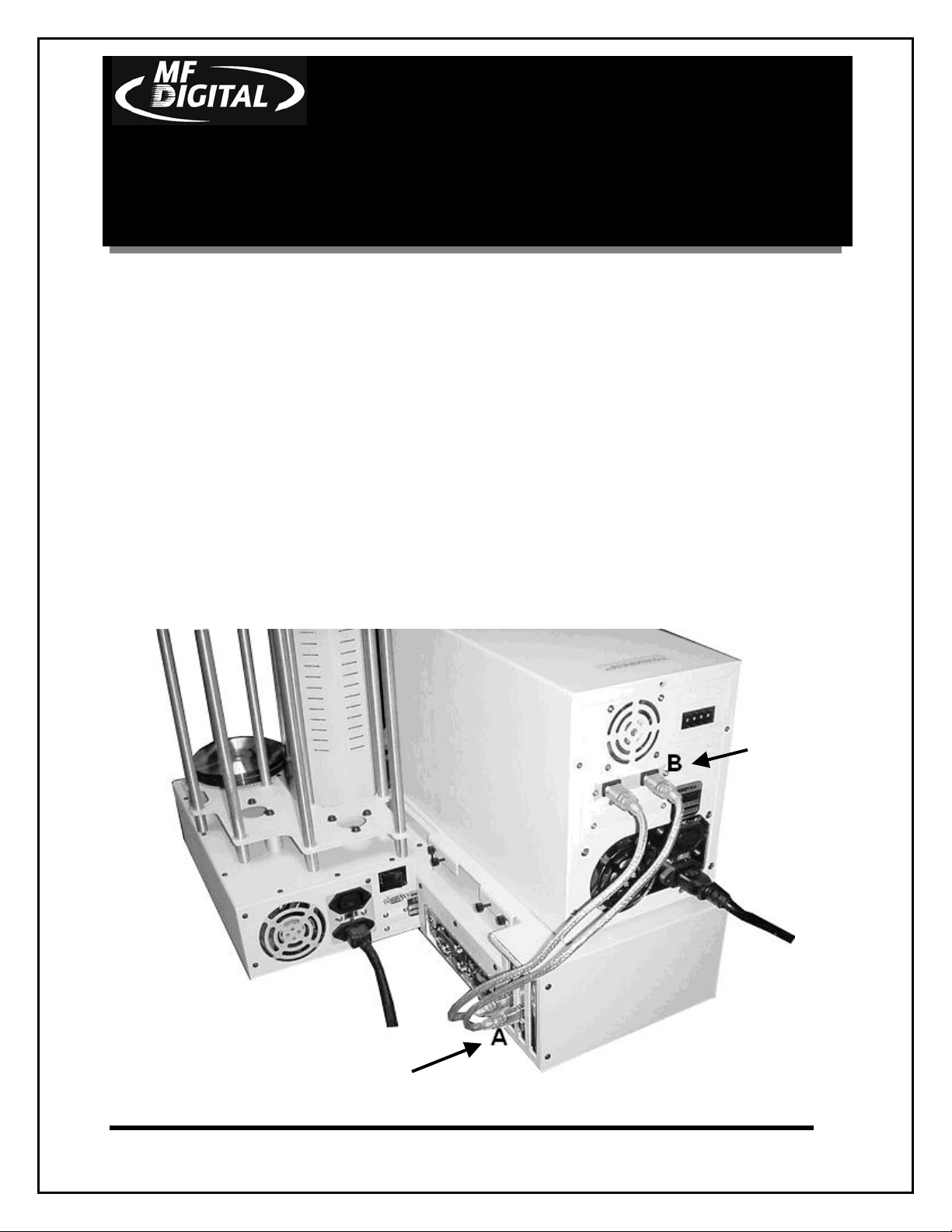

INSTALLING FIREWIRE CABLES......................................................................................................................18
PREPARING THE SPECTRUM2 PRINTER........................................................................................................ 20
WHAT’S IN THE BOX (SPECTRUM2 THERMAL TRANSFER).......................................................................................20
PREPARING THE PRISM PLUS PRINTER ........................................................................................................24
WHAT’S IN THE BOX (PRISM PLUS) .........................................................................................................................24
PREPARING THE INKJET PRINTER (SIGNATURE IV OR SIG. PRO INKJET) .......................................26
WHAT’S IN THE BOX (SIGNATURE IV OR SIGNATURE PRO INKJET)........................................................................26

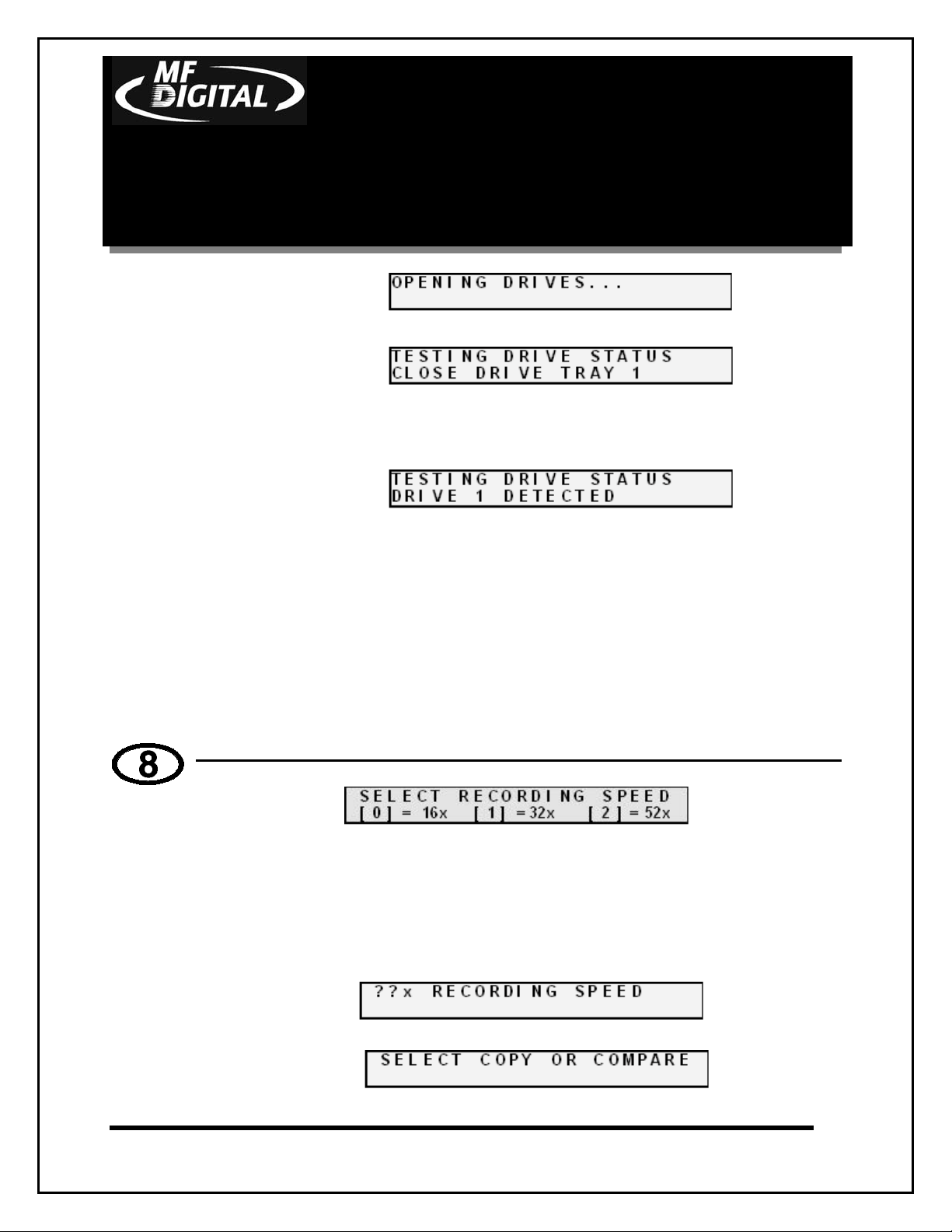

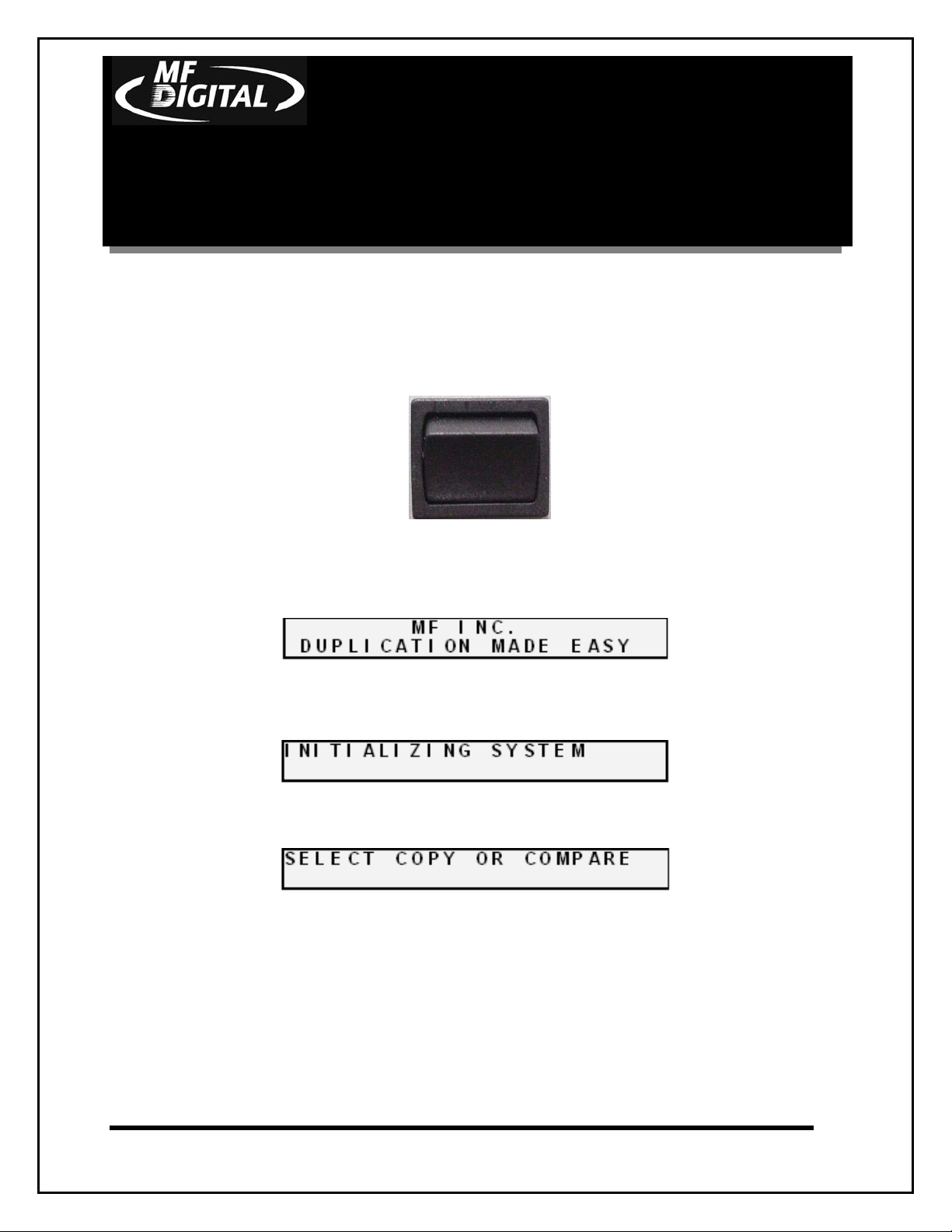

SYSTEM STARTUP .................................................................................................................................................28

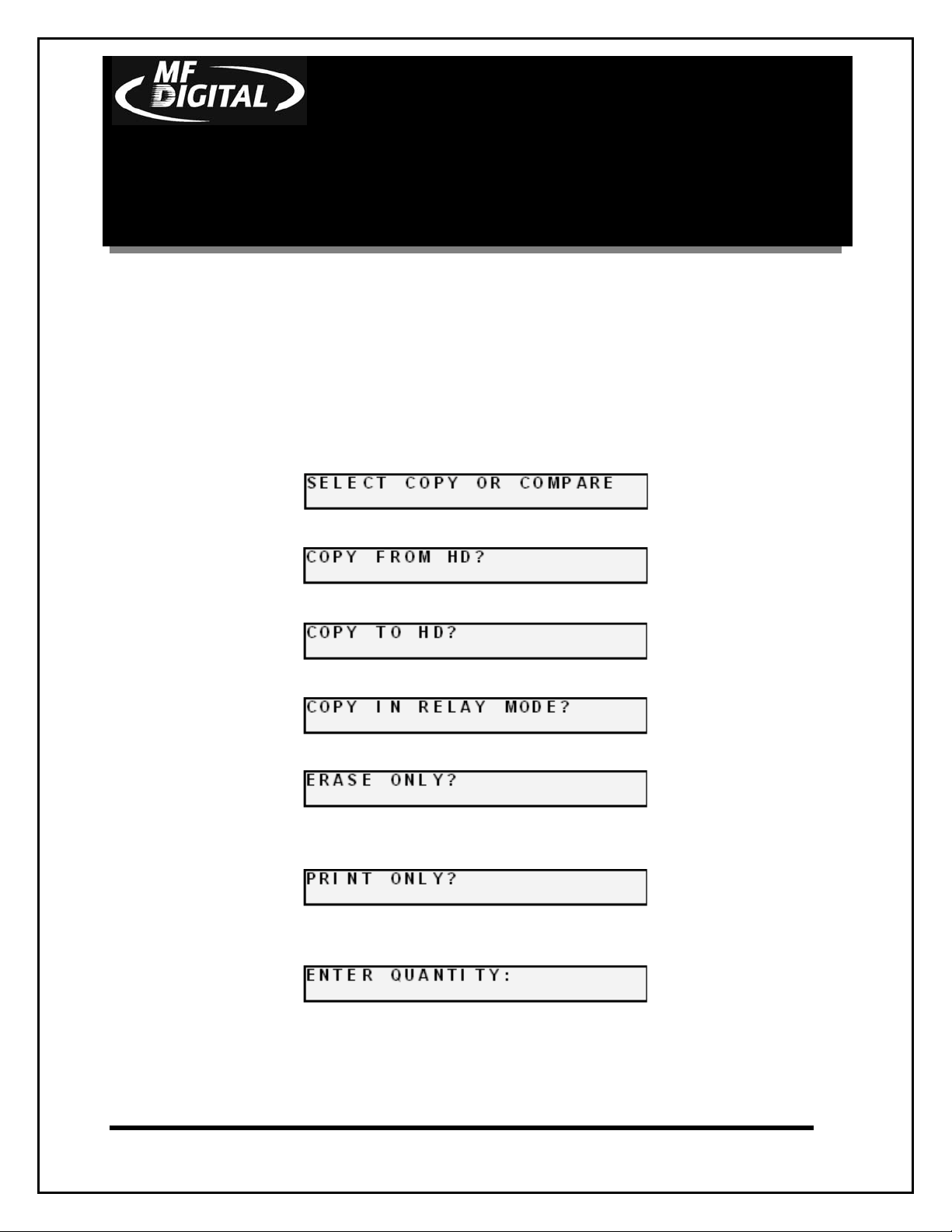

GENERAL OPERATION ........................................................................................................................................31

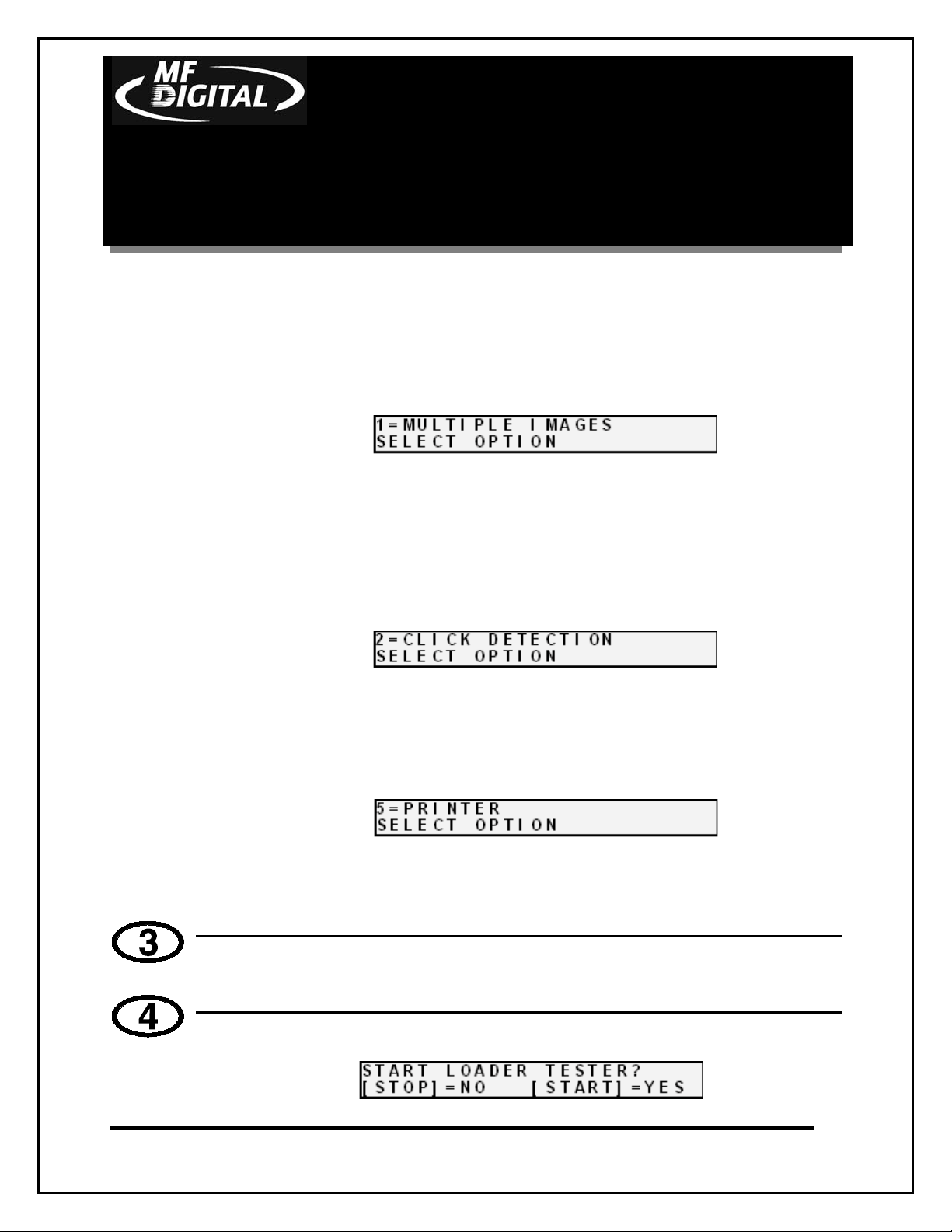

FUNCTION KEYS .......................................................................................................................................................31
ALIGNING THE DRIVE BAY................................................................................................................................48
Page 2
Scribe EC Standalone Series
Document Revision: 011804
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
ALIGNING THE PRINTER .................................................................................................................................... 50

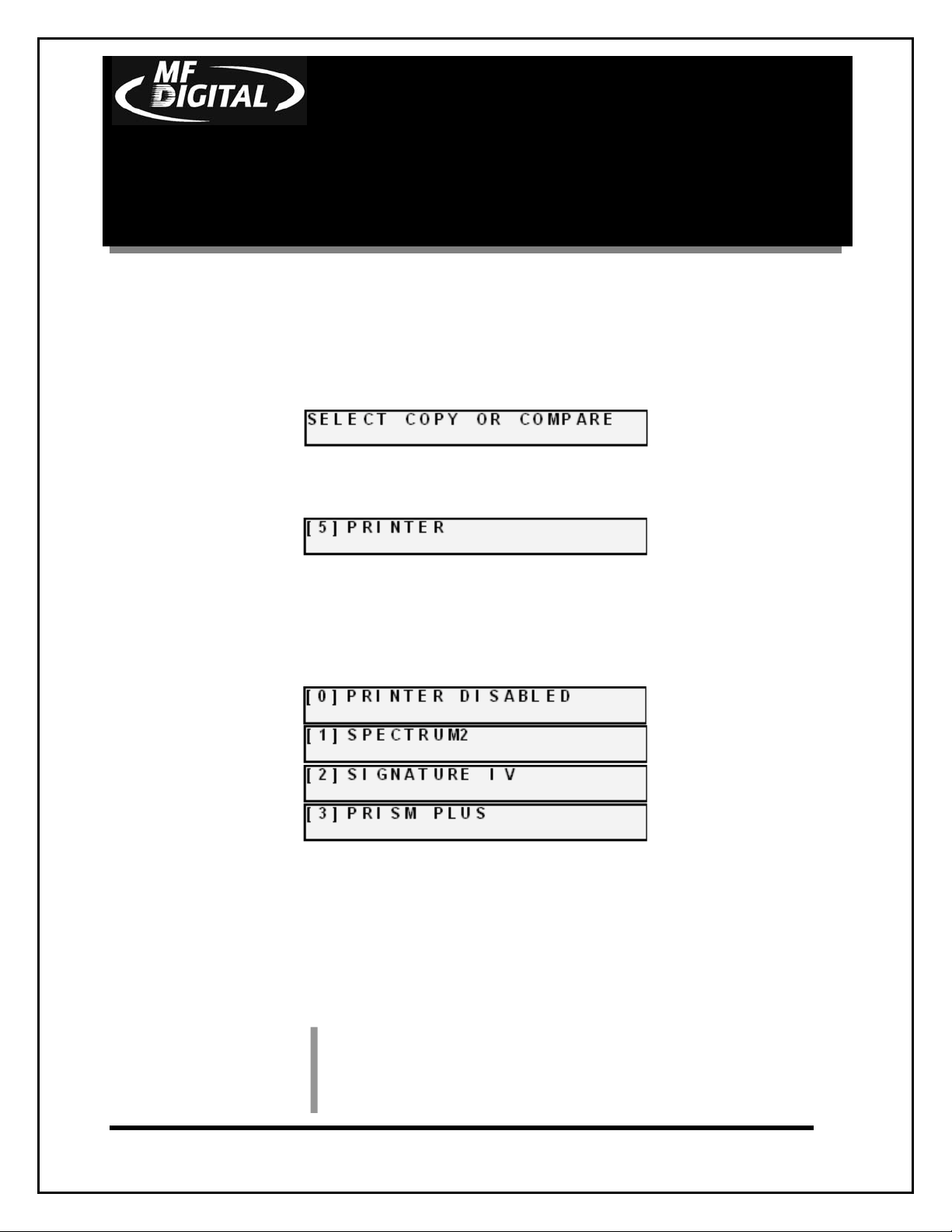

SELECTING THE PRINTER ..........................................................................................................................................50

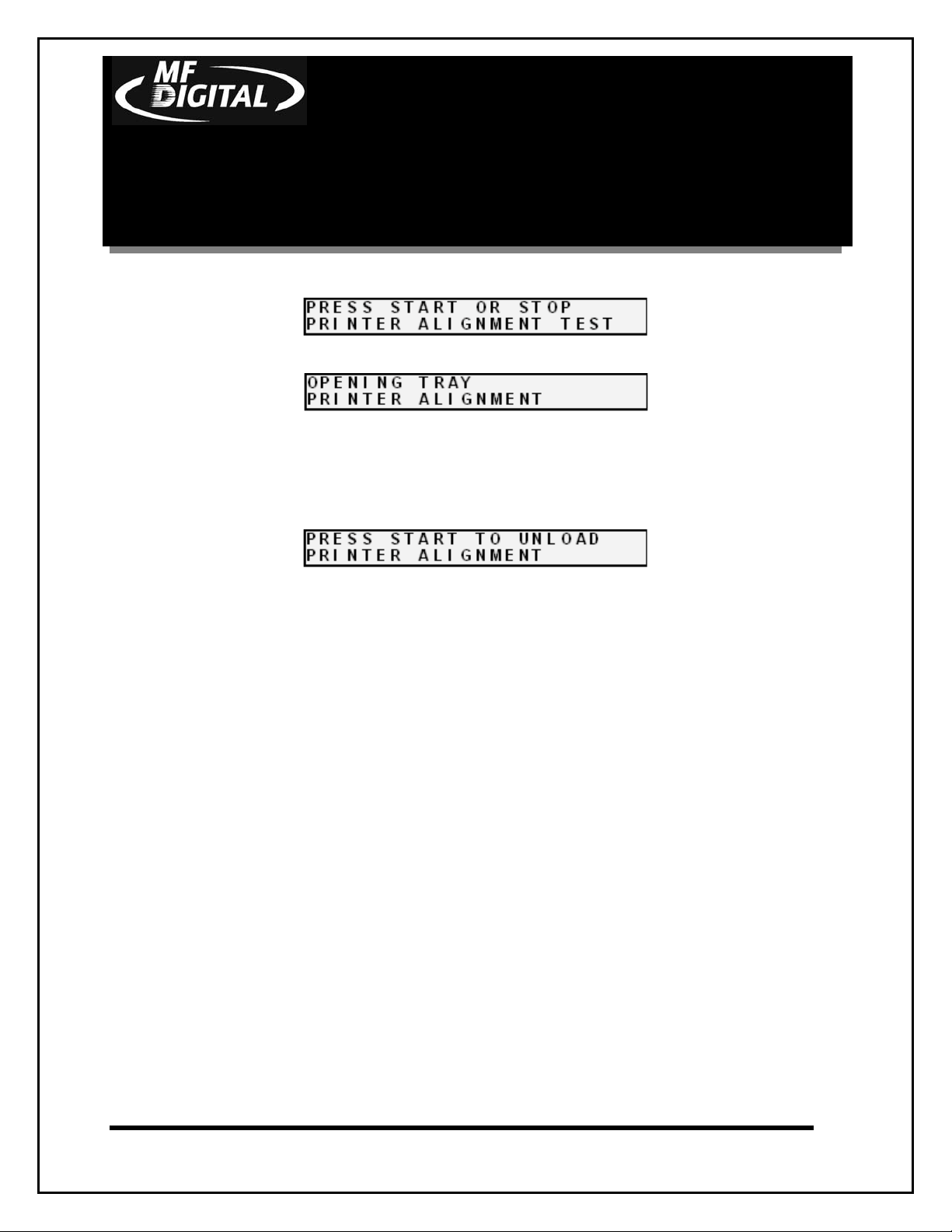

ALIGNING THE PRINTER............................................................................................................................................50
CREATING A HARD DISK IMAGE .....................................................................................................................53

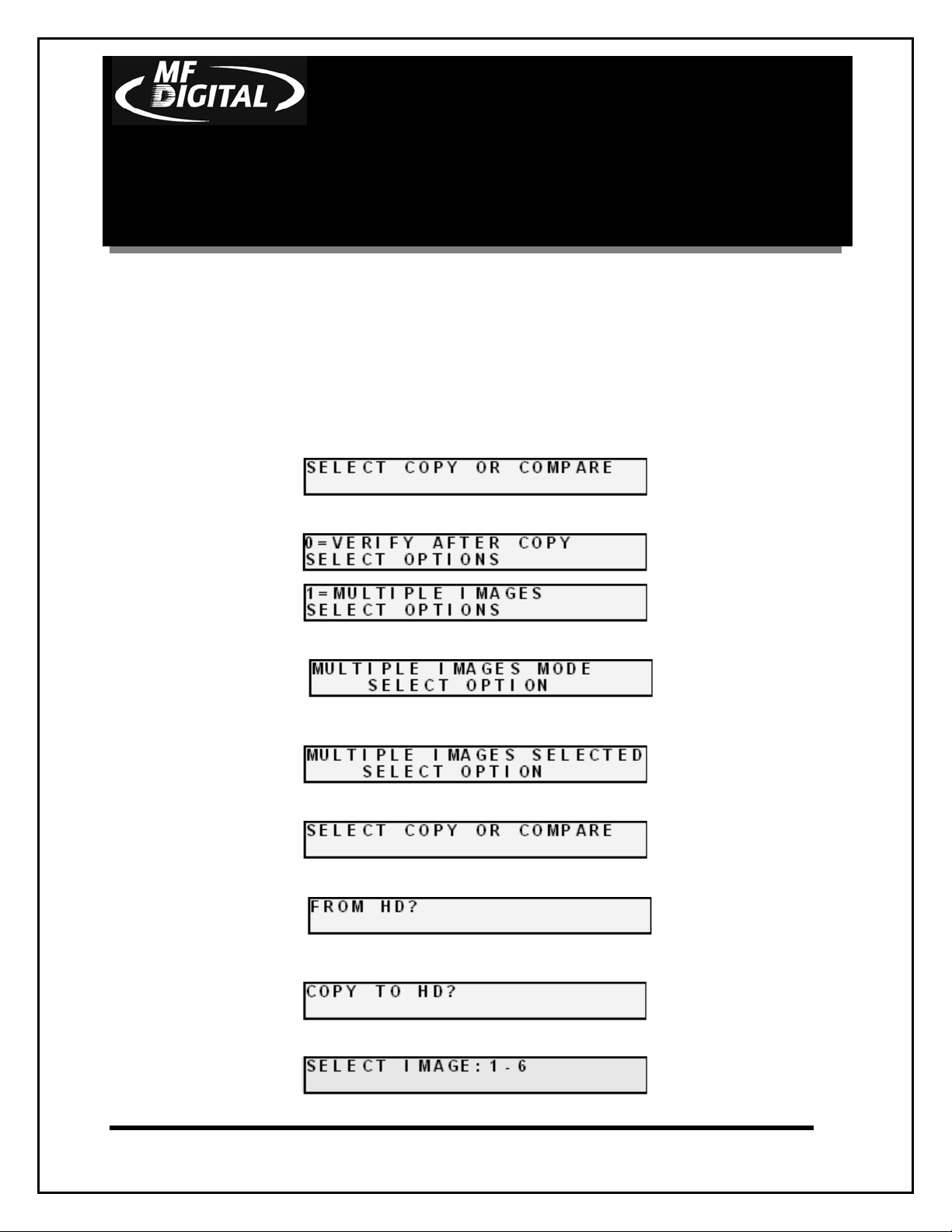

CREATING A SINGLE HARD DISK IMAGE..................................................................................................................53
CREATING MULTIPLE HARD DISK IMAGES ...............................................................................................................56

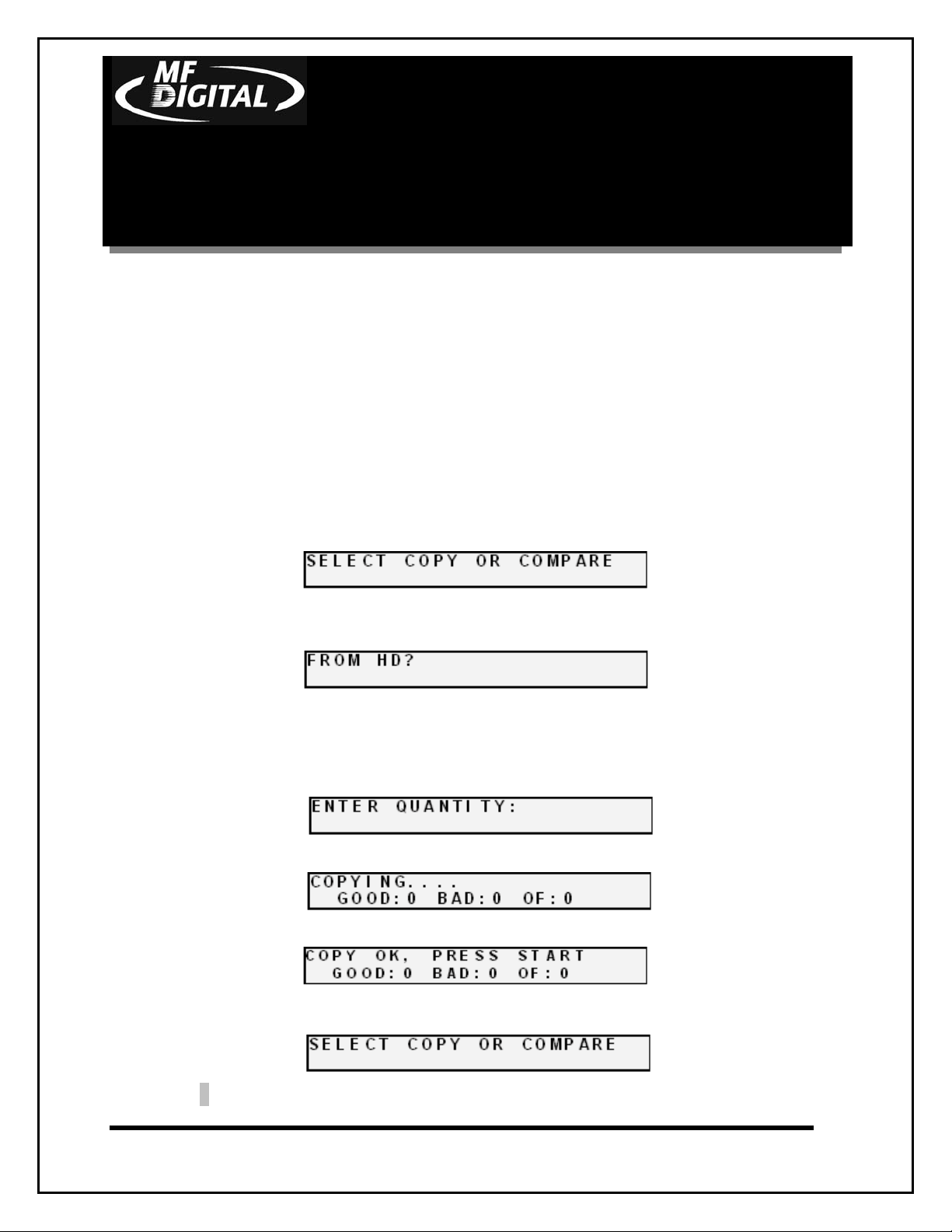

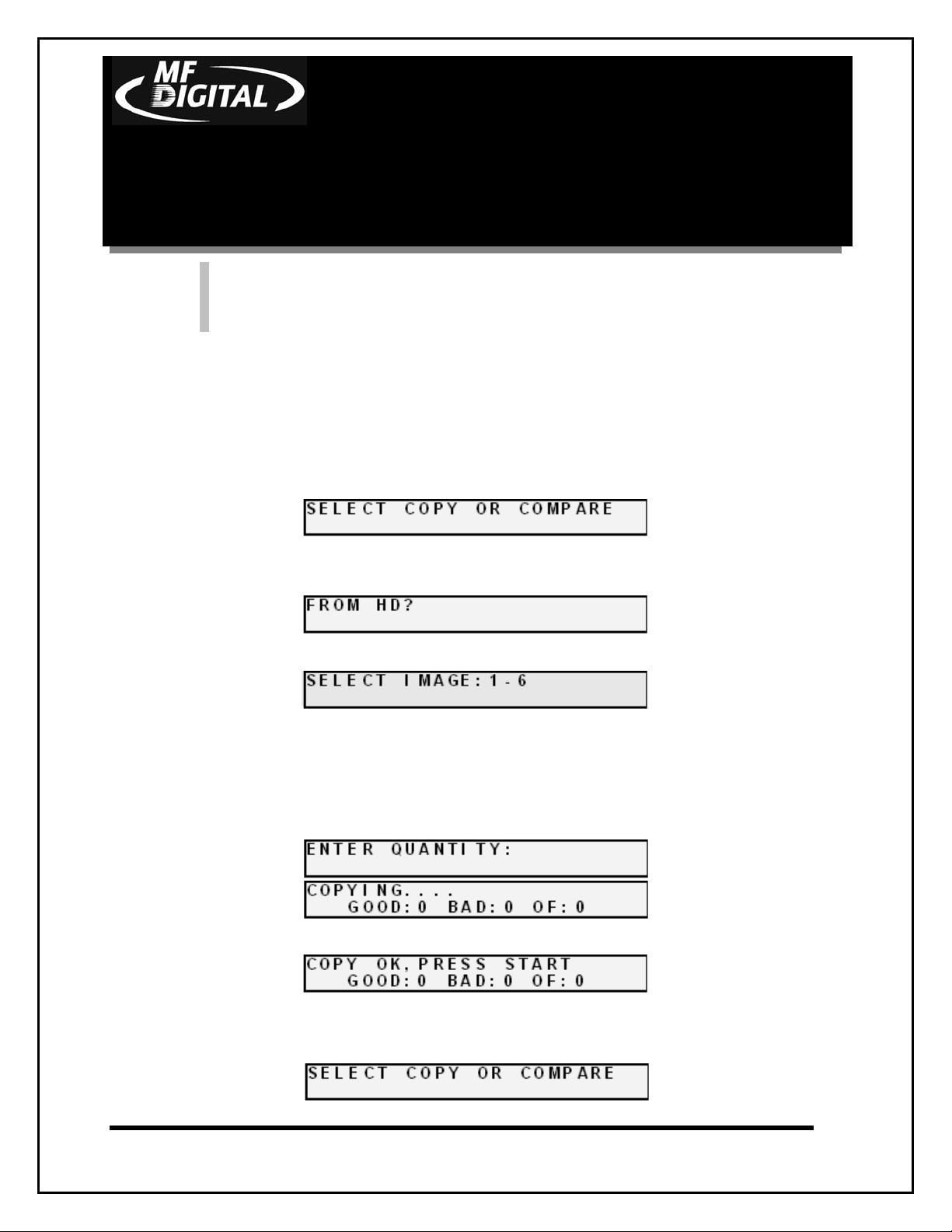

COPYING FROM A HARD DISK IMAGE...........................................................................................................59
MULTIPLE IMAGES DISABLED ..................................................................................................................................59
MULTIPLE IMAGES ENABLED ...................................................................................................................................60

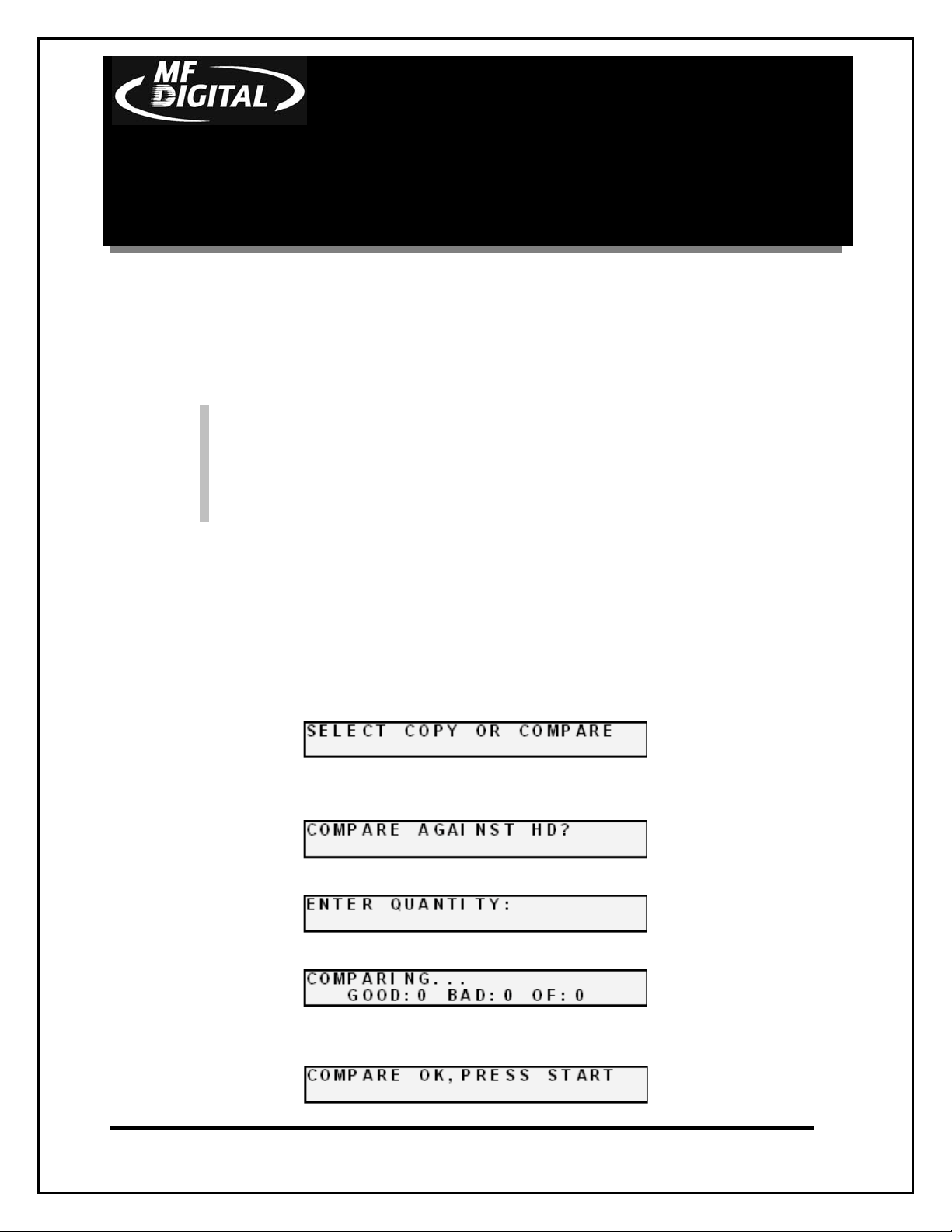

COMPARING FROM A HARD DISK IMAGE ....................................................................................................62
MULTIPLE IMAGES DISABLED ..................................................................................................................................62
MULTIPLE IMAGES ENABLED ...................................................................................................................................64

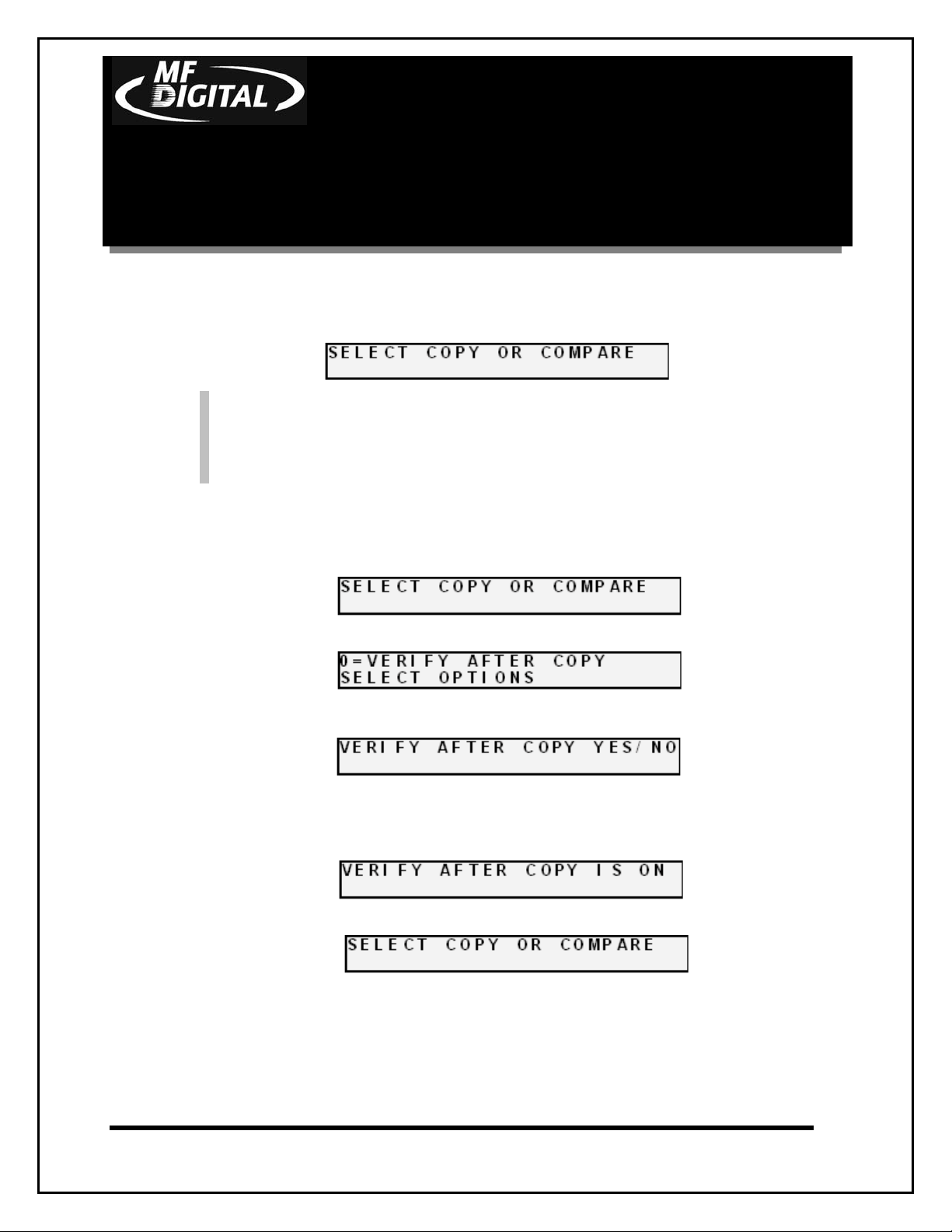

ENABLING VERIFY AFTER ........................................................................................................................................66

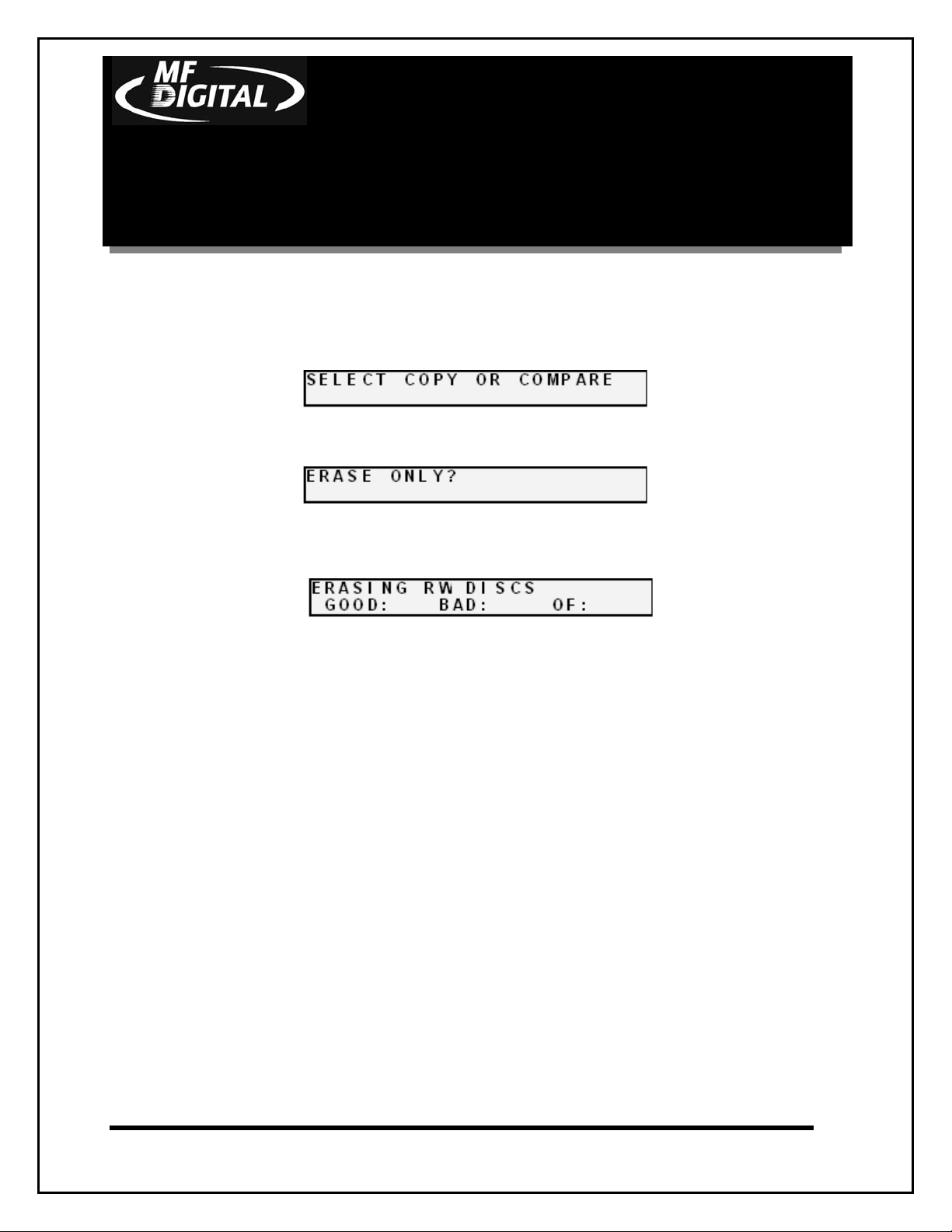

ERASING CD-RW/DVD-RW DISCS .....................................................................................................................68

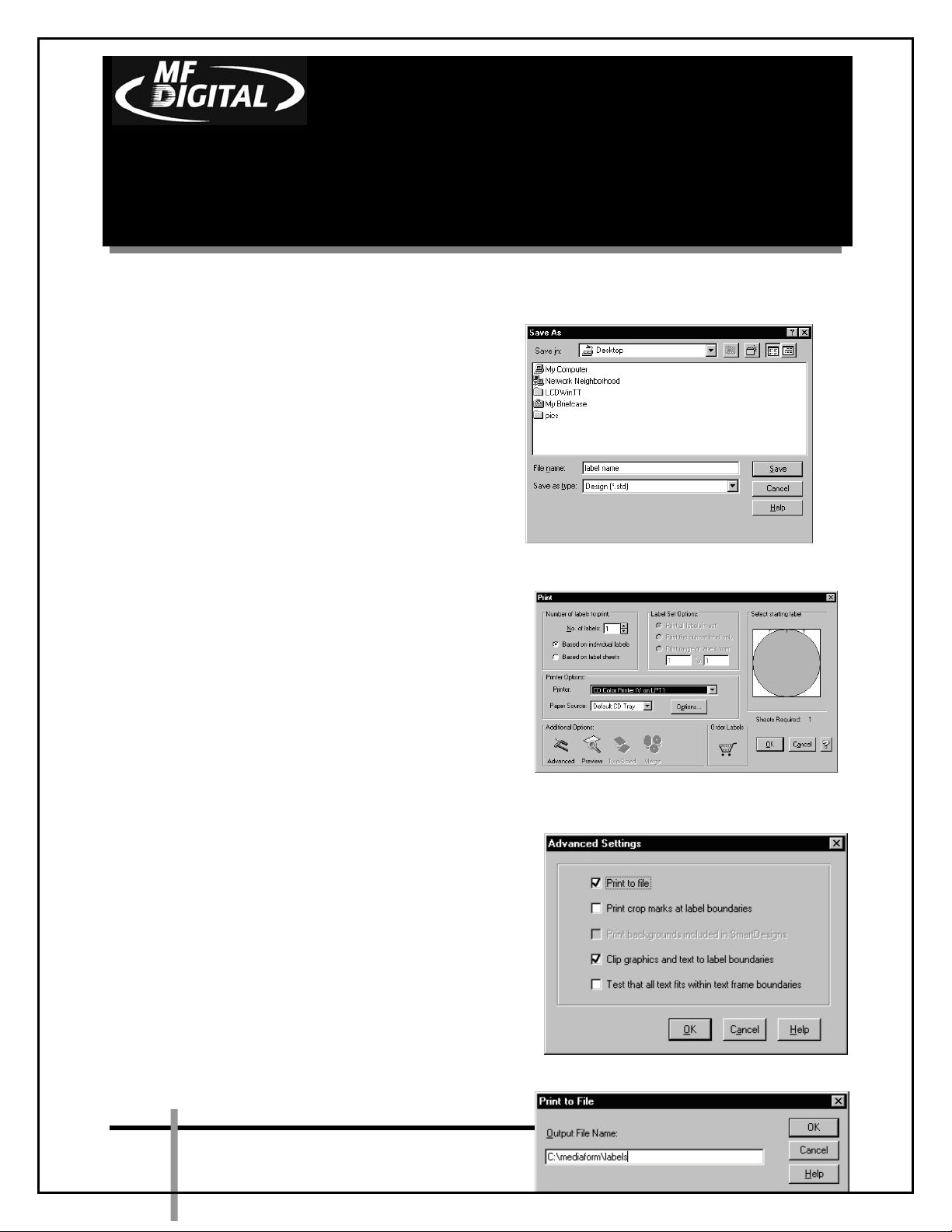

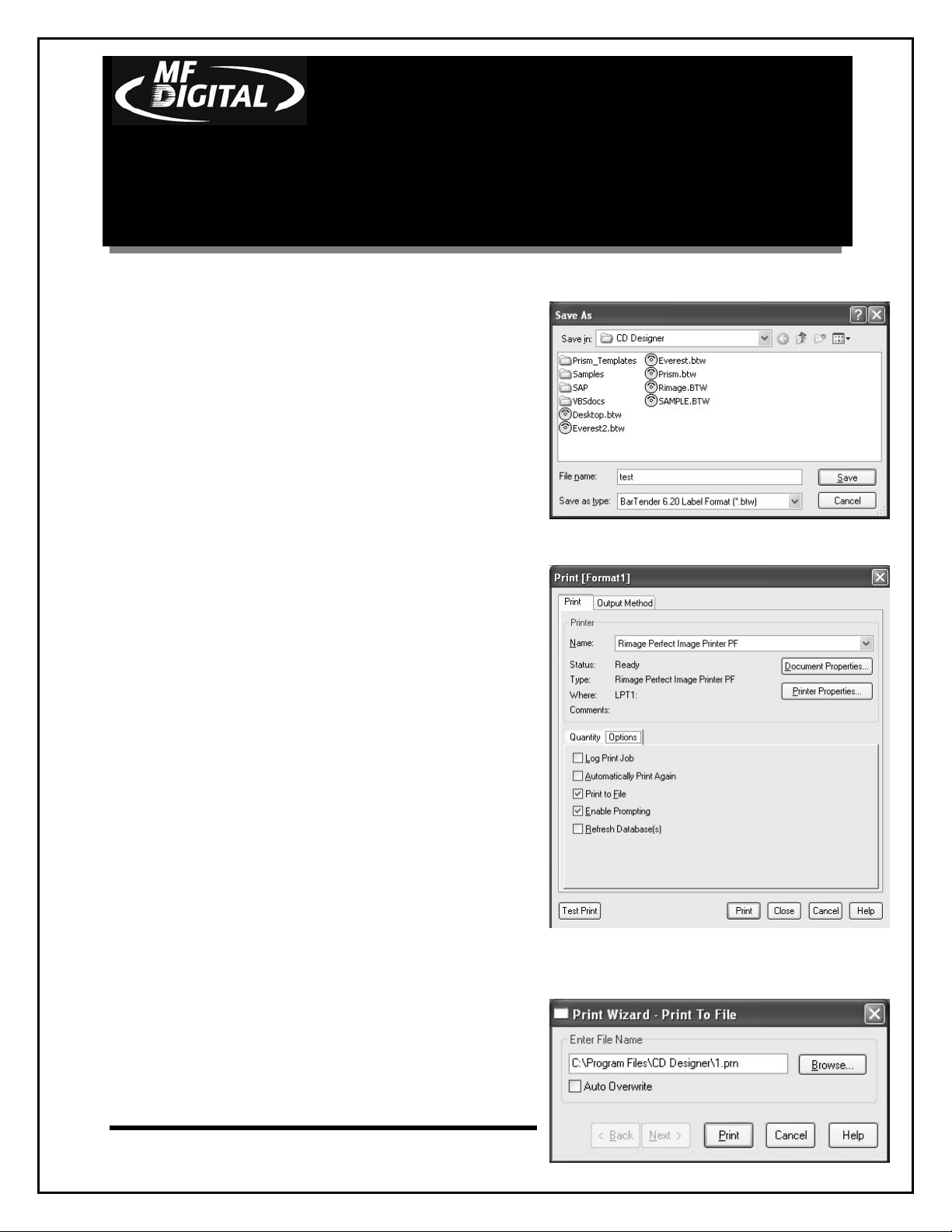

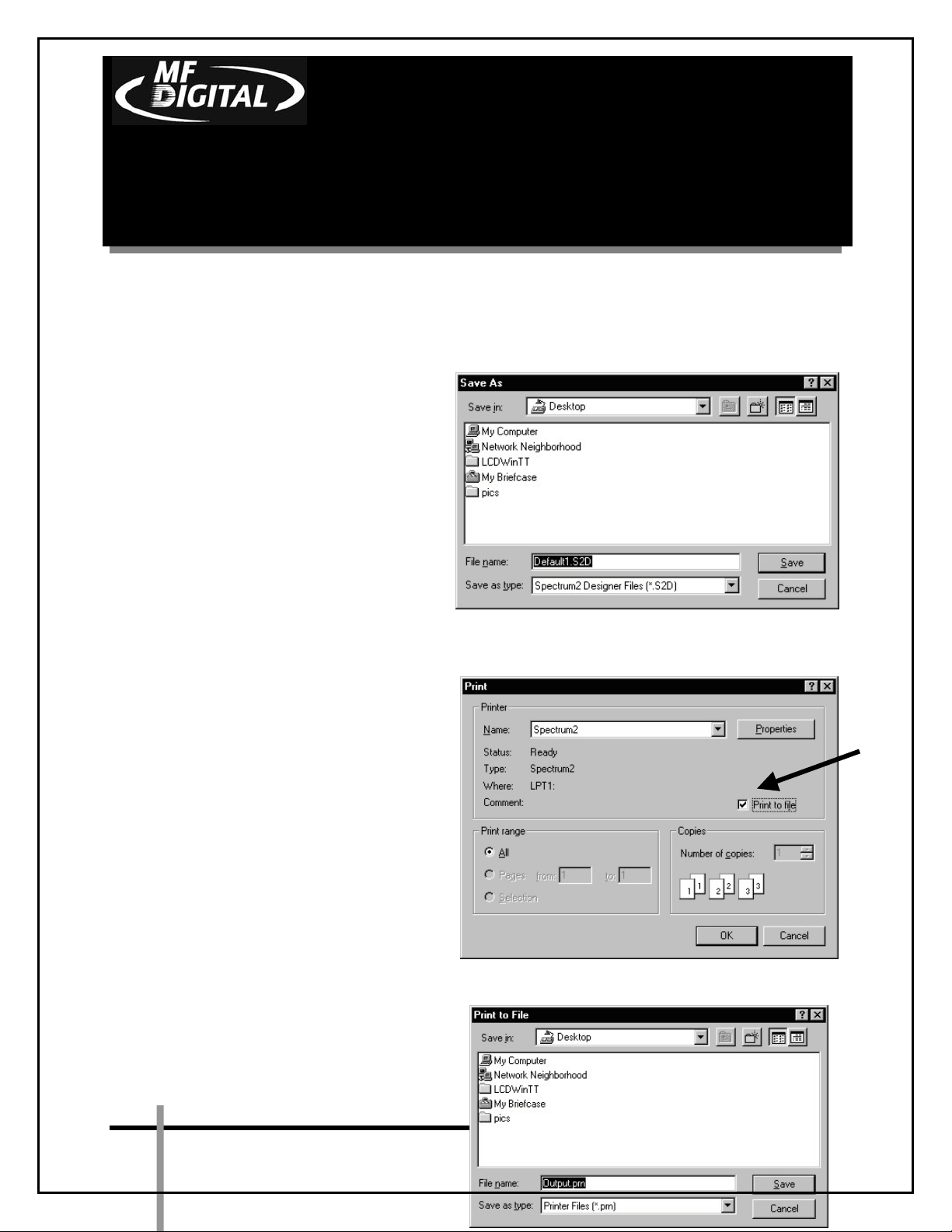

CREATING .PRN FILES (SPECTRUM2 PRINTER)..........................................................................................69
CREATING .PRN FILES (PRISM PLUS PRINTER) ..........................................................................................70
CREATING .PRN FILES (INKJET PRINTER) ...................................................................................................71
UTILIZING THE PRINTER OPTION...................................................................................................................72
COPY AND PRINT ......................................................................................................................................................72
PRINT ONLY .............................................................................................................................................................74
VIEWING DEVICE INFORMATION ...................................................................................................................76
WORKING WITH CD-REWRITABLE (CD-RW) DISCS ..................................................................................77
CD-RW SUPPORTED FORMATS ................................................................................................................................77
CD-RW COPYING SPEED .........................................................................................................................................77

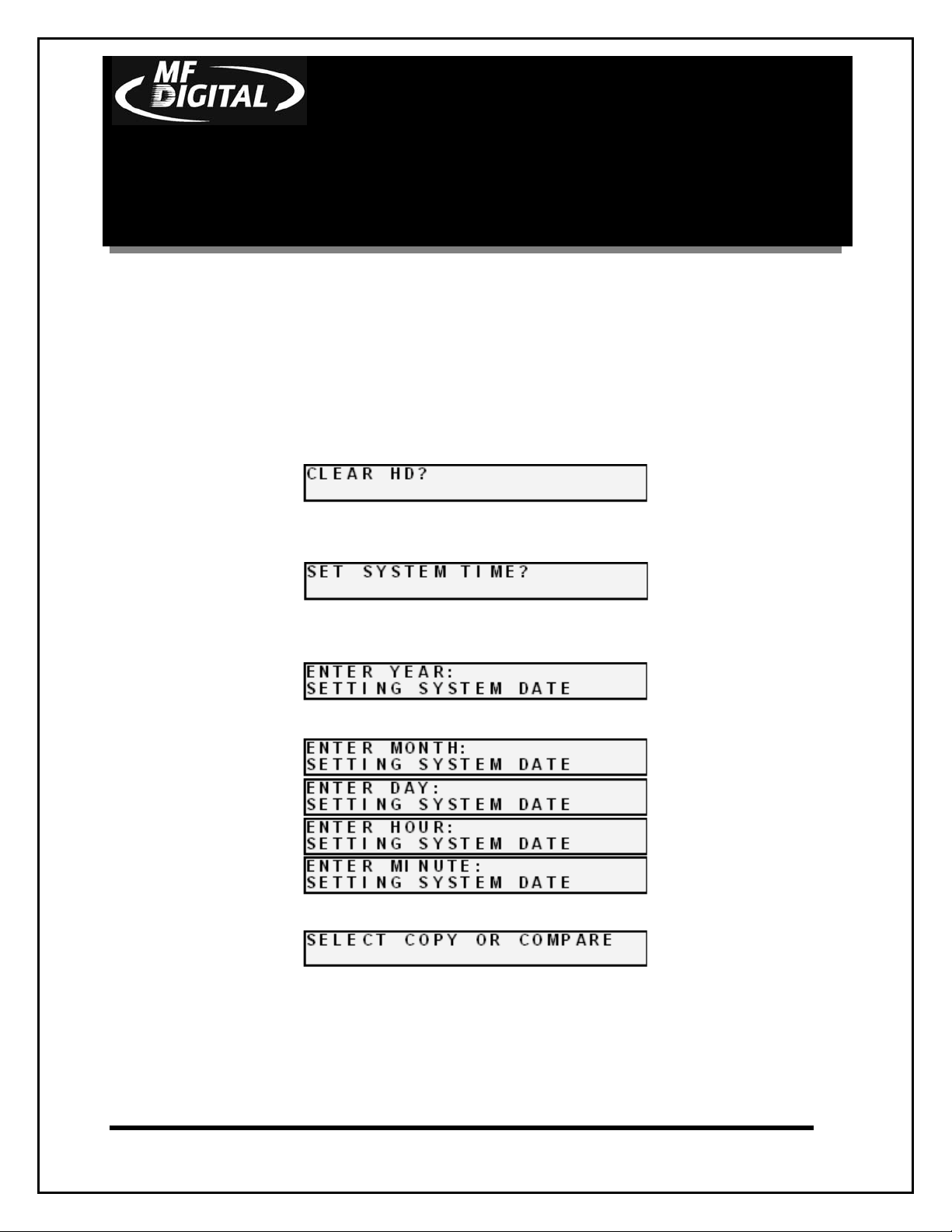

SETTING THE INTERNAL CLOCK ....................................................................................................................78
FIRMWARE UPDATES ..........................................................................................................................................80

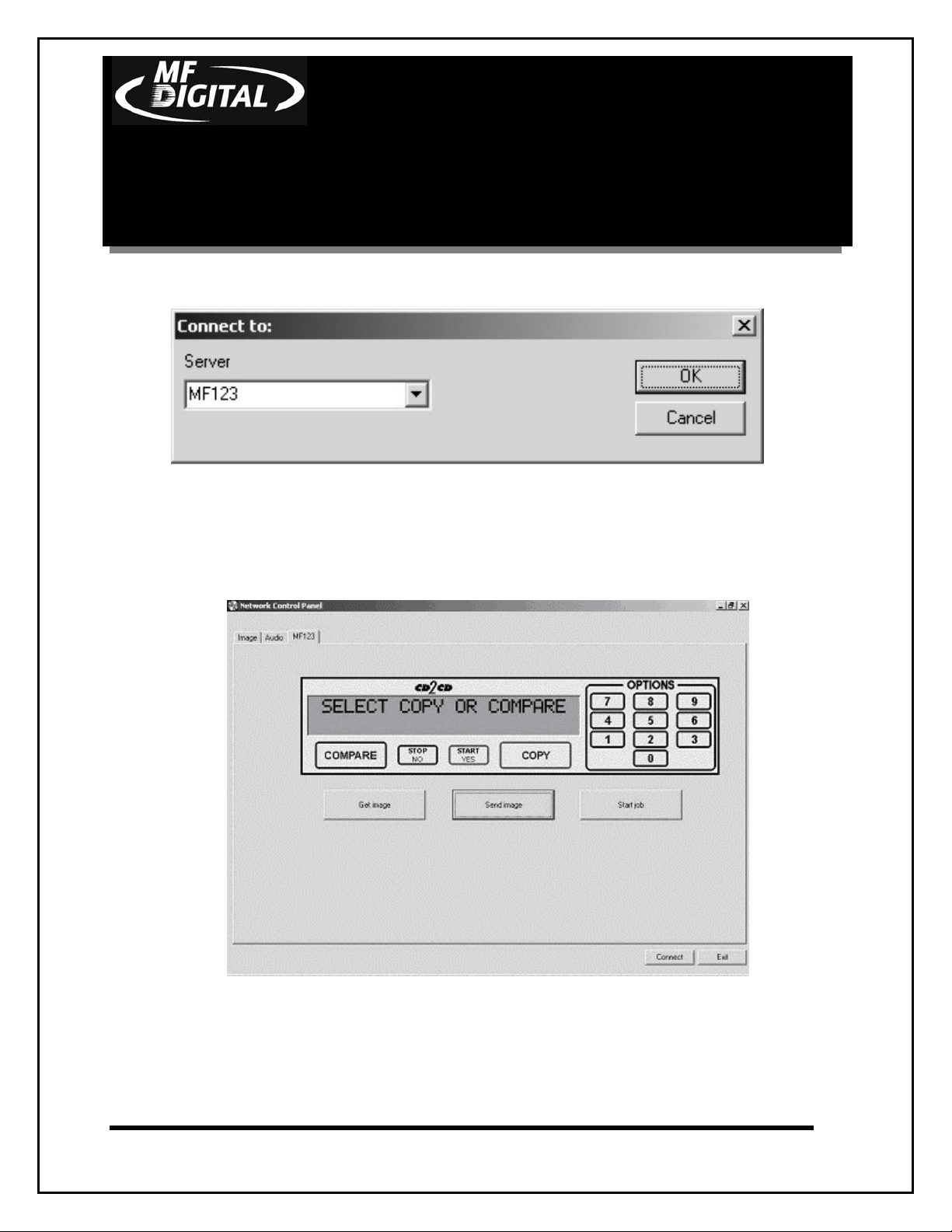

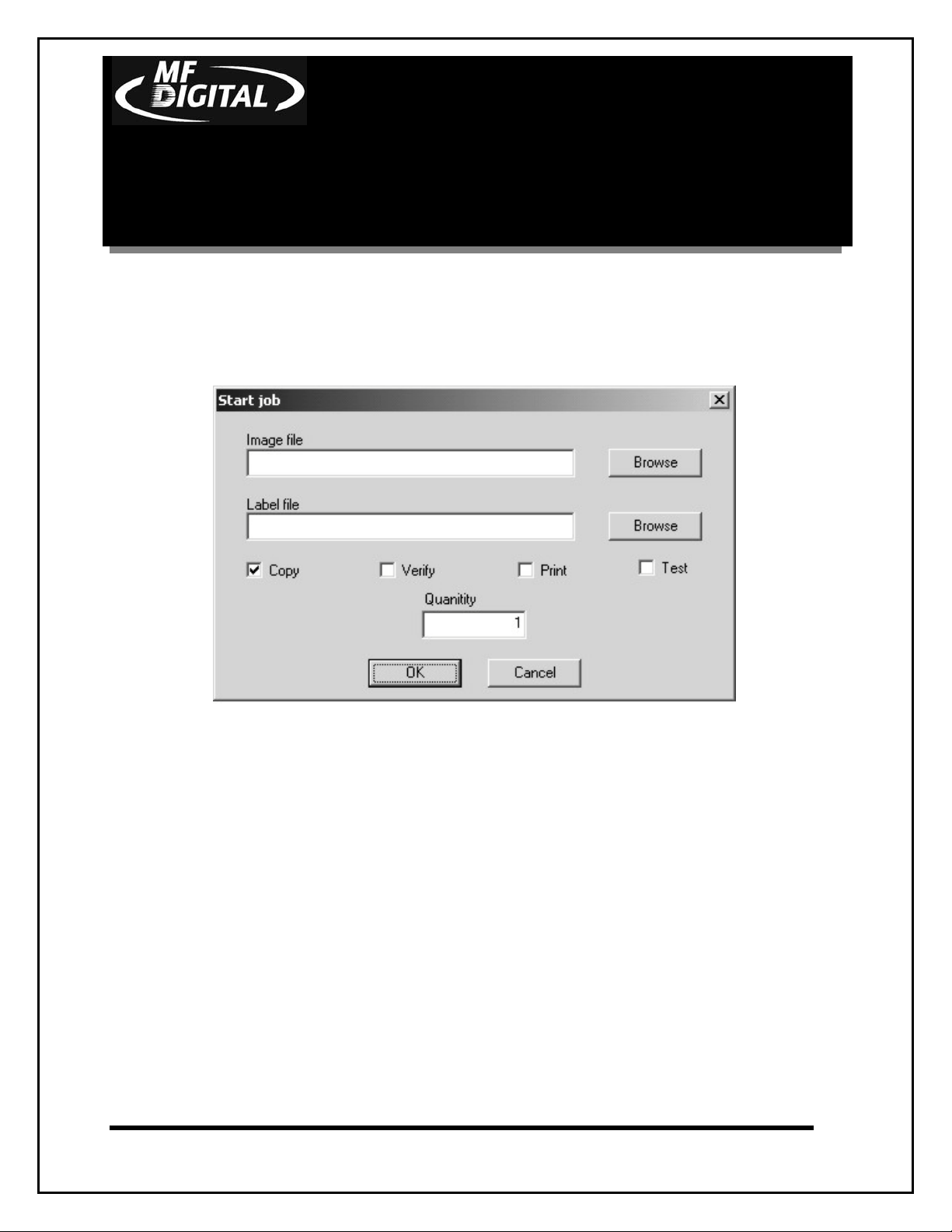

UTILIZING THE SCRIBE EC STANDALONE SERIES CLIENT.................................................................... 82
CONFIGURING THE SCRIBE EC STANDALONE SERIES ...............................................................................................82
CONFIGURING THE CLIENT .......................................................................................................................................84
APPENDIX A: SUPPORTED FORMATS .............................................................................................................88
Page 3
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Welcome to the Scribe EC Standalone System
Copyright Notice
Copyright ©2003 by MF DIGITAL. All rights reserved.
This manual and the accompanying illustrations may not be copied, reproduced,
electronically transmitted, or translated into another language, in whole, or in part,
without the written consent of MF DIGITAL.
MF DIGITAL, 5000 series, Director EC, Scribe EC, Scribe EC Standalone,
are trademarks of MF DIGITAL.
Document Revision: 011804
Other trademarks referred to are the property of their respective trademark or
registered trademark holders.
CD-R/RW Recorder Warranty Policy
Individual CD-R/RW recorder manufacturers are responsible for the products they provide. As a convenience,
MF DIGITAL will honor any service issue related to a defective recorder while under its respective
manufacturer’s warranty providing that the recorder has been purchased from MF DIGITAL either directly or
indirectly. MF DIGITAL assumes no responsibility for products NOT purchased through MF DIGITAL.
Piracy
The copying of audio, video, or software without the permission of the copyright holder is illegal. MF
DIGITAL. accepts no responsibility for the copyright use or misuse of this equipment. It is the sole
responsibility of the user to ensure that the legal rights of copyright in duplicating are respected.
Corporate Headquarters:
MF DIGITAL
121 Carolyn Blvd.
Farmingdale, NY 11735
Tel: (631) 249-9393
Fax: (610) 249-9437
Email: mailto:documentation@mfdigital.com
www: http://www.MFDIGITAL.com
Page 4
Scribe EC Standalone Series
Document Revision: 011804
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
End User License Agreement
• You have acquired a device (“Scribe EC Standalone Series CD-R/RW duplicator”) that includes software licensed by MF
DIGITAL from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as
associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by
international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THIS DEVICE OR
COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT MF DIGITAL FOR INSTRUCTIONS ON RETURN OF
THE UNUSED DEVICE (S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT.)
• GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:
⇒ You may use the SOFTWARE only on the DEVICE.
⇒ NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. MF DIGITAL HAS
INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS
RELIED UPON MF DIGITAL TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE
SOFTWARE IS SUITABLE FOR SUCH USE.
⇒ NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “AS IS” and with all faults.
THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND
EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO
WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR
AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE
DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT
BINDING ON, MS.
⇒ Note on Java Support. The SOFTWARE may contain support for programs written in Java. Java technology is
not fault tolerant and is not designed, manufactured, or intended for use or resale as online control equipment in
hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft
navigation or communication systems, air traffic control, direct life-support machines, or weapons systems, in
which the failure of Java technology could lead directly to death, personal injury, or severe physical or
environmental damage. Sun Microsystems. has contractually obligated MS to make this disclaimer.
⇒ No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM OR IN CONNECTION WITH THE USE OR PURPOSE. IN NO EVENT SHALL MS
BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO-HUNDRED FIFTY DOLLARS (U.S.
$250.00).
⇒ Limitations on Reverse Engineering, De-compilation, and Disassembly. You may not reverse engineer, de-
compile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted
by applicable law notwithstanding the limitation.
⇒ SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights
under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this
EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE.
⇒ EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is of US-origin. You agree to comply with
all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export
Administration Regulations, as well as end-user, end-use and country destination restrictions issued by U.S. and
other governments. For additional information on exporting the SOFTWARE, see
http://www.microsoft.com/exporting/.
Page 5
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
About MF DIGITAL
Thank you for purchasing MF DIGITAL’s Scribe EC Standalone
autoloading CD duplicator. MF DIGITAL manufactures a wide variety of
CD/DVD duplication equipment, including manual and fully automated CD
and DVD duplicators and printers. We hope you will consider us for all of
your duplication needs.
What To Expect From Your MF DIGITAL CD Duplicator
Document Revision: 011804
Your MF DIGITAL Scribe EC Standalone duplicator is professionally
designed and manufactured to give you years of trouble free operation. To
avoid accidental damage to your new duplicator, please read and
understand this manual thoroughly before operating the unit.
About This Manual
This manual is written for both novice and experienced users. Please read
through this Operator’s Guide from beginning to end before using the unit.
Once having read the manual, follow along chapter by chapter. This will
provide the necessary understanding of your new Scribe EC Standalone
duplicator.
Page 6
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Getting Started
Carefully remove the Scribe EC Standalone duplicator from the shipping
container. Inspect the contents, and verify them against the packing slip.
Report any errors in shipping as soon as possible.
What’s In The Box
Your new Scribe EC Standalone duplicator includes:
• Scribe EC Standalone duplicator
• Power cord
• Firmware CD
• Operator’s Guide (on CD)
• MF DIGITAL Product & Warranty Registration card
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Packing Materials
Please retain the original box and packaging in the event that the unit
requires future servicing. This will help to reduce the possibility of damage
occurring in transit.
The Best Place To Put The Scribe EC Standalone
The best operating location for the Scribe EC Standalone duplicator is in a
climate-controlled area, free of dirt, dust, humidity, excessive heat, direct
sunlight, and electronic or electromagnetic interference. Room temperature
should be between 65 and 75 degrees Fahrenheit, or between 18 and 23
degrees Celsius. Place the Scribe EC Standalone on a solid, steady work
surface, and allow sufficient room for all incidental work materials. Provide
at least six inches of clearance on all sides of the unit for ventilation.
Page 7
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Safety Precautions
The system is shipped with a three-prong power connector, and must be
used with a properly grounded AC receptacle. DO NOT try to defeat the
third “ground” prong. All computer peripherals must be properly grounded,
and the Scribe EC Standalone is no exception. The use of a power
conditioner, such as an Uninterruptible Power Supply (UPS) or a surge
protector, is highly recommended. The minimum required size is 500VA.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Repairs or alterations should only be attempted by authorized, factorytrained technicians. MF DIGITAL reserves the right to void the warranty if
unauthorized service is performed.
Page 8
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Location Of Scribe EC Standalone
Front View
Components
Rear View
Page 9
Scribe EC Standalone Series
Document Revision: 011804
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Location Of CD-R/RW and DVD ±R/±RW Recorder Parts And Controls
LCD Display Screen And Keypad
MF Digital ProDRIVE 52x
Legend
1. Disc tray - Discs are loaded and removed from this tray. Pressing the eject button will open the tray when the
power is switched on to the Scribe EC Standalone.
2. Emergency eject pinhole - In the event that the disc tray will not open by pressing the eject button, insert the
tip of a large paper clip into this hole and push.
3. Earphone jack
4. Volume Control
5. Read and write status LEDs - These indicators light up when the recorder is reading or writing.
6. Eject button - This button is used to open or close the disc tray.
Page 10
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Pioneer A06 DVD±R/±RW
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Legend
1) Disc Tray - Discs are loaded and removed from this tray. Pressing the eject button will open the tray when
the power to the Scribe EC Standalone is switched on.
2) Headphone Jack – Connect headphones here.
3) Volume Control Knob – This controls the volume level of the headphones.
4) Disc Indicator – Light indicates presence of disc in drive.
5) Ventilation Hole – Do not block.
6) Ventilation Hole – Do not block.
7) Eject Button – This button is used to manually open the disc tray.
8) Emergency Eject Pinhole – In the event that the disc tray will not open by pressing the eject button, insert
the tip of a large paper clip into this hole.
Removing Packing Restraints
The Scribe EC Standalone ships with a picker arm restraint to reduce the
possibility of damage in transit. This restraint must be removed before
operation or power-on. Gently remove the zip tie and foam from around the
transfer arm. Save the foam tube, as you will need to return it to its place
when transporting the unit in the future.
Input Bin And Output Spindle
The input bin and the output spindle and bins serve as the containers to
store up to 200 blank and recorded discs per bin (up to 600 total depending
on printer option).
Page 11
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Installing Firewire Cables
Please install the firewire cables as illustrated below. Plug one end firewire
cable into the rear of the main fire wire controller card (A) and the other
end of the firewire cable into the rear of the drive tower (B). Do the same
for each firewire cable provided with your system.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 12
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Preparing the Spectrum2 Printer
What’s In The Box (Spectrum2 Thermal Transfer)
• Spectrum2 printer
• Power cord
• Parallel printer cable
• Printer user guide
• Spectrum2 Designer software and printer driver CD
• Printer ribbon
• MF DIGITAL Product & Warranty Registration card
Document Revision: 011804

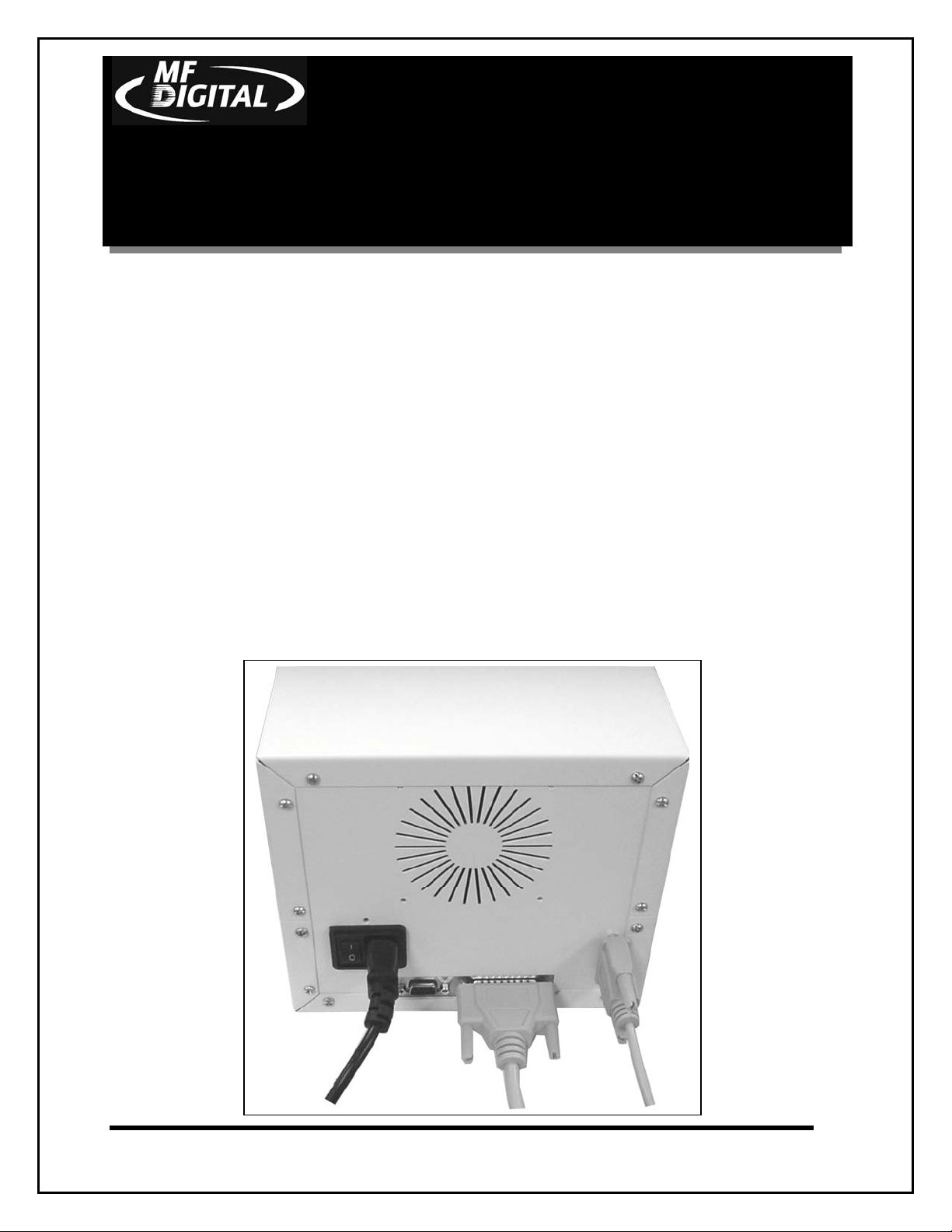

(fig. 0) Cabling arrangement for Spectrum2 Printer
Page 13
Scribe EC Standalone Series
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
1. With a Phillips head
screwdriver, remove the rubber
feet from the bottom of the
printer (fig. 1).
2. You will also want to remove
the small plate from the bottom
of the printer (fig. 1).
Document Revision: 011804
Operator’s Guide
(fig. 1a)
3. Using the flat head screws
provided, attach the printer
plate to the bottom of the
printer as seen in (fig. 1a).
(fig. 1)
Page 14
(fig. 2)
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
1. Place the printer / plate onto
the drive bay (fig. 3).
Note: Picture of main body
may vary
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
2. Use the dotted line at the rear
of the drive bay to guide the
positioning of the printer on
the drive tower (fig. 4).
3. After placing the printer on
the drive tower, use the
“Printer Alignment” function
to align the printer. Please
(fig. 3)
(fig. 4)
Page 15
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

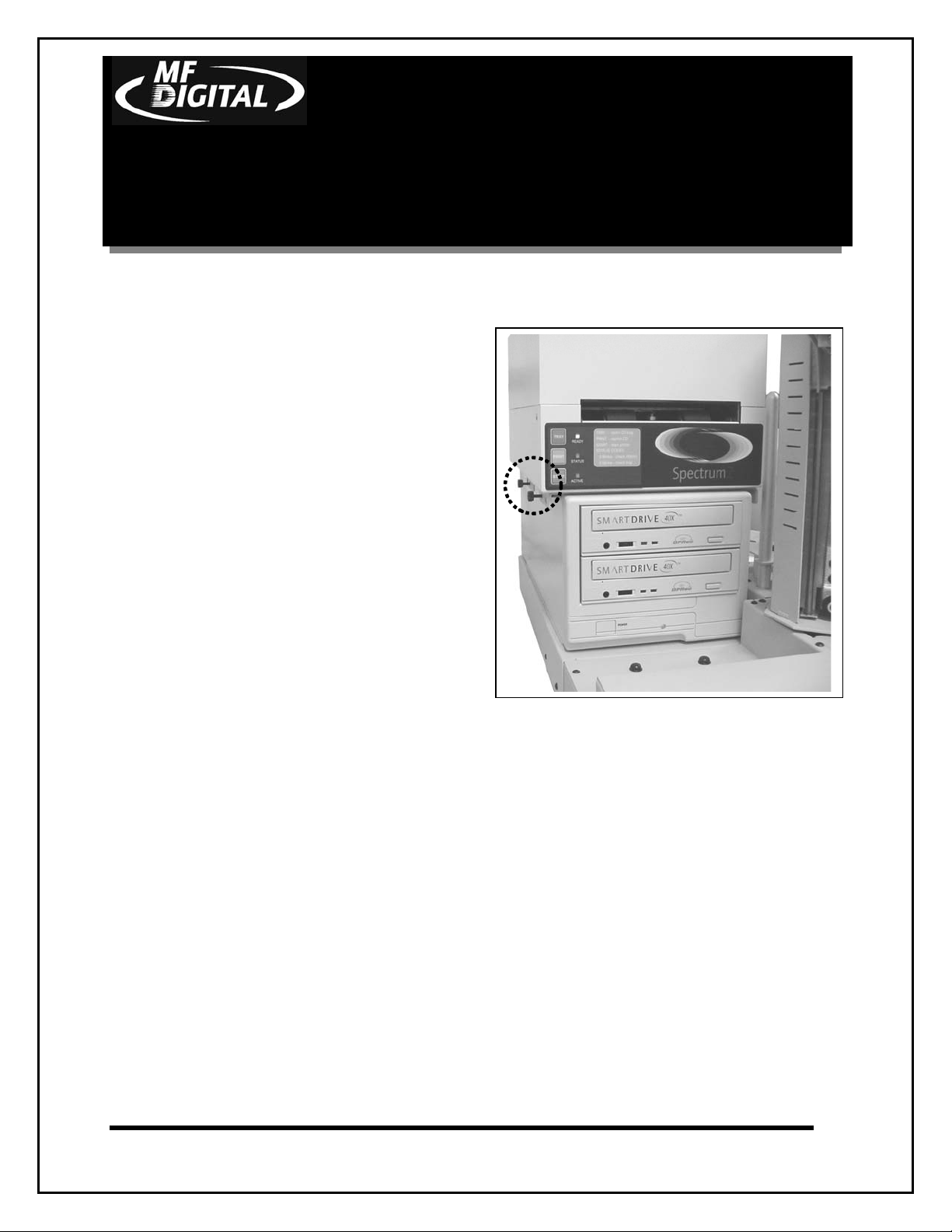

7. Once you are satisfied with the printer
alignment, tighten the thumb-screws
located on both sides of the printer (fig.
5).
Document Revision: 011804
Page 16
(fig. 5)
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Preparing the Prism Plus Printer
What’s In The Box (Prism Plus)
• Prism Plus printer
• Power cord
• Parallel printer cable
• Printer user guide
• CD Designer software and printer driver CD
• Printer ribbon
• Prism Plus Product & Warranty Registration card
Document Revision: 011804
(fig. 0) Cabling arrangement for Prism Plus Printer
Page 17
CD-3706/P Operator’s
f
f
(fig
)
(fig
)
(fig
)
(fig
)
Guide
Document Revision: 030501.1

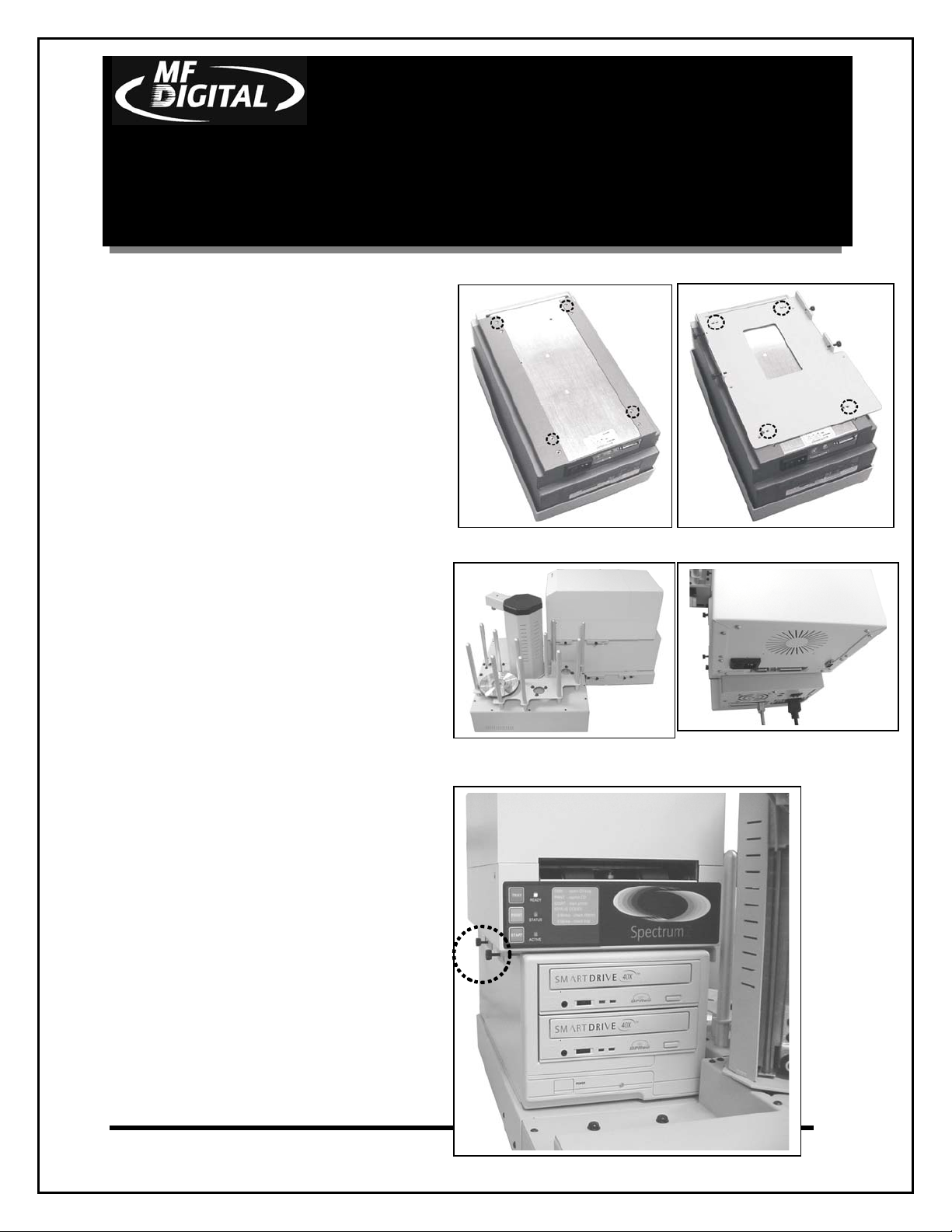

1. With a Torx head
screwdriver, remove the
rubber feet from the
bottom of the printer (fig.
1).
2. Using the flat head screws
provided, attach the
printer plate to the bottom
of the printer as seen in
(fig. 2).
Scribe EC Standalone Series
Operator’s Guide
. 1
Document Revision: 011804
. 2
NOTE: Fig 3 – Fig 5 shows placement o
Spectrum 2 printer. Placement for Prism
Plus is similar.
3. Place the printer / plate
onto the drive bay (fig. 3)
4. Use the dotted line at the
rear of the drive bay to
guide the positioning o
the printer on the drive
tower (fig. 4)
5. After placing the printer
on the drive tower, use the
“Printer Alignment”
function to align the
printer. Please refer to p.
30 for details.
. 3
. 4
6. Once you are satisfied
with the printer
alignment, tighten the
thumb-screws located on
Page 18
(fig. 5)
Scribe EC Standalone Series
(fig
)
(fig
)
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Document Revision: 011804
Preparing The Inkjet Printer (Signature IV or Sig. PRO Inkjet)
What’s In The Box (Signature IV or Signature PRO Inkjet)
• Signature IV or Signature PRO printer
• Power adapter
• Printer software CD
• Color ink cartridge
• Spare ink cartridge holder
• Warranty statement and registration card
• Operator’s manual
1. Using needle nose pliers,
remove the rubber feet from
the bottom of the printer (fig.
1).
2. Screw the printer plate to the
bottom of the inkjet printer as
seen in (fig. 2).
. 1
Page 19
. 2
CD-3706/P Operator’s
f
Guide
Document Revision: 030501.1
3. Place the printer / plate onto
the drive bay (fig. 3).
4. Use the dotted line at the rear o
the drive bay to guide the
positioning of the printer on the
drive tower
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
5. After placing the printer on the
drive tower, use the “Printer
Alignment” function to align the
printer. Please refer to p. 30 for
details.
6. Once you are satisfied with the
printer alignment, tighten the
thumb-screws located on both
sides of the printer (fig. 4).
(fig. 3)
(fig. 4)
Page 20
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
System Startup
Before duplicating can begin it is necessary to review a few details.

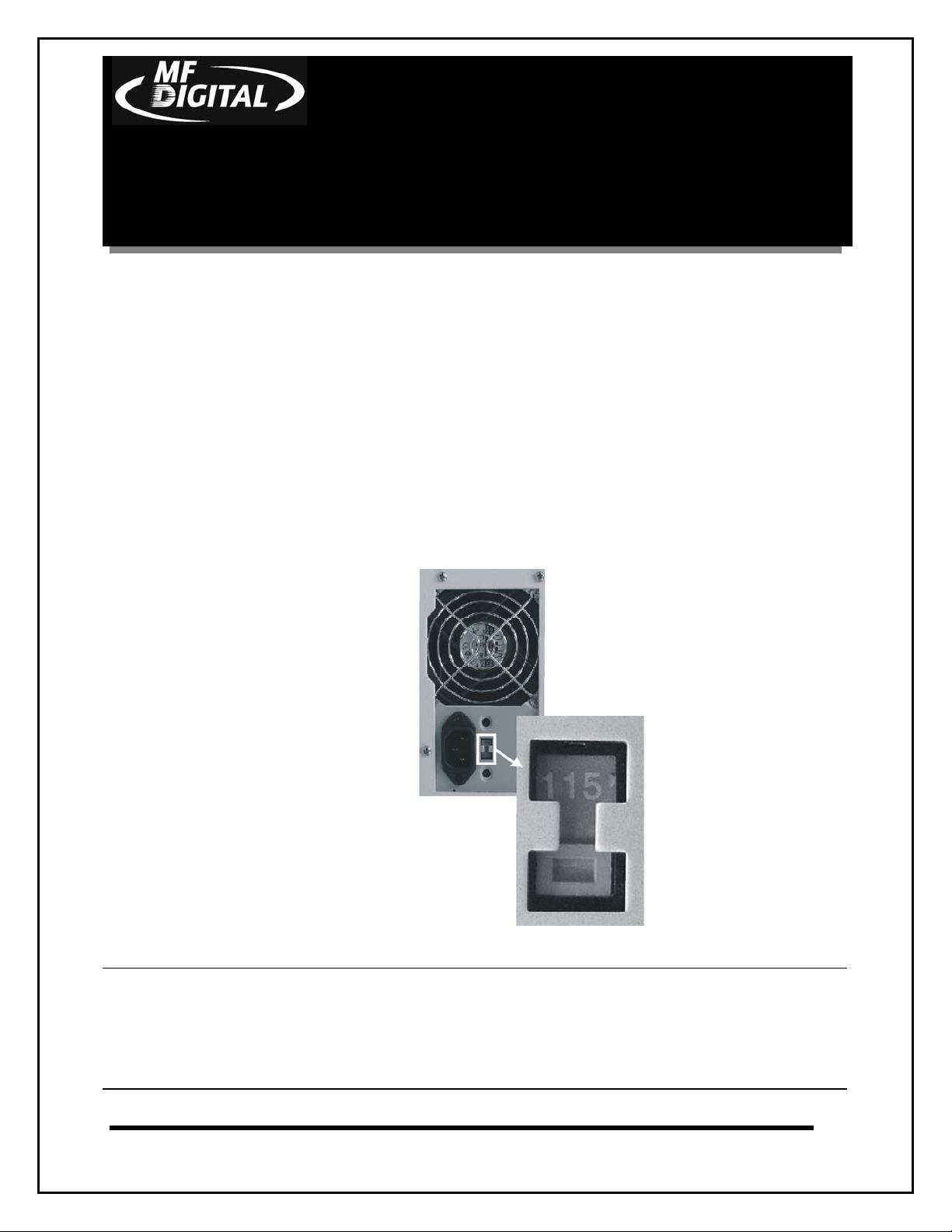

• Verify that the voltage selector switch is set correctly. It is located
between the two power receptacles. The Scribe EC Standalone supports
both 115 VAC and 230 VAC at 50 ~ 60 Hz. Please confirm that the
appropriate voltage (115 VAC for North America) has been selected.
• Next, plug one end of the supplied power cord into the receptacle at the
rear of the unit.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
0
CAUTION
Always use properly grounded receptacles or severe damage to
your system may result. The use of a surge protector or
Uninterruptible Power Supply (UPS) is highly recommended.
Page 21
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Make sure you power on the unit using the primary power switch
located on the back of the Scribe EC Standalone. You must also power
on the drive bay. That switch is located at the front of the drive bay
itself.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804

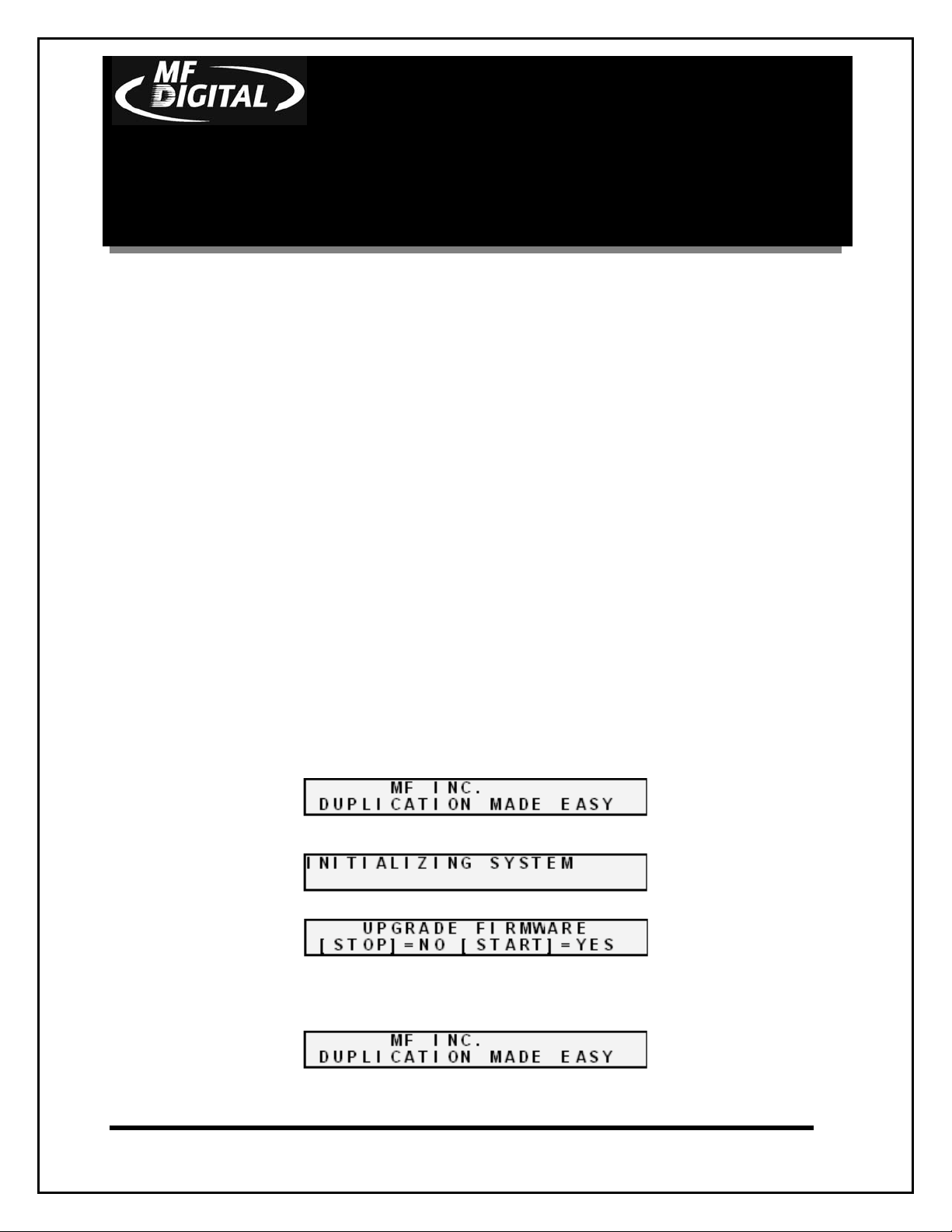

• Once the proper voltage setting has been confirmed, it is time to turn on
the unit. Wait a minute or two while the system starts up. The screen
will now read:
After the startup routine is complete, a series of self-diagnostics will be
performed. The screen will now read in sequence:
Once complete, the unit will display the main operating screen:
Page 22
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
General Operation
The Scribe EC Standalone is extremely versatile and offers many useful
and powerful features.
Function Keys
Various uses for the Scribe EC Standalone will be explained throughout
this Operator’s Guide. The following section explains the purpose of the
function keys.
The numeric keys on the keypad have special functions. When the main
operating screen is displayed:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804

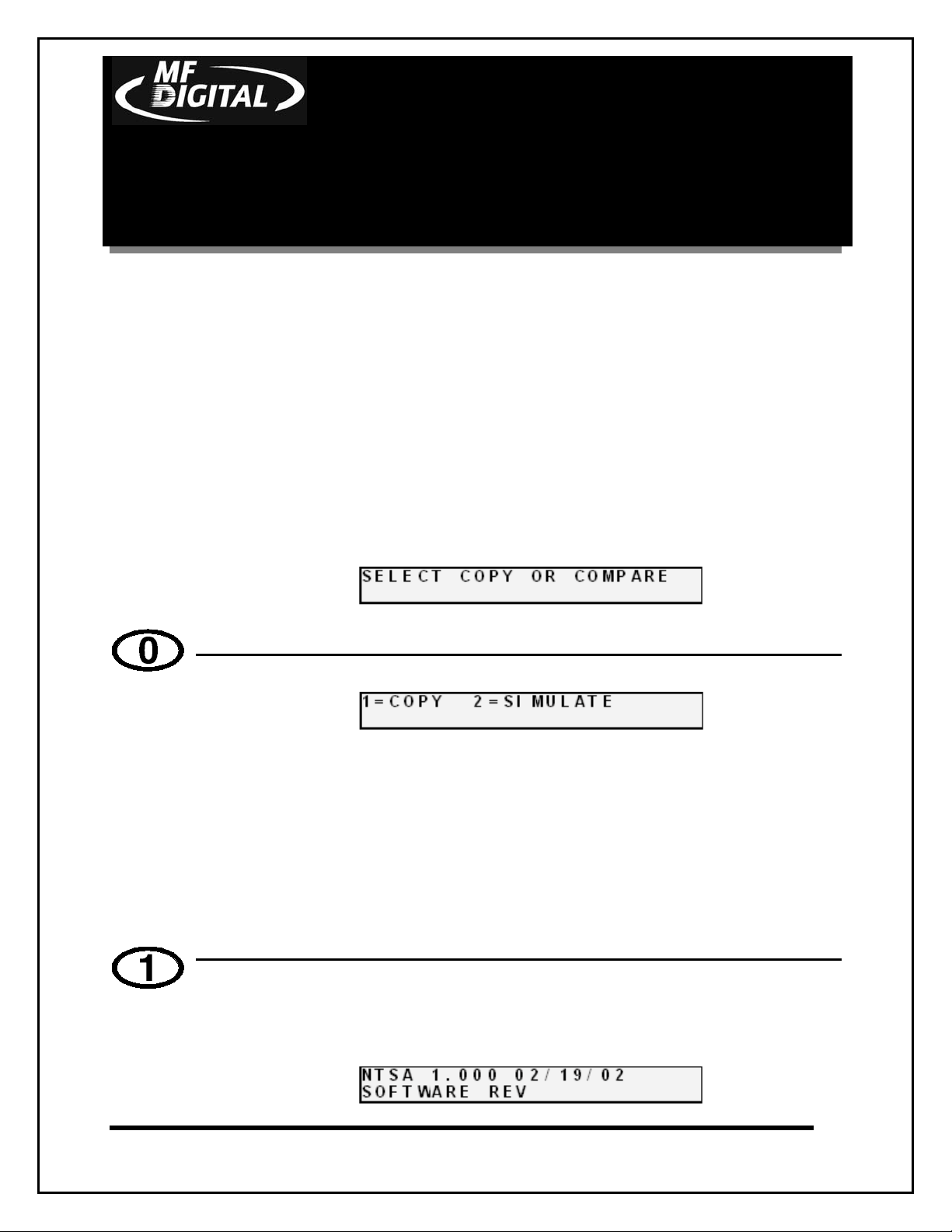

• Press the “0” key on the keypad. The screen will now read:
The factory setting for this function is “Copy”. The “Simulate” mode
is a diagnostic tool, which is useful for testing the readability of a
master disc, without actually writing to blank discs loaded into the
recorders. It is also helpful for training purposes, and for
experimenting with various system functions.
• Press the “1” key to select “Copy” or the “2” key to select
“Simulate”. After pressing either key, you will be returned to the
main operating screen.
• Press the “1” key on the keypad. Something similar to the following
will be displayed on the screen in sequence:
Page 23
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

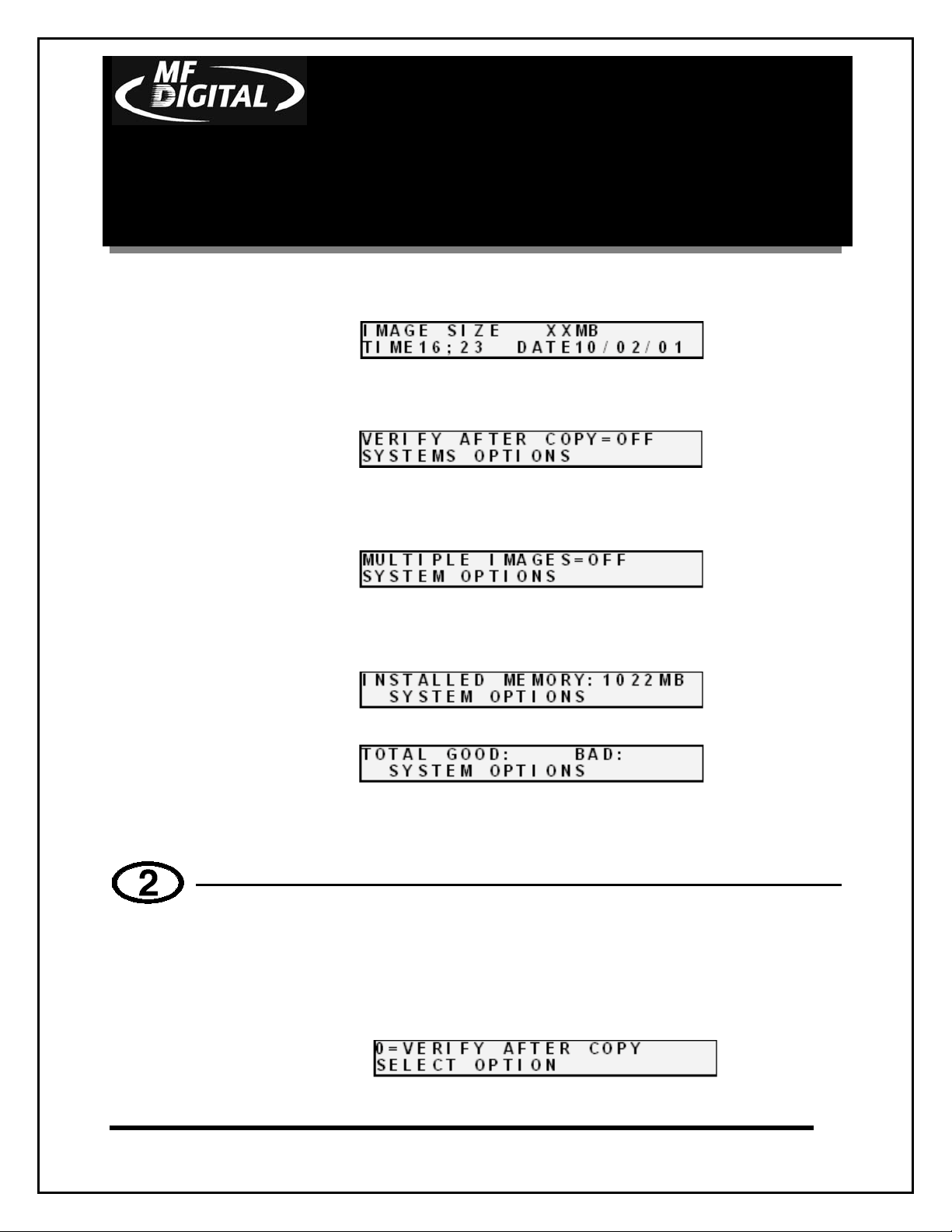

• This is the version information of the firmware currently installed on
• This displays the image size on the internal hard disk, time and date.
• This displays the Verify After status of the Scribe EC Standalone.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
the Scribe EC Standalone.
The Verify After function will verify a copied disc against the master
disc immediately after it has been copied.
• This displays the Multiple Images status of the Scribe EC
Standalone. Multiple images allows the user to store up to 6 separate
master images on the internal Hard Drive.
• This displays the Installed Memory of the Scribe EC Standalone.
• This displays the number of good and bad copies that were produced
to date on the system
• Press the “2” key on the keypad. You will see several functions
scroll
across the screen. Select a function by pressing the corresponding
number on the keypad. Enable or disable the function by pressing
the “Start/Yes” or “Stop/No” key.
Page 24
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• 0- The factory setting for this function is disabled. When enabled,
• 1- The factory setting for this function is disabled. When enabled,
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
the Verify After feature automatically compares discs to the master
disc or hard disk image after copying is completed. Due to the nature
of the various compact disc formats, only CD-ROM Mode 1, CDROM Mode 2, CD-ROM XA Mode 2 Form 1, and audio (CD-DA)
discs can be compared.
the Multiple Images feature allows up to six images to be stored on
the hard disk drive at one time. This setting will remain in effect
until disabled, even after restarting the Scribe EC Standalone.
• 2- The factory setting for this function is “enabled”. When
“disabled”, the Click Detection feature allows masters with small
random errors to be read to the hard drive. Caution should be taken
when disabled, as masters that would normally be rejected will be
allowed to be read-in. Undesirable results may occur.
• 5- Pressing the “5” key will give you the option to choose a printer
or disable the printer option. See the Utilizing the Printer Option
section of this manual for more information.
• Not used.
• Press the “4” key on the keypad. The screen will now read:
Page 25
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

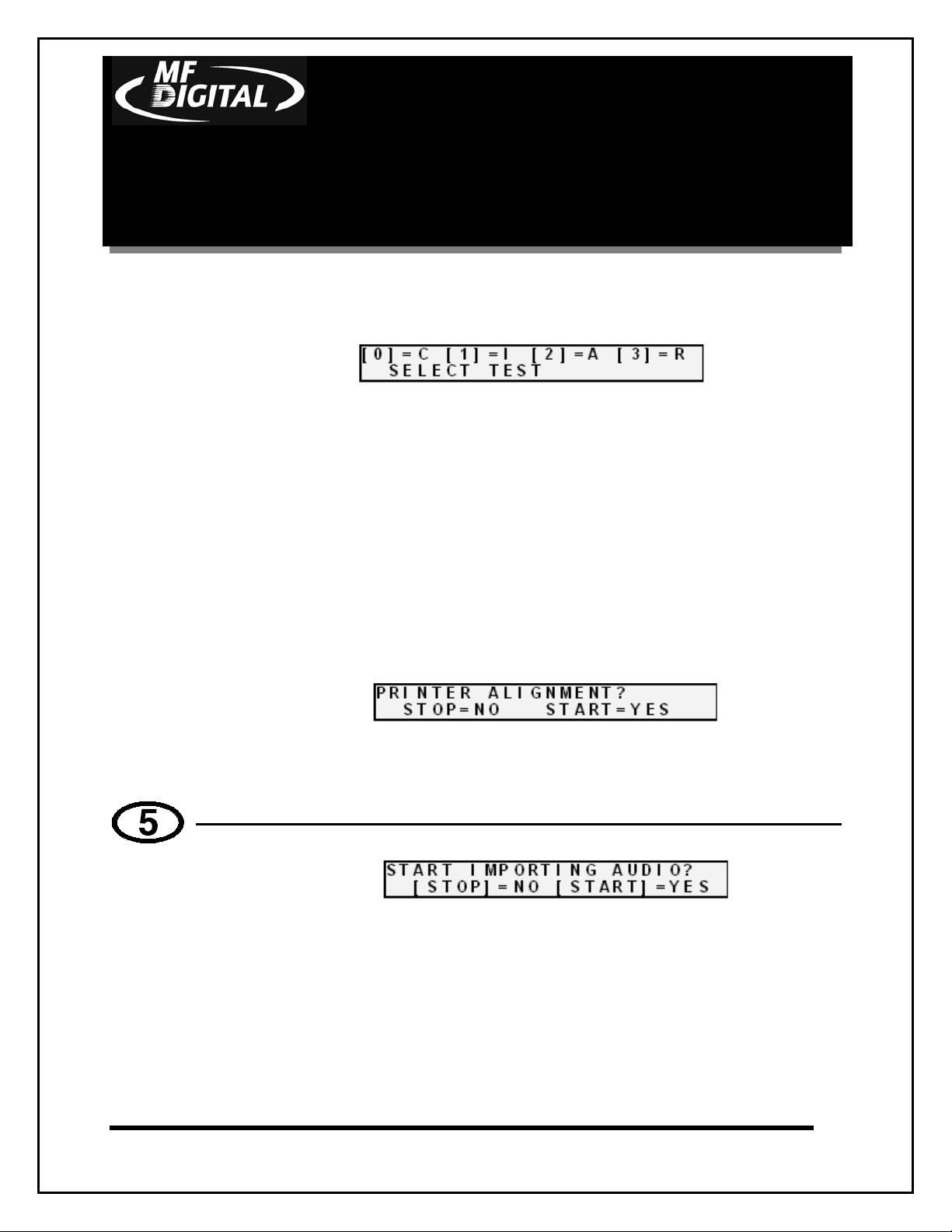

• When selected, the Loader Test Mode function allows you to
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
manually control the robotic functions of the system, for
troubleshooting and testing purposes.
• “C”- calibrates the picking arm
• “I”- loads a disc into the open drive from the input spindle
• “A”- unloads the disc and places it on the accept spindle.
• “R”- key puts the disc in the rejection area in front of the drive
tower.
• Press the “Stop/No” key to exit
• If you pressed the “Stop/No” key for Loader Tester you will be
prompted to align the printer.
• Please see the Aligning the Printer section of this manual (page 30) for
further instructions.
• Press the “5” key on the keypad. The screen will now read:
• By using the Audio Track Import feature, audio compilation discs
can be created one track at a time from one or more masters.
• Manually place an audio master disc into drive number 1.
• Press the “Start/Yes” key
• Press the number of the track you wish to import and press the
“Start/Yes” key. Only one track may be imported at a time. All of the
tracks will create one master image on the hard drive.
• Once you have imported all of the tracks, copy the image you just
created from the hard drive as you normally would.
Page 26
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

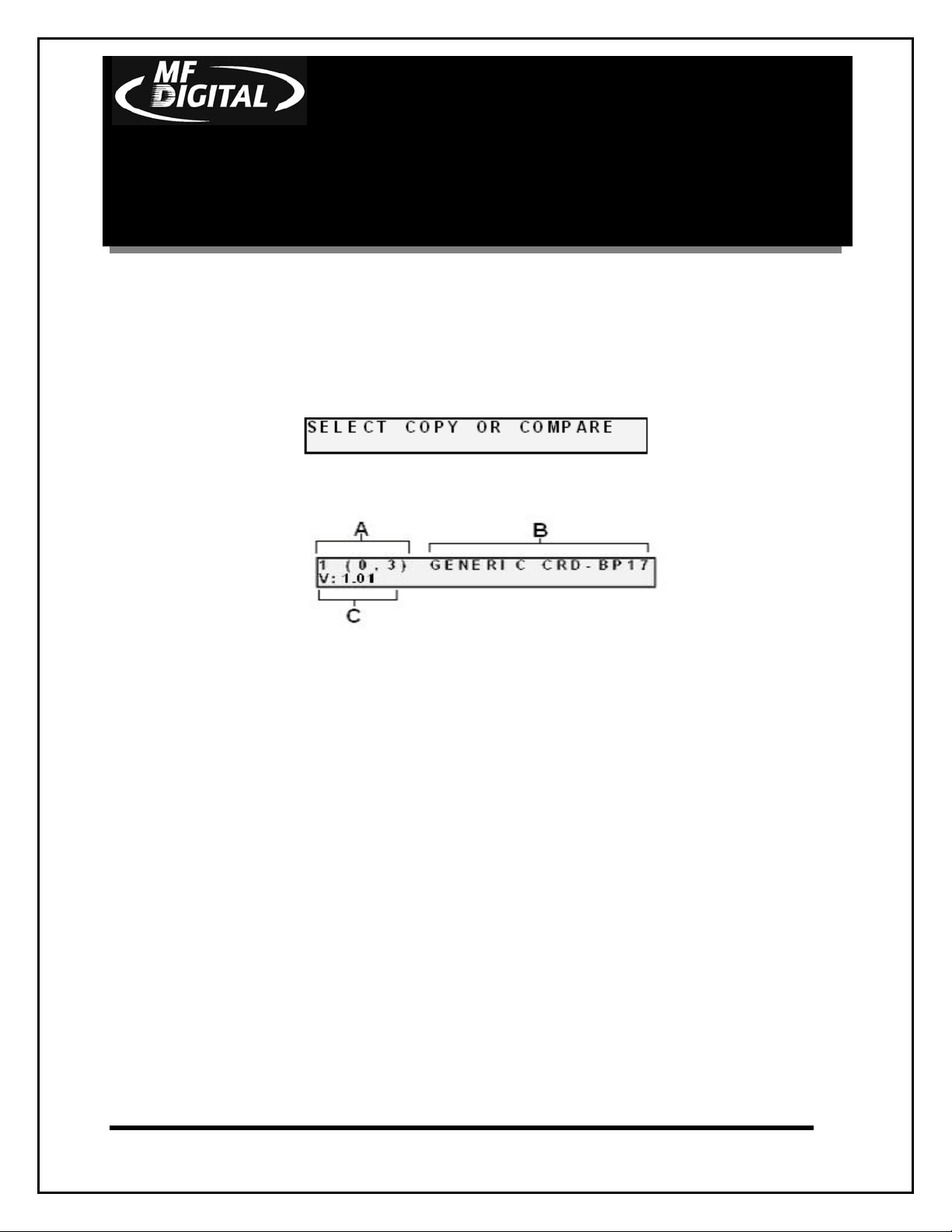

• Press the “6” key on the keypad. Something similar to the following
will be displayed in sequence:
This display is the device information for each of the recorders
installed in the Scribe EC Standalone. This includes their host
number, model name, and firmware version.
• Press the “7” key on the keypad. The screen will now read:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Press the “Start/Yes” key to clear the hard drive.
If the “Stop/No” key is pressed you will be prompted to set the
“System Time.”
• Press the “Start/Yes” key to set the system time.
If the “Stop/No” key is pressed you will be prompted to “Read
ATIP.”
When selected, the ATIP function allows you to determine the
manufacturer of the CD-R placed in drive 1 of the Scribe EC
Standalone. (Not available on DVD)
• If you pressed the “Stop/No” key at you will be prompted to “Set the
Drive Order”:
• Press the “Stop/No” key if you do not want to reset the drive order.
Press the “Start/Yes” key and you will then see the following screen:
Page 27
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• All of the drives will open at this time:
• Close the drive tray of the drive you would like to be drive number
• Close the remaining drives in the order that you would like them to
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
“1”. It can be any one of the drives. You will then see the following
screen:
read

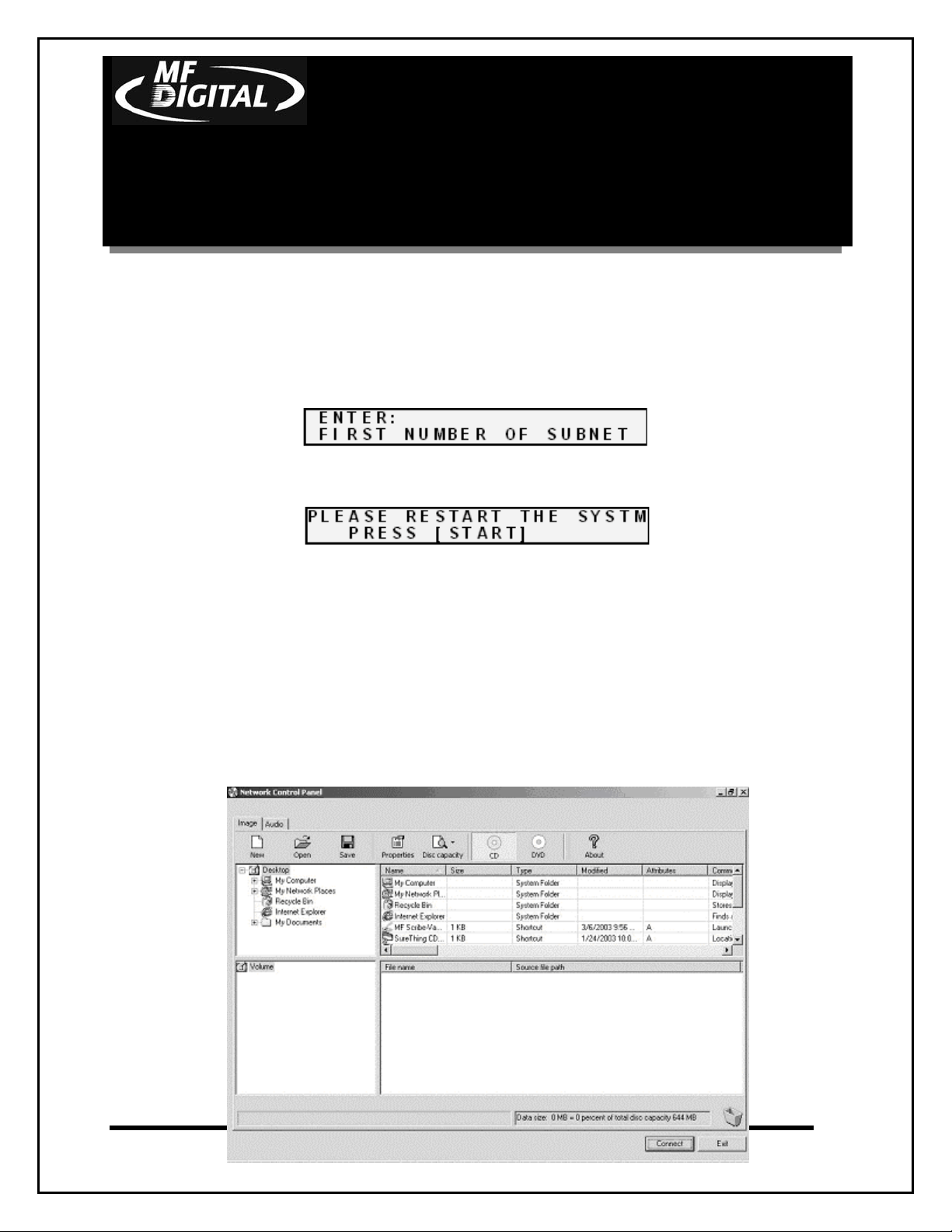

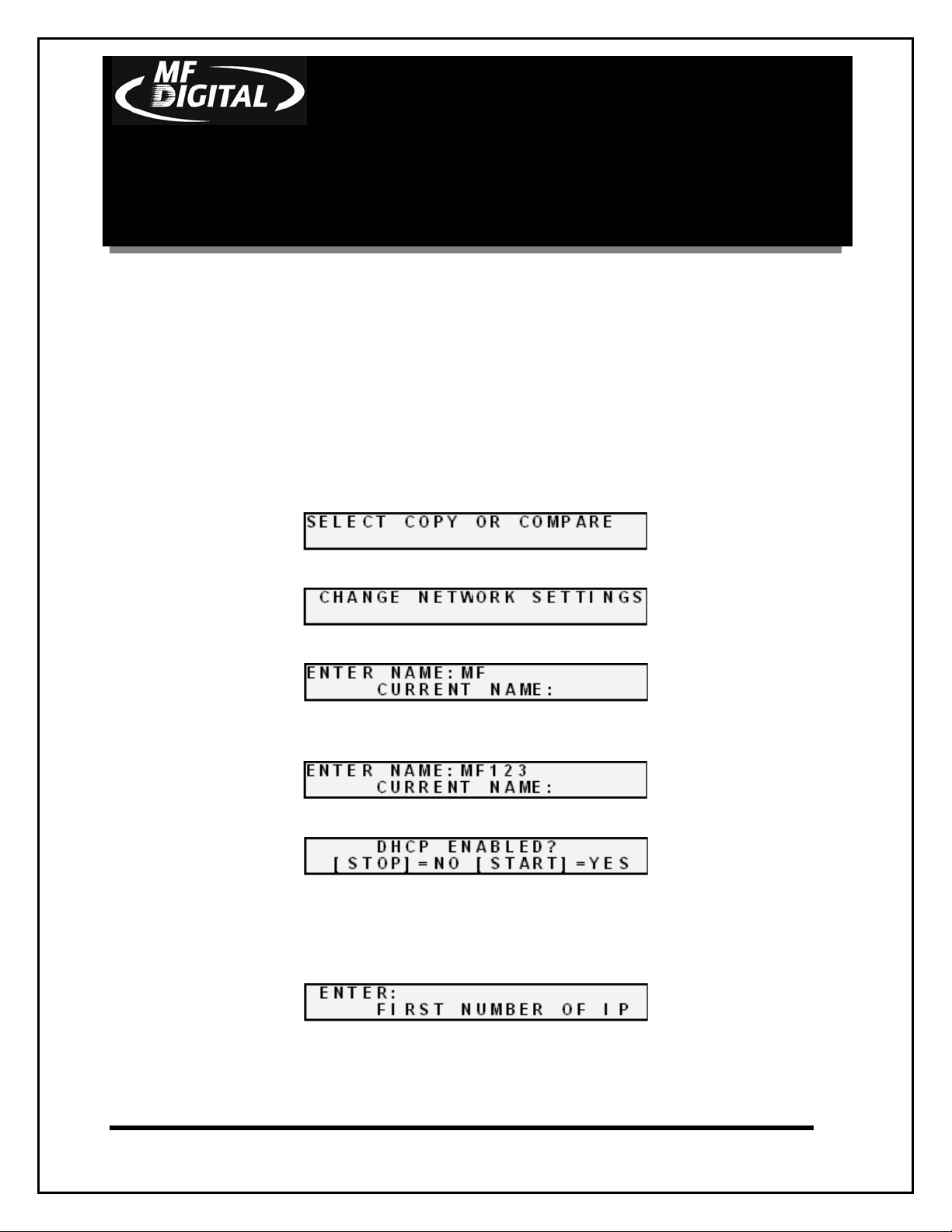

• If you pressed “Stop/No” to “Set Drive Order”, you will be
prompted to “Change Network Settings”. Pressing “Start/Yes” will
allow you to set-up the network client feature. Please see Setting Up
Network Client section (p. 51) for further details. Pressing
“Stop/No” will bring you back to the “Select Copy or Compare”
screen.
• Press the “8” key on the keypad. The screen will now read:
The factory setting for this function is “52x” for CD and “4x” for
DVD. When selected, the Select Recording Speed feature allows
you to set the copying speed as determined by the capabilities of the
recorders installed in the Scribe EC Standalone.
• Press the “0” key to select 16x, the “1” key for 32X, or the “3” key
for 52x. After pressing any of those keys, the screen will now read:
Page 28
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

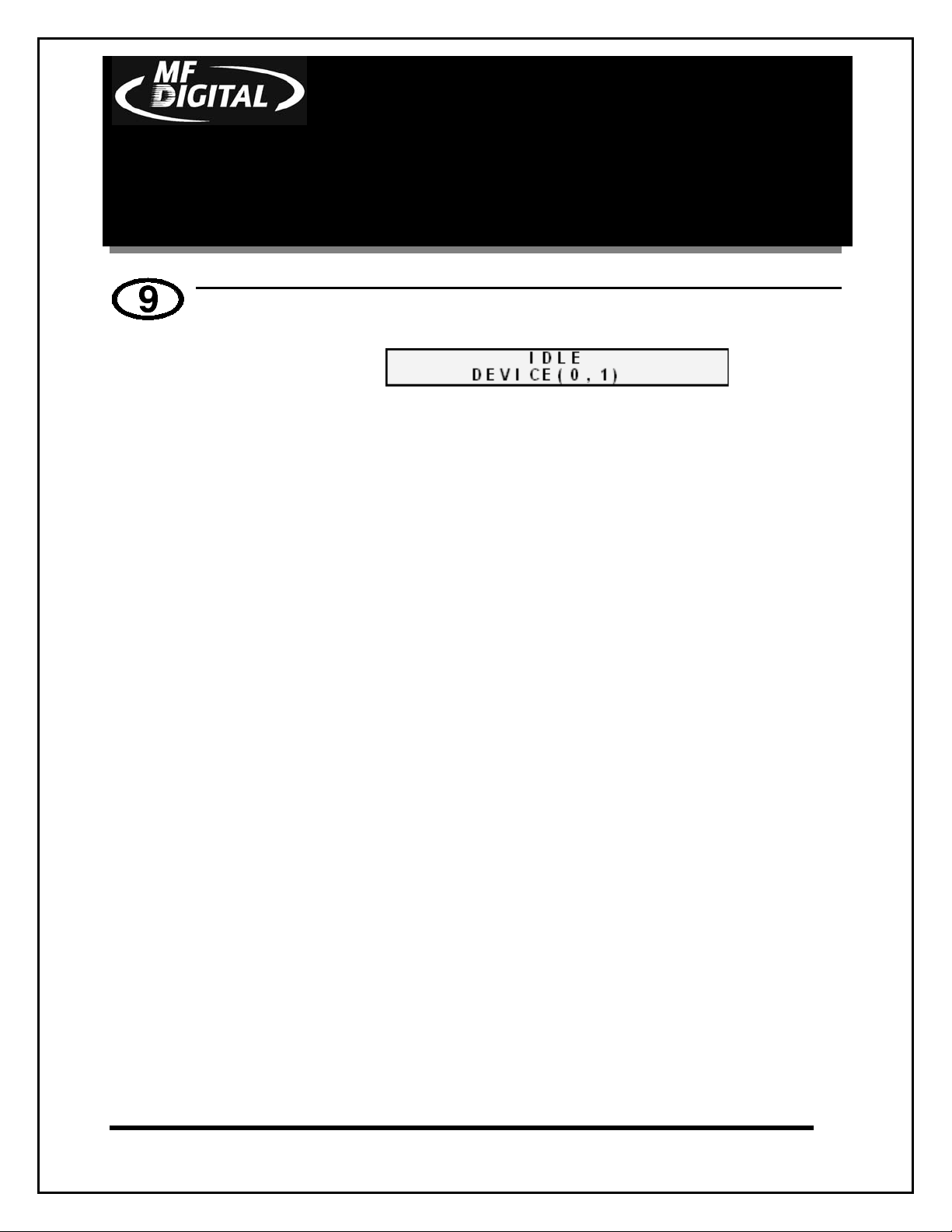

• Press the “9” key on the keypad. Something similar to the following
will be displayed in sequence:
This displays the status of the last disc copied or compared in each of
the Scribe EC Standalone’s recorders. If the last operation performed
was successful, the screen will report “OK”. If problems were
encountered, an error message will be displayed.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 29
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Aligning the Drive Bay
Please follow the instructions below to align the drive bay on the Scribe EC
Standalone.

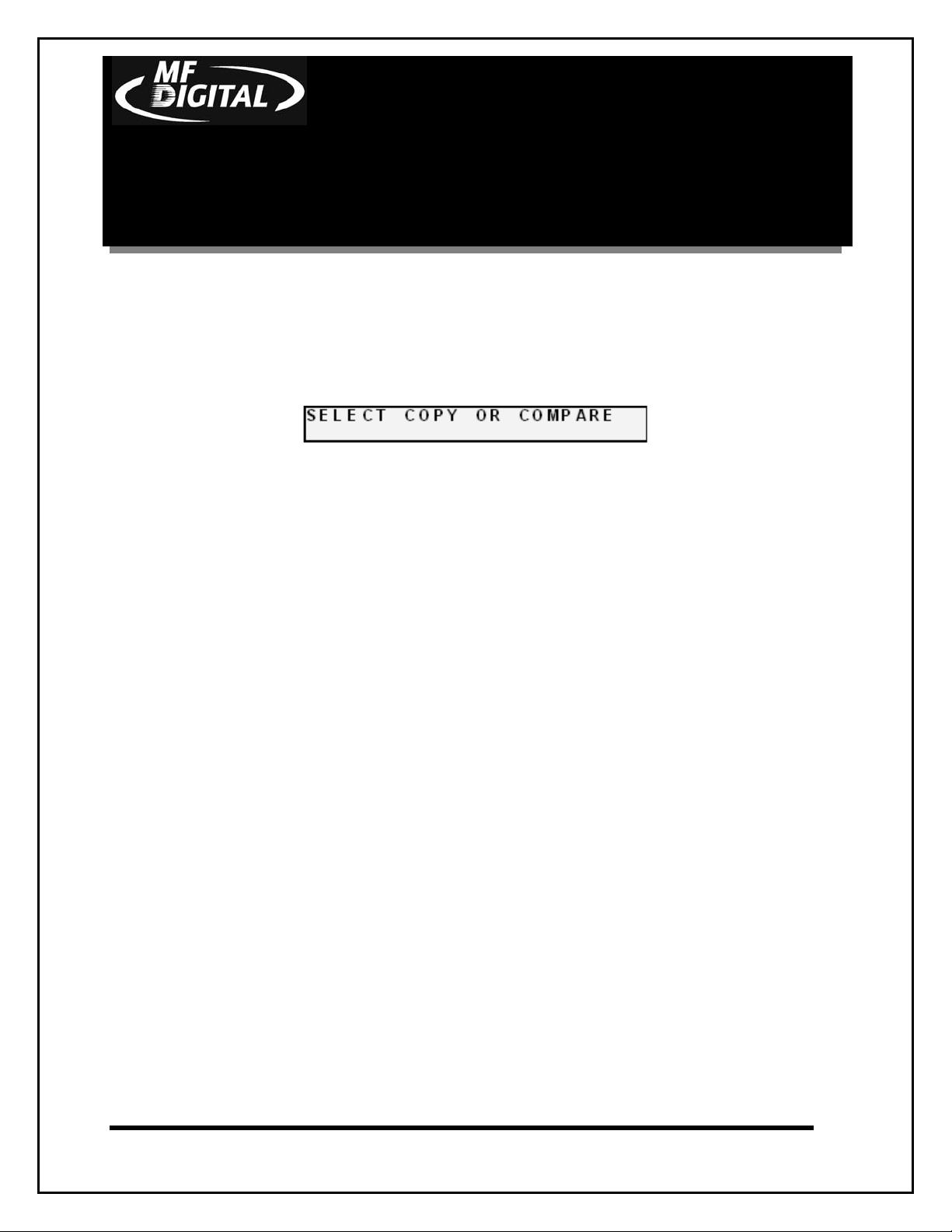

• From the main operating screen depicted below:
• Press the “4” key. You will then be prompted to “Start Loader Test
Mode?”. Press the “Start/Yes” key to enter “Loader Test Mode”
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• The following screen will appear. Place a CD in the 1
st
input area.
• To align the drive tower, first press the number with corresponds to the
“C” command for calibrate. Then press “I” for input. This will pick up
a CD from the input area and place the CD in the drive. Inspect the
placement of the CD and align the drive tower accordingly.
• After inserting a CD, press “A” for accept, and the arm will pick the CD
out of the drive and place on the output spindle.
• Repeat process as necessary until you are satisfied with the alignment of
the drive bay.
Page 30
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Aligning the Printer
Selecting the Printer
• First, the appropriate printer must be selected. To select the appropriate
printer, do the following:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804

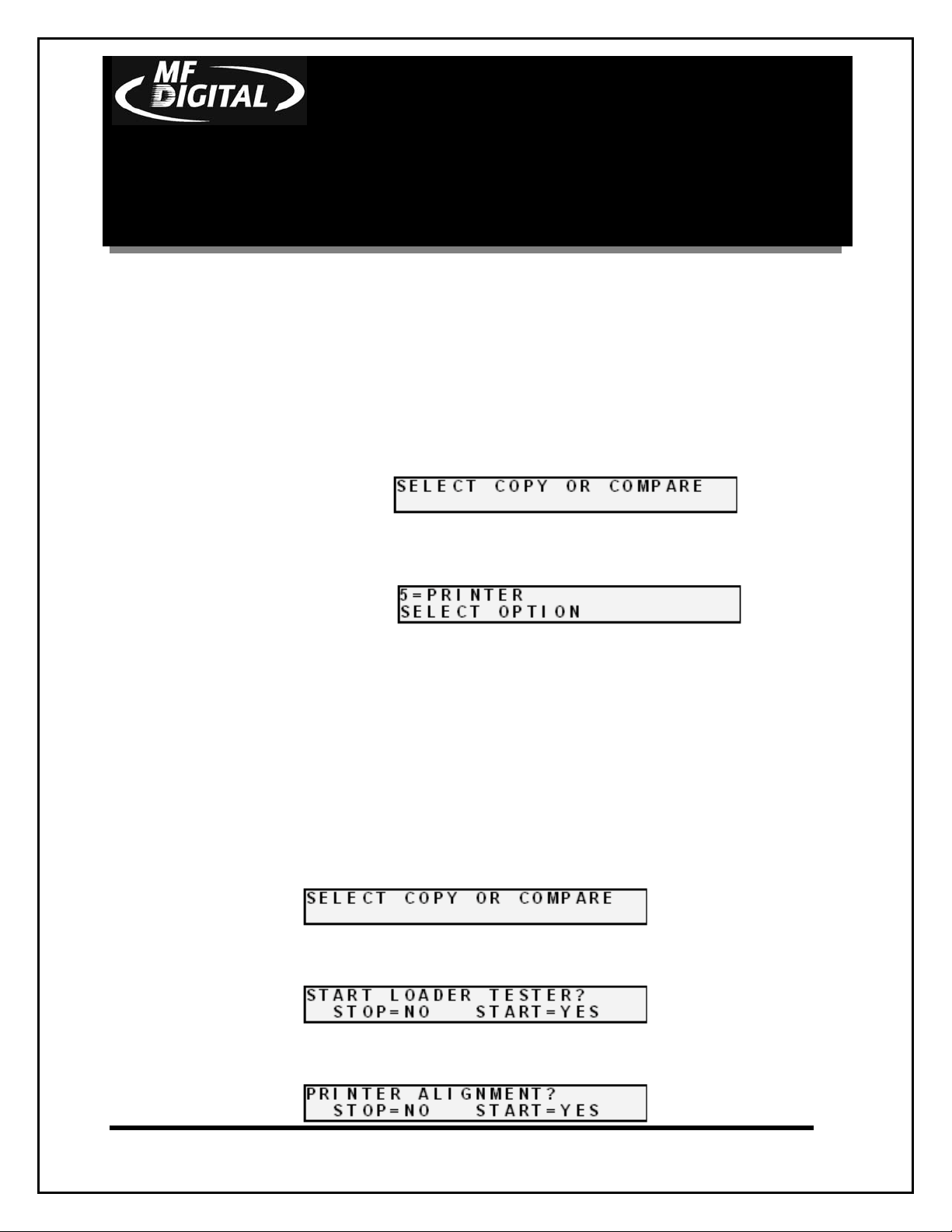

• At the “Select Copy or Compare, press the “2” key
• From the Options Screen, press the “5” to select the
printer
• Select the appropriate printer that you have installed on
the system. Choose the number that corresponds with the
printer that you have installed. After choosing the printer,
the system will reboot.
Aligning the Printer
• After the system reboots, the main operating screen will be depicted
below:
• Press the “4” key. You will be prompted to “Start Loader Test
Mode?”. Press “Stop/No” to bypass “Loader Test Mode”
• You will then be prompted to enter the “Printer Alignment” feature, as
depicted below:
Page 31
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Press the “Start/Yes” key to enter the “Printer Alignment” feature.
• Place a CD in the input area and press the “Start/Yes” key.
• At this point the automated arm will pick a disc up from the input area
and place the CD so that it stops just above the printer tray. Check the
alignment of the printer and adjust the printer accordingly. After the
disc has been placed you will see the following screen:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Press the “Start/Yes” key. The disc will be unloaded from the printer
tray and put onto the output spindle. You will be returned to the start of
the test, repeat the process if further alignment is required.
Page 32
Scribe EC Standalone Series
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Creating A Hard Disk Image
The Scribe EC Standalone comes equipped with an internal hard disk drive,
which can be used to store copies of master discs for later recording or
comparing. Each master is saved as a single image file. Up to six images
can be stored on the hard disk at one time.
A hard disk image is useful as a convenient way of copying standard master
discs. For example, create hard disk images for three or four master discs
which are needed on a regular basis, and access them to make copies as
required.
Document Revision: 011804
Operator’s Guide
Creating A Single Hard Disk Image
Although the Scribe EC Standalone’s internal hard disk can store up to six
images of master discs, it is sometimes prudent not to use this Multiple
Image feature and only allow one image to be created and stored. For
example, using a single image simplifies the copying process. This reduces
the chance that an operator might make copies of the wrong master by
selecting the incorrect hard disk image.
To create a single hard disk image (multiple images disabled), the steps are
as follows:
• From the main operating screen depicted below:
• Press the “COPY” key. The screen will now read:
• Press the “Stop/No” key. The screen will now read:
Page 33
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

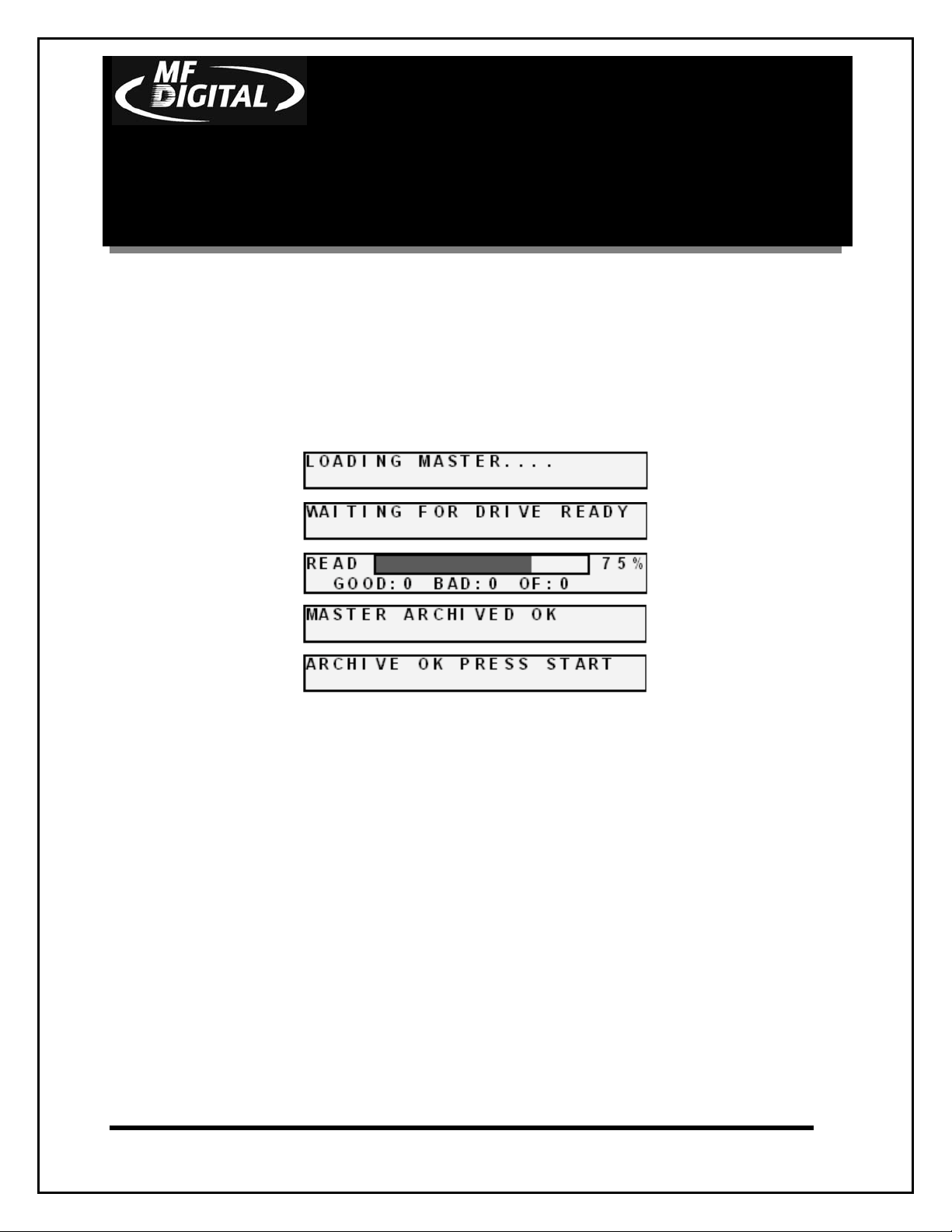

• Press the “Start/Yes” key. The screen will now read in sequence:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
The master disc is now stored as an image on the hard disk
Note: If the master failed to copy to the hard drive properly, the
master disc will be placed in the reject area in front of the
drives. These discs should not be used.
• Press the “Start/Yes” key, and you will be returned to the main operating
screen:
Note: When the Multiple Images feature is disabled, only one image
can be saved on the hard disk. If a new image is created, the
old image is overwritten.
Page 34
Scribe EC Standalone Series
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Creating Multiple Hard Disk Images
The Multiple Images feature allows the Scribe EC Standalone’s internal
hard disk to store up to six master disc images. The factory setting for this
function is “disabled”. To enable it, and create multiple image files,
proceed as follows:
• From the main operating screen depicted below:
• Press the “2” key. The screen will now read:
Document Revision: 011804
Operator’s Guide
• Press the “1” key to select Multiple Images. The screen will now read:
• Press the “Start/Yes” key to enable Multiple Images.
• You will then be returned to the main operating screen:
• Press the “COPY” key. The screen will now read:
• Press the “Stop/No” key. The screen will now read:
• Press the “START/YES” key. The screen will now read:
Page 35
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Select the number that will designate the location of your master. The
screen will then read in sequence:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 36
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Copying From A Hard Disk Image
After a hard disk image has been created, it can be used as the copying
master source. If you have not already created a hard disk image, do so
now, as described in the previous section.
Multiple Images Disabled
To make copies from a hard disk image that was previously created with
the Multiple Images feature “disabled” (i.e. from a single hard disk image),
the steps are as follows:
• From the main operating screen depicted below:
Document Revision: 011804
• Load as many blank discs as are required into the CD-R/RW recorders.
• Press the “COPY” key on the keypad. The screen will now read:
• Press the “Start/Yes” key to begin copying from the hard disk image, to
the blank discs in the recorders. Depending on the format type of the
image, something similar to the following will be displayed on the
screen:
• Enter the quantity of discs (up to 600) you wish to copy:
Progress will be displayed on the screen during the operation:
• Press the “Start/Yes” key, and you will be returned to the main
operating screen:
Page 37
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Note: If the master failed to copy to the hard drive properly, the
master disc will be placed in the reject area in front of the
drives. These discs should not be used.
Multiple Images Enabled
To make copies from hard disk images that were previously created with
the Multiple Images feature “enabled”, the steps are as follows:
• From the main operating screen depicted below:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Load as many blank discs as are required into the recorders. Press the
“COPY” key on the keypad. The screen will now read:
• Press the “Start/Yes” key. The screen will now read:
Along the top line of the display will scroll the available images,
identified by their number (1, 2, 3, 4, 5 and 6). The Scribe EC
Standalone defaults to the first image (1). For the purposes of this
example, press the “1” key to select this image, followed by the
“Start/Yes” key. The screen will now read:
Progress will be displayed on the screen during the operation:
• Press the “Start/Yes” key, and you will be returned to the main
operating screen:
Page 38
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Note: If the master failed to copy to the hard drive properly, the
master disc will be placed in the reject area in front of the
drives. These discs should not be used.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 39
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Comparing From A Hard Disk Image
For quality control purposes, the Scribe EC Standalone is equipped with
powerful verification capabilities. Copied discs can also be compared
against hard disk images. This feature ensures copying integrity.
Note: Due to the nature of the various compact disc formats, only
CD-ROM Mode 1, CD-ROM Mode 2, CD-ROM XA Mode 2
Form 1, and most CD formats can be compared.
Document Revision: 011804
Multiple Images Disabled
To compare copied discs to a hard disk image that was previously created
with the Multiple Images feature “disabled” (i.e. from a single hard disk
image), the steps are as follows:
• From the main operating screen depicted below:
• Load the copied discs to be compared into the CD-R/RW recorders.
• Press the “COMPARE” key on the keypad. The screen will now read:
• Press the “Start/Yes” key. The screen will now read:
Progress will be displayed on the screen during the operation:
Upon successful completion, the compared disc(s) will be ejected.
The screen will now read:
Page 40
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Press the “Start/Yes” key, and you will be returned to the main
operating screen:
Note: If the master failed to copy to the hard drive properly, the
master disc will be placed in the reject area in front of the
drives. These discs should not be used.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804

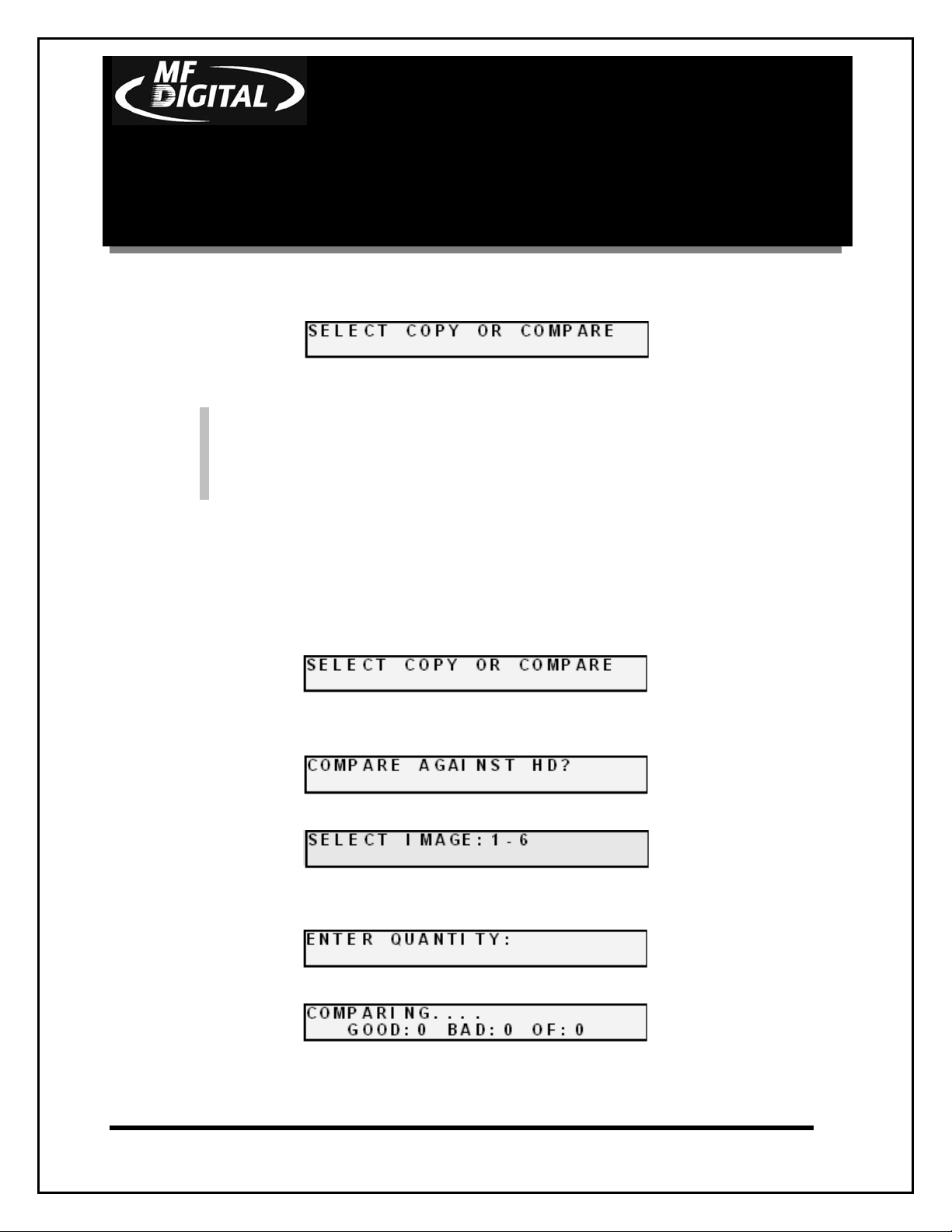

Multiple Images Enabled
To compare copied discs to a hard disk image that was previously created
with the Multiple Images feature “enabled”, the steps are as follows:
• From the main operating screen depicted below:
• Load the copied discs to be compared into the CD-R/RW recorders.
• Press the “COMPARE” key on the keypad. The screen will now read:
• Press the “Start/Yes” key. The screen will now read:
• Select the image you would like to compare against by pressing 1, 2, 3,
4, 5 or 6.
Progress will be displayed on the screen during the operation:
Upon successful completion, the compared disc(s) will be ejected.
The screen will now read:

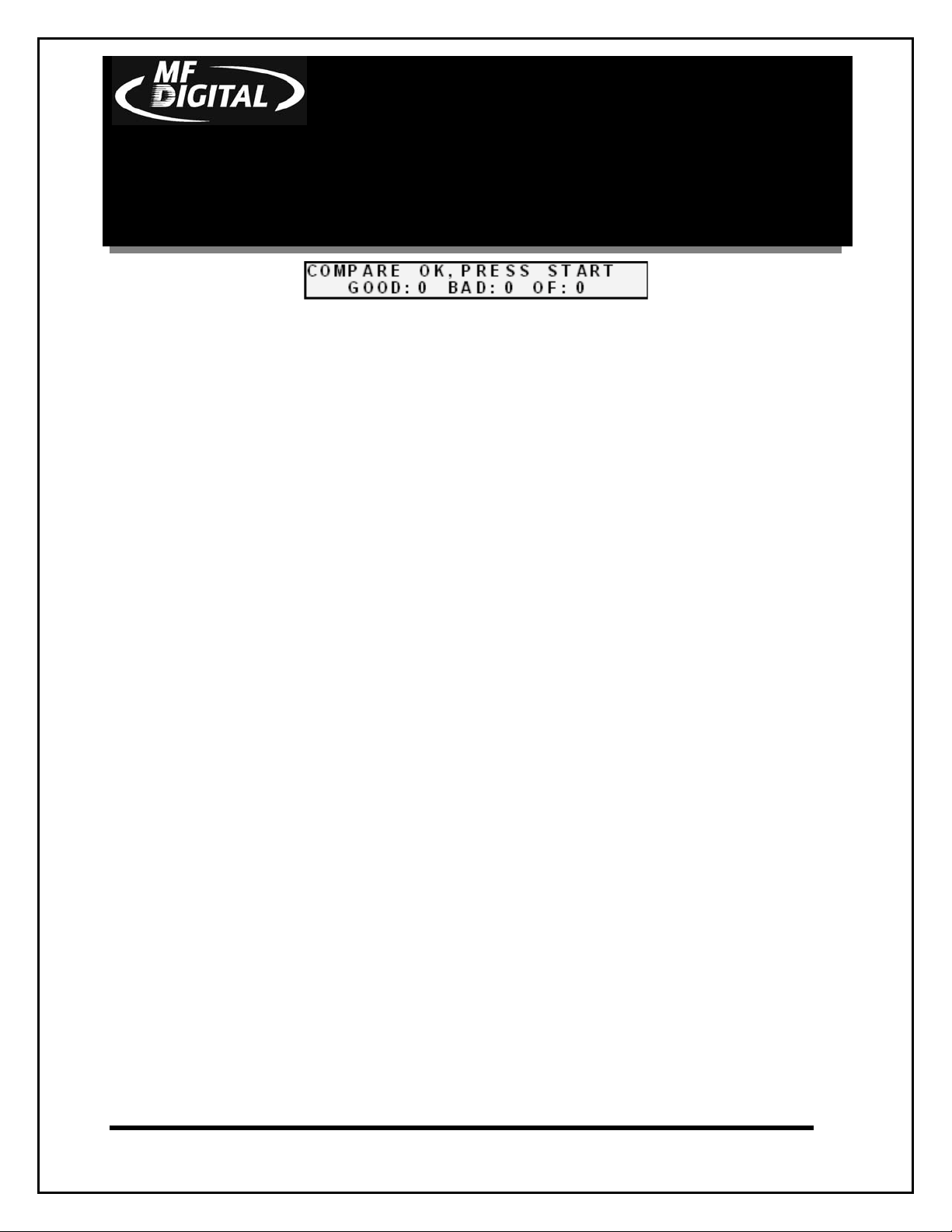

Page 41
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 42
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Press the “Start/Yes” key, and you will be returned to the main
operating screen:
Note: If the master failed to copy to the hard drive properly, the
master disc will be placed in the reject area in front of the
drives. These discs should not be used.
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Enabling Verify After
• From the main operating screen depicted below:
• Press the “2” key and the screen will now display in sequence:
• Press the “0” key, and the screen will now read:
• Press the “Start/Yes” key to enable, or the “Stop/No” key to disable the
Verify After option. If you press the “Start/Yes” key the screen will
read:
• You will then be returned to the main operating screen.
Page 43
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Erasing CD-RW/DVD-RW Discs
• From the main operating screen depicted below:
• Press the “COPY” key on the keypad. You will then press the
“Stop/No” key until you reach the following screen:
• Load the CD-RW disc you would like to erase into the input bin and
wait for the green light on the front of the drive to stop blinking.
• Press the “Start/Yes” key on the keypad.
Document Revision: 011804
• The Scribe EC Standalone will then erase the CD-RW/DVD-RW disc.
Page 44
Scribe EC Standalone Series
I
f
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Creating .prn Files (Spectrum2 Printer)
Create a .prn by printing the document
to a file instead of routing it directly to
a printer. You will be prompted to
specify the filename and location. This
puts the document in a format that the
Scribe EC Standalone can use for
printing. Follow the instructions below
to create a .prn.
Document Revision: 011804
• When a label file is saved in
Spectrum2 Designer it is given a
.S2D extension. This format is not
usable by the Scribe EC Standalone.
You will however want to save your
label as a .S2D for future editing
(fig. A).
• To create a .prn you must use the
Print feature after you have created
your label.
• Make sure that the Spectrum2
printer is selected in the name box.
• Select the Print to file option (fig.
B).
• Give your file a name (fig. C).
• Select the Labels folder that the you
will use as your default, and print
the file to this folder (fig. C).
• After creating PRN file, you must
give your PRN file the name 1.prn
and burn this file to a CD.
(fig. A)
(fig. B)
A .prn file cannot be edited. It contains
information to create the image, and the
Note:
settings of the particular printer.
the settings of the printer are changed, a
new .prn file must be generated.
f any o
Page 45
Scribe EC Standalone Series
f
t
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Creating .prn Files (Prism Plus Printer)
• Create a .prn by printing the
document to a file instead o
directly to a printer. You will be
prompted to specify the
filename and location. This puts
the document in a format that
the Scribe EC Standalone uses
for printing. Follow the
instructions below to create a
.prn.
Document Revision: 011804
(fig. A)
• When a label file is saved in
Rimage CD Designer it is given
a .BTW extension. This format
is not usable by the Scribe EC
Standalone. You will however
want to save your label as a
.BTW for future editing (fig. A).
• To create a .prn you must use
the Print feature after you have
created your label.
• Make sure that the Perfec
Image Printer PF printer is
selected in the name box.
• Select the Print to file option,
under the options tab (fig. B)
and click PRINT.
• Give your file a name (fig. C).
• Select the Labels folder that you
will use as your default, and
print file to this folder (fig. C).
(fig. B)
• After creating PRN file, give
your PRN file the name 1.prn
and burn this file to a CD.
Page 46
(fig. C)
Scribe EC Standalone Series
I
f
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Creating .prn Files (Inkjet Printer)
Create a .prn by printing the document
to a file instead of routing it directly to
a printer. You will be prompted to
specify the filename and location. This
puts the document in a format that the
Scribe EC Standalone can use for
printing. Follow the instructions below
to create a .prn.
Document Revision: 011804
• When a label file is saved in Sure
Thing it is given a .std extension.
This format is not usable by the
Scribe EC Standalone. You will
however want to save your label as
a .std for future editing (fig. A).
• To create a .prn you must use the
Print feature after you have created
your label.
• Select the Inkjet printer (fig. B)
• Click Advanced (fig. B)
• Click Print to file (fig. C)
• Click OK
• Type in the full path to the Labels
folder that you will use as your
default label folder, and print the
file to this folder (fig. D)
• Click OK
• After creating PRN file, you must
give your PRN file the name 1.prn
and burn this file to a CD.
(fig. A)
(fig. B)
(fig. C)
A .prn file cannot be edited. It contains
information to create the image, and the
Note:
settings of the particular printer.
the settings of the printer are changed, a
new .prn file must be generated.
f any o
Page 47
(fig. D)
CD-3706/P Operator’s
N
Guide
Document Revision: 030501.1
Utilizing the Printer Option
Copy and Print
• From the main operating screen depicted below:
• Press the “2” key. The setting options will scroll across the screen.
Press the “5” key to
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• After pressing the “5” key, you will have the option of selecting the
type of printer being used with the Scribe EC Standalone system.
Please press the appropriate number that corresponds with the printer
that you have set-up on the Scribe EC Standalone system. (A sample of
printer options is listed below)
• Press the key corresponding to the printer you would like to use and the
system will reboot.
• Once you have enabled a printer, burn the .prn file to a CD (as described
in the section Creating .prn Files) and place the CD with the .prn file
on top the CD stack in the input bin.
• Copy as you normally would and each disc will be printed after burning.
ote:
When copying in Relay Mode, with multiple masters, ensure
the CD contains the printer image files (1.PRN, 2.PRN, etc.)
Page 48
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 49
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Print Only
In addition to the Copy and Print feature, the Scribe EC Standalone is
capable of processing Print Only jobs. Please follow the instructions below
to utilize this capability.
• Place the CD containing the .prn file, which you wish to use, on top of
the CD stack in the input bin.
• From the main operating screen, press the “COPY” key on the keypad.
• You will be prompted to:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Press the “Stop/No” key.
• Press the “Stop/No” key.
• Press the “Stop/No” key.
• Press the “Stop/No” key and you will be prompted to enable the Print
Only function.
• Press the “Start/Yes” key and you will be prompted to enter a quantity
of discs to be printed.
• Enter a quantity and press the “Start/Yes” key.
• The Scribe EC Standalone will first archive the .prn file from the CD
before printing.
Page 50
CD-3706/P Operator’s
Guide
Document Revision: 030501.1

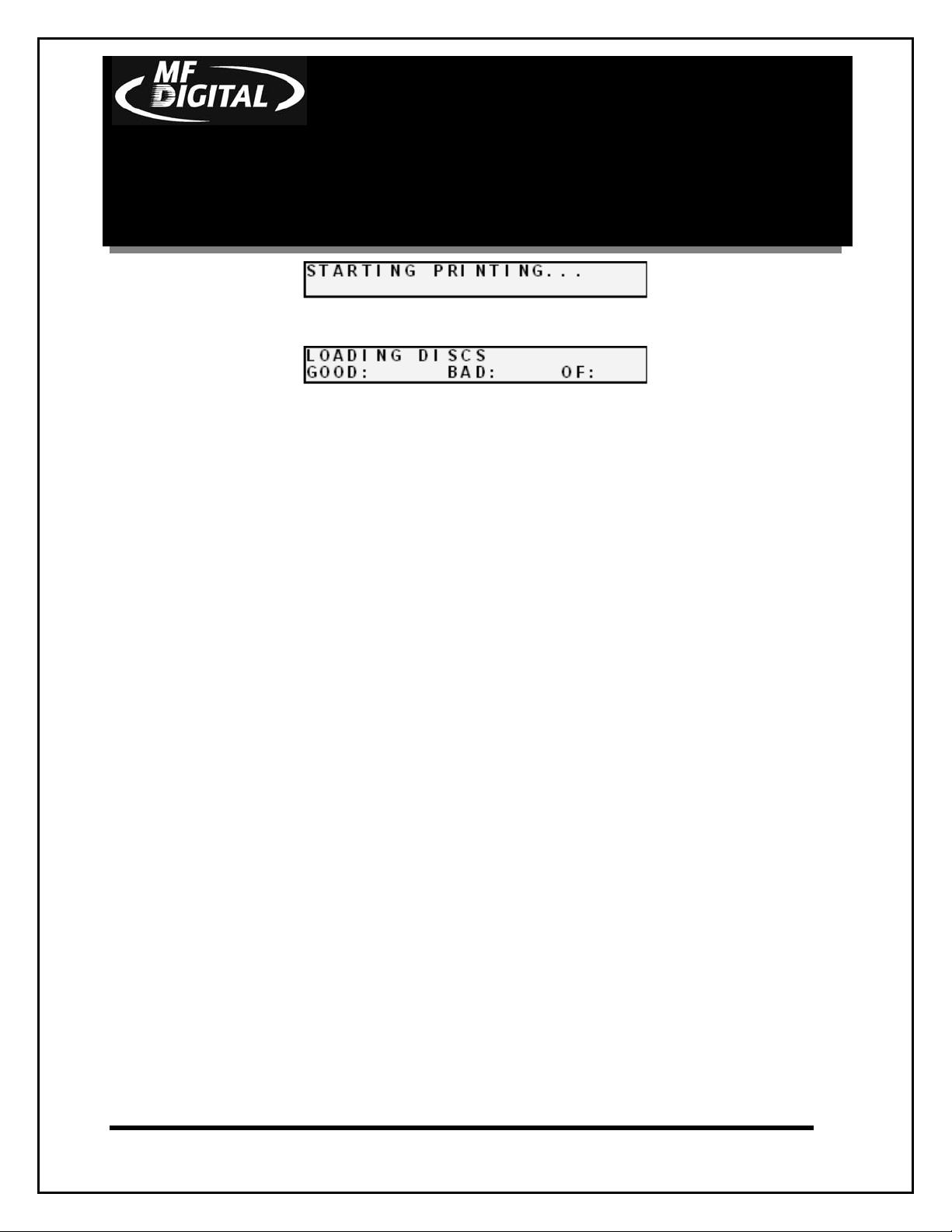

• The print job will now run, the status will be shown as seen below:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 51
Scribe EC Standalone Series
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Viewing Device Information
To view the Scribe EC Standalone device information, the steps are as
follows:
• From the main operating screen depicted below:
• Press the “6” key. Something similar to the following will be displayed
on the screen:
Document Revision: 011804
Operator’s Guide
The device information is displayed for each of the CD-R/RW and
DVD-+R/-+RW recorders installed in the Scribe EC Standalone. The
information displayed is the following:
A= Device Number (position of device in system)
B= Drive Model Number
C= Firmware version installed on drive
Page 52
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Working With CD-ReWritable (CD-RW) Discs
In addition to working with CD-Recordable (CD-R) discs, the Scribe EC
Standalone can also copy both to and from CD-ReWritable (CD-RW) discs.
CD-R discs are write-once and can be read on any CD audio player, CDROM, and MultiRead CD-ROM drive. CD-RW discs can be rewritten to as
many as 1,000 times, and are read using MultiRead CD-ROM (usually 24x
and faster), and CD-ROM drives.
CD-RW Supported Formats
Document Revision: 011804
The Scribe EC Standalone can copy CD-RW discs written in most logical
formats (ISO 9660, audio, etc.) but not those created using the Universal
Disk Format (UDF). CD-RW discs using UDF are produced by packet
writing software (such as Adaptec DirectCD, CeQuadrat PacketCD, Prassi
abCD, etc.). Because UDF discs cannot be read by all CD-ROM drives,
they are not a good choice for distributing data.
CD-RW Copying Speed
CD-RW copying speed is determined by two factors - the CD-RW writing
speed of the recorders installed in the Scribe EC Standalone, and the
maximum speed rating of the discs themselves. CD-RW discs are
manufactured with an internal speed code, which is checked before copying
begins. The Scribe EC Standalone, equipped with the MF Digital
ProDRIVE 52x drives, will only accept CD-ReWritable (CD-RW) discs
rated up to 24x speed.
Page 53
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Setting The Internal Clock
The Scribe EC Standalone’s internal clock is set at the factory for Eastern
Standard Time (observing daylight savings when applicable).
To set the internal clock, the steps are as follows:
• Press the “7” key on the keypad. The screen will now read:
Press the “Stop/No” and you will be prompted to set the “System
Time.”
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Press the “Start/Yes” key if you would like to set the system time.
The screen will then read:
• Press the “Start/Yes” key after each entry.
• You will then be returned to the main operating screen:
Page 54
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Document Revision: 011804
Firmware Updates
From time to time the Scribe EC Standalone’s internal “firmware” may need updating to
add new features or improve existing functions. Firmware is easily updated by loading a
“Firmware Update CD” into the system. The latest version of firmware will be available
for downloading to your computer from the MF DIGITAL web site:
www.MFDIGITAL.com
Once a firmware image file is downloaded, a “Firmware Update CD” can then be written
using a computer, a CD-R/RW recorder, and most popular premastering programs (such
as: Adaptec Easy CD Creator and Toast, CeQuadrat WinOnCD, Ahead Nero, NTI CDMaker, and others). Refer to your premastering software documentation for details on
how to record a disc from an image file.
After having created a “Firmware Update CD”, perform the following steps to update the
Scribe EC Standalone firmware:
• With the system turned ON, load the “Firmware Update CD” into the
top CD-R/RW recorder.
• Turn off the power to the Scribe EC Standalone.
• Turn on the power to the Scribe EC Standalone.
• The system will startup:
• You will see the “Initializing System” screen:
• You will see the upgrade firmware screen:
• Select “Yes” to upgrade the firmware.
• Upon completion, the system will automatically reboot and the
following screen will appear:
• Remove the CD at this time.
Page 55
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• It is possible that the firmware on the CD-R/RW drives may be updated
during this process. If so, you will notice all the drive lights come on
and the screen will read “Firmware Upgrade”. DO NOT TURN
SYSTEM OFF. Turning system off during the process will damage the
drives.
• You will then be returned to the main operating screen:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
Page 56
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Utilizing the Scribe EC Standalone Series Client
The Scribe EC Standalone series has a client feature which enables a
remote user.
Configuring the Scribe EC Standalone Series
• Connect the Scribe EC Standalone Series to your network using the
RJ-45 connector on the back of the system.
• Turn on the Scribe EC Standalone Series
• Wait for the Scribe EC Standalone Series to boot up, you will see:
Document Revision: 011804
• Press the “7” key, you will see:
• Press the “START/YES” key, you will see:
• You must leave “MF” at the front of the name. You should name it
“MF001” for example.
• Press the “START/YES” key, you will see:
• Press the “Stop No” key if the network does not use DHCP or press
the “START/YES” key if the network does use DHCP. If you press
the ““START/YES” “ key you will be prompted to Restart the
system, if you press the “Stop No” key you will see:
• Enter the 4 sets of numbers of the IP address, one set at a time. After
each octet press the “START/YES” key. Do not enter an IP address
of a machine that is already on the network. When you have entered
in the entire IP address, you will see:
Page 57
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Enter the 4 sets of numbers of the subnet. Pressing “START/YES”
Scribe EC Standalone Series
Operator’s Guide
after each set. You will then see:
Document Revision: 011804
• Press the “START/YES” key and then Restart the system by turning
it Off and back On again.
Configuring the Client
• Place the firmware CD into the CD-ROM drive of your PC
• Double click on “Embedded” folder
• Double click on SaClient.exe
• Press “Connect” in the lower right hand corner
Page 58
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Enter the name of the Scribe EC Standalone Series on the network.
• Press “OK”
• A new tab will appear at the top of the screen called “MF123”
• Click the “MF123” tab and you will see:
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
• Click “Get image” to pull an image from the Scribe EC Standalone.
Give the image a name and location. The image will be saved with a
.img file extension.
Page 59
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• Click “Send image” to send an image to the Scribe EC Standalone.
Scribe EC Standalone Series
Operator’s Guide
The image may be an .img, .iso, .udf, or .isc.
Document Revision: 011804
Page 60
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
• To burn from the client, click “Start job”. Click “Browse” to select
Scribe EC Standalone Series
Operator’s Guide
Document Revision: 011804
an image to burn to the Scribe EC Standalone. Select “Copy”,
“Verify”, or “Test. Enter a quantity and click “OK”.
Page 61
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Document Revision: 011804
Appendix A: Supported Formats
Originally designed for audio use, the Compact Disc (CD) evolved quickly and now
employs a wide variety of formats for audio, data, and multimedia applications. The
following is a list of the most popular formats currently supported by the Scribe EC
Standalone. Periodic firmware updates will be made available to deal with new formats
as they appear. To obtain the latest version of firmware, contact your MF DIGITAL
reseller or download the update from the MF DIGITAL web site: www.MF
DIGITAL.com
Many CD formats are international or industry standards, but variations on them may
emerge from time to time. Should you encounter a disc (which does not employ a copy
protection scheme) that you cannot copy on your Scribe EC Standalone, MF DIGITAL
will do its best to promptly add support for this format. Dealing with custom formats,
however, may be subject to a development charge.
Keeping track of how the various formats relate to each other can be confusing. For
example, the Scribe EC Standalone can copy all CD-ROM Mode 1 discs - this includes
ISO 9660, HFS, Hybrid, Rock Ridge and many other types of file systems. As a result,
the Scribe EC Standalone will most likely copy CD formats not listed in the table below.
If you require further assistance, please contact MF DIGITAL’s technical support
department at (631)249-9393 x310 or email: support@MF DIGITAL.com
Scribe EC Standalone Supported Formats CD-R/RW
ISO 9660 CD-ROM Mode 1 & Mode 2
CD-DA (Compact Disc-Digital Audio) CD-ROM XA Mode 2 Form 1 & Form 2
Hybrid (ISO 9660/HFS) Single session
Hybrid (ISO 9660/HFS/Rock Ridge) Multisession
Mixed Mode Disc-at-Once and Track-at-Once
CD-I Form 1 & Form 2** Rock Ridge
Native O/S’s (NT, DOS, OS/2, UFS, HFS
(Mac O/S), SUN, AS/400, AIX, etc.)
CD-Extra
Page 62
Scribe EC Standalone Series
Operator’s Guide
CD-3706/P Operator’s
Guide
Document Revision: 030501.1
Video CD Romeo
Photo CD Joliet
Picture CD Bootable CD
CD-G* Karaoke CD
Scribe EC Standalone
Supported Formats
CD-ROM Mode 1
CD-ROM XA Mode 2 (form 1, form 2)
Photo CD (single and multi session)
CD-DA
CD-Extra (CD PLUS)
CD-R
CD-RW
Document Revision: 011804
*High-Speed CD-RW is not supported to write
Page 63
