MF DIGITAL Director Series User Manual

D CLIENT for
DIRECTOR/DIRECTOR PRO Series
Publishing System
Operator’s Guide

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

The DIRECTOR/DIRECTOR PRO is a state-of-the-art CD/DVD
publishing system and duplicator. It is designed to create, duplicate and
verify most standard compact disc formats. This startup section will guide
you through starting and configuring the DIRECTOR/DIRECTOR PRO
application.

Application Startup

Starting the D CLIENT Application

To start the D CLIENT application the steps are as follows:

•

Create a shortcut for D CLIENT on your Local PC to the
Director/Director Pro. Double click the D CLIENT icon on the

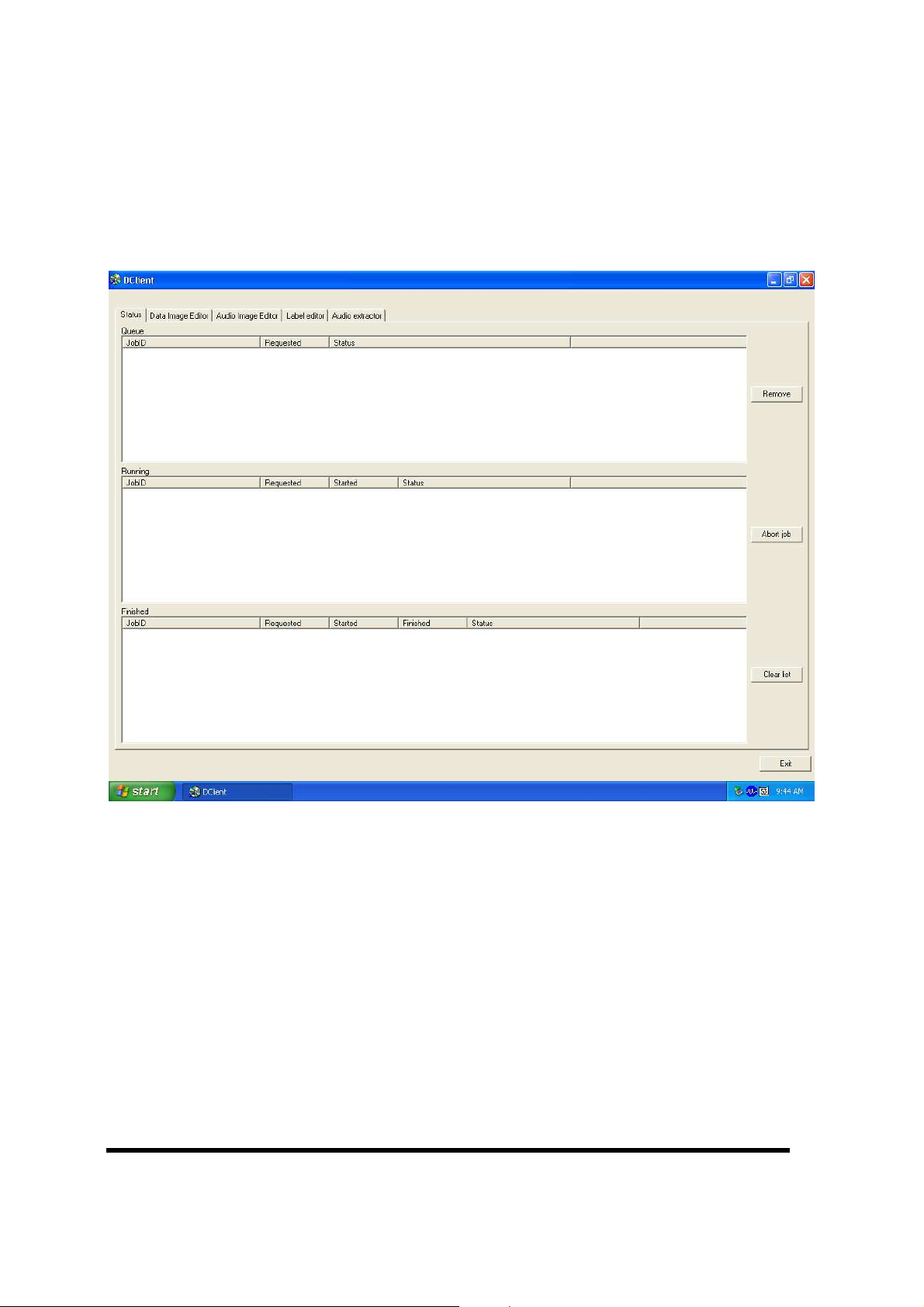

Windows desktop. The D CLIENT application screen will now be
displayed:

• Place as many blank discs as required onto the input spindle.

Page 2

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

D CLIENT Application Layout

The D CLIENT application is organized into a sequence of five pages
accessible by tabs at the top of the screen

• Status

• Data Image Editor

• Audio Image Editor

• Label Editor

• Audio Extractor

By completing information on these pages you control the actions of the
DIRECTOR/DIRECTOR PRO to create, duplicate and verify CD/DVDs as
well as print disc labels.

Tabs:

Status Displays the status of jobs after they have been

submitted for production.

Data Image
Editor

Audio Image
Editor

Specifies the contents of a data CD/DVD to be
recorded.
Specifies the contents of an audio CD/DVD to be
recorded.

Label Editor Creates labels to be printed on the surface of

CD/DVDs.

Audio Extractor Rips Audio Files to WAV File

Creating Disc Images

The DIRECTOR/DIRECTOR PRO creates industry standard data (Mode 1
ISO 9660 level 2 with Joliet extensions) and audio (Red Book) CD/DVDs
from scratch as well as duplicates existing CD/DVDs authored in most
formats. In this section we cover how to create the CD/DVD contents from
files residing on the local system or a remote system connected via a
network.

Page 3

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Data Disc Images

To create a data disc image:

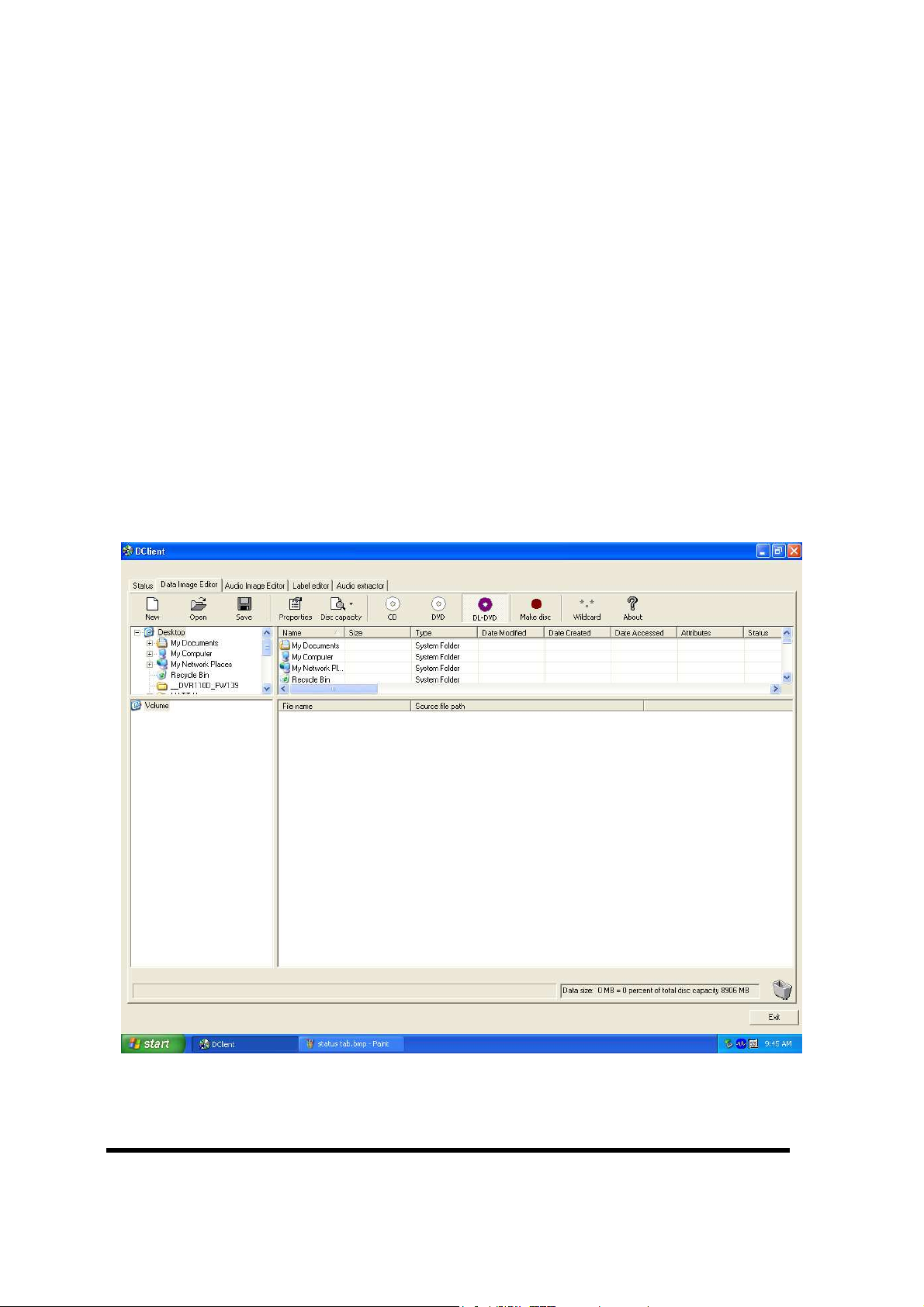

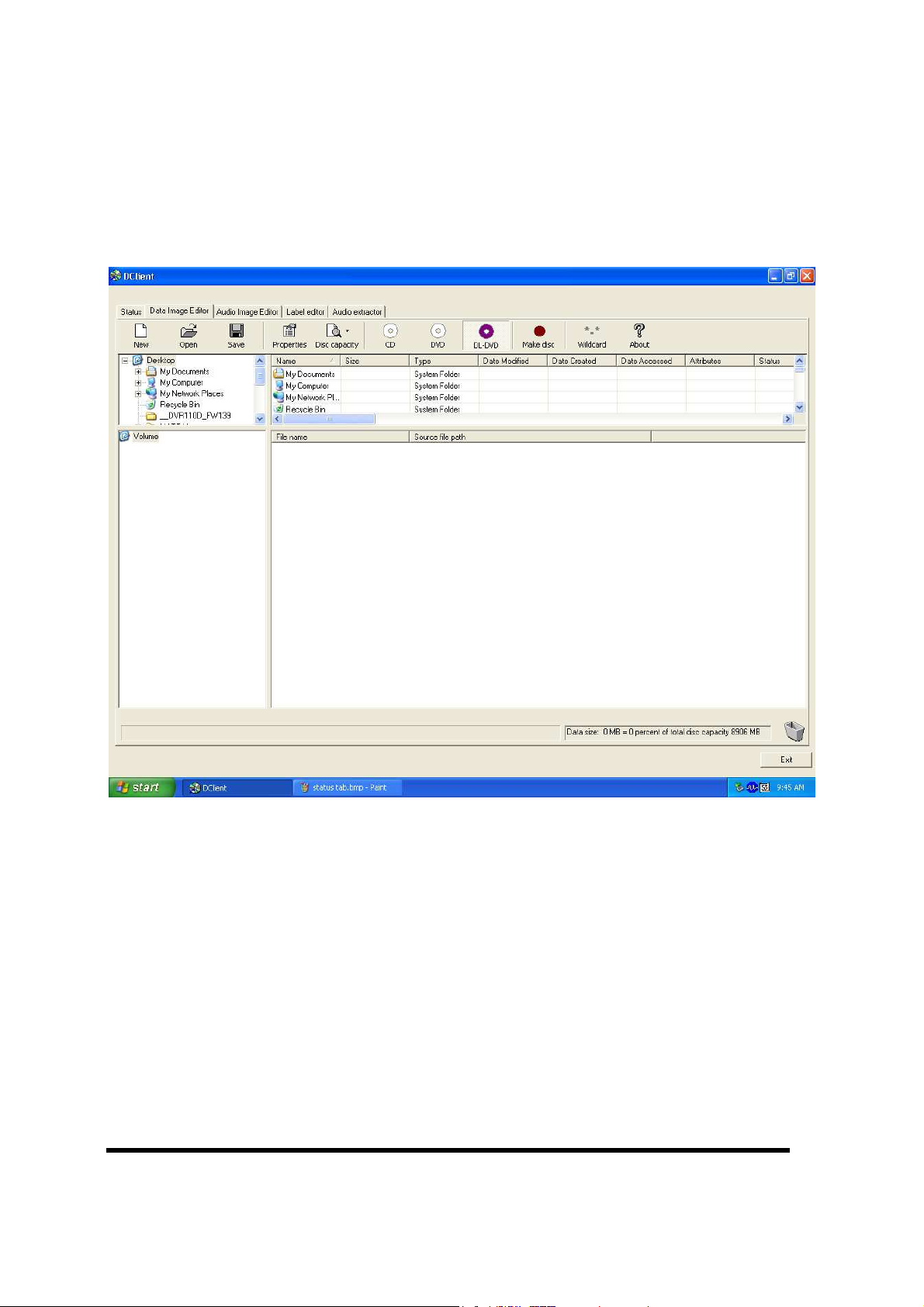

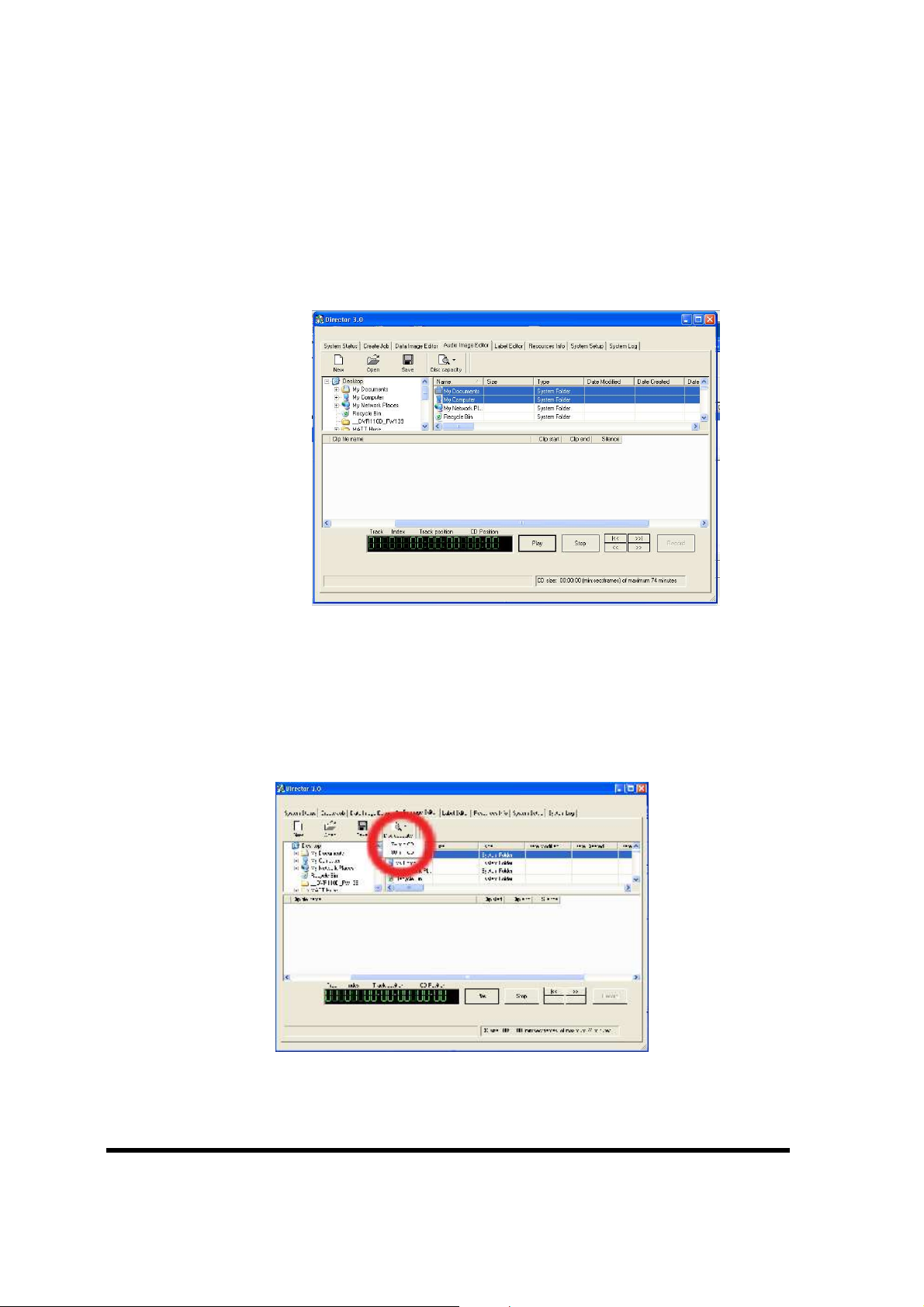

• Click the Data Image Editor tab. The screen will now display:

The Data Image Editor tab is divided into four panes. The top left pane
lists all of the names and icons of the files and folders on the currently
selected disk drive (source). The top right pane displays the contents of any
item you click on in the top left pane along with its icon. The bottom left
pane lists all the names and icons of files and folders on the CD/DVD that
is being created (disc image). The bottom right pane displays the contents
of any item you click on in the bottom left pane along with its icon.

Page 4

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

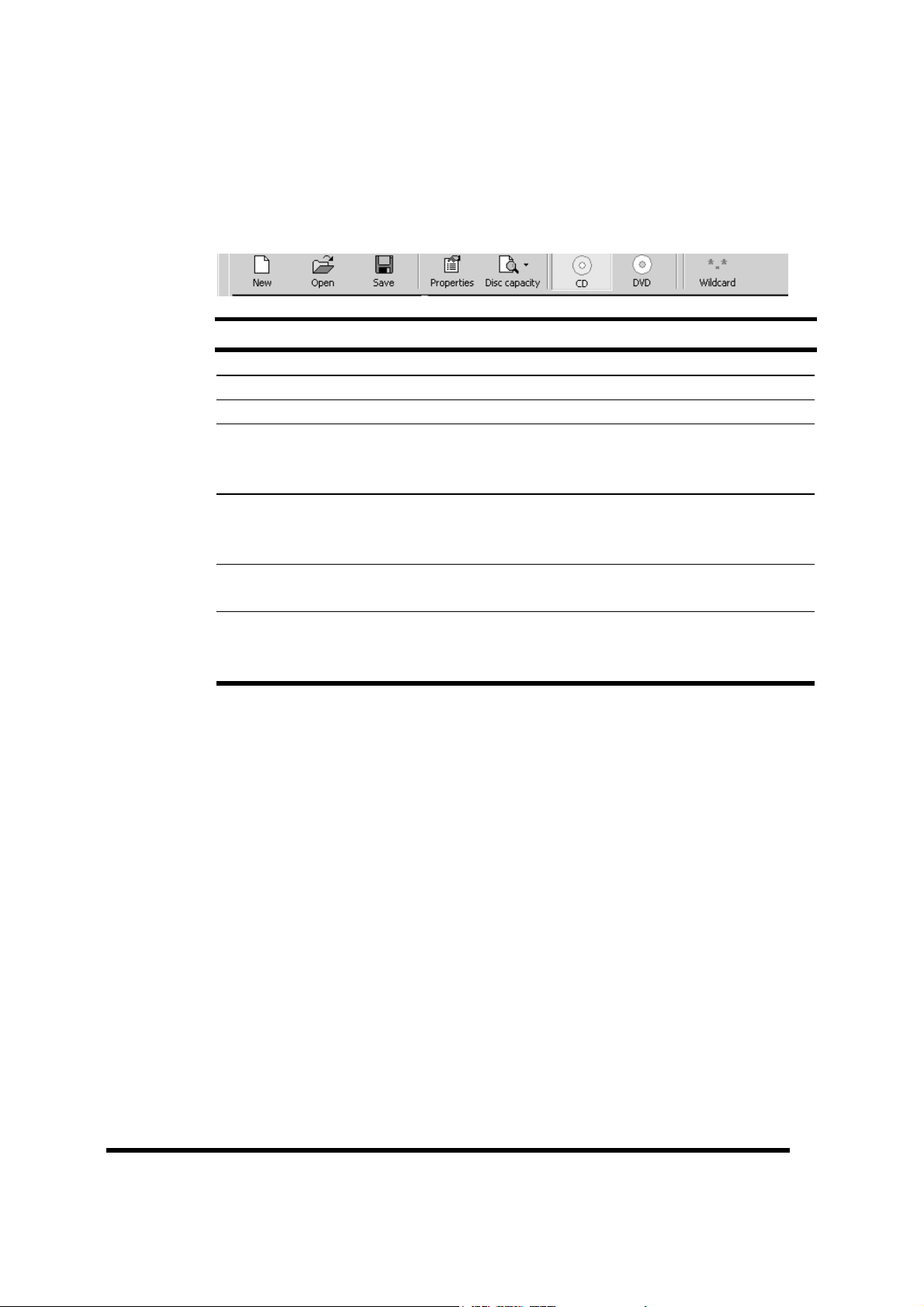

Data Image Editor Toolbar

Horizontally at the top of the panes, which contains eight buttons: New
Open, Save, Properties, Disc Capacity, CD/DVD, DVD, Wildcard.

Data Image Editor Toolbar:

New Folder Creates a new volume.
Open Opens an existing folder on the disc image.
Save Saves files or folders.
Properties

Displays properties about the image: volume title,
Publisher, Data Preparer, Copyright File, Abstract File
and Bibliographic File.

Disc Capacity Allows selection of capacity of discs loaded into

DIRECTOR/DIRECTOR PRO i.e. 74 minute/650MB,
80 minute/700MB, DVD 3.95GB and DVD 4.7GB.

CD/DVD Lets DIRECTOR/DIRECTOR PRO know CD/DVD

media is in use.

DVD Lets DIRECTOR/DIRECTOR PRO know DVD media

is in use.

*.* Wildcard Allows specification of dynamic content

Page 5

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Note:

Static And Dynamic Content

The DIRECTOR/DIRECTOR PRO allows CD/DVDs to be created from
both static and dynamic content. A finished CD/DVD created from static
content will contain the exact files and folders that are specified when the
disc image is created. A finished CD/DVD created from dynamic content
will contain the files and folders that exist in specified locations at the time
the job is submitted for recording (rather than when the disc image is
created).

For example, specifying dynamic content when creating a CD/DVD layout
would allow a job to be run every week that records the contents of a
specific folder onto a CD/DVD without having to create a new disc image
every time. In this case the contents of the folder (not the folder itself) can
change.

To specify a file or folder on a disc image as containing dynamic content:

• Highlight the Volume which will be using dynamic source then Click

the *.* check box.

Please be sure not to exceed the capacity of the disc being used.

Page 6

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Adding Files And Folders

• Click the desired file or folder in the top left or right pane (source) and

hold down the mouse button.

• Drag the file or folder over the CD/DVD icon in the lower right then

release the mouse button

•

Files and folders can also be added to the disc image using the Open
button. A box appears choose the image and click he Open button the
image will be added.

Removing Files and Folders

• Click the desired file or folder in the bottom left or right pane (disc

image)

•

Right click the file or folder and choose Delete from the toolbar which
appears.

Creating New Folders

• Click the desired root or folder area in the left or right pane (disc

image).

•

Click the New Folder button on the toolbar.

Naming A Folder

• Right click the desired folder in the bottom left or right pane (disc

image).

•

Choose Rename from the drop down menu, which appears.

Page 7

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Saving The Current Disc Image File

Once a data disc image has been created, it must be saved for the
DIRECTOR/DIRECTOR PRO to use it as a data source for recording. Disc
images can either be saved as script files (with an “ISC” extension) or
physical image files (with an “ISO” extension).

A script file (ISC) contains pointers to the source data files and is used as a
guide at the time of recording the CD/DVD. Since a script file does not
include the source data it is best used when producing unique projects with
dynamic content, or when the source data will always be available to the
DIRECTOR/DIRECTOR PRO. Or, if producing software, a “static” image
would be best to ensure content.

A physical image file (ISO) is an exact replica of the final CD/DVD and
contains all of the source data. It is therefore best used when producing
static projects that are recorded on a regular basis, and when source data
will not always be available to the DIRECTOR/DIRECTOR PRO. Please
note that, depending upon the amount of data to be recorded, a physical
image file can occupy as much as 700 MB of hard disk space.

Page 8

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

To save a data disc image script file:

•

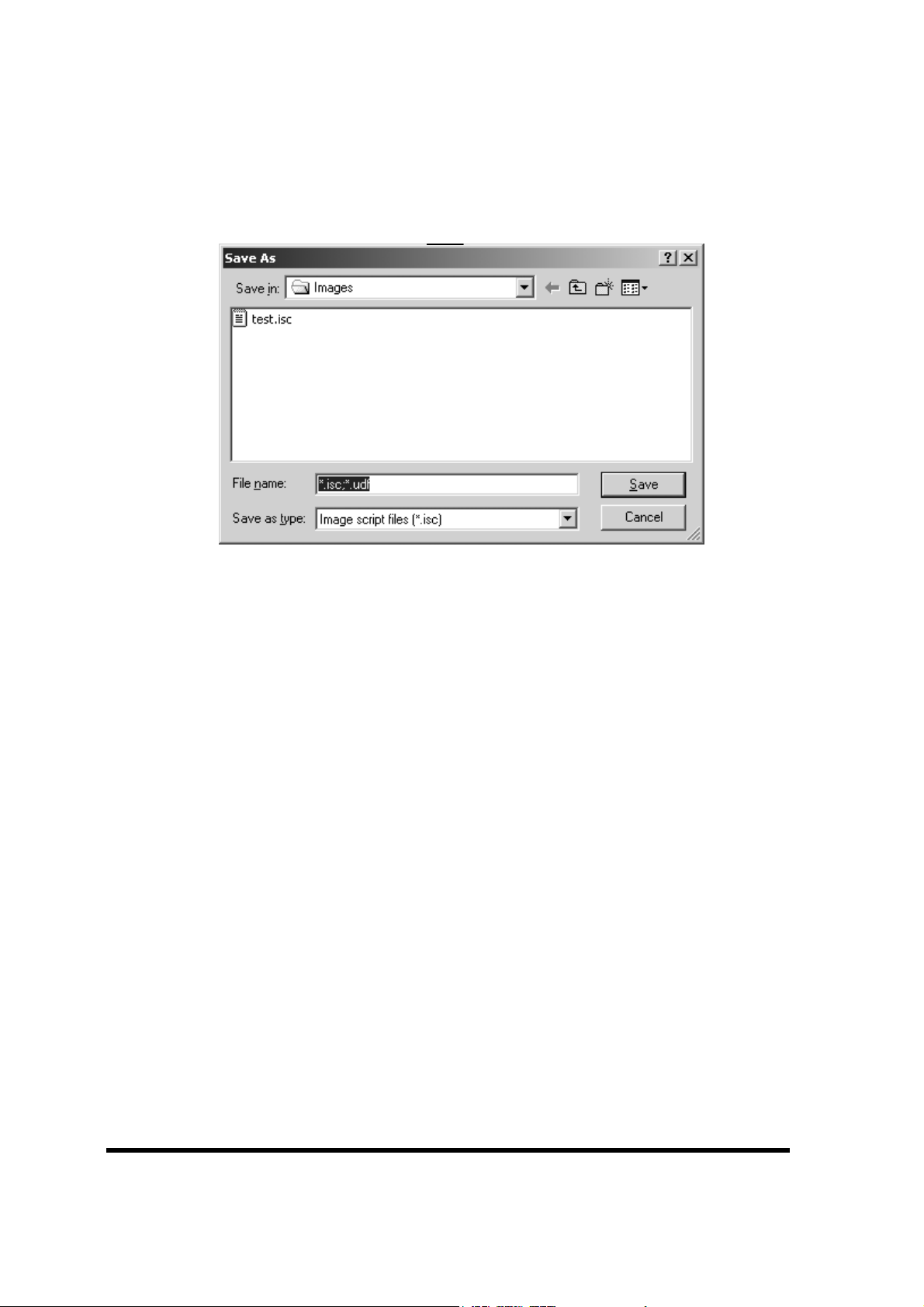

Click the Save button on the toolbar. The screen will now display:

The file will automatically be saved with the .isc extension.

Page 9

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

•

Click the OK button. The screen will now display:

•

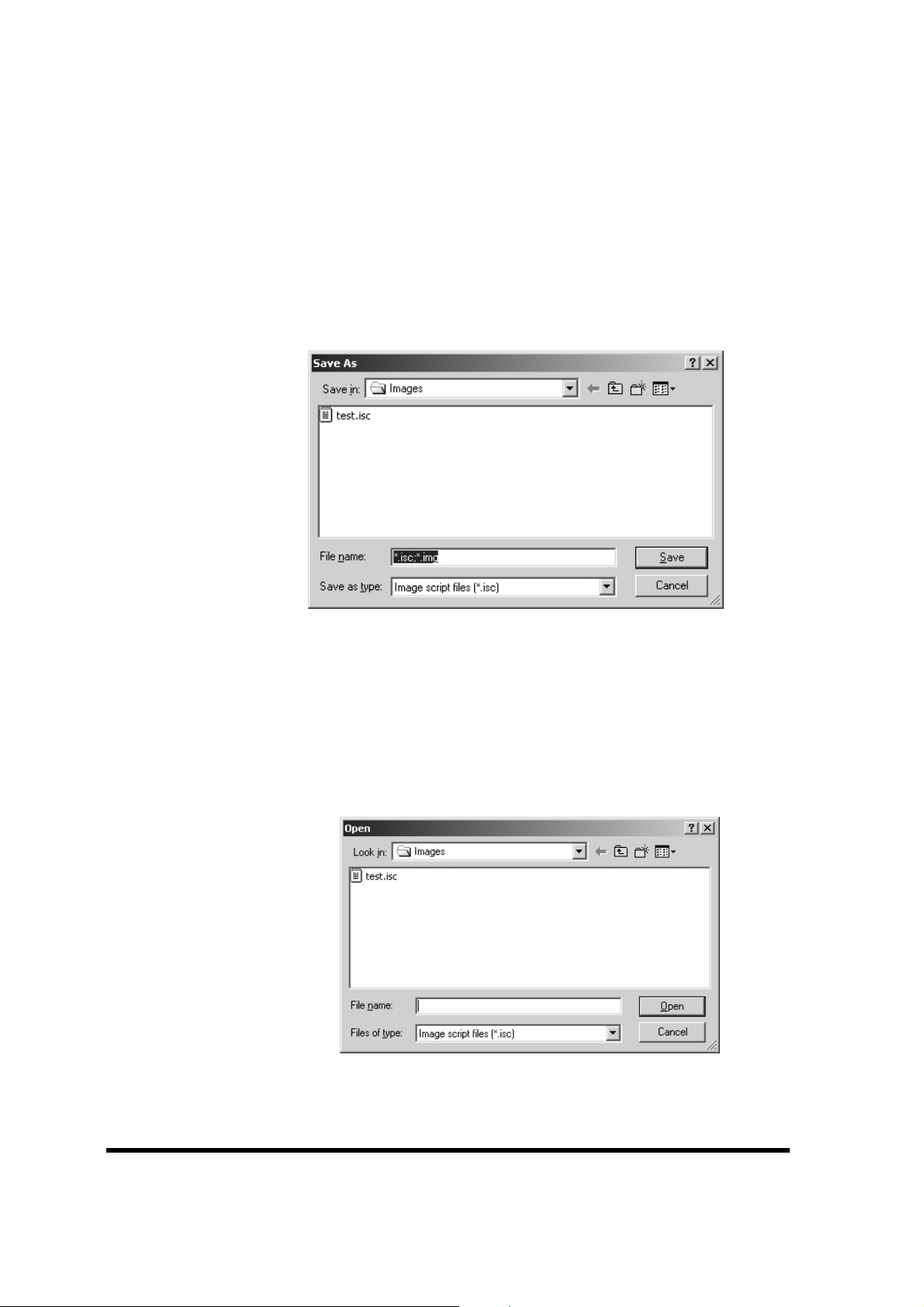

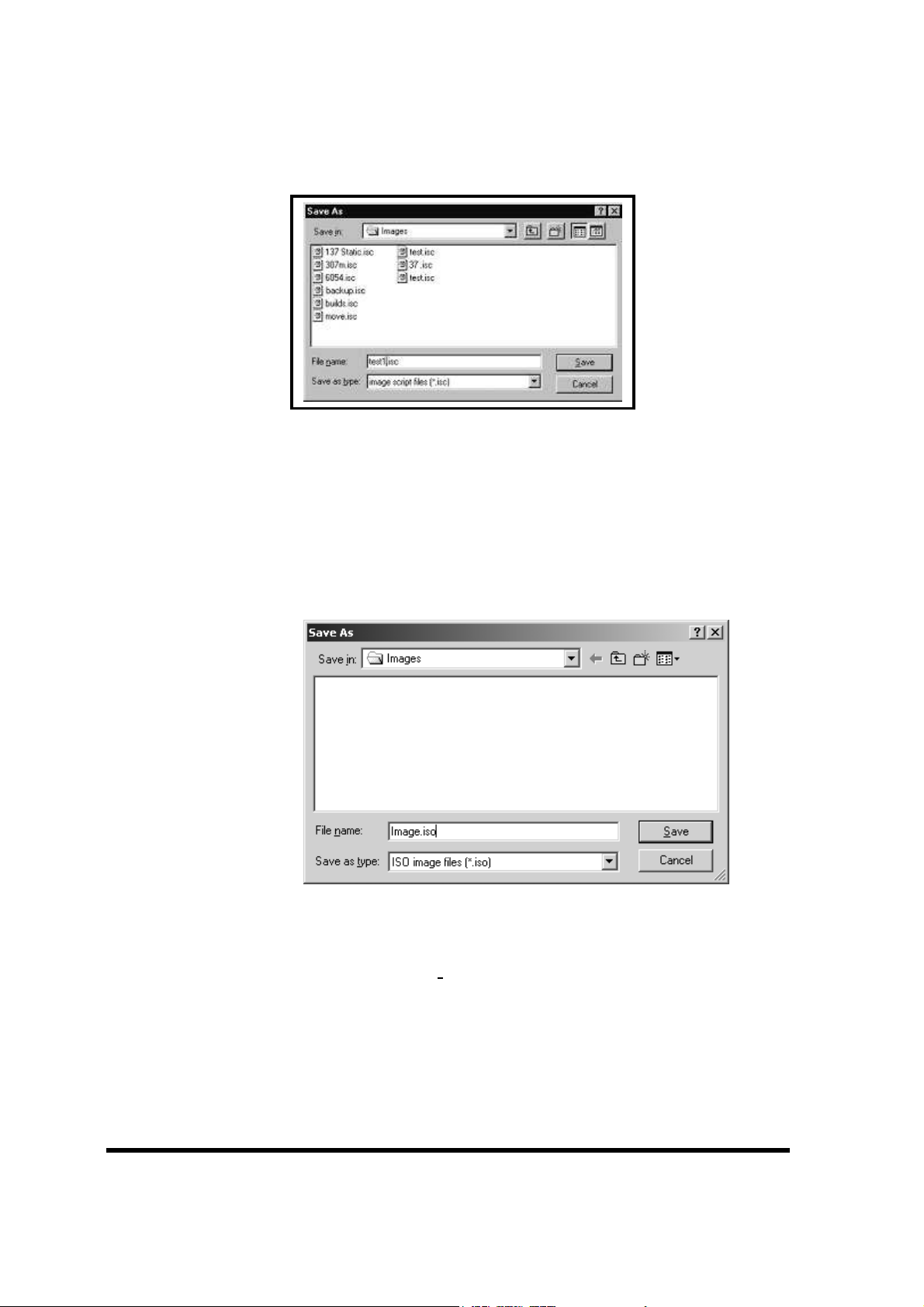

Select the volume and directory where you want to save the script file.

• Enter the name for the script file and click the Save button.

To save a disc physical image file:

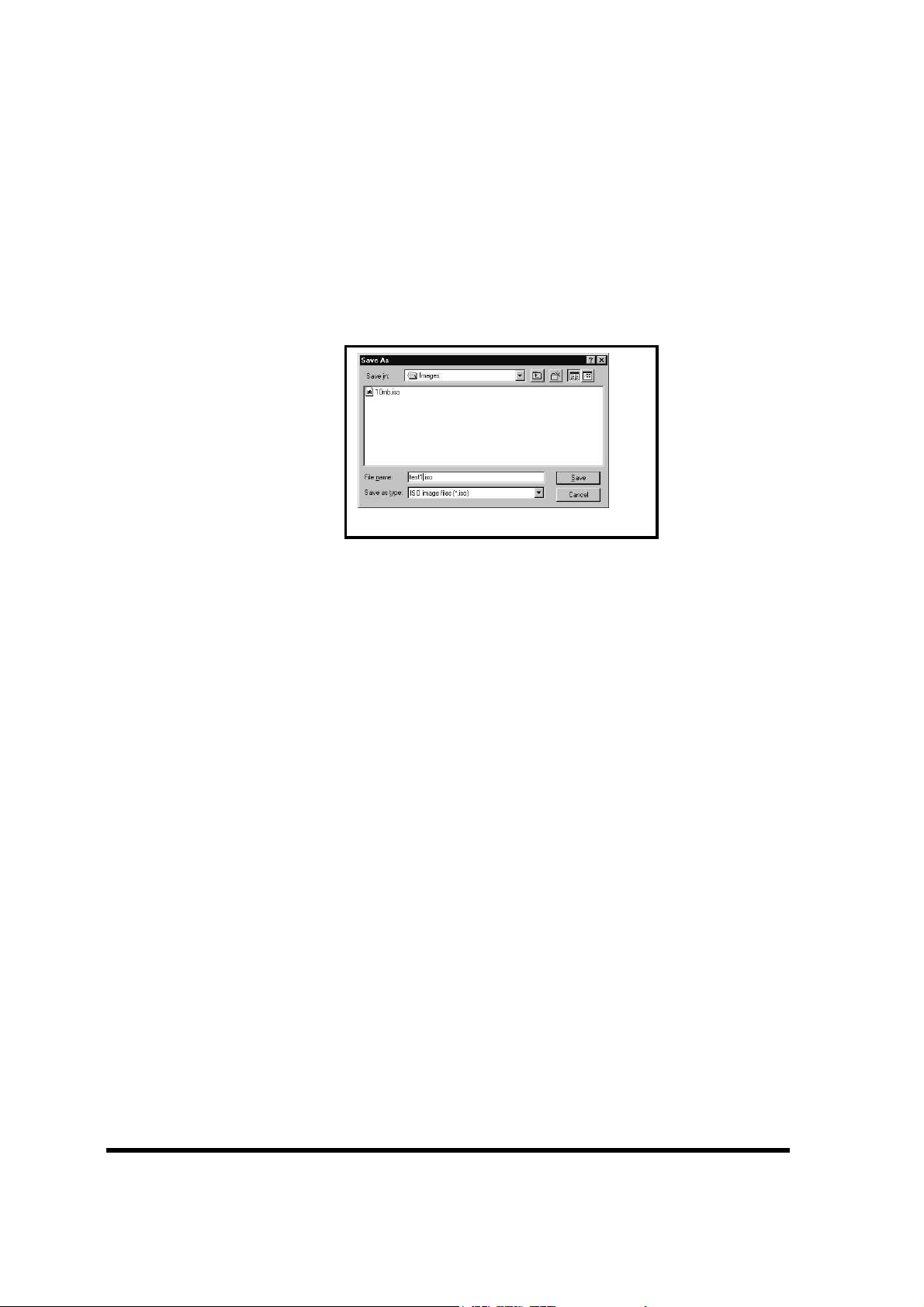

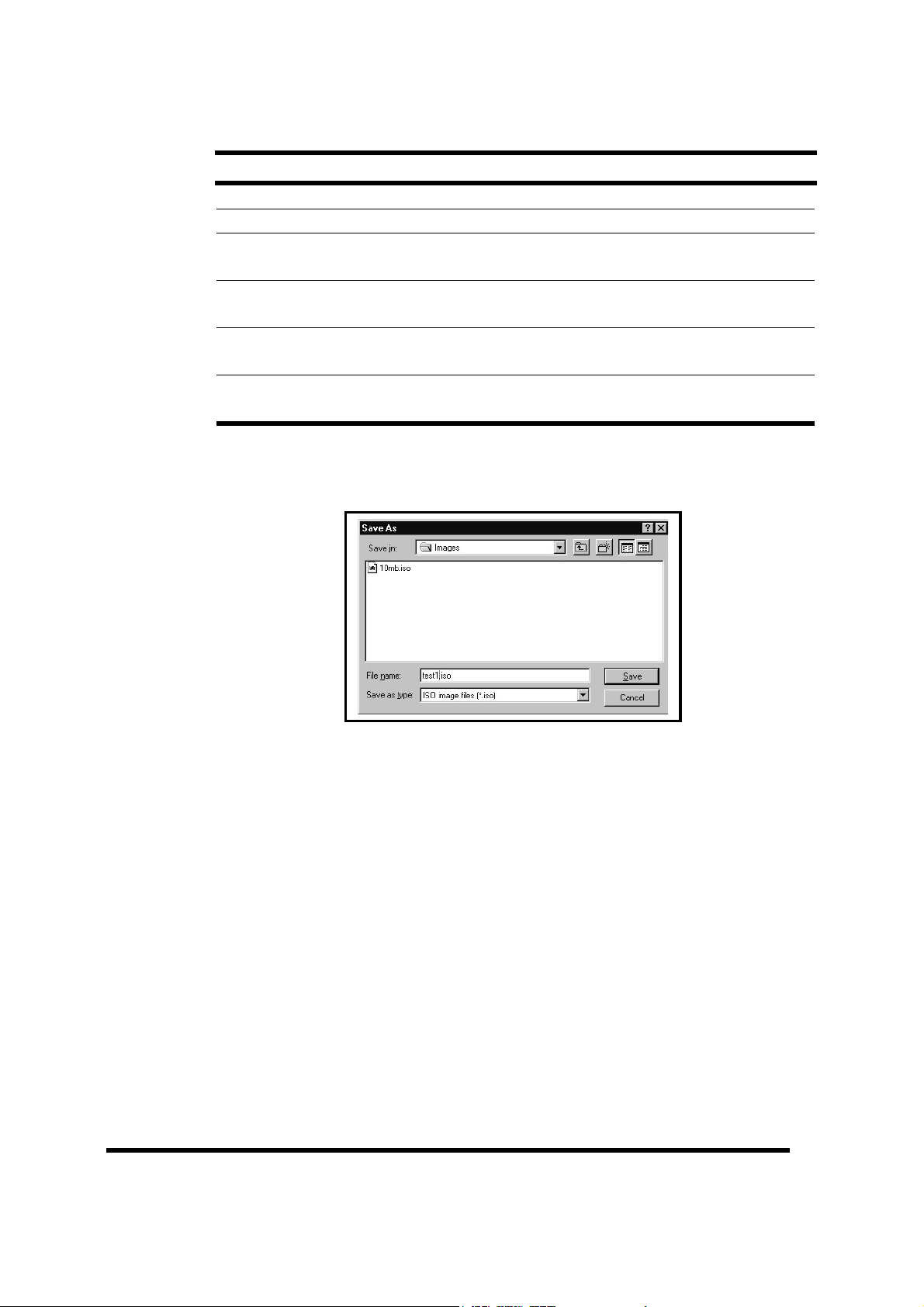

• Click the Save button on the toolbar. The screen will now display:

•

Select the volume and directory where you want to save the image file.

• Enter the name for the image file.

• Change you the Save as type: to ISO.

This will make a standard ISO 9660 image file to the desired location.

Page 10

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Volume Properties

Volume Label Enter the name you want to call the CD/DVD.
Publisher Enter the name of the publisher.
Data Preparer Enter the name of the person who prepared the

CD/DVD.

Copyright File Enter the file name that provides copyright

information about the CD/DVD.

Abstract File Enter the file name that describes the contents of the

Bibliographic File

CD/DVD.
Enter the file name that provides bibliographic
information about the CD/DVD.

• Click the OK button. The screen will now display:

• Select the volume and directory where you want to save the physical

image file.

•

Enter the name for the physical image file and click the Save button.

Page 11

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Loading An Existing Script File

Once a data disc image script file has been saved it can be modified at a
later date.

To load an existing script file:

• Click the Load Script button on the toolbar. The screen will now

display:

•

Select the appropriate file and click the Open button.

Page 12

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Creating Disc Labels

The DIRECTOR/DIRECTOR PRO’s built-in label design software
provides a quick and easy way to create simple disc labels that contain text
and graphics. More sophisticated labels can be created by using the
provided software included with the your printer.

To use the DIRECTOR/DIRECTOR PRO’s built-in label design software:

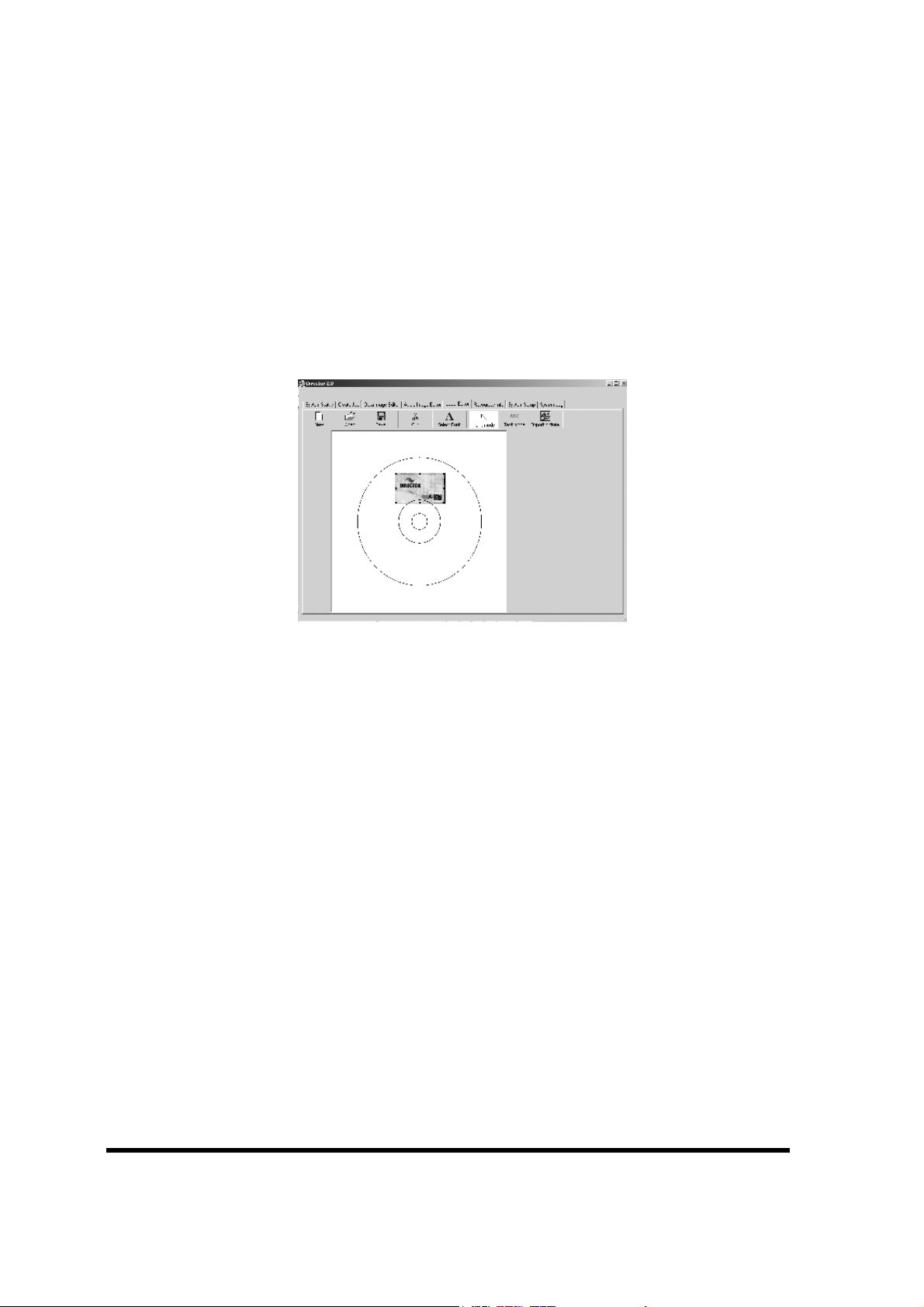

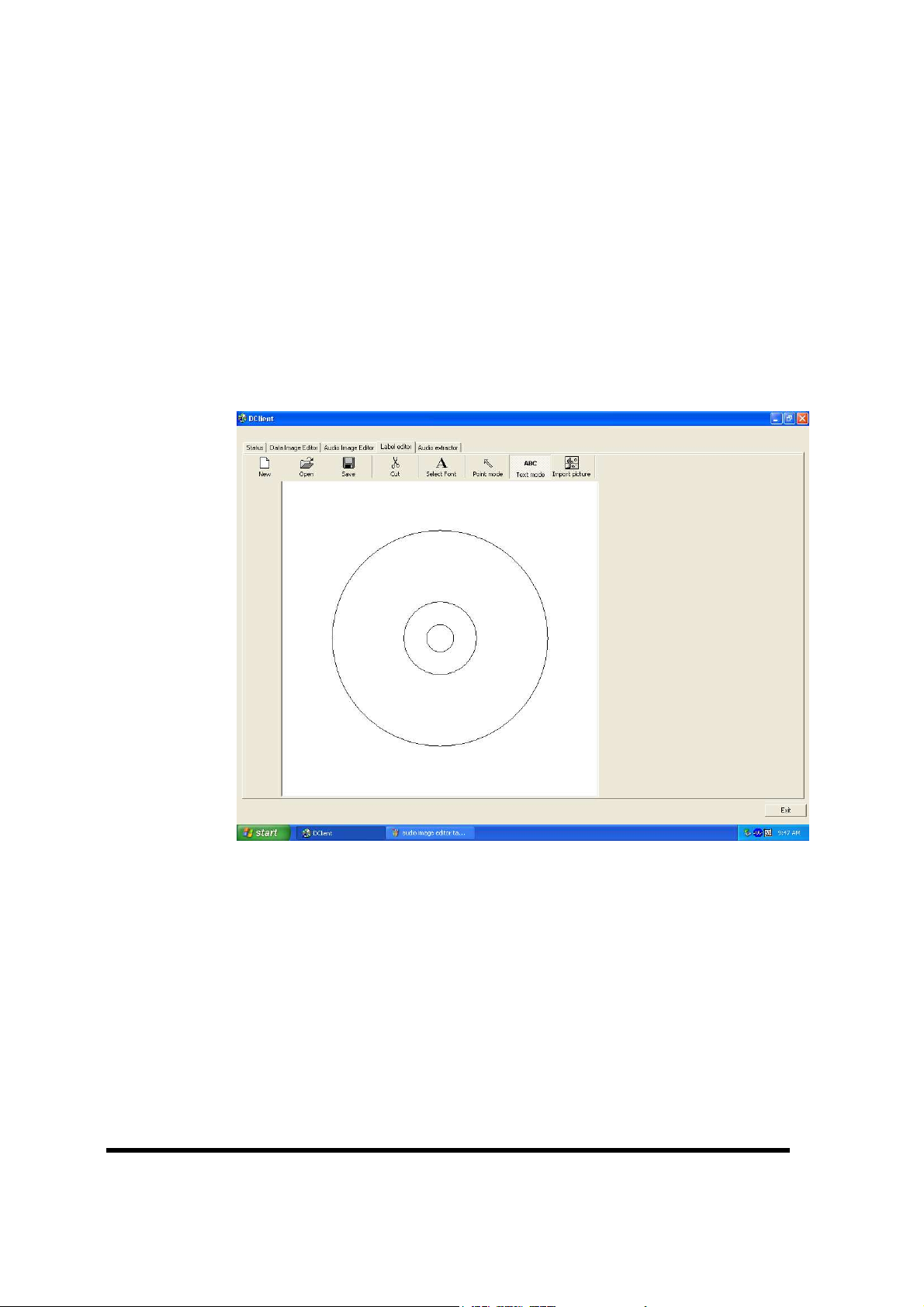

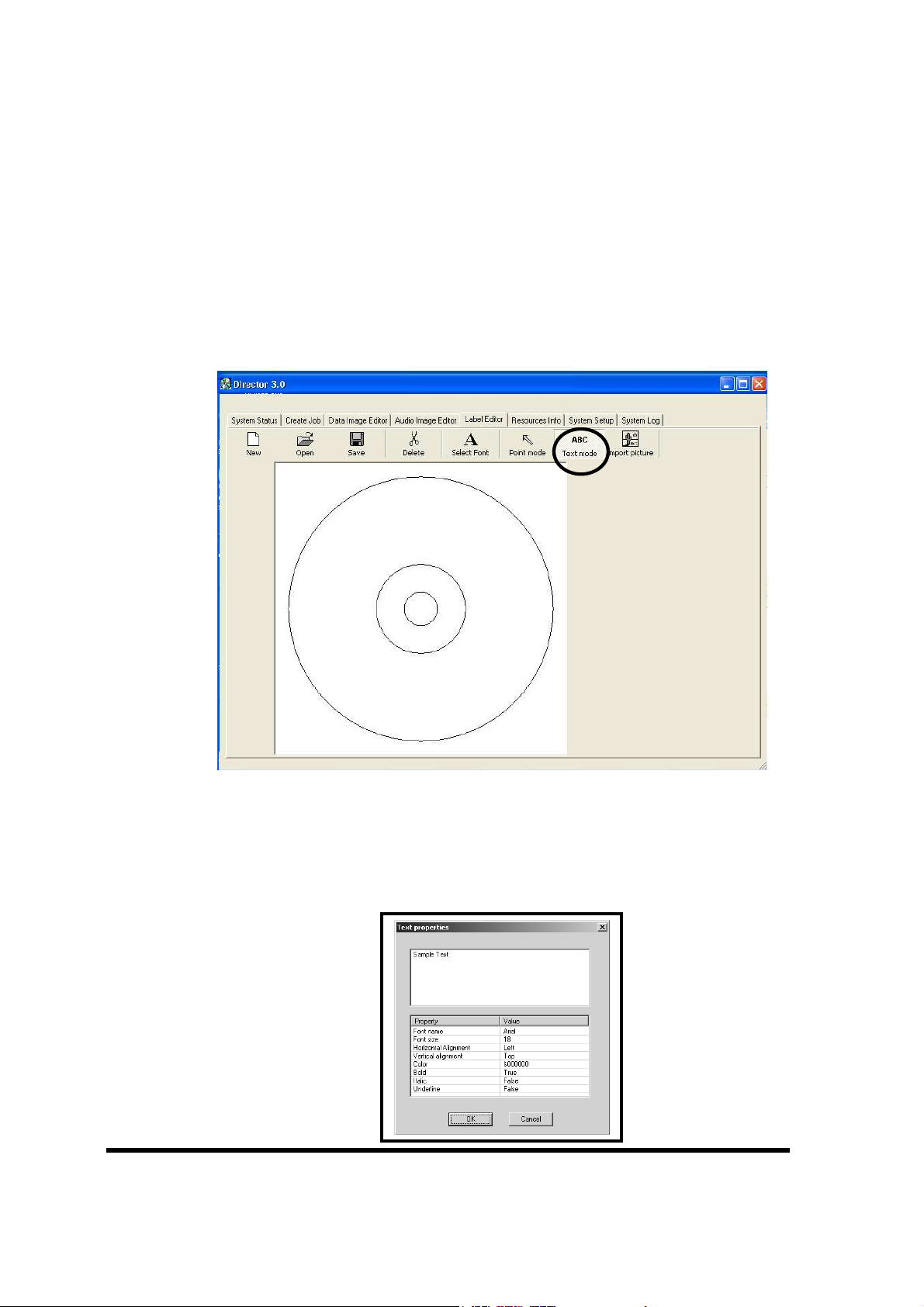

• Click the Label Editor tab. The screen will now display:

The Label Editor’s main editing window consists of two concentric circles
that graphically represent the surface appearance of a CD/DVD.

Page 13

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Label Editor Menu Bar

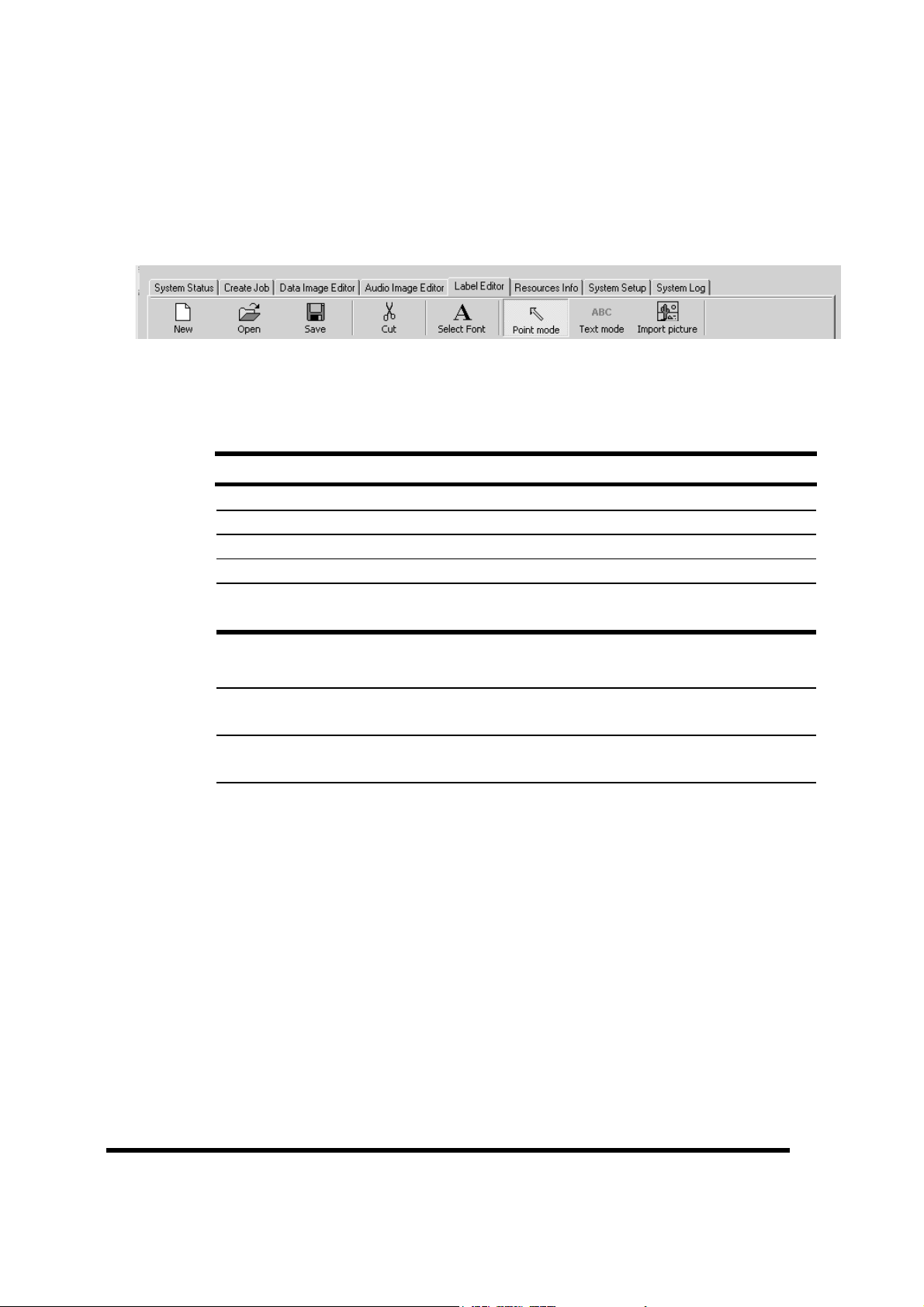

Horizontally along the top of the Label Editor window is the menu bar, as
depicted below:

The menu bar contains eight buttons: New, Open, Save, Cut, Select Font,

Point Mode, Text Mode and Import Picture.

Label Menu Buttons:

New Creates a new disc label.
Open Opens an existing disc label file (*.LBL).
Save Saves the current disc label.
Cut Cuts the selected item
Select
Font

Point
Mode
Text
Mode
Import

Used to select the font, style, size and color before creating test
on the disc label.

Used to select a piece of text, date field or graphic image so it
can be moved, modified or deleted.

Used to create text on the disc label.

Used to place a graphic image file created using other software
on the disc label.

Page 14

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Creating Text

Using the Text Mode tool, you can create horizontal text anywhere on your
disc label. In addition, once the text has been entered it can be repositioned
and its font and other attributes changed. To create text:

• Click the Text Mode button on the toolbar.

• Click where you want the type to begin.

•

Enter the text you want.

Changing Text And Text Attributes

To change the attributes of a piece of text once it has been entered:

• Click the Point Mode button on the toolbar.

•

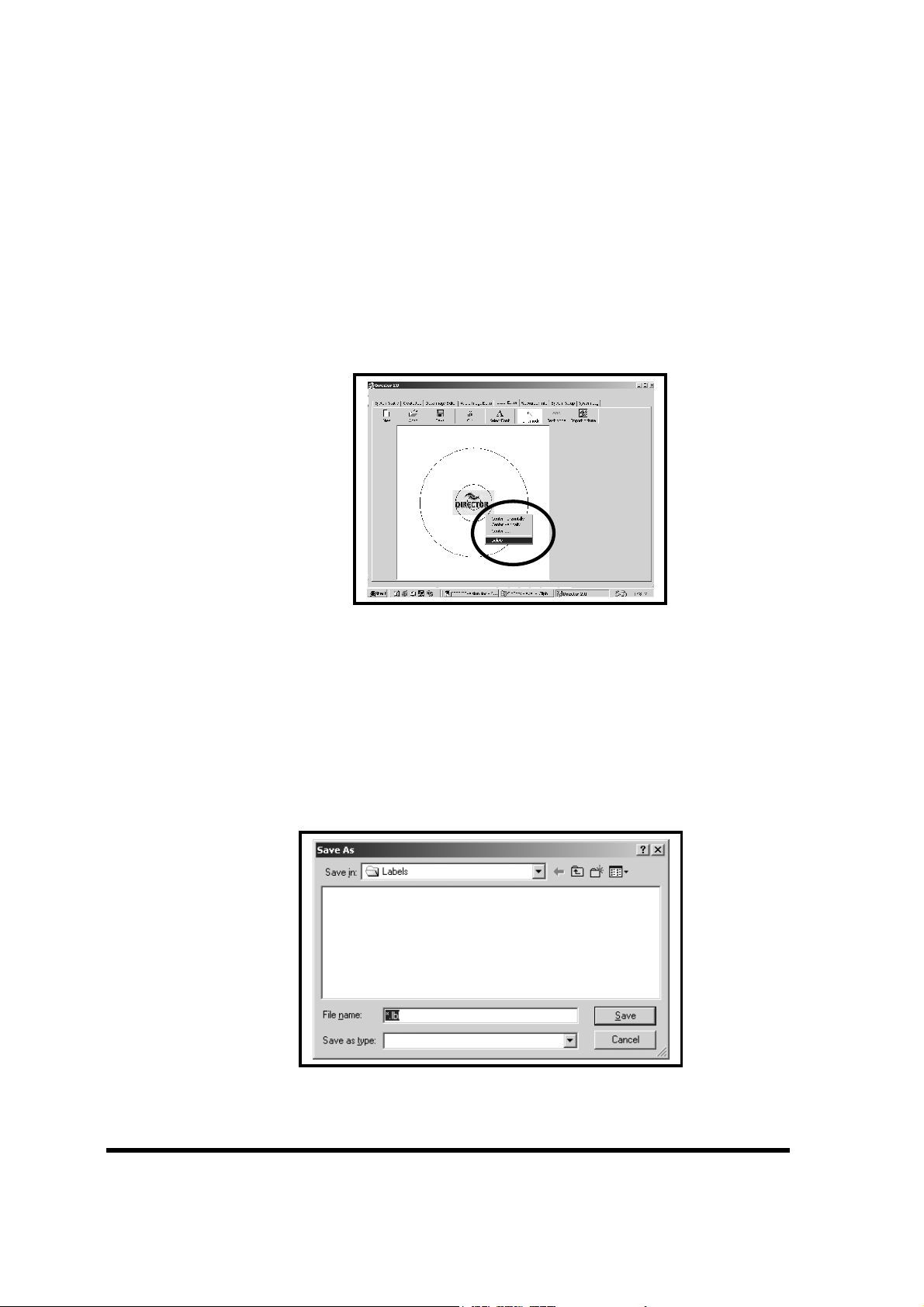

Double click the piece of text you wish to change. The screen will now
display:

Page 15

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

• To change the text that you previously typed in, edit the contents of the

text box.

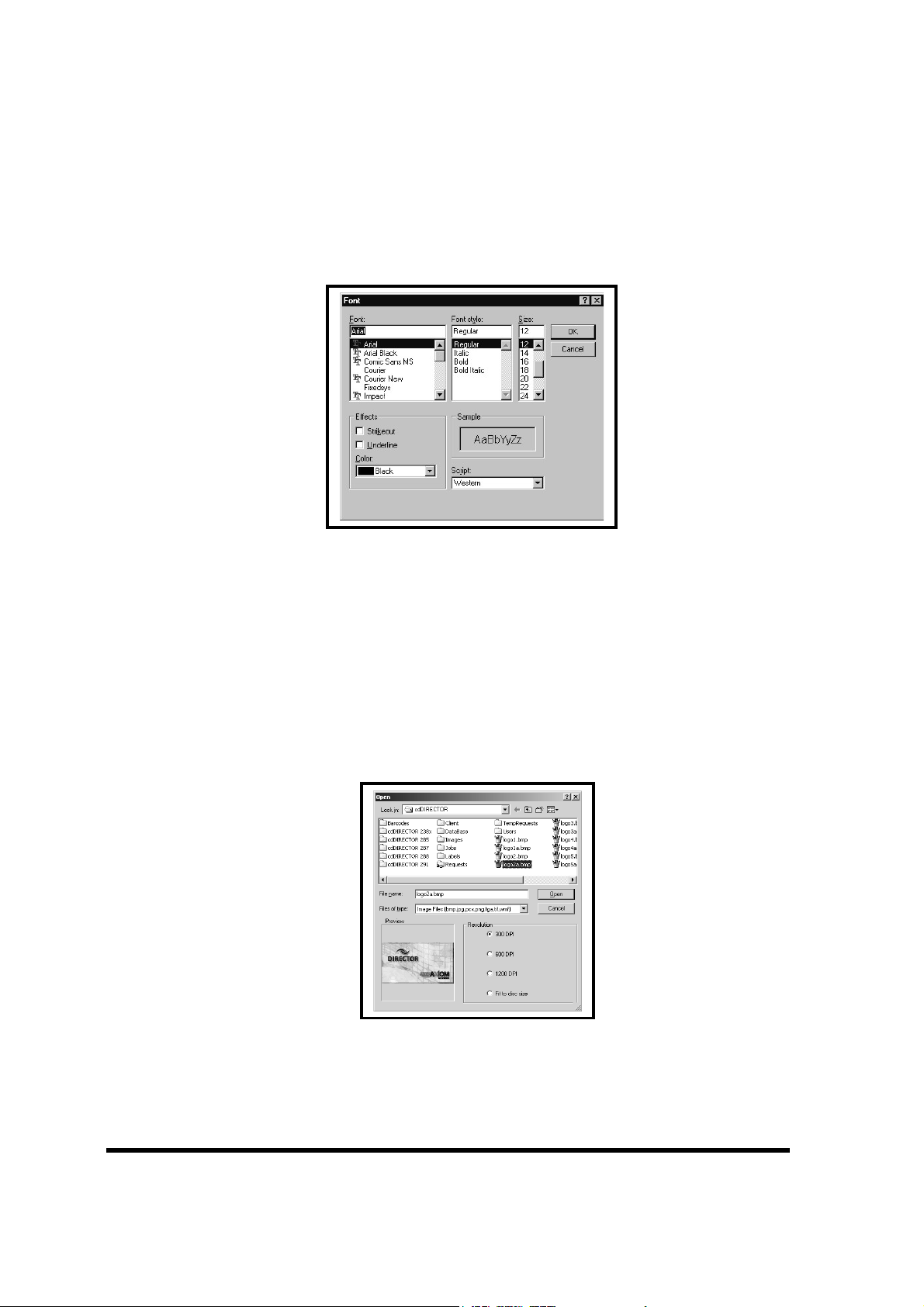

• To change the font, style, size or color, click the Select Font button. The

screen will now display:

• After making the changes click the OK button.

• Click the OK button.

Importing Graphics

Using the Import Picture tool, you can place graphics created using other
software anywhere on your disc label. To import a graphics file:

• Click the Import Picture button on the toolbar. The screen will now

display:

• Select the graphics file you wish to import (supported formats include

BMP, JPG, PCX, PNG, TGA, TIF and WMF).

•

Click the Open button.

Page 16

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Resizing Graphics

To proportionally resize a graphic image after it has been imported:

• Click the Point button on the toolbar.

•

Click the graphic image you wish to resize. A bounding box will appear
around the image with eight solid squares (handles).

• Click and drag the appropriate handle until the image is the correct size

and release the mouse button.

Repositioning Text, Graphics and Dates

To reposition a piece of text, a graphic image or a date field after it has
been created or imported:

•

Click the Point button on the toolbar.

• Click and hold on the selected text or graphic image you wish to move.

•

Drag the text or graphic image to the desired location and release the
mouse button.

Centering Text and Graphics

To center text or graphic images after they have been created or imported:

•

Click the Point button on the toolbar.

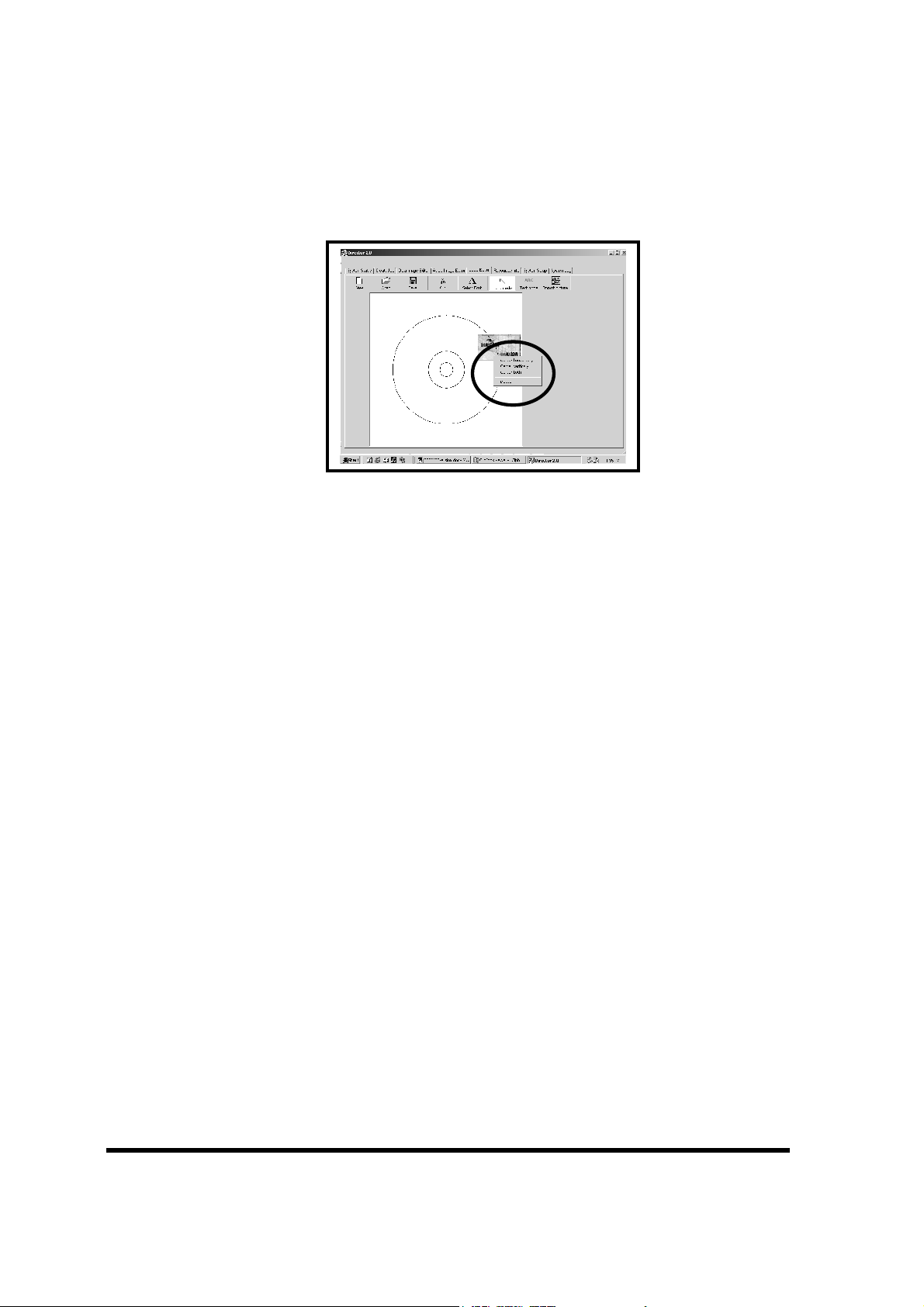

• Right-click on the text or graphic image. A pop-up menu, as depicted

below, will appear.

Page 17

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

•

You may center text horizontally only. You may choose to center
graphics horizontally, vertically, or both. Clicking on the “Center” pop­up menu option centers the graphic horizontally and vertically.

Page 18

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Deleting Text, Graphics And Dates

To delete a piece of text, a graphic image or a date field after it has been
created or imported:

• Click the Point Mode button on the tool bar.

•

Click the piece of text or graphic image you wish to delete.

• Click the Delete button on the menu bar or press the DELETE key on

the keyboard. Optionally, you may right-click on the object as
described in “Centering Text and Graphics” and then select delete in the
pop-up that appears.

Saving the Current Disc Label

Once a disc label has been created, it must be saved in order for the
DIRECTOR/DIRECTOR PRO to use it as a source label for printing. Disc
labels are saved as files with an “LBL” extension. To save a disc label:

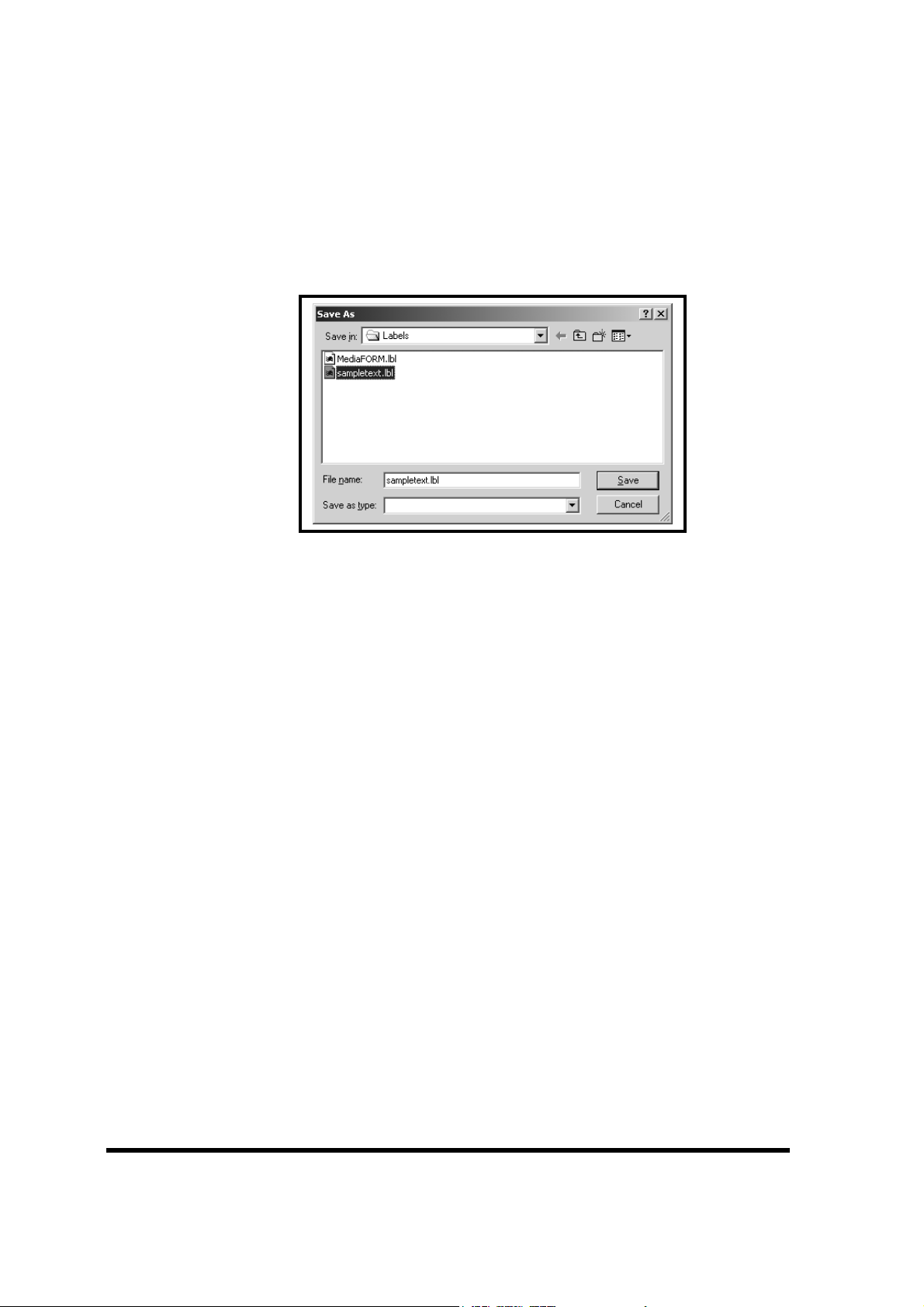

• Click the Save button on the menu bar.

• Select the proper folder where you want to save the disc label file.

•

Enter the name for the disc label file and click the Save button.

Page 19

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Opening Existing Disc Labels

Once a disc label has been saved it can be modified at a later date. To open
an existing disc label file:

• Click the Open button on the menu bar.

•

Select the appropriate file and click the Open button.

Page 20

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

MF Digital Duplication Systems now allows

you to create your Disc labels using the popular

ake

this process simple, MF Digital has created PDF

templates for you to design your artwork on.

These templates are located on our tech support

page.

o use these templates, please follow the

instructions below. For this example we will

Open Adobe Photoshop and from the

File Menu, choose Open. Browse to

find the PDF template that you

downloaded and choose that file, click

alerted

with an IMPORT PDF dialog window.

The template will open in Adobe

Photoshop. If you select the IMAGE

menu, then choose Image Size, the

image size dialog will appear, verify the

ht & Width reads

the correct size for the template you are

working with. For this example, the

x

When laying out text in Photoshop,

Photoshop automatically creates a new

add,

should you need to insert a graphic.

-

>NEW LAYER. Photoshop will insert a

new layer for you. You can then add the

(Yellow Square)

Utilizing .PDF Files for Printing (Command Module Client Only)

Adobe Acrobat File, PDF for printing. To m

http://www.mfdigital.com/techsupport.html

T

use Adobe Photoshop.

•

the open button. You will be

Fig. A

• Click the OK button.

•

Document Size, Heig

document size reads, 119.94mm

119.94mm. Fig. B

•

layer, one for each piece of text you

From the Layer Menu, choose LAYER

graphic onto this layer.

Fig. C

Page 21

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

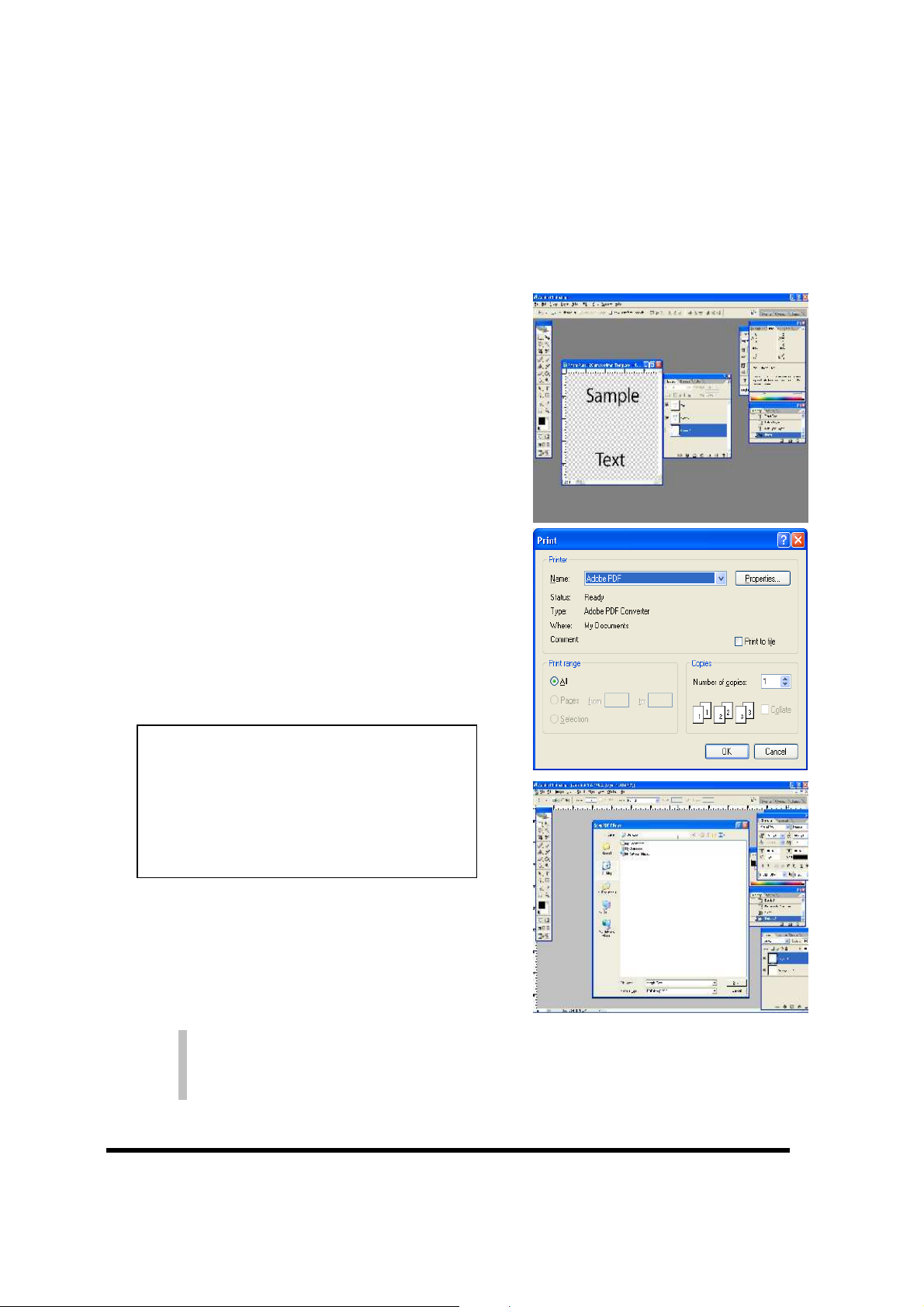

After you lay out your design, the

template layer needs to be “turned off”.

This simply done by using the layers

You’ll

tice to the left of each layer is an eye.

off.

.

your

, to do this, make

sure you have Adobe Acrobat installed.

le Menu, choose Print.

Under the Printer section of the Print

Dialog, change the Printer name to the

PDF Printer (acrobat versions vary in

You will be prompted to give a name to

that

for Standalone units, is

. If this is a multi set of labels,

Please ensure the Client Machine or

oes

Reader, v 6.0 or higher.

Utilizing .PDF Files for Printing – Command Module Only

•

palette. (red square, Fig. D)
no
Clicking the eye will turn that layer
Notice the template now disappears. Fig
E

•

You will now need to convert
design into a PDF file

From the Fi

names). Fig. F Click the OK button.

•

the PDF file. The default name
should be used

1.PDF

then label the PDF filename accordingly
(example, 1.PDF, 2.PDF, etc.). Fig. G

 CAUTION

workstation where D-Client is being used, d
not have the “full” version of Acrobat
installed. Instead please install Acrobat

Note: When submitting PDF files for printing via D-Client. The drivers for the

printer in which you are submitting to, must be loaded on the client
machine or workstation as D-Client.

Please ensure that the printer that you are submitting to is set as the default printer.

Page 22

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Audio Disc Images

The DIRECTOR/DIRECTOR PRO creates industry standard audio (Red
Book) CD/DVDs from scratch that can be played on any home, car or
portable compact disc audio player or computer CD/DVD or DVD-ROM
drive. Audio tracks are created using any combination of 44.1 kHz, 16 bit
stereo WAV or MP3 files.

To create an audio disc image:

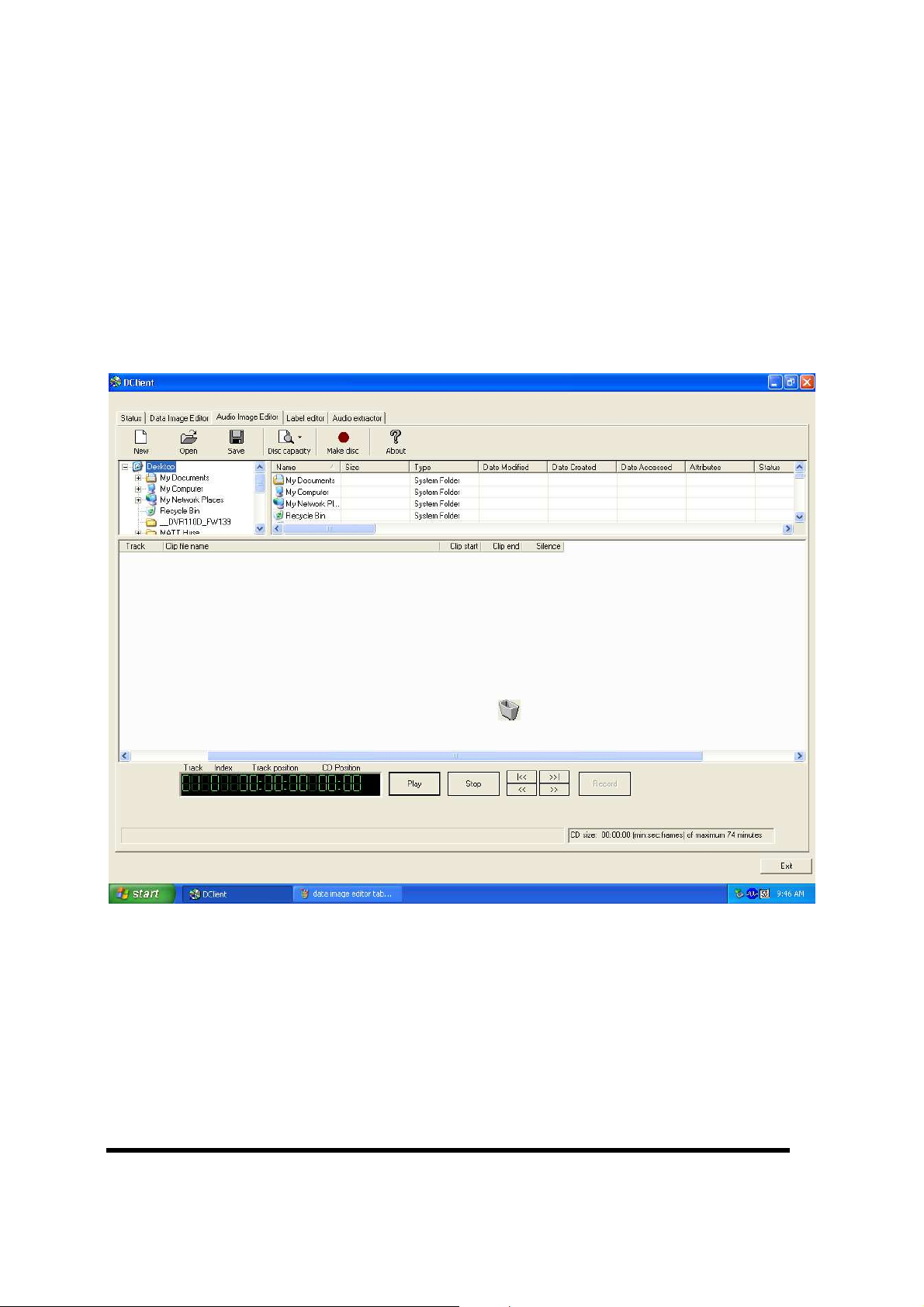

• Click the Audio Image Editor. The screen will now display:

Page 23

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

The Audio Image Editor tab is divided into three panes. The top left pane
lists all the names and icons of the disk drives available to the
DIRECTOR/DIRECTOR PRO, as well as files and folders on the currently
selected disk drive (source). The top right pane displays the contents of any
item you click on in the top left pane along with its icon. The bottom pane
lists the names of audio files on the CD/DVD, which is being created (disc
image) as well as their type (WAV or MP3), start position and end position,
silence option (inserts silence into the audio disc image) and ISRC code.

Audio Image Toolbar

Horizontally along the top above the panes is a toolbar that contains five
buttons: New, Open, Save, and Disc Capacity.

Image Toolbar:

New Creates a new audio disc image.
Open Opens an existing audio disc image script folder to

allow selection of an existing file (*.ISC)

Save Saves the current disc image contents to an audio

disc image script file (*.ISC).

Disc Capacity Selects the capacity of the CD/DVD-R or

CD/DVD-RW discs that are loaded into the
DIRECTOR/DIRECTOR PRO: 74 minutes/650
MB or 80 minutes/700 MB. (

DVD 3.95GB and

DVD 4.7 GB are not used).

Page 24

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Adding Tracks

• As depicted below, drag one or more WAV / MP3 files onto the text.

Multiple files may be selected by pressing and holding down the SHIFT
or CTRL key while clicking on the tracks. SHIFT allows you to select a
range of contiguous tracks, while CTRL allows you to randomly pick
multiple tracks. As additional tracks are added, drag and drop them in at
the desired insertion point.

Selecting CD/DVD Capacity

On the horizontal toolbar is a button to select the capacity of the CD/DVD­R or CD/DVD-RW discs that are loaded into the DIRECTOR/DIRECTOR
PRO: 74 minute/650MB or 80 minute/700MB (DVD 3.95GB and DVD

4.7GB are not used).

The Disc Capacity will displayed in the lower right hand corner

Removing Tracks

• Right click on the audio track you wish to delete.

•

Choose Delete Track from the drop down menu.

Page 25

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

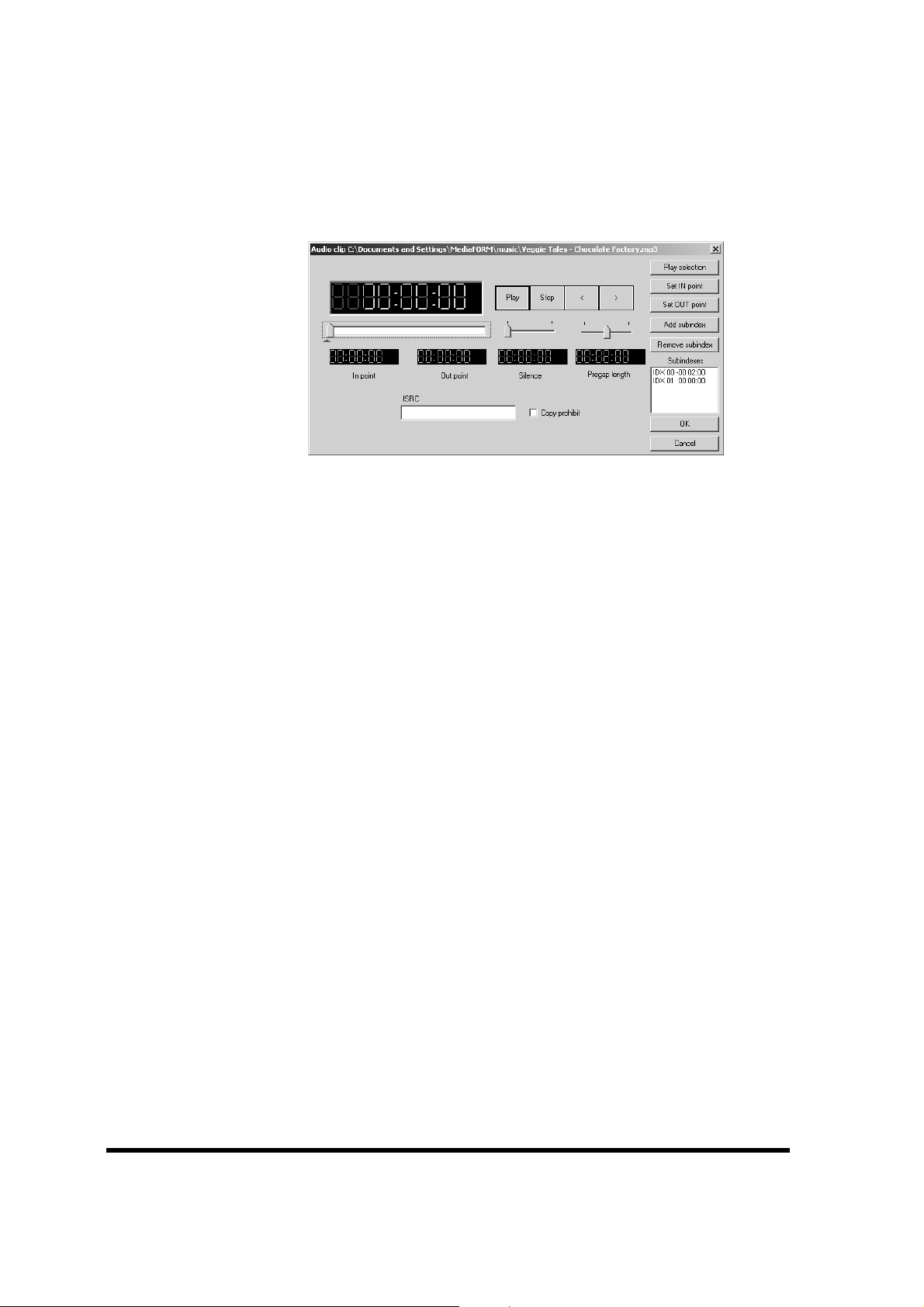

Editing A Track

• Right click the track to be edited. The screen will now display:

The right hand buttons have the following options:

• Play Selection

•

Set IN Point

• Set OUT Point

• Remove Subindex

These options allow custom changes to the tracks. Choosing OK sets the
changes and Cancel cancels the changes.

Page 26

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Note:

Changing ISRC Codes and Copy Prohibit Flags

DIRECTOR/DIRECTOR PRO systems equipped with Pioneer DVD-R
drives do not support MF Digital SmartDRIVE features.

The INTERNATIONAL STANDARD RECORDING CODE (ISRC) is an
optional 12-character descriptor that identifies a specific track on an audio
CD/DVD. Each track can have its own unique ISRC consisting of 2
alphanumeric characters (country), 3 alphanumeric characters (owner), 2
digits (year of recording) and 5 digits (serial number).

The COPY PROHIBIT flag is a setting in each track on an audio CD/DVD,
indicating whether or not that track can be copied by a digital recorder.

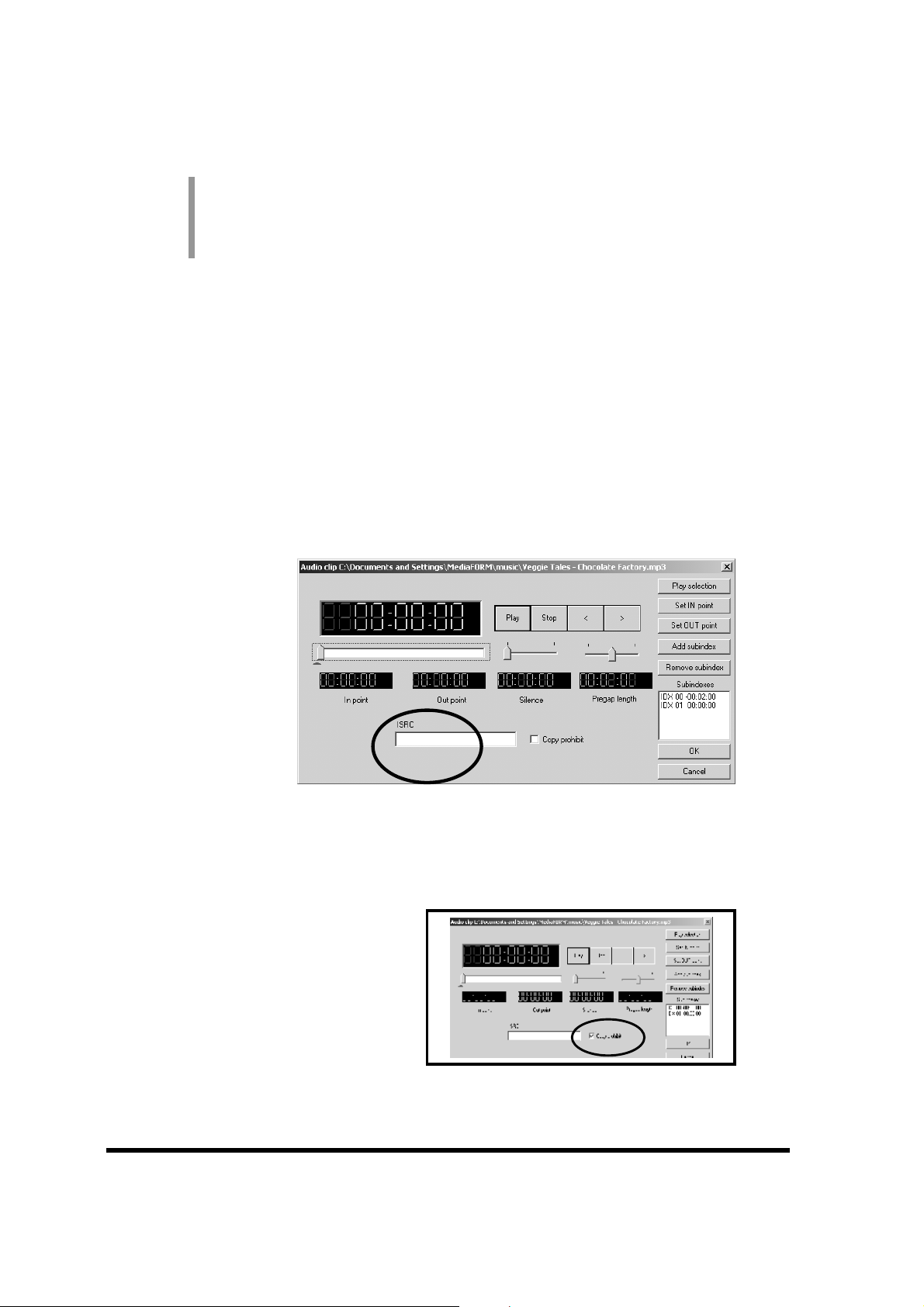

To change an ISRC code:

•

Double click the desired audio track in the lower pane. The screen will
now display:

• Enter the code in the ISRC line and click the OK button.

To change a Copy Prohibit flag:

•

Double click the desired audio track in the lower left pane. The screen
will now display:

• To enable Copy Prohibit select the Copy Prohibit box so that it is

checked, or uncheck the box to disable Copy Prohibit.

Page 27

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Inserting, Editing And Removing Silence

When assembling an audio CD/DVD disc image the
DIRECTOR/DIRECTOR PRO application does not insert silences (gaps)
between tracks.

To insert silence between tracks:

• Right click the track that is to be edited. Choose “Edit” on the drop

down menu

•

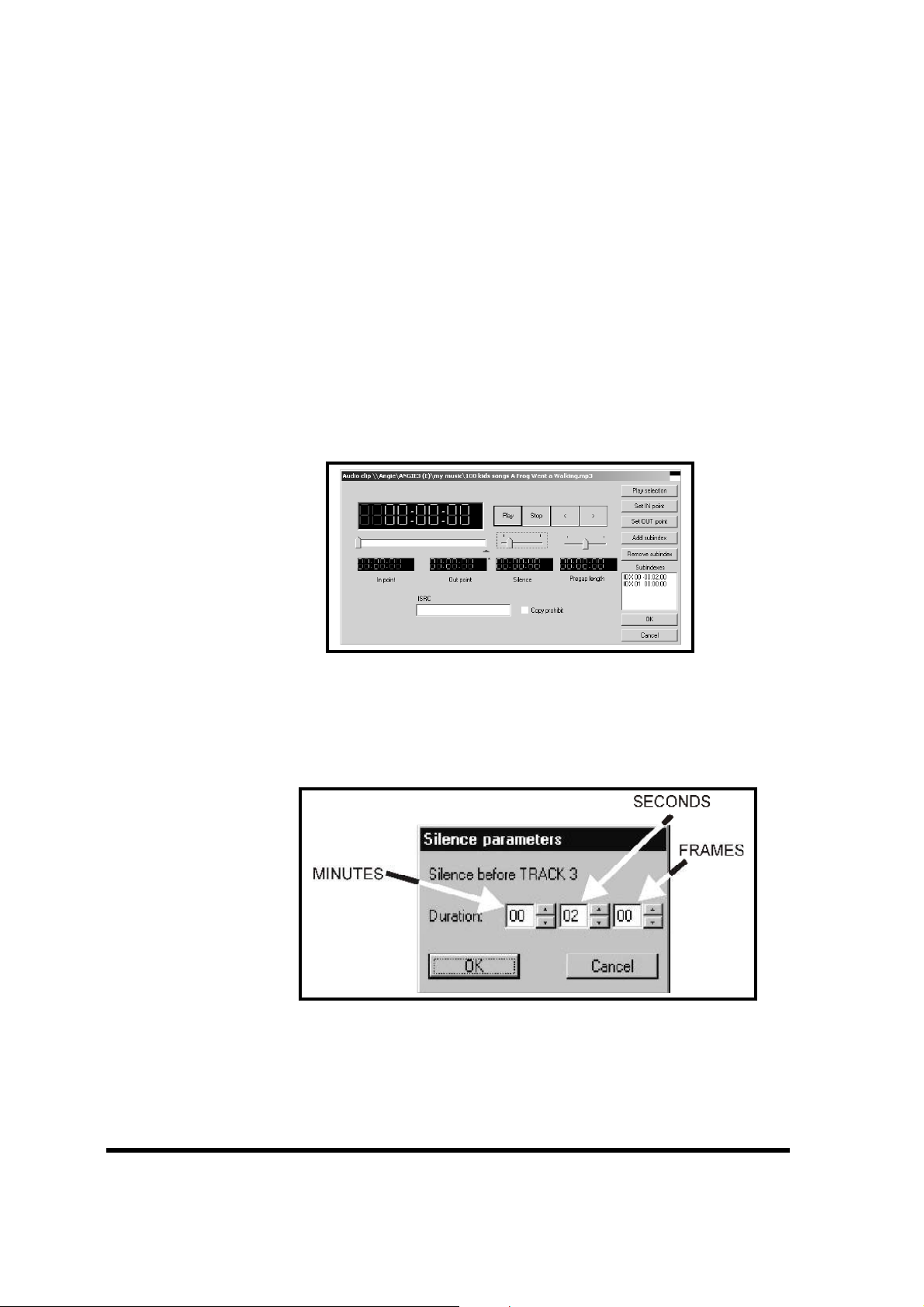

A pop up screen appears. The Silence option appears in the middle of
the screen with a slide control. Slide the control to the preferred length
of silence. In the example: 48 seconds.

To edit the amount of silence between tracks:

• Double click the silence indicator you wish to edit in the lower left

pane. The screen will now display:

• Click the up and down indicators to increase or decrease the duration of

the silence (minutes, seconds, frames).

•

Click the OK button.

To remove silence between tracks:

Page 28

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

• Click the silence indicator you wish to remove in the lower left pane

and hold down the mouse button.

• Drag the silence indicator over the trashcan in the bottom right of the

•

WaveMan tab and release the mouse button.

• Click the Yes button.

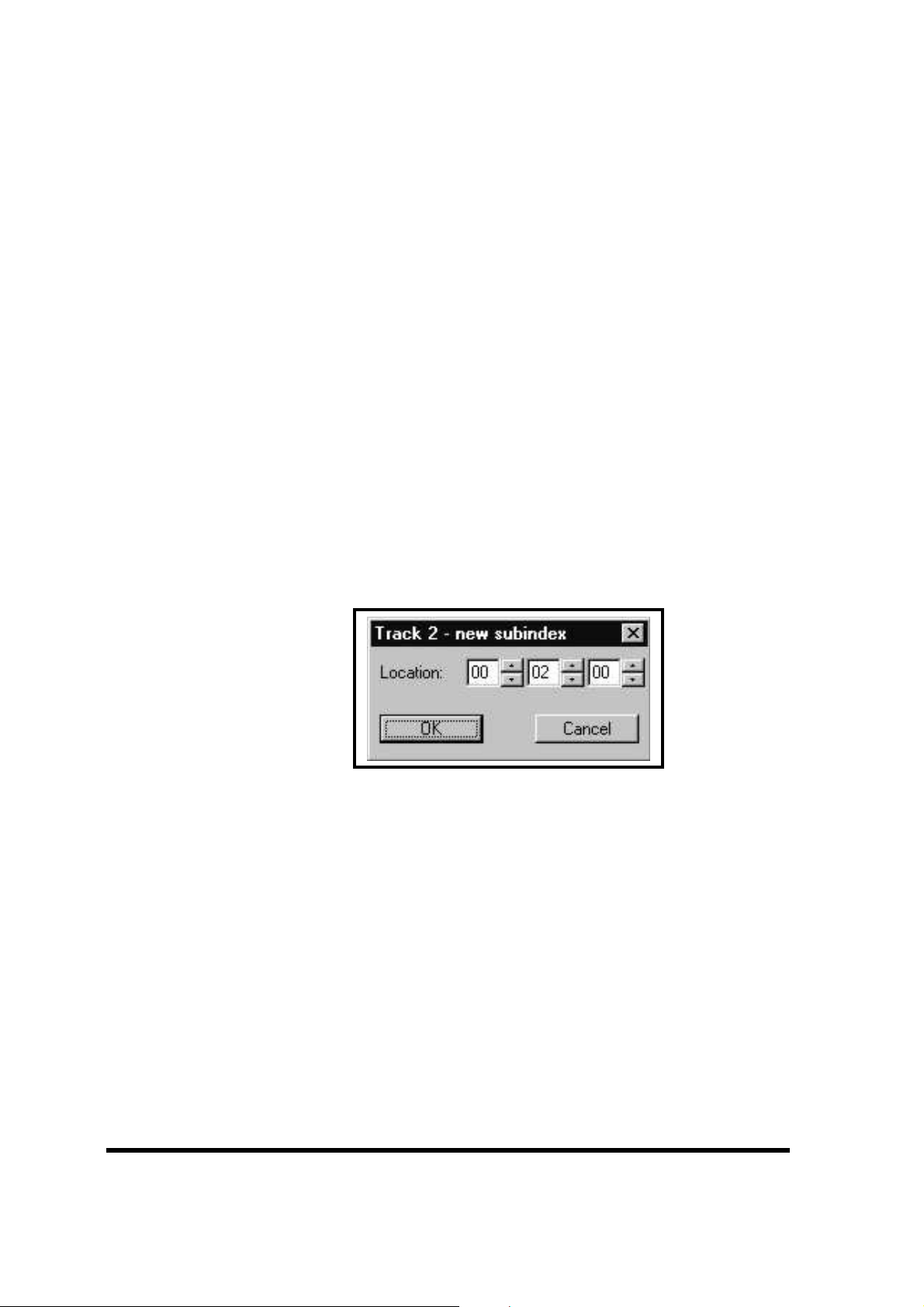

Inserting, Editing And Removing Sub-indexes

Sub-indexes are markers used by CD/DVD audio players to locate specific
points inside an audio track. Sub-index 0 indicates the start of any silence
before the beginning of a track and sub-index 1 indicates the beginning of a
track’s audio material. Other sub-indexes can also be assigned to allow
some audio players to locate specified material within a track itself.

To insert sub-indexes in a track:

• Click the audio track you wish to edit in the lower left pane and its

existing sub-indexes will be displayed in the bottom right pane.

•

Click the Insert Sub-index button. The screen will now display:

• Click the up and down indicators to specify the location of the sub-

index (minutes, seconds, frames).

•

Click the OK button.

To edit sub-indexes:

• Click the audio track you wish to edit in the lower left pane, and its

existing sub-indexes will be displayed in the bottom right pane.

• Double click the sub-index you want in the bottom right pane. The

screen will now display:

•

Click the Insert Sub-index button. The screen will now display:

Page 29

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

•

Click the up and down indicators to specify the new location of the sub­index (minutes, seconds, frames).

• Click the OK button.

To remove sub-indexes:

•

Click the audio track you wish to edit in the lower left pane and its
existing sub-indexes will be displayed in the bottom right pane.

• Click on the sub-index you want in the bottom right pane and hold

down the mouse button.

• Drag the sub-index over the trashcan in the bottom right of the Audio

Image Editor tab and release the mouse button.

•

Click the Yes button.

Page 30

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Saving The Current Audio Disc Image

Once an audio disc image has been created it must be saved so that it can
be used by the DIRECTOR/DIRECTOR PRO as an audio source for
recording. Disc images are saved as script files (with an “ISC” extension).

To save an audio disc image script file:

• Click the Save button on the toolbar. The screen will now display:

• Select the volume and directory where you want to save the script file.

• Enter the name for the audio disc script file and click the Save button.

Loading An Existing Audio Disc Image

Once an audio disc image script file has been saved it can be modified at a
later date.

To load an existing audio disc image script file:

• Click the Open button on the toolbar. The screen will now display:

• Select the appropriate file and click the Open button.

Page 31

D CLIENT for MF Digital Director/Director Pro Series Revised 05312006

Status Tab

Click on Status Tab and the following window will be displayed:

Removing A Job

To remove a pending job from the queue so that it will not be produced:

• Click the job you wish to remove in the JOB QUEUE window.

• Click the Remove Job button.

Clearing The Completed Jobs List

To clear the list of completed jobs:

• Click the Clear List button.

Page 32
