CD-5000 Series Operator’s Guide
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Copyright Notice
Copyright ©1996-2002 by MediaFORM, Inc. All rights reserved.
This manual and the accompanying illustrations may not be copied, reproduced,
electronically transmitted, or tra nslated into another language, in whole, or in par t,
without the written consent of MediaFORM, Inc.
MediaFORM, CD2CD, CD2CD PRO, CD-5400L, CD-5908, CD-5916, CD
3702, CD-3703, CD-3704, CD-3706P, cdDIRECTOR, AP-1001, AP-1301C,
QuadraPRO, Easi-DAT and Easi-AUDIO are trademarks of MediaFORM,
Inc.
Other trademarks referred to are the property of their respective trademark or
registered trademark holders.
CD-R/RW Recorder Warranty Policy
Individual CD-R/RW recorder manufacturers are responsible for the products they provide. As a convenience,
MediaFORM will honor any service issue related to a defective recorder while under its respective
manufacturer’s warranty providing that the recorder has been purchased from MediaFORM either directly or
indirectly. MediaFORM assumes no responsibility for products NOT purchased thro ugh MediaFORM.
Piracy
The copying of audio, video, or software without the permission of the copyright holder is illegal. MediaFORM,
Inc. accepts no responsibility for the copyright use or misuse of this equipment. It is the sole responsibility of the
user to ensure that the legal rights of copyright in duplicating are respected.
Germany office: Home office:
MF Optical, GmbH. MediaFORM, Inc.
Albert-Schweitzer-Ring 23 122 Oscar Way
22045 Hamburg/Germany Chester Springs, PA 19425
Tel: +49 40 668 535 99 Tel: (610) 458-9200
Fax: +49 40 668 535 98 Fax: (610) 458-9554
e-mail: info@mfoptical.de Email: documentation@mediaform.com
www: http://www.mfoptical.de www: http://www.mediaform.com
Page 1
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
End User License Agreement
• You have acquired a device (“5000 CD-R/RW duplicator”) that includes software licensed by MediaFORM from Microsoft
Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed
materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property
laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THIS DEVICE OR
COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT MEDIAFORM FOR INSTRUCTIONS ON RETURN
OF THE UNUSED DEVICE (S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT.)
• GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:
⇒ You may use the SOFTWARE only on the DEVICE.
⇒ NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. MEDIAFORM HAS
INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS
RELIED UPON MEDIAFORM TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE
SOFTWARE IS SUITABLE FOR SUCH USE.
⇒ NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “A S IS” and w ith all faults.
THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND
EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY
AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST
INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE
SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
⇒ Note on Java Support. The SOFTWARE may contain support for programs written in Java. Java technology is
not fault tolerant and is not designed, manufactured, or intended for use or resale as online control equipment in
hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft
navigation or communication systems, air traffic control, direct life-support machines, or weapons systems, in
which the failure of Java technology could lead directly to death, personal injury, or severe physical or
environmental damage. Sun Microsystems, Inc. has contractually obligated MS to make this disclaimer.
⇒ No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM OR IN CONNECTION WITH THE USE OR PURPOSE. IN NO EVENT SHALL MS
BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO-HUNDRED FIFTY DOLLARS (U.S.
$250.00).
⇒ Limitations on Reverse Engineering, De-compilation, and Disassembly. You may not reverse engineer, de-
compile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted
by applicable law notwithstanding the limitation.
⇒ SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights
under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this
EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE.
⇒ EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is of US-origin. You agree to comply with
all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export
Administration Regulations, as well as end-user, end-use and country destination restrictions issued by U.S. and
other governments. For additional information on exporting the SOFTWARE, see
http://www.microsoft.com/exporting/.
Page 2
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Table of Contents
ABOUT MEDIAFORM, INC.................................................................................................................................... 5
W
HAT TO EXPECT FROM YOUR MEDIAFORM CD DUPLICATOR.............................................................................. 5
ABOUT THIS MANUAL........................................................................................................................................... 5
GETTING STARTED ................................................................................................................................................ 6
W
HAT’S IN THE BOX ................................................................................................................................................. 6
P
ACKING MATERIALS................................................................................................................................................. 6
T
HE BEST PLACE TO PUT THE 5000 .......................................................................................................................... 7
S
AFETY PRECAUTIONS............................................................................................................................................... 7

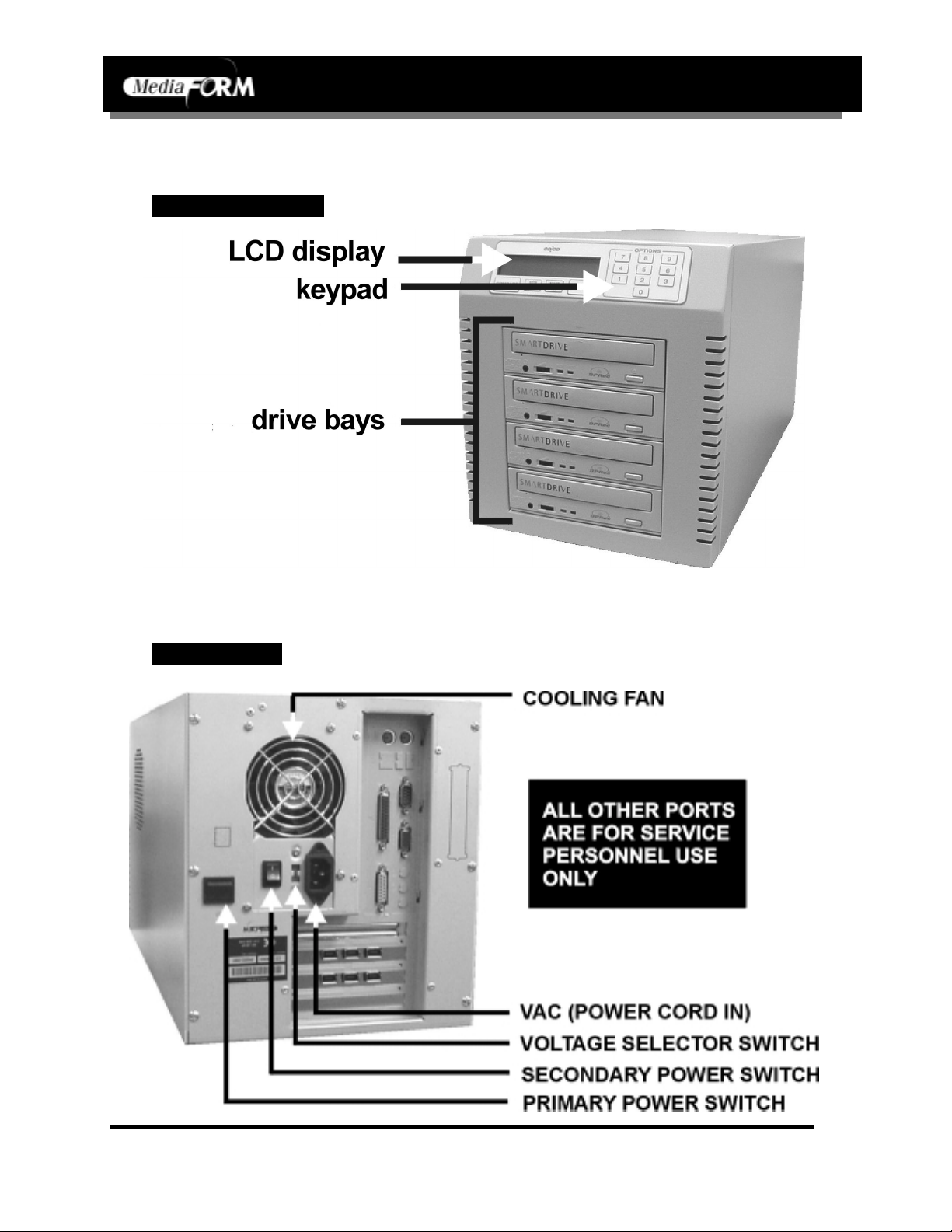

L
OCATION OF CD-5400 COMPONENTS...................................................................................................................... 8
Front View............................................................................................................................................................ 8
Rear View............................................................................................................................................................ 8

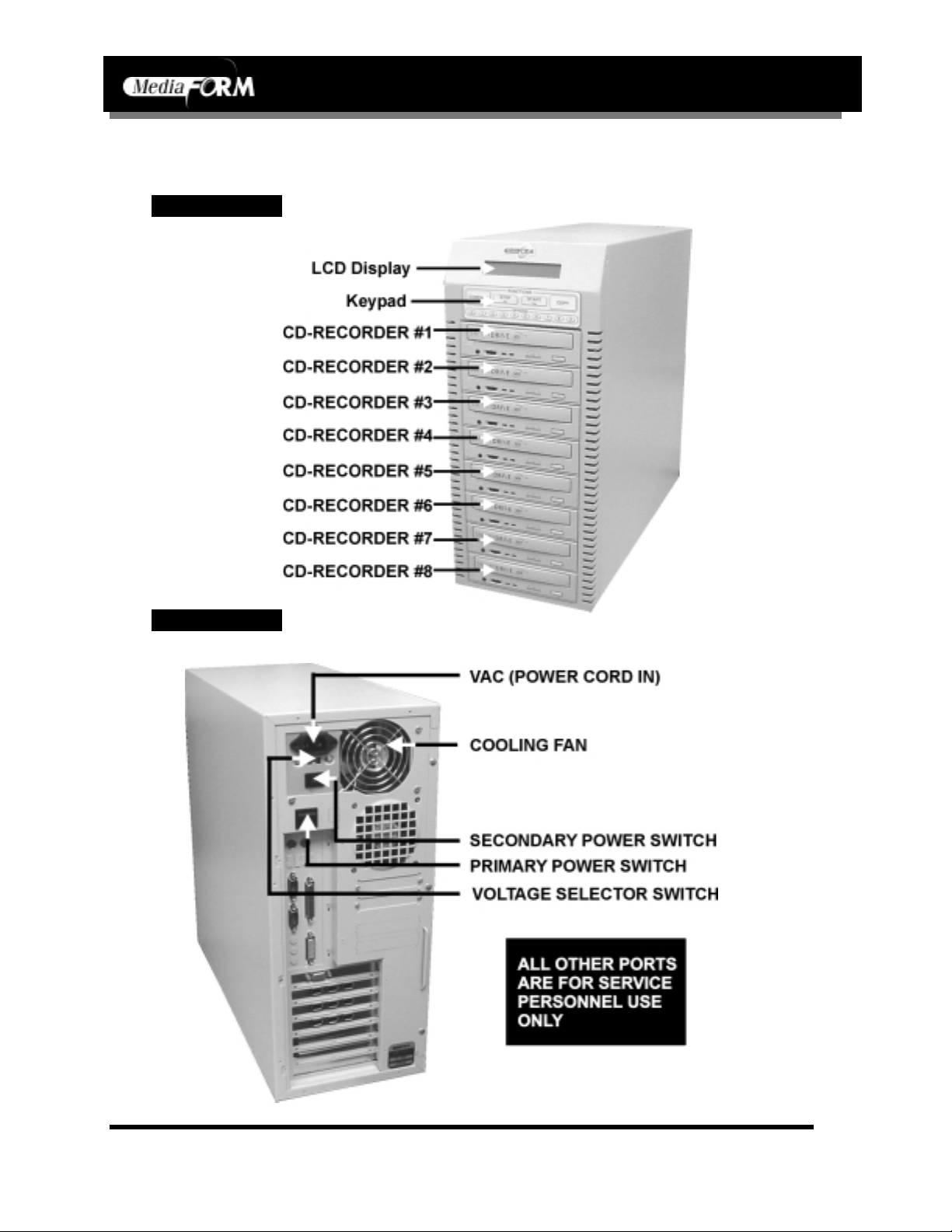

L
OCATION OF CD-5908 SERIES COMPONENTS .......................................................................................................... 9
Front View............................................................................................................................................................ 9
Rear View............................................................................................................................................................ 9

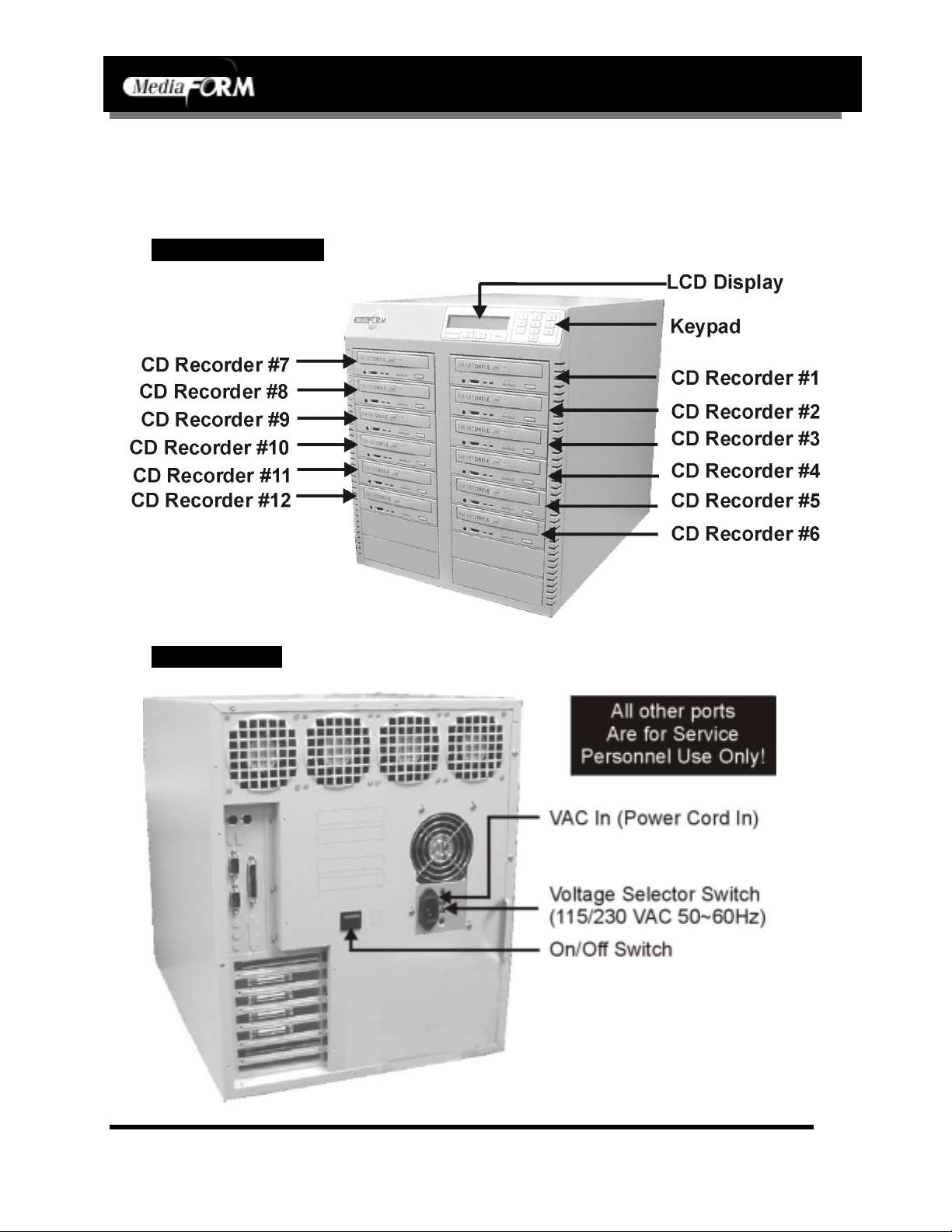

L
OCATION OF CD-5912 COMPONENTS.................................................................................................................... 10
Front View.......................................................................................................................................................... 10
Rear View.......................................................................................................................................................... 10

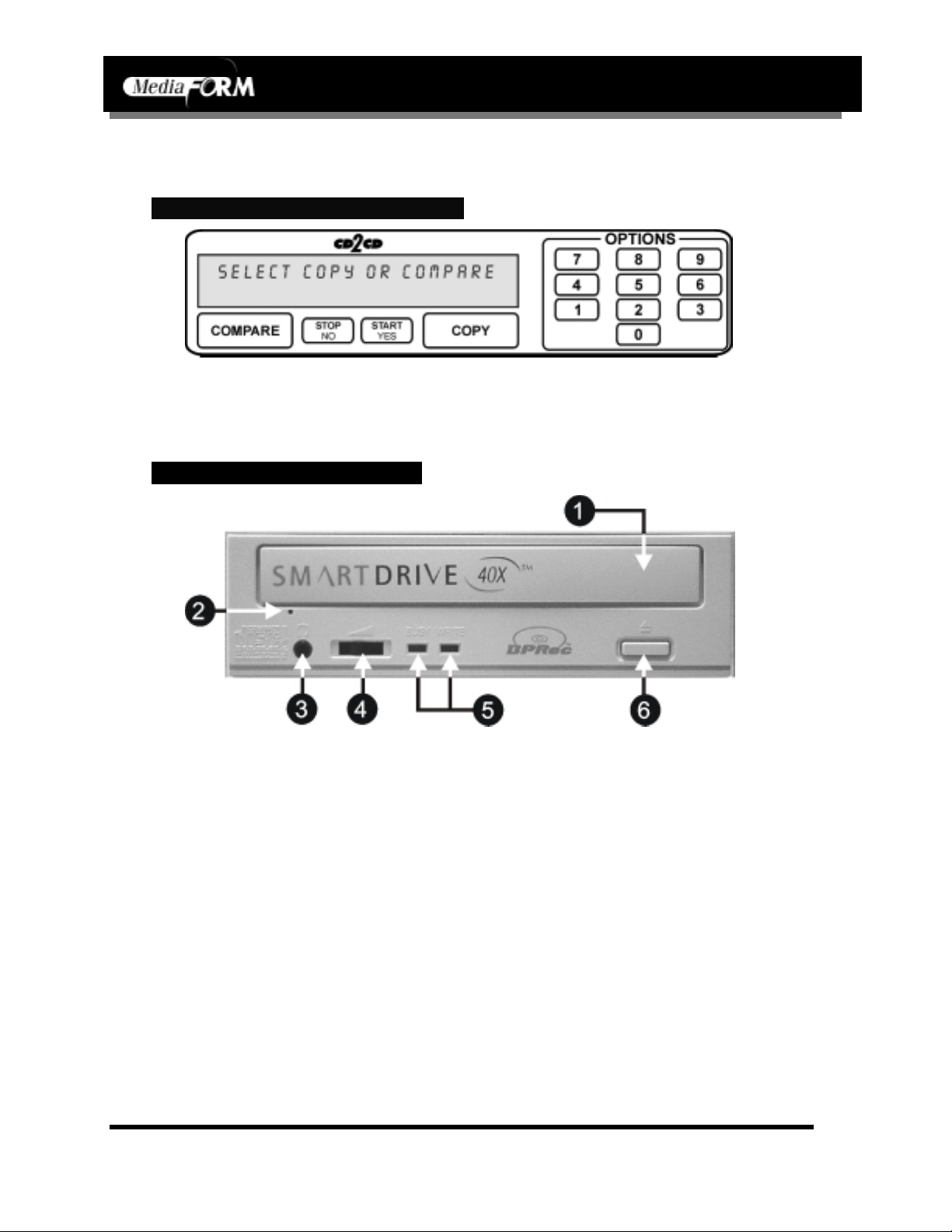

LCD Display Screen And Keypad .................................................................................................................. 11
SmartDRIVE 40X.............................................................................................................................................. 11
SYSTEM STARTUP................................................................................................................................................. 12

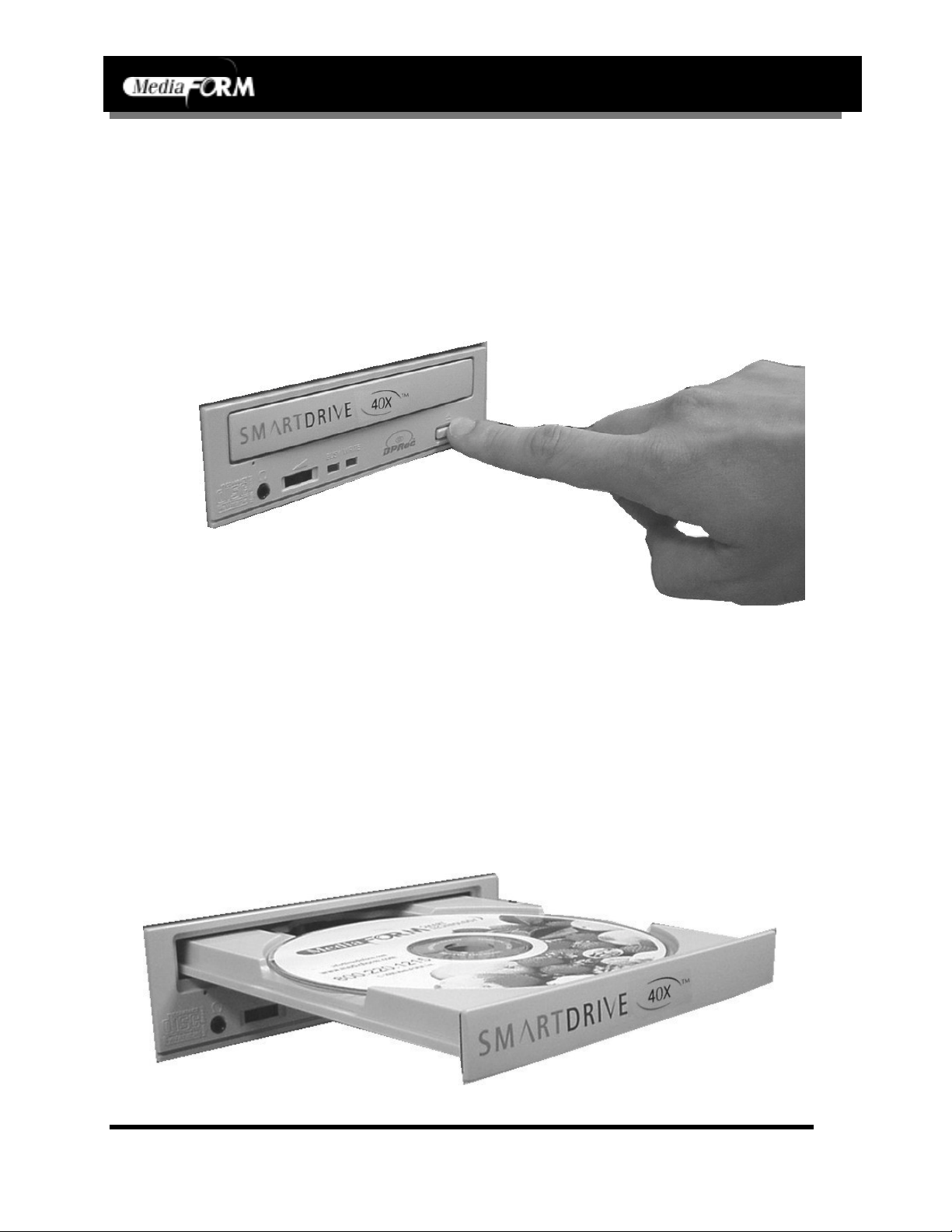

L
OADING A DISC ..................................................................................................................................................... 14
R
EMOVING A DISC................................................................................................................................................... 14
GENERAL OPERATION........................................................................................................................................ 15
F
UNCTION KEYS ...................................................................................................................................................... 15
C
REATING A HARD DISK IMAGE.............................................................................................................................. 21
Creating A Single Hard Disk Image............................................................................................................... 21
Creating Multiple Hard Disk Images .............................................................................................................. 24
E
NABLING VERIFY AFTER........................................................................................................................................ 26
C
OPYING FROM A HARD DISK IMAGE ..................................................................................................................... 27
Multiple Images Disabled ................................................................................................................................27
Multiple Images Enabled................................................................................................................................. 28
C
OMPARING FROM A HARD DISK IMAGE................................................................................................................. 30
Multiple Images Disabled ................................................................................................................................30
Multiple Images Enabled................................................................................................................................. 31
ATIP C
C
ODES............................................................................................................................................................ 33
OPY PROTECTION................................................................................................................................................... 35
Enabling Copy Protection................................................................................................................................35
V
IEWING DEVICE INFORMATION.............................................................................................................................. 37
C
REATING AUDIO COMPILATION DISCS.................................................................................................................... 38
W
ORKING WITH CD-REWRITABLE (CD-RW) DISCS............................................................................................... 40
CD-RW Supported Formats............................................................................................................................ 40
CD-RW Copying Speed................................................................................................................................... 40
UTILIZING THE 5000EC CLIENT SOFTWARE................................................................................................ 41
S

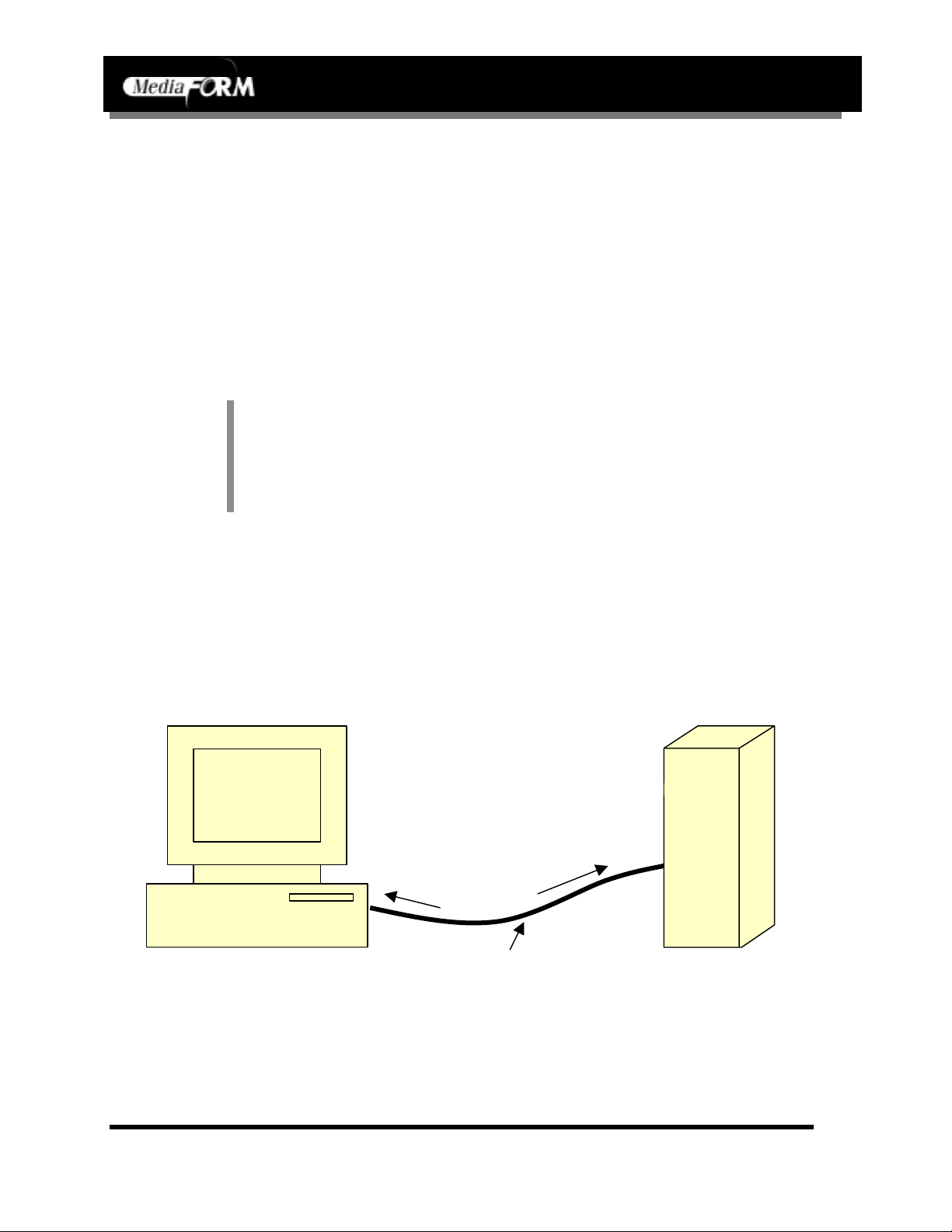

TEP 1: CONNECTING THE IEEE-1394 CABLE ......................................................................................................... 41
S
TEP 2: INSTALLING THE 5000EC CLIENT SOFTWARE ............................................................................................. 42
Page 3
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
S
TEP 3: NAMING THE 5000EC DUPLICATOR............................................................................................................ 42
S

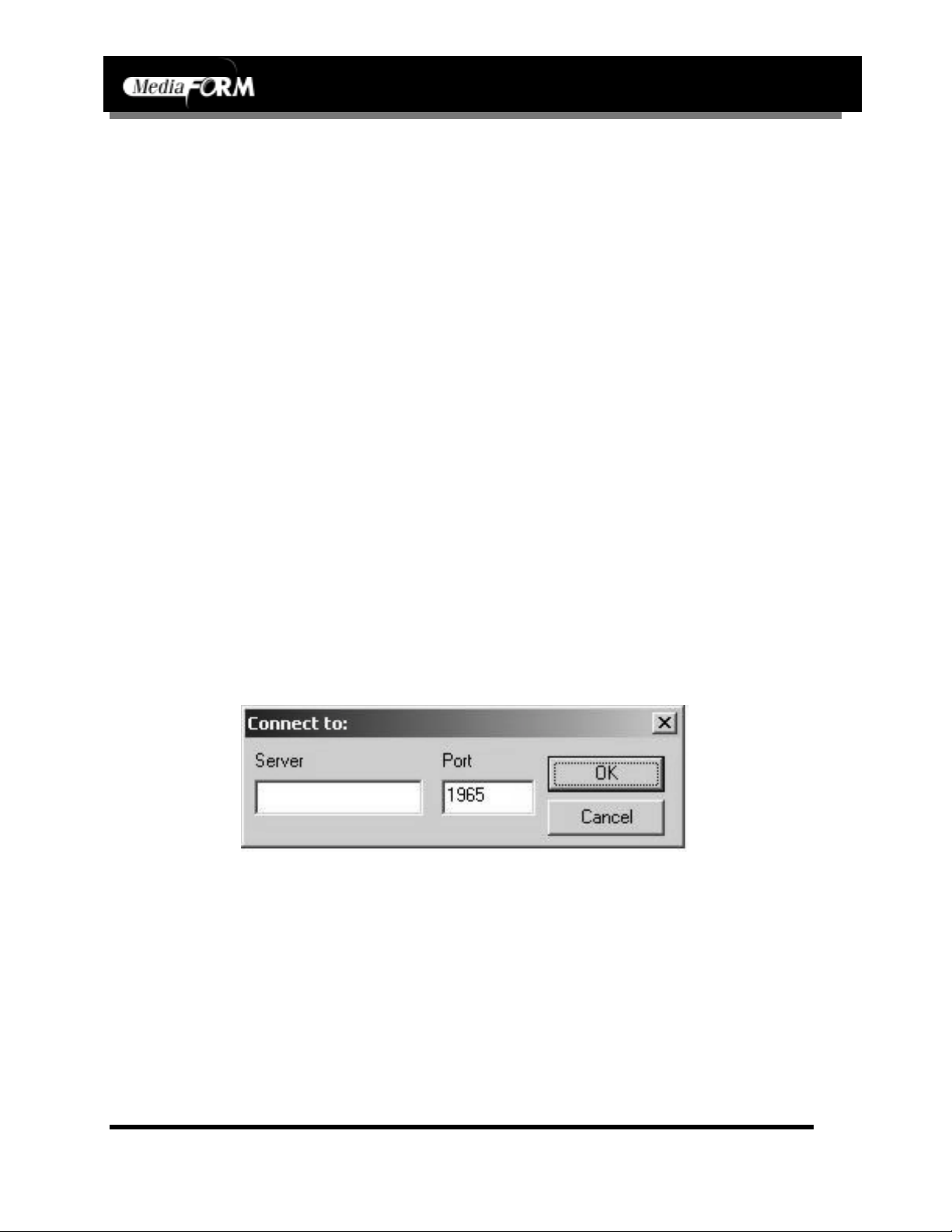

TEP 4: CONNECTING THE 5000EC CLIENT ............................................................................................................. 42
U
SING THE “GET IMAGE” FEATURE.......................................................................................................................... 43

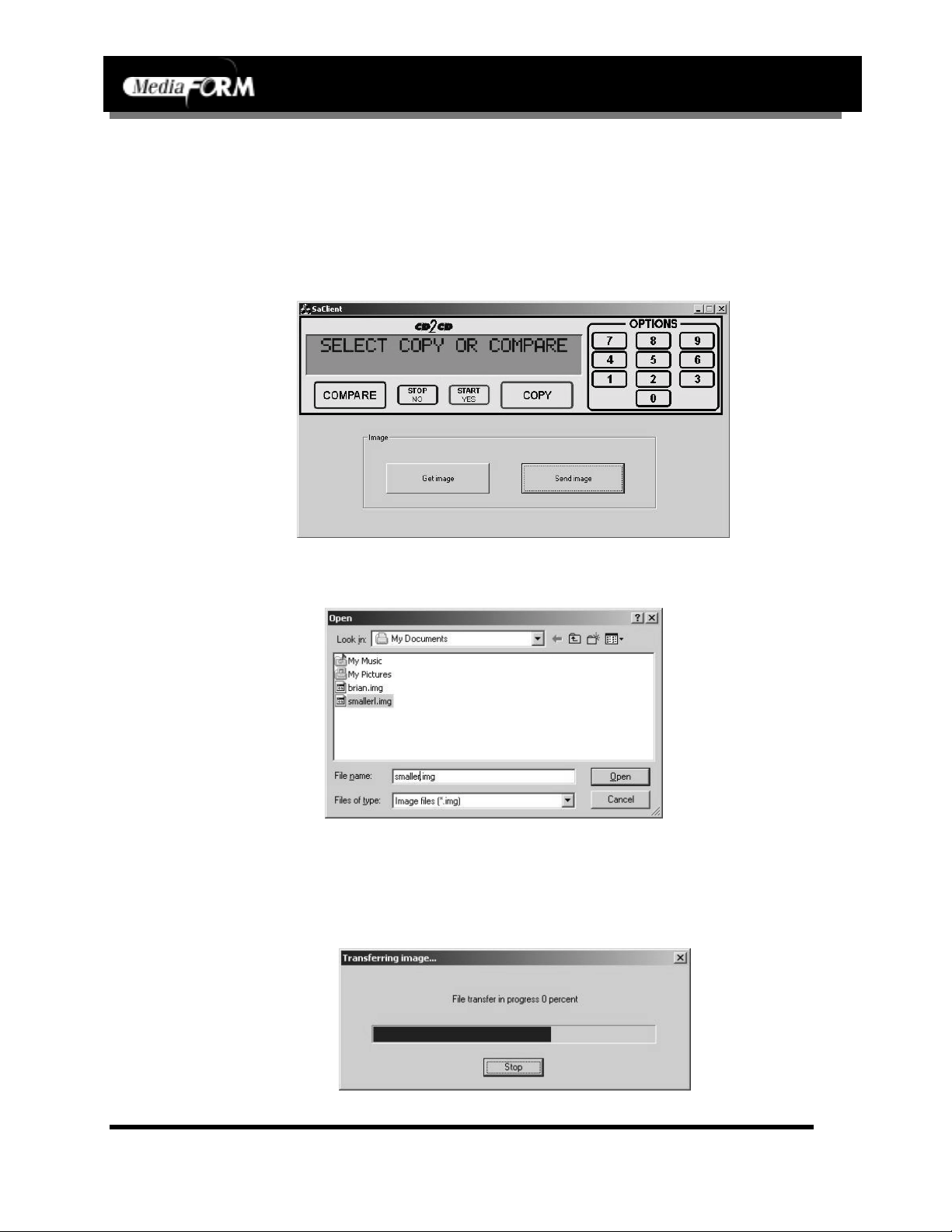

U
SING THE “SEND IMAGE” FEATURE........................................................................................................................ 44
Document Revision: 030501.1
Document Revision:100102
SETTING THE INTERNAL CLOCK.................................................................................................................... 45
F
IRMWARE UPDATES ............................................................................................................................................... 46
APPENDIX A: SUPPORTED FORMATS............................................................................................................. 47
Page 4
About MediaFORM, Inc.
Thank you for purchasing a MediaFORM 5000 Series standalone CD
duplicator. MediaFORM manufactures a wide variety of CD and DVD
duplication equipment. This includes manual and fully automatic CD and
DVD duplicators, and CD and DVD printers. We hope you will consider us
for all of your duplication needs.
What To Expect From Your MediaFORM CD Duplicator
Your MediaFORM 5000 Series CD duplicator is professionally designed
and manufactured to give you years of trouble free operation. To avoid
accidental damage to your new CD duplicator, please read and understand
this manual thoroughly before operating the unit.
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
About This Manual
This manual is written for both novice and experienced users. Please read
through this Operator’s Guide from beginning to end before using the unit.
Once having read the manual, follow along chapter by chapter. This will
provide the necessary understanding of your new 5000 Series CD
duplicator.
Page 5
Getting Started
Carefully remove the 5000 Series CD duplicator from the shipping
container. Inspect the contents, and verify them against the packing slip.
Report any errors in shipping as soon as possible.
What’s In The Box
Your new 5000 Series CD duplicator includes:
• 5000 Series CD duplicator
• Power cord
• Firmware CD
• Manual CD
• MediaFORM Product & Warranty Registration card
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Packing Materials
Please retain the original box and packaging in the event that the unit
requires future servicing. This will help to reduce the possibility of damage
occurring in transit.
Page 6
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
The Best Place To Put The 5000
The best operating location for the 5000 Series CD duplicator is in a
climate-controlled area, free of dirt, dust, humidity, excessive heat, and
electronic or electromagnetic interference. Room temperature should be
between 65 and 75 degrees Fahrenheit, or between 18 and 23 degrees
Celsius. Place the 5000 on a solid, steady work surface, and allow sufficient
room for all incidental work materials. Provide at least six inches of
clearance on all sides of the unit for ventilation.
Safety Precautions
The system is shipped with a three-prong power connector, and must be
used with a properly grounded AC receptacle. DO NOT try to defeat the
third “ground” prong. All computer peripherals must be properly grounded,
and the 5000 is no exception. The use of a power conditioner, such as an
Uninterruptible Power Supply (UPS) or a surge protector, is highly
recommended. The minimum required size is 500VA.
Document Revision: 030501.1
Document Revision:100102
Repairs or alterations should only be attempted by authorized, factorytrained technicians. MediaFORM reserves the right to void the warranty if
unauthorized service is performed.
Page 7
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Location Of CD-5400 Components
Front View
Document Revision: 030501.1
Document Revision:100102
Rear View
Page 8
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Location Of CD-5908 Series Components
Front View
Document Revision: 030501.1
Document Revision:100102
Rear View
Page 9
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Location Of CD-5912 Components
Front View
Document Revision: 030501.1
Document Revision:100102
Rear View
Page 10
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Location Of CD-R/RW Recorder Parts And Controls
LCD Display Screen And Keypad
SmartDRIVE 40X
Legend
1. Disc tray - Discs are loaded and removed from this tray. Pressing the eject
button will open the tray when the power is switched on to the 5000 Series.
2. Emergency eject pinhole - In the event that the disc tray will not open by
pressing the eject button, insert the tip of a large paper clip into this hole and
push.
3. Earphone jack
4. Volume Control
5. Read and write status LEDs - These indicators light up when the recorder is
reading or writing.
6. Eject button - This button is used to open or close the disc tray.
Document Revision: 030501.1
Document Revision:100102
Page 11
System Startup
Before duplicating can begin it is necessary to review a few details.
• Plug one end of the supplied power cord into the upper receptacle at the
rear of the unit.

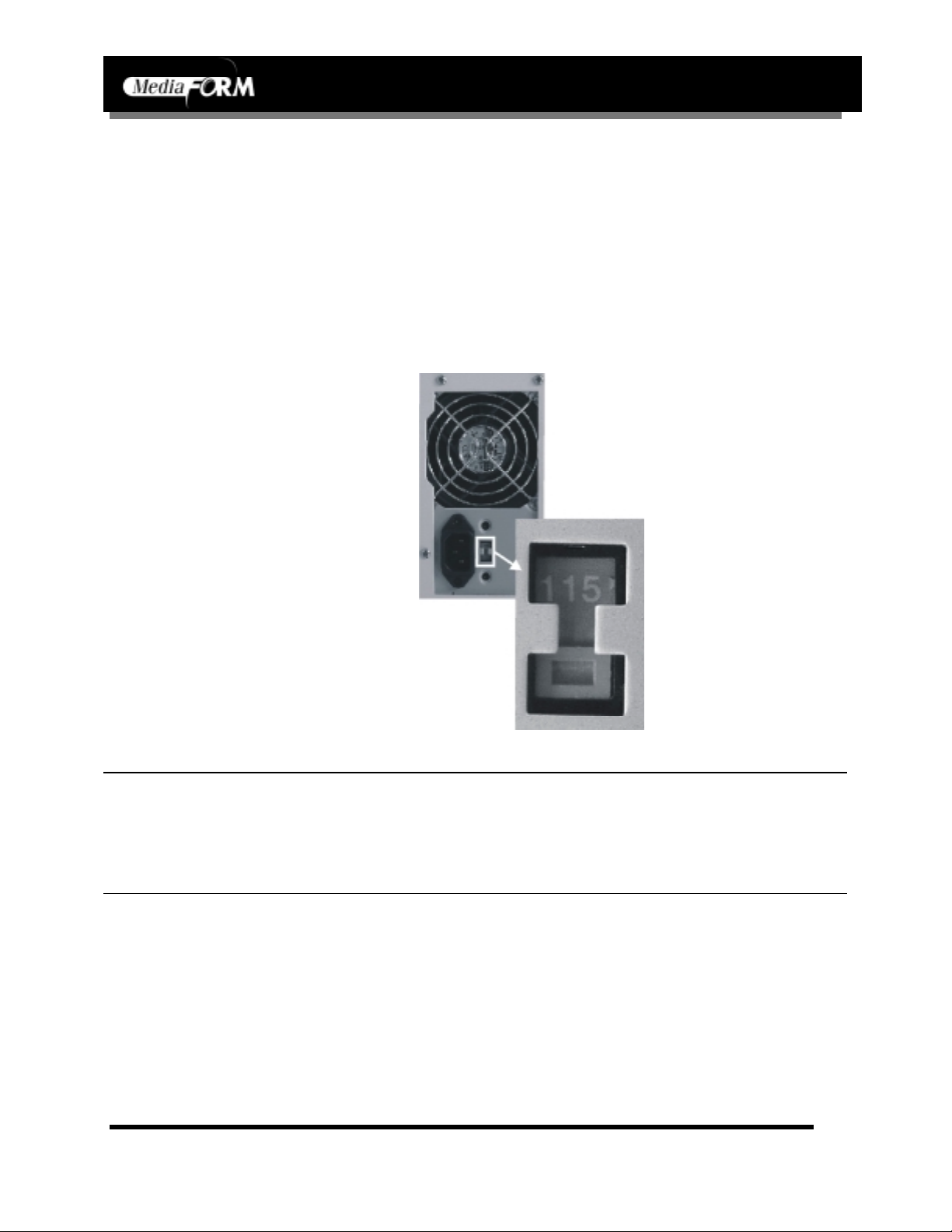

• Next, verify that the voltage selector switch is set correctly. It is located
between the two power receptacles. The 5000 Series supports both 115
VAC and 230 VAC at 50 ~ 60 Hz. Please confirm that the appropriate
voltage (115 VAC for North America) has been selected.
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
CAUTION
Always use properly grounded receptacles or severe damage to
your system may result. The use of a surge protector or
Uninterruptible Power Supply (UPS) is highly recommended.
Page 12
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102

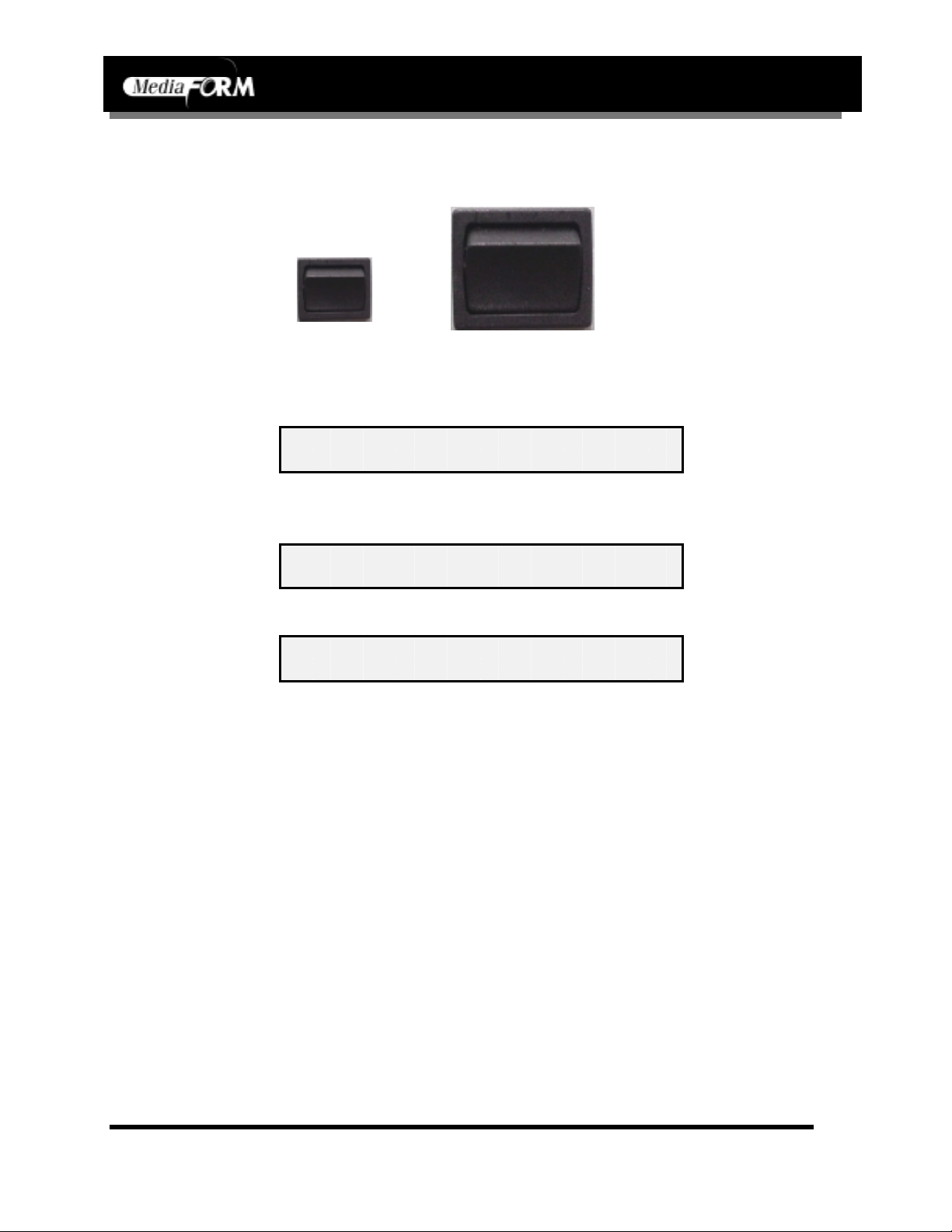

• Make sure you power on the unit using the primary and secondary
power switches located on the back of the 5000 Series.
• Once the proper voltage setting has been confirmed, it is time to turn on
the unit. Wait a minute or two while the system starts up. The screen
will now read:
M F I N C . U S A
D U P L I C A T I ON MA D E E A S Y
After the startup routine is complete, a series of self-diagnostics will be
performed. The screen will now read in sequence:
I N I T I A L I Z I N G
Once complete, the unit will display the main operating screen:
S E L E C T C OP Y OR C O MP A R E
Page 13
Loading A Disc
• After the 5000 Series’ power has been switched on, press the eject
button on the front of the recorder to open its disc tray.
• Load by carefully placing the disc (label side up) into the recessed area
of the disc tray, so that the disc lays flat.
• Press the eject button on the front of the recorder to close the disc tray.
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Removing A Disc
• While the 5000 Series’ power is still switched on, press the eject button
on the front of the recorder to open the disc tray.
• Af ter the disc tray has completely opened, lif t the disc by its edges and
carefully remove it.
• Press the eject button on the front of the recorder to close the disc tray.
Page 14
General Operation
The 5000 Series is extremely versatile and offers many useful and powerful
features.
Function Keys
Various uses for the 5000 Series will be explained throughout this
Operator’s Guide. The following section explains the purpose of the
function keys.
The numeric keys on the keypad have special functions. When the main
operating screen is displayed:
S E L E C T C OP Y OR C O MP A R E
• Press the “0” key on the keypad. The screen will now read:
1 = C O P Y 2 = S I MU L A T E
The factory setting for this function is “copy”. When the Recording
Mode of the 5000 Series is set to “copy”, any blank discs loaded into
the recorders will be written to. The “simulate” mode is a diagnostic
tool, which is useful for testing the readability of a master disc,
without actually writing to blank discs loaded into the recorders. It is
also helpful for training purposes, and for experimenting with various
system functions.
• Press the “1” key to select “copy” or the “2” key to select “simulate”.
After pressing either key, you will be returned to the main operating
screen.
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
• Press the “1” key on the keypad. Something similar to the following
will be displayed on the screen in sequence:
N T S A 1 . 0 0 0 e 0 2 / 1 9 / 0 2
S O F T WA R E R E V
This is the version information of the firmware currently installed on
the 5000 Series.
Page 15
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
I M A G E S I Z E 3 3 9 2 MB
T I M E 1 6 ; 2 3 D A T E 1 0 / 0 2 / 0 1
Document Revision: 030501.1
Document Revision:100102
This displays the image size on the internal hard disk, time and date.
V E R I F Y A F T E R C O P Y = O F F
S Y S T E M S O P T I O N S
This displays the “Verify After” status of the 5000 Series.
M U L T I P L E I M A G E S = O F F
S Y S T E M O P T I O N S
This displays the “Multiple Images” status of the 5000 Series.
I N S T A L L E D ME MO R Y : 2 5 2 MB
S Y S T E M O P T I ON S
This displays the Installed Memory of the 5000 Series.
T O T A L G O O D : B A D :
S Y S T E M O P T I ON S
This displays the number of good and bad copies for the current job.
• Press the “2” key on the keypad. The screen will now read:
0 = V E R I F Y A F T E R C O P Y
S E L E C T OP T I ON
The factory setting for this function is “disabled”. When “enabled”, the
Verify After feature automatically compares discs to the master disc or
hard disk image after copying is completed. Due to the nature of the
various compact disc formats, only CD-ROM Mode 1, CD-ROM Mode
2, CD-ROM XA Mode 2 Form 1, and audio (CD-DA) discs can be
compared.
1 = M U L T I P L E I MA G E S
S E L E C T OP T I ON
The factory setting for this function is “disabled”. When “enabled”, the
Multiple Images feature allows up to six images to be stored on the hard
disk drive at one time. This setting will remain in effect until “disabled”,
even after restarting the 5000 SERIES.
Page 16
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
2 = C L I C K D E T E C T I O N
S E L E C T OP T I ON
Document Revision: 030501.1
Document Revision:100102
The factory setting for this function is “enabled”. When “disabled”, the
Click Detection feature allows masters with small random errors to be
read to the hard drive. Caution should be taken when disabled, as
masters that would normally be rejected will be allowed to be read-in.
Undesirable results may occur.
3 = C O P Y P R O T E C T I ON
S E L E C T OP T I ON
The factory setting for this function is “disabled”. When “enabled”, the
Copy Protect feature will write copy protection information into data
discs copied by the 5000 SERIES.
• Press the “0”, “1”, “2”, or “3” key to select a function and press the
“START” key.
• Not used.
• Not used.
• Press the “5” key on the keypad. The screen will now read:
S T A R T I MP O R T I N G A U D I O ?
[ S T O P ] = N O [ S T A R T ] = Y E S
• By using the Audio Track Import feature, audio compilation discs
can be created one track at a time from one or more masters.
• Press the “6” key on the keypad. Something similar to the following
will be displayed in sequence:
1 ( 1 , 1 ) G E N E R I C C R D - B P 1 7
M F 3 6 R I D 0 0 0 0 0 0 0 0 0 0
2 ( 1 , 2 ) G E N E R I C C R D - B P 1 7
M F 3 6 R I D 0 0 0 0 0 0 0 0 0 0
3 ( 2 , 3 ) G E N E R I C C R D - B P 1 7
M F 3 6 R I D 0 0 0 0 0 0 0 0 0 0
4 ( 2 , 4 ) G E N E R I C C R D - B P 1 7
M F 3 6 R I D 0 0 0 0 0 0 0 0 0 0
Page 17
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
If operating a CD-5908 or CD5912, you will see additional screens
coinciding with the additional drives. This display is the device
information for each of the recorders installed in the 5000 Series.
This includes their model name, firmware version, and unique
SmartRID code. (SmartRID applies to 40X SmartDRIVE CD-ROM
drives.)
• Press the “7” key on the keypad. The screen will now read:
C L E A R H D ?
• Press the START/YES key to clear the hard drive.
If the STOP/NO key is pressed you will be prompted to set the
“System Time.”
S E T S Y S T E M T I ME ?
• Press the START/YES key to set the system time.
If the STOP/NO key is pressed you will be prompted to “Read
Watermark.”
R E A D WA T E R MA R K ?
The watermark is a unique electronic fingerprint. These fingerprints
allow discs to be traced back to the specific unit and even to the
recorder that wrote them. Watermarks are useful ways of dealing
with unauthorized copying, authenticating discs as well as helping to
diagnose copying problems.
• Press the START/YES key to read the watermark.
If the STOP/NO key is pressed you will be prompted to “Read
ATIP.”
R E A D A T I P ?
When selected, the ATIP function allows you to determine the
manufacturer of the CD-R placed in drive 1 of the 5000 Series.
• If you pressed the Stop/No key you will be prompted to “Set the
Drive Order”:
S E T D R I V E O R D E R ?
Page 18
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
• Press the “Stop/No” key if you do not want to reset the drive order.
Press the “Start/Yes” key and you will then see the following screen:
O P E N I N G D R I V E S . . .
• All of the drives will open at this time:
T E S T I N G D R I V E S T A T U S
C L O S E D R I V E T R A Y 1
• Close the drive tray of the drive you would like to be drive number
“1”. It can be any one of the drives. You will then see the following
screen:
T E S T I N G D R I V E S T A T U S
D R I V E 1 D E T E C T E D
• Close the remaining drives in the order that you would like them to
read
T E S T I N G D R I V E S T A T U S
C L O S E D R I V E T R A Y 2
• Press the “8” key on the keypad. The screen will now read:
S E L E C T R E C O R D I N G S P E E D
[ 0 ] = 1 6 x [ 2 ] = 2 0 x [ 3]= 4 0 x
The factory setting for this function is “40x”. When selected the
Select Recording Speed feature allows you to set the copying speed
as determined by the capabilities of the recorders installed in the
5000 Series.
• Press the “0” key to select 16X, the “1” key for 24X, or the “3” key
for 40X. After pressing any of those keys, the screen will now read:
• Press the “9” key on the keypad. Something similar to the following
will be displayed in sequence:
I D L E
D E V I C E 1 [ S C S I ( 1 , 1 )
I D L E
D E V I C E 1 [ S C S I ( 1 , 2 )
Page 19
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
I D L E
D E V I C E 1 [ S C S I ( 2 , 3 )
I D L E
D E V I C E 1 [ S C S I ( 2 , 4 )
Document Revision: 030501.1
Document Revision:100102
If operating a CD-5908 or CD-5912, you will see additional screens
coinciding with the additional drives. This displays the status of the
last disc copied or compared in each of the 5000 Series’ recorders. If
the last operation performed was successful, the screen will report
“OK”. If problems were encountered, an error message will be
displayed.
Page 20
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Creating A Hard Disk Image
The 5000 Series comes equipped with an internal hard disk drive, which
can be used to store copies of master discs for later recording or comparing.
Each master is saved as a single image file. Up to six images can be stored
on the hard disk at one time.
A hard disk image is useful as a convenient way of copying standard master
discs. For example, create hard disk images for three or four master discs
which are needed on a regular basis, and access them to make copies as
required.
Creating A Single Hard Disk Image
Although the 5000 Series’ internal hard disk can store up to six images of
master discs, it is sometimes prudent not to use this Multiple Image feature
and only allow one image to be created and stored. For example, using a
single image simplifies the copying process. This reduces the chance that an
operator might make copies of the wrong discs by selecting the incorrect
hard disk image.
Page 21
W
W
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
To create a single hard disk image, the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Press the COPY key. The screen will now read:
Note:
F R O M H D ?
• Press the STOP/NO key. The screen will now read:
T O H D ?
• Press the START/YES key. The screen will now read in sequence:
If the master doesn’t load, you may have to reset the drive order to
distinguish drive 1 (see page 19).
A I T I N G F O R D R I V E S R E A D Y
A N A L Y Z I N G P R E G A P S
P R E G A P S T R A C K : 1 0
D R I V E : 1
S U B I N D E X
D R I V E : 1
S T A R T I N G
D R I V E : 1
R I T I N G L E A D I N
D R I V E : 1
C O P Y I N G 6 5 %
D R I V E : 1
R I T I N G L E A D - O U T
D R I V E : 1
I D L E
D R I V E : 1
Page 22
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
A I T I N G . . .
D R I V E : 1
Document Revision: 030501.1
Document Revision:100102
The master disc is now stored as an image on the hard disk. If you
are creating a data image less screens will be displayed.
Note: If discs failed to copy properly, the recorder tray drawers stay
closed upon completion. These discs should not be used. To
help you determine the nature of the problem, error messages
can be displayed by pressing the “9” key on the keypad.
• Press the “STOP/No” key, and you will be returned to the main operating
screen:
S E L E C T C OP Y OR C O MP A R E
Note: When the Multiple Images feature is disabled, only one image
can be saved on the hard disk. If a new image is created, the
old one is overwritten.
Page 23
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Creating Multiple Hard Disk Images
The Multiple Im ages feature allows the 5000 Series’ internal hard disk to
store up to six master disc images. The factory setting for this function is
“disabled”. To enable multiple images proceed as follows:
S E L E C T C OP Y OR C O MP A R E
• Press the “2” key. The screen will now display the following:
• From the main operating screen depicted below:
0 = V E R I F Y A F T E R C O P Y
S E L E C T OP T I ON S
1 = M U L T I P L E I MA G E S
S E L E C T OP T I ON S
2 = C L I C K D E T E C T I O N
S E L E C T OP T I ON S
3 = C O P Y P R O T E C T I ON
S E L E C T OP T I ON S
• Press the “1” key to select multiple images. The screen will now read:
M U L T I P L E I M A G E S ? ( Y E S / N O )
S E L E C T O P T I O N
• Press the START/YES key to enable “Multiple Images”.
M U L T I P L E I M A G E S S E L E C T E D
S E L E C T O P T I O N
• You will then be returned to the main operating screen:
S E L E C T C OP Y OR C O MP A R E
• Press the “COPY” key. The screen will now read:
F R O M H D ?
• Press the “STOP/NO” key. The screen will now read:
C O P Y T O H D ?
• Press the “START/YES” key. The screen will now read:
Page 24
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
S E L E C T I MA G E
V A L I D I MA G E : 1 T O 6
Document Revision: 030501.1
Document Revision:100102
• Select the number that will designate the location of your master. The
screen will then read in sequence:
A I T I N G F O R D R I V E R E A D Y
A N A L Y Z I N G MA S T E R
-
R E A D - - -
- - - - - - - - - - - -
6 2 %
M A S T E R A R C H I V E D OK
A R C H I V E O K P R E S S S T A R T
Page 25
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Enabling Verify After
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Press the “2” key and the screen will now display in sequence:
0 = V E R I F Y A F T E R C O P Y
S E L E C T OP T I ON S
1 = M U L T I P L E I MA G E S
S E L E C T OP T I ON S
2 = C L I C K D E T E C T I O N
S E L E C T OP T I ON S
3 = C O P Y P R O T E C T I ON
S E L E C T OP T I ON S
• Press the “0” key, and the screen will now read:
V E R I F Y A F T E R C O P Y Y E S / N O
• Press the “START/YES” key to enable, or the “STOP/NO” key to
disable the Verify After option. If you press the “START/YES” key the
screen will read:
V E R I F Y A F T E R C O P Y I S O N
S E L E C T C OP Y OR C O MP A R E
Page 26
• You will then be returned to the main operating screen.
W
W
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Copying From A Hard Disk Image
After a hard disk image has been created, it can be used as the copying
master source. If you have not already created a hard disk image, do so
now, as described in the previous section.
Multiple Images Disabled
To make copies from a hard disk image that was previously created with the
Multiple Images feature “disabled” (i.e. from a single hard disk image), the
steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load as many blank discs as are required into the CD-R/RW recorders.
• Press the “COPY” key on the keypad. The screen will now read:
F R O M H D ?
• Press the “START/YES” key to begin copying from the hard disk
image, to the blank discs in the recorders. Depending on the format type
of the image, something similar to the following will be displayed on the
screen:
A I T I N G . . .
R I T I N G L E A D I N . . .
Progress will be displayed on the screen during the operation:
C O P Y I N G 5 %
D R I V E : 1
R I T I N G L E A D O U T
• Upon successful completion, the copied disc(s) will be ejected. The
screen will now read:
Page 27
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
I D L E
A I T I N G . . .
• Press the “STOP/NO” key to stop the job. To continue the job place
blank CDs into the drives and then close the drives. If you press the
“STOP/NO” key you will see the following screen:
J O B S T O P P E D , P R E S S S T A R T
• Press the “START/YES” key, and you will be returned to the main
operating screen:
S E L E C T C OP Y OR C O MP A R E
Document Revision: 030501.1
Document Revision:100102
Note: If discs failed to copy properly, the recorder tray drawers stay
closed upon completion. These discs should not be used. To
help you determine the nature of the problem, error messages
can be displayed by pressing the “9” key on the keypad.
Multiple Images Enabled
To make copies from hard disk images that were previously created with
the Multiple Images feature “enabled”, the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load as many blank discs as are required into the recorders. Press the
“COPY” key on the keypad. The screen will now read:
F R O M H D ?
• Press the “START/YES” key. The screen will now read:
S E L E C T I MA G E
V A L I D I MA G E : 1 T O 6
Page 28
W
W
W
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
The 5000 Series defaults to the first image (1). For the purposes of this
example, press the “1” key to select this image, followed by the
“START/YES” key. The screen will now read:
A I T I N G . . .
R I T I N G L E A D I N . . .
Progress will be displayed on the screen during the operation:
C O P Y I N G 5 5 %
D R I V E : 1
Upon successful completion the screen will now read:
R I T I N G L E A D - O U T
D R I V E ; 1
I D L E
D R I V E : 1
A I T I N G . . .
D R I V E : 1
• Press the “STOP/NO” key to stop the job. To continue the job place
blank CDs into the drives and then close the drives. If you press the
“STOP/NO” key you will see the following screen:
J O B S T O P P E D , P R E S S S T A R T
• Press the “START/Yes” key, and you will be returned to the main
operating screen:
S E L E C T C OP Y OR C O MP A R E
Note: If discs failed to copy properly, the recorder tray drawers stay
closed upon completion. These discs should not be used. To
help you determine the nature of the problem, error messages
can be displayed by pressing the “9” key on the keypad.
Page 29
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Comparing From A Hard Disk Image
For quality control purposes, the 5000 Series is equipped with powerful
verification capabilities. Copied discs can also be compared against hard
disk images. This feature ensures copying integrity.
Note: Due to the nature of the various compact disc formats, only
CD-ROM Mode 1, CD-ROM Mode 2, CD-ROM XA Mode 2
Form 1, and most CD formats can be compared.
Document Revision: 030501.1
Document Revision:100102
Multiple Images Disabled
To compare copied discs to a hard disk image that was previously created
with the Multiple Images feature “disabled” (i.e. from a single hard disk
image), the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load the copied discs to be compared into the CD-R/RW recorders.
• Press the “COMPARE” key on the keypad. The screen will now read:
C O M P A R E A G A I N S T H D ?
• Press the “START/YES” key. The screen will now read:
S T A R T I N G . . .
Progress will be displayed on the screen during the operation:
C O M P
6 2 %
Upon successful completion, the compared disc(s) will be ejected.
The screen will now read:
C O M P A R E O K , P R E S S S T A R T
• Press the “START/YES” key, and you will be returned to the main
operating screen:
Page 30
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
S E L E C T C OP Y OR C O MP A R E
Note: If discs failed to copy properly, the recorder tray drawers stay
closed upon completion. These discs should not be used. To
help you determine the nature of the problem, error messages
can be displayed by pressing the “9” key on the keypad.
Multiple Images Enabled
To compare copied discs to a hard disk image that was previously created
with the Multiple Images feature “enabled”, the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load the copied discs to be compared into the CD-R/RW recorders.
• Press the “COMPARE” key on the keypad. The screen will now read:
C O M P A R E A G A I N S T H D ?
• Press the “START/YES” key. The screen will now read:
S E L E C T I MA G E
V A L I D I MA G E : 1 T O 6
• Select the image you would like to compare against by pressing 1, 2, 3,
4, 5, or 6.
S T A R T I N G . . .
Progress will be displayed on the screen during the operation:
C O M P
6 2 %
Upon successful completion, the compared disc(s) will be ejected.
The screen will now read:
Document Revision: 030501.1
Document Revision:100102
Page 31
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
C O M P A R E O K , P R E S S S T A R T
• Press the “START/YES” key, and you will be returned to the main
operating screen:
S E L E C T C OP Y OR C O MP A R E
Note: If discs failed to copy properly, the recorder tray drawers stay
closed upon completion. These discs should not be used. To
help you determine the nature of the problem, error messages
can be displayed by pressing the “9” key on the keypad.
Document Revision: 030501.1
Document Revision:100102
Page 32
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
ATIP Codes
ATIP stands for “Absolute Time In Pre-Groove”. In firmware 1.0XX and
higher, the ATIP option allows you to determine the manufacturer of the
disc placed in the top drive of the CD-5000. It will also determine the
minutes, seconds, and frames present on the disc. Many generic brand CD’s
will not be recognized.
Reading ATIP Codes
To read an ATIP Code from a disc, the steps are as follows:
• From the main operating screen depicted below:
.
• Place the disc that you wish to read the ATIP information from, into the
• Press the “7” key. The screen will now read:
• Press the “STOP/NO” key. The screen will now read:
• Press the “STOP/NO” key. The screen will now read:
• Press the “STOP/NO” key. The screen will now read:
S E L E C T C O P Y OR C O M P A R E
top drive of the CD-5000.
C L E A R H D ?
S E T S Y S T E M T I ME ?
R E A D WA T E R MA R K ?
R E A D A T I P ?
• Press the “START/YES” KEY. The screen will now read something
similar to this.
R E A D I N G A T I P
Page 33
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
• The screen will now read something similar to the following:
A T I P C OD E 9 7 m 2 4 s 1 F
S E L E C T C OP Y OR C O MP A R E
Page 34
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Copy Protection
Copy protection is a feature that hinders unauthorized copying. It can be
written into data discs (CD-ROM Mode 1 only) duplicated with the CD-
5000. This offers a basic level of defense against casual copying
attempts by inserting and writing invalid blocks at the beginning of a
CD-ROM, in its header section.
The CD-5000’s copy protection function is an elementary tool designed
to frustrate commercial duplication equipment, and consumer software
that copy discs at the block-level. It will not, however, defeat specialized
copying utilities, which are capable of blind reading. In addition, it will
not prevent discs from being re-authored one file at a time using a CDR/RW recorder and a premastering program (such as: Adaptec Easy CD
Creator and Toast, CeQuadrat WinOnCD, Ahead Nero, NTI CD-Maker,
and others).
Copy protected discs cannot be duplicated by the CD-5000, and
therefore cannot be used as masters. It is also important to remember
that copy protected discs may also be mistakenly identified by industrial
mastering systems as containing errors, and therefore should not be used
as master discs for mass replication purposes.
Enabling Copy Protection
To write copy protection into discs copied with the CD-5000, the steps
are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Press the “2” key. The screen will now read:
0 = V E R I F Y A F T E R C O P Y
S E L E C T OP T I ON S
1 = M U L T I P L E I MA G E S
S E L E C T OP T I ON S
2 = C L I C K D E T E C T I O N
S E L E C T OP T I ON S
3 = C O P Y P R O T E C T I ON
S E L E C T OP T I ON S
Page 35
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
• Press the “3” key. The screen will now read:
E N A B L E B A D B L O C K
P R O T E C T I O N
• Press the “START/Yes” key. The screen will now read:
B A D B L O C K S E N A B L E D
Page 36
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Viewing Device Information
To view the 5000 Series’ SCSI device information, the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Press the “6” key. Something similar to the following will be displayed
on the screen:
1 ( 1 , 1 ) G E N E R I C C R D - B P 1 7
V : 1 . 5 5 R I D 0 0 0 0 0 0 0 0 0 0
2 ( 1 , 2 ) G E N E R I C C R D - B P 1 7
V : 1 . 5 5 R I D 0 0 0 0 0 0 0 0 0 0
3 ( 2 , 3 ) G E N E R I C C R D - B P 1 7
V : 1 . 5 5 R I D 0 0 0 0 0 0 0 0 0 0
4 ( 2 , 4 ) G E N E R I C C R D - B P 1 7
V : 1 . 5 5 R I D 0 0 0 0 0 0 0 0 0 0
If operating a CD-5908 or CD-5912, you will see additional screens
coinciding with the additional drives. The device information is
displayed for each of the CD-R/RW recorders installed in the CD-5000
Series. This includes their model name, and firmware version.
Document Revision: 030501.1
Document Revision:100102
Page 37
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Creating Audio Compilation Discs
In addition to copying entire CDs, audio compilation discs can be created
one track at a time, from one or more master discs containing audio CDDA, mixed mode, or CD-Extra. This is accomplished by using the CD-5000
Series’ audio track import feature. The audio will be imported to the 1
partition of the hard drive.
To create an audio compilation disc, the steps are as follows:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load the master disc that contains the audio track(s) you wish to copy
into the top CD-R/RW recorder. Wait for the LED lights on the front of
all the recorders to stop flickering (this may take up to 30 seconds).
Note: Only one audio compilation disc can be created at one time. If
several copies are required, first create the original
compilation disc, and then copy it in the usual way.
• Press the “5” key. The screen will now read:
S T A R T I MP O R T I N G A U D I O ?
[ S T O P ] = N O [ S T A R T ] = Y E S
• Press the “START/YES” key. The screen will now read:
S E L E C T T R A C K :
• Press the number of the track you would like to select. Track number 1
is used as an example.
S E L E C T T R A C K : 1
I M P O R T I N G T R A C K : 1
• If you wish to make changes, press the “STOP/NO” key. If the selection
is correct, press the “START/YES” key. The screen will now read:
Document Revision: 030501.1
Document Revision:100102
st
Page 38
W
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
I M P R 6 2 %
I M P O R T I N G T R A C K 1
Document Revision: 030501.1
Document Revision:100102
• This screen shows the progress of the importation, the tracks are placed
in the “1” partition of the hard drive. Once complete the screen will
read:
I M P O R T MO R E T R A C K S ?
[ S T O P ] = N O [ S T A R T ] = Y E S
• If you would like to import more tracks, press the “START/YES” key. If
you are finished press the “STOP/NO” key and the screen will now
read:
A U D I O I MP O R T I MA G E R E A D Y
U S E C O P Y K E Y MA K E C O P I E S
• Press the “COPY” key and place blank CD-Rs into the drives of the CD-
5000 Series. The screen will now read:
F R O M H D ?
Press the “START/YES” key to begin copying. The screen will now
read:
C O P Y I N G. . . 4 0 %
D R I V E : 1
• If you wish to copy additional tracks from another master CD, eject the
former master disc. You will then load the new master disc. Press the
“1” key and proceed as before. If you have finished, press the “9” key to
complete the disc. The screen will now read:
I D L E
D R I V E : 1
A I T I N G
D R I V E : 1
Upon successful completion, the compiled disc will be ejected. Press
the “STOP/ NO” key and the screen will read:
J O B S T O P P E D , P R E S S S T A R T
Press the “START/YES” key and you will be returned to the main
operating screen:
S E L E C T C OP Y OR C O MP A R E
Page 39
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Working With CD-ReWritable (CD-RW) Discs
In addition to working with CD-Recordable (CD-R) discs, the 5000 can also
copy both to and from CD-ReWritable (CD-RW) discs. CD-R discs are
write-once and can be read on any CD audio player, CD-ROM, and
MultiRead CD-ROM drive. CD-RW discs can be rewritten to as many as
1,000 times, and are read using MultiRead CD-ROM (usually 24x and
faster), and DVD-ROM drives.
CD-RW Supported Formats
The 5000 can copy CD-RW discs written in most logical formats (ISO
9660, audio, etc.) but not those created using the Universal Disk Format
(UDF). CD-RW discs using UDF are produced by packet writing software
(such as Adaptec DirectCD, CeQuadrat PacketCD, Prassi abCD, etc.).
Because UDF discs cannot be read by all CD-ROM drives, they are not a
good choice for distributing data.
CD-RW Copying Speed
CD-RW copying speed is determined by two f actors - the CD-RW writing
speed of the recorders installed in the CD-5000, and the maximum speed
rating of the discs themselves. CD-RW discs are manufactured with an
internal speed code, which is checked before copying begins. The CD-5000,
equipped with the SmartDRIVE 40X drives, will only accept 10x CDReWritable (CD-RW) discs.
Page 40
N
d
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide

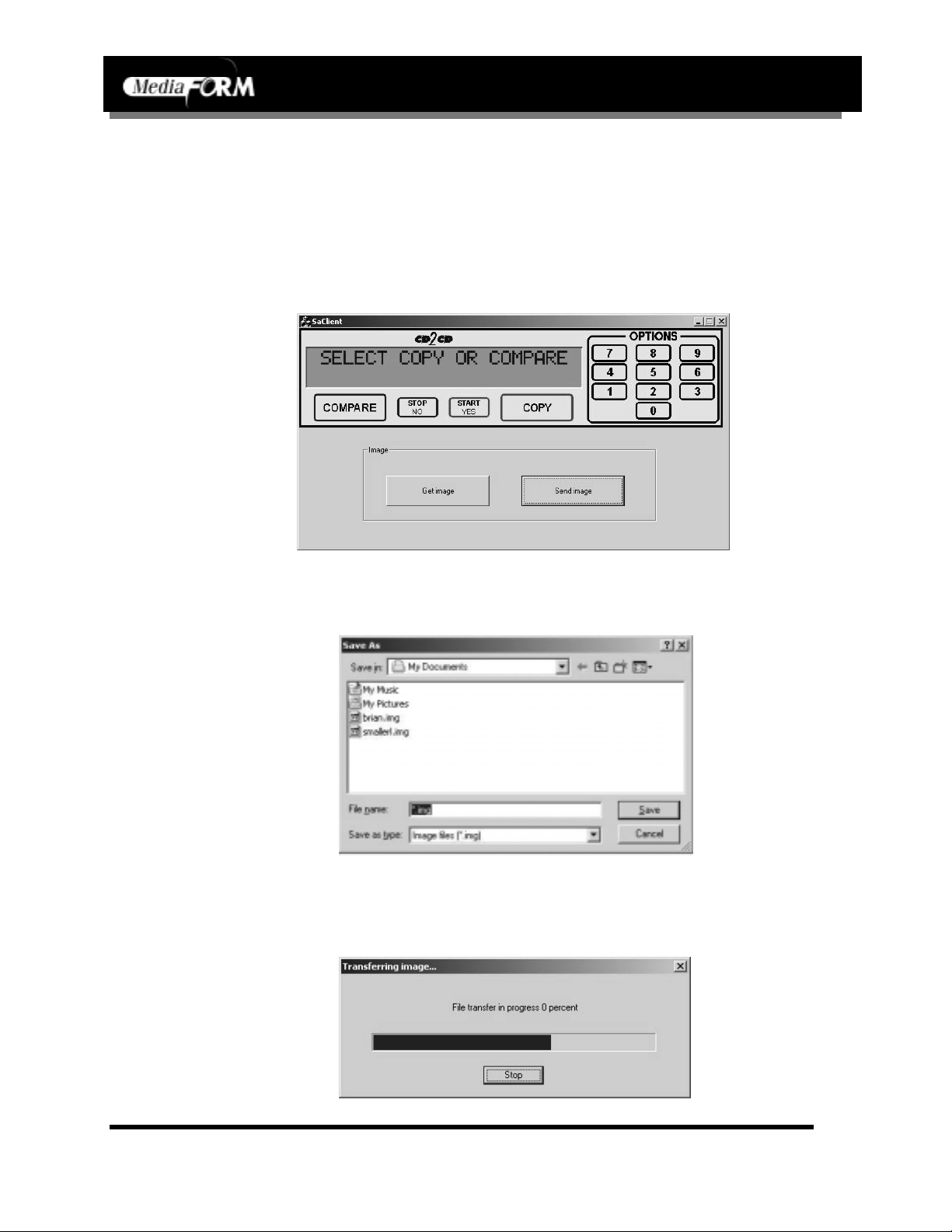

Utilizing the 5000EC Client Software
Once an image is manually archived to the 5000EC duplicator, you can transfer it
for storage over a network to local PCs by using the 5000EC Client. You can then
send it back to 5000EC anytime for duplication.
format in order to successfully transfer in either direction. Images archived
manually onto the 5000EC duplicator automatically receive an .img file extension.
ote:
The 5000EC Client requires that the host PC use Windows XP. In
addition the host PC must have an IEEE-1394 Adapter installed an
850MB of free hard drive space.
Document Revision: 030501.1
Document Revision:100102
The images must be in an .img file
Step 1: Connecting the IEEE-1394 Cable
1. Turn off the power to the host PC and the 5000EC duplicator.
2. Connect the PC to the 5000EC duplicator using an IEEE-1394 cable. The
host PC must have an IEEE-1394 Adapter installed.
3. Power on the PC and the 5000EC duplicator.
.img files
PC with 5000EC
Client Software
IEEE-1394
cable
5000EC Duplicator
Page 41
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Step 2: Installing the 5000EC Client Software
1. Place the 5000EC Client Software CD into the CD-ROM drive of the host PC.
2. Install the 5000EC Client Software.
Step 3: Naming the 5000EC Duplicator
1. Locate the 5000EC on your network, it will have the name ?
2. Right click the 5000EC
3. Click Properties
4. Click Computer Name
5. Click Change
6. Enter in the name you would like to give the 5000EC.
7. Click OK
Step 4: Connecting the 5000EC Client
1. Double Click the 5000EC Client icon on your desktop.
2. Enter in the name of the 5000EC under “Server”.
3. Click OK
Page 42
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Using the “Get image” Feature
The Client software will now open. Press the “Get image” button to transfer an
image from the 5000EC duplicator to your PC.
1. Upon pressing the “Get image” button you will see the following screen.
2. Give the file a name with a .img file extension. Press the “Save” button and image
number 1 will be transferred from the 5000EC to your PC. Progress will be shown
as seen below. Once the transfer is complete, press the “Confirm” button.
Page 43
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Using the “Send image” Feature
Press the “Send image” button to transfer an image from your PC to the 5000EC
duplicator.
3. Upon pressing the “Send image” button you will see the following screen.
4. Select the image you would like to send and press the “Open” button. The image
will now be sent to the 5000EC. The image that you send will overwrite image
number 1 on the 5000EC. Once the transfer is complete, press the “Confirm”
button.
Page 44
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Setting The Internal Clock
The 5000 Series’ internal clock is set at the factory for Eastern Standard
Time (observing daylight savings when applicable).
To set the internal clock, the steps are as follows:
• Press the “7” key on the keypad. The screen will now read:
C L E A R H D ?
Press the STOP/NO and you will be prompted to set the “System
Time.”
S E T S Y S T E M T I ME ?
• Press the START/YES key if you would like to set the system time.
The screen will then read:
E N T E R Y E A R :
S E T T I N G S Y S T E M D A T E
• Press the START/YES key after each entry.
E N T E R MO N T H :
S E T T I N G S Y S T E M D A T E
E N T E R D A Y :
S E T T I N G S Y S T E M D A T E
E N T E R H O U R :
S E T T I N G S Y S T E M D A T E
E N T E R MI N U T E :
S E T T I N G S Y S T E M D A T E
• You will then be returned to the main operating screen:
S E L E C T C OP Y OR C O MP A R E
Document Revision: 030501.1
Document Revision:100102
Page 45
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Firmware Updates
From time to time the 5000 Series’ internal “firmware” may need updating
to add new features or improve existing functions. Firmware is easily
updated by loading a “Firmware Update CD” into the system. The latest
version of firmware will be available for downloading to your computer
from the MediaFORM web site: www.mediaform.com
Once a firmware image file is downloaded, a “Firmware Update CD” can
then be written using a computer, a CD-R/RW recorder, and most popular
premastering programs (such as: Adaptec Easy CD Creator and Toast,
CeQuadrat WinOnCD, Ahead Nero, NTI CD-Maker, and others). Refer to
your premastering software documentation for details on how to record a
disc from an image file.
After having created a “Firmware Update CD”, perform the following steps
to update the 5000 Series’ firmware:
• From the main operating screen depicted below:
S E L E C T C OP Y OR C O MP A R E
• Load the “Firmware Update CD” into the top CD-R/RW recorder.
• Turn off the power to the 5000 Series.
• The system will startup:
MF I N C . U S A
D U P L I C A T I O N MA D E E A S Y
• You will see the “preparing system” screen:
P R E P A R I N G S Y S T E M
Document Revision: 030501.1
Document Revision:100102
U P GR A D E F I R MWA R E
[ S T O P ] = N O [ S T A R T ] = Y E S
• Select “Yes” to upgrade the firmware.
• Upon completion, the system will automatically reboot.
• Remove the CD at this time.
• If the “upgrade firmware” screen appears again, select “No” and remove
firmware disc.
• You will then be returned to the main operating screen:
• You will see the upgrade firmware screen:
S E L E C T C OP Y OR C O MP A R E
Page 46
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
Appendix A: Supported Formats
Originally designed for audio use, the Compact Disc (CD) evolved quickly and now
employs a wide variety of formats for audio, data, and multimedia applications. The
following is a list of the most popular formats currently supported by the 5000 Series.
Periodic firmware updates will be made available to deal with new formats as they
appear. To obtain the latest version of firmware, contact your MediaFORM reseller or
download the update from the MediaFORM web site: www.mediaform.com
Many CD formats are international or industry standards, but variations on them may
emerge from time to time. Should you encounter a disc (which does not employ a copy
protection scheme) that you cannot copy on your 5000 Series, MediaFORM will do its
best to promptly add support for this format. Dealing with custom formats, however, may
be subject to a development charge.
Keeping track of how the various formats relate to each other can be confusing. For
example, the 5000 Series can copy all CD-ROM Mode 1 discs - this includes ISO 9660,
HFS, Hybrid, Rock Ridge and many other types of file systems. As a result, the 5000
Series will most likely copy CD formats not listed in the table below. If you require
further assistance, please contact MediaFORM’s technical support department at (610)
458-9200 or email: support@mediaform.com
5000 Series Supported Formats CD-R/RW
ISO 9660 CD-ROM Mode 1 & Mode 2
CD-DA (Compact Disc-Digital Audio) CD-ROM XA Mode 2 Form 1 & Form 2
Hybrid (ISO 9660/HFS) Single session
Hybrid (ISO 9660/HFS/Rock Ridge) Multisession
Mixed Mode Disc-at-Once and Track-at-Once
CD-I Form 1 & Form 2** Rock Ridge
Native O/S’s (NT, DOS, OS/2, UFS, HFS
CD-Extra
(Mac O/S), SUN, AS/400, AIX, etc.)
Video CD Romeo
Photo CD Joliet
Picture CD Bootable CD
CD-G* Karaoke CD
Page 47
CD-3706/P Operator’s Guide
5000 Series Operator’s Guide
Document Revision: 030501.1
Document Revision:100102
5000 Series Supported Formats
DVD single layer
DVD-R (In case of write, 650nm disc only)
DVD-RW
CD-ROM Mode 1
CD-ROM XA Mode 2 (form 1, form 2)
Photo CD (single and multi session)
CD-DA
CD-Extra (CD PLUS)
CD-R
CD-RW
*High-Speed CD-RW is not supported to write
Page 48
Loading...
