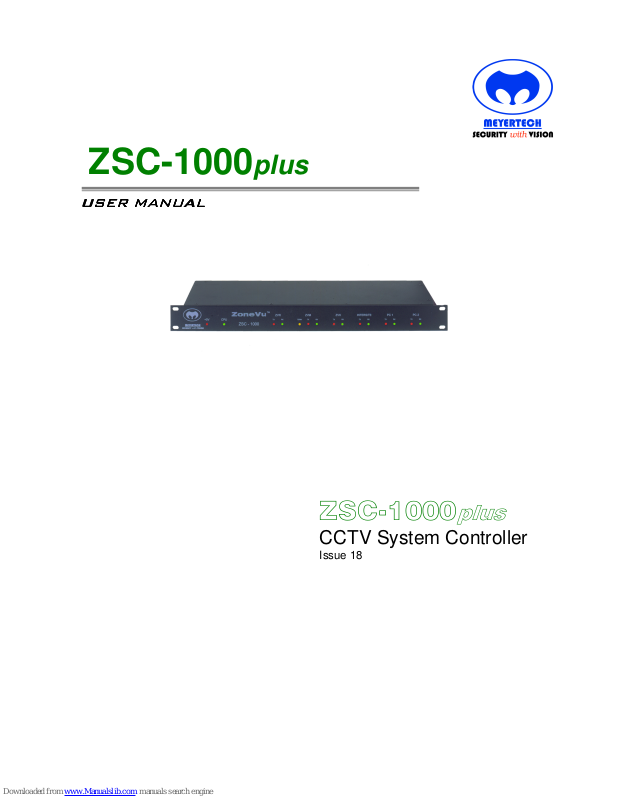

USER MANUAL
USER MANUALUSER MANUAL
USER MANUAL
ZSC-1000
plus
CCTV System Controller
Issue 18
ZSC-1000
plus
ZSC-1000 User Manual.doc Issue 18 Page 2 of 46
MEYERTECH LIMITED
ZSC-1000
Contents
Contents .............................................................................................................................................................................. 2
Introduction ........................................................................................................................................................................ 3
What is a ZSC-1000? ...................................................................................................................................................... 3
Overview............................................................................................................................................................................. 4
ZVK Port ........................................................................................................................................................................ 4
ZVM Port ........................................................................................................................................................................ 4
Intersite Port ................................................................................................................................................................... 4
ZVR Ports ....................................................................................................................................................................... 4
PC1 Port.......................................................................................................................................................................... 4
PC2 Port.......................................................................................................................................................................... 4
Installation .......................................................................................................................................................................... 5
Features ............................................................................................................................................................................. 11
Multi-site Operation ...................................................................................................................................................... 11
Multiple Matrixes ......................................................................................................................................................... 12
Camera Mapping........................................................................................................................................................... 12
Prioritised camera control ............................................................................................................................................. 13
Telemetry Distribution .................................................................................................................................................. 13
Sequences ..................................................................................................................................................................... 13
Timed Events ................................................................................................................................................................ 14
Embedded Firmware Drivers (EFD) ............................................................................................................................. 14
Alarm Handling ................................................................................................................................................................ 15
Configuration .................................................................................................................................................................... 16
Intersite Port ................................................................................................................................................................. 16
PC2 Port........................................................................................................................................................................ 17
ZVK Port ...................................................................................................................................................................... 17
ZVK Extra .................................................................................................................................................................... 18
ZVM Port ...................................................................................................................................................................... 18
Camera Telemetry ......................................................................................................................................................... 19
PC1 Port........................................................................................................................................................................ 20
VCR Ports ..................................................................................................................................................................... 21
MUX Ports .................................................................................................................................................................... 21
Matrix ........................................................................................................................................................................... 22
Series 2 OSD ................................................................................................................................................................ 24
Input trunks ................................................................................................................................................................... 25
Output trunks ................................................................................................................................................................ 26
Camera Mapping........................................................................................................................................................... 27
Dialup Sites ................................................................................................................................................................... 28
Site Routing .................................................................................................................................................................. 29
Site control .................................................................................................................................................................... 30
Enables.......................................................................................................................................................................... 30
Time and Date............................................................................................................................................................... 32
Timed Events ................................................................................................................................................................ 33
Sequences ..................................................................................................................................................................... 34
Global Alarm ................................................................................................................................................................ 36
Alarm ............................................................................................................................................................................ 38
Alarm Events ................................................................................................................................................................ 39
Contact Alarms ............................................................................................................................................................. 40
Camera Barring ............................................................................................................................................................. 41
Maintenance ...................................................................................................................................................................... 43
Returns Procedure ......................................................................................................................................................... 43
Disposal ............................................................................................................................................................................ 44
Support ............................................................................................................................................................................. 45
Warranty ........................................................................................................................................................................... 46
ZSC-1000 User Manual.doc Issue 18 Page 3 of 46
MEYERTECH LIMITED
ZSC-1000
Introduction
Thank you for purchasing Meyertech’s ZSC-1000.
Please read this user guide prior to using this
product. It will help you to achieve the maximum
benefit from the product. The manual covers
installation, operation and maintenance of a ZSC-1000.
What is a ZSC-1000?
A ZSC-1000 is part of the ZoneVu Site Controller family.
This manual covers all of the site controller family:
• ZSC-1000
• ZSC-1000plus
• ZSC-500
The ZSC-1000plus is the generic replacement to the
ZSC-1000.
KEY FEATURES
KEY FEATURESKEY FEATURES
KEY FEATURES
Local Site Management
Intersite communications
Alarm handling
System backup
Third party control interfaces
The information in this manual is believed to be accurate and reliable.
However, Meyertech Limited assumes no responsibility or liability for its use, or
for any infringement of patents or other rights of third parties, which may result
from its use. No license is granted by implication or otherwise under any patent
or other rights of Meyertech. All specifications are subject to change without
prior notice.
MEYERTECH LIMITED
are committed to continuous product development and
therefore reserve the right to change specifications without notice.
2003-12 ALL RIGHTS RESERVED.
The features described in this manual refer to :
Version 3.35.0.0 of the ZSC-1000 firmware
ZSC-1000 User Manual.doc Issue 18 Page 4 of 46
MEYERTECH LIMITED
ZSC-1000
Overview
The ZSC-1000 is primarily a unit for distributing telemetry and control information. However, as the distributor
of this information, it also uses this opportunity to add functionality and flexibility to the system.
The unit has a number of external ports, all of which have primary functions described below.
Due to the flexibility of the ZSC-1000, with careful design an installer can tailor the application of each port to
meet his requirement.
ZVK Port
This port is used for communications within the control room. Generally local equipment that is either
generating control commands or within the control room receiving control commands.
Examples of such equipment are keyboards, multiplexer and VCR interfaces, and contact alarm input cards.
ZVM Port
This port is used for communication to matrices. As a core item of equipment, the matrix has a dedicated
port.
Intersite Port
This port is used for communications between sites and control rooms. It is very rare that this port has an
application for anything other than connection to another site controller.
ZVR Ports
These ports are used for communications with telemetry receivers and / or domes situated external to the
control room.
The four ports can be driven independently.
PC1 Port
This port is used for communications with 3rd party equipment that, generally, operates independently of an
operator.
Examples of such equipment are Rugby Clocks, Alarm Panels and Help Points.
PC2 Port
This port is primarily used for communications with Meyertech diagnostic and configuration equipment. It has
a number of secondary uses:
• An input for Meyertech Series 2 alarms.
• An interface to Fusion.
• An interface to third party equipment.
Interface to 3rd party Equipment
The interface operates in the same way as a ZSC-250.
The communications protocol supported on the PC2 port is documented in the published ZoneVu
protocol documents.
It is requirement to log on to the site controller using an Equipment Identification Key.
Keys and protocol are available by request from Meyertech Ltd.
ZSC-1000 User Manual.doc Issue 18 Page 5 of 46
MEYERTECH LIMITED
ZSC-1000
Installation
See also the Meyertech document ZSC-1000 Installation Manual.
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
ZSC-1000 installation
CLIENT:
NTS
ISS. DRN. CHKD. NOTES
01 MDW
NONE
NO PART OF THIS DOCUMENT MAY BE
REPRODUCED OR DISTRIBUTED IN
ANY FORM WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2002
ALL RIGHTS RESERVED
02-12-02
DATE
VisioDocument
ZoneVu
ZVM-328
intersite RS422
RS422/485
1. Local operator
2. Export and import
3. Multiple Rx protocols
4. Local ZSC control
ZSC-1000
ZoneVu
ZVK-77
RS422
RS422
Victa
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 6 of 46
MEYERTECH LIMITED
ZSC-1000
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
ZSC-1000 instllation
CLIENT:
NTS
ISS. DRN. CHKD. NOTES
01 MDW
NONE
NO PART OF THIS DOCUMENT MAY BE
REPRODUCED OR DISTRIBUTED IN
ANY FORM WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2002
ALL RIGHTS RESERVED
02-12-02
DATE
VisioDocument
intersite
RS422/485
ZVK-77
master
ZoneVu Series 2
ZVC-256
ZoneVu
RS422
RS232
RS485
VIDEO
LAN
RS422
ZSC-1000
ZoneVu
RS422
Victa
1. Local operator
2. Export and import
3. Multiple Rx protocols
4. Local ZSC control
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 7 of 46
MEYERTECH LIMITED
ZSC-1000
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
Example installation
CLIENT:
NTS
ISS. DRN. CHKD. NOTES
01 MDW
NONE
NO PART OF THIS DOCUMENT MAY BE
REPRODUCED OR DISTRIBUTED IN
ANY FORM WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2002
ALL RIGHTS RESERVED
02-12-02
DATE
VisioDocument
RS422/485
ZVK-77
master
RS422
RS232
RS485
VIDEO
LAN
RS422
ZSC-1000
ZoneVu
RS422
Victa
1. Local operator
2. Export and import over ISDN
3. Multiple Rx protocols
4. Local ZSC control
ZSI-320
ZoneVu
ISDN
ZoneVu
ZVM-328
RS422
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 8 of 46
MEYERTECH LIMITED
ZSC-1000
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
Example installation
CLIENT:
NTS
ISS. DRN. CHKD. NOTES
01 MDW
NONE
NO PART OF THIS DOCUMENT MAY BE
REPRODUCED OR DISTRIBUTED IN
ANY FORM WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2002
ALL RIGHTS RESERVED
02-12-02
DATE
VisioDocument
RS422/485
ZVK-77
master
RS422
RS232
RS485
VIDEO
LAN
RS422
ZSC-1000
ZoneVu
RS422
Victa
1. Local operator
2. Export and import over ISDN
3. Multiple Rx protocols
4. Local ZSC control
ZSI-320
ZoneVu
ISDN
ZoneVu
ZVM-328
RS422
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 9 of 46
MEYERTECH LIMITED
ZSC-1000
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
Example installation
CLIENT:
NTS
ISS. DRN. CHKD. NOTES
01 MDW
NONE
NO PART OF THIS DOCUMENT MAY BE
REPRODUCED OR DISTRIBUTED IN
ANY FORM WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2002
ALL RIGHTS RESERVED
02-12-02
DATE
VisioDocument
RS422/485
ZVK-77
master
RS422
RS232
RS485
VIDEO
LAN
RS422
ZSC-1000
ZoneVu
RS422
Victa
1. Local operator
2. Export and import over ISDN
3. Multiple Rx protocols
4. Local ZSC control
ZSI-320
ZoneVu
ISDN
ZoneVu
ZVM-328
RS422
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 10 of 46
MEYERTECH LIMITED
ZSC-1000
DRWG No:
PROJECT:
TITLE:
SCALE:
MEYERTECH LTD
Example Installation
CLIENT:
NTS
ISS. DRN. NOTES
01
AHG
AD
NO PART OF THIS DOCUMENT
MAY BE REPRODUCED OR
DISTRIBUTED IN ANY FORM
WITHOUT PRIOR WRITTEN
CONSENT FROM MEYERTECH
LIMITED.
COPYRIGHT 2006
ALL RIGHTS RESERVED
14-08-06
DATECHKD
ZoneVu Series 2
ZVM-9648IXR
ZSC-1000
ZoneVu
MONITOR
ZVK-77
RS422
RS232
RS485
VIDEO
LAN
VICTA
(alarms)
ZVR
PC1 /
PC2
ZVM
ZVK
Zonevu Series 2 Matrix
No ZVC-256
Data direct to ZSC-1000plus
Not supported on ZSC-500 / ZSC-1000
MEYERTECH LIMITED
ZEBRA COURT
WHITE MOSS VIEW
GREENSIDE WAY
MANCHESTER M24 1UN
TEL: +44 (0) 161 643 7956
email support@meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 11 of 46
MEYERTECH LIMITED
ZSC-1000
Features
Multi-site Operation
Intersite connections can be used to integrate separate CCTV systems in order to share their resources.
An intersite connection consists of a data link for exchanging commands, and one or more Video paths for switching
video between sites.
Data
The most common method of connecting two site controllers is with an RS485 half-duplex serial bus.
• this is the default connection used to carry all commands to and from a remote site
• connects from the intersite port (In or Out) of one controller to the intersite port (In or Out) of another.
• In and Out connections are bridged internally to allow easy wiring of many controllers in a chain.
Where only a simplex RS485 or RS422 connection is available to a remote site, this may be used for the intersite
connection with some loss of functionality.
• control negotiation will not take place between local & remote operators
• status will not be available of latched functions (e.g. wipe, lamp) on remote receivers
• Uncontrolled telemetry must be set in the Enables section at the remote site
• remote site must be set to Rx only in it’s Intersite Port section
• a site controlling such a remote, must have it marked as Simplex in it’s Site Routing section
Alternatively, point to point connections can be made between sites over RS232 using the PC2 or PC1 ports.
• the site number of a remote connected in this way should be marked in the Site Routing section of the
configuration as Route through PC1 Port or Route through PC2 Port.
Sites integrated together using Meyertech dial-up equipment (such as the ZSI-320 ISDN interface) are connected and
configured differently. See section below on Dialup sites.
Video
Video connections between sites are referred to as trunks and are managed transparently by the site controllers.
A trunk is normally fed from an output of the matrix at one site (A) to an input on the matrix at a second site (B). This
trunk must then be configured under Output trunks at site A, and Input trunks at site B.
When an operator selects a remote site, the first available trunk is displayed on his monitor, and used for subsequent
camera selections from that site
• a trunk is classed as available if it is not currently being displayed on any monitor
• if all trunks are in use, the least recently switched trunk is displayed and the operator notified ‘Trunk Denied’
• When a trunk is denied, the operator has the option to override this; his camera selection will then replace that
viewed on the other monitor using the trunk.
• if Camera Mapping is used to select remote cameras without entering the site, the trunk is automatically
assigned at each switch. If a trunk is already viewing the chosen camera, it will be favoured to save capacity.
A site with no matrix, can be setup to display input trunks directly on monitors. The correct trunk will be selected
according to the monitor used.
• configure each monitor separately under the matrix configuration section (see below), assigning each a single
input number
• configure each input trunk with the input number assigned to it’s monitor above
Dialup sites
Connections made over dialup links, are managed automatically by the site controller.
All cameras connected this way, whether connected individually or through a remote matrix, are selected using a remote
site number.
Each remote connection (video & data) provided by a ZSI-320 or similar dialup device is configured as a separate input
trunk. The MAC address of the dialup device is entered in the input trunk configuration, marking it as a dialup trunk.
Where a dialup device is used to connect to multiple sites, the input trunk is configured with any of the remote site
numbers. The other sites using the dialup device are indicated in the Dialup Sites section.
ZSC-1000 User Manual.doc Issue 18 Page 12 of 46
MEYERTECH LIMITED
ZSC-1000
Dialup trunks are connected on demand. When a dialup site is selected, the first unused dialup trunk is displayed and the
remote site automatically dialled. The connection will be maintained until the trunk is no longer displayed i.e. the
operator has selected a different site.
Multiple Matrixes
It is not considered normal within the Zonevu system to assign multiple separate matrixes to the same controller. Rather
they would normally be assigned to their own controller & viewed as a separate site (see Multi-site Operation above).
It is possible however to assign multiple matrixes of certain types to a single site.
In the matrix list, each matrix is given a unique monitor range and usually a unique camera range also.
The controller will then match the monitor & camera ranges selected to the correct matrix. If there is an overlap, both
matrixes will be switched.
Linking multiple matrixes
Where more than one matrix is being used on a site, it is possible to make ‘trunk’ connections between them to allow the
inputs from one, to be viewed on the outputs of the other.
These trunk connections must be configured in both the Input & Output trunk tables in order that the controller can
automatically assign them, to save the operator having to make two switches to view a camera.
This is setup in the same way as remote video trunks except that the site number of each trunk in the input & output
trunk tables must match the site number assigned to the controller (on the Intersite Port setup).
Camera Mapping
Where a system has been split between multiple sites, but it is desirable to mask this architecture from the operator,
Camera Mapping can be used to give the appearance of a traditional system. It can also be used to accommodate nonstandard camera numbering or remote connection schemes.
Masking remote site numbers
A Range of camera numbers (usually those that are beyond the range of the local matrix), can be used to reference
cameras at another site. This removes the need for the operator to select a site number, and the keyboards can have their
site selection disabled.
Using this method of selecting remote cameras allows the controller to make better use of capacity by re-using trunks if
different operators choose the same remote camera. The operator has no control over or knowledge of the trunk used,
and will not be warned before overriding a trunk when all are in use.
Where the trunks from a remote site are not fully switched it may be necessary to specify different trunks for different
camera ranges. This could arise where trunks are fed from separate matrixes or multiplexers at a remote site. To
accommodate this the trunk number can be specified for a camera range instead of the site number. The site number
being mapped to is implied through the trunk configuration.
Re-numbering cameras
A further use of the Camera Mapping is to alter the camera numbering scheme within a site. A range of camera numbers
may be mapped to a different range within the same site, by mapping to site 0.
Camera Mapping can be used to re-number both camera selection and control. By re-numbering one without the other
mismatches between the telemetry address of a receiver & the matrix input number it connects to can be corrected.
However to ensure full functionality, Meyertech recommends that such offsets are not introduced into a system.
Scope
The camera mapping tables are applied to commands received from a local or remote operator.
Commands generated automatically by the site controller are mostly not subject to mapping and are configured with the
actual matrix input, or telemetry addresses. These include:
• Trunk inputs / outputs
• Camera barring
• Camera alarms: both configuration & reporting of camera alarms is based on the receiver address
• Receiver setup
The following exceptions will accept mapped camera numbers in the configuration, and will adjust them as necessary:
• Alarm Events
• Timed Events
• Sequences
ZSC-1000 User Manual.doc Issue 18 Page 13 of 46
MEYERTECH LIMITED
ZSC-1000
Prioritised camera control
Each keyboard (or PC) attached to the controller is configured with a priority level for camera control. When two
keyboards try to control the same camera, the controller will grant control to the higher priority keyboard or, if the
priorities are the same, the first keyboard to attempt to control the camera.
If two keyboards on different sites try to control the same camera the same method is used in assigning control; however
the priority levels used are those assigned to the site controllers rather than the keyboards. This intersite priority level is
configured in the Site control section.
An exception is where a local and remote keyboard are in conflict for use of a local camera. The relative priorities of the
site controllers can be overriden using the ‘Prioritise local keyboards’ option within the Enables section.
The control record for a camera is normally held by the site controller driving it’s telemetry. However if telemetry is
routed through a matrix which has more than one controller attached (i.e. PC or keyboard control direct to the matrix),
then the matrix must become the authoritative controller.
This is configured by the controller option in the ZVM Port section.
When an operator has control of a camera, it will not normally be released until he takes action on the keyboard to do
so. However the controller is capable of removing camera control from an operator when the camera has not been used
for a given time period. This feature is highly recommended where operators on a remote site have access to camera
control, as it allows automatic release of a camera to the local operator should the remote link fail. Configuration of this
is found in the Site control section.
Telemetry Distribution
The normal method of telemetry distribution is through the controller’s ZVR ports.
The Camera Telemetry configuration section can also be used to route telemetry through alternative ports.
• The most common requirement is to make use of the VICTA (down the coax) transmission capabilities of a matrix,
by setting the port to ZVM.
• Alternatively PC1 port may be used where a 3rd party telemetry controller is in use
Sequences
Sequencing allows one monitor to display several cameras by automatically cycling through different cameras. Note that
a sequence operation is normally associated with a matrix. All Meyertech matrices support running sequences and this
feature is intended for running sequences across sites or on 3rd party equipment that doesn’t support this feature.
The ZSC extends the sequence functionality by allowing the definition of a preset position for each camera.
The ZSC sequence features:
• 32 configurable sequences
• A maximum of 32 steps in each sequence.
• Each sequence has a configurable dwell time, which affects all the steps in the sequence.
As well as the configurable sequences there is one fixed sequence, which sequences through all the inputs on the primary
matrix. This has a configurable dwell time and is selected by choosing sequence 0.
By default all the sequences are disabled (set to zero length), but are configured with cameras 1 to 32 on the local site
with a dwell time of 3 seconds, and no presets.
Whilst the sequence is disabled, all sequence commands will be directed to the matrix associated with the selected
monitor for actioning.
Once started, each sequence will run until stopped by an operator. Should the power be interrupted to the controller, the
sequence/s will re-start at the first position after a short delay.
See later section for details of configuration using Mpower.
It is possible to have a mixture of cameras from local or remote sites although it is important that the number of remote
sites cameras configured in separate sequences does not exceed the number of trunks.
ZSC-1000 User Manual.doc Issue 18 Page 14 of 46
MEYERTECH LIMITED
ZSC-1000
Operation
Starting A Sequence
A sequence may be selected from the keyboard by selecting the desired monitor and then selecting the
sequence you wish to run on that monitor. When a sequence is started all the sequences are synchronised. The
purpose of this is so that sequences with the same dwell time switch synchronously. The user will see all
running sequences return to their first position.
It is possible to have 32 sequences running at the same time, though to maintain performance it is
recommended that no more than 8 sequences are run at any one time.
Preset positions in a sequence
Where the preset number for a step in a sequence is anything other than 255, the site controller will attempt to
send the camera to a preset position, as that camera is switched in the sequence.
Control will be requested first, using a priority of 2. If a lower priority keyboard has control of the camera, it
will be told to submit. If an equal or higher priority keyboard has control, the preset will not be sent.
As soon as the preset command has been sent, control of the camera will be released.
Manual Advance and Rewind
Whilst sequences are running, it is possible to manually step forward and backwards through the sequences that
are running (note that all running sequences advance and rewind at the same time). Stepping through the
sequences does not stop them from running.
Stopping A Sequence
A sequence can be stopped by either of 2 methods:
• Select the monitor and then select a camera to display on the monitor. This overrides any sequence
that is running on that monitor.
• Select the monitor running the sequence and press the SEQ STOP key (if supported on keyboard).
Timed Events
This feature allows the configuration of certain actions to automatically occur at specified times of the day.
The ZSC timed events feature:
• Up to 128 events.
• Preset event
• Patrol event (Random preset, ordered preset or Mimic)
• Control event (used to lock a camera)
• Alarm event
• Camera switch
• VCR record
Before any camera command is sent, the ZSC will request control of that camera with a fixed priority of 2.
If control is not granted within 3 seconds, the command will not be sent.
Control is released as soon as the command has been sent.
See later section for details of configuration using Mpower.
Embedded Firmware Drivers (EFD)
The ZSC supports an extensive range of 3rd party equipment. These are implemented as Embedded Firmware Drivers
(EFD). The required EFDs should be specified at time of purchase.
Due to the continual development of new EFDs the current range of supported equipment and features available can be
obtained by requesting the following documents from Meyertech Sales.
Alarm Products: ZSC-EFD Supported Alarm Protocols
Matrix Products: ZSC-EFD Supported Matrix Protocols
Peripheral Products (Multiplexers, VCRs): ZSC-EFD Supported Peripheral Protocols
Receiver Products (Domes, P/T controllers): ZSC-EFD Supported Receiver Protocols
ZSC-1000 User Manual.doc Issue 18 Page 15 of 46
MEYERTECH LIMITED
ZSC-1000
Alarm Handling
Alarm definition
An alarm is individually identified by three values:
• Alarm Type Alarms are classified in three different types
Camera: all alarms generated at a camera receiver
Panel: alarms generated by contact alarm, or third party serial alarm panels
Peripheral: alarm generated by various types of Meyertech peripheral equipment, e.g.
Vcr interfaces, remote site interfaces.
• Alarm Device The alarm device usually indicates the address of the device generating the alarm,
depending on the type of the alarm. Device 0 represents all devices of a particular type (i.e. global
mapping)
• Alarm Number The actual number of the alarm circuit on the alarmed device. Number 0 represents
all alarms on a particular device(i.e. global mapping).
Alarm Mapping
Alarm Category Reporting
device e.g.
Type Device Number
ZoneVu receiver
alarms
ZVR-x30 Camera Camera address 1 : Tamper alarm
2 – 7 : Contact i/p s 1 – 6
8 : Video fail
9 : Communications fail
ZoneVu Victa
alarms
ZVM-Series2
(Note: RS232
Plugged into
any PC Port)
Camera Camera address 1 : Tamper alarm
2 – 7 : Contact alarms 1 – 6 on
receiver reported via matrix
8: Video Loss
Matrix Video Loss All Matrixes Camera Matrix input / camera no. 8 : Video fail
Panasonic & JVC
dome alarms
ZSC-EFD or
ZVS-MSI-48
Camera Camera address 1 : all dome alarms
9 : Communications fail
Contact alarm rack ZVA-032 Panel Alarm card number Contact number on card
255 : Device fail
Galaxy alarm panel ZSC-EFD Panel 1st digit of Zone number Remaining digits of zone number
Teltronic Alarm ZSC-EFD Panel 6 – 16
6 for help points 1 – 100
7 for 101 – 200 etc
Help point number without the
hundreds.
Surguard (MLR2) ZVS-MSI Panel Account code Zone number (or user number)
Video recorder ZVS-MSI-23 Peripheral MAC address of
ZVS-MSI
1-3 : Tape Fault channels 1 – 3
4–6 : Tape end Channels 1 – 3
7–9 : Hardware fail Channels 1–3
10-12 : Video loss Channels 1 – 3
13-15 : Comms fail Channels 1 – 3
255 : Device fail
ZVM-328 built in
contact alarms
ZVM-328 Peripheral 100 Contact number 1 - 32
Dial-in alarms ZSI-320 Peripheral MAC address of
ZSI-320
Site number
255 : Device fail
Contact alarm
inputs
ZVS-IOM8 Peripheral MAC address of
ZVS-IOM8
Input number
255 : Device fail
Power fail ZVS3-PSU-xD Peripheral MAC address of
PSU
1 : PSU A fail
2 : PSU B fail
255 : Device fail
Matrix ZVS3-VRM Peripheral MAC address of
ZVS3-VRM + 100
255 : Device fail
Keyboard ZVK-xxx Peripheral MAC address of
keyboard
255 : Device fail
Site controller ZSC-1000 / 500 Peripheral 200 255 : Device fail
Site no. indicates which ZSC failed
ZSC-1000 User Manual.doc Issue 18 Page 16 of 46
MEYERTECH LIMITED
ZSC-1000
Configuration
Intersite Port
This port is designated for communication between site controllers at permanently connected sites.
Site
The number that defines which site the unit controls. This site number is used as the units address.
The range is 1 to 100.
Default = 1
Remote Station
Defines how this unit talks to other site controllers.
Duplex sets the inter-site communications to bi-directional and this site controller will both send and receive
messages.
Rx only sets the inter-site communications to simplex and this site controller will only receive messages.
Default = Duplex
Baud Rate
Defines the baud rate at which the inter-site communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 28800, 38400,57600 and 128000.
9600 is recommended for systems of less than 6 site. Greater than 6 sites should use 19200. With many
active sites (i.e. operators at multiple sites controlling remote cameras) 57600 may give a better
performance.
Default = 9600
Turnaround Time
Also known as the transmit hold-off time, this configurable delay is designed to maximise compatibility with
different transmission media (such as fibre optics, radio etc).
Smaller values allow faster communications between sites, but require the transmission equipment to switch
between receive & transmit states quicker.
Value is configured in microseconds in the range 1 to 65535
Default = 4000
Priority
Bandwidth on the intersite port is allocated according to relative priorities.
On networks with more than 16 sites, it is recommended to set the satellite sites to Medium or Low priority, to
improve the performance at main control rooms when controlling cameras over the intersite network.
Options : High, Medium or Low.
Default = High
ZSC-1000 User Manual.doc Issue 18 Page 17 of 46
MEYERTECH LIMITED
ZSC-1000
PC2 Port
Baud Rate
Defines the baud rate at which the PC2 communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 28800, 38400,57600 and 128000.
Default = 9600
Audit Mode
Select Audit mode only when Fusion Audit ZVK is connected to this port.
Default = Off
ZVK Port
Key
Internal use only – MUST NOT BE MODIFIED
Max address
Unused
Polling
To enable or disable the polling of devices
Default = On
ZSC-1000 User Manual.doc Issue 18 Page 18 of 46
MEYERTECH LIMITED
ZSC-1000
ZVK Extra
Baud Rate
Defines the baud rate at which the ZVK port communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 38400,57600 and 128000.
Default = 9600
RS485
Future feature to select 2-wire RS485 communications.
Default = Off (4-wire RS422)
Fast Polling
Removes the pacing of commands, to give a slightly faster connection to devices on this port.
May cause problems with some older keyboards
Default = On
ZVM Port
MAC address
The address to which the unit will respond to polls on this port
Default = 1
Terminated
The state of the 120R line terminator
Default = On
Polled
To indicate that the unit should expect to be polled. If On the unit will wait for a poll before transmitting any
information
Default = Off
Controller
To indicate that the unit is to make the decision on telemetry control from operators. If set to off the unit will
forward control request messages to the device on the ZVM port.
Default = On
ZSC-1000 User Manual.doc Issue 18 Page 19 of 46
MEYERTECH LIMITED
ZSC-1000
Baud Rate
Defines the baud rate at which the ZVM port communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 38400.
Default = 9600
Camera Telemetry
Receiver setup
For each camera in the range 1 to 4096 (256 for a ZSC-500 or ZSC-1000) the following can be configured
Port
Which port the telemetry will be broadcast on.
The valid options are zvm, zvr1, zvr2, zvr3, zvr4 or pc1
Defaults
cameras 1-64 = zvr1
cameras 65-128 = zvr2
cameras 129-192 = zvr3
cameras 193-4096 = zvr4
Polled
If enabled the camera at this address will be polled (allows the receiver to return alarm and/or status
information)
Default = Off
Reversed
To correct for reversals in individual cameras. Where a direction(s) is reversed tick the appropriate
box(es) to translate all command to the camera. E.g. Tick Pan to transpose left & right commands.
Default = Off
Port setup
For each ZVR port (1,2,3 and 4) the following can be configured
Mode
The operation of the port either RS422 (2 or 4 wire) or RS485 (2 wire)
Default = RS485
Baud rate
Defines the baud rate at which the ZVR communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 28800, 38400,57600 and 128000.
Default = 9600
Protocol
The port can be configured to control a number of third party protocols. Those required must be
specified at time of order.
Default = ZoneVu
ZSC-1000 User Manual.doc Issue 18 Page 20 of 46
MEYERTECH LIMITED
ZSC-1000
Cmd Gap
The command gap is used to pace the generation of telemetry. Some transmission systems and/or
third party equipment cannot except data at too fast a rate. This value is the minimum time that will
be allowed in 10 millisecond units between transmission of data packets on this port. Care must be
taken on setting this value – if too high a figure is used then the dropping of data packets will occur
which may effect the controllability of the attached equipment.
Default = 2
PC1 Port
Protocol
It is possible to control a range of 3rd party equipment from this port. The range includes clocks, switchers,
multiplexers and alarm panels. Those required must be specified at time of order.
Default = ZoneVu
Baud Rate
Defines the baud rate at which the PC1 communications occurs.
Valid values are 1200, 2400, 4800, 9600, 19200, 38400.
Default = 9600
Format
Defines the data format : Number of data bits, Parity and number of stop bits.
Valid values are 8N1, 7E1, 7O1, 8E1, 8O1
Default = 8N1
Spot Monitor 1 - 8
This spot monitor setup is used only when a Teltronic or equivalent intercom system is attached.
Each ‘Spot Monitor’ setting allows a matrix output to be associated with an intercom station. When a station
number matching this list answers a call, the associated alarm is automatically accepted onto the Monitor
number listed.
Station Number
The number assigned to the operator’s call point.
Default = 0
Monitor
The matrix output to display the operator’s call on.
Default = 0
ZSC-1000 User Manual.doc Issue 18 Page 21 of 46
MEYERTECH LIMITED
ZSC-1000
VCR Ports
The ZSC-1000 routes commands out to ZVS-MSI units controlling VCRs. These units are normally
connected onto the ZVK port. However the ZSC-1000 can be configured to transmit these commands onto
another port.
For each VCR, in the range 1 to 90
Port
The port used to transmit VCR commands onto.
Default = Zvk
MUX Ports
The ZSC-1000 routes commands out to ZVS-MSI units controlling MUXs. These units are normally
connected onto the ZVK port. However the ZSC-1000 can be configured to transmit these commands onto
another port.
For each MUX, in the range 1 to 90
Port
The port used to transmit MUX commands onto.
Default = Zvk
ZSC-1000 User Manual.doc Issue 18 Page 22 of 46
MEYERTECH LIMITED
ZSC-1000
Matrix
Matrix
For each matrix, in the range 0 to 19, controlled by this unit the following must be configured
Type
Defines the type of matrix attached. The following options are available, some options enable
additional functionality as explained
• None
All unused matrices should be set to none
• ZVM-328
Standard matrix connected to ZVM port
• ZVM Series 2
Standard matrix connected to ZVM port.
Also used for Series 3 matrix.
• DM S2 (spot)
Montage (spot)
Use a multiplexer’s spot monitor for switching
o Output size should be set to 1
o Address is the multiplexer number
• DM S2 (dig)
Montage (dig)
Use a multiplexer’s digital (multiscreen) monitor for switching
o Output size should be set to 1
o Address is the multiplexer number
• Monitor
Used where an input is connected directly to a monitor (i.e. no matrix)
This is most commonly used where the input is a trunk line, switched at a remote site
o Output size should be set to 1
o Input size should be set to 1
• ZVM21
A simple 2 input switcher normally used to display 2 multiplexer outputs on 1 monitor
• ZVM-328 site
Used for a slave ZVM-328 matrix which has ability to acknowledge switches
• PC1 port
Route switches to the PC1 port
Type of switching used depends on the protocol configuration of PC1 port.
• Series 2 (site enabled)
For Series 2 matrixes fitted with the firmware to interface to a site controller.
This option allows confirmation of all switches made.
• Monitor Bank
Similar to the ‘Monitor’ type, this allows trunk inputs to be directly controlled without a matrix.
Input & Output size are not fixed as per the Monitor type
• Series 3 (duplex)
Standard Series 3 matrix; requires that the matrix be polled.
ZSC-1000 User Manual.doc Issue 18 Page 23 of 46
MEYERTECH LIMITED
ZSC-1000
• Series 2 – No 256
Series 2 Matrix, no ZVC-256 controller
ZVK Port must be set to 9600 baud
ZVM Port must be set to 19200 baud, not polled
No Matrix Polling must be selected on Enables tab
• Virtual Matrix Manager
Switches are sent on ZVK, PC1 & PC2 ports in Zonevu format
Default = ZVM Series 2 (matrix 0) None (matrix 1 – 19)
1st Input
Input number that the matrix starts at
Default = 1(matrix 0) 0(matrix 1 – 19)
1st Output
Output number that the matrix starts at
Default = 1(matrix 0) 0(matrix 1 – 19)
Input size
Size of the matrix in terms of inputs
Default = 1024(matrix 0) 0(matrix 1 – 19)
Output size
Size of the matrix in terms of outputs
Default = 256(matrix 0) 0(matrix 1 – 19)
Address
Used for addressable matrix types such as multiplexers
Default = 0
ZSC-1000 User Manual.doc Issue 18 Page 24 of 46
MEYERTECH LIMITED
ZSC-1000
Series 2 OSD
This Tab allows configuration of the Series 2 Matrix OSD when not used in conjunction with a ZVC 256
Camera (1 – 352)
Caption
For each matrix input, type a 20 character caption.
The formatting of the caption is controlled by the Monitor section.
Default = Camera 1, Camera 2 etc.
Replacement Parameters
The caption can include one or more ‘replacement parameters’, which will be substituted
with a value when the camera is selected.
These are of particular use for trunk inputs, where one of a number of remote cameras may
be displayed on the same matrix input. A fixed caption is of limited use in this case.
Parameters are denoted with a % sign followed by a number to choose the parameter.
%1 The matrix input number
%2 The matrix output number
%3 The camera number as selected by the operator, before any mapping is applied
%4 The camera number, after any mapping is applied
%5 The site number of the camera, after any mapping is applied
%6 The trunk number (or Zero for a local camera)
%7 The trunk status: ‘G’ranted, ‘D’enied or ‘-‘ (no trunk)
Optionally 0n (where n is between 1 and 5) may be placed directly after the % to pad the
number with zeros up to a fixed length.
Examples:
Monitor %2 Input %1 : Monitor 10 Input 50
Camera %043 : Camera 0220
Site %5 Camera %4 : Site 2 Camera 20
Osd On
De-selecting this option will remove all text (both caption & clock) from the screen when this input is
selected
Default = On
ZSC-1000 User Manual.doc Issue 18 Page 25 of 46
MEYERTECH LIMITED
ZSC-1000
Monitor (1 – 200)
Formatting of OSD for each Monitor
Display
Text Off: No OSD shown
Time/Date Only: Show clock, but no camera caption
Caption Only: Show camera caption only
Time/Date and Caption: Show clock and camera caption
Default = Time/Date and Caption
Position
Select Top for the first line of the screen, Bottom for the last
Default = Top
Colour
Black or White
Default = White
Input trunks
Input trunks are the video paths from a remote site to this site. For each input trunk, in the range 0 to 383, the
following can be defined.
Note : The last trunk should be followed by a ‘dummy’ entry with site set to 0. Gaps should not be left in the
trunk tables as any ‘dummy’ or blank entries in the list are treated as the end of the list.
Site
The site that the trunk connects
Default = 0
Input
Matrix input at the local site that takes the input trunk
Default = 0
Trunk group
Assign a group between 0 and 16 to restrict usage of a trunk(s) to operators with access rights to that group.
Internal events (alarms, sequences etc) & operators without access rights assigned use Group 0.
Default = 0
Dialup address (alternative use of Trunk group)
On older systems, remote sites may be designated as ‘Dialup’ (see Dialup Sites). For trunks from dialup
sites, the Trunk group value is used as an address for the dialup device.
Default = 0
ZSC-1000 User Manual.doc Issue 18 Page 26 of 46
MEYERTECH LIMITED
ZSC-1000
Local switch
When this option is selected the remote switch will be processed locally
The Trunk group value will be used to select a local matrix definition (by number) to perform the switch
This option should not be used if the site number (that the trunk connects to) is the local site. In this case the
switch would automatically be assigned to a local matrix.
Default = 0
Output trunks
Output trunks are the video paths from this site to a remote site. For each output trunk, in the range 0 to 127,
the following can be defined.
Note : The last trunk should be followed by a ‘dummy’ entry with site set to 0. Gaps should not be left in the
trunk tables as any ‘dummy’ or blank entries in the list are treated as the end of the list.
Site
The site that the trunk connects
Default = 0
Output
Matrix output at the local site that feeds the output trunk
Default = 0
Dialup address
If this entry is anything other than 0, then the site controller attempts to connect to the remote site using the
dialup device with this address.
If the value is zero, the unit assumes that the connection is permanent.
Default = 0
Local switch
Not Used. This option should be left at it’s default value.
Default = 0
ZSC-1000 User Manual.doc Issue 18 Page 27 of 46
MEYERTECH LIMITED
ZSC-1000
Camera Mapping
Camera mapping allows remote cameras to be accessed without having to use a site number. This is
particularly useful in older systems where the operator keyboards may not support the selection of sites.
It can also be used to assign a different matrix input number and / or telemetry address to the camera
number selected by the operator.
See the Camera Mapping description in the Features section of the manual for a more detailed explanation.
Index sets the position of each mapping in the list, starting at 0 up to 255 (or 19 for ZSC-1000 & ZSC-500).
The order of mappings is not relevant, however if gaps are left in the list the ‘First Camera’ should be nonzero if further mappings follow.
Map Video
When enabled, all switches for cameras in the range are re-mapped.
Select this if the matrix input does not match the camera number selected by the operator.
Default = disabled
Map Telemetry
When enabled, all camera control requests and telemetry control for cameras in the range are re-mapped.
Select this if the receiver’s telemetry address does not match the camera number selected by the operator.
Default = disabled
First camera
The first local camera number to be used to reference the mapped cameras.
This marks the start of the camera range presented to the operator.
Default = 0
Last camera
The last local camera number to be used to reference the mapped cameras.
This marks the end of the camera range presented to the operator.
Default = 0
First Remote camera
The first camera number in the mapped range. This marks the start of the range of actual matrix inputs
and/or telemetry receivers addresses used.
Default = 1
ZSC-1000 User Manual.doc Issue 18 Page 28 of 46
MEYERTECH LIMITED
ZSC-1000
Site Number / Trunk Index
Site number to remap cameras to or Index into Trunk Input table used for remote mapping on a specific
trunk. If re-numbering cameras within a site, set the Site Number to Zero.
Default = 0
Trunk
When not selected, cameras are mapped onto a site number; any available trunk will be used if the mapped
cameras are remote.
When selected, the specified input trunk is used to set the site number; only the specified trunk will be used.
Default = off
Use Non Default mode
When not selected the camera maps work in all operating modes.
When selected the camera map will only work in the operating mode that has been specified.
Default = off
Operating Mode
Used to specify an operating mode to which the camera map will apply. When the controller is in a different
operating mode to that specified, the camera map will be disabled.
The operating mode will only be taken into account if the “Use Non Default mode” box is checked.
To change the operating mode, see the “Set Mode” event, on the alarm events tab.
Default = 1
Dialup Sites
Each site in the range 1 to 100 can be configured as a dialup site.
This works in combination with a dialup trunk (Input or Output trunk) setting. All sites set to dialup will share
the same dialup trunk(s). As well as dialup sites, this setting is also used more in a more generic sense to
indicate that the site is dynamically routed (e.g. when it is dynamically routed over IP using a ZSI-450).
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 29 of 46
MEYERTECH LIMITED
ZSC-1000
Site Routing
Defines information that is used to describe the communications interface to a remote site.
For each Site 1 – 100 the following site routing table can be set up
Site Routing
• Route through PC1 Port
Commands are routed out of the PC1 port
Default = Off
• Route through PC2 Port
Commands are routed out of the PC2 port
Default = Off
• Simplex
The remote site is operating in simplex mode, indicates to the local unit that it should not wait for a
reply from this site.
Default = Off
• Unswitched Trunks
Modifies the behaviour of the input trunks from a site, so that different trunks will be used for different
remote cameras, assuming the remote camera number matches the trunk number
Default = Off
• Legacy controller (ZVD-GW1)
Modifies the protocol used to communicate with the remote site controller
Default = Off
• Intersite port IP site
Indicates that the site is on the intersite port but is dynamically routed. This is used in conjunction
with the dial up site tick box.
Default = Off
• Through Routing (e.g. TVNP)
Indicates that the site is on a network capable of routing video from many sites through shared input
trunks. Currently applies only to the TVNP network.
Default = Off
• Reserved
Internal use only – MUST NOT BE MODIFIED
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 30 of 46
MEYERTECH LIMITED
ZSC-1000
Site control
Priority
The priority used by all equipment on this site when trying to control remote sites. The priority ranges from 1
to 9.
Default = 1 (lowest)
Timeout
The time period, in seconds, after which exclusive control of a camera is automatically relinquished if it is not
moved by an operator.
This timeout is applied to control from both local and remote operators.
Default = 600
Enables
This section allows a number of miscellaneous features to be enabled.
Modification of any of these values should be done with care.
Uncontrolled Telemetry
If enabled telemetry is forwarded to the cameras without the requirement for control authentication.
Default = Off
No matrix polling
If enabled, the matrix on the ZVM port will not be polled for alarms.
Default = Off
24 hour alarms
If enabled the alarm handling is permanently enabled. An alarm disable command will effect only attached
alarm panels
Default = Off
Disable ZVR Error Protection
If enabled then this will allow increased flexibility on the operation of 3rd party equipment attached to the ZVR
port.
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 31 of 46
MEYERTECH LIMITED
ZSC-1000
Sequence switch updates
If enabled then sequences running on the site controller will update the keyboards with current cross points.
This is disabled by default to prevent excessive data on the ZVK port and to match the functionality of
sequences running on a matrix
Default = Off
Enable Multiple ZVM Polls
If enabled then the site controller will reply to polls from the matrix more often, this feature has been added to
improve performance of telemetry when routed via the ZVM port. This is disabled by default as telemetry is
usually routed via the ZVR ports
Default = Off
Disable ZVM Local Switching
If enabled the site controller will ignore switch confirmations from the Matrix
Default = On
Disable Memory Check
If enabled the site controller will not attempt to automatically recover from memory faults
Default = Off
Prioritised trunk allocation
If enabled input trunks will be allocated based on the operator’s priority, instead of the default ‘first come first
served’ basis.
Default = Off
Barred camera input
If enabled the site controller will automatically display a fixed camera input when an operator selects a
camera that is barred to them. The input selected is the last on Matrix 0.
Default = Off
Legacy VCR / MUX protocol
Enable this option to gain control of some older Multiplexer / VCR interfaces
Default = Off
Disable auto dialup
Enable this option to prevent the controller automatically issuing ‘dialup’ & ‘hangup’ commands to ZSI
devices, when dialup trunks are used to view a remote site. Manual dialup is then required by the operator.
Default = Off
Switch over ZSC for Dual Redundancy
Enable this option if this ZSC will be the dual redundancy failsafe controller
Default = Off
Pelco extended address range
Enable this option if you do not require strict compatibility with the Pelco ‘P’ protocol, and wish to extend the
address range for Pelco ‘P’ telemetry receivers from 32 to 255.
Default = Off
No Proxy control over simplex sites
When requesting control of a camera range that maps to a simplex site, the default behaviour is to validate
the request against the local controllers camera range, or if video is mapped through a duplex site to pass the
request to it.
This Proxy behaviour can be disabled using this option, whereby the controller simply forwards the request to
the simplex site and assumes success.
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 32 of 46
MEYERTECH LIMITED
ZSC-1000
Block global telemetry
Enable this option to prevent the use of global (all cameras) telemetry commands
Default = Off
Prioritise local keyboards
Enabling this option will override the control priority of a remote site if it requests control of a local camera in
use by a local keyboard. The local operator will always be granted control over the remote operator.
Default = Off
Time and Date
The ZSC-1000 can be used to synchronise the time and date across a system.
Broadcast enable
Defines which ports a time / date signal is broadcast on.
Default = ZVM, ZVK and Intersite
Internal TDG
The ZSC-1000 has it’s own time source which can be used to synchronise the system. If this box is ticked, a
time signal is broadcast on the hour, based on the current time held in the unit
Default = Off
Clock - Port
This defines the source that the unit will accept a time/date signal on. Any of the ports can be set as the
source
Default = Zvk
Clock - Clock
This defines the protocol of the time/date signal. This can be one of ZoneVu, Wharton, None or Wharton-old
Default = ZoneVu
Notes
If Port is set to PC1 or PC2, selecting one of the Wharton formats under Clock automatically selects the
correct protocol on that port.
Wharton-old is only supported on PC1 port.
ZSC-1000 User Manual.doc Issue 18 Page 33 of 46
MEYERTECH LIMITED
ZSC-1000
Timed Events
Timed events are specific events (actions) that can be programmed to occur at specific times.
For each timed event, in the range 1 to 128
Type
The function type. For each function the 3 fields can have different meanings
• Preset : Send a camera to a preset position
o Field 1 = Camera
o Field 2 = Preset
o Field 3 = Site
• Walk : Start a camera’s mimic patrol
o Field 1 = Camera
o Field 2 = Mimic
o Field 3 = Site
• Patrol : Start a camera’s ordered patrol
o Field 1 = Camera
o Field 2 = Patrol
o Field 3 = Site
• Random patrol : Start camera’s random patrol
o Field 1 = Camera
o Field 2 = (unused)
o Field 3 = Site
• Control : Take control of (lock) a camera
o Field 1 = Camera
o Field 2 = Priority
o Field 3 = Site
• Relinquish : Release control of (unlock) a camera
o Field 1 = Camera
o Field 2 = (unused)
o Field 3 = Site
• Switch : Switch a matrix
o Field 1 = Input
o Field 2 = Output
o Field 3 = Site
ZSC-1000 User Manual.doc Issue 18 Page 34 of 46
MEYERTECH LIMITED
ZSC-1000
• Alarm : Trigger an alarm
o Field 1 = Device (camera no/panel no/peripheral Mac)
o Field 2 = Number
o Field 3 = Type
1 = Camera
2 = Peripheral
3 = Panel
• Record : Start recording
o Field 1 = Vcr
o Field 2 = (unused)
o Field 3 = (unused)
• No action
Prompt index & Prompt enable
Not used.
Day
Select an individual day of the week, a combination of days, or every day.
Default = Every day
Hour
Select an hour for the event, or hourly operation.
• 0 – 23 to specify the hour
• 24 to trigger the event every hour
Default = 0
Minute
Select a minute
• 0 – 59 specifies the exact time
Default = 0
Sequences
The ZSC-1000 will run a number of camera sequences. Running a sequence on the ZSC-1000 allows remote
cameras to be included in the sequence i.e. the sequence could be switching multiple matrices.
For each sequence in the range 1 to 32 the following can be independently configured
ZSC-1000 User Manual.doc Issue 18 Page 35 of 46
MEYERTECH LIMITED
ZSC-1000
Max positions
The number of positions in the sequence in the range 2 – 32.
A value of 0 disables the sequence. Sequence commands for disabled sequences will be forwarded on to the
local matrix.
Default = 0
Dwell
The hold/dwell time between positions in the sequence.
In the range 1 - 65534 in units of seconds.
Default = 3
Static
The definition of the components of a sequence position.
Camera
Camera address. This will be checked against the Camera Mapping table.
Default = Position + 1
Site
Site address.
Default = 0
Preset
Where no preset is required (or the camera is static), the number should be configured as 255. For
the Home position, the preset 0 should be entered.
Default = 255
ZSC-1000 User Manual.doc Issue 18 Page 36 of 46
MEYERTECH LIMITED
ZSC-1000
Global Alarm
The ZSC-1000 incorporates a fully featured alarm handling system. It is fully configurable for alarm sources,
alarm actions and alarm reports. See the Alarm Handling section for more information on how alarms
operate.
Alarm Monitors
Up to eight alarm monitors can be configured to display alarms. Using the pull down menu to the right, select
between ‘Number’ and ‘Group’ to configure each parameter as follows:
Number
The matrix outputs (monitor numbers) to be used.
The monitors will be used in the order they appear on screen (left to right) for each successive alarm
event.
Set unused positions to zero.
Default : 1 = 1, 2 to 8 = 0
Group
Enter a group to specify that a monitor should only display alarms with a matching group number.
Enter group zero (default) to allow all alarms to display on a monitor, regardless of their group.
Default = 0
Alarm VCRs
The list of alarm recorders to which on which an alarm event will be automatically recorded. The next free
VCR is used.
Address
The address of the VCR that will be requested to start recording
Default = 0
Monitor
The output of the local matrix that the VCR records from.
Default = 1 to 8
Alarm Queue
Defines the format of the alarm queue that new alarms are stored in whilst waiting to be acknowledged by the
operator
Sort by priority
If ticked, the alarm queue is sorted on alarm priority.
If not ticked, the alarm queue is managed as a first in first out queue.
Default = Off
Queue size
The maximum number of items that can be held in the alarm queue, in the range 0 to 100.
Setting the value to 0 effectively turns off the alarm handling.
Default = 100
ZSC-1000 User Manual.doc Issue 18 Page 37 of 46
MEYERTECH LIMITED
ZSC-1000
Remote reporting
It is possible to report alarms to a remote site (often used in central monitoring type scenarios)
Remote site
The site number of the target site for the alarm to be reported to.
A value of zero turns remote reporting off.
Default = 1
Trunk output
The output trunk used to pass the alarm video to the remote site.
Default = 1
Timings
A set of timeouts, in units of seconds, to control the automated functionality of the alarm handler.
A value of 0 disables the timer.
Accept time
The time after an alarm is accepted, before pool resources are automatically released.
Default = 5 seconds
Cancel time
The time after an alarm source clears itself, before it is automatically cancelled.
Default = 20 seconds
Postpone time
The time that an alarm is postponed for, before it is re-reported
Default = 5 minutes
Default event enabled
It is possible to set up a default alarm event that will be actioned if the raised alarm has not been defined.
The Default alarm event is event number 500. Note that device fail alarms are not handled by the default
event.
Default = off
Pass through
If pass through is enabled then alarms will not be handled by the ZSC-1000 but will be passed through to the
PC2 port.
Note : only alarms that have been configured using the Alarm section will be passed through, however this
configuration will have no further effect.
Default = off
Cancel enable
Automatically cancels the alarm if the alarm source clears itself
Default = off
ZSC-1000 User Manual.doc Issue 18 Page 38 of 46
MEYERTECH LIMITED
ZSC-1000
Alarm
The ZSC-1000 incorporates a fully featured alarm handling system. It is fully configurable for alarm sources,
alarm actions and alarm reports. See the Alarm Handling section for more information on how alarms
operate.
Alarm definition
An alarm is individually identified by three values:
Type
Alarms are classified in three different types
Camera: all alarms generated at a camera receiver
Panel: alarms generated by contact alarm, or third party serial alarm panels
Peripheral: typically alarms generate through ZVS-MSI-xxx interfaces from e.g. DVRs
Alarm Config Site
The site the alarm originated from.
Default = Local
Device
The alarm device usually indicates the address of the device generating the alarm, depending on the
type of the alarm. Device 0 represents all devices of a particular type (i.e. global mapping)
Default = 0
Number
The actual number of the alarm circuit on the alarmed device. Number 0 represents all alarms on a
particular device(i.e. global mapping)
Default = 0
For each alarm, in the range 0 to 499 :
Event
The alarm event number associated with this alarm. This event will be actioned on this alarm being raised.
Multiple alarms can all reference the same alarm event
Default = 0
Priority
The priority that this alarm should have , in the range 1 to 8
Default = 1
Group
Assigns a group number to the alarm. This group number will be used to determine which alarm monitors will
be used to display the alarm.
An alarm can only belong to one group. Alarms that are listed for multiple events will take their group number
from their first entry in the list.
See Global Alarm section for further details on alarm monitors.
Default = 1
ZSC-1000 User Manual.doc Issue 18 Page 39 of 46
MEYERTECH LIMITED
ZSC-1000
Alarm Events
The ZSC-1000 incorporates a fully featured alarm handling system. It is fully configurable for alarm sources,
alarm actions and alarm reports. See the Alarm Handling section for more information on how alarms
operate.
Alarm events are the actions that can be configured to occur on the raising of a new alarm.
For each alarm event, in the range 0 to 500
Alarm Action
Record
If enabled a VCR record command will be sent
Default = Off
Switch
If enabled the event camera will be switched to an alarm monitor
Default = On
Primary Action
Action
One of the following actions can be performed on the selected camera (No action, Preset, Walk,
Patrol, Random, Relay On, Relay Off, Relay Pulse, Set Mode)
Default = No action
Note: Relay Actions
If the Primary Action Camera is on a remote site, the relay is also actioned remotely.
Relay Pulse – Relay will switch on and then switch off after 1 second.
The Relay number is entered via the field entry box.
Camera
Camera for the selected action
Default = Event number
Field
The number associated with the action e.g. Preset number
Default = 0
Global
If enabled the action is performed on all cameras at this site
Default = Off
Use Alarm Camera
If enabled the action is carried out on the camera that is the source of the alarm (rather than
configuring a specific camera). This way it is possible to have one event for a range of cameras and
have the event carried out on the camera that is the source of the alarm.
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 40 of 46
MEYERTECH LIMITED
ZSC-1000
Secondary Action
Relay mask
Unused
Post Action
Action
One of the following actions can be performed on the selected camera (No action, Preset, Walk,
Patrol, Random, Relay On, Relay Off)
For preset, home position will be used; for Walk & Patrol number 1 is used.
For Relay On / Off, the relay number of the primary action is used.
Default = No action
Report
Keyboard
The keyboard that this alarm event is reported to. A number of values have special meanings
• 0 : all
• 99 : All workstations (e.g. Fusion)
• 100 : No reporting
• 101 – 127 : Site 1 - 27
Default = 99
Remote Site
Report the alarm to a remote site (specified in global alarm section)
Default = Off
Notes
If no reporting is specified for all events assigned to an alarm, it will not be seen by any operator and
cannot therefore be cancelled. Such alarms will not be placed on the alarm Queue.
An event with no actions or reporting specified can be used to exclude alarms from a global mapping.
When a blank event is assigned to an alarm, any events assigned further down the alarm list will be
ignored.
Contact Alarms
The ZSC-1000 will poll ZoneVu Alarm cards for alarms. The ZSC-1000 can be configured for these alarms to
be either normally open or normally closed.
For each alarm card, in the range 0 to 14
Alarm card NO/NC
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 41 of 46
MEYERTECH LIMITED
ZSC-1000
Camera Barring
Camera barring allows camera ranges, either locally or across sites, to be barred to some operators.
When a camera is included in one of the 20 ranges, it can only be selected by operators who meet the priority
criteria.
To make a camera available to several individual priorities, it can be included in more than one range.
When a barred camera is selected, as well as notifying the keyboard, the site controller will either leave the
current monitor selection, or switch to a fixed input. This behaviour is defined in the Enables section.
Note : Camera barring does not apply to the highest priority level of 9.
For each camera bar, in the range 0 to 19
Site
The site where the cameras to be barred are located.
Default = 0
First Camera
The first camera number in the range
Default = 0
Range
The range of the cameras being barred
Default = 0
Priority
Either :
The lowest priority user that can access these cameras
Or :
The exact priority required to access these cameras
Default = 0
Exact Priority Only
If enabled, the exact priority level specified is required to control the cameras
Default = Off
ZSC-1000 User Manual.doc Issue 18 Page 42 of 46
MEYERTECH LIMITED
ZSC-1000
System Reset
1. The application has a number of check procedures built-in and will automatically reboot if it detects an
inconsistency in its data. This will allow the unit to recover. An active operator would only detect a short
delay and a momentary lag in operation
ZSC-1000 User Manual.doc Issue 18 Page 43 of 46
MEYERTECH LIMITED
ZSC-1000
Maintenance
The ZSC-1000 requires no Planned Preventive Maintenance periods (PPM’s) as it is mainly solid state in
design.
The ZSC-1000 contains no serviceable parts and should be returned to our Service Centre in Scunthorpe for
repair or replacement under warranty. Any repairs, attempted repairs or replaced components not carried out
by the Meyertech Service Centre will void all Meyertech warranties and liabilities.
If your ZSC-1000 has to be returned to our Service Centre please follow the returns procedure below,
otherwise delays may be incurred in returning or replacing the ZSC-1000.
Returns Procedure
Prior to returning your ZSC-1000.
1. Contact our Service Centre by phone on (+44) 0161 6437956 or by email tech-
support@meyertech.co.uk for a Goods Return Number.
2. The GRN will be logged by our staff along with the reported problem.
3. Pack the ZSC-1000 into the original packing it was delivered in. Failure to do so means the unit may
incur further damage in transit, which Meyertech cannot be responsible for.
4. Organise delivery of the ZSC-1000 back to our Service Centre in Scunthorpe. Use a reputable
carrier, as again Meyertech cannot accept liability for loss of goods in-transit.
5. On receiving the ZSC-1000 our staff will, after initial examination advise of the course of action we
intend to take.
a. Repair the ZSC-1000 under warranty. The ZSC-1000 will be repaired and returned to you
free of charge.
b. Replace the ZSC-1000 under warranty. The ZSC-1000 will be repaired and returned to you
free of charge.
c. Repair the ZSC-1000 at a quoted cost. An official purchase order to cover the cost and
return of the product will be required prior to commencement of repair.
d. Advise you that the ZSC-1000 is not repairable. You can then decide to have the product
returned to you at the standard delivery charge or we can dispose of the product free of
charge.
ZSC-1000 User Manual.doc Issue 18 Page 44 of 46
MEYERTECH LIMITED
ZSC-1000
Disposal
There are no additional requirements beyond safe working practice in the decommissioning of the Meyertech
ZSC-1000.
However the ZSC-1000 contains printed circuit boards populated with electronic components. The whole unit
must be returned to Meyertech Service Centre for final disposal. Please follow the normal returns
procedure.
ZSC-1000 User Manual.doc Issue 18 Page 45 of 46
MEYERTECH LIMITED
ZSC-1000
Support
At Meyertech our staff understand quality support is important to you, vital in fact, which is why we place such
a high precedence on providing it.
For all matters relating to support go to our website to find the information your require visit
http://www.meyertech.co.uk/support.html
Meyertech offer Extended Support Contracts on all their software products. Please contact our Sales
department on 0161 643 7956 to discuss your requirements or visit our website www.meyertech.co.uk
Meyertech Limited is a member of the CCTV User Group.
MEYERTECH LIMITED
Zebra Court
White Moss View
Greenside Way
Manchester
M24 1UN
Tel: +44 (0)161 643 7956
Fax: +44 (0)161 643 3992
Email: sales@meyertech.co.uk
http:/
/www.meyertech.co.uk
ZSC-1000 User Manual.doc Issue 18 Page 46 of 46
MEYERTECH LIMITED
ZSC-1000
Warranty
Please refer to Meyertech Limited ‘Terms & Conditions of Sale of Goods & Services’ for interpretation.
1. If the Buyer establishes to the Seller's reasonable satisfaction that there is a defect in the materials or workmanship of the
Goods manufactured, then the Seller shall at its option, at its sole discretion and within a reasonable time,
a. arrange for the repair or making good such defect or failure in such Goods free of charge to the Buyer (including all
costs of transportation of any Goods or materials to and from the Buyer for that purpose),
b. replace such Goods with Goods which are in all respects in accordance with the Contract, or
subject, in every case, to the remaining provisions of this Condition 1 provided that the liability of the Seller under this
Condition 1 shall in no event exceed the purchase price of such Goods and performance of anyone of the above options shall
constitute an entire discharge of the Seller's liability under this warranty.
2. Condition 1 shall not apply unless the Buyer:
a. notifies the Seller in writing of the alleged defect within 12 (twelve) months from delivery or such other period or
periods as may be agreed in writing between the Seller and the Buyer, and
b. allows the Seller a reasonable opportunity to inspect the relevant Goods.
3. For the avoidance of doubt, the Seller shall be under no liability under the warranty in Condition 1 above:
a. where such defects arise from any drawing, design or specification supplied by the Buyer; or
b. where such defects arise from fair wear and tear, wilful damage, or negligence of a party other than the Seller (or
its employees or authorised personnel), abnormal working conditions, failure to follow the Seller's instructions
(whether oral or in writing), misuse or alteration or repair of the Goods without the Seller's approval; or
c. where such defects arise in parts, materials or equipment which have not been manufactured or designed by the
Seller but have been purchased at the Buyer's request by the Seller from the Buyer's designer and manufacturer or
from some other third party (the “Third Party Supplier”).
d. if the total price of the Goods has not been paid by the due date for payment
e. in respect of any type of defect, damage or wear specifically excluded by the Seller by notice in writing: or
f. if the Buyer makes any further use of the Goods after giving notice in accordance with Clause 1
4. Any repaired or replaced Goods shall be redelivered to the Buyer free of charge to the original point of delivery but otherwise
in accordance with and subject to these Conditions.
5. Alternatively to Condition 1 the Seller shall be entitled at its absolute discretion on return of the defective Goods to the Seller
(at the Seller's request) to refund the price of the defective Goods in the event that such price shall already have been paid
by the Buyer to the Seller, or, if such price has not been paid, to relieve the Buyer of all obligation to pay the sum by the issue
of a credit note in favour of the Buyer in the amount of such price.
6. In respect of all Goods supplied to the Seller by a Third Party Supplier the Seller will on request pass on to the Buyer (in so
far as reasonably possible) the benefit of any warranty given to the Seller by such Third Party Supplier and will (on request)
supply to the Buyer details of the terms and conditions of such warranty and copies of any relevant product information
sheets, technical data sheets or product leaflets issued by such Third Party Supplier and the Buyer shall be solely
responsible to the entire exclusion of the Seller for complying with the same.
7. For the purposes of Condition 1 references to Goods shall be deemed to exclude software.
8. The Buyer acknowledges that software in general is not error-free and agrees that the existence of such errors in the
Software Programs shall not constitute a breach of this Contract.
9. In the event that the Buyer discovers a material error which results in the Programmed Products not performing substantially
in accordance with the Functional Specification, or the Licensed Programs not performing substantially in accordance with
the relevant Program Documentation and notifies the Seller of the error within 90 days from the date of the Seller making
available the respective software to the Buyer (the `warranty period") the Seller shall at its sole option either refund the price
which the Buyer has paid to the Seller (or if such price has not been paid, relieve the Buyer of all obligations to pay the sum)
in respect of the respective software or use all reasonable endeavours to correct by patch or new release (at its option) that
part of the software which does not so comply provided that such non-compliance has not been caused by any modification,
variation or addition to the software not performed by the Seller or caused by its incorrect use, abuse or corruption of the
software by use of the software with other software or on equipment with which it is incompatible,
10. To the extent permitted by English law, the Seller disclaims all other warranties, with respect to the software which it provides
pursuant to the Contract, either express or implied, including but not limited to any implied warranties of satisfactory quality or
fitness for any particular purpose.
11. The Buyer is solely responsible for various scanning the software that it receives from the Seller pursuant to the Contract.
12. The Seller warrants that it will use reasonable skill and care in providing the Services to the buyer
Loading...
