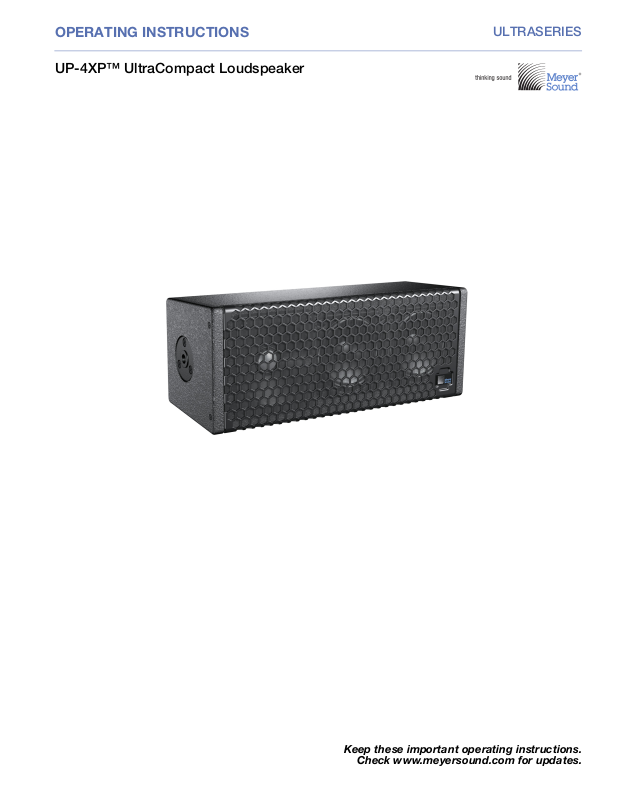

OPERATING INSTRUCTIONS
UP-4XP™ UltraCompact Loudspeaker
ULTRASERIES
Keep these important operating instructions.
Check www.meyersound.com for updates.
DECLARATION OF CONFORMITY ACCORDING TO ISO/IEC GUIDE 22 AND EN 45014
Manufacturer’s Name: Meyer Sound Laboratories Inc.
Manufacturer’s Address: 2832 San Pablo Avenue
Berkeley, CA 94702-2204, USA
Declares that the product:
Product Names: UP-4XP UltraCompact Loudspeaker
Product Options: All
Conforms to the following Product Specifications:
Safety: EN 60065:2002
Supplementary Information: The product herewith complies with the requirements of the Low Voltage
Directive (LVD) 2006/95/EC.
Signature:
Ms. Margie Garza
Director of Quality
Meyer Sound Laboratories Inc.
Berkeley, California 94702 USA
Issued July 26, 2010
European Contact:
Your local Meyer Sound dealer or
Meyer Sound Germany, GmbH.
© 2011
Meyer Sound. All rights reserved.
UP-4XP Operating Instructions, PN 05.201.005.01 A2
The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of this publication may be reproduced,
stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording or otherwise, without prior written permission from Meyer Sound.
MM-4XP, MPS-488, MPS-488HP, UP-4XP, and all alpha-numeric designations for Meyer Sound products and accessories are trademarks
of Meyer Sound. Meyer Sound and the Meyer Sound wave logo are registered trademarks of Meyer Sound Laboratories Inc. (Reg. U.S.
Pat. & Tm. Off.). All third-party trademarks mentioned herein are the property of their respective trademark holders.
ii
SYMBOLS USED
!
!
These symbols indicate important safety or operating features in this booklet and on the chassis:
Dangerous voltages: risk of
electric shock
Pour indiquer les risques
résultant de tensions dangereuses
Warnung vor gef
elektrischer Spannung
Para indicar voltajes peligrosos Instrucciones importantes de
ährlicher
Important operating instructions Frame or chassis Protective earth ground
Pour indequer important
instructions
Wichtige Betriebsanweisung oder
Gebrauchsanleitung
funcionamiento y/o manteniento
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this loudspeaker near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with Meyer Sound’s installation instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus that produce
heat.
9. Do not defeat the safety purpose of the grounding-type
plug. A grounding type plug has two blades and a third
grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
Masse, châssis Terre de protection
Rahmen oder Geh
Armadura o chassis Tierra proteccionista
äuse
Masse Schutzleiter
11.Only use attachments/accessories specified by Meyer
Sound.
12.If applicable, use only with the caster rails or rigging
specified by Meyer Sound, or sold with the loudspeaker.
Handles are for carrying only.
CAUTION: Rigging should only be done by
experienced professionals.
13.Unplug this loudspeaker during lightning storms or when
unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the loudspeaker has been damaged
in any way, such as when the power-supply cord or plug
has been damaged; liquid has been spilled or objects
have fallen into the loudspeaker; rain or moisture has
entered the loudspeaker; the loudspeaker has been
dropped; or when for undetermined reasons the loudspeaker does not operate normally.
10.Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the loudspeaker. The AC
mains plug or appliance coupler shall remain readily
accessible for operation.
iii
SAFETY SUMMARY
English
■ To reduce the risk of electric shock, dis-
connect the loudspeaker from the AC
mains before installing audio cable.
Reconnect the power cord only after
making all signal connections.
■ Connect the loudspeaker to a two-pole,
three-wire grounding mains receptacle.
The receptacle must be connected to a
fuse or circuit breaker. Connection to
any other type of receptacle poses a
shock hazard and may violate local
electrical codes.
■ Do not install the loudspeaker in wet or
humid locations without using weather
protection equipment from Meyer
Sound.
■ Do not allow water or any foreign object
to get inside the loudspeaker. Do not
put objects containing liquid on or near
the unit.
■ To reduce the risk of overheating the
loudspeaker, avoid exposing it to direct
sunlight. Do not install the unit near
heat-emitting appliances, such as a
room heater or stove.
■ This loudspeaker contains potentially
hazardous voltages. Do not attempt to
disassemble the unit. The unit contains
no user-serviceable parts. Repairs
should be performed only by factorytrained service personnel.
Français
■ Pour réduire le risque d’électrocution,
débrancher la prise principale de l’hautparleur, avant d’installer le câble d’interface allant à l’audio. Ne rebrancher le
bloc d’alimentation qu’après avoir
effectué toutes les connections.
■ Branchez l’haut-parleur dans une prise
de courant à 3 dérivations (deux pôles
et la terre). Cette prise doit être munie
d’une protection adéquate (fusible ou
coupe-circuit). Le branchement dans
tout autre genre de prise pourrait
entraîner un risque d’électrocution et
peut constituer une infraction à la réglementation locale concernant les installations électriques.
■ Ne pas installer l’haut-parleur dans un
endroit où il y a de l’eau ou une
humidité excessive.
■ Ne pas laisser de l’eau ou tout objet
pénétrer dans l’haut-parleur. Ne pas
placer de r´cipients contenant un liquide
sur cet appareil, ni à proximité de celuici.
■ Pour éviter une surchauffe de l’haut-
parleur, conserver-la à l’abri du soleil.
Ne pas installer à proximité d’appareils
dégageant de la chaleur tels que radiateurs ou appareils de chauffage.
■ Ce haut-parleur contient des circuits
haute tension présentant un danger. Ne
jamais essayer de le démonter. Il n’y a
aucun composant qui puisse être
réparé par l’utilisateur. Toutes les réparations doivent être effectuées par du
personnel qualifié et agréé par le constructeur.
Deutsch
■ Um die Gefahr eines elektrischen
Schlages auf ein Minimum zu reduzieren, den Lautsprecher vom Stromnetz
trennen, bevor ggf. ein Audio-Schnittstellensignalkabel angeschlossen wird.
Das Netzkabel erst nach Herstellung
aller Signalverbindungen wieder einstecken.
■ Der Lautsprecher an eine geerdete
zweipolige Dreiphasen-Netzsteckdose
anschließen. Die Steckdose muß mit
einem geeigneten Abzweigschutz
(Sicherung oder Leistungsschalter) verbunden sein. Der Anschluß der unterbrechungsfreien Stromversorgung an
einen anderen Steckdosentyp kann zu
Stromschlägen führen und gegen die
örtlichen Vorschriften verstoßen.
■ Der Lautsprecher nicht an einem Ort
aufstellen, an dem sie mit Wasser oder
übermäßig hoher Luftfeuchtigkeit in
Berührung kommen könnte.
■ Darauf achten, daß weder Wasser noch
Fremdkörper in das Innere den
Lautsprecher eindringen. Keine
Objekte, die Flüssigkeit enthalten, auf
oder neben die unterbrechungsfreie
Stromversorgung stellen.
■ Um ein Überhitzen dem Lautsprecher
zu verhindern, das Gerät vor direkter
Sonneneinstrahlung fernhalten und
nicht in der Nähe von wärmeabstrahlenden
■ Haushaltsgeräten (z.B. Heizgerät oder
Herd) aufstellen.
■ Im Inneren diesem Lautsprecher herr-
schen potentiell gefährliche Spannungen. Nicht versuchen, das Gerät zu öffnen. Es enthält keine vom Benutzer
reparierbaren Teile. Reparaturen dürfen
nur von ausgebildetem Kundenienstpersonal durchgeführt werden.
Español
■ Para reducir el riesgo de descarga eléc-
trica, desconecte de la red de voltaje el
altoparlante antes de instalar el cable
de señal de audio. Vuelva a conectar la
alimentacion de voltaje una vez efectuadas todas las interconexiones de
señalizacion de audio.
■ Conecte el altoparlante a un tomacorri-
ente bipolar y trifilar con neutro de
puesta a tierra. El tomacorriente debe
estar conectado a la protección de derivación apropiada (ya sea un fusible o un
disyuntor). La conexión a cualquier otro
tipo de tomacorriente puede constituir
peligro de descarga eléctrica y violar los
códigos eléctricos locales.
■ No instale el altoparlante en lugares
donde haya agua o humedad excesiva.
■ No deje que en el altoparlante entre
agua ni ningún objeto extraño. No
ponga objetos con líquidos encima de
la unidad ni cerca de ella.
■ Para reducir el riesgo de sobrecalenta-
miento, no exponga la unidad a los
rayos directos del sol ni la instale cerca
de artefactos que emiten calor, como
estufas o cocinas.
■ Este altoparlante contiene niveles de
voltaje peligrosos en potencia. No
intente desarmar la unidad, pues no
contiene piezas que puedan ser repardas por el usuario. Las reparaciones
deben efectuarse únicamente por parte
del personal de mantenimiento capacitado en la fábrica.
iv
CONTENTS
Chapter 1: Introduction 7
How to Use This Manual 7
UP-4XP UltraCompact Loudspeaker 7
Chapter 2: UP-4XP Loudspeaker 11
UP-4XP Input Connector 11
UP-4XP LED 12
UP-4XP Current Draw and Cable Requirements 13
Wiring UP-4XP Loudspeaker Cables with Belden 1502 Cable (or Equivalent) 14
Long Cable Runs with Separate Cable for DC Power and Audio 14
Chapter 3: Powering UP-4XP Loudspeakers 15
Connecting UP-4XP Loudspeakers to the MPS-488HP External Power Supply 15
Connecting UP-4XP Loudspeakers to the MPS-488 External Power Supply 17
Chapter 4: QuickFly Rigging 19
Important Safety Considerations 19
Pole-Mounting UP-4XP Loudspeakers 19
MYA-UP4 Mounting Yoke 20
MUB-UP4 U-Bracket 21
Appendix A: UP-4XP Accessories 23
Appendix B: Phoenix and EN3 Cable Assembly 25
Appendix C: Weather Protection 31
Appendix D: UP-4XP Specifications 33
v
CONTENTS
vi
CHAPTER 1: INTRODUCTION
!
HOW TO USE THIS MANUAL
Make sure to read these operating instructions in their
entirety before configuring a loudspeaker system with
UP-4XPs. In particular, pay close attention to material
related to safety issues.
As you read these operating instructions, you will encounter
the following icons for notes, tips, and cautions:
NOTE: A note identifies an important or useful
piece of information relating to the topic under
discussion.
TIP: A tip offers a helpful tip relevant to the topic
at hand.
CAUTION: A caution gives notice that an
action may have serious consequences and
could cause harm to equipment or personnel, or
could cause delays or other problems.
Information and specifications are subject to change.
Updates and supplementary information are available at
www.meyersound.com
.
UP-4XP ULTRACOMPACT LOUDSPEAKER
The UP-4XP ultracompact loudspeaker is ideally suited for
applications requiring a small, inconspicuous cabinet that
also delivers high sound pressure levels, low distortion, and
uniform directional control. The self-powered UP-4XP offers
exceptional audio performance in a compact package with
the advantages of a remote power supply. As a standalone
loudspeaker, the UP-4XP can be used for vocal reinforcement, frontfill coverage, and delay coverage for under-balcony applications. The UP-4XP can also be paired with an
optional subwoofer to create a full-range system.
UP-4XP UltraCompact Loudspeaker
Meyer Sound Technical Support is available at:
■ Te l: +1 510 486.1166
■ Te l: +1 510 486.0657 (after hours support)
■ Web: www.meyersound.com/support
■ Email: techsupport@meyersound.com
The UP-4XP boasts a wide operating frequency range of
66 Hz to 18 kHz and a maximum peak SPL of 121 dB, with
very low distortion. The unit's high-frequency section
includes a 1-inch metal dome tweeter on a constant-directivity, high-frequency horn with a 100-degree beamwidth.
The low/mid-frequency section includes two 4-inch cone
transducers that work in parallel at low frequencies — delivering a combined acoustic output — with one of the drivers
rolling off at higher frequencies to prevent interference (due
to comb filtering effects) in the crossover region. The proprietary UP-4XP drivers, which are manufactured at Meyer
Sound's factory in Berkeley, California, are powered by three
channels of onboard power amplification that include an
active crossover, driver protection, and frequency and phase
correction circuitry.
7
CHAPTER 1: INTRODUCTION
The UP-4XP is available with either a Phoenix™ 5-pin male
®
or sealed SwitchCraft
EN3™ male connector for receiving
balanced audio and DC power. Powering the unit from an
external source eliminates the need for wiring conduits while
still preserving the advantages of self-powered systems.
The UP-4XP's amplifier and signal-processing circuits are
designed to store DC power and tolerate voltage drops,
thereby accommodating light-gauge cables and lengthy
cable runs.
UP-4XP loudspeaker systems require a 48 V DC external
power supply, such as Meyer Sound’s MPS-488HP. The single-space 19-inch rack unit receives eight channels of balanced audio from its XLR female Channel Inputs and routes
the audio, along with 48 V of DC power, to its eight Channel
Outputs. The Channel Outputs, which are available as either
Phoenix 5-pin male connectors or SwitchCraft EN3 5-pin
female connectors, can deliver DC power to up to eight
UP-4XP loudspeakers.
Cable lengths up to 150 feet for DC power are possible
when using 18-AWG wire, with just 1 dB of loss in peak SPL.
Longer cable runs are possible for moderate applications
that don't drive the loudspeakers to maximum output, or for
installations with heavier wire gauges. The use of composite
multiconductor cables (such as Belden
®
1502 or equivalent)
allows a single cable to carry both DC power and balanced
audio to the UP-4XPs.
TIP: For complete information on using the
MPS-488HP external power supply, refer to the
MPS-488HP Operating Instructions.
NOTE: The MPS-488HP external power supply
replaces the MPS-488 model, which was originally designed for use with MM-4XP loudspeakers.
The MPS-488 is also compatible with UP-4XP loudspeakers and can drive up to four units (using every
other Channel Output).
The UP-4XP's durable cabinet is coated with a black textured finish and includes top and bottom mounting plates
with 3/8-16 or metric M10 threads. QuickFly mounting
options include the MUB–UP4 U-bracket, MYA–UP4 cradlestyle yoke, and 1 3/8-inch (35 mm) diameter pole-mount
adaptor. Other UP-4XP options include weather protection
(with the sealed EN3 connector) and custom color finishes
for installations and applications with specific cosmetic
MPS-488HP Power Supply
8
UP-4XP OPERATING INSTRUCTIONS
MYA-UP4 Cradle-Style Yoke
UP-4XP with MSA-UPM Pole-Mount Adapter
MUB-UP4 U-Bracket in Ceiling Mount Configuration
MUB-UP4 U-Bracket in Wall Mount Configuration
9
CHAPTER 1: INTRODUCTION
10
CHAPTER 2: UP-4XP LOUDSPEAKER
The UP-4XP is powered by an external 48 V DC power supply, eliminating the need for wiring conduits while still preserving the advantages of self-powered loudspeaker
systems. The unit's onboard amplifier and signal-processing
circuits were designed to store DC power and tolerate voltage drops, thereby accommodating light-gauge cables and
lengthy cable runs.
UP-4XP INPUT CONNECTOR
The UP-4XP loudspeaker is available with either a Phoenix
5-pin male or SwitchCraft EN3 5-pin male connector for
receiving DC power and balanced audio. The EN3 connector is ideal for outdoor, all-weather use. The input connector’s five pins include two for DC power (negative and
positive) and three for balanced audio (shield, negative, and
positive). These pins are clearly labeled on the UP-4XP rear
panel. To function properly, the UP-4XP requires 48 V of DC
power.
UP-4XP with Phoenix 5-Pin Male Connector
UP-4XP Rear Panel
UP-4XP with EN3 5-Pin Male Connector
Depending on the loudspeaker’s connector, the UP-4XP
ships with either a single Phoenix cable mount connector or
a 10-foot (3 meter) EN3-to-pigtail cable for constructing
loudspeaker cables. For information on UP-4XP cable
requirements, see “UP-4XP Current Draw and Cable
Requirements” on page 13. For information on cables and
cable accessories available from Meyer Sound, see
Appendix A, “UP-4XP Accessories.” For information on
cable assembly, see Appendix B, “Phoenix and EN3 Cable
Assembly.”
11
CHAPTER 2: UP-4XP LOUDSPEAKER
!
!
!
!
CAUTION: When wiring UP-4XP loudspeaker
cables, it is extremely important that each pin
be wired correctly. Make sure the 48 V DC from the
external power supply is wired directly (and only) to
the 48 V DC pins on the UP-4XP loudspeaker connector, and that the polarity is observed (negative to
negative, positive to positive) to avoid damage to the
loudspeaker. In addition, make sure that audio pins
are wired correctly; polarity reversals for audio signals
affect system performance.
UP-4XP LED
The UP-4XP has a three-color LED on its rear panel that
changes color to indicate the loudspeaker’s status.
Powering On (Green)
When powering up the UP-4XP loudspeaker, the following
startup events occur and are indicated by the LED:
1. The LED flashes multiple colors during power-up
sequence.
2. After a pause, the LED turns solid green, indicating the
power-up sequence has completed and the loudspeaker
is ready to reproduce audio.
CAUTION: If after the power-up sequence the
LED does not turn solid green (instead flashes
multiple colors or stays solid red) and the UP-4XP
does not output audio, the loudspeaker has encountered an error and may need to be serviced. Contact
Meyer Sound Technical Support.
CAUTION: If after the power-up sequence (or
during operating) the LED turns solid red and
the loudspeaker continues to output audio, the loudspeaker’s voltage may have dropped below 25 V DC.
When encountering these conditions, operation of
the loudspeaker should cease and its power supply
and cabling should be verified.
Limiting (Yellow)
The UP-4XP LED turns yellow to indicate limiting. When the
LED is solid yellow, limiting is engaged for the high-frequency channel. When the LED flashes yellow (on and off),
limiting is engaged for the low-frequency channels. When
limiting is engaged for a channel, its gain is reduced. When
engaged, the limiter protects the loudspeaker’s drivers and
prevents signal peaks from causing excessive distortion in
the loudspeaker’s amplifier, thereby preserving headroom
and maintaining smooth frequency responses at high levels.
When source levels return to normal, below the limiter’s
threshold, the LED turns green and limiting ceases.
The UP-4XP performs within its acoustical specifications at
normal temperatures when the UP-4XP LED is green, or
when limiting is not continuous. If limiting activity is continuous, the loudspeaker is nearing the limits of its operating
capabilities where:
■ Increases to the input level have no effect.
■ Distortion increases due to clipping and nonlinear driver
operation.
■ The drivers are subjected to excessive heat and excur-
sion, which will compromise their life span and may
eventually lead to damage over time.
CAUTION: The UP-4XP LED turns yellow when
the loudspeaker’s signal rises 2 dB above the
limiting threshold, and indicates a safe, optimum level
has been exceeded. If the UP-4XP loudspeakers in a
system begin to limit before reaching the desired
SPL, consider adding more loudspeakers to the system to achieve the desired SPL without exposing the
loudspeakers to excessive levels and possible overheating.
UP-4XP Temperature and Limiting
The UP-4XP LED turns solid yellow when its heat sink temperature reaches 65° C (145° F), indicating the unit is reaching its maximum heat dissipation and a reduction in SPL is
recommended. While the UP-4XP will continue to operate
while the LED is yellow, the limiter threshold is lowered to a
safe level (causing the output level to be lowered by 3 dB) to
prevent the loudspeaker from overheating. When the temperature of the heat sink cools to 50°C (122°F), the LED
changes from yellow to green and the limiter threshold
returns to normal.
12
UP-4XP OPERATING INSTRUCTIONS
!
Clipping (Red)
The UP-4XP turns red when the loudspeaker’s input stage
clips, causing the amplifier to overload. When the LED is
red, the source level should be reduced.
CAUTION: If the UP-4XP LED turns solid red
and the loudspeaker continues to output audio,
though at reduced levels, the loudspeaker’s voltage
may have dropped below 25 V DC. When these conditions are encountered, operation of the loudspeaker
should cease and its power supply and cabling
should be verified.
UP-4XP CURRENT DRAW AND CABLE REQUIREMENTS
Each UP-4XP loudspeaker draws a maximum current of
4.05 A continuous and 4.50 A peak from its external 48 V
DC power supply. The current draw for the UP-4XP is
dynamic and fluctuates as operating levels change. The
cabling between the UP-4XP and its external power supply
adds resistance and hence causes a voltage drop at the
loudspeaker. Because lower DC voltages compromise
amplifier performance (peak SPL), and in some cases frequency response, cable resistance should be kept to a minimum.
Cable Lengths and Cable Gauges for UP-4XP Loudspeakers
Cable lengths up to 150 feet between the UP-4XP and its
external power supply are supported with only 1 dB of peak
SPL loss using 18 AWG wire. Longer cable lengths are possible with heavier wire gauges (see Table 1 and Table 2).
Table 1: UP-4XP Loudspeaker Cable Lengths (AWG)
Cable Gauge Resistance
12 AWG 0.0016 600 ft
14 AWG 0.00253 375 ft
16 AWG 0.00402 237 ft
18 AWG 0.00636 150 ft
20 AWG 0.01008 87 ft
Table 2: UP-4XP Loudspeaker Cable Lengths (European)
Cable Gauge Resistance
2.50 mm
1.50 mm
1.00 mm
0.75 mm
2
2
2
2
(/ft)
(/m)
0.0052 157 m
0.01076 87 m
0.02087 45 m
0.03307 27 m
Approximate
Max. Length
Approximate
Max. Length
NOTE: For long cable runs, you can use a large
cable gauge for DC power and a separate balanced audio cable for audio. For more information,
see “Long Cable Runs with Separate Cable for DC
Power and Audio” on page 14.
NOTE: The total cable resistance between the
UP-4XP and its external power supply should
not exceed 2 ohms.
Calculating the Maximum Cable Length
The maximum cable length for a UP-4XP can be calculated
with the following formula:
maximum length = 2 ohms / 2 * cable resistance
For example, the maximum length of an 18 AWG cable with
a resistance of 0.00636 is 157.2 feet (2 / 2 * 0.00636).
13
CHAPTER 2: UP-4XP LOUDSPEAKER
Red: DC power (+)
Black: DC power (–)
White: audio (+)
Blue: audio (–)
Shield drain: audio shield
!
Pin #1 48 V DC (–)
Pin #2 48 V DC (+)
Pin #3 Audio shield
Pin #4 Audio (–)
Pin #5 Audio (+)
Audio
cable
DC
cable
WIRING UP-4XP LOUDSPEAKER CABLES WITH BELDEN 1502 CABLE (OR EQUIVALENT)
The most convenient method of wiring UP-4XP loudspeaker
cables is with a multiconductor cable such as Belden 1502,
which has dedicated conductors for DC power and balanced audio in a single jacket. When wiring UP-4XP loudspeaker cables with Belden 1502, use the conventions in
Table 3. The red and black wires are 18 AWG, thicker than
the other three wires, and should be used for DC power
(cable lengths up to 150 feet are possible with just 1 dB of
peak SPL loss). The blue, white, and shield drain wires are
shielded together and should be used for audio.
Belden 1502 Composite Cable
Table 3: Wiring UP-4XP Loudspeaker Cables with Belden 1502
Wire Signal Gauge
Red DC power, positive (+) 18 AWG
Black DC power, negative (–) 18 AWG
White Balanced audio, positive (+) 22 AWG
Blue Balanced audio, negative (–) 22 AWG
Shield drain Balanced audio, shield 24 AWG
with the MPS-488HPp). The pigtail can also be spliced to a
longer loudspeaker cable or to a junction box. The included
EN3-to-pigtail cable uses Belden 1502 cable (or equivalent),
which can be wired for both DC power and balanced audio.
The EN3-to-pigtail cable is available in plenum or regular
(non-plenum) versions.
NOTE: For a complete list of cables and cable
connectors available from Meyer Sound that
can be used with the UP-4XP loudspeaker, see
Appendix A, “UP-4XP Accessories.”
LONG CABLE RUNS WITH SEPARATE CABLE FOR DC POWER AND AUDIO
For installations where Belden 1502 is not feasible, or for
installations that require cable runs longer than 150 feet, you
can use separate cables for DC power and balanced audio:
a large-gauge cable for DC and a high-quality, balanced
audio cable for audio. The separate cables attach to the
Phoenix connecter at the loudspeaker as shown in the
Figure 4. Cable runs longer than 150 feet for DC power
require cable gauges larger than 18 AWG; for more information, see “Cable Lengths and Cable Gauges for UP-4XP
Loudspeakers” on page 13.
CAUTION: When wiring UP-4XP loudspeaker
cables, it is extremely important that each pin
be wired correctly. Make sure the 48 V DC from the
external power supply is wired directly (and only) to
the 48 V DC pins on the UP-4XP loudspeaker connector, and that the polarity is observed (negative to
negative, positive to positive) to avoid damage to the
loudspeaker. In addition, make sure that audio pins
are wired correctly; polarity reversals for audio signals
affect system performance.
Wiring EN3-to-Pigtail Cables
UP-4XP loudspeakers equipped with EN3 connectors are
shipped with one EN3 5-pin female-to-pigtail cable. The
EN3 end of the cable connects directly to the UP-4XP input
connector. The pigtail end of the cable, which connects to
the loudspeaker’s external power supply, can be terminated
with either an EN3 5-pin male connector (included with the
MPS-488HPe) or Phoenix 5-pin female connector (included
14
Figure 4: Separate Cables for DC Power and Balanced Audio
NOTE: For more information about cable
assembly and pin-outs, see Appendix B,
“Phoenix and EN3 Cable Assembly.”
CHAPTER 3: POWERING UP-4XP LOUDSPEAKERS
MPS-488HPp
CONNECTING UP-4XP LOUDSPEAKERS TO
THE MPS-488HP
UP-4XP loudspeakers require a Meyer Sound 48 V DC
external power supply, such the MPS-488HP. The singlespace 19-inch rack unit receives eight channels of balanced
audio from its XLR female Channel Inputs and routes the
audio, along with 48 V of DC power, to its eight Channel
Outputs. The Channel Outputs, which are available as either
Phoenix 5-pin male connectors or SwitchCraft EN3 5-pin
female connectors, can deliver DC power to up to eight
UP-4XP loudspeakers. Cable lengths up to 150 feet for DC
power are possible when using 18-AWG wire, with just 1 dB
of loss in peak SPL. Longer cable runs are possible for moderate applications that don't drive the loudspeakers to maximum output, or for installations with heavier wire gauges.
The use of composite multiconductor cables (such as
Belden 1502 or equivalent) allows a single cable to carry
both DC power and balanced audio to the UP-4XPs.
TIP: For complete information on using the
MPS-488HP external power supply, refer to the
MPS-488HP Operating Instructions.
To connect UP-4XP loudspeakers to the MPS-488HP:
EXTERNAL POWER SUPPLY
■ When connecting UP-4XP loudspeakers equipped with
Phoenix connectors to the MPS-488HPp power supply,
use Phoenix 5-pin male to Phoenix 5-pin female cables.
1. Power off the MPS-488HP.
2. Connect audio sources (from a mixer or processor) to the
MPS-488HP Channel Inputs. Use balanced XLR cables.
3. Use the MPS-488HP Link switches to route Channel
Inputs to the desired Channel Outputs. For information
on the MPS-488HP Link switches, refer to the
MPS-488HP Operating Instructions.
4. Connect the UP-4XP loudspeakers to the MPS-488HP
Channel Outputs. Use composite cables (such as
Belden 1502 or equivalent) wired for both DC power and
balanced audio and outfitted with the appropriate connectors.
MPS-488HPp with Eight UP-4XP Loudspeakers
TIP: You can use two separate cables for
UP-4XP loudspeaker connections: a 2-conductor cable for DC power and a 3-conductor cable for
balanced audio, both attached to a single Phoenix
connector on each cable end. This allows you to use
a larger gauge for the DC cable so you can achieve
longer cable runs (see “Cable Lengths and Cable
Gauges for UP-4XP Loudspeakers” on page 13).
15
CHAPTER 3: POWERING UP-4XP LOUDSPEAKERS
MPS-488HPe
!
■ When connecting UP-4XP loudspeakers equipped with
EN3 connectors to the MPS-488HPe power supply, use
EN3 5-pin male to EN3 5-pin female cables.
■ To join two EN3 cables, one with an EN3 5-pin male
cable mount connector to one with an EN3 5-pin female
cable mount connector, use an EN3 5-pin female-tomale cable coupler (PN 28.163.033.01).
CAUTION: Make sure UP-4XP loudspeaker
cables are wired correctly. For details on
assembling loudspeaker cables, see Appendix B,
“Phoenix and EN3 Cable Assembly.”
5. Power on the MPS-488HP and monitor the LEDs on the
front panel to verify connections. For information on the
MPS-488HP LEDs, refer to the MPS-488HP Operating
Instructions.
6. Check the LEDs on the UP-4XP rear panels and verify
they are green (ready to reproduce audio).
7. Enable output from the audio sources (from the mixer or
processor) connected to the MPS-488HP.
MPS-488HPe with Eight UP-4XP Loudspeakers
16
UP-4XP OPERATING INSTRUCTIONS
X
X
X
X
X
X
X
X
XXX
X
X
X
X
X
CONNECTING UP-4XP LOUDSPEAKERS TO THE MPS-488 EXTERNAL POWER SUPPLY
The original MPS-488 was designed for use with the
MM-4XP miniature loudspeaker. While the MPS-488 can
power up to eight MM-4XP loudspeakers, it can only power
up to four UP-4XP loudspeakers (due to the UP-4XP’s
higher power requirements and current draw).
Because the MPS-488 can power a maximum of four
UP-4XP loudspeakers, the loudspeakers should only be
connected to Channel Outputs 1, 3, 5, and 7. Do not use the
even-numbered channel outputs.
MPS-488P Power Supply
NOTE: These guidelines do not apply to the
MPS-488HP external power supply, which can
drive up to eight UP-4XP loudspeakers.
NOTE: The MPS-488HP external power supply
replaces the MPS-488 model, which was originally designed for use with MM-4XP loudspeakers.
The MPS-488 is also compatible with UP-4XP loudspeakers and can drive up to four units (using every
other Channel Output).
MPS-488E Power Supply
17
CHAPTER 3: POWERING UP-4XP LOUDSPEAKERS
18
CHAPTER 4: QUICKFLY RIGGING
!
The UP-4XP includes top and bottom mounting plates with
3/8-16 or metric M10 threaded nuts. QuickFly mounting
options include the MUB-UP4 U-bracket, MYA-UP4 cradlestyle yoke, and MSA-UPM pole-mount adaptor.
IMPORTANT SAFETY CONSIDERATIONS
When installing Meyer Sound loudspeakers, the following
precautions should always be observed:
■ All Meyer Sound products must be used in accordance
with local, state, federal, and industry regulations. It is
the owner’s and user’s responsibility to evaluate the reliability of any rigging or mounting method for their application. Rigging should only be carried out by
experienced professionals.
■ Use mounting and rigging hardware that has been rated
to meet or exceed the weight being hung.
■ Make sure to attach mounting hardware to the building's
structural components (studs or joists), and not just to
the wall surface. Verify that the building's structure and
the anchors used for the installation will safely support
the total weight of the mounted loudspeakers.
POLE-MOUNTING UP-4XP LOUDSPEAKERS
You can mount the UP-4XP on a third-party loudspeaker
stand with the optional MSA-UPM stand adapter
(PN 40.086.013.01). The MSA-UPM kit includes both 3/8-16
and M10 hardware. To install the adapter, attach the adhesive-backed cork washer to the stand (not to the loudspeaker), and secure the stand to the loudspeaker with the
bolt and washer.
■ Use mounting hardware appropriate for the surface
where the loudspeaker will be installed.
■ Make sure bolts are tightened securely. Meyer Sound
recommends using Loctite
®
on bolt threads and safety
cables.
■ Inspect mounting and rigging hardware regularly. Imme-
diately replace any worn or damaged components.
UP-4XP with MSA-UPM Stand Adapter (Upside Down)
CAUTION: When mounting the UP-4XP on a
pole, make sure the pole has been rated to
support the full weight of the loudspeaker. Observe
all safety precautions specified by the pole manufacturer.
19
CHAPTER 4: QUICKFLY RIGGING
MYA-UP4 MOUNTING YOKE
The MYA-UP4 mounting yoke suspends a single UP-4XP
loudspeaker and allows a wide range of horizontal and vertical adjustment. The MYA-UP4 is available in two kits: one
with 3/8-16 hardware (PN 40.201.039.01), and one with M10
hardware (PN 40.201.039.02).
MYA-UP4 Mounting Yoke
TIP: Meyer Sound offers two kits for mounting
the UP-4XP on top of the UMS-1P subwoofer.
The MPS-UMS pole mount kit (PN 40.086.014.02)
includes a 43-inch (1090 mm), 3/8-inch (35 mm)
diameter pole assembly. The MPK-UMS pole mount
kit (PN 40.086.014.01) includes the same pole
assembly along with the MSA-UPM stand adapter.
MYA-UP4 Mounting Yoke
To install the yoke, attach it to the loudspeaker’s top and
bottom end plates with the included bolts and washers.
Tighten the bottom bolt first and then the top. A “C” or “G”
hanging clamp and steel safety cable (not included) are
required to suspend the MYA-UP4 mounting yoke.
NOTE: The top bar of MYA-UP4 mounting
yoke accommodates hanging clamps with
standard 1/2-inch or 12 mm bolts.
20
MUB-UP4 U-BRACKET
The MUB-UP4 U-bracket mounts the UP-4XP on walls, ceilings, and floors. The MUB-UP4 is available in two kits: one
with 3/8-16 knobs (PN 40.201.069.01), and one with M10
knobs (PN 40.201.069.02).
MUB-UP4 U-Bracket
To install the U-bracket, secure the loudspeaker to the
bracket with the included knobs and washers. The Ubracket’s adjustment slot lets you adjust how close the
UP-4XP is located to the mounting surface and at what
angle the loudspeaker will be positioned.
UP-4XP OPERATING INSTRUCTIONS
MUB-UP4, Horizontal Wall Mount
Ceiling-Mounting with the MUB-UP4
The UP-4XP can be mounted on a ceiling, underbalcony, or
canopy area with the MUB-UP4 U-bracket.
Wall-Mounting with the MUB-UP4
The MUB-UP4 U-bracket lets you mount the UP-4XP either
vertically or horizontally on a wall.
MUB-UP4, Vertical Wall Mount
MUB-UP4, Ceiling-Mounted
Floor-Mounting with the MUB-UP4
The UP-4XP can be mounted on a floor or stage lip (for
front-fill applications) with the MUB-UP4 U-bracket.
MUB-UP4, Floor-Mounted
21
CHAPTER 4: QUICKFLY RIGGING
22
APPENDIX A: UP-4XP ACCESSORIES
UP-4XP ACCESSORIES
The following UP-4XP accessories are available from Meyer Sound.
UP-4XP Accessories
Part Number Accessory Notes
09.205.001.01
09.205.001.02
09.205.001.03
09.205.001.04
40.201.069.01 MUB-UP4X U-bracket With 3/8-16 hardware.
40.201.069.02 MUB-UP4X U-bracket With M10 hardware.
40.201.039.01 MYA-UP4 mounting yoke With 3/8-16 hardware.
40.201.039.02 MYA-UP4 mounting yoke With M10 hardware.
40.086.013.01 MSA-UPM stand adapter With 3/8-16 and M10 hardware; pole assembly not
40.086.014.02 MPS-UMS pole mount kit 43-inch (1090 mm), 3/8-inch (35 mm) diameter pole
40.086.014.01 MPK-UMS pole mount kit 43-inch (1090 mm), 3/8-inch (35 mm) diameter pole
MPS-488HPp external power supply
(with US power cord)
MPS-488HPp external power supply
(with CE power cord)
MPS-488HPe external power supply
(with US power cord)
MPS-488HPe external power supply
(with CE power cord)
Channel Outputs equipped with Phoenix 5-pin male
connectors; use with UP-4XPs equipped with Phoenix connectors
Channel Outputs equipped with EN3 5-pin female
connectors; use with UP-4XPs equipped with EN3
connectors
included
assembly for mounting loudspeakers on top of
UMS-1P subwoofer; stand adapter not included
assembly with MSA-UPM stand adapter
NOTE: The MPS-488HP external power supply replaces the MPS-488 model, which was originally designed
for use with MM-4XP loudspeakers. The MPS-488 is also compatible with UP-4XP loudspeakers and can drive
up to four units (using every other Channel Output).
PHOENIX AND EN3 CABLE CONNECTORS AND ADAPTERS
The following UP-4XP cable connectors and adapters are available from Meyer Sound.
Phoenix and EN3 Cable Connectors and Adapters
Part Number Connector/Adapter Use
484.065 Phoenix 5-pin female cable mount connector
468.069 EN3 5-pin female cable mount connector Connects to UP-4XPs equipped with EN3 connectors
468.071 EN3 5-pin male cable mount connector
468.072 EN3 5-pin female inline cable adapter Connects to EN3 5-pin male cable mount connector
468.073 EN3 5-pin male inline cable adapter Connects to EN3 5-pin female cable mount connec-
28.163.033.01 Cable coupler EN3 5-pin female-to-male Joins two cables: one with an EN3 5-pin male cable
Connects to UP-4XPs equipped with Phoenix connectors, and MPS-488HPp Channel Outputs
Connects to
tors
mount connector to one with an EN3 5-pin female
cable mount connector
MPS-488HPe Channel Outputs
23
APPENDIX A: UP-4XP ACCESSORIES
PHOENIX AND EN3 LOUDSPEAKER CABLES
The following Phoenix and EN3 cables are available from Meyer Sound and can be used to connect UP-4XPs to
MPS-488HPs.
Phoenix and EN3 Loudspeaker Cables
Part Number Cable Color Coating Length
524.014 Bulk (no connectors) Black Regular 500 ft spool
524.015 Bulk (no connectors) White Plenum 500 ft spool
28.163.009.01 EN3 5-pin female to pigtail Black Regular 10 ft
28.163.009.11 EN3 5-pin female to pigtail White Plenum 10 ft
28.163.009.21 EN3 5-pin female to EN3 5-pin male Black Regular 10 ft
28.163.009.22 20 ft
28.163.009.23 30 ft
28.163.009.24 50 ft
28.163.009.25 100 ft
28.163.009.26 150 ft
28.163.009.31 EN3 5-pin female to EN3 5-pin male White Plenum 10 ft
28.163.009.32 20 ft
28.163.009.33 30 ft
28.163.009.34 50 ft
28.163.009.35 100 ft
28.163.009.36 150 ft
28.163.033.01 Cable coupler EN3 5-pin female-to-male (joins two cables: one with an EN3 5-pin male cable
mount connector to one with an EN3 5-pin female cable mount connector)
28.163.009.41 EN3 5-pin female to Phoenix 5-pin female Black Regular 10 ft
28.163.009.42 20 ft
28.163.009.43 30 ft
28.163.009.44 50 ft
28.163.009.45 100 ft
28.163.009.46 150 ft
28.163.009.51 EN3 5-pin female to Phoenix 5-pin female White Plenum 10 ft
28.163.009.52 20 ft
28.163.009.53 30 ft
28.163.009.54 50 ft
28.163.009.55 100 ft
28.163.033.01 150 ft
NOTE: Bulk cables use Belden 1502R (regular) or Belden 1502P (plenum) cable. Belden 1502 is a composite
cable comprised of two 18 AWG wires for DC power, two 22 AWG wires for balanced audio, and one 24 AWG
wire for audio shield. This single cable can deliver both DC power and balanced audio to loudspeakers at cable runs
of up to 150 feet with only 1 dB of loss in peak SPL. Longer cable runs are possible with heavier gauges for DC
power and separate cables for balanced audio. For more information, see “UP-4XP Current Draw and Cable
Requirements” on page 13.
24
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY
!
Cable clamp
housing
Boot Coupling ring
Cord connector
CAUTION: When wiring UP-4XP loudspeaker cables, it is extremely important that each pin be wired correctly.
Make sure the 48 V DC from the external power supply is wired directly (and only) to the 48 V DC pins on the
UP-4XP loudspeaker connector, and that the polarity is observed (negative to negative, positive to positive) to avoid
damage to the loudspeaker. In addition, make sure that audio pins are wired correctly; polarity reversals for audio signals affect system performance.
ASSEMBLING EN3-TO-EN3 LOUDSPEAKER CABLES
When connecting UP-4XP loudspeakers equipped with EN3 connectors to the MPS-488HPe power supply, you need an
EN3 5-pin female to EN3 5-pin male cable. The following procedure documents how to assemble this cable. If you are starting with an EN3-to-pigtail cable, you can skip step 5 in this procedure.
NOTE: Cable mount connectors cannot connect to other cable mount connectors. Cable mount connectors
can only connect to panel mount connectors (like those on the UP-4XP and MPS-488HPe) or inline connec-
tors. To extend cables with EN3 connectors on both ends you can use an EN3 5-pin female-to-male cable coupler.
Assembled EN3-to-EN3 Cable
To assemble an EN3-to-EN3 loudspeaker cable:
1. Disassemble the EN3 5-pin male connector and feed one end of the cable through the boot, cable clamp housing, and
coupling ring.
Disassembled EN3 5-Pin Male Cable Mount Connector
25
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY
1”
0.275”
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
Pin #2, Red,
48 V DC (+)
Pin #1, Black,
48 V DC (–)
Pin #3, Shield drain,
audio shield
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
REAR
FRONT
Dimple identifies Pin #1
2. If the cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and white wires
.275 inch.
3. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme.
Pin Destinations for EN3 5-Pin Male Cable Mount Connector
4. Reassemble the EN3 5-pin male connector:
■ Align the coupling ring’s side notches with the cord connector’s side notches and slide the couple ring onto the cord
connector.
■ Carefully insert the end of the cable clamp housing into the cord connector until it locks into place. Snap the cable
clamps in the cable clamp housing into their compartments.
■ Slide the boot forward so it covers the cable clamp housing completely.
26
UP-4XP OPERATING INSTRUCTIONS
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
Pin #2, Red,
48 V DC (+)
Pin #1, Black,
48 V DC (–)
Pin #3, Shield drain,
audio shield
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
REAR
FRONT
Dimple identifies Pin #1
1”
0.275”
5. Repeat the previous steps to attach the EN3 5-pin female connector to the other end of the cable.
Pin Destinations for EN3 5-Pin Female Cable Mount Connector
ASSEMBLING EN3-TO-PHOENIX LOUDSPEAKER CABLES
When connecting UP-4XP loudspeakers equipped with EN3 connectors to the MPS-488HPp power supply, you need an
EN3 5-pin female to Phoenix 5-pin female cable. The following procedure documents how to assemble this cable. If you are
starting with an EN3-to-pigtail cable, you can skip steps 4–7 in this procedure.
Assembled EN3-to-Phoenix Cable
To assemble an EN3-to-Phoenix cable:
1. If cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and white wires
.275 inch.
27
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY
Pin #1 Black 48 V DC (–)
Pin #2 Red 48 V DC (+)
Pin #3 Shield drain Audio shield
Pin #4 Blue Audio (–)
Pin #5 White Audio (+)
Connector side upSide (cable attached)
Tighten screws
Cable clamp
housing
Boot Coupling ring
Cord connector
2. Insert the five exposed conductors into the five cable holes in the Phoenix connector using the following wiring scheme.
Phoenix 5-Pin Female Cable Mount Connector
3. Secure the conductors by tightening the five screws in the Phoenix conductor.
4. Disassemble the EN3 5-pin female connector and feed one end of the cable through the boot, cable clamp housing, and
coupling ring.
Disassembled EN3 5-Pin Female Cable Mount Connector
5. If the EN3 end of the cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and
white wires .275 inch.
28
UP-4XP OPERATING INSTRUCTIONS
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
Pin #2, Red,
48 V DC (+)
Pin #1, Black,
48 V DC (–)
Pin #3, Shield drain,
audio shield
Pin #5, White,
audio (+)
Pin #4, Blue,
audio (–)
REAR
FRONT
Dimple identifies Pin #1
1”
0.275”
6. Solder the five exposed conductors to the five pins on the EN3 cord connector using the following wiring scheme.
Pin Destinations for EN3 5-Pin Female Cable Mount Connector
7. Reassemble the EN3 5-pin female connector:
■ Align the coupling ring’s side notches with the cord connector’s side notches and slide the couple ring onto the cord
connector.
■ Carefully insert the end of the cable clamp housing into the cord connector until it locks into place. Snap the cable
clamps in the cable clamp housing into their compartments.
■ Slide the boot forward so it covers the cable clamp housing completely.
ASSEMBLING PHOENIX-TO-PHOENIX LOUDSPEAKER CABLES
When connecting UP-4XP loudspeakers equipped with Phoenix connectors to the MPS-488HPp power supply, you need a
Phoenix 5-pin female to Phoenix 5-pin female cable. The following procedure documents how to assemble this cable.
Assembled Phoenix-to-Phoenix Cable
To assemble a Phoenix-to-Phoenix cable:
1. If the cable has not yet been stripped, strip one end of the cable. Strip the outer shielding by 1 inch and then strip the
black, red, blue, and white wires by .275 inch.
29
APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY
Pin #1 Black 48 V DC (–)
Pin #2 Red 48 V DC (+)
Pin #3 Shield drain Audio shield
Pin #4 Blue Audio (–)
Pin #5 White Audio (+)
Connector side upSide (cable attached)
Tighten screws
2. Insert the five exposed conductors, from one end of the cable, into the five cable holes in one of the Phoenix connectors.
Use the following wiring scheme.
Phoenix 5-Pin Female Cable Mount Connector
3. Secure the conductors by tightening the five screws in the Phoenix connector.
4. Repeat the previous steps and attach the other end of the cable to the other Phoenix connector.
5. Verify the wiring polarity is correct for both connectors.
30
APPENDIX C: WEATHER PROTECTION
UP-4XP LOUDSPEAKERS WITH WEATHER PROTECTION
A weather-protected version of the UP-4XP with a sealed
EN3 connector is available for fixed, outdoor installations.
The weather-protected UP-4XP differs from the normal
model in that the orientation of the loudspeaker is flipped
and its rear panel connector are located at the top instead of
the bottom.
Installing Weather-Protected UP-4XP Loudspeakers
The weather-protected UP-4XP can be mounted vertically or
horizontally but must be mounted with a 0-degree tilt, or
preferably with downtilt, to ensure the loudspeaker’s electronics are shielded from the elements.
Weather-Protected UP-4XP, Rear View
Weather-Protected UP-4XP, Front View
31
APPENDIX C: WEATHER PROTECTION
32
APPENDIX D: UP-4XP SPECIFICATIONS
UP-4XP Specifications
ACOUSTICAL
Operating Frequency Range 66 Hz – 18 kHz
Note: Recommended maximum operating frequency range. Response depends on loading conditions and room acoustics.
Frequency Response 72 Hz – 17.5 kHz ±4 dB
Note: Measured free-field with pink noise at 1 meter, 1/3rd octave resolution.
Maximum Peak SPL 121 dB
Note: Measured free-field with music, referred to 1 meter.
Dynamic Range > 105 dB
Note: Taken from peak SPL, referred to A-wtd noise floor.
Phase Response 360 Hz – 12 kHz ±45°
Coverage 100° symmetrical
Acoustical Crossover 1.5 kHz
Note: At this frequency, the transducers produce equal sound pressure levels.
TRANSDUCERS
Low Frequency Two 4" low-frequency cone driver
High Frequency One 1" metal dome tweeter
CONNECTOR
Audio/Power Connector Phoenix 5-pin male or EN3 5-pin male
(3 pins for balanced audio, 2 pins for DC power)
Power Wiring Pin 1: 48 V DC –
Pin 2: 48 V DC +
Audio Wiring Pin 3: Chassis/earth through 220 k, 1000 pF, 15 V clamp network to provide virtual ground lift at
audio frequencies
Pin 4: Signal –
Pin 5: Signal +
AUDIO INPUT
Type Differential, electronically balanced
Maximum Common Mode Range ±5 V DC
Input Impedance 10 k differential between pins 4 (–) and 5 (+)
DC Blocking Differential DC blocking up to the maximum common mode voltage
CMRR >50 dB, typically 80 dB (50 Hz – 500 Hz)
RF Filter Common mode: 425 kHz
Differential mode: 142 kHz
TIM Filter <80 kHz, integral to signal processing
Nominal Input Sensitivity –2.0 dBV (0.80 V rms, 1.12 V peak) continuous average is typically the onset of limiting for noise
and music
Input Level Audio source must be capable of producing +16 dBV (6.3 V rms, 9.0 V peak) into 600 to produce
the maximum peak SPL over the operating bandwidth of the loudspeaker
AMPLIFIER
Amplifier Type Three-channel (class D)
33
APPENDIX D: UP-4XP SPECIFICATIONS
o
f
N
o
r
t
h
A
m
e
r
i
c
a
,
I
n
c
.
C
US
T
U
V
R
h
e
i
n
l
a
n
d
UP-4XP Specifications
Output Power 500 W total for all three channels
Note: Wattage rating based on the maximum unclipped burst sine-wave rms voltage the amplifier
will produce into the nominal load impedance.
THD, IM TIM <.02%
Load Capacity 4 each low channel, 8 high channel
Cooling Convection
DC POWER
Voltage Requirement 48 V DC
Current Draw Note: At 48 V DC.
Idle Current 0.23 A rms
Maximum Long-Term
1.00 A rms
Continuous Current
Burst Current 4.05 A rms
Ultimate Short-Term
4.50 A peak
Peak Current
Inrush Current < 4.0 A peak
PHYSICAL
Enclosure Premium birch plywood
Finish Black textured
Protective Grille Powder-coated, hex-stamped steel with black mesh screen
Rigging Top and bottom plates available with 3/8”-16 or M10 threads
Dimensions 13.84” W x 5.54” H x 5.25”
(352 mm x 141 mm x 133 mm)
Weight 12.2 lbs (5.53 kg)
ENVIRONMENTAL
Operating Temperature 0° C to +45° C
Non Operating Temperature <–40° C or >+75° C
Humidity To 95% at 35° C
Operating Altitude To 4600 m (15,000 ft)
Non operating Altitude To 95% at 35° C
Shock 30 g 11 msec half-sine on each of 6 sides
Vibration 10 Hz – 55 Hz (0.010 m peak-to-peak excursion)
UP-4XP COMPLIANCE
(Pending) (Pending)
34
UP-4XP DIMENSIONS
13.84
[352 mm]
5.54
[141 mm]
5.04
[128 mm]
6.50
[165 mm]
5.25
[133 mm]
2.60
[66 mm]
5.25
[133 mm]
13.84
[352 mm]
16.52
[420 mm]
6.86
[174 mm]
5.54
[141 mm]
4.38
[111 mm]
4.86
[123 mm]
12.50
[317 mm]
Ø0.27 (x8)
[Ø7 mm]
2.75
[70 mm]
14.15
[359 mm]
UP-4XP Dimensions
UP-4XP OPERATING INSTRUCTIONS
UP-4XP with MUB-UP4 U-Bracket Dimensions
35
APPENDIX D: UP-4XP SPECIFICATIONS
16.64
[423 mm]
10.00
[254 mm]
Ø0.53
[Ø13 mm]
6.62
[168 mm]
16.33
[415 mm]
8.63
[219 mm]
14.86
[377 mm]
1.00
[25 mm]
MYA-UP4 Mounting Yoke Dimensions
36
Meyer Sound Laboratories Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
www.meyersound.com
T: +1 510 486.1166
F: +1 510 486.8356
Meyer Sound. All rights reserved.
UP-4XP Operating Instructions,
© 2011
PN 05.201.005.01 A2
