INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 1
OCTOBER, 2013
PV SERIES
GAS-DRIVEN (HONDA AND BRIGGS & STRATTON)
MODELS LISTED IN THIS BOOKLET
HYDRAULIC
BASE LINE
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 3
OCTOBER, 2013
PV SERIES
THE BEST SAFETY
DEVICE IS A
CAREFUL OPERATOR
SAFETY ALERT SYMBOL
THIS SYMBOL MEANS ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
PLEASE READ AND UNDERSTAND COMPLETELY BEFORE DOING!
SAFE EQUIPMENT INSTALLERS and OPERATORS:
turn off all power before performing any service operations
• follow recommenDeD operating proceDures.
• Keep eQuipment in safe operating conDition at all times.
• recogniZe anD avoiD HaZarDs wHile operating, servicing anD
maintaining eQuipment.
NOTICE: INSTRUCTIONAL MATERIAL AND PARTS LISTS INCLUDED IN THIS MANUAL ARE
SUBJECT TO CHANGE WITHOUT NOTICE.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
WARNING
USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY
EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.
WARNING
USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY
EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.
10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the
solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the
positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable
to the negative terminal of the battery.
11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all
wires are away from moving parts and lower engine shroud.
12. Plug cable from spreader into socket mounted on truck.
Never operate machine with engine shroud in the upright position. Never climb into hopper
while the engine is operating or capable of being operated.
SERIOUS INJURY or DEATH MIGHT OCCUR.
NOTE: Read and fully understand the owners manual supplied by the engine manufacturer
before operating this equipment. Not doing so, endangers your safety and the warranty
of the engine.
WARNING
00108-760-01-REV-B
Page 4
OCTOBER, 2013
PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
WARNING
USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY
EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.
10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the
solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the
positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable
to the negative terminal of the battery.
11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all
wires are away from moving parts and lower engine shroud.
12. Plug cable from spreader into socket mounted on truck.
WARNING
00108-760-01-REV-B
Page 5
OCTOBER, 2013
PV SERIES

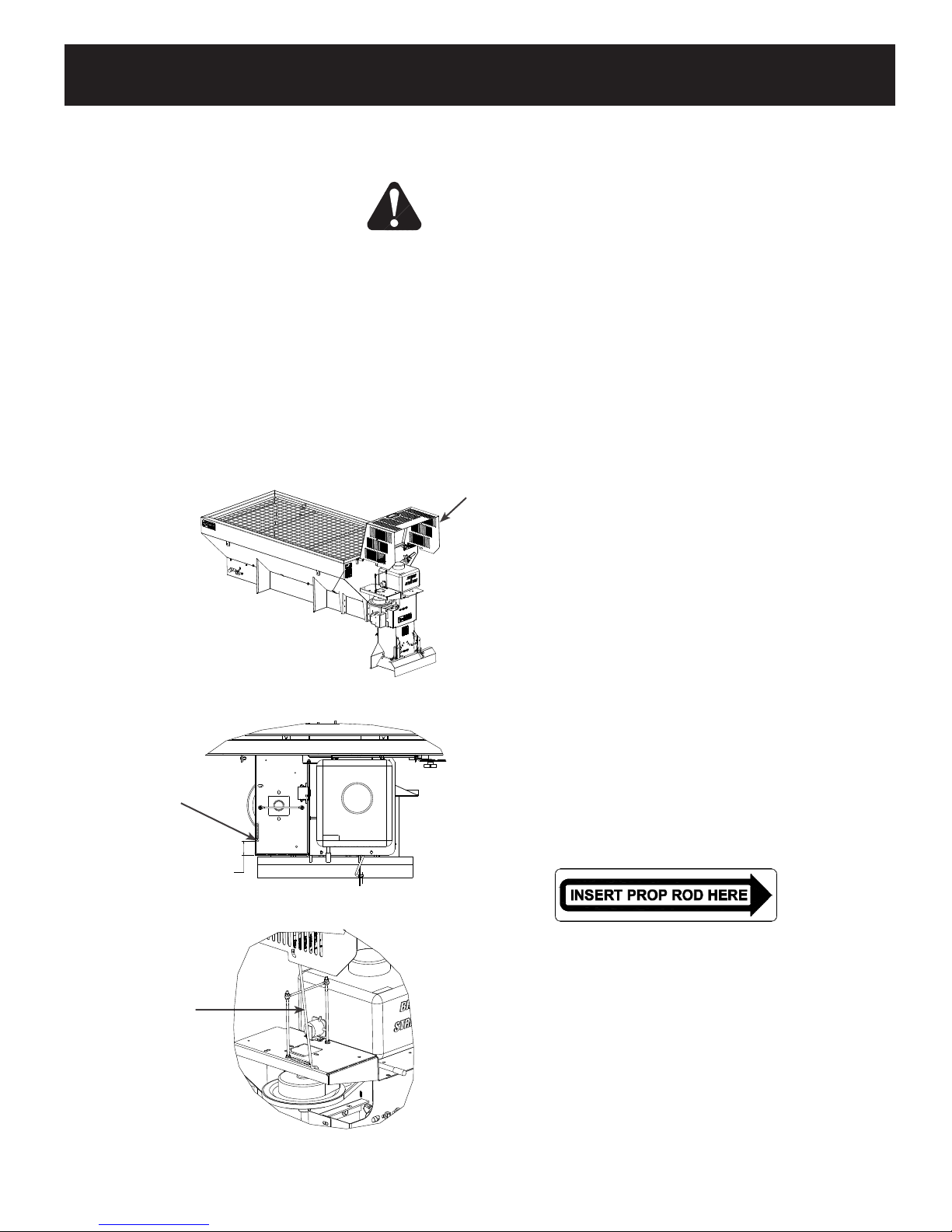

ENGINE COVER PROP ROD INSTRUCTIONS
To prevent injury extreme caution must be used when opening, closing, or working under or near the engine
cover. To prevent the engine cover from falling the prop rod must be fully engaged into the proper hole.
Never operate or transport the spreader with the engine cover open.
Some maintenance proceedures may require the engine cover to be completley removed from the spreader to
allow full access to the gasoline engine or other components. The engine cover must be reinstalled and in the
closed position before starting engine or operating spreader.
Engine
Cover
1. Raise engine cover.
2. Locate the prop rod and remove it
from the plastic retainer allowing the
prop rod to swing down.
Hole
3. Locate the hole on the spreader
marked “insert prop rod here” and
slowly lower the engine cover until the
prop rod fully engages in to this hole.
2.500
(Top View of Spreader with engine cover removed)
4. Carefully release the engine cover
Prop Rod
while ensuring it is being solidy supported by the prop rod.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

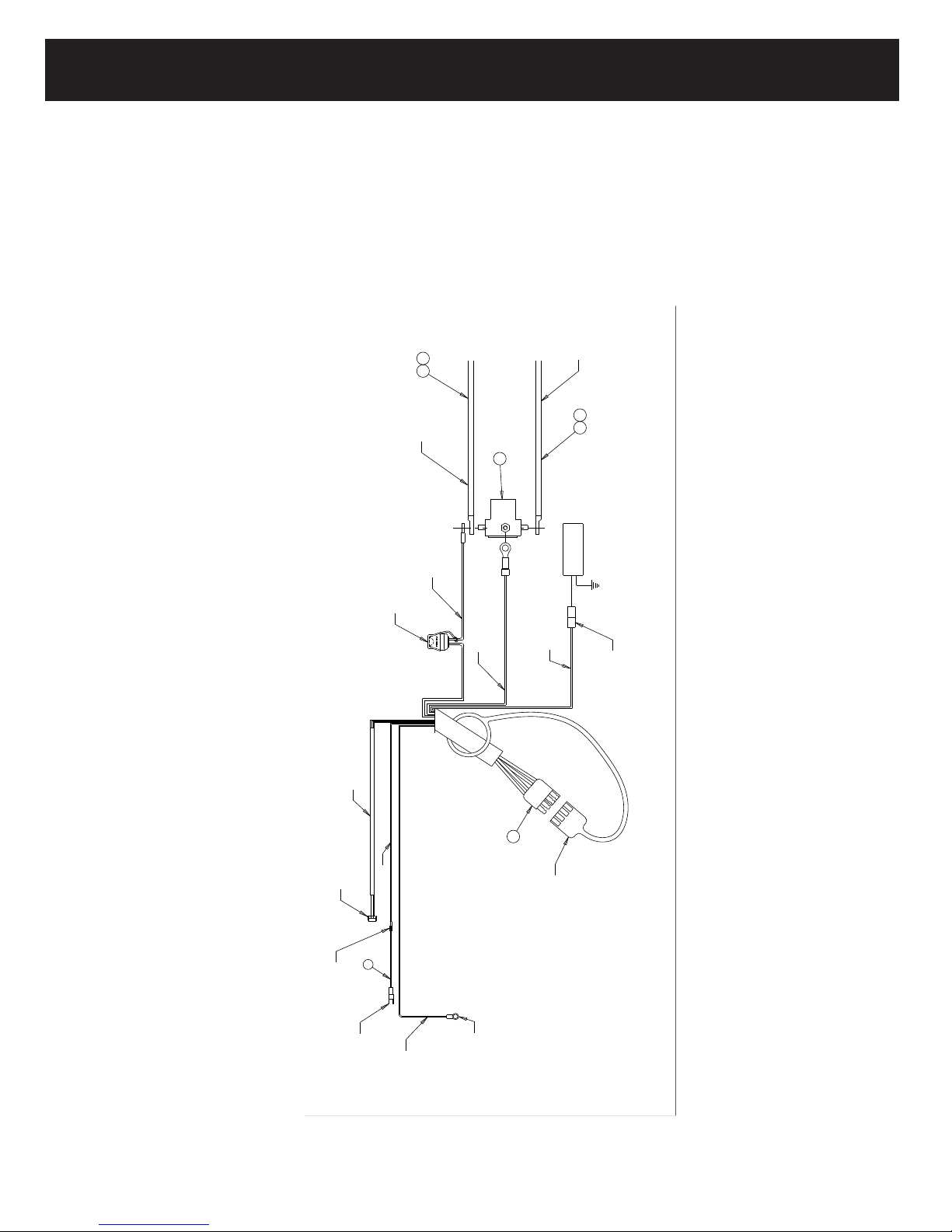

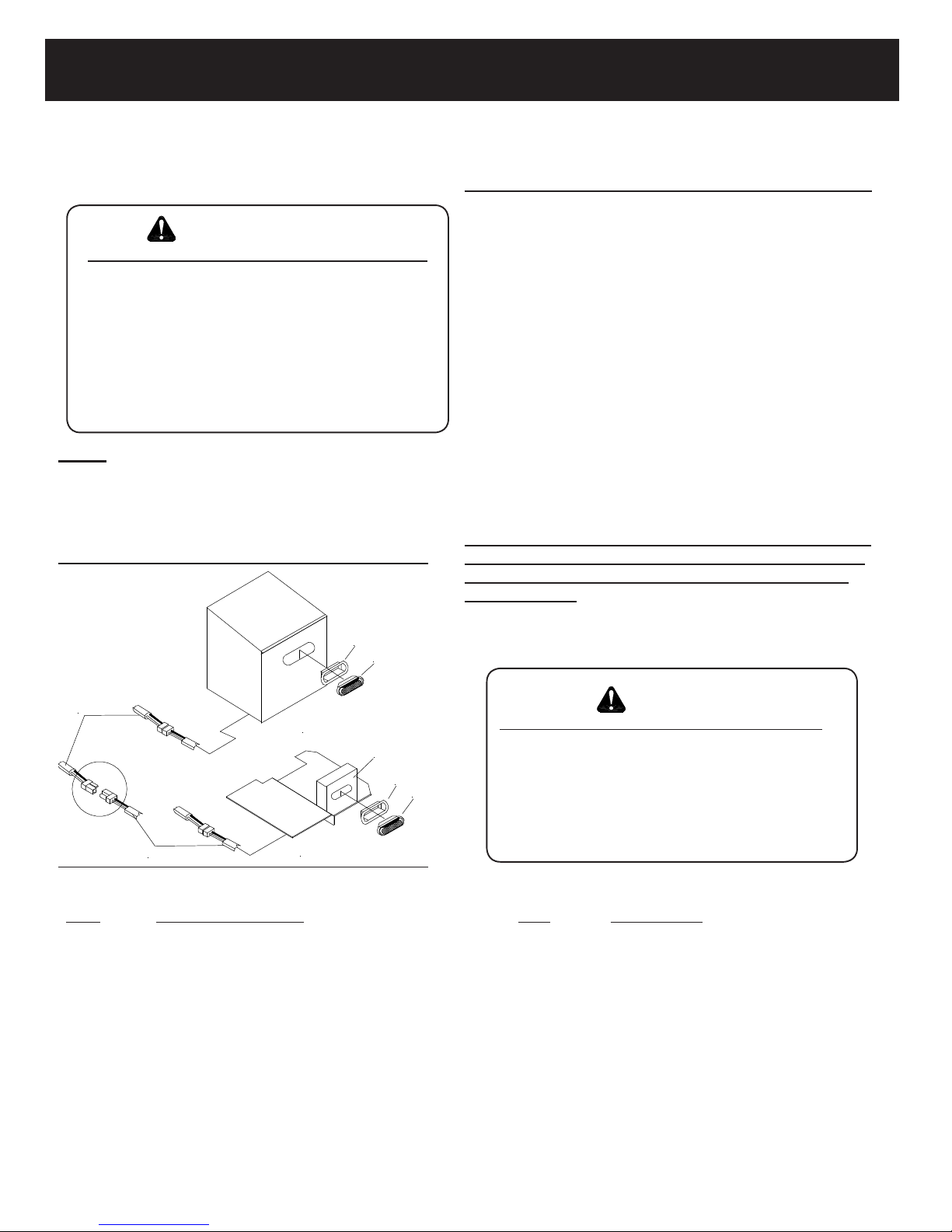

CENTER HIGH MOUNTING STOP LIGHT
ITEM PART NO. QTY. DESCRIPTION
62097 1 Kit, Center High Mount Stop Light
1 62714 1 • Lamp, Stop
2 62715 1 • Grommet
3 62364 1 • Cable, Light Power
4 62738 1 • Cable, Stop Lamp
5 62283 1 • Weld, Stop Lamp Bracket - Hydraulic Units ONLY
6 62739 1 • Hardware Bag - Not Shown
00108-760-01-REV-B
Page 6
OCTOBER, 2013
1.
Use high quality butt connectors and shrink wrap on
all electrical splice connections. Wire should be routed
and secured to protect against abrasion, sharp edges,
and excessive movement. It is highly recommended that
wiring be placed in convoluted tubing and secured with
tie wraps
2. When drilling holes, any bare metal should be coated with
a rust preventative; use appropriate size grommets and seal
hole with appropriate sealant.
3. Allow for normal movement/twisting between
cab and chassis/pickup box when routing wires.
4. When spreader is removed from the truck, the
must be reconnected.
2
1
3
4
(GAS ENGINE)
(HYDRAULIC)
5
2
1

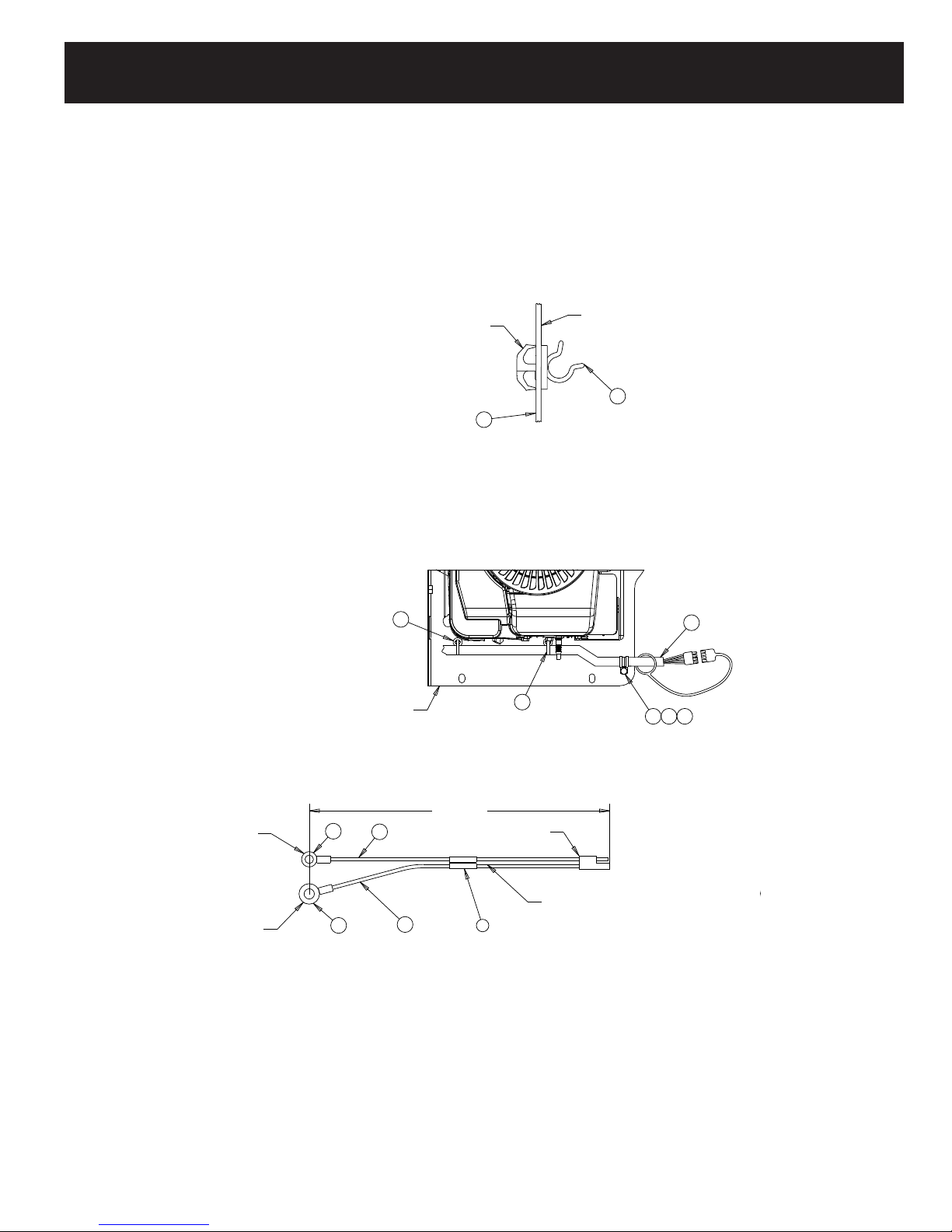

Item Part Number Qty. Description
1 62714 04605-153-00 1 Lamp, Stop
2 62715 04605-154-00 1 Grommet, Mounting
3 62364 04605-155-00 1 Cable, Light Power (Hopper)
4 62738 04616-075-00 1 Cable, Stop Lamp Power (Truck)
5 63155 00119-878-00 1 Forming, Rear Stop Light Bracket
CS (Hydraulic units only)
64076 00119-878-01 Stainless steel bracket.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 7
OCTOBER, 2013
PV SERIES
INST ALLATION AND ASSEMBLY INSTRUCTIONS
CAUTION!
READ ALL OF THE INSTALLATION
INSTRUCTIONS BEFORE STARTING.
INSTALLATION INSTRUCTIONS:
The PV Series Spreader can be mounted and stored
as a single unit. The PV Series Spreader will mount
on most medium or heavy-duty pickup trucks as well
as 1 ton trucks (with optional extended spinner).
WARNING!
THE SPREADER UNIT MUST BE SECURELY
FASTENED TO THE VEHICLE. FAILURE TO
PROPERLY RESTRAIN THE UNIT COULD
PERMIT THE UNIT TO BREAK FREE FROM THE
TRUCK AND CREATE THE POTENTIAL FOR A
LIFE THREATING ACCIDENT.
DO NOT OVERLOAD THE VEHICLE
It is quite possible to overload the vehicle by improperly mounting or overloading the spreader. This
could result in dangerous stability and braking problems. Always consult and follow the vehicle manufacturer’s recommendations before attempting these
instructions.
WARNING!
1. Place the spreader in the rear of the truck with
the engine/motor to the rear of the truck. Center the
spreader(side to side) in the truck.
2. Attach or lower spinner assembly.
CAUTION!
ENSURE THE SPREADER CANNOT TIP WHEN THE SPIN-
NER ASSEMBLY IS ATTACHED.
3. Position the spreader in the truck bed, just short of making
contact with the rear most part of the truck bed, bumper, pintle hook etc. Bolt the unit to the truck using a
minimum of four (4) 1/2” Grade 5 bolts and corresponding washers and locknuts. The spreader is designed to
sit at on the bed of the truck, supported by the longitudinal sides.
DO NOT SUPPORT THE SPREADER BY THE BODY
JACKS ALONE! UNIT IS NOT DESIGNED FOR CHASSIS
MOUNT APPLICATIONS!
CAUTION!
DO NOT SUPPORT THE SPREADER BY
THE BODY JACKS ALONE! UNIT IS NOT
DESIGNED FOR CHASSIS MOUNT APPLI-
CATIONS.!
BEFORE BEGINNING ANY INSTALLATION ON
THIS UNIT, DISCONNECT THE SPREADER AND
VEHICLE NEGATIVE BATTERY CABLES.
CAUTION!
BEFORE STARTING, VERIFY THAT THIS
MOUNTING METHOD IS ACCEPT ABLE TO THE
VEHICLE MANUFACTURER.
5. Attach the hold down at each corner of the hopper
as shown. Locate and drill four .531(17/32”) diameter
holes for eyebolts in the truck bed. Straps must be positioned at opposing angles so that the spreader cannot
slide forward or rearward. Assemble ratchet/strap to
eye bolts. Tighten hold downs evenly. Do not overtighten, damage will result to the spreader or the truck.
Note: If vehicle is equipped with sufcient
tie downs, they may be used in place of
eyebolts.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
OPTIONAL HOLD-DOWN KIT
Part No. 62562 (00002-306-00)
INSTALLATION INSTRUCTIONS
READ ALL THE INST
ALLA
TION INSTRUCTIONS BEFORE ST
ARTING
Before starting, verify that this mounting is acceptable to the vehicle manufacturer.
At tach th e hold do wn at eac h corne r of hopp er as sho wn. Locat e an d drill f ou r .531
(17/32”) diameter holes for eye-bolts in the truck bed (position may vary from that shown). Straps must be
positioned at opposing angles so that spreader cannot slide forward or rearward. Mount eye-bolts as
shown, with locknuts and flatwashers on the bottom side. Assemble ratchet/strap to eye-bolts. Tighten
hold downs evenly. Do not over tighten damage will result to the spreader or the truck.
ITEM PART NUMBER QTY. DESCRIPTION
1 62602 04068-038-00 4 Ratchet/Strap
2 62807 04048-504-02 4 Bolt, 1/2” Eye
3 20307 04003-804-06 4 Locknut, 1/2-13 Esna ZP
4 62604 04003-801-11 4 Nut, 1/2-13 Hex ZP
5 62605 04004-002-16 8 Flatwasher, 3/4"
CAUTION
1
2
4
5
00108-760-01-REV-B
Page 8
OCTOBER, 2013
PV SERIES

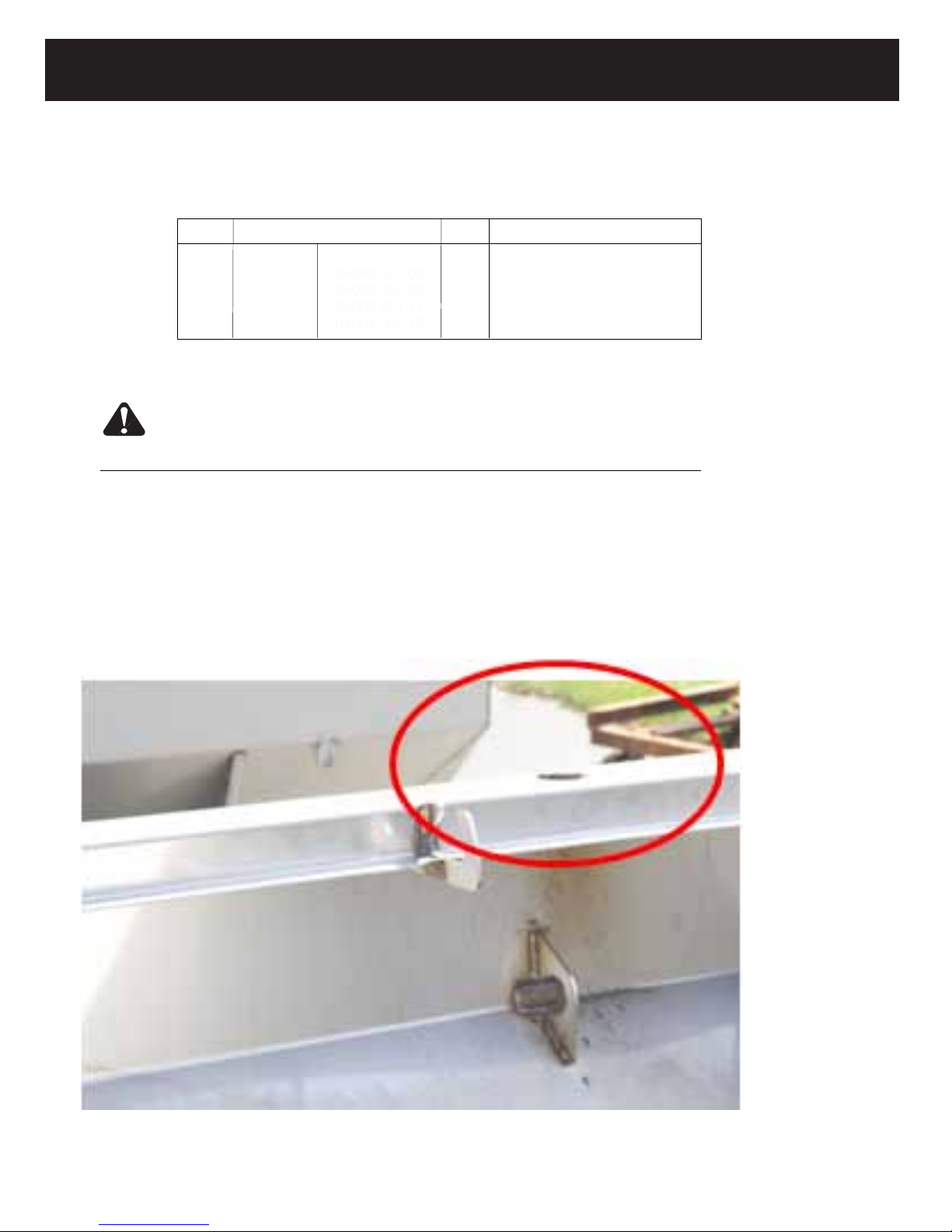

INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
OPTIONAL HOLD-DOWN KIT
Part No. 62562 (00002-306-00)
INSTALLATION INSTRUCTIONS
READ ALL THE INST
ALLA
TION INSTRUCTIONS BEFORE ST
ARTING
Before starting, verify that this mounting is acceptable to the vehicle manufacturer.
At tach th e hold do wn at eac h corne r of hopp er as sho wn. Locat e an d drill f ou r .531
(17/32”) diameter holes for eye-bolts in the truck bed (position may vary from that shown). Straps must be
positioned at opposing angles so that spreader cannot slide forward or rearward. Mount eye-bolts as
shown, with locknuts and flatwashers on the bottom side. Assemble ratchet/strap to eye-bolts. Tighten
hold downs evenly. Do not over tighten damage will result to the spreader or the truck.
ITEM PART NUMBER QTY. DESCRIPTION
1 62602 04068-038-00 4 Ratchet/Strap
2 62807 04048-504-02 4 Bolt, 1/2” Eye
3 20307 04003-804-06 4 Locknut, 1/2-13 Esna ZP
4 62604 04003-801-11 4 Nut, 1/2-13 Hex ZP
5 62605 04004-002-16 8 Flatwasher, 3/4"
CAUTION
00108-760-01-REV-B
Page 9
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 10
OCTOBER, 2013
PV SERIES
A. ON/Off System power activated (ready to
start). Spreader engine not running.
Spreader conveyor is not engaged.
B. START (Engine Only)
1. Open fuel shut off valve on engine.
CHOKE (Cold engine.) Hold down for
5 seconds to move the throttle
actuator to the choke position.
2. S
TART Hold down button until engine
URTLE Decreases throttle speed - adjust
3. T
R
ABBIT Increases throttle speed.
C. TO ENGAGE SPREADER CONVEYOR
1. CONVEYOR Push CONVEYOR switch only after
D. TO CONTROL CONVEYOR SPEED
1. RABBIT Hold RABBIT to increase speed.
Note
2. TURTLE Hold TURTLE to decrease speed.
E. TO DISENGAGE SPREADER CONVEYOR
1. CONVEYOR Push conveyor button.
starts.
asengine warms up. Will stop the
choke function.
you are sure no one is in the
or near the spinner!
DO NOT hold switch in HI position
after the desired RPM is achieved
you will choke and/or stall the
or
engine.
Standard
(Sequence of Operations)
hopper
F. TO TURN ENGINE OFF (With or without conveyor
running).
1. TURTLE Push throttle slow button to
reduce setting to idle (this prevents
engine flooding and hard starting).
2. STOP Push STOP button and hold
5 seconds.
G. Do not attempt to start the engine
with the conveyor engaged.
H. Close fuel shut off valve on engine if
unit is to be transported while not
running.
1. As with all power equipment, safety is the number
one concern.
2. Do not operate this equipment until you fully
understand how it functions.
3. Before starting engine, be sure that no one is near
the rear of the unit and that no one is inside the
unit!
4. Do not start the engine or engage the conveyor
(which is interconnected to the spinner) until
everyone is clear from moving parts and flying
material from the spinner.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
The wireless controller is a compact unit with t wo parts. One part is the Base Unit (Receiver) and the
other part is the Transmitter (Hand Held Controller). The Transmitter is used to send a corresponding
signal to the Base Unit to act as a remote switching device.
B
”
“
00108-760-01-REV-B
Page 11
OCTOBER, 2013
Meyer Products Standard
For use with Gas Engine packages
The Meyer Wireless Controller comes factory programmed. That means matching the Base Unit to
the Transmitter has been done by
@ 418MHz) interface between the Transmitter and Base Unit. See Figures 1 & 2 for Transmitter button
assignments. On the 8 button
When programming is completed, only (5) buttons are functional (Buttons #1, #3, #4, #5, & #6) ( see Fig.
1).
Meyer Products. This gives a matched ( 1 of 16 million combinations
Meyer Products Transmitter, all (8) buttons are used when programming.
Button #7 (open button)
Button#5 (engine start)
Button #8 (open button)
Button #6 (engine off)
Button #3 (Throttle decrease)
utton #1 (clutch on/off)
ADD” Button
depress with paperclip
Button #4 (Throttle increase)
& “Hold to Choke
Button #2 (open button)
Fig. 1: Transmitter Front Button Assignments
“blue” LED
Fig. 2: Transmitter Back Button Assignments
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
(“b
)
00108-760-01-REV-B
Page 12
OCTOBER, 2013
PV SERIES
STANDARD RECEIVER
Programming “red” LED
“LEARN” Button
lack”press button
Antenna (coiled) Male Connector
Fig. 3: Base Unit layout (Figure shown without Base Unit Cover)
Programming/Reprogramming the Transmitter and the Base Unit:
Tools needed: A small “phillips” screwdriver and a small diamet er pin (paper clip).
Instructions to program Transmitter and Base Unit:
1. Remove (4) screws and cover on Base Unit.
2. Power-up the Base Unit. Connect a 12V power source to the spreader 12V battery terminals and
plug the engine wire harness to the Base Unit wire harness (see Male Connector in Fig. 3). DO
NOT DISCONNECT THE BATTERY TERMINALS from the 12V source when engine is running.
3. On the backside of the Transmitter depress the “ADD
paper clip – You will see a “blue” LED start to blink (for approximately 15-17 seconds).
4. On the front side of the Transmitter press all (8) buttons (see Fig. 1). There is no certain order to
press the buttons. Firmly press each button, separately. Perform this step before the 15-17 seconds
are up (before “blue” LED stops blinking). T he Transmitter is now programmed and has created its
own 1 in 16 mi llion address. Once the “blue” LED stops blinking, this step is completed.
5. On the Base Unit ( see Fig. 3) press the black “LEARN
(for approximately 15-17 seconds).
6. On the front side of the Transmitter you only need to press Button #1 (clutch on/off), once.
Perform this step before the 15-17 seconds are up (before “red” LED stops blinking). The base unit
has now recognized the Transmitters unique 1 in 16 million address. Once the “red” LED stops
blinking, this step is completed.
7. Verify the (5) functional buttons (Buttons #1, #3, #4, #5, & #6) on the Transmitter are wo
the Spreader Unit by pressing each button, individually (the B ase Unit “red” LED will flash when a
Transmitter button is pressed). If Transmitter buttons are not working, repeat steps 3 – 8 or see the
Trouble shooting directions.
8. When Transmitter buttons are functioning properly, re-assemble the Cover on the Base Unit with
the (4) screws. Your Meyer Products Wireless Controller is now ready to use!
” button (see Fig. 2) using a small pin or
” button. The “red” LED will start to blink
rking with
INSTALLATION AND INSTRUCTIONAL MANUAL
)
)
00108-760-01-REV-B
Page 13
OCTOBER, 2013
The Variable speed Wireless DC Motor Controller provides RPM control for a single, 2
pole DC motor that can output 180 amps for up to 5 seconds and a continuous amperage
of up to 80 amps. The speed or RPM control is done by providing the user 5 outputs,
approximately 1/5 of the maximum motor RPM. The also incorporates a full
RPM feature the runs the motor full speed for 6 seconds and then automatically shuts off
and an E-Stop.
To protect the motor and electronics, the
include:
PV SERIES
Meyer Products Variable Speed
For use with Electric Packages
variable speed has built-in safety circuits. These
• Automatic shut down if motor is locked up. How this is done is if the receiver
senses a current draw of more than 180 amps for more than 10mS the unit will
shut down from 1 to 30 seconds.
• Automatic shut off if the current draw does not drop below 80 amps after 5
seconds. Once again, the receiver will shut down for 1 to 30 seconds.

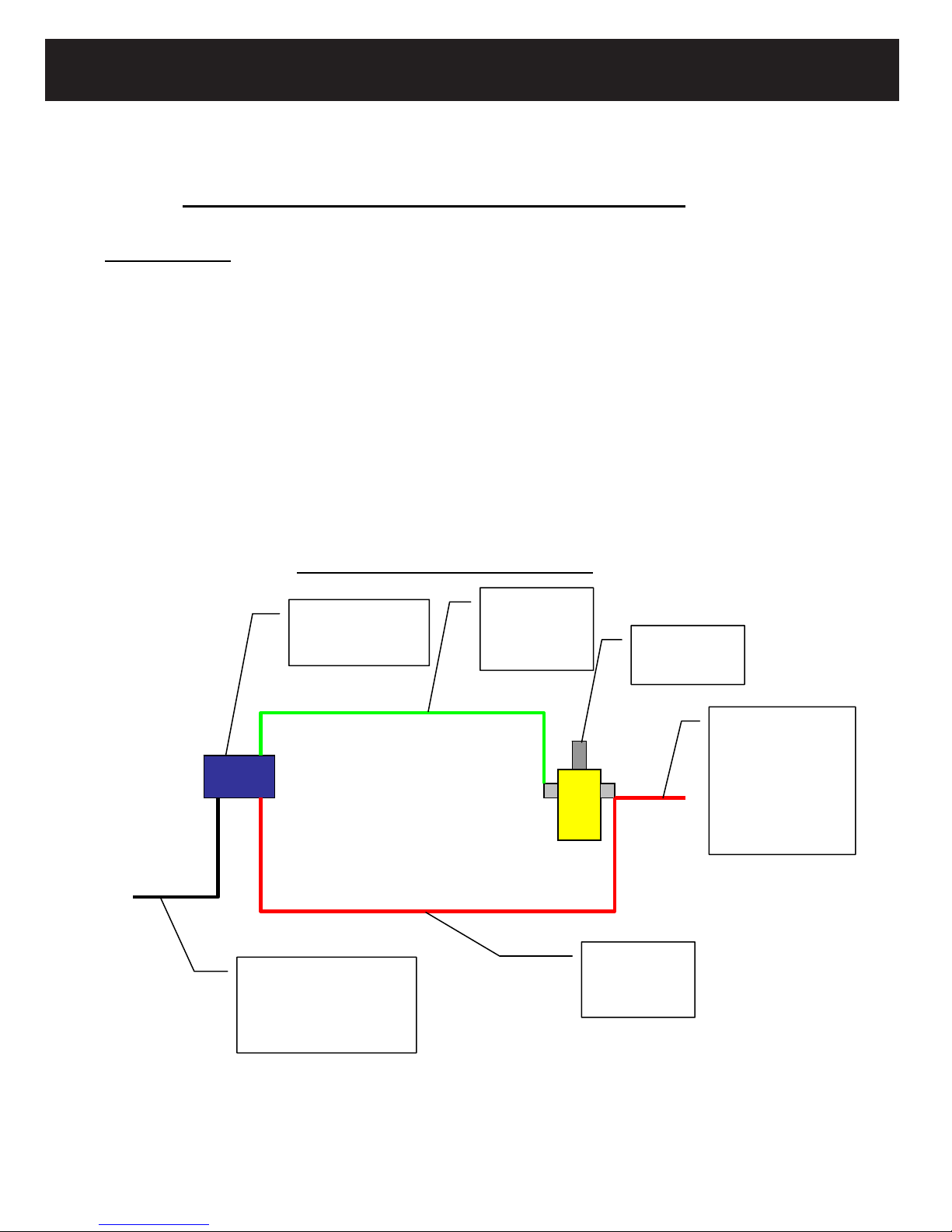

Typical Wiring Connection Diagram
Variable speed
RECEIVER
GROUND DIRECT
FROM POWER
SOURCE (BLACK
WIRE
PWM OUT
(GREEN
WIRE)
12VDC
MOTOR
DC POWER
SUPPLY
FROM
REGULATED
12VDC
SOURCE
12VDC IN
(RED
WIRE
INSTALLATION AND INSTRUCTIONAL MANUAL
Button #7 (open button)
control speed
Numbered buttons
Button #1 ( on)
00108-760-01-REV-B
Page 14
OCTOBER, 2013
PV SERIES
PV SERIES
OPERATION:
Button #8 (open button)

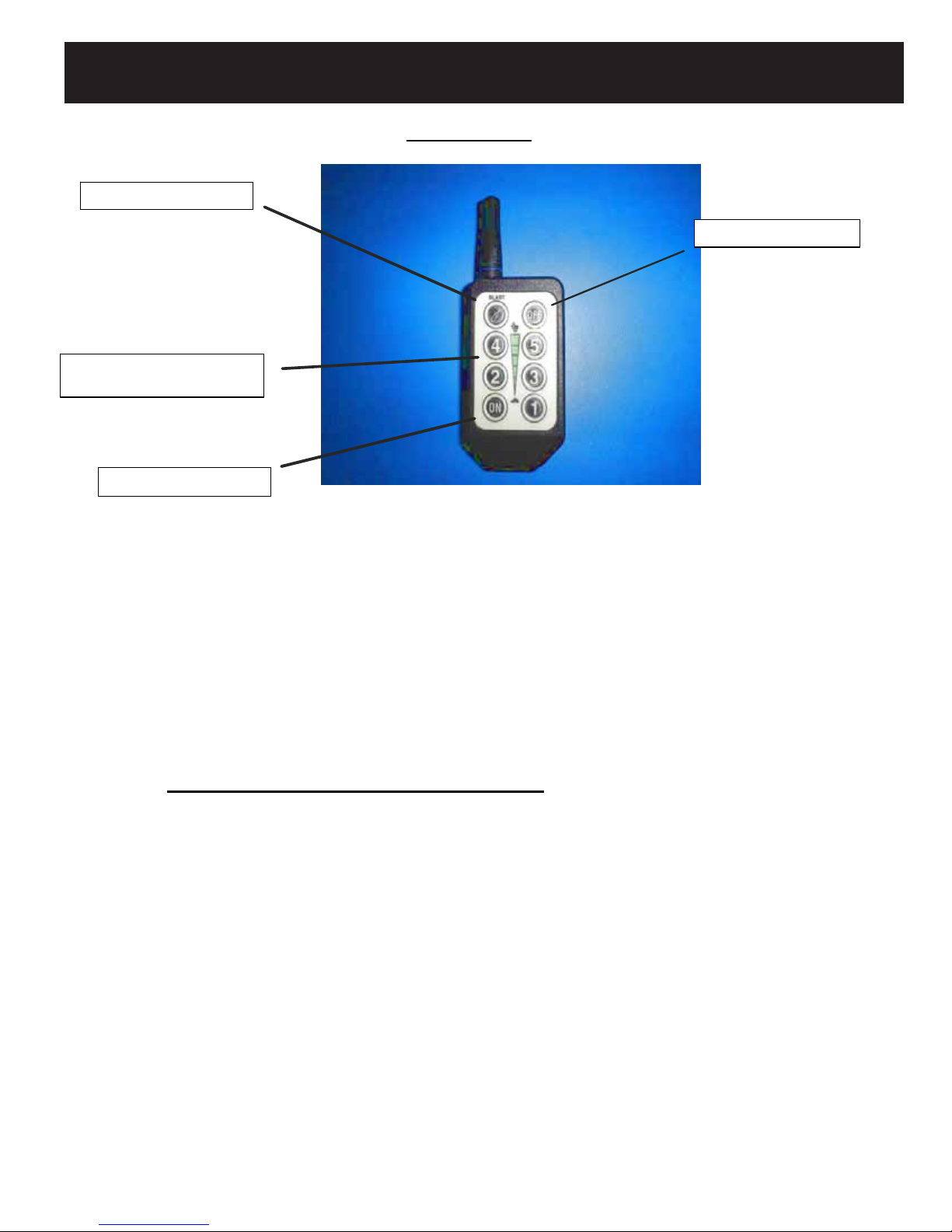

VARIABLE SPEED TRANSMITTER
Shown above is a typical transmitter for wireless operation of a 12VDC motor. The
button functions are as follows:
1. ON/ This button turns on the receiver unit and will allow the receiver to function.
It also will stop the unit, but does not shut down the receiver.
2. #1/ Slow speed setting of approximately 1/5
3. #2/ Speed setting or approximately 2/5
4. #3/ Speed setting or approximately 3/5
5. #4/ Speed setting or approximately 4/5
6. #5/ Full Speed.
7. Blast/ A timed 6 to 8 second full speed with auto shut down.
8. OFF/ Shuts down the receiver unit. Must be turned on using Button #1
th
of full motor speed.
th
of full motor speed.
th
of full motor speed.
th
of full motor speed.
Programming Transmitter to Receiver:
The following are the step by step procedures for setting the unique address between the
transmitter and receiver or adding extra transmitters to the receiver (up to 40
transmitters).
1. Disconnect green PWM wire from motor.
2. On the backside of the Transmitter, use a paperclip and insert it in the hole next to
the clear blue window. Once the programming button is depressed, a blue LED
will begin to blink for 15 seconds. Flip the Transmitter over and firmly depress all
8 buttons starting with the ON button within 15 seconds. Now the Transmitter has
acquired a 1 in 16 million address.
3. Next step is to remove the receiver box cover noting the drain hole positions in
the cover. Hook up the Power (red wire) and Ground (black wire) to a 12VDC
power source. Inside the box next to the red LED depress the black programming
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 15
OCTOBER, 2013
button. The red LED will begin to flash for 15 seconds. Take the Transmitter
while the red LED is flashing and firmly depress the ON button within the 15
seconds. Now the unique address of the Transmitter will only be recognized by
that matched receiver. The red LED will automatically shut off after 15 seconds.
To make sure the programming procedure was successful, depress any of the
Transmitter buttons and the red LED in the receiver should light. Re-install the
cover noting drain hole position and re-connect the PWM (green wire) to the
motor. The
Specifications:
• Up to180 amp output for up to 5 seconds.
• Continuous output of up to 80 amps.
• 5 motor speed outputs of approximately 1/5,2/5,3/5,4/5 and 5/5ths of
• Built in E-Stop using OFF button.
• Built-in over current safety protection. If a lock-up condition occurs at the
Variable speed controller is now ready to operate the DC motor.
motor current draw.
motor causing the motor to draw more than 200 amps the unit will
automatically shut down and must be turned back on using the ON button
after the circuit temperature drops to an acceptable range taking 1 to 30
seconds. Warning: If this situation continues to re-occur the operator
needs to check for reasons why the motors will not turn.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
(“black” press button)
VARIABLE SPEED RECEIVER
Antenna (coile
d)
the (4) screws. Your
Meyer
Wireless Controller is now ready to use!
00108-760-01-REV-B
Page 16
OCTOBER, 2013
PV SERIES
Programming “red” LED
“LEARN” Button
Fig. 3: Base Unit layout (Figure shown without Base Unit Cover)
Programming/Reprogramming the Transmitter and the Base Unit:
Tools needed: A small “phillips” screwdriver and a small diamet er pin (paper clip).
Instructions to program Transmitter and Base Unit:
1. Remove (4) screws and cover on Base Unit.
2. Power-up the Base Unit. Connect a 12V power source to the spreader 12V battery terminals and
plug the engine wire harness to the Base Unit wire harness (see Male Connector in Fig. 3). DO
NOT DISCONNECT THE BATTERY TERMINALS from the 12V source when engine is running.
3. On the backside of the Transmitter depress the “ADD
paper clip – You will see a “blue” LED start to blink (for approximately 15-17 seconds).
4. On the front side of the Transmitter press all (8) buttons (see Fig. 1). There is no certain order to
press the buttons. Firmly press each button, separately. Perform this step before the 15-17 seconds
are up (before “blue” LED stops blinking). T he Transmitter is now programmed and has created its
own 1 in 16 mi llion address. Once the “blue” LED stops blinking, this step is completed.
5. On the Base Unit (see Fig. 3) press the black “LEARN
(for approximately 15-17 seconds).
6. On the front side of the Transmitter you only need to press Button #1 (clut ch on/off), once.
Perform this step before the 15-17 seconds are up (before “red” LED stops blinking). The base unit
has now recognized the Transmitters unique 1 in 16 million address. Once the “red” LED stops
blinking, this step is completed.
7. Verify the (5) functional buttons (Buttons #1, #3, #4, #5, & #6) on t he Transmitter are wo
the Spreader Unit by pressing each button, individually (the B ase Unit “red” LED will flash when a
Transmitter button is pressed). If Transmitter buttons are not working, repeat steps 3 – 8 or see the
Trouble shooting directions.
8. When Transmitter buttons are functioning properly, re-assemble the Cover on the Base Unit with
” button (see Fig. 2) using a small pin or
” button. The “red” LED will start to blink
rking with
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
N
r
y
r
00108-760-01-REV-B
Page 17
OCTOBER, 2013
Transmitter Battery Replacement
The Transmitter uses a standard CR2032 lithium button cell battery. In normal use it will provide 1 to 2
years of operation. To replace the Transmitter battery, gently press and slide the battery cover off.
Remove the battery by sliding (NOT lifting) it out from underneath the retainer (see Fig. 4). Observe the
battery polarity when replacing (“+” showing face up).
otes:
1. If the battery looses power or is removed the Transmitter and Base Unit may need to be reprogrammed
(see reprogramming Transmitter and Base Unit instructions). Check Transmitter functional buttons to
verify if reprogramming is necessary.
2. When removing lithium battery, please use caution to slide not lift the battery from the contr oller! If
excess force is used to remove the battery (example: lifting the battery with a small screw driver) – the
solder connections from the batte
covered under warranty.
ry clip to the circuit board could be pried loose. This action is not
Battery Cove
Lithium batter
Transmit
Fig. 4: Back of Transmitter with back cover and battery removed
Other Considerations
1. Powering off the engine will not automatically power off the Clutch (engagement of
conveyor/spinner). If clutch remains engaged, after engine is turned off, it could lead to a slow
electrical drain on the 12V battery. (Gas engine models only)
2. If an unregulated voltage (example: sparking the battery cable terminal to the 12V battery post.) is
sent to the Base Unit it could erase the Base Unit programming. The remote may show signs of
no longer working with the Base Unit. Reprogramming will be required. When 14Amps are
supplied the Base Unit circu
comments.
3. Only one transmitter at a time can be activated within a reception area. Only one carrier of a
particular frequency may occupy the same airspace at a given time. This means that if two
transmitters are activated in the same area at the same time the signals will interfere and the decode
on the receiver will not see a valid transmission and the wireless controller will not function.
4. Multiple Transmitters can be programmed to (1) Base Unit.
5. To verify the Base Unit is receiving a signal from the T ransmitter. Press a button on the Transmitter -
“red” LED on the Base Unit will light-up.
6. Meyer Products has no control over the intended usage of this product. Because of that ,
Meyer Produtcs
Meyer Products recommends that these units are intended for OFF ROAD USE ONLY!
offers no written or expressed liability as to how this product is used.
it board is designed to shut off. See additional trouble shooting
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 18
OCTOBER, 2013
PV SERIES
TROUBLE SHOOTING
1. To verify the Transmitter and Base Unit are working together: Once the base unit has power the
“red” LED will come on when the Transmitter buttons are depressed (Cover of Base Unit will need
to be removed to see “red” LE D). If the “red” LED does not come on, the Base Unit is NOT
getting a signal from the Transmitter.
Possible Solutions:
A. Reprogramming the Transmitter and Base Unit might be required.
B. Base Unit might not be functioning properly (see Base Unit trouble shooting below).
C. Transmitter might not be functioning properly. (see Transmitter trouble
shooting below).
2. Base Unit Programming Lose:
power source the Base Unit could lose its programming. The voltage spike will not damage the
Base Unit or Transmitter. Unregulated voltage could generate from the following:
- C onnecting battery cables to a 12V battery source.
- Jump starting the 12V battery.(Gas engine models only)
- C harging the 12V battery.
- Pull-starting the engine.(Gas engine models only)
Possible Solutions:
A. Reprogramming the Transmitter and Base Unit may be required.
B. Base Unit might be damaged, a new B ase Unit & Transmitter will need to be order
3. Base Unit does not function properly:
button is depressed on Base Unit).
Possible Solutions:
A. Check/verify voltage of 12V is being supplied by the 12V battery. Lower voltages than 12V
will not allow the Base Unit to function properly.
B. Confirm all wir es on engine wire harness are secure and properly connected.
C. Base Unit could be damaged, a new Base Unit & Transmitter will need to be ordered.
4. Transmitter does not have power:
depressed on Transmitter).
Possible Solutions:
A. Verify t ool diameter (example: paperclip) to depress Transmitter “ADD
enough to enter the “ADD
B. Verify the lithium button cell battery polarity is correct (“+” will be facing up).
C. If the Transmitter is 1-2 years old, check the lithium battery voltage with a meter or replace the
battery as needed (CR2032 lithium button cell battery).
D. Transmi tter could be damaged, a new Transmitter will need to be ordered.
If an unregulated voltage (spark) is sent to the Base Unit from a
ed.
(example: “red” LED will not light up when “LEARN”
(example: “blue” LED will not light up when “ADD” button is
” button is small
” button hole.
5. General troubleshooting:
A. Try to Program/reprogram the Transmitter and Base Unit.
B. Verify the Ground wires (all wires) are secure.
C. Check connections to the components that the unit is trying to operate using a voltmeter.
WARNING
1. Disconnecting 12V Battery Cables/Terminals:
A. DO NOT DISCONNECT THE BATTERY (CABLES/TERMINALS) WHEN THE ENGINE
IS RUNNING. This could disable or permanently damage the Base Unit.
For further technical assistance please contact Meyer Products at 216-533-6512 or visit us at
www.meyerproducts.com
to download updated Wireless Controll er Instructions.
/MOTOR
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
BOTTOM VIEW
A - A
(SHOWN W / O FITTINGS)
61190
FLANGE PLATE
00105-873-00
8.0"
HOSE SLACK
AFTER PLUMMING
A
A
VALVE STAND
(2) HALVES
00105-874-00
TRUCK CAB
FLOOR BOARD
*

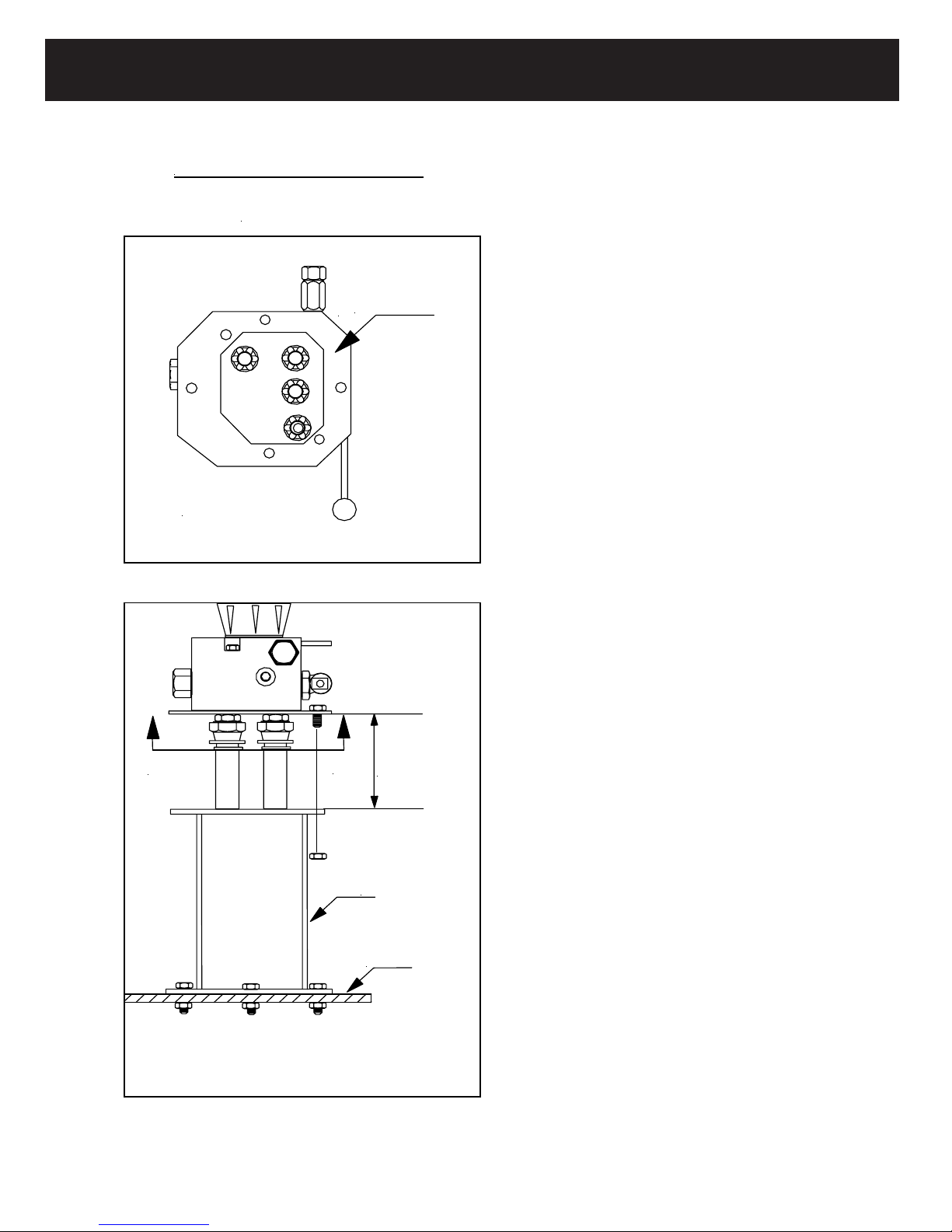

DUAL FLOW VALVE/STAND
INSTALLATION INSTRUCTIONS
1. IMPORTANT: A pipe joint sealant compatible with
hydraulic oil must be applied to all screw fittings.
(Teflon Tape Sealant Is Not Recommended)
2. Hose ends connected to flow valve must be of the
"swivel" type.
3. CAUTION: Over tightening of the fittings in flow valve
may cause damage to valve body.
4. Approximately 8" of hose slack must be realized
between the flow valve and valve stand after the
flow valve has been completely plumbed. If this
condition does not exist after the plumbing has
been completed, removal of valve will require hoses
to be removed at opposite end of valve.
5. Assembly of valve on stand:
a. Cut a 5" x 5" square opening in floor board of
truck where the valve stand is to be located.
b. Bolt valve stand halves together forming a
"box" over the 5" x 5" square opening. NOTE:
When bolting valve stand halves in place,
make sure holes in flanges align with holes in
flange plate.”*”
c. Bolt flange plate to VALVE (Use (2) 1/4" x 3"
bolts, lockwashers, etc.)
d. Insert hoses through floor opening and valve
stand and connect appropriate hoses (see
instructions #1 thru #4) to flow valve.
e. Bolt flange plate to valve stand flanges.
00108-760-01-REV-B
Page 19
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
HYDRAULICS
LEAKING HIGH PRESSURE FLUIDS CAN INJECT THEMSELVES UNDER THE SKIN OF PERSONS
NEAR A LEAK, CREATING GRAVE MEDICAL RISKS. TAKE CARE TO AVOID EXPOSURE TO
HIGH PRESSURE FLUIDS.
1 . Hydraulic components should be kept as clean as possible during assembly operations.
2. Galvanized pipe and pipe fittings must not be used because flaking or galvanizing material can cause
damage to major hydraulic components.
3. A pipe joint sealant, compatible with hydraulic oil, must be applied to all screwed fittings. (Teflon tape is not
recommended.)
4. Hose should be protected where severe wear may be caused by vibration or sliding movement.
5. Long runs of hose should be supported by tie wiring or clamping.
6. Pressure and return hoses, connected to hydraulic motors, may be reversed for proper motor rotation.
Spinner rotates in a clockwise direction when looking down from top.
7. Use hose manufacturer’s recommendations for fitting re-useable hose ends.
8. Hydraulic pumps must be mounted so shaft rotates in direction of arrow.
9. Locate reservoir as close to pump as possible. It may be installed on truck frame or truck box.
10. Hydraulic return line filter is screwed directly onto reservoir with cartridge down. Oil must flow through filter
in direction of arrow on filter.
11. Install the quick connect couplings so that when disconnected, there is a male and female on the truck as
well as on the spreader. This way, hoses will always be hooked up properly. and hose ends can be coupled
together when spreader is in storage to prevent system contamination.
12. See page 13 for valve assembly
13. Operate hydraulic system for several minutes to warm up. Check all connections for leaks.
14. After running, refill reservoir to three fourths full.
CONTROL AND HYDRAULIC SYSTEM SPECIFICATIONS
* Hydraulic Oil ................................. Good Grade of MS10W Hydraulic Oil Which has
wear, oxidation and foam inhibitors.
* Oil Filter ........................................ 10 Micron Element Return Line Filter.
* Relief Valve Setting ...................... 1500 PSI
* Oil Flow......................................... 0 - 10 GPM
WARNING
00108-760-01-REV-B
Page 20
OCTOBER, 2013
PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
SPREADER OPERATION
A. Start the engine and engage the clutch. The amount of material spread, depends on engine speed and gate
opening. Decreasing RPM and/or gate height will decrease amount spread; the inverse holds true also.
Notice that the electric clutch can be engaged or disengaged at any time and at any engine RPM. However,
since engagement time and torque is almost instantaneous, to prevent premature spinner chain failure and
chain tension loss, it is recommended that the electric clutch be engaged at the lowest possible RPM
without stalling the engine.
If the truck is to be driven for an extended period of time while the spreader is not operating, it is RECOMMENDED
to turn off the gas at the carburetor inlet to prevent the carburetor from over filling with fuel.
Before loading the spreader the first time, start and stop the conveyor several times to break in the clutch.
ALWAYS STAND AT A SAFE DISTANCE AWAY FROM THE SPINNER WHILE OPERATING
ALWAYS WEAR EYE PROTECTION WHEN OUTSIDE OF THE TRUCK CAB WHILE
SPREADER IS RUNNING.
B. Spread pattern depends on baffle settings and spinner RPM. Maximum spreader width is 30 ft.
1. Speeding up or slowing down the engine will increase or decrease spread pattern width.
2. Internal baffle adjustments will move the spread pattern to the right or left.
3. External baffle adjustments will block spreading to the right or left side.
DESIRED SPREAD PATTERN BAFFLE SETTING
INTERNAL EXTERNAL
C
ENTERED BEHIND TRUCK
B
OTH DOWN
ALL T
HREE
UP
B
EHIND TRUCK AND LEFT
RH - D
OWN
RH - D
OWN
LH - U
P
LH - U
P
B
EHIND TRUCK AND RIGHT
RH - U
P
RH - U
P
LH - D
OWN
LH - D
OWN
W
INDROW BEHIND TRUCK
RH - D
OWN
ALL - D
OWN
LH - D
OWN
4. External Baffles can be lowered to an intermediate position to baffle down the particles that may otherwise
leave the spinner at a high trajectory.
WARNING
00108-760-01-REV-B
Page 21
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
SPREADER OPERATION
A. Start the engine and engage the clutch. The amount of material spread, depends on engine speed and gate
opening. Decreasing RPM and/or gate height will decrease amount spread; the inverse holds true also.
Notice that the electric clutch can be engaged or disengaged at any time and at any engine RPM. However,
since engagement time and torque is almost instantaneous, to prevent premature spinner chain failure and
chain tension loss, it is recommended that the electric clutch be engaged at the lowest possible RPM
without stalling the engine.
If the truck is to be driven for an extended period of time while the spreader is not operating, it is RECOMMENDED
to turn off the gas at the carburetor inlet to prevent the carburetor from over filling with fuel.
Before loading the spreader the first time, start and stop the conveyor several times to break in the clutch.
ALWAYS STAND AT A SAFE DISTANCE AWAY FROM THE SPINNER WHILE OPERATING
ALWAYS WEAR EYE PROTECTION WHEN OUTSIDE OF THE TRUCK CAB WHILE
SPREADER IS RUNNING.
WARNING
00108-760-01-REV-B
Page 22
OCTOBER, 2013
PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
WARNING
USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY
EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.
10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the
solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the
positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable
to the negative terminal of the battery.
11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all
wires are away from moving parts and lower engine shroud.
12. Plug cable from spreader into socket mounted on truck.
WARNING
00108-760-01-REV-B
Page 23
OCTOBER, 2013
PV SERIES
ENGINE COVER PROP ROD INSTRUCTIONS
To prevent injury extreme caution must be used when opening, closing, or working under or near the engine
cover. To prevent the engine cover from falling the prop rod must be fully engaged into the proper hole.
Never operate or transport the spreader with the engine cover open.
Some maintenance proceedures may require the engine cover to be completley removed from the spreader to
allow full access to the gasoline engine or other components. The engine cover must be reinstalled and in the
closed position before starting engine or operating spreader.
Engine
Cover
1. Raise engine cover.
2. Locate the prop rod and remove it
from the plastic retainer allowing the
prop rod to swing down.
Hole
3. Locate the hole on the spreader
marked “insert prop rod here” and
slowly lower the engine cover until the
prop rod fully engages in to this hole.
2.500
(Top View of Spreader with engine cover removed)
4. Carefully release the engine cover
Prop Rod
while ensuring it is being solidy supported by the prop rod.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
DO NOT ATTEMPT TO LIF
T THE SPREADER B
Y THE CENTER LIF
T OR CORNER
LIFT HOOKS
WITH MA
TERIAL IN THE SPREADER
.
BEFORE BEGINNING ANY MAINTENANCE ON SPREADER, DISCONNECT SPREADER
BATTERY LEADS.
1. Grease idler bearings on idler shaft takeup assembly, outboard bearing on gearbox output shaft, and
lower spinner bearing every ten hours of operation.
2. Grease input shaft bearing on gearbox every fifty hours of operation. CAUTION! Over greasing may
cause seal damage. The gearbox must be filled to oil level plug with SAE 90 gear type lubricant. Keep
breather plug clean.
3. Drag chain slack on V-boxes should be checked periodically and taken up if distance between center line
of rear sprocket and point where chain contacts lower flange on longitudinal is less than eight (8) inches.
CAUTION! Over tightening conveor chain can cause serious drive train problems. Above distance must
not exceed 20 inches.
4. If the spreader is equipped with a gasoline engine, it should be maintained per engine manufacturer's
instruction. (Instructions and parts book is enclosed.)
5. V-belt tension must be maintained. The v-belt can be tightened by loosening engine hold-down bolts and
sliding engine as required. CAUTION! Over tightening of v-belt may damage gearbox.
6. Roller chain tension must be maintained. It is adjusted by loosening the spinner mounting bearings and
sliding the bearings. Make sure the spinner shaft is straight up and down before retightening. Oil chain
often and at end of season.
7. When the box is not in use, it should be washed out. If the box is put in storage, all surfaces should be
oiled or painted after washing.
8. For HYDRAULIC SPREADERS, maintain oil level three fourths (3/4) full in reservoir with clean high grade
non-foaming hydraulic oil; recommended viscosity 100-200 SSU. Operating temperature should be limited
to 180°F. Replace filter cartridge No. 62382 (04104 005 00) at least twice a year.
9. If chain becomes stuck or "froze" to the floor to the point where the clutch cannot pull the load, never
attempt to free chain using a pipe wrench or any other tool on the output shaft. The gearbox is designed
to accept torque from input shaft only. Trying to turn output shaft will strip the gears, thus voiding the
warranty.
10. To minimize problems and extend the life of the Electric Clutch, the following is highly recommended.
a. Before starting unit, make sure the drag chain is free (not stuck or "froze" to the
floor). If the drag chain is stuck, this can cause the clutch to burnup.
b. After the using season is over, remove clutch from unit, and clean thoroughly.
c. After cleaning, coat both mating surfaces of the clutch with oil or light weight
grease.
NOTE: The Oil or Grease must be removed prior to the next using season.
WARNING
MAINTENANCE
00108-760-01-REV-B
Page 24
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

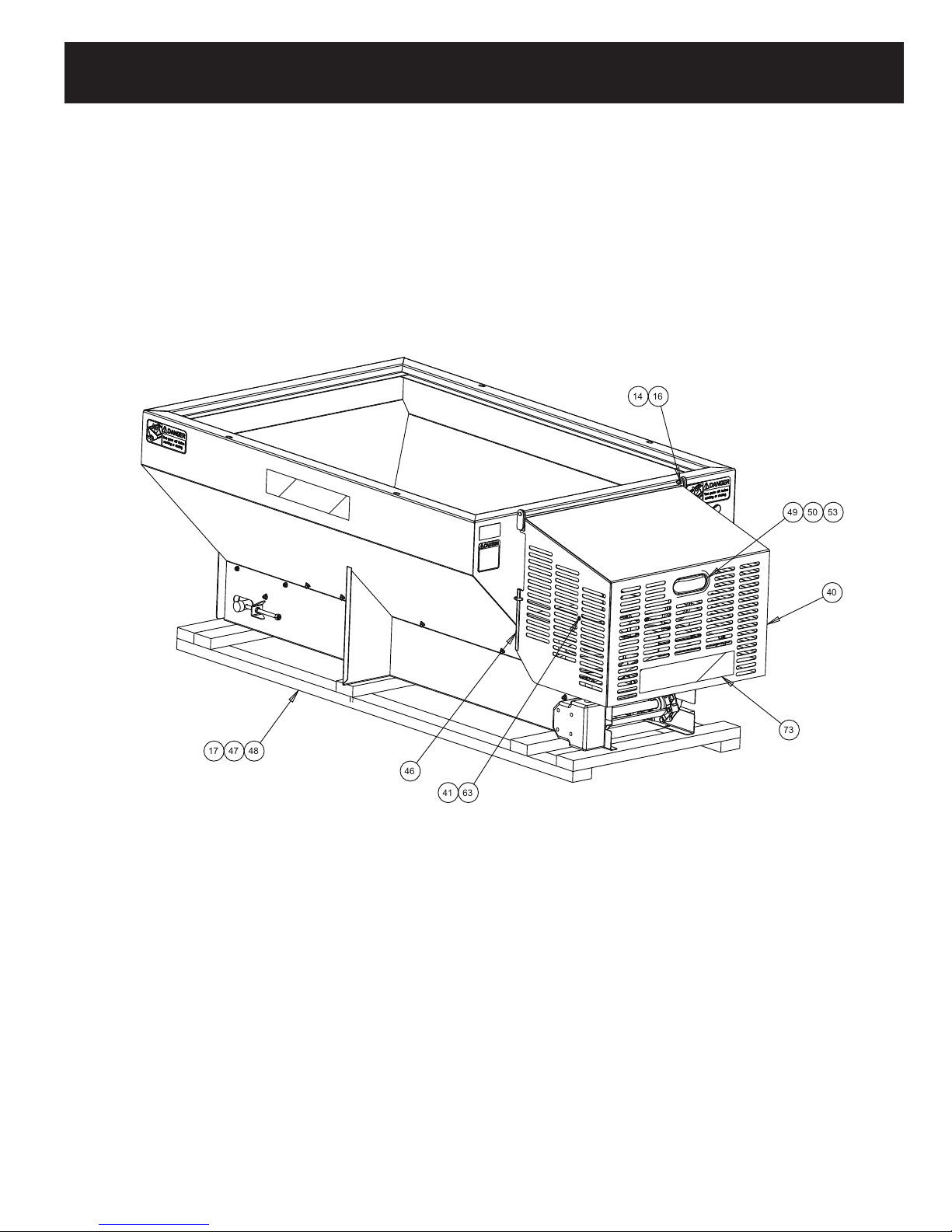

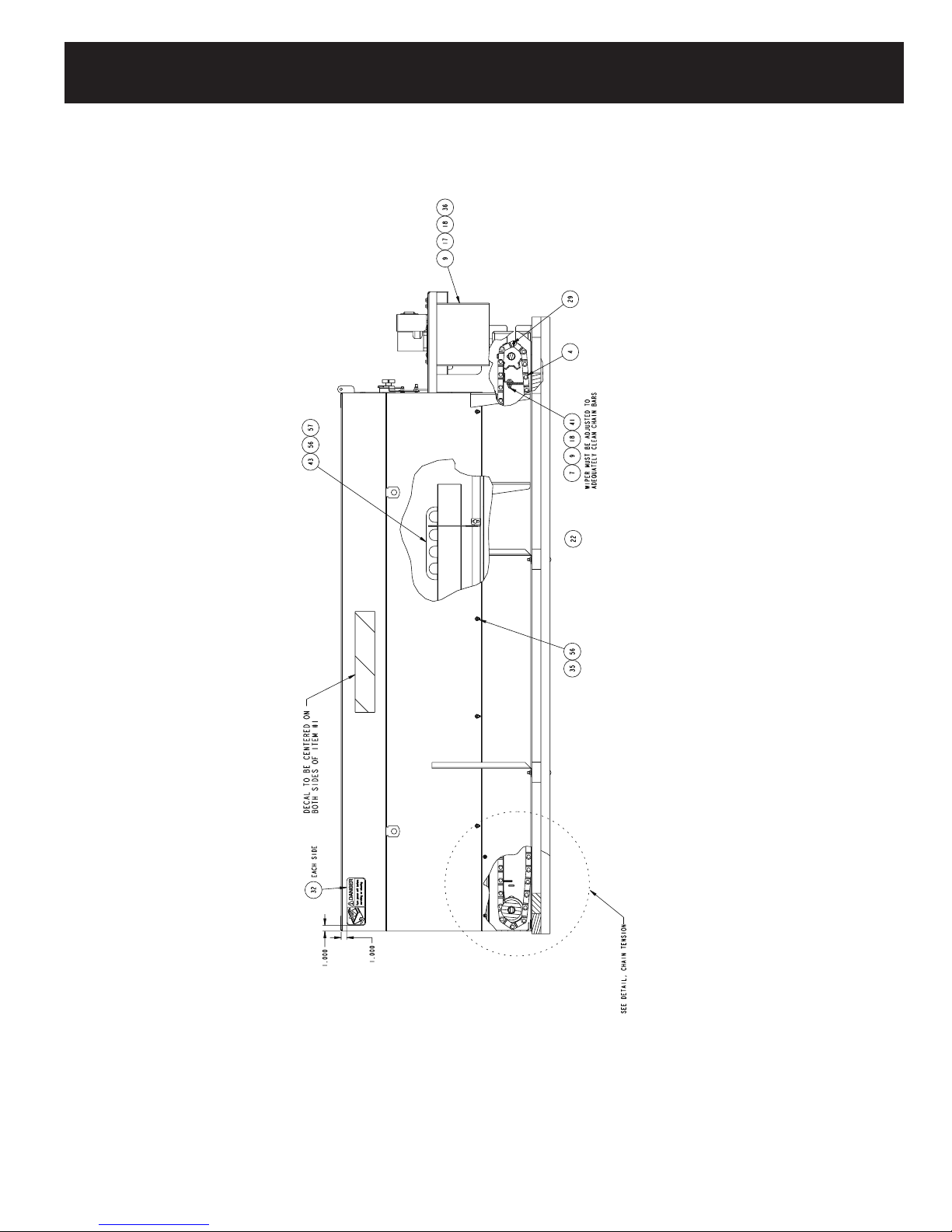

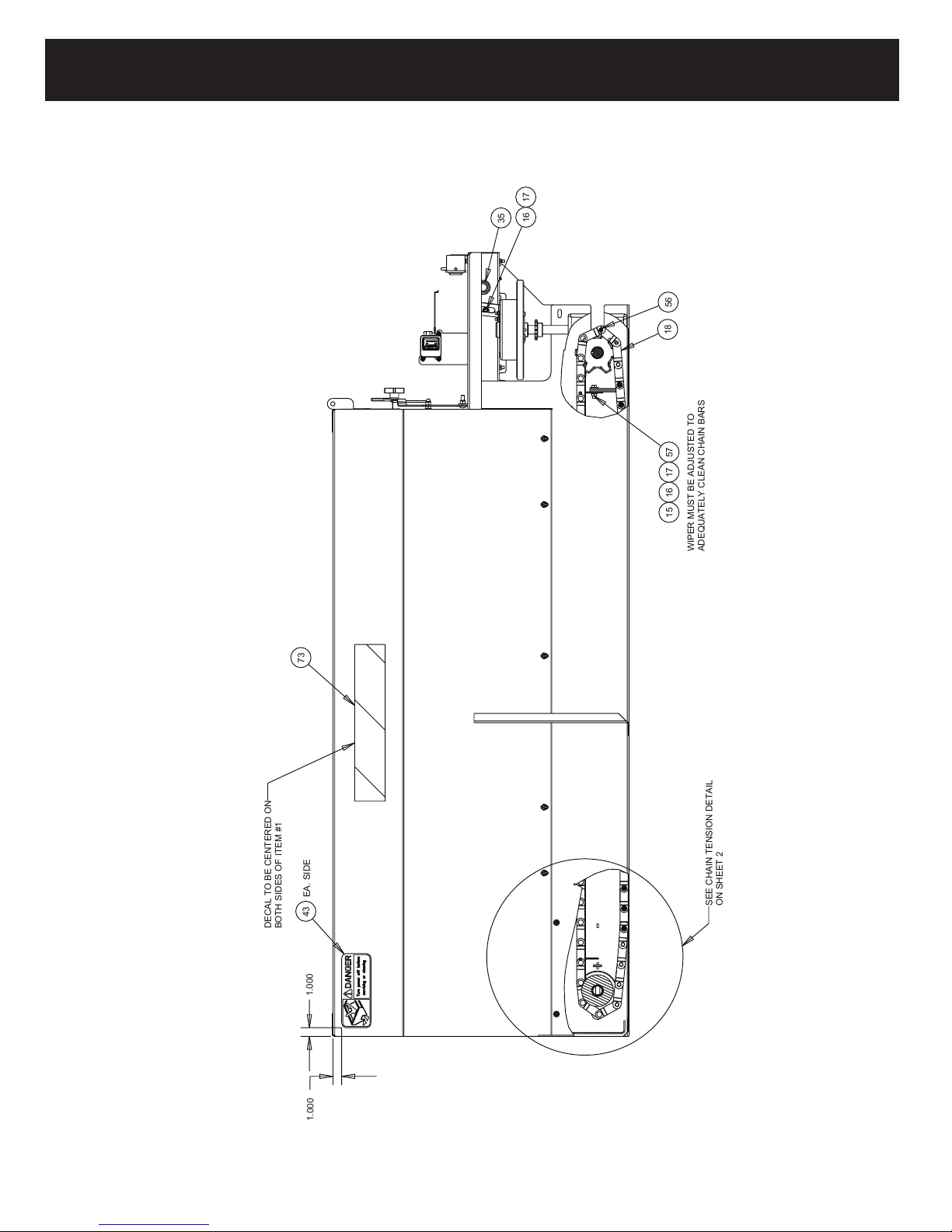

SEE CHAIN TENSION DETAIL
ON SHEET 2

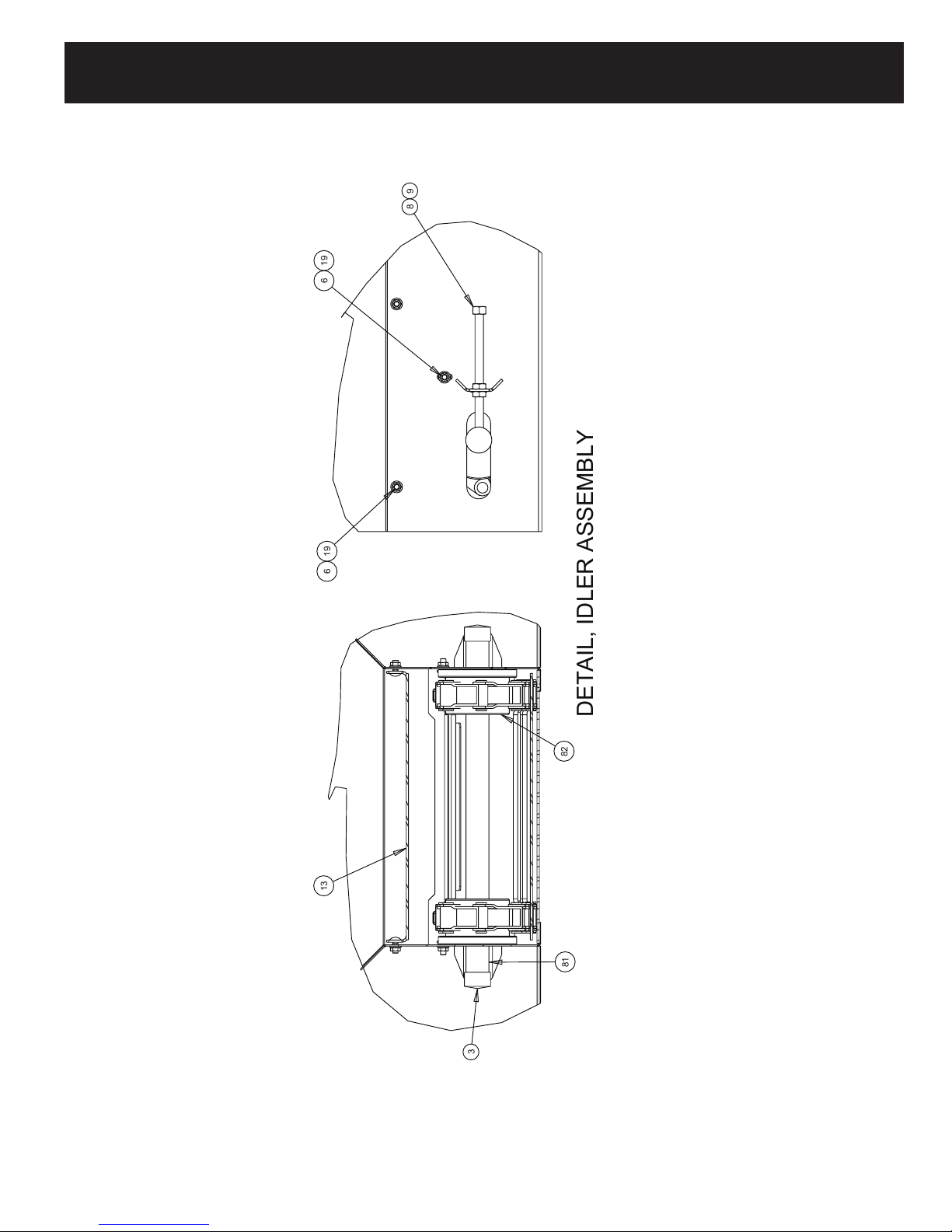

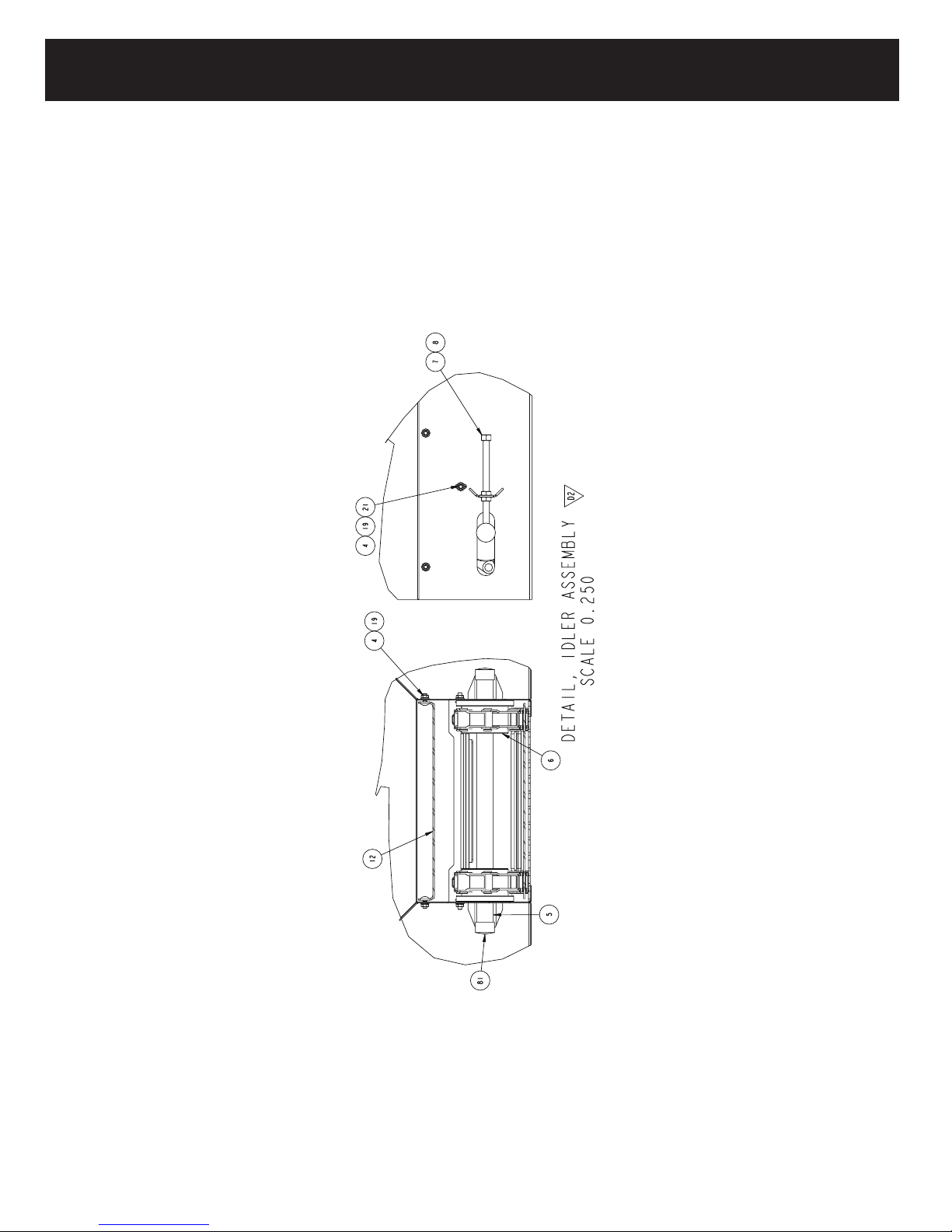

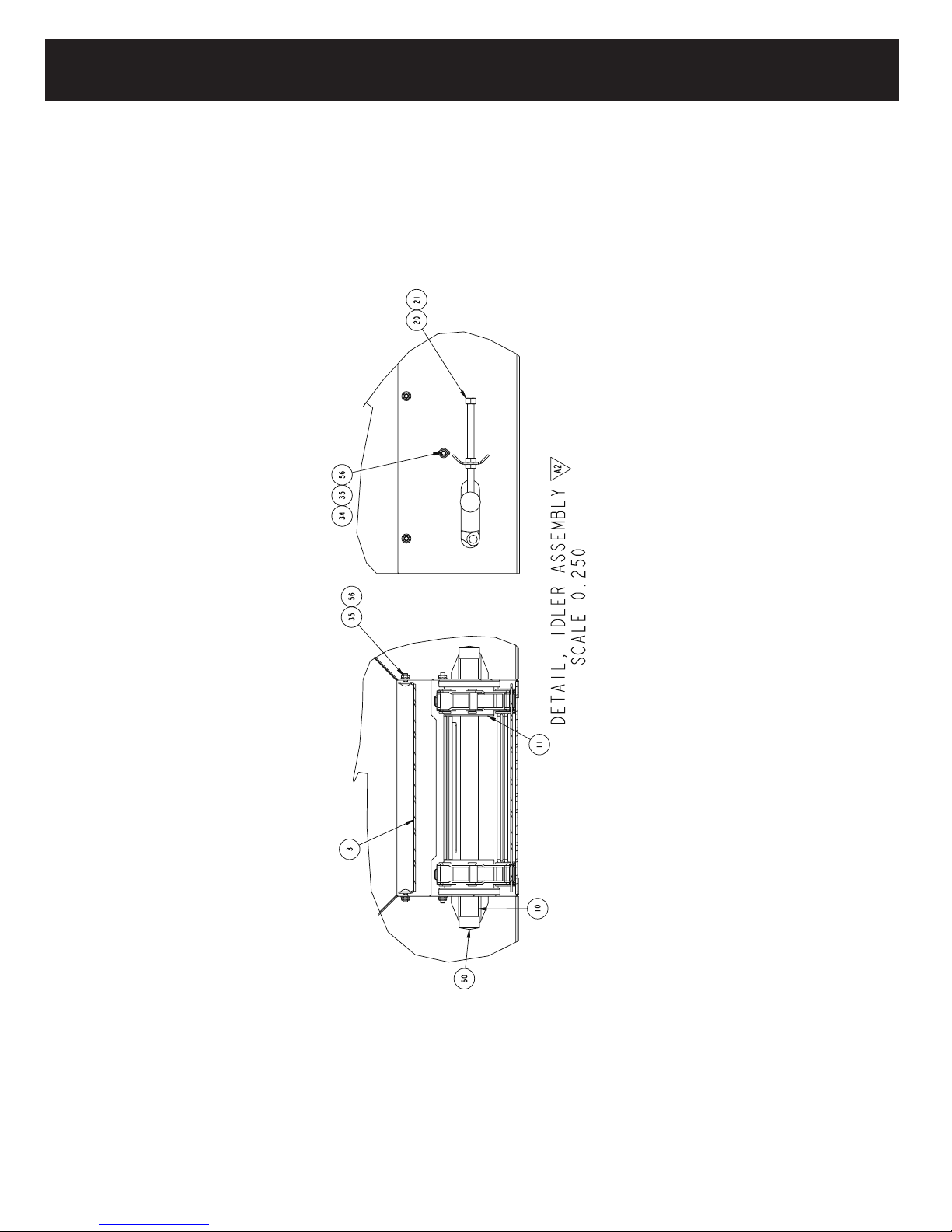

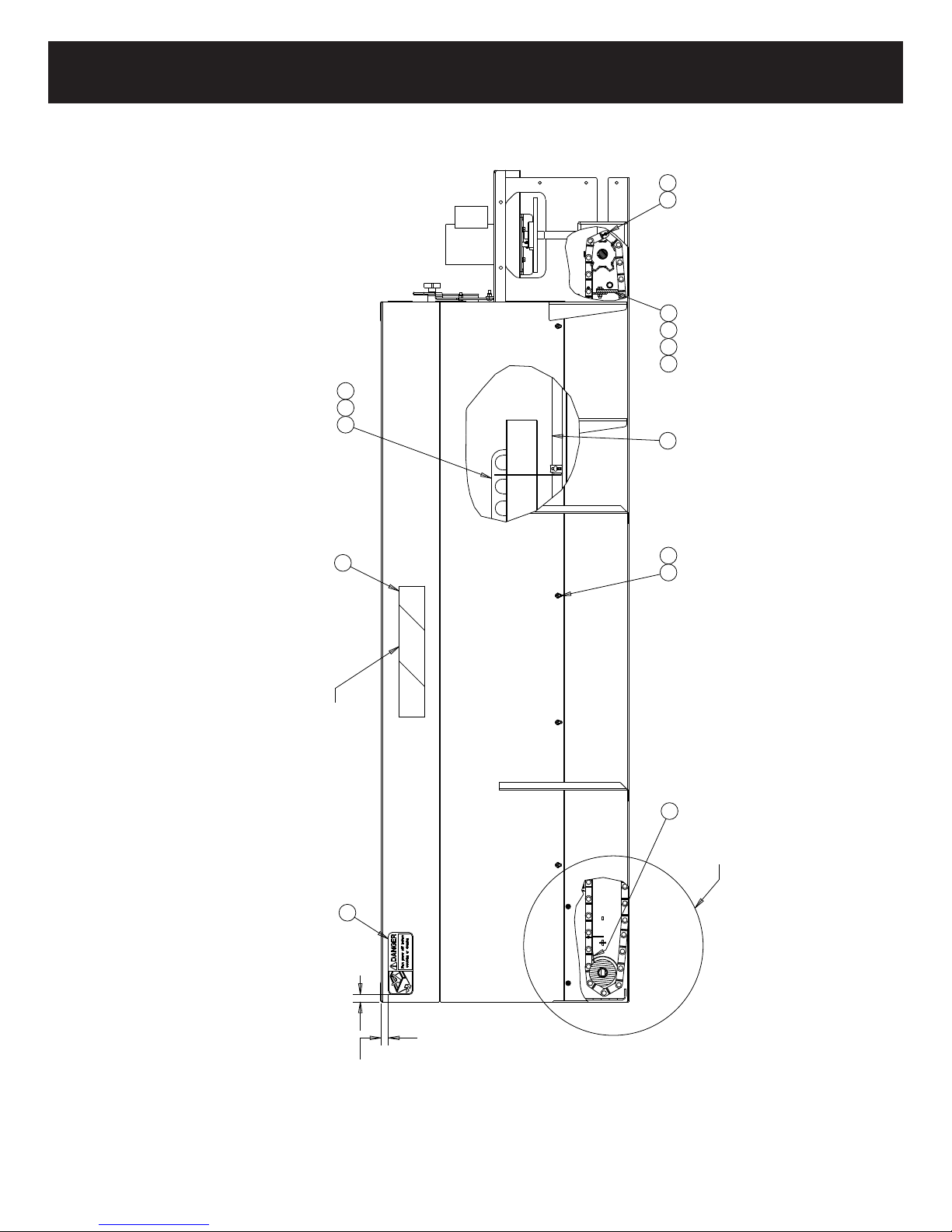

DETAIL, IDLER ASSEMBLY
SCALE 0.250
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
6 19
82
81
3
13
56
18
15 16 17 57
16 17
35
2
1
45
17 47 48
46
73
41 63
49 50 53
14 16
40
00108-760-01-REV-B
Page 25
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
1.000
1.000
.500
1.000

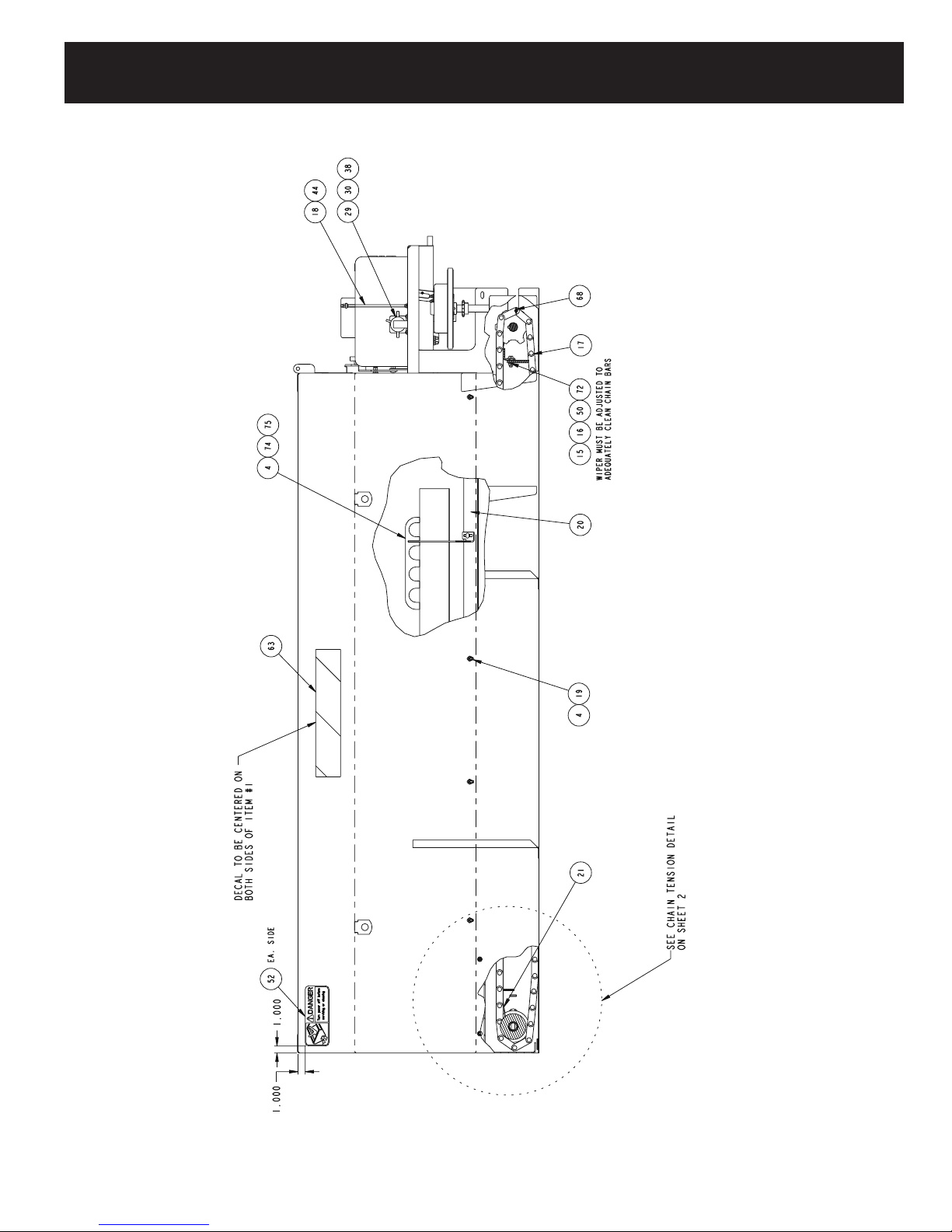

SEE CHAIN TENSION DETAIL
ON SHEET 2
DETAIL, IDLER ASSEMBLY
SCALE 0.250
EA. SIDE
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
8 9
6 19
6 19
82
81
3
13
73
DECAL TO BE CENTERED ON
BOTH SIDES OF ITEM #1
43
56
18
15 16 17 57
16 17
35
78 91
64
14 16 17
00108-760-01-REV-B
Page 26
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
ITEM PART NUMBER DESCRIPTION QTY
57 04076-100-00 WIPER, CHAIN 1
58 04070-020-00 PULLEY, DRIVEN 1
59 04138-017-00 CLUTCH, ELECTRIC 1
60 00108-771-00 FLATWASHER, CLUTCH RETAINER 1
61 04004-001-XX LOCKWASHER, 5/16" 3
62 04003-081-04 SCREW, 5/16" X 5/8" SH CAP 3
63 04607-028-00 CLAMP, PROP ROD 1
64 04049-357-00 DECAL, ENGINE WARRANTY 1
65 04049-362-00 DECAL, FUEL SHUT OFF 1
66 04150-044-01 ACTUATOR, 12V 1
67 00117-410-00 LINKAGE, HONDA THROTTLE 1
68 04003-069-01 SCREW, 8-32 X 3/4" PR SS 3
69 04004-002-59 FLATWASHER, #8 SS 3
70 04003-804-28 LOCKNUT, 8-32 VINYL SS 3
71 04607-013-00 TIE, NYLON 5
72 00002-296-XX P, SPINNER PV INT. 1
73 04049-XXX-XX DECAL, BRAND 3
74 SEE B/M P, INSTR. MANUAL 1
75 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
76 04009-001-01 KEY, WOODRUFF 1
77 04111-052-00 COVER, FEEDGATE HANDLE 1
78 04003-002-XX BOLT, 5/16" X 1 1/2" HH 2
79 04607-036-00 HOLDER, NYLON TIE 2
80 04003-001-XX BOLT, 1/4" X 1" HH 1
81 00122-366-00 SHAFT, IDLER 1
82 00122-369-00 ROLLER, POLY 2
83 00122-948-XX ADAPTER, ENGINE 1
84 04003-002-XX BOLT, 5/16" X 2 1/2" HH 1
85 04616-081-00 WIRE, 12 GA. RED .75
86 04616-077-00 WIRE, 12 GA BLACK .75
87 04638-039-18 TERMINAL, 5/16" RING 1
88 04638-039-19 TERMINAL, 1/4" RING 1
89 00122-949-XX FORM, CHAINSHIELD 2
90 04003-032-XX BOLT, 5/16" X 3/4" CA 4
91 04003-806-XX NUT, 5/16" SER FLANGE 7

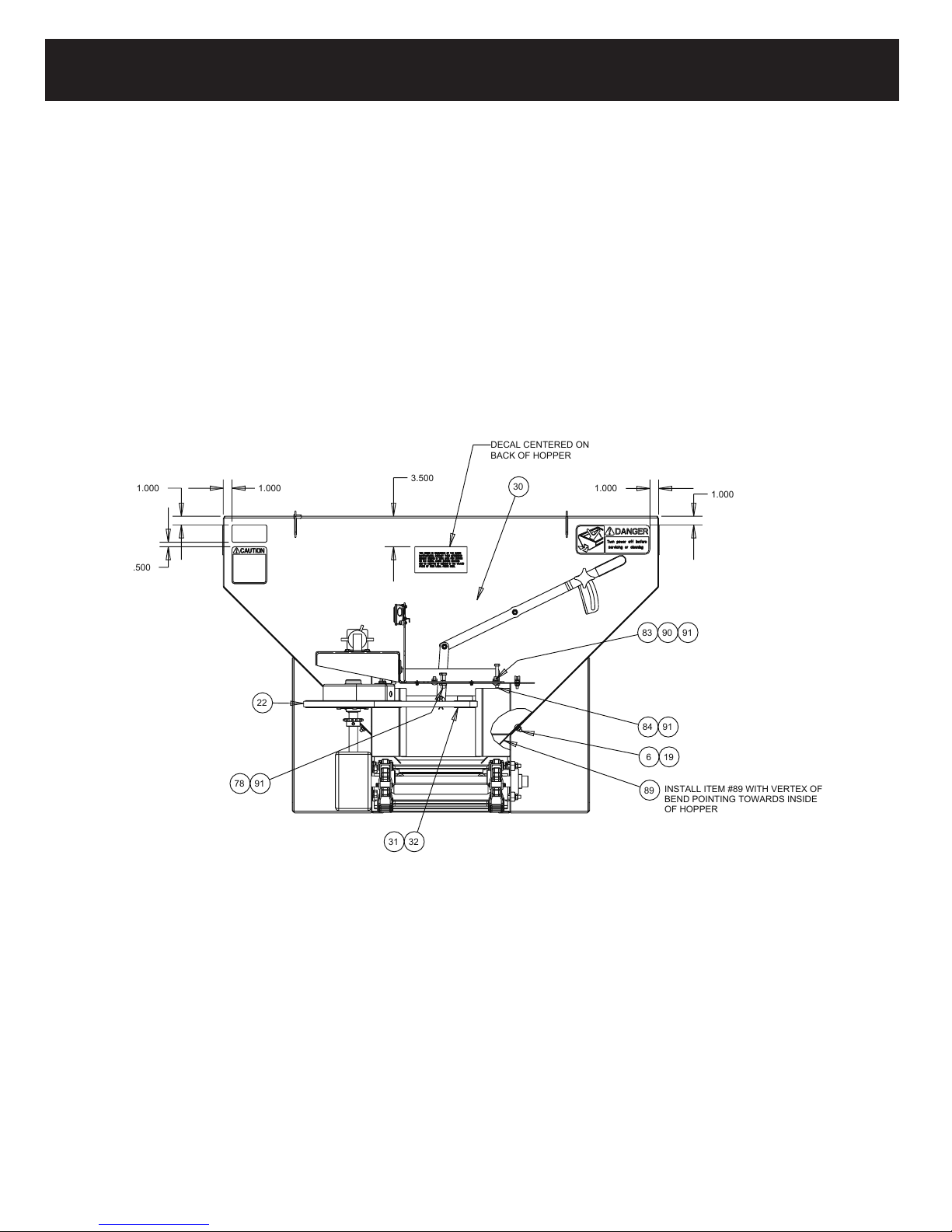

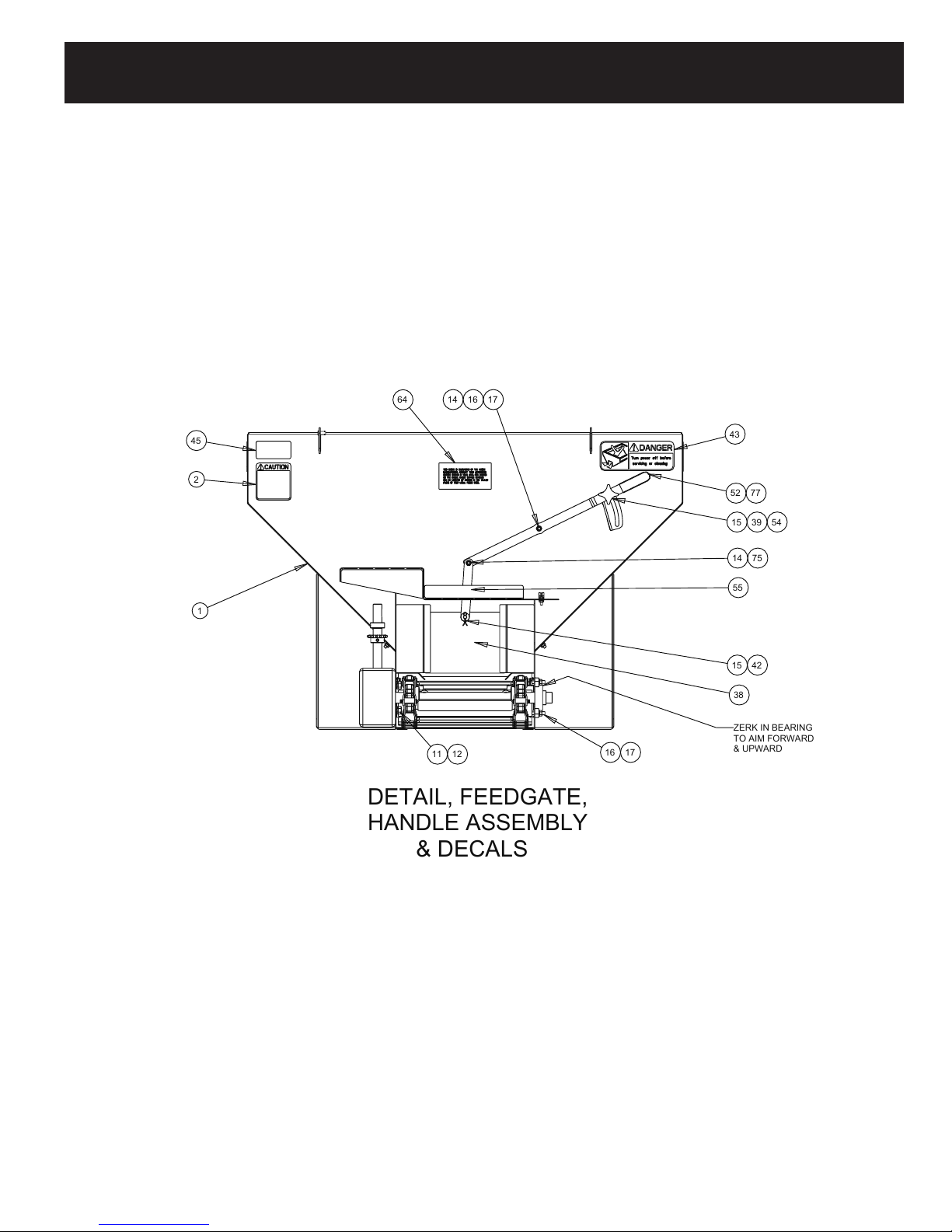

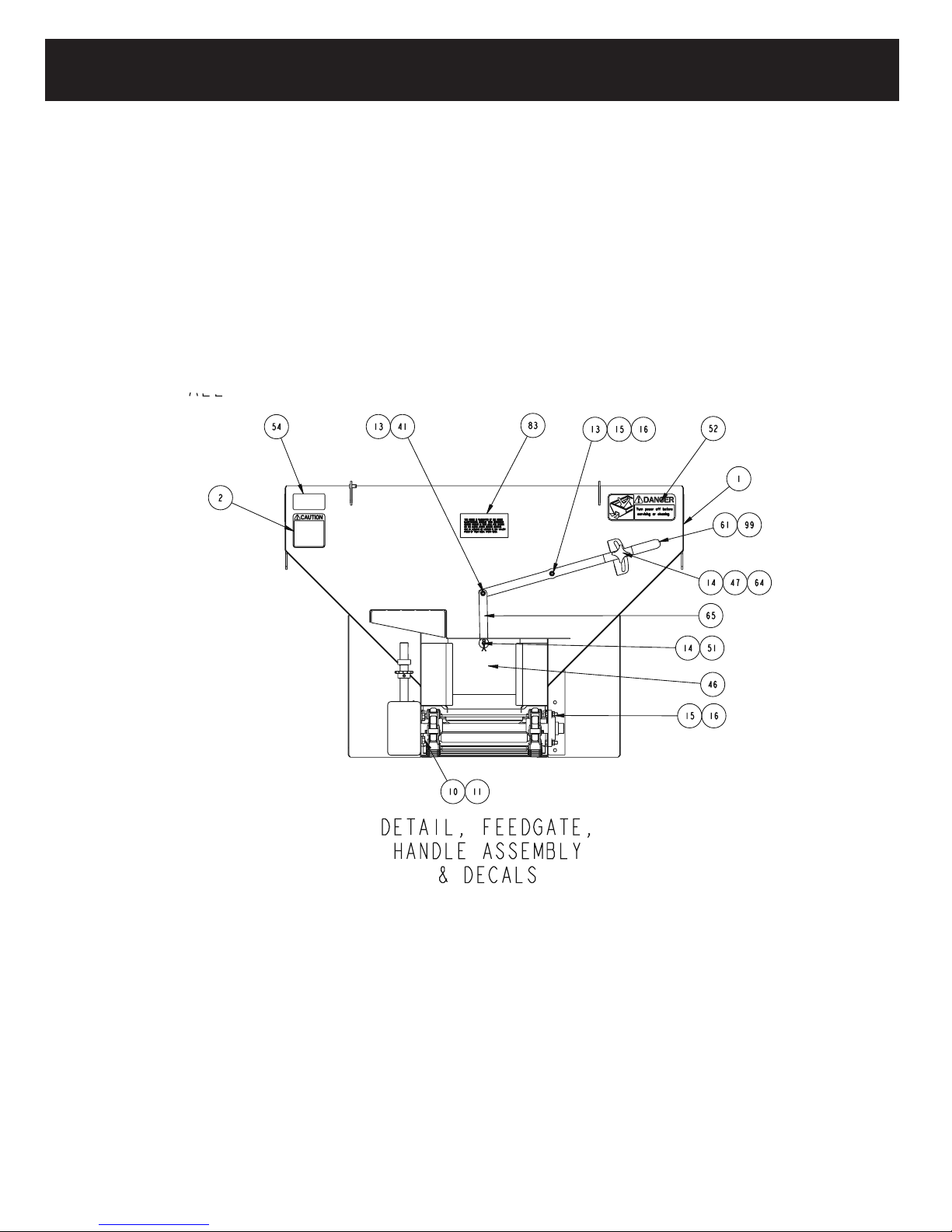

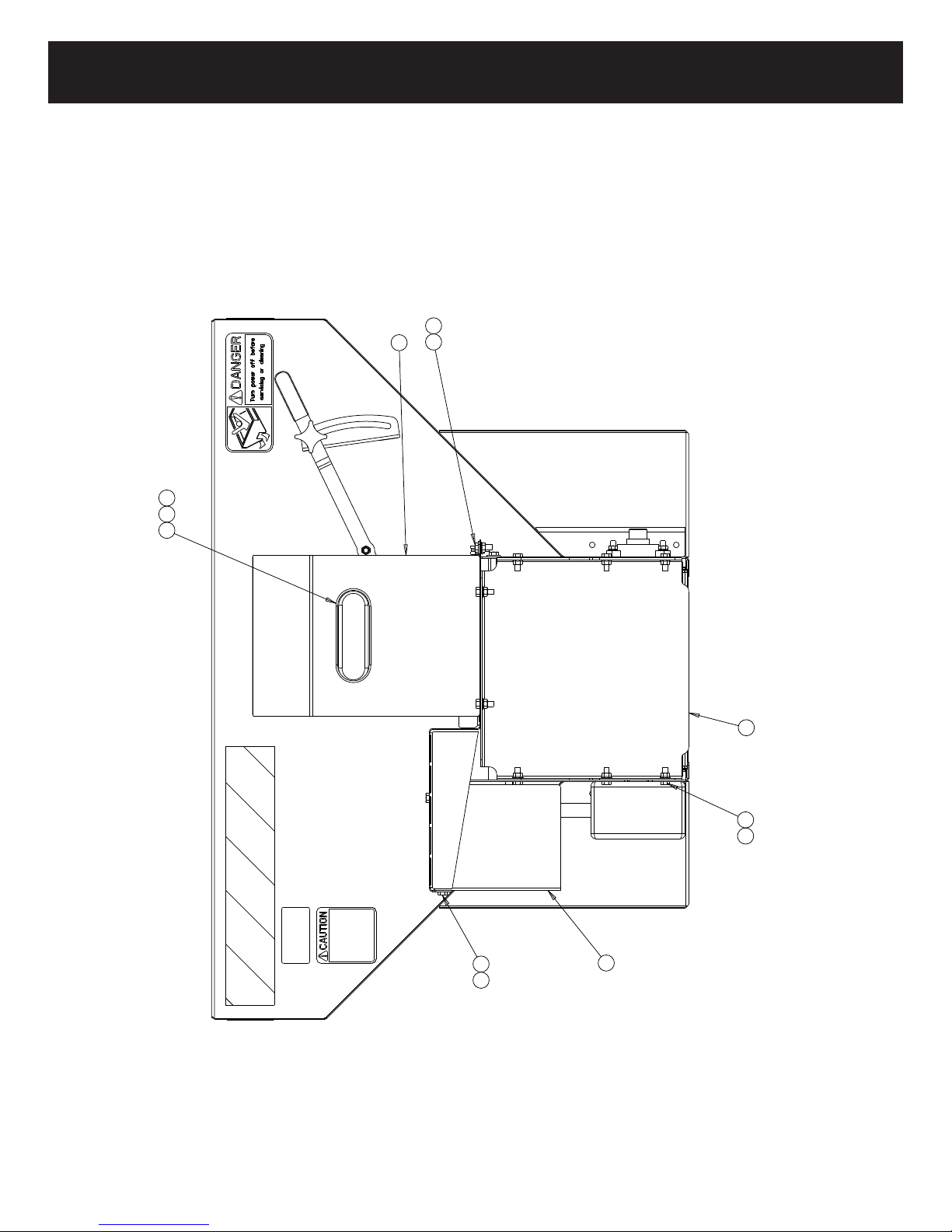

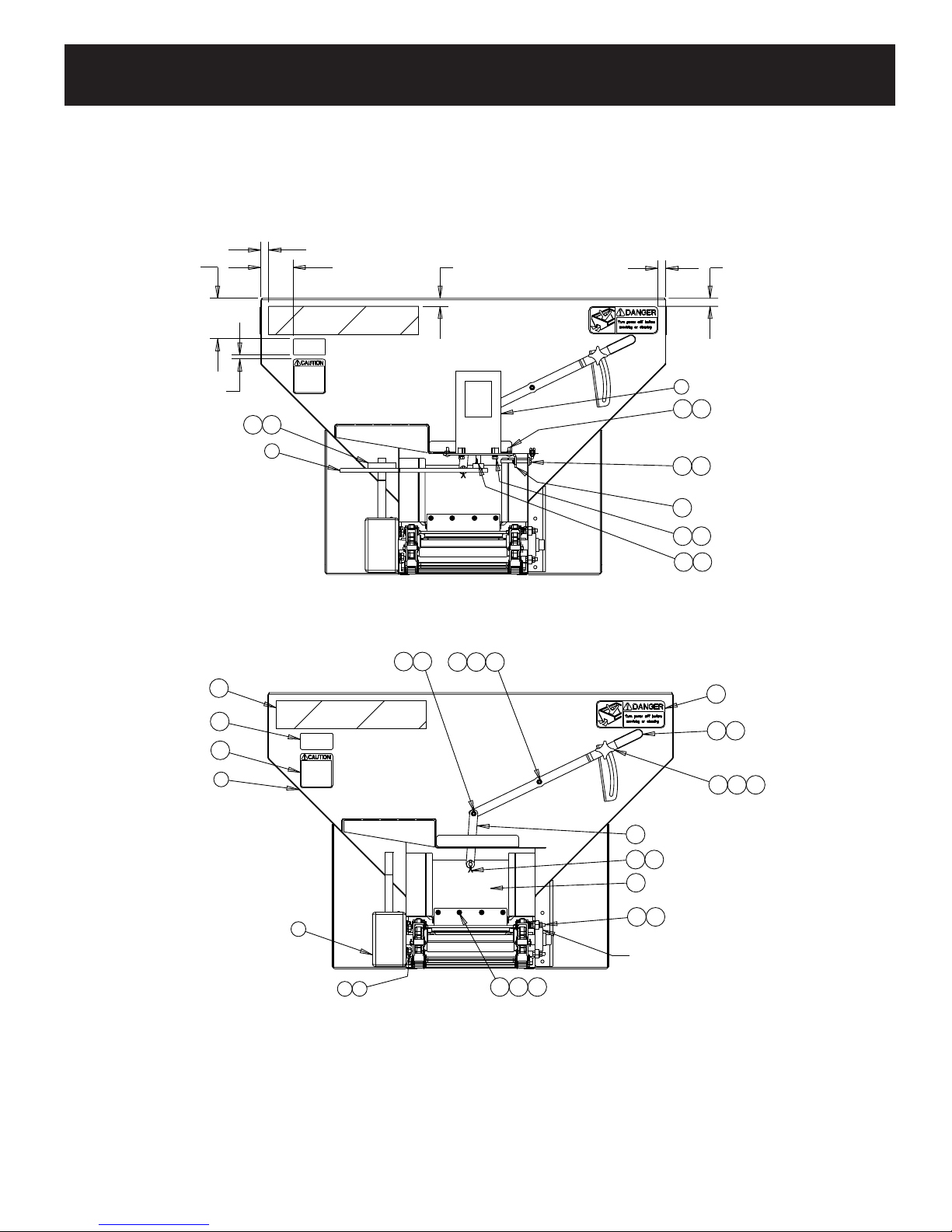

DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
7
51
72
74
00123-147-00
04540-003-00
00002-296-XX
INSTR. MANUAL
SEE B/M
8 9
6 19
NOTE:
1. ITEM #7 MUST BE PLACED INTO
PLASTIC BAG AND PACKED INTO
HOPPER FOR SHIPPING.
2. ITEM #72 MUST BE PACKED INTO
HOPPER FOR SHIPPING.
INSTALL ITEM #89 WITH VERTEX OF
BEND POINTING TOWARDS INSIDE
OF HOPPER
16 17
35
22
83 90 91
84 91
78 91
31 32
89
6 19
2
1
45
64
55
38
15 42
14 75
15 39 54
14 16 17
43
52 77
11 12
16 17
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
00108-760-01-REV-B
Page 27
OCTOBER, 2013
PV SERIES
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
1.000
.500
1.000
1.000
3.500
1.000
36 04146-005-00 SOLENOID 1
37 04607-027-00 CLAMP, CUSHIONED 1
38 00110-819-XX WELD, FEEDGATE 1
39 04624-001-01 KNOB, HAND 1
40 00119-587-XX WELD, SHROUD 1
41 00112-734-00 ROD, PROP 1
42 04010-016-01 PIN, 1/8" X 1" COTTER SS 1
43 04049-182-00 DECAL, DANGER 3
44 04049-199-00 DECAL, GASOLINE ONLY 1
45 04049-XXX-XX DECAL, SERIAL NUMBER 1
46 04093-021-00 TRIM, VINYL 2
47 04553-008-06 SKID, PV 6' 1
48 04003-033-14 BOLT, 3/8" X 4" CA SS 2
49 04605-155-00 CABLE, LIGHT POWER 1
50 04605-154-00 GROMMET, MTG. 1
51 04540-003-00 OIL, MOTOR .156
52 00118-312-XX FORM, FEEDGATE HANDLE 1
53 04605-153-00 LAMP, STOP 1
54 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
55 00101-636-XX BAR, PIVOT 1
56 04045-022-00 PIN, CONNECTOR W/ COTTER 2
INSTALL ITEM #89 WITH VERTEX OF
BEND POINTING TOWARDS INSIDE
OF HOPPER
DECAL CENTERED ON
BACK OF HOPPER
30
22
83 90 91
84 91
78 91
31 32
89
6 19
00108-760-01-REV-B
Page 28
OCTOBER, 2013
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
DETAIL, IDLER ASSEMBLY
SCALE 0.250
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
7
51
72
74
00123-147-00
04540-003-00
00002-296-XX
INSTR. MANUAL
SEE B/M
8 9
6 19
6 19
82
81
3
13
NOTE:
1. ITEM #7 MUST BE PLACED INTO
PLASTIC BAG AND PACKED INTO
HOPPER FOR SHIPPING.
2. ITEM #72 MUST BE PACKED INTO
HOPPER FOR SHIPPING.
2
1
45
64
14 16 17
11 12
16 17
46
73
41 63
49 50 53
14 16
40
00108-760-01-REV-B
Page 29
OCTOBER, 2013
PV SERIES
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
REF. DRAWING
20.000± .500

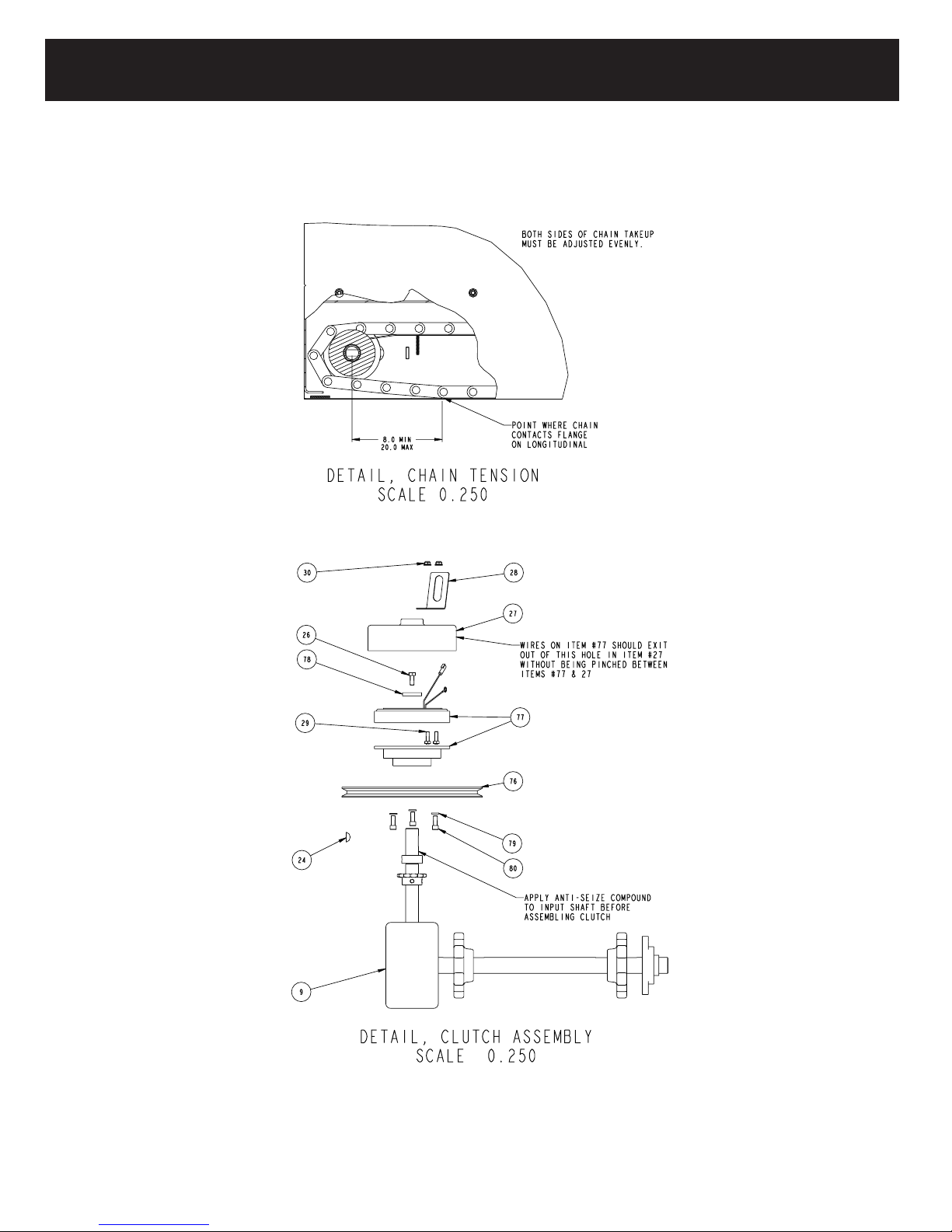

DETAIL, CHAIN TENSION
SCALE 0.250

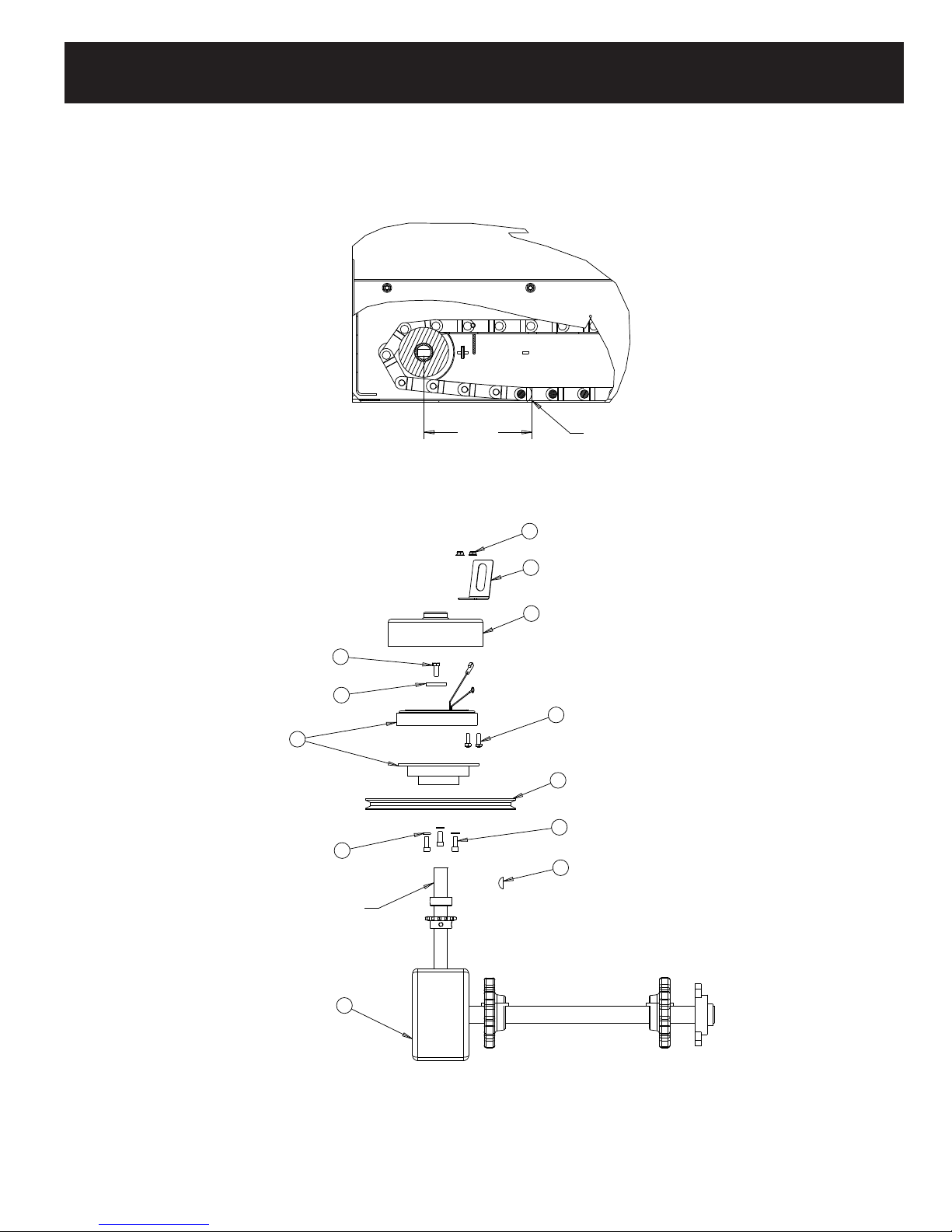

DETAIL, CLUTCH ASSEMBLY
CLUTCH
BLACK
WHITE FROM
ITEM #59
WHITE FROM
ITEM #23
BLACK
24
86
ROUTE THREE WIRES
THRU ITEM #35
CONNECT ALL FOUR GROUND
WIRES (BETWEEN FLANGE NUTS,
ON UNDERSIDE OF ENGINE PLATE)
TO SAME SOLENOID MTG. BOLT
DETAIL, GROUND WIRING
SCALE .250

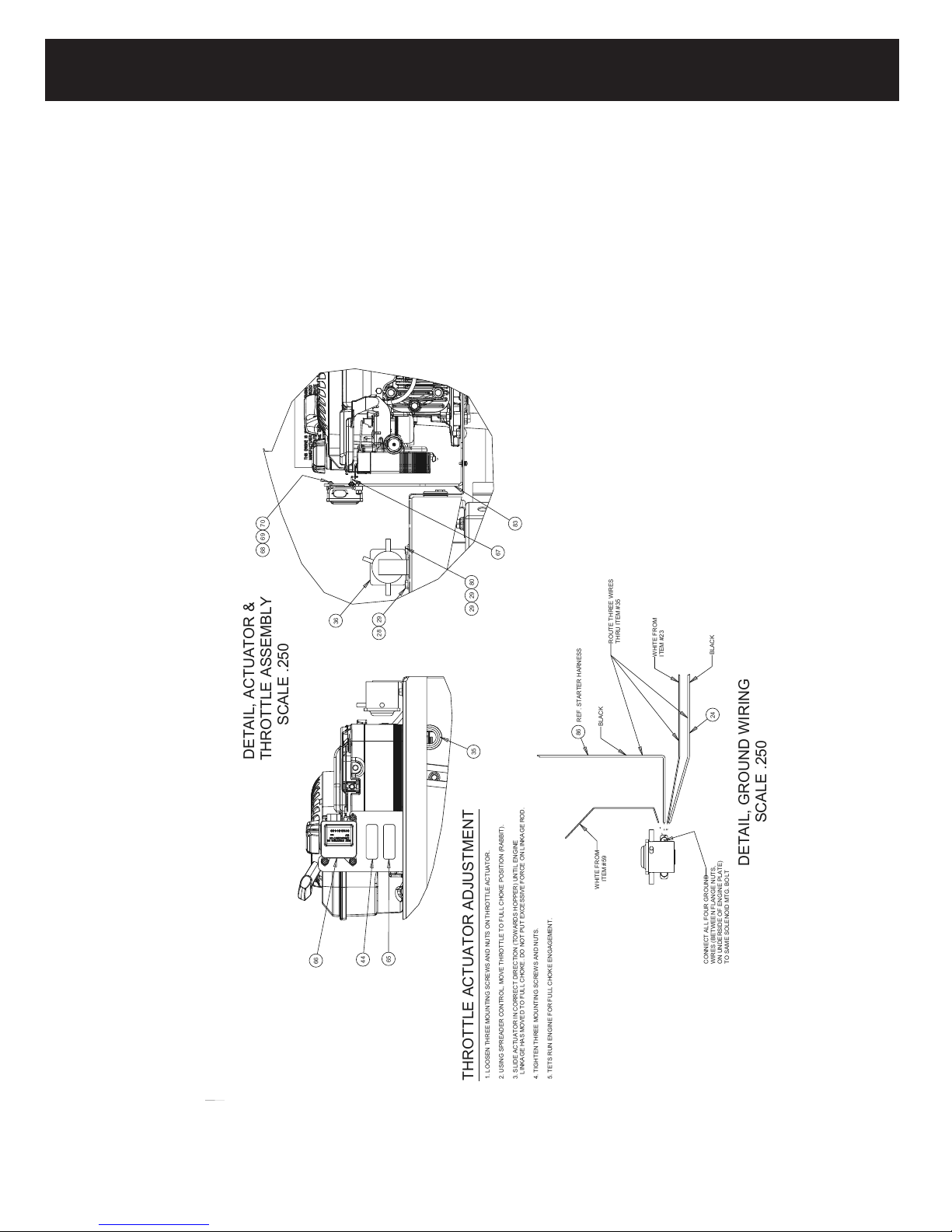

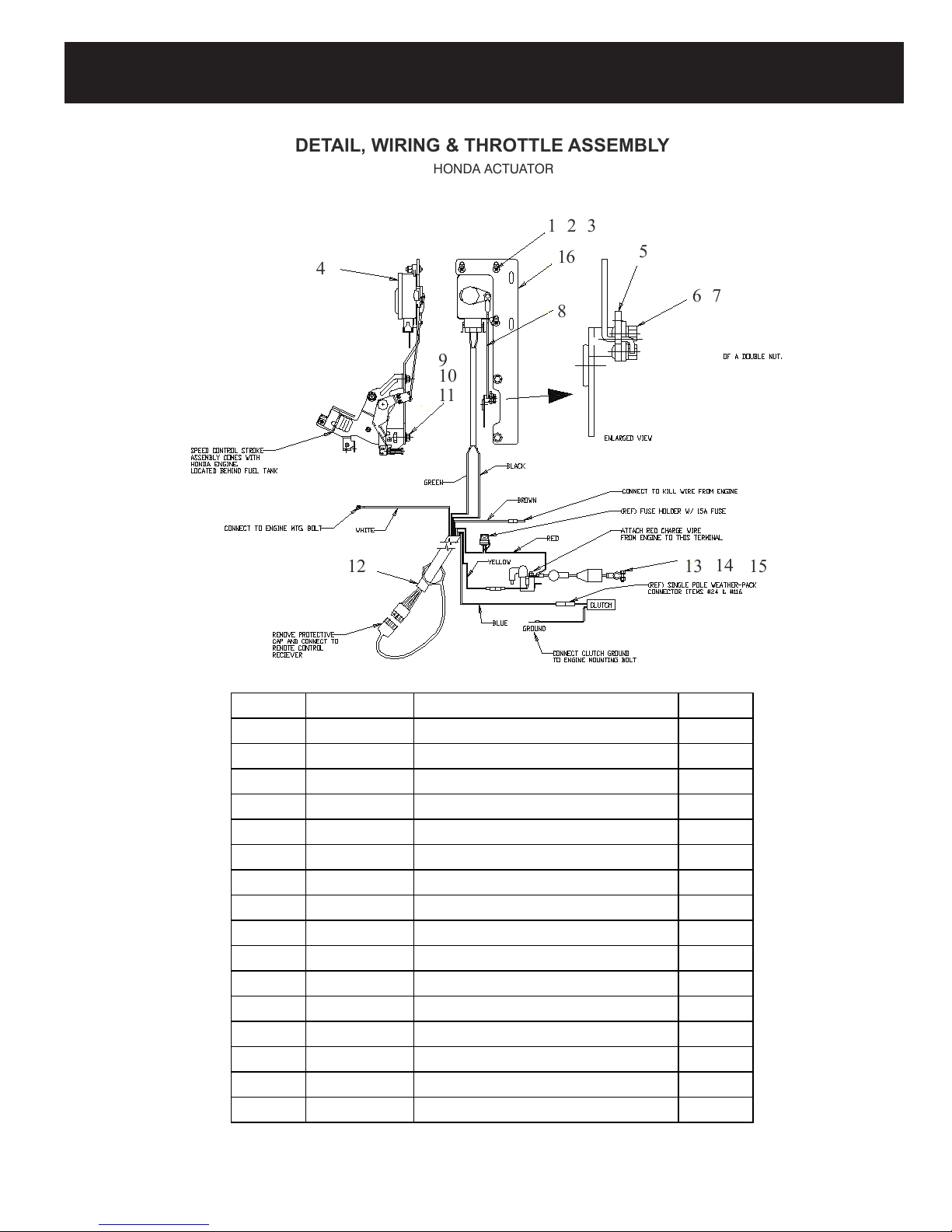

DETAIL, ACTUATOR &
THROTTLE ASSEMBLY
SCALE .250

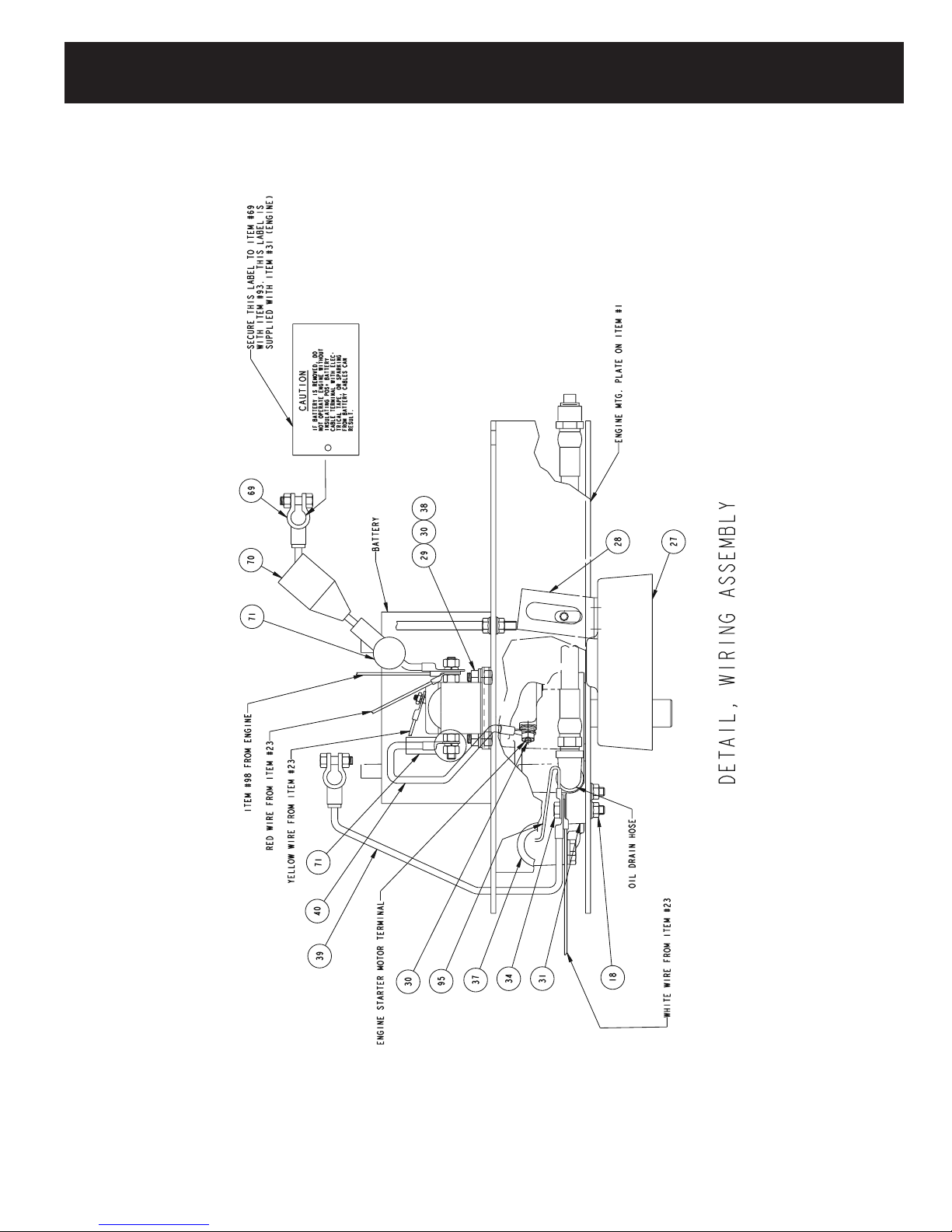

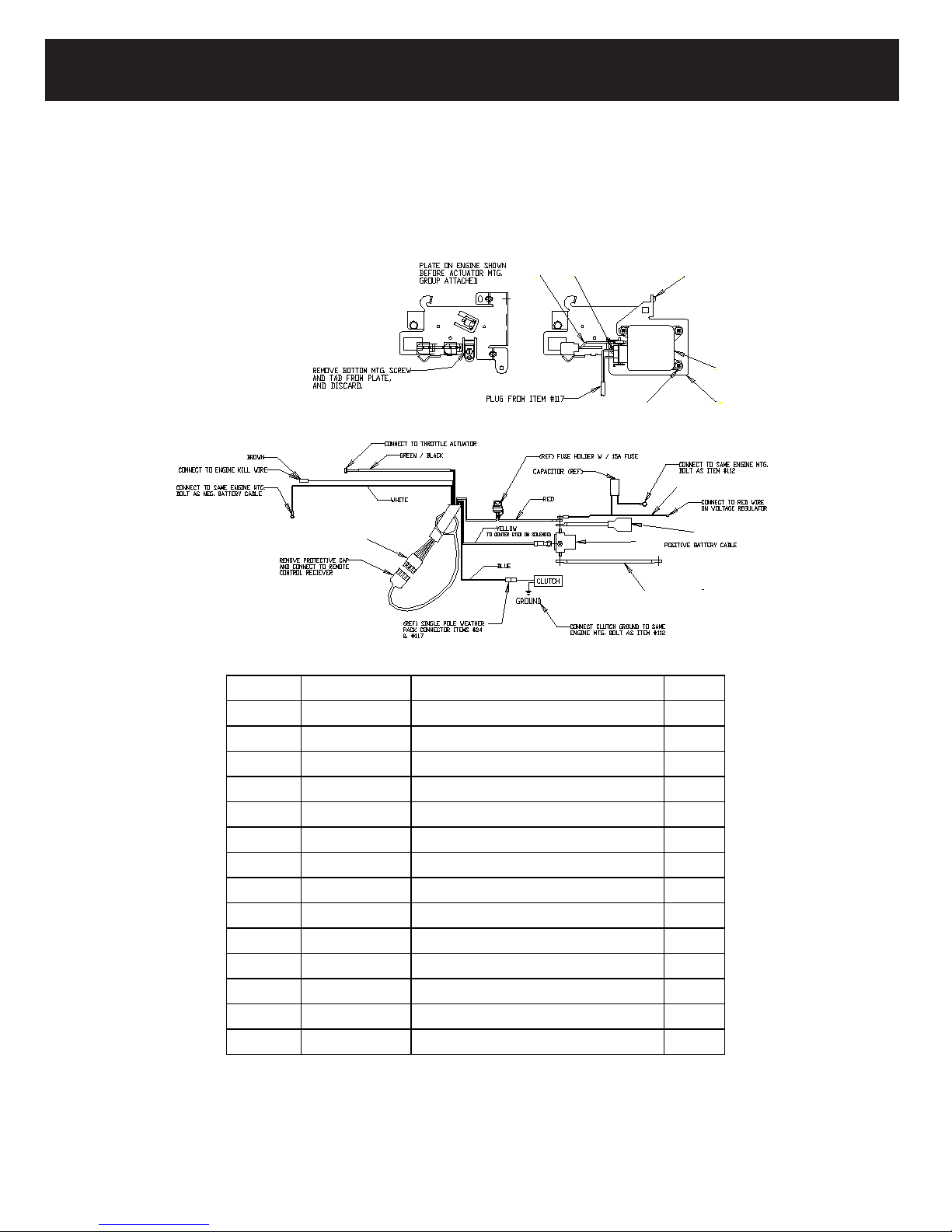

DETAIL, WIRING ASSEMBLY,
SCALE .375
23
INSTALL PROTECTIVE CAP AFTER
RUN TESTING SPREADER
BLUE
YELLOW
(TO CENTER STUD ON SOLENOID)
RED
(REF) FUSE HOLDER W / 15A FUSE
36
33 20
RED
85 20
RED
GROUND
GREEN / BLACK
CONNECT TO THROTTLE ACTUATOR
BROWN
WHITE
4
CONNECT TO ENGINE
KILL WIRE
(NEAR SPARK PLUG)
CONNECT TO SOLENOID
MTG. BOLT
66
35
(REF) SINGLE POLE WEATHER
PACK CONNECTOR ITEMS #23
& #59
REMOVE 4" EXTENSION SUPPLIED
WITH ITEM #23, AND DISCARD
THROTTLE ACTUATOR ADJUSTMENT
1. LOOSEN THREE MOUNTING SCREWS AND NUTS ON THROTTLE ACTUATOR.
2. USING SPREADER CONTROL, MOVE THROTTLE TO FULL CHOKE POSITION (RABBIT). 3. SLIDE ACTUATOR IN CORRECT DIRECTION (TOWARDS HOPPER) UNTIL ENGINE
LINKAGE HAS MOVED TO FULL CHOKE. DO NOT PUT EXCESSIVE FORCE ON LINKAGE ROD.
4. TIGHTEN THREE MOUNTING SCREWS AND NUTS.
5. TETS RUN ENGINE FOR FULL CHOKE ENGAGEMENT.
NOTES:
1. NEATLY SECURE ALL WIRING AWAY
FROM ALL MOVING PARTS & HOT
SURFACES. 2. APPLY DIEELECTRIC GREASE
TO ALL ELECTRICAL CONNECTIONS.
3. DO NOT SECURE ANY WIRES TO
FUEL LINE. 4. USE NYLON TIES (ITEM #71)
TO "BUNDLE" WIRES FOR
SELF SUPPORT.
5. THE SHORT YELLOW JUMPER WIRE
ON ITEM #23 SHOULD NOT BE REMOVED.
THIS IS THE REQUIRED CONNECTION FOR
B&S. 6. THE SHORT BROWN JUMPER WIRE
ON ITEM #23 SHOULD BE REMOVED AND
REPLACED WITH ITEM #4.

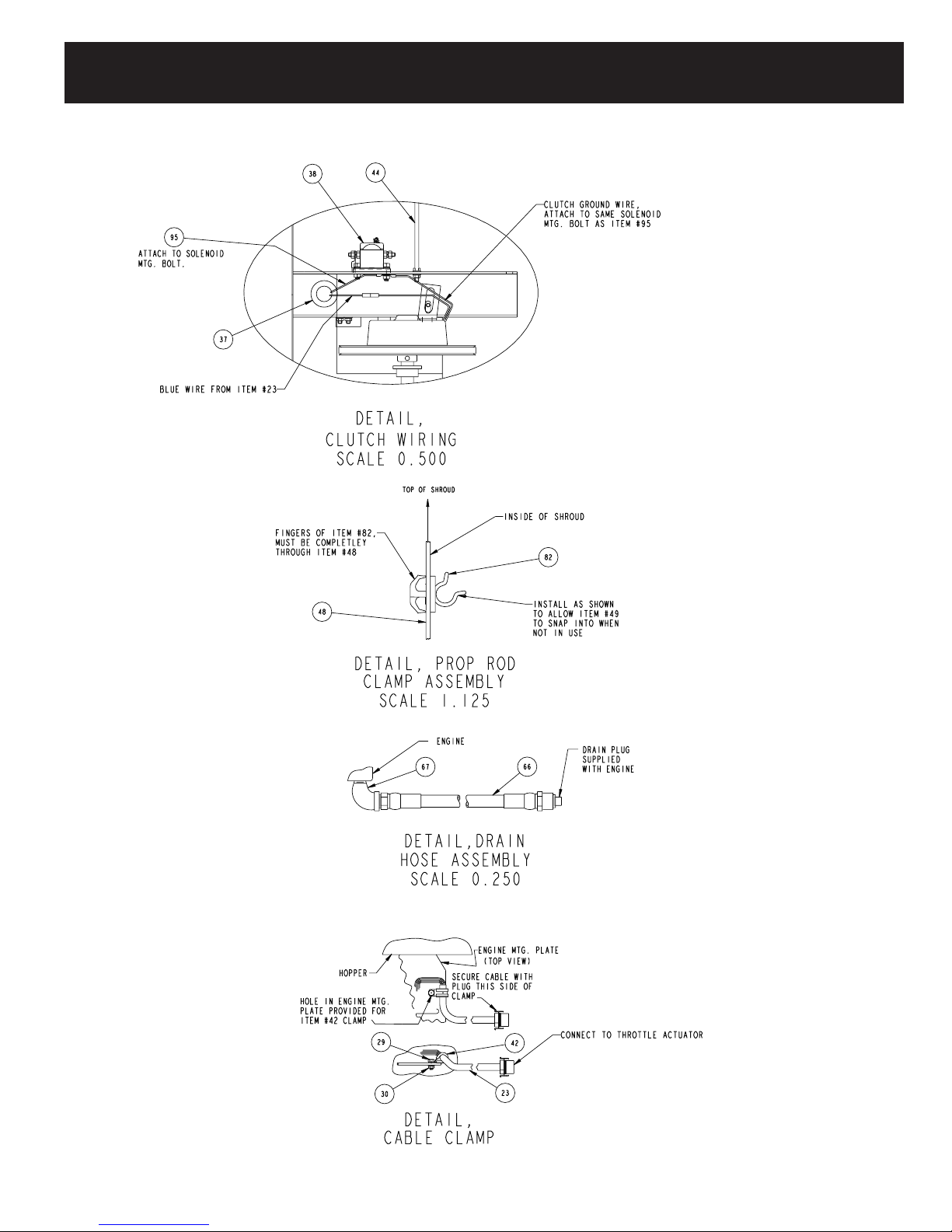

DETAIL, PROP ROD
CLAMP ASSEMBLY
SCALE 1.125
40
63
INSIDE OF SHROUD
FINGERS OF ITEM #63
MUST BE COMPLETELY
THRU ITEM #40
TOP OF SHROUD
DETAIL, CABLE CLAMP
SCALE .375
DETAIL, STARTER HARNESS
SCALE .500
CONNECT TO SOLENOID
CONNECT TO GROUND
85
86
88
87
5
PLUG SUPPLIED WITH ENGINE
RED
BLACK
PLUG SUPPLIED WITH ENGINE,
CUT OFF END WITH THREE
CONNECTORS & CONNECT TO
ITEMS #5 AS SHOWN
79
71
28 29 37
ENGINE MOUNTING PLATE
(TOP VIEW)
REF. STARTER HARNESS
REF. STARTER HARNESS
23
83
29 29 80
28 29
36
68 69 70
67
44
65
10
59
25
60
61
APPLY ANTI-SEIZE COMPOUND
TO INPUT SHAFT BEFORE
ASSEMBLING CLUTCH
00108-760-01-REV-B
Page 30
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
20.000± .500
8.0 MIN
20.0 MAX
DETAIL, CHAIN TENSION
SCALE 0.250
DETAIL, PROP ROD
CLAMP ASSEMBLY
SCALE 1.125
40
63
INSIDE OF SHROUD
FINGERS OF ITEM #63
MUST BE COMPLETELY
THRU ITEM #40
TOP OF SHROUD
CONNECT TO SOLENOID
CONNECT TO GROUND
85
86
88
87
5
PLUG SUPPLIED WITH ENGINE
BLACK
79
71
28 29 37
ENGINE MOUNTING PLATE
(TOP VIEW)
23
83
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
29
26
27
00108-760-01-REV-B
Page 31
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
CADD FILENAME:
REF. DRAWING
APPVBYDATEPIF#
REV
REVISION
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
PV356
S:\00002\
00002-562-00
D0000253300
DETAIL, CLUTCH ASSEMBLY
SCALE 0.250
CLUTCH
DETAIL, WIRING ASSEMBLY,
SCALE .375
23
INSTALL PROTECTIVE CAP AFTER
RUN TESTING SPREADER
BLUE
YELLOW
(TO CENTER STUD ON SOLENOID)
RED
(REF) FUSE HOLDER W / 15A FUSE
36
33 20
RED
85 20
RED
GROUND
GREEN / BLACK
CONNECT TO THROTTLE ACTUATOR
BROWN
WHITE
4
CONNECT TO ENGINE
KILL WIRE
(NEAR SPARK PLUG)
CONNECT TO SOLENOID
MTG. BOLT
(REF) SINGLE POLE WEATHER
PACK CONNECTOR ITEMS #23
& #59
REMOVE 4" EXTENSION SUPPLIED
WITH ITEM #23, AND DISCARD
NOTES:
1. NEATLY SECURE ALL WIRING AWAY
FROM ALL MOVING PARTS & HOT
SURFACES. 2. APPLY DIEELECTRIC GREASE
TO ALL ELECTRICAL CONNECTIONS.
3. DO NOT SECURE ANY WIRES TO
FUEL LINE. 4. USE NYLON TIES (ITEM #71)
TO "BUNDLE" WIRES FOR
SELF SUPPORT.
5. THE SHORT YELLOW JUMPER WIRE
ON ITEM #23 SHOULD NOT BE REMOVED.
THIS IS THE REQUIRED CONNECTION FOR
B&S. 6. THE SHORT BROWN JUMPER WIRE
ON ITEM #23 SHOULD BE REMOVED AND
REPLACED WITH ITEM #4.
DETAIL, STARTER HARNESS
SCALE .500
CONNECT TO SOLENOID
85
87
5
RED
PLUG SUPPLIED WITH ENGINE,
CUT OFF END WITH THREE
CONNECTORS & CONNECT TO
ITEMS #5 AS SHOWN
REF. STARTER HARNESS
10
61
APPLY ANTI-SEIZE COMPOUND
TO INPUT SHAFT BEFORE
ASSEMBLING CLUTCH
00108-760-01-REV-B
Page 32
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
PAGE30
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 33
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
8.0 MIN
20.0 MAX
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
DETAIL, CHAIN TENSION
SCALE 0.250
29
23
27
25
60
59
61
APPLY ANTI-SEIZE COMPOUND
TO INPUT SHAFT BEFORE
ASSEMBLING CLUTCH
10
26
28
58
62
76
DETAIL, CLUTCH ASSEMBLY
SCALE 0.250
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 34
OCTOBER, 2013
ITEM PART NUMBER DESCRIPTION QTY
29 62690 NUT, 1/4” SER FLANGE 5
28 62189 BOLT, 1/4” X 3/4” HH 4
27 64415 RETAINER, CLUTCH 1
26 62268 COVER, CLUTCH 1
25 62752 BOLT, 5/16 X 3/4 HH 1
24 62944 WIRE, REM. BATT. NEGATIVE 1
23 64086 CABLE, SPREADER CONTROL 1
22 62940 V-BELT, BX-46 1
21 64416 FORM, CONVEYOR FLOOR 1
20 62106 BOOT, ALT CABLE 2
19 62640 BOLT, 5/16 X 3/4 CA 18
18 64244 WELD, DRAG CHAIN 1
17 62743 NUT, 3/8” SER FLANGE 8
16 62695 BOLT, 3/8” X 1 1/4” HH 7
15 63565 FLATWASHER, 3/8” 4
14 62638 LOCKNUT, 3/8” VINYL 3
13 63264 FORM, GUARD, CONVEYOR 1
12 62772 LOCKWASHER, 1/2” 4
11 62750 BOLT, 1/2” X 3/4” HH 4
10 63117 SUB- Y, GEARBOX 1
9 62336 NUT, 1/2” HEX JAM 4
8 62304 WELD, TAKEUP BOLT 2
7 64417 PV SHIPPING CARTON 1
6 62641 NUT, 5/16 SER FLANGE SS 18
5 64418 CONNECTOR, BUTT 2
4 64419 WIRE, BROWN JUMPER 4” 1
3 64064 CAP, IDLER 2
2 62007 DECAL, CAUTION 1
1 64420 WELD, HOPPER 16GA S2 1
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 35
OCTOBER, 2013
PV SERIES
ITEM PART NUMBER DESCRIPTION QTY
59 61176 CLUTCH, ELECTRIC 1
58 61161 PULLEY, DRIVEN 1
57 62354 WIPER, CHAIN 1
56 61174 PIN, CONNECTOR W/ COTTER 2
55 62270 BAR, PIVOT 1
54 62746 BOLT, 3/8” X 3/4” CA SS 1
53 62714 LAMP, STOP 1
52 63828 FORM, FEEDGATE HANDLE 1
51 63880 OIL, MOTOR SEE ENGINE MANUAL
50 62715 GROMMET, MTG. 1
49 62364 CABLE, LIGHT POWER 1
48 62657 BOLT, 3/8” X 4” CA SS 2
47 64413 SKID, PV 6’ 1
46 62656 TRIM, VINYL 2
45 62571 DECAL, SERIAL NUMBER 1
44 62768 DECAL, GASOLINE ONLY 1
43 62009 DECAL, DANGER 3
42 62691 PIN, 1/8” X 1” COTTER SS 1
41 61215 ROD, PROP 1
40 64414 WELD, SHROUD 1
39 61169 KNOB, HAND 1
38 66822 WELD, FEEDGATE 1
37 62652 CLAMP, CUSHIONED 1
36 64167 SOLENOID 1
35 62765 GROMMET 1
33 62943 WIRE, REM. BATT. POS. 1
32 62938 PULLEY, DRIVER 1
31 64203 KEY, 3/16” X 1” SQ 1
30 64245 ENGINE, 190CC B&S QUANTUM 1
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 36
OCTOBER, 2013
ITEM PART NUMBER DESCRIPTION QTY
79 64411 HOLDER, NYLON TIE 2
78 62273 BOLT, 5/16” X 1 1/2” HH 2
77 64164 COVER, FEEDGATE HANDLE 1
76 61201 KEY, WOODRUFF 1
75 62813 BOLT, 3/8” X 1 1/4” CA 1
74 00108-760-01 P, INSTR. MANUAL 1
73 63156 DECAL, BRAND Meyer
72 64412 P, SPINNER PV INT. 1
71 62183 TIE, NYLON 5
70 62650 LOCKNUT, 8-32 VINYL SS 3
69 62651 FLATWASHER, #8 SS 3
68 62649 SCREW, 8-32 X 3/4” PR SS 3
67 62720 LINKAGE, HONDA THROTTLE 1
66 63165 ACTUATOR, 12V 1
65 62643 DECAL, FUEL SHUT OFF 1
64 62644 DECAL, ENGINE WARRANTY 1
63 62725 CLAMP, PROP ROD 1
62 62634 SCREW, 5/16” X 5/8” SH CAP 3
61 63009 LOCKWASHER, 5/16” 3
60 63103 FLATWASHER, CLUTCH RETAINER 1
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 37
OCTOBER, 2013
PV SERIES
ITEM PART NUMBER DESCRIPTION QTY
91 63310 NUT, 5/16” SER FLANGE 7
90 63305 BOLT, 5/16” X 3/4” CA 4
89 64405 FORM, CHAINSHIELD 2
88 64406 TERMINAL, 1/4” RING 1
87 64407 TERMINAL, 5/16” RING 1
86 64408 WIRE, 12 GA BLACK 0.75
85 64409 WIRE, 12 GA. RED 0.75
84 63249 BOLT, 5/16” X 2 1/2” HH 1
83 64410 ADAPTER, ENGINE 1
82 64063 ROLLER, POLY 2
81 64062 SHAFT, IDLER 1
80 63586 BOLT, 1/4” X 1” HH 1
BASE LINE PV SERIES
ITEMS NOT SHOWN
ITEM PART NUMBER DESCRIPTION QTY
7 64417 PV SHIPPING CARTON 1
44 62768 DECAL, GASOLINE ONLY 1
51 63880 OIL, MOTOR SEE ENGINE MANUAL
65 62643 DECAL, FUEL SHUT OFF 1
72 64412 P, SPINNER PV INT. 1
74 00108-760-01 INSTR. MANUAL 1
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
TM
MATERIAL:
SCALE
TITLE
DRAWING SIZE DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATE
PIF#
REV
REVISION
NOTED)
(EXCEPT AS
C
DO NOT SCALE DRAWING
DATE
***********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
***********************
FOR TOLERANCES
SEE FORM #410-7 UNLESS
OTHERWISE NOTED.
10.000
5.750

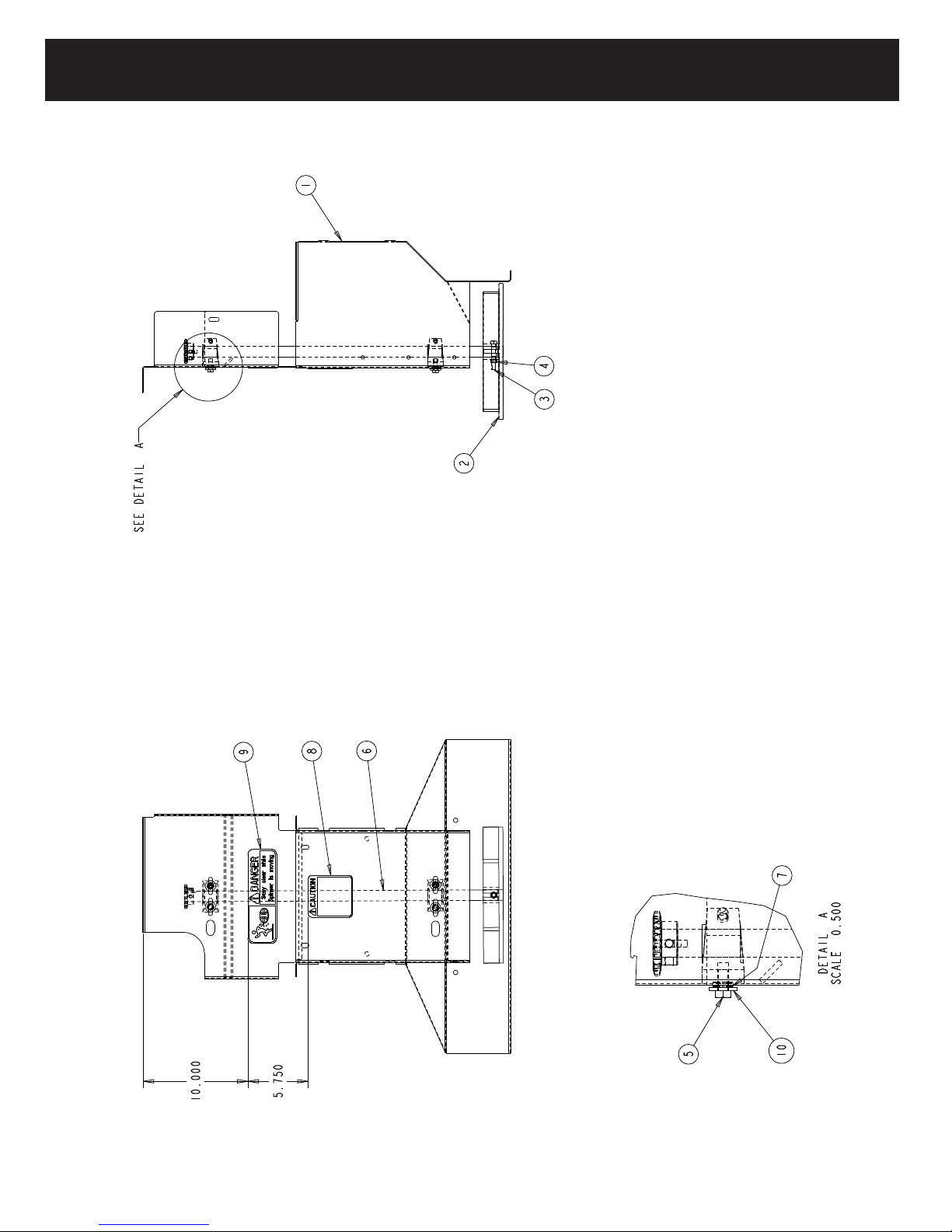

P, SPINNER PV
INTERMEDIATE 14G S2
SEE TABLE
PV356
0.187
JKG 3/17/2010
B0000229622
JKG 3/17/2010
TABD
PART WEIGHT
00002-296-33
ITEM PART NUMBER DESCRIPTION QTY
1 00122-950-XX WELD, SPINNER FRAME 1
2 04622-033-00 DISC, POLY SPINNER 1
3 04003-003-XX BOLT, 3/8-16 X 2 1/2 1
4 04003-807-XX LOCKNUT, 3/8-16 TOP LOCK 1
5 04003-003-XX BOLT, 3/8-16 X 3/4 4
6 00119-086-00 Y, SPINNER SHAFT 1
7 04004-004-XX LOCKWASHER, 3/8 INT/EXT TOOTH8
8 04049-045-00 DECAL, CAUTION 1
9 04049-044-00 DECAL, DANGER 1
S:\00122\
00002-296-33
6
8
9
SEE DETAIL A
1
2
3
4
DETAIL A
SCALE 0.500
5
7
10
00108-760-01-REV-B
Page 38
OCTOBER, 2013
BASE LINE PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 39
OCTOBER, 2013
PV SERIES
BASE LINE PV SERIES
ITEM PART NUMBER DESCRIPTION QTY
10 22230 FLATWASHER, 3/8” U.S.S. SS 4
9 62006 DECAL, DANGER 1
8 62007 DECAL, CAUTION 1
7 62685 LOCKWASHER 3/8 INT/EXT TOOTH 8
6 63406 Y, SPINNER SHAFT 1
5 63205 BOLT, 3/8-16 X 3/4” SS 4
4 63199 LOCKNUT, 3/8-16 TOP LOCK SS 1
3 63198 BOLT, 3/8-16 X 2 1/2” SS 1
2 62146 DISC., POLY SPINNER 1
1 64446 WELD, SPINNER FRAME 1
INSTALLATION AND INSTRUCTIONAL MANUAL
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
DETAIL, IDLER ASSEMBLY
SCALE 0.250
6
5
81
2
10 11
54
13 41

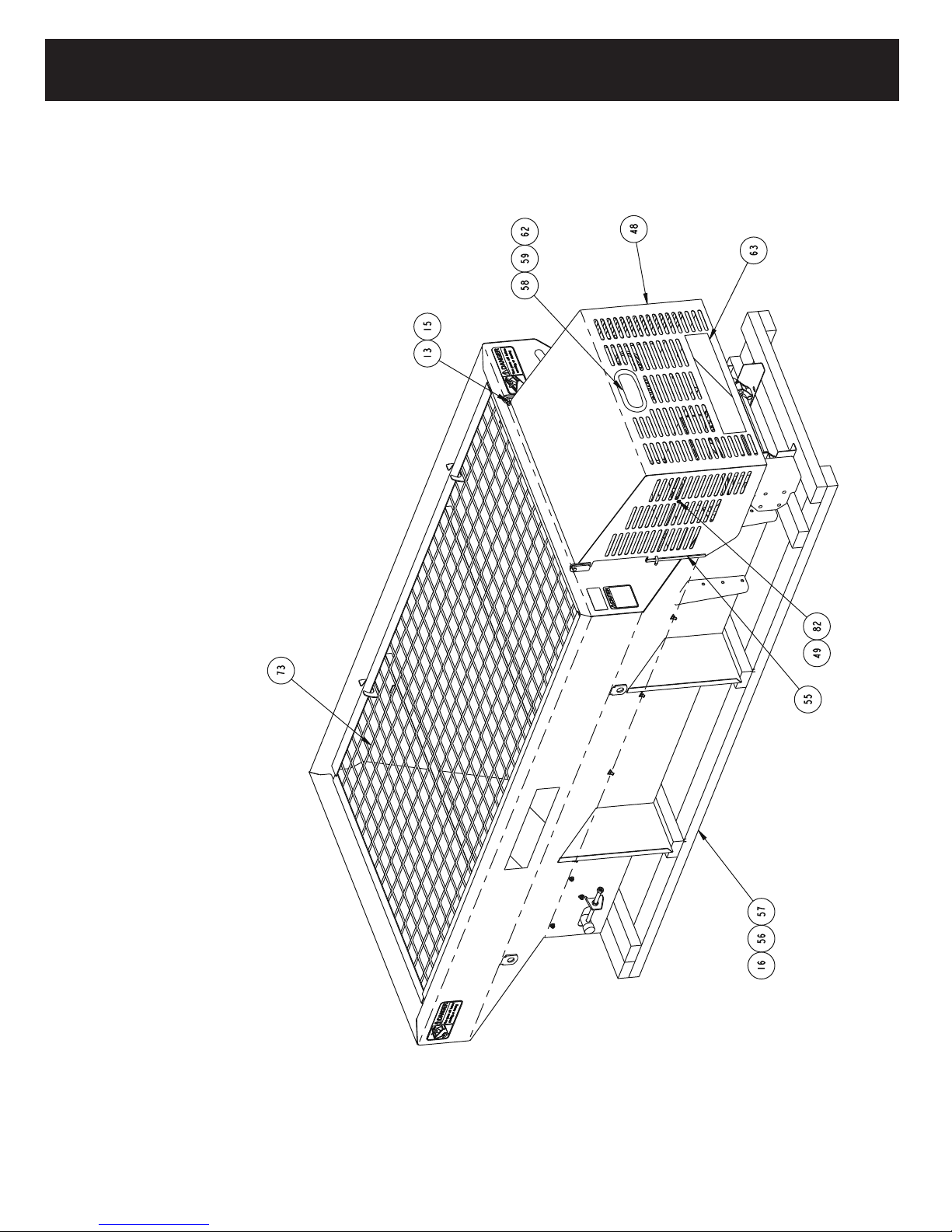

ISO VIEW
SCALE 0.100
16 56 57
73
48
13 15
58 59 62
63
55
49 82
D2
00108-760-01-REV-B
Page 40
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
1.000
1.000
1.000
1.000
.500
3.500
85 04003-127-01 SCREW, 10-32 X 5/16 PPH ZP 2
86 04150-044-01 ACTUATOR, 12V 1
87 00117-256-00 LINKAGE, THROTTLE 1
88 00117-257-00 BRACKET, ACTUATOR 1
89 04003-069-01 SCREW, 8-32 X 3/4" SS 3
90 04004-002-59 FLATWASHER, #8 3
91 04003-804-28 LOCKNUT, 8-32 NYLON SS 3
92 00107-662-00 INSTR. PACKAGE B &S 1
93 04607-013-00 TIE, NYLON 5 1/2" STD 5
94 00002-296-XX P, ASSY SPNR 14 GA 1
95 04616-101-00 ASSY, GROUND WIRE 1
96 04525-012-XX POWDER PAINT
97 00122-181-XX A, LIFT REAR FORKLIFT PV 1
98 04616-119-00 HARNESS, B&S W / CAPACITOR 1
99 04111-052-00 COVER, FEEDGATE HANDLE 1
SEE CHAIN TENSION DETAIL
ON SHEET 2
25
43
53
60
EA. SIDE
DETAIL, IDLER ASSEMBLY
SCALE 0.250
7 8
4 19 21
4 19
6
5
81
12
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
1
2
46
14 51
65
61 99
14 47 64
83
13 15 16
52
54
13 41
22
45
3
63
4 19
52
29 30 38
18 44
DECAL TO BE CENTERED ON
BOTH SIDES OF ITEM #1
4 74 75
15 16 50 72
68
17
20
21
73
48
13 15
58 59 62
D2
00108-760-01-REV-B
Page 41
OCTOBER, 2013
PV SERIES
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
*********************
1.000
1.000
.500
1.000
1.000
3.500
10-0084
REVISED & REDRAWN, SEE OBS
5/10
JG JG
D2
10-0084
REPLACED IDLER SUB-ASSY WITH
POLY ROLLER DESIGN
5/10
JG JG
80 04003-081-04 5/16 X 5/8 SH CAP 3
81 04111-053-00 CAP, IDLER 2
82 04607-028-00 CLAMP, PROP ROD 1
83 04049-357-00 DECAL, ENGINE WARRANTY 1
84 04049-362-00 DECAL, FUEL SHUT OFF 1
85 04003-127-01 SCREW, 10-32 X 5/16 PPH ZP 2
86 04150-044-01 ACTUATOR, 12V 1
87 00117-256-00 LINKAGE, THROTTLE 1
88 00117-257-00 BRACKET, ACTUATOR 1
89 04003-069-01 SCREW, 8-32 X 3/4" SS 3
90 04004-002-59 FLATWASHER, #8 3
91 04003-804-28 LOCKNUT, 8-32 NYLON SS 3
92 00107-662-00 INSTR. PACKAGE B &S 1
93 04607-013-00 TIE, NYLON 5 1/2" STD 5
94 00002-296-XX P, ASSY SPNR 14 GA 1
95 04616-101-00 ASSY, GROUND WIRE 1
96 04525-012-XX POWDER PAINT
97 00122-181-XX A, LIFT REAR FORKLIFT PV 1
98 04616-119-00 HARNESS, B &S W / CAPACITOR 1
99 04111-052-00 COVER, FEEDGATE HANDLE 1
SPINNER MUST BE PACKED
INSIDE UNIT FOR SHIPPING.
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
00122-073-01
INSTR. MANUAL
SEE B/M
04049-199-00
04540-003-00
04049-362-00
00107-662-00
00002-296-XX
04525-012-XX
00122-181-XX
25
43
53
60
84
92
94
96
97
SCALE 0.250
7 8
4 19 21
4 19
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
1
2
46
14 51
65
61 99
14 47 64
83
10 11
13 15 16
15 16
52
54
13 41
22
32 33
18 34
3 36
18 35 36
31
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
29 30 38
18 44
4 74 75
15 16 50 72
68
17
D2
00108-760-01-REV-B
Page 42
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

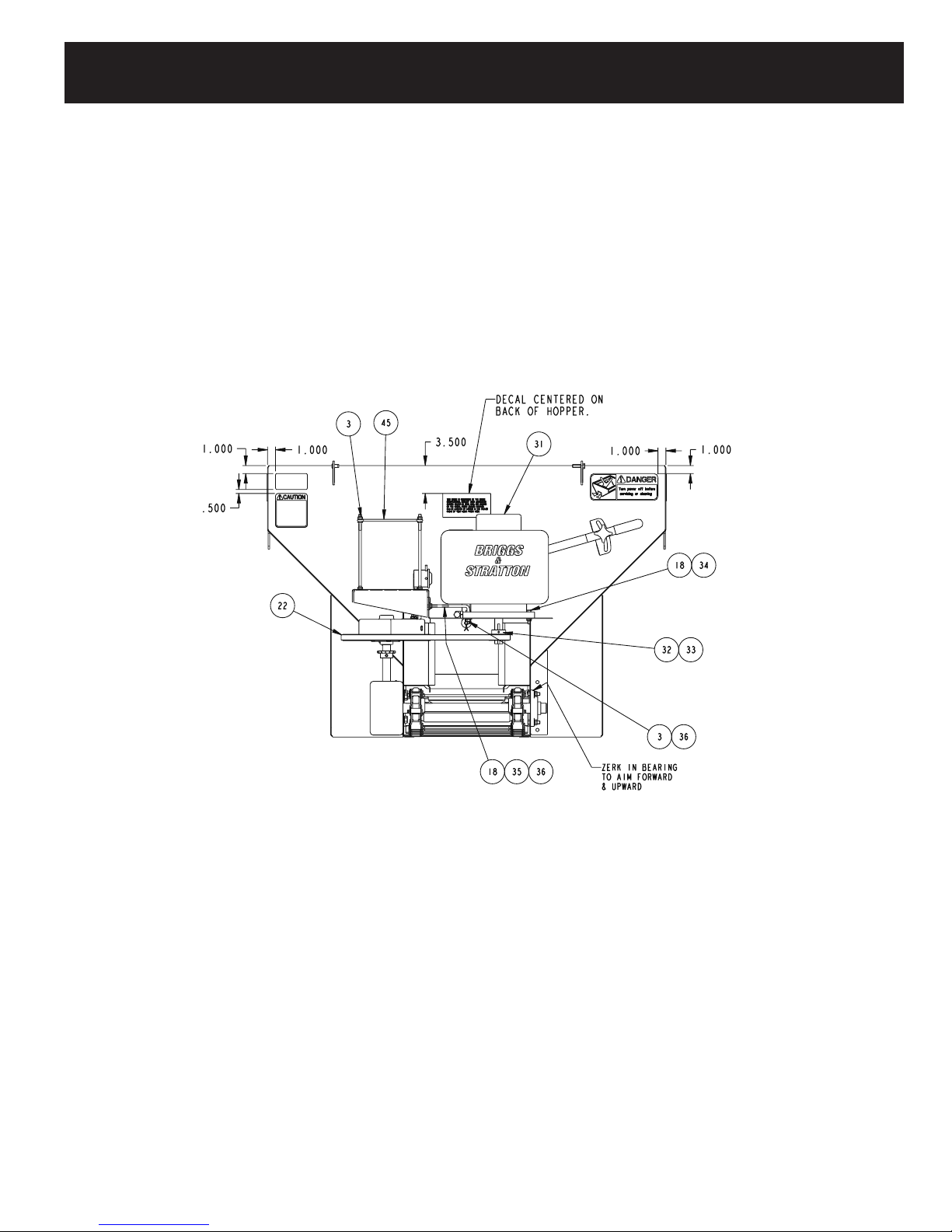

1.000
1.000
.500
1.000
1.000
3.500
41 04003-033-XX BOLT, 3/8-16 X 1 1/4 CA 1
42 04607-027-00 CLAMP, CUSHIONED 1/2" 1
43 SEE B/M P, INSTR MANUAL PV 1
44 00104-802-00 ROD, BATTERY 2
45 04604-017-00 DOWN, HOLD 1
46 00110-819-XX WELD, FEEDGATE 7G 1
47 04624-001-01 KNOB, HAND 1
48 00119-587-XX WELD, SHROUD 14G PV 1
49 00112-734-00 ROD, PROP 1
50 04004-002-XX FLATWASHER, 3/8" 2
51 04010-016-01 PIN, 1/8" X 1" COTTER SS 1
52 04049-182-00 DECAL, DANGER 3
53 04049-199-00 DECAL, GASOLINE ONLY 1
54 04049-XXX-XX DECAL, SERIAL NUMBER 1
55 04093-021-00 TRIM, VINYL 2
56 04553-008-XX SKID, PV 1
57 04003-033-14 BOLT, 3/8-16 X 4" CA 4
58 04605-155-00 CABLE, LIGHT POWER 1
59 04605-154-00 GROMMET, MTG 1
60 04540-003-00 OIL, 5W30 MOTOR
SEE
B/M
61 00118-312-XX FORM, HANDLE FEEDGATE 1
62 04605-153-00 LAMP, STOP CHM 1
63 04049-XXX-XX DECAL, LOGO 3
64 04003-033-12 BOLT, 3/8-16 X 3/4 CA SS 1
65 00101-636-XX BAR, PIVOT 1
66 04120-078-01 HOSE, 3/8" X 13" 1
67 04110-006-18 ELBOW, 3/8" 90 DEG 1
68 04045-022-00 PIN, CONNECTOR W/ COTTER PIN 2
69 04604-004-01 CABLE, BATTERY RED 1
70 04067-032-00 BOOT, BATT CABLE 1
71 04067-033-00 BOOT, ALT CABLE 3
72 04076-100-00 WIPER, CHAIN 1
73 SEE B/M WELD, SCREEN
SEE
B/M
74 SEE B/M WELD, INV. VEE 1
75 04003-032-04 BOLT, 5/16 X 1 CA SS 4
76 04070-020-00 PULLEY, DRIVEN 1
77 04138-017-00 CLUTCH, ELECTRIC 1
78 00108-771-00 WASHER, CLUTCH RET 1
79 04004-001-XX LOCKWASHER, 5/16 MED SPLIT 3
ITEMS NOT SHOWN:
22
32 33
45
3
18 34
3 36
18 35 36
31
DECAL CENTERED ON
BACK OF HOPPER.
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
00108-760-01-REV-B
Page 43
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
MATERIAL:
SCALE
TITLE
DRAWING SIZE
D
DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATEPIF#
REV
REVISION
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
00002-533-00
DETAIL, ASSEMBLY
SEE DETAILS
50" PV
S:\00002\
00002-533-00
0.125
JKG 5/4/2010
JKG 5/4/2010
D1
10-0084
REVISED & REDRAWN, SEE OBS
PDF FOR PREVIOUS VERSIONS
5/10
JG JG
D2
10-0084
REPLACED IDLER SUB-ASSY WITH
POLY ROLLER DESIGN
5/10
JG JG
ITEM PART NUMBER DESCRIPTION QTY
1 00115-156-XX WELD, PV 50" HOPPER 1
2 04049-045-00 DECAL, CAUTION 1
3 04003-804-XX LOCKNUT, 5/16-18 NYLON 3
4 04003-806-13 NUT, 5/16-18 SER FLANGE SS
5 00122-366-00 SHAFT, IDLER 1
6 00122-369-00 ROLLER, POLY 2
7
00115-124-00 WELD, TAKE UP BOLT
8 04003-802-XX NUT, 1/2-13 HEX JAM 4
9 00118-337-00 SUB-ASSEMBLY GEARBOX 1
10 04003-005-XX BOLT, 1/2-13 X 3/4 4
11 04004-001-XX LOCKWASHER, 1/2" MED SPLIT 4
12 00119-590-01 FORMING, GUARD, CONVEYOR, PV 1
13 04003-804-XX LOCKNUT, 3/8-16 NYLON 3
14 04004-002-20 FLATWASHER, 3/8" SS 2
15 04003-003-XX BOLT, 3/8-16 X 1 1/4 HH 6
16 04003-806-XX NUT, 3/8-16 SER FLANGE 9
17 04043-XXX-XX WELD, DRAG CHAIN 1
18 04003-806-XX NUT, 5/16-18 SER FLANGE 10
19 04003-032-XX BOLT, 5/16-18 X 3/4 CA
20 00119-60X-XX CHAINSHIELD, PV 2
21 00122-05X-XX FORM, FLOOR PV 1
22 04071-016-00 V-BELT, BX-48 1
23 04616-120-00 CABLE, SPREADER CONTROL 1
24 04009-001-01 KEY, WOODRUFF 1/4 X 7/8 1
25 00122-073-01 A, WIRELESS REMOTE PV 1
26 04003-002-XX BOLT, 5/16-18 X 3/4 HH 1
27 04622-008-00 COVER, CLUTCH 1
28 00104-822-XX RETAINER, CLUTCH 1
29 04003-001-XX BOLT, 1/4-20 X 3/4 HH 5
30 04003-806-XX NUT, 1/4-20 SER FLANGE 5
31 04145-075-00 ENGINE, 10.5 HP B &S W / VR 1
32 04031-007-00 KEY, 1/4" SQ X 1" 1
33 04070-021-00 PULLEY, DRIVER 1
34 04003-002-XX BOLT, 5/16-18 X 1 1/2 HH 3
35 04048-518-01 BOLT, L 1
36 04004-002-XX FLATWASHER, 5/16 2
37 04093-022-00 GROMMET 7/8 X 1 5/8" 1
38 04145-005-00 SOLENOID, GROUNDED 1
39 04604-004-00 CABLE, BATTERY BLACK 1
40 04616-067-02 CABLE, STARTER, 9", 6GA. RED 1
41 04003-033-XX BOLT, 3/8-16 X 1 1/4 CA 1
42 04607-027-00 CLAMP, CUSHIONED 1/2" 1
43 SEE B/M P, INSTR MANUAL PV 1
44 00104-802-00 ROD, BATTERY 2
45 04604-017-00 DOWN, HOLD 1
46 00110-819-XX WELD, FEEDGATE 7G 1
47 04624-001-01 KNOB, HAND 1
48 00119-587-XX WELD, SHROUD 14G PV 1
80 04003-081-04 5/16 X 5/8 SH CAP 3
81 04111-053-00 CAP, IDLER 2
82 04607-028-00 CLAMP, PROP ROD 1
83 04049-357-00 DECAL, ENGINE WARRANTY 1
84 04049-362-00 DECAL, FUEL SHUT OFF 1
85 04003-127-01 SCREW, 10-32 X 5/16 PPH ZP 2
86 04150-044-01 ACTUATOR, 12V 1
87 00117-256-00 LINKAGE, THROTTLE 1
88 00117-257-00 BRACKET, ACTUATOR 1
89 04003-069-01 SCREW, 8-32 X 3/4" SS 3
90 04004-002-59 FLATWASHER, #8 3
91 04003-804-28 LOCKNUT, 8-32 NYLON SS 3
92 00107-662-00 INSTR. PACKAGE B&S 1
93 04607-013-00 TIE, NYLON 5 1/2" STD 5
94 00002-296-XX P, ASSY SPNR 14 GA 1
95 04616-101-00 ASSY, GROUND WIRE 1
96 04525-012-XX POWDER PAINT
SEE
B/M
97 00122-181-XX A, LIFT REAR FORKLIFT PV 1
98 04616-119-00 HARNESS, B &S W / CAPACITOR 1
99 04111-052-00 COVER, FEEDGATE HANDLE 1
SPINNER MUST BE PACKED
INSIDE UNIT FOR SHIPPING.
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
00122-073-01
INSTR. MANUAL
SEE B/M 04049-199-00
04540-003-00
04049-362-00
00107-662-00
00002-296-XX
04525-012-XX
00122-181-XX
25
43
53
60
84
92
94
96
97
DETAIL, IDLER ASSEMBLY
SCALE 0.250
7 8
4 19 21
4 19
6
5
81
12
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
1
2
46
14 51
65
61 99
14 47 64
83
10 11
13 15 16
15 16
52
54
13 41
48
13 15
58 59 62
63
D2
00108-760-01-REV-B
Page 44
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
HOSE ASSEMBLY
SCALE 0.250
DETAIL,DRAIN
ENGINE
MTG. BOLT.
ATTACH TO SOLENOID
DETAIL,
CLUTCH WIRING
SCALE 0.500
38
44
95
37
BLUE WIRE FROM ITEM #23
CLAMP ASSEMBLY
SCALE 1.125
DETAIL, PROP ROD
FINGERS OF ITEM #82,
MUST BE COMPLETLEY
THROUGH ITEM #48
48
67
TOP OF SHROUD
THROTTLE ACTUATOR ADJUSTMENT
1. LOOSEN THREE MOUNTING SCREWS AND NUTS ON THROTTLE ACTUATOR.
2. USING SPREADER CONTROL, MOVE THROTTLE ACTUATOR TO FULL CHOKE POSITION (RABBIT). 3. SLIDE ACTUATOR IN CORRECT DIRECTION (RIGHT) UNITIL ENGINE LINKAGE HAS MOVED TO
FULL CHOKE. DO NOT PUT EXCESSIVE FORCE ON LINKAGE ROD.
4. TIGHTEN THREE MOUNTING SCREWS AND NUTS.
5. TEST RUN ENGINE FOR FULL CHOKE ENGAGEMENT.
BROWN
GREEN / BLACK
(REF) FUSE HOLDER W / 15A FUSE
CONNECT TO THROTTLE ACTUATOR
REMOVE BOTTOM MTG. SCREW
AND TAB FROM PLATE,
AND DISCARD.
PLATE ON ENGINE SHOWN
BEFORE ACTUATOR MTG.
GROUP ATTACHED
87
85
85
89 90 91
86
88
PLUG FROM ITEM #23
DETAIL, WIRING ASSEMBLY
SCALE 0.500
CAUTION
IF BATTERY IS REMOVED, DO
NOT OPERATE ENGINE WITHOUT
INSULATING POS+ BATTERY
CABLE TERMINAL WITH ELEC-
TRICAL TAPE, OR SPARKING
FROM BATTERY CABLES CAN
RESULT.
ITEM #98 FROM ENGINE
RED WIRE FROM ITEM #23
YELLOW WIRE FROM ITEM #23
ENGINE STARTER MOTOR TERMINAL
39
95
37
34
31
18
40
71
71
70
69
29 30 38
27
28
OIL DRAIN HOSE
ENGINE MTG. PLATE ON ITEM #1
BATTERY
SECURE THIS LABEL TO ITEM #69
WITH ITEM #93. THIS LABEL IS
SUPPLIED WITH ITEM #31 (ENGINE)
WHITE WIRE FROM ITEM #23
CONNECT TO ENGINE KILL WIRE
30
CONNECT TO SAME ENGINE MTG.
BOLT AS NEG. BATTERY CABLE
CAPACITOR (REF)
00108-760-01-REV-B
Page 45
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
8.0 MIN
20.0 MAX
24
30
28
27
77
26
78
29
76
79
80
9
WIRES ON ITEM #77 SHOULD EXIT
OUT OF THIS HOLE IN ITEM #27
WITHOUT BEING PINCHED BETWEEN
ITEMS #77 & 27
DETAIL, CLUTCH ASSEMBLY
SCALE 0.250
APPLY ANTI-SEIZE COMPOUND
TO INPUT SHAFT BEFORE
ASSEMBLING CLUTCH
DETAIL, CHAIN TENSION
SCALE 0.250
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY.
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
00108-760-01-REV-B
Page 46
OCTOBER, 2013
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
MATERIAL:
SCALE
TITLE
LINDENWOOD ILLINOIS
WHERE USED
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
8.0 MIN
20.0 MAX
DETAIL, ASSEMBLY
SEE DETAILS ON SHEET 1
50" PV
0.125
24
30
28
27
77
26
78
29
76
79
80
9
WIRES ON ITEM #77 SHOULD EXIT
OUT OF THIS HOLE IN ITEM #27
WITHOUT BEING PINCHED BETWEEN
ITEMS #77 & 27
DETAIL, CLUTCH ASSEMBLY
SCALE 0.250
APPLY ANTI-SEIZE COMPOUND
TO INPUT SHAFT BEFORE
ASSEMBLING CLUTCH
HOSE ASSEMBLY
SCALE 0.250
DETAIL,DRAIN
ENGINE
DRAIN PLUG
SUPPLIED
WITH ENGINE
MTG. BOLT.
ATTACH TO SOLENOID
DETAIL,
CLUTCH WIRING
SCALE 0.500
38
44
95
37
BLUE WIRE FROM ITEM #23
CLUTCH GROUND WIRE,
ATTACH TO SAME SOLENOID
MTG. BOLT AS ITEM #95
CLAMP ASSEMBLY
SCALE 1.125
DETAIL, PROP ROD
FINGERS OF ITEM #82,
MUST BE COMPLETLEY
THROUGH ITEM #48
INSTALL AS SHOWN
TO ALLOW ITEM #49
TO SNAP INTO WHEN
NOT IN USE
48
82
INSIDE OF SHROUD
67
66
DETAIL, CHAIN TENSION
SCALE 0.250
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY.
TOP OF SHROUD
CABLE CLAMP
HOPPER
HOLE IN ENGINE MTG.
PLATE PROVIDED FOR
ITEM #42 CLAMP
SECURE CABLE WITH
PLUG THIS SIDE OF
CLAMP
DETAIL,
ENGINE MTG. PLATE
(TOP VIEW)
29
30
42
23
CONNECT TO THROTTLE ACTUATOR
98
69
40
POSITIVE BATTERY CABLE
STARTER CABLE
38
85
89 90 91
86
88
CONNECT TO SAME ENGINE MTG.
BOLT AS NEG. BATTERY CABLE
CONNECT TO RED WIRE
ON VOLTAGE REGULATOR
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
00108-760-01-REV-B
Page 47
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 48
OCTOBER, 2013
ITEM PART NUMBER DESCRIPTION QTY
31 64066 ENGINE, 10.5 HP B &S W / VR 1
63171 ENGINE, HONDA W/DECALS
30 62187 NUT, 1/4-20 SER FLANGE 5
62690 NUT, 1/4-20 SER FLANGE ss
29 20003 BOLT, 1/4-20 X 3/4 HH 5
62189 BOLT, 1/4-20 X 3/4 HH ss
28 61167 RETAINER, CLUTCH 1
64399 RETAINER, CLUTCH s3
27 61168 COVER, CLUTCH 1
26 62763 BOLT, 5/16-18 X 3/4 HH 1
62752 BOLT, 5/16-18 X 3/4 HH ss
25 64401 A, WIRELESS REMOTE PV 1
24 61201 KEY, WOODRUFF 1/4 X 7/8 1
23 64086 CABLE, SPREADER CONTROL 1
22 61162 V-BELT, BX-48 1
21 SEE PARTS TABLE FORM, FLOOR PV 1
20 SEE PARTS TABLE CHAINSHIELD, PV 2
19 63305 BOLT, 5/16-18 X 3/4 CA 14
62640 BOLT, 5/16-18 X 3/4 CA ss
18 63304 NUT, 5/16-18 SER FLANGE 10
62641 NUT, 5/16-18 SER FLANGE ss
17 SEE PARTS TABLE WELD, DRAG CHAIN 1
16 62611 NUT, 3/8-16 SER FLANGE 9
62743 NUT, 3/8-16 SER FLANGE ss
15 20066 BOLT, 3/8-16 X 1 1/4 HH 6
62695 BOLT, 3/8-16 X 1 1/4 HH ss
14 63409 FLATWASHER, 3/8”SS 2
13 20305 LOCKNUT, 3/8-16 NYLON 3
63348 LOCKNUT, 3/8-16 NYLON ss
12 63264 FORMING, GUARD, CONVEYOR, PV 1
11 20329 LOCKWASHER, 1/2” MED SPLIT 4
62270 LOCKWASHER, 1/2” MED SPLIT ss
10 62617 BOLT, 1/2-13 X 3/4 4
62750 BOLT, 1/2-13 X 3/4 ss
9 63117 SUB-ASSEMBLY GEARBOX 1
8 62408 NUT, 1/2-13 HEX JAM 4
62336 NUT, 1/2-13 HEX JAM ss
7 62304 WELD, TAKE UP BOLT 2
6 64063 ROLLER, POLY 2
5 64062 SHAFT, IDLER 1
4 62641 NUT, 5/16-18 SER FLANGE SS 13
3 62628 LOCKNUT, 5/16-18 NYLON 3
63301 LOCKNUT, 5/16-18 NYLON ss
2 62007 DECAL, CAUTION 1
1 SEE PARTS TABLE WELD, PV 50” HOPPER 1
STANDARD PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 49
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
ITEM PART NUMBER DESCRIPTION QTY
61 63828 FORM, HANDLE FEEDGATE 1
64388 FORM, HANDLE FEEDGATE s3
63828 FORM, HANDLE FEEDGATE s2
60 63880 OIL, 5W30 MOTOR SEE ENGINE MANUAL
59 62715 GROMMET, MTG 1
58 62364 CABLE, LIGHT POWER 1
57 62657 BOLT, 3/8-16 X 4” CA 4
55 62656 TRIM, VINYL 2
54
53 62768 DECAL, GASOLINE ONLY 1
52 62009 DECAL, DANGER 3
51 62691 PIN, 1/8” X 1” COTTER SS 1
50 20353 FLATWASHER, 3/8” 2
49 61215 ROD, PROP 1
48 63017 WELD, SHROUD 14G PV 1
47 61169 KNOB, HAND 1
46 62281 WELD, FEEDGATE 7G 1
45 62767 DOWN, HOLD 1
44 61206 ROD, BATTERY 2
43 P, INSTR MANUAL PV 1
42 62652 CLAMP, CUSHIONED 1/2” 1
41 62615 BOLT, 3/8-16 X 1 1/4 CA 1
40 61213 CABLE, STARTER, 9”, 6GA. RED 1
39 62040 CABLE, BATTERY BLACK 1
38 61179 SOLENOID, GROUNDED 1
37 62765 GROMMET 7/8 X 1 5/8” 1
36 20352 FLATWASHER, 5/16 2
35 61205 BOLT, L 1
34 62764 BOLT, 5/16-18 X 1 1/2 HH 3
33 61177 PULLEY, DRIVER 1
32 61196 KEY, 1/4” SQ X 1” 1
63295 DECAL, SERIAL NUMBER (Meyer)
22230 FLATWASHER, 3/8” SS
63021 WELD, SHROUD 14G PV S2
64402 WELD, SHROUD 14G PV S3
62282 WELD, FEEDGATE 7G S3
63822 WELD, FEEDGATE 7G S2
64403 BOLT, 3/8-16 X 1 1/4 CA SS
63173 FLATWASHER, 5/16 SS
62773 BOLT, 5/16-18 X 1 1/2 HH SS
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 50
OCTOBER, 2013
ITEM PART NUMBER DESCRIPTION QTY
99 64164 COVER, FEEDGATE HANDLE 1
98 64084 HARNESS, B &S W / CAPACITOR 1
97 63843 A, LIFT REAR FORKLIFT PV 1
95 63131 ASSY, GROUND WIRE 1
94 SEE PARTS TABLE P, ASSY SPNR 14 GA 1
93 62183 TIE, NYLON 5 1/2” STD 5
92 62803 INSTR. PACKAGE B &S 1
91 62650 LOCKNUT, 8-32 NYLON SS 3
90 62651 FLATWASHER, #8 3
89 62649 SCREW, 8-32 X 3/4” SS 3
88 62645 BRACKET, ACTUATOR 1
87 62648 LINKAGE, THROTTLE 1
86 63165 ACTUATOR, 12V 1
85 62646 SCREW, 10-32 X 5/16 PPH ZP 2
84 62643 DECAL, FUEL SHUT OFF 1
83 62644 DECAL, ENGINE WARRANTY 1
82 62725 CLAMP, PROP ROD 1
81 64064 CAP, IDLER 2
80 62634 5/16 X 5/8 SH CAP 3
79 20326 LOCKWASHER, 5/16 MED SPLIT 3
78 63103 WASHER, CLUTCH RET 1
77 61167 CLUTCH, ELECTRIC 1
76 61161 PULLEY, DRIVEN 1
75 63175 BOLT, 5/16 X 1 CA SS 4
74 SEE PARTS TABLE WELD, INV. VEE 1
73 SEE PARTS TABLE WELD, SCREEN 1
72 62345 WIPER, CHAIN 1
71 62106 BOOT, ALT CABLE 3
70 63125 BOOT, BATT CABLE 1
69 63130 CABLE, BATTERY RED 1
68 61174 PIN, CONNECTOR W/ COTTER PIN 2
67 62937 ELBOW, 3/8” 90 DEG 1
66 62633 HOSE, 3/8” X 13” 1
65 62270 BAR, PIVOT 1
64 62746 BOLT, 3/8-16 X 3/4 CA SS 1
63 63156 DECAL, LOGO (Meyer)
62 62714 LAMP, STOP CHM 1
STANDARD PV MODEL
62804 INSTR. PACKAGE HONDA
63309 LOCKWASHER, 5/16 MED SPLIT ss
64404 BAR, PIVOT s3
63817 BAR, PIVOT s2
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 51
OCTOBER, 2013
PV SERIES
STANDARD PV MODEL
ITEM PART NUMBER DESCRIPTION QTY
25 64401 A, WIRELESS REMOTE PV 1
43 00108-760-01 P, INSTR MANUAL PV 1
53 62768 DECAL, GASOLINE ONLY 1
60 63880 OIL, 5W30 MOTOR SEE ENGINE MANUAL
84 62643 DECAL, FUEL SHUT OFF 1
92 62803 INSTR. PACKAGE B &S 1
62804 INSTR. PACKAGE HONDA
94 SEE PARTS TABLE P, ASSY SPNR 14 GA 1
ITEMS NOT SHOWN
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
INSTALLATION, OPERATION AND PARTS MANUAL
POLYHAWK
TM
PV SERIES
00108-760-01-REV-B
Page 52
OCTOBER, 2013
DETAIL, WIRING & THROTTLE ASSEMBLY
BRIGGS&STRATTONACTUATOR
1 2
13
ITEM PART NUMBER DESCRIPTION QTY.
1 62720 LINKAGE,THROTTLE 1
2 62646 SCREW,#10-32x5/16”PPHMACHINE 2
3 62721 ASSEMBLY,ACTUATOR 1
4 62649 SCREW,#8-32X3/4”PHILRDSS 3
5 62650 LOCKNUT,#8-32NYLINSSS 3
6 62718 BRACKET,ACTUATOR, 1
7 64084 HARNES,B&SW/CAPACITOR 1
8 63130 CABLE,BATTERY-RED 1
9 63125 BOOT,BATTERYCABLESTRAIGHT 1
10 64087 BOOT,ALT.CABLE 1
11 64085 CABLE,STARTER14”6GARED 1
12 62107 BOOT,ALT.CABLE 1
13 64086 CABLE,CONTROLSPREADER 1
14 64167 SOLENOID,GROUNDED 1
2
3
654
7
8 9 10
14
11 12
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
INSTALLATION, OPERATION AND PARTS MANUAL
POLYHAWK
TM
PV SERIES
HONDAACTUATOR
4
1 2 3
5
11
8
6 7
13
15
14
12
10
9
DETAIL, WIRING & THROTTLE ASSEMBLY
16
00108-760-01-REV-B
Page 53
OCTOBER, 2013
PV SERIES
ITEM PART NUMBER DESCRIPTION QTY.
1 62649 SCREW, #8-32 X 3/4” PHIL RD SS 3
2 62650 LOCKNUT, #8-32 NYL INS SS 3
3 64088 FLATWASHER, 3
4 62721 ASSEMBLY, ACTUATOR 1
5 62719 LEVER, EXTENSION 1
6 63122 LOCKNUT 2-56 NYLON SS 1
7 631211 SCREW, 2-56 X 3/8” SS 1
8 62720 LINKAGE, THROTTLE 1
9 62799 BOLT, M5-25 SS 1
10 62800 LOCKWASHER, #10 SS 2
11 62801 FLATWASHER, #10 SS 1
12 64086 CABLE, CONTROL SPREADER 1
13 63130 CABLE, BATTERY - RED 1
14 63125 BOOT, BATTERY CABLE STRAIGHT 1
15 64087 BOOT, ALT. CABLE 1
16 62718 BRACKET, ACTUATOR 1
INSTALLATION AND INSTRUCTIONAL MANUAL
1.000
1.000
1.000
1.000
.500
12.750
SEE DETAIL, CHAIN TENSION
EACH SIDE
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
DETAIL, IDLER ASSEMBLY
SCALE 0.250
34 35 56
35 56
11
10
60
3
DECAL TO BE CENTERED ON
BOTH SIDES OF ITEM #1
7 9 18 41
4
43 56 57
35 56
32
22

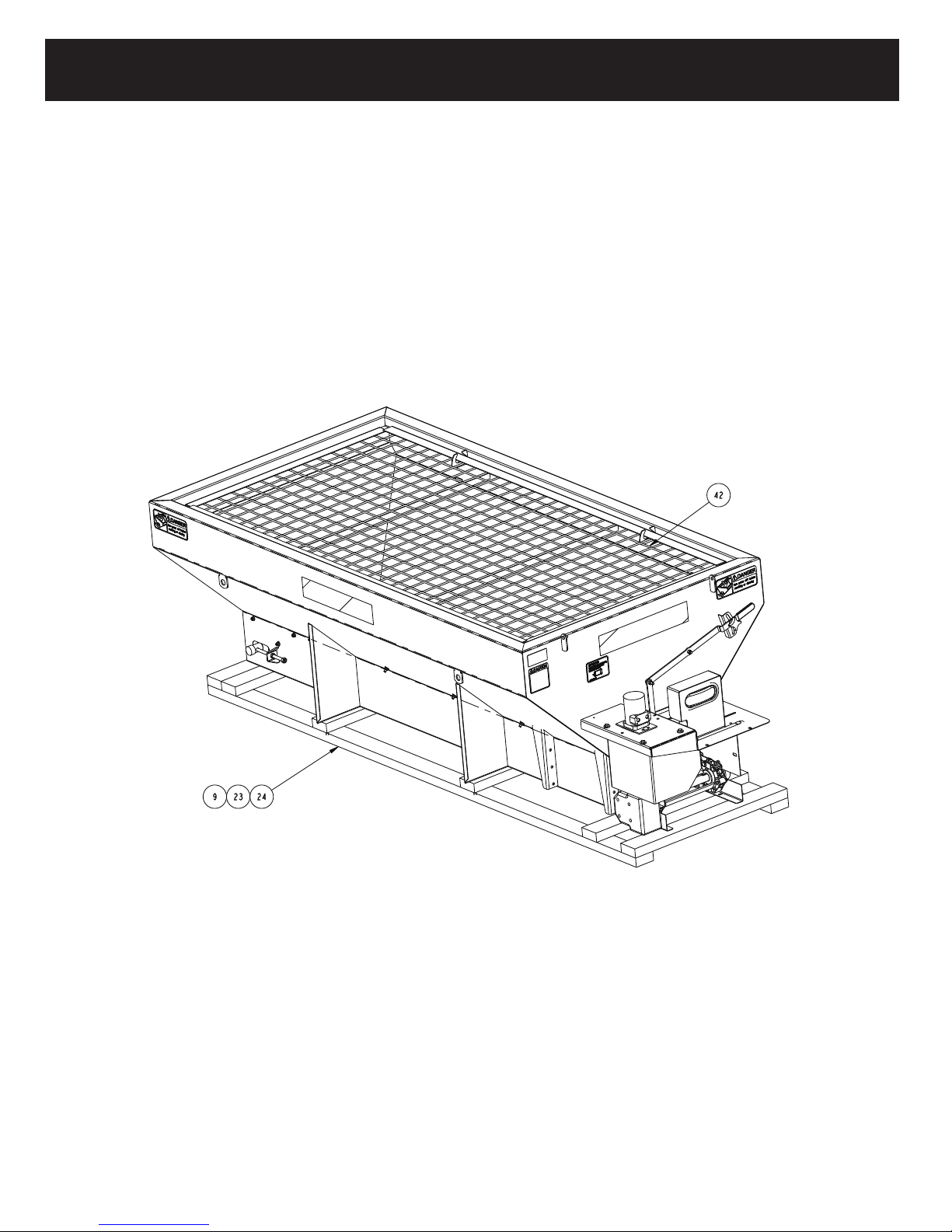

ISO VIEW
SCALE 0.100
9 23 24
42
31
46
33
A2
00108-760-01-REV-B
Page 54
OCTOBER, 2013
PV SERIES
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
REF. DRAWING
APPVBYDATEPIF#
REV
REVISION
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
1.000
1.000
8.0 MIN
20.0 MAX
2.500
1.000
1.000
.500
1.000
1.000
12.750
6.375
50" PV
D0011833305
A1
10-0084
REVISED & REDRAWN, SEE OBS
DWG FOR PREVIOUS VERSIONS
5/10
JG JG
A2
10-0084
REPLACED IDLER SUB-ASSY WITH
POLY ROLLER DESIGN
5/10
JG JG
SPINNER MUST BE PACKED
INSIDE UNIT FOR SHIPPING.
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
00002-296-XX
04525-012-XX
00122-181-XX
INSTR. MANUAL
SEE B/M
SEE DETAIL, CHAIN TENSION
DETAIL, CHAIN TENSION
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
SEE DETAIL, MOTOR
ASSEMBLY
EACH SIDE
48
52
53
25
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
DETAIL, IDLER ASSEMBLY
SCALE 0.250
20 21
34 35 56
35 56
11
10
60
3
DECAL CENTERED ON
BACK OF HOPPER.
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
2
5 6
7 9
1
9 38 45
37 39 40
DECAL TO BE CENTERED ON
BOTH SIDES OF ITEM #1
9 17 18 36
7 9 18 41
4
29
43 56 57
35 56
32
22
ISO VIEW
SCALE 0.100
9 23 24
42
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
13
27 54
7 9 27
28
12 47 55
32
31
46
47 58
30
33
26 59
A2
00108-760-01-REV-B
Page 55
OCTOBER, 2013
PV SERIES
PV SERIES
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
CADD FILENAME:
REF. DRAWING
APPVBYDATEPIF#
REV
REVISION
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
8.0 MIN
20.0 MAX
2.500
1.000
1.000
.500
1.000
1.000
12.750
6.375
50" PV
S:\00002\
00002-533-04
D0011833305
A1
10-0084
REVISED & REDRAWN, SEE OBS
DWG FOR PREVIOUS VERSIONS
5/10
JG JG
A2
10-0084
REPLACED IDLER SUB-ASSY WITH
POLY ROLLER DESIGN
5/10
JG JG
ITEM PART NUMBER DESCRIPTION QTY
10 00122-366-00 SHAFT, IDLER 1
11 00122-369-00 ROLLER, POLY 2
12 04624-001-01 KNOB, HAND 1
13 00110-819-XX WELD, FEEDGATE 1
14 04101-035-00 MOTOR, HYDRAULIC 1
15 06011-000-XX PLATE, MOTOR MTG. 1
16 04008-XXX-00 BUSHING 4
17 04003-003-XX BOLT, 3/8" X 1" 7
18 04004-002-XX FLATWASHER, 3/8" 10
19 00105-302-00 COUPLING, SHAFT 1
20 00115-124-00 WELD, TAKEUP BOLT 2
21 04003-802-XX NUT, 1/2" HEX JAM 4
22 00119-XXX-XX CHAINSHIELD, PV 2
23 04553-008-XX SKID, PV 1
24 04003-033-14 BOLT, 3/8" X 4" CA 4
25 SEE BM P, INSTR. MANUAL PV 1
26 00118-312-XX FORM, FEEDGATE HANDLE 1
27 04003-804-02 LOCKNUT, 3/8" NYLON 2
28 00101-636-XX BAR, PIVOT 1
29 04045-022-00 PIN, CONNECTOR W/ COTTER PIN 2
30 04049-XXX-00 DECAL 3
31 04049-XXX-00 DECAL, SERIAL NUMBER 1
32 04049-182-00 DECAL, DANGER 3
33 04049-195-00 DECAL, MOTOR 1
34 00122-05X-XX FORM, FLOOR PV 1
35 04003-032-06 BOLT, 5/16" X 3/4" CA SS
36 00115-154-XX GUARD, SHAFT 1
37 04605-155-00 CABLE, LIGHT POWER 1
38 00111-339-XX WELD, STOP LAMP BRACKET 1
39 04605-153-00 LAMP, STOP 1
40 04605-154-00 GROMMET, MTG. 1
41 04076-100-00 WIPER, CHAIN 1
42 SEE B/M WELD, SCREEN
43 SEE B/M WELD, INV VEE 1
44 00118-338-00 ASSY, IDLER 1
45 04003-033-XX BOLT, 3/8" X 1" CA 4
46 04049-045-00 DECAL, CAUTION 1
47 04004-002-20 FLATWASHER, 3/8" SS 2
SPINNER MUST BE PACKED
INSIDE UNIT FOR SHIPPING.

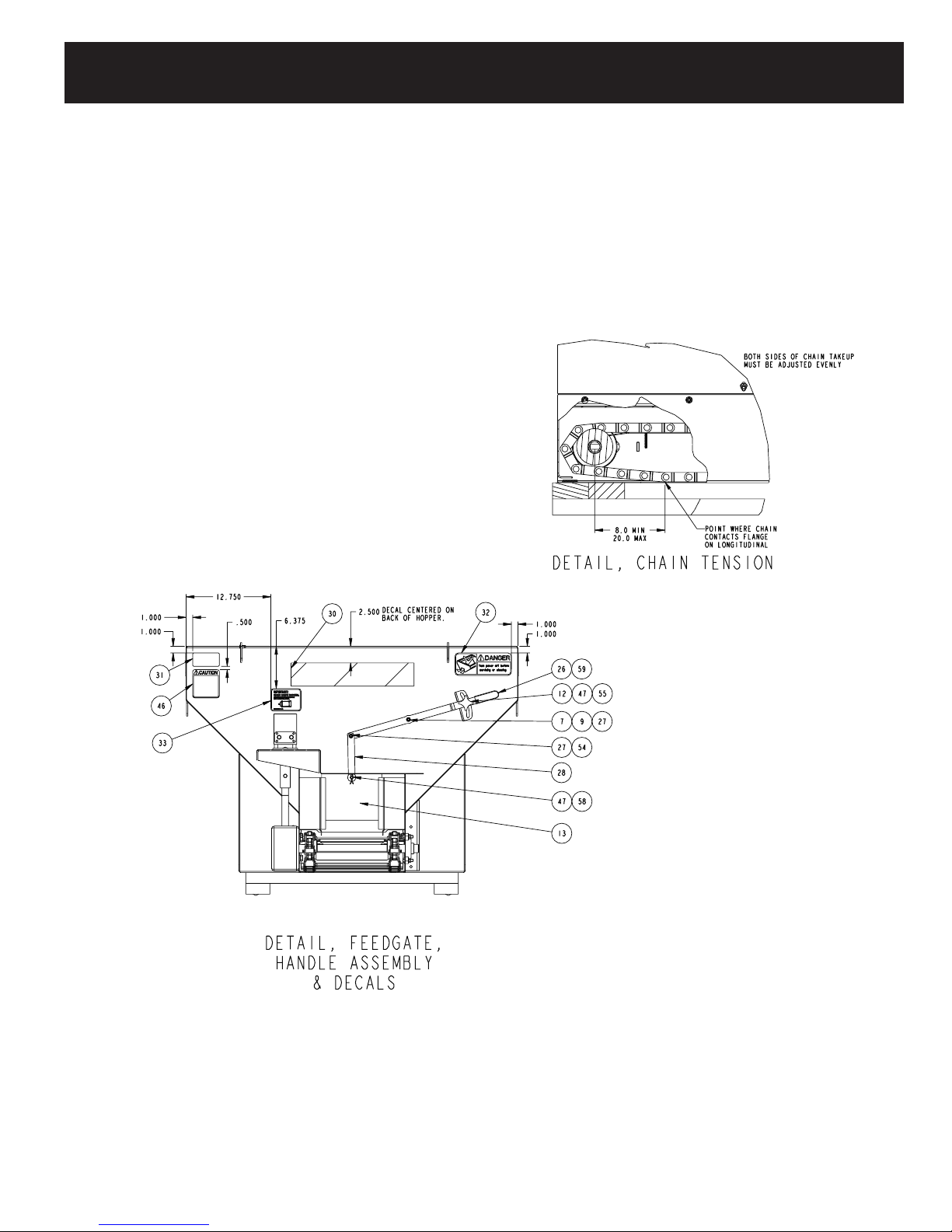

DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
00002-296-XX
04525-012-XX
00122-181-XX
INSTR. MANUAL
SEE B/M
DETAIL, CHAIN TENSION
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
48
52
53
25
DETAIL, IDLER ASSEMBLY
SCALE 0.250
20 21
34 35 56
35 56
11
10
60
3
DECAL CENTERED ON
BACK OF HOPPER.
42
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
13
27 54
7 9 27
28
12 47 55
32
31
46
47 58
30
33
26 59
A2
00108-760-01-REV-B
Page 56
OCTOBER, 2013
PV SERIES
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
MATERIAL:
SCALE
TITLE
DRAWING SIZE
DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
8.0 MIN
20.0 MAX
2.500
1.000
1.000
.500
1.000
1.000
12.750
6.375
DETAIL, ASSEMBLY
PV 50" HYD
SEE DETAILS
50" PV
0.125
JKG 5/4/2010
JKG 5/4/2010
A1
10-0084
REVISED & REDRAWN, SEE OBS
DWG FOR PREVIOUS VERSIONS
5/10
JG JG
A2
10-0084
REPLACED IDLER SUB-ASSY WITH
POLY ROLLER DESIGN
5/10
JG JG
ITEM PART NUMBER DESCRIPTION QTY
1 00115-156-XX WELD, HOPPER 1
2 00118-337-01 SUB ASSEMBLY, GEARBOX 1
3 00119-590-01 FORM, GUARD, CONVEYOR, PV 1
4 04043-0XX-00 WELD, DRAG CHAIN 1
5 04003-005-XX BOLT, 1/2" X 3/4" 4
6 04004-001-XX LOCKWASHER, 1/2" 4
7 04003-003-XX BOLT, 3/8" X 1 1/4" 5
8 04004-001-XX LOCKWASHER, 3/8" 4
9 04003-806-XX NUT, 3/8" FLANGE 16
10 00122-366-00 SHAFT, IDLER 1
11 00122-369-00 ROLLER, POLY 2
12 04624-001-01 KNOB, HAND 1
13 00110-819-XX WELD, FEEDGATE 1
14 04101-035-00 MOTOR, HYDRAULIC 1
15 06011-000-XX PLATE, MOTOR MTG. 1
16 04008-XXX-00 BUSHING 4
17 04003-003-XX BOLT, 3/8" X 1" 7
18 04004-002-XX FLATWASHER, 3/8" 10
19 00105-302-00 COUPLING, SHAFT 1
20 00115-124-00 WELD, TAKEUP BOLT 2
21 04003-802-XX NUT, 1/2" HEX JAM 4
22 00119-XXX-XX CHAINSHIELD, PV 2
23 04553-008-XX SKID, PV 1
24 04003-033-14 BOLT, 3/8" X 4" CA 4
25 SEE BM P, INSTR. MANUAL PV 1
26 00118-312-XX FORM, FEEDGATE HANDLE 1
27 04003-804-02 LOCKNUT, 3/8" NYLON 2
28 00101-636-XX BAR, PIVOT 1
29 04045-022-00 PIN, CONNECTOR W/ COTTER PIN 2
30 04049-XXX-00 DECAL 3
31 04049-XXX-00 DECAL, SERIAL NUMBER 1
32 04049-182-00 DECAL, DANGER 3
33 04049-195-00 DECAL, MOTOR 1
34 00122-05X-XX FORM, FLOOR PV 1
35 04003-032-06 BOLT, 5/16" X 3/4" CA SS
36 00115-154-XX GUARD, SHAFT 1
37 04605-155-00 CABLE, LIGHT POWER 1
38 00111-339-XX WELD, STOP LAMP BRACKET 1
39 04605-153-00 LAMP, STOP 1
40 04605-154-00 GROMMET, MTG. 1
41 04076-100-00 WIPER, CHAIN 1
42 SEE B/M WELD, SCREEN
43 SEE B/M WELD, INV VEE 1
44 00118-338-00 ASSY, IDLER 1
45 04003-033-XX BOLT, 3/8" X 1" CA 4
46 04049-045-00 DECAL, CAUTION 1
47 04004-002-20 FLATWASHER, 3/8" SS 2
48 00002-296-XX P, ASSY, SPINNER HYD. 1
49 04003-002-09 BOLT, 5/16" X 2" 1
50 04003-804-01 LOCKNUT, 5/16" VINYL 1
51 04009-001-01 KEY, WOODRUFF 1
52 04525-012-XX POWDER PAINT
53 00122-181-01 A, LIFT REAR FORKLIFT 1
54 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
55 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
56 04003-806-13 NUT, 5/16" FLANGE SS 18
57 04003-032-04 BOLT, 5/16" X 1" CA SS
58 04010-016-01 PIN, COTTER SS 1
59 04111-052-00 COVER, FEEDGATE HANDLE 1
60
04111-053-00 IDLER COVER 2
SPINNER MUST BE PACKED
INSIDE UNIT FOR SHIPPING.
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
00002-296-XX
04525-012-XX
00122-181-XX
INSTR. MANUAL
SEE B/M
DETAIL, CHAIN TENSION
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
SEE DETAIL, MOTOR
ASSEMBLY
DETAIL, MOTOR ASSEMBLY
48
52
53
25
20 21
34 35 56
DECAL CENTERED ON
BACK OF HOPPER.
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
2
5 6
7 9
1
9 38 45
37 39 40
9 17 18 36
4
29
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
15
8 16 17 18
19 51
14
49 50
9 45
13
27 54
7 9 27
28
12 47 55
32
31
46
47 58
30
33
26 59
A2
00108-760-01-REV-B
Page 57
OCTOBER, 2013
PV SERIES
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
45 04003-033-XX BOLT, 3/8" X 1" CA 4
46 04049-045-00 DECAL, CAUTION 1
47 04004-002-20 FLATWASHER, 3/8" SS 2
48 00002-296-XX P, ASSY, SPINNER HYD. 1
49 04003-002-09 BOLT, 5/16" X 2" 1
50 04003-804-01 LOCKNUT, 5/16" VINYL 1
51 04009-001-01 KEY, WOODRUFF 1
52 04525-012-XX POWDER PAINT
SEE/
BM
53 00122-181-01 A, LIFT REAR FORKLIFT 1
54 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
55 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
56 04003-806-13 NUT, 5/16" FLANGE SS 18
57 04003-032-04 BOLT, 5/16" X 1" CA SS
SEE/
BM
58 04010-016-01 PIN, COTTER SS 1
59 04111-052-00 COVER, FEEDGATE HANDLE 1
60
04111-053-00 IDLER COVER 2

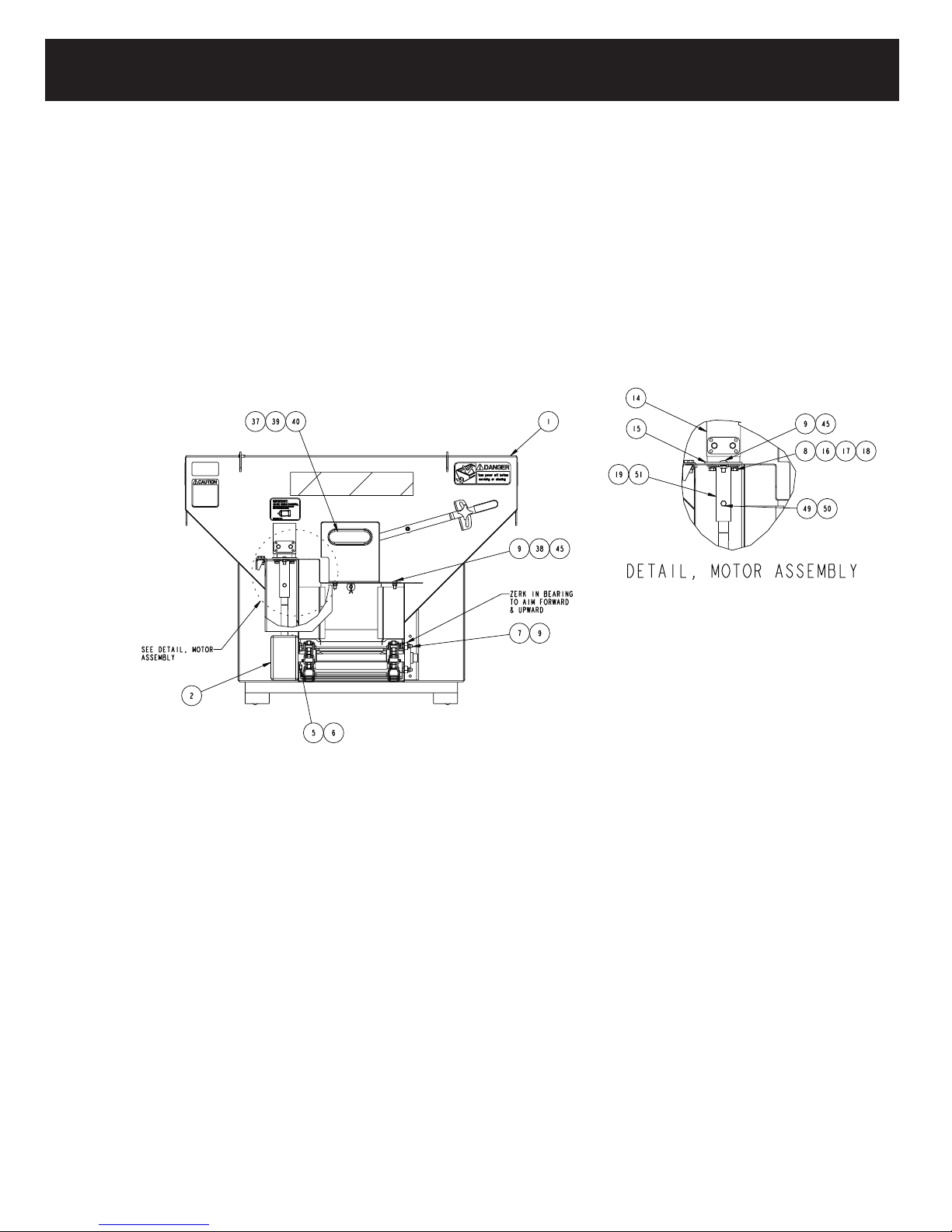

SEE DETAIL, MOTOR
ASSEMBLY
DETAIL, MOTOR ASSEMBLY
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
2
5 6
7 9
1
9 38 45
37 39 40
15
8 16 17 18
19 51
14
49 50
9 45
00108-760-01-REV-B
Page 58
OCTOBER, 2013
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 59
OCTOBER, 2013
PV SERIES
ITEM PART NUMBER DESCRIPTION QTY
27 20305 LOCKNUT, 3/8” NYLON 2
26 63294 FORM, FEEDGATE HANDLE 1
25 00108-760-01 P, INSTR. MANUAL PV 1
24 62657 BOLT, 3/8” X 4” CA 4
22 SEE PARTS TABLE CHAINSHIELD, PV 2
21 62408 NUT, 1/2” HEX JAM 4
20 62304 WELD, TAKEUP BOLT 2
19 62037 COUPLING, SHAFT 1
18 20353 FLATWASHER, 3/8” 10
17 20049 BOLT, 3/8” X 1” 7
16 62202 BUSHING 4
15 62201 PLATE, MOTOR MTG. 1
14 60324 MOTOR, HYDRAULIC 1
13 62281 WELD, FEEDGATE 1
12 61169 KNOB, HAND 1
11 64063 ROLLER, POLY 2
10 64062 SHAFT, IDLER 1
9 62611 NUT, 3/8” FLANGE 16
8 20327 LOCKWASHER, 3/8” 4
7 20066 BOLT, 3/8” X 1 1/4” 5
6 20329 LOCKWASHER, 1/2” 4
5 62617 BOLT, 1/2” X 3/4” 4
4
3 63264 FORM, GUARD, CONVEYOR, PV
2 63117 SUB ASSEMBLY, GEARBOX 1
1
HYDRAULIC PV MODEL
64388 FORM, FEEDGATE, HANDLE S3
62336 NUT, 1/2” HEX JAM SS
22230 FLATWASHER 3/8” SS
62697 BOLT, 3/8” X 1” SS
62339 BUSHING SS
62386 PLATE, MOTOR MTG. S3
64389 PLATE, MOTOR MTGT. S2
62282 WELD, FEEDGATE, S3
63822 WELD, FEEDGATE, S2
62743 NUT, 3/8” FLANGE SS
63206 LOCKWASHER, 3/8” SS
62695 BOLT, 3/8” X 1 1/4” SS
62270 LOCKWASHER, 1/2” SS
62750 BOLT, 1/2” 3/4” SS
SEE PARTS TABLE WELD, DRAG CHAIN 1
SEE PARTS TABLE WELD, HOPPER 1
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 60
OCTOBER, 2013
ITEM PART NUMBER DESCRIPTION QTY
60 64064 IDLER COVER 2
59 64164 COVER, FEEDGATE HANDLE 1
58 62691 PIN, COTTER SS 1
57 63175 BOLT, 5/16” X 1” CA SS 4
56 62641 NUT, 5/16” FLANGE SS 18
55 62746 BOLT, 3/8” X 3/4” CA SS 1
54 62615 BOLT, 3/8” X 1 1/4” CA 1
62813 BOLT, 3/8” X 1 1/4” CA SS
53 63843 A, LIFT REAR FORKLIFT 1
51 61201 KEY, WOODRUFF 1
50 62628 LOCKNUT, 5/16” VINYL 1
49 63008 BOLT, 5/16” X 2” 1
48 SEE PARTS TABLE P, ASSY, SPINNER HYD. 1
47 63409 FLATWASHER, 3/8” SS 2
46 62007 DECAL, CAUTION 1
45 62611 BOLT, 3/8” X 1” CA 4
64447 BOLT, 3/8” X 1” CA SS
44 63179 ASSY, IDLER 1
43 SEE PARTS TABLE WELD, INV VEE 1
42 SEE PARTS TABLE WELD, SCREEN 1
41 62354 WIPER, CHAIN 1
40 62715 GROMMET, MTG. 1
39 62714 LAMP, STOP 1
38 64390 WELD, STOP LAMP BRACKET 1
64391 WELD, STOP LAMP BRACKET S3
64392 WELD, STOP LAMP BRACKET S2
37 62364 CABLE, LIGHT POWER 1
36 64393 GUARD, SHAFT 1
64394 GUARD, SHAFT S3
64395 GUARD, SHAFT S2
35 62640 BOLT, 5/16” X 3/4” CA SS 16
34 SEE PARTS TABLE FORM, FLOOR PV 1
33 62572 DECAL, MOTOR 1
32 62009 DECAL, DANGER 3
31 63295 DECAL, SERIAL NUMBER (MEYER) 1
HYDRAULIC PV MODEL
30
29 61174 PIN, CONNECTOR W/ COTTER PIN 2
28 62270 BAR, PIVOT 1
63156 DECAL, LOGO, MEYER
63817 BAR, PIVOT SS
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 61
OCTOBER, 2013
PV SERIES
HYDRAULIC PV MODEL
ITEMS PART NUMBER PART NUMBER DESCRIPTION QTY
48
53 63843 00122-181-01 A, LIFT REAR FORKLIFT 1
25 00108-760-01 00104-963-01 INSTR. MANUAL 1
SEE PARTS TABLE SEE PARTS TABLE P, ASSY, SPINNER HYD. 1
ITEMS NOT SHOWN
INSIDE UNIT FOR SHIPPING.
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

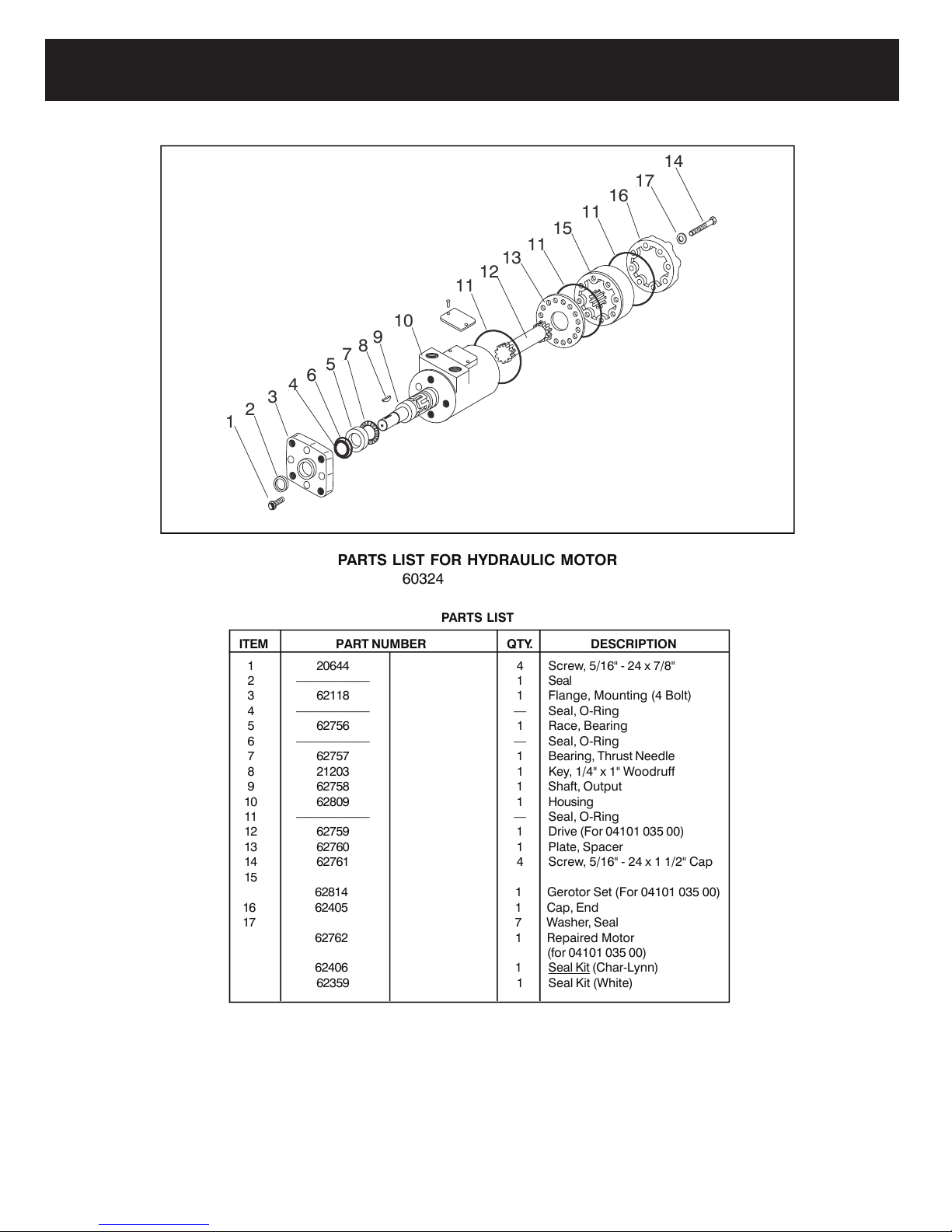

PARTS LIST FOR HYDRAULIC MOTOR
60324 (04101-035-00)
ITEM PART NUMBER QTY. DESCRIPTION
1 20644 04101-035-01 4 Screw, 5/16" - 24 x 7/8"
2 —————— —————— 1 Seal
3 62118 04101-102-02 1 Flange, Mounting (4 Bolt)
4 —————— —————— — Seal, O-Ring
5 62756 04101 035 05 1 Race, Bearing
6 —————— —————— — Seal, O-Ring
7 62757 04101 035 07 1 Bearing, Thrust Needle
8 21203 04009 002 02 1 Key, 1/4" x 1" Woodruff
9 62758 04101 035 09 1 Shaft, Output
10 62809 04101 035 10 1 Housing
11 —————— —————— — Seal, O-Ring
12 62759 04101 035 12 1 Drive (For 04101 035 00)
13 62760 04101 035 13 1 Plate, Spacer
14 62761 04101-035-14 4 Screw, 5/16" - 24 x 1 1/2" Cap
15
62814 04101 035 15 1 Gerotor Set (For 04101 035 00)
16 62405 04101 035 17 1 Cap, End
17 04101 035 18 7 Washer, Seal
62762 04101 035 21 1 Repaired Motor
(for 04101 035 00)
62406 04101 102 09 1 Seal Kit (Char-Lynn)
62359 04101 035 98 1 Seal Kit (White)
PARTS LIST
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
11
11
00108-760-01-REV-B
Page 62
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
8.0 MIN
20.0 MAX
36
46
30
DETAIL, CHAIN TENSION
SCALE .250
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
SEE CHAIN TENSION DETAIL
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN DRAG CHAIN
4
22
15 37
6 28
10 12 19 42
35
31
47
1
2
58
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
00108-760-01-REV-B
Page 63
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL
54 55 56
(8) PLACES
43

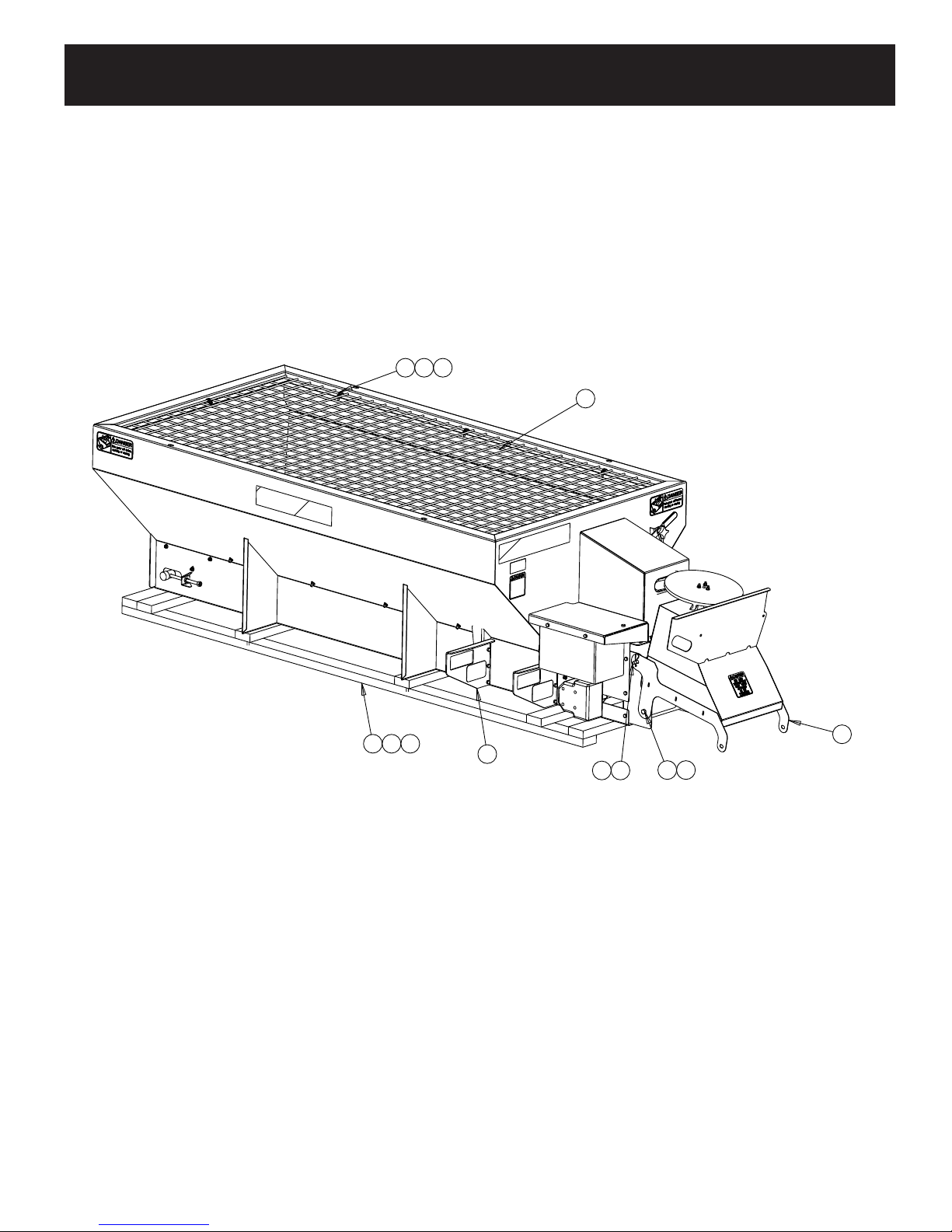

ISO VIEW
SCALE 0.088
12 23 24
53
61
65 66
63 64
8.0 MIN
20.0 MAX
1.000
1.000
4.000
5.000
.500
1.000
DETAIL, IDLER ASSEMBLY
SCALE .250
36
46
30
DETAIL, CHAIN TENSION
SCALE .250
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
SEE CHAIN TENSION DETAIL
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN DRAG CHAIN
EA. SIDE
(8) PLACES
15 44 45
22
15 37
6 28
10 12 19 42
35
32
58
DECALS TO BE CENTERED ON
BOTH SIDES OF ITEM #1
9
33 52
31
47
1
3 26
10 12 26
58
43
54 55 56
POINT WHERE CHAIN
CONTACTS FLANGE
ON LONGITUDINAL
00108-760-01-REV-B
Page 64
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
HYDRAULIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
37 04003-032-06 BOLT, 5/16" X 3/4" CA SS
38 04003-806-XX NUT, 5/16" FLANGE 4
39 04031-009-00 KEY, 3/16" 1
40 04605-155-00 CABLE, LIGHT POWER 1
41 04605-153-00 LAMP, STOP 1
42 04076-100-00 WIPER, CHAIN 1
43 00123-306-XX SCREEN, 5/16" WIRE 1
44 00119-891-00 WELD, INVERTED VEE 1
45 04003-032-04 BOLT, 5/16" X 1 CA SS 4
46 00122-366-00 SHAFT, IDLER 1
47 04049-045-00 DECAL, CAUTION 1
48 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
49 04010-016-01 PIN, 1/8" X 1" COTTER SS 1
50 04605-154-00 GROMMET, MTG 1
51 04111-052-00 COVER, FEEDGATE HANDLE 1
52 04009-001-01 KEY, WOODRUFF 1
53 00123-456-XX Y, SPINNER SU PV 1
54 04607-024-00 CLAMP, 1/2" CUSHIONED 9
55 04003-001-11 BOLT, 1/4" X 3/4" HH 9
56 04003-806-XX NUT, 1/4" FLANGE 13
WHERE USED
DO NOT SCALE DRAWING
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
4.000
5.000
1.000
1.000
.500
1.000
1.000
PV
ITEM PART NUMBER DESCRIPTION QTY
57 04003-003-63 BOLT, 3/8" X 3 1/2" HH SS 1
58 04049-XXX-XX DECAL, BRAND 3
59 SEE B/M P, INSTR. MANUAL 1
60 00123-441-XX FORM, SPROCKET GUARD 1
61 00122-181-01 A, REAR FORKLIFT PV 1
62 00123-442-XX FORM, REAR PLATE 1
63 04003-005-XX BOLT, 1/2" X 1 1/4" HH 2
64 04003-804-XX LOCKNUT, 1/2" VINYL 2
65 00119-329-02 ROD, SPINNER MOUNT SS 1
66 04011-001-04 KEEPER, HAIRPIN SS 1
67 04003-032-XX BOLT, 5/16" X 1" CA 4
68 04525-012-XX PAINT, POWDER
SEE
B/M
69 04003-031-XX BOLT, 1/4" X 1" CA 4
70 04076-219-00 EXTENSION, FEEDGATE 1
DETAIL, IDLER ASSEMBLY
SCALE .250
30
20
21
15 37
ITEMS NOT SHOWN
P, INSTR. MANUAL
PAINT, POWDER
59
68
4
6 28
5
38 67
11 18
13
19 57
34 39
9
33 52
00108-760-01-REV-B
Page 65
OCTOBER, 2013
PV SERIES
PV SERIES
ELECTRIC PV MODEL
5.000
1.000
4.000
1.000
1.000
1.000
.500
33 52
9
58
31
47
1
2
3 26
7 8
10 12 26
DETAIL, FEEDGATE
HANDLE ASSEMBLY
56 69 70
5
38 67
19 57
13
11 18
34 39
27
19 49
17
10 12
ZERK IN BEARING TO AIM
FORWARD AND UPWARD
32
25 51
16 19 48
MATERIAL:
SCALE
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATEPIF#
REV
REVISION
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
SEE TABLE
PV
S:\00002\
00002-533-13
D0000253312
0.100
JKG 8/31/2010
JKG 8/31/2010
A
10-0154
04046-020-11 WAS 04046-020-03
9/10
JG JG
ITEM PART NUMBER DESCRIPTION QTY
1 00115-156-XX WELD, HOPPER 1
2 00118-337-01 SUB-Y, GEARBOX 1
3 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
4 00119-590-01 CONVEYOR GUARD 1
5 04150-050-00 MOTOR, ELECTRIC 1
6 04043-XXX-00 WELD, DRAG CHAIN 1
7 04003-005-XX BOLT, 1/2 X 3/4" HH 4
8 04004-001-XX LOCKWASHER, 1/2" 4
9 04046-020-11 CHAIN, ROLLER 1
10 04003-003-XX BOLT, 3/8 X 1 1/4" HH 5
11 04004-001-XX LOCKWASHER, 3/8" 4
12 04003-806-XX NUT, 3/8" FLANGE 22
13 00122-360-XX WELD, ADAPTER 1
14 00123-208-00 P. ELECTRIC CONTROL 1
15 04003-806-XX NUT, 5/16" FLANGE 18
16 04624-001-01 KNOB, HAND 1
17 00123-551-XX WELD, FEEDGATE 1
18 04003-003-XX BOLT, 3/8" X 1" HH 17
19 04004-002-XX FLATWASHER, 3/8" 5
20 00115-124-00 WELD, TAKE UP BOLT 2
21 04003-802-XX NUT, HEX JAM 4
22 SEE B/M FORM, CHAIN SHIELD 2
23 04553-008-XX SKID, SHIPPING 1
24 04003-033-XX BOLT, 3/8 X 4 CA SS 4
25 00118-312-XX FORM, FEEDGATE HANDLE 1
26 04003-804-XX LOCKNUT, 3/8" VINYL 2
27 00101-636-XX BAR, PIVOT 1
28 04045-022-00 PIN, CONNECTOR W/COTTER 2
29 00123-443-XX WELD, MOTOR COVER 1
30 00122-369-00 ROLLER, POLY 2
31 SEE B/M DECAL, SERIAL NUMBER 1
32 04049-182-00 DECAL, DANGER 3
33 04041-121-00 SPROCKET, 40B-60 X 1" BORE 1
ITEM PART NUMBER DESCRIPTION QTY
57 04003-003-63 BOLT, 3/8" X 3 1/2" HH SS 1
58 04049-XXX-XX DECAL, BRAND 3
59 SEE B/M P, INSTR. MANUAL 1
60 00123-441-XX FORM, SPROCKET GUARD 1
61 00122-181-01 A, REAR FORKLIFT PV 1
62 00123-442-XX FORM, REAR PLATE 1
63 04003-005-XX BOLT, 1/2" X 1 1/4" HH 2
64 04003-804-XX LOCKNUT, 1/2" VINYL 2
65 00119-329-02 ROD, SPINNER MOUNT SS 1
66 04011-001-04 KEEPER, HAIRPIN SS 1
SEE
B/M

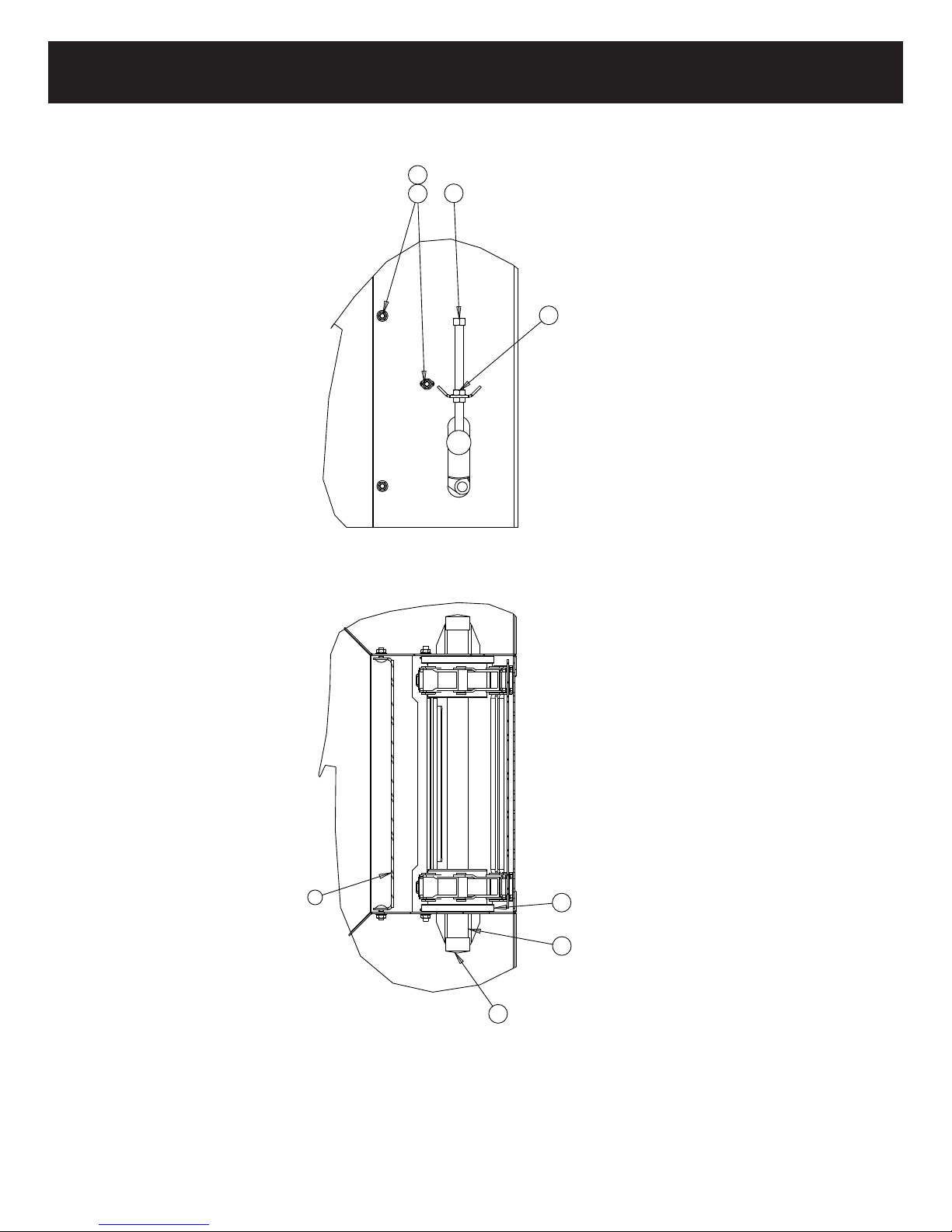

DETAIL, FEEDGATE
HANDLE ASSEMBLY
SCALE .125
31
32
47
1
2
7 8
10 12
17
19 49
27
3 26
10 12 26
16 19 48
25 51
ZERK IN BEARING TO AIM
FORWARD AND UPWARD
58
56 69 70
53
00108-760-01-REV-B
Page 66
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
15 37
20
ELECTRIC PV MODEL
21
SCALE .250
DETAIL, IDLER ASSEMBLY
4
36
30
46
INSTALLATION AND INSTRUCTIONAL MANUAL
WHERE USED
REF. DRAWING
APPVBYDATEPIF#
REV
REVISION
DO NOT SCALE DRAWING
*********************
ProE Drawing
The orginial drawing
*********************
D0000253312
A
10-0154
SEE SHEET 1
9/10
JG JG

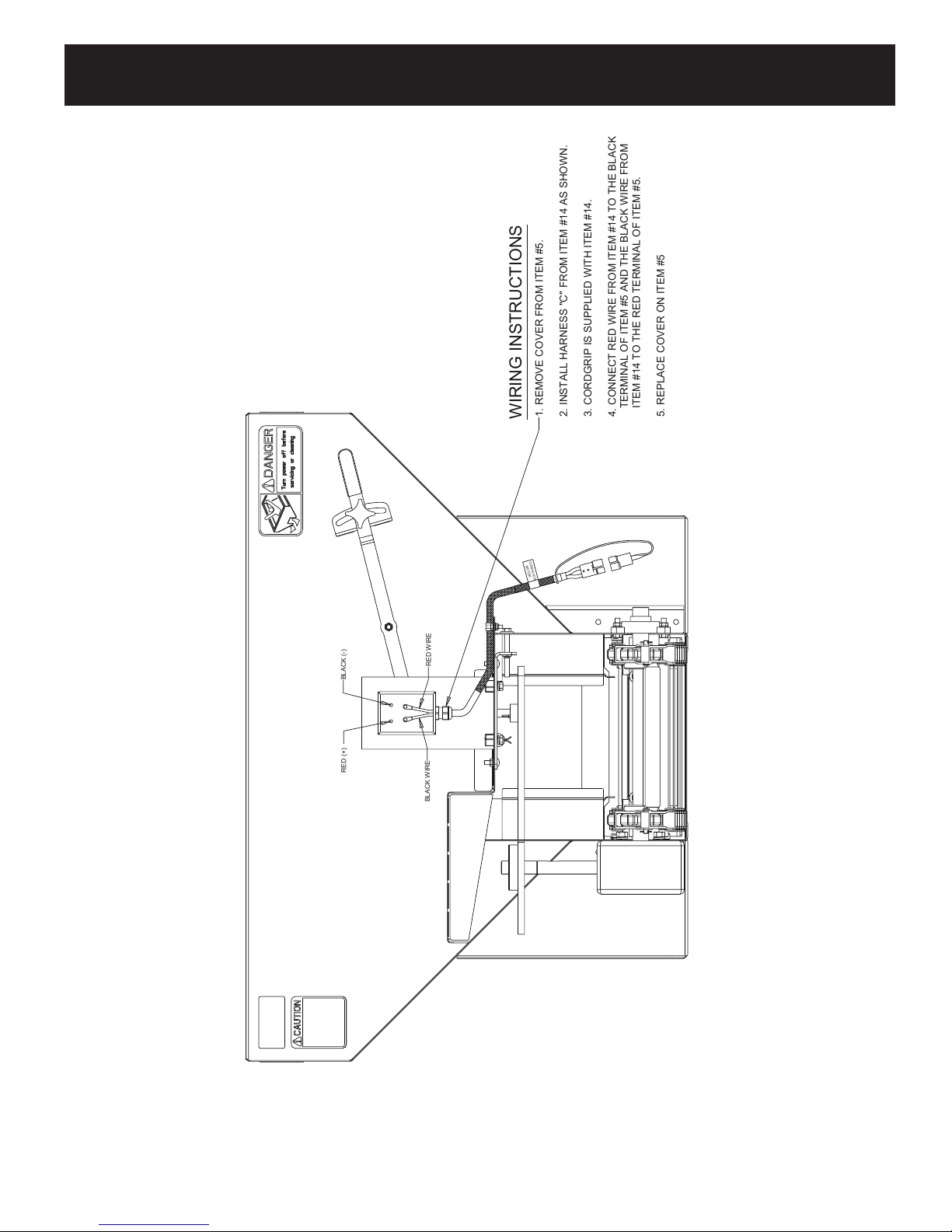

DETAIL, COVERS ASSEMBLY
SCALE .250
1. REMOVE COVER FROM ITEM #5.
2. INSTALL HARNESS "C" FROM ITEM #14 AS SHOWN.
3. CORDGRIP IS SUPPLIED WITH ITEM #14.
4. CONNECT RED WIRE FROM ITEM #14 TO THE BLACK
TERMINAL OF ITEM #5 AND THE BLACK WIRE FROM
ITEM #14 TO THE RED TERMINAL OF ITEM #5.
5. REPLACE COVER ON ITEM #5
WIRING INSTRUCTIONS
MOTOR
CONVEYOR
RED (+)
BLACK (-)
BLACK WIRE
RED WIRE
62
12 18
00108-760-01-REV-B
Page 67
OCTOBER, 2013
PV SERIES
PV SERIES
ELECTRIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
DETAIL, COVERS ASSEMBLY
SCALE .250
00108-760-01-REV-B
Page 68
OCTOBER, 2013
PV SERIES
12 18
29
ELECTRIC PV MODEL
40 41 50
62
12 18
60
12 18
INSTALLATION AND INSTRUCTIONAL MANUAL
DETAIL, COVERS ASSEMBLY
1. REMOVE COVER FROM ITEM #5.
WIRING INSTRUCTIONS
MOTOR
CONVEYOR
MOTOR
CONVEYOR
5
54 55 56
14
RED (+)
BLACK (-)
BLACK WIRE
RED WIRE

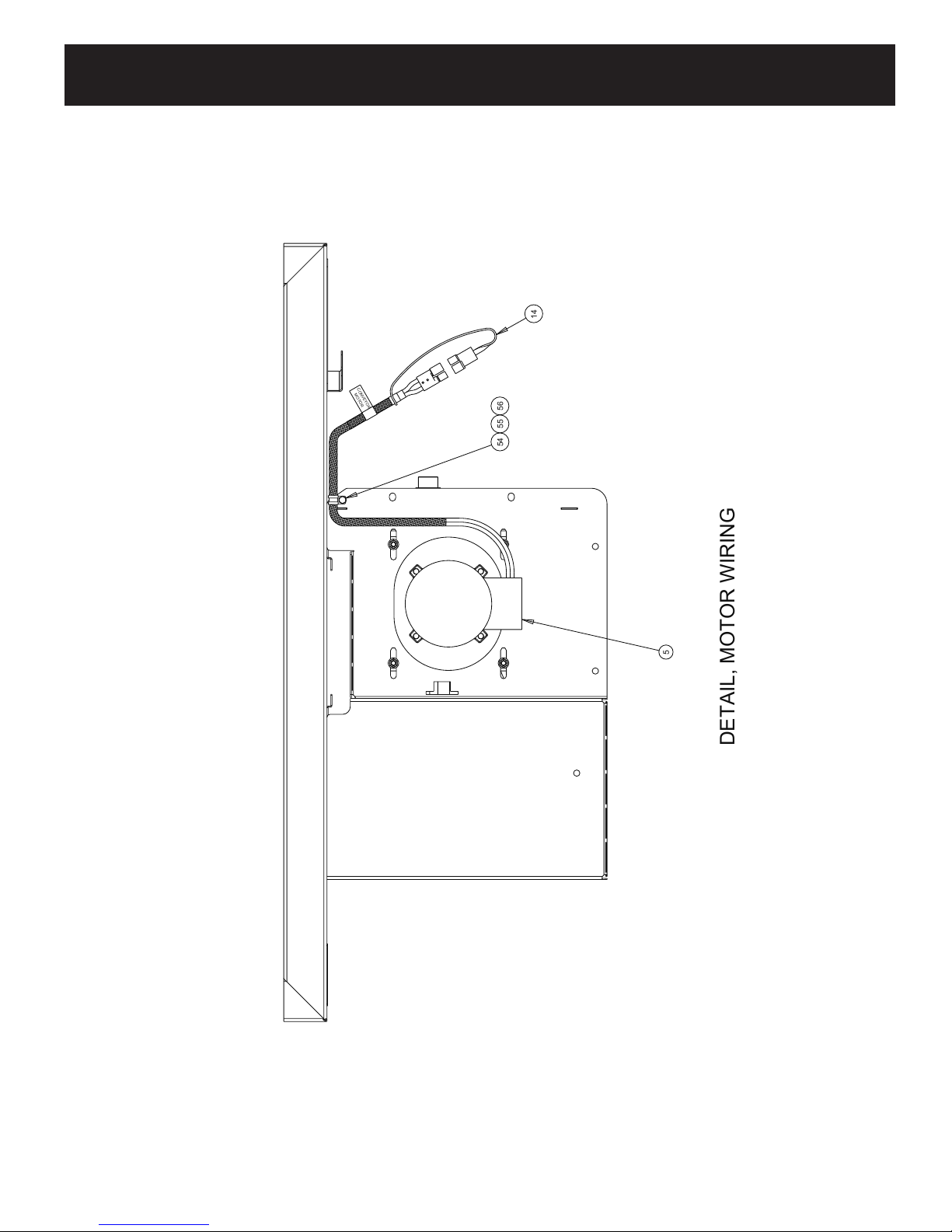

DETAIL, MOTOR WIRING
SCALE .250
60
12 18
12 18
00108-760-01-REV-B
Page 69
OCTOBER, 2013
PV SERIES
PV SERIES
ELECTRIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
00108-760-01-REV-B
Page 70
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL
64448 P, Pv358 50 16g S2 Elec Dm
Item Component Description Qty
1 64454 Weld, Pv358 50” Hop 16g S2 Dm 1
2 63410 Sub-Y, Gearbox 1
3 64455 Bolt, 3/8-16 X 1-1/4 Ca Ss 1
4 63264 Form, Guard, Conveyor, Pv 1
5 64015 Motor, 12v 1650rpm 60a 1/2 Hp 1
6 62129 Weld, Drag Chain, 8 Ft 1
7 62750 Bolt, 1/2-13 X 3/4 Tap Hh Ss 4
8 62772 Lockwasher, 1/2”Med Split Ss 4
9 64456 Chain, Roller #40-94 Pitch W/C 1
10 62695 Bolt, 3/8-16 X 1-1/4 Hh Ss 5
11 63206 Lockwasher, 3/8” Med Split Ss 4
12 62743 Nut, 3/8-16 Ser Flange Ss 22
13 64457 Weld, Adapter 10g S2 1
14 64458 P, Control Vbel Electric Dual 1
15 63310 Nut, 5/16-18 Ser Flange Ss 22
16 61169 Knob, Hand 1
17 64459 Weld, Feedgate 10g S2 1
18 62697 Bolt, 3/8-16 X 1 Hh Ss 17
19 22230 Flatwasher, 3/8” U.S.S. Ss 5
20 62304 Weld, Take Up 2
21 62336 Nut, 1/2-13 Hj Ss 4
22 64460 Chainshield, Pv 8’ 16g S2 2
23 63881 Skid, Pv, 8 Ft 1
24 62657 Bolt, 3/8-16 X 4 Ca 4
25 64461 Form, Handle Feedgate 10g S2 1
26 63348 Locknut, 3/8-16 Nl Ss 2
27 64462 Bar, Pivot 10g S2 1
28 61174 Pin, Connector W/Cotter Pin 2
29 64463 Weld, Motor Cover 16g S2 1
30 64063 Roller, Poly 2
31 62008 Decal, Serial No. 1
32 62009 Decal, Danger (Conveyor) 3
33 63333 Sprocket, 40b60-1” Bore 1
34 64464 Sprocket, 40b-11 5/8” Bore 1
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 71
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL
35 64465 Form, Floor 8’ Pv 16g S2 1
36 64064 Cap, Idler 2
37 62640 Bolt, 5/16-18 X 3/4 Ca Ss 14
38 63310 nut, 5/16” ange 4
39 22438 Key, 3/16” Sq. X 1” 1
40 62364 Cable, Light Power 1
41 62714 Lamp, Stop (Ctr Hgh Mt) 1
42 62354 Wiper, Chain 1
43 64466 Screen, Pv358 Welded .31x44x90 1
44 63184 Weld, Inverted Vee Cs 1
45 63175 Bolt, 5/16-18 X 1 Ca Ss 8
46 64062 Shaft, Idler 1
47 62007 Decal, Caution 1
48 62746 Bolt, 3/8-16 X 3/4 Ca Ss 1
49 62691 Pin, 1/8” X 1” Cotter Ss 1
50 62715 Grommet, Mtg 1
51 64164 Cover, Feedgate Handle 1
52 61201 Key, 1/4” X 7/8” Woodruff 1
53 64467 Y, Spinner Pv Su Elect 16g S2 1
54 63245 Clamp, Cushioned 3/8” Loop Ss 9
55 62189 Bolt, 1/4-20 X 3/4 Hh Ss 9
56 62690 Nut, 1/4-20 Ser Flange Ss 13
57 63342 Bolt, 3/8-16 X 3-1/2 Hh Ss 1
58 63778 Decal, Meyer-Black 3
60 64468 Form, Sprocket Guard 16g S2 1
61 63843 A, Lift Rear Forklift Pv Cs 1
62 64469 Form, Rear Plate 10g S2 1
63 63284 Bolt, 1/2-13 X 1-1/4 Tap Hh Ss 2
64 63259 Locknut, 1/2-13 Nl Ss 2
65 63145 Rod, Spinner Mount,S3-Ehpv 1
66 63193 Keeper, Hairpin Large, Ss 1
67 63175 Bolt, 5/16” x 1” Ca 4
69 64470 Bolt, 1/4-20 X 1 Ca Ss 4
70 64471 Extension, Feedgate 1
14 15 16
8
00108-760-01-REV-B
Page 72
OCTOBER, 2013
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

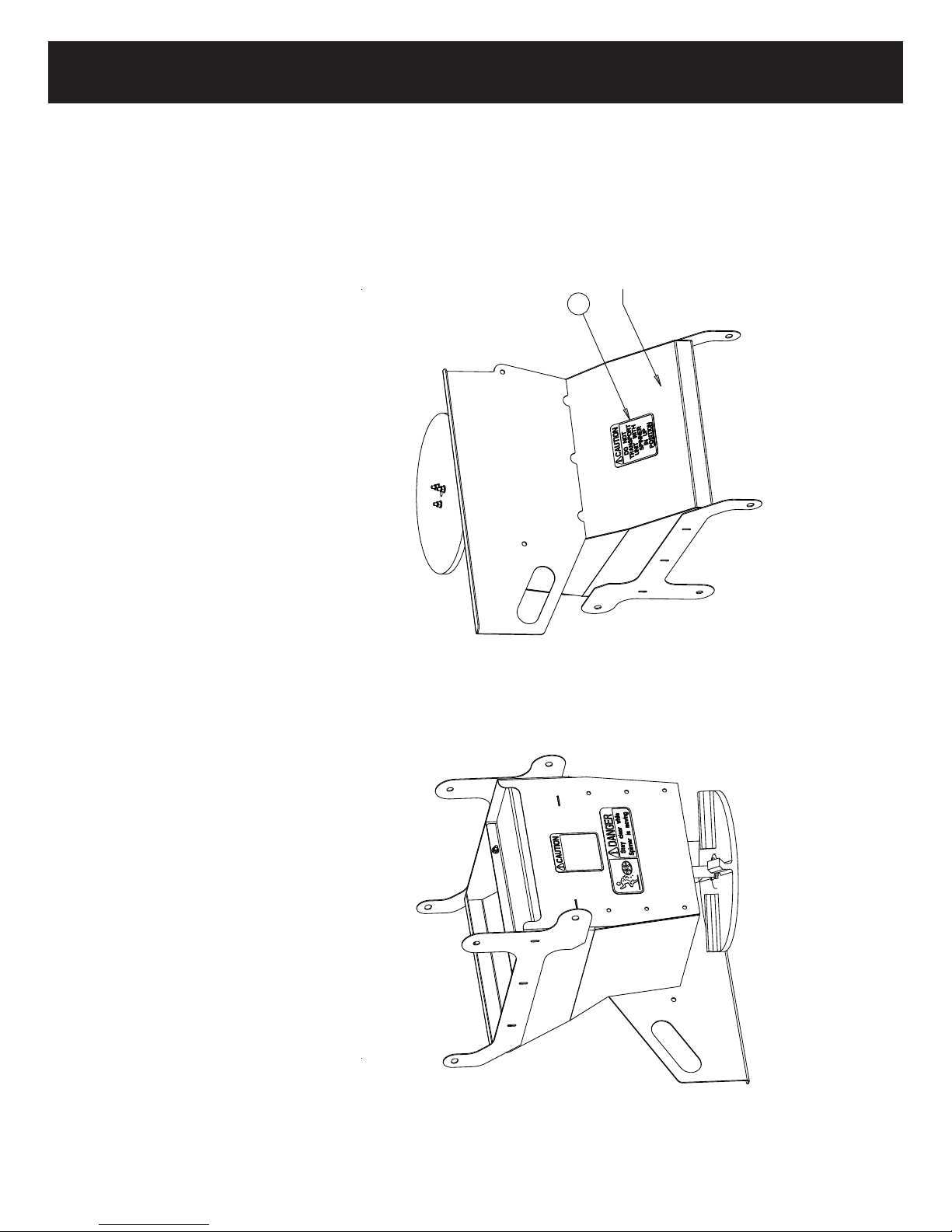

ITEM #4 TO BE CENTERED
ON THIS SURFACE.
4
ELECTRIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES

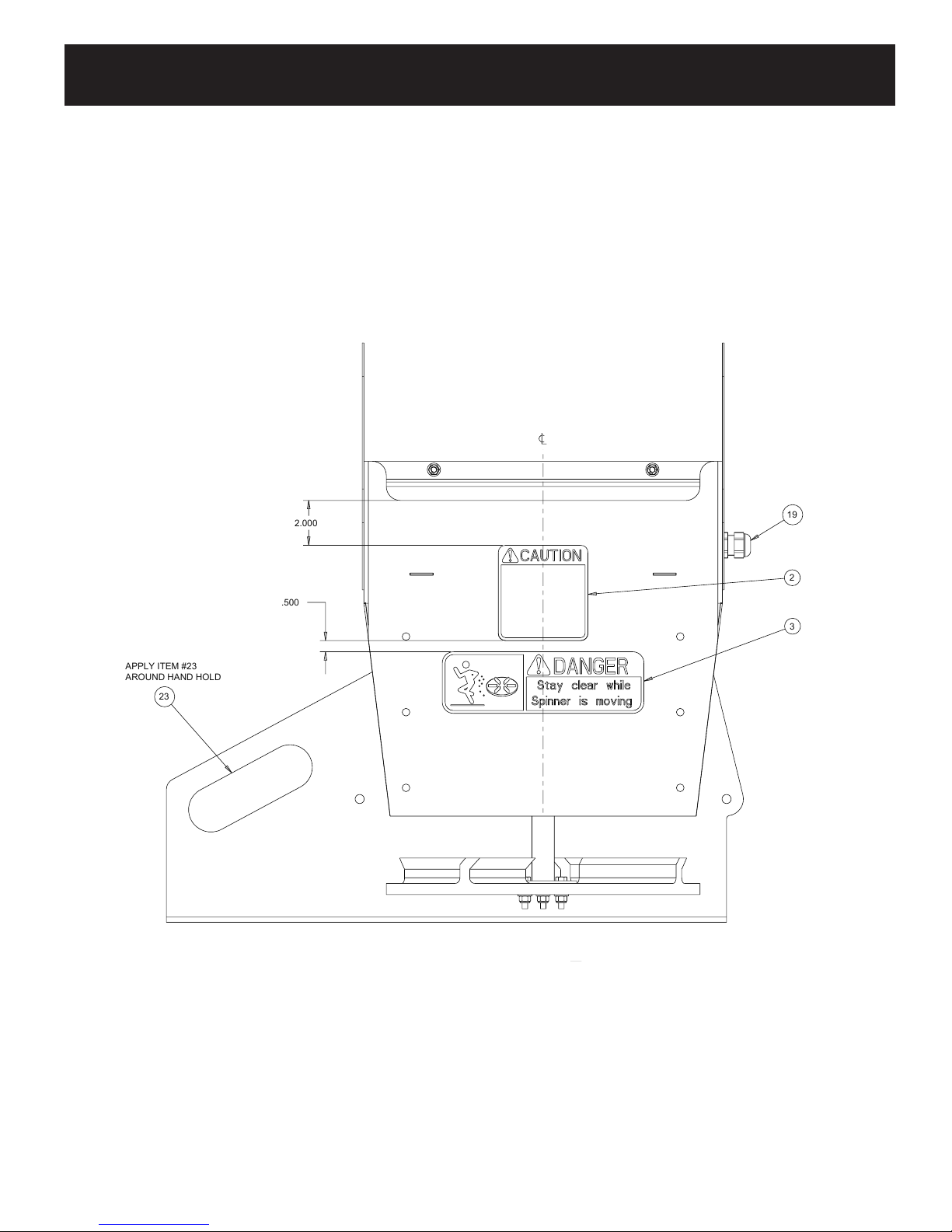

2.000
.500
APPLY ITEM #23
AROUND HAND HOLD
2
3
19
23
7
9 22
14 15 16
5
6
13
8
00108-760-01-REV-B
Page 73
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL

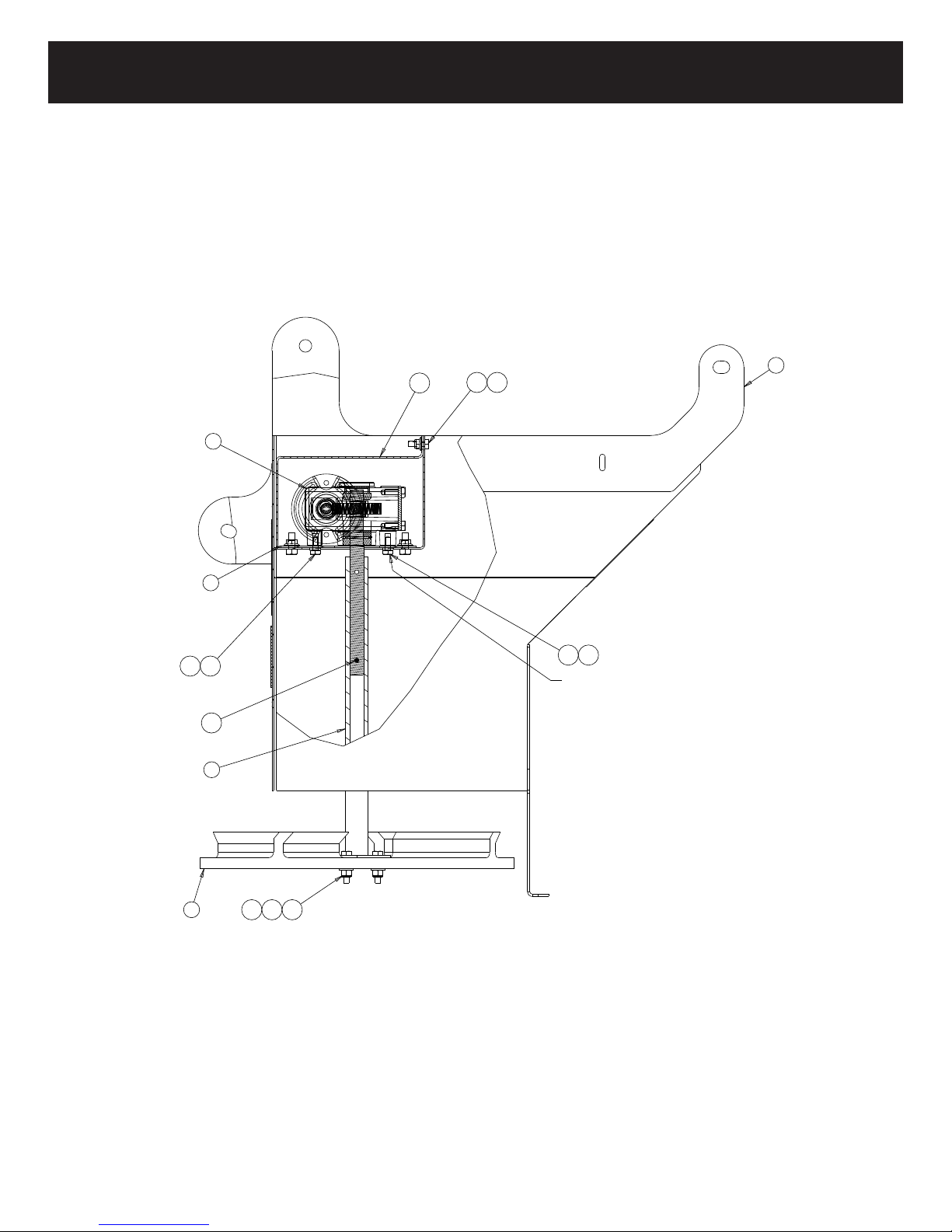

10 04003-001-XX BOLT, 1/4" X 3/4" HH 2
11 04003-002-XX BOLT, 5/16" X 3/4" HH 4
12 04003-806-XX NUT, 5/16" FLANGE 4
13 04016-004-XX PIN, ROLL 1
14 04003-001-XX BOLT, 1/4" X 1 1/4" HH 3
15 04004-002-XX FLATWASHER, 1/4" 3
16 04003-804-XX LOCKNUT, 1/4" VINYL 3
17 04003-806-XX NUT, 1/4" FLANGE 2
18 00123-453-XX FORM, MOTOR COVER 1
19 04611-059-00 CORDGRIP 1
20 04150-051-01 HARNESS, ELECT MOTOR 1
21 04638-093-00 NUT, WIRE 2
22 04003-001-XX BOLT, 1/4" X 1/2" HH 4
23 04093-021-00 TRIM, VINYL
SEE
B/M
24 04607-007-00 TIE, NYLON CABLE 2
1
7
9 22
10 17
11 12
14 15 16
18
5
6
13
8
1/4-20 X 1/2" BOLT ONLY (ALL
FOUR HOLES), LONGER BOLT
WILL CAUSE DAMAGE TO SPINNER
MOTOR.
00108-760-01-REV-B
Page 74
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 75
OCTOBER, 2013
PV SERIES

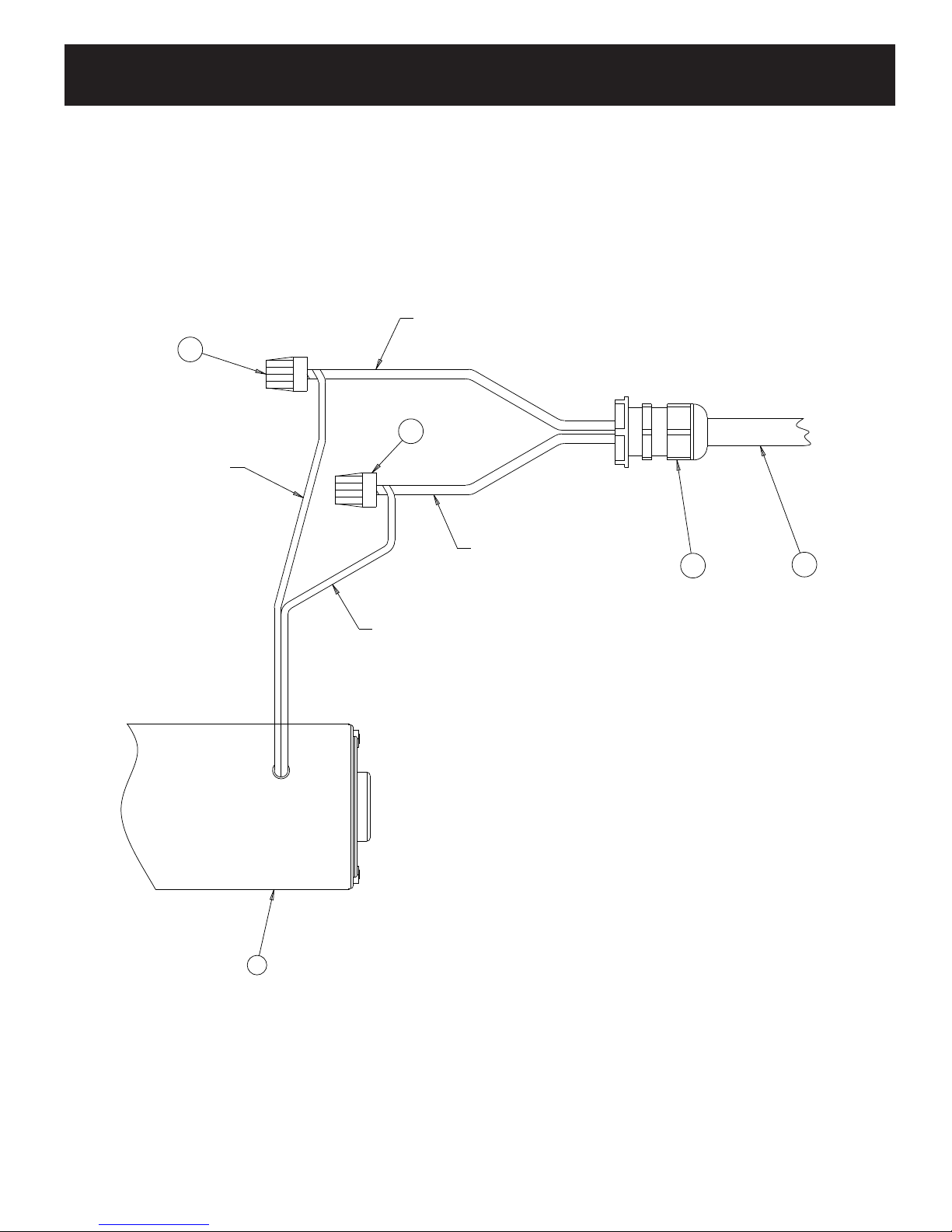

21
BLACK WIRE
ELECTRIC PV MODEL
WHITE WIRE
21
BLACK WIRE
19
20
RED WIRE
6
INSTALLATION AND INSTRUCTIONAL MANUAL
00108-760-01-REV-B
Page 76
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL

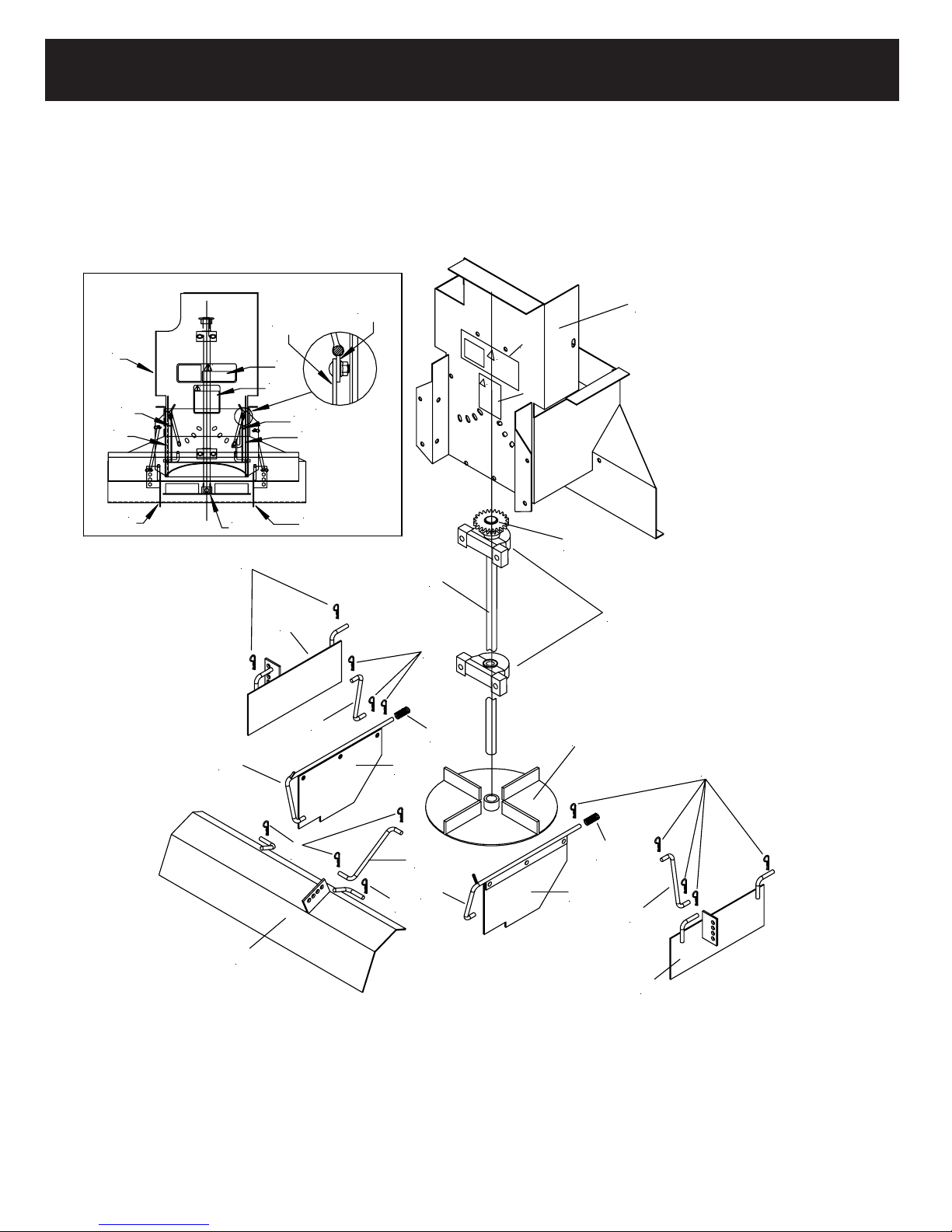

64467 Y, Spinner Pv Su Elect 16g S2
Item Component Description Qty
1 64476 Weld, Spin Pv Su Elect 16g S2 1
2 62007 Decal, Caution 1
3 62006 Decal, Danger (Spinner) 1
4 64183 Decal, Swing Up Spinner 1
5 64477 Plate, Spin Motor Adapt16g S2 1
6 64478 Motor, 12v Right Angle Spinner 1
7 64486 Weld, Spinner Shaft Cs 1
8 64183 Disc, Spinner 14” Ccw 1
9 62810 Lockwasher, 1/4” Med Split Ss 4
10 62189 Bolt, 1/4-20 X 3/4 Hh Ss 2
11 62752 Bolt, 5/16-18 X 3/4 Hh Ss 4
12 63310 Nut, 5/16-18 Ser Flange Ss 4
13 64480 Pin, 3/16” X 1” Roll 1
14 64382 Bolt, 1/4-20 X 1-1/4 Hh Ss 3
15 63587 Flatwasher, 1/4” S.A.E. Ss 3
16 64079 Locknut, 1/4-20 Nl Ss Sp 3
17 62690 Nut, 1/4-20 Ser Flange Ss 2
18 64481 Form, Spin Motor Cover 16g S2 1
19 62160 Bushing, Strain Relief 1
20 64482 Harness, Electric Motor 1
21 64483 Twister Db Plus Wire Nut 2
22 64484 Bolt, 1/4-20 X 1/2 Hh Std Ss 4
23 63128 Trim, Vinyl 1.25
24 62198 Tie, Nylon 14” Std. 2
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 77
OCTOBER, 2013
PV SERIES
ELECTRIC PV MODEL

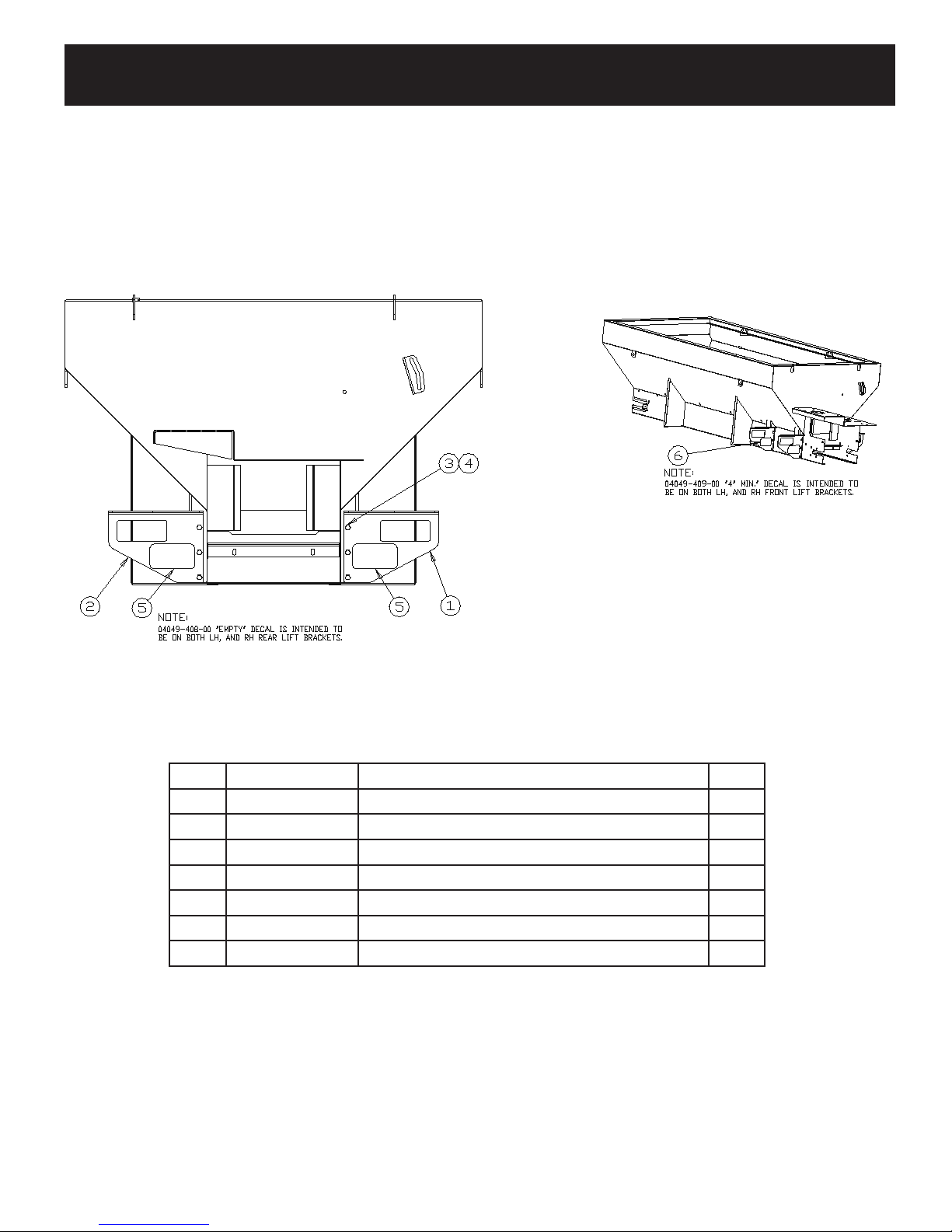

A, Lift Rear Forklift Pv Cs
Item Component Description Qty
1 63839 Brkt, Fork Rh Cs 2
2 63841 Brkt, Fork Lh 7g Cs 2
3 62697 Bolt, 3/8-16 X 1 Hh Ss 12
4 62743 Nut, 3/8-16 Ser Flange Ss 12
5 63847 Decal, Caution Unloaded 2
6 63848 Decal, Caution 4” Min 2
63843 A, Lift Rear Forklift Pv Cs
INSTALLATION AND INSTRUCTIONAL MANUAL
00108-760-01-REV-B
Page 78
OCTOBER, 2013
PV SERIES

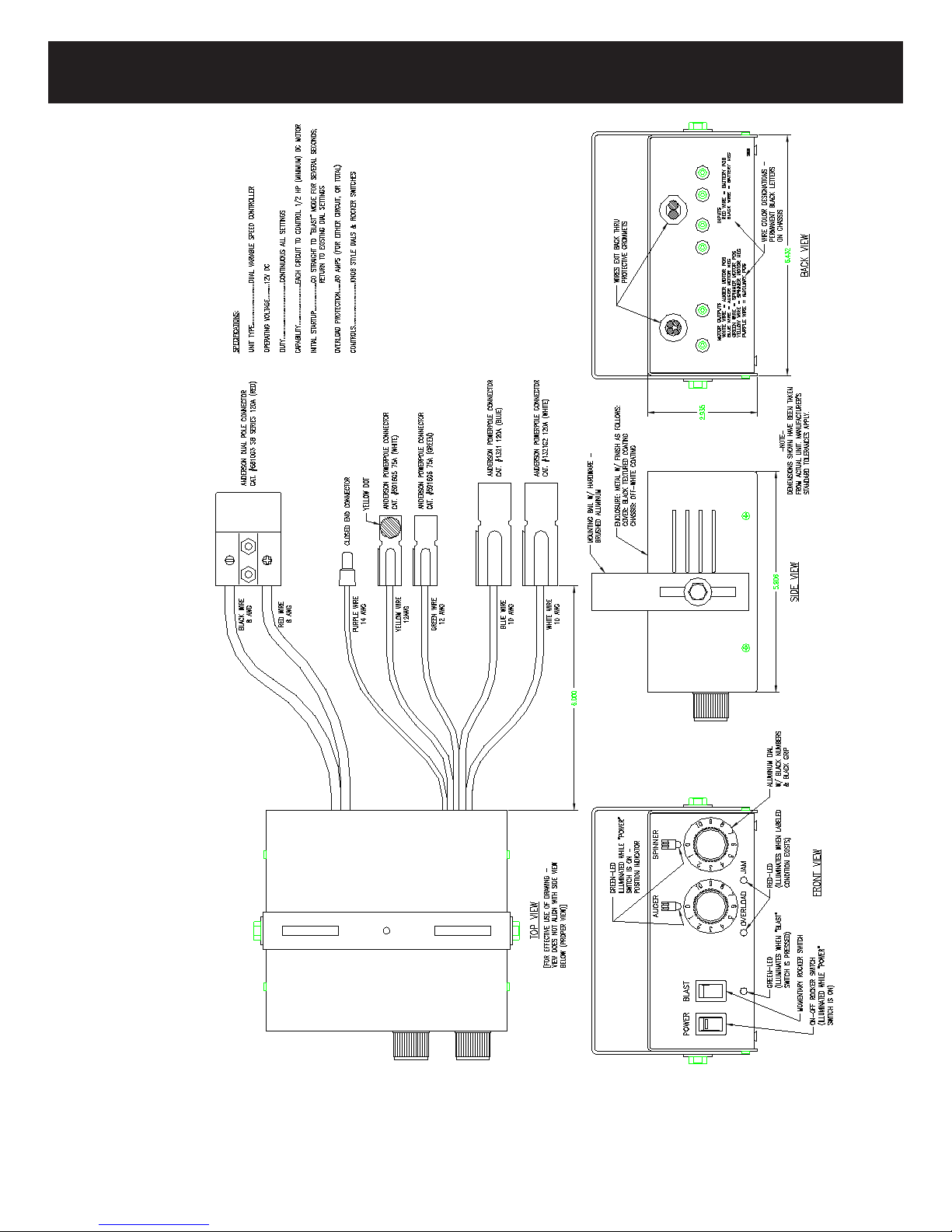

63962
ELECTRIC PV MODEL
Control, Motor Dual Elec
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 79
OCTOBER, 2013
PV SERIES

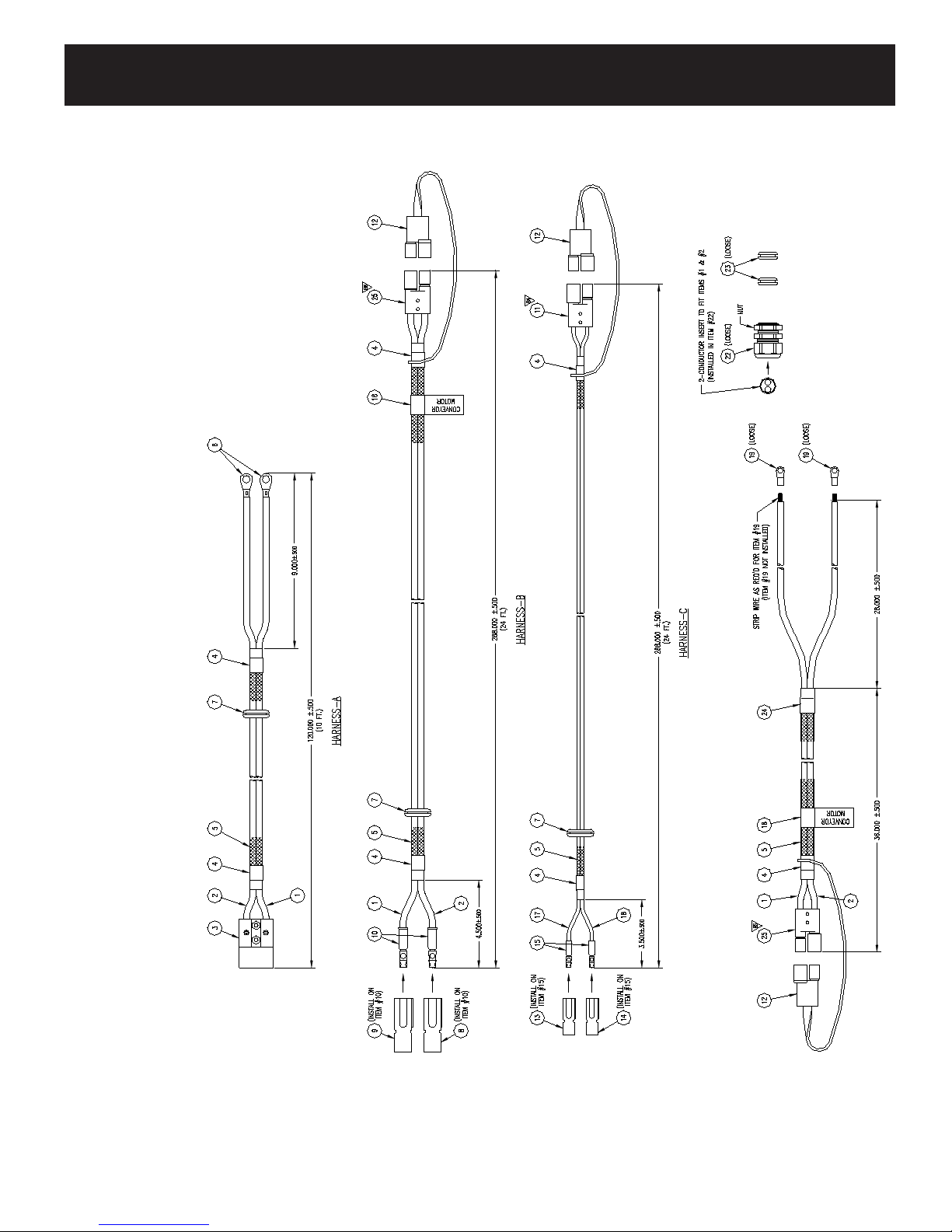

64474
ELECTRIC PV MODEL
Package, Vbel Dual Mtr Ctrl Harnesses
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 80
OCTOBER, 2013
PV PARTS LISTING TABLE
PV HOPPERS
PART NUMBER PART NUMBER DESCRIPTION QTY
64421 00115-156-40 WELD, PV358 50” HOPPER 14GA CS 1
63823 00115-156-32 WELD, PV358 50” HOPPER 14GA S2 1
63293 00115-156-25 WELD, PV358 50” HOPPER 14GA S3 HYD 1
64422 00115-156-41 WELD, PV359 50” HOPPER 14GA CS 9 FT 1
64423 00115-156-45 WELD, PV359 50” HOPPER 14GA S2 1
64424 00115-156-42 WELD, PV3510 50” HOPPER 14GA CS 1
64425 00115-156-46 WELD, PV3510 50” HOPPER 14 GA S2 1
64420 00115-156-62 WELD, PV356 50” HOPPER 16 GA S2 1
PV DRAG CHAINS
PART NUMBER PART NUMBER DESCRIPTION QTY
62129 04043-016-00 WE;D, DRAG CHAIN 8 FOOT 1
64287 04043-032-00 WELD, DRAG CHAIN 9 FOOT 1
64426 04043-030-00 WELD, DRAG CHAIN 10 FOOT 1
64244 04043-079-00 WELD, DRAG CHAIN 6 FOOT 1
PV CHAIN SHIELDS
PART NUMBER PART NUMBER DESCRIPTION QTY
64427 00119-603-04 CHAINSHIELD, PV 8” 14GA CS 2
63830 00119-603-03 CHAINSHIELD, PV 8” 14GA S2 2
63260 00119-603-01 CHAINSHIELD, PV 8’ 14GA S3 2
64428 00119-604-02 CHAINSHIELS, PV 9’ 14GA CS 2
64429 00119-604-01 CHAINSHIELS, PV 9’ 14GA S2 2
64430 00119-605-02 CHAINSHIELD, PV 10’ 14GA CS 2
64431 00119-605-01 CHAINSHIELD, PV 10’ 14GA S2 2
64405 00119-949-06 CHAINSHIELD PV 6’ 16GA S2 2
PV INVERTED “VEES”
PART NUMBER DESCRIPTION QTY
63184 INVERTED VEE, 8 FOOT PV 1
62294 INVERTED VEE, 9 FOOT PV 1
62296 INVERTED VEE 10 FOOT PV 1
CS=CARBON STEEL, S2=201 STAINLESS STEEL, S3=S04 STAINLESS STEEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 81
OCTOBER, 2013
PV SERIES
PV PARTS LISTING TABLE CONTINUED
PV FLOOR
PART NUMBER DESCRIPTION QTY
64432 FORM, FLOOR, 8’ PV 14GA CS 1
63836 FORM, FLOOR, 8’ PV 14GA S2 1
64434 FORM, FLOOR, 9’ PV 14GA CS 1
64435 FORM, FLOOR, 9’ PV 14GA S2 1
64436 FORM, FLOOR, 10’ PV 14GACS 1
64437 FORM, FLOOR, 10’ PV 14GA S2 1
64416 FORM, FLOOR, 6’ PV 16GA S2 1
PV SHROUD
PART NUMBER DESCRIPTION QTY
63017 WELD, SHROUD, PV 14GA CS 1
63021 WELD, SHROUD, PV 14GA S2 1
64402 WELD, SHROUD, PV 14GA S3 1
64414 WELD, SHROUD, PV 16GA S2 1
PV SPINNER ASSEMBLIES
PART NUMBER DESCRIPTION QTY
64439 P, ASSY, PV SPNR, INTMD, 14GA CS 1
64440 P, ASSY, PV SPNR, INTMD, HYD, 14GA CS 1
63816 P, ASSY, PV SPNR, INTMD, 14GA S2 1
64441 P, ASSY, PV SPNR, INTMD, HYD, 14GA S2 1
64442 P, ASSY, PV SPNR, EXT, HYD, 14GA S2 1
64443 P,ASSY, PV SPNR, EXT, HYD, 14GA S3 1
64444 P, ASSY, PV SPNR, INTMD, 14GA S3 1
64412 P, ASSY, PV SPNR, INTMD, 16GA S2 1
PV SCREENS
PART NUMBER DESCRIPTION QTY
63201 SCREEN, 8 FOOT PV 1
64448 SCREEN, 9 FOOT PV 1
64449 SCREEN, 10 FOOT PV 1
CS=CARBON STEEL, S2=201 STAINLESS STEEL, S3=S04 STAINLESS STEEL
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 82
OCTOBER, 2013

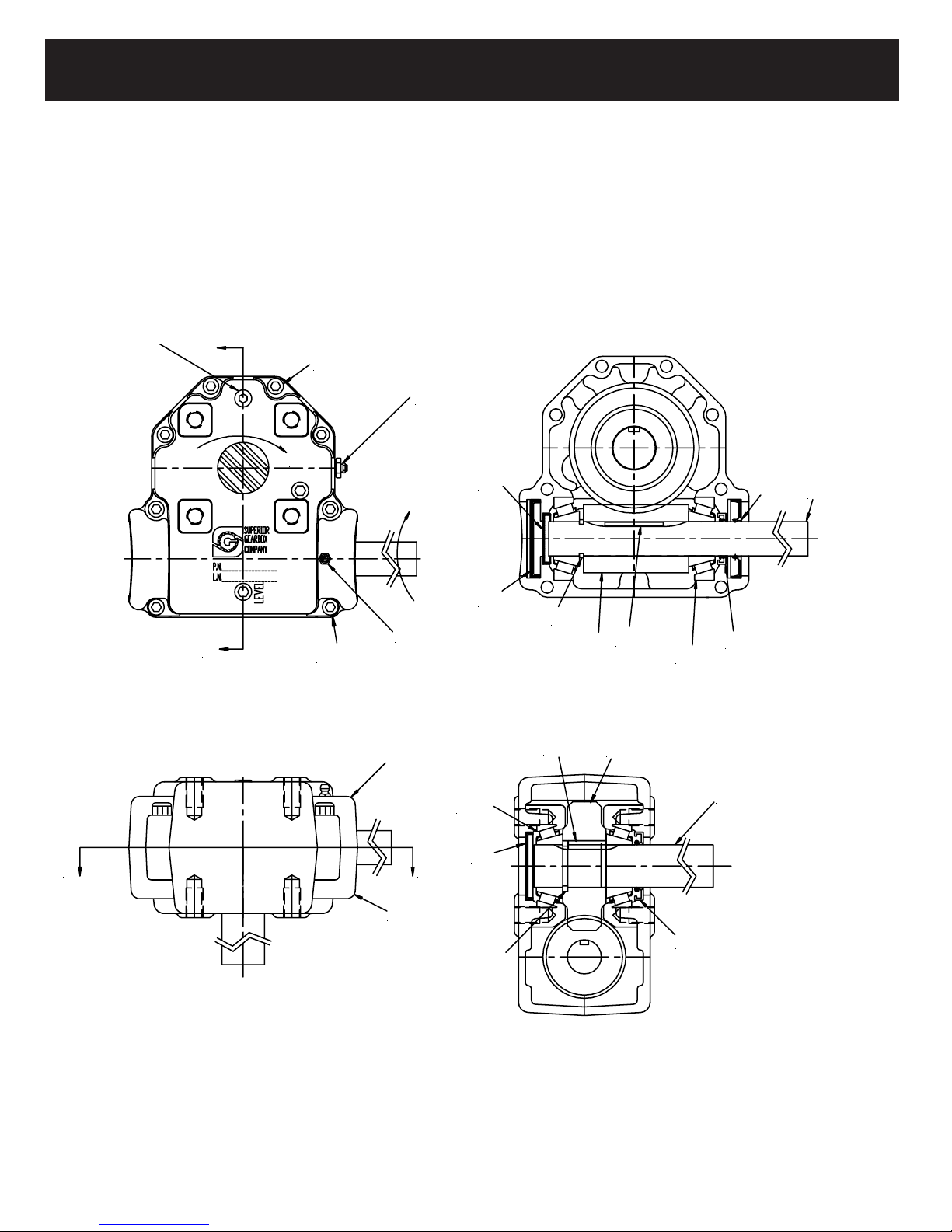

SUPERIOR GEARBOX ASSEMBLY
14
B
B
CW
20
21
CW
22
3
17, 18
25
15
8
12
13
1
Section A-A
4
5, 7
10
19
23
A A
Notes:
1. Gear Ratio is: 20:1
2. Torque 3/8-16 Capscrews
(20, 21) to 35-40 ft. lbs.
7, 6
16
2
9
Section B-B
24
11
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 83
OCTOBER, 2013
PV SERIES
PARTS LIST FOR
SUPERIOR GEARBOX ASSEMBLY
62902
After 11/4/02
ITEM PART NUMBER QTY. DESCRIPTION
1 62903 04132-113-01 1 Gear, Worm, LH 20:1
2 62904 04132-113-02 1 Casting, Machined
3 62905 04132-113-03 1 Casting, Machined Thru
4 62906 04132-113-04 1 Gear, Worm 20:1 LH 1/4 Keyway
5 62907 04132-113-05 2 Bearing, Cone TMKN # 15101
6 62908 04132-113-06 2 Bearing, Cone TMKN # 15126
7 62909 04132-113-07 4 Bearing, Cup TMKN # 15245
8 62910 04132-113-08 1 Retaining Ring, Ext. 1.000 Shaft
9 62911 04132-113-09 1 Retaining Ring, Ext 1.250 Shaft
10 62912 04132-113-10 1 Seal, 1.000
11 62913 04132-113-11 1 Seal, 1.250
12 62914 04132-113-12 1 Key, 1/4 x 1/4, 1.080
13 62915 04132-113-13 1 Key, 1/4 x 1/4, 1.580
14 62916 04132-113-14 4 Plug, 1/4-18 NPT SCHD W/3M
15 62917 04132-113-15 1 End Cap, CP-2.312
16 62918 04132-113-16 1 End Cap, CP-2.000
17 62919 04132-113-17 1 Bushing, 1/4 NPT x 1/8 NPT
18 62920 04132-113-18 1 Plug, Vent 5 PSI
19 62921 04132-113-19 1 Seal, 1.000
20 62922 04132-113-20 4 Socket Head Cap Screw, 5/16”-18 x 1.50
21 62923 04132-113-21 4 Socket Head Cap Screw, 5/16”-18 x 1.75
22 62924 04132-113-22 1 Zerk, Grease
23 62925 04132-117-23 1 Shaft, Input
24 62926 04132-117-24 1 Shaft, Output
25 62927 04132-113-25 1 End Cap, CP-1.500
26 62928 04132-113-26 20 Lube / EP 85W140
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
Y
00108-760-01-REV-B
Page 84
OCTOBER, 2013

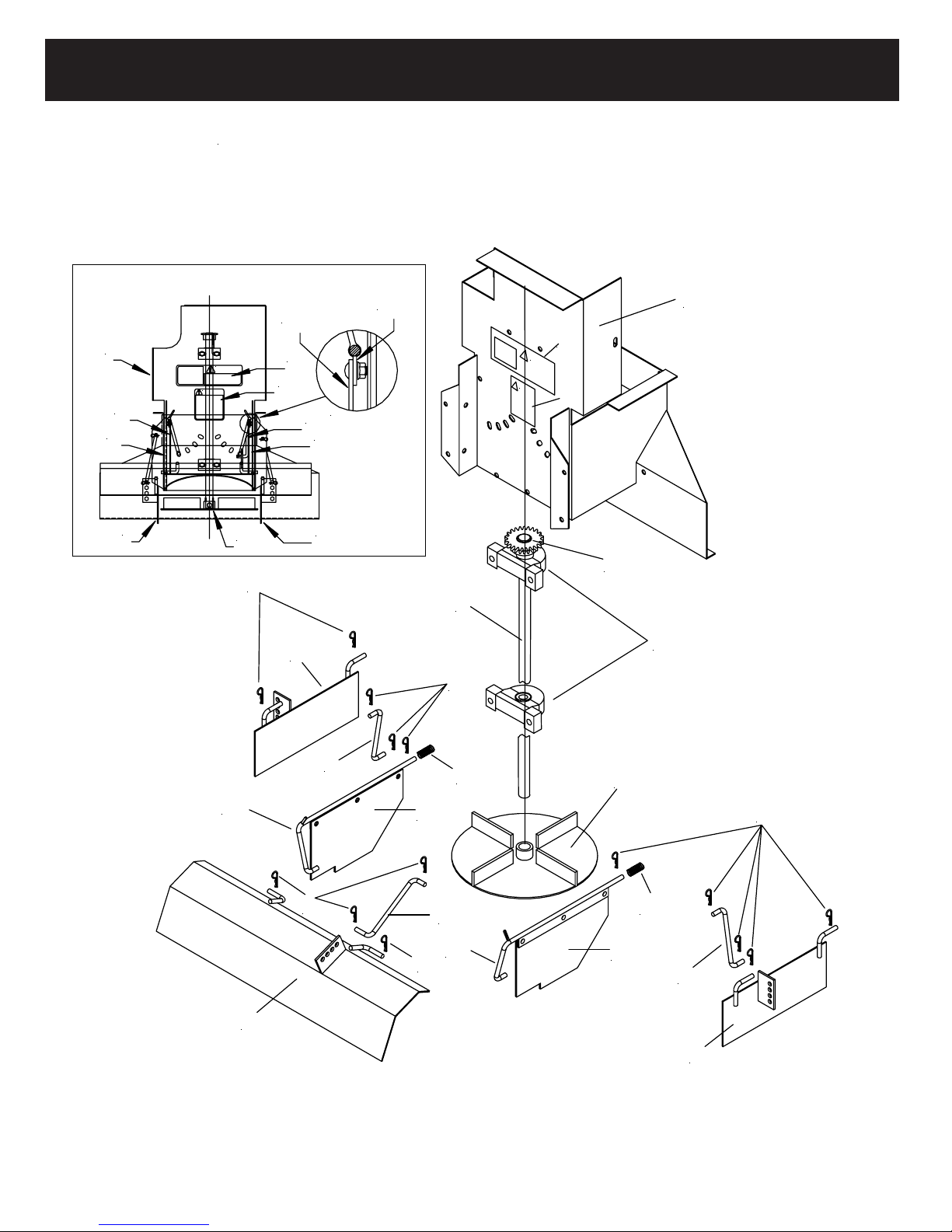

SHORT SPINNER ASSEMBL
17 REF.
18 REF.
1
11
D
1
18
17
5
CAUTION
DANGER
11
10
DETAIL - A
16
17
3
6
A
N
G
E
R
C
A
U
T
I
O
N
10
12 - 13
9
2
5
4
9
18
7
9
8
17
9
8
14
16
3
9
14
17
8
6
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 85
OCTOBER, 2013
PV SERIES
PARTS LIST FOR SPINNER ASSEMBLY
SHORT - PARTS ONLY
(ORIGINAL VERSION OF STANDARD)
PARTS LIST
ITEM PART. NO. QTY. DESCRIPTION
62504 00002-296-01 1 Short (Steel) Spinner Assy.
62512 00002-296-05 1 Short (Steel) W/Poly Disc.
62506 00002-296-02 1 Short (304SS) Spinner Assy.
1 62778 00115-576-01 1 • Weld, Spinner Frame (Carbon Steel)
62779 00115-576-02 1 • Weld, Spinner Frame (304 Stainless Steel)
2 61151 00104-804-00 1 • Shaft, Spinner
3 61180 00104-849-00 1 • Weld, Spinner Disc
62146 04622-033-00 1 • Disc, Poly Spinner
4 62356 04080-079-00 2 • Bearing
4b 61164 04080-011-00 2 • Bearing 1” (Old Style Hopper)
N/S 61187 00104-956-00 2 • Bearing Bracket, Weldment (Old Style)
5 61181 00104-811-00 1 • Weld, L. H. Baffle (Carbon Steel)
62273 00104-811-01 1 • Weld, L. H. Baffle (304 Stainless Steel)
6 61182 00104-810-00 1 • Weld, R. H. Baffle (Carbon Steel)
62272 00104-810-01 1 • Weld, R. H. Baffle (304 Stainless Steel)
7 61183 00104-835-00 1 • Weld, Rear Baffle (Carbon Steel)
62275 00104-835-01 1 • Weld, Rear Baffle (304 Stainless Steel)
8 62313 00115-150-00 3 • Link Bar, S3
9 61232 04011-001-01 12 • Hairpin Keeper
10 62007 04049-045-00 1 • Decal, Caution
11 62006 04049-044-00 1 • Decal, Danger
12 61196 04031-007-00 1 • Key, 1/4” Sq. x 1”
13 61156 04041-085-00 1 • Sprocket Drive 41 B 13
13b 61157 04041-086-00 1 • Sprocket Drive 41 B 19 (Old Style Hopper)
14 62358 04091-028-00 2 • Spring, Compression
15 62780 00115-165-00 1 • Hardware Bag
16 62331 00115-545-01 1 • Weld, R. H. Handle (Carbon Steel)
62781 00115-545-02 1 • Weld, R. H. Handle (304 Stainless Steel)
17 62782 00115-579-01 2 • Plate, Baffle (Carbon Steel)
62783 00115-579-02 2 • Plate, Baffle (304 Stainless Steel)
18 62333 00115-580-01 1 • Weld, L. H. Handle (Carbon Steel)
62784 00115-580-02 1 • Weld, L. H. Handle (304 Stainless Steel)
PARTS LIST FOR HYDRAULIC MOTOR DRIVEN UNITS
PART NUMBER QTY. DESCRIPTION
62508 00002-296-03 1 Standard Hydraulic (Steel) Spinner Assy.
62510 00002-296-04 1 Standard Hydraulic (304SS) Spinner Assy.
62785 00115-721-01 1 • Weld, Spinner Frame (Carbon Steel)
62786 00115-721-02 1 • Weld, Spinner Frame (304 Stainless Steel)
62787 04101-119-00 1 • Motor, Hydraulic
62788 00106-490-00 1 • Weld, Shaft
62789 00115-722-01 1 • Bracket, Motor Mount (Carbon Steel)
62790 00115-722-02 1 • Bracket, Motor Mount (304 Stainless Steel)
62791 00107-080-00 2 • Bushing
62792 00107-080-01 2 • Bushing, (304 Stainless Steel)
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 86
OCTOBER, 2013
INTERMEDIATE - STANDARD
SPINNER ASSEMBLY
1
DETAIL - A
18 REF.
11
D
A
N
G
E
R
C
A
U
T
I
O
N
10
17 REF.
1
18
17
5
CAUTION
DANGER
11
10
16
17
3
6
12 - 13
9
2
5
4
9
8
18
17
14
3
9
9
7
8
16
9
14
17
8
6
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 87
OCTOBER, 2013
PV SERIES
PARTS LIST FOR EXTENDED SPINNER ASSEMBLY
INTERMEDIATE - STANDARD (NEW)
PARTS LIST
ITEM PART. NO. QTY. DESCRIPTION
62929 00002-296-13 1 Standard (Steel) W/Poly Disc.
62930 00002-296-14 1 Standard (304SS) Spinner Assy.
1 62931 00119-091-01 1 • Weld, Spinner Frame (Carbon Steel)
62932 00119-091-02 1 • Weld, Spinner Frame (304 Stainless Steel)
2 62933 00119-083-00 1 • Shaft, Spinner
3 61180 00104-849-00 1 • Weld, Spinner Disc
62146 04622-033-00 1 • Disc, Poly Spinner
4 62356 04080-079-00 2 • Bearing
4b 61164 04080-011-00 2 • Bearing 1” (Old Style Hopper)
N/S 61187 00104-956-00 2 • Bearing Bracket, Weldment (Old Style)
5 61181 00104-811-00 1 • Weld, L. H. Baffle (Carbon Steel)
62273 00104-811-01 1 • Weld, L. H. Baffle (304 Stainless Steel)
6 61182 00104-810-00 1 • Weld, R. H. Baffle (Carbon Steel)
62272 00104-810-01 1 • Weld, R. H. Baffle (304 Stainless Steel)
7 61183 00104-835-00 1 • Weld, Rear Baffle (Carbon Steel)
62275 00104-835-01 1 • Weld, Rear Baffle (304 Stainless Steel)
8 62313 00115-150-00 3 • Link Bar, S3
9 61232 04011-001-01 12 • Hairpin Keeper
10 62007 04049-045-00 1 • Decal, Caution
11 62006 04049-044-00 1 • Decal, Danger
12 61196 04031-007-00 1 • Key, 1/4” Sq. x 1”
13 61156 04041-085-00 1 • Sprocket Drive 41 B 13
13b 61157 04041-086-00 1 • Sprocket Drive 41 B 19 (Old Style Hopper)
14 62358 04091-028-00 2 • Spring, Compression
15 62780 00115-165-00 1 • Hardware Bag
16 62331 00115-545-01 1 • Weld, R. H. Handle (Carbon Steel)
62781 00115-545-02 1 • Weld, R. H. Handle (304 Stainless Steel)
17 62782 00115-579-01 2 • Plate, Baffle (Carbon Steel)
62783 00115-579-02 2 • Plate, Baffle (304 Stainless Steel)
18 62333 00115-580-01 1 • Weld, L. H. Handle (Carbon Steel)
62784 00115-580-02 1 • Weld, L. H. Handle (304 Stainless Steel)
PARTS LIST FOR HYDRAULIC MOTOR DRIVEN UNITS
ITEM PART. NO. QTY. DESCRIPTION
----- 00002-296-15 1 Extended Hydraulic (Steel) Spinner Assy.
----- 00002-296-16 1 Extended Hydraulic (304SS) Spinner Assy.
----- 00119-092-01 1 • Weld, Spinner Frame (Carbon Steel)
----- 00119-092-02 1 • Weld, Spinner Frame (304 Stainless Steel)
62787 04101-119-00 1 • Motor, Hydraulic
----- 00119-085-00 1 • Weld, Shaft
62789 00115-722-01 1 • Bracket, Motor Mount (Carbon Steel)
62790 00115-722-02 1 • Bracket, Motor Mount (304 Stainless Steel)
62791 00107-080-00 2 • Bushing
62792 00107-080-01 2 • Bushing, (304 Stainless Steel)
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 88
OCTOBER, 2013

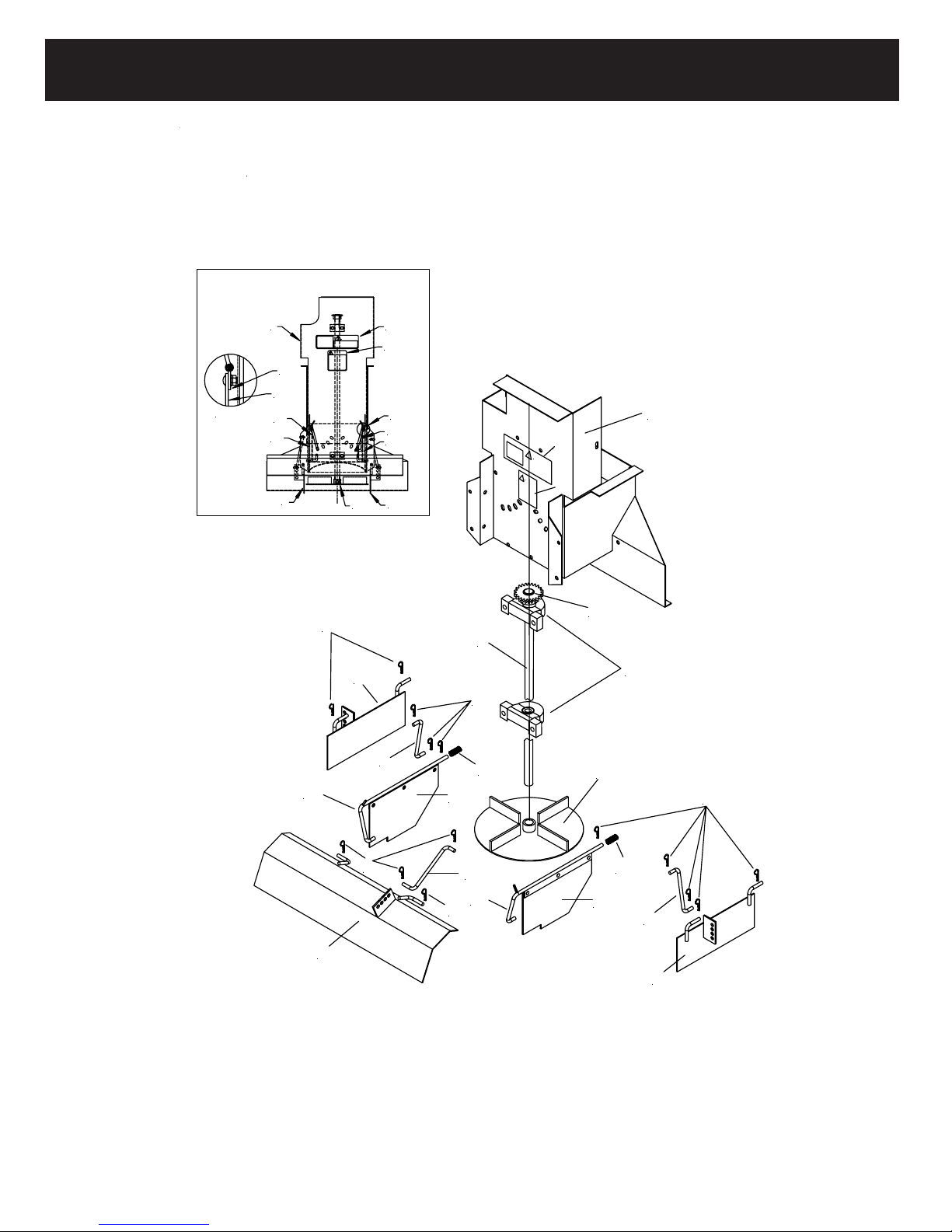

EXTENDED SPINNER ASSEMBLY
DETAIL- A
1
16 REF.
17 REF.
18
17
11
DANGER
CAUTION
5
10
DETAILS - A
16
17
6
3
11
D
A
N
G
E
R
C
A
U
T
I
O
N
10
1
12 - 13
9
2
5
4
9
8
18
17
14
3
9
9
8
16
9
14
17
8
7
6
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
00108-760-01-REV-B
Page 89
OCTOBER, 2013
PV SERIES
PARTS LIST FOR EXTENDED SPINNER ASSEMBLY
EXTENDED - PARTS ONLY
PARTS LIST
ITEM PART. NO. QTY. DESCRIPTION
62505 00002-296-02 1 Extended (Steel) Spinner Assy.
62513 00002-296-10 1 Extended (Steel) W/Poly Disc.
62507 00002-296-07 1 Extended (304SS) Spinner Assy.
1 62574 00115-658-01 1 • Weld, Spinner Frame (Carbon Steel)
62793 00115-658-02 1 • Weld, Spinner Frame (304 Stainless Steel)
2 62057 00104-833-00 1 • Shaft, Spinner
3 61180 00104-849-00 1 • Weld, Spinner Disc
62146 04622-033-00 1 • Disc, Poly Spinner
4 62356 04080-079-00 2 • Bearing
4b 61164 04080-011-00 2 • Bearing 1” (Old Style Hopper)
N/S 61187 00104-956-00 2 • Bearing Bracket, Weldment (Old Style)
5 61181 00104-811-00 1 • Weld, L. H. Baffle (Carbon Steel)
62273 00104-811-01 1 • Weld, L. H. Baffle (304 Stainless Steel)
6 61182 00104-810-00 1 • Weld, R. H. Baffle (Carbon Steel)
62272 00104-810-01 1 • Weld, R. H. Baffle (304 Stainless Steel)
7 61183 00104-835-00 1 • Weld, Rear Baffle (Carbon Steel)
62275 00104-835-01 1 • Weld, Rear Baffle (304 Stainless Steel)
8 62313 00115-150-00 3 • Link Bar, S3
9 61232 04011-001-01 12 • Hairpin Keeper
10 62007 04049-045-00 1 • Decal, Caution
11 62006 04049-044-00 1 • Decal, Danger
12 61196 04031-007-00 1 • Key, 1/4” Sq. x 1”
13 61156 04041-085-00 1 • Sprocket Drive 41 B 13
13b 61157 04041-086-00 1 • Sprocket Drive 41 B 19 (Old Style Hopper)
14 62358 04091-028-00 2 • Spring, Compression
15 62780 00115-165-00 1 • Hardware Bag
16 62331 00115-545-01 1 • Weld, R. H. Handle (Carbon Steel)
62781 00115-545-02 1 • Weld, R. H. Handle (304 Stainless Steel)
17 62782 00115-579-01 2 • Plate, Baffle (Carbon Steel)
62783 00115-579-02 2 • Plate, Baffle (304 Stainless Steel)
18 62333 00115-580-01 1 • Weld, L. H. Handle (Carbon Steel)
62784 00115-580-02 1 • Weld, L. H. Handle (304 Stainless Steel)
PARTS LIST FOR HYDRAULIC MOTOR DRIVEN UNITS
ITEM PART. NO. QTY. DESCRIPTION
62509 00002-296-08 1 Extended Hydraulic (Steel) Spinner Assy.
62511 00002-296-09 1 Extended Hydraulic (304SS) Spinner Assy.
62794 00115-720-01 1 • Weld, Spinner Frame (Carbon Steel)
62709 00115-720-02 1 • Weld, Spinner Frame (304 Stainless Steel)
62787 04101-119-00 1 • Motor, Hydraulic
62795 00111-283-00 1 • Weld, Shaft
62789 00115-722-01 1 • Bracket, Motor Mount (Carbon Steel)
62790 00115-722-02 1 • Bracket, Motor Mount (304 Stainless Steel)
62791 00107-080-00 2 • Bushing
62792 00107-080-01 2 • Bushing, (304 Stainless Steel)
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
SEL INSTALLATION AND OPERATING INSTRUCTION MANUAL
18513 Euclid Ave.
Cleveland, OH 44112
(216) 486-1313
Part Number: XXXXX
Description: P, SJDS - MEYER SPREDER
XXXXXX
May be covered by one o r more of these patents:
Serial Number: XXXXX
00108-760-01-REV-B
Page 90
OCTOBER, 2013

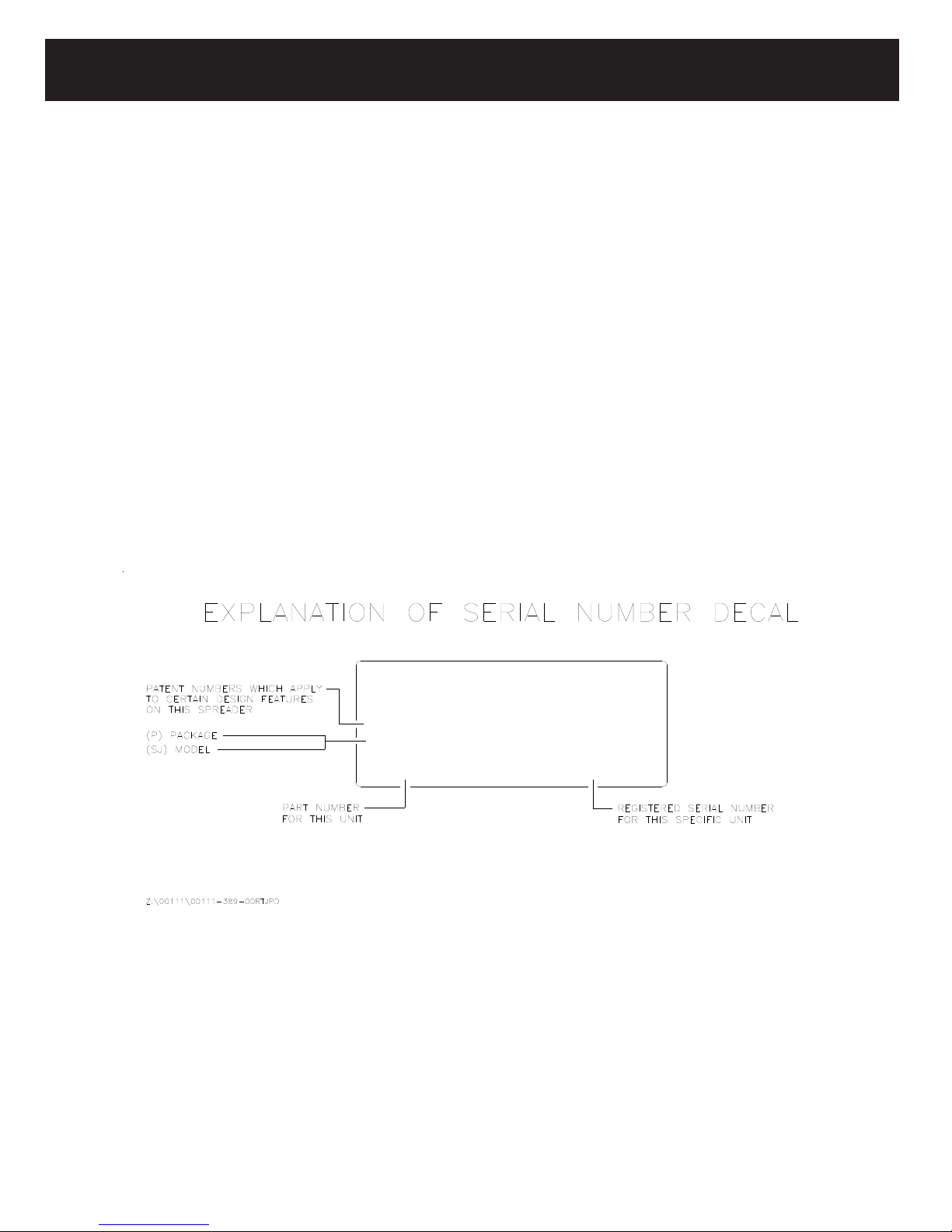

NAME PLATE INFORMATION
•
When ordering parts or requesting information or assistance, always include
the information listed below.
•
The Model Number and Serial Number for the Spreader are shown on the name
plate.
•
The space below is provided as a convenient place to record these numbers;
just fill in the blanks.
MODEL NUMBER________________________________
SERIAL NUMBER________________________________
DATE PURCHASED_______________________________
DEALER PURCHASED FROM______________________
DEALER’S SERVICE DEPARTMENT PHONE NUMBER
CALL YOUR AUTHORIZED MEYER PRODUCTS DEALER FOR PARTS AND SERVICE
NOTICE: INSTRUCTIONAL MATERIAL AND PARTS LISTS INCLUDED IN THIS MANUAL
ARE SUBJECT TO CHANGE WITHOUT NOTICE.
MEYER PRODUCTS (216) 486-1313
FAX (216) 486-9775
email: warranty@meyerproducts.com
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
SEL INSTALLATION AND OPERATING INSTRUCTION MANUAL
00108-760-01-REV-B
Page 91
OCTOBER, 2013
PV SERIES
Meyer Products (“Meyer”) warrants to the original purchaser only that it will repair, or, at the sole option of Meyer,
replace any part of the new Meyer covered product which proves to be defective in workmanship or material
under normal use for a period of one year from the dat e of delivery to the original purchaser. This warranty is not
transferable or assignable. The original purchaser’s sole and exclusive remedy against Meyer and Meyer’s sole
obligat ion for any and all claims, whether for breach of contract, warranty, tort (including negligence) or otherwise
shall be limited to providing, through its Distributor/Sub Distributor network, all labor and or parts necessary to
correct suc h defects free of charge. Any cost inc urred in returning the product to the Distributor/Sub-Distributor is
the responsibility of the original purchaser.
The gasoline engine used in this product is covered by its own warranty as provided by the engine manufacturer.
A copy of this warranty is included with the engine.
SPREADER ONE YEAR WARRANTY
EXCLUSIONS
THIS WARRANTY DOES NOT COVER PAINT, EXCEPT EXPENDABLE PARTS SUCH AS PINS, SPREADER FINS,
AND OTHER NO RMAL WEAR ITEMS. MEYER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY CLAIMS ARISING HEREUNDER, OR FOR DAMAGES
RESULTING FROM LACK OF NECESSARY MAINTENANCE, OR FROM MISUSE, ACTS OF GOD, ALTERATION
OF A MEYER PLOW, SPREADER OR PART, OR FROM USE OF PARTS OR HY DRAULIC FLUID NOT SUPPLIED
BY MEYER. USE OF THE MEYER SNOWPLOW, SPREADER FOR ANY PURPOSE OTHER THAN PLOWING
SNOW OR SPREADING APPROVED MATERIAL ARE EXAMPLES OF AN ABUSE AND MISUSE.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
WARRANTY SERVICE
In order to obtain service under this warranty, the original purchaser must return the Meyer claimed defective
product to the Distributor/Sub-Distributor from whom the product was purchased or to any authorized Meyer
Distribut or/Sub-Dist ributor, transportation and freight charges prepaid. Only Meyer Distributor/Sub-Distributors
are authorized t o perform the obligations under these warranties.
GENERAL
It is t he responsibility of the original purchaser to establish the warranty period by verifying the original delivery
date. A bill of sale, cancelled check or some other appropriate payment record may be kept for that purpose. It
is recommended, but not required, that the consumer verify the original delivery date by immediately returning the
attached Warrant y Registration Card. No person is authorized to change this warranty or to create any warranty
other than that set forth herein. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
Meyer Products
18513 Euclid Avenue
Cleveland, Ohio 44112
Phone (216) 486-1313
Fax (216) 486-3073
E-Mail advertising@meyerproducts.com
INSTALLATION AND INSTRUCTIONAL MANUAL
PV SERIES
SEL INSTALLATION AND OPERATING INSTRUCTION MANUAL
00108-760-01-REV-B
Page 92
OCTOBER, 2013
MEYER PRODUCTS, LLC
18513 EUCLID AVE.
CLEVELAND, OHIO 44112-1084
PHONE: (216) 486-1313
FAX: (216) 486-9775
email:warranty@meyerproducts.com
website: www.meyerproducts.com
IMPORTANT
INFORMATION
ENCLOSED
Loading...
