OPERATORS AND PARTS MANUAL NO. 03-2-SI
INDUSTRIAL SERIES
TWIN EXPELLER SUPER SPREADER
MODEL 7200
PATENTED
U.S. PATENT NO.
5,368,236 5,501,404
DO NOT OPERATE EQUIPMENT UNTIL THIS MANUAL HAS BEEN READ AND UNDERSTOOD
MANUFACTURED BY
County Hwy. A West
P.O. Box 405
Dorchester, Wisconsin 54425-0405
Phone 715-654-5132 • FAX 715-654-5513
1-800-325-9103
www.meyermfg.com
E-mail: sales@meyermfg.com
TABLE OF CONTENTS
MANUFACTURER’S WARRANTY .......................................3
INTRODUCTION ................................................4
SAFETY PRECAUTIONS ............................................5
SAFETY FIRST .................................................6
SAFETY FIRST .................................................7
PRE-OPERATION................................................8
TRANSPORTING ·············································9 OPTIONAL TRUCK MOUNT SPREADERS ·······························10 USE OF SAFETY CHAIN ········································10 FREEZING WEATHER OPERATION ··································10
OPERATION ..................................................12
LOADING ················································12 UNLOADING···············································12 SHEAR SPROCKET INSTRUCTIONS ·································13 STORAGE AFTER USE ·········································14

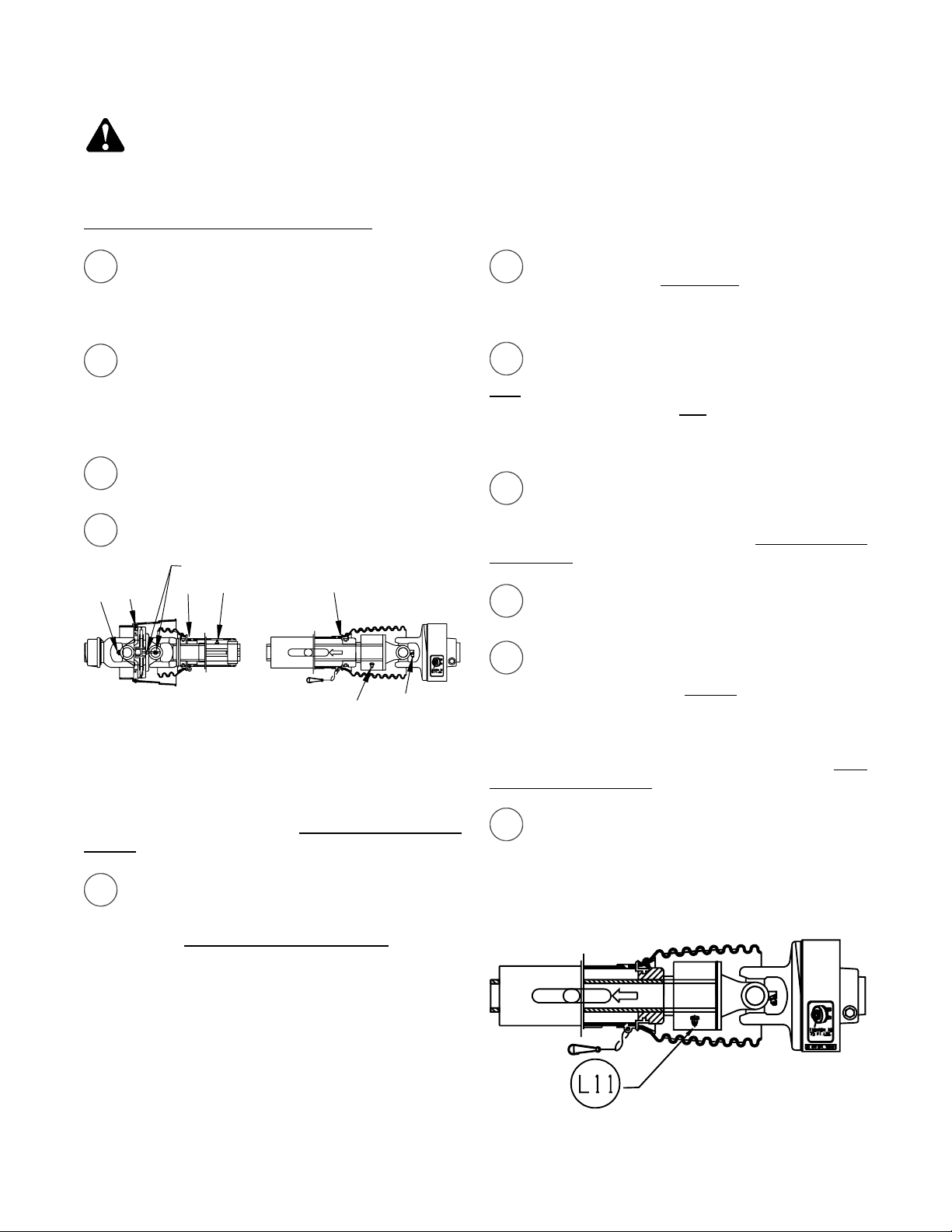

PTO DRIVELINE ................................................15
DRIVELINE ATTACHMENT ·······································15 PTO SETUP ···············································15
LUBRICATION··············································16 LUBRICATION PRIOR TO USE

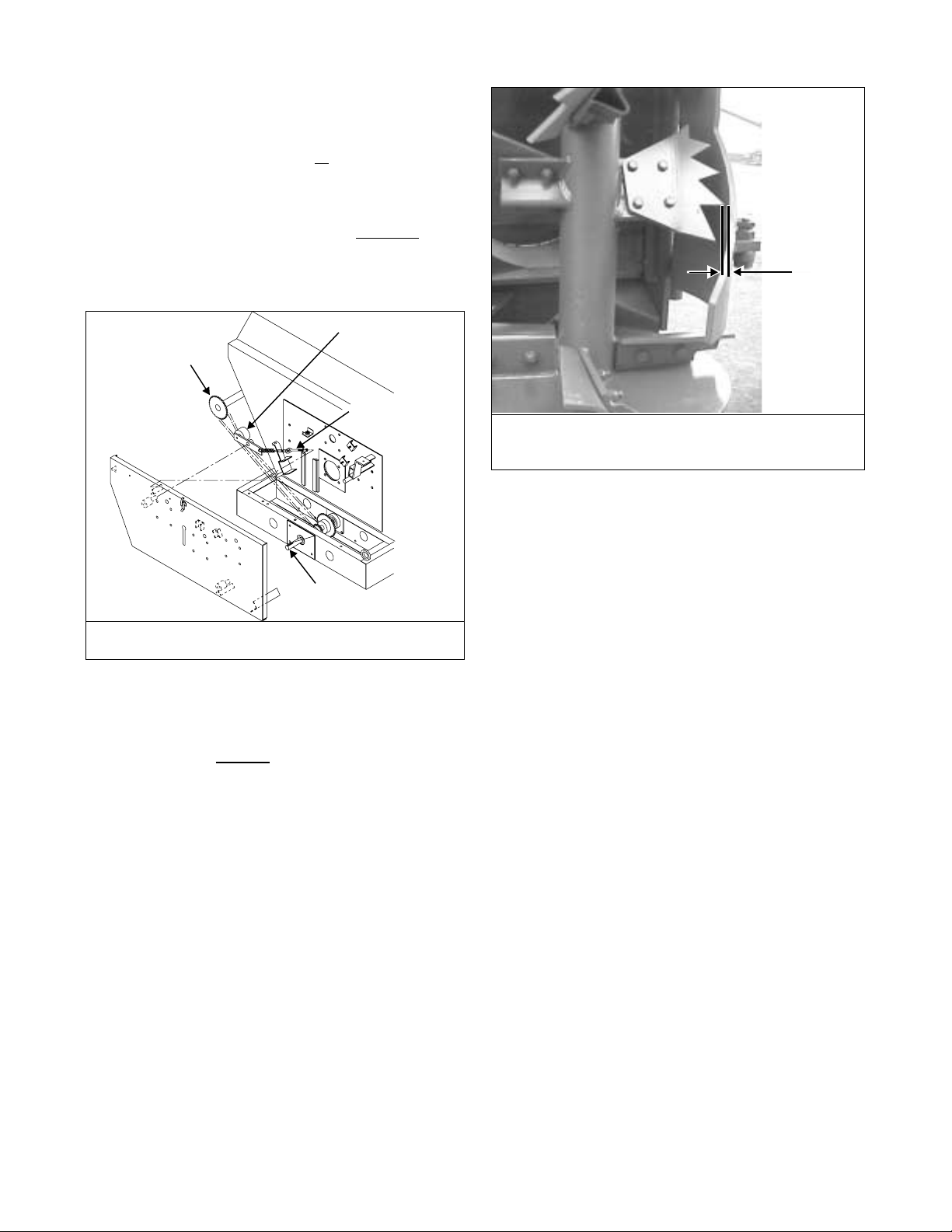

ADJUSTMENTS ................................................17
FRONT DRIVE ROLLER CHAINS····································17
SPINNER MATERIAL GUIDES ·····································19
LUBRICATION .................................................20
REPAIR PARTS ................................................22

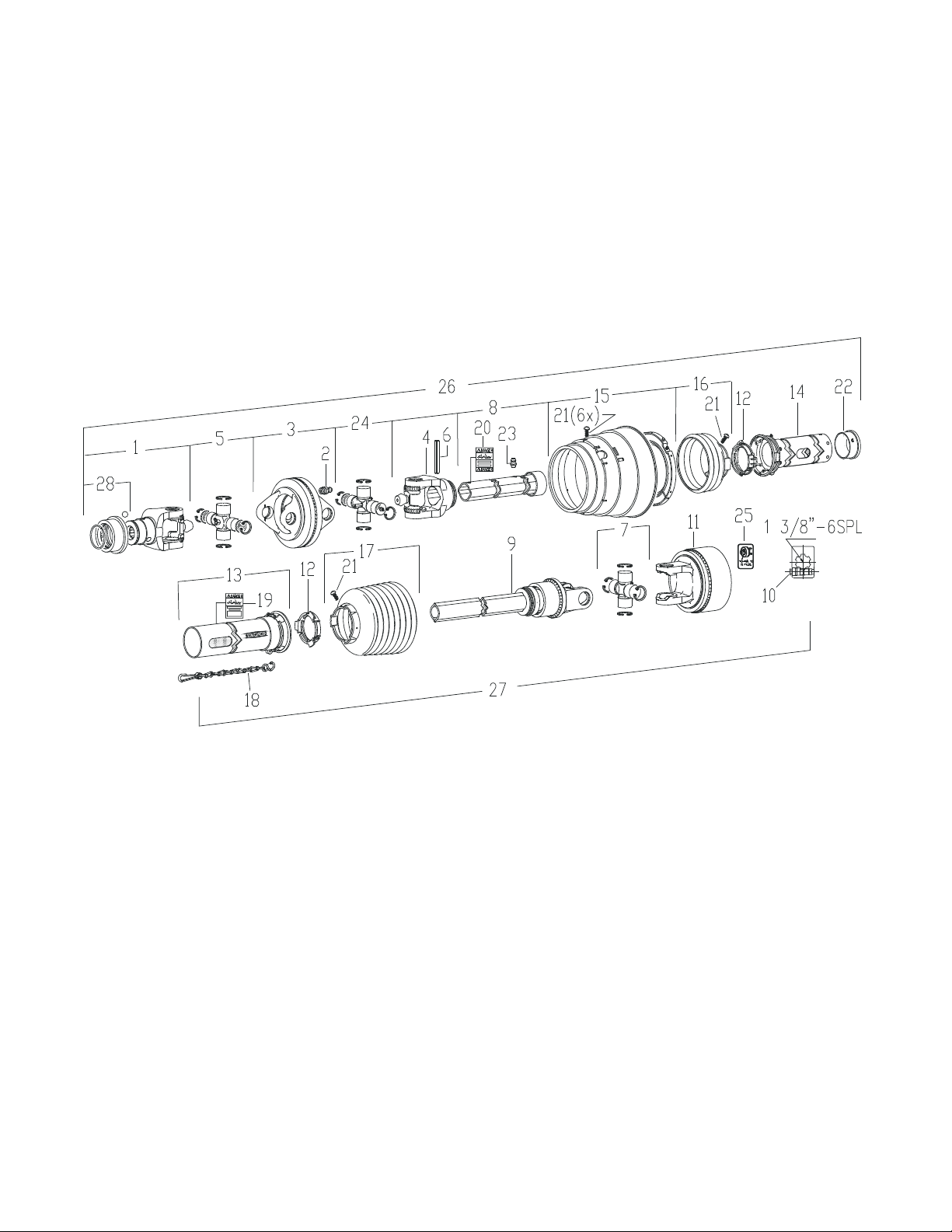

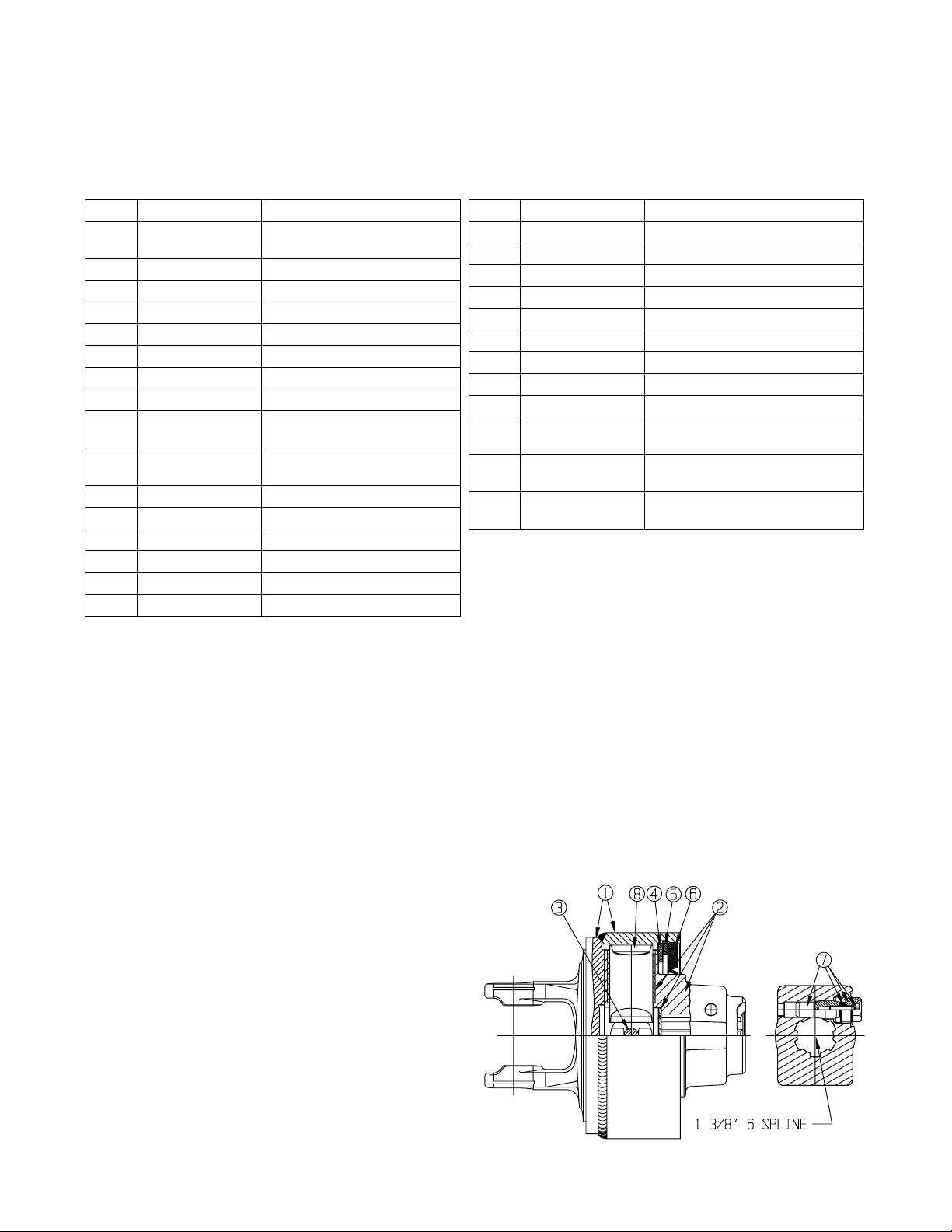

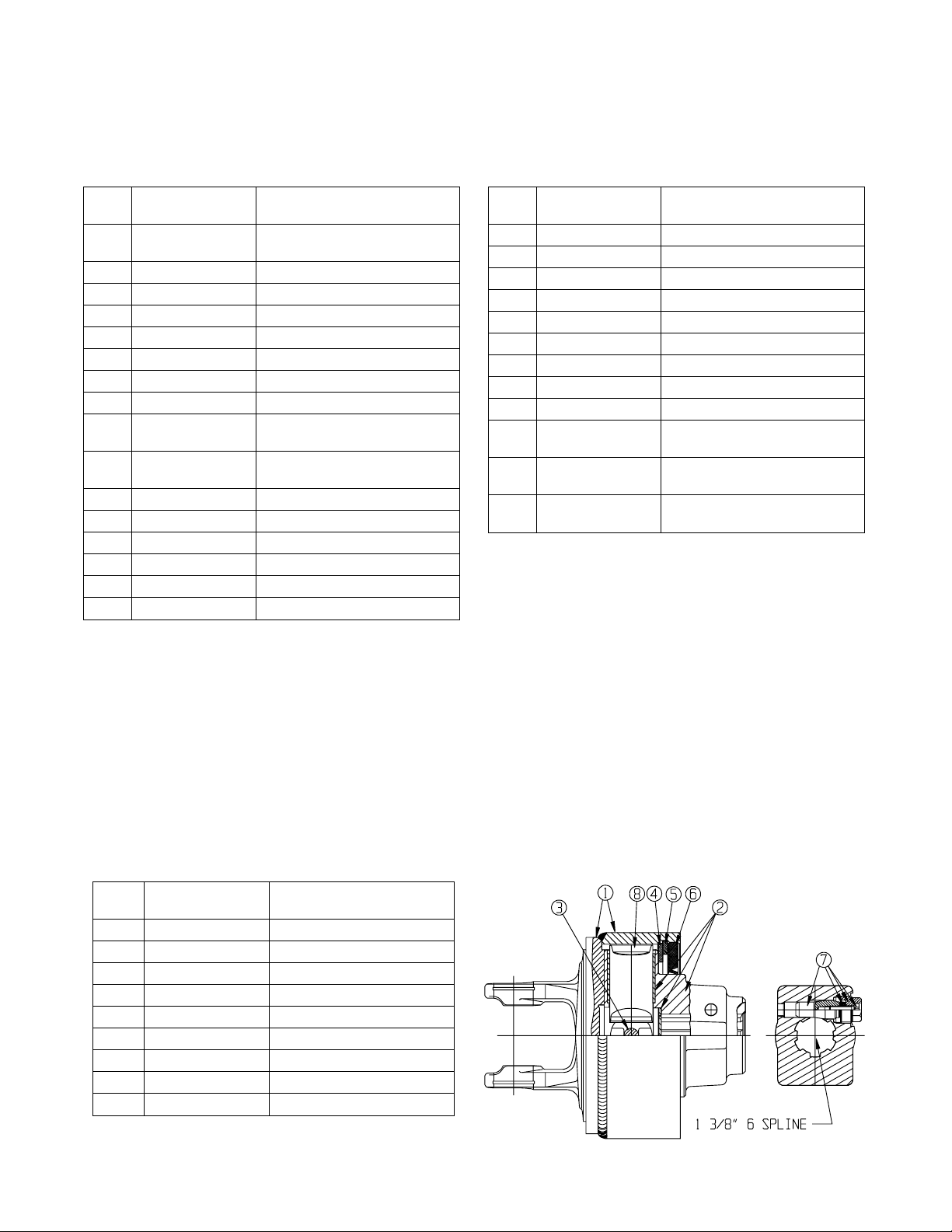

918-0208 PTO DRIVE SHAFT ASSEMBLY·······························22

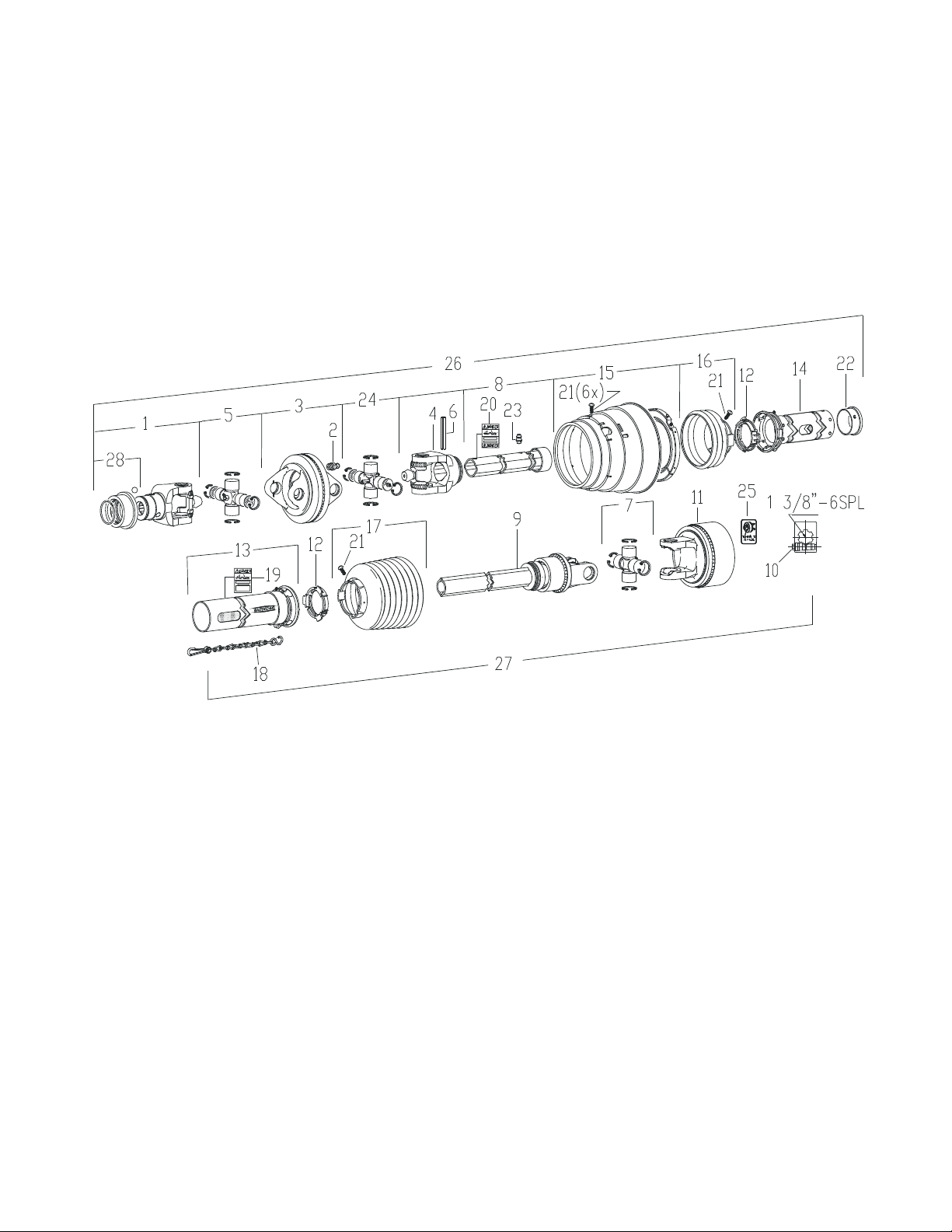

918-0210 PTO DRIVE SHAFT ASSEMBLY ······························24
AUGER DRIVE THIRD REDUCTION ··································26

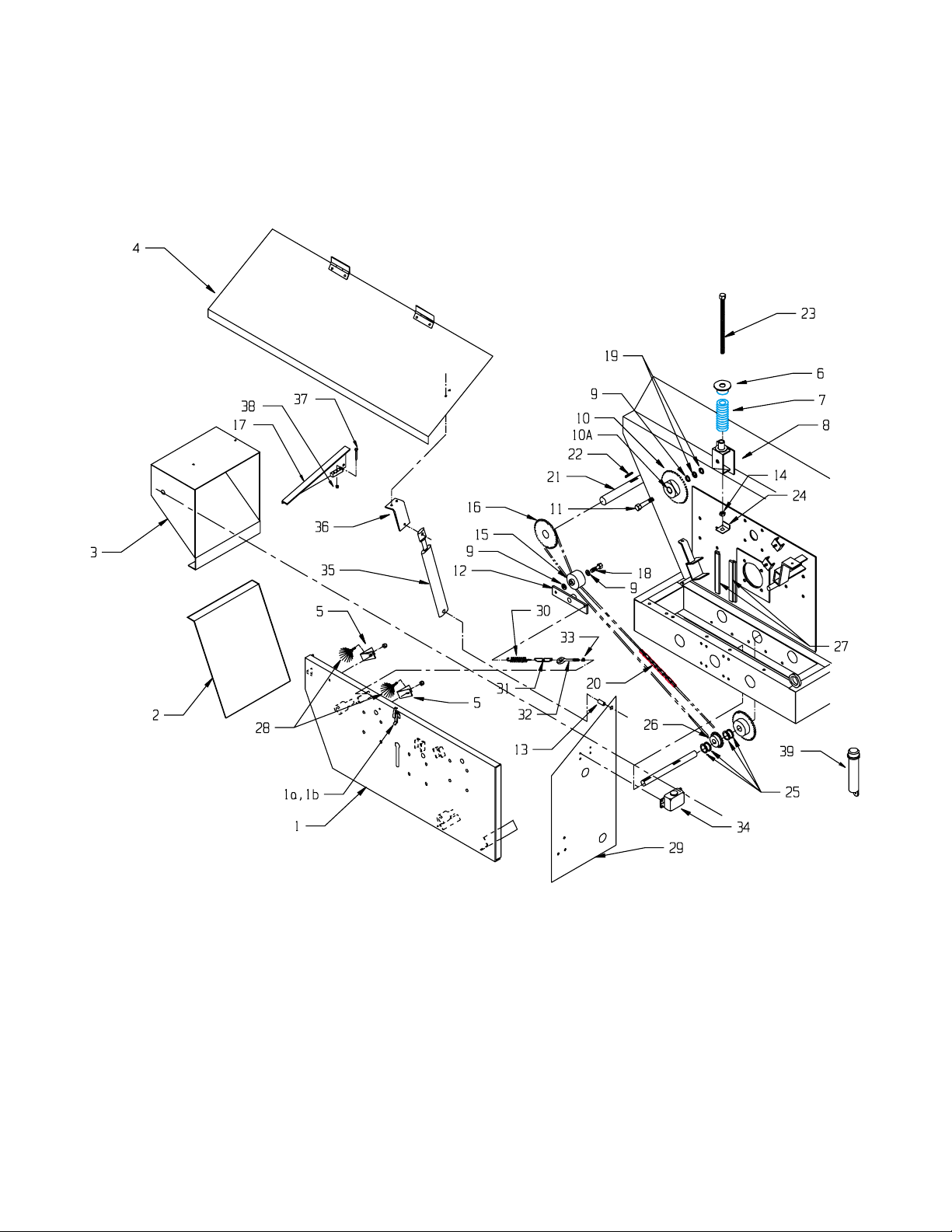

FRONT SHIELD & SIDE SHAFT DRIVE ································28

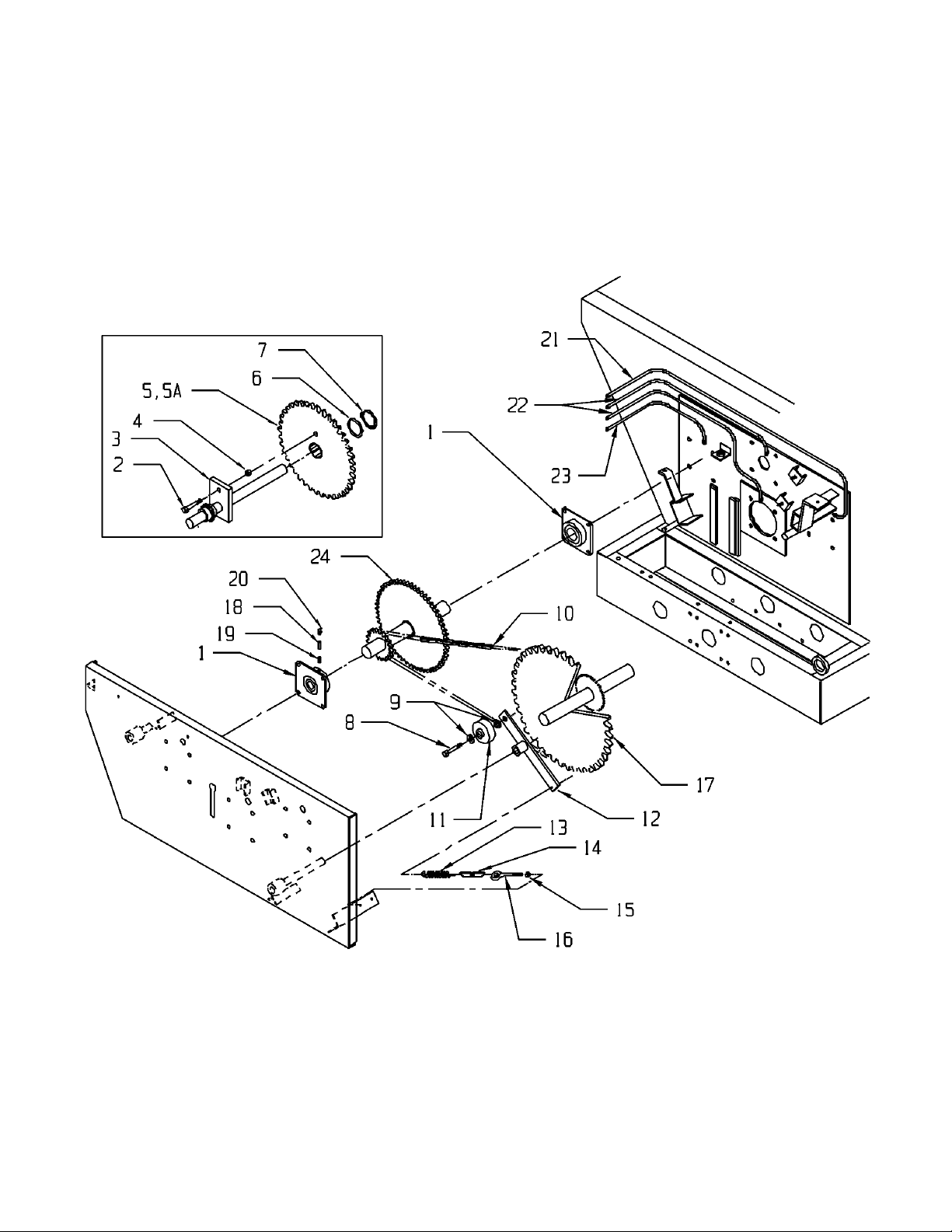

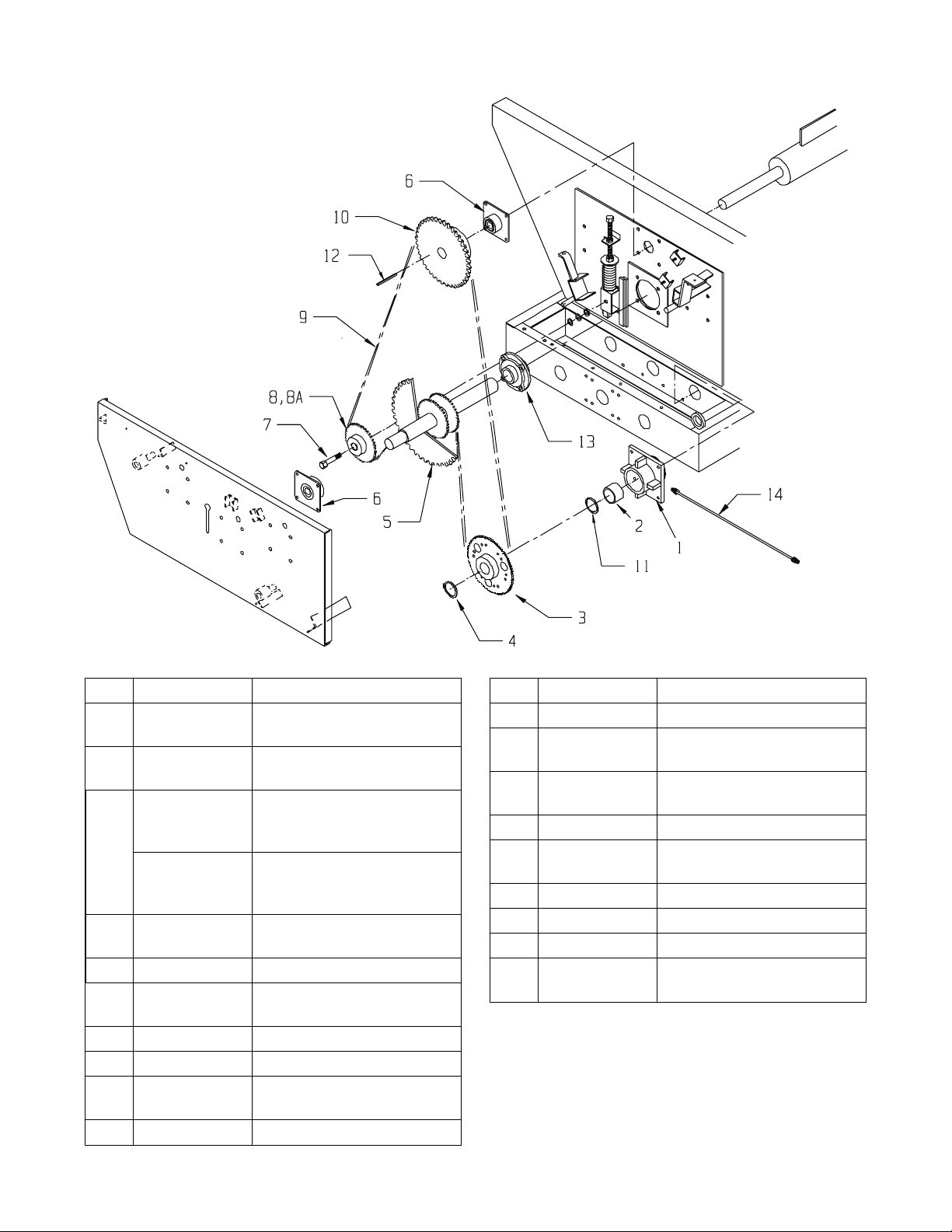

AUGER DRIVE FIRST REDUCTION ··································30

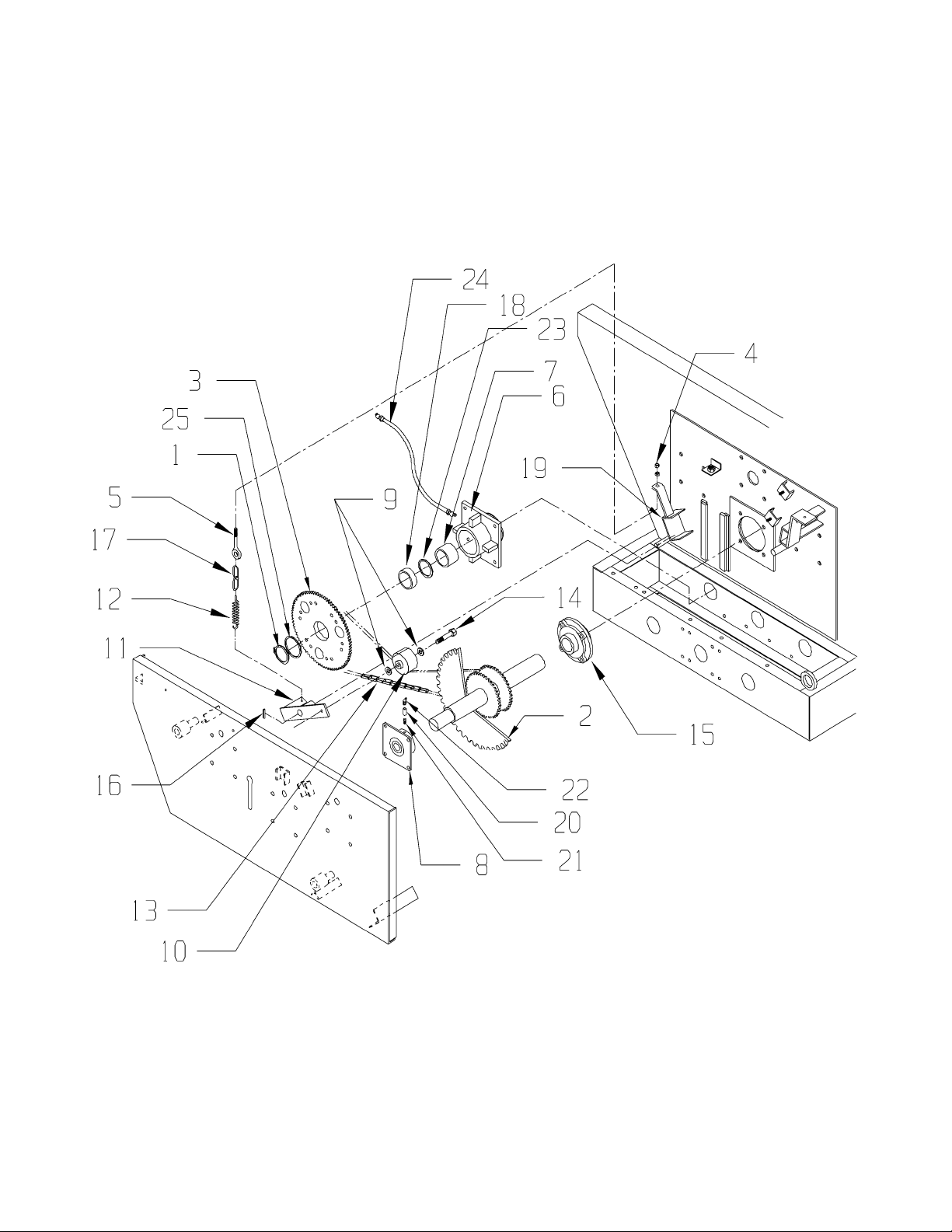

AUGER DRIVE SECOND REDUCTION ································32
RH AUGER DRIVE FINAL REDUCTION ································34
LH AUGER DRIVE FINAL REDUCTION ································36

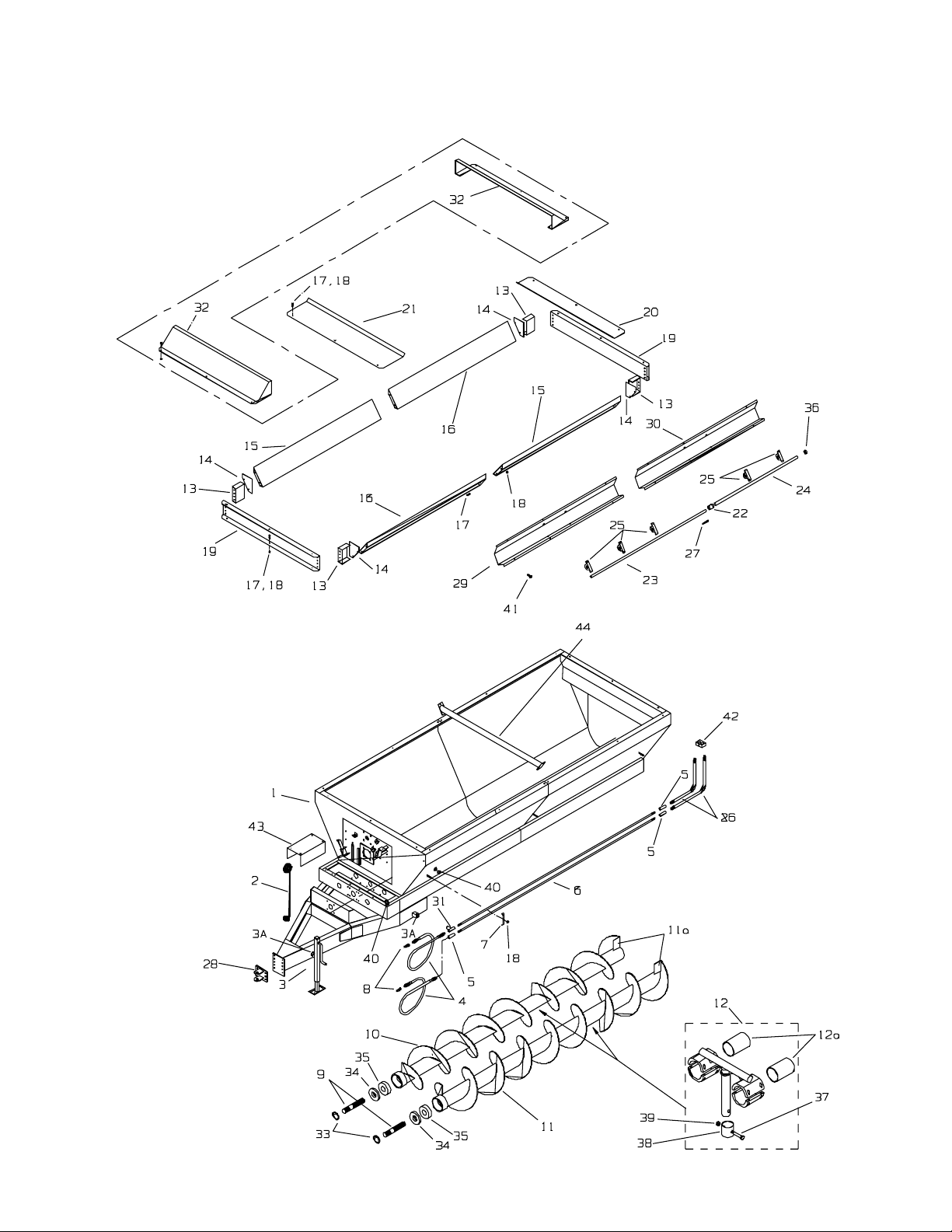

BOX, AUGERS & SIDE SHAFT ·····································38

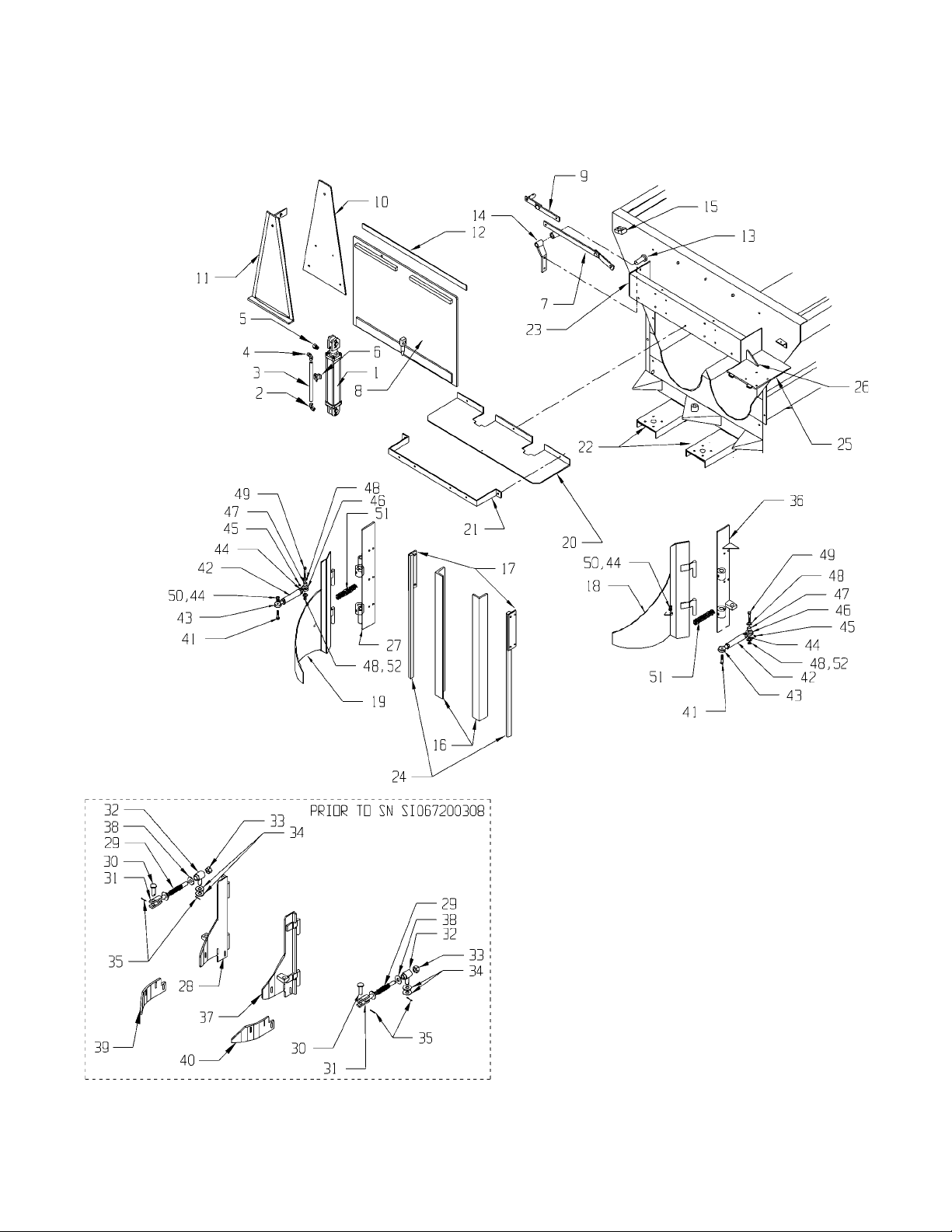

UNLOADING GATE AND GATE INDICATOR······························40

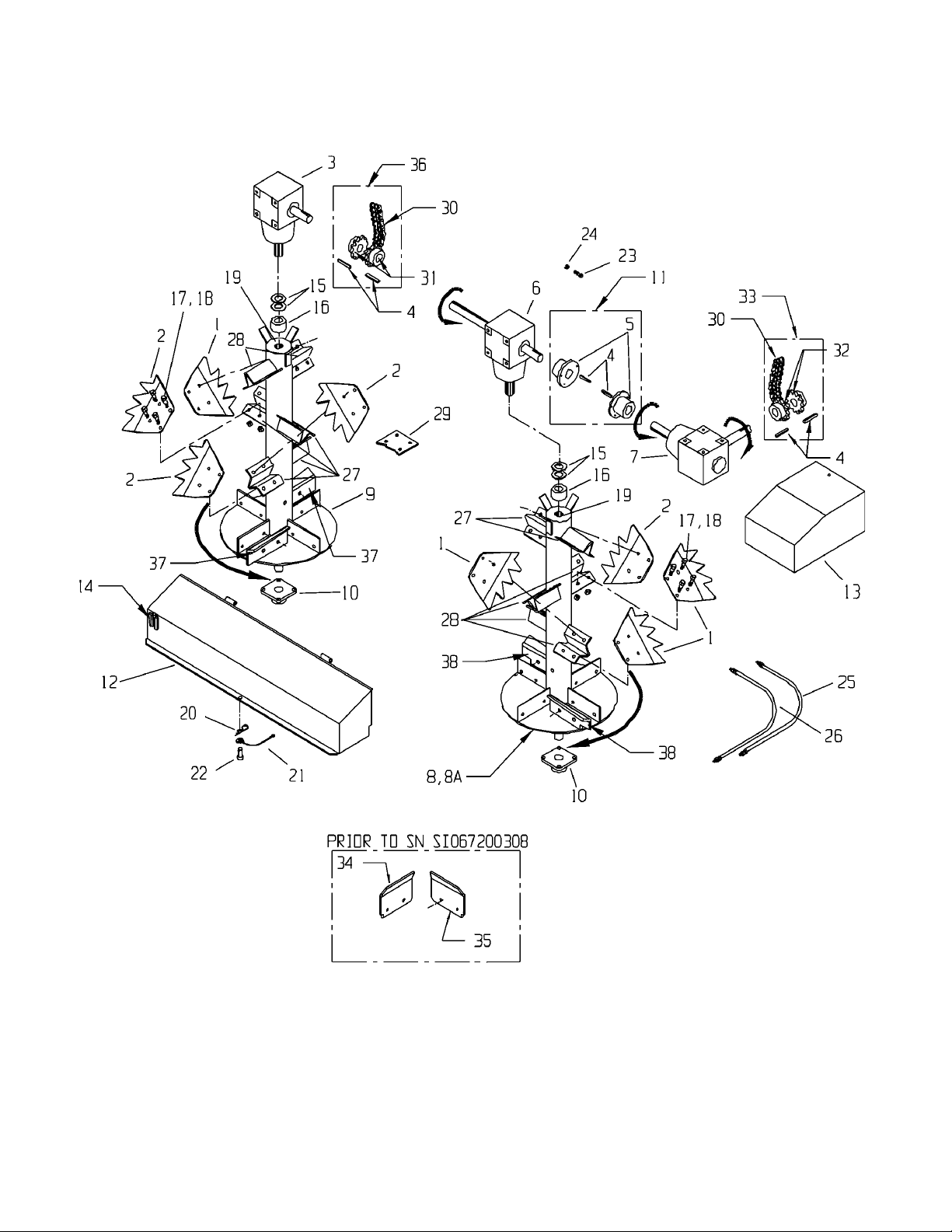

SPINNERS & GEARBOX SHAFT DRIVE ································42

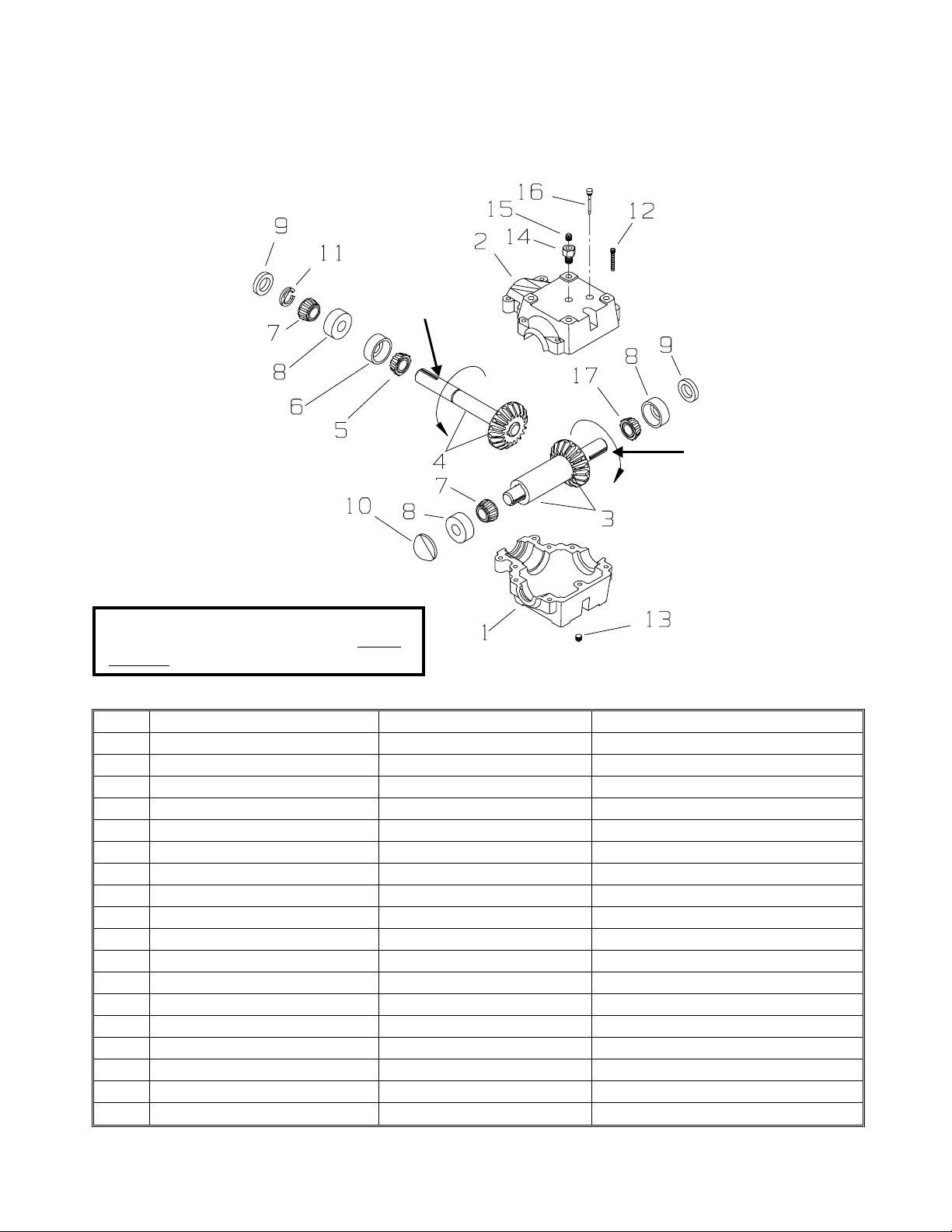

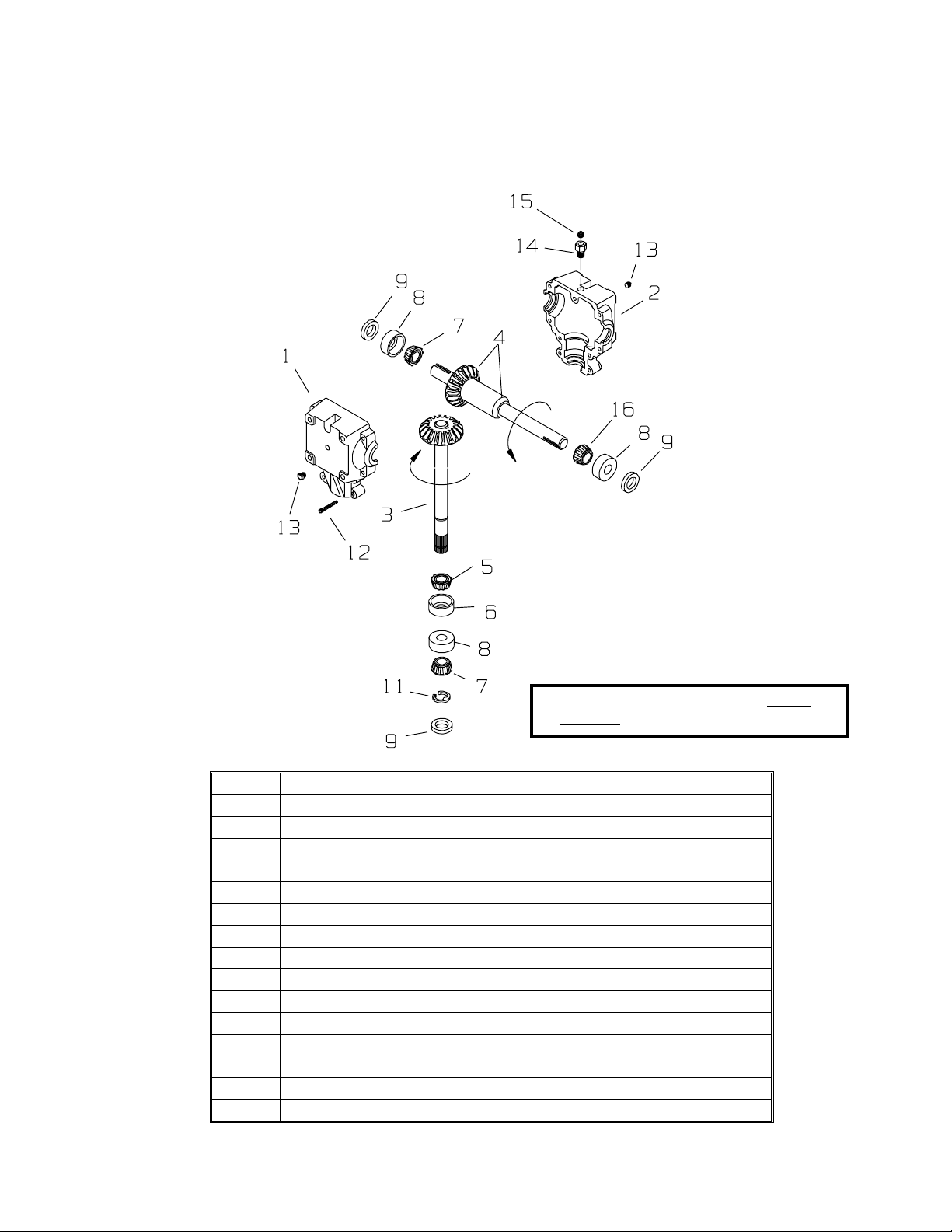

SPINNER GEAR REDUCER - LEFT HAND (1:1) #19-0029 ······················44
SPINNER GEAR REDUCER - CENTER (1:1) #19-0030 ························45

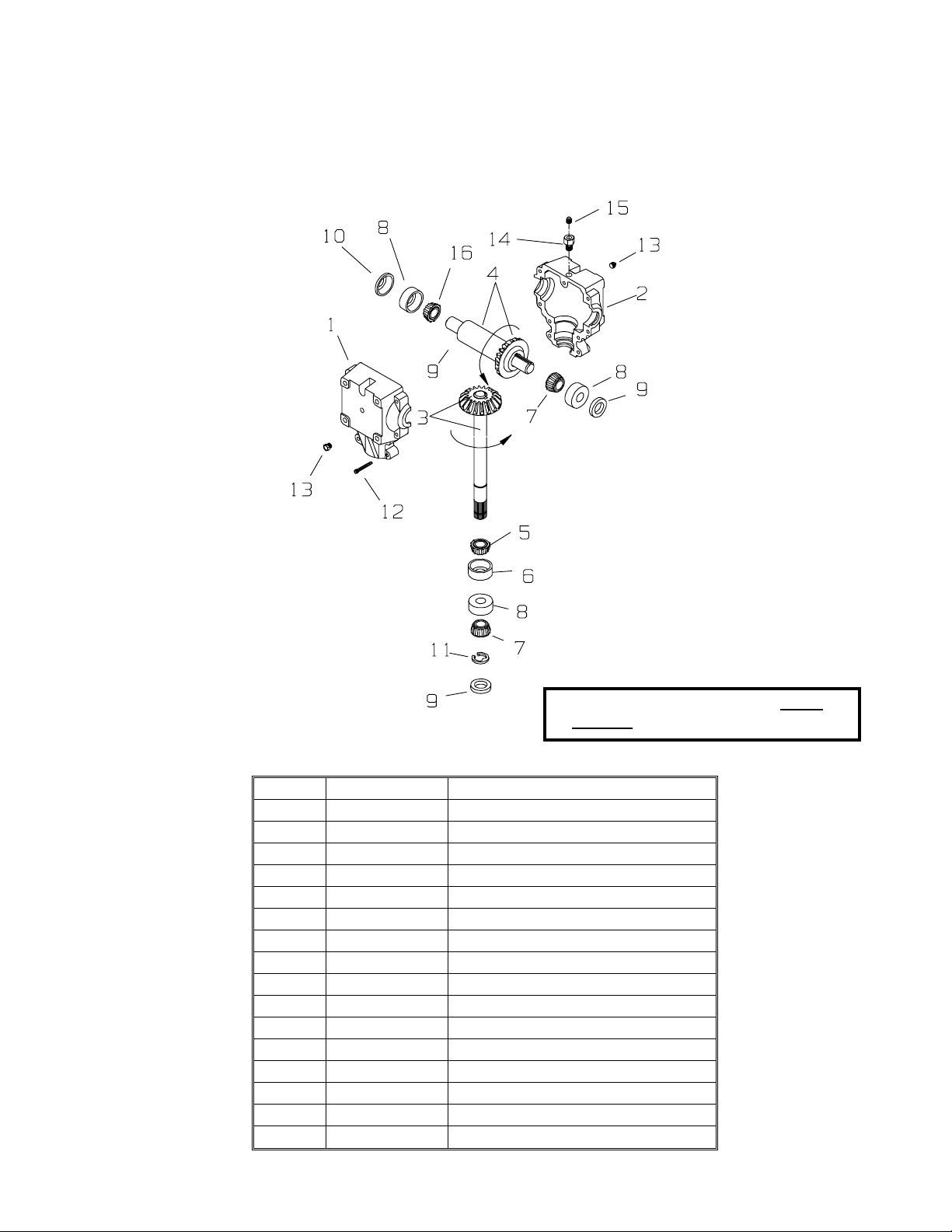

CORNER GEAR REDUCER - RIGHT HAND ······························46

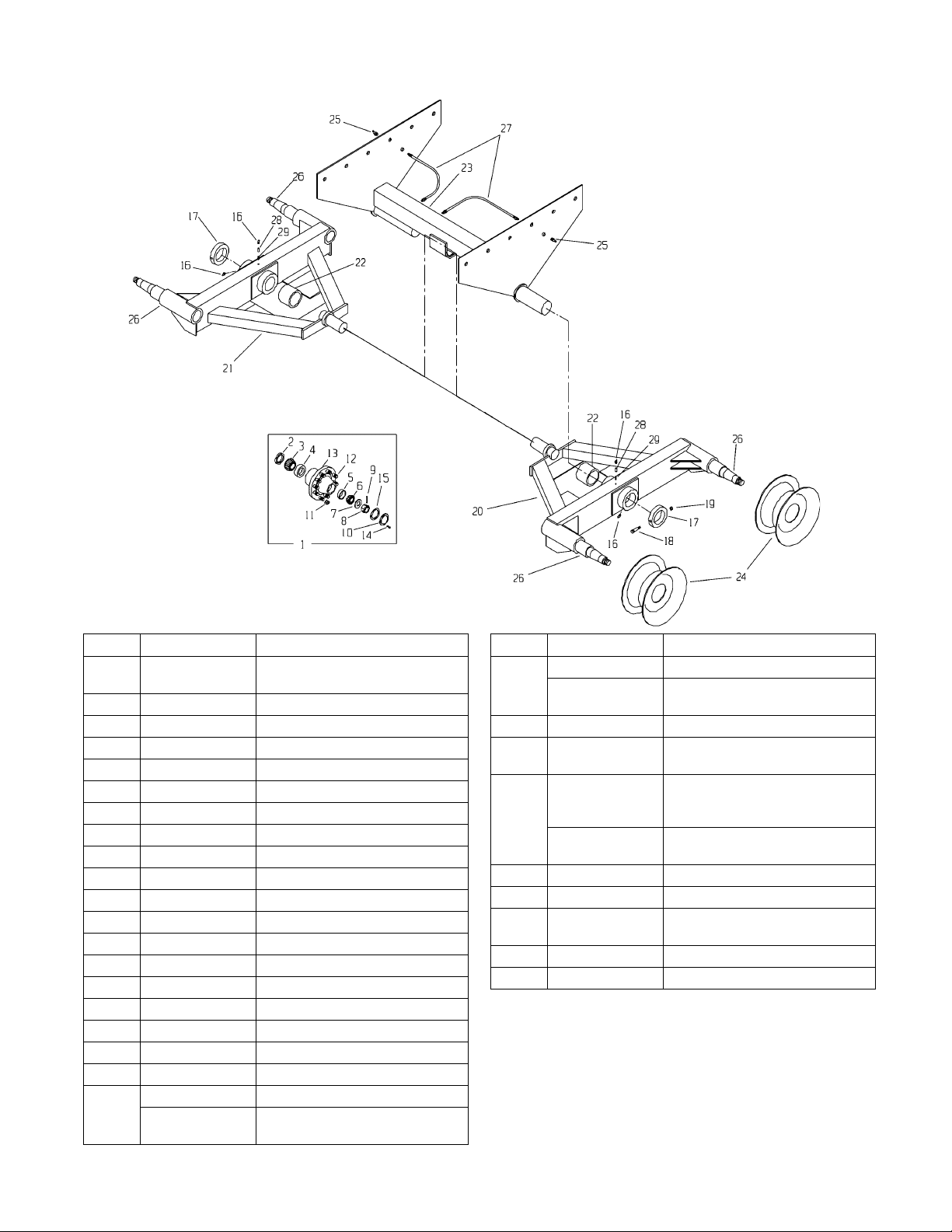

HUBS, AXLE & TANDEM ASSEMBLY ·································47

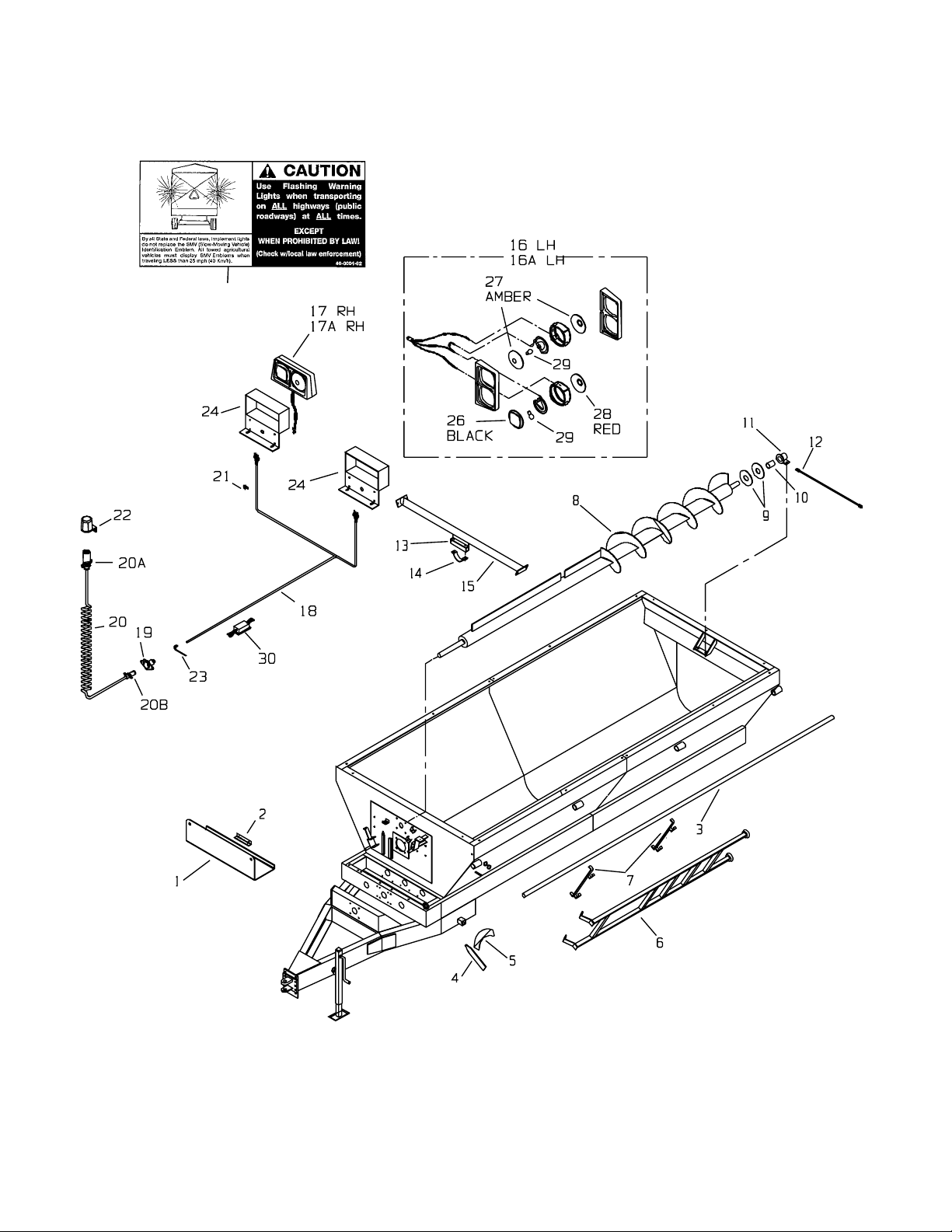

LADDER, THIRD AUGER, GATE INDICATOR & LIGHTING ······················48

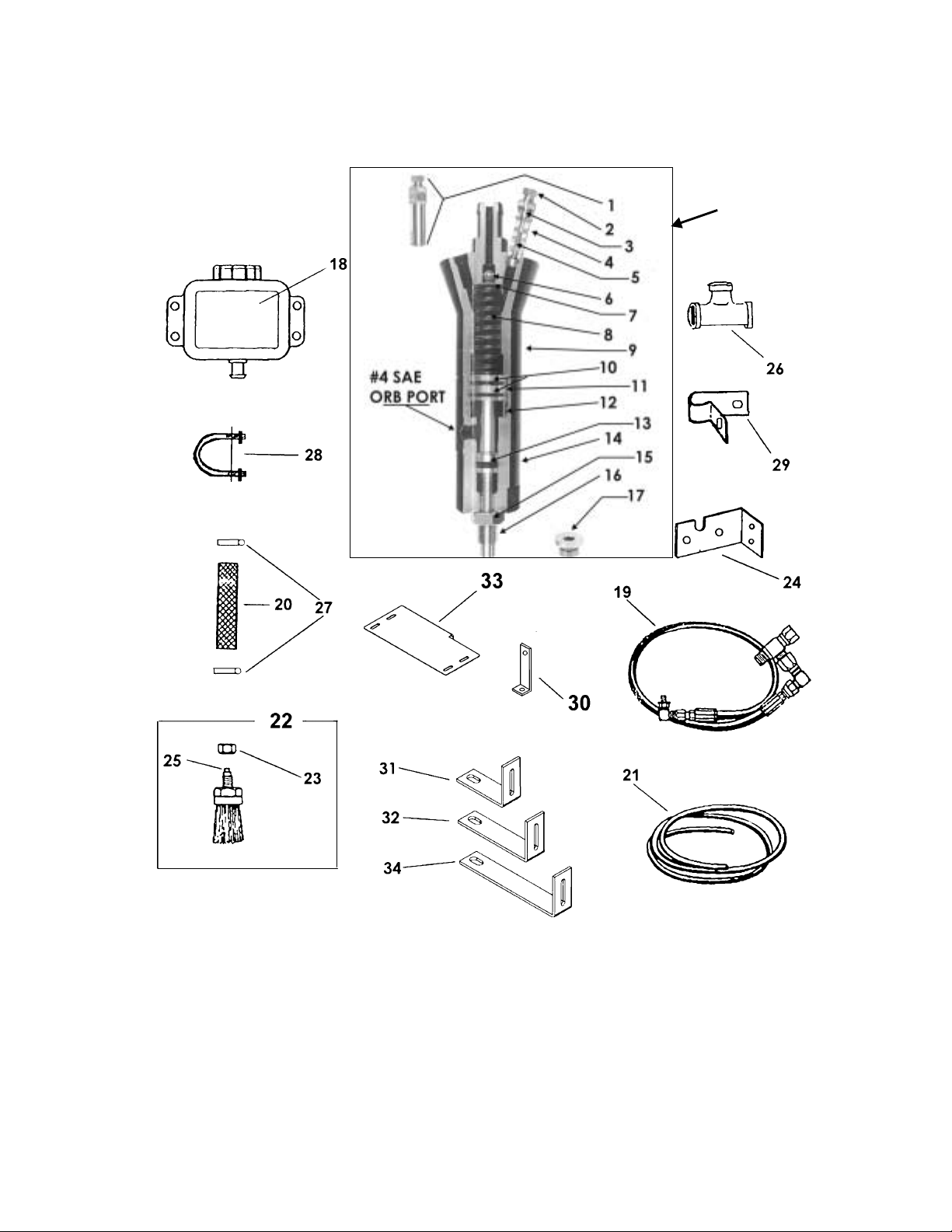

INSTRUCTIONS FOR AUTOMATIC CHAIN OILER ··························52
MEYER INDUSTRIAL SPREADER “TROUBLE SHOOTING” .........................53
MEYER INDUSTRIAL SPREADER “MAINTENANCE RECORD” .......................54
MEYER EQUIPMENT WHEEL TORQUE ...................................55
MEYER INDUSTRIAL SPREADER “SPECIFICATIONS” ...........................59
·················································16
················································16
Model 7200 -2-
July 1, 2000
NEW MEYER INDUSTRIAL SPREADER
MANUFACTURER’S WARRANTY
I. The “Product Registration & Inspection Certificate” along with the original billing invoice “Owners Registration Form”
must be completed in full and promptly returned to Meyer Mfg. Corp. for this warranty to become both valid and effective. All warranties on New Meyer Super Spreaders shall apply only authorized Meyer Mfg. Corp. dealership.
to the original retail customer from an
II. This warranty shall not
alteration, accident, incorrect those obtained through Meyer Mfg. Corp.
III. Meyer Mfg. Corp. warrants New Meyer Super Spreaders to be free from defects in material and workmanship under
recommended use and maintenance service, as stated in the Operator’s and Parts Manual," as follows:
A. Meyer Mfg. Corp. will repair or replace F.O.B. Dorchester, WI, as Meyer Mfg. Corp. elects, any part of a new
Meyer Super Spreader which is defective in material or workmanship:
B. In addition to the above basic warranty, Meyer Mfg. Corp. will repair or replace F.O. B. Dorchester, WI as Meyer
Mfg. Corp. elects:
Ten (10) Years: After a period of (1) year, the spreader tank body is warranted against rust-through for an
IV. COMMERCIAL USE: Coverage as in paragraph III A1 ONLY, except warranty coverage is for (90) days
labor to the original commercial retail customer.
V. Repairs eligible for labor warranty must be made by Meyer Mfg. Corp. or an authorized Meyer dealership. The
original retail customer is responsible for the transportation of the super spreader to the dealership for warranty service or for any service call expenses.
apply to any Meyer Super Spreader which has been subjected to misuse, negligence,
operating procedures, or which shall have been repaired with parts other than
1. Without charge for either parts or labor during the first (1) year from purchase date to the original retail customer.
additional period of (9) years. (Pro-Rated Parts Only). Parts included, front and rear end panels, side panels, and auger trough.
for parts and
VI. Except as stated above, Meyer Mfg. Corp. shall not be liable for injuries or damages of any kind or nature, direct,
consequential, or contingent, to persons or property. This warranty does not extend to loss of crop or for any other reasons.
VII. No person is authorized to give any other warranties or to assume any other obligation on Meyer Mfg. Corp.’s. behalf
unless made or assumed in writing by Meyer Mfg. Corp. This warranty is the sole and exclusive warranty which is applicable in connection with the manufacture and sale of this product and Meyer Mfg. Corp.’s responsibility is limited accordingly.
VIII. This warranty is effective on all sales of Meyer Super Spreaders made after January 1, 1992.
Model 7200 -3-
INTRODUCTION
Congratulations on your purchase of a new Meyer farm equipment product. Undoubtedly you have given much consideration to your purchase and we’re proud that you have selected Meyer. Pride in craftsmanship, engineer ing and customer service have made Meyer products the finest in the farm equipment industry today.
There is no substitute for quality. That is why thousands of people like you have purchased Meyer farm equip ment. They felt it was the best equipment to serve their farming needs, now and in years to come. We ask that you follow our policy of “safety first,” and we strongly suggest that you read through the owner’s manual be fore operating your Meyer farm equipment.
Meyer Manufacturing Corporation wants to thank you for not compromising quality. We are determined to offer excellence in customer service as well as provide you with the very best value for your dollar.
This supersedes all previous published instructions.
IMPORTANT:
At the front of this manual is a Product Registration and
­Inspection Certificate. Be sure your dealer has com pleted this certificate and promptly forwarded a copy to Meyer Mfg. to validate the manufacturer’s warranty. The product model and serial number are recorded on this certificate and below for proper identification of your
­Meyer Industrial Spreader by your dealer and the manu facturer when ordering repair parts. The serial number plate is found on the upper left front corner of the spreader tank or stamped in the left front frame channel.
-
Model No. _____________________________
Serial No. _____________________________
Date of Purchase ______________________
-
-
REMEMBER:
FARM EQUIPMENT BUYERS
TRUST THE NAME MEYER!
Sincerely,
All Employees of MEYER MANUFACTURING CORPORATION
Meyer Mfg. Corp. reserves the right to make improve­ments in design, or changes in specifications at any time, without incurring any obligation to owners of units previously sold.
At the back of this manual is the repair parts section. All replacement parts are to be obtained from or ordered through your Meyer dealership. When ordering repair parts, refer to the parts section and give complete infor­mation including quantity, correct part number, detailed description and even Model No. and Serial No. of the Meyer Industrial Spreader which needs repair parts.
NOTE: All references to right hand (RH), left hand (LH), front and rear apply to the product as viewed from the rear of the spreader.
Model 7200 -4-
SAFETY PRECAUTIONS
This symbol is used to call attention to instructions concerning personal safety. Be sure to observe
and follow these instructions. Take time to be careful!
WARNING: BEFORE ATTEMPTING TO OPERATE THIS SPREADER, READ AND STUDY THE FOLLOWING SAFETY INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THE SPREADER, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.
Require anyone who will operate this spreader to read and completely understand this Owner’s Manual. Give necessary instructions!
DO NOT operate, service, inspect or otherwise handle this spreader until all operators have read this Owner’s Manual and have been properly trained in the intended usage of the spreader.
Do not allow minors (children) or inexperienced persons to operate this spreader.
If the spreader becomes clogged, shut off the tractor engine and allow all mechanisms to stop. Disconnect PTO shaft and hydraulic hoses (relieve hydraulic pressure). Then, clean or work on the spreader as required.
Always shut off power and disconnect PTO drive shaft and unhook hydraulic hoses (relieve hydraulic pressure) from tractor to prevent accidental startup or unexpected movement before working on machine.
Do not clean, adjust, or lubricate while spreader is in motion.
Make sure all hydraulic fittings are tight and that all hoses are in good condition. Hydraulic fluid escaping under pressure can have sufficient force to penetrate skin and cause serious injury. Never investigate for hydraulic leaks by using a part of the body to feel for escaping fluid.
Inspect when first delivered and regularly thereafter; that all connections and bolts are tight and secure before operating.
Know how to stop the spreader before starting it!
Do not operate until all shields, covers, and guards are in place.
Make certain everyone is clear of the spreader before applying power.
Keep hands, feet and clothing away from moving parts. Loose or floppy clothing should not be worn by the operator.
Stay well clear of the spreader’s rear discharge spinners while operating.
Do not step up on any part of the spreader at any time. Do not use PTO guard as a step.
Do not step over the power take-off shaft. Stay clear of the PTO at all times.
Keep PTO shaft telescoping tube shields turning freely. Keep PTO master shield on tractor. Replace shields missing or damaged.
Never operate PTO above normal 540 or 1000 RPM rating. Tractors PTO MUST
Use only properly rated tires.
Do not tow at speeds in excess of 20 MPH when transporting this spreader. Never exceed a safe travel speed.
Observe all applicable traffic laws when transporting on public roadways (where legal to do so). Check local laws for all highway lighting and marking requirements.
WHEN TOWING THE SPREADER ON PUBLIC ROADS A Safety Chain of sufficient strength to support, along the line of travel, the gross weight (See Maximum Load Weight Chart / Transporting Section) of the spreader must be used. A safety chain should be attached per diagram in Transporting Section.
Always install a SMV emblem on this spreader for transporting on roadways and keep the emblem clean and bright.
match implement PTO.
MEYER MFG. CORP. PROVIDES GUARDS FOR EXPOSED MOVING PARTS FOR THE OPERATOR’S PROTECTION; HOWEVER, SOME AREAS CANNOT BE GUARDED OR SHIELDED IN ORDER TO ASSURE PROPER OPERATION. THE OPERATOR’S MANUAL AND DECALS ON THE MACHINE ITSELF WARN YOU OF DANGERS AND MUST BE READ AND OBSERVED CLOSELY.
STUDY THE ABOVE SAFETY RULES
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
Model 7200 -5-
SAFETY FIRST
A brief definition of signal words that may be used in this manual is as follows:
DANGER Indicates an imminently hazardous sit uation which, if not avoided, WILL or death.
WARNING Indicates a potentially hazardous situation which, if not avoided, COULD serious injury, and includes hazards that are exposed
D
result in serious injury
result in death or
K
A
E
G
C
Located Under Shield
when guards are removed.
CAUTION Indicates a potentially hazardous
situation which, if not avoided, MAY result in minor or
­moderate injury. It is also used to alert against unsafe practices.
A
A
A
C
Located Under Shield
s
I
B
F
L
Located Under Shield
A
B
J
H
A
E
B
Located Under
C
Shield
s
CAUTION: READ ALL DECALS ON THE SPREADER AND IN THIS MANUAL. KEEP THESE DECALS CLEAN AND
REPLACE ANY LOST OR DESTROYED DECALS. BECOME FAMILIAR WITH ALL TRACTOR AND SPREADER CONTROLS.
Model 7200 -6-
SAFETY FIRST
The Meyer Super Spreader is manufactured with operator safety in mind. Located on the manure spreader are vari ous decals to aid in operation and warn of danger or caution areas. Pay close attention to all decals on the spreader.
DO NOT REMOVE ANY DECALS. IF DECALS ARE LOST, DAMAGED OR IF MANURE SPREADER
IS REPAINTED, REPLACE DECALS. REMEMBER: DECALS ARE FOR YOUR PROTECTION AND INFORMA TION.
DECAL B. PART NO. 46-3600-9
DECAL C. PART NO. 46-0001-26
DECAL A. PART NO. 46-0001-5
DECAL E. PART NO. 46-0001-4
DECAL F. PART NO. 46-3600-6
-
-
DECAL I. PART NO. 46-3600-1
DECAL J. PART NO. 46-0001-22
DECAL D. PART NO. 46-0001-13
DECAL G. PART NO. 46-0004-2
INDUSTRIAL SERIES GEAR BOXES
THE ONE -- RIGHT REAR, CORNER GEAR BOX USE: #80-90 wt. GEAR LUBE OIL ONLY
THE TWO -- SPINNER/EXPELLER GEAR BOXES USE: SEMI-FLUID, EP LITHIUM BASE, GEAR GREASE.
DECAL H. PART NO.
46-3600-8
DECAL K. PART NO. 46-0001-35
CAUTION
.
46-5570-3
DECAL L. PART NO. 46-5570-3
CAUTION: READ ALL DECALS ON THE SPREADER AND IN THIS MANUAL. KEEP THESE DECALS CLEAN AND
REPLACE ANY LOST OR DESTROYED DECALS. BECOME FAMILIAR WITH ALL TRACTOR AND SPREADER CONTROLS.
Model 7200 -7-
PRE-OPERATION
WARNING: BEFORE OPERATING, READ THIS OWNERS MANUAL COMPLETELY. PAY
PARTICULAR ATTENTION TO THE “SAFETY PRECAUTION” AND “SAFETY FIRST” PAGES. READ ALL SAFETY MESSAGES HIGHLIGHTED BY “SAFETY ALERT SYMBOLS” THROUGHOUT THE MANUAL.
This spreader can be operated with 540 or 1000 RPM PTO. The hitch of the spreader is designed for a stan dard tractor drawbar. Adjust the drawbar at 13 to 20 inches above the ground. Extend or shorten the drawbar so horizontal distance from end of tractor PTO shaft to center of the hitch pin hole is 16 inches. Secure the drawbar so that the hitch pin hole is located directly be low the PTO drive line. See figure 1 for location of stan dard measurements.
An improperly located hitch point may cause damage to the universal joints of the PTO drive shaft. Conforming
FIGURE 1. TRACTOR DRAWBAR & PTO
SPECIFICATION
to the standard 16" drawbar & PTO relationship will en sure that the PTO drive shaft will not become over-ex tended.
DANGER: DO NOT OPERATE WITHOUT
PTO GUARD ON SPREADER AND ON TRACTOR. MAINTAIN PTO DRIVE SHAFT GUARD TUBES IN OPERATING CONDITION. REPLACE THEM IF DAM AGED AND NOT TURNING FREELY. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL IN JURY OR DEATH.
WARNING: INSPECT REGULARLY THAT
ALL CONNECTIONS AND BOLTS ARE TIGHT AND SECURE BEFORE OPERATING. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
Check for proper assembly and adjustment and make sure that all bolts are tightened. Securely retighten after
­a few hours of operation, as bolts can loosen up on new machinery. Check wheel lug nuts upon delivery and pe riodically thereafter. Lug nuts should be tightened at 250-265 ft./lbs. of torque. Check the tires and inflate to the recommended pressure. See chart on page 55.
­Inspect all adjustments on the spreader to be sure they
­are proper and to provide maximum performance. Lubri cate the spreader completely if it is required and check the level of oil gear grease
in the right rear corner gear box, and the
in the expeller gear boxes.
WARNING: DO NOT OPERATE WITHOUT
ALL SHIELDS, GUARDS AND COVERS INSTALLED. FAILURE TO HEED MAY RESULT IN SERIOUS PER­SONAL INJURY OR DEATH.
Fasten the spreader hitch to the tractor drawbar with a hitch pin that cannot bounce out. Use a 1-5/16” to 1-3/8” diameter hitch pin to pull spreader.
Remove the weight from the jack (jack is not to be used when spreader is loaded). Remove the jack from square mount tube and move to the transport storage tube on the left front side of the frame channel. Store in a horizontal position.
Before operation and after hitching the tractor to the
-
spreader, connect the PTO drive shaft to the tractor.
-
Slide spring loaded locking collar on PTO yoke rearward, and slide yoke onto the tractor PTO shaft. Release spring loaded collar. Be sure pins fall into groove of tractor PTO shaft and collar snaps forward into locking position.
CAUTION: DO NOT USE A STEEL HAMMER
-
TO AID IN JOINING PTO PARTS.
-
Route hydraulic hoses through the hose support rod which is mounted to the hitch frame, figure 2. Connect the hydraulic hoses for the flow control rear gate to the tractor’s double acting valve hydraulic system. Move the tractor hydraulic controls to observe proper flow gate operation. If the controls operate the gate in opposite di rections to what you expect, reverse the hydraulic hose connections at the tractor.
-
-
-
Model 7200 -8-
WARNING: HYDRAULIC FLUID ESCAPING
UNDER PRESSURE CAN HAVE SUFFICIENT FORCE TO PENETRATE SKIN. KEEP ALL HOSES AND CONNECTIONS IN GOOD SERVICEABLE CON DITION. FAILURE TO HEED MAY RESULT IN SERI OUS PERSONAL INJURY OR DEATH.
-
-
HOSE BRACKET
Before loading spreader, slowly
engage the tractor PTO and operate machine at idle speed for several minutes to insure the spreader is lubricated and operating prop erly.
TRANSPORTING
TRACTOR TOWING SIZE REQUIREMENTS
Use the following chart for calculating the minimum trac tor weight.
MODEL SPREADER EMPTY
WEIGHT + LOAD = GW
SV2636 6,100 + _____ = _____ 2/3 of spreader
SV3245 7,640 + _____ = _____ 2/3 of spreader
SV3954 8,650 + _____ = _____ 2/3 of spreader
SI7200 11,445 + _____ = _____ 2/3 of spreader
SI8500 18,140 + _____ = _____ 2/3 of spreader
MATERIAL ESTIMATED WEIGHT PER CUBIC FOOT
MINIMUM TRACTOR WEIGHT UP TO 20 MPH
gross weight
gross weight
gross weight
gross weight
gross weight
PTO SHAFT
-
HITCH
JACK
-
FIGURE 2. SPREADER HOOKUP
SOURCE: ASAE
NOTE: HEAPED LOADS HAVE SIGNIFICANTLY HIGHER CAPACITIES
Check that the flow control rear gate is completely closed. It is unlawful to allow slurry to splash or leak onto public roads.
WARNING: DO NOT TOW AT SPEEDS
GREATER THAN 20 MPH. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
JACK STORAGE HUB
MATERIAL LBS / CU. FT. LIME SLUDGE 110-115 LBS.
Operating speed is dictated by the terrain over which you are traveling. Always use caution. Avoid traveling on slopes or hills that are unsafe.
DRY FEEDLOT MANURE 63-65 LBS. CHICKEN LITTER 63-65 LBS. CAKE SLUDGE 62-65 LBS. SEMI-SOLID MANURE 58-60 LBS. PEN PACKED MANURE 30-35 LBS. LIQUID MANURE 63-65 LBS.
WARNING: OBSERVE ALL APPLICABLE
TRAFFIC LAWS WHEN TRANSPORTING ON PUB LIC ROADWAYS. CHECK LOCAL LAWS FOR ALL HIGHWAY LIGHTING AND MARKING REQUIRE MENTS.
MAXIMUM SPREADER LOAD WEIGHTS
Model 2636 3245T 3954T 7200T 8500T
Maximum Gross Weight (Pounds) 12,000 24,000 32,000 43,445 56,140 Total Net Weight (Pounds) 6,100 7,640 8,650 11,445 18,140 Cubic Foot Capacity** 181 227 272 466 562 Capacity in Gallons 1,355 1,694 2,033 3,492 4,200 **Struck capacity, heaped loads have significantly higher capacities
Model 7200 -9-
-
-
WARNING: INSTALL A SMV EMBLEM ON
REAR OF SPREADER FOR TRANSPORTING ON ROADWAYS AND KEEP THIS EMBLEM CLEAN AND BRIGHT. FAILURE TO HEED MAY RESULT IN SERI OUS PERSONAL INJURY OR DEATH.
If you will travel on public roads and it is legal to do so, you must know all rules governing such operation. This will include lighting and brake requirements in addition to traffic rules. You may also be required to install a safety chain device on the spreader.
Check for traffic constantly. Be sure you can see that no one is attempting to pass you and that all traffic is suffi ciently clear from you before making any turns.
USE OF SAFETY CHAIN
-
-
CAUTION: A SAFETY CHAIN MUST BE
INSTALLED TO RETAIN THE CONNECTION BETWEEN TRACTOR (OR OTHER TOWING VEHICLE) AND SPREADER WHENEVER TRAVELING ON PUBLIC ROADS IN CASE THE HITCH CONNECTION WOULD SEPARATE. A SUGGESTED ATTACHMENT IS ILLUSTRATED ON FIGURE 3.
The chain must be strong enough to hold the weight of the loaded spreader (See table on page 9). If using a grab hook at the end(s) of the chain to secure the chain to itself, a hook latch must be installed.
OPTIONAL TRUCK MOUNT SPREADERS
Depending on the make and model of the truck it may be necessary to install a light converter (MEYER PART #56-0028). Converter will allow signal lights and brake lights to operate according to DOT lighting standard. Call factory for more information.
TOWING MACHINE ATTACHING POINT
The length of the safety chain is not to be any longer than necessary to turn without interference. If any chain links or attachment hardware are broken or stretched, repair before using. Store chain so it does not corrode or become damaged. Do not use this chain for other implements because the strength and length of the chain may not be adequate. Identify this chain for use on this particular spreader. Do not use the intermediate support as the attaching point.
FREEZING WEATHER OPERATION
Allow spreader to completely empty last of manure con­tents and disengage tractor PTO. Shut off tractor, re­move the ignition key and allow all movement to stop before
attempting to clean the spreader.
HOOK W/ HOOK LATCH
INTERMEDIATE SUPPORT
FIGURE 3. SAFETY CHAIN INSTALLATION
Model 7200 -10-
SAFETY CHAIN LOOP.
WARNING: DO NOT CLEAN, ADJUST OR
LUBRICATE WHILE SPREADER IS IN MOTION. FAILURE TO HEED MAY RESULT IN SERIOUS PER SONAL INJURY OR DEATH.
Scrape clean any remaining manure from inside the rear of spreader. Clean all manure from ends of augers, flow control rear gate and spinners.
WARNING: MAKE CERTAIN EVERYONE IS
CLEAR OF THE SPREADER BEFORE APPLYING POWER. FAILURE TO HEED MAY RESULT IN SERI OUS PERSONAL INJURY OR DEATH.
Slowly engage the PTO. Operate the spreader several minutes to clean manure scrapings and to allow any re maining manure and the spreader to freeze dry lically run the flow control rear gate up and down to clean gate slide guides. Park spreader with flow control rear gate approximately halfway
Before loading in freezing weather, make sure augers and spinners are free to rotate, and the flow control rear gate moves freely up and down.
. Hydrau
-
-
-
-
DANGER: KEEP AWAY AND KEEP
OTHERS CLEAR OF ROTATING SPINNERS AT REAR OF SPREADER. SERIOUS INJURY OR AM­PUTATION COULD RESULT. FAILURE TO HEED MAY RESULT IN PERSONAL INJURY OR DEATH.
Model 7200 -11-
OPERATION
LOADING
CAUTION: TO PREVENT DAMAGE TO AU
GERS, SPINNERS, AND DRIVE LINES, FOREIGN OBJECTS (STONES, CONCRETE, TIMBER, METAL OR LARGE SHOULD NEVER BE LOADED INTO THE SPREADER.
DANGER: NEVER ENTER THE SPREADER
BOX FOR ANY REASON WITHOUT FIRST DISCON NECTING PTO SHAFT FROM TRACTOR. DO NOT ALLOW OTHERS IN THE BOX. ROTATING AUGERS CAN CRUSH AND DISMEMBER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
CAUTION: DO NOT USE JACK EXCEPT
WHEN SPREADER IS EMPTY. JACK WILL NOT SUPPORT ADDED WEIGHT. UNBALANCED WEIGHT MAY RESULT IN UNEXPECTED “TIP UP” OF SPREADER.
Before loading, especially in freezing weather, make sure the augers and spinners are free to rotate and the flow control rear gate moves freely up and down.
FROZEN CHUNKS OF MANURE)
UNLOADING
-
-
WARNING: MAKE CERTAIN EVERYONE IS
CLEAR OF SPREADER BEFORE APPLYING POWER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OF DEATH.
DANGER: KEEP AWAY AND KEEP OTHERS
CLEAR OF ROTATING SPINNERS AT REAR OF SPREADER. SERIOUS INJURY OR AMPUTATION COULD RESULT. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OF DEATH.
When you are ready to begin spreading application on the field, open the hydraulic flow control rear gate and slowly engage the tractor PTO clutch. This can be done while traveling forward to avoid a heavier application of liquid manure at the edge of the field than desired.
For liquid and semi-liquid manure, the application rate can be controlled by the amount the flow control rear gate is opened. The gate indicator on the front of the box will provide a ready reference for the amount of opening. For solid manure (dry, pen-packed or manure containing long straw or hay) the flow control rear gate MUST be completely open since this material is not free flowing.
Check and be sure that the flow control rear gate is completely closed
When the spreader is parked for loading, shift the tractor to neutral or park and set the brakes. The moisture con tent of the manure will determine how full the spreader can be loaded so that no manure spills out.
You will probably be able to load solid manure at least level with the top of the box while semi-liquid and liquid manure will have to be less than full in the spreader box. It is unlawful to allow manure to splash or leak onto pub lic roads.
A liquid manure kit is available for installation around the top of the box on your spreader which will aid in the con tainment of liquids.
before loading.
-
-
FIGURE 4. FLOW CONTROL GATE
-
INDICATOR
VERY IMPORTANT: THIS MACHINE IS NOT
INTENDED TO BE A BALE GRINDER, HAY CHOPPER OR BEDDING MACHINE. LONG HAY OR STRAW MUST CONTAIN MANURE IN ORDER TO BE SPREAD. FAILURE TO COMPLY MAY DAMAGE THE DRIVETRAIN AND VOID THE WARRANTY.
Model 7200 -12-
The rear spinners have been designed and tested to provide the best spread pattern for most liquids and semi solid manure. However, the pattern will vary for each specific condition. The factors that contribute most to differing patterns will be moisture content and the amount and length of bedding material. For most typical conditions, the spread pattern should be uniform and about 15 ft. wide. When this is the case, plan your spreading patterns so you do not have to travel over pre viously spread manure which will be slippery, resulting in poor traction. Traction on wet grass is also poor. When the resulting pattern may require that you over lap during spreading, use precautions on slopes and hills where you could experience a loss of traction by traveling over ground with previously spread manure.
NOTE: Further control of the application rate is possible by the relationship of tractor engine speed to ground speed (transmission gear selection). For optimum, trou ble-free performance it is recommended to operate at or near engine PTO speed.
When the spreader is empty, idle the tractor and stop the PTO. Close the flow control rear gate.
WARNING: NEVER OPERATE PTO ABOVE
ITS NORMAL 540 or 1000 RPM RATING. TRAC­TOR’S PTO MUST
NOTE: Failure to idle the tractor before disengaging the
PTO will cause roller chain over-running and damage to the chain tighteners.
NOTE: Maximum life of the PTO shaft universal joints will result if you stop the PTO while making turns at the end of the field.
MATCH IMPLEMENT PTO.
CAUTION: DO NOT EXCEED THE MAXI
MUM 80° TURNING ANGLE ON THE CONSTANT VE LOCITY PTO DRIVELINE. EXCEEDING THE TURNING ANGLE WILL DAMAGE THE CONSTANT VELOCITY “CENTER HOUSING” AND WILL EXERT EXCESSIVE PRESSURES ON THE PTO INPUT CENTER SHAFT AND RELATED BEARINGS.
SHEAR SPROCKET INSTRUCTIONS
The Meyer Spreader you have received has been equipped with a shear sprocket design on the main au ger drive sprockets. The augers are being driven by two allen head grade 8 bolts. The design is such that if the
bolts are sheared another set of holes to install new
-
shear bolts will always be accessible without turning over the machine.
-
-
-
-
DANGER: AT NO TIME SHOULD INSTALLA
TION BE DONE WITH ANYONE ON THE TRACTOR. SHUT THE TRACTOR OFF, REMOVE THE KEY AND DISCONNECT THE DRIVE LINE BEFORE DOING ANY SERVICE ON THIS MACHINE. SERIOUS IN JURY OR DEATH MAY OCCUR IF SAFETY IS NOT
FOLLOWED.
The plate sprocket is set up with the initial drive bolts being 1/2” diameter. An extra set of holes for 7/16”, 9/16” and 5/8” (dependent on age of sprocket) drive bolts are located on the sprocket if needed. If the 1/2” bolts shear, replace with the same 1/2” diameter bolts after obstruction is removed. DO NOT JUMP UP TO THE NEXT SIZE BOLT. Install the new bolts in the proper way as to drive off of the head of the bolt, not the nut.
If a second shear has happened without obstruction in the auger, install the next larger size shear bolt. As the shear bolt size is increased the protection on the ma­chine is going to decrease. The potential for equipment damage is greater. Order replacement bolts and nuts from the chart below. Sizes vary depending on sprocket. Match to holes in sprocket.
Part # Description
831-4420-1.75 7/16-20x1-3/4” Allen Head Cap Bolt 884-4420 7/16-20 Top Locknut Grade 8 831-5020-1.75 ½-20x1-3/4” Allen Head Cap Bolt 884-5020 ½-20 Top Locknut Grade 8 831-5618-1.75 9/16-20x1-3/4” Allen Head Cap Bolt 884-5618 9/16-20 Top Locknut Grade 8 831-6318-1.75 5/8-18x1-3/4” Allen Head Cap Bolt 884-6318 5/8-18 Top Locknut Grade 8
910-0100 140B35 Shear Sprocket Assembly
Complete
-
-
-
Model 7200 -13-
STORAGE AFTER USE
WARNING: DISCONNECT PTO DRIVE
SHAFT AND HYDRAULIC HOSES BEFORE CLEANING, ADJUSTING, OR SERVICING THIS MA CHINE. FAILURE TO HEED MAY RESULT IN SERI­OUS PERSONAL INJURY OR DEATH.
Before storing this spreader for an extended period of time perform the following:
Allow the spreader to completely clean out the last load. Thoroughly hose off all manure from the outside of the spreader and the inside of the box, particularly getting the flow control rear gate mechanism clean. The wash water can be drained into your manure storage pit, or if the gate is left closed, the water can be spread on the field. After cleaning, completely lubricate the entire spreader to exclude moisture from bearings and to pre vent condensation from forming during storage. See “Lubrication” pages 20 and 21.
Oil the roller chains by running the spreader at idle speed while opening the rear gate to activate the auto matic oiler system. It is also a good time to inspect all ad justments and check for parts that need repair or replacement. Performing these tasks now will guaran tee that the spreader is ready for use at the beginning of the next season.
-
-
-
-
-
Model 7200 -14-
PTO DRIVELINE
WARNING: BEFORE ATTEMPTING TO OPERATE THIS SPREADER, READ AND STUDY ALL SAFETY INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THE SPREADER, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.
WARNING: DISCONNECT PTO DRIVE SHAFT AND HYDRAULIC HOSES (RELIEVE HYDRAULIC PRESSURE) BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS SPREADER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
The Meyer 7200 Industrial Series Spreader is equipped with a cutout type clutch on the implement half of the PTO driveline. The clutch is designed to limit the amount of torque transferred to the machine through the driveline. If excessive torque is developed the clutch will disengage. A loud ratcheting sound will be heard and the transfer of power to the machine will be disrupted. To reengage the machine simply shut down the PTO and allow the driveline to come to a stop. The PTO can then be reengaged to restart the spreader. The cutout clutch will either reengage upon shut down of the PTO or just before it comes to a complete stop.
DRIVELINE ATTACHMENT
The cutout clutch end of the PTO driveline must always be attached to the implement. The PTO driveline is equipped with a 1 3/8-6 spline on the implement half for attaching to the spreader. Remove the M17-hexagon bolt from the splined hub and slide the PTO onto the im plement splined input shaft. Install the hexagon bolt through the hub being sure the bolt is falling into the groove on the splined shaft. Torque tight using a metric size M17 6-point socket and torque down to 75 ft. lbs. A
M17 6-POINT METRIC SOCKET MUST BE USED AS ROUNDING OF HEXAGON BOLT AND INACCU RACY OF TORQUE SETTINGS COULD OCCUR.
If removal of the M-17 hexagon bolt is necessary, use the same M-17 6-point socket and loosen bolt one turn. Insert a ¼” drift punch in the hole on the opposite side of the hexagon bolt and tap to loosen the seated portion of the bolt from the splined hub. After bolt seat has been released, remove the bolt. If bolt is not unseated, dam­age to the hexagon bolt will occur.
Attach the shield safety chain to a suitable area on the spreader, preferably to the implement PTO steel shield.
-
-
The cutout clutch will disengage if start up is done in an abrupt or reckless manner. It also will disengage from foreign materials entering the spinner area of the spreader. It may also be possible to disengage the clutch by overloading or flooding the spinners with free flowing or liquid manure. If PTO clutch fails to reengage it will be necessary to remove the foreign object from the spreader before restarting. THERE IS NO FIELD
ADJUSTMENT ON THE CUTOUT CLUTCH.
DANGER: NEVER ENTER THE SPREADER BOX FOR ANY REASON WITHOUT FIRST STOPPING THE TRACTOR, SHUTTING THE TRACTOR OFF AND REMOVING THE KEY, SETTING THE PARKING BRAKE AND DISCONNECTING THE PTO DRIVELINE FROM THE TRACTOR. DO NOT ALLOW OTHERS IN THE BOX. ROTATING AUGERS CAN CRUSH AND DISMEMBER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
FIGURE 5. PTO DRIVELINE
PTO SETUP
DANGER: NEVER ATTEMPT TO PERFORM ANY WORK ON THIS MACHINE FOR ANY REASON WITHOUT FIRST STOPPING THE TRACTOR, SHUTTING THE TRACTOR OFF AND REMOVING THE KEY, SETTING THE PARKING BRAKE AND DISCONNECTING THE PTO DRIVELINE FROM THE TRACTOR AND DISCONNECTING THE HYDRAULIC HOSES AND RELIEVING HYDRAULIC PRESSURE. FAILURE TO HEED MAY RESULT IN SERIOUS PER SONAL INJURY OR DEATH.
-
Model 7200 -15-
Adjust the drawbar at 16-20” above the ground. Extend or shorten the drawbar so horizontal distance from end of tractor PTO shaft to center of hitch pin hole is 16” for 1000 RPM 1-3/8-21 spline, (14” for 540 RPM 1-3/8-6 spline) (20” for 1000 RPM 1-3/4-20 spline). Secure the drawbar so the hitch pin hole is located directly below the PTO driveline. PTO adapters are not recommended as damage to the driveline may occur. A hitch pin with a minimum diameter of 1-5/16” and bottom retaining pin is recommended.
AN IMPROPERLY LOCATED HITCH POINT MAY CAUSE DAMAGE TO THE UNIVERSAL JOINTS OF THE PTO DRIVE SHAFT. CONFORMING TO THE STANDARD 16” DRAWBAR (1000 RPM) AND PTO RELATIONSHIP WILL ENSURE THAT THE PTO DRIVESHAFT WILL NOT BECOME OVER EX TENDED. WITH INITIAL HOOK-UP TO YOUR NEW MEYER SPREADER TEST PTO TRAVEL BY TURNING EQUIPMENT IN BOTH DIRECTIONS OB SERVING THE MINIMUM AND MAXIMUM TRAVEL DIMENSIONS AS SHOWN PER DRAWING ON FIG URE 6.
3.
Telescoping members (Key #3)-Add grease until it adequately covers the sliding members. Take apart occasionally to make sure adequate lubrication is being added.
4.
Shield bearings (Key #4)-Add 2-3 pumps.
FAILURE TO FREQUENTLY GREASE THE CV CENTER HOUSING AND TELESCOPING MEMBERS WILL REDUCE THE LIFE OF THE CV.
-
-
-
FIGURE 6. PTO DRIVELINE
LUBRICATION
LUBRICATION
A high quality Lithium Base Grease should be used
PRIOR TO USE
A. Using the CV Zerk (Key #2) place 20 pumps of
grease into the CV center housing. This should be done with the driveline / CV as straight as possible.
B. Slowly articulate the double joint through its
maximum joint angle several times.
C. Return the CV joint to its straight position and
insert additional grease into the CV Zerk (Key #2) until grease is evident around the housing and center sliding disk.
NORMAL OPERATION
A. Lubricate the following items after every eight
(8) hours of operation. If short rows and frequent turning or other demanding conditions exist, lubricate at four (4) hour intervals.
1.
Cross and bearings (Key #1)-Add grease until it is purged around the seals
2.
CV center housing (Key #2)-Add grease until it is evident around the center sliding disk.
MAINTENANCE INFORMATION
It is extremely important to follow the maintenance guidelines. If telescoping members become hard to slide during normal operation, it is recommended the shaft be taken apart, cleaned with solvent and recoated with grease before re-assembling. As a minimum it is important this be done after each season of use.
Model 7200 -16-
ADJUSTMENTS
WARNING: DISCONNECT PTO DRIVE SHAFT AND HYDRAULIC HOSES (RELIEVE HYDRAULIC PRESSURE) BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS SPREADER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
FRONT DRIVE ROLLER CHAINS
There are six roller chain drives located at the front of the spreader. Regularly check that all tensioning springs are in serviceable condition for automatic roller chain tightening. Manually adjust spring tensioners (as needed) by turning double locknuts on all tensioning bolt/idler assemblies. Proper roller chain tension is when 1/4" to ½" deflection occurs on the slack side of the chain. Regularly re-check all roller chain tensions. Keep all roller chains tight at all times! For clarity purposes, the following illustrations detail each roller chain reduction separately.
NOTE: The side bars of the roller chains will wear into the idler nylon rollers up to the rollers of the roller chain forming grooves. These grooves will serve as a guide when the roller chain loosens due to normal use. From this point on, after tightening, the idler nylon rollers should run for hundreds of hours without any noticeable wear.
RH TOP SPROCKET
ROLLER CHAIN
IDLER NYLON
PTO INPUT
SPRING LOADED ADJUSTER
FIGURE 7. FIRST CHAIN DRIVE
LH TOP SPROCKET
ROLLER CHAIN
IDLER NYLON
ROLLER
The first chain drive (PTO input shaft to the large RH top sprocket, figure 7) is automatically tensioned by a spring loaded idler nylon roller. The extension spring should extend 2”
from its neutral 5” total length.
Manual adjustment for the automatic tensioning idler, nylon roller assembly is located at the left rear
of the
spreader’s front bearing mounting plate.
The second chain drive (large RH top sprocket to the large LH top sprocket, figure 8) is automatically tensioned by a spring loaded idler nylon roller. The extension spring should extend 2
“ from its neutral 5"
total length.
SPRING LOADED ADJUSTER
FIGURE 8. SECOND CHAIN DRIVE
Model 7200 -17-
Manual adjustment for the automatic tensioning idler, nylon roller assembly is located at the left rear
of the
spreader’s front bearing mounting plate.
ROLLER CHAIN
IDLER NYLON ROLLER
TENSIONER ARM
FIGURE 9 . THIRD CHAIN DRIVE
IDLER NYLON ROLLER
SPRING LOADED ADJUSTER
The third chain drive is automatically tensioned by a spring-loaded nylon idler roller. The extension spring should extend 3/4” from its neutral 4” total length. See figure 9.
Manual adjustment for the automatic tensioning idler, nylon roller assembly is located on the extended arm of the mount channel assembly.
The RH auger chain drive, figure 10, is automatically tensioned by a spring loaded idler nylon roller. The extension spring should extend 3/4"
from its neutral 4"
total length.
ROLLER
CHAIN
RH AUGER SPROCKET
FIGURE 10. RH AUGER CHAIN DRIVE
ROLLER CHAIN
IDLER SPROCKET ADJUSTER BOLT
COMPRESSION SPRING
IDLER SPROCKET
THIRD AUGER DRIVE SPROCKET
Manual adjustment for the automatic tensioning idler, nylon roller assembly is located at the right front lower corner of the spreader tank.
The LH and third auger chain drive is automatically tensioned by a spring loaded heavy compression spring and sliding idler sprocket assembly, figure 11. The heavy compression spring should be compressed to 3-1/2" to 4"
in length.
Manual adjuster bolt for the automatic tensioning idler assembly is located at the right front
upper corner of the
spreader tank.
LH AUGER SPROCKET
FIGURE 11. LH & THIRD AUGER CHAIN
DRIVE
Model 7200 -18-
The side shaft chain drive (PTO input shaft to the side line shaft drive sprocket, figure 12) is automatically tensioned by a spring loaded idler nylon roller. The extension spring should extend 2" total length.
Manual adjustment for the automatic tensioning idler, nylon roller assembly is located at the right rear spreader’s front bearing mounting plate.
from its neutral 5"
of the
1/4”-1/2”
SIDE LINE SHAFT DRIVE SPROCKET
IDLER NYLON ROLLER
SPRING LOADED ADJUSTER
PTO INPUT
FIGURE 12. SIDE SHAFT CHAIN DRIVE
SPINNER MATERIAL GUIDES
Regularly inspect and adjust two spinner material guides located at both the left rear and right rear of the spreader. Create a 1/4-1/2” guides and spinner teeth, figure 13. Maintain the recom mended clearances for maximum spreading pattern. Adjust to prevent excessive manure build-up on mate rial guide inner surfaces. Adjust to prevent manure chunks or foreign object lodging between material guides and spinner teeth.
NOTE: Excessive lodging can cause premature spinner tooth wear, “bent-over” or even breakage.
clearance between material
SPRING LOADED MATERIAL GUIDE ADJUSTMENT
Adjustments for the 1/4-1/2” clearance of each material guide to spinner tooth is made by tightening or loosen ing the 1” nut on the material guide spring linkage shaft assembly. Tighten nut to increase clearance and loosen nut to decrease clearance between the material guides and spinner teeth. Once recommended clearance is ob tained turn spinners over by hand in the direction by
FIGURE 13. MATERIAL GUIDE
CLEARANCE
which the spreader would turn to check clearance. Do not turn in the opposite direction as front chain tightener damage could occur.
SHEAR ARM MATERIAL GUIDE ADJUSTMENT
Adjustment for the1/4-1/2” clearance of each material guide to spinner tooth is made by loosening the jam nut on the linkage arm and turning the linkage arm to either move the guide in closer or out farther from the spinner teeth. After adjustment has been made for the 1/4-1/2” clearance retighten the jam nut to hold the material guide in place. Once recommended clearance is ob tained turn spinners over by hand in the direction by
­which the spreader would turn to check clearance. Do
not turn in the opposite direction as front chain tightener
­damage could occur. If foreign objects enter the spinner
area the front pivot bolt on the shear arm is designed to shear. The extension spring will pull the material guide away from the spinner until the shear bolt is replaced. The ½-13x3” grade 5 replacement machine bolts are stored on the left side plate for the gearbox mount channel. For replacement install with ½” flat washer on top of shear eye and on bottom of block and tighten ny lon locknut firmly.
-
-
-
-
Model 7200 -19-

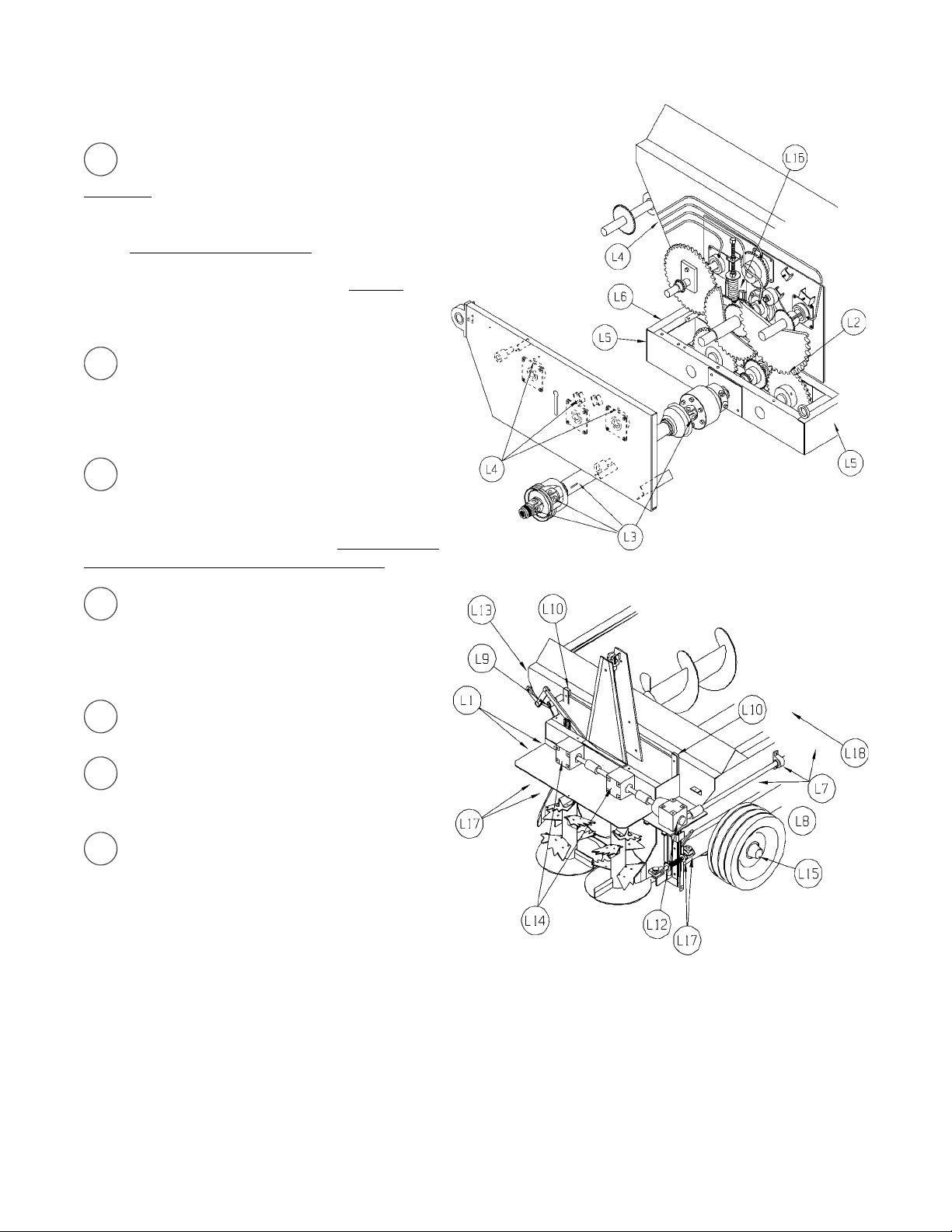

LUBRICATION
WARNING: DISCONNECT PTO DRIVE SHAFT AND HYDRAULIC HOSES (RELIEVE HYDRAULIC PRESSURE) BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS SPREADER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
DAILY LUBRICATION (every 8-12 loads
L1
Grease (2) rear spinner lower bearings. These bearings are grease line fitted to the LR frame channel of the spreader.
L2
Oil (6) roller chain drives with automatic oiler at the front of spreader with clean 30 weight oil. The roller chains are accessible by opening the front steel shield ing cover.
L3
Grease PTO Drive line (9) places with Lithium grease every 8 hours.
L4
Grease (7) bearings supporting the three large
IMPORTANT: GREASE 2 FITTINGS DAILY
jack shaft reduction sprocket weldments, and the third auger drive shaft on the front drive. The zerks are acces sible by the right front side grease bank and through the access holes in front plate. Be careful not to over grease.
L5
Grease (2) auger shaft bearings. These bearings are grease line fitted to the LF and RF frame channels of the spreader. Over greasing is not possible.
)
WEEKLY LUBRICATION (every 25-30 loads)
L6
Grease (3) PTO input shaft bearings are grease line fitted to the RF frame channel and the front bearing channel of the spreader.
L7
Grease (5) bearings on the RH side line shaft. The
bearing is zerk accessible through the RF steel
front shielding. The remaining rear
­along the RH side of the spreader tank, zerks accessible
through the steel shielding.
L8
Grease (6) tandem wing pivots. Effectively grease by jacking up the spreader to relieve pressure points on the pivot shaft and tandem wing collar. Over greasing is not possible.
L9
Grease (1) flow control arm pivot point.
L10
Grease (2) flow control rear gate slide guides. With the flow control rear gate opened guides from top side. Allow grease to lubricate flow control rear gate ends and slide guide surfaces. In freezing weather dump used motor oil down each slide guide once a week or more often if needed. Over greasing is not possible.
-
L11
Grease (1) integral overrunning clutch at rear of the PTO drive line. The zerk is on the yoke of the cut out clutch. Use Shell Super Duty or an equivalent lithium grease.
bearings. These
bearings are located
, grease the slide
IMPORTANT: Check regularly for any observable lubri cant leakage of the (3) gearboxes at the rear of the spreader. See L12 & L14 under Monthly Lubrication
Model 7200 -20-
-
MONTHLY LUBRICATION
L1 2
Maintain oil level in the corner gearbox at the centerline observable oil leakage. If oil leakage is excessive, replace required input/output shaft oil seals. Use ONLY EP #80-90 wt. gear lube oil corner box, only Lighter weight gear lube oil may be used in temperatures lower than 20°F. Change the gearboxes after the first season of use and regularly thereafter.
L1 3
shaft of the 3rd auger assembly. This zerk is located on the left rear corner of the tank above the inner cross brace.
L1 4
gearboxes at 3/4 full. Check regularly for any observable leakage. If leakage is excessive, replace required input/output shaft seals. Lubricate with Semi-Fluid, EP Lithium Base, Gear Grease.
of the input shafts. Check regularly for any
or an equivalent in
oil in
Grease (1) brass bushing supporting the rear
Maintain the lube level in the (2) spinner
ON CORNER OF FRAME
5
L1
Clean and repack the wheel hubs with axle grease annually. Grease hub through zerk in hub monthly. Be careful not to over grease and force seal out of back side of hub.
L16
Oil slides on front idler tightener assembly.
L1 7
Grease (4) material guide pin sleeves. (2) located on each side of the spreader.
L1 8
Grease (2) T-post hold down sleeve zerks lo cated above the cross channel on the underside of the spreader. A zerk is located on the front and one on the rear of the sleeve.
ON CORNER OF FRAME
-
(SHIELDS REMOVED FOR ILLUSTRATIVE PURPOSES ONLY.)
Model 7200 -21-
REPAIR PARTS
918-0208 PTO DRIVE SHAFT ASSEMBLY
1000 RPM-21 SPLINE / 1-3/8” YOKE WWE2480 (80 DEGREE C.V.)
Model 7200 -22-
918-0208 PTO DRIVE SHAFT ASSEMBLY
1000 RPM-21 SPLINE / 1-3/8” YOKE WWE2480 (80 DEGREE C.V.)
KEY MEYER PART
NO.
1 918-0208-1-1 Yoke 1-3/8"-21 Splined As
2 918-0208-1-2 Grease Zerk in item 3 3 918-0208-1-3 Double Yoke 4 918-0208-1-4 Inboard Yoke 5 918-0208-1-5 Cross and Bearing Kit 6 918-0208-1-6 Spring Pin 10 x 80 7 918-0208-2-1 Cross and Bearing Kit 8 918-0208-1-14 Profile and Sleeve Wa 9 918-0208-2-2 Overrunning Clutch &
10 918-0208-2-3-1 Clamping Cone Bolt (In
11 918-0208-2-3 Cut Out Clutch 12 918-0208-2-4 Bearing Ring SC25 13 918-0208-2-5 Outer Shield Tube OVL 14 918-0208-1-7 Inner shield Tube Round 15 918-0208-1-8 CV Cone & Bearing Assy. 16 918-0208-1-9 Shield Cone 3 Rib
DESCRIPTION
sembly
1bGA Profile Assy.
-
cluded in Item 11)
KEY MEYER PART
-
17 918-0208-2-6 Shield Cone 8 Rib 18 918-0208-2-7 Safety Chain 19 918-0208-2-8 Decal Out-In Item 13 20 918-0208-1-10 Decal In-In Item 8 21 918-0208-2-9 Screw-In Item 15,16 & 17 22 918-0208-1-11 Support Bearing 23 918-0208-1-12 Zerk-In Item 8 24 918-0208-1-13 Cross and Bearing Kit 25 918-0208-2-10 Decal-K64 26 918-0208-1 1-3/8-21 Spline Tractor
27 918-0208-2 1000 RPM Cutout Clutch
28 918-0208-1-1-1 AS-Lock Kit For Item 1
NO.
DESCRIPTION
Half Assembly
Implement Half Assembly
(Inc. Ring, Collar & Balls)
KEY MEYER PART
NO.
1 918-0208-2-3-2 Housing 2 918-0208-2-3-3 Hub 3 918-0208-2-3-4 Spring Pack 4 918-0208-2-3-5 Washer 5 918-0208-2-3-6 Retaining Ring 6 918-0208-2-3-7 Sealing Ring 7 918-0208-2-3-1 Clamp Cone Assembly 8 918-0208-2-3-8 Cam NS 918-0208-2-3-9 Bushing - In Item #2
Model 7200 -23-
DESCRIPTION
918-0210 PTO DRIVE SHAFT ASSEMBLY
1000 RPM-20 SPLINE / 1-3/4” YOKE WWE2480 (80 DEGREE C.V.)
Model 7200 -24-
918-0210 PTO DRIVE SHAFT ASSEMBLY
1000 RPM-20 SPLINE / 1-3/4” YOKE WWE2480 (80 DEGREE C.V.)
KEY PART NO. DESCRIPTION
1 918-0210-1-1 Yoke 1-3/4"-20 Splined
2 918-0208-1-2 Grease Zerk in item 3 3 918-0208-1-3 Double Yoke 4 918-0208-1-4 Inboard Yoke 5 918-0208-1-5 Cross and Bearing Kit 6 918-0208-1-6 Spring Pin 10 x 80 7 918-0208-2-1 Cross and Bearing Kit 8 918-0208-1-14 Profile and Sleeve Wa 9 918-0208-2-2 Overrunning Clutch &
10 918-0208-2-3-1 Clamping Cone Bolt (In
11 918-0208-2-3 Cut Out Clutch 12 918-0208-2-4 Bearing Ring SC25 13 918-0208-2-5 Outer Shield Tube OVL 14 918-0208-1-7 Inner shield Tube Round 15 918-0208-1-8 CV Cone & Bearing Assy. 16 918-0208-1-9 Shield Cone 3 Rib
Assembly
1bGA Profile Assy.
-
cluded in Item 11)
KEY PART NO. DESCRIPTION
17 918-0208-2-6 Shield Cone 8 Rib 18 918-0208-2-7 Safety Chain 19 918-0208-2-8 Decal Out-In Item 13 20 918-0208-1-10 Decal In-In Item 8 21 918-0208-2-9 Screw-In Item 15,16 & 17 22 918-0208-1-11 Support Bearing 23 918-0208-1-12 Zerk-In Item 8 24 918-0208-1-13 Cross and Bearing Kit 25 918-0208-2-10 Decal-K64 26 918-0210-1 1-3/4-20 Spline Tractor Half
Assembly
27 918-0208-2 1000 RPM Cutout Clutch Im
plement Half Assembly
28 918-0210-1-1-1 AS-Lock Kit For Item 1 (Inc.
Ring, Collar & Balls)
-
KEY PART NO. DESCRIPTION
1 918-0208-2-3-2 Housing 2 918-0208-2-3-3 Hub 3 918-0208-2-3-4 Spring Pack 4 918-0208-2-3-5 Washer 5 918-0208-2-3-6 Retaining Ring 6 918-0208-2-3-7 Sealing Ring 7 918-0208-2-3-1 Clamp Cone Assembly 8 918-0208-2-3-8 Cam NS 918-0208-2-3-9 Bushing - In Item #2
Model 7200 -25-

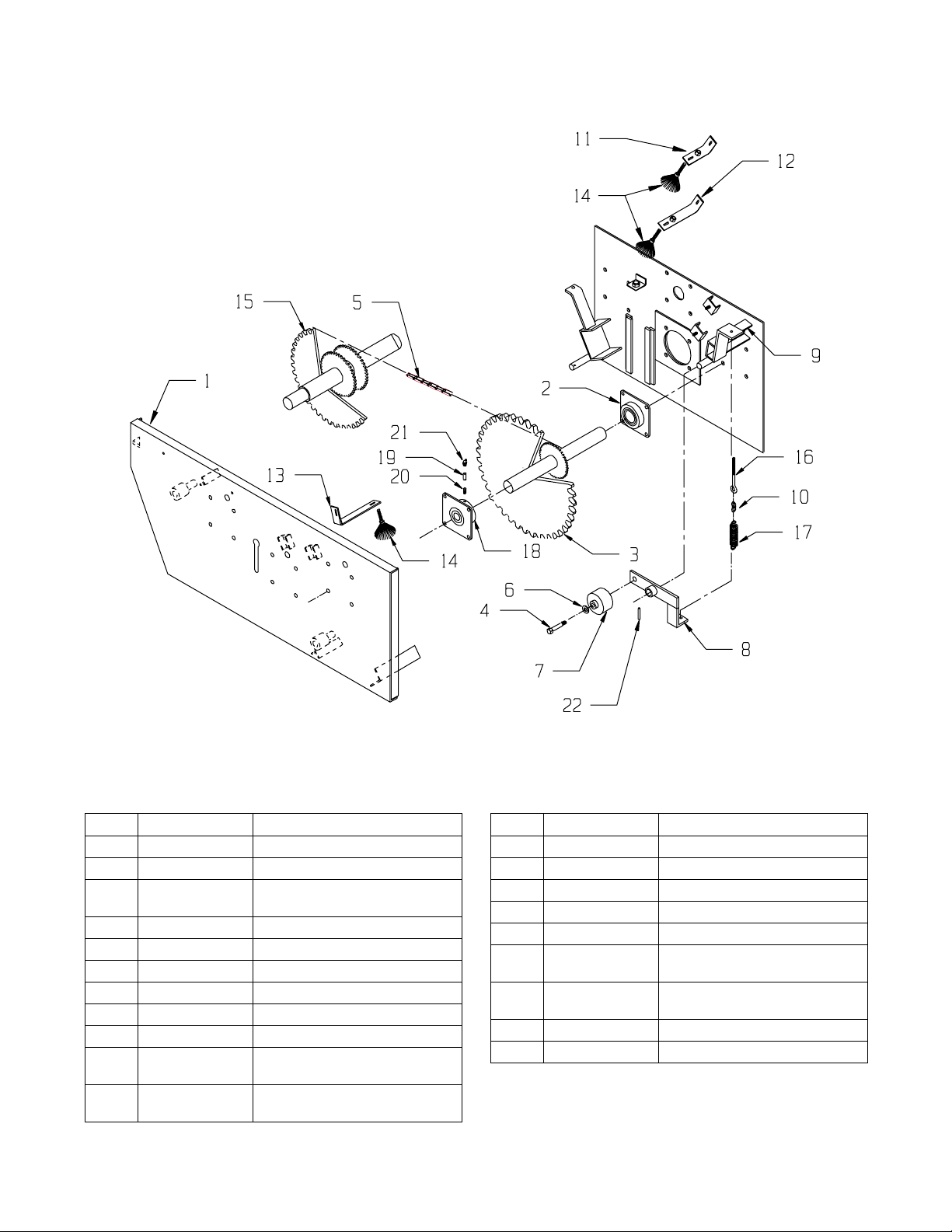

AUGER DRIVE THIRD REDUCTION
KEY PART NO. DESCRIPTION
1 925-3703 Front Bearing Plate Assy. 2 914-3808 2-1/4" Bearing 4-Bolt 3 910-0080 Sprocket Weldment 2-1/2"
Shaft, #80/120 4 851-7510-3Z 3/4-10 x 3" Machine Bolt 5 911-0063 #120-43 Pitch Chain 6 805-0075-Z 3/4" Flat Washer Zinc 7 912-0013 2" Nylon Roller Complete 7A 912-0013-1 2" Nylon Roller Only 7B 912-0013-2 Inner Sleeve 8 925-3895-1 #120 Chain Tightener
Weldment 9 925-3894-1 #120 Chain Tightener
Mount Weldment
Model 7200 -26-
KEY PART NO. DESCRIPTION
10 925-3822-6 2-Chain Link For Tightener 11 952-0001-3 Oil Brush Holder 12 952-0001-4 Oil Brush Holder 13 952-0001-6 Oil Brush Holder 14 952-0001-1-25 Oiler Brush Assembly 15 910-0081 Sprocket Weldment 2-1/2",
#120/140
16 933-3804 Eyebolt, 5/16 x 5" / 4"
Thread Length 17 929-3601 Extension Spring 18 14-0031 2"-4 Bolt Bearing
This Page Intentionally Blank
Model 7200 -27-
FRONT SHIELD & SIDE SHAFT DRIVE
Model 7200 -28-
FRONT SHIELD & SIDE SHAFT DRIVE
KEY PART NO. DESCRIPTION
1 925-3703 Front Bearing Plate As
sembly 1A 32-0018-1 Heavy Duty Latch 1B 32-0018-2 Keeper Latch 2 925-3706 Right Hand Front Support 3 924-3701 Right Front Shield Assem
bly 4 924-3702 Front Top Cover W/Hinges
& Latches 5 952-0001-3 Oil Brush Holder 6 925-3841 Outer Spring Tightener
Guide 7 29-0009 Compression Spring 8 925-3719 #140 Tightener Bracket As
sembly 9 808-.75-1.25-14 3/4"ID x 1-1/4"OD Machine
Bushing 14 Ga. 10 912-0008 #140 Reverse Idler Assem
bly W/Bearings 10A 910-0006-1 Bearing 3/4" ID x 2" OD
(2-Required) 11 925-3719-4 3/4-10 x 3-1/2" Machine
Bolt Lathed 12 925-3718 Side Shaft Tightener Arm 13 924-3702-3 Gas Shock Spacer/Hinge
Sleeve 14 933-3621 3/4-10 Jam Nut 15 912-0013 2" Nylon Roller Complete 15A 912-0013-1 2" Nylon Roller Only 15B 912-0013-2 Inner Sleeve 16 910-0015 80B18 Sprocket 1-1/2"
Bore, 3/8" Keyway 17 925-3705 Right Hand Top Side Sup
port 18 851-7510-3.5Z 3/4-10 x 3-1/2" Machine
Bolt Zinc 19 805-0075-Z 3/4" Flat Washer Zinc 20 911-0039 #80-107 Pitch Chain 21 923-3705 1-1/2" Front Side Shaft
-
KEY PART NO. DESCRIPTION
22 35-0010 3/8 x 3/8 x 1-1/2" Square
23 925-3732 #140 Chain Tightener Bolt
24 925-3731 #140 Chain Tightener Ad
­25 808-150-300-10 10 Ga. X 1.5 I.D. x 3 O.D.
26 910-0036 80B24 Sprocket 1-1/2"
27 901-3701-36 #140 Chain Tightener Slide
28 952-0001-1-25 Oiler Brush Assembly 29 925-3704 Left Hand Side Support
-
30 929-0003 Extension Spring 31 925-3822-6 2-Chain Link for Tightener
­32 933-3804 Eyebolt, 5/16 x 5” / 4”
33 813-3118-Z 5/16” Regular Nut 34 952-0001-1-18 Oil Reservoir Two Quart
35 955-3703 Front Cover Gas Lift Assist
36 925-3734 Cover Spring Mount
37 851-2520-2Z 1/4-20 x 2” Grade 5 Shear
38 815-2520-Z 1/4-20 Nylon Insert
39 33-0042 Manual Holder w/ Caps
-
Key
Assembly
justment Angle
Machine Bushing
Bore, 3/8" Keyway
Weldment
Plate
(Prior To SN SI067200252)
Thread Length
Tank
Spring
Bracket
Bolt
Locknut
-
Model 7200 -29-

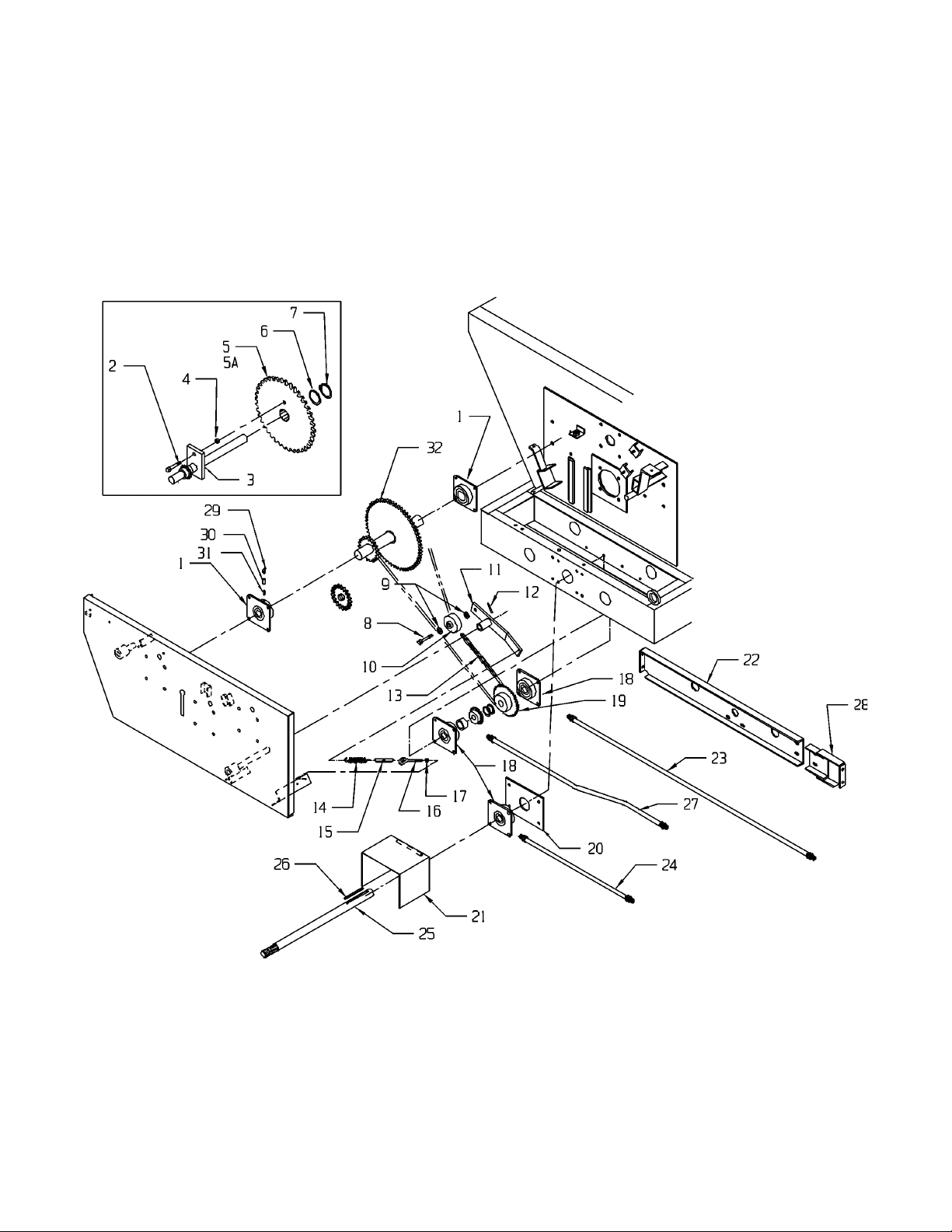

AUGER DRIVE FIRST REDUCTION
UNITS WITH SHEAR SPROCKET ASSEMBLY.
SEE FOLLOWING PAGE FOR SN’S.
Model 7200 -30-
AUGER DRIVE FIRST REDUCTION
KEY PART NO. DESCRIPTION
1 14-0031 2" Bearing 4-Bolt 2 851-2520-2Z 1/4-20 x 2" Grade 5
3 910-0058 2" Shear Sprocket
4 815-2520-Z 1/4-20 Nylon Insert
5 910-0054 Shear Sprocket Assembly
910-0066 Shear Sprocket Assembly
5A 913-3602-2 2" I.D. x 2-1/4" O.D. x 2"
6 808-2-3-14 2" I.D. x 3" O.D. x 14 Ga.
7 933-3702 2" Retaining Ring 8 925-3717-3 3/4-10 x 2" Machine Bolt -
9 808-.75-1.25-14 3/4" I.D. x 1-1/4" O.D. x
10 912-0012 1-3/8" Nylon Roller Com-
10A 912-0012-1 1-3/8" Nylon Roller Only 10B 912-0012-2 Inner Sleeve 11 925-3717 Tightener Arm Assembly
925-3739 Tightener Arm Assembly
12 38-0013 5/16 x 1-3/4" Roll Pin 13 911-0060 #80-93 Pitch Chain (1000
911-0061 #80-79 Pitch Chain (540
14 929-0003 Extension Spring 15 925-3822-6 2-Chain Link For Tight
16 933-3804 Eyebolt, 5/16 x 5" / 4"
17 813-3118-Z 5/16" Regular Nut 18 914-3602 1-1/2" Bearing, 4-Bolt
Shear Bolt
Weldment
Locknut
(1000 RPM)
(540 RPM)
Bronze Bushing
Machine Bushing
Special
14 Ga. Machine Bushing
plete
(1000 RPM)
(540 RPM)
RPM)
RPM)
­ener(Prior To SN SI067200252)
Thread Length
KEY PART NO. DESCRIPTION 19 910-0039 80B22 Sprocket 1-1/2"
910-0015 80B18 Sprocket 1-1/2"
910-0077 80B28 Sprocket 1-1/2"
910-0036 80B24 Sprocket 1-1/2"
20 925-3601 Front Bearing Plate 21 931-3810 CV/OR PTO Shield As
22 901-3750-71 Rear Bearing Back Mount
23 933-3625 Copper Tube Grease Line
24 933-3627 Copper Tube Grease Line
25 923-3711 1-1/2" Input Drive Shaft /
26 35-0010 3/8 x 3/8 x 1-1/2"" Square
27 933-3634 Copper Tube Grease Line
28 901-3750-72 Rear Bearing End Plate
29 30-0006 1/8" NPT x 90 Degree
30 30-0009 1/8" NPT Coupler 31 30-0016 1/8" NPT Close Nipple 32 910-0090 Reduction Sprocket
910-0091 Reduction Sprocket
Bore, 3/8" Keyway-10 RPM Auger Speed
Bore, 3/8" Keyway-8 RPM Auger Speed
Bore, 3/8" Keyway-13 RPM Auger Speed (Stan dard)
Bore, 3/8" Keyway-11 RPM Auger Speed
-
sembly
Plate
55" (Includes zerks, fit­tings)
12" (Includes zerks, fit­tings)
Splined
Key
38" (Includes zerks, fit­tings)
Assembly
Zerk
Weldment-Nonshear For 1000 RPM (Serial #SI067200201 & Later)
Weldment-Nonshear For 540 RPM (Serial #SI067200201 & Later)
-
Model 7200 -31-
AUGER DRIVE SECOND REDUCTION
UNITS WITH SHEAR SPROCKET ASSEMBLY.
SEE FOLLOWING PAGE FOR SN’S.
Model 7200 -32-
AUGER DRIVE SECOND REDUCTION
KEY PART NO. DESCRIPTION
1 14-0031 2" Bearing 4-Bolt 2 851-2520-2Z 1/4-20 x 2" Grade 5 Shear Bolt 3 910-0058 2" Shear Sprocket Weldment 4 815-2520-Z 1/4-20 Nylon Insert Locknut 5 910-0054 Shear Sprocket Assembly (1000 RPM)
910-0066 Shear Sprocket Assembly (540 RPM) 5A 913-3602-2 2" I.D. x 2-1/4" O.D. x 2" Bronze Bushing 6 808-2-3-14 2" I.D. x 3" O.D. x 14 Ga. Machine Bushing 7 933-3702 2" Retaining Ring 8 851-7510-3Z 3/4-10 x 3" Machine Bolt Zinc 9 808-.75-1.25-14 3/4"ID x 1-1/4"OD Machine Bushing 14 Ga. 10 911-0041 #80-91 Pitch Chain 11 912-0013 2" Nylon Roller Complete 11A 912-0013-1 2" Nylon Roller Only 11B 912-0013-2 Inner Sleeve 12 925-3720 Second Reduction Tightener Arm Assembly 13 929-0003 Extension Spring 14 925-3822-6 2-Chain Link For Tightener (Prior To SN SI067200252) 15 813-3118-Z 5/16" Regular Nut 16 933-3804 Eyebolt, 5/16 x 5" / 4" Thread Length 17 910-0080 Second Reduction Sprocket Weldment 80/120 18 30-0009 1/8" NPT Coupler 19 30-0016 1/8" NPT Close Nipple 20 30-0006 1/8" NPT x 90 Degree Zerk 21 933-3643 Copper Tube Grease Line 53" (Includes zerks, fittings) 22 933-3632 Copper Tube Grease Line 36" (Includes zerks, fittings) 23 933-3640 Copper Tube Grease Line 21" (Includes zerks, fittings) 24 910-0090 Reduction Sprocket Weldment-Nonshear For 1000 RPM
910-0091 Reduction Sprocket Weldment-Nonshear For 540 RPM
(Serial #SI067200201 & Later)
(Serial #SI067200201 & Later)
Model 7200 -33-
RH AUGER DRIVE FINAL REDUCTION
Model 7200 -34-
RH AUGER DRIVE FINAL REDUCTION
KEY PART NO. DESCRIPTION
1 933-3701 3" Retaining Ring
2 910-0081 2-1/2" Auger Drive Sprocket Weldment
3 910-0071-1 140B35 3" 23 Spline Auger Sprocket (Prior to Serial # SI067200201)
910-0100 140B35 Shear Sprocket Assembly (Serial #SI067200201 & Later)
3A 831-5020-1.75 1/2-20 x 1-3/4" Allen Head Cap Screw Grade 8
3B 884-5020 1/2-20 Top Locknut Grade 8
3C 831-5618-1.75 9/16-20x1 ¾” Allen Head Cap Screw Grade 8
3D 884-5618 9/16-20 Top Locknut Grade 8
4 813-3118-Z 5/16" Regular Nut
5 933-3804 Eyebolt, 5/16 x 5" / 4" Thread Length
6 925-3766 Right/Left Auger Bushing Holder Assembly
7 913-3701 Nylon Bushing 3"ID x 4"OD x 3-3/8" Long
8 14-0031 2" Bearing 4-Bolt
9 808-.75-1.25-14 3/4"ID x 1-1/4"OD Machine Bushing 14 Ga.
10 912-0015 1-3/8" Nylon Roller Complete
10A 912-0015-1 1-3/8" Nylon Roller Only
10B 912-0015-2 Inner Sleeve
11 925-3716 #140 Right Auger Chain Tightener Bracket
12 929-3601 Extension Spring
13 911-0059 #140-46 Pitch Chain
14 851-7510-2Z 3/4-10 x 2" Machine Bolt Zinc
15 914-3807A 2-1/2" Round 4-Bolt Bearing
16 38-0013 5/16" x 1-3/4" Roll Pin
17 925-3822-6 2-Chain Link For Tightener
18 933-3710 Auger Sprocket Spacer 3.031ID x 3.5OD x 1"
19 925-3711 #140 Right Auger Chain Tightener Channel Assy.
20 30-0009 1/8" NPT Coupler
21 30-0016 1/8" NPT Close Nipple
22 30-0006 1/8" x 90 Degree Zerk
23 933-3704 Front Auger Washer Steel
24 933-3633 Copper Tube Grease Line 11" (Includes zerks, fittings)
25 933-3711 Shaft Spacer 14 GA x 3.062 x 3.500 Washer
Model 7200 -35-
LH AUGER DRIVE FINAL REDUCTION
KEY PART NO. DESCRIPTION
1 925-3766 Right/Left Auger Bushing
Holder Assembly
2 913-3701 Nylon Bushing 3"ID x 4"OD x
3-3/8" Long
3 910-0071-1 140B35 3" 23 Spline Auger
Sprocket (Prior to Serial # SI067200201)
910-0100 140B35 Shear Sprocket As
sembly (Serial #SI067200201 & Later)
3A 831-5020-1.75 1/2-20 x 1-3/4" Allen Head
Cap Screw Grade 8
3B 884-5020 1/2-20 Top Locknut Grade 8
3C 831-5618-1.75 9/16-20x1 ¾” Allen Head Cap
Screw Grade 8
3D 884-5618 9/16-20 Top Locknut Grade 8
4 933-3701 3" Retaining Ring
5 910-0081 2-1/2" Auger Drive Sprocket
Weldment
6 14-0031 2" Bearing 4-Bolt
KEY PART NO. DESCRIPTION
7 925-3719-4 3/4-10 x 3-1/2" Machine Bolt
8 912-0008 #140 Reverse Idler Assembly
W/Bearings
8A 910-0006-1 Bearing 3/4" ID x 2" OD
(2-Required)
9 911-0058 #140-74 Pitch Chain
10 910-0061 140B16 Sprocket 2" Bore, ½"
-
11 933-3704 Front Auger Washer Steel
12 35-0024 ½ x ½ x 2-1/2" Square Key
13 914-3807A 2-1/2" Round 4-Bolt Bearing
14 933-3633 Copper Tube Grease Line 11"
Keyway
(Includes zerks, fittings)
Model 7200 -36-
This Page Intentionally Blank
Model 7200 -37-
BOX, AUGERS & SIDE SHAFT
Model 7200 -38-
BOX, AUGERS & SIDE SHAFT
KEY PART NO. DESCRIPTION
1 901-3701 5570 Main Welded Body 2 929-3801 Hydraulic Hose Holder
3 956-3803 Square Tube Jack 3A 956-3803-12 Jack Mount Tube 4 955-3701 Hydraulic Hose 11' Long 5 955-3609 Coupler 3/8" NPT 6 955-3702 Side Hydraulic Pipe (2-Re
7 933-3602 Side Hydraulic Pipe
8 55-0013 Pioneer Coupler Male Tip 9 926-3701-1 Splined Auger Shaft, 23T,
10 926-3705 Right Side Auger Front
11 926-3704 Left Side Auger Front
11A 926-3801-8 Rear Auger Flighting Sup-
12 925-3742 T-Post Auger Hold Down
12A 925-3771-9 Nylon Bearing (2-Per Au-
13 901-3816-65-8 9" Extension Filler Piece 14 901-3816-65-3 Push Off Extension End
15 901-3816-65-6 Right Front / Left Rear
16 901-3816-65-7 Left Front / Right Rear
17 851-5013-1.25Z ½"-13 x 1-1/4" Machine
18 810-5013-Z ½" Flange Lock Nut 19 901-3816-30 Extension End rail 20 901-3830-5 Rear Splash Guard 21 901-3830-1 Flat Front Splash Guard,
22 937-0004 1-1/2" Shaft Coupler
23 923-3705 1-1/2" Front Side Shaft 24 923-3704 1-1/2" Rear Side shaft 25 914-3804 1-1/2" Pillow Block Bear
26 55-0091 3/8 X 82" Hydraulic Hose 27 35-0022 3/8 x 3/8 x 4-1/2" Square
28 75-0074 Adjustable Hitch Plate
Spring
quired)
Bracket Clamp
3" Diameter
Bearing Style
Bearing Style
port Gusset
Assembly w/Nylon
ger)
Cap Filler
Push Off Extension
Push Off Extension
Bolt
Optional
W/4-Set Screws
-
ing
Key
Welded Assembly
KEY PART NO. DESCRIPTION
29 924-3710 Front Side Shaft Shield As
sembly 30 924-3711 Rear Side Shaft Shield 31 955-3803 Black Male Pipe Tee 3/8 x
32 901-3830-8 45 Degree Splash Guards,
33 933-3701 3" Retaining Ring
­34 914-3813 Front Auger Thrust Bearing
35 914-3812 Front Auger Thrust Bearing 36 921-0005 1-1/2" Locking Set Collar 37 881-1008-5Z 1-08 X 5" Grade 8 Machine
39 884-1008 1-08 Grade 8 Top Lock Nut 40 901-3801-40 Hydraulic Hose / Scraper
41 803-2520-.75Z 1/4-20 x 3/4" Socket Flat
42 955-3754 3/4" Hose Tube Clamp 43 901-3801-59 Center Shaft Shield 44 901-3711 Cross Support Pipe W/Tabs
3/8 x 3/8"
Optional On Rear
Seal
Bolt
Holder Ring
Cap Screw
-
Model 7200 -39-
UNLOADING GATE AND GATE INDICATOR
Model 7200 -40-
UNLOADING GATE AND GATE INDICATOR
KEY PART NO. DESCRIPTION
1 955-0010 Hydraulic Cylinder-Center
2 55-0092 Street Elbow ½" M x 3/8"
3 955-0010-1 3/8 x 28" Hydraulic Pipe 4 955-3605 3/8 x 90 Degree Elbow 5 955-3802-2 ½ x 3/8" Steel Hex Bushing 6 925-3754 Hydraulic Pipe Holder
7 901-3713-2 Gate Indicator Pivot As
8 925-3755 Back Gate Assy.-Center Lift
925-3764 Back Gate Assy.-Center Lift
9 901-3713-3 Indicator Linkage Arm
10 925-3758-1 Front Cylinder Mount Plate 11 925-3757 Rear Cylinder Lift Plate
12 949-3702 Poly Gate Seal 13 925-3729 Arm Pivot Shaft Assembly 14 925-3853 Pivot Arm Support 15 955-3754 3/4" Hose Tube Clamp 16 949-3701 Back Gate Slide Poly Slick 17 901-3706-9 Upper Back Gate Guide
18 925-13701-1 R. Cupped Material Guide
19 925-13701-2 L. Cupped Material Guide
20 925-3727 Rear Shield Mount Plate 21 925-3707 Gearbox Mount Strap 22 901-3701-20 Spinner Bearing Mount
23 901-3701-13 Gearbox Mounting Channel 24 901-3706-4 Outer Gate Guide Plate 25 925-3702 Corner Gearbox Mount
26 901-3853 Gearbox Mount Plate Gus
27 925-3743-1 Left Mount Plate Assembly 28 925-3743-2 Left Material Guide Assem
29 29-0009 Spring, Adjustment (Prior to
Lift
Female
Weldment
-
sembly
(Prior to Serial #SI057200201)
w/Pin (Serial #SI057200201 & Later)
w/sleeve
Weldment
Plate
(Serial #SI067200308 & Later)
(Serial #SI067200308 & Later)
Channel
Plate
set
bly (Prior to serial #SI067200308)
serial #SI067200308)
KEY PART NO. DESCRIPTION 30 925-3768-2 Spring Pivot Pin Assembly
31 925-3768-3 Spring Shaft Assembly (Prior
32 925-3768-4 Spring Pivot Sleeve Assembly
33 815-1008-Z 1-8 Nylon Insert Locknut (Prior
34 805-0010-Z 1" Flat Washer Zinc (Prior to
35 823-.18-1.25Z 3/16 x 1-1/4" Cotter Pin (Prior
36 925-3744-1 Right Mount Plate Assembly 37 925-3744-2 Right Material Guide Assembly
38 808-1.5-2.25-101-1/2 ID X 2-1/4 OD X 10 Ga.
39 901-3720-4 R.H. Adj. Material Guide (Prior
40 901-3720-3 L.H. Adj. Material Guide (Prior
41 75-0413-1A Machine Bolt, Gr. 5, 1-14x4"
42 925-13803 Material Guide Linkage Arm
43 75-0304-1 LH Tie Rod Eye 44 75-0305-2 Jam Nut, 1-14, RH (Serial
45 827-2528-.38 Set Screw, 1/4-28x3/8" (Serial
46 75-0305-1 RH Tie Rod Eye (Serial
47 925-13804-1 Shear Sleeve (Serial
48 805-0050-Z Flat Washer, 1/2" (Serial
49 851-5013-3Z Machine Bolt, 1/2x3" Gr. 5
50 884-1014-Z Top Locknut, 1-14 (Serial
51 929-0003 Extension Spring (Serial
52 815-5013-Z Nylon Locknut, 1/2-13 (Serial
-
-
(Prior to serial #SI067200308)
to serial #SI067200308)
(Prior to serial #SI067200308)
to serial #SI067200308)
serial #SI067200308)
to serial #SI067200308)
(Prior to serial #SI067200308)
M.B. (Prior to serial #SI067200308)
to Serial #SI057200212)
to Serial #SI057200212)
(Serial #SI067200308 & Later)
(Serial #SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
(Serial #SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
#SI067200308 & Later)
Model 7200 -41-
SPINNERS & GEARBOX SHAFT DRIVE
Model 7200 -42-
SPINNERS & GEARBOX SHAFT DRIVE
KEY PART NO. DESCRIPTION
1 901-3834-1 RH, 4-Point Paddle 3/8"
901-3834-1-AR Optional AR400
2 901-3835-1 LH, 4-Point Paddle 3/8"
901-3835-1-AR Optional AR400
3 19-0029 Left Spinner Gearbox 4 35-0004 3/8 x 3/8 x 2" Square Key 5 937-0005 Shaft Coupler 1-3/4" Bore,
6 19-0030 Right Spinner Gearbox 7 19-0036 Corner Gearbox, (1000
19-0035 Corner Gearbox, (540
8 901-3704 R.H. Spinner Assembly
901-3715 R.H. Spinner Assembly
8A 901-3704-6 Bottom Spinner Shaft Only
9 901-3703 L.H. Spinner Assembly
901-3714 L.H. Spinner Assembly
10 914-3602 1-1/2" 4-Bolt Bearing 11 937-0005K 1-3/4" Coupler Assy. Kit
12 924-3703 Rear Main Shield Assem
13 924-3704 Right Rear Gearbox
14 33-1002 SMV Sign Bracket 15 808-1.75-2.5-14 1-3/4I.D. x 2-1/2O.D. x 14
16 933-3709 Gearbox Spinner Spacer 17 851-5013-1.5Z ½-13 x 1-1/2" Grade 5 Ma
18 815-5013-Z ½-13 Nylon Insert Locknut 19 901-3704-1 1-3/4" Bore x 3" Long
4/6-Per RH Spinner (Lower) 2-Per LH (Upper)
RH, 4-Point Paddle 3/8" 4/6-Per RH Spinner (Lower) 2-Per LH (Upper) (Optional)
4/6-Per LH Spinner (Lower) 2-Per RH (Upper)
LH, 4-Point Paddle 3/8" 4/6-Per LH Spinner (Lower) 2-Per RH (Upper) (Optional)
(4-Required)
RPM) Standard
RPM) Optional
Less Paddles (Prior to Se­rial #SI067200308)
Less Paddles (Serial #SI067200308 & Later)
(Welded In)
Less Paddles (Prior to Se rial #SI067200308)
Less Paddles (Serial #SI067200308 & Later)
W/Bolts & Keys
-
bly
Shield Assembly
Ga. M.B.
chine Bolt
Splined Hub
KEY PART NO. DESCRIPTION 20 32-0021 2" Hair Pin Clip 21 32-0022 6" Lanyard 22 32-0023 3/8 x 3/4" Clevis Pin 23 851-3824-1.5Z 3/8-24 x 1-1/2" Fine
24 815-3824-Z 3/8-24 Nylon Insert
25 933-3632 Copper Tube Grease Line
26 933-3625 Copper Tube Grease Line
27 901-3834-2 Left Hand Paddle Mount
28 901-3835-2 Right Hand Paddle Mount
29 901-3704-8 Paddle Reinforcing
30 937-0009-2 Coupler Chain 31 937-0010-1 1-3/4” Chain Coupler Half 32 937-0009-1 1-1/2" Chain Coupler Half 33 937-0009 1-1/2" Chain Coupler Kit 34 901-3720-2 Left Spinner Paddle Riser
901-3720-5 Left Spinner Paddle Riser
-
35 901-3720-1 Right Spinner Paddle
901-3720-6 Right Spinner Paddle
36 937-0010 1-3/4” Chain Coupler Kit 37 901-13702-2 Left Cupped Lower Paddle
38 901-13702-1 Right Cupped Lower Pad
-
Thread Grade 5 Bolt
Locknut
36" (Includes zerks, fit tings)
55" (Includes zerks, fit tings)
Brackets
Brackets
Bracket (6 or 8-Per Spin ner)
(Serial #SI047200228 & Earlier)
(Serial #SI047200229-SI0672003
07)
Riser (Serial #SI047200228 & Earlier)
Riser (Serial #SI047200229-SI0672003
07)
(Serial #SI067200308 & Later)
dle (Serial #SI067200308 & Later)
-
-
-
-
Model 7200 -43-
SPINNER GEAR REDUCER - LEFT HAND (1:1) #19-0029
USE FLUID GEAR GREASE ONLY.
DO NOT
KEY PART NO. DESCRIPTION
1 19-0029-2 Casting, Machined (Thru Holes) 2 19-0029-1 Casting, Machined (Tapped Holes) 3 19-0029-3 Assy, Pinion Shaft/Gear 4 19-0029-4 Assy, Cross Shaft/Gear 5 19-0029-5 Bearing Cone 6 19-0029-6 Bearing Cup 7 19-0029-7 Bearing Cone 8 19-0029-8 Bearing Cup 9 19-0029-9 Seal 1-3/4" 10 19-0029-10 End Plug, Rubber Cover 11 19-0029-11 Retaining Ring, 1.750 12 19-0016-11 Bolt, 3/8-16 x 2.250 SHCS 13 19-0016-5 Plug, ½ NPT 14 19-0029-14 Bushing, 1/4 NPT to 1/8 NPT 15 55-0107 Plug, Breather 16 19-0029-16 Bearing Cone
USE OIL FOR LUBRICANT.
Model 7200 -44-
SPINNER GEAR REDUCER - CENTER (1:1) #19-0030
USE FLUID GEAR GREASE ONLY.
DO NOT
KEY PART NO. DESCRIPTION 1 19-0029-2 Casting, Machined (Thru Holes) 2 19-0029-1 Casting, Machined (Tapped Holes) 3 19-0029-3 Assy, Pinion Shaft/Gear 4 19-0030-1 Assy, Cross Shaft/Gear 5 19-0029-5 Bearing Cone 6 19-0029-6 Bearing Cup 7 19-0029-7 Bearing Cone 8 19-0029-8 Bearing Cup 9 19-0029-9 Seal 1-3/4" 11 19-0029-11 Retaining Ring, 1.750 12 19-0016-11 Bolt, 3/8-16 x 2.250 SHCS 13 19-0016-5 Plug, ½ NPT 14 19-0029-14 Bushing, 1/4 NPT to 1/8 NPT 15 55-0107 Plug,Breather 16 19-0029-16 Bearing Cone
USE OIL FOR LUBRICANT.
Model 7200 -45-
CORNER GEAR REDUCER - RIGHT HAND
OUTPUT
INPUT
IMPORTANT!
USE #80-90 WT. GEAR LUBE OIL ONLY
DO NOT
KEY 1000 RPM DRIVE PART NO. 540 RPM DRIVE PART NO. DESCRIPTION
1 19-0031-1 19-0031-1 Casting, Machined (Tapped Holes) 2 19-0031-2 19-0031-2 Casting, Machined (Thru Holes) 3 19-0036-1 19-0035-1 Assy, Cross Shaft/Gear 4 19-0031-4 19-0035-2 Assy, Pinion Shaft/Gear 5 19-0029-5 19-0029-5 Bearing Cone 6 19-0029-6 19-0029-6 Bearing Cup 7 19-0029-7 19-0029-7 Bearing Cone 8 19-0029-8 19-0029-8 Bearing Cup 9 19-0029-9 19-0029-9 Seal 1-3/4" 10 19-0029-10 19-0029-10 End Plug, Rubber Cover 11 19-0029-11 19-0029-11 Retaining Ring, 1.750 12 19-0016-11 19-0016-11 Bolt, 3/8-16 x 2.250 SHCS 13 19-0016-5 19-0016-5 Plug, ½ NPT 14 19-0023-2 19-0023-2 Bushing, ½ NPT to 1/8 NPT 15 19-0002-17 19-0002-17 Plug, Pressure Relief, 5 PSI 16 19-0031-5 19-0031-5 Dip Stick 17 19-0029-16 19-0029-16 Bearing Cone
USE GREASE FOR LUBRICANT.
19-0036 19-0035 Complete Gearbox
.
Model 7200 -46-
HUBS, AXLE & TANDEM ASSEMBLY
KEY PART NO. DESCRIPTION
1 75-0211 Hub Assembly Complete
15,000# 2 75-0211-2 Seal 3 75-0211-3 Bearing Cone 4 75-0211-4 Bearing Cup 5 75-0208-5 Bearing Cup 6 75-0208-6 Bearing Cone 7 75-0208-7 Washer 8 75-0208-8 Nut 9 75-0208-9 Cotter Pin 10 75-0208-10 Hub Cap 11 75-0208-11 Lug Nut - Flanged 12 75-0208-12 Stud Bolt 13 75-0211-1 Hub Only w/Races & Studs 14 75-0208-13 Hub Cap Bolt 15 75-0208-14 Hub Cap Gasket 16 30-0006 Zerk 1/8" NPT x 90 Degrees 17 901-3867-2 Tandem Locking Collar 18 881-5013-6.5 HHCS, ½-13 x 6-1/2" Gr. 8 19 814-5013-Z ½-13 Center Locknut 20 901-3873-3 Left O-Beam w/o Hubs
901-3873 Left O-Beam Complete
w/Hubs
KEY PART NO. DESCRIPTION
21 901-3874-3 Right O-Beam w/o Hubs
901-3874 Right O-Beam Complete
w/Hubs 22 901-3864-2 Pivot Shaft Nylon Bushing 23 901-3872 Tandem Axle Assembly
Only (Less O-Beams) 24 75-0269 Wheel Rim 12.25 x 22.5 x
10 Hole For Used
425/65/R22.5 Tire
75-0270 Wheel Rim SW18C x 16.1 x
10 Hole For 21.5 x 16.1 Tire 25 30-0002 1/8" NPT Straight Zerk 26 75-0111 3-1/2" Spindle Assembly 27 933-3626 Copper Tube Grease Line
31" (Includes zerks, fittings) 28 30-0009 1/8" NPT Coupler 29 30-0008 1/8" NPT Nipple
Model 7200 -47-
LADDER, THIRD AUGER, GATE INDICATOR & LIGHTING
25
Model 7200 -48-
LADDER, THIRD AUGER, GATE INDICATOR & LIGHTING
KEY PART NO. DESCRIPTION
1 924-3712-1 Lower Front Dust Cover
924-3712-1-TR Truck Mount Front Dust Cover 2 924-3762-2 Front Dust Cover Hinge 3 901-3713-1 Gate Indicator Pipe 4 925-3762 Gate Position Indicator Pointer Assembly 5 46-7000-1 Gate Indicator Decal 6 901-3707 Ladder 7 901-3701-38 Ladder Hanger Side Brackets 8 926-3703 3rd Auger Complete 9 933-3606 Bronze Washers 10 913-3602-2 Bronze Bushing 11 925-3865 3rd Auger Bushing Assembly (Inc. #13) 12 933-3632 Copper Tube Grease Line 36" (Includes zerks, fittings) 13 901-3810-8 3rd Auger Spacer Channel 14 901-3832-2 Support Pipe Strap 15 901-3711 3rd Auger Cross Support Pipe 16 56-0001 Dual Light LH w/Tri Plug (Prior to Serial #SI067200331)
56-0030 Dual Light LH w/4-Plug (Serial #SI067200331 & Later) 16A 56-0021 Truck Mount Dual Light LH w/Tri Plug (Prior to Serial
56-0030-TR Truck Mount Dual Light LH w/4-Plug (Serial #SI067200331 &
17 56-0002 Dual Light RH w/Tri Plug (Prior to Serial #SI067200331)
56-0031 Dual Light RH w/4-Plug (Serial #SI067200331 & Later) 17A 56-0022 Truck Mount Dual Light RH w/Tri Plug (Prior to Serial
56-0031-TR Truck Mount Dual Light RH w/4-Plug (Serial #SI067200331 &
18 56-0003 Ag Light Harness w/Tri Plugs (Prior to Serial #SI067200331)
56-0032 Ag Light Harness W/Module (Serial #SI067200331 & Later) 19 56-0004 #1232 4-Way Socket 4-Pin 20 56-0005 Coil Cable Assembly 20A 56-0012 7-Contact Plug End Only 20B 56-0005-1 4-Hole Plug End Only 21 56-0008 Harness Frame Clip 22 56-0009 Stor-a-way Plug Holder 23 65-0006-5 Nylon Tie Straps 24 925-3893 Right / Left Light Mount Bracket 25 46-0001-62 Caution Tail Light Decal 26 56-0001-3 Bezel Blank, Black 27 56-0001-1 Amber Lens 28 56-0001-2 Red Lens 29 56-0001-4 #1157 Bulb 30 56-0028 Tail Light Converter (Truck Mt. Only)
#SI067200331)
Later)
#SI067200331)
Later)
Model 7200 -49-
OIL-KIT
35
See Page 52 For Oiler Instructions
Model 7200 -50-
OIL-KIT
KEY PART NO. OEM PART NO. DESCRIPTION
1 952-0001-1-1 1001-6-B Oiler Body 6 Port Black 2 952-0001-1-2 1518-B Adj End Cap Oil Black 3 952-0001-1-3 4511 Plunger, Brass Adj End Cap 4 952-0001-1-4 1033 Piston, 2 Groove Alum, Short 5 952-0001-1-5 1004 Spring, Oiler 6 952-0001-1-6 1006 Washer, Rubber Lube Minder 7 952-0001-1-7 5011 O Ring, Adj End Cap Plunger 8 952-0001-1-8 1008 O Ring, Oiler Piston 2-022 90 Dur 9 952-0001-1-9 1012 One Way Valve (Schrader Valve) 10 952-0001-1-10 1019 Screen Flat Oiler .906 Dia 11 952-0001-1-11 3520 Bearing, 7/16" Stainless 12 952-0001-1-12 1017 Decal, Lube Minder Body 13 952-0001-1-33 4515 Holder, Manifold Valve Assembly 14 952-0001-1-14 2511 5/32 Push In Insert (Nycoil) 15 952-0001-1-15 6002 90° Degree 1/8" St Elbow 16 952-0001-1-16 6010 ½-20 Jam Nut 17 952-0001-1-17 2016 Bracket Oiler Mtg Pump 18 952-0001-1-18 2550 Reservoir Two Quart Tank 19 952-0001-1-19 M-4555 Hydraulic Hose Assembly Meyer Mfg. 20 952-0001-1-20 7010 Tubing 5/8" ID Clear Polybraid 21 952-0001-1-21 7012 Tubing 5/32" Nylon (Feet) 22 952-0001-1-25 4514 Brush Assembly No 5/32 Insert 22A 813-5020-Z ½ 20 Plated Nut 24 952-0001-1-27 576895 Sleeve Nut Brass 25 952-0001-1-28 576894 5/32 Brass Ferrule 27 952-0001-1-30 1" Hose Clamp 28 952-0001-1-31 4517 U-Bolt Assembly #13 29 952-0001-1-32 219P-2 1/8" Hex Head Pipe Plug 30 952-0001-2 #80 Brush Holder 31 952-0001-3 Left #120 Auger Chain Brush Holder 32 952-0001-4 Right #120 Auger Chain Brush Holder 33 952-0001-5 Oiler Tank Mount Plate 34 952-0001-6 #80 Center Shaft Chain Brush Holder 36 955-3803 BM Pipe Tee 3/8 x 3/8 x 3/8 37 08-0050 5/16” Loom Clamp
Model 7200 -51-
INSTRUCTIONS FOR AUTOMATIC CHAIN OILER
WARNING: DISCONNECT PTO DRIVE SHAFT AND HYDRAULIC HOSES (RELIEVE HYDRAULIC PRESSURE) BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS SPREADER. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
The automatic chain oiler attachment gives a squirt of clean oil to all roller chains every time that the spreaders rear gate, hydraulic cylinder is activated. In this way, the spreaders roller chains get oiled in direct proportion to the number of hydraulic cylinder cycles of the rear gate. This assures ade quate lubrication.
New 30 weight oil, which is placed in the reservoir tank mounted on the spreader, is all that is needed to properly lubricate all roller chains and sprockets. The automatic chain oiler does not use any oil from the tractors hydraulic system. The hydraulic hose connected to the bottom of the oiler pump only serves to power the piston in the pump every time that the spreaders rear gate is opened.
Should the oil reservoir tank run dry, pour about a ½ cup of clean 30 weight oil into the tank. Allow time for the oil to run down into the oiler pump slowly and allow air to escape. After thirty minutes to one hour has passed, finish filling the reservoir tank. Make sure that all fittings and brackets are tight when finished filling the tank.
WARNING: HYDRAULIC FLUID ESCAPING UNDER PRESSURE CAN HAVE SUFFI­CIENT FORCE TO PENETRATE SKIN. KEEP ALL HOSES AND CONNECTIONS IN GOOD SERVICEABLE CONDITION. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL IN­JURY OR DEATH.
-
While running the tractors hydraulics only This will cycle the hydraulic cylinder leading to the oiler pump. Keep cycling until oil can be seen in all of the oil lines leading to the oiler brushes. (If you experience problems priming the oiler pump, you may need to bleed air out of the hydraulic hose where it is connected to the pump. Crack the fit­ting until oil comes out then re-tighten.) The hydraulic cylinder that the oiler pump is tied into is dou ble acting and must reach 300 PSI of pressure to actuate the pump.
When replacing oiler brushes into brush holders, use regular ½"-20 nuts. Tighten nut finger tight ini tially as some adjustment may be needed later. For best results, place brush holders over top of roller chains and directly on top of sprockets. Adjust brush holders so oiler brushes are pushed down into the roller chain approximately ½". Carefully tighten up the ½"-20 nuts on the oiler brushes. DO NOT over tighten as damage to the brush will occur. brush will crack and then break off from the brush body.
IMPORTANT! The 5/32" oil line tubing can only be removed from an oiler brush by pushing in on the red plastic ring and pulling the tubing out while holding the ring down.
The oiler pump is set at the factory to deliver the maximum amount of oil per cycle. If less oil is de sired, loosen the jam nut on the bottom of the pump and screw in the adjusting shaft 1/4" or approxi mately 5 turns. It is not recommended to screw the shaft into the bottom of the oiler pump more than 15 turns as this may not allow for proper lubrication of the roller chains.
IMPORTANT! Always use new 30 weight oil. In cold weather, use a SAE 10 or a mixture of two parts of 30 weight oil to one part diesel fuel.
, open and close the spreaders rear gate several times.
The plastic threads of the oiler
-
-
-
-
Model 7200 -52-
MEYER INDUSTRIAL SPREADER “TROUBLE SHOOTING”
SYMPTOM PROBLEM SOLUTION
AUGERS
FLOW CONTROL GATE
GEAR BOXES
MATERIAL GUIDES
PTO SHAFT
ROLLER CHAINS AND SPROCKETS
SPINNERS PADDLES/ TEETH
Augers shake or chatter Stiff roller chains - dry
Augers wobble/lift up & down
Will not lift No hydraulic supply
Will not close/seal Lodged foreign object/dirty Remove foreign object/clean Sticks/binds Dirty/dry slide guides
Clunking sounds Gears/bearings wearing
Excessive oil use Worn out oil seals
Gear damage High speed/full load start-up
Dirty/build-up Too slow spinner RPM’s Operate spreader at recom-
Whips/shakes Over extended or bent PTO Adjust tractor drawbar length
Vibrates up & down Spreader center shaft bent Replace center shaft Worn Universal Joints Lack of lubrication/used Lubricate joints daily replace
Excessive chain wear Lack of lubrication
Roller chain breakage Loose roller chain
Sprocket teeth tipped over Worn roller chain
Spinners turn hard/squeak Bad lower spinner bearings Replace lower spinner
Shake at high RPM’s (excessive vibration)
Excessive paddle damage Wobbled out lower spinner
Loose roller chains Worn sprockets/chain Dry auger trough
Worn auger shaft bushings Worn auger hold down nylon bearings
Froze tight w/build-up
Worn slide guides Worn out slide guide polyslick
Low oil or fluid gear grease
Dry manure & twine wrapping
Worn out gears
Out of alignment/loose
Worn sprockets
Bad roller bearings
Spinner bent/out of balance Straighten/balance/replace
shaft
Lubricate roller chains Tighten roller chains Replace sprockets/chains Load auger trough w/manure
Replace auger shaft bushings Replace auger hold down nylon bearings
Supply hydraulic power Thaw frozen build-up
Clean/lubricate slide guides Replace slide guides Replace slide guide polyslick
Replace gears/bearings Fill with #80-#90 wt. Gear lube oil or fluid gear grease
Replace oil seals Clean & remove build-up at seal areas
Slow start-up, fill with oil Replace gears
mended RPM’s
- See Page 8
joint Lubricate/align/tighten
Tighten roller chains Replace sprockets
Replace roller chain Replace bearings
bearings
spinner Replace or reweld lower
spinner shaft
Too slow spinner RPM’s Lodging of manure
Spreading foreign objects
Model 7200 -53-
Operate spreader at recom mended RPM’s Adjust material guides Straighten/replace paddles
Avoid loading foreign objects
-
MEYER INDUSTRIAL SPREADER “MAINTENANCE
RECORD”
Model No.____________________ Serial No.____________________
Delivery Date:____________________
DATE SERVICE PERFORMED
DATE SERVICE PERFORMED
Model 7200 -54-
MEYER EQUIPMENT WHEEL TORQUE
BOLT/STUD
SIZE
½ 3/4 80 ft lbs Lug Bolt 85 ft lbs
9/16 7/8 80 ft lbs Lug Bolt 120 ft lbs
5/8 15/16 / 1-1/16 100 ft lbs Bevel or Flange
3/4 1-1/8 Flange Nut 265 ft lbs
SOCKET
SIZE
TIRE INFLATION
TIRE SIZE PLY PSI
11L-15 6 28 11L-15 8 36 11L-15 10 44 11L-15 12 52
12.5L-15 8 36
12.5L-15 10 44
12.5L-15 12 52 14L-16.1 8 32 14L-16.1 12 52
16.5L-16.1 8 28
16.5L-16.1 10 36
21.5L-16.1 10 36
21.5L-16.1 14 40 11R/22.5 used truck 75 425/65x22.5 used truck 75
PRESS FORMED WHEEL CENTER
BOLT TYPE
Nut
HEAVY DUTY
WHEEL CENTER
160 ft lbs
Model 7200 -55-
This Page Intentionally Blank
Model 7200 -56-
This Page Intentionally Blank
Model 7200 -57-
This Page Intentionally Blank
Model 7200 -58-
MEYER INDUSTRIAL SPREADER “SPECIFICATIONS”
Standard Equipment Specifications
Model 7200
Bushels 550 (no ht. ext.) 720 (with ht. ext.) Gallon 2630 3492 Cubic Foot 350 466 Weight 10,975 lbs 11,445 lbs. Overall Height w/21.5L Tire 81” (No ht. ext.) 98 ½” (with ht. ext.) Tank Length 18’ Overall Width w/21.5L Tire 110” Main Drive Chain #140 Tank Steel - copper bearing 1/4” Frame construction (channel) 8” Spindle Size 3 ½” Sleeved Hub Size 10 Bolt 15,000 lbs. Expeller Size 24” Expeller Speed 690 RPM Standard Auger Speed 13 RPM Standard Tractor PTO Speed (Max.) 1000 or 540 RPM Auger Diameter 20” Overall Length 26’5” Automatic Oiler Standard 3rd Auger (tough pen manure) Standard
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Manufactured by:
Meyer Mfg. Corp.
County Hwy. A West
P.O. Box 405
Dorchester, Wisconsin 54425-0405
Phone 715-654-5132 · FAX 715-654-5513
1-800-325-9103
www.meyermfg.com
E-mail: sales @meyermfg.com
Farm Equipment Buyers Trust the Name Meyer!
Model 7200 -59-
A
Loading...
