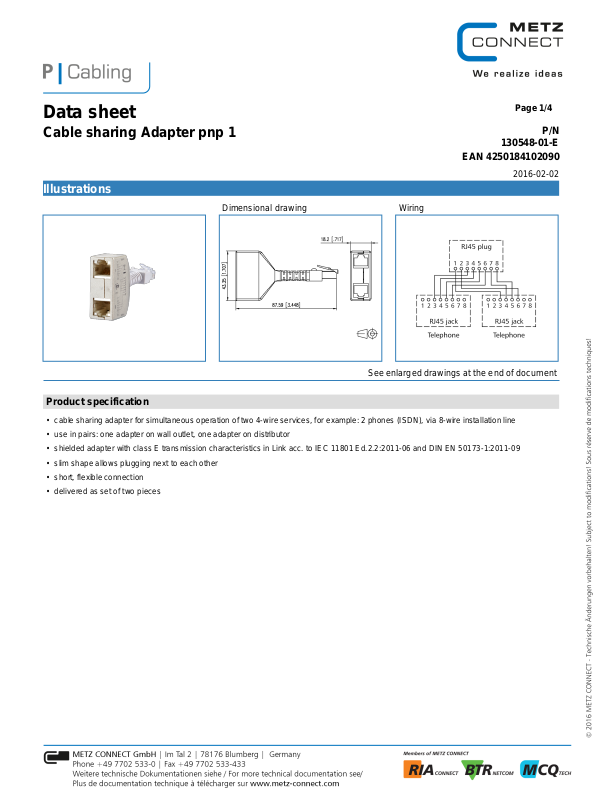

Page 1
Data sheet
Cable sharing Adapter pnp 1

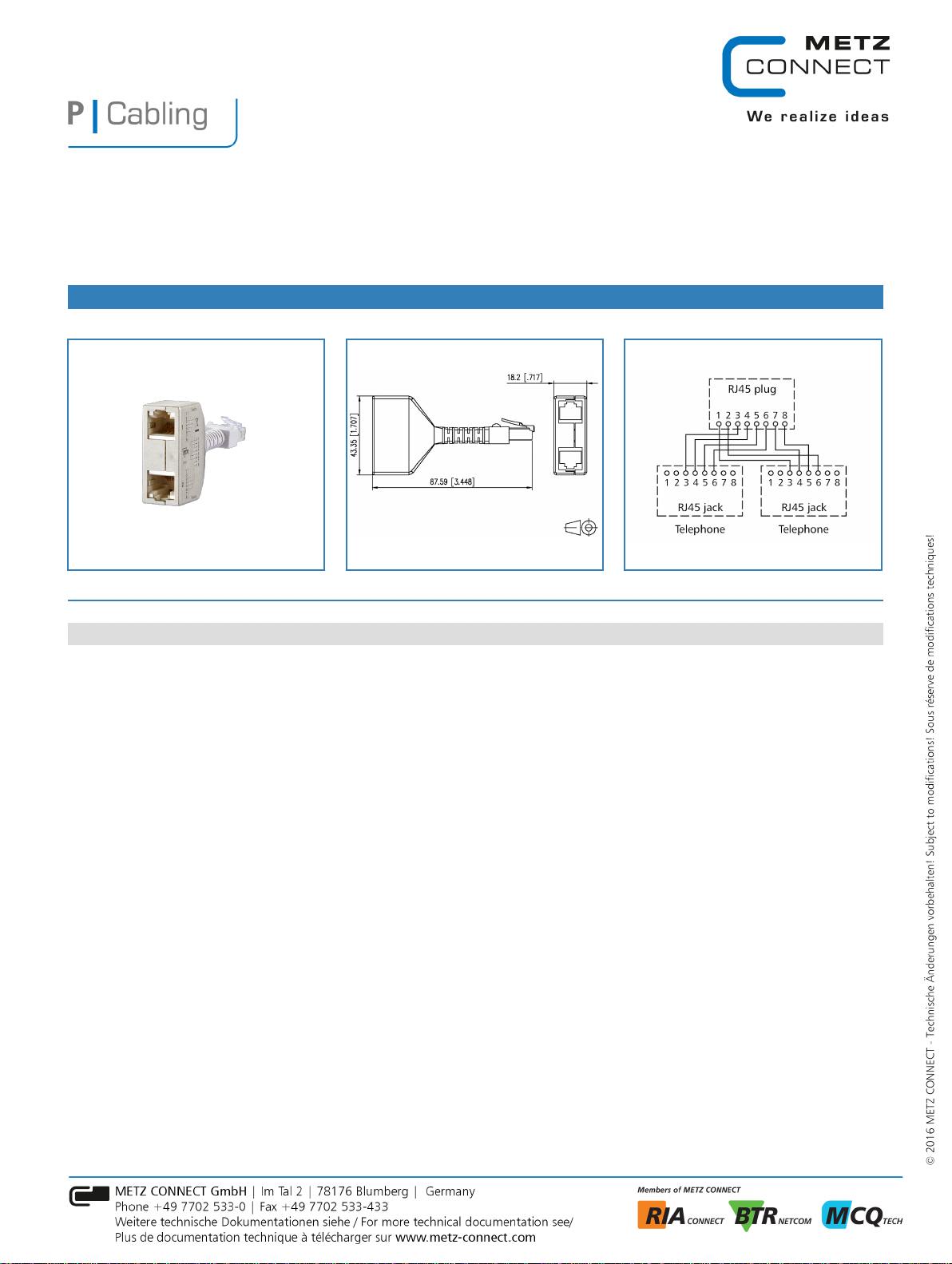

Illustrations
Dimensional drawing Wiring
Page 1/4
P/N
130548-01-E
EAN 4250184102090
2016-02-02
See enlarged drawings at the end of document
Product specification
• cable sharing adapter for simultaneous operation of two 4-wire services, for example: 2 phones (ISDN), via 8-wire installation line
• use in pairs: one adapter on wall outlet, one adapter on distributor
• shielded adapter with class E transmission characteristics in Link acc. to IEC 11801 Ed.2.2:2011-06 and DIN EN 50173-1:2011-09
• slim shape allows plugging next to each other
• short, flexible connection
• delivered as set of two pieces
Page 2
Data sheet
Cable sharing Adapter pnp 1
Technical Data
General Data
Design Adapter
Shielding shielded
Transmission technology Copper
Wiring Phone (ISDN) - Phone (ISDN)
Color silver
Dimensions
Dimension (L x W x H) 87.59 x 18.20 x 43.35 mm
Dimension (L x W x H) 3.45 x 0.72 x 1.71 in.
Labeling option on housing
Transmission characteristics
Class (ISO/IEC) E
Page 2/4
P/N
130548-01-E
EAN 4250184102090
2016-02-02
Connections/interfaces
Connector technology interface 1 RJ45 plug
Connector technology interface 2 2 x RJ45-jack
Number of ports interface 2 2
Number of ports interface 2 equipped 2
Number of positions/contacts interface 1 8P/8C
Number of positions/contacts interface 2 2x8P/4C
Mechanical characteristics
Life - Number of mating cycles min. 750
Position/mounting of latch - standard installation
position
top and bottom
Environmental conditions
Electromagnetic measurement E
2
Approvals
RoHS compliant
Page 3
Data sheet
Cable sharing Adapter pnp 1
EAN 4250184102090
Technical Data
The product meets the following standards
Generic cabling systems
General requirements ISO/IEC 11801 Ed.2.2: 2011-06 | DIN EN 50173-1: 2011-09
TIA/EIA 568-C
Connectors for electronic equipment
Round plug connectors DIN EN 61076-2-109:2010-08
Classifications
ETIM 5.0 EC001671
Packing details
Type of packaging 1 pc(s) / box
Packaging unit - Weight (gram) 85.00 g
Packaging unit - Weight (pound) 0.19 lb
Packaging dimension (W x H x D) 42.00 x 47.00 x 92.00 mm
Packaging dimension (W x H x D) 1.65 x 1.85 x 3.62 in.
Page 3/4
P/N
130548-01-E
2016-02-02
Page 4
Data sheet
Cable sharing Adapter pnp 1

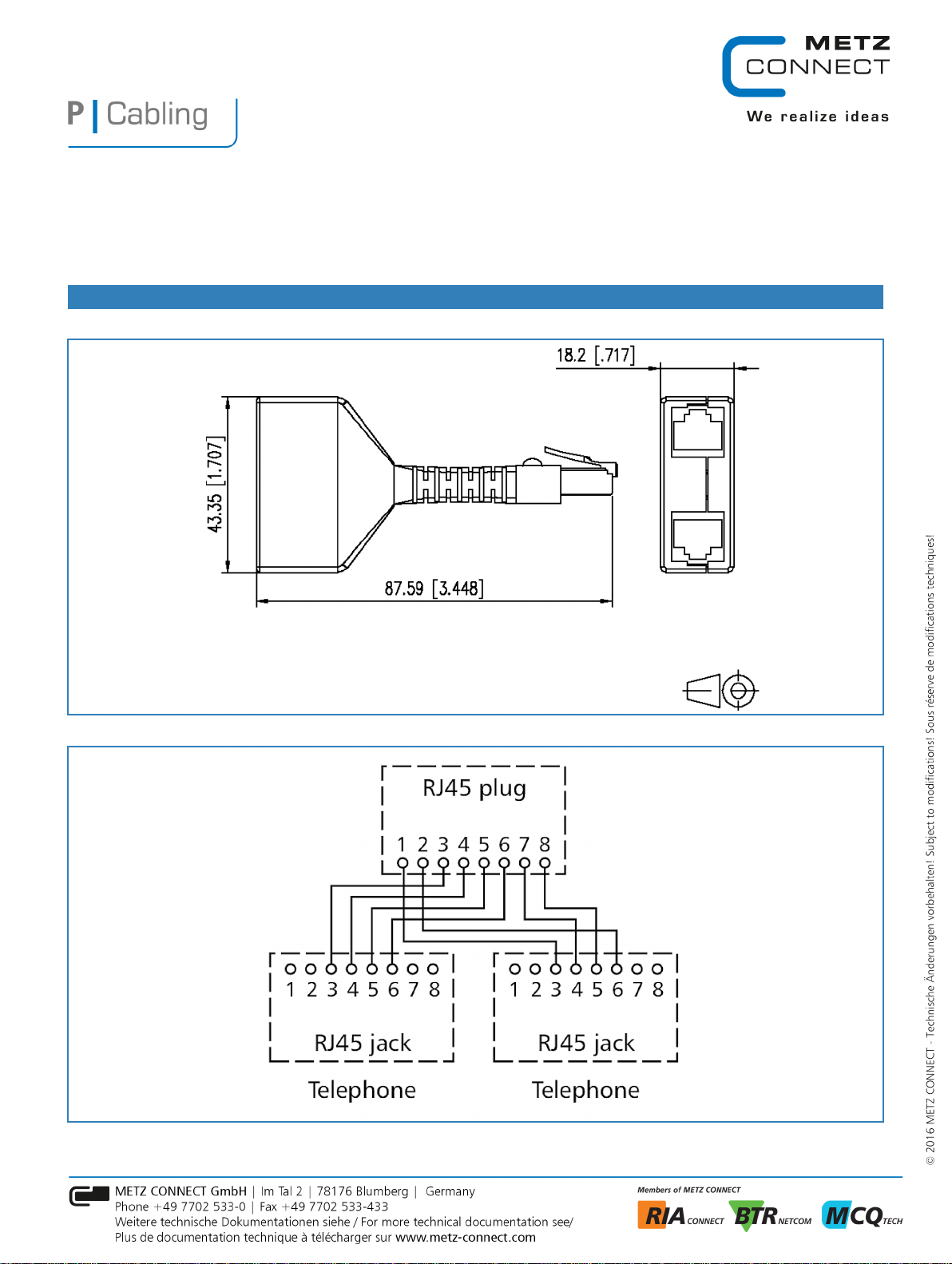

Illustrations
Dimensional drawing
Page 4/4
P/N
130548-01-E
EAN 4250184102090
2016-02-02
Wiring
