Jewelry Balances

JP/JS Models

Operating Instructions

Page 2

Page 3

Introduction1 7

Safety Precautions2 8

Overview3 9

Setting up the Balance4 13

Weighing Made Simple5 22

The Menu6 25

Conventions and Symbols Used in These Operating Instructions1.1 7

Components3.1 9 Operation Keys3.2 10 Display Panel3.3 11

Unpacking and Delivery Inspection4.1 13 Installing the Components4.2 14 Selecting the Location and Leveling the Balance4.3 15

Selecting the Location4.3.1 15 Leveling the Balance4.3.2 15

Power Supply4.4 16 AC Operation4.4.1 16 Battery Operation4.4.2 16

Transporting the Balance4.5 17 Weighing Below the Balance4.6 18 General Requirements4.7 18

Switching on the Balance4.7.1 18 Adjusting the Balance4.7.2 18

Adjustment (Calibration)4.8 19 Fully Automatic Adjustment FACT4.8.1 19 Adjustment with Internal Weight4.8.2 19 Adjustment with External Weight 4.8.3 19 Customer fine adjustment4.8.4 20

Switching the Balance On and Off5.1 22 Performing a Simple Weighing5.2 23 Zero Setting5.3 23 Switching Weight Units5.4 23 Recall / Recall Weight Value5.5 24 Weighing with the Weighing-in Aid5.6 24 Print / Transmit Data5.7 24

What is in the Menu ?6.1 25 Menu Operation6.2 26 Description of Menu Topics6.3 27

Main Menu6.3.1 27 Basic Menu6.3.2 27 Advanced Menu6.3.3 29 Interface Menu6.3.4 32

Table of Contents 3

Page 4

Applications7 37

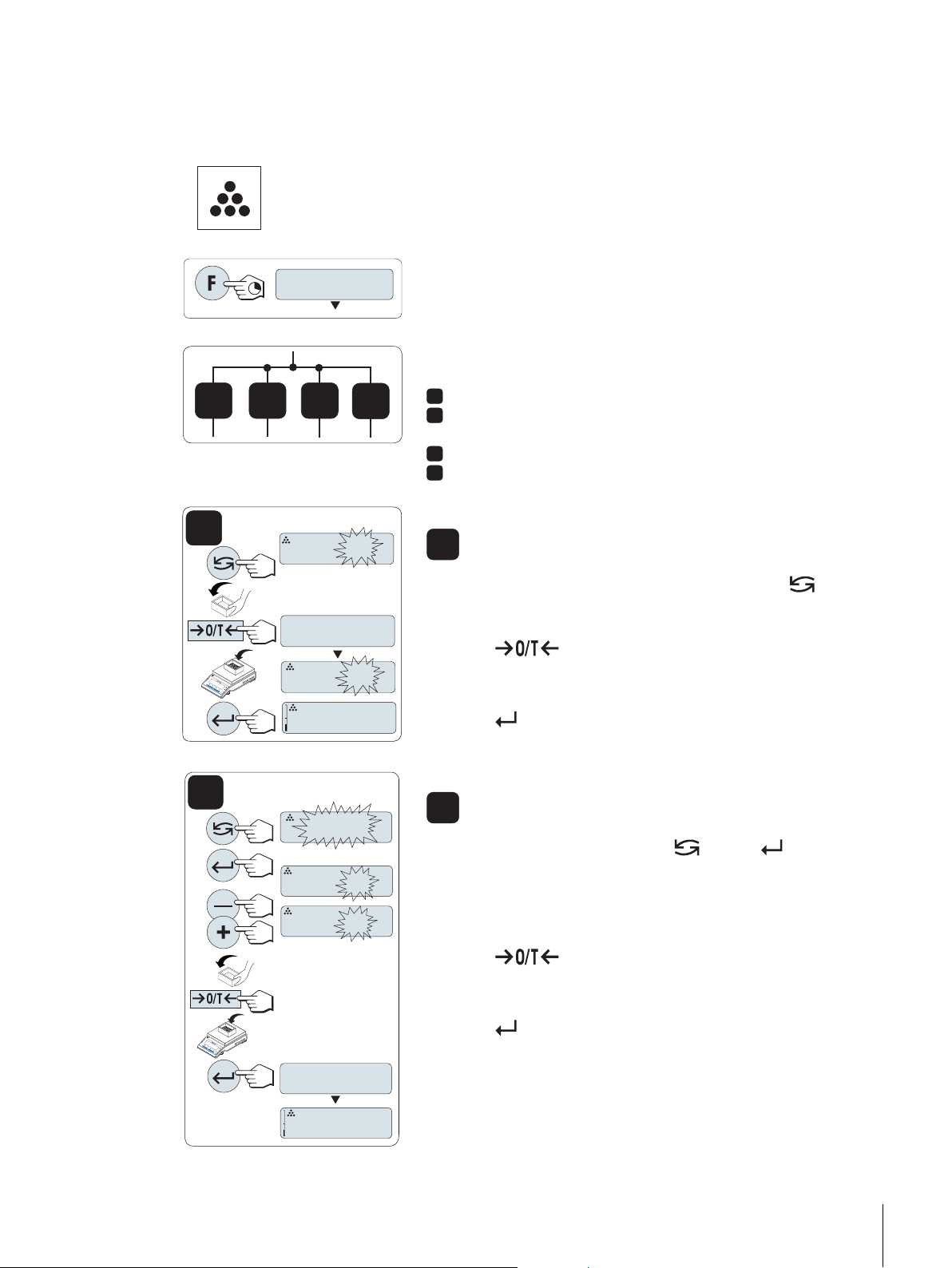

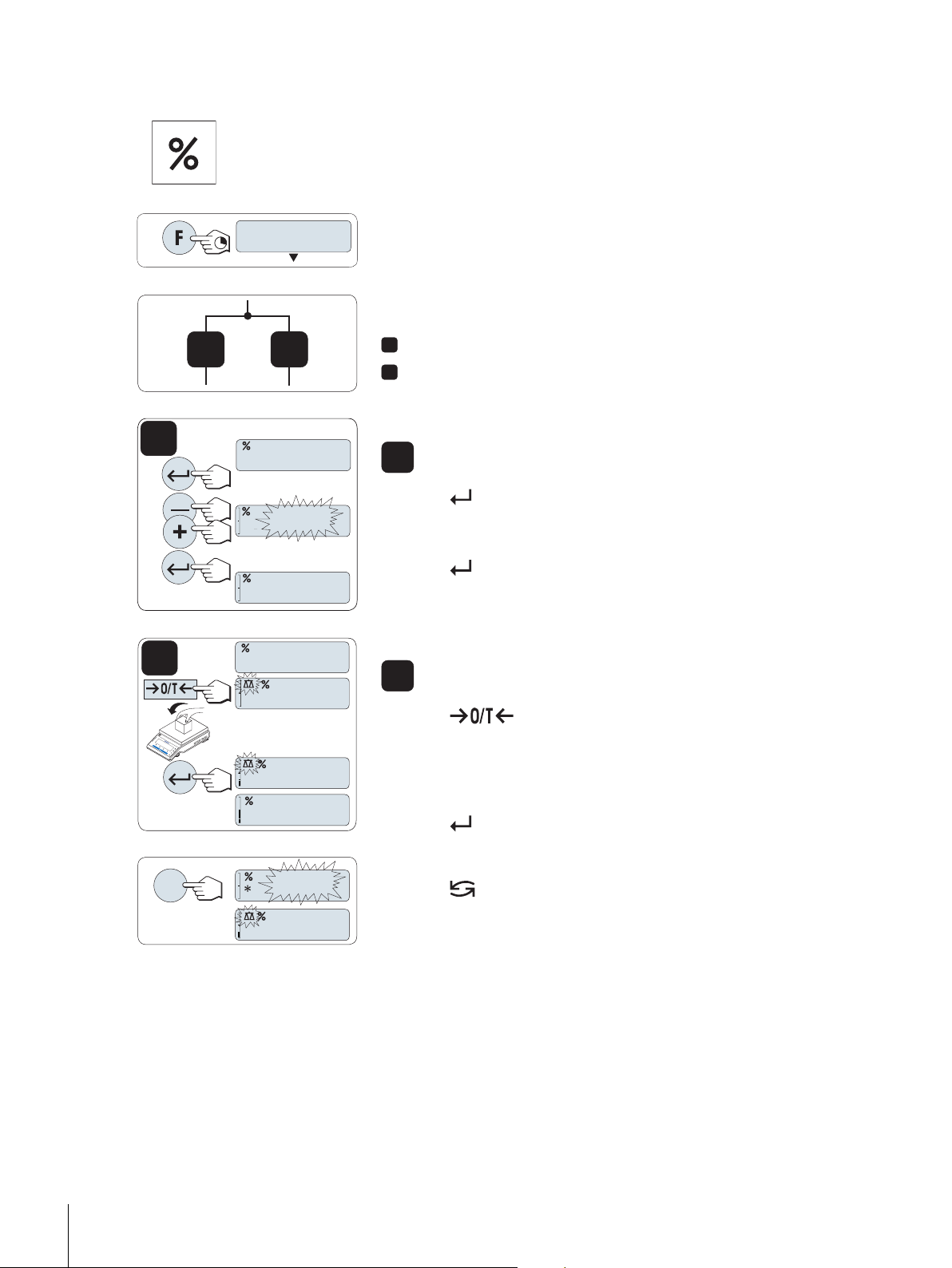

Application "Piece Counting"7.1 37 Application "Percent Weighing"7.2 40 Application "Check Weighing"7.3 42 Application "Statistics"7.4 45 Application "Totaling"7.5 47 Application "Multiplication Factor Weighing"7.6 49 Application "Division Factor Weighing"7.7 51 Application "Density"7.8 53

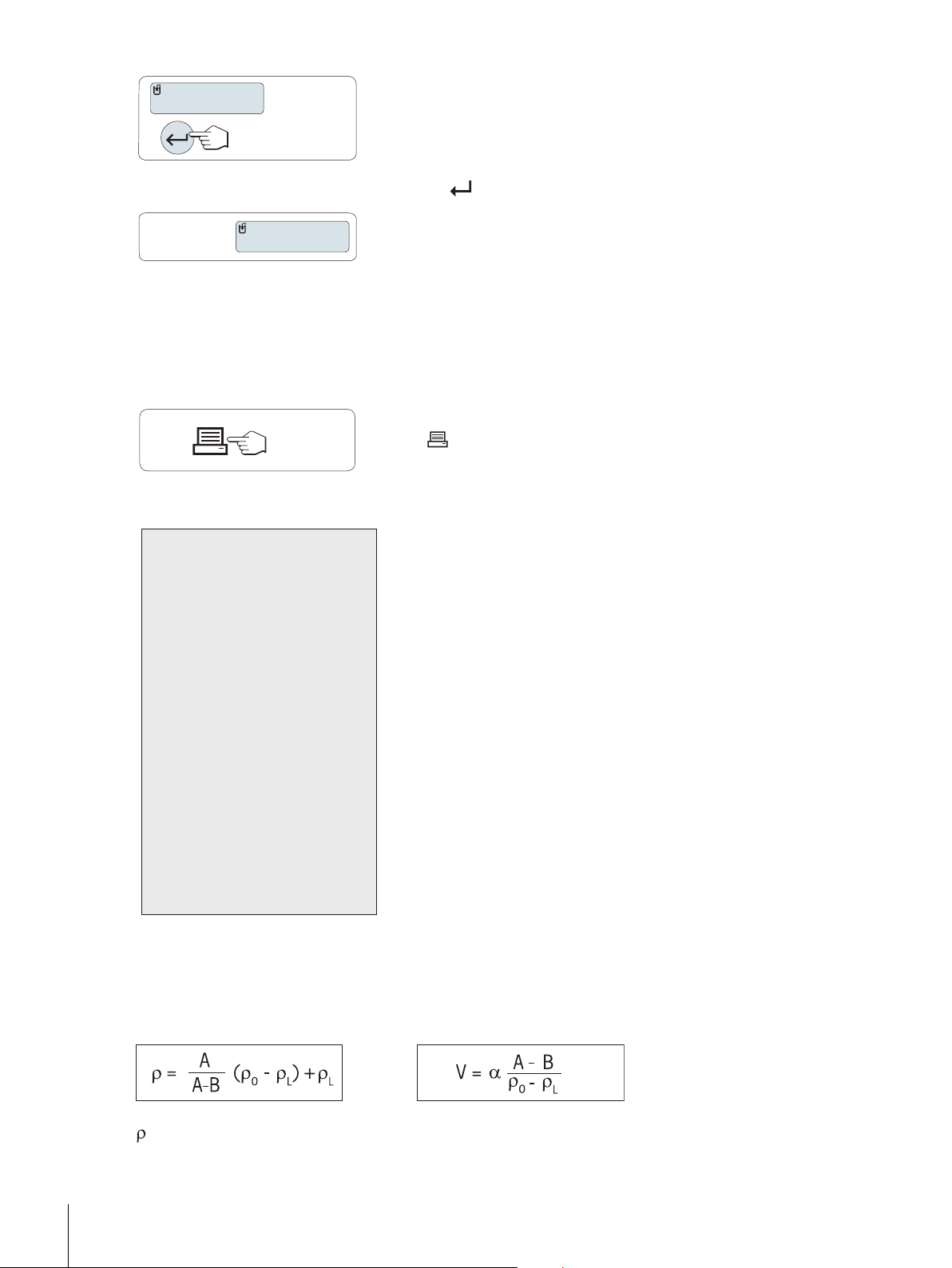

Density Determination of Solids7.8.1 53 Density Determination of Liquids7.8.2 55 Formulae Used to Calculate Density7.8.3 56

Application "Routine Test"7.9 59 Application "Diagnostics"7.10 62

Repeatability Test7.10.1 62 Display Test7.10.2 63 Key Test7.10.3 64 Motor Test7.10.4 65 Balance History7.10.5 65 Calibration History7.10.6 66 Balance Information7.10.7 67 Service Provider Information7.10.8 68

Communication with Peripheral Devices8 69

Function PC-Direct8.1 69

Firmware (Software) Updates9 71

Operating Principle9.1 71 Update Procedure9.2 71

Error and Status Messages10 73

Error Messages10.1 73 Status Messages10.2 74

Cleaning and Service11 75

Interface Specification12 76

RS232C Interface12.1 76 MT-SICS Interface Commands and Functions12.2 76

Technical Data13 77

General Data13.1 77 Model-Specific Data13.2 78

Carat Balances with Readability of 0.001 ct13.2.1 78 Gold Balances with Readability of 0.001 g13.2.2 80 Gold Balances with Readability of 0.01 g13.2.3 81 Gold Balances with Readability of 0.1 g13.2.4 84

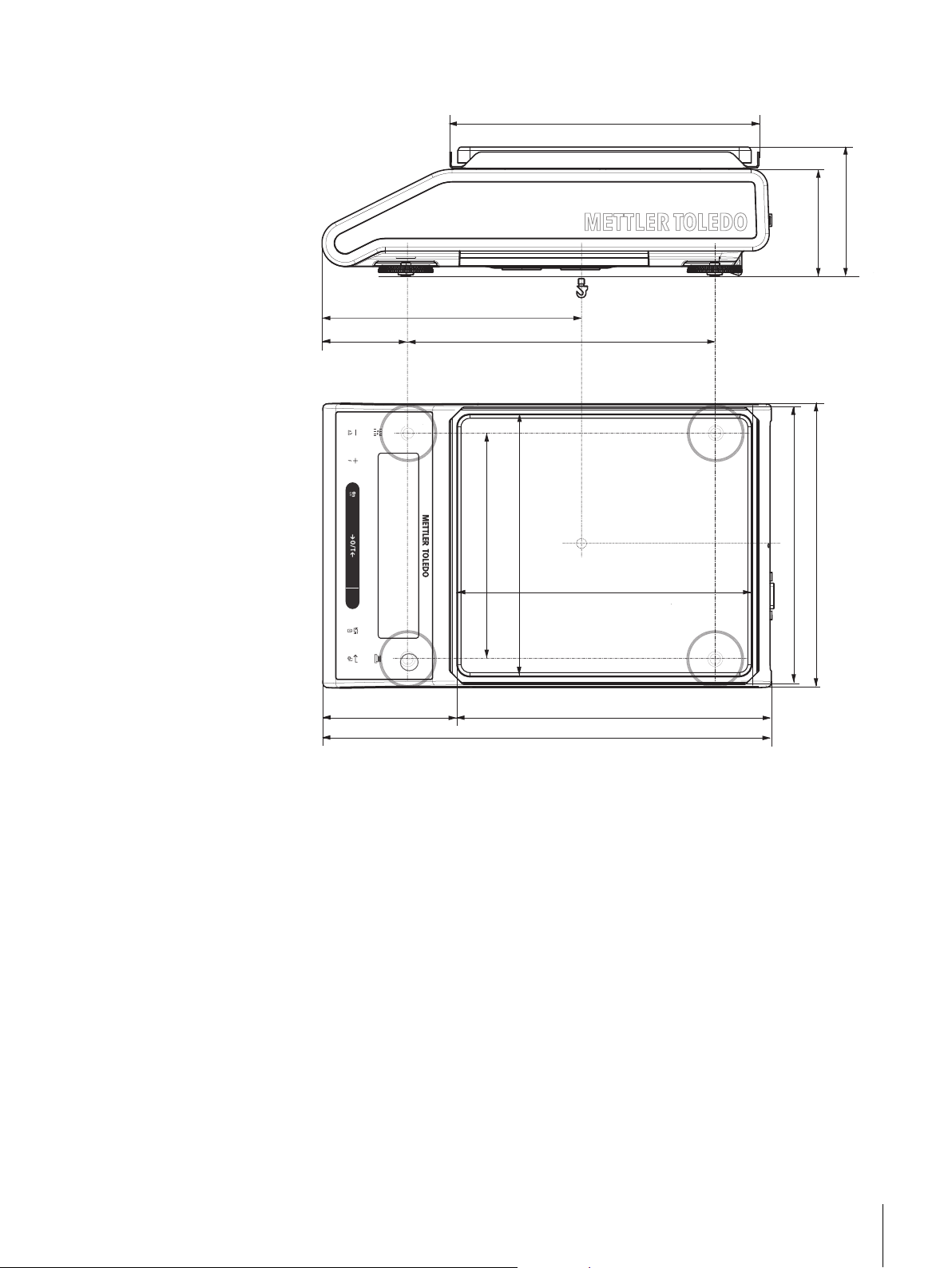

Dimensions13.3 85 Carat Balances with Readability of 0.001ct13.3.1 85

Table of Contents4

Page 5

Gold Balances with Readability of 0.001 g13.3.2 86 Gold Balances with Readability of 0.01 g13.3.3 87 Gold Balances with Readability of 0.1 g13.3.4 88

Accessories and Spare Parts14 89

Accessories14.1 89 Spare Parts14.2 93

Index 95

Table of Contents 5

Page 6

Page 7

1Introduction

Thank you for choosing a METTLER TOLEDO balance.

The precision balances of the Jewelry line combine a large number of weighing possibilities with easy opera tion.

These operating instructions

●

apply to all balance models JP/JS in the Jewelry line.

●

are based on the initially installed firmware (software) version V1.50.

However, the different models have different charcteristics regarding equipment and performance. Special notes in the text indicate where this makes a difference to operation.

1.1Conventions and Symbols Used in These Operating Instructions

Key designations are indicated by double angular brackets (e.g. « »).

This symbol indicates press key briefly (less than 1.5 s).

This symbol indicates press and hold key down (longer than 1.5 s).

This symbol indicates a flashing display.

This symbol indicates an automatic sequence.

These symbols indicate safety notes and hazard warnings which, if ignored, can cause per sonal danger to the user, damage to the balance or other equipment, or malfunctioning of the balance.

This symbol indicates additional information and notes. These make working with your bal ance easier, as well as ensuring that you use it correctly and economically.

7Introduction

Page 8

2Safety Precautions

Always operate and use your balance only in accordance with the instructions contained in this manual. The instructions for setting up your new balance must be strictly observed.

If the balance is not used according to these Operating Instructions, protection of the balance may be impaired and METTLER TOLEDO assumes no liability.

It is not permitted to use the balance in explosive atmosphere of gases, steam, fog, dust and flammable dust (hazardous environments).

For use only in dry interior rooms.

Do not use sharply pointed objects to operate the keyboard of your balance! Although your balance is very ruggedly constructed, it is nevertheless a precision instrument. Treat it with corresponding care.

Do not open the balance: It does not contain any parts which can be maintained, repaired, or replaced by the user. If you ever have problems with your balance, contact your METTLER TOLEDO dealer.

Use only balance accessories and peripheral devices from METTLER TOLEDO; they are opti mally adapted to your balance.

Use only the original universal AC adapter delivered with your balance.

Disposal

In conformance with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) this device may not be disposed of in domestic waste. This also applies to countries outside the EU, per their specific requirements.

Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. If you have any questions, please contact the responsible authority or the distributor from which you purchased this device. Should this device be passed on to other parties (for private or professional use), the content of this regu lation must also be related.

Thank you for your contribution to environmental protection.

8 Introduction

Page 9

3Overview

0.001 ct

0.001 g

0.01 g

0.1 g

3.1Components

Name and Function of Components

1 Display 8 Glass draft shield 2 Operation keys 9 Handle for operation of the draft shield door 3 Model sticker (with approved models only) 10 Socket for AC Adapter 4 Level indicator 11 RS232C serial interface COM1 5 Weighing pan 12 Kensington slot for anti-theft purposes 6 Draft shield ring / element 13 Second RS232C serial interface COM2 (JP

models)

7 Leveling foot 14 Product label

9Overview

Page 10

3.2Operation Keys

51 42

3 6

Key Functions

No. Key Press briefly (less than 1.5 s) Press and hold (longer than 1.5 s)

4 ON//OFF

●

To change display resolution (1/10d function) while application is running

Note: not available with approved mod els in selected countries.

●

To navigate back (scroll up) within menu topics or menu selections

●

Decrease (numerical) parameters within menu and in applications

●

To navigate forward (scroll down) within menu topics or menu selections

●

Increase (numerical) parameters within menu and in applications

●

Switch on

●

Zero

●

Cancel and to leave menu without saving (one step back in the menu).

●

With entries: scroll down

●

To navigate through menu topics or menu selections

●

To toggle between unit 1, recall value (if selected), unit 2 (if different from unit 1) and the application unit (if any)

no function

●

To select the weighing application

●

Decrease (numerical) parameters quickly within menu and in applications

●

To select assigned application and enter ing the parameter settings of application.

●

Default application assignment: Piece counting

●

Increase (numerical) parameters quickly within menu and in applications

●

Switch off

●

Switch off

no function

●

Execute predefined adjusting (calibration) procedure

10 Overview

Page 11

No. Key Press briefly (less than 1.5 s) Press and hold (longer than 1.5 s)

Application Icons

Status Icons

Weighing-in aid

Weight Value Field

Unit Field

3.3Display Panel

●

To enter or leave menu selection (from / to menu topic)

●

To enter application parameter or switch to next parameter

●

To confirm parameter

●

Printout display value

●

Printout active user menu settings

●

Transfer data

●

Enter or leave menu (Parameter settings)

●

Save parameters

Application Icons

Menu locked Application "Statistics"

Menu setting activated Application “Totaling”

Application "Weighing" Application “Multiplication factor”

Application "Piece counting" Application “Division factor”

Application "Percent weighing" Application “Density”

Application "Check weighing"

Note

While an application is running, the corresponding application icon appears at the top of the display.

Status Icons

Indicates stored value (Memory) Acoustic feedback for pressed keys activated

Adjustments (calibration) started Weighing range 1 (Dual Range models only)

FACT activated Weighing range 2 (Dual Range models only)

Applications "Diagnostics" and “Routine Test” Charge of battery: full, 2/3, 1/3, discharged

(Battery operated models only)

Service reminder

Weight Value Field and Weighing-in aid

Indicates negative values Brackets to indicate uncertified digits

(approved models only)

Indicates unstable values Marking of nominal or target weight

11Overview

Page 12

Weight Value Field and Weighing-in aid

Indicates calculated values Marking of tolerance limit T+

Unit Field

g gram ozt troy ounce tls Singapore taels

kg kilogram GN grain tlt Taiwan taels

mg milligram dwt pennyweight tola tola

ct carat mom momme baht baht lb pound msg mesghal

oz ounce tlh Hong Kong taels

Marking of tolerance limit T-

12 Overview

Page 13

4Setting up the Balance

The balance must be disconnected from the power supply when carrying out all setup and mounting work.

4.1Unpacking and Delivery Inspection

1 Open the packaging and carefully remove all components.

2 Check the delivered items.

The standard scope of delivery contains the following items:

Components Carat balances Gold balances

Draft shield 165 mm – –

Weighing pan

Draft shield ring – – –

Draft shield element – – –

Pan support

Bottom plate – –

Protective cover

Universal AC adapter (with plug set)

Carat pan S 80 Ø x 20 mm – – –

Operating instructions printed or on CD-ROM depending on the country

Quick Guide

EC declaration of conformity

Ø 90 mm – – –

Ø 120 mm – – –

170 x 190 mm – –

0.001 ct 0.001 g 0.01 g 0.1 g

13Setting up the Balance

Page 14

4.2Installing the Components

Carat balances with readability of 0.001 ct

– Place the following components on the balance in

the specified order:

Note: Push the side glass door (1) back as far as will go.

●

Bottom plate (2)

●

Draft shield element (3)

●

Pan support (4)

●

Weighing pan (5)

Gold balances with readability of 0.001 g

– Place the following components on the balance in

the specified order:

Note: Push the side glass door (1) back as far as will go.

●

Bottom plate (2)

●

Pan support (3) if present

●

Weighing pan (4)

14 Setting up the Balance

Gold balances with readability of 0.01g

1 Remove the two screws (1)

2 Remove the plate (2) and retain it.

3 Place draft shield element (3) and fix it with the

two screws.

4 Place pan support (4) with weighing pan (5).

Page 15

Gold balances with readability of 0.1 g

– Place the following components on the balance in

the specified order:

●

Pan support (1)

●

Weighing pan (2)

4.3Selecting the Location and Leveling the Balance

Your balance is a precision instrument and will thank you for an optimum location with high accuracy and dependability.

4.3.1Selecting the Location

Select a stable, vibration-free position that is as horizontal as possible. The surface must be able to safely carry the weight of a fully loaded balance.

Observe ambient conditions (see Technical Data).

Avoid the following:

●

Vibrations

●

Excessive temperature fluctuations

●

Direct sunlight

●

Powerful drafts (e.g. from fans or air conditioners)

4.3.2Leveling the Balance

The balances have a level indicator and two or four adjustable leveling feet to compensate for slight irregularities in the surface of the weighing bench. The balance is exactly horizontal when the air bubble is in the middle of the level glass.

Note: The balance should be leveled and adjusted each time it is moved to a new location.

Balances with 2 leveling feet

– Adjust the two front leveling feet appropriately until the air bubble

comes to rest exactly in the middle of the glass:

Air bubble at "12 o'clock" turn both feet clockwise Air bubble at "3 o'clock" turn left foot clockwise, right

foot counterclockwise Air bubble at "6 o'clock" turn both feet counterclockwise Air bubble at "9 o'clock" turn left foot counterclockwise,

right foot clockwise

15Setting up the Balance

Page 16

4.4Power Supply

4.4.1AC Operation

Your balance is supplied with an country-specific AC adapter or with a country-specific power cable. The power supply is suitable for all line voltages in the range: 100 - 240 VAC, 50/60 Hz (for exact specifications, see section "technical data").

Balances with 4 leveling feet

1 First turn the two rear leveling feet all the way in.

2 Adjust the two front leveling feet as previously described.

3 Turn the rear leveling feet down onto the surface for extra stabiliz

ing safety, so the balance cannot tilt over under eccentric loads.

Allow your balance to warm up for 30 minutes (0.1 mg models 60 minutes) to enable it to adapt itself to the ambient conditions.

First, check the local line voltage is in the range 100 - 240 VAC, 50/60 Hz and whether the power plug fits your local power supply connection. If this is not the case, on no account connect the balance or the AC adapter to the power supply, but contact the responsible METTLER TOLEDO dealer.

Important:

●

4.4.2Battery Operation

The Balance can also operate with batteries. Under normal operation conditions, the balance works indepen dently of the AC power line for about 8 to 15 hours (using alkaline batteries). Immediately after the AC power supply is interrupted e.g. by withdrawing the power plug or if there is a power failure, the balance switches automatically to battery operation. Once the AC power supply is restored, the balance reverts automatically to AC operation.

Note: It is also possible to use rechargeable batteries. Charging batteries inside the balance is not possible.

Before operating, check all cables for damage. Guide the cables so that they cannot become damaged or interfere with the weighing

process! Take care that the AC adapter cannot come into contact with liquids! The power plug must be always accessible.

Connect the AC adapter to the connection socket on the back of your balance (see figure) and to the power line.

16 Setting up the Balance

Page 17

battery full

2/3 full

1/3 full

battery empty

Inserting / Replacing Batteries

The balance must be disconnected from the power supply when carrying out all setup and mounting work.

●

Make sure that the balance is off before removing or inserting batteries.

●

Do not place the balance on the pan support location bolt.

●

Battery Warnings: Read and follow all warnings and instructions supplied by the battery manufacturer.

●

Do not mix different types or brands of batteries. Performance of batteries can vary very greatly depending on the manufacturer.

●

If you don't operate the balance with batteries for an extended period, it is recommended to remove the batteries from the balance.

●

Batteries must be disposed of in an environmentally responsible manner. No attempt must be made to incinerate or disassemble item.

When the balance is operating on its batteries, the battery symbol in the display lights up. The number of segments that are lit is an indica tor of battery condition (3 = fully charged, 0 = discharged). When the batteries are almost completely discharged, the battery symbol flashes.

Your balance uses 8 standard AA (LR6) batteries (alkaline batteries preferred)

4.5Transporting the Balance

Switch off the balance and remove the power cable and any interface cable from the balance. Refer to the notes in Section "Selecting the location" regarding the choice of an optimal location.

Transporting Over Short Distances

For balances with a draft shield: Observe the following instructions to transport your bal ance over a short distance to a new location: Never lift the balance using the glass draft shield. The draft shield is not sufficiently fastened to the balance.

1 Remove weighing pan, pan support and draft shield element or

draft shield "100 mm" if present.

2 Turn the balance carefully on its side.

3 Open and remove the battery-chamber cover.

4 Insert / replace the batteries with the correct polarity as shown in

the battery holder.

5 Insert and close the battery-chamber cover.

6 Turn the balance carefully to its normal position.

7 Reinstall all components in the reverse order.

17Setting up the Balance

Page 18

Transporting Over Long Distances

If you would like to transport or send your balance over long distances, use the complete original packaging.

4.6Weighing Below the Balance

The balances are equipped with a hanger for carrying out weighings below the work surface (weighing below the balance).

Attention:

●

Do not place the balance on the pan support location bolt.

4.7General Requirements

1 Switch off the balance and remove the power cable and any

interface cable from the balance.

2 Remove weighing pan, pan support and draft shield element

or "Easy draft shield" if present.

3 Turn the balance carefully on its side.

4 Remove one of the caps (A) depending on the models.

5 Then turn the balance to its normal position and simply rein

stall all components in the reverse order.

4.7.1Switching on the Balance

Before working with the balance, it must be warmed up in order to obtain accurate weighing results. To reach operating temperature, the balance must be connected to the power supply for at least

●

30 minutes on balances with a readability of 0.001 g (0.01 ct) to 0.1 g.

●

60 minutes on balances with a readability of 0.1 mg (0.001 ct) and better.

25The Menu

Page 26

Topic Description

406.2

ADVANCE

BASIC

TIME

DATE

ENVIRON.

STABLE

ENVIRON.

01. 2500

01. 6500

01.6500

STOPBIT Setting the character format (stop bit) of the serial interface RS232C. HD.SHK Setting the transfer protocol (Handshake) of the serial interface RS232C. RS E.O.L. Setting the end of line format of the serial interface RS232C. RS.CHAR Setting the char set of the serial interface RS232C. INTERVL. Selection of the time interval for the simulated print key press.

6.2Menu Operation

In this Section you will learn how to work with the menu.

Select Menu

1 Press and hold « » to activate main menu. The first menu

"BASIC" is displayed (except menu protection is active).

2 Press « » repeatedly to change menu (Scrolling down/up «+» /

«–» keys).

3 Press « » to confirm the selection.

Select Menu Topic

– Press « ». The next menu topic appears in the display. Each

time the « » or the «+» key is pressed, the balance switches to the next menu topic; the «–» key to the previous menu topic.

Change Settings in a Selected Menu Topic

1 Press « ».The display shows the current setting in the selected

menu topic. Each time « » or «+» is pressed, the balance switches to the next selection; press «–» to the previous selection. After the last selection, the first is shown again.

2 Press « » to confirm the setting. For store the setting see section

Saving Settings and Closing the Menu.

Change Settings in a Submenu Selection

The same procedure as for menu topics.

Input Principle of Numerical Values

1 Press « » for input of numerical values.

2 Press « » to select a digit or a value (depending on the applica

tion). The selected digit or the selected value is blinking.

3 For changing digits or values, press «+» to scroll up or «–» to

scroll down.

4 Press « » to confirm the input.

26 The Menu

Page 27

SAVE:YES

SAVE:NO

Note: If no entry is made within 30 seconds, the balance reverts to last active application mode. Changes are not saved. If changes are made, the balance asks "SAVE:NO".

6.3Description of Menu Topics

In this Section you will find information regarding the individual menu topics and the available selections.

6.3.1Main Menu

Selecting the menu.

"BASIC" The small "BASIC" menu for simple weighing is displayed. "ADVANCE." The extended "ADVANCE." menu for further weighing settings is

"INT.FACE" The menu "INT.FACE" for all interface parameter settings for

"PROTECT" Menu protection. Protection of balance configurations against

"OFF" Menu protection is off. (Factory setting)

"ON" Menu protection is on. The menu BASIC, ADVANCE. and

Saving Settings and Closing the Menu

1 Press and hold « » to leave menu topic.

2 Press « » to execute "SAVE:YES". Changes are saved.

3 Press « » to execute "SAVE:NO". Changes are not saved. To tog

gle between "SAVE:YES" and "SAVE:NO" press « ».

Cancel

– For leaving menu topic or menu selection without saving press «C»

(one step back in the menu).

displayed.

peripheral devices e.g. printer is displayed.

unmeant manipulation.

INT.FACE are not displayed. This is indicated with " " in the dis play.

6.3.2Basic Menu

"DATE" – Date

Setting the current date according to date format.

Note: A reset of the balance will not change this setting.

"TIME" – Time

Setting the current time according to time format

"+1H" Set the current time forwards by 1 hour (to adjust summer or

winter time). (Factory setting)

"-1H" Set the current time backwards by 1 hour (to adjust summer or

winter time).

"SET.TIME" Enter the current time.

Note: A reset of the balance will not change this setting.

27The Menu

Page 28

"UNIT 1" – Weight Unit 1

Depending on requirements, the balance can operate with the following units (depending on the model)

●

Only those weight units allowed by the appropriate national legislation are selectable.

●

With approved balances, this menu topic has a fixed setting and cannot be changed.

Units:

ct lb Pound tls

Gram dwt Pennyweight Kilogram mom Momme Milligram msg Mesghal Carat tlh Tael Hong Kong

Tael Singapore

oz Ounce (avdp) tlt Tael Taiwan ozt Ounce (troy) tola Tola GN Grain baht Baht

factory setting for gold balances

factory setting for carat balances

not with 0.1 mg and 1 mg balances

with 0.1 mg and 1 mg balances

the Malaysian tael has the same value

"UNIT 2" – Weight Unit 2

If it is required to show the weighing results in weighing mode in an additional unit, the desired second weight unit can be selected in this menu topic (depending on the model). Units see "UNIT 1".

Note: Only those weight units allowed by the appropriate national legislation are selectable.

"KEY.BEEP" – Key Beep

This menu topic allows you to select the volume of the key beep. The according key beep is emitted during the setting.

"MED" Medium level (Factory setting) "HIGH" High level "OFF" Beep switched off "LOW" Low level

"STB.BEEP" – Stability Beep

If the unstable symbol disappears, the stability beep becomes active. This menu topic allows you to preselect the volume of the stability beep.

"LOW" Low level (Factory setting) "MED" Medium level "HIGH" High level "OFF" Beep switched off

"RESET" – Reset Balance Settings

This menu topic allows you to call-up the factory settings.

To toggle between "YES?" and "NO?" press « ».

Note: A reset of the balance will not change the "DATE" and "TIME" settings.

28 The Menu

Page 29

6.3.3Advanced Menu

"WEIG.MOD" – weighing mode settings

This setting can be used to to adapt the balance to the weighing mode.

"ENVIRON." – Environment Settings

This setting can be used to match your balance to the ambient conditions.

"CAL" – Adjustment (calibration)

In this menu topic you can preselect the function of the « » key. Your balance can be adjusted with internal or external weights by pressing the « » key. If you have attached a printer to your balance, the data of the adjust ment (calibration) are printed out.

"UNIVERS." For all standard weighing applications. (Factory setting) "DOSING" For dosing liquid or powdery products. With this setting, the bal

ance responds very quickly to the smallest changes in weight.

"STD." Setting for an average working environment subject to moderate

variations in the ambient conditions. (Factory setting)

"UNSTAB." Setting for a working environment where the conditions are con

tinuously changing.

"STABLE" Setting for a working environment which is practically free from

drafts and vibrations.

"ADJ.OFF" The adjustment is switched off. The « » key has no function. "ADJ.INT" Internal adjustment: adjustment is performed at a keystroke with

the built-in weight (depending on the model, see technical data).

"ADJ.EXT" External adjustment: adjustment is performed at a keystroke with

a selectable external weight. Note:This function is not available for approved balances * (depend on selected countries' certification legislation). * except OIML accuracy class I approved models.

"200.00 g" Defining the external adjustment weight: define the weight of

the external adjustment weight (in grams).

Factory setting: depends on the model.

"CST.F.ADJ" – Customer Fine Adjustment

This function allows you to adjust the value of the internal adjustment weight with your own adjustment weight. This feature is available on models with internal weight only. For more information, see Chapter Adjustment.

"EXECUTE" Executes customer fine adjustment (Factory setting) "RESET" Sets adjustment back to initial adjustment.

NO?: Abort reset function YES?: Execute reset function

"FACT" – Fully Automatic Adjustment

Fully automatic internal adjustment (calibration) FACT (Fully Automatic Calibration Technology) provides fully automatic balance adjustment based on temperature criteria and on preselected time. (depending on the mod el, see technical data)

"TIME" Execute FACT (with selected time).

"12:00" Specify the time for a fully automatic adjustment to take place

every day. Factory setting: 12:00 (according to time format)

"OFF" FACT is switched off.

29The Menu

Page 30

"FACT.PRT" – Protocol Trigger for Fact

This setting specifies whether an adjustment report should be printed automatically. Note: This menu topic does not affect the printing of adjustments with an internal or external adjustment weight.

"OFF" Protocol switched off: if the balance adjusts automatically

(FACT), a protocol is not printed out.

"ON" Protocol switched on: a record is printed out after every automat

ic adjustment of the balance (FACT).

Note: The protocol is printed out without a line for signatures.

"DATE.FRM" – Date Format

This menu topic allows you to preselect the date format.

The following date formats are available:

Display examples Printing examples

"DD.MM.Y" 01.02.09 "MM/DD/Y" 02/01/09 "Y-MM-DD" 09-02-01 "D.MMM Y" 1.FEB.09 "MMM D Y" FEB.1.09

01.02.2009

02/01/2009

2009-02-01

1.FEB 2009

FEB 1 2009

Factory setting: "DD.MM.Y"

"TIME.FRM" – Time Format

This menu topic allows you to preselect the time format.

The following date formats are available:

Display examples

"24:MM" 15:04 "12:MM" 3:04 PM "24.MM" 15.04 "12.MM" 3.04 PM

Factory setting: "24:MM"

"RECALL" – Recall

This menu topic allows you to switch the "RECALL" function on or off. When it is switched on recall stores the last stable weight if the absolute display value was bigger than 10d.

"OFF"

"ON"

"RECALL" switched off (Factory setting)

"RECALL" switched on

Note: The recall value is displayed with an asterisk and cannot be printed.

"SHUTOFF" – Automatic Shutoff

If the automatic shutoff function is activated, the balance automatically switches itself off after a preselected time of inactivity (i.e. with no key being pressed or changes of weight occurring etc.) and is switched to the standby mode.

"A.OFF:10' " Automatic shutoff after 10 minutes of inactivity. (Factory setting) "A.OFF – " Automatic shutoff not activated. "A.OFF:2' " Automatic shutoff after 2 minutes of inactivity. "A.OFF:5' " Automatic shutoff after 5 minutes of inactivity.

30 The Menu

Page 31

"B.LIGHT" – Backlight

Under this menu topic, the display backlight can be switched off automatically. If the automatic switch-off is activated, the backlight will turn off automatically after the selected period of inactivity has elapsed. The back light is reactivated when a key is pressed or the weight is changed.

"B.L. ON" Backlight is always on. (Factory setting) "B.L. OFF" Backlight is always off. "B.L. 30" " Automatic switch-off after 30 seconds inactivity. "B.L. 1' " Automatic switch-off after 1 minute inactivity. "B.L. 2' " Automatic switch-off after 2 minutes inactivity. "B.L. 5' " Automatic switch-off after 5 minutes inactivity.

"A.ZERO" – Automatic Zero Setting

This menu topic allows you to switch the automatic zero setting on or off.

“ON“ "A.ZERO" switched on (factory setting). The automatic zero set

ting continuously corrects possible variations in the zero point that might be caused through small amounts of contamination on the weighing pan.

"OFF" "A.ZERO" switched off. The zero point is not automatically cor

rected. This setting is advantageous for special applications (e.g. evaporation measurements).

Note: With approved balances, this setting is not available (only available in selected countries).

"ASSIGN:F" – Assign Application Key F

At this menu topic you can assign an application to the «F» key. The following applications are available (depending on the model):

"COUNT" Piece counting (Factory setting) "PERCENT" Percent weighing "CHECK" Checkweighing "STAT" Statistics "TOTAL" Totaling "FACTOR.M" Multiplication factor "FACTOR.D" Division factor "DENSITY" Density (not available with JS models) "R.TEST" Routine test

"DIAGNOS." – Diagnostics Application

At this menu topic you can start a diagnostic application. For more information see chapter application "Diag nostics". The following diagnostics are available:

"REPEAT.T" Repeatability test (models with internal weights only) "DISPLAY" Display test "KEYPAD.T" Key test "CAL.MOT.T" Motor test (models with internal weights only) "BAL.HIST" Balance history "CAL.HIST" Calibration history "BAL.INFO" Balance information "SRV.PROV" Service provider information

31The Menu

Page 32

"SRV.ICON" – Service Reminder

This menu topic allows you to switch the service reminder " " on or off.

"SRV.D.RST" – Service Date Reset

This menu topic allows you to reset service date and hours. Note: This menu topic is only available if “SRV.ICON” setting “ON” was selected.

To toggle between “YES?” and “NO?” press « ».

6.3.4Interface Menu

"ON" Service reminder " " switched on.You will be informed after one

Year or 8000 operating hours to call service for recalibration. This will be indicated by the flashing service icon: " ". (Factory

setting)

"OFF" Service reminder " " switched off.

"RS232" – RS232C Interface

At this menu topic you can select the peripheral device connected to the RS232C interface and specify how the data is transmitted.

"PRINTER" Connection to a printer. (Factory setting)

Note:

●

Only one printer possible.

●

See recommended printer settings found in section "Appen dix", as well as the printer-specific user's manual.

"PRT.STAB" If the « » key is pressed, the next stable weight value will be

printed. (Factory setting)

"PRT.AUTO" Every stable weight value will be printed, without pressing the

« » key.

"PRT.ALL" If the « » key is pressed, the weight value will be printed

regardless of stability.

"PC-DIR." Connection to a PC: the balance can send data (as a Keyboard)

to the PC used for PC applications e.g. Excel. Note: The balance sends the weight value without the unit to the PC.

"PRT.STAB" If the « » key is pressed, the next stable weight value will be

sent followed by an enter. (Factory setting)

"PRT.AUTO" Every stable weight value will be sent followed by an enter, with

out pressing the « » key.

"PRT.ALL" If the « » key is pressed, the weight value will be sent followed

by an enter regardless of stability.

"HOST" Connection to a PC, Barcode Reader etc.: the balance can send

data to the PC and receive commands or data from the PC. Note: The balance sends the complete MT-SICS answer to the PC

(see chapter "MT-SICS Interface Commands and Functions". "SND.OFF" Send mode switched off.(Factory setting) "SND.STB" If the « » key is pressed, the next stable weight value will be

sent.

"SND.CONT" All weight value updates will be sent regardless of stability, with

out pressing the « » key.

"SND.AUTO" Every stable weight value will be sent, without pressing the « »

key.

32 The Menu

Page 33

"SND.ALL" If the « » key is pressed, the weight value will be sent regard

less of stability.

"2.DISP" Connection of an optional auxiliary display unit.

Note: The transmission parameters cannot be selected. Settings are automatically set.

Attention: If you select 2nd Display "2.DISP", first make sure that no other device is connected at COM1 as an auxiliary display. Other devices could be damaged because of the voltage on con nector Pin 9. Necessary for powering the display (see Chapter "Interface Specification").

●

The second interface COM2 if present, has no power supply for a 2nd display. Connect it preferably on COM1.

"HEADER" – Options for the Printout Header of individual values

This menu topic allows you to specify the information that is to be printed at the top of the printout for every individual weighing results (after pressing « »). Note: This menu topic is only available if “PRINTER” setting was selected.

"NO" The header is not be printed (Factory setting) "DAT/TIM" Date and time are printed "D/T/BAL" Date, time and balance information (Balance type, SNR, Balance

ID) are printed.

Note: Balance ID only if set.

"SIGN.L" – Options for the Printout Footer for Signature Line of individual values

This menu topic allows you to set a footer for signature at the bottom of the printout for every individual weigh ing result (after pressing « »). Note: This menu topic is only available if “PRINTER” setting was selected.

"OFF" The signature footer is not be printed. (Factory setting) "ON" The signature footer is printed

"LN.FEED" – Options for Complete the Printout of individual values

This menu topic allows you to specify the number of blank lines to complete the printout (line feed) for every individual weighing result (after pressing « ») . Note: This menu topic is only available if “PRINTER” setting was selected.

"0" Possible numbers of blank lines: 0 to 99 (Factory setting = 0)

"ZERO.PRT" – Options for “PRT.AUTO”

This menu topic allows you to specify the auto print function “PRT.AUTO” for printing zero "YES" or "NO".

"OFF" Zero is not be printed (Zero +/- 3d) (Factory setting) "ON" Zero is always printed

Note: This menu topic is only available if "PRT.AUTO" function of the "PRINTER" or "PC-DIR." was selected.

"COM.SET" – Options for the Data Communication Format (RS232C)(“HOST”)

This menu topic allows you to set the data format depending on which peripheral device is connected. Note: This menu topic is only available if “HOST” setting was selected.

"MT-SICS" The MT-SICS data transfer formats is used. (Factory setting)

For more information see section “MT-SICS Interface Commands and Functions”.

33The Menu

Page 34

The following PM balance commands are supported:"MT-PM"

S Send value

SI Send immediate value

SIR Send immediate value and repeat

SR Send value and repeat

SNR Send next value and repeat

T Tare

TI Tare immediately

B Base *)

MI Modify ambient vibration

MZ Modify Auto Zero

M Modified settings reset

ID Identify

CA Calibrate

D Display (only symbol N and G available)

*) Limitation:

●

Negative values are limited up to the current tare value.

●

B command is additive.

●

The sum of the B values plus the previous tare value, before a "TA","T" or "Z" is sent, must be less than the total weighing range.

The following Sartorius commands are supported:"SART"

K Ambient conditions: very stable

L Ambient conditions: stable

M Ambient conditions: unstable

N Ambient conditions: very unstable

O Block keys

P Print key (print, auto print; activate or block)

Q Acoustic signal

R Unblock keys

S Restart/self-test

T Tare key

W Calibration/adjustment (depending on the menu setting)

Z Internal calibration/adjustment

**)

f0_ Function key (F)

f1_ Function key (CAL)

s3_ C key

x0_ Perform internal calibration

**)

x1_ Print balance/scale model

x2_ Print weighing cell serial number

x3_ Print software version

may be inaccessible on verified balances/scales

**)

only on models with built-in motorized calibration weight

34 The Menu

Functionality mapping

Page 35

"HOST" settings: Sartorius printer settings: "SND.OFF" not applicable "SND.STB" manually print with stability "SND.ALL" manually print without stability "SND.CONT" automatically print without stability "SND.AUTO" similar applicable to automatically print

when load is changed

"BAUD" – Baud rate RS232C

This menu topic allows you to match the data transmission to different serial RS232C receivers. The baud rate (data transfer rate) determines the speed of transmission via the serial interface. For problem-free data trans mission the sending and receiving devices must be set at the same value.

The following settings are available: 600 bd, 1200 bd, 2400 bd, 4800 bd, 9600 bd, 19200 and 38400 bd. (default: 9600 bd)

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

"BIT.PAR." – Bit/Parity RS232C

At this menu topic you can set the character format for the attached RS232C serial peripheral device.

"8/NO" 8 data bits/no parity (Factory setting) "7/NO" 7 data bits/no parity "7/MARK" 7 data bits/mark parity "7/SPACE" 7 data bits/space parity "7/EVEN" 7 data bits/even parity "7/ODD" 7 data bits/odd parity

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

"STOPBIT" – Stop Bits RS232C

At this menu topic you can set the stop bits of the transmitted data to different RS232C serial receivers.

"1 BIT" 1 Stop bit (Factory setting) "2 BITS" 2 Stop bits

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

"HD.SHK" – Handshake RS232C

This menu topic allows you to match the data transmission to different RS232C serial receivers.

"XON.XOFF" Software handshake (XON/XOFF) (Factory setting) "RTS.CTS" Hardware handshake (RTS/CTS) "OFF" No handshake

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

35The Menu

Page 36

"RS E.O.L." – End of Line RS232C

At this menu topic you can set the "End of Line" character of the transmitted data to different RS232C serial receivers.

"CR LF" <CR><LF> Carriage Return followed by Line feed (ASCII-Codes

013+010) (Factory setting)

"CR" <CR> Carriage Return (ASCII-Code 013) "LF" <LF> Line feed (ASCII-Code 010) "TAB" <TAB> Horizontal tab (ASCII-Code 011), only settable if PC-DIR.

is selected.

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

"RS.CHAR" – Char Set RS232C

At this menu topic you can set the "Character Set" of the transmitted data to different RS232C serial receivers.

"IBM.DOS" Char Set IBM/DOS (Factory setting) "ANSI.WIN" Char Set ANSI/WINDOWS

Note:

●

Not visible for 2nd display.

●

Each device has separate settings.

"INTERVL." – Print Key Simulation

At this menu topic you can activate a simulation of the « » key. "INTERVL." simulates a print key press every x seconds.

Range: 0 to 65535 seconds 0 sec: disables the print key simulation

Factory setting: 0 sec

Note: The executed action is according to the configuration of the print key. (see interface setting)

———————————————————————————

1) Note for 2nd RS232C Interface (COM2)

●

If a second interface is installed, the menu topic is displayed for each interface, e.g "BAUD.1" for standard interface (COM1) "BAUD.2" for 2nd interface (COM2)

●

Only one printer can be set if two RS232 interfaces are existing.

———————————————————————————

36 The Menu

Page 37

7Applications

COUNT

B C

FIX 10

PCS

10PCS

------

FIX 10

PCS

------

VAR.REF

25PCS

PCS

REF.

PCS

REF.

7.1Application "Piece Counting"

The "Piece Counting" application allows you to determine the number of pieces put on the weighing pan. Requirement: The function "COUNT" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F", factory setting).

– Activate function "COUNT" by pressing and holding the «F» key.

Piece Counting first requires the setting of a reference weight, there are 4 possibilities:

Setting the reference by multiple pieces with fix reference values. Setting the reference by multiple pieces with variable reference

values.

Setting the reference for 1 piece in weighing mode. Setting the reference for 1 piece in manual mode.

Setting possibility

Setting the reference by multiple pieces with fix reference values.

1 Select a number of reference pieces by scrolling with « ». Possi

ble numbers* are 5, 10, 20 and 50. * with approved balances in selected countries: min 10

2 Press « » to zero/tare. If needed: place empty container on

the weighing pan and zero/tare again.

3 Add the selected number of reference pieces to container.

4 Press « » to confirm.

Setting possibility

Setting the reference by multiple pieces with variable refer ence values

1 Select "VAR.REF" by scrolling with « ». Press « » to confirm.

2 Select a number of reference pieces by scrolling up («+» key) or

down («-» key). Speed up by press and hold. Possible numbers* are 1 to 999. * with approved balances in selected countries: min 10

3 Press « » to zero/tare. If using: place empty container on

the weighing pan first or tare again.

4 Add the selected number of reference pieces to container.

5 Press « » to confirm.

37Applications

Page 38

Setting possibility

0.00

PCS

2.74

------

PCS.WGT

2.68

PCS

2.74

PCS.WGT

2.74

812.7

PCS

Setting the reference for one piece in weighing mode

1 Select "PCS.WGT" by scrolling with « ».

2 Press « » to zero/tare. If needed: place empty container on

the weighing pan and zero/tare again.

3 Add one reference piece to container. The weight of one piece is

displayed.

4 Press « » to confirm.

Note: With approved balances, this setting is not available in selected countries.

Setting possibility

Setting the reference for one piece in manual mode

1 Select "PCS.WGT" by scrolling with « ».

2 Press « » to confirm.

3 Enter the final reference one piece weight by scrolling up («+» key)

or down («-» key). Speed up by press and hold.

4 Press « » to confirm.

Note: With approved balances, this setting is not available in selected countries.

38 Applications

Switching between manual mode and weighing mode

– Press « » to switch between manual and weighing mode.

Note: By switching from weighing mode to manual mode the weight value will be transferred and can be changed manually.

Note: If without any key press within 60 seconds, the balance returns to the previous active application. Press «C» to cancel and returns to the previous active application.

On completion of the setting procedure, your balance is ready for piece counting.

Switching between piece count and weight display.

You can use the « » key at any time to switch the display between piece display, weighing unit "UNIT 1", "RECALL" value (if activated) and weighing unit "UNIT 2" (if different from "UNIT 1").

Note:

●

The "RECALL" value is displayed with an asterisk (*) and icon "M" and can not be printed.

●

Take into account minimum values: min. reference weight = 10d (10 digits), min. piece weight* = 1d (1 digit)!

●

* with approved balances in selected countries: min 3e The current reference weight remains stored until the reference setting is changed.

Page 39

Terminate the application

Press and hold « » to terminate the application and to return to the weighing application.

39Applications

Page 40

7.2Application "Percent Weighing"

PERCENT

0.0%

175.28

SET 100%

I00.0

175.28

SET 100%

0.00

175.28

The "Percent Weighing" application allows you to check a sample weight as percentage to a reference target weight. Requirement: The function "PERCENT" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F".

– Activate function percent weighing "PERCENT" by pressing and

holding the «F» key.

Percent Weighing first requires the setting of a reference weight that should corresponds to 100%, there are 2 possibilities:

Setting the reference in manual mode (enter 100%).

Setting the reference in weighing mode (weigh 100%).

Setting possibility

Setting the reference by manual mode (enter 100%)

1 Press « » to activate manual mode.

2 Select the reference target weight (100%) by scrolling up («+»

key) or down («–» key). Speed up by press and hold.

3 Press « » to confirm.

Setting possibility

Setting the reference in weighing mode (weigh 100%)

1 Press « » to zero/tare the balance and to activate the

weighing mode. If needed: place empty container on the weighing pan and zero/tare again.

2 Load the reference weight (100%).

Note: Reference weight must be at least +/- 10d.

3 Press « » to confirm.

Switching between manual mode and weighing mode

– Press « » to switch between manual and weighing mode.

Note: By switching from weighing mode to manual mode the weight value will be transferred and can be changed manually.

Note: If without any key press within 60 seconds, the balance returns to the previous active application.

On completion of the weighing-in procedure, your balance is ready for percent weighing.

40 Applications

Page 41

128.25

73.17

128250

128.25

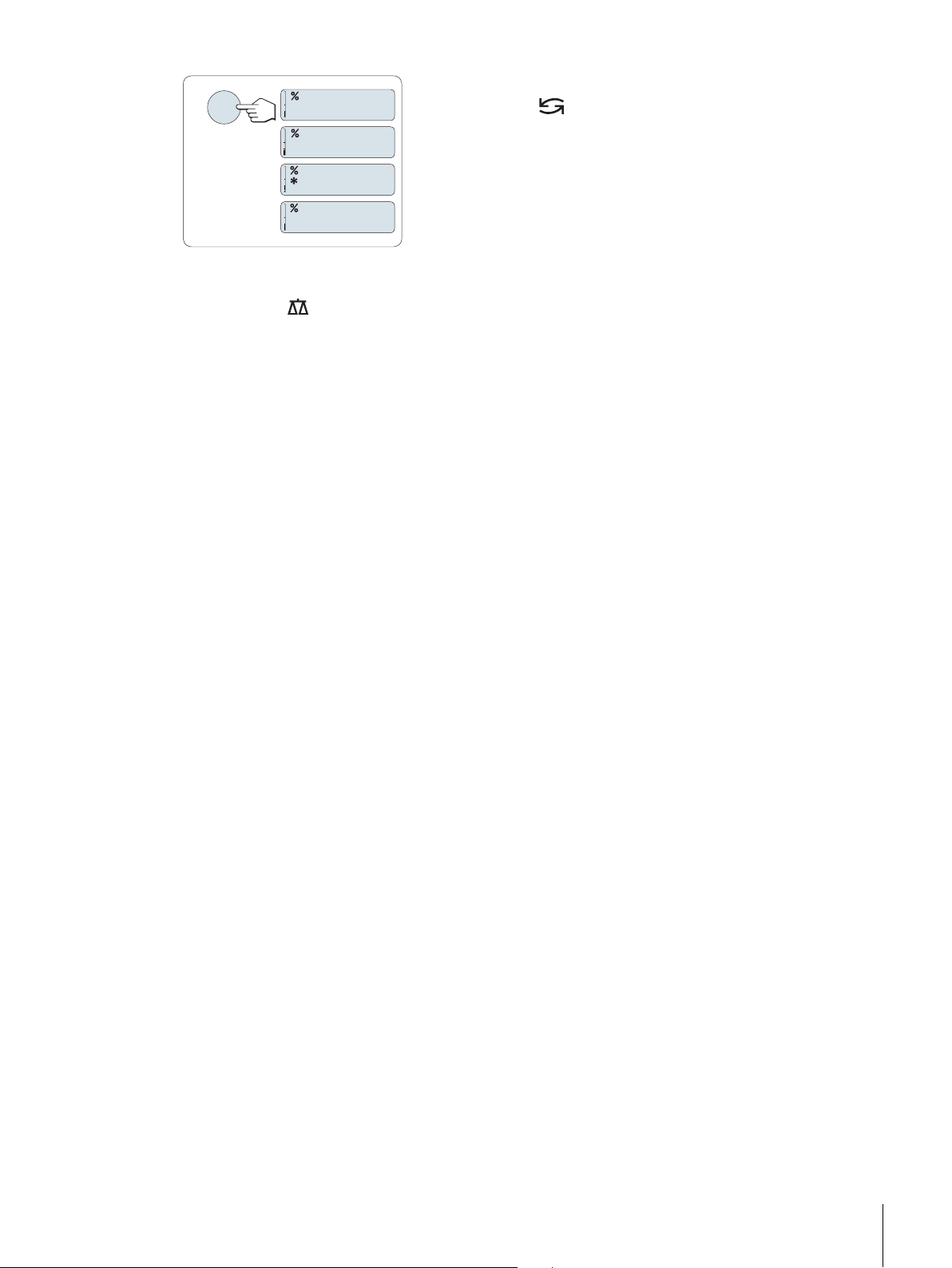

Switching between percent and weight display

You can use the « » key at any time to switch the display between percent display, weighing unit "UNIT 1", "RECALL" value (if activated) and weighing unit "UNIT 2" (if different from UNIT 1).

Note:

●

The recall value is displayed with an asterisk (*) as well as icon "M" and can not be printed.

●

The current set weight remains stored until it is redetermined.

Terminate the application

Press and hold « » to terminate the application and to return to the weighing application.

41Applications

Page 42

7.3Application "Check Weighing"

CHECK

SET NOM .

10.00

20.28

SET NOM .

0.00

20.28

10.00

The "Check weighing" application allows you to check the deviation of a sample weight within a tolerance limit to a reference target weight. Requirement: The function "CHECK" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F".

– Activate function "CHECK" by pressing and holding the «F» key.

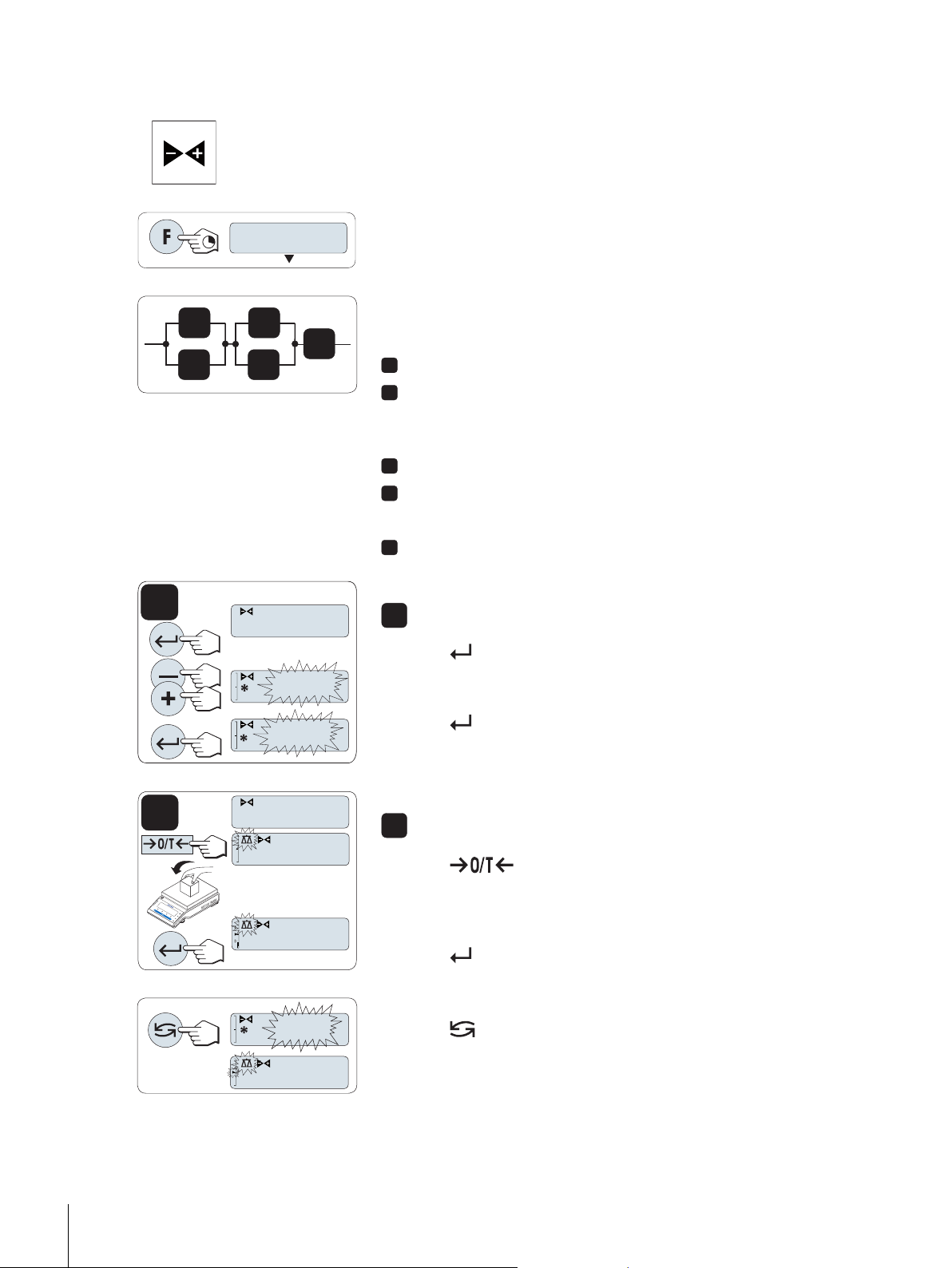

Step 1: Check Weighing first requires the setting of a reference weight that should corresponds to the nominal weight, there are 2 possibilities:

Setting the reference in manual mode (enter nominal weight).

Setting the reference in weighing mode (weigh nominal weight).

Step 2: Check weighing needs the upper and lower limits, there are 2 possibilities::

Setting the upper and lower limits in percentage.

Setting the upper and lower limits by weight.

Step 3: Setting tolerance beep

Activate or deactivate tolerance beep.

Setting possibility:

Setting the reference in manual mode (enter nominal weight)

1 Press « » to activate manual mode.

2 Select the reference target weight by scrolling up («+» key) or down

(«–» key). Speed up by press and hold.

3 Press « » to confirm the nominal weight.

Setting possibility:

Setting the reference in weighing mode (weigh nominal

weight)

1 Press « » to zero/tare the balance and to activate the

weighing mode. If needed: place empty container on the weighing pan and zero/tare again.

2 Load the nominal weight.

3 Press « » to confirm the nominal weight.

Switching between manual mode and weighing mode

– Press « » to switch between manual mode and weighing mode.

Note: By switching from weighing mode to manual mode the weight value will be transferred and can be changed manually.

42 Applications

Page 43

Step 2, setting possibility:

SET.T+

/- %

2.50

20.28

SET T+/- %

2.50

20.28

0.25

0.36

0.25

2.50

20.28

T.BEEP: Y

Setting the upper and lower limits (in percentage):

1 Press « » to start setting.

2 Press « » to confirm the default limit of +/- 2.5 % or enter the

limit value by scrolling up («+» key) or down («–» key). Press « » to confirm the limits.

Note: Press « » to switch between "UNIT 1" and Unit "%".

Step 2, setting possibility:

Setting the upper and lower limits by weight:

1 Press « » to start setting.

2 Press « » to switch to UNIT 1.

3 Press « » to confirm the default limit or enter the limit value by

scrolling up («+» key) or down («–» key). Press « » to confirm the limits.

Switching between percentage and weight unit 1

– Press « » to switch between setting in percentage and setting by

weight .

Note:

●

On completion of the setting procedure, your balance is ready for checkweighing.

Step 3:

Setting tolerance beep:

The tolerance beep indicates whether the weighing sample lies within the tolerance by beeping three times.

Note: The beep level corresponds to the setting in menu topic "STB.BEEP" (Basic menu). If "STB.BEEP" is set to "OFF", the tolerance beep level is medium.

– To activate tolerance beep press « ». To deactivate tolerance

beep press « » to select "N" and press « ».

If without any key press within 60 seconds, the balance returns to the previous active application. Press «C» to cancel and returns to the previous active application.

The nominal weight must be at least 10 digit.

43Applications

Page 44

20.15

Weighing-in-Aid

The Weighing-in-Aid helps you quickly determine the position of the sample weight regarding the tolerance.

1 Lower limit 2 Target weight 3 Upper limit

Terminate the application

Press and hold « » to terminate the application and to return to the weighing application.

44 Applications

Page 45

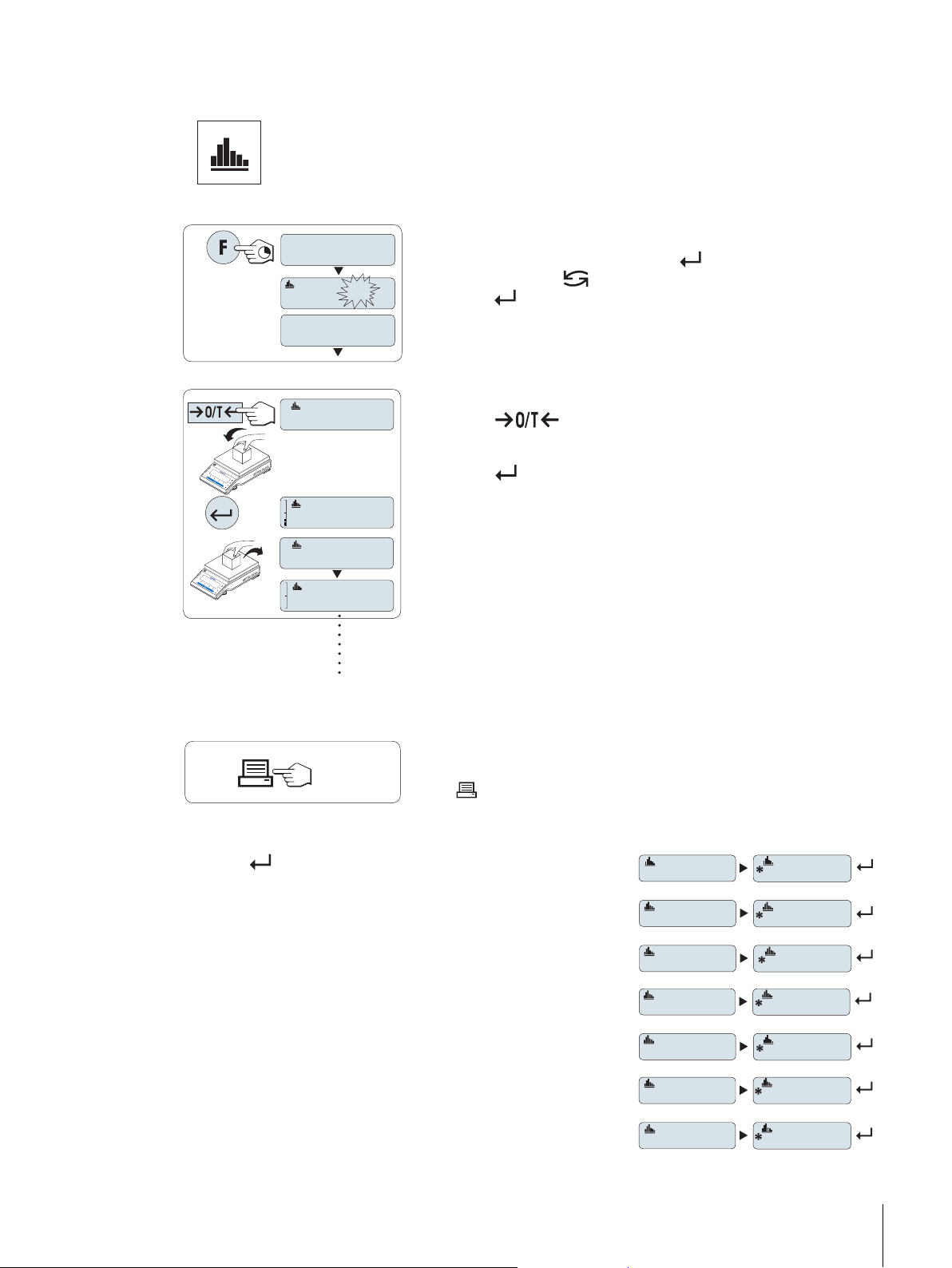

7.4Application "Statistics"

CLR. M:NO

STAT

CLEARED

46.36

0.00

- 1 -

999

0.00

50.530

S.DEV

3.961

S.REL

7.84

MIN

46.36

MAX

55.81

DIFF

9.45

The "Statistics" application allows you to generate statistics of a series of weighing values. 1 to 999 values are possible.

Requirement: The function "STAT." must be assigned to the «F» key (see advanced menu topic "ASSIGN:F"). Connect a printer or a PC if present.

1 Activate function "STAT." by pressing and holding the «F» key.

2 To continue the last statistics press « ». For a new statistical

evaluation press « » (or «+», «–») to select "CLR.M:YES" and press « » to clear the memory.

Note: If the memory is already cleared (sample counter is 0) the memory clear question will be not displayed.

Weighing the first sample weight:

1 Press « » to zero/tare the balance if needed.

2 Load the first sample weight.

3 Press « ». The display shows the sample count "- 1 -" and the

current weight is stored as sample and the weight is printed out. Note: When the sample counter is displayed you may press «C» to undo (drop) this sample.

4 Unload the first sample weight.

Weighing further sample weights:

The same procedure as for the first sample weight.

●

1...999 samples are possible.

●

The next value will be accepted if the sample weight is in the range 70% –130% of the current average value. "OUT OF RANGE" will be displayed if the sample is not accepted.

Results:

– If the numbers of sample are greater than or equal to 2, press

« », the results are displayed and printed.

Displayed results:

1 Press « » to show the next

number of samples

0.5 seconds

statistical value.

2 Press «C» to cancel displaying

average

results and to continue weigh ing next sample.

relative standard deviation

standard deviation

lowest value (minimum)

highest value (maximum)

different between the minimum

and the maximum

45Applications

Page 46

Displayed results:

SUM

252.65

------ Statistics ------

21.Jan 2010 12:56

METTLER TOLEDO

Balance Type JP4002G SNR 1234567890

-----------------------1 46.36 g 2 55.81 g 3 47.49 g 4 53.28 g 5 49.71 g n 5 x 50.530 g s dev 3.961 g s rel 7.84 g Min. 46.36 g Max. 55.81 g Diff 9.45 g Sum 252.65 g

-----------------------

1 Press « » to show the next

statistical value.

2 Press «C» to cancel displaying

results and to continue weigh ing next sample.

Printout:

sum of all values

46 Applications

Page 47

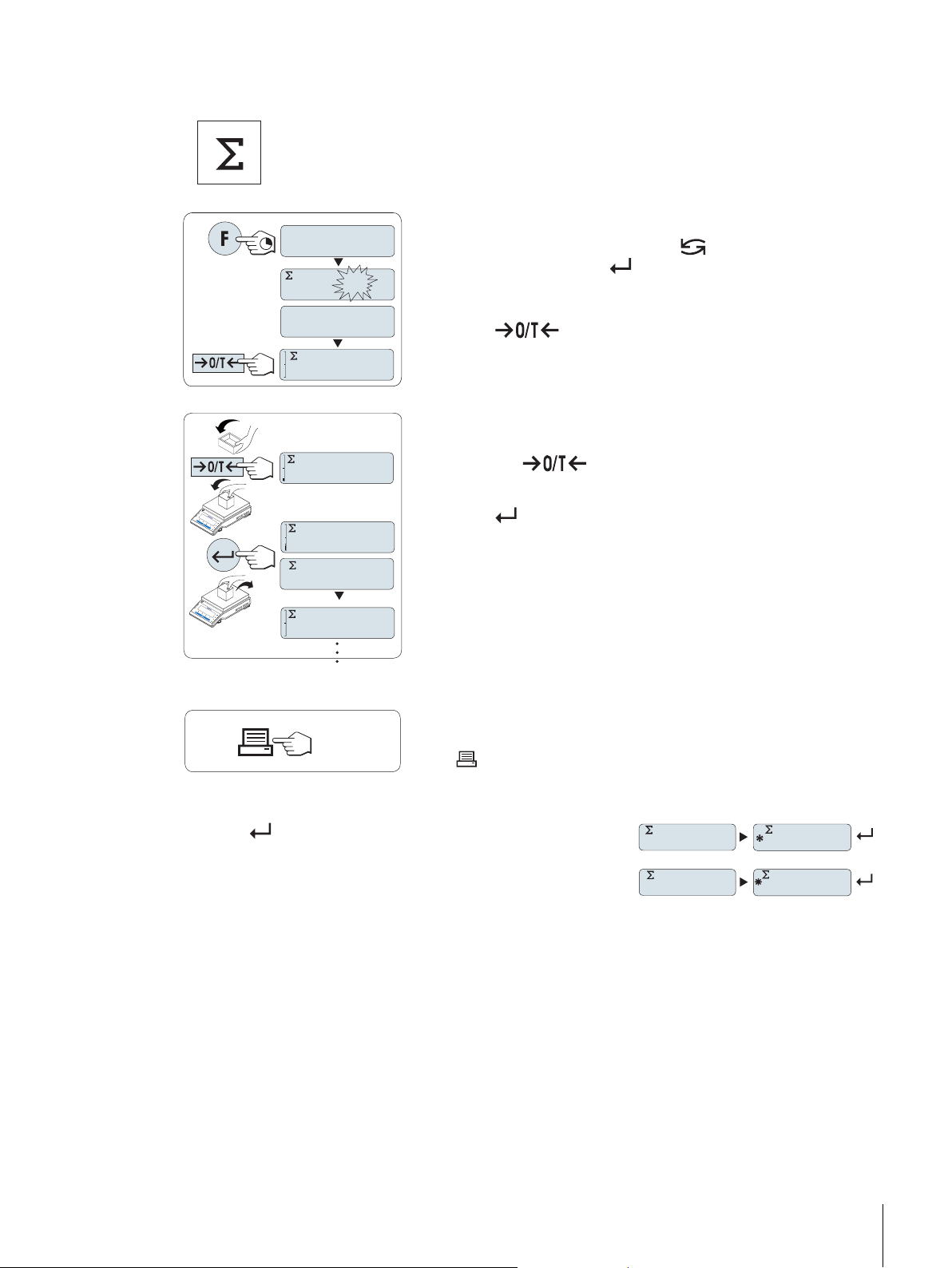

7.5Application "Totaling"

CLR.M:NO

TOTAL

CLEARED

0.00

46.36

- 1 -

999

0.00

879

TOTAL

8789

The "TOTALING" application allows you to weigh in different samples to add their weight val ues and to totalize them. 1 to 999 samples are possible. Requirement: The function "TOTAL" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F").

1 Activate function "TOTAL" by pressing and holding the «F» key.

2 For a new totaling evaluation press « » (or «+» or «–») to enter

"CLR.M:YES" and press « » to clear the memory. Note: If the memory is already cleared (sample counter is 0) the memory clear question will be not displayed.

3 Press « » to zero or tare the balance.

Weighing in the sample weight:

1 If using a container: place empty container on the weighing pan

and press « » to zero or tare the balance.

2 Load the first sample weight.

3 Press « ». The display shows the sample count "- 1 -" and the

current weight is stored. Note: When the sample counter is displayed you may press «C» to undo (drop) this sample.

4 Unload the first sample weight. The display shows zero.

Weighing in further sample weights:

The same procedure as for the first sample weight.

●

1...999 samples are possible.

Results:

– If the numbers of sample are greater than or equal to 2, press

« », the results are displayed and printed.

Displayed results:

1 Press « » briefly to show the

number of samples

0.5 seconds

totalized value.

2 Press «C» briefly to cancel.

totalized value

47Applications

Page 48

Printout:

------- Totaling -------

21.Jan 2010 12:56

METTLER TOLEDO

Balance Type JP2002G SNR 1234567890

-----------------------1 46.36 g 2 55.81 g 3 47.49 g 4 53.28 g 5 49.71 g 6 53.93 g . . . n 879 Total 8789.79 g

-----------------------

48 Applications

Page 49

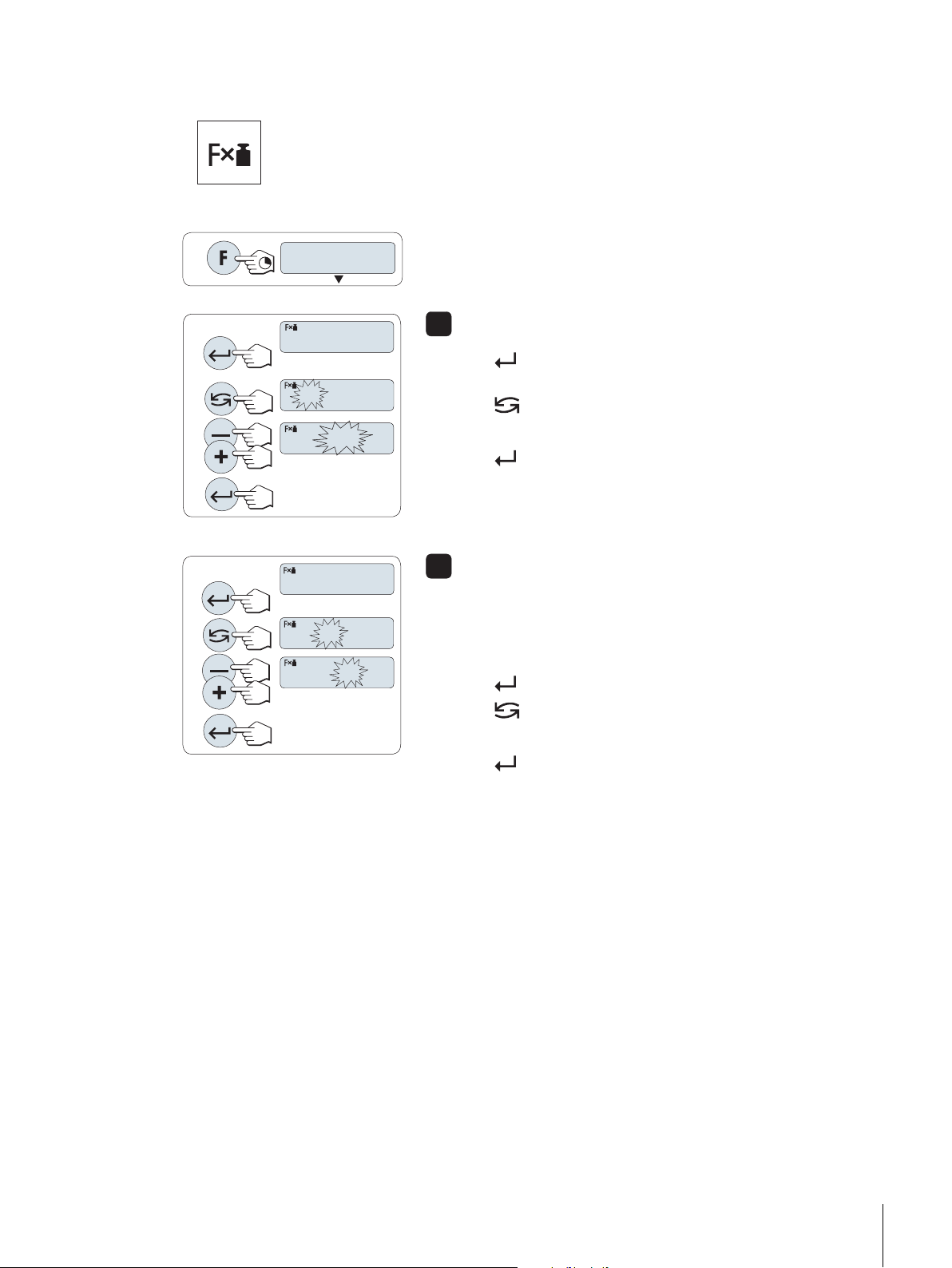

7.6Application "Multiplication Factor Weighing"

FACTOR.M

SET.F.MUL

001.0000

009.8100

SET.STEP

001.0

005.0

The "Multiplication Factor Weighing" application allows you to multiply the weight value (in grams) by a predefined factor (result = factor * weight) and have it calculated to a predefined number of decimal places. Requirement: The function "FACTOR.M" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F").

– Activate function "FACTOR.M" by pressing and holding the «F» key.

Setting the factor value:

1 Press « » to execute "SET.F.MUL". Either the factor 1 appears as

default value or the factor that was saved most recently.

2 Press « » to select a digit. The selected digit is blinking.

3 For changing digits, press «+» to scroll up or «–» to scroll down.

4 Press « » to confirm the selected factor (no automatic accep

tance).

Note: Zero for multiplication factor value is outside the allowed range, the error message "FACTOR OUT OF RANGE" will be displayed.

Setting the step value:

"SET.STEP" appears in the display, and the program changes auto matically to allow the display increments to be entered. The smallest possible display increment appears as default value, or the last value that was saved.

1 Press « » to execute "SET.STEP".

2 Press « » to select a digit. The selected digit is blinking.

3 For changing digits, press «+» to scroll up or «–» to scroll down.

4 Press « » to confirm the selected step (no automatic accep

tance).

Note: The allowed range for the step depends on the factor and the resolution of the balance. If it is outside the allowed range the error message "STEP OUT OF RANGE" will be displayed.

Note: If without any key press within 60 seconds, the balance returns to the previous active application. Press «C» to cancel and returns to the previous active application.

On completion of the setting procedure, your balance is ready for multiplication factor weighing.

49Applications

Page 50

9810

1000.02

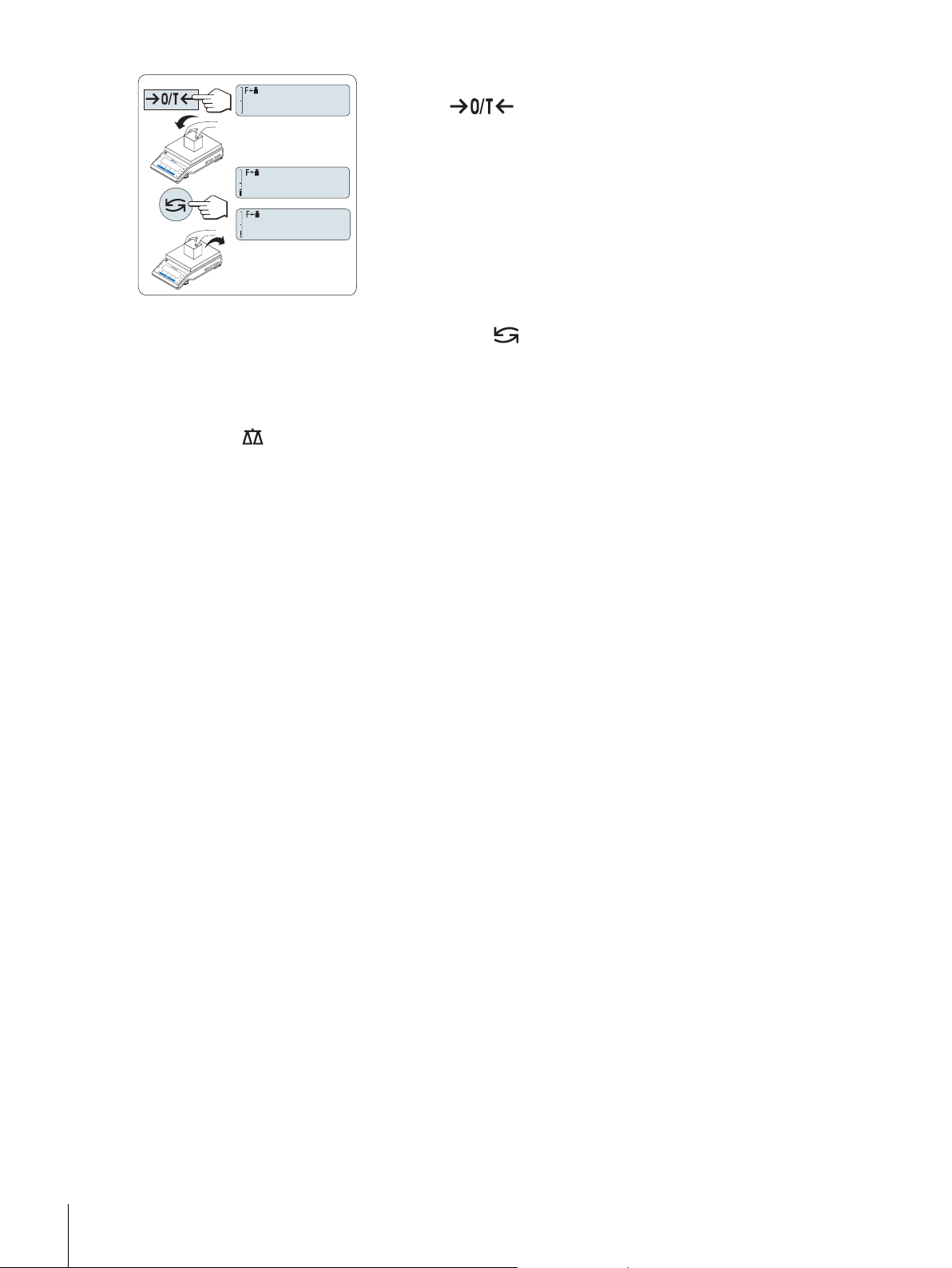

Weighing procedure

1 Press « » to zero/tare.

2 Load sample weight on weighing pan.

3 Read the result. The appropriate calculation is then made using the

weight of sample and the selected factor, the result being displayed with the selected display step. Note: No units are displayed.

4 Unload sample weight.

Toggling between displaying the calculated value and the measured weight:

You can use the « » key to toggle between the calculated Value, weight value "UNIT 1", "RECALL" value (if selected) and weight value "UNIT 2" (if different from "UNIT 1").

Terminate the application

Press and hold « » to terminate the application and to return to the weighing application.

50 Applications

Page 51

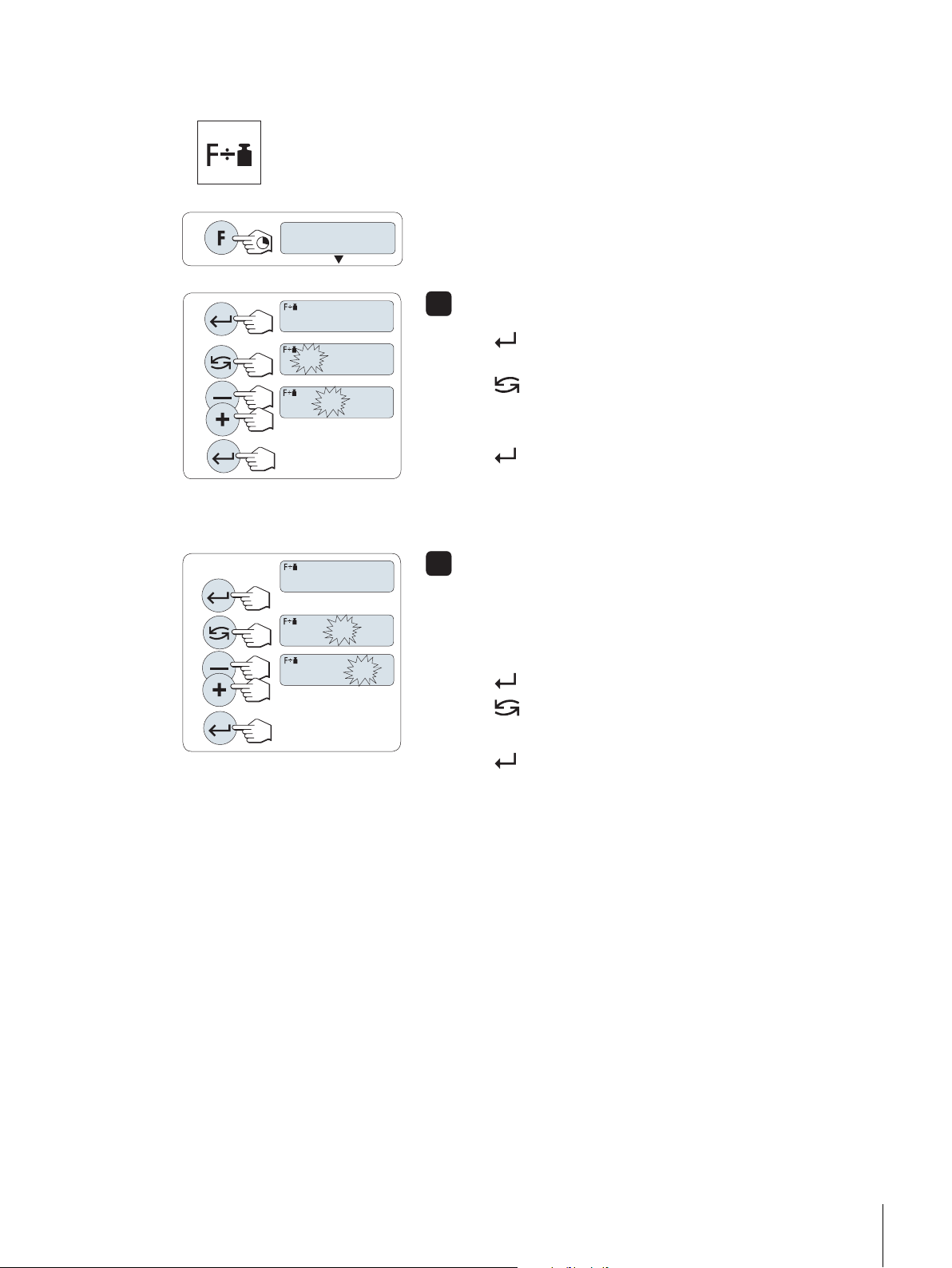

7.7Application "Division Factor Weighing"

FACTOR.D

SET.F.DIV

001.0000

009.8

100

SET.STEP

0.0001

0.0050

The "Division Factor Weighing" divide a predefined factor by the weight value (in grams) (result = factor / weight) and have it rounded to a predefined number of decimal places. Requirement: The function "FACTOR.D" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F").

– Activate function "FACTOR.D" by pressing and holding the «F» key.

Setting the Factor Value:

1 Press « » to execute "SET.F.DIV". Either the factor 1 appears as

default value or the factor that was saved most recently.

2 Press « » to select a digit. The selected digit is blinking.

3 For changing digits, press «+» key to scroll up or «–» to scroll

down.

4 Press « » briefly to confirm the selected factor (no automatic

acceptance).

Note: Zero for division factor value is outside the allowed range, the error message "FACTOR OUT OF RANGE" will be displayed.

Setting the step value:

1 Press « » to execute "SET.STEP".

2 Press « » to select a digit. The selected digit is blinking.

3 For changing digits, press «+» to scroll up or «–» to scroll down.

4 Press « » to confirm the selected step (no automatic accep

tance).

Note: The allowed range for the step depends on the factor and the resolution of the balance. If it is outside the allowed range the error message "STEP OUT OF RANGE" will be displayed.

Note: If without any key press within 60 seconds, the balance returns to the previous active application. Press «C» to cancel and returns to the previous active application.

On completion of the setting procedure, your balance is ready for division factor weighing.

51Applications

Page 52

0.010

1000.02

0.000

Weighing procedure

1 Press « » to zero/tare.

2 Load sample weight on weighing pan.

3 Read the result. The appropriate calculation is then made using the

weight of sample and the selected factor, the result being displayed with the selected display step. Note: No units are displayed. To avoid a division by zero, the fac tor division is not calculated at zero.

4 Unload sample weight.

Toggling between displaying the calculated value and the measured weight:

You can use the « » key to toggle between the calculated Value, weight value "UNIT 1", "RECALL" value (if selected) and weight value "UNIT 2" (if different from "UNIT 1").

Terminate the application

Press and hold « » to terminate the application and to return to the weighing application.

52 Applications

Page 53

7.8Application "Density"

DENSITY

SOLID

LIQUID

WEIGH IN

60.0020

¢¢¢¢

H-2-0

ETHANOL

FREE

Note: This Application is only available with JP models.

The "Density" application allows you to determine the density of solid bodies and liquids. Determination of the density uses Archimedes' principle according to which a body immersed in a fluid undergoes an apparent loss in weight which is equal to the weight of the fluid it displaces.

To determine the density of solid bodies, we recommend you to work with the optional densi ty kit which contains all the attachments and aids needed for convenient and precise density determination. To determine the density of liquids, you additionally need a sinker which you can also obtain from your METTLER TOLEDO dealer.

Note for performing of density determinations:

●

You can also use the hanger for weighing below the balance which belongs to your bal ance.

●

We recommend you to consult the operating instructions enclosed with the density kit.

●

If a METTLER TOLEDO printer is attached to your balance, the settings will be automatical ly recorded.

Requirement: The function "DENSITY" must be assigned to the «F» key (see advanced menu topic "ASSIGN:F"). Density kit is installed.

– Activate function "DENSITY" by pressing and holding the appropri

ate assigned «F» key.

7.8.1Density Determination of Solids

Requirement: The method "SOLID" is set.

Setting the method for density determination

1 Select:

"SOLID", the function for the density determination of solids, or "LIQUID", the function for the density determination of liquids with a sinker.

2 Press « » to confirm the selection

Switching the display between user guidance and weighing

– Press « » to toggle the display between user guidance and

weighing.

Setting the parameter of the auxiliary liquid

1 Select the auxiliary liquid by scrolling with « » (or «-» up / «+»

down): "H-2-O" for distilled water , "ETHANOL" or "FREE" for a freely defin able auxiliary liquid.

2 Press « » to confirm the selection.

53Applications

Page 54

20.0

21.8

If you have selected water or ethanol as the auxiliary liquid:

01.00200

01.00000

PRESS EN

WEIGH IN AIR

WEIGH IN LIQUID

5.988

1 Enter the current temperature of the auxiliary liquid (read off on

thermometer). Change the value by scrolling up «+» or down «-». The temperature ranges from 10 °C to 30.9 °C.

2 Press « » to confirm the value.

Note: The densities of distilled water and ethanol in the range 10 °C to

30.9 °C are stored in the balance.

If you have selected a freely definable auxiliary liquid:

Enter the density of the auxiliary liquid at the current temperature (read off on thermometer).

1 Press « » to select a digit. The selected digit is blinking.

2 For changing digits, press «+» to scroll up or «-» to scroll down.

3 Press « » to confirm the selected value.

Note: If without any key press within 60 seconds or by pressing «C», the balance returns to the previous active application.

On completion of the settings, your balance is ready for performing the density determination of liquids.

Note: Taring the balance is possible at any time.

The balance prompts you: "PRESS ENTER TO START".

– Press « » to start. Tare/Zero is executed.

The balance prompts you to weigh the solid in air "WEIGH IN AIR".

1 Load the solid.

2 Press « » to initiate the measurement.

The balance prompts you to weigh the solid in the auxilliary liquid "WEIGH IN LIQUID".

1 Load the solid.

2 Press « » to initiate the measurement.

The balance now shows the determined density of the solid in g/cm3.

Note:

●

This result has already been corrected for the air buoyancy. The buoyancy caused by the two immersed wires (Ø 0.6 mm) can be neglected.

●

By pressing «C», the balance returns to "PRESS ENTER TO START".

Result:

Press « », the result will be printed.

54 Applications

Page 55

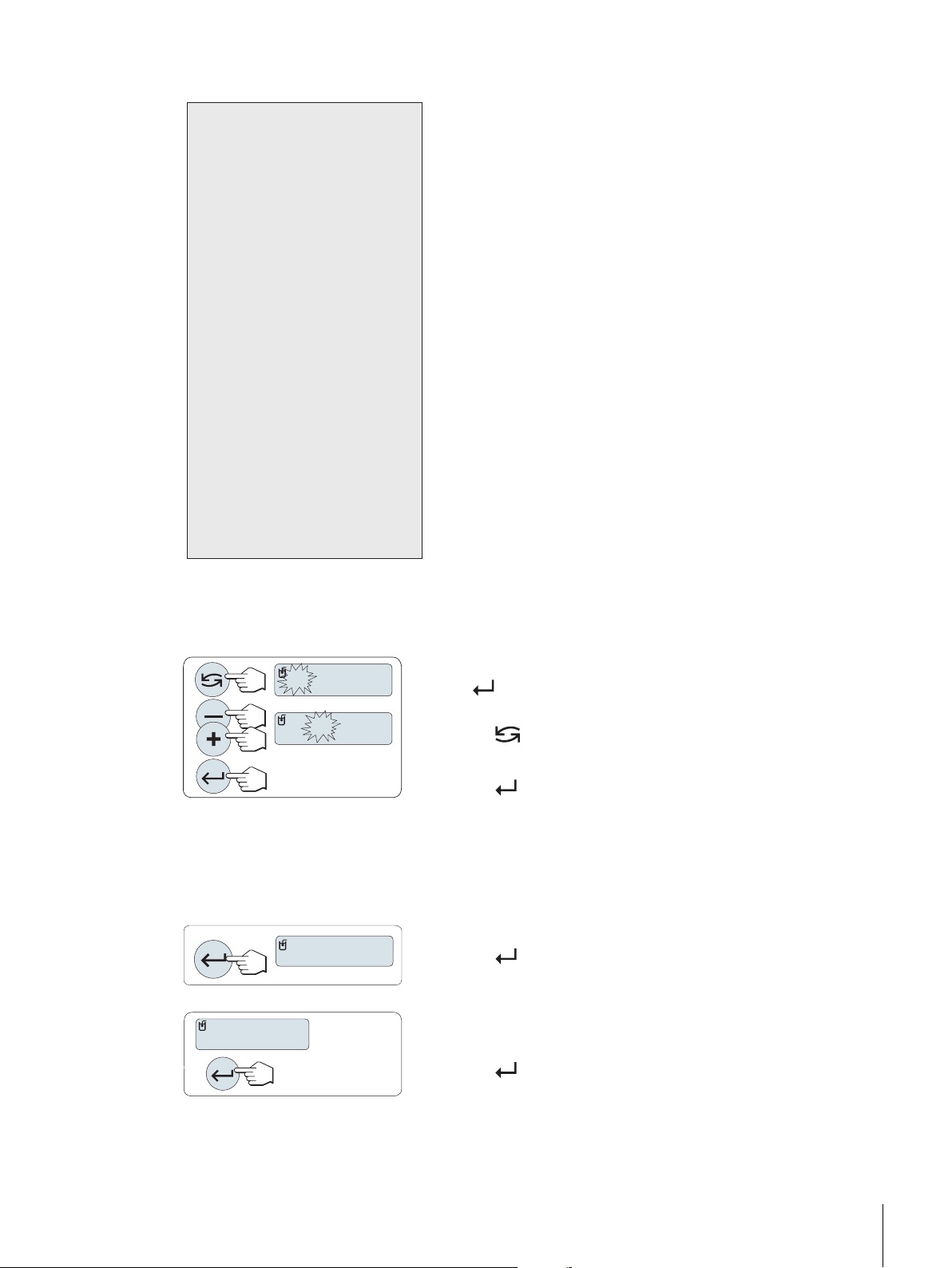

Sample printout:

---- Density Solid -----

18.Mar 2010 20:14 Balance Type JP703C SNR 1234567890

------------------------

ID: ................

Liquid: H-2-O 0.99822 g/cm3 Temp. 20.0 °C Weight in air:

60.0020 g Weight in liquid:

49.9997 g Volume of solid:

1.625 cm3

Density: 5.988 g/cm3 ===========

Signature

........................

------------------------

010.0000

012.0000

PRESS EN

WEIGH IN AIR

7.8.2Density Determination of Liquids

Requirement: The method "LIQUID" is set.

Note: If without any key press within 60 seconds or by pressing «C», the balance returns to the previous active

application.

On completion of the settings, your balance is ready for performing the density determination of liquids.

Note: Taring the balance is possible at any time.

Setting the displacement volume of your sinker

Press « » to confirm the default value of 10.0 cm3 or change it if needed:

1 Press « » to select a digit. The selected digit is blinking.

2 For changing digits, press «+» to scroll up or «-» to scroll down

3 Press « » to confirm the selected value.

The balance prompts you: "PRESS ENTER TO START".

– Press « » to start.

The balance prompts you to weigh the sinker in air "WEIGH IN AIR".

1 Position the sinker.

2 Press « » to initiate the measurement.

55Applications

Page 56

WEIGH IN LIQUID

1.000

Sample printout:

---- Density Liquid -----

18.Mar 2010 20:14 Balance Type JP703C SNR 1234567890

------------------------

ID: ................

Temp. of liquid:

............

Displaced liquid:

10.0023 g

Density: 1.000 g/cm3 ===========

Signature

........................

------------------------

The balance prompts you to weigh the sinker in the liquid "WEIGH IN LIQUID".

1 Pour the liquid into the beaker. Make sure that the sinker is

immersed by al least 1 cm in the liquid, and that there are no air bubbles in the container.

2 Press « » to initiate the measurement.

The balance now shows the determined density of the liquid at the cur rent temperature (read off on the thermometer).

Note:

●

This result has already been corrected for the air buoyancy. The buoyancy caused by the immersed wire (Ø 0.2 mm) of the sinker can be neglected.

●

By pressing «C», the balance returns to "PRESS ENTER TO START".

Result:

Press « », the result will be printed.

7.8.3Formulae Used to Calculate Density

The "DENSITY" Application is based on the formulae listed below.

Formulae for determining the density of solids with compensation for air density

= Density of the sample

56 Applications

Page 57

A = Weight of the sample in air B = Weight of the sample in the auxiliary liquid V = Volume of the sample

= Density of the auxiliary liquid

= Density of Air (0.0012 g/cm3)

= Weight correction factor (0.99985), to take the atmospheric buoyancy of the adjustment weight

into account

Formula for determining the density of liquids with compensation for air density

= Density of the liquid

P = Weight of the displaced liquid V = Volume of the sinker

= Density of air (0.0012 g/cm3)

= Weight correction factor (0.99985), to take the atmospheric buoyancy of the adjustment weight

into account

Density Table for Distilled Water

57Applications

Page 58

Density Table for Ethanol

Density of C2H5OH according to the "American Institute of Physics Handbook".

58 Applications

Page 59

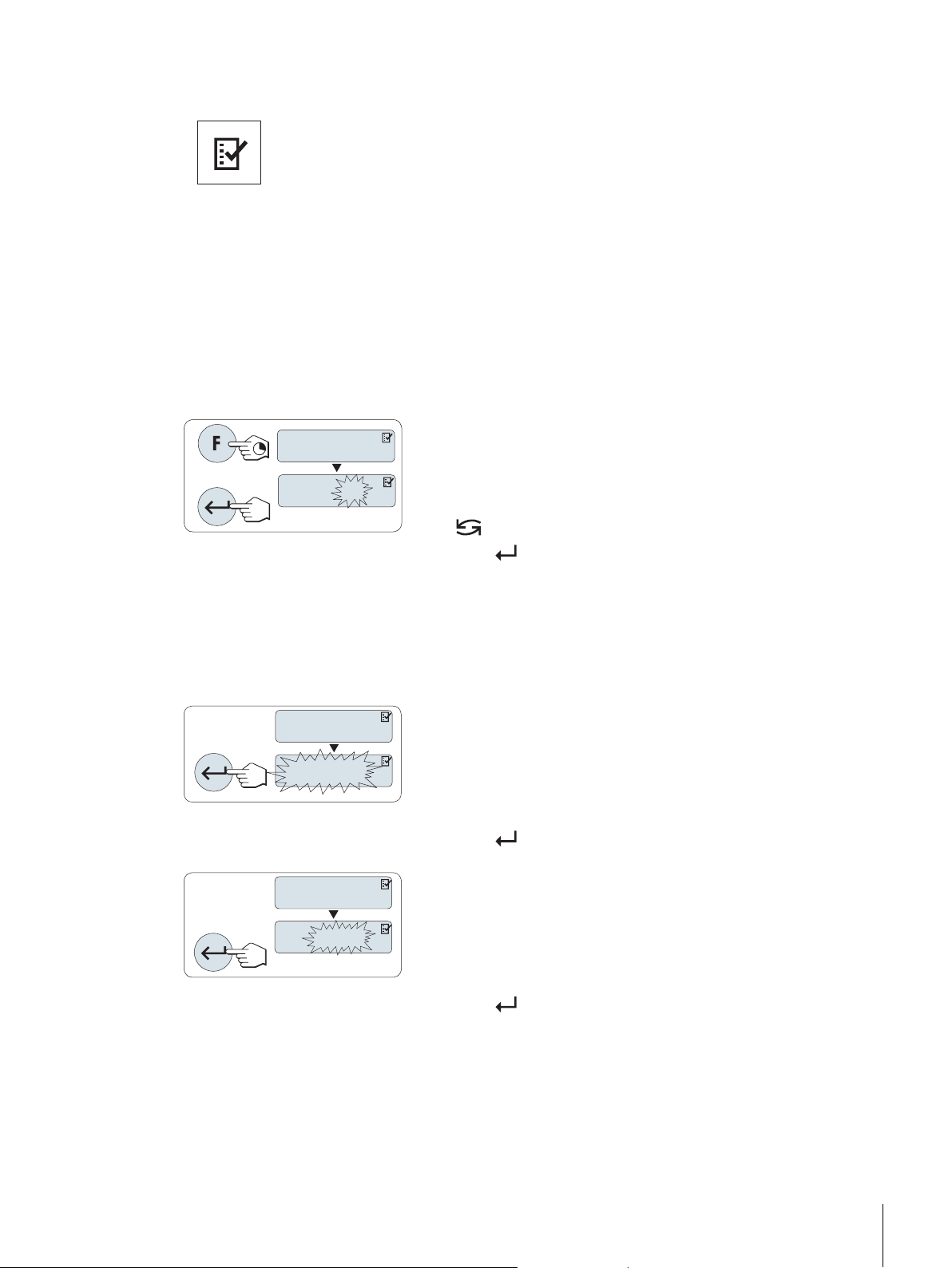

7.9Application "Routine Test"

R. TEST

TARE:NO

WGT

TEST.

5000.00

LMT

CTRL.

2.50

The "Routine Test" application allows you to determine the sensitivity of the balance. More about periodic sensitivity tests (routine tests) see: GWP® (Good Weighing Practice) on www.mt.com/gwp. GWP gives clear recommendation for routine testing:

●

how should I test my balance?

●

how often?

●

where can I reduce efforts?

More about test weights see www.mt.com/weights.

Requirement:

●

The function "R.TEST" must be assigned to «F» key (see advanced menu topic "ASSIGN:F").

●

It is recommended to connect a printer or a PC to the balance for showing the results.

1 Activate function "R.TEST" by pressing and holding the assigned

«F» key.

2 Select "TARE:NO" (no tare weight used).

If a tare weight is used during the test select "TARE:YES" (use a tare weight). To toggle between "TARE:YES" and "TARE:NO" use « » (or «+» or «–»).

3 Press « » to confirm the selection.

Note:

●

It is recommended to test the sensitivity without tare load. (factory setting "TARE:NO").

●

If using tare: Make sure that tare weight plus test weight is not exceeding max. load.

Setting the reference test weight value

The default value of the test weight: Next smaller OIML weight than the maximum load of your balance according to the GWP® recommenda tion.

1 For changing the value, press «+» to scroll up or «–» to scroll

down. Progressing speed by press and hold.

2 Press « » to confirm the value.

Setting the Control Limit

The default value of the control limit: Test weight x weighing process tolerance / 2 Example: 5000 g x 0.1% / 2 = 2.50 g.

1 For changing the value, press «+» to scroll up or «–» to scroll

down. Progressing speed by press and hold.

2 Press « » to confirm the value.

59Applications

Page 60

LMT

WARN.

1.25

Setting the Warning Limit

PRESS EN

5000.00

----- Routine Test -----

21.Jan 2010 12:56

METTLER TOLEDO

Balance Type JP6002G SNR 1234567890

Sensitivity: Test weight 5000.00 g Value 5000.11 g Warning L. 1.25 g Control L. 2.50 g Warning L. OK Control L. OK

Signature

........................

------------------------

The default value of the warning limit: Warning limit = control limit / safety factor Example: 2.5 g / 2 = 1.25 g.

1 For changing the value, press «+» to scroll up or «–» to scroll

down. Progressing speed by press and hold.

2 Press « » to confirm the value.

Note: The default values of control limit and the warning limit are evaluated according the GWP recommenda tion. These are based under the assumption that the weighing process tolerance is 0.1% and the safety factor is 2.

On completion of the setting procedure, your balance is ready for the routine test procedure.

Note: The test weight must be acclimatized to the ambient tempera ture of the balance.

1 Press « » to start the test.

2 Follow the instructions on the display. If the test weight value is

flashing: Load the test weight (displayed value).

The printout starts after the weighing pan is unloaded.

Exit the current test procedure:

– Press and hold « » for executing a new application.

Printout:

What if Warning Limit or Control Limit are "FAILED"?

The "SOP for Periodic Sensitivity Tests (Routine Tests)" provides information about measures when routine tests fail. Find a download version of these SOPs on www.mt.com/gwp, link "GWP® The Program / Routine Opera

tion".

Content of SOP:

●

Preparation

●

Test procedure

60 Applications

Page 61

●

Evaluation

●

Deviation

•

If Warning Limit "FAILED"

•

If Control Limit "FAILED"

61Applications

Page 62

7.10Application "Diagnostics"

The "Diagnostics" application allows you to carry out predefined diagnostics tests and to view or print predefined sets of balance information. This diagnostics tool helps you find errors faster and more efficiently. Requirement: A printer or a PC is connected to the balance for showing the results.

1 Activate "ADVANCE." menu. (See section menu operation)

2 Activate function "DIAGNOS." by pressing « ».

3 Use « » to select appropriate tests.

7.10.1Repeatability Test

The repeatability test allows you to repeat tests with internal weight for a given number of times. Note: On models with internal weights only.

1 Press « » to activate repeatability test "REPEAT.T". "R.TST. 10" appears on the Display.

2 Enter the number of times (blinking) by pressing «+» or «–». Possible values are 5, 10 (default), 20, 50,

100 times.

3 Press « » to start the test. The message "RUNNING REPEAT TEST" is displayed till the tests are complet

ed.

4 Press « » to print the test information..

5 Press « » to scroll forward through the displayed list.

6 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

Sample Information Displayed:

Displayed for 0.5 s Display

"S DEV" * 0.004 g

"MAX.TEMP" 21.2 °C

"MIN.TEMP" 21.0 °C "AVG.TEMP" 21.1 °C

"TOT.TIME" 00:01:26

62 Applications

Page 63

Sample Printout:

-- Repeatability Test --

21.Jan 2010 11:34

METTLER TOLEDO

Balance Type JP4002G SNR 1234567890 SW V1.00 Temperature 21.3 °C No. of tests 10

------------------------

1. Time 00:00:00

1. Temp 21.3 °C

2. Time 00:00:04

2. Temp 21.3 °C . . .

-----------------------s Dev 0.004 g Max Temp 21.3 °C Min Temp 21.3 °C Mean Temp 21.3 °C Total Time 00:00:44

------------------------

Examples:

Repeatability test is a tool to do functional check with the balance. It may be performed:

●

To check function of balance

•

●

To develop the optimal environment settings (see menu topic "ENVIRON."). Measure the time you need to perform repeatability test with each "STABLE", "STD." and "UNSTAB." setting. The setting with the fastest total time suits best for the existing environmental conditions.

7.10.2Display Test

The display test allows you to test the display of the balance.

1 Press « » to start "DISPLAY".

All possible segments and icons on the display will illuminate.

2 Press « » to print the test information.

3 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

during installation to store print out with installation documents. after preventative maintenance to store print out with installation maintenance report. when remarkable decrease of weighing performance occurs, so that you can email/fax print out to service

support provider for diagnose purposes.

63Applications

Page 64

Sample Printout:

----- Display Test -----

21.Jan 2010 11:34

METTLER TOLEDO

Balance Type JP703C SNR 1234567890 SW V1.00 Display Test DONE

------------------------

------- Key Test -------

21.Jan 2010 11:34

METTLER TOLEDO

Balance Type JP703C SNR 1234567890 SW V1.00 1/10 d Key OK Print Key OK Minus Key OK Plus Key OK Toggle Key OK Enter Key OK Zero/Tare Key OK Cancel Key OK

------------------------

7.10.3Key Test

The key test allows you to test the keys of the balance.

1 Press « » to start "KEYPAD.T".

2 The message "KEY TEST - PRESS KEY TO BE TESTED" is displayed scrolling during the duration of the key

test. Press every Key briefly. Each press of a key beeps and echoes with "OK” on the display.

3 Second press «C» key to print the test information. The test procedure will be cancelled and the balance will

return to the topic "DIAGNOS.". If a key has not been tested before printing, then the test results will be indi cated with a "----" line.

Sample Information Displayed:

Key Display

« » 1/10.D.OK

« » PRINT.OK

«–» MINUS.OK «+» PLUS OK

« » TOGGL.OK

« » ENTER.OK

«C» C OK

« » 0/T OK

Sample Printout:

64 Applications

Page 65

7.10.4Motor Test

------ Motor Test ------

21.Jan 2010 11:34

METTLER TOLEDO

Balance Type JP703C SNR 1234567890 SW V1.00 Motor Test OK

------------------------

The motor test allows you to test the calibration motor of the balance. Note: On models with internal weight only.

1 Press « » to start "CAL.MOT.T".

"RUNNING" is displayed during the Motor Test. A motor test is deemed successful when all the motor posi tions have been successfully tested. At the end of the test, the test information will be printed.

2 Press « » for printout.

3 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

Sample Printout:

7.10.5Balance History

The balance history function allows you to view and print the history of the balance.

1 Press « » to start "BAL.HIST" .

2 Press « » to scroll forward through the displayed list of balance history information.

3 Press « » for printout.

4 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

Sample Information Displayed:

Information Display

Operation Time (year:day:hour) 00:018:04 Total load kg (t) 115.7191 kg Number of weighings 1255 Number of key pressed 4931 Number of motor movements 1012 Backlight time (year:day:hour) 00:018:04 Next service due date 01:01:10

65Applications

Page 66

Sample Printout:

--- Statistical Info ---

21.Jan 2010 11:34

METTLER TOLEDO

Balance Type JP4002G SNR 1234567890 SW V1.00

-----------------------Operating time 18d 23h Total weight loaded

115.7191 kg Number of weighings 1255 Number of key presses 4931 Motor movements 1012 Backlight operating time 18d 4h Next service due date

01.01.2010

------------------------

7.10.6Calibration History

The "Calibration History" function allows you to view and print information of the last 30 (thirty) balance adjust ment. Adjustments made by a service technician and normal user are counted together.

1 Press « » to start "CAL.HIST".

2 Press « » for printout.

3 Press « » key to scroll forward through the displayed list of Adjustments history information.

4 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

Sample Information Displayed:

66 Applications

Note Display

05:03:S S = External adjusted service

-3 PPM 04:03:II = Internal adjusted

2 PPM

03:03:II = Internal adjusted

-1 PPM

02:03:EE = External adjusted user

4 PPM

02:03:II = Internal adjusted

1 PPM

Page 67

Sample Printout:

----- Calibration ------

05.Mar 2010 11:34

METTLER TOLEDO

Balance Type JP204C SNR 1234567890

-----------------------01 05.Mar 2010 11:34 External ADJ SERVICE

23.5°C Diff -3ppm

-----------------------02 04.Mar 2010 09:00 Internal ADJ

22.4°C Diff 2ppm

-----------------------. . . 28 03.Mar 2010 10:59 Internal ADJ

22.6°C Diff -1ppm

-----------------------29 02.Mar 2010 16:34 External ADJ USER

24.6°C Diff 4ppm

-----------------------30 02.Mar 2010 18:36 Internal ADJ

22.4°C Diff 1ppm

------------------------

7.10.7Balance Information

The balance information function allows you to view and print information about your balance.

1 Press « » to start "BAL.INFO".

2 Press « » for printout.

3 Press « » to scroll forward through the displayed list of Balance information.

4 Press «C» to cancel the test procedure. The balance will return to the topic "DIAGNOS.".

Sample information displayed:

Balance type TYPE ML4002 Max. load MAX 4200 g Software platform PLATFORM RAINBOW Serial number SNR 1234567890 Type definition number TDNR 9.6.3.411 Software version SOFTWARE V1.00 Cell ID CELL ID 1172400044 Cell type CELL TYPE MMAI4000G2

Information Display

67Applications

Page 68

Information Display

-- Balance Information -

05.Mar 2010 11:34

METTLER TOLEDO

Balance Type JP4002G SNR 1234567890 SW V1.00 Max. Load 4200 g Platform Rainbow TDNR 9.6.3.411 Cell ID 1172400044 Cell Type MMAI4000G2 Tolerance Rev.no. 2 Language English

------------------------

--- Service Provider ---

21.Jan 2009 11:34

METTLER TOLEDO Im Langacher CH-8606 Greifensee Switzerland (+41) 044 944 22 11

------------------------

Tolerance revision number TOLERANCE NO2 Language ENGLISH

Sample Printout:

7.10.8Service Provider Information

The service provider Information function allows you to print information about your service provider.

1 Press « » to start "SRV.PROV". The service provider information will be displayed.

2 Press « ». The service provider information will be printed and the balance will return to the topic "DIAG

NOS.".

Sample Printout:

68 Applications

Page 69

8Communication with Peripheral Devices

8.1Function PC-Direct

The numerical value displayed at the balance can be transferred to the cursor position in Windows Applications (e.g. Excel, Word) as by typing with the keyboard.

Note: The units will not be transferred.

Requirements

●

PC with one of the Microsoft Windows® operating system 32bit/64bit: XP (SP3), Vista (SP2), Win 7 (SP1) or Win 8.

●

Serial interface RS232 or USB.

●

Administrator rights for installing software (for USB not required).

●

Windows Application (e.g. Excel).

●

Balance to PC connection with cable RS232 or USB.

Settings at the balance:

Attention

●

DISCONNECT THE USB CONNECTION FROM THE BALANCE PRIOR TO CHANGE THE SETTINGS.

●

USB does not work with keyboards where the "Shift" key must be pressed for entering numbers.

Balance Interface Settings (see Interface Menu):

●

Topic "RS232" or "USB": set "PC-DIR." and select the most appropriate option for the desired weighing result.

●

Topic "RS.TX.E.O.L."/"RS E.O.L." or "USB E.O.L."/"USB E.O.L": – set <TAB> to write into the same row (e.g. in Excel). – set <CR><LF> to write into the same column (e.g. in Excel).

●

Save changes.

Settings at the PC:

Installing SerialPortToKeyboard

Operation of PC-Direct via serial port RS232 requires the installation of SerialPortToKeyboard on your host computer.

Using CD-ROM

1 Insert the product CD in the CD/DVD drive of the host computer.

2 Double click the folder SerialPortToKeyboard.

Using internet

1 Go to the site http://www.mettler-toledo-support.com.

2 Log in to the METTLER TOLEDO Balance Support Site (registration with the serial number of a METTLER

TOLEDO instrument required).

3 Click Customer Support

4 Click appropriate product folder and save the program file SerialPortToKeyboard.exe on your specified

storage location.

Installing procedure

1 Right-click on SerialPortToKeyboard.exe and select Run as Administrator from the menu.

2 Follow the installer's instructions.

69Communication with Peripheral Devices

Page 70

Settings for SerialPortToKeyboard

➀ ➁

➂

1 Select the serial port (COM) to be used for connec

tion with the balance.

2 Set the baud rate to 9600.

3 Activate "Connect"

Note

●

The window can be minimized.

●

Closing of the window terminates the session.

Checking Operation

1 Start SerialPortToKeyboard (RS232)

2 Start Excel (or another application) at the PC.

3 Activate a cell in Excel.

According to your selected "PC-DIR." option, the displayed values will appear e.g. in the column one after the other one in the different rows.

70 Communication with Peripheral Devices

Page 71

9Firmware (Software) Updates

METTLER TOLEDO is continuously improving its balance firmware (software) for the benefit of customers, so that the customer can benefit quickly and easily from further developments, METTLER TOLEDO makes the latest firmware versions available on the Internet. The firmware made available on the Internet has been developed and tested by Mettler-Toledo AG using processes that meet the guidelines of ISO 9001. Mettler-Toledo AG does not, however, accept liability for consequences that might arise from using the firmware.

9.1Operating Principle

You will find all the relevant information and updates for your balance on the METTLER TOLEDO website at the following address:

www.mettler-toledo-support.com

A program known as the "e-Loader II" is loaded onto your computer together with the firmware update. You can use this program to download the firmware to the balance. The "e-Loader II" can also save the settings in your balance before the new firmware is downloaded to it. You can reload the saved settings into the balance manually or automatically after the software is downloaded.

If the selected update includes an application that is not described in these instructions (or that has been updat ed in the meantime) you can download the corresponding instructions in Adobe Acrobat® PDF format.

Note

New applications might not be visible unless the type data are updated by a service technician.

Requirements

The minimum requirements for obtaining applications from the Internet and downloading them into your bal ance are as follows:

●

PC with one of the following Microsoft Windows® operating system:

•

Microsoft® Windows® XP Home or Professional with Service Pack 3 (32 bit)

•

Microsoft® Windows Vista® Home Premium, Business, Ultimate, or Enterprise with Service Pack 2 (32 bit and 64 bit)

•

Microsoft® Windows 7 with Service Pack 1 Home Premium, Professional, Ultimate, or Enterprise (32 bit and 64 bit)

●

Administrator rights for installing software.

●

PC to balance connection cable (e.g. No. 11101051 see chapter accessories)

9.2Update Procedure

Installing the "e-Loader II" software from the Internet onto the PC.

1 Connect to the Internet.

2 Go to the site http://www.mettler-toledo-support.com.

3 Log in to the METTLER TOLEDO Balance Support Site (registration with the serial number of a METTLER

TOLEDO instrument required).

4 Click Customer Support.

5 Click appropriate product folder.

6 Click the firmware version (e-Loader II) you need and save it on your specified storage location.

7 Right-click on the firmware SNxxx.exe and select Run as Administrator from the menu.

8 Follow the installer's instructions.

71Firmware (Software) Updates

Page 72

Loading the new firmware into the balance.

1 Right-click on METTLER TOLEDO e-Loader II and select Run as Administrator from the menu.

2 Follow the instructions, which will take you step-by-step through the installation.

72 Firmware (Software) Updates

Page 73

10Error and Status Messages

10.1Error Messages

Error messages in the display draw your attention to incorrect operation or that the balance could not execute a procedure properly.

Error Message Cause Rectification NO STABILITY No stability. Ensure more stable ambient condi

WRONG ADJUSTMENT WEIGHT Wrong adjustment weight on pan

REFERENCE TOO SMALL Reference for piece counting too

EEPROM ERROR - PLEASE CON TACT CUSTOMER SERVICE

or none at all.

small.

●

EEPROM (memory) error.

●

Excessive mains voltage fluctu ation or strong glitches occurred.

tions. If not possible, check settings for environment.

Place required adjustment weight in center of pan.

Increase reference weight.

Please contact METTLER TOLEDO customer service.

WRONG CELL DATA - PLEASE CONTACT CUSTOMER SERVICE

NO STANDARD ADJUSTMENT PLEASE CONTACT CUSTOMER SERVICE

PROGRAM MEMORY DEFECT PLEASE CONTACT CUSTOMER SERVICE

TEMP SENSOR DEFECT - PLEASE CONTACT CUSTOMER SERVICE

WRONG LOAD CELL BRAND PLEASE CONTACT CUSTOMER SERVICE

WRONG TYPE DATA SET - PLEASE CONTACT CUSTOMER SERVICE

BATTERY BACKUP LOST - CHECK DATE TIME SETTINGS

ABOVE INITIAL ZERO RANGE Wrong weighing pan or pan is not

BELOW INITIAL ZERO RANGE Wrong weighing pan or pan is

MEM.FULL Memory full. Clear the memory and start a new

FACTOR OUT OF RANGE Factor is outside the allow range. Select a new factor. STEP OUT OF RANGE Step is outside the allowed range. Select a new step.

Wrong cell data. Please contact METTLER TOLEDO

customer service.

No standard calibration. Please contact METTLER TOLEDO

customer service.

Program memory defect. Please contact METTLER TOLEDO

customer service.

Temperature sensor defect. Please contact METTLER TOLEDO

customer service.

Wrong load cell brand. Please contact METTLER TOLEDO

customer service.

Wrong type data set. Please contact METTLER TOLEDO

customer service.

Backup battery is empty. This bat tery ensures that the date and time are not lost when the balance is disconnected from power.

Overload - The weight on the pan exceeds the weighing capacity of the balance.

Underload Check that the weighing pan is

empty.

missing.

Connect the balance to the power supply for charging the battery (e.g. during the night) or contact METTLER TOLEDO customer ser vice.

Reduce the weight on the weighing pan.

positioned correctly.

Mount correct weighing pan or unload weighing pan.

Mount correct weighing pan.

evaluation.

73Error and Status Messages

Page 74

Error Message Cause Rectification OUT OF RANGE Sample weight is outside the

Attention

In some countries, excessive mains voltage fluctuations and strong glitches may occur. This may affect the bal ance functions or damage the software. If this is the case, we recommend using the PowerPac-M-12V for sta bilizing.

10.2Status Messages

Status messages are displayed by means of small icons. The status icons indicate the following:

Status Icon Signification

Unload the pan and load a new

allowed range.

Service Reminder Your balance is due for servicing. Contact your dealer's customer service department as soon as possible to have a technician service your balance. (See menu topic "SRV.ICON")

sample weight.

74 Error and Status Messages

Page 75

11Cleaning and Service

Every now and then, clean the weighing pan, draft shield element, bottom plate, draft shield (depending on the model) and housing of your balance. Your balance is made from high-quality, durable materials and can therefore be cleaned using a damp cloth or with a standard, mild cleaning agent.

Please observe the following notes:

●

The balance must be disconnected from the power supply

●

Ensure that no liquid comes into contact with the balance or the AC adapter.

●

Never open the balance or AC adapter – they contain no components, which can be cleaned, repaired or replaced by the user.

●

On no account use cleaning agents which contain solvents or abrasive ingredients, as this can result in damage to the operation panel overlay.

●

Do not use wet, but only damp cloth for cleaning.

Please contact your METTLER TOLEDO dealer for details of the available service options. Reg ular servicing by an authorized service engineer ensures constant accuracy for years to come and prolongs the service life of your balance.

75Cleaning and Service

Page 76

12Interface Specification

9 6

GND

OUT

HAND SHAKE

DATA

OUT

RxD

TxD

CTS

RTS

OUT

POWER SUPPLY

+12V

2nd di

splay mode only

12.1RS232C Interface

Each balance is equipped with an RS232C Interface COM1 as standard for the attachment of a peripheral device (e.g. printer or computer).

Schematic Item Specification

Interface type Voltage interface according to EIA

RS-232C/DIN66020 CCITT V24/V.28) Max. cable length 15 m Signal level Outputs:

+5 V … +15 V (RL = 3–7 kΩ)

–5 V … –15 V (RL = 3–7 kΩ)

Inputs:

+3 V … +25 V

–3 V … -25 V Connector Sub-D, 9-pole, female Operating mode Full duplex Transmission mode Bit-serial, asynchronous Transmission code ASCII Baud rates 600, 1200, 2400, 4800, 9600, 19200,

38400 (software selectable) Bits/parity 7-bit/none, 7-bit/even, 7-bit/odd, 8-bit/none

(software selectable) Stop bits 1 stop bit Handshake None, XON/XOFF, RTS/CTS (software selectable) End-of-line <CR><LF>, <CR>, <LF> (software selectable) Power supply for

2nd display

+ 12 V, max 40 mA (software selectable, 2nd

display mode only)

12.2MT-SICS Interface Commands and Functions

Note: The second interface COM2 if present, has no power supply on Pin 9 for a 2nd display.

Many of the instruments and balances used have to be capable of integration in a complex computer or data acquisition system.

To enable you to integrate balances in your system in a simple manner and utilize their capabilities to the full, most balance functions are also available as appropriate commands via the data interface.

All new METTLER TOLEDO balances launched on the market support the standardized command set "METTLER TOLEDO Standard Interface Command Set" (MT-SICS). The commands available depending on the functionality of the balance.

For further information please refer to the Reference Manual MT-SICS downloadable from the Internet under

u www.mt.com/sics-newclassic

76 Cleaning and Service

Page 77

13Technical Data

13.1General Data

Power Supply

• AC operation:

• Power consumption in standby mode:

• Battery operation: 8 standard AA (LR6) batteries (alkaline) for 8–15 hours of use.

Protection and Standards

• Overvoltage categorie: III

• Degree of pollution: 2

• Protection: Protected against dust and water.

• Standards for safety and EMC: See Declaration of Conformity

• Range of application: For use only in dry interior rooms

Environmental conditions

• Height above mean sea level: up to 4000 m

• Ambient temperature range:: 10 to 30 °C

• Relative air humidity:: 10% to 80 % up to 31 °C, linearly decreasing to 50 % at 40 °C, non

• Warm-up time After connecting the balance to the power supply or switched on in bat

AC/DC Adapter Primary: 100V–240V, ±10%, 50/60Hz, 0.3 A Secondary: 12VDC, 0.84A (with electronic overload protection) Power supply to the balance: 8–20VDC, 10W

Use only with a tested AC Adapter with SELV output current. Ensure correct polarity

< 1 W (MT.GREEN)

condensing

tery operation at least

●

30 minutes on balances with a readability of 0.001 g (0.01 ct) to

0.1 g.

●

60 minutes on balances with a readability of 0.1 mg (0.001 ct) and better.

Materials

• Housing: Top Housing: Plastic (ABS) Bottom housing: Die-cast aluminum, lacquered

• Weighing pan: Stainless steel X2CrNiMo 17-12-2 (1.4404)

• Draft shield element: with 0.1 mg models: Stainless steel X2CrNiMo 17-12-2 (1.4404)

• Draft shield: Plastic (ABS), glass

• In-use-cover: Plastic (ABS)

77Technical Data

Page 78

13.2Model-Specific Data

13.2.1Carat Balances with Readability of 0.001 ct

JP503C JS503C

Limit values

Maximum capacity 500 ct / 100 g 500 ct / 100 g Readability 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Repeatability (at nominal load) 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Linearity deviation 0.001 ct / 0.0002 g 0.001 ct / 0.0002 g Sensitivity temperature drift 2 ppm/°C 2 ppm/°C

Typical values

Repeatability (at nominal load) 0.08 mg 0.08 mg Linearity deviation 0.06 mg 0.06 mg Minimum sample weight (U=1 %, k=2) 0.016 g 0.016 g Minimum sample weight OIML 0.01 g 0.01 g Settling time 2 s 2 s Adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 193x290x266 mm 193x290x266 mm Weighing pan dimensions ø 90 mm ø 90 mm Usable height of draft shield 165 mm 165 mm Weight of balance 4 kg 4 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123002

100g F2, 5g E2

#11123102

100g 1, 5g 1

#11123002

100g F2, 5g E2

#11123102

100g 1, 5g 1

JP703C JS703C

Limit values

Maximum capacity 700 ct / 140 g 700 ct / 140 g Readability 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Repeatability (at nominal load) 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Linearity deviation 0.001 ct / 0.0002 g 0.001 ct / 0.0002 g Sensitivity temperature drift 2 ppm/°C 2 ppm/°C

Typical values

78 Technical Data

Page 79

JP703C JS703C

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

Limit values

Maximum capacity 1200 ct / 240 g 1200 ct / 240 g Readability 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Repeatability (at nominal load) 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Linearity deviation 0.001 ct / 0.0002 g 0.001 ct / 0.0002 g Sensitivity temperature drift 2 ppm/°C 2 ppm/°C

Typical values

Repeatability (at nominal load) 0.08 mg 0.08 mg Linearity deviation 0.06 mg 0.06 mg Minimum sample weight (U=1 %, k=2) 0.016 g 0.016 g Minimum sample weight OIML 0.01 g 0.01 g Settling time 2 s 2 s Internal adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 193x290x266 mm 193x290x266 mm Weighing pan dimensions ø 90 mm ø 90 mm Usable height of draft shield 165 mm 165 mm Weight of balance 4 kg 4 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123002

100g F2, 5g E2

#11123102

100g 1, 5g 1

JP1203C JS1203C

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

#11123002

100g F2, 5g E2

#11123102

100g 1, 5g 1

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

JP1603C JS1603C

Limit values

Maximum capacity 1600 ct / 320 g 1600 ct / 320 g Readability 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Repeatability (at nominal load) 0.001 ct / 0.0001 g 0.001 ct / 0.0001 g Linearity deviation 0.001 ct / 0.0002 g 0.001 ct / 0.0002 g Sensitivity temperature drift 2 ppm/°C 2 ppm/°C

Typical values

79Technical Data

Page 80

Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 193x290x266 mm 193x290x266 mm Weighing pan dimensions ø 90 mm ø 90 mm Usable height of draft shield 165 mm 165 mm Weight of balance 4 kg 4 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

13.2.2Gold Balances with Readability of 0.001 g

Limit values

Maximum capacity 320 g 320 g Readability 0.001 g 0.001 g Repeatability (at nominal load) 0.001 g 0.001 g Linearity deviation 0.002 g 0.002 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Repeatability (at nominal load) 0.7 mg 0.7 mg Linearity deviation 0.6 mg 0.6 mg Minimum sample weight (U=1 %, k=2) 0.14 g 0.14 g Minimum sample weight OIML 0.02 g 0.02 g Settling time 1.5 s 1.5 s Internal adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 193x290x266 mm 193x290x266 mm Weighing pan dimensions ø 120 mm ø 120 mm Usable height of draft shield 165 mm 165 mm Weight of balance 4 kg 4 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

JP1603C JS1603C

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

JP303G JS303G

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

#11123001

200g F2, 10g F1

#11123101

200g 1, 10g 1

Limit values

Maximum capacity 520 g 520 g Readability 0.001 g 0.001 g Repeatability (at nominal load) 0.001 g 0.001 g Linearity deviation 0.002 g 0.002 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

80 Technical Data

JP503G JS503G

Page 81

Repeatability (at nominal load) 0.7 mg 0.7 mg Linearity deviation 0.6 mg 0.6 mg Minimum sample weight (U=1 %, k=2) 0.14 g 0.14 g Minimum sample weight OIML 0.02 g 0.02 g Settling time 1.5 s 1.5 s Adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 193x290x266 mm 193x290x266 mm Weighing pan dimensions ø 120 mm ø 120 mm Usable height of draft shield 165 mm 165 mm Weight of balance 4 kg 4 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

13.2.3Gold Balances with Readability of 0.01 g

Limit values

Maximum capacity 820 g 820 g Readability 0.01 g 0.01 g Repeatability (at nominal load) 0.01 g 0.01 g Linearity deviation 0.02 g 0.02 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Repeatability (at nominal load) 0.007 g 0.007 g Linearity deviation 0.006 g 0.006 g Minimum sample weight (U=1 %, k=2) 1.4 g 1.4 g Minimum sample weight OIML 0.5 g 0.5 g Settling time 1 s 1 s Adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 184x290x84 mm 184x290x84 mm Weighing pan dimensions 170x190 mm 170x190 mm Weight of balance 3.2 kg 3.2 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

JP503G JS503G

#11123007

500g F2, 20g F1

#11123107

500g 1, 20g 1

JP802G JS802G

#11123007

500g F2, 20g F1

#11123107

500g 1, 20g 1

#11123007

500g F2, 20g F1

#11123107

500g 1, 20g 1

#11123007

500g F2, 20g F1

#11123107

500g 1, 20g 1

JP2002G JS2002G

Limit values

Maximum capacity 2200 g 2200 g

81Technical Data

Page 82

JP2002G JS2002G

Readability 0.01 g 0.01 g Repeatability (at nominal load) 0.01 g 0.01 g Linearity deviation 0.02 g 0.02 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123009

2000g F2, 100g F2

#11123109

2000g 1, 100g 1

#11123009

2000g F2, 100g F2

#11123109

2000g 1, 100g 1

JP3002G JS3002G

Limit values

Maximum capacity 3200 g 3200 g Readability 0.01 g 0.01 g Repeatability (at nominal load) 0.01 g 0.01 g Linearity deviation 0.02 g 0.02 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123009

2000g F2, 100g F2

#11123109

2000g 1, 100g 1

#11123009

2000g F2, 100g F2

#11123109

2000g 1, 100g 1

82 Technical Data

Page 83

JP4002G JS4002G

Limit values

Maximum capacity 4200 g 4200 g Readability 0.01 g 0.01 g Repeatability (at nominal load) 0.01 g 0.01 g Linearity deviation 0.02 g 0.02 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123010

2000g F2, 200g F2

#11123110

2000g 4, 200g 4

#11123010

2000g F2, 200g F2

#11123110

2000g 4, 200g 4

JP6002G JS6002G

Limit values

Maximum capacity 6200 g 6200 g Readability 0.01 g 0.01 g Repeatability (at nominal load) 0.01 g 0.01 g Linearity deviation 0.02 g 0.02 g Sensitivity temperature drift 3 ppm/°C 3 ppm/°C

Typical values

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

#11123011

5000g F2, 200g F2

#11123111

5000g 4, 200g 4

#11123011

5000g F2, 200g F2

#11123111

5000g 4, 200g 4

83Technical Data

Page 84

13.2.4Gold Balances with Readability of 0.1 g

Limit values

Maximum capacity 8200 g 8200 g Readability 0.1 g 0.1 g Repeatability (at nominal load) 0.1 g 0.1 g Linearity deviation 0.2 g 0.2 g Sensitivity temperature drift 5 ppm/°C 5 ppm/°C

Typical values

Repeatability (at nominal load) 0.07 g 0.07 g Linearity deviation 0.06 g 0.06 g Minimum sample weight (U=1 %, k=2) 14 g 14 g Minimum sample weight OIML 5 g 5 g Settling time 1 s 1 s Adjustment Int. Cal / FACT Int. Cal Interfaces 2 RS232 1 RS232 Balance dimensions (W x D x H) 184x290x84 mm 184x290x84 mm Weighing pan dimensions 170x190 mm 170x190 mm Weight of balance 3.2 kg 3.2 kg

Weights for routine testing

OIML CarePac

Weights

ASTM CarePac

Weights

JP8001G JS8001G

#11123011

5000g F2, 200g F2

#11123111

5000g 4, 200g 4

#11123011

5000g F2, 200g F2

#11123111

5000g 4, 200g 4

84 Technical Data

Page 85

13.3Dimensions

134

216

156

163

144

290

184

193

185

ø 90

169

(165)

266

126

13.3.1Carat Balances with Readability of 0.001ct

Models:

JP503C JS503C JP703C JS703C JP1203C JS1203C JP1603C JS1603C

85Technical Data

Page 86

13.3.2Gold Balances with Readability of 0.001 g

134

216

156

163

144

290

184

193

185

ø 120

169

(165)

266

126

Models:

JP303G JS303G JP503G JS503G

86 Technical Data

Page 87

13.3.3Gold Balances with Readability of 0.01 g

167

200

184

203

170

144

190

290

200

180

Models:

JP802G JS802G JP2002G JS2002G JP3002G JS3002G JP4002G JS4002G JP6002G JS6002G

87Technical Data

Page 88

13.3.4Gold Balances with Readability of 0.1 g

167

200

184

170

144

190

203

290

Models:

JP8001G JS8001G

88 Technical Data

Page 89

14Accessories and Spare Parts

14.1Accessories

Description Part No.

Carat pans

Carat pan XS, Ø 50 mm / heigh 20 mm (set of 10 units) 12102565

Carat pan S, Ø 80 mm / heigh 20 mm (set of 10 units) 12102645

Carat pan M, Ø 90 mm / heigh 30 mm (set of 10 units) 12102646

Density determination

Carat pan L, Ø 90 mm / heigh 45 mm (set of 10 units) 12102647

Density kit ML-DNY-43 for NewClassic ML Balances (d=0.1mg/1mg)

Glass beaker, height 100 mm, Ø 60 mm 00238167

Sinker for density of liquids in conjunction with Density Kit 00210260 Calibrated (sinker + certificate) 00210672 Recalibrated (new certificate) 00210674

11142144

89Accessories and Spare Parts

Page 90

Draft shields

Printers

Calibrated thermometer with certificate 11132685

Draft shield ML-DS-21 for models with readability of 0.1g up to 0.01g.

RS-P28/11 printer with RS232C connection to balance (with date, time and applications

Paper roll, set of 5pcs 00072456 Paper roll, self-adhesive, set of 3pcs 11600388 Ribbon cartridge, black, set of 2pcs 00065975

12121015

11124309

P-58RUE Thermal Printer with RS232C, USB and Ethernet con nections, simple printouts, Date and Time, Label printing, Bal ance applications: Statistics, Formulation, Totaling,

Cables for RS232C interface

RS9 – RS9 (m/f): connection cable for PC, length = 1 m 11101051

RS9 – RS25 (m/f): connection cable for PC, length = 2m 11101052

RS232 - USB converter cable – Cable with converter to connect a balance (RS232) to a USB port

30094674

Paper roll, white, set of 10pcs 30094723 Paper roll, white, self-adhesive, set of 10pcs 30094724 Paper roll, white, self-adhesive labels, set of 6pcs 30094725

64088427

90 Accessories and Spare Parts

Page 91

Cables for USB interface

METTLER TOLEDO

000000

USB (A –B) connection cable for connection to PC, length=1m

Cable replacement (wireless)

Bluetooth RS232 Serial Adapter ADP-BT-S for wireless connec tion between printer and Excellence balance* or between bal ance and PC*. Fits printers P-56 / P-58 and the following bal ance models (SW V2.20 or higher required): MS, MS-S/L, ML, PHS, JP, JS. * Bluetooth interface required

●

1 Bluetooth RS232 Serial Adapter (slave)

●

1 MT-DB9 male to female connector

●

1 MT-DB9 male to male connector

12130716

30086494

Auxiliary displays

Power supplies

Bluetooth RS232 Serial Adapter set ADP-BT-P for wireless con

30086495 nection between printer and balance. Fits printers P-56 / P-58 and the following balance models (SW V2.20 or higher required): MS, MS-S/L, ML, PHS, JP, JS.

●

2 Bluetooth RS232 Serial Adapter paired (slave/master)

●

1 MT-DB9 male to female connector

●

1 MT-DB9 male to male connector

RS232 auxiliary display AD-RS-J7 12122380

AC/DC universal adapter (EU, USA, AU, UK) 100–240 VAC,

11120270 50/60 Hz, 0.3 A, 12 VDC 0.84 A

PowerPac-M-12V, for mains independent operation of bal ances, 12 VDC/1 A

12122363

91Accessories and Spare Parts

Page 92

Pan protections

www.mt.com/precison-balances

Learn more about our Precision Balances

Protective covers

Dust covers

Protective foils, 164x184mm, set of 20pcs,

30113801

pan protection for weighing pan 170x190mm

Protective cover for models with draft shield "165/235 mm" 12122030

Protective cover for models with square weighing pan 12122031

ML-DC-85

30028926

Dust cover for models without draft shield

Anti-theft devices

Software

ML-DC-265

30028927

Dust cover for models with draft shield low (165mm)

Steel cable 11600361

LabX direct balance (simple data transfer) 11120340

92 Accessories and Spare Parts

Page 93

Transport cases

Adjustment weights

14.2Spare Parts

Carat Balances with Readability of 0.001ct

Drawing Pos Description Part No.

Transport case 11124240

OIML / ASTM Weights (with calibration certificate) see www.mt.com/weights

1 Weighing pan Ø 90 mm 12122010 2 Pan support 12122042 3 Draft shield element 12122043 4 Bottom plate 12122044 5 Side glass door low 12122089 6 Top glass door 12122033 7 Pair of handles 12122035 8 Leveling foot 12122040 9 Battery-chamber cover 12122041 10 Weighing below balance cap 12122029

93Accessories and Spare Parts

Page 94

Gold Balances with Readability of 0.001g

Drawing Pos Description Part No.

Weighing pan Ø 90 mm 12122010 1

Weighing pan Ø 120 mm 12122037 2 Pan support Ø 120 mm 12122045 3 Bottom plate 12122044 4 Side glass door low 12122089 5 Top glass door 12122033 6 Pair of handles 12122035 7 Leveling foot 12122040 8 Battery-chamber cover 12122041 9 Weighing below balance cap 12122029

Balances with readability of 10 mg with square weighing pan and draft shield element

Drawing Pos Description Part No.

1 Weighing pan 170 mm x 190 mm 12122048 2 Pan support 12122049 3 Draft shield element 12122050 4 Pan support cap 11131029 5 Leveling foot 12122040 6 Battery-chamber cover 12122041 7 Weighing below balance cap 12122029

Balances with readability of 0.1 g with square weighing pan

Drawing Pos Description Part No.

94 Accessories and Spare Parts

1 Weighing pan 170 mm x 190 mm 12122048 2 Pan support 12122049 3 Pan support cap 11131029 4 Leveling foot 12122040 5 Battery-chamber cover 12122041 6 Weighing below balance cap 12122029

Page 95

Index

AC operation 16 Adjusting 18 Adjustment 20, 29, 29 Advanced menu 25, 29 Ambient conditions 15 Application “Check Weighing” 42 Application “Density” 53 Application “Diagnostics” 31, 62 Application “Division Factor Weighing” Application “Multiplication Factor Weighing” Application “Percent Weighing” 40 Application “Piece Counting” 37 Application “Routine Test” 59 Application “Statistics” 45 Application “Totaling” 47 Application “Weighing” 22 Application icons 11 Assign Application 31 Auto print 33 Automatic adjustment 19 Automatic shutoff 30 Automatic zero setting 31 Autozero 31 Average (Statistics) 45

Backlight 31 Balance history 65 Balance information 67 Basic menu 25, 27 Battery operation 16 Baudrate 35 Beep 28, 28 Bit/Parity 35

Calibration 29 Calibration history 66 Cancel 27 Change settings 26, 26 Char Set 36 Check Weighing 42 Cleaning 75 Closing the menu 26 Control Limit 60 Conventions and symbols 7 Customer fine adjustment 20, 29

Data communication format 33 Date 27 Date format 30 Delivery inspection 13

Density 53 Density kit 53 Density table for distilled water 57 Density table for ethanol 58 Diagnose 31 Diagnostics 62 Diagnostics application 31 Display 33 Display panel 11 Display test 63 Disposal 8 Distilled water 57 Division Factor Weighing 51 Dosing 29 Draft Shield 14, 75

End of Line 36 Environment 29 Error messages 73 Ethanol 58 External weight 19

FACT 19, 29, 30 Factor Weighing 49, 51 Firmware update 71 Fully automatic adjustment 19, 29 Function PC-Direct 69

Good Weighing Practice 59 GWP 59, 60

Handshake 35 Header 33 Host 32

Icons 11 Input principle 26 Installing the components 14 Interface

MT-SICS 76 Interface menu 25, 32, 32 Interface RS232C 32, 76 Internal weight 19 Interval 36 Introduction 7

Key assign 31 Key beep 28 Key functions 10 Key test 64

Leveling the balance 15

Index 95

Page 96

Line feed 33 Liquid 53 Liquids 55 Location 15

Main Menu 27 Manual adjustment with external weight Manual adjustment with internal weight Menu 25, 27 Menu Advanced 25, 29 Menu Basic 25, 27 Menu Interface 25, 32, 32 Menu operation 26 Menu protection 27 Menu topic 26, 26, 27 Motor test 65 MT-SICS 76 Multiplication Factor Weighing 49

Numerical values 26

Operating temperature 18 Operation keys 10

PC-DIR 32 PC-Direct 69 Percent Weighing 40 Performing a simple weighing 23 Piece Counting 37 Power supply 16 Print 24 Printer 32 Protect 27 Protocol trigger 30

Recall 24, 30 Repeatability test 62 Reset 28 Routine Test 59 RS232C interface 32, 76

Setting up the balance 13 Shutoff 22, 30 Signature line 33 Sinker 53, 55 Software update 71 Solids 53 SOP 60 Spare parts 93 Stability beep 28 Standard Deviation (Statistics) 45 Statistics 45 Status icons 11 Status messages 74 Stop bit 35 Submenu 26 Switching

On 18

Switching the balance on and off 22 Switching weight units 23 Symbols and conventions 7

Technical data general 77 Time 27 Time format 30 Topic 26, 26, 27 Totaling 47 Transmit data 24 Transporting the balance 17

Unit 28, 28 Unpacking 13

Warm-up time 18, 77 Warning Limit 60 Weighing below the balance 18 Weighing made simple 22 Weighing mode 29 Weighing-in aid 24 Weight unit 23, 28, 28

Zero print 33 Zero setting 23 Zeroing 31

Safety precautions 8 Saving settings 26 Select menu 26 Select menu topic 26 Selecting the location 15 Service 32, 32, 75 Service date reset 32 Service icon 32 Service provider information 68 Service reminder 32

Index96

Page 97

Page 98

Page 99

Page 100

Mettler-Toledo AG, Laboratory Weighing

CH-8606 Greifensee, Switzerland Tel. +41 (0)44 944 22 11 Fax +41 (0)44 944 30 60 www.mt.com

www.mt.com/jewelry

For more information

*11781452*

Mettler Toledo Jewelry JP, Jewelry JS Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

7Introduction

9Overview

13Setting up the Balance

25The Menu

37Applications

69Communication with Peripheral Devices

71Firmware (Software) Updates

73Error and Status Messages

75Cleaning and Service

77Technical Data

89Accessories and Spare Parts

Index
