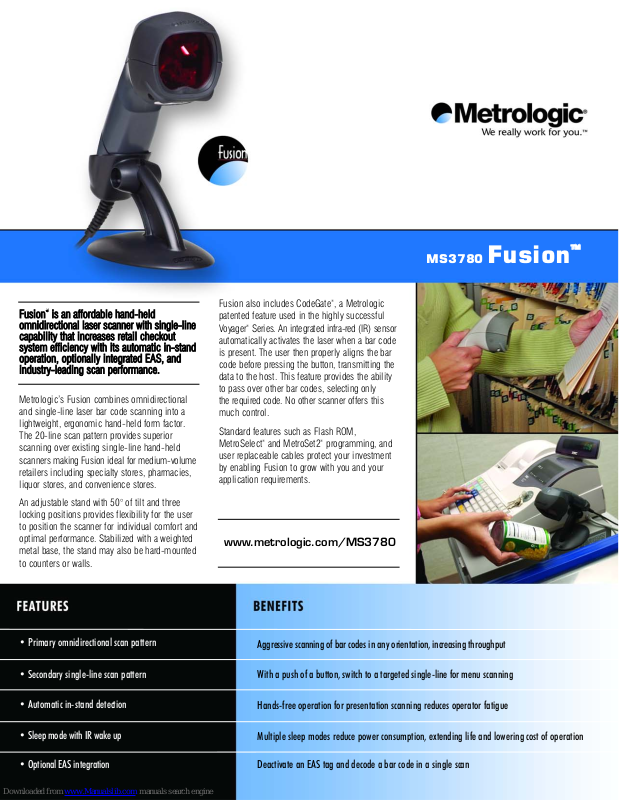

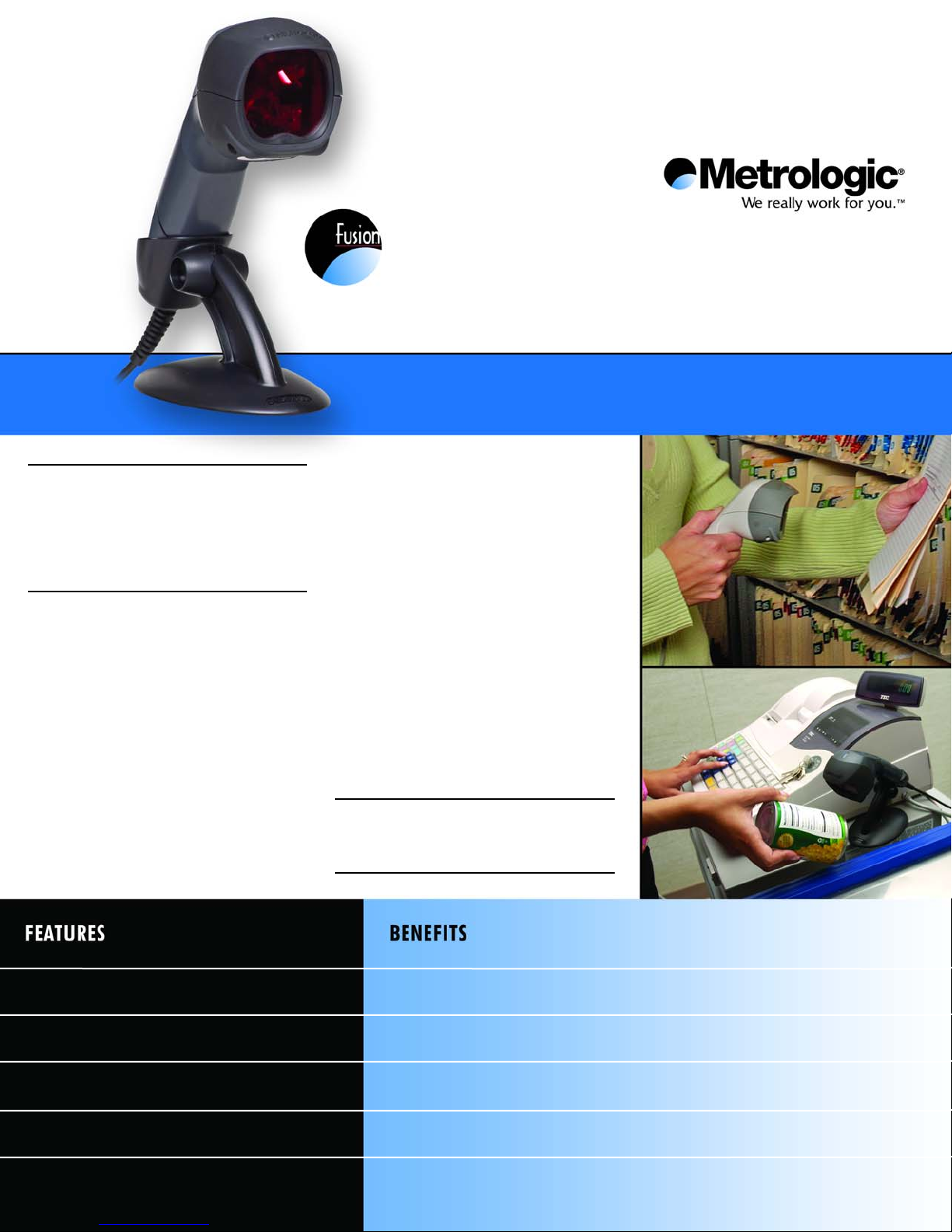

MS3780 Fusion
TTMM
Metrologic’s Fusion combines omnidirectional
and single-line laser bar code scanning into a
lightweight, ergonomic hand-held form factor.
The 20-line scan pattern provides superior
scanning over existing single-line hand-held
scanners making Fusion ideal for medium-volume
retailers including specialty stores, pharmacies,
liquor stores, and convenience stores.
An adjustable stand with 50° of tilt and three
locking positions provides flexibility for the user
to position the scanner for individual comfort and
optimal performance. Stabilized with a weighted
metal base, the stand may also be hard-mounted
to counters or walls.
Fusion also includes CodeGate
®
, a Metrologic
patented feature used in the highly successful
Voyager®Series. An integrated infra-red (IR) sensor
automatically activates the laser when a bar code
is present. The user then properly aligns the bar
code before pressing the button, transmitting the
data to the host. This feature provides the ability
to pass over other bar codes, selecting only
the required code. No other scanner offers this
much control.
Standard features such as Flash ROM,
MetroSelect®and MetroSet2®programming, and
user replaceable cables protect your investment
by enabling Fusion to grow with you and your
application requirements.
FFuussiioonn™™iiss aann aaffffoorrddaabbllee hhaanndd--hheelldd
oommnniiddiirreeccttiioonnaall llaasseerr ssccaannnneerr wwiitthh ssiinnggllee--lliinnee
ccaappaabbiilliittyy tthhaatt iinnccrreeaasseess rreettaaiill cchheecckkoouutt
ssyysstteemm eeffffiicciieennccyy wwiitthh iittss aauuttoommaattiicc iinn--ssttaanndd
ooppeerraattiioonn,, ooppttiioonnaallllyy iinntteeggrraatteedd EEAASS,, aanndd
iinndduussttrryy--lleeaaddiinngg ssccaann ppeerrffoorrmmaannccee..
www.metrologic.com/MS3780
• Primary omnidirectional scan pattern
• Secondary single-line scan pattern
• Automatic in-stand detection
• Sleep mode with IR wake up
• Optional EAS integration
Aggressive scanning of bar codes in any orientation, increasing throughput
With a push of a button, switch to a targeted single-line for menu scanning
Hands-free operation for presentation scanning reduces operator fatigue
Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
Deactivate an EAS tag and decode a bar code in a single scan
Page 2
OPERATIONAL
MECHANICAL
ELECTRICAL
SCAN PERFORMANCE
Product Colors Available
MMSS33778800
is available in a variety of other
colors with minimum quantity purchase
MS3780 Fusion
TTMM
Light Source Visible Laser Diode 650 nm
Laser Power 1.1 mW (peak)
Decode Capability Autodiscriminates all standard 1D bar codes, including RSS-Expanded,
RSS-14 and RSS-14 Limited; for other symbologies call Metrologic
System Interfaces RS232, Keyboard Wedge, Stand Alone Keyboard,
IBM 468x/469x, USB, OCIA
Number Characters Read Up to 80 data characters
Beeper Operation 7 tones or no beep
Indicators Blue = laser on, ready to scan
White = good read
Length (scanner only) 189 mm (7.44”)
Width (scanner only) 65 mm (2.56”)
Height (scanner only) 73 mm (2.88”)
Weight (scanner only) 195 g (6.9 oz)
Termination 10 position modular RJ45 connector
Cable Standard 2.1 m (7’) straight; optional 2.7 m (9’) coiled for other
cables call Metrologic
Bar Code Minimum Element
0.132 mm (5.2 mil)
0.191 mm (7.5 mil)
0.264 mm (10.4 mil)
0.330 mm (13 mil)
0.495 mm (19.5 mil)
0 mm 100 mm 200 mm 300 mm
(0”) (4”) (8”) (12”)
Scan Area
DS3780
150 mm
(5.9”)
90 mm
(3.54”)
65 mm
(2.56”)
130 mm
(5.12”)
197 mm
(7.76”)
128 mm
(5.04”)
69 mm
(2.72”)
39 mm
(1.54”)

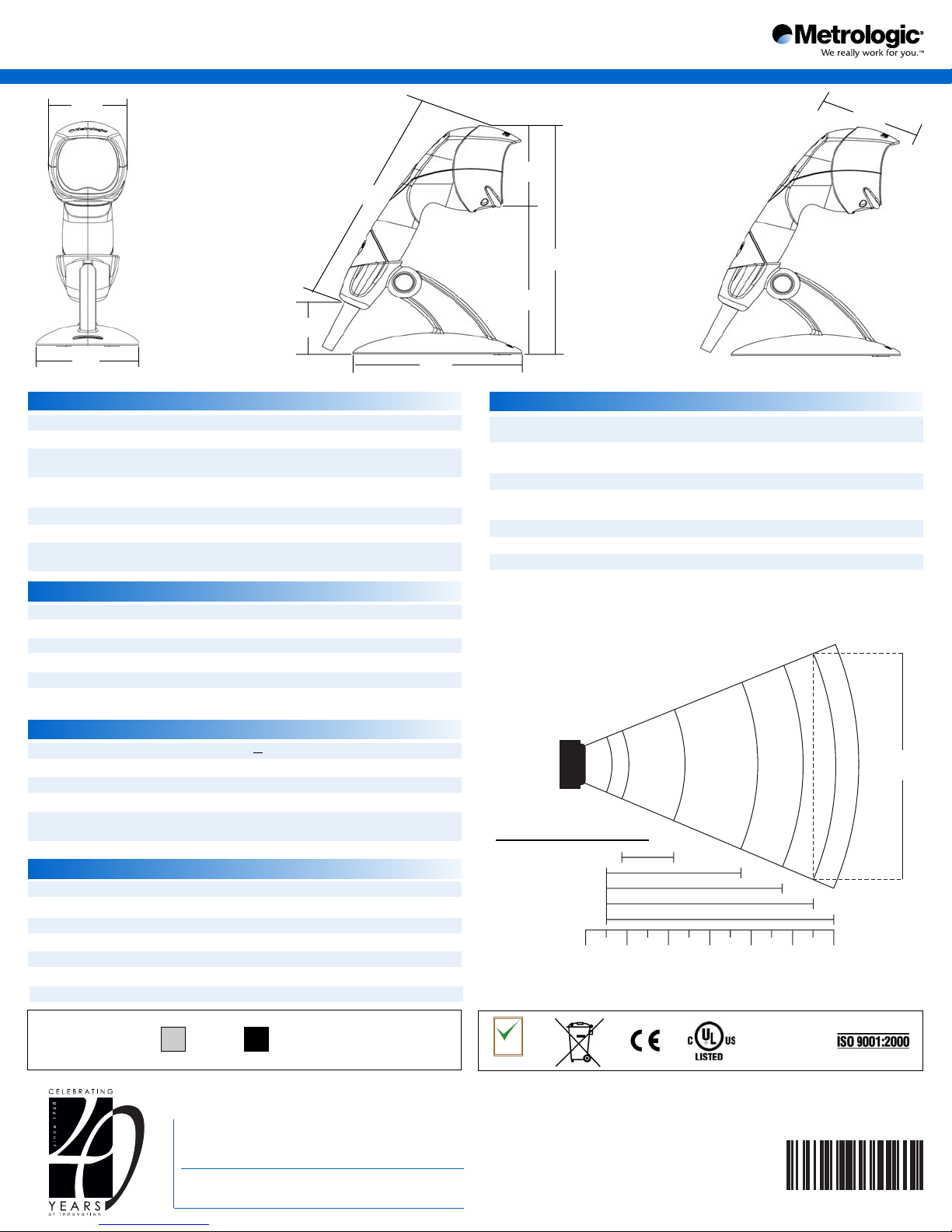

189 mm
(7.44”)
Depth of Scan Field 25 mm - 279 mm (1” - 11”) for 0.33 mm (13 mil) bar code
(programmable) at default setting
Width of Scan Field 30 mm (1.2”) @ 25 mm (1.0”); 150 mm (5.9”)
@ 280 mm (11.0”)
Scan Speed 1,333 scan lines/sec, omnidirectional; 67 scan lines/sec, single-line
Scan Pattern 5 fields of 4 parallel lines omnidirectional; or button activated
single line
Number of Scan Lines 20 (omnidirectional); or 1 (single-line)
Minimum Bar Width 0.127 mm (5.0 mil)
Print Contrast 35% minimum reflectance difference
Roll, Pitch, Yaw 360°, 60°, 60°
Input Voltage 5 VDC
+
0.25 V
Power 1.375 W
Operating Current 275 mA typical @ 5 VDC
DC Transformers Class 2; 5.2 VDC @ 650 mA
Laser Class Class 1; IEC60825-1:1993/A1:1997+A2:2001
Class 1; EN60825-1:1994/A11:1996+A2:2001
EMC FCC, ICES-003 & EN55022 Class B
ENVIRONMENTAL
Operating -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40
°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Light Levels Up to 4842 Lux (450 footcandles)
Contaminants Sealed to resist airborne particulate contaminants
Ventilation None required
Drop/Shock Withstands multiple 1.5 m drops
73 mm
(2.88”)
RoHS
2002/95/EC
Specifications subject to change without notice. Printed U.S.A. Copyright January 2008 Metrologic, All rights reserved.
