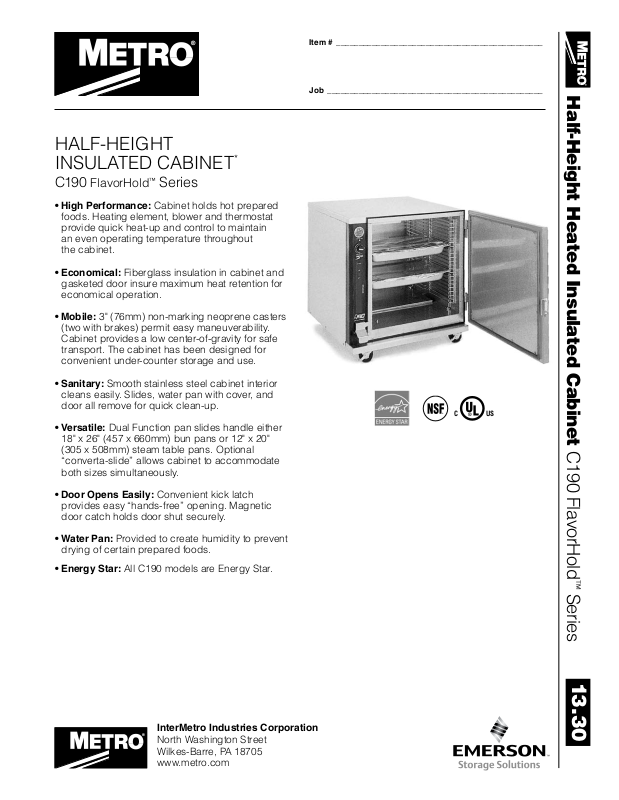

metroInter C190 General Manual
®
Item # ______________________________________________
®
®
C
US
®
®
®
HALF-HEIGHT
INSULATED CABINET
C190 FlavorHold
• High Performance: Cabinet holds hot prepared
foods. Heating element, blower and thermostat
provide quick heat-up and control to maintain
an even operating temperature throughout
the cabinet.
• Economical: Fiberglass insulation in cabinet and
gasketed door insure maximum heat retention for
economical operation.
• Mobile: 3" (76mm) non-marking neoprene casters
(two with brakes) permit easy maneuverability.
Cabinet provides a low center-of-gravity for safe
transport. The cabinet has been designed for
convenient under-counter storage and use.
™
Series
*
Job ________________________________________________
Half-Height Heated Insulated Cabinet C190 FlavorHold
• Sanitary: Smooth stainless steel cabinet interior
cleans easily. Slides, water pan with cover, and
door all remove for quick clean-up.
• Versatile: Dual Function pan slides handle either
18" x 26" (457 x 660mm) bun pans or 12" x 20"
(305 x 508mm) steam table pans. Optional
“converta-slide” allows cabinet to accommodate
both sizes simultaneously.
• Door Opens Easily: Convenient kick latch
provides easy “hands-free” opening. Magnetic
door catch holds door shut securely.
• Water Pan: Provided to create humidity to prevent
drying of certain prepared foods.
• Energy Star: All C190 models are Energy Star.
™
Series
13.30
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Job ________________________________________________
®
®
®
®
®
HALF-HEIGHT INSULATED CABINET
C190 FlavorHold™ Series
13.30
Specifications
• Material: Stainless steel
interior and .063" (1.8mm) high
strength brushed aluminum
exterior.
• Chassis: Brake-formed
aluminum wrapper with integral
reinforcements.
• Door: Brake-formed and
welded construction.
Double-hinged door allows
a 270 degree swing. Built-in
magnetic latch insures
trouble-free operation.
• Chrome-Plated Tray Slide
Racks: Accommodates twelve
18" x 26" (457 x 660mm) bun
pans on 13/4" (44mm) centers
or sixteen 20" x 21/2" (508 x
63mm) deep steam table pans.
Optional “converta-slide” allows
cabinet to accommodate both
sizes simultaneously.
Metro Heated cabinets are for
hot food holding applications only.
• Casters: 3" (76mm) double
ball-bearing swivel, ball-bearing
axle, nickel-plated, neoprene
tires, pre-lubricated, bolted
through 1/8" (3mm) thick aluminum
chassis. Two on front — same
as above, with wheel brake.
• Electrical: 1400 watt, 120 VAC,
12 AMP, 60 cycle controlled
by an adjustable thermostat.
Operating range is from 120
degrees to 200 degrees
Fahrenheit under normal room
temperature conditions. Duct
fed forced air circulates
throughout cabinet. 6-foot
(1829mm), 3-wire lead cord.
NEMA 5-15P plug.
UL, CUL, and NSF listed.
Standard Slides (Inboard)
Standard Slides (Outboard)
Optional “Converta-Slide”
Dimensions
Inside Slide Approx.
Height Width Depth Height Spacing Pan Capacity Pkd. Wt.
Cat. No. (in.) (mm) (in.) (mm) (in.) (mm) (in.) (mm) (in.) (mm) No. Size (in.) (mm) (lbs.) (kg)
C190 301/4 768 285/8 724 291/4 743 221/4 565 13/4 44 12 18x26 457x660 145 66
31/2 89 16 12x20x21/2 305x508x63
8 12x20x4 305x508x102
2 12x20x21/2 305x508x63
6 12x20x6 305x508x152
Accessory
Description Model No.
“Converta-Slide” (1 pair) A190
FLAVORHOLD™
Half-Height Heated Insulated Cabinet C190 Series
All Metro Catalog Sheets are available on our Web Site: www.metro.com
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
Information and specifications are subject to change
without notice. Please confirm at time of order.
Copyright © 2004 InterMetro Industries Corp.
Printed in U.S.A. Rev. 3/09
