Page 1
WCM1400
WCM1800
WCM1820
Managed Ethernet Extender
V8
Quick Start Guide
nd
DATE: 2
DOCUMENT NO: 76-02-087
REVISION: D
PREPARED BY: Ian Banbrook
Fortune House, Crabtree Office Village
Eversley Way, Egham Surrey, TW20 8RY, UK
E-Mail: [email protected]
April 2012
Metrodata Ltd
Tel +44 1 784 744700
Fax: +44 1 784 744730
Page 2
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
METRODATA LTD
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of
Metrodata Ltd, Fortune House,
Crabtree Office Village, Eversley Way,
2 of 61
Egham, Surrey, TW20 8RY, United Kingdom
.
DISCLAIMER
Metrodata Ltd makes no representations or warranties with respect
to the contents hereof and specifically disclaims any implied
warranties or merchantability or fitness for any particular purpose.
Further, Metrodata Ltd reserves the right to revise this publication
and to make changes from time to time in the content hereof without
obligation of Metrodata Ltd to notify any person of such revision or
changes.
Copyright
2012 by Metrodata Ltd,
All Rights Reserved
76-02-087 Rev D
Page 3
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
Document Revision History
3 of 61
28
18
th
January 2011 XA Document Created
th
February 2011 XB Document Updated
25th March 2011 A Document Released
8th July 2011 B Updated for new OAM screens
4th November 2011 C Updated VLAN trunking
2nd April 2012 D Updated for V8 software release
76-02-087 Rev D
Page 4
METRODATA LTD WCM1400/WCM1800/WCM1820
4 of 61
Quick Start Guide
TABLE OF CONTENTS
1 INTRODUCTION..........................................................................................................7

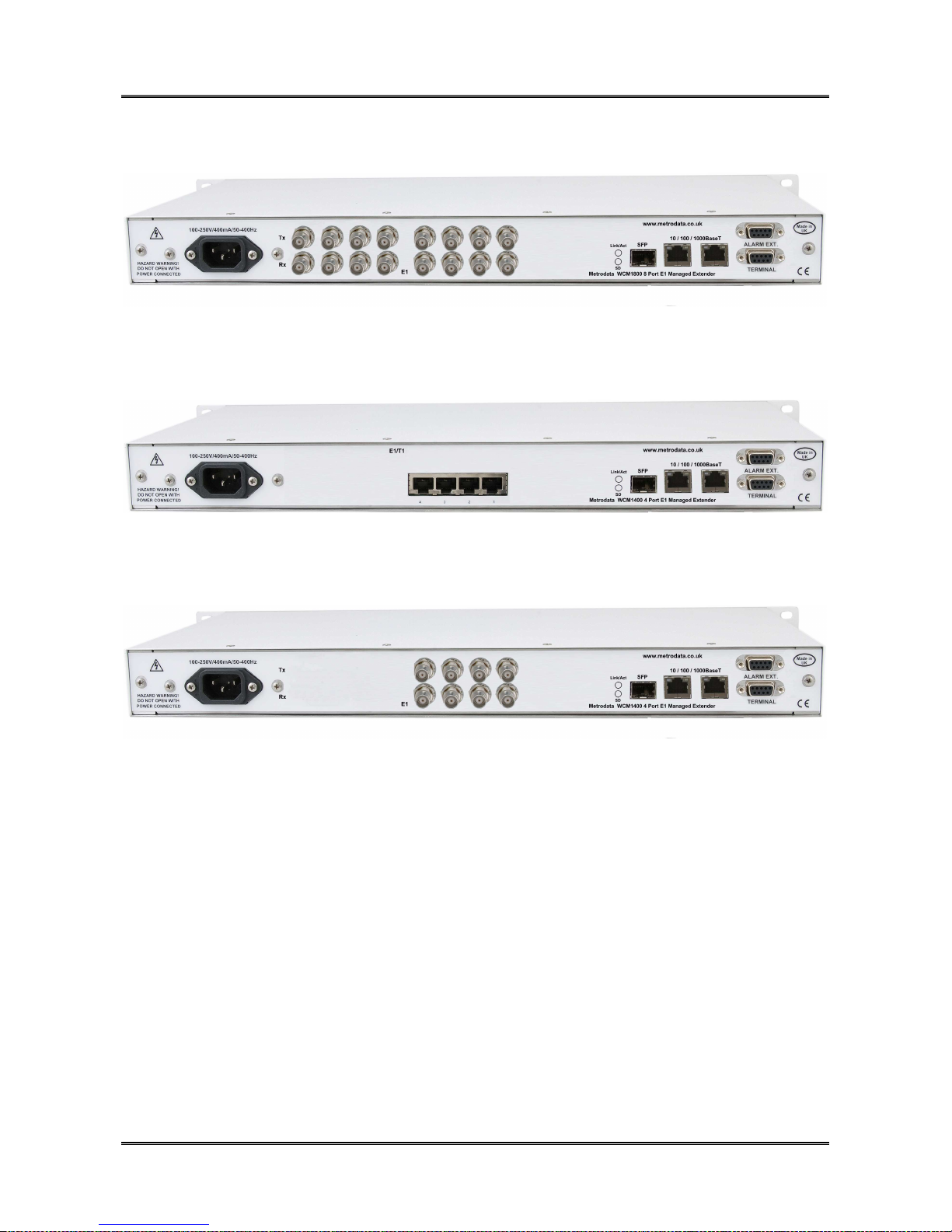

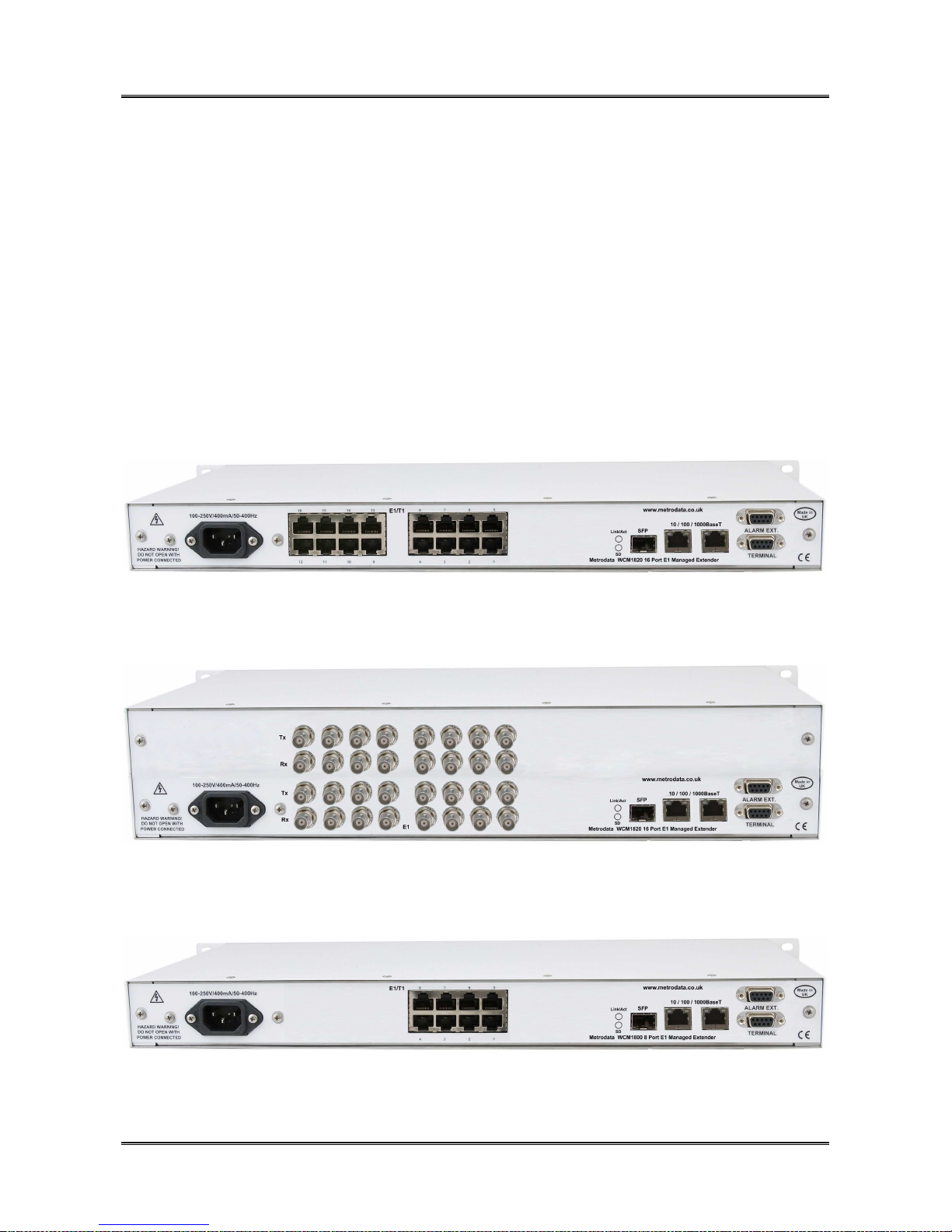

1.1 Product Rear Panels...........................................................................................................................................8
1.1.1 WCM1820 RJ45 Rear Panel...........................................................................................................................8
1.1.2 WCM1820 BNC Rear Panel............................................................................................................................8
1.1.3 WCM1800 RJ45 Rear Panel............................................................................................................................8
1.1.4 WCM1800 BNC Rear panel............................................................................................................................9
1.1.5 WCM1400 RJ45 Rear panel............................................................................................................................9
1.1.6 WCM1400 BNC Rear Panel............................................................................................................................9
2 WCM1800 APPLICATIONS.......................................................................................10

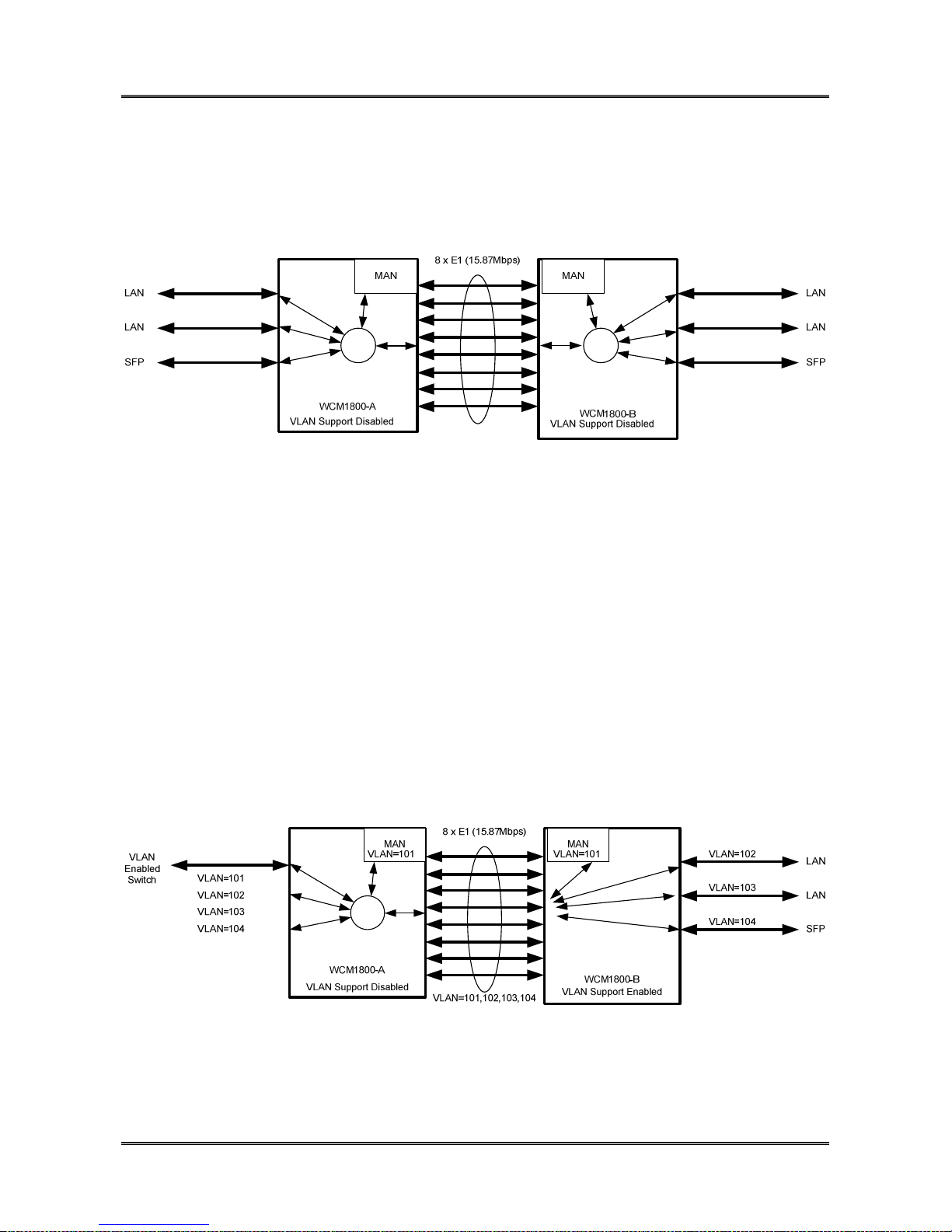

2.1 WCM1800 Normal Mode.................................................................................................................................10

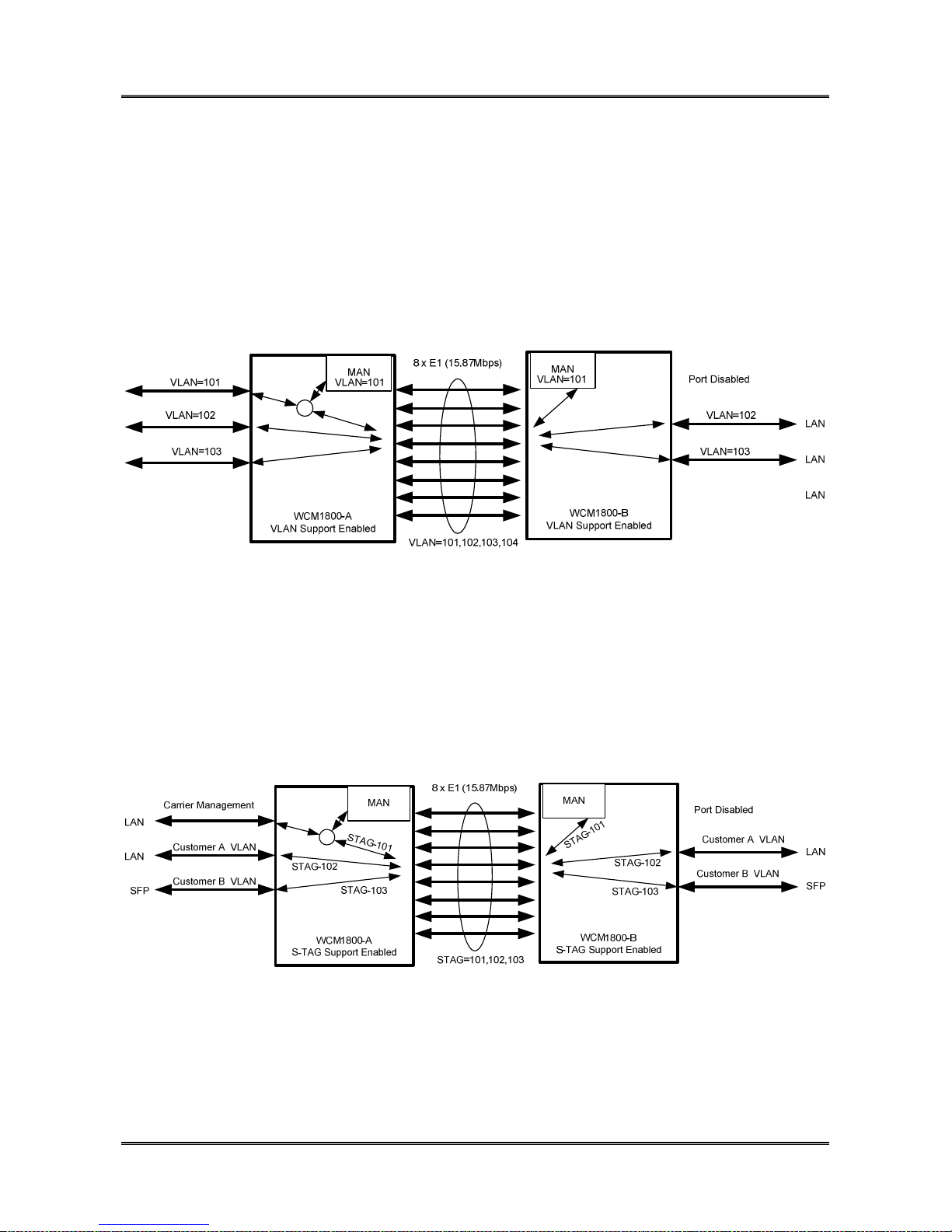

2.2 WCM1800 VLAN Trunk Mode ......................................................................................................................10
2.3 WCM1800 VLAN Access Mode...................................................................................................................... 11
2.4 WCM1800 S-Tag Mode ...................................................................................................................................11

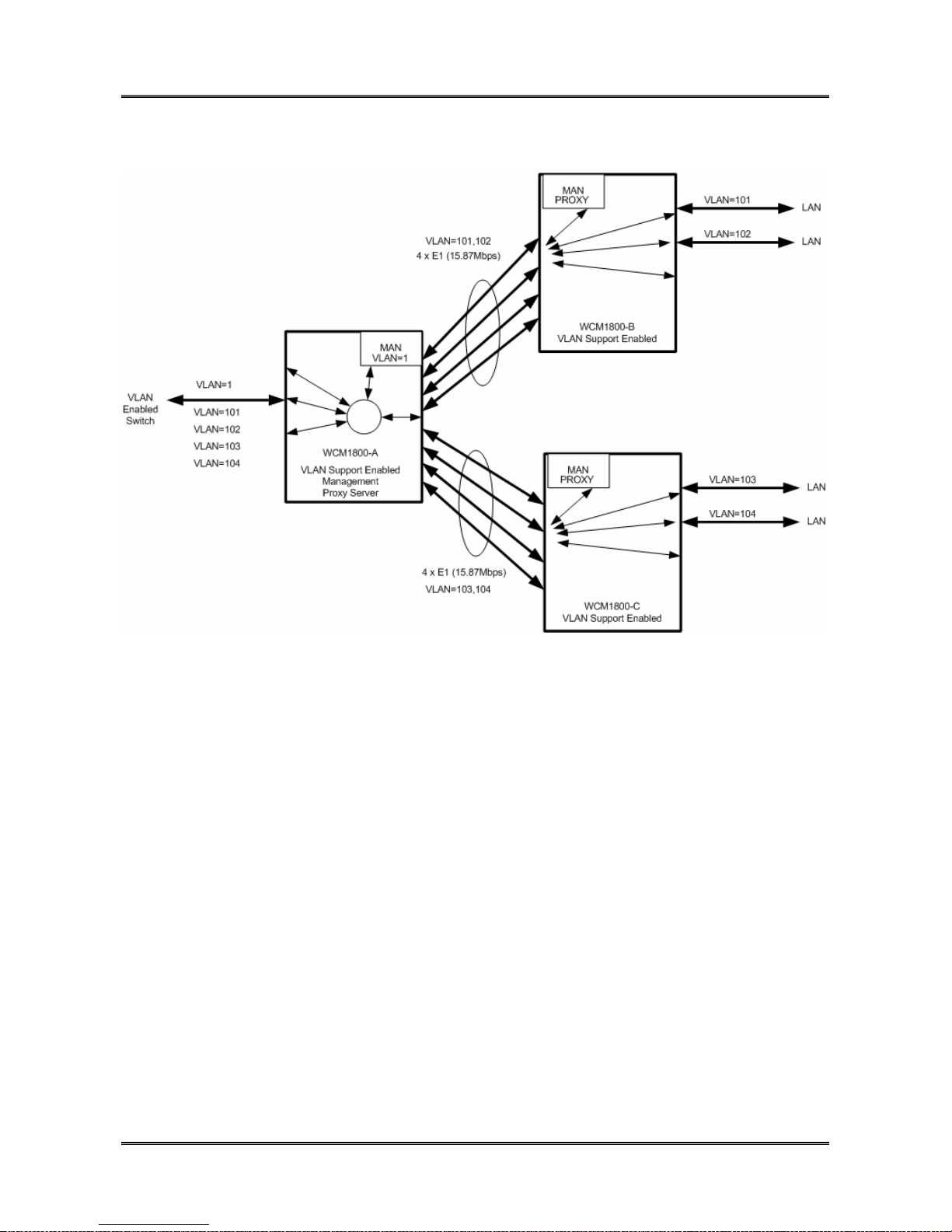

2.5 Point to Multi-Point.......................................................................................................................................... 12
3 THEORY OF OPERATION ........................................................................................13

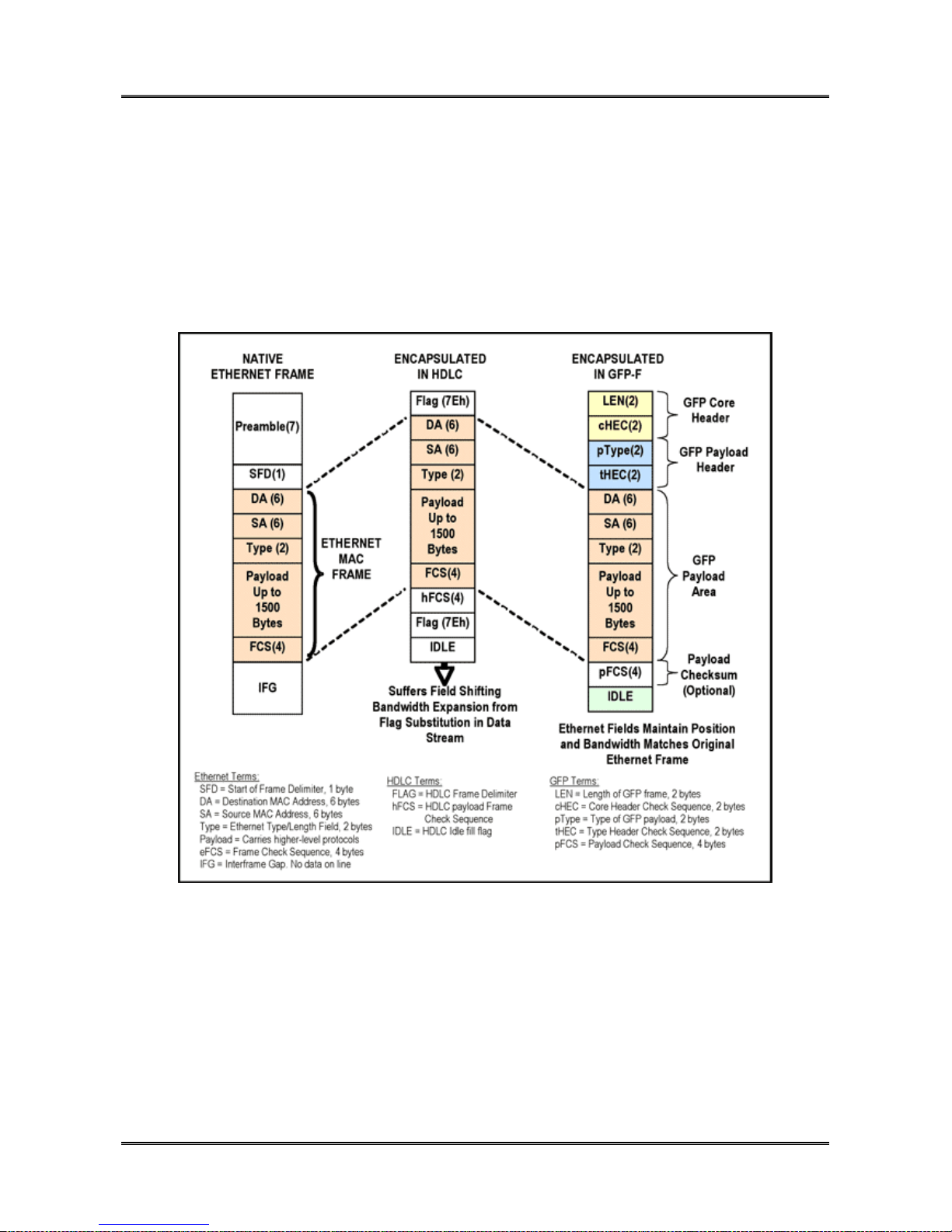

3.1 Frame Encapsulation ....................................................................................................................................... 13

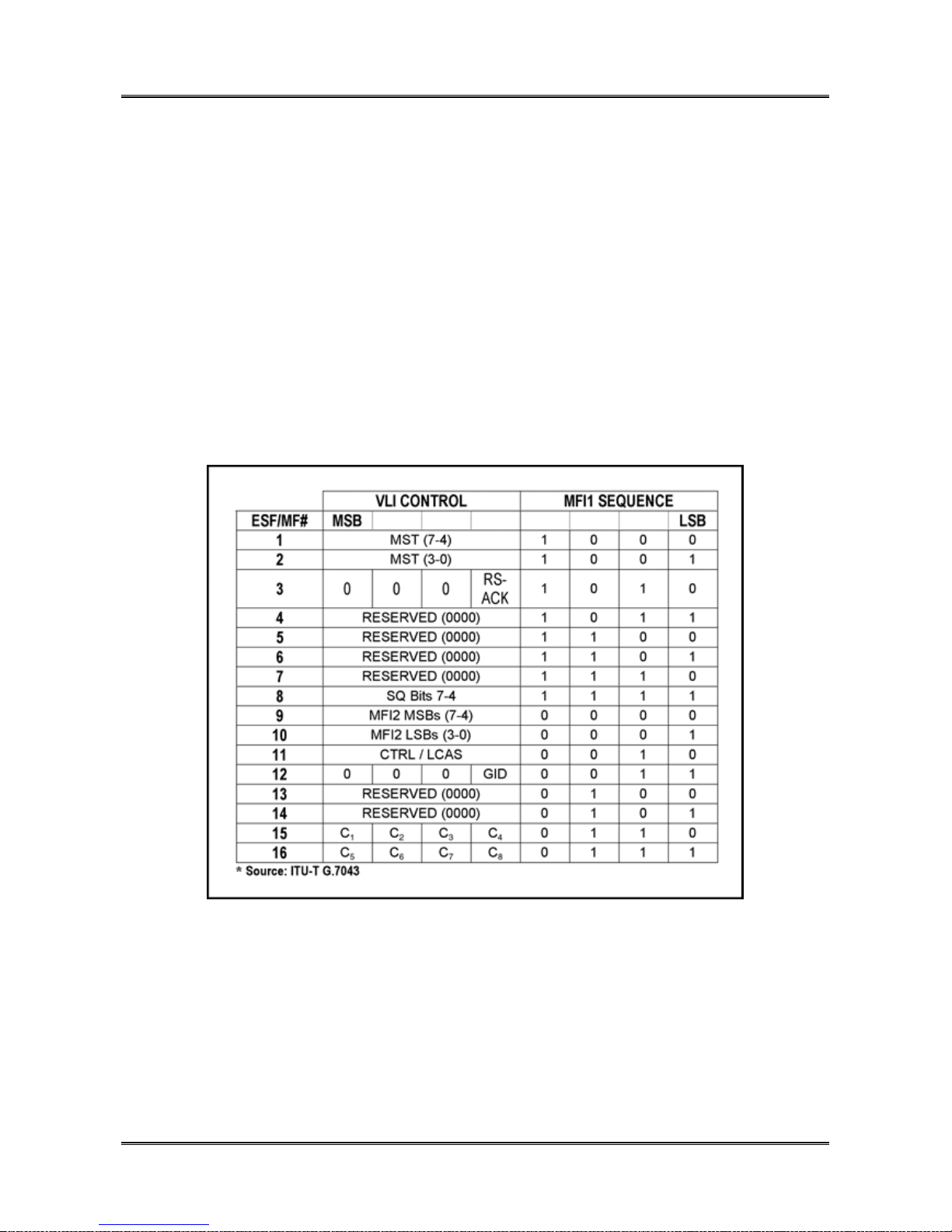

3.2 Virtual Concatenation and LCAS................................................................................................................... 14
4 QUICK START CONFIGURATION............................................................................15
4.1 Access the WCM1800....................................................................................................................................... 15
4.2 Logging onto WCM1800..................................................................................................................................15

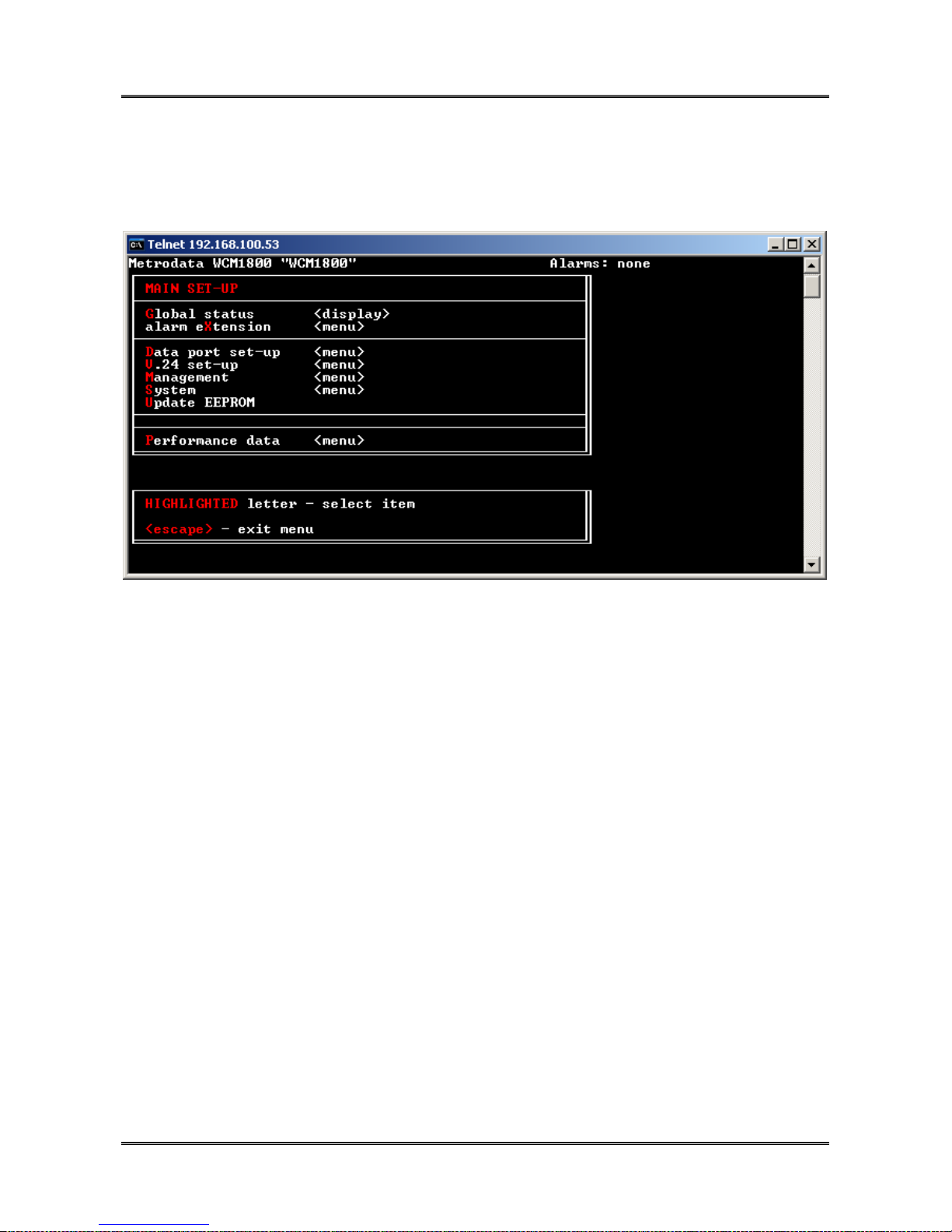

4.2.1 User Interface Navigation.............................................................................................................................. 16
4.3 Configure the WAN interface..........................................................................................................................17
4.4 Configure the VCAT Group............................................................................................................................ 18
4.5 Set IP Address................................................................................................................................................... 20
4.6 Set Default Route..............................................................................................................................................21
4.7 Save the Configuration.....................................................................................................................................22
5 ADVANCED CONFIGURATION................................................................................23

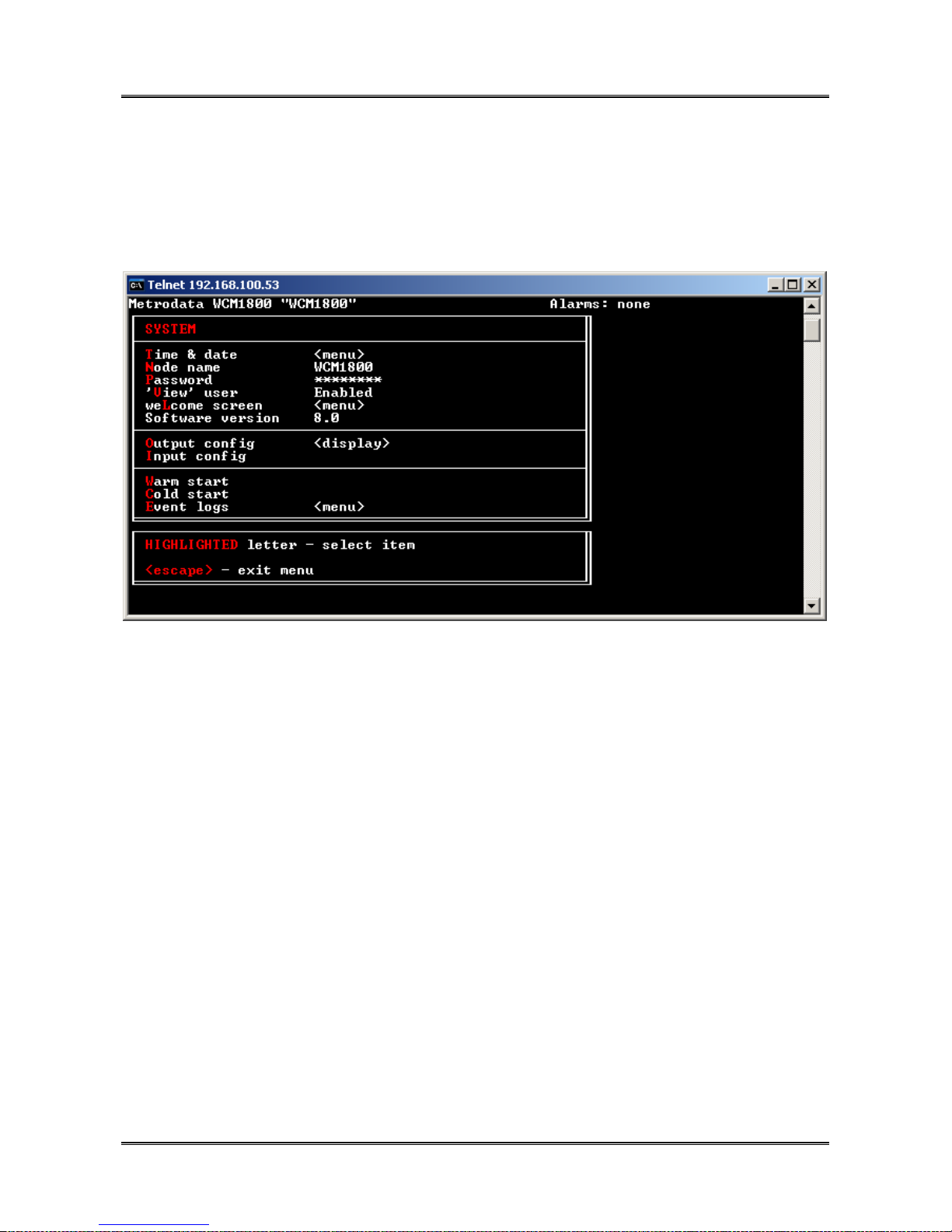

5.1 System Configuration....................................................................................................................................... 23

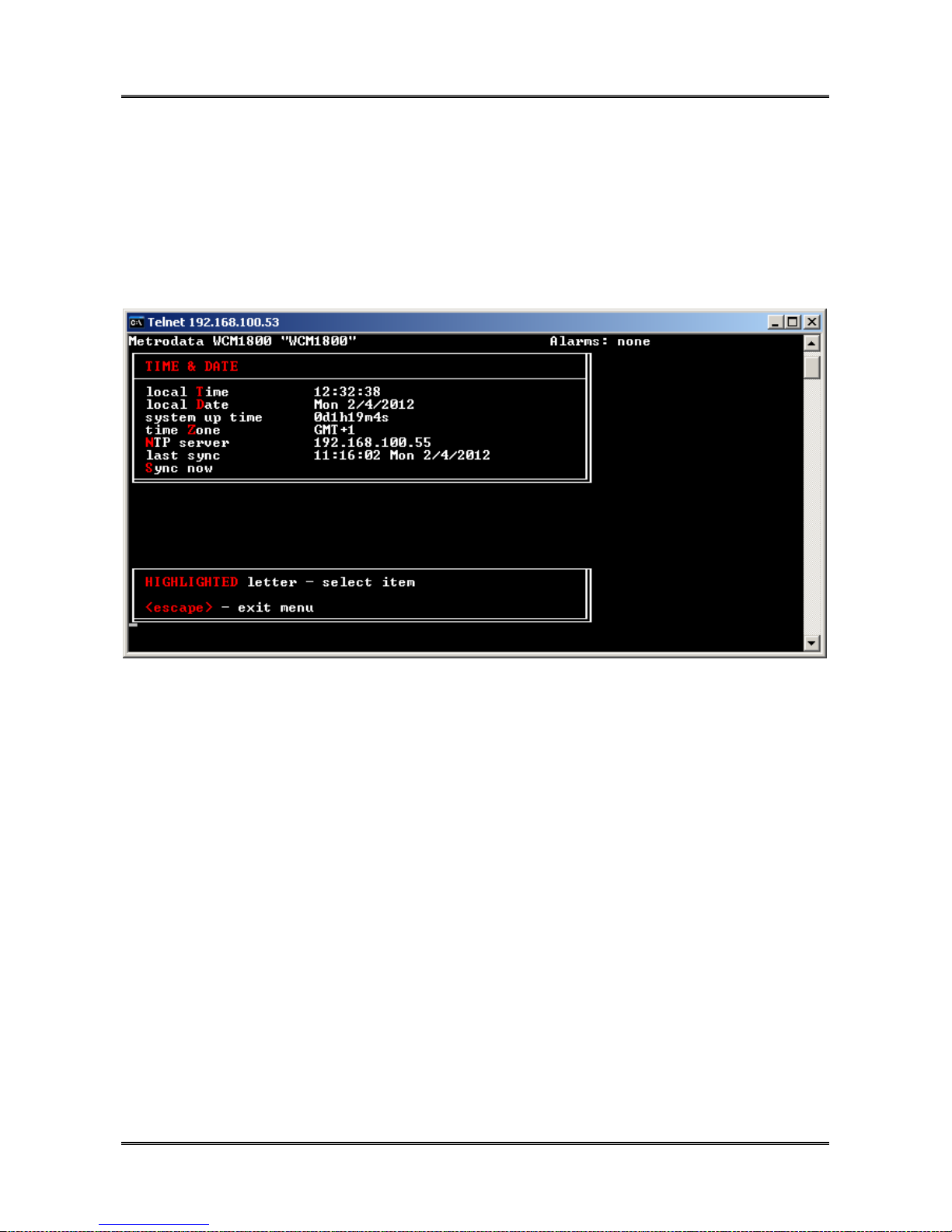

5.1.1 Setting the Time and Date ............................................................................................................................. 24
5.1.2 Setting the Node Name..................................................................................................................................24
5.1.3 Setting the Password...................................................................................................................................... 25
5.1.4 ‘View’ User ...................................................................................................................................................25
76-02-087 Rev D
Page 5
METRODATA LTD WCM1400/WCM1800/WCM1820
5 of 61
Quick Start Guide

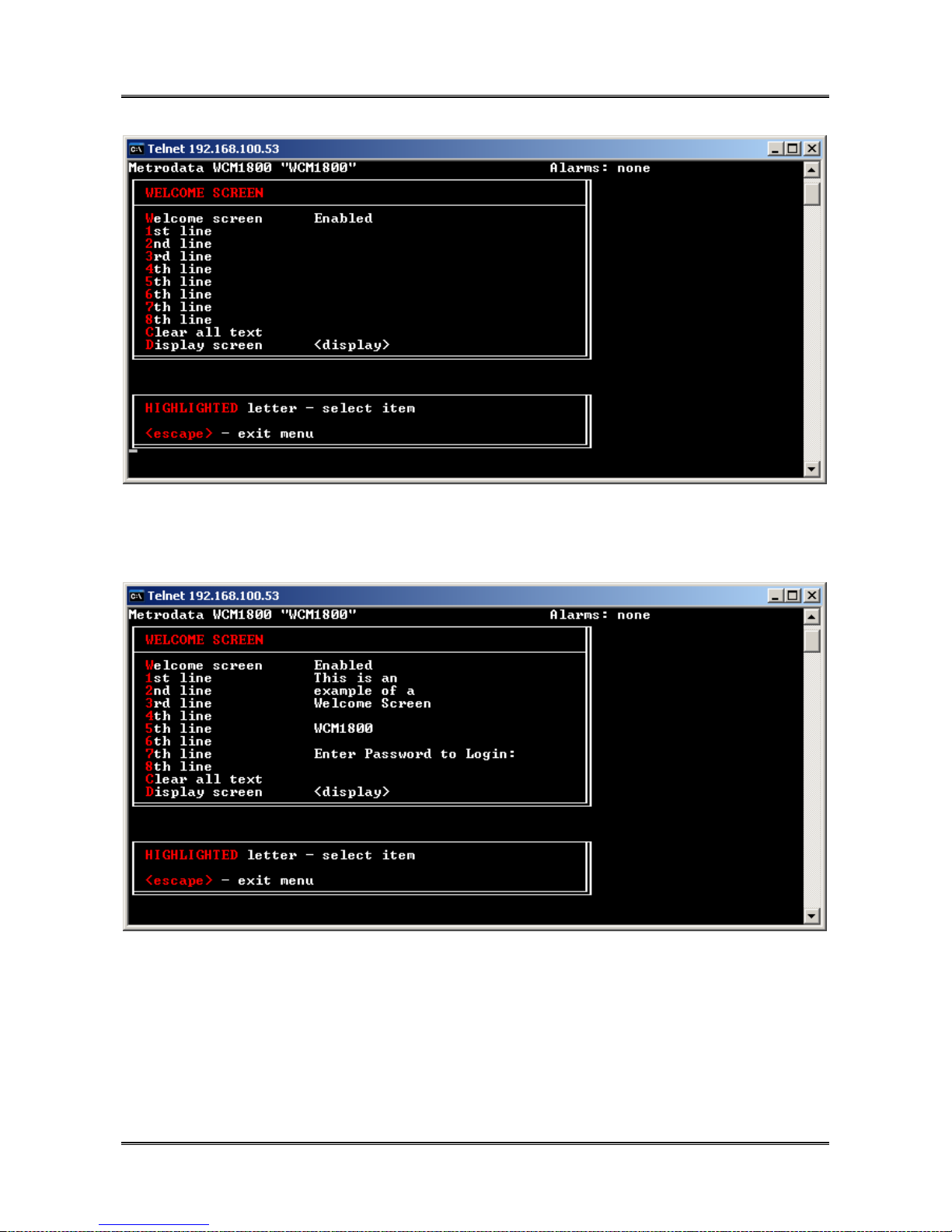

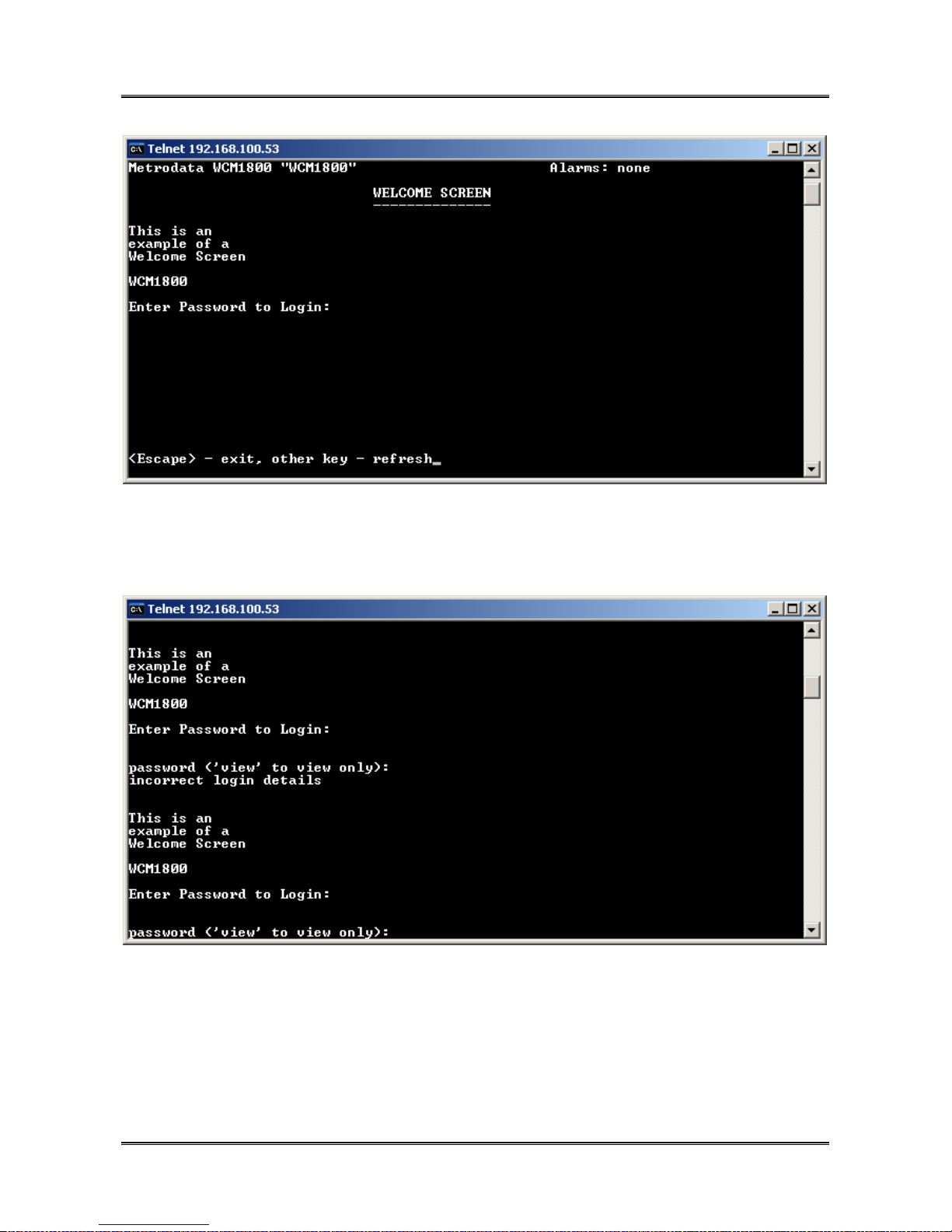

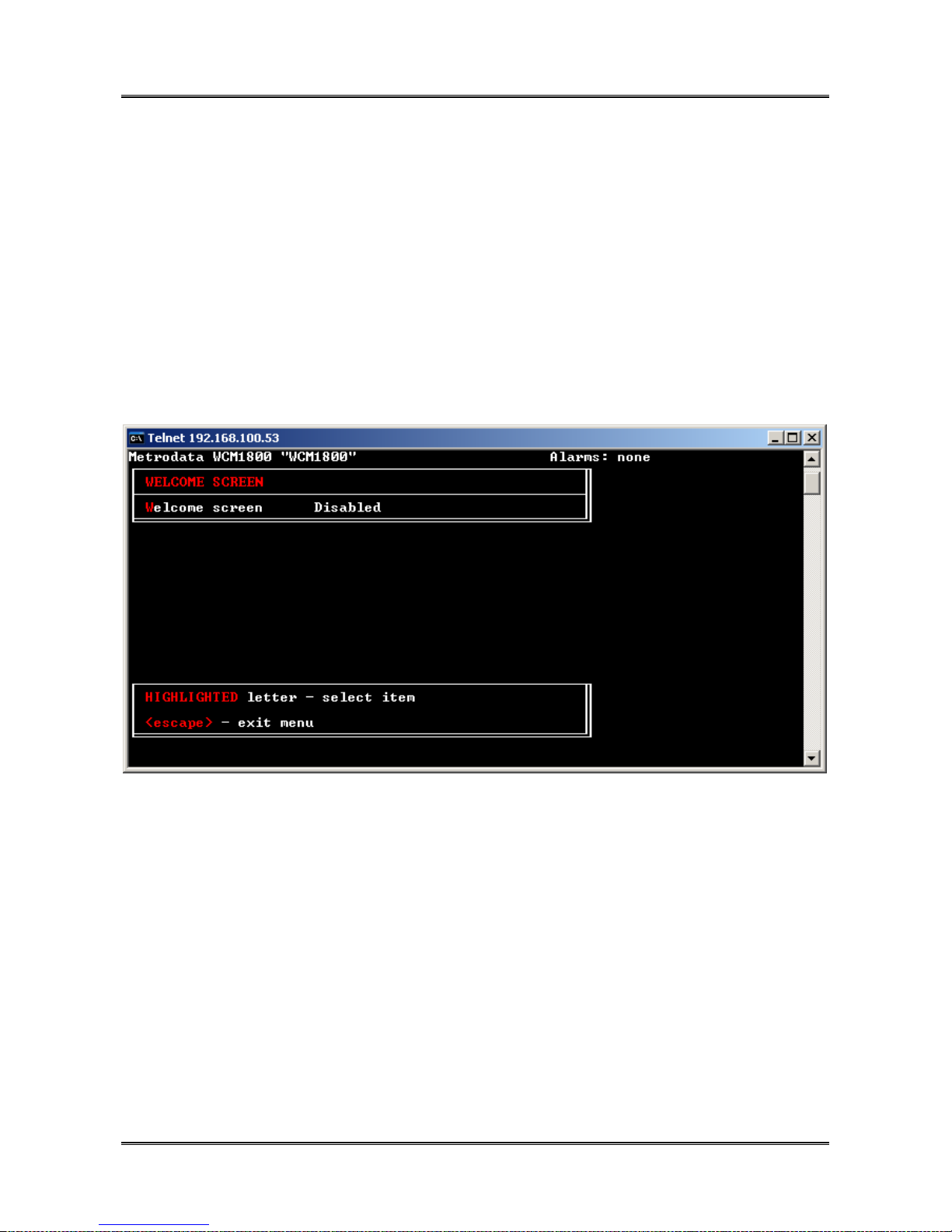

5.1.5 Welcome Screen............................................................................................................................................ 26
5.1.6 Warm Start..................................................................................................................................................... 29
5.1.7 Cold Start....................................................................................................................................................... 29

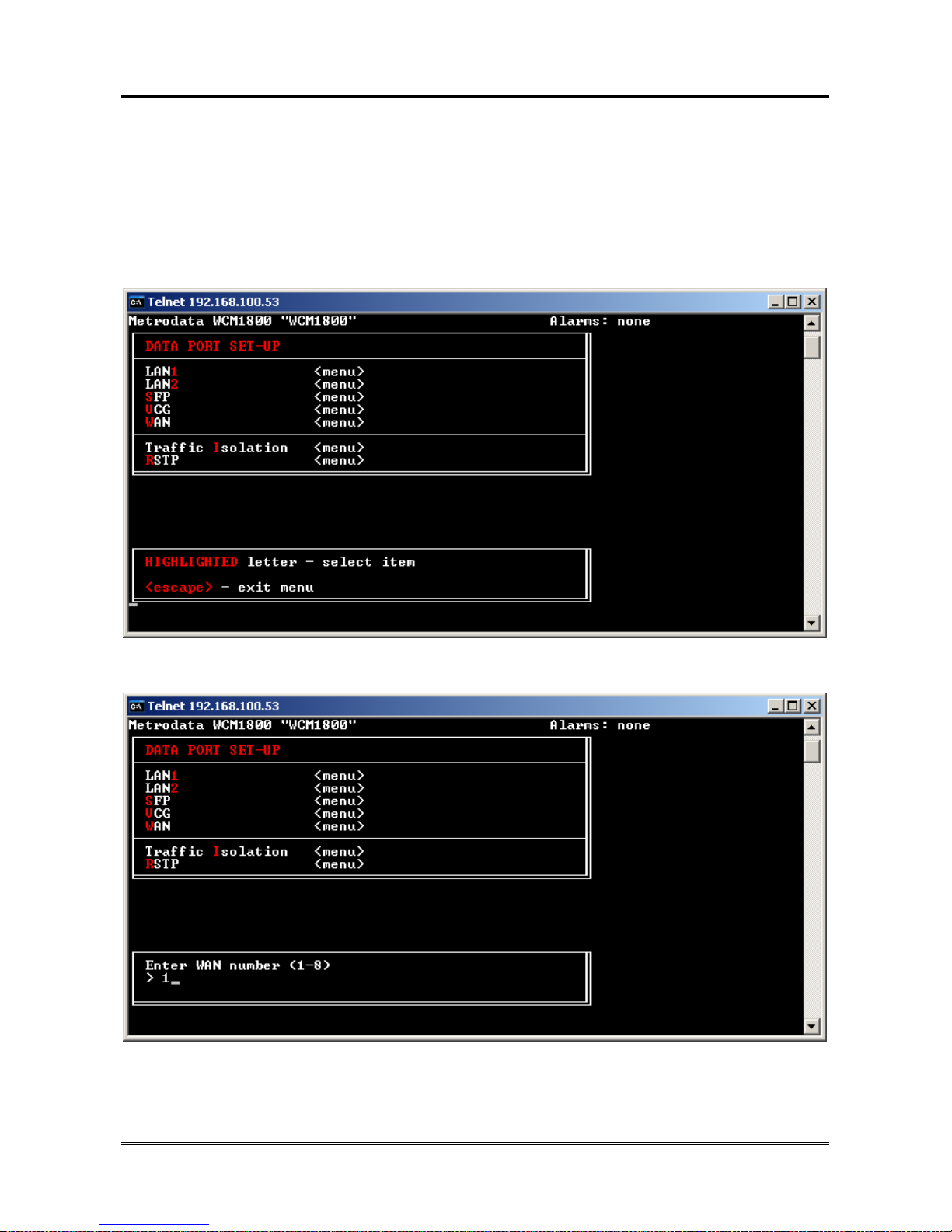

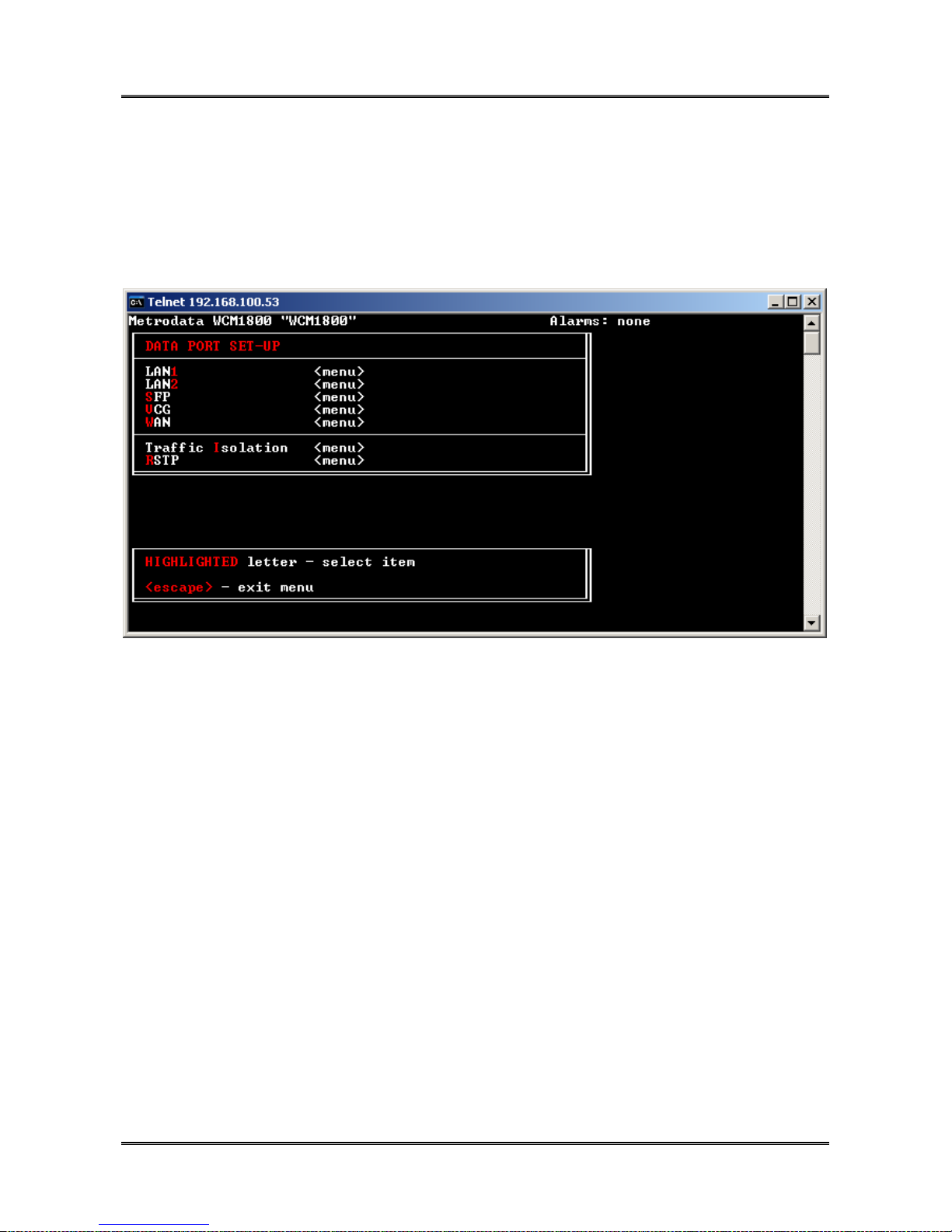

5.2 Configuration of the Data Ports......................................................................................................................30

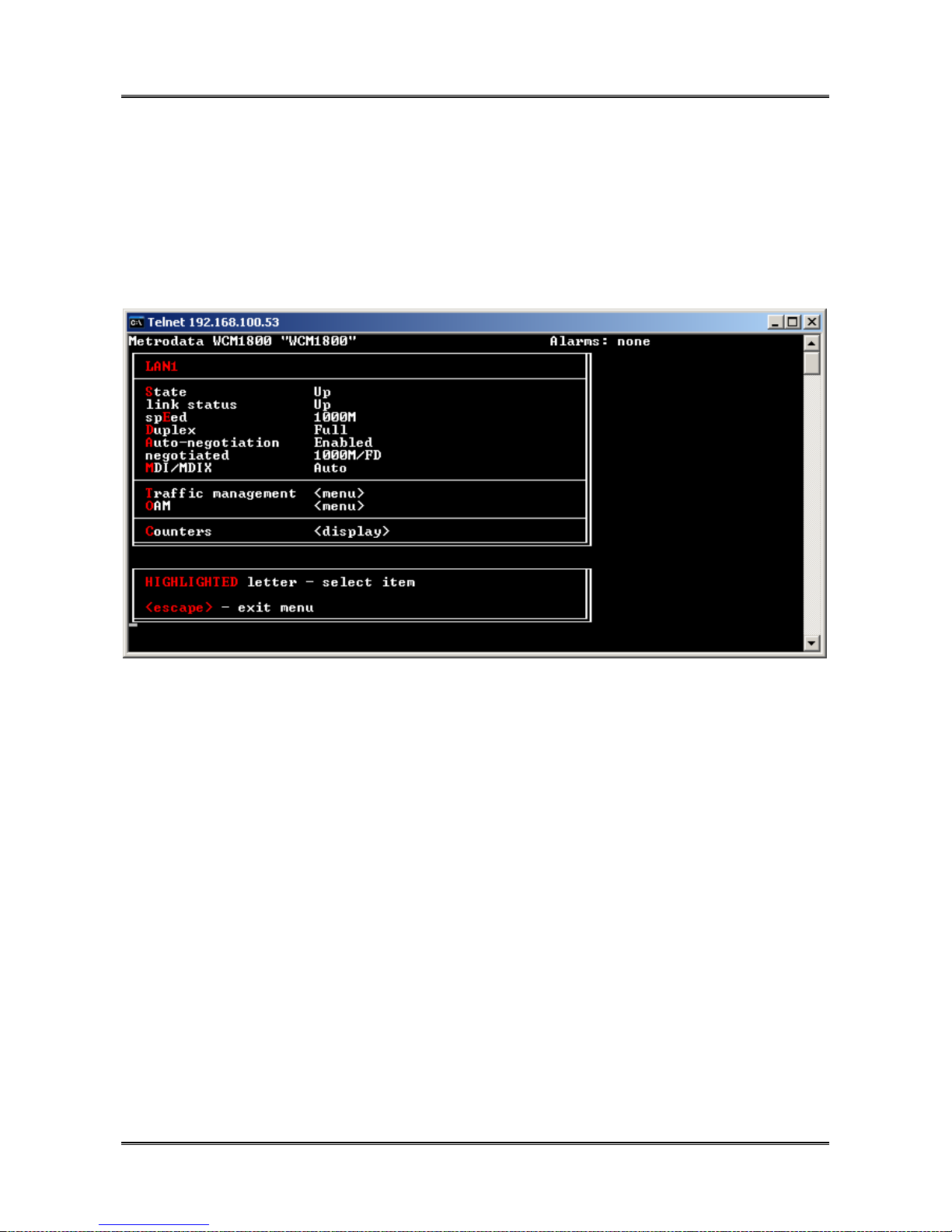

5.2.1 LAN Port .......................................................................................................................................................31
5.2.1.1 State...................................................................................................................................................... 31
5.2.1.2 Link Status ........................................................................................................................................... 31
5.2.1.3 Auto Negotiation..................................................................................................................................31
5.2.1.4 Speed.................................................................................................................................................... 32
5.2.1.5 Duplex.................................................................................................................................................. 32
5.2.1.6 Negotiated............................................................................................................................................32
5.2.1.7 MDI/MDIX ..........................................................................................................................................32

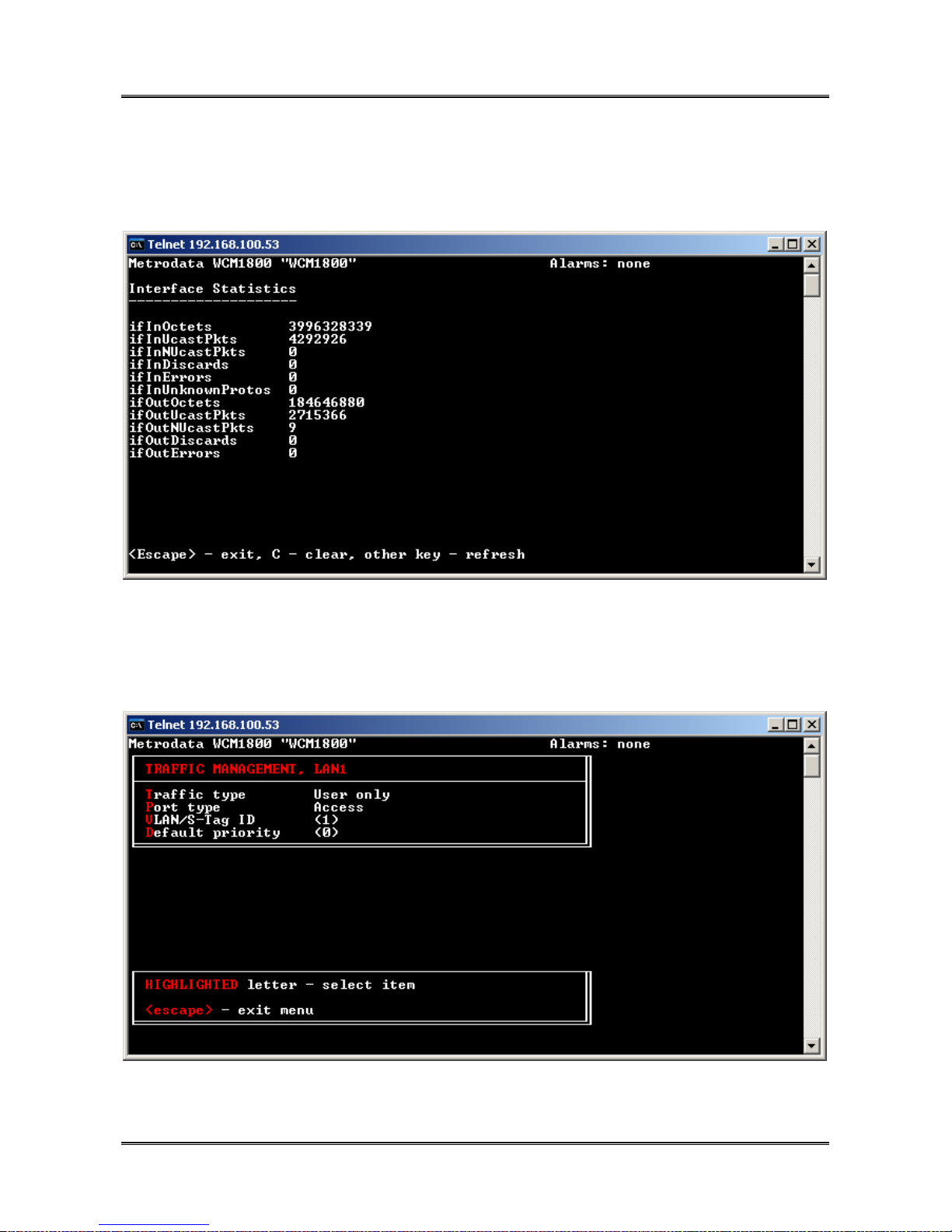

1.1.1.1 Counters ............................................................................................................................................... 33
5.2.1.8 Traffic Management............................................................................................................................. 33
5.2.1.8.1 Traffic Type..................................................................................................................................... 34
5.2.1.8.2 Port Type.........................................................................................................................................34
5.2.1.8.3 VLAN/S-Tag ID.............................................................................................................................. 34
5.2.1.8.4 default Priority................................................................................................................................. 35

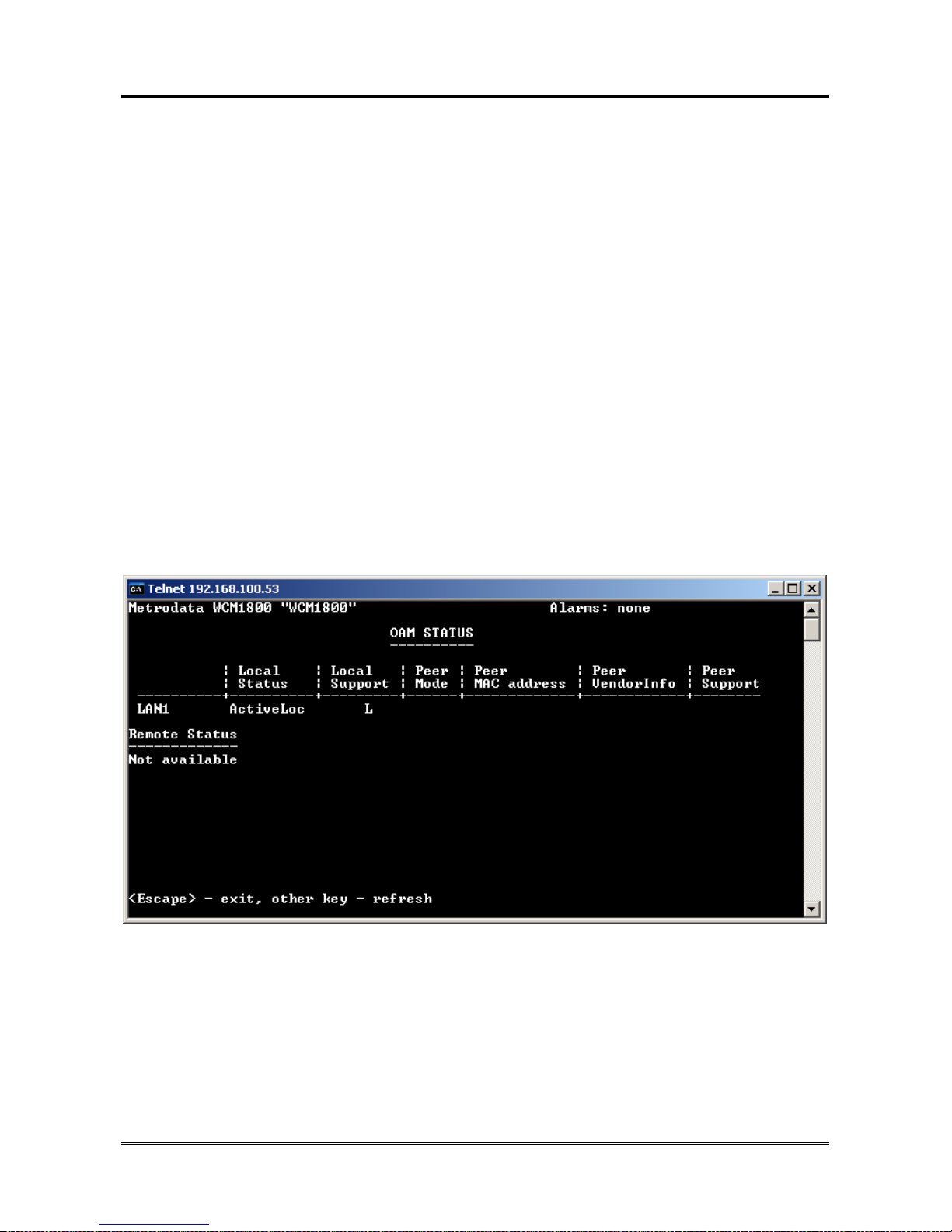

5.2.1.9 OAM .................................................................................................................................................... 35

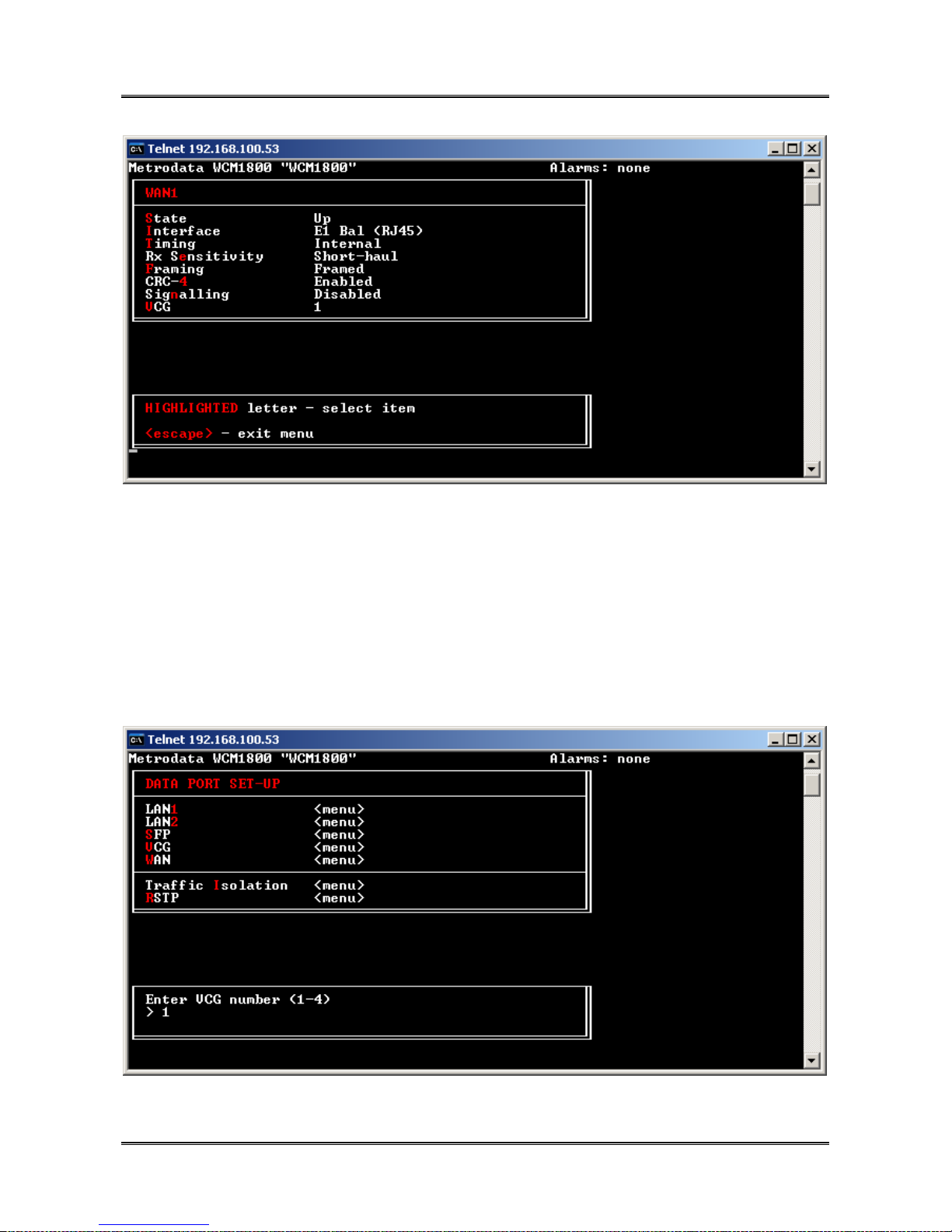

5.2.2 WAN Port...................................................................................................................................................... 36
5.2.2.1 State...................................................................................................................................................... 37
5.2.2.2 Interface ...............................................................................................................................................37
5.2.2.3 Timing.................................................................................................................................................. 37
5.2.2.4 RX Sensitivity...................................................................................................................................... 37
5.2.2.5 Framing................................................................................................................................................37
5.2.2.6 CRC-4 .................................................................................................................................................. 38
5.2.2.7 sigNalling............................................................................................................................................. 38
5.2.2.8 VCG..................................................................................................................................................... 38

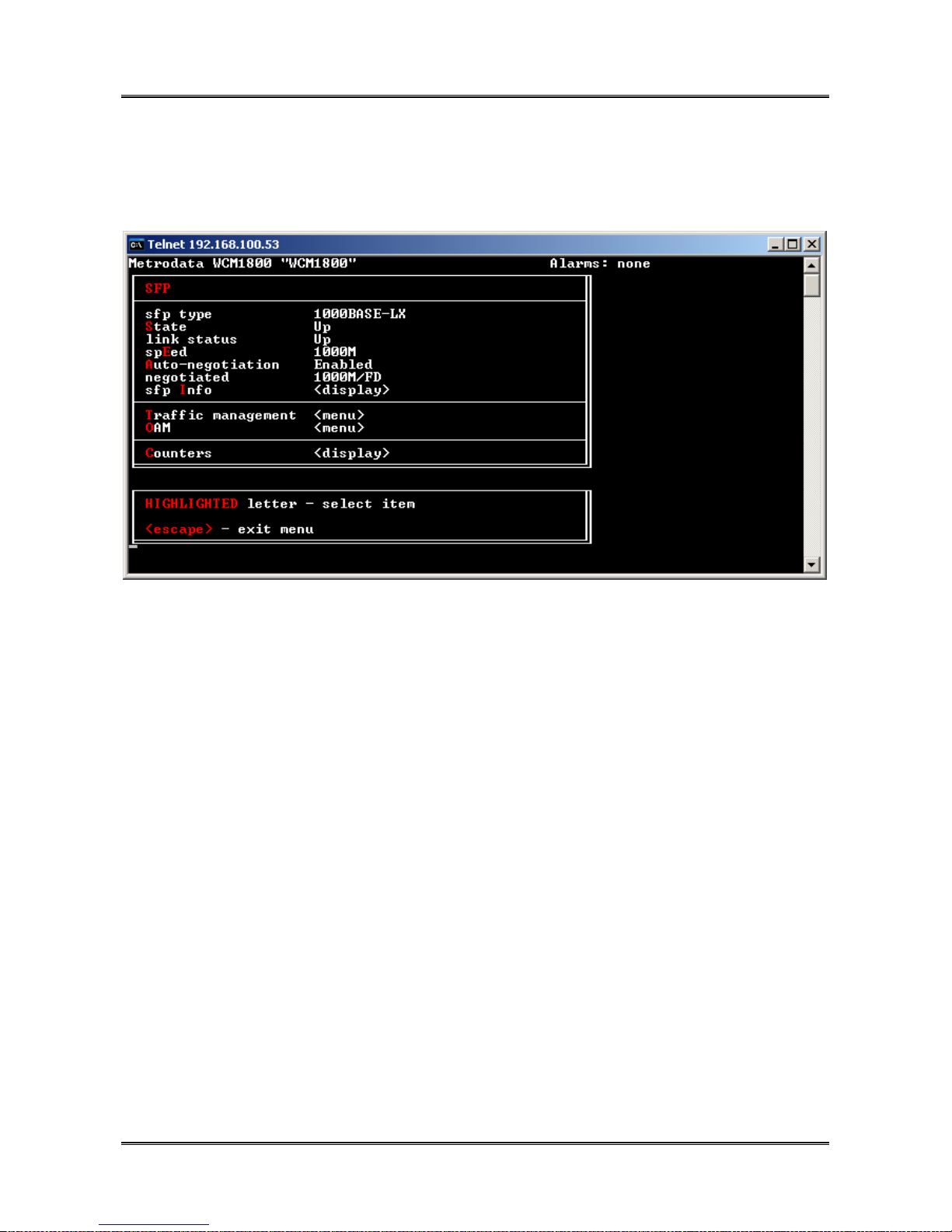

5.2.3 SFP Port......................................................................................................................................................... 39
5.2.3.1 SFP Type..............................................................................................................................................39
5.2.3.2 State...................................................................................................................................................... 39
5.2.3.3 Link State.............................................................................................................................................39
5.2.3.4 Speed.................................................................................................................................................... 40
5.2.3.5 Auto Negotiation..................................................................................................................................40
5.2.3.6 Negotiated............................................................................................................................................40

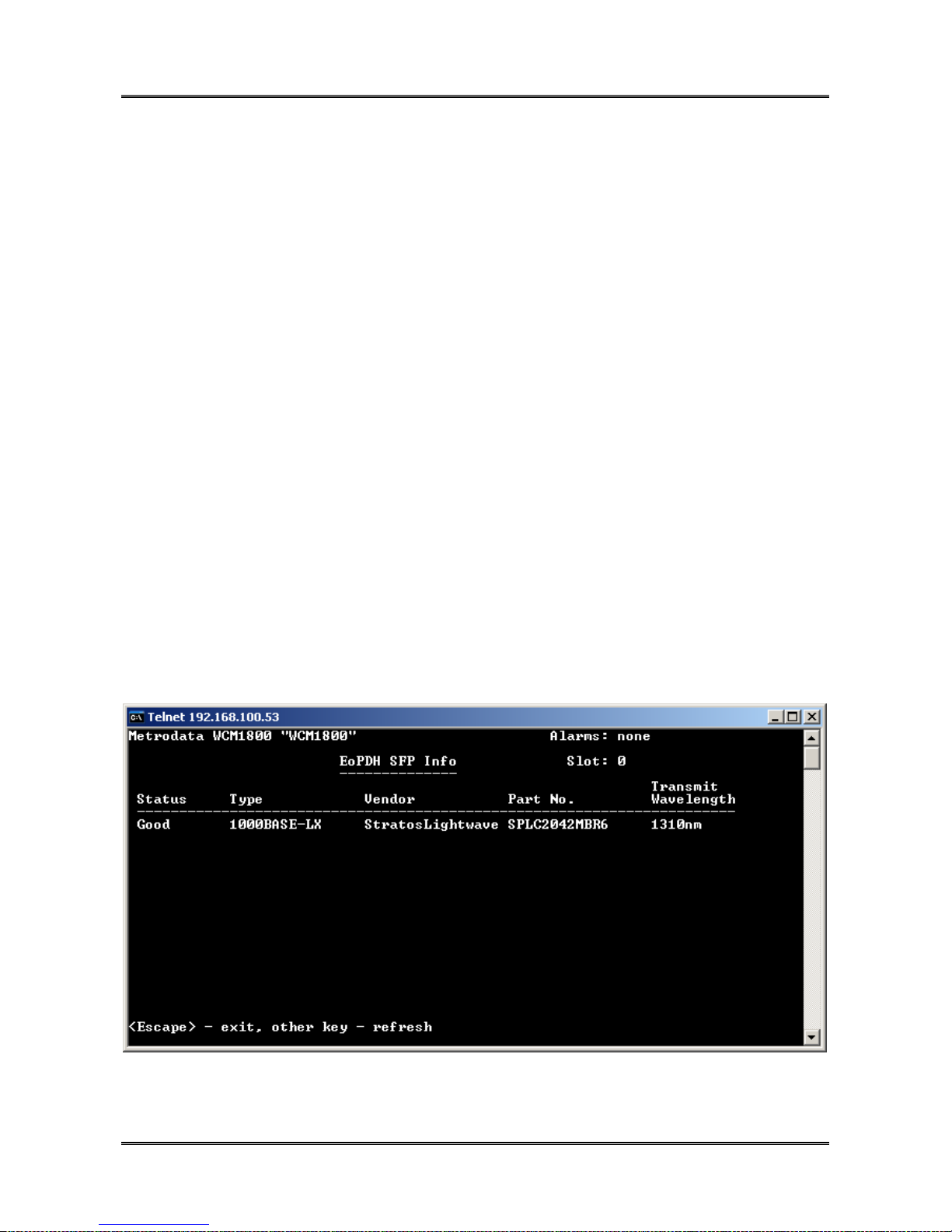

5.2.3.7 SFP Info ............................................................................................................................................... 40
5.2.3.8 Counters ............................................................................................................................................... 41
5.2.3.9 Traffic Management............................................................................................................................. 41
5.2.3.9.1 Traffic Type..................................................................................................................................... 42
5.2.3.9.2 Port Type.........................................................................................................................................42
5.2.3.9.3 VLAN/S-Tag ID.............................................................................................................................. 42
5.2.3.9.4 default Priority................................................................................................................................. 43
5.2.3.10 OAM....................................................................................................................................................43

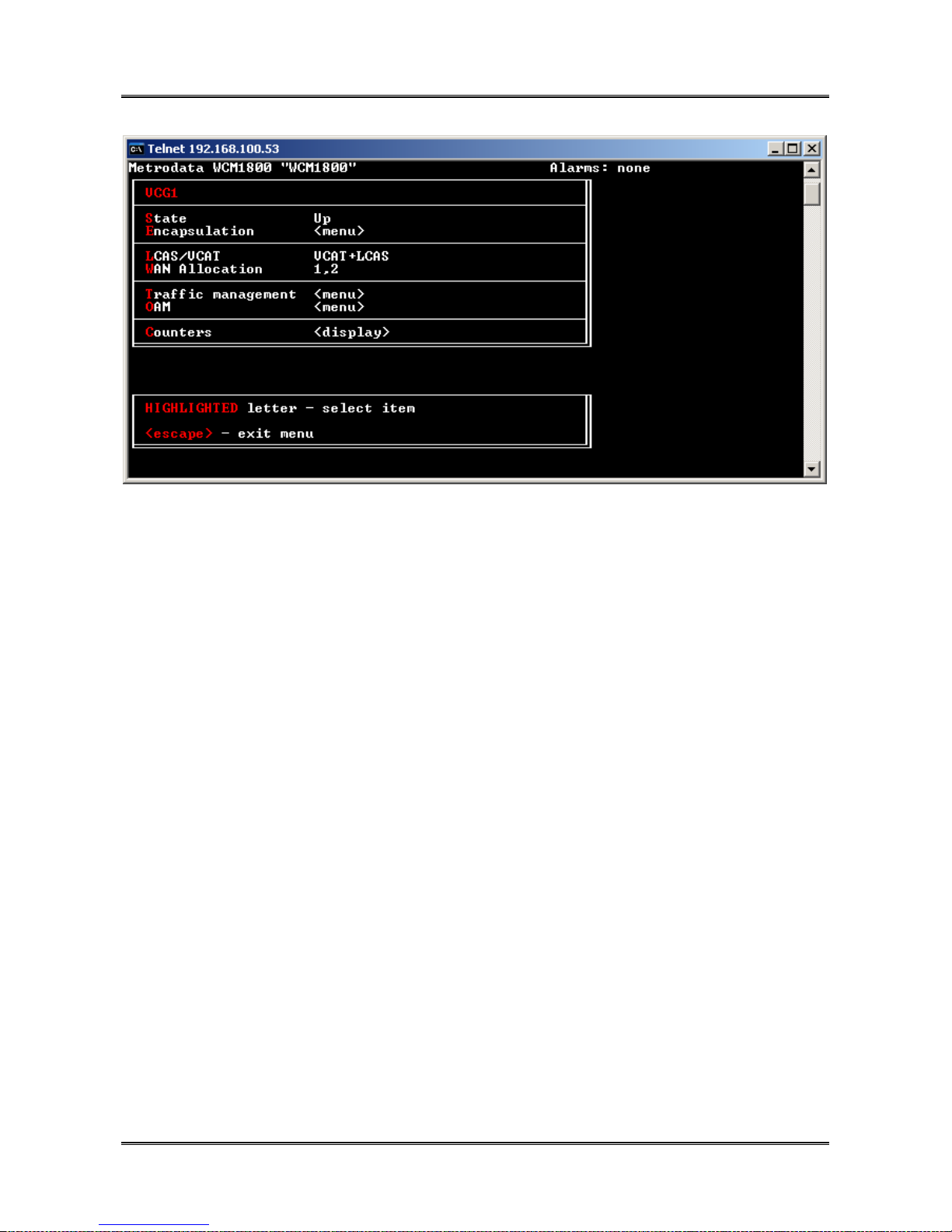

5.2.4 VCG ( VCAT Group Configuration )............................................................................................................ 44
5.2.4.1 State...................................................................................................................................................... 45
5.2.4.2 Encapsulation....................................................................................................................................... 45
5.2.4.2.1 Encapsulation.................................................................................................................................. 45
5.2.4.2.2 GFP FCS ......................................................................................................................................... 45
5.2.4.2.3 Strip MAC FCS............................................................................................................................... 46
5.2.4.2.4 Payload Scrambler........................................................................................................................... 46
5.2.4.2.5 Flow Control ................................................................................................................................... 46
5.2.4.2.6 Max Frame Size .............................................................................................................................. 46

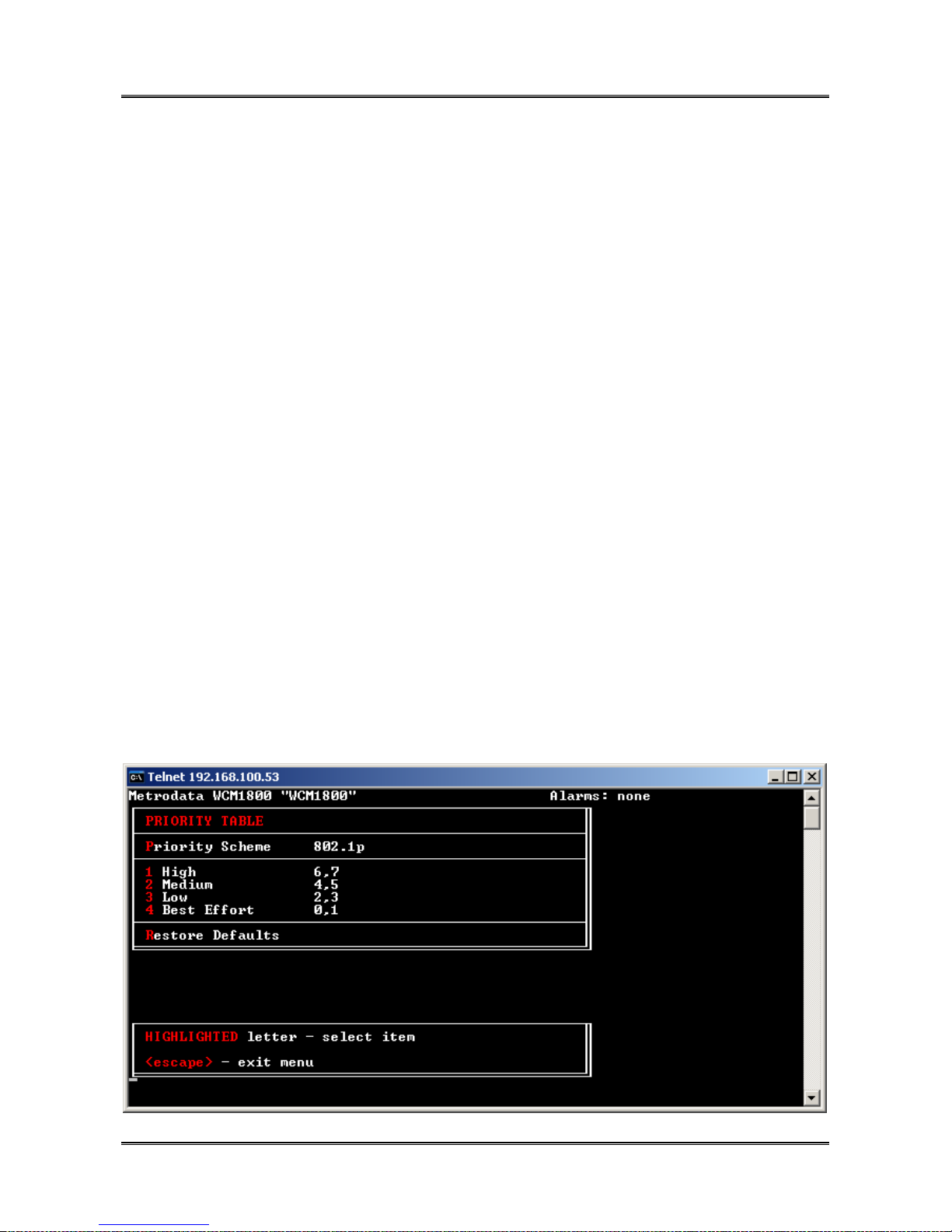

5.2.4.2.7 Priority Table................................................................................................................................... 46
5.2.4.3 LCAS/VCAT .......................................................................................................................................47
5.2.4.4 WAN Allocation .................................................................................................................................. 47

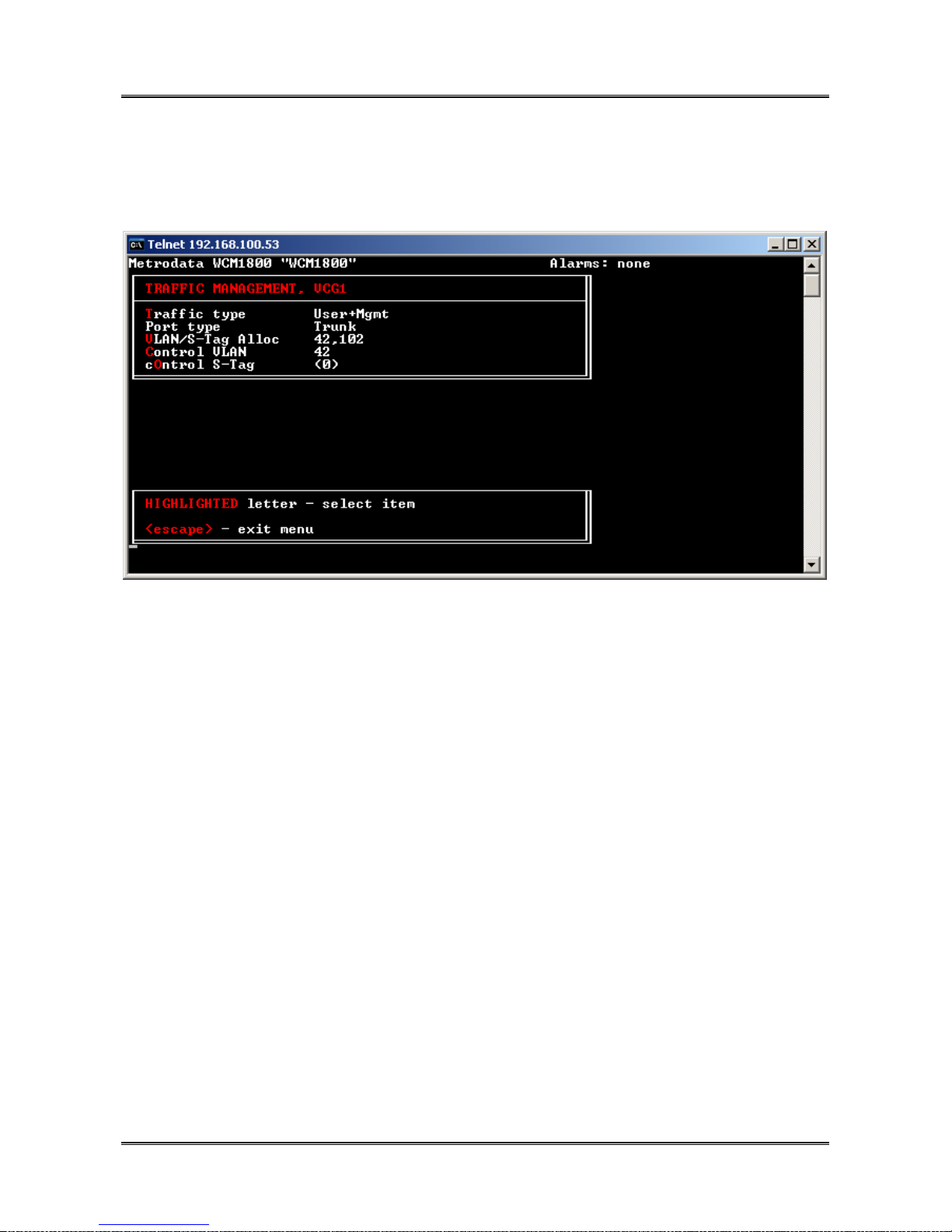

5.2.4.5 Traffic Management............................................................................................................................. 48
5.2.4.5.1 Traffic Type..................................................................................................................................... 48
5.2.4.5.2 Port Type.........................................................................................................................................48
76-02-087 Rev D
Page 6
METRODATA LTD WCM1400/WCM1800/WCM1820
6 of 61
Quick Start Guide
5.2.4.5.3 VLAN/S-TAG Allocation ...............................................................................................................49
5.2.4.5.4 Control VLAN................................................................................................................................. 49
5.2.4.5.5 Control S-TAG................................................................................................................................ 49

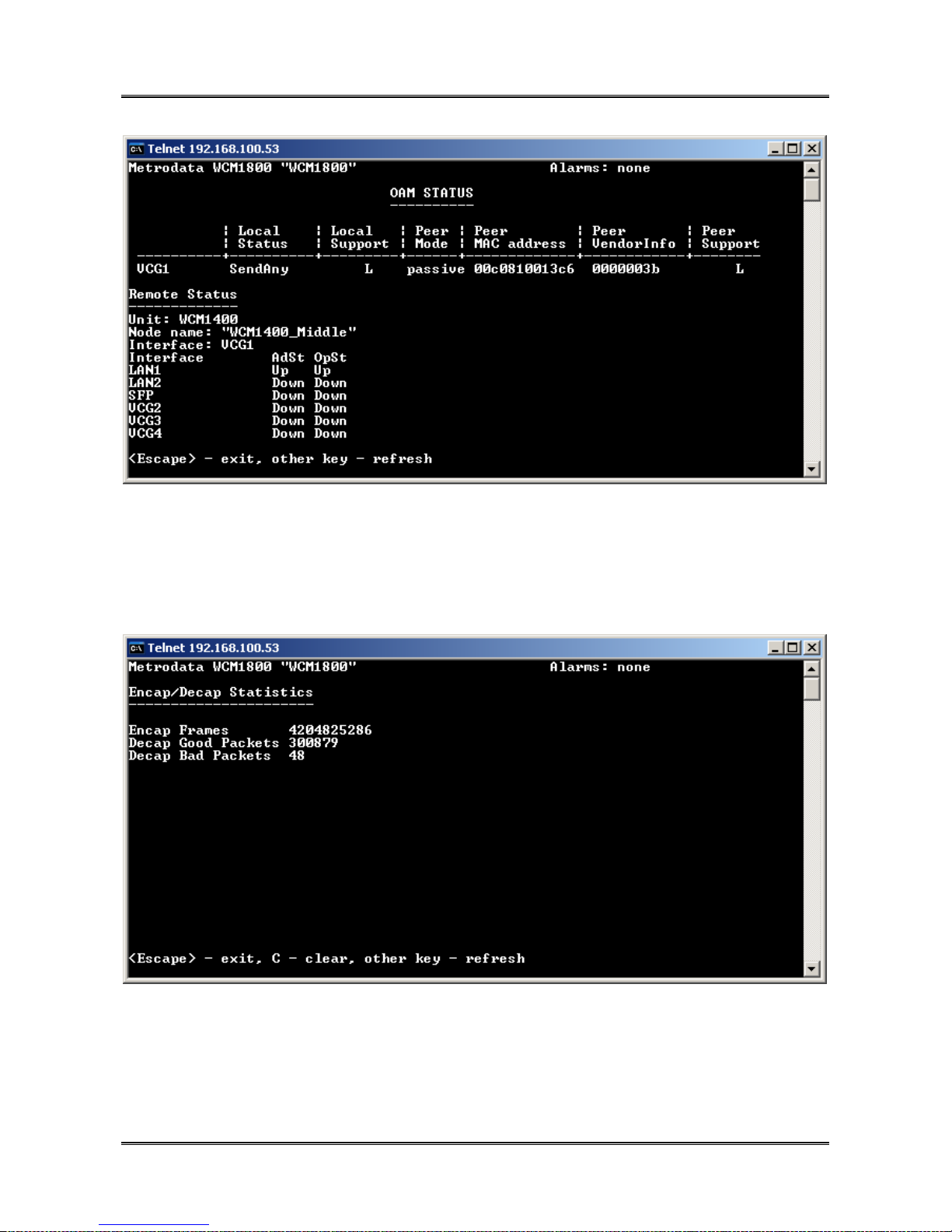

5.2.4.6 OAM .................................................................................................................................................... 49
5.2.4.7 Counters ............................................................................................................................................... 50

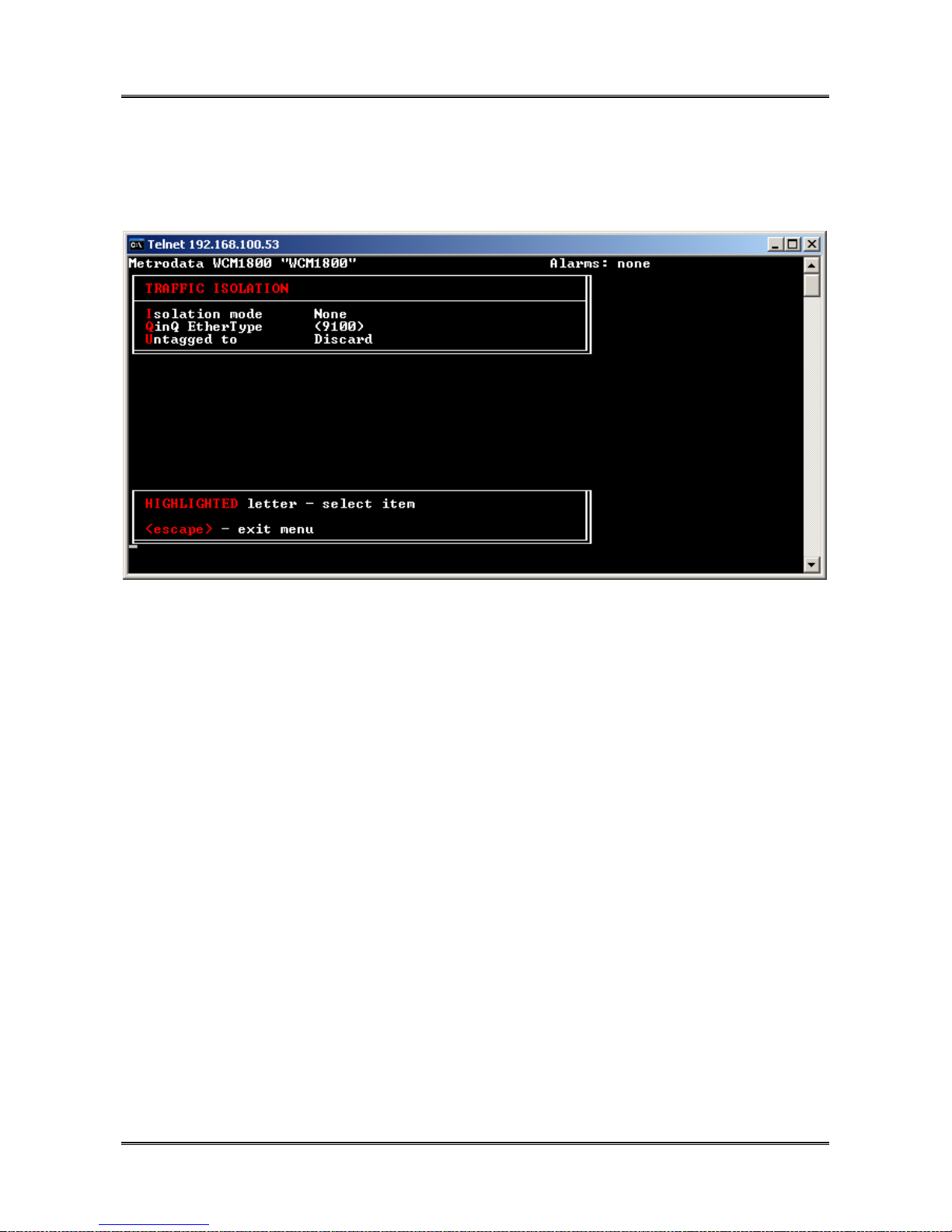

5.2.5 Traffic Isolation.............................................................................................................................................51
5.2.5.1 Isolation Mode ..................................................................................................................................... 51
5.2.5.2 QinQ Ethertype .................................................................................................................................... 51
5.2.5.3 Untagged To......................................................................................................................................... 52

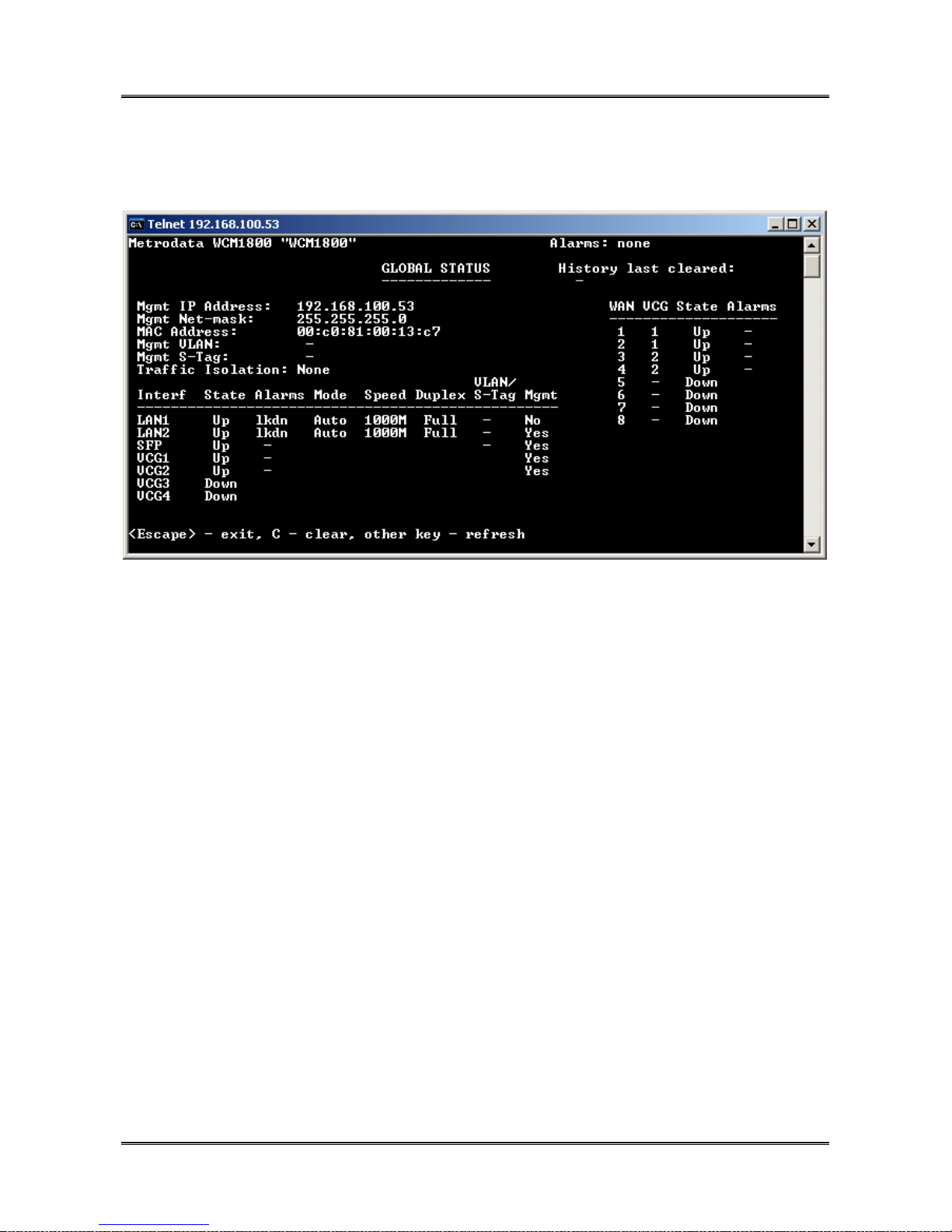

5.3 Global Status Screen ........................................................................................................................................ 53
5.3.1 State............................................................................................................................................................... 53
5.3.2 Alarms ........................................................................................................................................................... 53

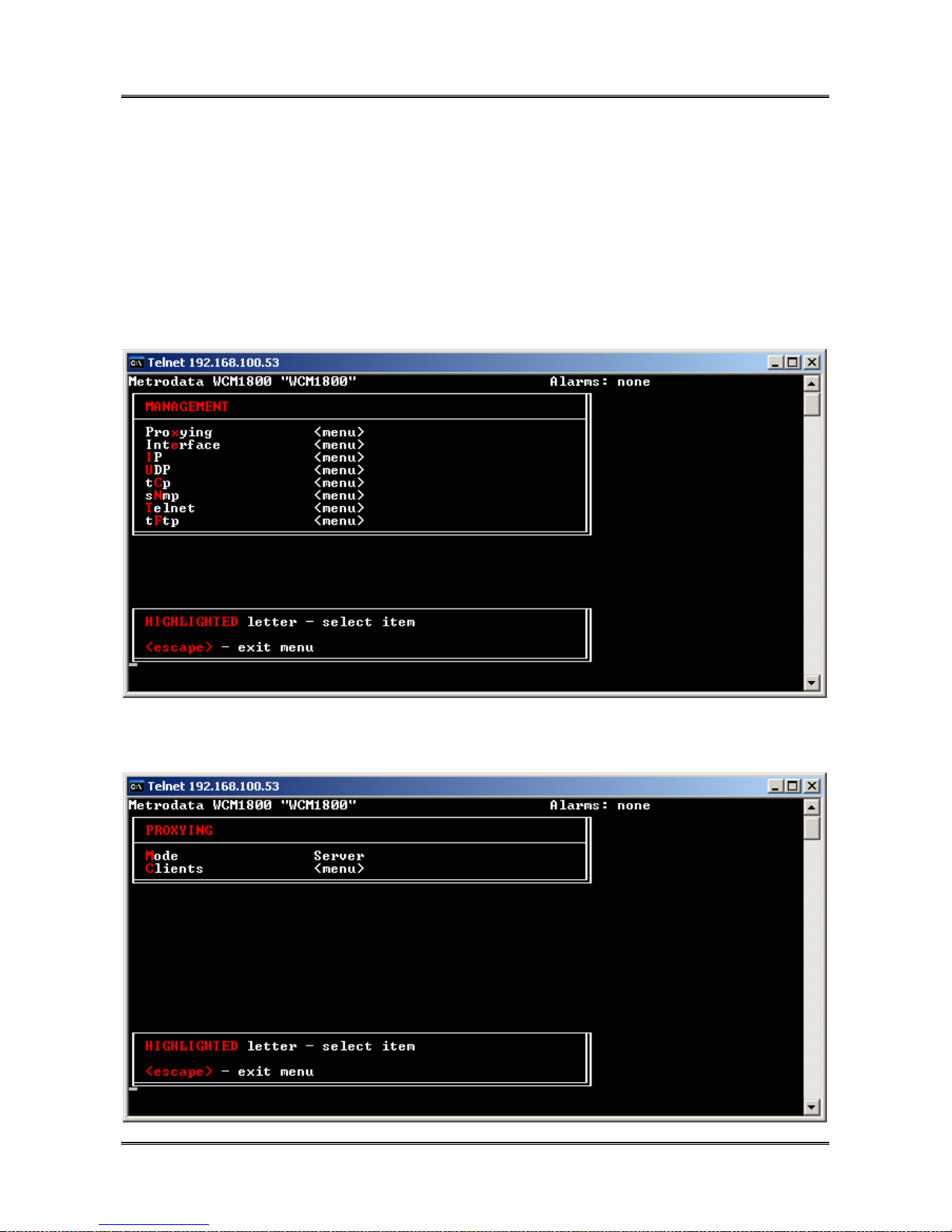

5.4 Proxy Mode Remote Management..................................................................................................................54

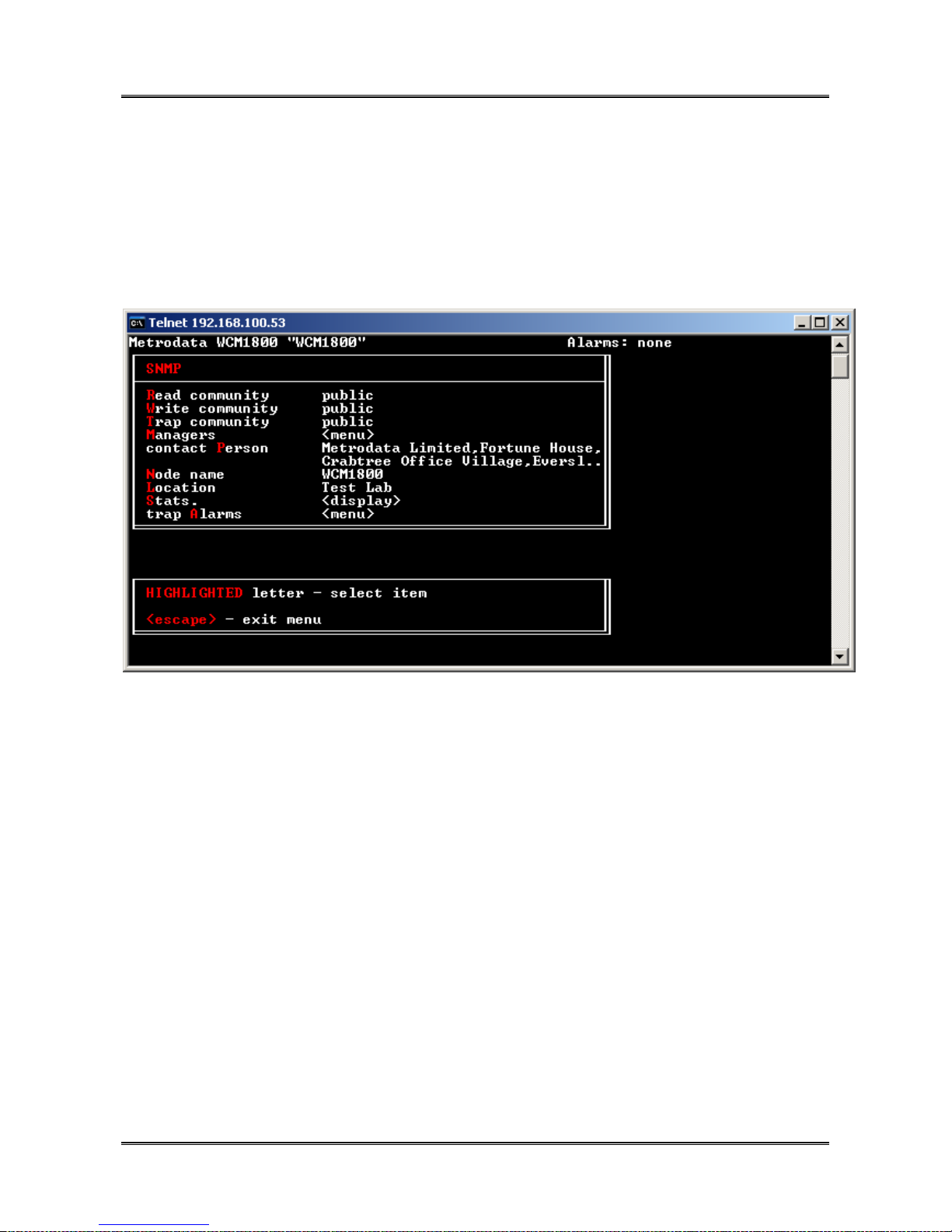

5.5 SNMP Management ......................................................................................................................................... 56
5.5.1 Read/Write/Trap Community........................................................................................................................ 56
5.5.2 Contact Person............................................................................................................................................... 56
5.5.3 Node Name.................................................................................................................................................... 56
5.5.4 Location......................................................................................................................................................... 57

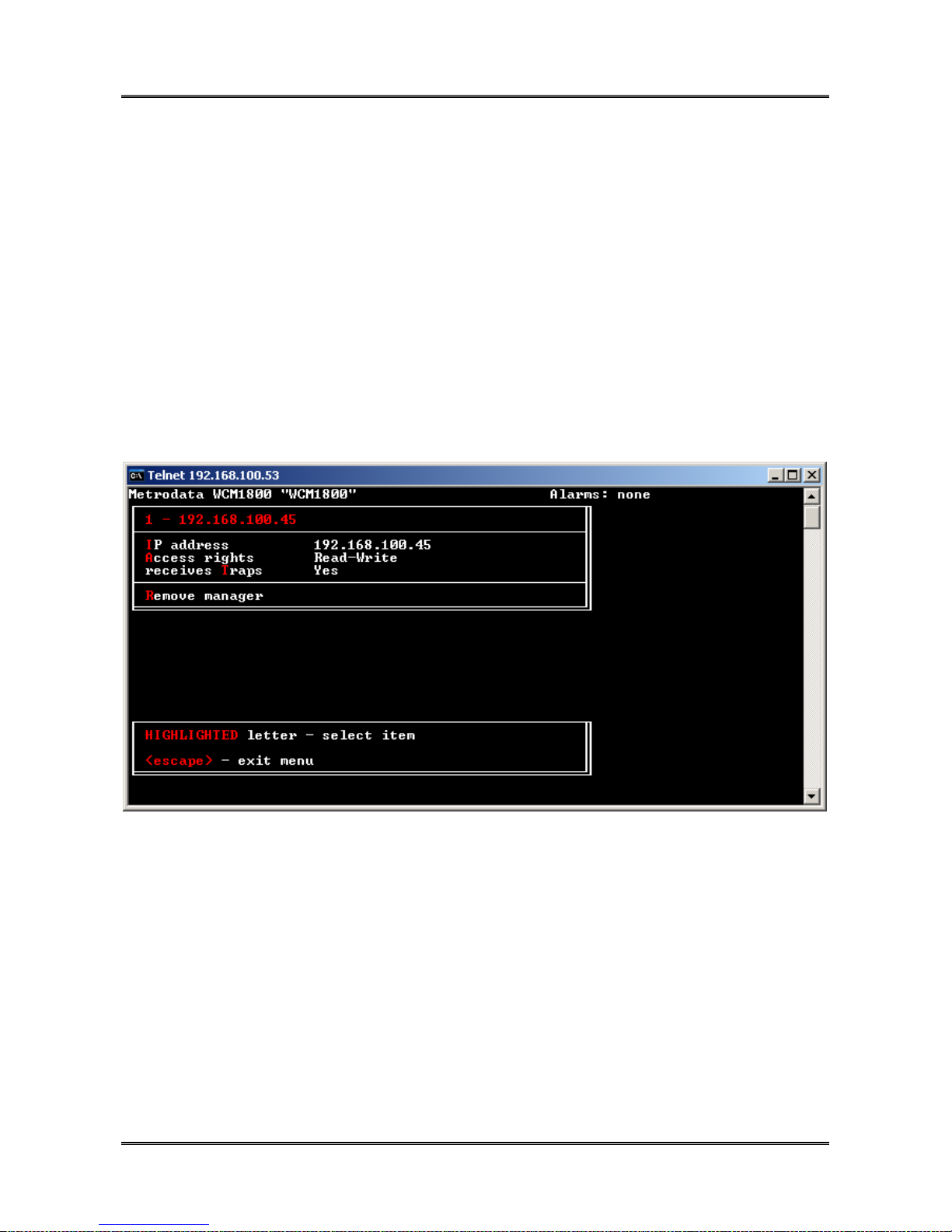

5.5.5 Managers .......................................................................................................................................................57
5.6 Saving the Configuration................................................................................................................................. 58
6 TFTP SOFTWARE UPDATE .....................................................................................59

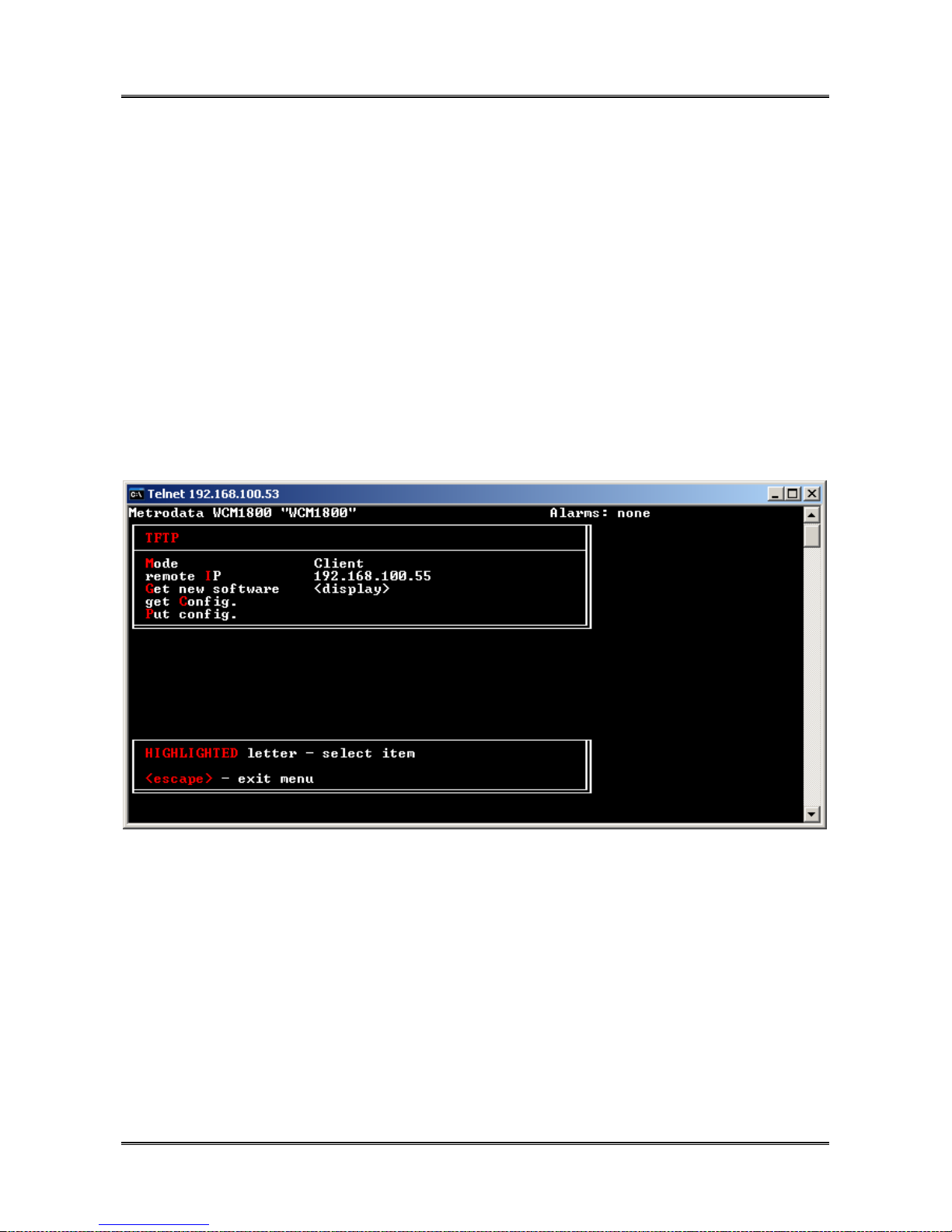

6.1 TFTP Configuration......................................................................................................................................... 59
6.1.1 Client Mode...................................................................................................................................................59
6.1.2 Server Mode .................................................................................................................................................. 60
7 ALARMS ....................................................................................................................61
7.1 WAN E1 Port....................................................................................................................................................61
7.2 LAN Port...........................................................................................................................................................61
7.3 SFP Port ............................................................................................................................................................61
7.4 VCG...................................................................................................................................................................61
76-02-087 Rev D
Page 7
METRODATA LTD WCM1400/WCM1800/WCM1820
7 of 61
Quick Start Guide

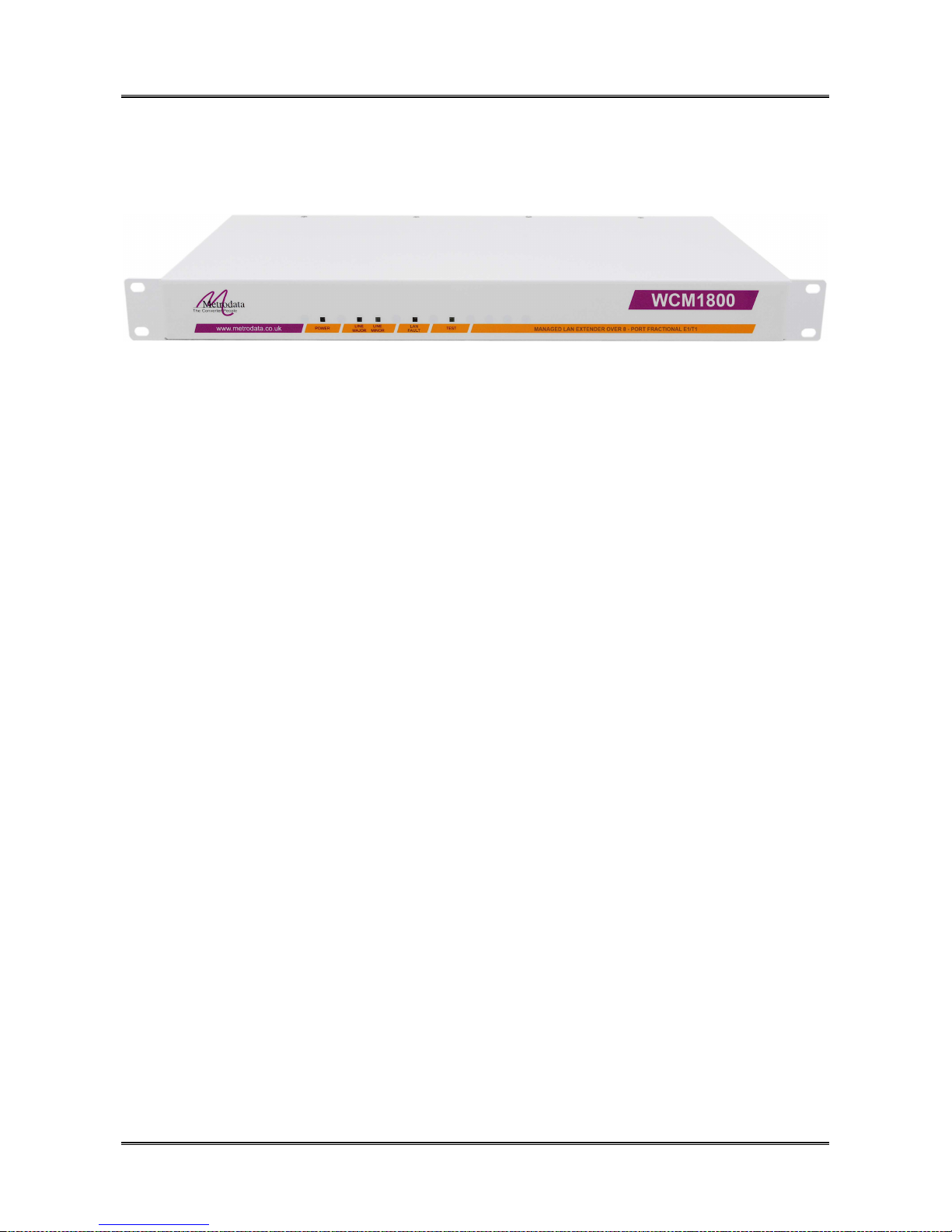

1 INTRODUCTION
This manual details the basic information required to configure and operate the Metrodata
WCM1400, WCM1800 and WCM1820 family of Products. The product range allows the
extension of Ethernet Services over multiple, bonded E1 Wide Area Network Connections.
The WCM1400 provides 4 E1 ports, giving an uplink capacity of approximately 8Mbps.
The WCM1800 provides 8 E1 ports giving a maximum uplink bandwidth of approximately
16 Mbps, and the WCM1820 provides 16 E1 ports giving a maximum uplink bandwidth of
32Mbps.
Throughout the document WCM1800 will be used, however this manual equally applies to
the WCM1400 and WCM1820.
The WCM1800 performs GFP frame encapsulation and uses Virtual Concatenation
(VCAT) to bond multiple E1 circuits together according to ITU-G.7043 with ITU-G.7042
LCAS to allow for the addition or removal of circuits. Internal packet buffers enable the
WCM1800 to smooth out bursty traffic and prevent packet loss as the higher layer
protocols rate adapt to the bonded E1 capacity. The E1 ports operate in framed mode
using G.704 with CRC-4 multi frame enabled. The WCM1800 range offers upto 4 VCAT
groups (VCG) allowing for upto 4 remote devices to be connected.
The WCM1800 is a managed unit allowing for the effective demarcation between LAN and
WAN services. Management of the WCM1800 is achieved using either Telnet or SNMP
via either the LAN or WAN ports.
The Metrodata WCM1800 is a manageable multiport Ethernet Switch with a multiple,
bonded E1 uplink. The WCM1800 provides two 10/100/1000BaseT Auto Negotiating,
Auto-Switching RJ45 Ports as well as a single SFP port supporting either 1000Base-X or
100Base-FX SFP modules. The WCM1800 operates as a layer 2 bridge and as such may
be used to extend a LAN segment over a WAN link.
The WCM1800 has an internal LAN switch offering full wire-speed switching between
ports. The WCM1800 uses MAC address filtering to filter all local traffic and only forward
traffic destined for remote stations. Each of the WCM1800’s LAN ports support automatic
cross-over switching and will therefore connect directly to a Hub/Switch/Router or PC End
Station.
The WCM1800 has support for both tagged and untagged frames, with both VLAN C-Tag,
and Provider Bridge S-Tag (QinQ) modes supported.
76-02-087 Rev D
Page 8
METRODATA LTD WCM1400/WCM1800/WCM1820
8 of 61
Quick Start Guide
The WCM1800 supports either IP DSCP, or IEEE802.1p based traffic prioritisation with
outgoing traffic being queued in one of four priority queues.
The WCM1800 supports link OAM, IEEE802.3ah and RSTP for loop prevention.
1.1 Product Rear Panels
The following sections show the rear panels of the various products, all of which are in a
standard 19”, 1U form factor, except the 1820 BNC which requires 2U due to the BNC
connectors.
1.1.1 WCM1820 RJ45 Rear Panel
1.1.2 WCM1820 BNC Rear Panel
1.1.3 WCM1800 RJ45 Rear Panel
76-02-087 Rev D
Page 9
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
1.1.4 WCM1800 BNC Rear panel
1.1.5 WCM1400 RJ45 Rear panel
9 of 61
1.1.6 WCM1400 BNC Rear Panel
76-02-087 Rev D
Page 10
METRODATA LTD WCM1400/WCM1800/WCM1820
10 of 61
Quick Start Guide
2 WCM1800 Applications
2.1 WCM1800 Normal Mode
In this application, the WCM1800 is operating with Traffic Isolation Disabled. In this mode,
the WCM1800 acts as a simple, layer 2, 5 port switch with packets being switched based
on MAC address alone. The WCM1800 supports both local and remote switching.
Management traffic is not isolated from the through data traffic, and both units may be
managed from any port.
The WAN link comprises 8 E1 circuits running E1 G.704 CRC-4 framing with GFP packet
encapsulation and VCAT/LCAS to give a combined trunk bandwidth of 15.87Mbps for
payload. In this mode, the untagged frames are directed to VCG1.
2.2 WCM1800 VLAN Trunk Mode
76-02-087 Rev D
Page 11
METRODATA LTD WCM1400/WCM1800/WCM1820
11 of 61
Quick Start Guide
In this application, WCM1800-A is connected to a VLAN enabled LAN switch. The LAN
switch is configured as a VLAN trunk and all packets are tagged with VLAN Tags.
WCM1800-A is operating with VLAN support disabled, but with a VLAN ID allocated to the
Manager. In this way, the management VLAN, in this case 101, can be used to manage
the WCM1800. WCM1800-B is configured with VLAN support enabled and thus each port
is isolated to a single VLAN.
2.3 WCM1800 VLAN Access Mode
In this mode, both WCM1800 units have VLAN support enabled. VLAN 101 is used as the
management VLAN and in unit WCM1800-A the VLAN group 101 includes the LAN Port 1,
the Manager and the E1 port. At the remote end, Port 1 is disabled to prevent customer
access to the WCM1800 manager.
2.4 WCM1800 S-Tag Mode
In this mode, the WCM1800 adds a, port based, S-TAG to all incoming traffic. Where
customer traffic is already VLAN tagged, this leads to double tagging or ‘QinQ’ operation.
The use of the S-TAG enables the carrier to isolate customer traffic. Carrier management
traffic is carried with a separate S-Tag giving management access to both units, and on
the customer site the external management access is disabled.
76-02-087 Rev D
Page 12
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
2.5 Point to Multi-Point
12 of 61
In this application, the traffic is transported to remote destinations based on the incoming
VLAN C-Tag. To support the point to multipoint management, the IP Proxy mode is used
with device A acting as the server and B/C acting as clients.
In this application, WCM1800-A is operating with VLAN mode enabled and is operating
LAN Port 2 in VLAN Trunk Mode. Incoming packets must be tagged and are switched
based on the incoming tag. Individual VLAD ID’s or ranges may be allocated to each
VCG. In this case, VLAN 101 and 102 are allocated to VCG1 serving remote device B,
whilst VLAN 103, 104 are allocated to VCG2 serving remote device C.
The remote devices, B and C are both operated in VLAN mode but with the LAN ports in
access mode stripping the tags from egress packets and tagging packets on ingress.
76-02-087 Rev D
Page 13
METRODATA LTD WCM1400/WCM1800/WCM1820
13 of 61
Quick Start Guide
3 Theory of Operation
3.1 Frame Encapsulation
The WCM1800 uses the Generic Framing Procedure (GFP) to encapsulate the Ethernet
frames for transmission over the WAN link(s). GFP is a byte aligned procedure and hence
is suitable for use with multi link bonding. GFP does not use bit stuffing as with HDLC and
is therefore a deterministic protocol. The diagram below compares HDLC and GFP for
encapsulation of an Ethernet Frame
The native Ethernet frame is encapsulated under GFP as shown.
The GFP core header is four bytes long and is used for packet delineation. To decouple
the line rate from the packet rate, idle frames consisting of the core header only are sent.
The GFP payload header provides information about the payload type and also whether
the payload includes an FCS. The GFP payload header uses 4 bytes.
The GFP payload area contains the Ethernet Frame payload. Since the receiver uses the
core header pattern to delineate packets, scrambling the payload helps to prevent aliasing
of the header and improves reliability.
76-02-087 Rev D
Page 14
METRODATA LTD WCM1400/WCM1800/WCM1820
14 of 61
Quick Start Guide
The GFP frame contains an optional FCS, Frame Check Sequence. Packets received
with an FCS error will be discarded. Since the GFP frame is protected from bit errors by
the GFP payload FCS, the MAC FCS may be stripped and recalculated at the remote end
to save bandwidth.
3.2 Virtual Concatenation and LCAS
Virtual Concatenation (VCAT) is a method of bonding multiple E1 circuits together to form
a single connection with increased capacity. LCAS, Link Capacity Adjustment Procedure,
is a protocol which will enable a failed link to be removed from the VCAT group to allow
traffic to pass over a reduced capacity link.
VCAT inserts a single overhead byte immediately following FAS pattern in the first frame
of a CRC-4 multiframe. The VCAT control byte is shown below:
The VCAT control byte forms a 16 frame multi frame to pass all the required information.
Each link is given a sequence number, and a status bit (MST). Through the use of the
VCAT control word, the multiple links in the group can be aligned with upto 250ms of delay
variation compensated for.
LCAS operates using the VCAT control word and uses the MST status bits and
CTRL/LCAS control to monitor the status of all members of the group, and remove any
that fail or add in any new links in a hitless manner.
76-02-087 Rev D
Page 15
METRODATA LTD WCM1400/WCM1800/WCM1820
15 of 61
Quick Start Guide
4 Quick Start Configuration
The following guide gives a simple, quick start introduction to configuring the WCM1800
for Normal Mode operation as shown in section 2.1
4.1 Access the WCM1800
Initial access to the WCM1800 is made using the Terminal Port on the rear panel of the
unit. The Terminal port defaults to 19200baud, 8bit, No Parity 1 Stop Bit. The 9 Way DType is configured as a DCE port with standard pinout.
4.2 Logging onto WCM1800
The initial access to the WCM1800 must use a terminal connected to the terminal port.
The WCM1800 has a password protected, menu driven user interface. When a
management session is connected to the WCM1800, the welcome banner will be
displayed as shown:
Metrodata WCM1800: Local connection to “”
Password (‘view’ to view only ) :
At the prompt, enter the password to gain access to the WCM1800.
The default password is product specific as below:
WCM1400: default password “wcm1400”
WCM1800: default password “wcm1800”
WCM1820: default password “wcm1820”
For security, the password is obscured with an asterisk (*) being displayed for each
character typed. An incorrect password will lead to the welcome banner being

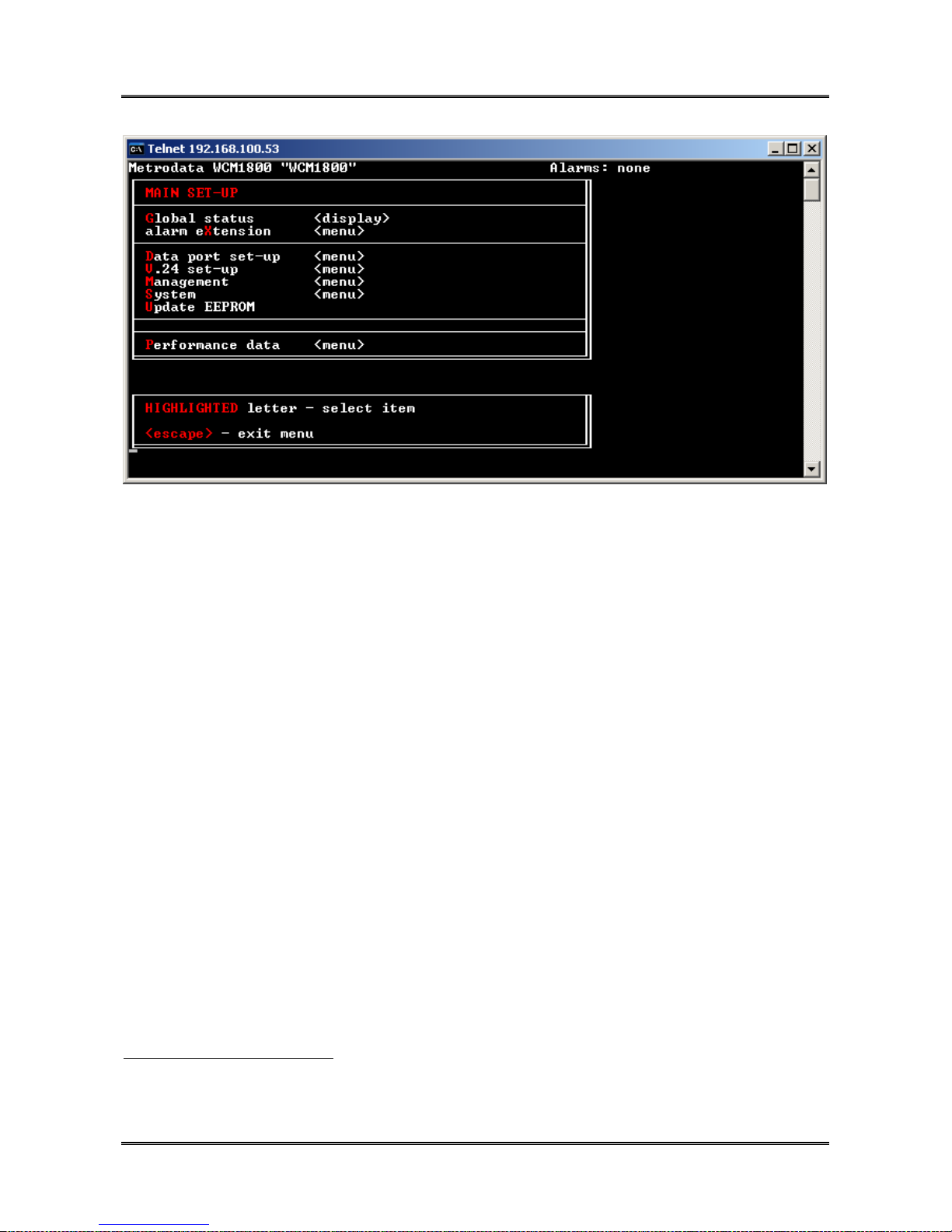

redisplayed. A correct password will lead onto the main set up menu as shown below:
Throughout this manual, the Telnet VT100 emulation user screens will be displayed.
76-02-087 Rev D
Page 16
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
4.2.1 User Interface Navigation
16 of 61
The WCM1800 user interface is a simple, menu based interface. Each selectable item
may be selected by typing the first capital of the option, e.g. for “Data port set-up” type
<D>1 or <d>. Sometimes, where multiple items have the same starting letter the selection
capital will not be the first letter, e.g. “alarm eXtension” which is selected with <X> or <x>.
On the right side of the display is a list of what is below each item. This could be:
<menu> This indicates a sub-menu will be entered
<display> This indicates an information screen will be displayed. This may be
status or statistics.
Additional keys may be used to navigate the menu system:
<ESC> This will exit the current menu, or log out from the main set up menu.
<SPACE> This will toggle through a list of selectable options
<ENTER> This will select an item
1
Encapsulating an item within < > indicates a key press is required, for example <D>
means type D.
76-02-087 Rev D
Page 17
METRODATA LTD WCM1400/WCM1800/WCM1820
17 of 61
Quick Start Guide
4.3 Configure the WAN interface
In order for two WCM1800 units to communicate they must be connected using the E1
WAN ports. The E1 interfaces must be configured to match the network NTU
configuration.

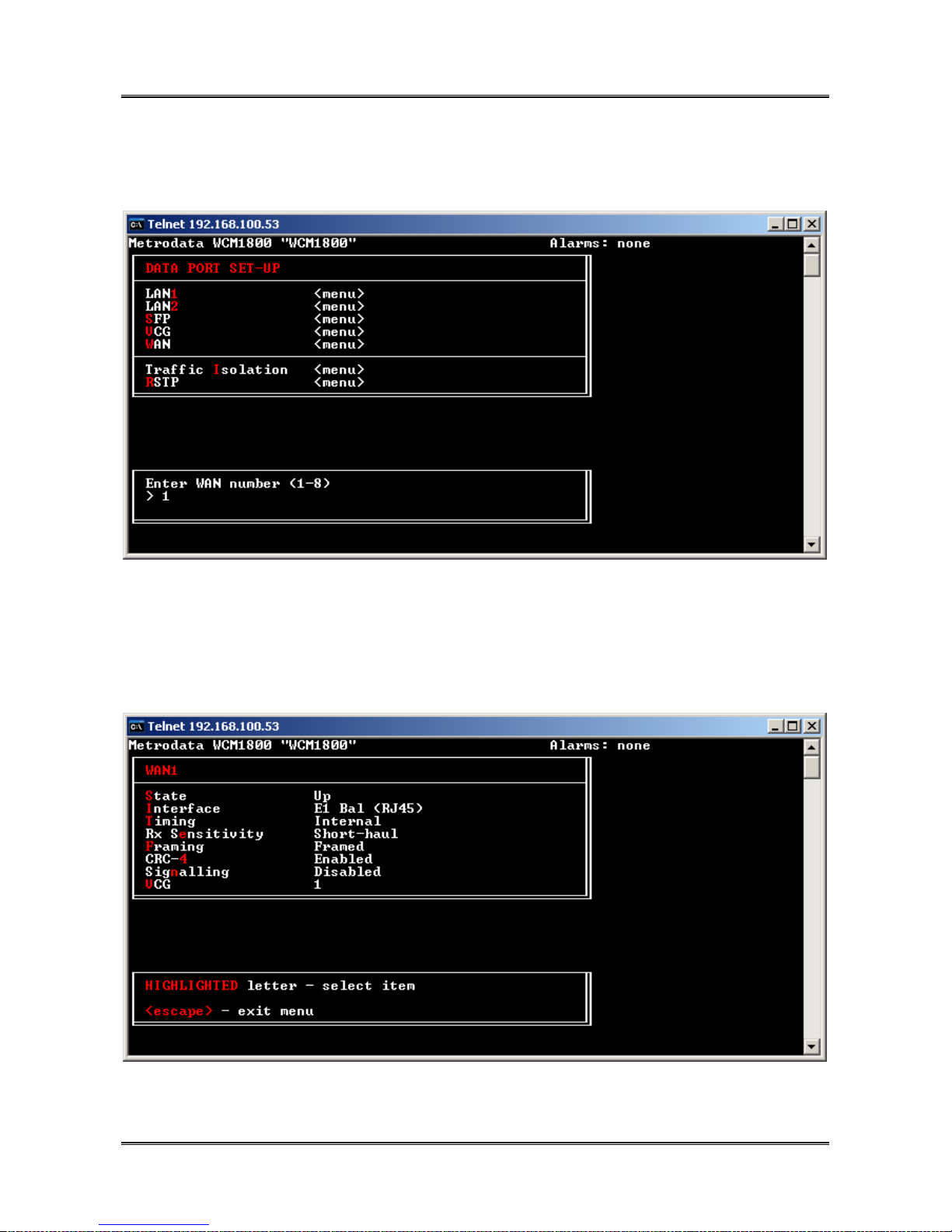

The WAN port is configured by selecting the Data Port Set-Up Menu,
and then select the WAN (E1) port:
and then configure the operating parameters
76-02-087 Rev D
Page 18
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
18 of 61
Ensure that the WAN port is set to Framed mode, and that CRC-4 is enabled. If a WAN
port is not used, the port state should be changed to down to remove it from the alarm
tables.
4.4 Configure the VCAT Group

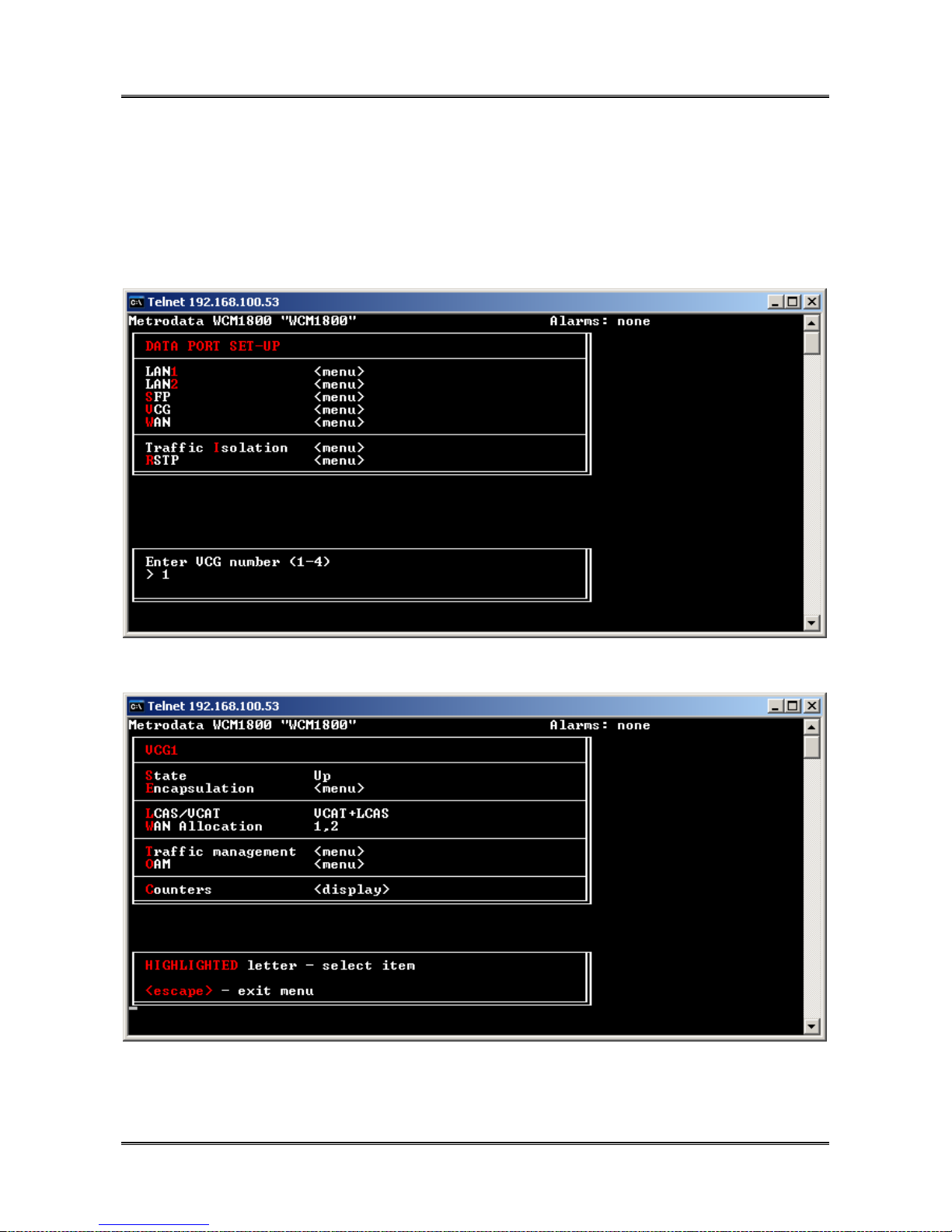

From the data port menu, select the VCAT Group (VCG) menu and select VCG1
which leads to the VCG configuration menu
76-02-087 Rev D
Page 19
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
19 of 61
76-02-087 Rev D
Page 20
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
4.5 Set IP Address

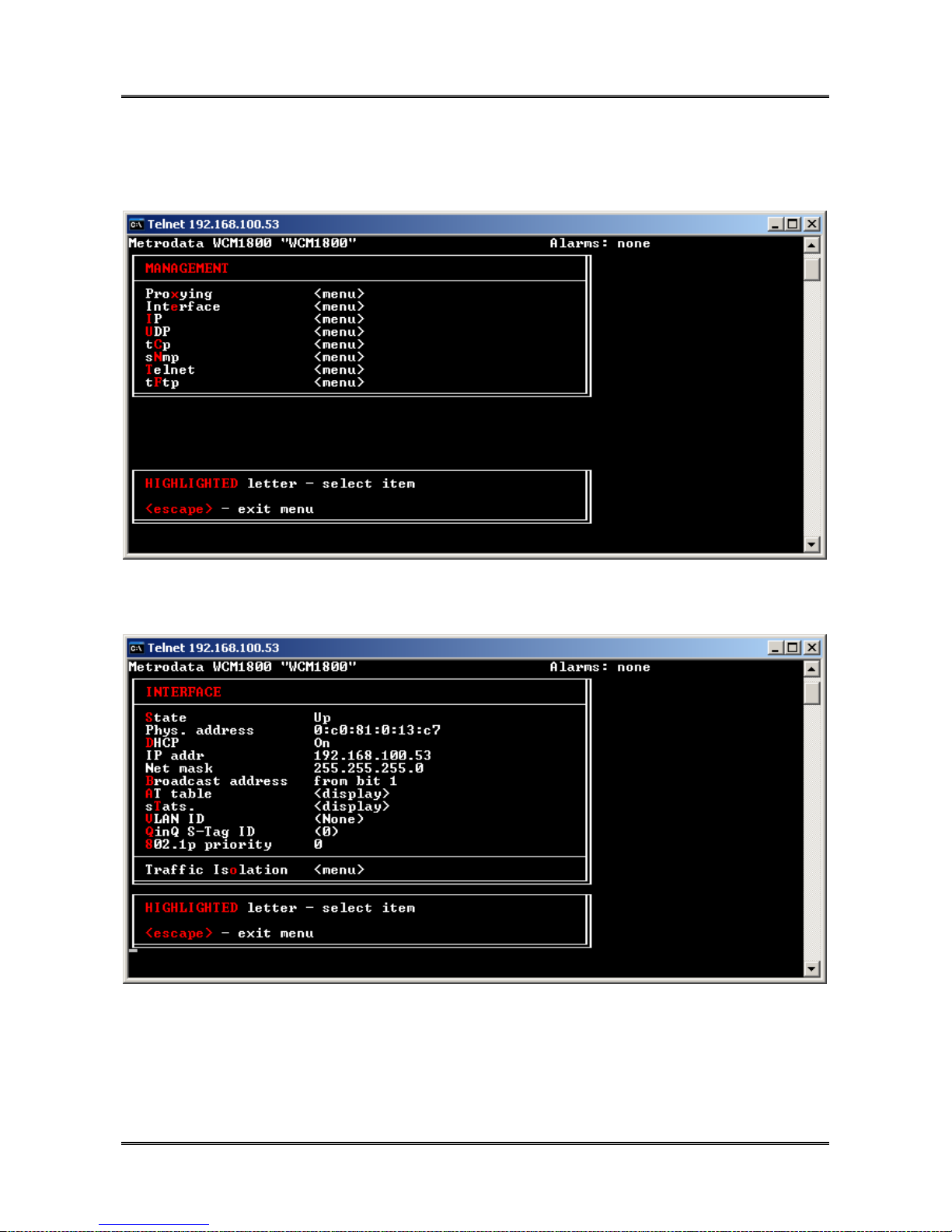

From the Main Setup Menu, select Management,
20 of 61
and then the Interface Menu.
76-02-087 Rev D
Page 21
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
To change the IP settings for installation:
Dhcp For operation in a DHCP enabled network and automatic
IP address allocation set this parameter to ON to enable
DHCP address allocation.
IP Address If DHCP is not used, you must manually assign the
required IP address for correct installation into the
network.
Net mask If DHCP is not used, you must assign the required network
mask for correct installation into the network.
4.6 Set Default Route
From the Main Setup Menu, select Management, then IP,
21 of 61
then select the Routing Table menu.
76-02-087 Rev D
Page 22
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
22 of 61

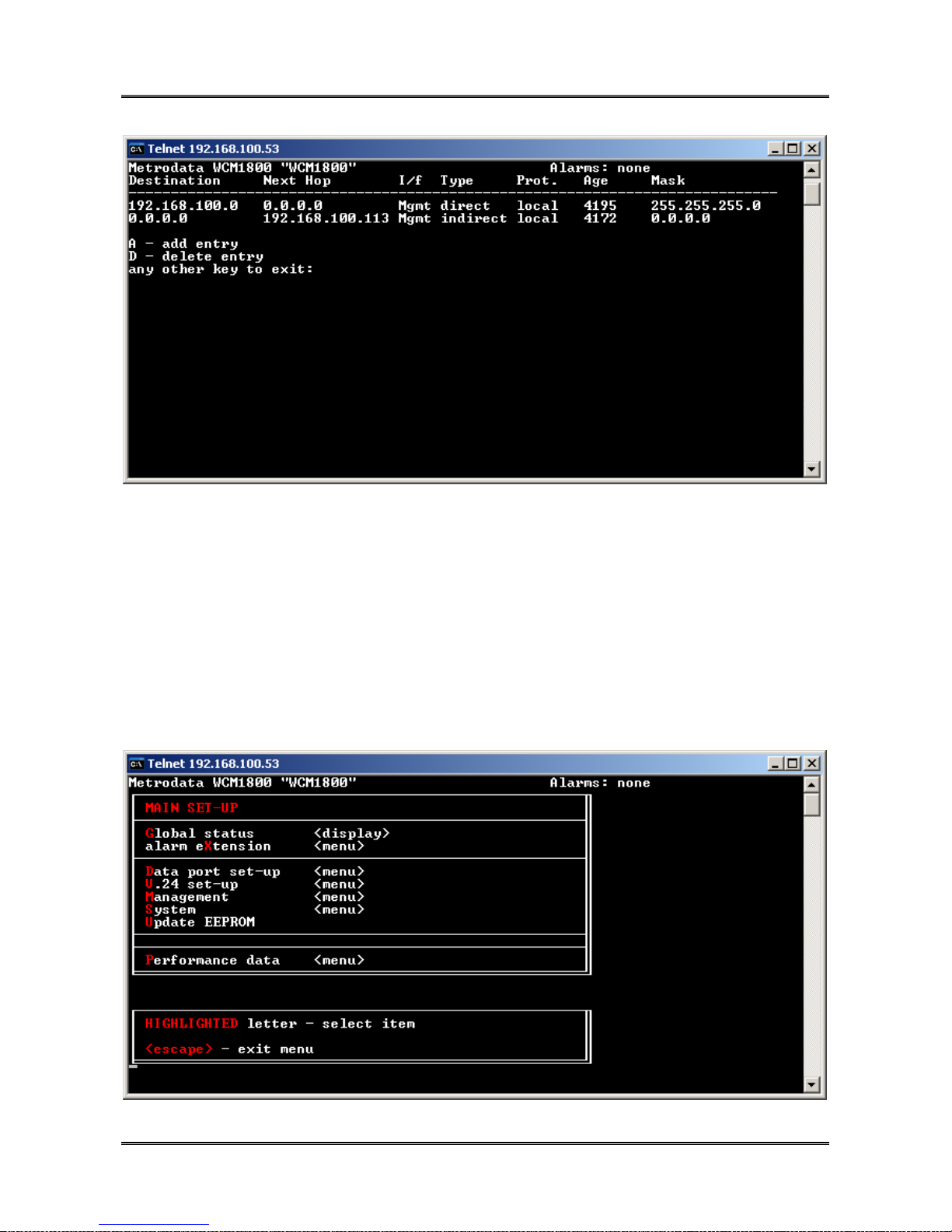

Add a new route table entry with destination and mask as 0.0.0.0 and configure the next
hop as required.
Note, that the default route is added automatically when DHCP is used.
4.7 Save the Configuration
From the Main Set Up menu, select the Update EEPROM option to save the configuration
to non volatile memory. Answer ‘Y’ at the prompt.
76-02-087 Rev D
Page 23
METRODATA LTD WCM1400/WCM1800/WCM1820
23 of 61
Quick Start Guide
5 Advanced Configuration
5.1 System Configuration
The system menu provides the basic administrative configuration items for the WCM1800
and should be configured first. The System Menu is shown below:
76-02-087 Rev D
Page 24
METRODATA LTD WCM1400/WCM1800/WCM1820
24 of 61
Quick Start Guide
5.1.1 Setting the Time and Date
The WCM1800 does not provide a non volatile Real Time Clock, instead it uses NTP to set
the date and time following power up. In applications where NTP is not available, the
WCM1800 defaults to providing a simple uptime display.
To configure the NTP parameters, select the “Time and date” menu from the “System”
menu. The menu is as below:
If NTP is available, then the following parameters need to be set,
Time Zone +/-12 Since NTP uses GMT, time zone adjustment allows the
correct time to be configured wherever the units are
deployed globally.
NTP Server Enter the IP address of the network NTP server.
According to the NTP protocol, the WCM1800 will wait for a random period of between 1
and 5 minutes before requesting an NTP update.
If NTP is not available, then the user can manually enter the time and date, however since
these are non volatile and not maintained over a power cycle it is not recommended.
5.1.2 Setting the Node Name
To enable identification of the WCM1800 it is useful to enter a meaningful name for the
unit. The node name is entered as a string of up to 32 alpha numeric characters, including
spaces.
76-02-087 Rev D
Page 25
METRODATA LTD WCM1400/WCM1800/WCM1820
25 of 61
Quick Start Guide
5.1.3 Setting the Password
The password for the WCM1800 may be changed from the system menu. The default
password is product specific either “wcm1820”, “wcm1800” or “wcm1400” However, for
deployment a more secure password may be required.
To change the unit password, select “Password” from the system menu. The WCM1800
will display the following:
Enter new password
Password >
Enter the new password, up to 16 alphanumeric characters. For security, each character
is shown on the screen as an asterisk “*”. Once the new password is entered, the display
changes to
Enter new password
Password > ***********
Verify>
Re-enter the new password. If the password is correctly verified the unit will assume the
new password for the next logon.
5.1.4 ‘View’ User
The WCM1800 supports two levels of access: admin and view. An Admin user has full
access rights over the WCM1800 configuration. A view user has read only access to the
configuration.
In some cases it may be desirable to prevent the “view” user access.
To disable the view user access, select the View User menu item and toggle the option to
disabled. It will now not be possible to log in with the “view” password.
76-02-087 Rev D
Page 26
METRODATA LTD WCM1400/WCM1800/WCM1820
26 of 61
Quick Start Guide
5.1.5 Welcome Screen
By default, the initial access to the WCM1800 will display the welcome banner as shown
below:
Metrodata WCM1800: Local connection to “”
Password (‘view’ to view only ) :
However, it is possible to customize the welcome banner to give further information about
the unit, or to inform the user of access restrictions.
To configure the welcome screen select the “welcome screen” menu item which will lead
to the menu:
If a customized welcome is required, change to enabled and the menu will change as
shown below:
76-02-087 Rev D
Page 27
METRODATA LTD WCM1400/WCM1800/WCM1820
27 of 61
Quick Start Guide
To configure the Welcome Screen enter each line using alpha numeric characters with
each line supporting upto 80 characters as in the example below:
Once the welcome message has been defined, it may be displayed using the display
screen option. In some cases, as above, the screen splits over two pages, the ‘>’
indicates a second page is available. For this example, the Display Screen shows:
76-02-087 Rev D
Page 28
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
28 of 61
which leads to a welcome banner displayed as follows when a management session is
started up:
76-02-087 Rev D
Page 29
METRODATA LTD WCM1400/WCM1800/WCM1820
29 of 61
Quick Start Guide
5.1.6 Warm Start
A warm Start will force the WCM1800 to restart and reload the configuration from the
EEPROM. Note, any changes to configuration that have not been saved to the EEPROM
will be lost.
When a user issues a warm start request, the WCM1800 will indicate that a warm start is
in progress and then close the connection.
5.1.7 Cold Start
Cold Start will return the WCM1800 to the factory default condition and as defined by the
bit switch settings.
Note, that a cold start will erase IP addresses and Routing Table entries and it is therefore
highly likely that remote access will be lost following a cold start.
For this reason a cold start request must be confirmed before it is actioned.
76-02-087 Rev D
Page 30
METRODATA LTD WCM1400/WCM1800/WCM1820
30 of 61
Quick Start Guide
5.2 Configuration of the Data Ports
This section deals with the configuration of each of the user data port types including E1,
and LAN ports. A simple configuration will be shown for each type of port.
The port configuration is accessed from the main setup menu by selecting the data port
menu. The data port menu gives the following options
76-02-087 Rev D
Page 31
METRODATA LTD WCM1400/WCM1800/WCM1820
31 of 61
Quick Start Guide
5.2.1 LAN Port
The WCM1800 has two external copper LAN ports which by default operate in
10/100/1000BaseT auto negotiating, auto crossover mode. The LAN ports are presented
on RJ45 connectors and support access to the other external local LAN ports, the
management processor or the WAN forwarding port.
The LAN port menu allows for configuration of the LAN port parameters and VLAN settings
5.2.1.1 State
The port state is the administrative state of this port. The state may be up or down. When
‘UP’, the port is enabled and will generate a Major Alarm if the link is physically down.
When in the ‘DOWN’ state, the port is disabled.
5.2.1.2 Link Status
The Link Status is a display of the current link status. If the link is up, the link status will
show UP and vice versa. Only when the link status is up are the operating parameters
valid when in auto negotiating mode.
5.2.1.3 Auto Negotiation
The port may be configured to automatically determine the optimal operating parameters
for link speed and duplex. Alternatively, it may be disabled to enable configuration of fixed
operating parameters.
76-02-087 Rev D
Page 32
METRODATA LTD WCM1400/WCM1800/WCM1820
32 of 61
Quick Start Guide
Note, the Auto Negotiating algorithm works optimally with a link partner that also supports
auto negotiation. For operation where one end of a link uses fixed configuration and does
not negotiate, it must be noted that only Speed, 10 or 100M, can be determined, the auto
negotiating node will fall back to use half duplex. 1000M operation requires auto
negotiation.
5.2.1.4 Speed
When in auto negotiating mode, the speed displayed is the highest that will be advertised
to the link partner. In non auto negotiating mode, the speed is manually set by the user.
5.2.1.5 Duplex
When in auto negotiating mode, the duplex displayed is the highest that will be advertised
to the link partner. In non auto negotiating mode, the duplex is manually set by the user.
5.2.1.6 Negotiated
this item displays the actual operating parameters of the link following auto negotiation and
may take the values:
1000/FD 1000Mbps, Full Duplex
100/FD 100Mbps, Full Duplex
100/HD 100Mbps, Half Duplex
10/FD 10Mbps, Full Duplex
10/HD 10Mbps, Half Duplex
5.2.1.7 MDI/MDIX
By default, the ports support automatic crossover configuration when required. The port
may be configured as follows:
AUTO Auto Sense and configure
MDI Present MDI interface, direct connection to switch
MDIX Present MDIX Interface, direct connection to PC
76-02-087 Rev D
Page 33
METRODATA LTD WCM1400/WCM1800/WCM1820
33 of 61
Quick Start Guide

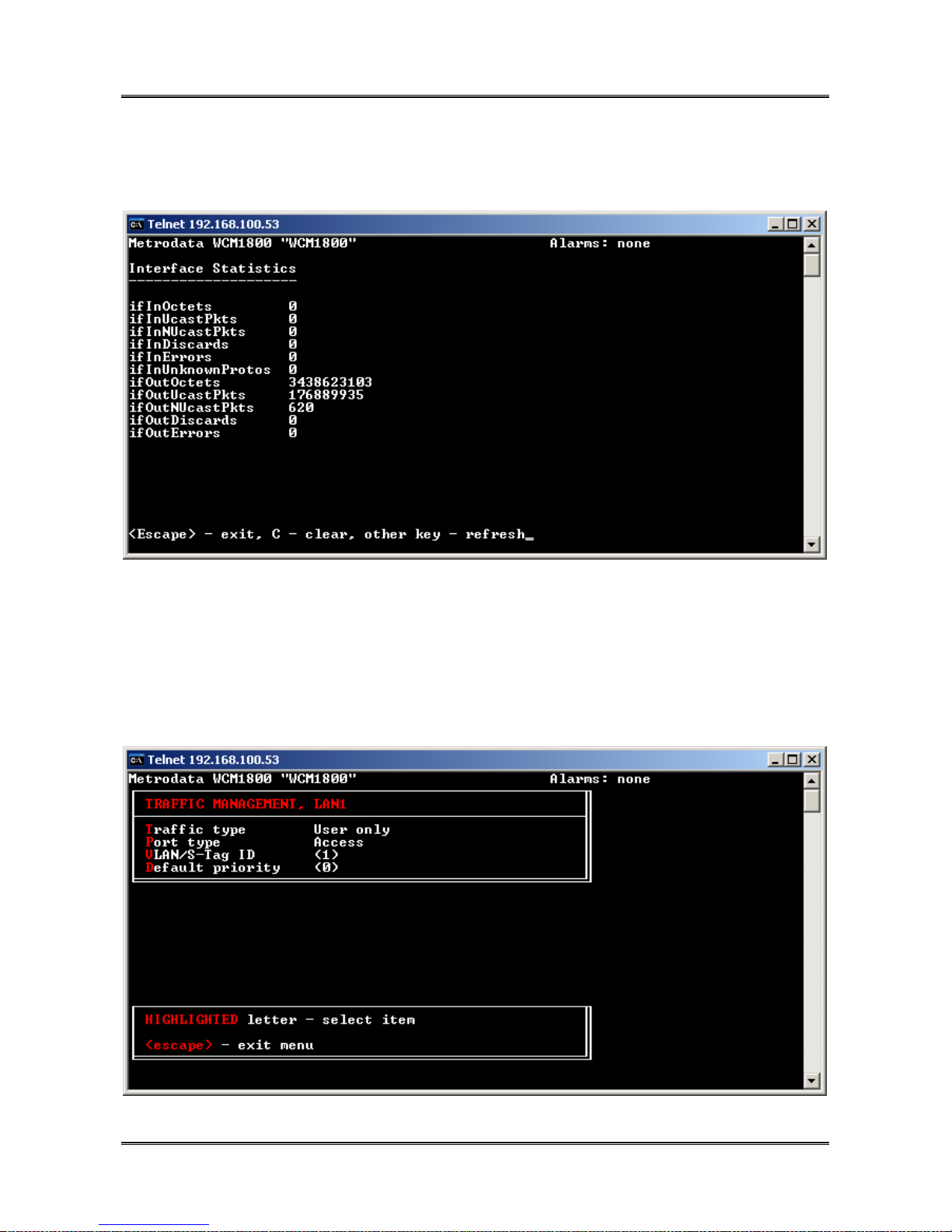

1.1.1.1 Counters
Each LAN port provides a set of counters supporting the basic MIB-2 SNMP parameters
as below:
5.2.1.8 Traffic Management
The Traffic management menu configures Port Based and Tag based VLAN operation as
shown:
76-02-087 Rev D
Page 34
METRODATA LTD WCM1400/WCM1800/WCM1820
34 of 61
Quick Start Guide
5.2.1.8.1 Traffic Type
In order to provide port based traffic isolation this parameter defines what type of traffic
passes over this interface. The options are as below
User + Mgmt This port carries user and management traffic. Management frames
are switched to the processor, whilst user frames are switched to the
WAN port.
User only This port only carries user traffic and ALL frames are switched to the
WAN port with no access to the management processor
Mgmt only This port only carries Management Traffic and all frames are
forwarded to the management processor with no frames forwarded to
the WAN port.
5.2.1.8.2 Port Type
If the traffic isolation mode is set to VLAN mode, then the LAN port may be defined as
either an Access or Trunk port.
An Access port expects untagged frames to ingress, and will strip tags for egress frames.
The port will add the configured VLAN ID.
A Trunk port expects ingress and egress packets to be tagged.
5.2.1.8.3 VLAN/S-Tag ID
If the Traffic Isolation mode is set to VLAN then the LAN port may be assigned to a VLAN.
and all frames ingressing this port will have a VLAN Tag added. This configuration item
defines the VLAN ID which will be added and may be in the range (1 to 4095 ). One or
more ports may be assigned to the same VLAN and packets will then only switch between
those ports and the WAN interface.
In VLAN mode, packets are expected to ingress the LAN ports untagged, and will have
any tags stripped before egress.
If the traffic isolation mode is set to QinQ, then the defined S-TAG will be added to all
incoming frames. If ingress traffic is already C-Tagged then the S-TAG will be added as
the outer most tag giving QinQ operation.
76-02-087 Rev D
Page 35
METRODATA LTD WCM1400/WCM1800/WCM1820
35 of 61
Quick Start Guide
5.2.1.8.4 default Priority
When the traffic isolation mode is VLAN, this is the priority value that is added with the
VLAN ID during ingress. In QinQ mode, untagged packets are given this default priority,
whilst tagged packets promote the C-TAG priority to the S-TAG priority.
5.2.1.9 OAM
The LAN port supports IEEE 802.3 clause 57 link OAM. The LAN port may operate in
Active, Passive or have OAM functions disabled.
In Active mode, the port will transmit a status request once a second to solicit information
from the attached peer device.
In Passive mode, the port will wait for a status request from the active peer and will
respond with its local status.
In disabled mode, OAM will be disabled.
When OAM is enabled, the port OAM status may be displayed
when the peer device is identified as a member of the Metrodata MetroConnect product
range, proprietary enterprise extensions are used to extract further useful information
about the remote unit status.
76-02-087 Rev D
Page 36
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
5.2.2 WAN Port
The WAN Port menu is selectes as below:
36 of 61
Note, ports 5,6,7 and 8 are not available on the WCM1400, the WCM1820 supports ports
upto 16.
To configure the parameters for the individual E1 ports select the port number to lead to
the menu below:
76-02-087 Rev D
Page 37
METRODATA LTD WCM1400/WCM1800/WCM1820
37 of 61
Quick Start Guide
The available options are as below:
5.2.2.1 State
The port state determines the administrative state of the port. When the port is in the UP
state it is available for use and mayl form part of a VCAT group. If it is disabled it will not
pass any user traffic, or process alarms.
5.2.2.2 Interface
The E1 port physical interface is a display only item, depending upon the product type it
will display either:
Balanced (RJ45) E1 port operates in 120ohm, balanced mode presented on
the RJ45 connector.
Unbalanced (BNC) E1 port operates in 75 ohm, unbalance mode presented
on a pair of BNC connectors
5.2.2.3 Timing
The E1 port may be operated in
Internal E1 Transmit Timing derived from the internal oscillator
5.2.2.4 RX Sensitivity
The E1 port supports both short and long haul modes of operation. The Rx Sensitivity
mode may be toggled between
Short Haul max cable loss 12 dB
Long Haul max cable loss 43 dB
5.2.2.5 Framing
The WAN port may be configured to operate in the following modes
Framed G.704 Framed, 1.984Mbps payload
76-02-087 Rev D
Page 38
METRODATA LTD WCM1400/WCM1800/WCM1820
38 of 61
Quick Start Guide
5.2.2.6 CRC-4
When operating in Framed or Fractional mode CRC-4 multiframe mode may be enabled or
disabled.
For VCAT operation, CRC-4 MUST be enabled.
5.2.2.7 sigNalling
When operating in framed mode, the signaling option determines whether timeslot 16 is
available for payload. With Signalling Enabled timeslot 16 is not used for payload giving a
link capacity of 1.920MBps rather than 1.984MBps.
5.2.2.8 VCG
This display item indicates which VCG this WAN port is allocated to.
76-02-087 Rev D
Page 39
METRODATA LTD WCM1400/WCM1800/WCM1820
39 of 61
Quick Start Guide
5.2.3 SFP Port
The SFP port configuration menu is accessed via the data port set up menu and is as
shown below:
5.2.3.1 SFP Type
This display item indicates the type of SFP fitted. This value is read from the SFP device
itself and is a decode of the interface type bytes according to the SFP MSA definition.
Metrodata supplied SFP devices will indicate the SFP type, however some lower cost,
lower quality SFP devices may not be correctly programmed an will indicate “UNKNOWN”
as the device type cannot be determined.
If no SFP is fitted, this will show “NOT FITTED”
5.2.3.2 State
This setting defines the administrative state of the port and may be UP or DOWN. When
the state is DOWN, no alarm processing is performed. If an SFP is not fitted, it is
important to change this state to DOWN to prevent the SFP MAJOR alarm being
generated.
5.2.3.3 Link State
When the SFP is fitted, this displays the operational state of the link and also may be UP
or DOWN.
76-02-087 Rev D
Page 40
METRODATA LTD WCM1400/WCM1800/WCM1820
40 of 61
Quick Start Guide
5.2.3.4 Speed
The speed setting selects between 1000BaseX and 100BaseFX operating mode.
This setting should be set to match the SFP device inserted.
Alternatively, this can be set to AUTO, in which case the software will read the device type
from the SFP and select either 1000BaseX or 100BaseFX determined by the information
read back.
5.2.3.5 Auto Negotiation
When operating in 1000baseX mode, Auto negotiation must be enabled.
5.2.3.6 Negotiated
When Auto Negotiation is enabled, this displays the mode negotiated.
5.2.3.7 SFP Info
This menu displays further information regarding the SFP device:
76-02-087 Rev D
Page 41
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
5.2.3.8 Counters
The counters option displays the MIB-2 statistics gathered for the SFP port.
41 of 61
5.2.3.9 Traffic Management
The Traffic management menu configures Port Based and Tag based VLAN operation as
shown:
76-02-087 Rev D
Page 42
METRODATA LTD WCM1400/WCM1800/WCM1820
42 of 61
Quick Start Guide
5.2.3.9.1 Traffic Type
In order to provide port based traffic isolation this parameter defines what type of traffic
passes over this interface. The options are as below
User + Mgmt This port carries user and management traffic. Management frames
are switched to the processor, whilst user frames are switched to the
WAN port.
User only This port only carries user traffic and ALL frames are switched to the
WAN port with no access to the management processor
Mgmt only This port only carries Management Traffic and all frames are
forwarded to the management processor with no frames forwarded to
the WAN port.
5.2.3.9.2 Port Type
If the traffic isolation mode is set to VLAN mode, then the LAN port may be defined as
either an Access or Trunk port.
An Access port expects untagged frames to ingress, and will strip tags for egress frames.
The port will add the configured VLAN ID.
A Trunk port expects ingress and egress packets to be tagged.
5.2.3.9.3 VLAN/S-Tag ID
If the Traffic Isolation mode is set to VLAN then the LAN port may be assigned to a VLAN.
and all frames ingressing this port will have a VLAN Tag added. This configuration item
defines the VLAN ID which will be added and may be in the range (1 to 4095 ). One or
more ports may be assigned to the same VLAN and packets will then only switch between
those ports and the WAN interface.
In VLAN mode, packets are expected to ingress the LAN ports untagged, and will have
any tags stripped before egress.
If the traffic isolation mode is set to QinQ, then the defined S-TAG will be added to all
incoming frames. If ingress traffic is already C-Tagged then the S-TAG will be added as
the outer most tag giving QinQ operation.
76-02-087 Rev D
Page 43
METRODATA LTD WCM1400/WCM1800/WCM1820
43 of 61
Quick Start Guide
5.2.3.9.4 default Priority
When the traffic isolation mode is VLAN, this is the priority value that is added with the
VLAN ID during ingress. In QinQ mode, untagged packets are given this default priority,
whilst tagged packets promote the C-TAG priority to the S-TAG priority.
5.2.3.10 OAM
The LAN port supports IEEE 802.3 clause 57 link OAM. The LAN port may operate in
Active, Passive or have OAM functions disabled.
In Active mode, the port will transmit a status request once a second to solicit information
from the attached peer device.
In Passive mode, the port will wait for a status request from the active peer and will
respond with its local status.
In disabled mode, OAM will be disabled.
When OAM is enabled, the port OAM status may be displayed
when the peer device is identified as a member of the Metrodata MetroConnect product
range, proprietary enterprise extensions are used to extract further useful information
about the remote unit status.
76-02-087 Rev D
Page 44
METRODATA LTD WCM1400/WCM1800/WCM1820
44 of 61
Quick Start Guide
5.2.4 VCG ( VCAT Group Configuration )
A VCAT Group, VCG is a collection of E1 ports bonded together. The WCM1800 supports
upto 4 VCAT Groups, with VLAN/STAG ID being used to select which VCG a frame will
traverse.
To configure a VCG, first select,
and then configure,
76-02-087 Rev D
Page 45
METRODATA LTD WCM1400/WCM1800/WCM1820
45 of 61
Quick Start Guide
5.2.4.1 State
The state configuration item controls the admin state for the VCG. If a VCG is in the
admin up state it can pass data and will generate alarms when error conditions exist. If a
VCG is not used, it should be placed in the admin down state to prevent alarms being
raised.

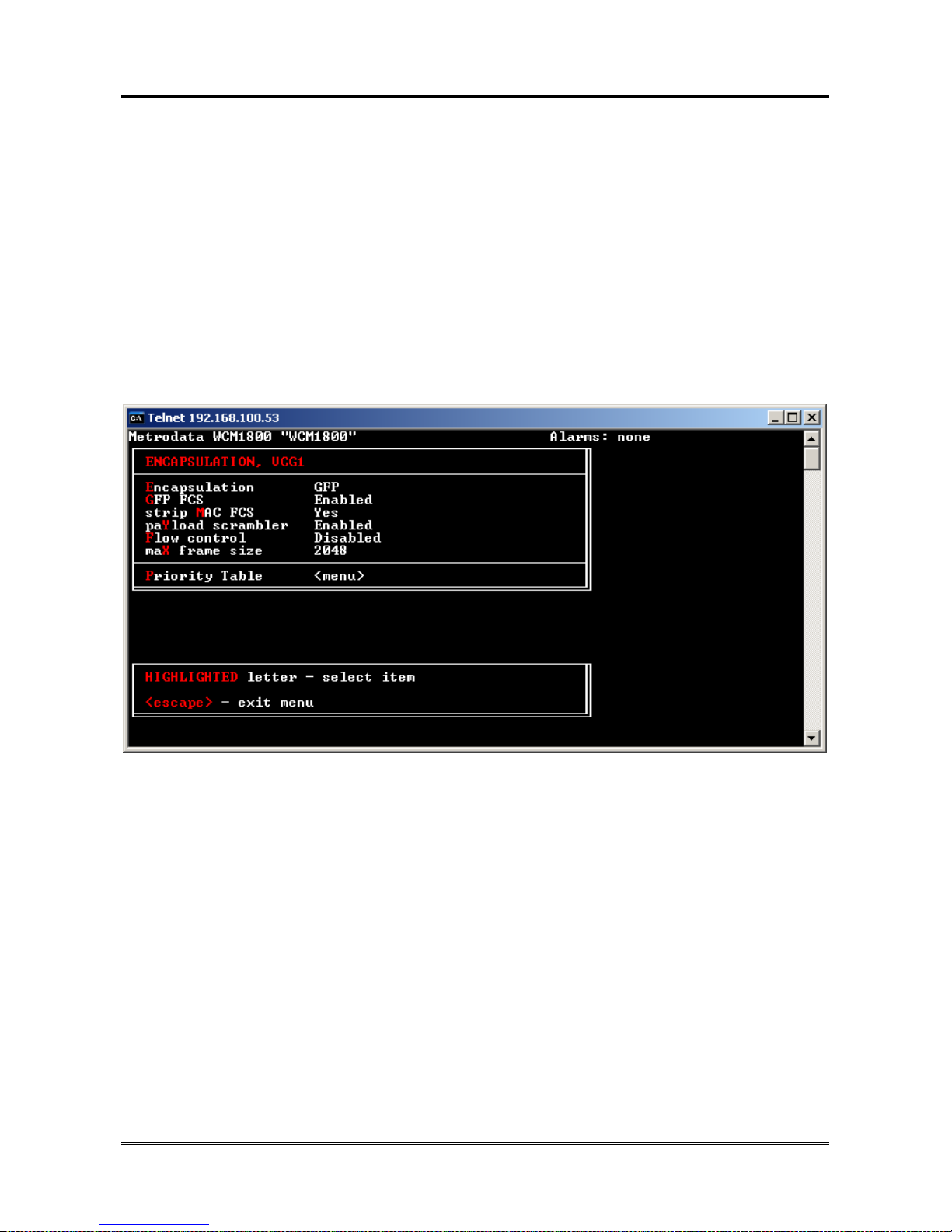

5.2.4.2 Encapsulation
The encapsulation menu configures the method for encapsulating frames on the WAN
port.
5.2.4.2.1 Encapsulation
The options for encapsulation are as follows:
GFP standards based encapsulation, byte aligned and may be used with VCG
X.86 byte aligned encapsulation
HDLC bit aligned encapsulation, cannot be used with VCAT.
5.2.4.2.2 GFP FCS
When GFP encapsulation is selected, this item enables the GFP payload checksum as an
additional error detection.
76-02-087 Rev D
Page 46
METRODATA LTD WCM1400/WCM1800/WCM1820
46 of 61
Quick Start Guide
5.2.4.2.3 Strip MAC FCS
Ethernet frames are protected by a 32 bit checksum. When the GFP FCS is enabled it is
possible to strip the MAC checksum to save WAN bandwidth and recalculate at the remote
end.
5.2.4.2.4 Payload Scrambler
Since GFP uses pattern detection to determine frame alignment, payload scrambling is
enabled to prevent ghosting of the idle patterns.
5.2.4.2.5 Flow Control
The WCM1800 supports pause based flow control. When flow control is enabled, priority
based queuing is disabled.
5.2.4.2.6 Max Frame Size
The WCM1800 supports maximum frame sizes as follows:
1518/1522 IEEE802.3l MAC/VLAN maximum frame size
2048 Mini Jumbo frame supporting QinQ, provider bridging
10k Jumbo Frames.
5.2.4.2.7 Priority Table
When priority based queuing is enabled, the VLAN priority or the IP DSCP tokens may be
used to determine which of the four priority queues are used.
76-02-087 Rev D
Page 47
METRODATA LTD WCM1400/WCM1800/WCM1820
47 of 61
Quick Start Guide
5.2.4.3 LCAS/VCAT
The WCM1800 may operate in one of 3 modes
Off WAN bonding is disabled, only single WAN ports may be used.
VCAT WAN Bonding enabled, however ALL circuits must be operational for
traffic to flow.
VCAT/LCAS WAN Bonding and LCAS control to ensure failed circuits are
removed and traffic will continue to pass.
5.2.4.4 WAN Allocation
This option selects which WAN ports will form part of the VCAT group. The allocation may
be made in the following ways:
1 Allocate port 1
1,4 Allocate Ports 1 and 4
1-4 Allocate ports 1,2,3 and 4
76-02-087 Rev D
Page 48
METRODATA LTD WCM1400/WCM1800/WCM1820
48 of 61
Quick Start Guide
5.2.4.5 Traffic Management
The traffic management menu controls the selection of VLAN ID’s that will pass over this
VCG.
5.2.4.5.1 Traffic Type
There are two types of traffic that may traverse the VCG. User traffic is traffic not destined
for the manager, whilst Mgmt is traffic directed to the management CPU.
If remote management is required, this setting must be left as User+Mgmt.
5.2.4.5.2 Port Type
All traffic that passes over the VCG has a TAG, either S-TAG or C-TAG and therefore the
VCG always operates as a trunk port.
76-02-087 Rev D
Page 49
METRODATA LTD WCM1400/WCM1800/WCM1820
49 of 61
Quick Start Guide
5.2.4.5.3 VLAN/S-TAG Allocation
The VLAN/STAG ID is used to switch frames to the selected VCG. This allocation menu
selects which ID’s will pass over this group.
It is not allowed to allocate the same VLAN to multiple VCAT Groups.
The allocation can be made in several formats:
1 VLAN ID 1 shall pass
1,5 VLAN ID 1 and 5 shall pass
1-100 VLAN ID’s 1 to 100 shall pass
In order for the control protocols to pass over the VCG, the control VLAN/STAG ID must
be amongst the ID’s allocated to this VCG.
5.2.4.5.4 Control VLAN
The control VLAN ID is used to transport OAM and other control protocols. For control
protocols to pass over the VCG, the control ID must be included in the VLAN allocation for
this VCG.
5.2.4.5.5 Control S-TAG
Where the WCM1800 is operating in QinQ mode with S-Tags being used to select
between the VCG’s this tag is allocated to control protocols. Again, the S-Tag must be
amongst the allocation.
5.2.4.6 OAM
The WCM1800 offers IEEE 802.3 clause 57 link OAM over the VCG and bonded WAN
ports. The OAM controller may be disabled, active or passive.
Where a Metrodata MetroConnect product is found at the far end of the link, additional
status is made available,
76-02-087 Rev D
Page 50
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
50 of 61
5.2.4.7 Counters
The VCG provides counters showing the packets correctly transmitted and received as
below
76-02-087 Rev D
Page 51
METRODATA LTD WCM1400/WCM1800/WCM1820
51 of 61
Quick Start Guide
5.2.5 Traffic Isolation
The WCM1800 has three modes of operation and the traffic isolation menu selects the
mode:
5.2.5.1 Isolation Mode
There are three operating modes
None VLAN/STAG ID processing disabled
VLAN Switching is based on the VLAN TAG ID
QinQ Switching is based on the S-TAG ID
5.2.5.2 QinQ Ethertype
Whilst the VLAN tag is defined as 8100, there are many implementations of QinQ
operation and as such the S-TAG is user defined.
9100 QinQ
8100 VLAN 802.1q
9200 Brocade, Juniper
88A8 IEEE 802.1ad Provider Bridge, Extreme
76-02-087 Rev D
Page 52
METRODATA LTD WCM1400/WCM1800/WCM1820
52 of 61
Quick Start Guide
5.2.5.3 Untagged To
The VCG’s will only pass traffic that has a VLAN or STAG ID. Untagged frames will have
an ID of 0 added before traversing the VCG. This option selects which group will include
ID 0 frames.
76-02-087 Rev D
Page 53
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
5.3 Global Status Screen
The Global Status Screen gives an overall summary of the unit as shown below:
53 of 61
5.3.1 State
For each port, the Global Status shows the Admin status of the port. This may be Up or
Down. If a port is down, then all alarm/status processing is disabled on that port. if a port
is up then further information is displayed
5.3.2 Alarms
Where a port is, or has been, in an alarmed state the alarm will be displayed. An alarm
shown in upper case indicates a current alarm, whilst lower case indicates an alarm which
has now cleared.
eg
LOS Active Loss of Signal , currently present alarm
los historic Loss of Signal, now cleared and port working normally.
76-02-087 Rev D
Page 54
METRODATA LTD WCM1400/WCM1800/WCM1820
54 of 61
Quick Start Guide
5.4 Proxy Mode Remote Management
To enable management of the remote units in a point to multipoint configuration the
WCM1800 provides proxy mode management of the remote stations. This method of
management enables a single management connection to effectively manage units on
different VLANs. The WCM1800 uses the VLAN ID to switch frames between the LAN
ports and the VCG’s.
The proxy mode is configured from the management menu by selecting the Proxying
menu item:
To configure proxy mode management, the hub unit needs to be configured as a proxy
mode server as shown.
76-02-087 Rev D
Page 55
METRODATA LTD WCM1400/WCM1800/WCM1820
55 of 61
Quick Start Guide

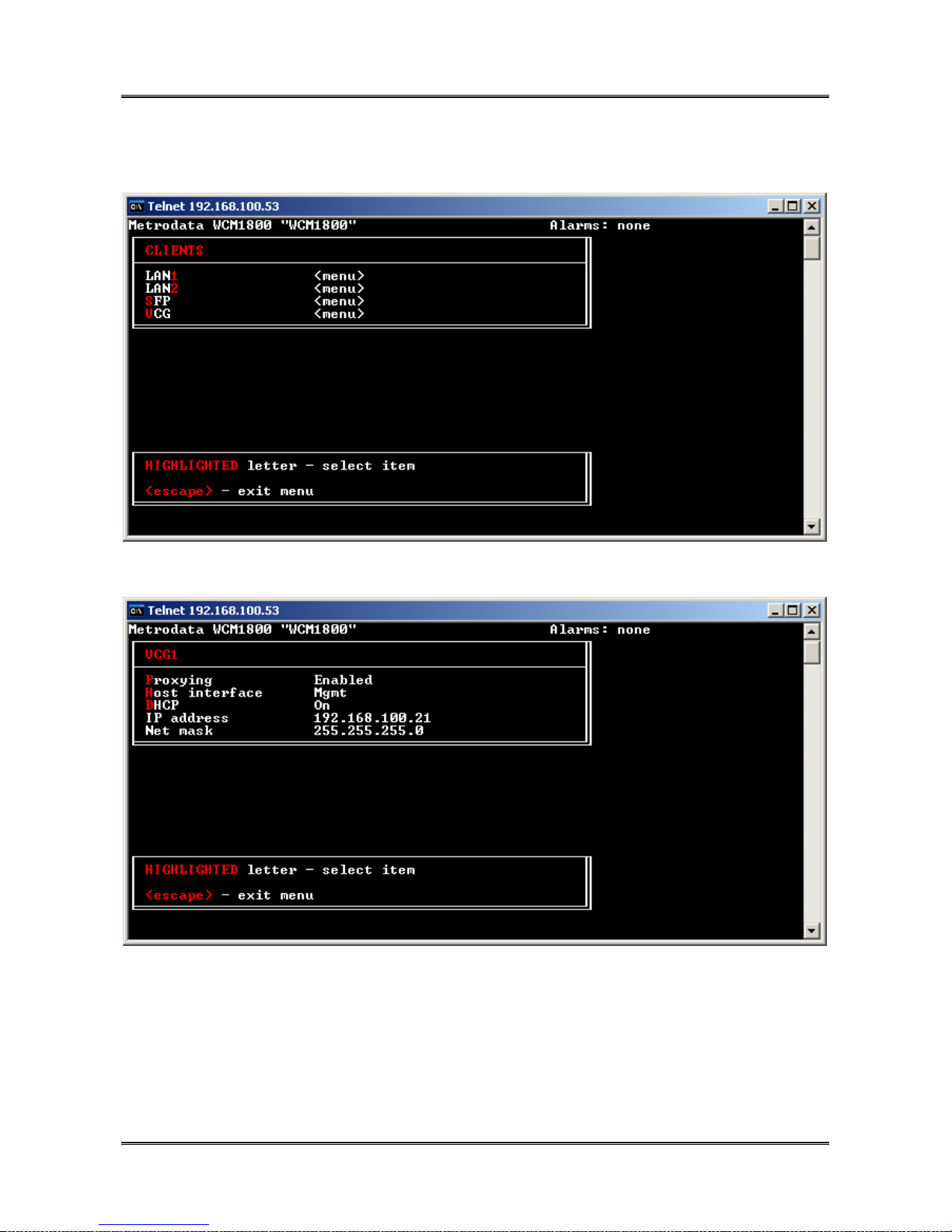

Once the server has been configured, the remote clients need to be configured using the
client configuration screen,
and for remote management over a VCG select the VCG
With proxy mode management, the server acts as a proxy for all the remote units and then
uses link OAM packets to connect to the remote unit
76-02-087 Rev D
Page 56
METRODATA LTD WCM1400/WCM1800/WCM1820
56 of 61
Quick Start Guide
5.5 SNMP Management
The WCM1800 needs to be configured with the details of the SNMP Network Management
Station before the unit will generate traps, or respond to SNMP polls.
The SNMP parameters are configured using the SNMP menu found under the
Management menu
5.5.1 Read/Write/Trap Community
To provide a level of security, communities are used to control access to the unit via
SNMP. Separate communities may be configured for Read/Write or Trap access.
5.5.2 Contact Person
The contact person is the SNMP MIB-2 system SysContact parameter, the default setting
is:
Metrodata Limited, Fortune House, Eversley Way, Egham, Surrey, TW20 8RY
The parameter may be up to 255 characters and should be configured to reflect the actual
installation requirements.
5.5.3 Node Name
The node name is the SNMP MIB-2 system SysName parameter. By default this entry is
blank. The parameter may be up to 255 characters and should be configured to reflect the
actual installation requirements.
76-02-087 Rev D
Page 57
METRODATA LTD WCM1400/WCM1800/WCM1820
57 of 61
Quick Start Guide
5.5.4 Location
The location is the SNMP MIB-2 system SysLocation parameter. By default this entry is
blank. The parameter may be up to 255 characters and should be configured to reflect the
actual installation requirements.
5.5.5 Managers
To enable access to the WCM1800 using SNMP, specific manager addresses must be
configured. Once a Manager is assigned, the WCM1800 will respond to polls and
generate traps for that manager. The WCM1800 supports up to 10 configured Network
Management Stations.
The Add Manager Menu is as below:
The IP address is the IP address of the assigned Network Management Station.
The Access Rights supported are:
None No Access
Read Only Only SNMP GET access is allowed
Read-Write SNMP GET/SET access allowed
The Receive Traps parameter determines whether, under alarm conditions, Traps should
be sent to this Network Manager.
76-02-087 Rev D
Page 58
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
5.6 Saving the Configuration
Once the WCM1800 has been configured, the configuration must be saved to the
EEPROM to provide non-volatile storage.
58 of 61
To save the configuration, select “Update EEPROM” from the Main Setup Menu. At the
prompt, respond <Y> and the configuration will be saved.
If the configuration is changed and not saved to EEPROM, the configuration will be lost at
the next restart, whether a warm start or power cycle.
76-02-087 Rev D
Page 59
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
6 TFTP Software UPDATE
The WCM1800 may be upgraded in the field using TFTP to upgrade the application
software, or to save or load the configuration.
In networks where firewalls and NAT addressing is used server mode must be used
otherwise either client or sever mode may be used.
6.1 TFTP Configuration
Under the management menu, select TFTP and enter the parameters as required:
6.1.1 Client Mode
Select client mode to display the menu as below:
59 of 61
In client mode, an external server is required. Enter the IP address of the TFTP server
and then issue the Get new Software command.
76-02-087 Rev D
Page 60
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide

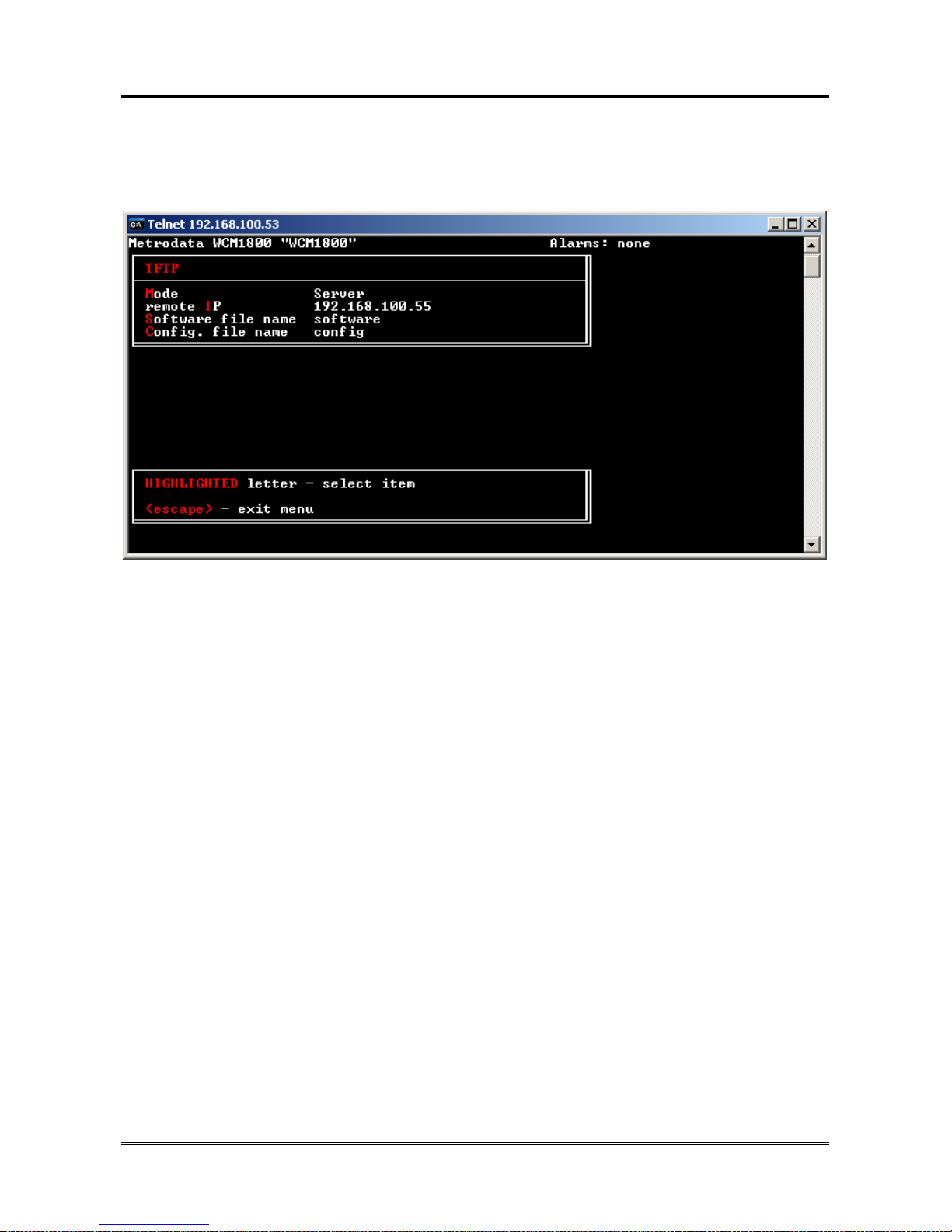

6.1.2 Server Mode
Select SERVER mode to display the menu as below:
60 of 61
In server mode, the transfer is initiated from an external client. If the file downloaded
matches that configured for Software or Config then they will be used to upgrade the
software or configuration.
To use TFTP, the IP address of the remote server must be entered.
For security reasons, it is recommended to change the default settings for software and
config file names to prevent unauthorised updates.
To initiate a TFTP transfer from a windows PC, select a DOS window and then type the
command
tftp –i “WCM1800 IP Address” put “Source Filename” “Software File Name”
eg
tftp –i 192.168.0.1 put wcm1800.80 software
Which will load a file named “wcm1800.80” onto the WCM1800 with IP address
192.168.0.1 and load as a file called “software”
76-02-087 Rev D
Page 61
METRODATA LTD WCM1400/WCM1800/WCM1820
Quick Start Guide
7 Alarms
The WCM1800 generate many alarm conditions which are described below:
7.1 WAN E1 Port
LOS Loss of Signal
LOF Loss of Frame
LOM Loss of VCAT/LCAS MultiFrame
AIS Receiving AIS, All 1’s
RAI Remote Alarm Indication
DNU VCAT/LCAS in failed state so do not use this link
61 of 61
7.2 LAN Port
LKDN Link Down
Link Loss Forwarding
LLF
7.
3 SFP Port
NF Not Fitted
LKDN Link Down
FEFI 100Base-FX Far End Fault Indication
Link Loss Forwarding
LLF
7.
4 VCG
DEG One or more, but not all links have failed
LKDN All members of VCG have failed
76-02-087 Rev D
