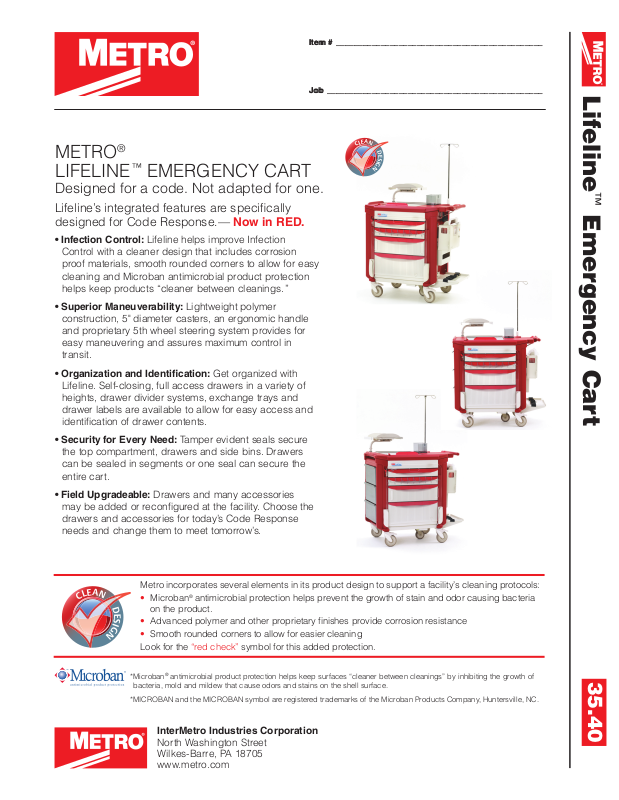

LIFELINE™ EMERGENCY CART

Designed for a code. Not adapted for one.

Lifeline’s integrated features are speciﬁcally designed for Code Response.— Now in RED.

• Infection Control: Lifeline helps improve Infection Control with a cleaner design that includes corrosion proof materials, smooth rounded corners to allow for easy cleaning and Microban antimicrobial product protection helps keep products “cleaner between cleanings. ”

• Superior Maneuverability: Lightweight polymer construction, 5" diameter casters, an ergonomic handle and proprietary 5th wheel steering system provides for easy maneuvering and assures maximum control in transit.

Lifeline

™

Emergency Cart

• Organization and Identiﬁcation: Get organized with Lifeline. Self-closing, full access drawers in a variety of heights, drawer divider systems, exchange trays and drawer labels are available to allow for easy access and identiﬁcation of drawer contents.

• Security for Every Need: Tamper evident seals secure the top compartment, drawers and side bins. Drawers can be sealed in segments or one seal can secure the entire cart.

• Field Upgradeable: Drawers and many accessories may be added or reconﬁgured at the facility. Choose the drawers and accessories for today’s Code Response needs and change them to meet tomorrow’s.

Metro incorporates several elements in its product design to support a facility’s cleaning protocols:

• Microban

on the product.

• Advanced polymer and other proprietary finishes provide corrosion resistance

antimicrobial protection helps prevent the growth of stain and odor causing bacteria

• Smooth rounded corners to allow for easier cleaning

Look for the “red check” symbol for this added protection.

*Microban® antimicrobial product protection helps keep surfaces “cleaner between cleanings” by inhibiting the growth of

bacteria, mold and mildew that cause odors and stains on the shell surface.

*MICROBAN and the MICROBAN symbol are registered trademarks of the Microban Products Company, Huntersville, NC.

InterMetro Industries Corporation

North Washington Street Wilkes-Barre, PA 18705 www.metro.com

35.40

Page 2

Code Response Preconﬁgured Carts

Carts are conﬁgured with the components and accessories listed here.

LIFELINE™ EMERGENCY CART

Accessories

Model No.

LECCRP2-RD

LECCRP3-RD

LECCRP4-RD

LECCRP5-RD

LECCRP6-RD

LECCRP7-RD

LECCRP8-RD

Model No. Description

FL120 Solid Bottom Shelf X LEC143 Top Cavity Tray X X X X FL151 3" (76mm) Drawer Divider Tray with Dividers 1 2 7 FL159 6" (152mm) Drawer Divider Tray with Dividers 1 1 1 FL190 Label Holder, Set of 10 X FL211 Side Bin (1) — Locking 3 3 3 4 3 2 4 FL221 Waste Basket 28 Quart & Holder X X X LEC236 Glove Box Holder — Single (Mounts to Handle Side) X X LEC251 Lockable Sharps Container (Mounts to Handle Side) X X X FL302 Cord Manager X X X LEC304 Adjustable Deﬁbrillator Tray X X X X X X X X X FL305 Medical Grade 6-Outlet Strip and Holder X X LEC306 Suction Pump Shelf X X X X X X LEC308RD Backboard with Front Assembly Kit X X X LEC309RD Backboard with Back Assembly Kit X X X X X X X X X FL315 I.V. Pole with Cart Mount X X X X X X X X X LEC319 Storage/Gel Bin X X X LEC320 Plastic Security Seals, 100 Pack X X X X X X X X X FL402 Individual Drawer Seal Lock Bar X LEC-PED8 Pediatric Code Response Drawer Kit X X

Carts

Model No. Description

LEC24P-RD 39" (991mm) High LEC Cart — 24" (610mm) Storage Space — Passive Lock — Red X X X LEC27P-RD 42" (1067mm) High LEC Cart — 27" Storage Space — Passive Lock — Red X X

LEC30P-RD 45" (1143mm) High LEC Cart — 30" Storage Space — Passive Lock — Red X X X X

LECPEDS1-RD

LECPEDS2-RD

Drawers

Model No. Description

FL103 3" (76mm) Drawer — No Drawer Pull 1 2 2 3 4 2 2 7 7 FL106 6" (152mm) Drawer — No Drawer Pull 3 1 1 1 1 2 1 1 1 FL109 9" (229mm) Drawer — No Drawer Pull 1 1 1 1 FL112 12" (305mm) Drawer — No Drawer Pull 1

Pediatric Drawer and Color Kit

(Includes drawers, colored pulls, and labels only)

L02-198e • 06/16

Standard Drawer Pull Color — Red

(Includes drawers, colored pulls, and labels only)

Page 3

Job ________________________________________________Job ________________________________________________

METRO

35.40

LIFELINE™ EMERGENCY CART

Speciﬁ cations:

• Cart Body: Blow molded high-density polyethylene (HDPE) body

• Cart Frame: Epoxy coated 14 gauge, cold-rolled steel

• Locking Mechanism: 12 gauge stainless steel bar with

• Steering Mechanism: Steering is assisted by a 5th wheel that

• Corner Casters: Four 5" (127mm) diameter stem casters with

• Drawers: ABS injection molded drawer body, blow molded

Weight Capacity Inside Height 3" (76mm) = 15 lbs. (6.75kg) 2.75" (70mm) 6" (152mm) = 25 lbs. (11.25kg) 5.75" (146mm) 9" (228mm) = 45 lbs. (20.25kg) 8.75" (222mm) 12" (305mm) = 45 lbs. (20.25kg) 11.75" (298mm)

• Pullout Shelf: 13/4" (44mm) high epoxy coated 16 gauge, cold

Emergency Cart

™

• Deﬁ brillator Swing Arm: 18 gauge tubular steel, epoxy coated

• Adjustable Deﬁ brillator Platform: Two 16 gauge epoxy coated

panels and top with Microban antimicrobial product protection. Top has integrated push handle and storage compartment. Side panels provide integrated accessory strips to allow no tool assembly of most accessories. Left side panel also provides integrated pivot pockets for tilt out bins. Bins are available as locking or non-locking.

polycarbonate drawer mounted lock tabs. Passive security provided for drawers and side bins (optional) with plastic security seal. Locking mechanism provides one or two seal compartmentalized locking options.

is actuated by squeezing a polymer trigger mounted to the cart handle. When activated, the 5th wheel is locked perpendicular to the handle providing positive control when the cart is pushed. When trigger is released all 5 wheels swivel allowing maneuverability in any direction. 5th Wheel: 4" (102mm) diameter plate caster, mounted to a swivel lock mechanism. Patent Pending.

polyurethane tread and polymer horn: 2 swivel — Rear, 2 total lock (brake and swivel) — Front.

HDPE with Microban antimicrobial drawer front, ABS and Microban antimicrobial injection molded colored drawer pull and full extension, self-closing, ball bearing drawer slides. Inside Dimensions (163/4" W. x 20" L. (425 x 509mm)

rolled steel, with full extension, self-closing, ball bearing drawer slides. Weight capacity: 45 lbs. (20.25kg).

with tensioning knob. Swings 90° from work surface.

steel plates with zinc adjustment mechanism and 360° rotation. 141/2" (368mm) wide platform adjusts from 81/8" (206mm) to 141/4" (362mm) in length. Weight capacity: 40 lbs. (18kg).

(965mm)

”

(1156mm)

”

(984mm)

”

(984mm)

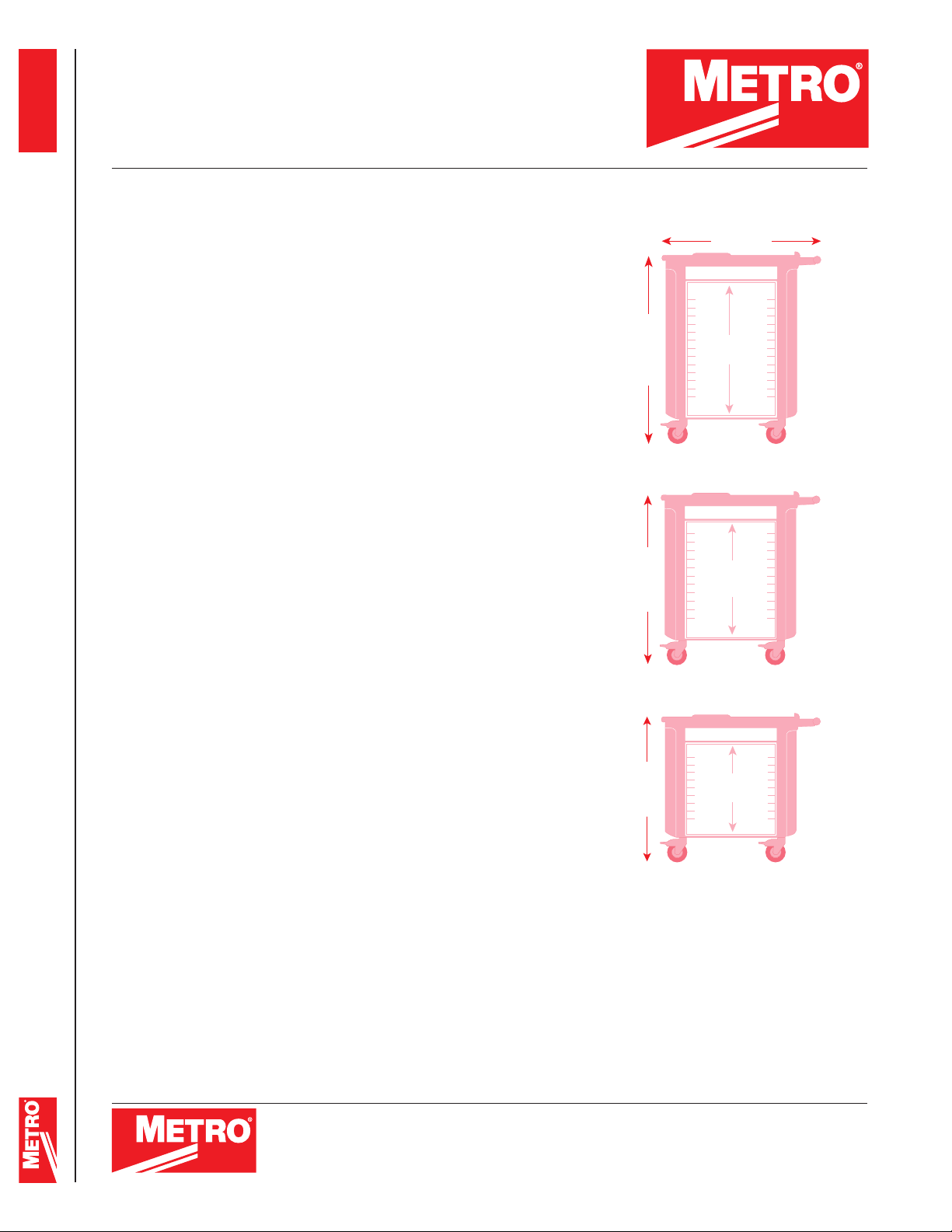

External Dimensions (L x W x H) 38" x 22 38" x 22 38" x 22

/8" x 451/2" (965 x 575 x 1156mm)

/8" x 421/8" (965 x 575 x 1070mm)

/8" x 383/4" (965 x 575 x 984mm)

”

(686mm)

”

(610mm)

”

(533mm)

”

Lifeline

All Metro Catalog Sheets are available on our website: www.metro.com

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705 Phone: 570-825-2741 Product Information. U.S. and Canada: 1.800.992.1776 Outside U.S. and Canada: www.metro.com/contactus

Printed in U.S.A. 06/16

Information and speciﬁ cations are subject to

change without notice. Please conﬁ rm at time of order.
