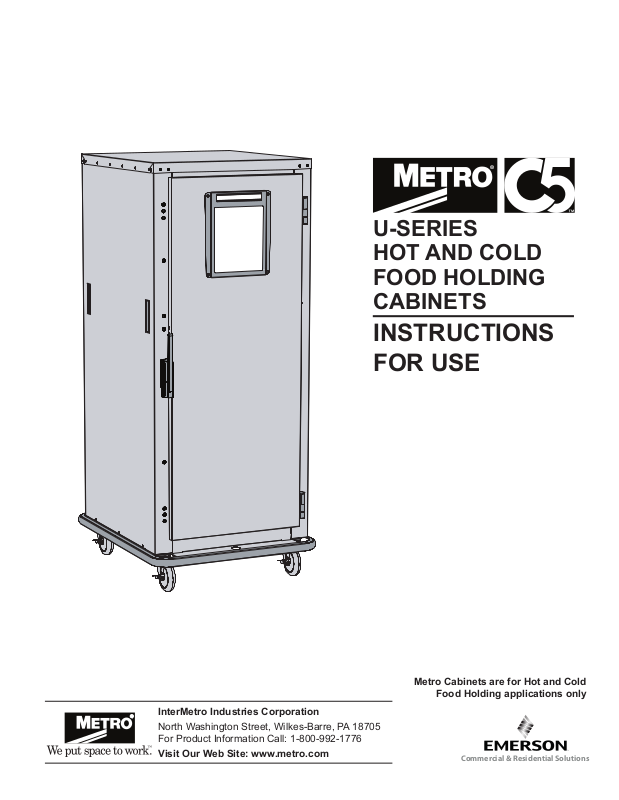

Metro C5U5-AF Installation Manual

U-SERIES
HOT AND COLD
FOOD HOLDING
CABINETS

INSTRUCTIONS
FOR USE

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705
For Product Information Call: 1-800-992-1776

Visit Our Web Site: www.metro.com

Metro Cabinets are for Hot and Cold

Food Holding applications only

Commercial & Residential Solutions

TABLE OF CONTENTS

®

MODEL NO.

®

INTERMETRO INDUSTRIES CORP., WILKES-BARRE, PA 18705
WWW.METRO.COM

C5UX-XXX

PRODUCTION DATE.

XXXX

Made in USA

C5 U 9

-

S U

A

SAFETY INFORMATION .................................................................................................................................................................................................. 2

IDENTIFY YOUR CABINET .............................................................................................................................................................................................. 2

PRODUCT FEATURES ..................................................................................................................................................................................................... 2

INSTALLATION AND SETUP ........................................................................................................................................................................................... 3

CARE AND MAINTENANCE ............................................................................................................................................................................................. 4

REPLACEMENT PARTS................................................................................................................................................................................................... 5

WARRANTY ...................................................................................................................................................................................................................... 6

SAFETY INFORMATION

This cabinet is only for hot and cold food holding applications.

Follow all food safety guidelines. Food must be at the appropriate temperature before
being placed into cabinet. Use a food probe to check internal food temperature - the
cabinet temperature is not necessarily the internal food temperature.

IDENTIFYING YOUR CABINET

For future reference, note the serial and model number found on the data plate of the cabinet here:

Model number ________________________________

Date the cabinet was put into service _______________________________

Fill out and return the warranty card located at the back of this manual.

PART NUMBERING

CABINET NAME

SERIES

U = INSULATED NON
POWERED

PRODUCT FEATURES

Rear Push Handle

(Optional, Not on

1/2 Height Cabinets)

Pocket
Handle

__

HEIGHT

9 = FULL
5 = HALF

_

_

_

Info Panel

(Optional)

Door

Door
Latch

_

_

ACCESSORIES

SLIDES

U = UNIVERSAL WIRE SHELF
F = FIXED LIP LOAD

MATERIAL

S = STAINLESS STEEL
A = ALUMINIUM

(2) Swivel Caster

- Rear

Perimeter Bumper

(Optional)

Slides

(2) Brake Caster

- Front

2

HALF HEIGHT

CABINET

INSTALLATION AND SETUP

NOTE: The First 4 steps below are common to all cabinets.

1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the
unit, and after removing all packaging materials.

2. The receiver of this product is responsible for ling freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must be
noted on freight bill at the time of delivery.

3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after
receipt of the cabinet. If there is damage, retain the original packaging for inspectors.

4. After unpacking the cabinet, remove all packing material from the inside as well as outside of the unit.

Installation of Universal Slide

The rack uprights have
been installed at the
factory. If removed for
cleaning, reinstall by
hanging them on the
shoulder rivets on the
side walls of the cabinet.

Slide Position to Maximize 3” Pan Capacity of Universal Slides

17

FULL HEIGHT CABINET

18 Levels

Position 2nd from Bottom

Part No. RPC5-U9

(includes slides and uprights)

SiteSelect™ features
make slide installation
easier.

17

1/2 HEIGHT CABINET

9 Levels

Position 2nd from Bottom

Part No. RPC5-U5

(includes slides and uprights)

Slides sold in pairs. For additional pair of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item 17.

3
