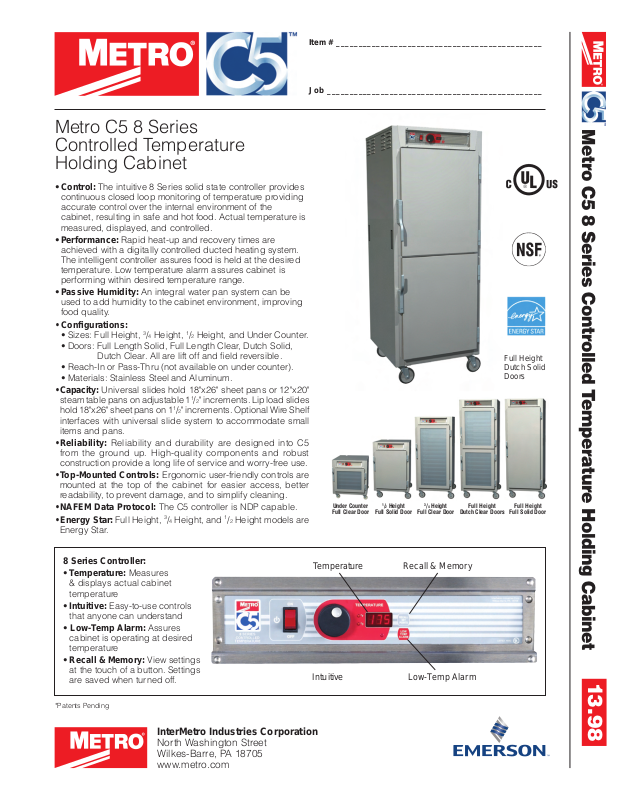

Page 1
Item # ______________________________________________
Job ________________________________________________
Metro C5 8 Series
Controlled Temperature
Holding Cabinet
• Control: The intuitive 8 Series solid state controller provides
continuous closed loop monitoring of temperature providing
accurate control over the internal environment of the
cabinet, resulting in safe and hot food. Actual temperature is
measured, displayed, and controlled.
• Performance: Rapid heat-up and recovery times are
achieved with a digitally controlled ducted heating system.
The intelligent controller assures food is held at the desired
temperature. Low temperature alarm assures cabinet is
performing within desired temperature range.
• Passive Humidity: An integral water pan system can be
used to add humidity to the cabinet environment, improving
food quality.
• Configurations:
• Sizes: Full Height, 3/4 Height, 1/2 Height, and Under Counter.
• Doors: Full Length Solid, Full Length Clear, Dutch Solid,
Dutch Clear. All are lift off and field reversible.
• Reach-In or Pass-Thru (not available on under counter).
• Materials: Stainless Steel and Aluminum.
• Capacity: Universal slides hold 18"x26" sheet pans or 12"x20"
steam table pans on adjustable 1
hold 18"x26" sheet pans on 1
interfaces with universal slide system to accommodate small
items and pans.
• Reliability: Reliability and durability are designed into C5
from the ground up. High-quality components and robust
construction provide a long life of service and worry-free use.
• Top-Mounted Controls: Ergonomic user-friendly controls are
mounted at the top of the cabinet for easier access, better
readability, to prevent damage, and to simplify cleaning.
• NAFEM Data Protocol: The C5 controller is NDP capable.
• Energy Star: Full Height,
Energy Star.
1
/2" increments. Lip load slides
1
/2" increments. Optional Wire Shelf
3
/4 Height, and 1/2 Height models are
Under Counter
Full Clear Door
1
/2 Height
Full Solid Door
3
/4 Height
Full Clear Door
Full Height
Dutch Clear Doors
Full Height
Dutch Solid
Doors
Full Height
Full Solid Door
Metro C5 8 Series Controlled Temperature Holding Cabinet
8 Series Controller:
• Temperature: Measures
& displays actual cabinet
temperature
• Intuitive: Easy-to-use controls
that anyone can understand
• Low-Temp Alarm: Assures
cabinet is operating at desired
temperature
• Recall & Memory: View settings
at the touch of a button. Settings
are saved when turned off.
*Patents Pending
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Temperature Recall & Memory
Low-Temp AlarmIntuitive
13.98
Page 2
Metro C5 8 Series Controlled
Reach-In Model Number Description
Low Watt Model Number Description
Models with Accessories or Options
Add “L” for Lower
Wattage Cabinets
(120V, 12A, 60Hz, 1440W)
Add “X” for
Export Cabinets
(220-240V, 7.6-8.3A,
50/60Hz, 1681-2000W)
NEMA
6-15P
NEMA
5-15P
C5
8 9
--
L
S DSPU
DS
C5
8 9
S DS U
C5
8 9
-
-
S DS U
Pass-Thru Model Number Description
Export Model Number Description
- -
X
C5
8 9
S DS U
- -
For Standard
Wattage Cabinets
(120V, 16A, 60Hz, 2000W)
NEMA
5-20P
Door Style
FS = Full Length Solid
FC = Full Length Clear
DS = Dutch Solid *
DC = Dutch Clear *
Cabinet Height
9 = Full Height
7 = 3/4 Height
5 = 1/2 Height
3 = Under Counter
Cabinet Material
S = Stainless
N = Aluminum
Slide Type
U = Universal Wire
L = Lip Load Aluminum
Pass Thru* Door Style
C5
8 9
-
-
S DSPU
DS
A
C5
8 9
-
-
S DSAU
An “A” suffix indicates
that accessories need
to be factory assembled
to the cabinet. Order
accessories separately.
G
W
*Please note: Pass-Thru is only available on Full Height,
3
/4 Height, and 1/2 Height Models.
*Please note: Dutch doors only available on full-size models.
Temperature Holding Cabinet
Specifications
13.98
Metro C5 8 Series Controlled Temperature Holding Cabinet
• Cabinet Material: Type 304 stainless steel; 20-gauge polished
exterior; 22-gauge interior, or .063” aluminum, brushed exterior,
natural interior.
• Insulation: Full perimeter, 1" thick, high-density fiberglass.
R Value=4.2
• Casters: Four casters with 5" donut neoprene wheel, double ball
bearing swivel, ball bearing axle, nickel plated, two with brake.
3" rubber casters on Under Counter models.
• Doors:
• Solid doors are fully insulated, double-panel construction.
• Clear doors are double-pane, tempered glass. Argon filled with
Low-E coating.
• Hinges: Self-closing, lift-off, double hinged, with long-life
nylon bearings.
• Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
• Latches: Chrome plated, high-strength magnetic pull latch with
lever-action release.
• Handles: Four built-in polymer handles.
• Universal Slides: Universal wire slides;
chrome wire adjustable on 1
stainless steel vertical standards.
• Lip Load Slides: 1
slides on .063" Aluminum vertical standards.
• Slide Capacities:
Universal Slides Lip Load Slide
Slide Pairs Pan Capacity** Pan Capacity
Cabinet Size Provided Max.* 18"x26" 12"x20"x21/2" 18"x26"
Full Height 18 37 18 36 36
Full Height/Dutch 18 35 17 34 35
3
/4 Height 14 29 14 28 29
1
/2 Height 8 17 8 16 17
Under Counter 5 10 5 10 10
*Maximum number of slide pairs @ 11/2" spacing. Additional slide pairs ordered separately.
**Capacity based on standard number of slide pairs provided on 3" spacing.
• Display and Controls: Intelligent cabinet temperature control with
digital display.
• Heat Generation System: Thermostatically controlled closed
loop feedback with 1950 Watt heating element, ball bearing
blower motor, and ducted air system. Low temperature alarm
enable/disable.
• Cord: 7
3
• Thermal Performance: 70° F to 200° F operating temperature
range.
• Minimum Clearances from Enclosures: 1
1
/2' cord with NEMA 5-20P plug. Cord mounted on top (Full,
/4, Pass Thru) or back (1/2, Under Counter) can be field reversed.
cabinet walls on sides and back. 6" clearance is required on top.
• Dimensions:
▼
All Metro Catalog Sheets are available on our Web Site: www.metro.com
74.75"
▼
Full Height
1
/2"x1/2"x.063" extruded aluminum channel
All cabinets are 28" wide and 30
▼
(Pass-Thru are 321/2" deep)
62.75"
▼
3
/4 Height
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
1
1
/2" increments. 16-gauge, Type 304,
▼
44.75"
▼
1
/2 Height
/4" diameter nickel-
1
/2" clearance from
1
/2" deep
▼
32.25"
▼
Under Counter
Height
Available Accessories:
• Flush Latch Handle (C5-LATCHFLUSH) *
• Twist Locking Handle (C5-LATCHTWST) *
• Key Locking Latch Handle (C5-LATCHLOCK) *
• Stainless Steel Handles (C5-HANDLE)
• Bumper & Drip Trough (C5-BUMPDRIP)
• Full Perimeter Bumper (C5-PERMBUMP)
• Twist Lock Plug (C5-RTWSTPLG)
• Right Angle (P-Style) Plug (C5-RTANGPLG)
• Control Panel Cover (C5-COVER)
• 5" Rear Rigid Casters (C5-5RDGCSTR)
• 6" Casters (C5-6CASTER)
• 6" Stainless Steel Legs (C5-SSLEGS)
• Chrome Universal Slide Pair (C5-USLIDECPR)
• Stainless Steel Universal Slide Pair (C5-USLIDESPR)
• Stainless Steel Universal Slide Upgrades
• Full Height (C5-SSUSLIDE-9)
• 3/4 Height (C5-SSUSLIDE-7)
• 1/2 Height (C5-SSUSLIDE-5)
• Under Counter (C5-SSUSLIDE-3)
• Small Item Shelf (C5-SHELF)
• Factory Left-Hand Hinging (DD3768)
• Factory Same-Side Pass-Thru Door Hinging
(C5-SAMESIDE)
*Please note: (1) handle must be ordered for each door (i.e. — dutch
doors require (2) handles; pass-thru dutch doors require (4) handles)
Metro Heated cabinets are for
hot food holding applications only.
Printed in U.S.A. Rev. 11/08
Information and specifications are subject to change
without notice. Please confirm at time of order.
Copyright © 2008 InterMetro Industries Corp.
L03-265
