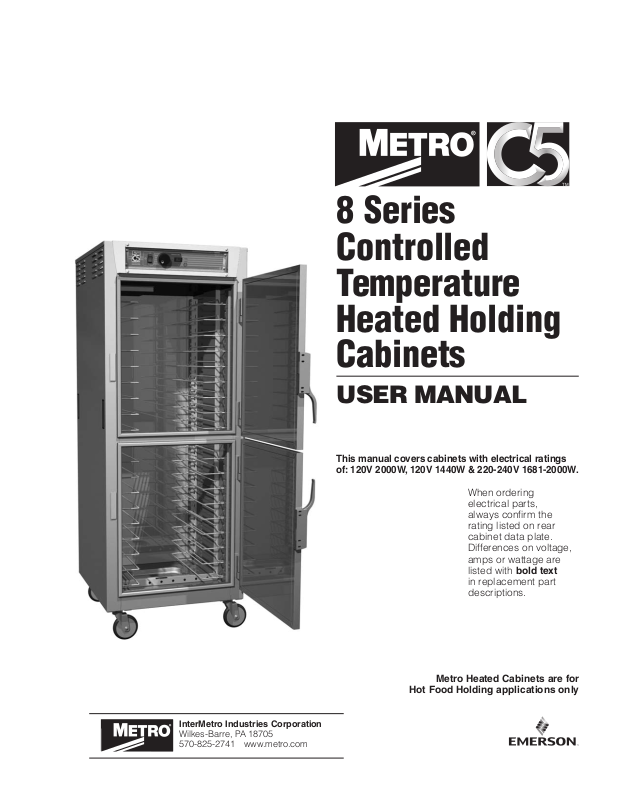

Metro C5, C5 8 Installation Manual

8 Series

TM

Controlled
Temperature
Heated Holding

Cabinets

User ManUal

This manual covers cabinets with electrical ratings
of: 120V 2000W, 120V 1440W & 220-240V 1681-2000W.

When ordering
electrical parts,
always confirm the
rating listed on rear
cabinet data plate.
Differences on voltage,
amps or wattage are
listed with bold text
in replacement part
descriptions.

Metro Heated Cabinets are for

Hot Food Holding applications only

InterMetro Industries Corporation

Wilkes-Barre, PA 18705
570-825-2741 www.metro.com

1.  With the POWER switch OFF, plug the supply power cord into an appropriate, 
grounded, receptacle. (refer to the cabinet data plate for voltage and 
ampere rating).

2.  Ensure that the cabinet’s floor duct and water pan are installed. (refer to 
the cabinet operating instructions). This helps to distribute the heat evenly 
throughout the cabinet.

3.  If extra humidity is desired, fill the water pan in the floor duct of the cabinet with 
clean warm water. The capacity of the reservoir is about one quart (one liter).

  4.  Set the POWER switch to the ON position.

5.  The cabinet will initially display the current temperature set point and then 
show the actual cabinet temperature.

6.  The temperature display will continue to blink until the temperature set point 
is reached.

7.  To change temperature set point, turn the control knob. As the knob is turned, 
the temperature display will show the changing temperature set point, and the 
“°F and °C” indicator lamps will blink. About 3 seconds after the knob is turned, 
the display will show the actual cabinet temperature.

8.  Press and release “Recall Set Points” button to see the current temperature 
set point.

9.  To see the current low temperature alarm set point, press and release the “Low 
Temp Alarm” button. To change the low temperature alarm set point, press and 
hold the “Low Temp Alarm” button, turn the temperature knob to the desired 
setting, and release the button.

10.  To clean cabinet, turn power off, unplug from wall outlet, allow the cabinet to 
cool, remove the floor duct and pan, wipe the cabinet with a damp cloth and 
dry with a towel.

11.  Consult the user manual for additional operation and maintenance information.

TABLE OF CONTENTS

SECTION PAGE

I. Basic Operating Guidelines ......Inside Front Cover

II. Safety Instructions .............................................. 1

III. Identifying Your Cabinet .................................... 2

IV. Installation & Set-up ........................................... 3

V. Product Features ............................................... 7

VI. Operating Instructions ....................................... 8

VII. Care & Maintenance .......................................... 9

VIII. Basic Troubleshooting ....................................... 10

IX. Service & Replacement Parts ............................ 11

X. Warranty ................................... Inside Back Cover

SAFETY INFORMATION

WARNING: Follow all food safety guidelines. Pre-heat the cabinet to the desired temperature before placing

cooked, hot food into the cabinet. This is not a re-thermalizing cabinet. Food must be at the
appropriate temperature before being placed into this cabinet. Use a food probe to check internal food
temperature — the cabinet temperature is not necessarily the internal food temperature.

WARNING: Only factory approved service agents should attempt to service, repair or replace electrical

components, wiring or power cord.

WARNING: Unplug the cabinet before cleaning or servicing. Do not wash the cabinet with a water jet or high

pressure water.

WARNING: This cabinet is for hot food holding applications only.

CAUTION: Do not spray or pour water into the top of the cabinet (control enclosure). To clean the cabinet, wipe

with a damp cloth and dry with a towel. Use only cleaning agents approved for stainless steel or
aluminum (depending on your cabinet construction).

CAUTION: Water dripping onto the floor from open doors can be a slip hazard.

1

IDENTIFYING YOUR CABINET

CABINET SIZE (HEIGHT)

9 = FULL
7 = 3/4
5 = 1/2
3 = UNDER COUNTER

For future reference, note the serial and model number,
found on the data plate of the cabinet, here.

Serial number

Model number

Date the cabinet was
put into service

Fill out and return the warranty card located at
the back of this manual.

PART NUMBERING

C5 8 9 X S FS - L P FS A

CABINET NAME
CABINET TYPE

8 = 8 SERIES
(CONTROLLED TEMPERATURE )

ELECTRICAL CABINET RATING

BLANK = 120V 2000W
L = 120V 1440W
X = 220-240V, 50/60HZ, 1681-2000W

MATERIAL

S = STAINLESS
N = ALUMINUM

MODEL NO.

C58XX-X-XXXX
XXXV XXHZ XXXXXW
2/08
Serial No. C5800XXXX

A = ACCESSORIES
(IF APPLICABLE)

REAR DOOR(S)
(PASS THRU)

BLANK = NON-PASS THRU
FS = FULL SOLID
DS = DUTCH SOLID
FC = FULL CLEAR
DC = DUTCH CLEAR

CABINET CONSTRUCTION

BLANK = NON-PASS THRU
P = PASS-THRU, DOORS
(FRONT & REAR)

SLIDES

L = LIP LOAD (FIXED)
U = UNIVERSAL (ADJUSTABLE)

FRONT DOOR(S)

FS = FULL SOLID
DS = DUTCH SOLID
FC = FULL CLEAR
DC = DUTCH CLEAR

2

INSTALLATION AND SET-UP

1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading
the unit, and after removing all the packaging.

2. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must
be noted on freight bill at the time of delivery.

3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days
after receipt of the cabinet. If there is damage, retain the original packaging for inspectors.

4. After unpacking the cabinet, remove all tape and packing material from the inside as well as outside of the unit.

5. Any protective covers (plastic or paper sheet) on the sheet metal or clear door(s), if applicable, must also be
removed before turning the cabinet on.

WARNING: Only factory approved service agents should attempt to service, repair or replace electrical

components, wiring or the power cord.

6. The power cord can be installed to exit the back
of the cabinet for wall outlets or out the top of the
cabinet for ceiling power drops. To change the
position of the power cord, first make sure the
cabinet power switch is off and the power cord is
unplugged from any electrical outlet. Remove the
(7) screws holding the cabinet top in place. Lift
the rear portion of the cabinet top and slide it

away from under the front control bezel, removing it from the cabinet. Remove the (2) screws on the rear of the

cabinet that hold the cord bracket in place. Rotate the power cord bracket 90° to the desired position and reattach
it with the (2) screws to the back of the cabinet. Make sure the green ground wire connection and the wire nuts on
the black and white wires have not loosened. Do not alter
the wiring of the power cord to the cabinet. Replace the
cabinet top and the (7) screws holding it in place.

7. Refer to the data plate located near the power cord for the electrical
specifications of cabinet. With the POWER switch OFF, plug the
cord into the appropriate rated, grounded receptacle. Cabinets
rated at 120V 2000W must be plugged into 125VAC 20 amp
receptacle and must be used on an individual branch circuit.
Cabinets rated at 120V 1440W may be plugged into either a
15 amp or 20 amp receptacle. Cabinets rated at 220-240V
1681-2000W must be plugged into a 250VAC, 15 amp receptacle.

8. The factory setting for temperature is Fahrenheit. To change the temperature display from Fahrenheit to Celsius a
jumper needs to be changed on the back of the controller circuit board. Turn the cabinet off, unplug the cabinet from
the electrical supply and remove the top of the cabinet (refer to step #6). See the control wiring diagram below for the
location of jumper JP5. For Fahrenheit control, the jumper
is on the lower two pins. For Centigrade control, move the
jumper from the lower two pins to the upper two pins.
After changing the jumper, replace the top, plug the
cabinet in, turn the cabinet on and adjust the

temperature and low temperature alarm settings
for the new units (°C or °F) of temperature selected.

9. Your C5 cabinet is designed
to operate next to walls and
other kitchen equipment.
However, the greater the
clearance around the sides
and the top of the cabinet,
the cooler the electrical
components will operate.
This may result in a longer
life expectancy for the
electrical components.

120V 120V 220/240V
15AMP 20AMP 15AMP
Outlet Outlet Outlet

Cord out
of the top

Cord out
of the
back

WARNING: Do not allow combustible materials to be stored or accumulate on, under or next to the cabinet.

Do not block any ventilation louvers or slots.

3

INSTALLATION AND SET-UP (continued)

SLIDE INSTALLATION

The rack uprights
have been installed
at the factory. If
removed for cleaning,
reinstall by hanging
them on the shoulder
rivets on the side
walls of the cabinet.

TOP VIEW

SLIDE POSITION to MAXIMIZE
3" PAN CAPACITY OF UNIVERSAL SLIDES

SiteSelect™
features
make slide
installation
easier.

Full Height Full Height
Single Door Dutch Doors Cabinet Cabinet Cabinet

18 Levels 17 Levels 14 Levels 8 Levels 5 Levels
(Position 2
from Bottom) (Position Bottom) from Bottom) from Bottom) (Position Bottom)
Part No. C5-U-9 Part No. C5-U-9 Part No. C5-U-7 Part No. C5-U-5 Part No. C5-U-3

Slides sold in pairs. For additional pair of wire slides, order C5-USLIDECPR.

nd

3

/4 Height

(Position 2nd (Position 3rd

4

1

/2 Height Under Counter
