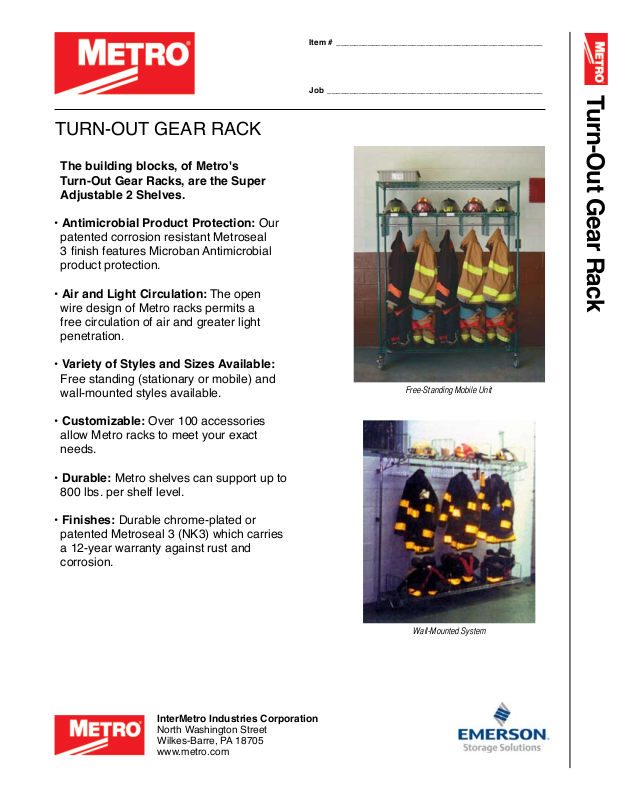

Metro A3036NK3 User Manual
Item # ______________________________________________
TURN-OUT GEAR RACK
The building blocks, of Metro's
Turn-Out Gear Racks, are the Super
Adjustable 2 Shelves.
• Antimicrobial Product Protection: Our
patented corrosion resistant Metroseal
3 nish features Microban Antimicrobial
product protection.
• Air and Light Circulation: The open
wire design of Metro racks permits a
free circulation of air and greater light
penetration.
• Variety of Styles and Sizes Available:
Free standing (stationary or mobile) and
wall-mounted styles available.
Job ________________________________________________
Free-Standing Mobile Unit
Turn-Out Gear Rack
• Customizable: Over 100 accessories
allow Metro racks to meet your exact
needs.
• Durable: Metro shelves can support up to
800 lbs. per shelf level.
• Finishes: Durable chrome-plated or
patented Metroseal 3 (NK3) which carries
a 12-year warranty against rust and
corrosion.
Wall-Mounted System
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Job ________________________________________________
TURN-OUT GEAR RACK
DIMENSIONS SHELVING:
Cat. No.
Cat. No.
Chrome
A2424NC
A2430NC
A2436NC
A2442NC
A2448NC
A2454NC
A2460NC
A2472NC
A3036NC
A3048NC
A3060NC
A3072NC
A3636NC
A3648NC
A3660NC
A3672NC
Metroseal 3
with Microban
A2424NK3
A2430NK3
A2436NK3
A2442NK3
A2448NK3
A2454NK3
A2460NK3
A2472NK3
A3036NK3
A3048NK3
A3060NK3
A3072NK3
A3636NK3
A3648NK3
A3660NK3
A3672NK3
®
24x24
24x30
24x36
24x42
24x48
24x54
24x60
24x72
30x36
30x48
30x60
30x72
36x36
36x48
36x60
36x72
Shelf Width/Length
(in.) (mm)
610x610
610x760
610x914
610x1066
610x1219
610x1370
610x1524
610x1829
760x914
760x1219
760x1524
760x1829
910x914
910x1219
910x1524
910x1829
Approx. Pkd. Wt
(lbs.) (kg).
9
11
13
15
16
18
21
26
15
21
261/
2
31
18
23
29
341/
2
SITESELECT™ POSTS FOR STATIONARY UNITS:
Super Erecta® SiteSelect posts for stationary units are fitted with adjustable leveling
bolts to compensate for uneven surfaces. Special length posts are available.**
Cat. No.
Chrome
7P
13P
33P
54P
63P
74P
86P
* Height includes leveling bolt and cap.
**Note: Special length posts are available, priced at next higher length plus a cutting charge of $6.00. Post lengths
to be specified as cut to a round number, ie: 74P cut to 69" (1753mm) ... This will result in an overall post height
with adjustment of 69 3/8" (1762mm) to 69 7/8" (1775mm).
Cat. No.
Metroseal 3
with Microban
13PK3
33PK3
54PK3
63PK3
74PK3
86PK3
®
(in.) (mm)
71/
141/
341/
549/
629/
745/
865/
Height*
2
2
2
16
16
8
8
191
370
875
1385
1590
1895
2200
Approx. Pkd. Wt.
(lbs.) (kg)
1
/
1
2
3
31/
4
5
0.3
2
0.5
0.9
1.4
1.6
2
1.8
2.3
4.1
5.0
5.9
6.8
7.3
8.6
9.5
11.8
6.8
9.5
11.8
14.0
8.2
10.4
13.1
15.4
ACCESSORIES
4" (100mm) High Stackable Ledges contain shelf contents.
Cat. No.
Cat. No.
Plated
L24N-4C
L30N-4C
L36N-4C
L42N-4C
L48N-4C
L54N-4C
L60N-4C
L72N-4C
Shelf Divider
Metroseal 3
with Microban
L24N-4K3
L30N-4K3
L36N-4K3
L42N-4K3
L48N-4K3
L54N-4K3
L60N-4K3
L72N-4K3
®
(in.) (mm)
24
30
36
42
48
54
60
72
Shelf Width
610
760
914
1066
1219
1370
1524
1828
4" High Stackable Ledges
Shelf Dividers for Super Erecta Shelves – Keep shelf
contents orderly with these 8" (203mm) high, pressure-fit dividers.
Cat. No.
Cat. No.
Plated
DD24C
DD30C
Metroseal 3
with Microban
DD24K3
DD30K3
®
(in.) (mm)
24
30
Shelf Width
610
760
Approx. Pkd. Wt.
(lbs.) (kg)
2.0
2.25
2.75
3.25
3.75
3.8
4.0
5.0
Approx. Pkd. Wt.
2.75
3.25
0.9
1.03
1.25
1.48
1.68
1.73
1.81
2.25
(lbs.) (kg)
1.3
1.5
Turn-Out Gear Rack
SITESELECT™ POSTS FOR MOBILE UNITS:
Special height posts available. Order casters below.
Cat. No.
Plated
54UP
63UP
74UP
86UP
These posts come without leveling bolt assembly to accommodate stem casters.
Note: Special length posts are available, priced at next higher length plus a cutting charge of $6.00.
Cat. No.
Metroseal 3
with Microban
54UPK3
63UPK3
70UPK3
74UPK3
86UPK3
®
(in.) (mm)
54
62
70
74
86
Height*
1370
1575
1778
1880
2185
Approx. Pkd. Wt.
(lbs.) (kg)
3
31/
33/
4
4.5
1.4
1.6
2
1.7
4
1.8
2.0
CASTERS:
Catalog
No.
5M
5MB
5MP
5MPB
Wheel Diameter
(in.) (mm)
5
5
5
5
Manufactured by:
127
127
127
127
Load
Rating
200
200
300
300
Type
Stem Swivel
Stem Brake
Stem Swivel
Stem Brake
Wheel Tread
Resilient Rubber
Resilient Rubber
Polyurethane
Polyurethane
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
Identication Label
Holder
9990CL (Clear)
3" x 1 1/4"
Gear Hanging Tube
and Hanger hang coats
and gear
Cat. No.
Hanger Tube
Stainless Steel
DD2435A
DD2435I
DD2435K
DD2435B
DD2435J
DD2435C
DD2435D
Length
(in.)
24"
36"
42"
48"
54"
60"
72"
Hanger Stainless Steel
Closed Top CC5923
Open Top CC5923R
Garment Hanger Tube
ECP11-0606 Printed in U.S.A.
Information and specications are subject to change
without notice. Please conrm at time of order.
Copyright © 2006 InterMetro Industries Corp.
(shown)
