From the laboratory to the field, from diagnostic to appraisals, for
desktop and portable use, a unique instrument !

SSccooppiixx IIII,, ppoorrttaabbllee aanndd sseellff--ccoonnttaaiinneedd

ddiiggiittaall oosscciilllloossccooppee

4400 ttoo 110000M

• 5 complementary tools in one :

HARMONIC ANALYSER AND RECORDER

• Sampling rate 1Gs/s in single-shot and 50Gs/s in ETS

• Memory depth of 50k per channel (

• 2 or 4 isolated measurement channels, 600V CATIII, and up to 8 curves on screen

• “Real time” FFT analysis standard and calculation functions on the channels

• 2 or 4 digital multimeters, TRMS, 8,000 counts, 200kHz, independent

• Trigger on thresholds of measures in multimeter and oscilloscope modes

• Colour or monochrome LCD touch screen

• 33 direct command keys and “Windows like” menus on screen

• Probix input terminals (plug & play) and associated smart sensors

• Multi-interface communication connector : RS232, USB, centronics and Ethernet

• Simplified installation of software options thanks to a unique code

• WEB server with cursors et automatic measurements, FTP server/client

OSCILLOSCOPE ; MULTIMETER

OSCILLOSCOPE & RECORDER

MHHzz

; FFT

ANALYSER

) (option)

OOXX 77004
OOXX 77006
OOXX 77110
OOXX 77110

;

4
6
0
0

w

www.chauvin

www.chauvin

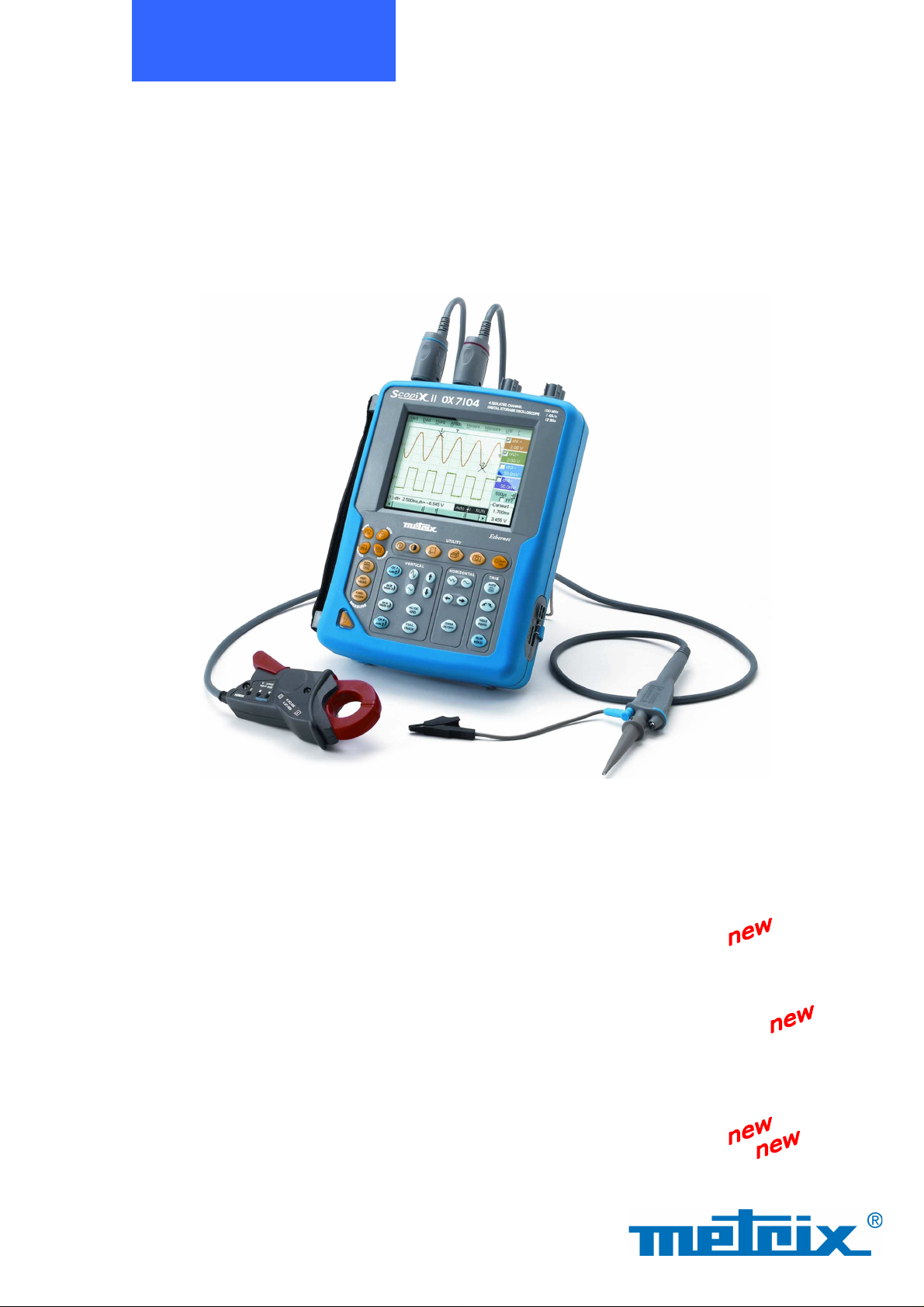

Scopix II, portable digital oscilloscope

Technical specifications OX7042 OX7062 OX7102 OX7104

HUMAN INTERFACE

Display screen Colour or monochrome (depending model) 5‘’ 7 LCD (115 x 86 mm) - 320 x 240 –CCFL backlighting
Display mode 500 samples real time acquisition on screen – Vectors with interpolation
Curve display on screen 4 curves + 4 references - Split Screen & Full Screen modes (tracing zone 110 x 74)
Front panel control 33 direct shortcuts - 1 start/stop and power-saving button
Screen control Touch screen - "Windows-like" menus and graphic commands
Languages 5 complete languages, menus & on-line help (French, English, German, Spanish, Italian)

OSCILLOSCOPE MODE
Vertical deviation

Bandwidth
Channels 2 isolated channels 2 isolated channels 2 isolated channels 4 isolated channels

Input impedance
Maximum input voltage 600 V / CAT III - Probix security connectors - Derating : -20dB/decade from 100kHz
Vertical sensivity 16 ranges from 2,5 mV to 200 V/div and up to 156 µV/div in vertical zoom mode (12 bits converter) – Accuracy ± 1%
Vertical zoom « One Click Winzoom » system (12 bits converter and direct graphic zoom on screen) - x 16 max
Probes factor 1 / 10 / 100 / 1 000 or scaling to any value – Definition of the measurement unit

Horizontal deflection

Time base speed 35 ranges from 1 ns/div to 200 s/div., accuracy ± 0,1% - Roll mode from 100ms to 200s/div
Horizontal zoom

Trigger circuit

Mode On all channels : automatic, triggered, single, auto 50%
Type
Coupling AC, DC, HFR, LFR, noise – Hold-Off adjustable from 160 ns to 30 s

Sensivity
On measuring window Starting from one of the 16 automatic measurements - Acquisition and fault automatic stored

Digital memory

Maximum sampling speed 50 Gs/s in ETS - 1 Gs/s in single-shot (on each channel)
Vertical resolution 12 bits (vertical resolution 0,025%)
Acquisition memory depth 2500 samples/channel and up to 50000 samples/channel with the « Extended Acquisition Memory » option
User memory
« Windows Like » files control
GLITCH mode
Display mode Envelope, Averaging (Factors 2 to 64) and XY (vector)

Other functions

AUTOSET Search time : < 5 s, with channels recognition – Frequency > 30 Hz
FFT analyser & MATH functions FFT (Lin or Log) measurement cursors - Functions + , - , x , / with publishing of mathematical functions
Cursors 2 or 3 cursors : V and T simultaneous or Phase – Resolution : 12 bits - Display : 4 digits
Automatic measurements 19 temporal or level measurements, Phase measurements – Resolution : 12 bits – Display : 4 digits

MUMTIMETER MODE

General specifications 2 or 4 channels – 8000 cts max. + bargraph min/max – TRMS – Time-stamped graphical recording (5 min to 31days )
AC, DC, AC + DC voltage 300 mV to 600V
Resistance
Others measurements Capacitance 5nF to 5mF – Frequency 200 kHz – Diode test 3,3 V
Measuring window triggering 2 or 4 channels guarded, Configurable default duration – Up to 100 time-stamped default stored in « .TXT » files

HARMONICS ANALYSER MODE (option)

Multi channel analysis 2 or 4 (depending on model), 61 orders, Fundamental frequency from 40 to 450Hz in auto or manual mode
Simultaneous measurements Total Vrms, THD and selected order (fundamental %, phase, frequency, Vrms)

RECORDER MODE (option)

Duration / Sampling rates From 2s to 1 month / from 800 µs to 18 min (from 40 µs to 53 s with the « Extended Memory Acquisition option)
Recording conditions On thresholds or windows, simultaneous conditions on several channels, with configurable duration from 160 µs
Recording analysis Scales et physic units, Automatic or cursor measurements, Time-stamped default searching, zoom, etc…

General specifications

Configuration memory Unlimited – « .CFG » file size : approx. 1 kB
Printing Ethernet network printing 10 Mb (standard), RS232 (standard), or Centronics (option)
PC communication Local via Ethernet 10 Mb, RS232 (max. 115 kbs) or USB (option) – « Sx-Metro » application software for PC (option)

Network
Power supply

Security / EMC Security depending on CEI6101-1 (2001) – CEM depending on EN61326-1
Mechanical characteristics 265 x 195 x 56 mm - 1,9 kg with batteries - IP51 protection (IP41 for the OX7104)

Standard delivery

1 oscilloscope, 1 user’s manual et 1 remote programming on CD-ROM, 1 adapter / line charger, NiMH batteries pack, 1 or 2* Probix 1/10 probes, 1 ou 2* BNC Probix
adapters, 1 banana Probix adapter, 1 banana set of cords, 1 crossed Ethernet cord, 1 straight Ethernet cord *, 1 RS232 cable, SX-METRO data processing software *
and 1 carrying case *

* « kit » version in carrying case

40MHz 60MHz 100MHz 100MHz

x1 to x5 and up to x100 with « Extended Memory Acquisition » option

Edge, Pulse (20 ns to 20 s), Delay (120ns to 20s), Count (3 to 16384 events),

TV frame or N° of line (525=NTSC or 625=PAL/SECAM) – Continuous adjustment of the trigger’s position

2 Mb to store different files : trace, text, configuration, mathematical functions, print files, image files, etc.

Duration ≥ 2 ns - 1250 couples Min/Max (up to 25000 couples with the « Extended Acquisition Memory » option)

Remote via Ethernet 10Mo, Web server (remote, «real-time trace», cursors and automatic measurements)

FTP server (file exchange with PC) , FTP client (storage on PC hard disk – unlimited capacity)

NiMh batteries – Approx. 4H between charges – Adjustable power-saving switching

Adapter / Fast charge / Multi-voltage (standard) - 98-264 V / 47-63 Hz / < 15 W

Bandwidth limit : 15 MHz, 1,5MHz or 5kHz

1 MΩ ± 0,5% , 17pF approx.

« One Click Winzoom » system (direct graphic zoom on screen)

≤ 0,6 div at 1 KHz / ≤1,5 div on full bandwidth

RMS

, 400MV to 800VDC - VDC accuracy : 0,5%L+5D – Bandwidth 200 kHz

80Ω to 32MΩ - Accuracy 0,5%L+ 25D – Fast continuity test : 10 ms

DT Scopix II Ed01 04.2008

Characteristics subject to modifications
