Metrel MD 1060-LED, MD 1160-LCD User guide [ml]

Voltage/Continuity Tester

Zweipoliger Spannungsprüfer

Testeur de tension

Tester de tensionni a due poli

Voltimetro bipolar de tensiones

MD 1060-LED & MD 1160-LCD

Version 1.0, Code no. 20 752 345

MD 1060, MD 1160

Distributor:

METREL d.d.

Ljubljanska cesta 77
1354 Horjul
SLOVENIA
e-mail: [e-mail]
web site: http://www.metrel.si/

Metrel GmbH

Mess und Prüftechnik
Orchideenstrasse 24
90542 Eckental -Brand
Germany
E-mail: [e-mail]
Internet: http://www.metrel.de/

Metrel UK

Test & Measurement
Unit 1, Hopton House,
Ripley Drive,
Normanton Industrial Estate,
Normanton,
West Yorkshire
WF6 1QT
Great Britain
E-mail: [e-mail]
Internet: http://www.metrel.co.uk/

© 2007 METREL

Mark on your equipment certifies that this equipment meets the requirements of the EC
(European Community) regulations concerning safety and electromagnetic compatibility.

No part of this publication may be reproduced or utilized in any form or by any means
without permission in writing from METREL.

2

MD 1060, MD 1160

ENGLISCH: .................................................................................................................................... 4

DEUTSCH: ................................................................................................................................... 12

FRANÇAIS : ................................................................................................................................. 20

ITALIANO ..................................................................................................................................... 28

ESPAÑOL: ................................................................................................................................... 36

3

MD 1060, MD 1160

ENGLISCH:

Contents

1. Introduction / Product Package ............................................................................................. 6

2. Safety Measures .................................................................................................................. 6

3. Danger of electric shock and other dangers ......................................................................... 6

4. Intended Use ........................................................................................................................ 7

5. Tester Information ................................................................................................................ 8

6. Preparation for tests ............................................................................................................. 9

6.1 Auto-power-on/ switching on ................................................................................................. 9

6.2 Auto-power off ....................................................................................................................... 9

7. Conducting Tests ................................................................................................................. 9

7.1 Voltage test ........................................................................................................................... 9

7.2 Single-pole phase test ........................................................................................................... 9

7.3 Phase rotation test ................................................................................................................. 9

7.4 Continuity test ...................................................................................................................... 10

7.5 Torch light ........................................................................................................................... 10

8. Battery Replacement .......................................................................................................... 10

9. Technical data .................................................................................................................... 11

10. Cleaning and storage .......................................................................................................... 11

4

MD 1060, MD 1160

References marked on tester or in instruction manual:

Warning of a potential danger, comply with instruction manual.

Reference. Please pay utmost attention.

Caution! Dangerous voltage. Danger of electrical shock.

Continuous double or reinforced insulation complies with category II DIN EN 61140.

Conformity symbol, the instrument complies with the valid directives. It complies with the
EMV -Directive (89/336/EEC), Standard EN 61326-1 are fulfilled. It also complies with the Low
Voltage Directive (73/23/EEC), Standard EN61243-3:2010 is fulfilled.

Tester complies with the standard (2002/96/EG) WEEE

The instruction manual contains information and references, necessary for safe operation
and maintenance of the tester.
Prior to using the tester (commissioning/ assembly) the user is kindly requested to thoroughly read
the instruction manual and comply with it in all sections.

Failure to read the tester manual or to comply with the warnings and references contained
herein can result in serious bodily injury or tester damage.
The respective accident prevention regulations established by the professional associations are to
be strictly enforced at all times

5

MD 1060, MD 1160

1. Introduction / Product Package

The voltage testers MD 1060 and MD 1160 are universally applicable testers for voltage testing,
continuity testing and rotary field testing.
The testers are constructed according to the latest safety regulations and guarantee safe and
reliable working.

The voltage testers MD 1060 and MD 1160 are characterized by the following features:

● Designed to meet international safety standards. EN61243-3:2010

● Measurement Category (CAT.) IV 600V

● AC and DC voltage test up to 690V with LEDs and LCD (MD 1060: no LCD display)

● Polarity indication

● Single-pole phase test

● Phase rotation test

● Continuity test

● Auto-power ON / OFF

● Torch light

● IP64 (IEC60529)

After unpacking, check that the instrument is undamaged.
The product package comprises:

1 pc Tester MD 1060 or MD 1160
2 pcs 4mm test tip adapters
2 pcs CAT III/ 1000V test tip cover
2 pcs batteries 1.5V, IEC LR03
1 pc operating instructions

2. Safety Measures

The testers have been constructed and tested in accordance with the safety regulations for

voltage testers and have left the factory in a safe and perfect condition.

The operating instructions contain information and References required for safe operation

and use of the tester. Before using the tester, read the operating instructions carefully and
follow them in all respects.

3. Danger of electric shock and other dangers

To avoid an electric shock, observe the precautions when working with voltages

exceeding 120 V (60 V) DC or 50 V (25 V) eff AC. In accordance with DIN VDE these
values represent the threshold contact voltages (values in brackets refer to limited ranges,

e.g. in agricultural areas).
The tester must not be used with the battery compartment open
Before using the tester, ensure that the test lead and device are in perfect working order.

Look out e.g. for broken cables or leaking batteries.
Hold the tester and accessories by the designated grip areas only, the display elements

must not be covered. Never touch the test probes.
The tester may be used only within the specified measurement ranges and in low-voltage

installations up to 690 V.
The tester may be used only in the measuring circuit category it has been designed for.
Before and after use, always check that the tester is in perfect working order (e.g. on a

known voltage source).
The tester must no longer be used if one or more functions fail or if no functionality is

indicated.

6

MD 1060, MD 1160

It is not permitted to use the tester during rain or precipitation.
A perfect display is guaranteed only within a temperature range of -15°C to +55°C at an

relative air humidity less than 85%.
If the safety of the user cannot be guaranteed, the tester must be switched off and secured

against unintentional use.
Safety is no longer guaranteed e.g. in the following cases:

− obvious damage

− broken housing, cracks in housing

− if the tester can no longer perform the required measurements/ tests

− stored for too long in unfavorable conditions

− damaged during transport

− leaking batteries

The tester complies with all EMC regulations. Nevertheless it can happen in rare cases that

electric devices are disturbed by the electrical field of the tester or the tester is disturbed by

electrical devices.
Never use the tester in explosive environment
Tester must be operated by trained users only
Operational safety is no longer guaranteed if the tester is modified or altered.
The tester may be opened by an authorized service technician only.

4. Intended Use

The tester may be used only under the conditions and for the purposes for which it was designed.
Therefore, observe in particular the safety instructions, the technical data including environmental
conditions.

7

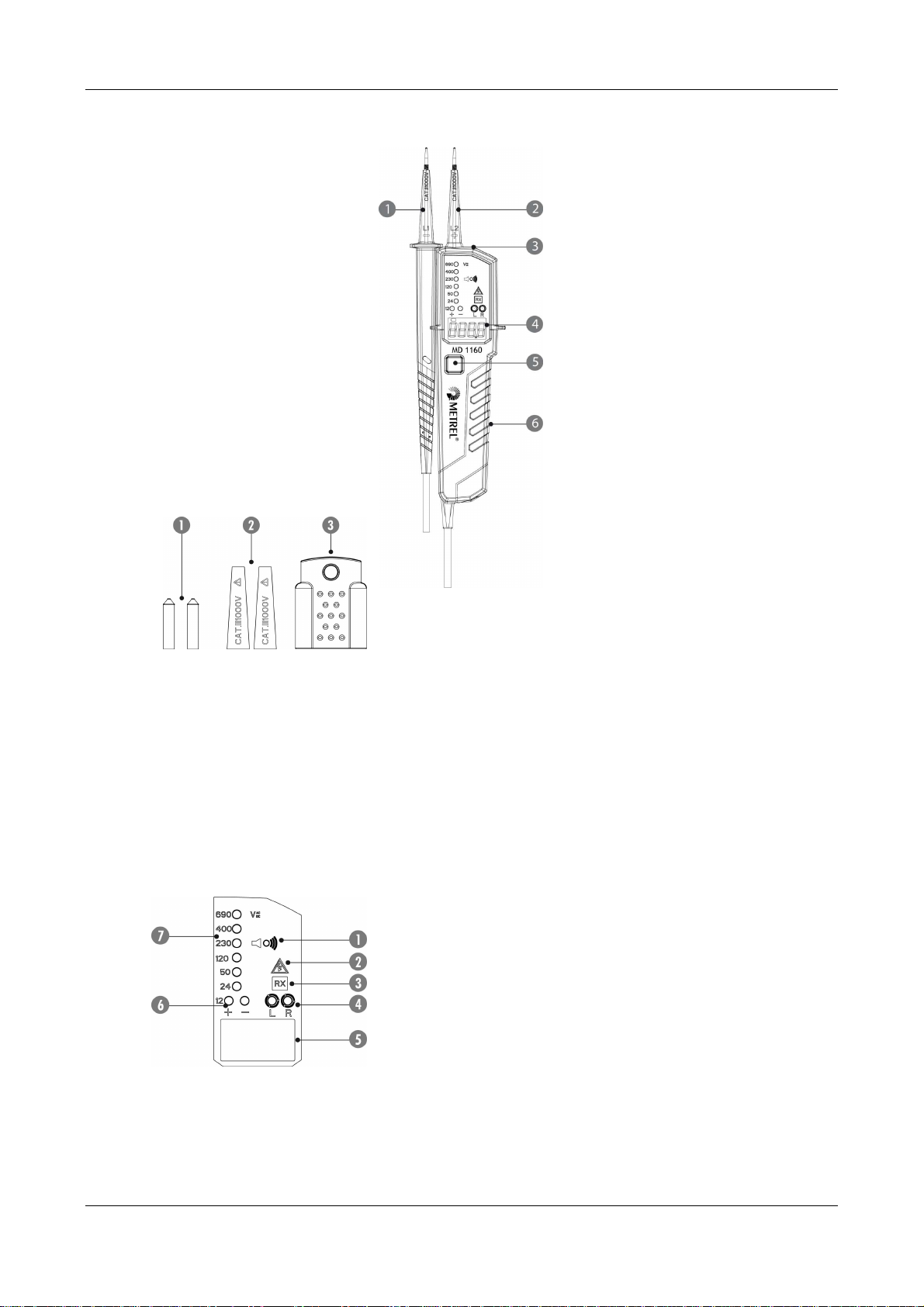

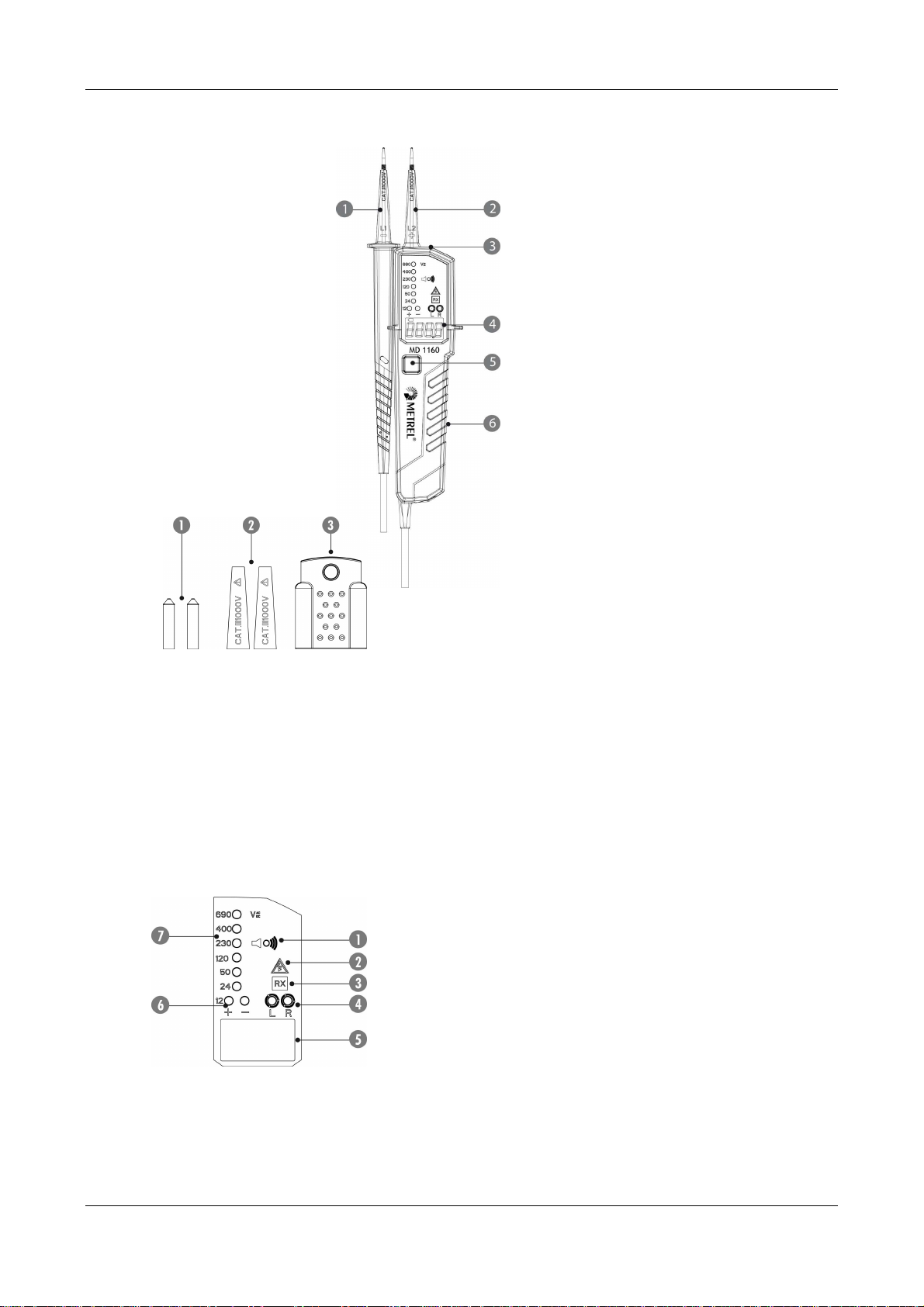

5. Tester Information

1. Test Probe, L1

2. Test Tip, L2

3. Torch Light

4. Display

5. Torch Light Button

6. Main body

Accessory

1. 4 mm test Tips,

2. Plug on cover (GS38)

3. Protective cover

Control elements

1. Buzzer hole for acoustic indication

2. Single Pole Test ELV Warning

3. Continuity Test

4. Rotary field

5. LCD Display indication voltage, polarity and low battery (MD 1160)

6. LED’s indicating 12V and polarity

7. Voltage Indication

MD 1060, MD 1160

8

MD 1060, MD 1160

6. Preparation for tests

6.1 Auto-power-on/ switching on

• The tester switches on when it detects continuity, an AC or DC voltage above approx. 10V
or a live phase on L2 (single pole test).

• It can be switched on with the torch light button.

6.2 Auto-power off

• Tester is automatically powered off after 5 sec when there is no signal contacted to the
probes.

• The torch light switches off after approx. 10 sec.

7. Conducting Tests

7.1 Voltage test

• Connect both probes to the object under test.

• The voltage is indicated by LEDs and LCD (MD 1160 only)

• Buzzer sounds when a threshold voltage of approx. 38VAC or approx. 100 VDC is

exceeded.

• Voltage polarity is indicated in following manner.

 AC: + and – 12V LED are on
 +DC: +12V LED is on
 -DC: -12V LED is on

When the L2 probe + is the positive (negative) potential, the Polarity indication LED

indicates “+DC” (“-DC”).

During voltage test, L or R LED may light up.
In case of empty batteries, the ELV LED lights up >50VAC, >120VDC

7.2 Single-pole phase test

Function of this test may not be fully achieved if the insulation condition/ grounding

conditions of user or of the equipment under test aren’t good enough. Verification of live­circuit shouldn’t be dependent on this Single-pole phase test only, but on the voltage test.

• Hold the tester good in your hand. Connect the “L2 +” probe to the object under test.
Live circuit LED lights up and buzzer sounds when a voltage of approx. 100V AC or more
exists in the object under test. (Pol≥100VAC).

7.3 Phase rotation test

• L LED and R LED for Phase rotation test may operate on various wiring systems, but
effective testing result can be obtained only on three-phase 4-wire system.

• Hold the tester good in your hand and connect both probes to the object under test.

• Phase-to-phase voltage is indicated by Voltage LEDs.

• R LED lights up for Right rotary field.

• L LED lights up for Left rotary field.

• Measurement principle: The instrument detects the phase rising order regarding the user as

earth.

Function of this test may not be fully achieved if the insulation condition/ grounding

conditions of user or of the equipment under test is not good enough.

9

MD 1060, MD 1160

7.4 Continuity test

Make sure the object under test isn’t live.

• Connect both test probes to the object under test. Continuity LED lights up and buzzer
sounds continuously to indicate continuity

7.5 Torch light

• Pressing the torch light button to turn on the light and after approx. 10s it will turn itself off

8. Battery Replacement

Remove the probes from any testing point, when opening the Battery case. Batteries are

dead when the continuity test with both test probes connected cannot be done anymore. A
battery symbol in the LCD indicates low battery.

Follow the procedure below and replace batteries with new ones (type IEC LR03 1.5V).

• Unscrew the battery door, e.g. with a coin.

• Pull out the Battery door and replace the batteries. Insert new batteries according to the

engraving on the Battery door.

• Re-assemble battery door.

Confirm that the Battery door case is properly locked prior to measurements.

10

9. Technical data

• Voltage range: 12…690V AC (16…400Hz), DC(±)

• LED Nominal voltage: 12/24/50/120/230/400/690V, AC (16…400Hz), DC(±)

• LED tolerances according to EN61243-3

• ELV indication LED >50VAC, >120VDC

• Response time: < 1s at 100% of each nominal voltage

• LCD Range: 0…690V, AC (16…400Hz), DC(±) (MD 1160 only)

• LCD Resolution: 0.1V (MD 1160 only)

• LCD Accuracy : ±3%±5dgt (0…690V) (MD 1160 only)

• LCD Overrange indication: “OL” (MD 1160 only)

• Peak current: Is<3.5mA (at 690V)

• Measurement Duty: 30s ON (operation time), 240s OFF (recovery time)

• Internal battery consumption: Approx. 80mA

• Single-pole phase test voltage range: 100…690V AC (50/60Hz)

• Phase rotation test: 120…400V earth-to-phase, AC 50/60Hz

• Continuity test: Detection range 0…500kΩ + 50%

• Battery: 3V (IEC LR03 1.5V x 2)

• Temperature: -15…55°C operation; -20…70°C storage, No condensation

• Humidity: Max 85% RH

• Altitude up to 2000m

• Overvoltage CAT.III/ 1000V/ CAT. IV 600V

• Standard EN61243-3:2010

• Pollution degree 2

• Protection: IP 64

10. Cleaning and storage

Tester does not need any special maintenance if used according to user manual.
Remove tester from all test points before cleaning.
Use a lightly damp cloth with neutral detergent for cleaning the instrument. Do not use

abrasives or solvents.

Do not expose the instrument to direct sun light, high temperature and humidity or dewfall.
Remove batteries when the instrument will not be in use for a long period.

MD 1060, MD 1160

11

MD 1060, MD 1160

DEUTSCH:

Inhalt:

1. Einführung .......................................................................................................................... 14

2. Sicherheitsmassnahmen ........................................................................................................ 14

3. Gefahr des elektrischen Schlages und andere Gefahrenquellen ............................................ 14

4. Bestimmungsgemäße Verwendung ....................................................................................... 15

5. Bedienelemente und Anzeigen .............................................................................................. 16

6. Vorbereitung von Prüfungen .................................................................................................. 17

6.2 Automatisches Ausschalten ................................................................................................. 17

7. Durchführung von Prüfungen ................................................................................................. 17

7.1 Spannungstest .................................................................................................................... 17

7.2 Einpolige Phasenprüfung ..................................................................................................... 17

7.3 Drehfeldprüfung ................................................................................................................... 17

7.4 Durchgangstest ................................................................................................................... 18

7.5 Messstellenbeleuchtung ...................................................................................................... 18

8. Batteriewechsel ..................................................................................................................... 18

9. Technische Daten .................................................................................................................. 19

10. Reinigung und Lagerung ......................................................................................................... 19

12

MD 1060, MD 1160

Auf dem Gerät und in der Bedienungsanleitung vermerkte Hinweise:

Achtung! Warnung vor einer Gefahrenstelle, Bedienungsanleitung beachten

Hinweis. Bitte unbedingt beachten.

Vorsicht! Gefährliche Spannung, Gefahr des elektrischen Schlages

Durchgängige doppelte oder verstärkte Isolierung nach Kategorie II DIN EN 61140.

Konformitäts-Zeichen, bestätigt die Einhaltung der gültigen EU-Richtlinien.
Das Gerät erfüllt die EMV - Richtlinie (89/336/EEC), Norm Standard EN 61326-1. Es erfüllt
ebenfalls die Niederspannungsrichtlinie (73/23/EEC), Norm EN61243-3:2010.

Das Gerät erfüllt die WEEE Richtlinie (2002/96/EG).

Die Bedienungsanleitung enthält Informationen und Hinweise, die zu einer sicheren
Bedienung und Nutzung des Gerätes notwendig sind. Vor der Verwendung des Gerätes ist die
Bedienungsanleitung aufmerksam zu lesen und in allen Punkten zu befolgen.

Wird die Anleitung nicht beachtet oder sollten Sie es versäumen, die Warnungen und
Hinweise zu beachten, können lebensgefährliche Verletzungen des Anwenders und
Beschädigungen des Gerätes verursacht werden.

Bei sämtlichen Arbeiten müssen die Unfallverhütungsvorschriften der gewerblichen
Berufsgenossenschaften für elektrische Anlagen und Betriebsmittel beachtet werden.

13

MD 1060, MD 1160

1. Einführung

Die Spannungsprüfer MD 1060 und MD 1160 sind universell einsetzbare Spannungsprüfer mit
Drehfeldrichtungsprüfung, Durchgangsprüfung und einpolige Phasenprüfung. Die
Spannungsprüfer werden nach den neuesten Sicherheitsvorschriften gebaut und gewährleisten ein
sicheres und zuverlässiges Arbeiten.

Die Spannungsprüfer MD 1060 und MD 1160 zeichnen sich durch folgende Punkte aus:

• Gebaut nach EN 61243-3:2010, DIN VDE 0682-401

• Gleich- und Wechselspannungsprüfung bis 690 V

• Helle LED-Anzeige

• Zweipolige Drehfeldrichtungsbestimmung gegen Erde

• Digitale LC-Anzeige (nur MD 1160)

• Einpolige Phasenprüfung

• Durchgangsprüfung

• Automatischen- ein und ausschalten

• Messstellenbeleuchtung mittels weißer LED

• Unverlierbarer Messspitzenschutz

• IP 64 (DIN VDE 0470, Teil 1, EN 60529)

Überprüfen Sie nach dem Auspacken, ob das Gerät unversehrt ist. Im Lieferumfang sind
enthalten:

1 St. Spannungsprüfer MD 1060 oder MD 1160
2 St. 4mm Prüfspitzenadapter
2 St. CAT III/ 1000V Prüfspitzenschutz
2 St. 1.5V Batterien (AAA, IEC LR03)
1 St. Bedienungsanleitung

2. Sicherheitsmassnahmen

Die Spannungsprüfer wurden gemäss Sicherheitsbestimmungen für Spannungsprüfer

gebaut, überprüft und haben das Werk in sicherheitstechnisch einwandfreiem Zustand
verlassen. Um diesen Zustand zu erhalten, muss der Anwender die Sicherheitshinweise in
dieser Anleitung beachten.

Die Bedienungsanleitung enthält Informationen und Hinweise, die zu einer sicheren

Bedienung und Nutzung des Gerätes notwendig sind. Vor der Verwendung des Gerätes ist
die Bedienungsanleitung aufmerksam zu lesen und in allen Punkten zu befolgen.

3. Gefahr des elektrischen Schlages und andere Gefahrenquellen

Um einen elektrischen Schlag zu vermeiden, sind die Vorsichtsmaßnahmen zu beachten,

wenn mit Spannungen größer 120 V (60 V) DC oder 50 V (25 V) eff AC gearbeitet wird.
Diese Werte stellen nach DIN VDE die Grenze der noch berührbaren Spannungen dar

(Werte in Klammern gelten für eingeschränkte Bereiche, z.B. landwirtschaftliche Bereiche).
Der Spannungsprüfer darf bei geöffnetem Batterieraum nicht benutzt werden
Vergewissern Sie sich vor jeder Prüfung, dass die Messleitung und das Messgerät in

einwandfreiem Zustand sind. Achten Sie z.B. auf gebrochene Kabel oder evtl.
ausgelaufene Batterien.

Das Gerät und Zubehör darf nur an den dafür vorgesehenen Griffbereichen angefasst

werden, die Anzeigeelemente dürfen nicht verdeckt werden. Das Berühren der Prüfspitzen
ist unter allen Umständen zu vermeiden.

Das Gerät darf nur in den spezifizierten Messbereichen und in Niederspannungsanlagen

bis 690 V eingesetzt werden.

Das Gerät darf nur in den dafür bestimmten Messkreiskategorie eingesetzt werden.

14
