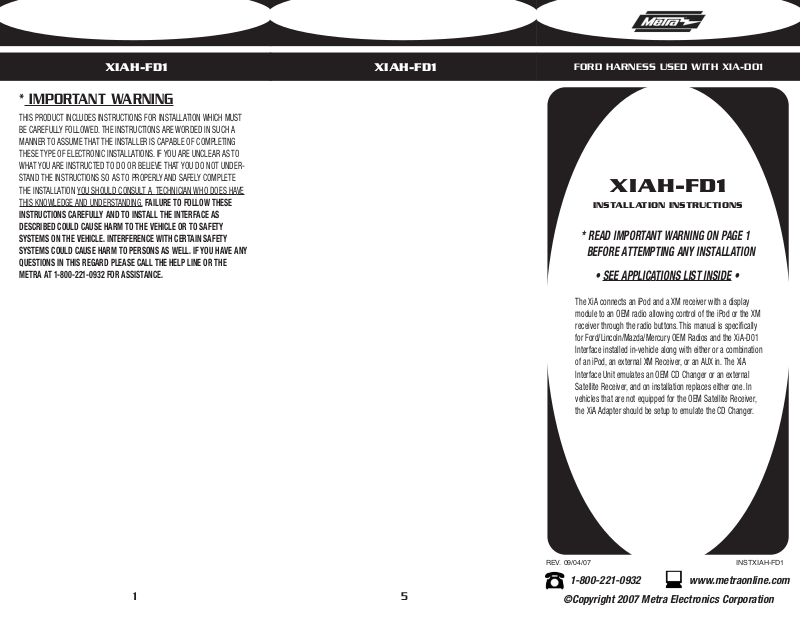

Metra Electronics XIAH-FD1 User Manual

XIAH-FD1 XIAH-FD1

* IMPORTANT WARNING

THIS PRODUCT INCLUDES INSTRUCTIONS FOR INSTALLATION WHICH MUST
BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED IN SUCH A
MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE OF COMPLETING
THESE TYPE OF ELECTRONIC INSTALLATIONS. IF YOU ARE UNCLEAR AS TO
WHAT YOU ARE INSTRUCTED TO DO OR BELIEVE THAT YOU DO NOT UNDER­STAND THE INSTRUCTIONS SO AS TO PROPERLY AND SAFELY COMPLETE
THE INSTALLATION YOU SHOULD CONSUL
THIS KNOWLEDGE AND UNDERSTANDING. FAILURE TO FOLLOW THESE

INSTRUCTIONS CAREFULLY AND TO INSTALL THE INTERFACE AS
DESCRIBED COULD CAUSE HARM TO THE VEHICLE OR TO SAFETY
SYSTEMS ON THE VEHICLE. INTERFERENCE WITH CERTAIN SAFETY
SYSTEMS COULD CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY
QUESTIONS IN THIS REGARD PLEASE CALL THE HELP LINE OR THE
METRA AT 1-800-221-0932 FOR ASSISTANCE.

T A TECHNICIAN WHO DOES HAVE

FORD HARNESS USED WITH XIA-DO1

XIAH-FD1

INSTALLATION INSTRUCTIONS

* READ IMPORTANT WARNING ON PAGE 1

BEFORE ATTEMPTING ANY INSTALLATION

• SEE APPLIC

The XiA connects an iPod and a XM receiver with a display
module to an OEM radio allowing control of the iPod or the XM
receiver through the radio buttons. This manual is specifically
for Ford/Lincoln/Mazda/Mercury OEM Radios and the XiA-D01
Interface installed in-vehicle along with either or a combination
of an iPod, an external XM Receiver, or an AUX in.The XiA
Interface Unit emulates an OEM CD Changer or an external
Satellite Receiver, and on installation replaces either one. In
vehicles that are not equipped for the OEM Satellite Receiver,
the XiA Adapter should be setup to emulate the CD Changer.

ATIONS LIST INSIDE •

REV. 09/04/07 INSTXIAH-FD1

1-800-221-0932 www.metraonline.com

1

5

©Copyright 2007 Metra Electronics Corporation

XIAH-FD1

1

2

3

APPLICATIONS

FORD

Crown Victoria 1998-2007
Econoline Van 1998-2004
Escape 2001-2007*
*(Without amplified system)
Escort 1997-2004
Excursion 2000-2005
Expedition 1999-2003*
*(Early production)
Explorer 1998-2005
F-150 1998-2004 (Old Body)
Mustang 2001-2003
Ranger 1998-2007
Thunderbird 2002-2003
Windstar 1999-2003

LINCOLN

Aviator 2003
Continental 1998-2002
LS 2000-2003
Navigator 1999-2003
Town Car 1998-2002

MAZDA

B Series Pick Up 1997-2007

MERCURY

Grand Marquis 1998-2002
Mountaineer 1999-2005

INTRODUCTION

The Ford OEM Radios vary in what buttons they have. This manual covers as many
buttons as possible. The Radio connected to the XiA Unit, most likely, will not have
all the buttons listed in this document. However, the definitions of the buttons dis­played on the radio will still be valid.

PORT OVERVIEW

1) This port is used with the optonal XIA-LCD display.

2) This port is used with the XM cable XIAH-XMC or the AUX IN cable XIAH-RCA.

3) This port is used with the iPOD cable XIAH-IPC or the AUX IN cable XIAH-RCA.

CABLE HARNESS PREPARATION

Various Cable Harnesses have been developed for the Ford Application that pro­vides the capability of having the XiA emulate either an OEM CD Changer or OEM
Satellite Receiver depending on the vehicle model and year. In vehicles that are
not equipped for Satellite Receiver operation, the XiA Adapter must be arranged for
CD Changer emulation. This is accomplished by removing a jumper wire in the
Cable Harness. Looking at the Cable Harness, locate the white 20-pin connector
(J1, 2x10) and the jumper wire (White) between J1 Pins 7 and 17.

Cut this jumper wire, and store it away with insulating tape. Once this is done,
the board will emulate an OEM external CD Changer.

If the XiA Adapter unit is working with a radio that supports ACP protocol and is
Satellite ready, no modification to the cable harness is required.

LCD DISPLAY UNIT

The LCD Display Unit (XIA-LCD) connects to the XiA Adapter Unit to provide visual
display information from iPod or Satellite Receiver---the active device at the
moment. This unit is particularly important in XiA applications where the OEM
Radio does not have a digital display to show the information obtained from the
active device.

RADIO BUTTON CONTROL

Control For CD Changer Mode

Button Description of Function
CD/Tape Button Selects either iPod Mode or XM Mode by toggling

WIRING CONNECTIONS

Connect the Yellow wire coming off the 20 pin Molex connector to a 12 volt (+)
constant battery wire which can be found in the OEM radio harness. Be sure to
use a multimeter to verify the 12 volt (+) constant battery wire. Connect the Black
wire to coming off the 20 pin Molex connector to a ground. There is a ground wire
in the OEM radio harness, use a multimeter to verify, or you can connect the Black
wire to a metal brace in the dash.

WERING UP THE XIA UNIT

PO

When the unit is first connected to the car battery, the installer must cycle the
radio “on” & “off” at least 3 times, pausing each time for about 6 seconds. This is
required for the unit to synchronize with the external equipment such as iPod and
XM Tuner.

RADIO OPERA

To use the iPod or the XM Receiver after installing the XiA Adapter, turn the radio
“on” and push the “Tape,” “CD,” or “Mode” button. The iPod or XM Receiver--­depending on which is connected---begins to play through the radio speaker
system. Once this is done, use the arrow keys to advance to the next track
(or station) or to the previous track track (or station). The next section describes
the button operations when listening to either iPod or Satellite Radio.

TION

Mode Selects the next device. If iPod was the previous device that

FM/AM Button Deselects XM mode or iPod mode.
SEEK > The right arrow button goes one track up in iPod mode or

<SEEK The left arrow button goes one track down in iPod mode or

Scan In XM and iPod modes, this button scans though channels

<<CD (1) In iPod mode, Button 1 advances to the previous playlist of

CD>> (2) In iPod mode, Button 2 advances to the next playlist of

Shuffle (6) In iPod mode, this Button shuffles the songs in the current

between the two. If iPod was the previous device that
was playing, them XM Receiver is selected.

was playing, them XM is selected as the next device.

one channel up in XM mode.

one channel down in XM mode.

or stations.

music. In XM mode, Button 1 goes to the last station of the
previous category.

music. In XM mode, goes to the first station in the next cat­egory.

playlist. In XM it has no effect.
