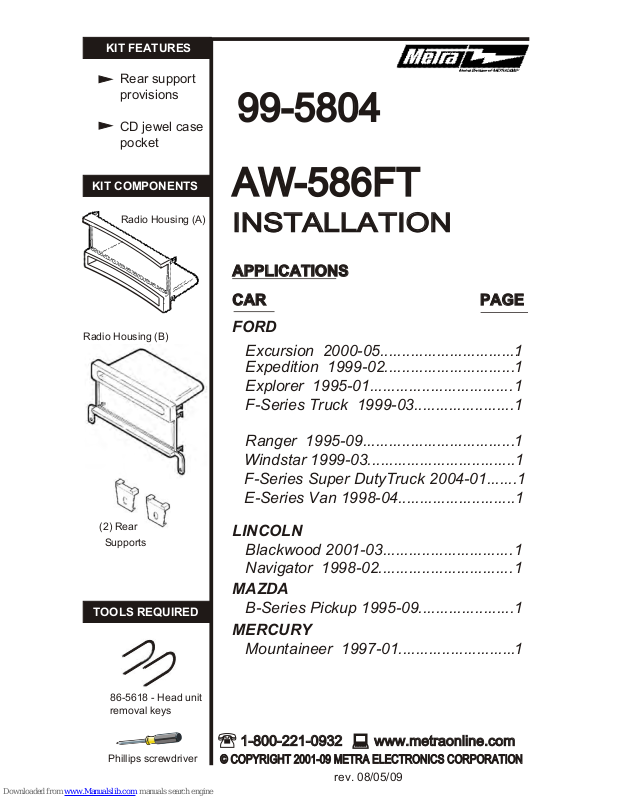

Page 1
KIT COMPONENTS
(2) Rear
Supports
KIT FEATURES
Rear support
provisions
CD jewel case
pocket
APPLICATIONSAPPLICATIONS
CARCAR PAGE PAGE
FORD
Expedition 1999-02..............................1
Explorer 1995-01.................................1
F-Series Truck 1999-03.......................1
Ranger 1995-09...................................1
Windstar 1999-03..................................1
F-Series Super DutyTruck 2004-01.......1
E-Series Van 1998-04...........................1
LINCOLN
Blackwood 2001-03..............................1
Excursion 2000-05................................1
Navigator 1998-02...............................1
MAZDA
B-Series Pickup 1995-09......................1
MERCURY
Mountaineer 1997-01...........................1
TOOLS REQUIRED
Phillips screwdriver
86-5618 - Head unit
removal keys
99-580499-5804
AWAW-586FT-586FT
INSTALLAINSTALLATIONTION
Radio Housing (A)
Radio Housing (B)
1-800-221-0932 www.metraonline.com 1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001-09 METRA ELECTRONICS CORPORATION © COPYRIGHT 2001-09 METRA ELECTRONICS CORPORATION
rev. 08/05/09
Page 2
1
FORD Expedition 1999-02 / F-Series Truck 1999-03 /
F-150 Heritage 2004 / F-Series Super Duty Truck 2004
LINCOLN Navigator 1998-02 / Blackwood 2001-03
2
Locate Radio Housing "B". Skip to the
Installation Instructions for ALL VEHICLES
on Page #2.
1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Place
your index fingers on the inner edges of the
a/c vents (shown above) and push inward.
Grasp the exposed lip of each vent opening
and pull out on the radio trim bezel. Remove
the dash trim bezel. (The airbag wiring does
NOT need to be disconnected).
Using
Metra's
86-5618, pull the factory head unit
from the dash and disconnect the wiring.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Using Metra's
86-5618, pull the factory head unit from the dash
1
FORD Explorer 1995-01 / Ranger 1995-09 / Windstar 1999-03
MAZDA B-Series Pickup 1995-09 / MERCURY Mountaineer 1997-01
Locate Radio Housing "A". Skip to
the Installation Instructions for ALL
VEHICLES on Page #2.
2
and disconnect the wiring.
3
5
Fig. A
Slide the DIN cage into the Radio Housing and
secure by bending the metal locking tabs down.
Slide the aftermarket head unit into the cage until
secure. Mount the Rear Support to the back of
the head unit using the hardware included with
the unit.
E-Series Van 1998-04
Excursion 2000-05
EXPEDITION, F-Series, F-150 Heritage EXCURSION, NAVAGATOR, BLACKWOOD
Re-connect the battery terminal and test
(2) Phillips
screws securing the climate
assembly into the dash cavity and
climate control cluster with the
EXPLORER, E-Series Van, RANGER, WINDSTAR, B-Series Pickup, MOUNTAINEER
Re-connect the battery
assembly into the sub-
Page 3
2
ALL VEHICLES
4
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
3
5
Fig. A
Fig. B
Slide the DIN cage into the Radio Housing and
secure by bending the metal locking tabs down.
Slide the aftermarket head unit into the cage until
secure. Mount the Rear Support to the back of
the head unit using the hardware included with
the unit.
EXPEDITION, F-Series, F-150 Heritage EXCURSION, NAVAGATOR, BLACKWOOD
Re-connect the battery terminal and test
the unit for proper operation.
Remove the top
mount the bottom legs of the
kit to the same holes in the
(2) Phillips screws previously removed. (see Fig. A)
control cluster to the sub-dash.
Slide the head unit/kit
(2) Phillips
screws securing the climate
assembly into the dash cavity and
climate control cluster with the
EXPLORER, E-Series Van, RANGER, WINDSTAR, B-Series Pickup, MOUNTAINEER
Re-connect the battery
terminal and test the unit for proper operation. Snap the head unit/kit
dash. (see Fig. B)
assembly into the sub-
