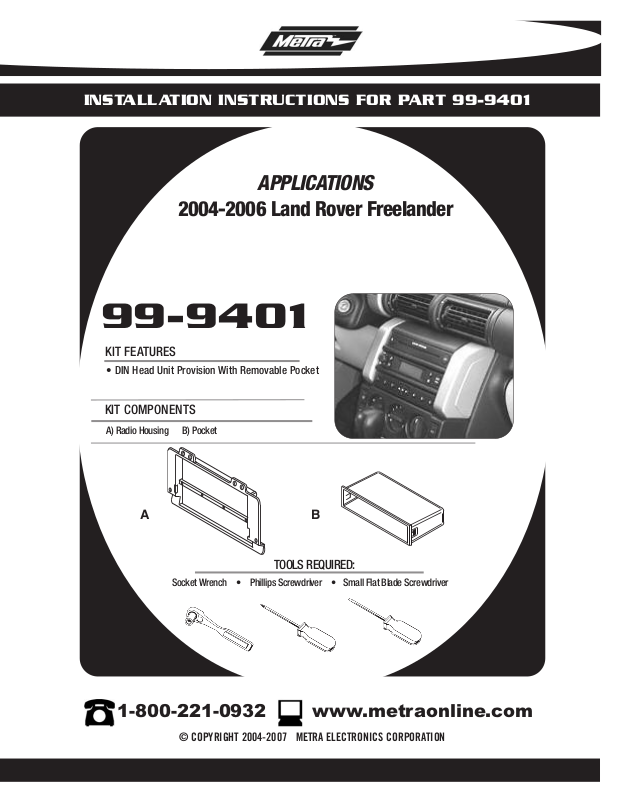

INSTALLATION INSTRUCTIONS FOR PART 99-9401
APPLICA TIONS
2004-2006 Land Rover Freelander
99-9401
KIT FEATURES
• DIN Head Unit Provision With Removable Pocket
KIT COMPONENTS
A) Radio Housing B) Pocket
A
Socket Wrench • Phillips Screwdriver • Small Flat Blade Screwdriver
B
TOOLS REQUIRED:
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
99-9401
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
99-9401
P
R
N
D
4
2
1
P
R
N
D
4
2
1

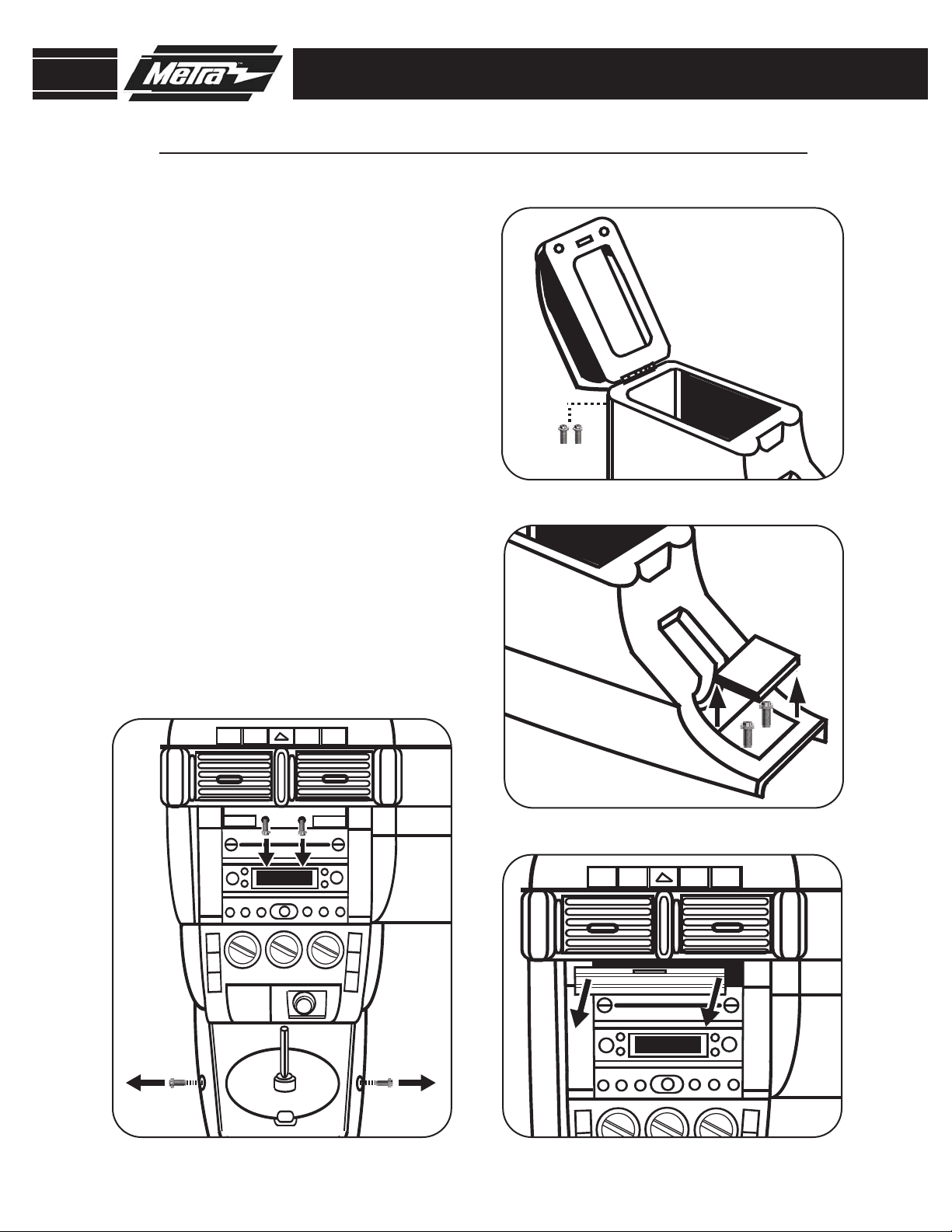

DASH DISASSEMBLY
2004-2006 LAND ROVER FREELANDER
A
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Put gear shifter into neutral position
then remove shift knob.
Unclip and remove gear shifter trim
3
panel.
(Figure B)
(Figure A)
4
Unclip and remove rear ashtray
panel from back of center console.
(Figure C)
Open center console lid and remove
5
cubby box.
D
(Figure D)
B
C
1
99-9401
DASH DISASSEMBLY
2004-2006 LAND ROVER FREELANDER
E
6
Remove the (2) screws securing the
rear of the center console.
Remove the screw cover in front of
7
the window switches then remove
the (2) screws exposed underneath.
(Figure F)
8
Unclip and remove the upper console
finisher panel between the a/c vents
and radio..
(Figure G)
(Figure E)
F
Remove the (4) screws securing the
9
center console.
Remove the (2) screws securing the
radio.
H
(Figure H)
G
2
99-9401
KIT ASSEMBLY
2004-2006 LAND ROVER FREELANDER
DIN HEAD UNIT PROVISION
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs down.
Slide the aftermarket head unit into
2
the DIN cage until secure.
Slide the included pocket into the
3
Radio Housing until secure.
(Figure C)
Install kit assembly into dash.
4
(Figure A)
A
(Figure B)
B
3
C
99-9401
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Dimmer . . . . . . . . . . Orange / White
Right Front (+) . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
4
99-9401
NOTES
5
99-9401 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 06/19/07 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-9401
