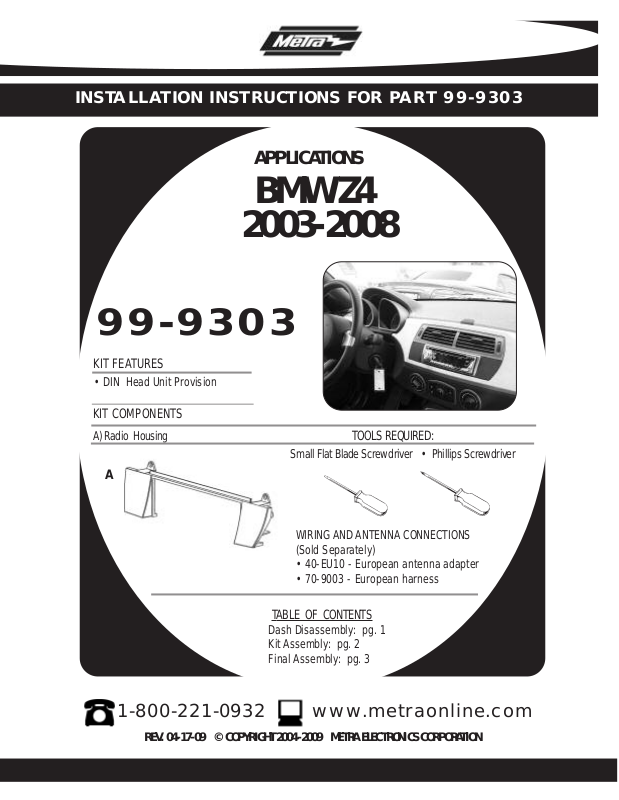

INSTALLATION INSTRUCTIONS FOR PART 99-9303
APPLICATIONS
BMW Z4
2003-2008
99-9303
KIT FEATURES
• DIN Head Unit Provision
KIT COMPONENTS
A) Radio Housing
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Phillips Screwdriver
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• 40-EU10 - European antenna adapter
• 70-9003 - European harness
ABLE OF CONTENTS
T
Dash Disassembly: pg. 1
Kit Assembly: pg. 2
Final Assembly: pg. 3
1-800-221-0932 www.metraonline.com
REV. 04-17-09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
99-9303
BMW Z4 2003-2008
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
NOTE: Make sure the vent on/off dials
are in the middle position.
2
Using a small flat blade screwdriver,
release the metal clip located inside
the vents facing upward on the left
and right side while pulling the vents
outward from the dash.
(Figure A)
A
B
DASH DISASSEMBLY
Remove (2) Phillips screws exposed
3
at top of radio and remove.
(Figure B)
1
99-9303
DIN HEAD UNIT PROVISION
A
NOTE:
The bottom bar connecting the two sides
of the 99-9303 will need to be cut and
removed prior to Kit Assembly.
Screw the 99-9303 housing into the
1
dash opening instead of the factory
(Figure B)
radio.
(Figure A)
KIT ASSEMBLY
Slide the DIN cage into the space in
2
the 99-9303 and secure by bending
the metal locking tabs outward.
(Figure C)
Slide the aftermarket head unit into
3
the DIN cage until secure.
(Figure D)
C
B
D
2
99-9303
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
A
FINAL ASSEMBLY
B
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
C
D) Tape
D
Locate the factory wiring harness in the
1
dash. Metra recommends using the proper
mating adapter and making the connections
as shown. (Isolate and individually tape off
the ends of any unused wires to prevent
electrical short circuit)
2
Re-connect the negative battery terminal and test
the unit for proper operation.
3
Reassemble radio and dash assemblies in
reverse order of disassembly.
3
