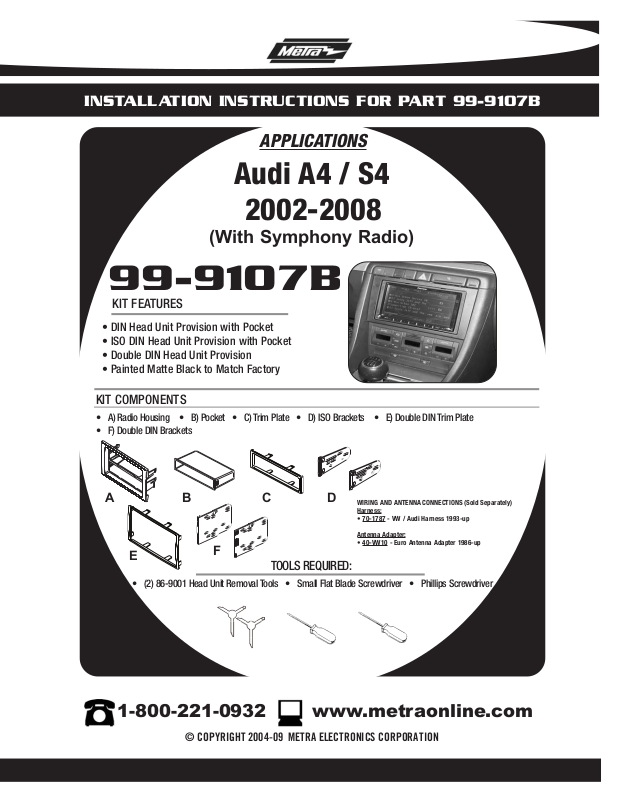

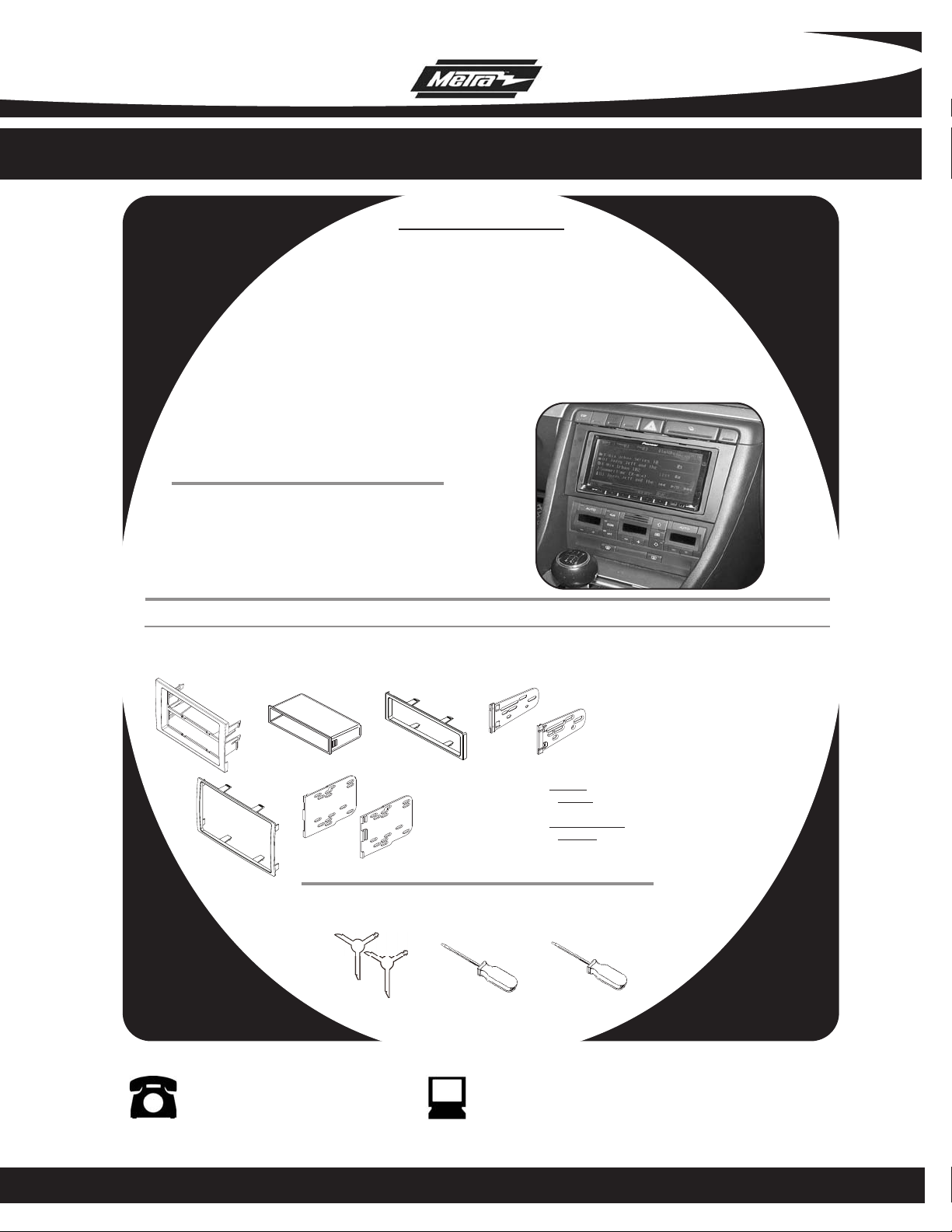

INSTALLATION INSTRUCTIONS FOR PART 99-9107B
APPLICATIONS
Audi A4 / S4
2002-2008
(With Symphony Radio)
99-9107B
KIT FEATURES
• DIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
• Double DIN Head Unit Provision
• Painted Matte Black to Match Factory
KIT COMPONENTS
• A) Radio Housing • B) Pocket • C) Trim Plate • D) ISO Brackets • E) Double DIN Trim Plate
• F) Double DIN Brackets
A
E
• (2) 86-9001 Head Unit Removal Tools • Small Flat Blade Screwdriver • Phillips Screwdriver
B
C
F
TOOLS REQUIRED:
D
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1787 - VW / Audi Harness 1993-up
Antenna Adapter:
• 40-VW10 - Euro Antenna Adapter 1986-up
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-09 METRA ELECTRONICS CORPORA TION
99-9107B
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- Audi A4 / S4 2002-2008 w/Symphony Radio . . . . . . . . . . . . . . 1
Kit Assembly
- DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . 2
- ISO DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . 3
- Double DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Metra recommends MECP certified
technicians..
AS
FM
AM
SAT
TAPE
SCAN
RDS
TONE
MENU
LOAD
CD
99-9107B

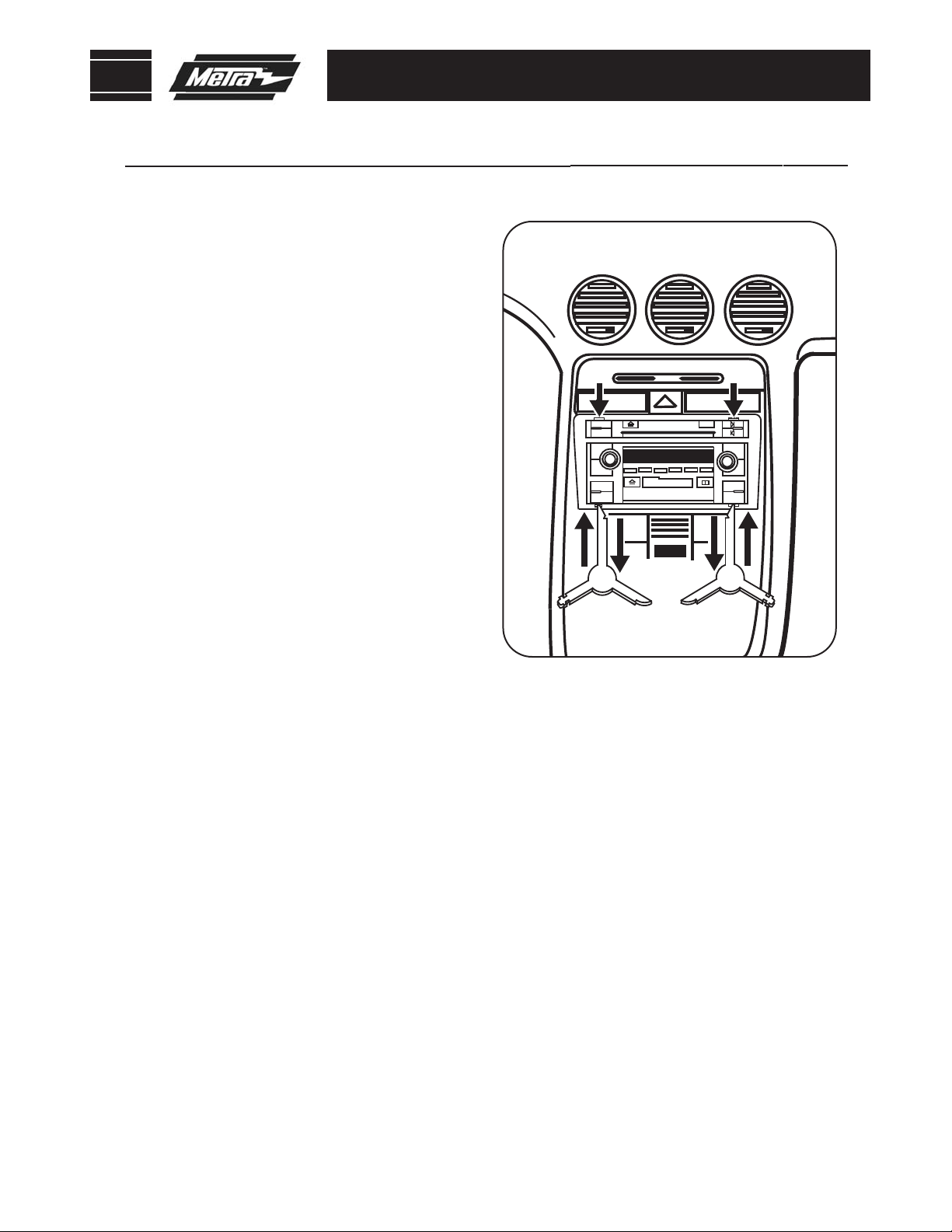

DASH DISASSEMBLY
AUDI A4 / S4 2002-2008 W/SYMPHONY RADIO
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
2
Insert Metra’s 86-9001 into the
slots in the factory head unit and
pull the unit out.
(Figure A)
Disconnect the wiring.
3
A
1
99-9107B

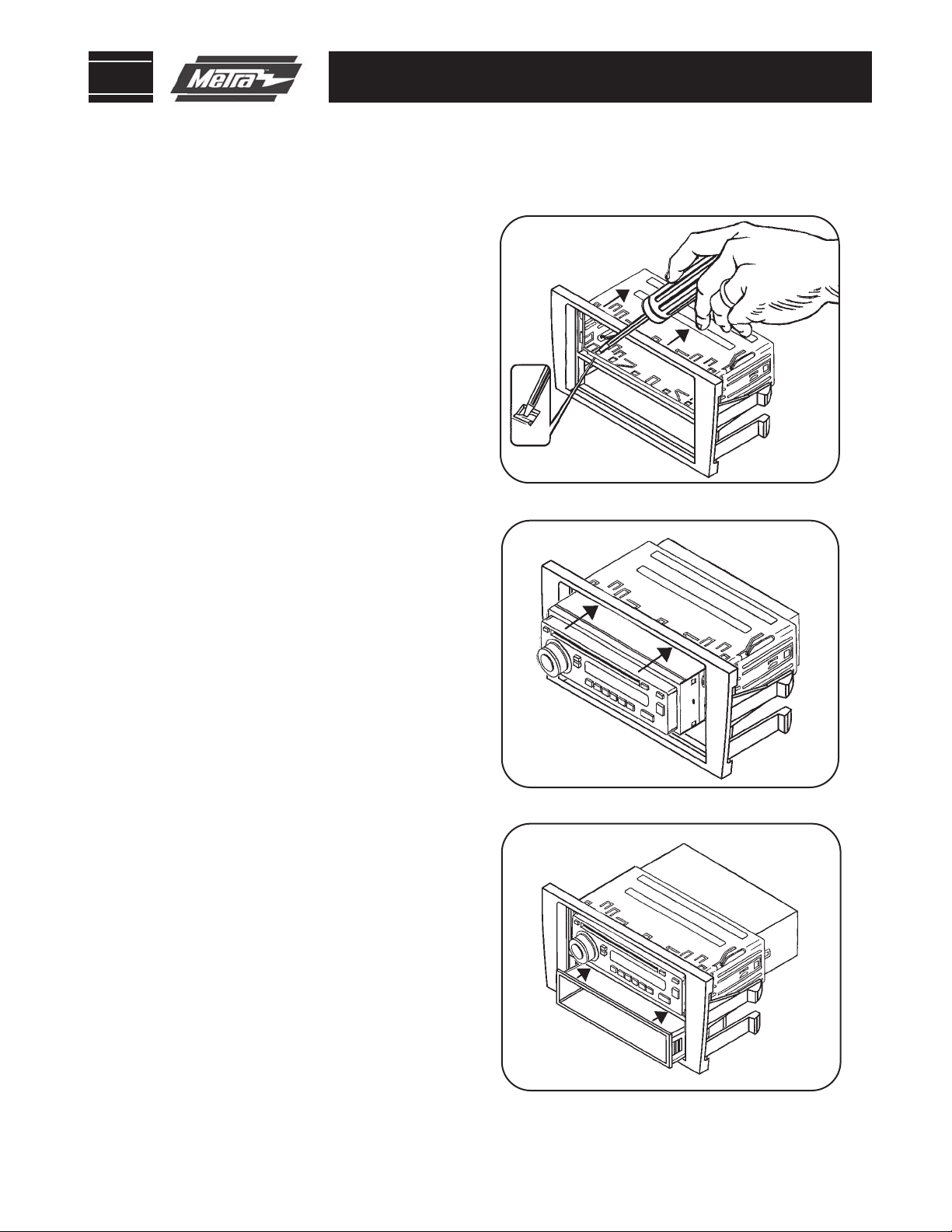

KIT ASSEMBLY
DIN HEAD UNIT PROVISION WITH POCKET
Snap
1
Housing and secure by bending
the metal locking tabs down.
(Figure A)
Locate the factory wiring harness in
2
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Re-connect the
negative battery terminal and test
the unit for proper operation.
Snap radio assembly into factory
3
radio opening.
Slide the aftermarket radio into the
4
cage and secure.
Snap the pocket into the Radio
5
Housing until secure.
the DIN cage into the Radio
(Figure B)
(Figure C)
A
B
NOTE: Once the dash kit is snapped
in, it cannot be removed without
dash panel removal
C
2
99-9107B

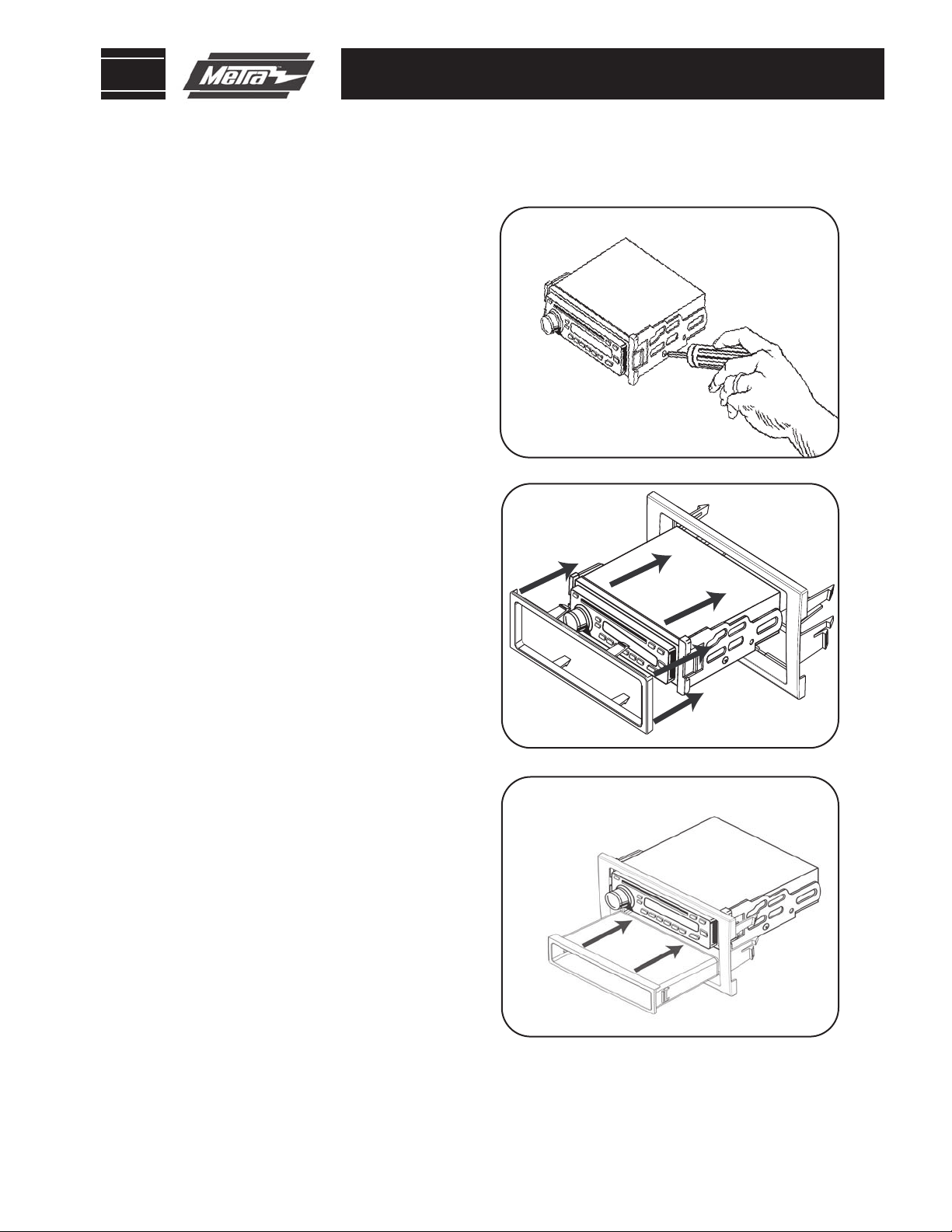

ISO DIN HEAD UNIT PROVISION
Mount the ISO Brackets to the
1
head unit with the screws supplied with the unit. (Figure A)
Slide the head unit into the radio
2
opening until the slide clips
engage. (Figure B)
Snap the ISO Trim Plate into the
3
Radio Housing. (Figure B)
Snap the pocket into the Radio
4
Housing. (Figure C)
KIT ASSEMBLY
A
B
Locate the factory wiring harness
5
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect the negative battery terminal
and test the unit for proper operation.
Snap the radio assembly into the
6
factory radio opening.
NOTE: Once the dash kit is snapped
in, it cannot be removed without
dash panel removal
C
3
99-9107B

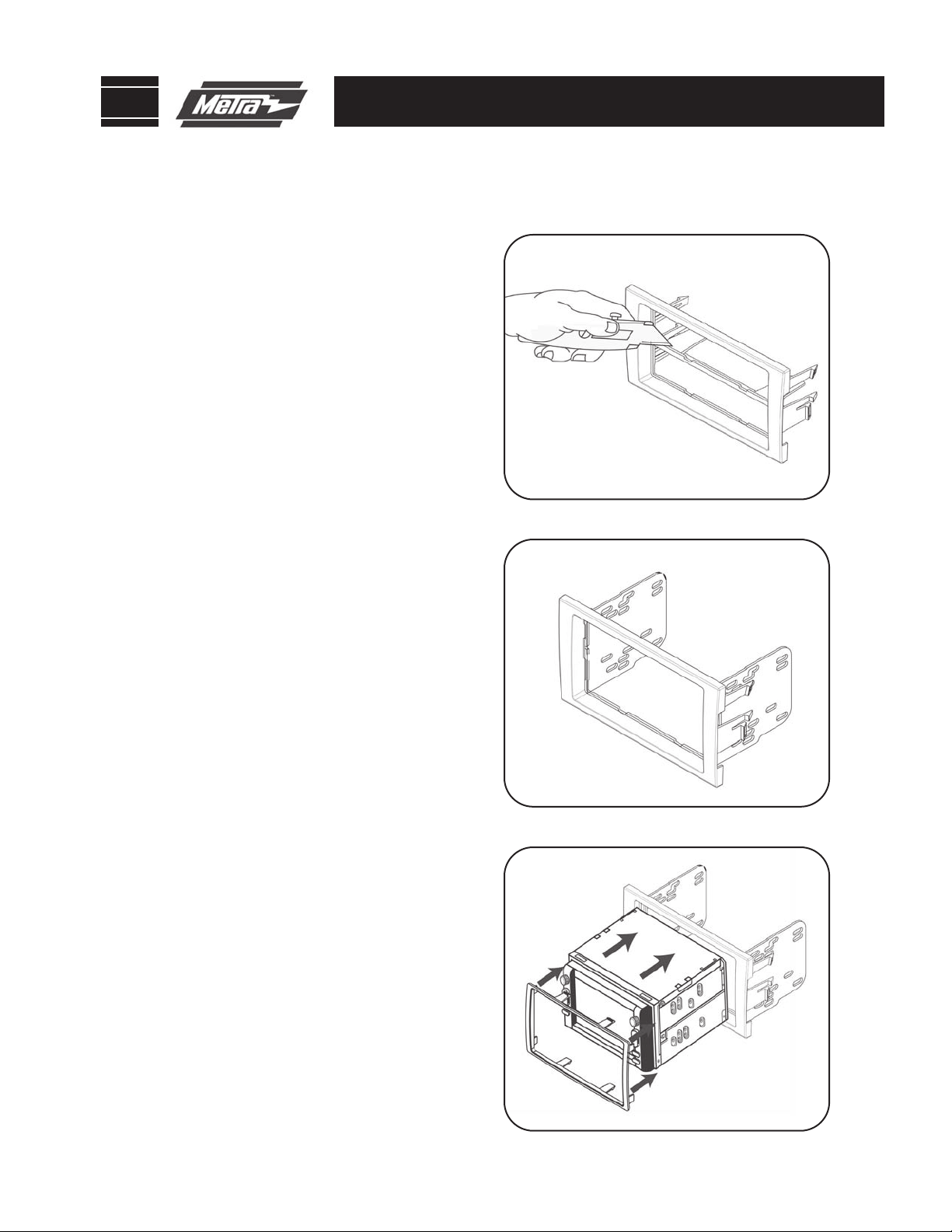

DOUBLE DIN HEAD UNIT PROVISION
Cut and remove center divider
1
from radio housing. (Figure A)
Snap the DDIN brackets to the
2
inside edge of the radio housing.
(Figure B)
Slide the DDIN radio unit into the
3
DDIN bracket/radio housing
assembly and secure the unit to
the kit using the screws supplied
with the head unit. (Figure C)
Snap the DDIN trim-plate onto the
4
housing/radio assembly. (Figure C)
KIT ASSEMBLY
A
B
Locate the factory wiring harness
5
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect the negative battery terminal
and test the unit for proper operation.
Snap radio assembly into factory
6
radio opening.
NOTE: Once the dash kit is snapped
in, it cannot be removed without
dash panel removal
C
4
99-9107B
NOTES
5
99-9107B INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 10/26/09 © COPYRIGHT 2004-09 METRA ELECTRONICS CORPORA TION INST99-9107B
