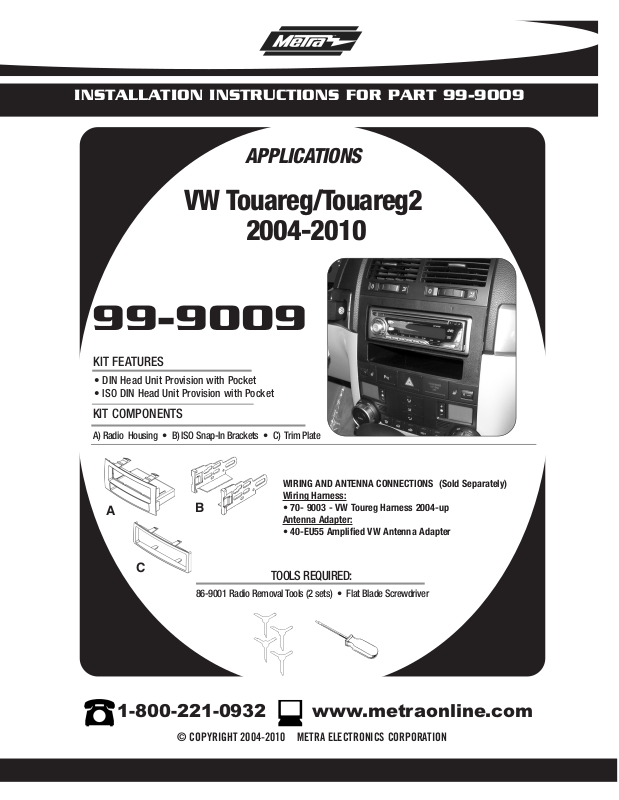

INSTALLATION INSTRUCTIONS FOR PART 99-9009
APPLICA TIONS
VW Touareg/Touareg2
2004-2010
99-9009
KIT FEATURES
• DIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Snap-In Brackets • C) Trim Plate
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
A
B
C
86-9001 Radio Removal Tools (2 sets) • Flat Blade Screwdriver
• 70- 9003 - VW Toureg Harness 2004-up
Antenna Adapter:
• 40-EU55 Amplified VW Antenna Adapter
TOOLS REQUIRED:
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
99-9009
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TABLE OF CONTENTS
99-9009
2004-2010 VW TOUAREG
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Insert the long ends of the 86-9001
into the slots on the factory radio
and pull out to remove.
NOTE:
Flat edge of key should point outward.
(Figure A)
A
DASH DISASSEMBLY
1
99-9009
DIN HEAD UNIT PROVISIONS
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs down.
Slide the aftermarket head unit into
2
the cage and secure.
(Figure A)
(Figure B)
KIT ASSEMBLY
B
2
99-9009
ISO DIN HEAD UNIT PROVISIONS
Mount the ISO Brackets to the head
1
unit with the screws supplied with
the unit.
Slide the head unit into the radio
2
opening until the side clips engage.
(Figure B)
Snap the Trim plate into the Radio
3
Housing.
(Figure A)
(Figure B)
A
B
KIT ASSEMBLY
3
99-9009
A
FINAL ASSEMBLY
B
C
D
Locate the factory wiring harness in the
1
dash. Metra recommends using the
proper mating adapter and making the
connections as shown. (Isolate and individually tape off the ends of any unused
wires to prevent electrical short circuit)
Re-connect the negative battery terminal
2
and test the unit for proper operation.
A) Strip wire ends back 1/2"
B)
C) Solder
D) Tape
Twist ends together
Reassemble radio and dash assemblies in
3
reverse order of disassembly.
4
99-9009
NOTES
5
INST99-9009
1-800-221-0932 www.metraonline.com
Rev. 04-27-10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-9009
