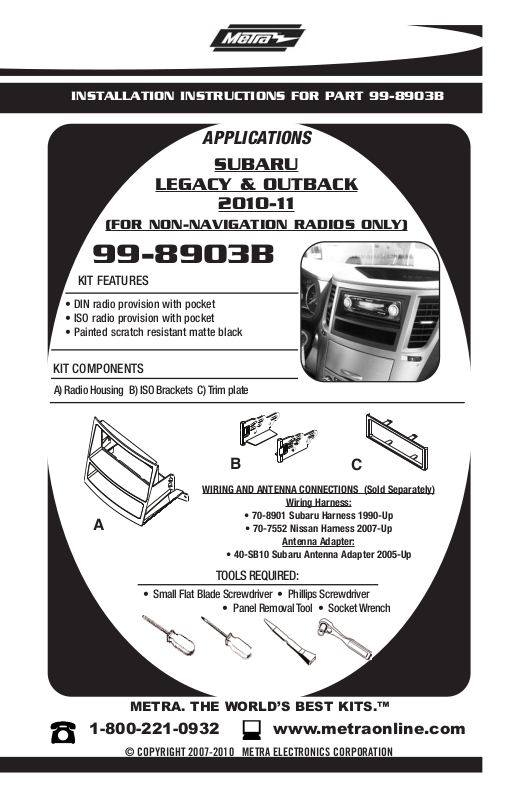

INSTALLATION INSTRUCTIONS FOR PART 99-8903B
APPLICATIONS
SUBARU
LEGACY & OUTBACK
2010-11
(FOR NON-NAVIGATION RADIOS ONLY)
99-8903B
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
• Painted scratch resistant matte black
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) Trim plate
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
A
• Small Flat Blade Screwdriver • Phillips Screwdriver
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
• 70-8901 Subaru Harness 1990-Up
• 70-7552 Nissan Harness 2007-Up
Antenna Adapter:
• 40-SB10 Subaru Antenna Adapter 2005-Up
TOOLS REQUIRED:
• Panel Removal Tool • Socket Wrench
www.metraonline.com
C
TABLE OF CONTENTS
Dash Disassembly
99-8903B
- 2010-11 Subaru Legacy . . . . . . . . . . .
- 2010-11 Subaru Outback . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
1
1
Kit Assembly
- DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
- ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP certified
technicians.
99-8903B DASH DISASSEMBLY
2010-11 SUBARU LEGACY / OUTBACK
A
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
2
Unclip and remove the radio trim panel
including the a/c vents. (
3
Remove (4) Phillips screws securing
the factory radio.
Figure A)
1
99-8903B KIT ASSEMBLY
2010-11 SUBARU LEGACY / OUTBACK
DIN HEAD UNIT PROVISION
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down. (Figure A)
3
Slide the aftermarket head unit into
the cage and secure. (Figure B)
A
4
Reassemble dash in reverse order of
disassembly.
B
2
99-8903B KIT ASSEMBLY
2010-11 SUBARU LEGACY / OUTBACK
ISO DIN HEAD UNIT PROVISION
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2
Mount the ISO Brackets to the head
unit with the screws supplied with
the unit. (Figure A)
3
Slide the head unit into the radio
opening until the side clips engage.
(Figure B)
4
Snap the Trim plate into the Radio
Housing. (Figure B)
A
B
5
Reassemble dash in reverse order of
disassembly.
3
99-8903B
NOTES
99-8903B
NOTES
99-8903B INSTRUCTIONS
INSTRUCTIONS
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
REV. 11/18/10 © COPYRIGHT 2003-2010 METRA ELECTRONICS CORPORATION INST99-8903B
www.metraonline.com
