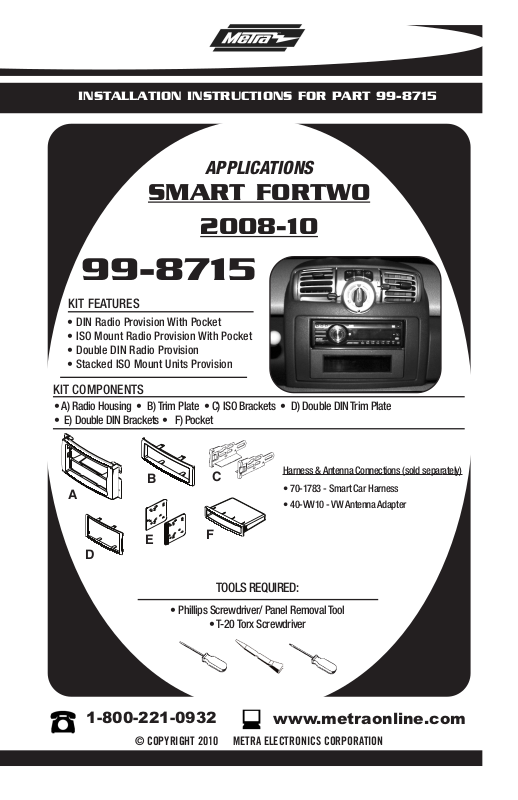

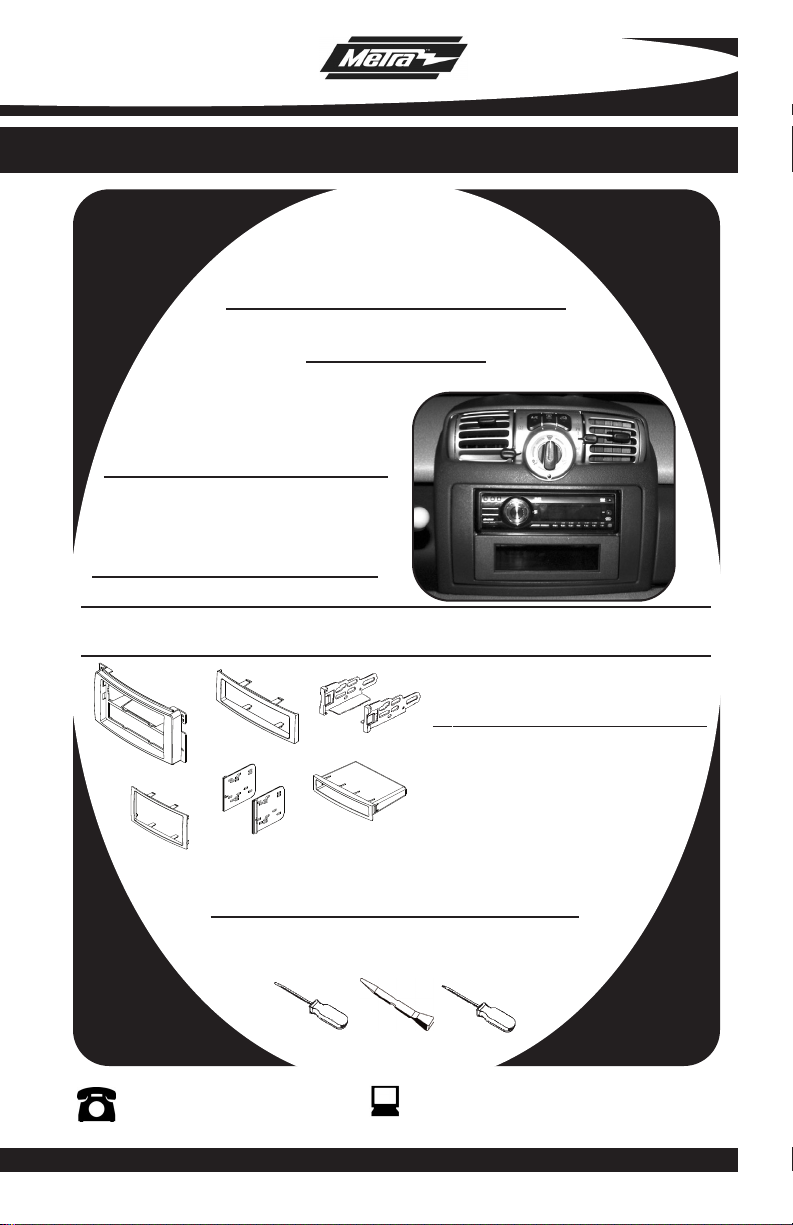

INSTALLATION INSTRUCTIONS FOR PART 99-8715
APPLICATIONS
SMART FORTWO
2008-10
99-8715
KIT FEATURES
• DIN Radio Provision With Pocket
• ISO Mount Radio Provision With Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
• A) Radio Housing • B) Trim Plate • C) ISO Brackets • D) Double DIN Trim Plate
• E) Double DIN Brackets • F) Pocket
ness & Antenna Connections (sold separately)
B
A
C
Har
• 70-1783 - Smart Car Harness
• 40-VW10 - VW Antenna Adapter
E
D
F
• Phillips Screwdriver/ Panel Removal Tool
• T-20 Torx Screwdriver
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
TOOLS REQUIRED:
www.metraonline.com
Page 2
TABLE OF CONTENTS
Dash Disassembly
99-8715
- Smart Fortwo 2008-10
. . . .
... ............................
1
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 3
- Double DIN/Stacked ISO Mount Units Provision. . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps towa rd a better tomor row.
Page 3
99-8715 DASH DISASSEMBLY
SMART FORTWO 2008-10
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unclip the Hazard button switch panel.
2
(
Figure A)
Remove (1) T-20 Torx head screw.
3
(Figure B)
Carefully unclip the panel surrounding
4
the radio, start at the top of the dash
and work your way down.
Remove (4) T-20 Torx head screws
5
from around the radio. (
Remove radio and disconnect the
6
wire harness and antenna.
(Figure C)
Figure D)
A
B
Continue to kit assembly.
D
C
1
Page 4
99-8715 KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
Note: Refer also to the instructions included with the aftermarket radio.
A

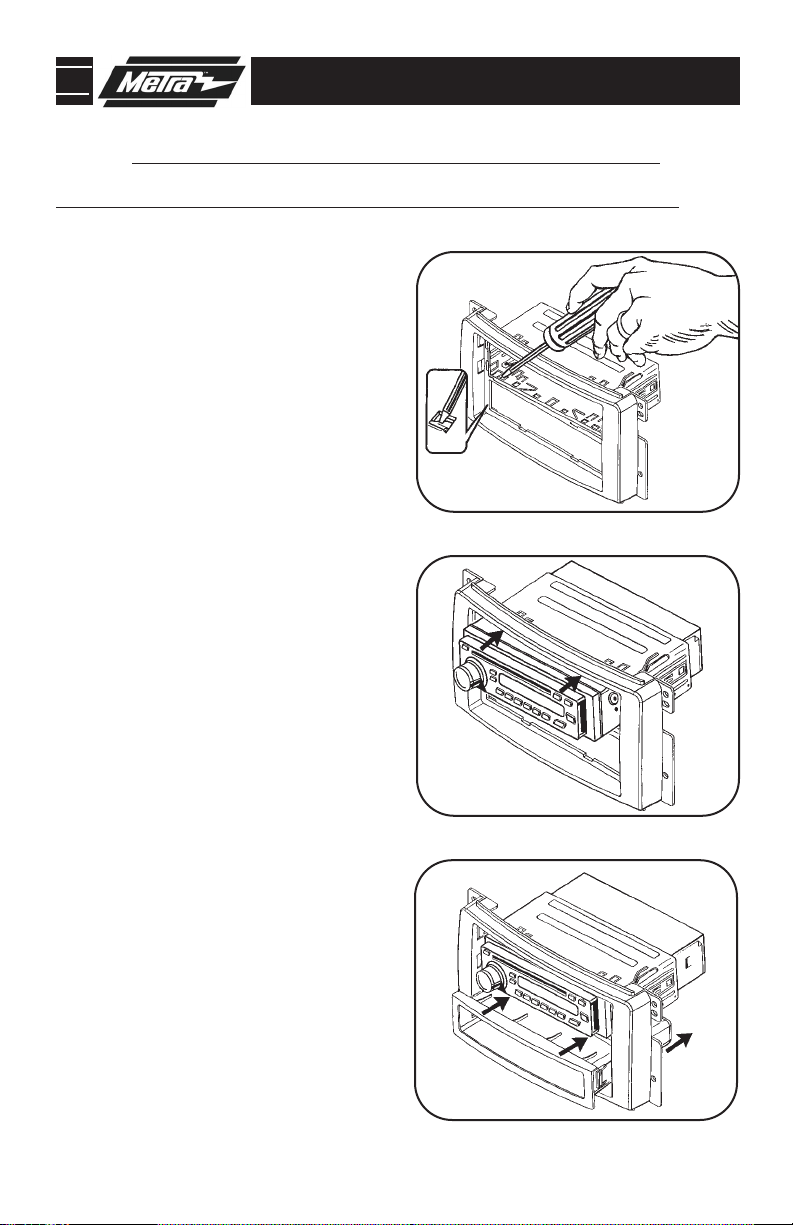

Slide the DIN cage into the radio
1
housing and secure by bending the
metal locking tabs outward.
2
Slide the aftermarket radio into the
cage until it snaps into place.
(Figure B)
Snap the pocket into the radio hous-
3
ing.
(Figure C)
(Figure A)
Continue to final assembly.
B
C
2
Page 5
99-8715 KIT ASSEMBLY
ISO MOUNT RADIO PROVISION WITH POCKET
Note: Refer also to the instructions included with the aftermarket radio.
A
1

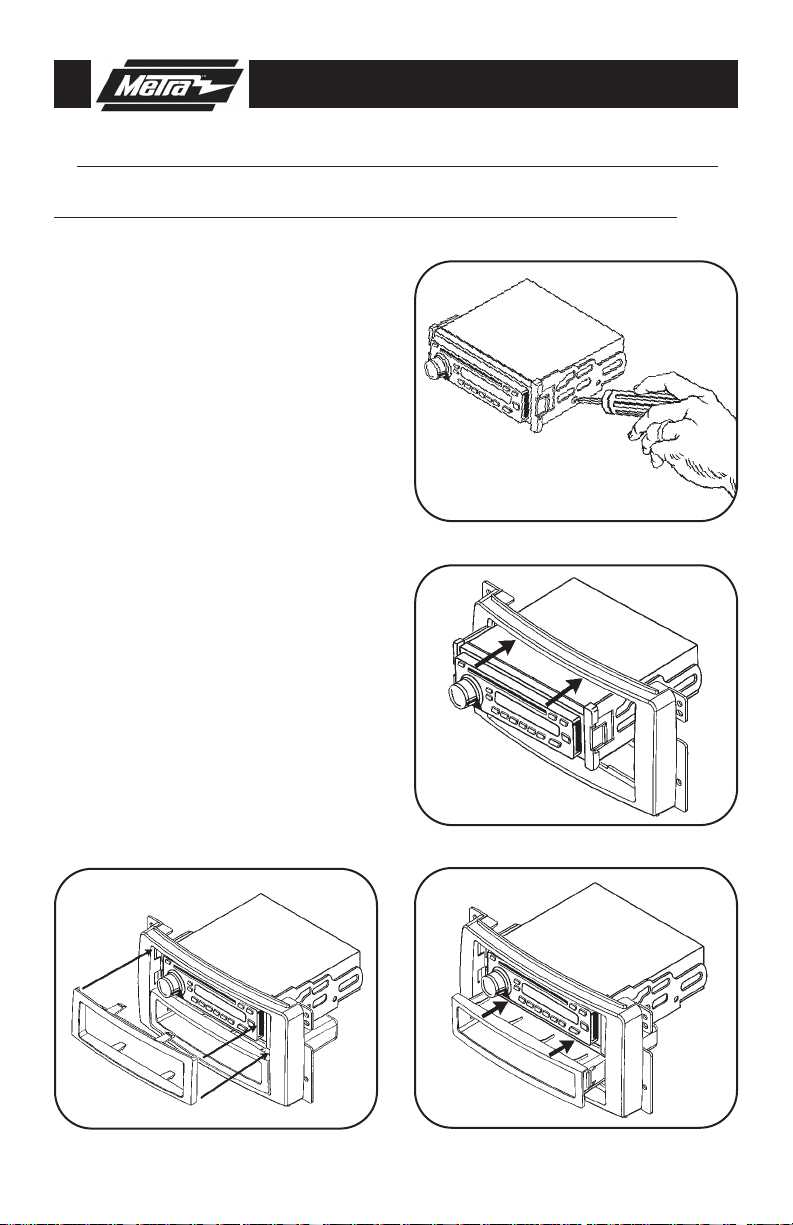

Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio.
Slide the radio/bracket assembly into
2
the radio housing until it snaps into
place.
(Figure B)
3
Snap the pocket into the radio hous-
(Figure C)
ing.
Snap the Trim plate onto the front of
4
the radio housing.
Continue to final assembly.
(Figure A)
(Figure D)
B
D
C
3
Page 6
99-8715 KIT ASSEMBLY
DOUBLE DIN/STACKED ISO
MOUNT UNITS PROVISION
Note: Refer also to the instructions included with the aftermarket radio.
A

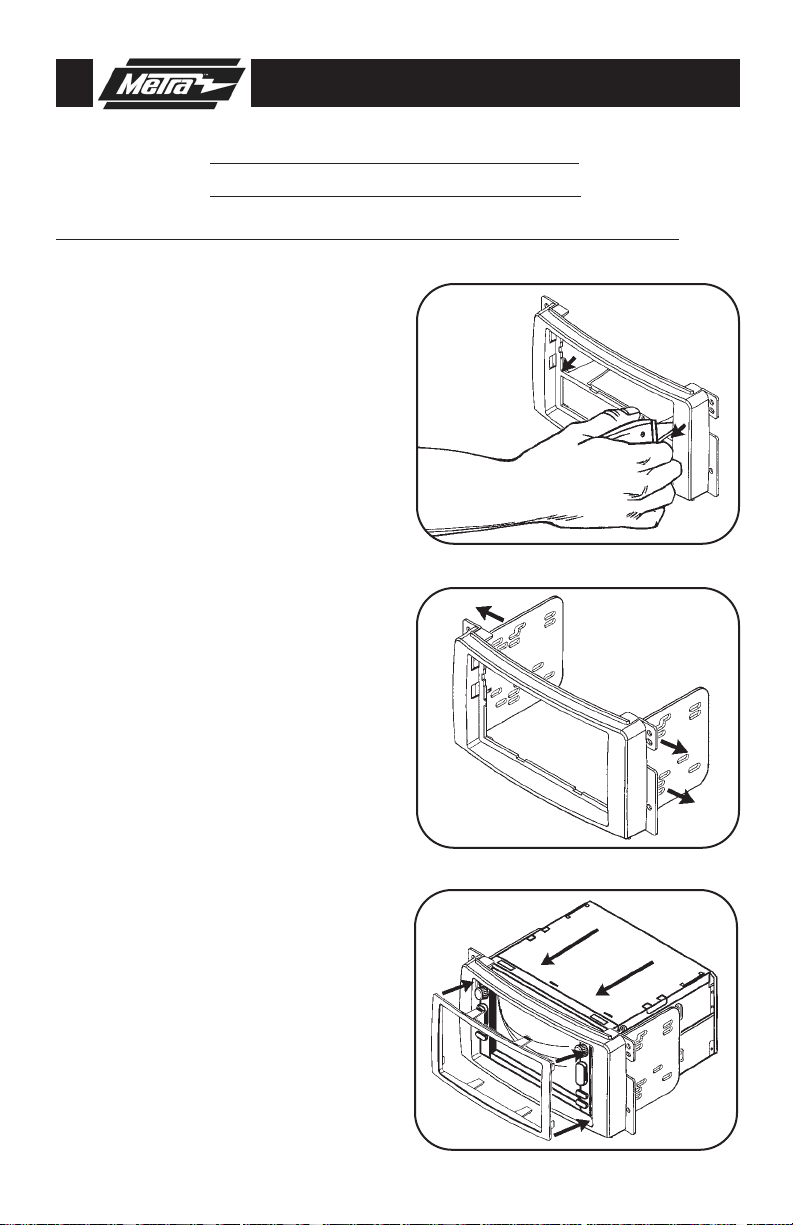

Cut and remove the center bar from
1
the radio housing.
Snap the Double DIN brackets to the
2
inside edge of the radio housing.
(Figure B)
3
Slide the Double DIN or stacked ISO
mount unit(s) into the bracket/radio
housing assembly and secure the
unit(s) to the assembly using the
screws supplied with the unit(s).
(Figure C)
4
Snap the Double DIN trim plate onto
the front of the radio housing.
(Figure C)
(Figure A)
B
Continue to final assembly.
C
4
Page 7
99-8715 FINAL ASSEMBLY
FINAL ASSEMBLY
A

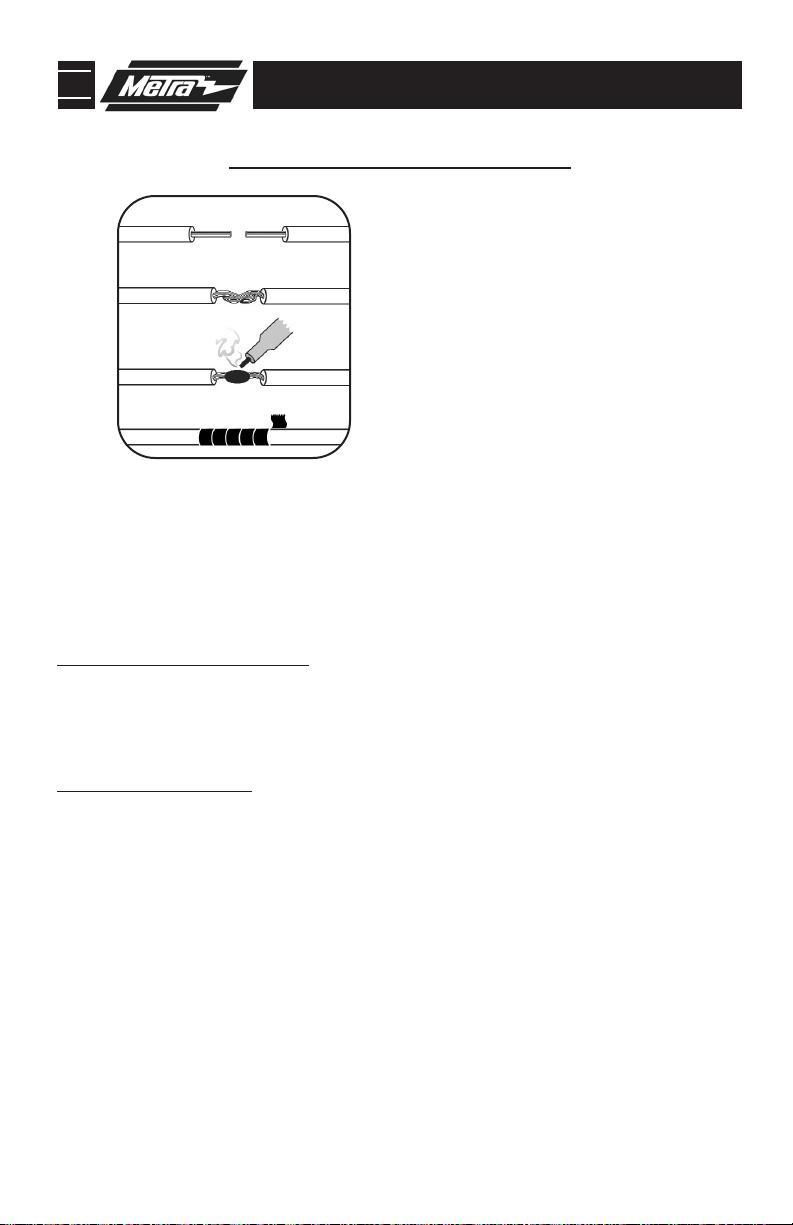

(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
s specifications.
5
Page 8
99-8715 INSTRUCTIONS
1-800-221-0932
REV.04/23/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST99-8715
www.metraonline.com
