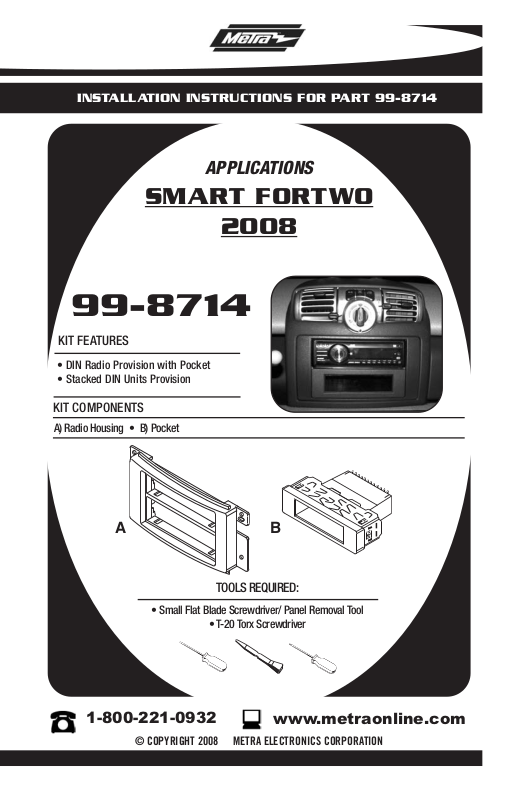

INSTALLATION INSTRUCTIONS FOR PART 99-8714
APPLICATIONS
SMART FORTWO
2008
99-8714
KIT FEATURES
• DIN Radio Provision with Pocket
• Stacked DIN Units Provision
KIT COMPONENTS
A) Radio Housing • B) Pocket
A
TOOLS REQUIRED:
• Small Flat Blade Screwdriver/ Panel Removal Tool
• T-20 Torx Screwdriver
1-800-221-0932
© COPYRIGHT 2008 METRA ELECTRONICS CORPORA
B
www.metr
aonline.com
TION
99-8714
TABLE OF CONTENTS
Dash Disassembly
-
Smart Fortwo 2008...................................
1
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- Stacked DIN Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
99-8714 DASH DISASSEMBLY
SMART FORTWO 2008
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unclip the Hazard button switch panel.
2
(
Figure A)
Remove (1) T-20 Torx head screw.
3
(Figure B)
Carefully unclip the panel surrounding
4
the radio, start at the top of the dash
and work your way down.
Remove (4) T-20 Torx head screws
5
from around the radio. (
Disconnect the wire harness and
6
antenna and remove radio.
(Figure C)
Figure D)
A
B
Continue to kit assembly.
D
C
1
99-8714 KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the radio
1
housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket radio into the
2
cage until it snaps into place.
(Figure B)
Snap the pocket into the radio hous-
3
ing.
(Figure C)
(Figure A)
Continue to final assembly.
TE:
NO
Pocket may be installed in top
or bottom of radio housing.
B
C
2
99-8714 KIT ASSEMBLY
STACKED DIN UNITS PROVISION
Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cages into the radio
1
housing and secure by bending the
metal locking tabs outward.
Slide the aftermarket units into the
2
cage until it snaps into place.
(Figure B)
Continue to final assembly.
(Figure A)
B
3
99-8714 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
4
99-8714

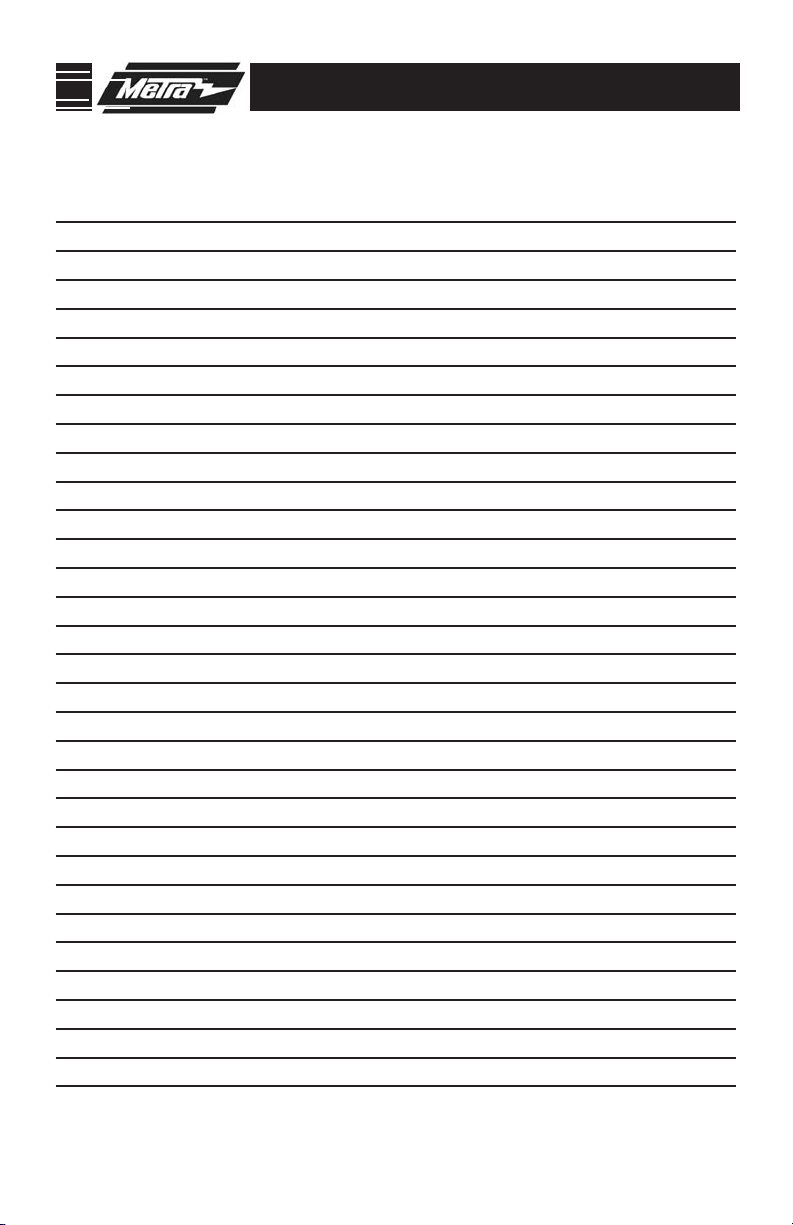

NOTES
5
99-8714 INSTRUCTIONS
1-800-221-0932
REV. 03/27/08 © COPYRIGHT 2008 METRA ELECTRONICS CORPORATION INST99-8714
www.metraonline.com
