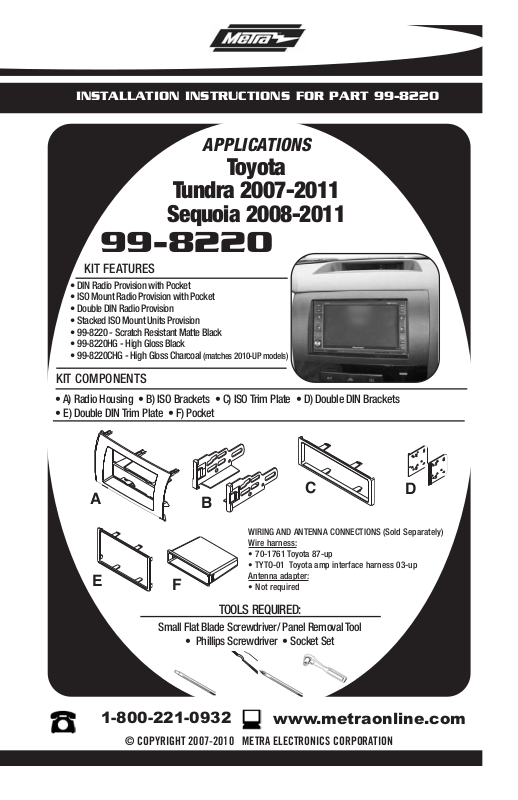

INSTALLATION INSTRUCTIONS FOR PART 99-8220
APPLICATIONS
Toyota
Tundra 2007-2011
Sequoia 2008-2011
99-8220
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• 99-8220 - Scratch Resistant Matte Black
• 99-8220HG - High Gloss Black
• 99-8220CHG - High Gloss Charcoal (matches 2010-UP models)
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
E
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wire harness:
• 70-1761 Toyota 87-up
• TYTO-01 Toyota amp interface harness 03-up
F
• Phillips Screwdriver • Socket Set
Antenna adapter:
• Not requi red
TOOLS REQUIRED:
www.metraonline.com
C
D
99-8220
TABLE OF CONTENTS
Dash Disassembly
-
Toyota Tundra (Console Shift ) 2007-2011 . . . . . . . . .
-
Toyota Sequoia 2008-2011 . . . . . . . . . . . . . . . . . . . . . . . .
-
Toyota Tundra (Column Shift ) 2007 -2011 . . . . . . . . . .
-
Toyota Sequoia 2008-2011 . . . . . . . . . . . . . . . . . . . . . . . .
. . . 1,2
1,2
. . . 3
3
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
- ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . .5
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . ..7
Final Assembly
*Note:
Refer also to the instructions included with the aftermarket radio.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
99-8220 DASH DISASSEMBLY
TOYOTA TUNDRA (Console Shift) 2007-2011
TOYOTA SEQUOIA 2008-2011
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Unclip and remove the top trim panel
around cup holders. (
3
Remove (1) Phillips screw from shifter
trim panel and remove panel.
(
Figure B)
4
Unclip, unplug and remove the climate control assembly. (
Continue dash disassembly.
Figure A)
Figure C)
A
B
C
1
99-8220 DASH DISASSEMBLY
TOYOTA TUNDRA (Console Shift) 2007-2011
TOYOTA SEQUOIA 2008-2011
5
Remove (4) 10 MM bolts securing the
radio. (
Figure D)
Unclip the right side of the instrument
6
panel trim and pull back the trim,then
unclip,unplug and remove radio.
Figure E)
(
Continue to kit assembly.
D
E
2
99-8220 DASH DISASSEMBLY
TOYOTA TUNDRA (Column Shift) 2007-2011
TOYOTA SEQUOIA 2008-2011
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
2
Remove (2) plastic Phillips screws
one from each side of the trim panel
below the cup holder then unclip and
remove the panel. (
3
Pull the cup holder out and depress
the (2) clips on each side to slide cup
holder out of cup holder panel.
Figure B)
(
4
Remove (4) Phillips screws from cup
holder panel assembly then unclip
and remove assembly. (
5
Unclip and remove the climate control
assembly. (
6
Remove (4) 10 MM bolts securing the
radio.
Figure D)
Figure A)
Figure C)
A
B
7
Unclip the right side of the instrument
panel trim and pull back then unclip
and remove radio.
Continue to kit assembly.
D
C
3
99-8220 KIT ASSEMBLY
DIN MOUNT RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
A
1
Slide the DIN cage into the radio housing and secure by bending the metal
locking tabs outward.
2
Slide the aftermarket radio into the cage
until it snaps into place.
3
Snap the pocket into the radio housing.
(Figure C)
Continue to final assembly.
(Figure A)
(Figure B)
B
4
C
99-8220 KIT ASSEMBLY
ISO MOUNT RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
1
Mount the ISO Brackets to the radio
using the screws supplied with the
(Figure A)
radio.
2
Slide the radio into the radio housing
until it snaps into place.
3
Snap the trim plate onto the front of
the Radio/Housing assembly.
4
Snap the Pocket into the radio
housing.
(Figure D)
(Figure B)
(Figure C)
A
Continue to final assembly.
D
B
C
5
99-8220 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
1
Cut and remove the center bar from
the radio housing.
2
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
3
Slide the Double DIN radio into the
bracket/radio housing assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure C)
4
Snap the Double DIN trim plate onto
the front of the radio/housing assembly.
(Figure C)
Continue to final assembly.
(Figure A)
A
B
6
C
99-8220 KIT ASSEMBLY
STACKED ISO MOUNT UNITS PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
1
Cut and remove the center bar from
the radio housing.
2
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
3
Slide the stacked ISO mount units into
the bracket/housing assembly and
secure the units to the assembly using
the screws supplied with the units.
(Figure C)
4
Snap the Double DIN trim plate onto
the front of the radio/housing assembly.
(Figure C)
Continue to final assembly.
(Figure A)
A
B
7
C
99-8220 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
8
99-8220
NOTES
9
99-8220 INSTRUCTIONS
1-800-221-0932
REV. 11/22/10 © COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION INST99-8220
