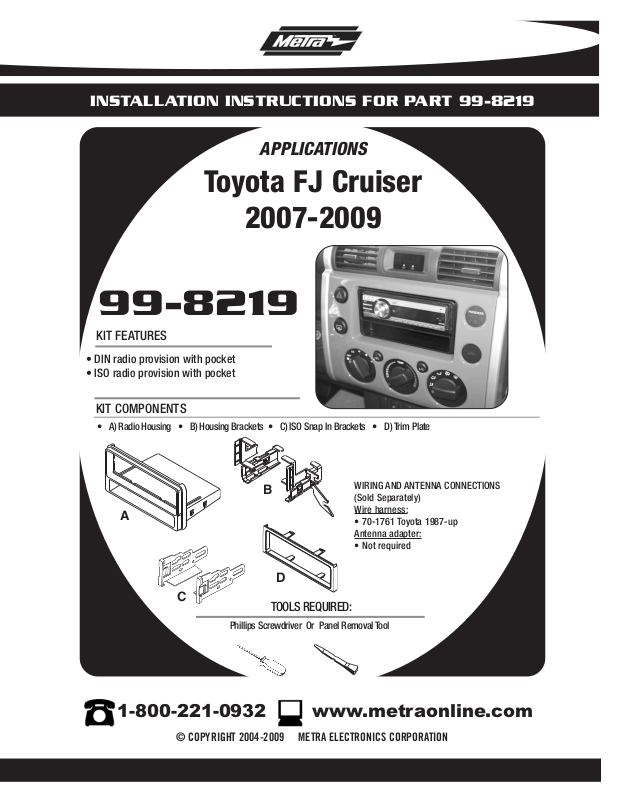

INSTALLATION INSTRUCTIONS FOR PART 99-8219
APPLICATIONS
Toyota FJ Cruiser
2007-2009
99-8219
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
KIT COMPONENTS
• A) Radio Housing • B) Housing Brackets • C) ISO Snap In Brackets • D) Trim Plate
B
A
D
C
TOOLS REQUIRED:
Phillips Screwdriver Or Panel Removal Tool
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Wire harness:
• 70-1761 Toyota 1987-up
Antenna adapter:
• Not required
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
99-8219
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- Toyota FJ Cruiser 2007-2009 . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly *
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . 2
- ISO Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . 3
Final
*Note:
Refer also to the instructions included with the aftermarket radio.
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
99-8219
DASH DISASSEMBLY
TOYOTA FJ CRUISER 2007-2009
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Remove two Phillips screws from
bottom part of side trim panels.
Figure A)
Using a panel removal tool, carefully
3
remove the side trim panels.
(Figure B)
Remove (2) Phillips screws from radio
4
trim panel.
Using panel removal tool, carefully
5
remove radio trim panel.
Remove (4) 10mm bolts securing the
6
radio.
(Figure C)
(Figure D)
A
B
7
Unplug and remove radio.
Continue to kit assembly.
D
C
1
99-8219
KIT ASSEMBLY
DIN RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.

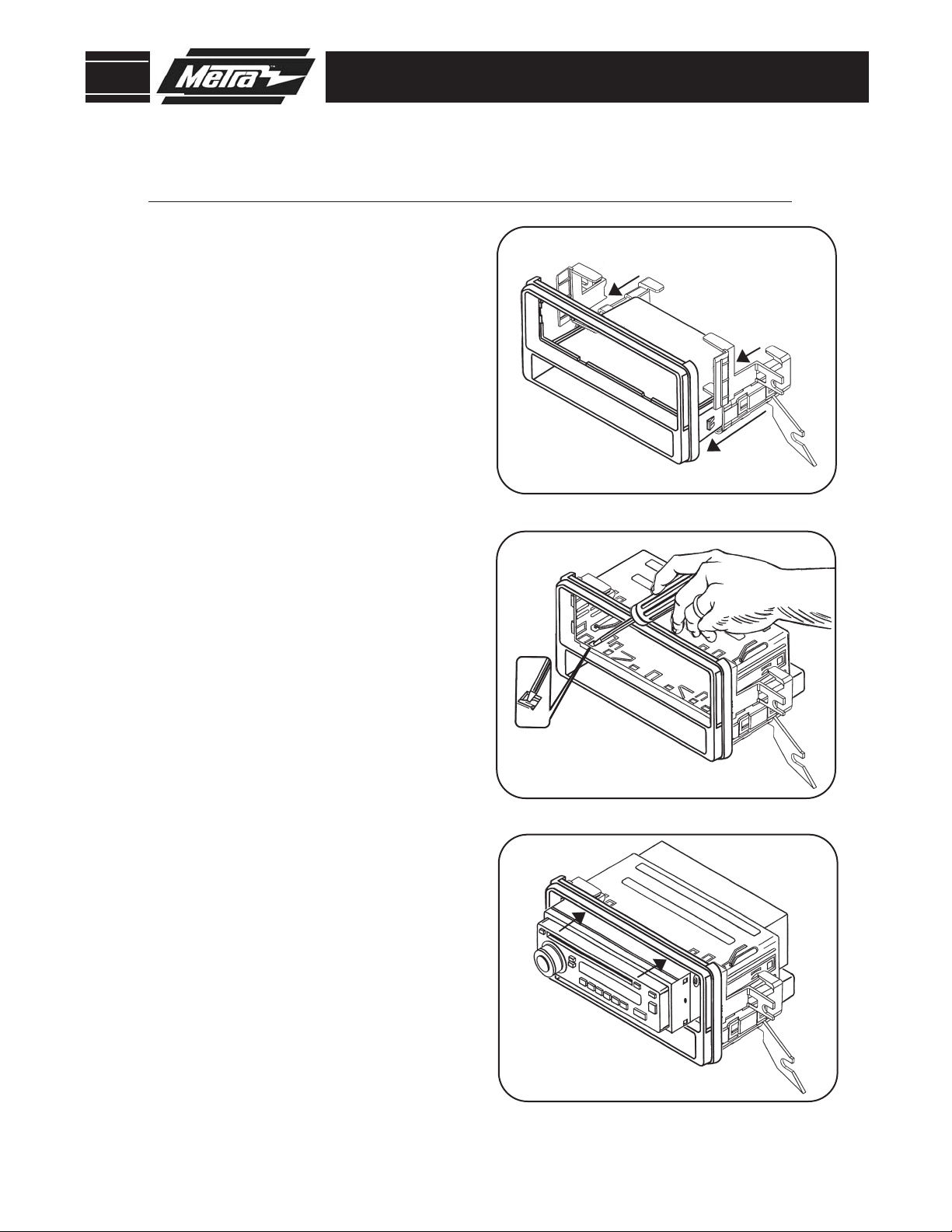

Slide the housing brackets onto
1
the side of the radio housing until
the clips engage.
are marked left and right.
Slide the DIN cage into the Radio
2
Housing and secure by bending the
metal locking tabs outward.
(Figure B)
Slide the aftermarket radio into the
3
cage and secure.
Continue to final assembly.
Note: Brackets
(Figure C)
A
(Figure A)
B
2
C
99-8219
KIT ASSEMBLY
ISO RADIO PROVISION WITH POCKET
*Note: Refer also to the instructions included with the aftermarket radio.
Slide the housing brackets onto
1
the side of the radio housing until
the clips engage. Note: Brackets
are marked left and right.
Mount the ISO Brackets to the
2
aftermarket radio using the
screws supplied with the radio.
(Figure B)
Slide the radio into the radio
3
housing until the side clips
engage. Snap the Trim-plate into
the Radio Housing.
(Figure C)
(Figure A)
A
B
Continue to final assembly.
C
3
99-8219
KIT ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually
tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Dimmer . . . . . . . . . . Orange / White
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray/ Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
4
99-8219
NOTES
5
99-8219 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 05/13/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-8219
