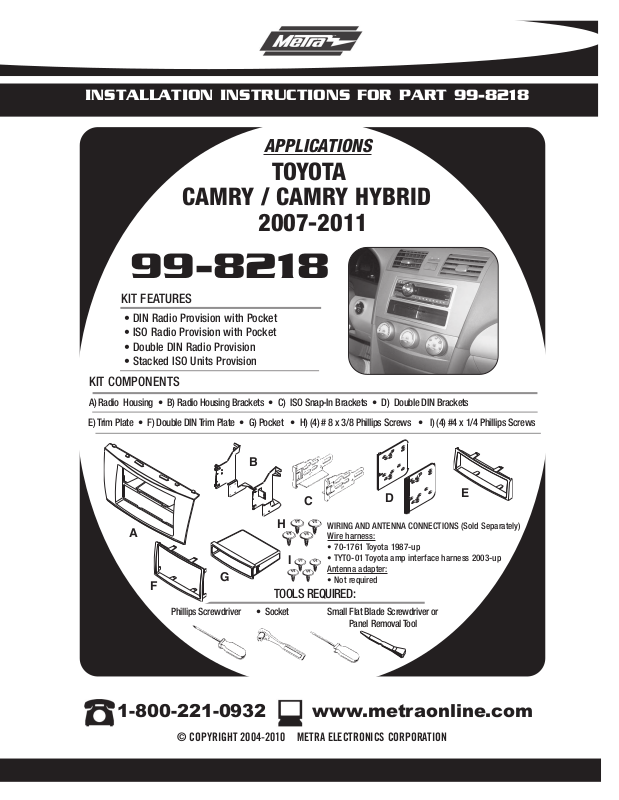

INSTALLATION INSTRUCTIONS FOR PART 99-8218

APPLICATIONS

TOYOTA

CAMRY / CAMRY HYBRID

2007-2011

99-8218

KIT FEATURES

• DIN Radio Provision with Pocket

• ISO Radio Provision with Pocket

• Double DIN Radio Provision

• Stacked ISO Units Provision

KIT COMPONENTS

A) Radio Housing • B) Radio Housing Brackets • C) ISO Snap-In Brackets • D) Double DIN Brackets

E) Trim Plate • F) Double DIN Trim Plate • G) Pocket • H) (4) # 8 x 3/8 Phillips Screws • I) (4) #4 x 1/4 Phillips Screws

B

E

A

F

G

Phillips Screwdriver • Socket

C

H

I

TOOLS REQUIRED:

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

e harness:

Wir

• 70-1761 Toyota 1987-up

• TYTO-01 Toyota amp interface harness 2003-up

Antenna adapter:

• Not required

Small Flat Blade Screwdriver or

D

Panel Removal Tool

1-800-221-0932 www.metraonline.com

© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION

99-8218

K

NOWLEDGE IS POWER

Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.

TABLE OF CONTENTS

Dash Disassembly

- Toyota Camry / Camry Hybrid 2007-2011 . . . . . . . . . . . . 1, 2

Kit

Assembly

- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . 3

- ISO Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . 4

- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 5

- Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Final

Assembly ....................................7

99-8218

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

4

5

6

DASH DISASSEMBLY

TOYOTA CAMRY/CAMRY HYBRID 2007-2011

A

Disconnect the negative battery terminal

1

to prevent an accidental short circuit.

Turn the shift knob counterclockwise to

2

remove.

Unclip and remove (1) trim panel from each

3

side of the pocket below the radio/climate
control assembly. (2 panels total)
(Figure A)

B

4

Unclip and remove the shift knob trim
panel. (Figure B)

5

Unclip and remove the top of the center
console inc

luding the cup holders.

(Figure B)

6

Remove (1) Phillips screw from each
side of pocket below the radio/climate
control assembly (2 screws total).
(Figure C)

7

Unclip and remove the pocket.

(Figure C)

C

Continued on Page 2.

1

99-8218

1

2

3

4

5

6

1

2

3

4

5

6

DASH DISASSEMBLY

TOYOTA CAMRY / CAMRY HYBRID 2007-2011

A

8

Unclip and remove the A/C vents above
the radio. (Take care not to scratch the
dash panel. (Figure A)

9

Remove (2) 10mm bolts above the radio
(behind the A/C vents) and (2) 10mm
bolts below the climate controls (behind
pocket) then unplug and remove the
radio/climate control assembly.
(Figure B)

B

10

Remove the (10) Phillips screws securing
the brackets to the radio/c

limate control
assembly and separate the radio from the
climate controls. (Retain climate controls
and screws for use during kit assembly).
(Figure C)

11

Unscrew and remove the (2) Clips from
the back of the factory radio. (Retain clips
for use during kit assembly. (Figure C)

Continue to kit assemby.

C

2

99-8218

KIT ASSEMBLY

DIN RADIO PROVISION WITH POCKET

A

NOTE: Refer also to the instructions
included with the aftermarket radio.

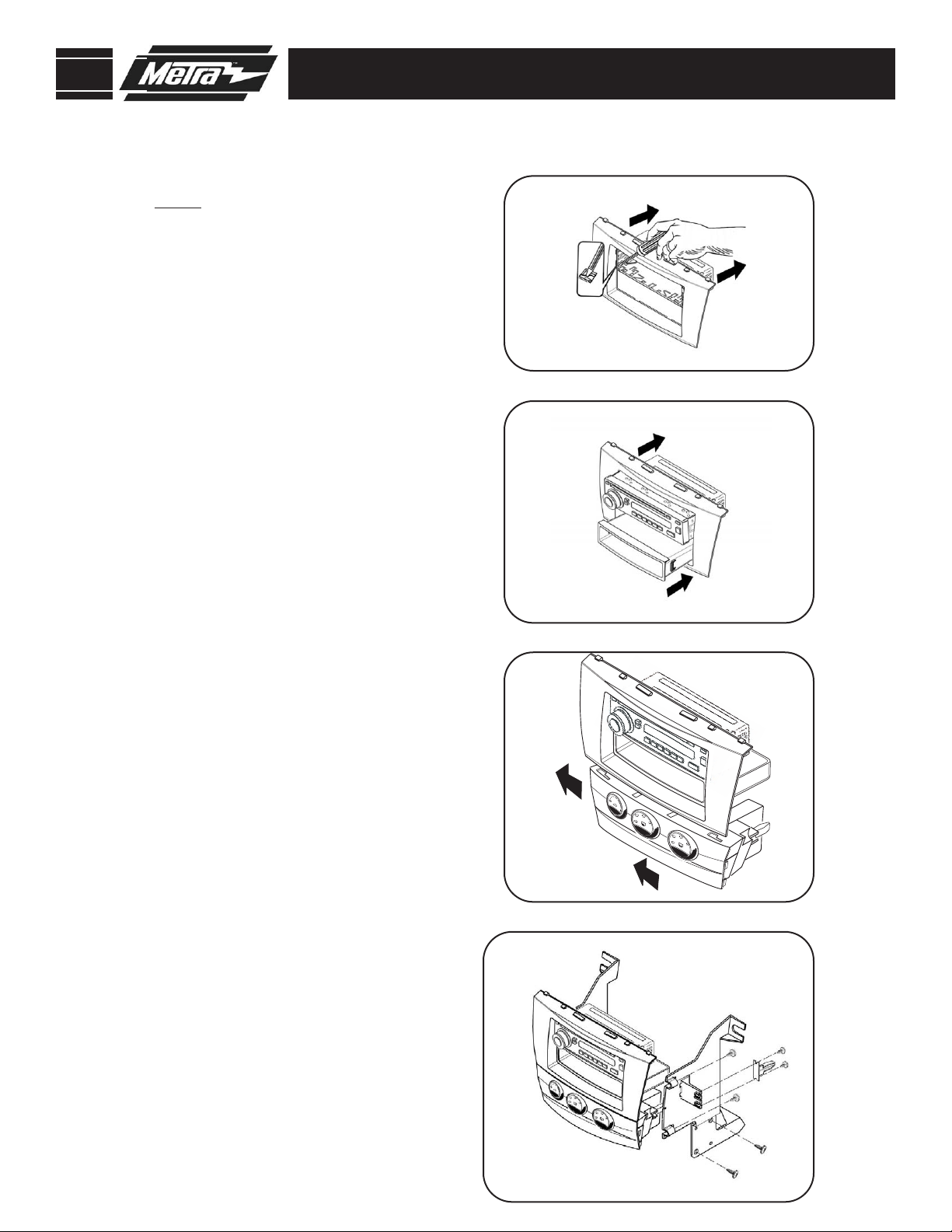

Slide the DIN cage into the Radio

1

Housing and secure by bending
the metal locking tabs down.

Figure A)

(

B

Slide the after-market radio into the

2

cage until it snaps into place.

Figure B)

(

Snap the pocket into the radio

3

housing. (

Align the small legs on the bottom

4

of the radio housing with the slots in
the top of the climate control. Then
slide the c
engage together. (

Attach the radio housing brackets to

5

the radio housing using the included
Phillips screws. (

Secure the radio housing brackets to

6

the climate control using the factory
hardware.

Figure B)

limate control sideways to

Figure C)

Figure D)

Figure D)

(

C

D

Attach the (2) clips removed in step

7

11 in dash disassembly to the radio
housing brackets using the supplied
small Phillips screws.(

Continue to Final Assembly.

Figure D)

3

99-8218

KIT ASSEMBLY

ISO RADIO PROVISION WITH POCKET

A

NOTE: Refer also to the instructions
included with the aftermarket radio.

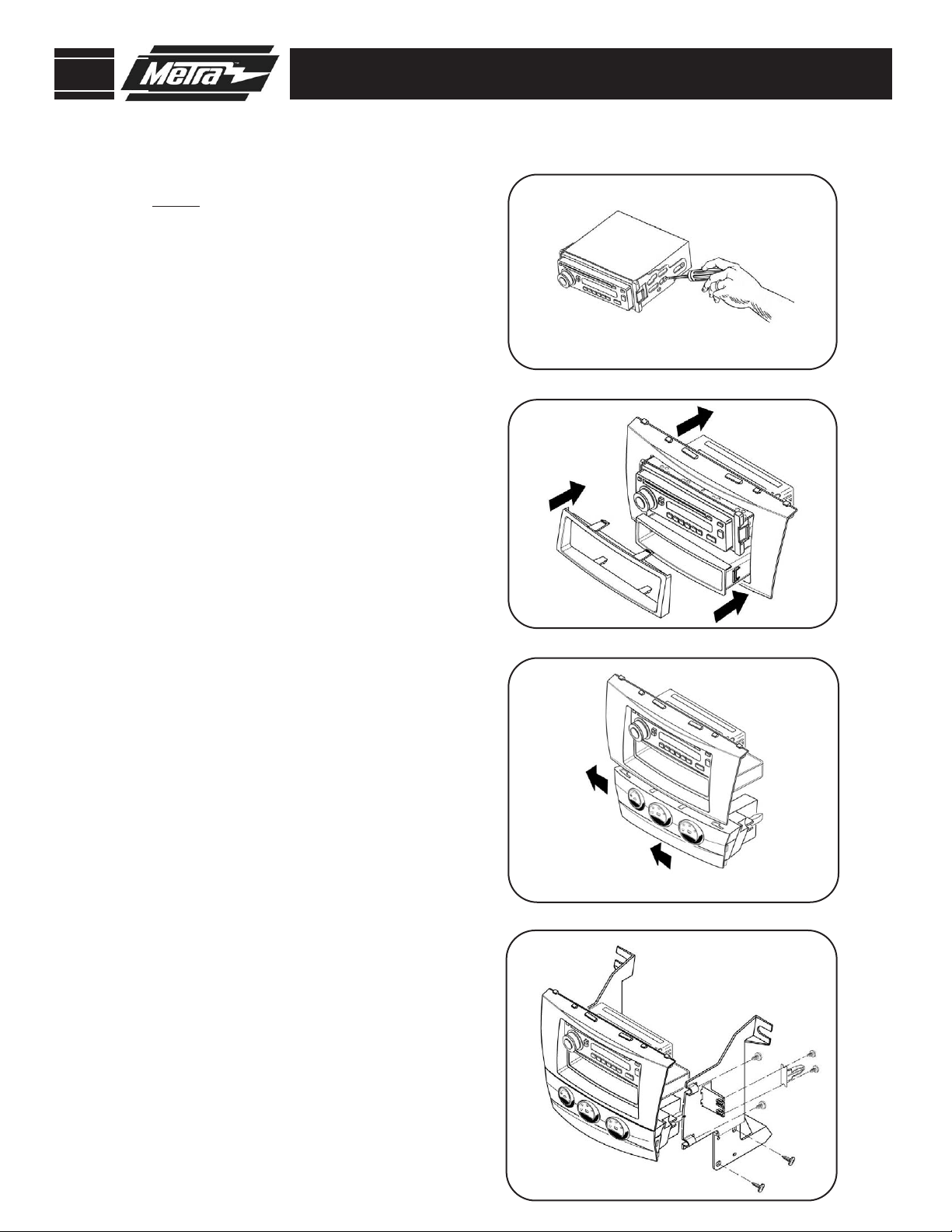

Mount the ISO Brackets to the

1

radio with the screws supplied
with the radio. (

Slide the radio into the radio open-

2

ing until the side clips engage.

Figure B)

(
Snap the Trim plate into the Radio

3

Housing. (

Figure A)

B

Figure B)

Snap the pocket into the radio

4

housing. (

Align the small legs on the bottom

5

of the radio housing with the slots in
the top of the climate control. Then
slide the climate control sideways to
engage together.

Attach the radio housing brackets to

6

the radio housing using the included
Phillips screws. (

Secure the radio housing brackets to

7

the climate control using the factory
hardware.

Figure B)

Figure C)

(

Figure D)

(

Figure D)

C

D

Attach the (2) clips removed in step

8

11 in dash disassembly to the radio
housing brackets using the supplied
small Phillips screws.(

Continue to Final Assembly.

Figure D)

4

99-8218

KIT ASSEMBLY

DOUBLE DIN
RADIO PROVISION

NOTE: Refer also to the instructions
included with the aftermarket radio.

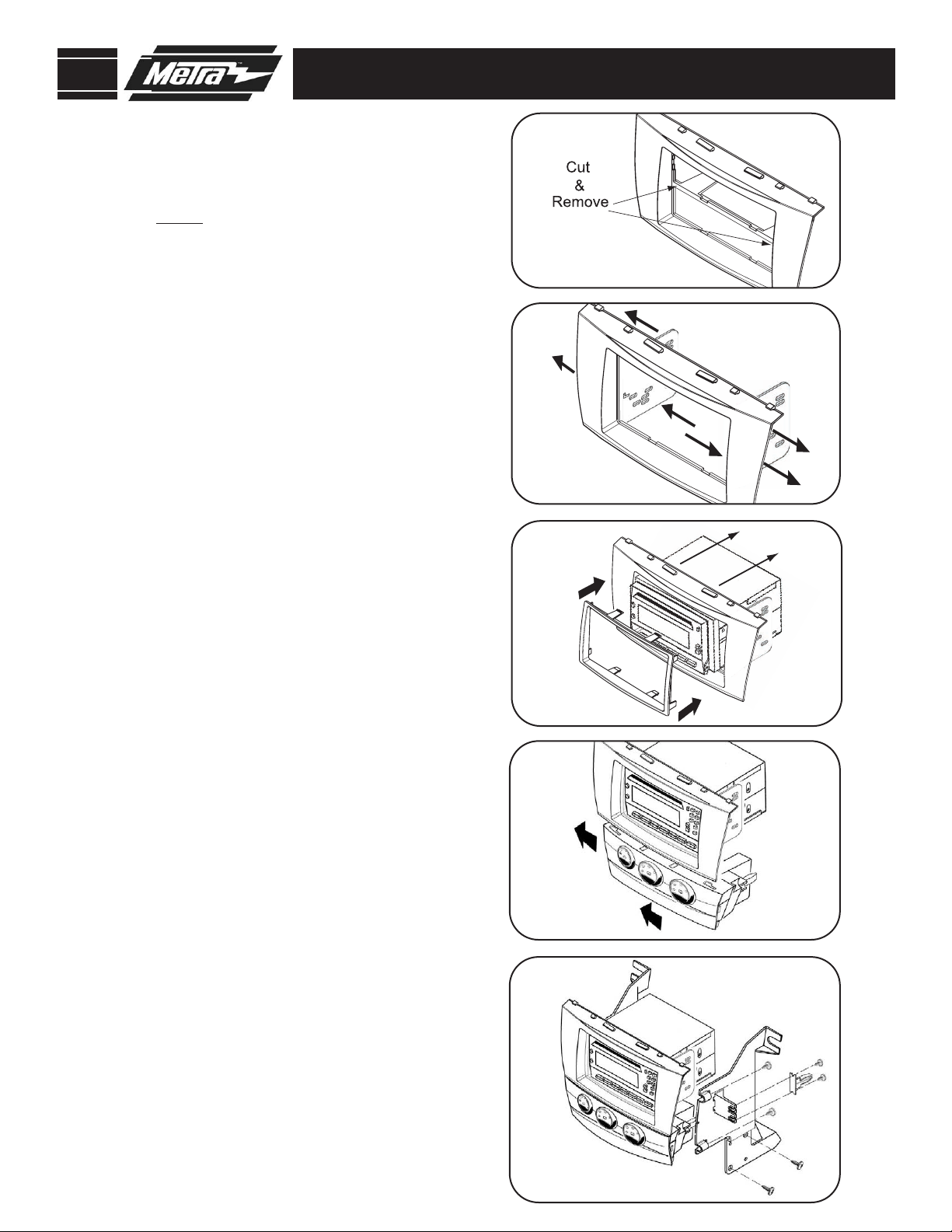

Cut and remove center divider

1

from radio housing. (

Snap the Double DIN brackets to the

2

inside edge of the radio housing.

Figure B)

(

Slide the Double DIN radio into the

3

Double DIN bracket/radio housing
assembly and secure the radio to the
assembly using the screws supplied
with the radio. (

Figure A)

Figure C)

A

B

C

Snap the Double DIN trim-plate into

4

the housing/radio assembly. (

Align the small legs on the bottom of

5

the radio housing with the slots in the
top of the climate control then slide the

te control sideways to engage

clima
together. (

Attach the corresponding radio housing

6

bracket to the radio housing using the
included Phillips screws. (

Secure the radio housing brackets to

7

the climate control using the factory
hardware.

Attach the (2) clips removed in step 11 in

8

dash disassembly to the radio housing
brackets using the supplied small Phillips
screws.(

Figure D)

(

Figure E)

Figure E)

Figure C)

Figure E)

D

E

Continue to Final Assembly.

5

99-8218

KIT ASSEMBLY

STACKED ISO

UNITS PROVISION

NOTE: Refer also to the instructions
included with the aftermarket radio.

Cut and remove center divider

1

from radio housing. (

Snap the Double DIN brackets to the

2

inside edge of the radio housing.

Figure B)

(

Slide the Stacked ISO units into the

3

Double DIN bracket/radio housing
assembly and secure the radio to the
assembly using the screws supplied
with the units. (

Figure A)

Figure C)

A

B

C

Snap the Double DIN trim-plate into

4

the housing/radio assembly. (

Align the small legs on the bottom of

5

the radio housing with the slots in the
top of the climate control then slide the

te control sideways to engage

clima
together. (

Attach the corresponding radio housing

6

bracket to the radio housing using the
included Phillips screws. (

Secure the radio housing brackets to

7

the climate control using the factory
hardware.

Attach the (2) clips removed in step 11

8

in dash disassembly to the radio housing
brackets using the supplied small
Phillips screws.(

Figure D)

Figure E)

(

Figure E)

Figure C)

Figure E)

D

E

Continue to Final Assembly.

6

99-8218

FINAL ASSEMBLY

FINAL ASSEMBLY

A

B

C

D

1

2

3

Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

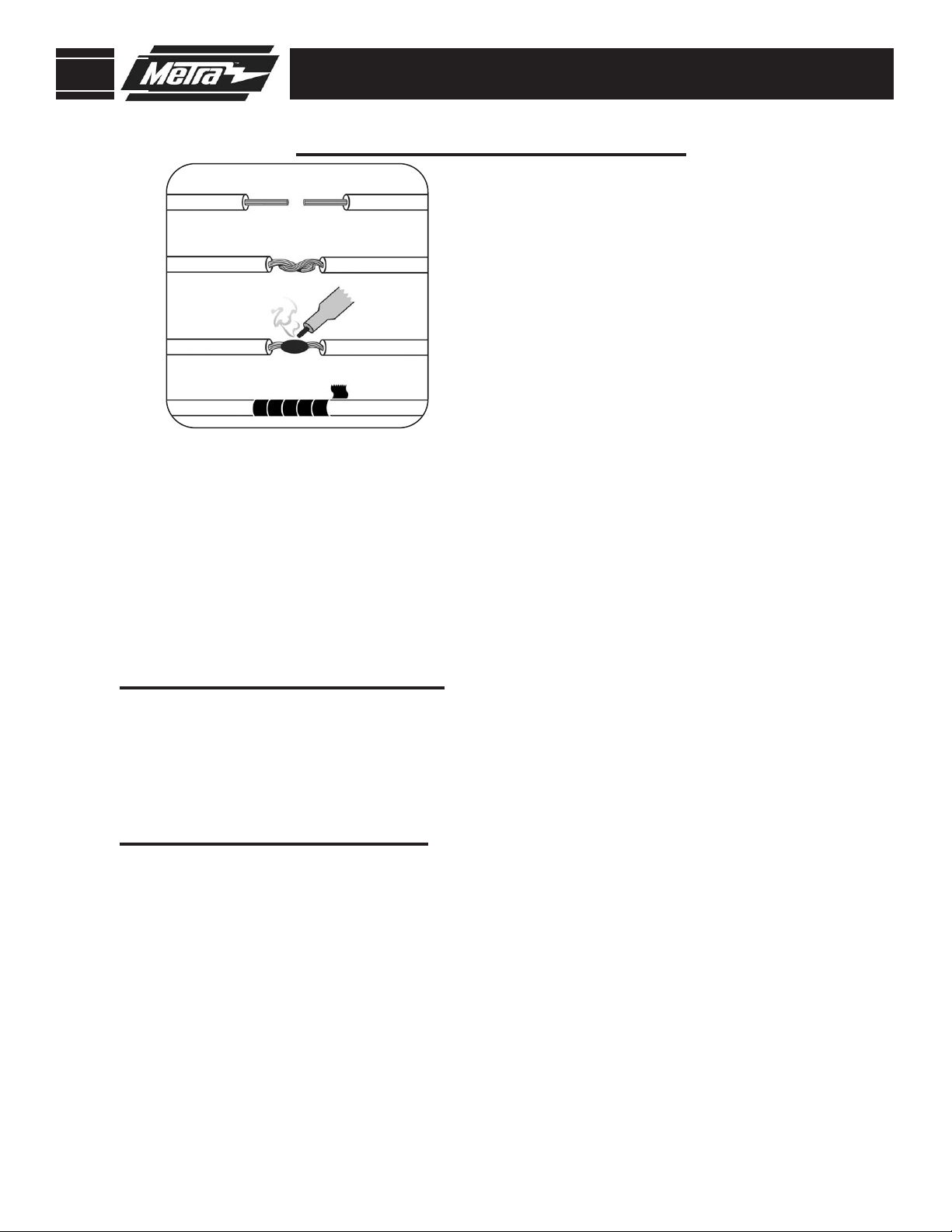

A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D)

FINAL WIRING CONNECTIONS

Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

7
