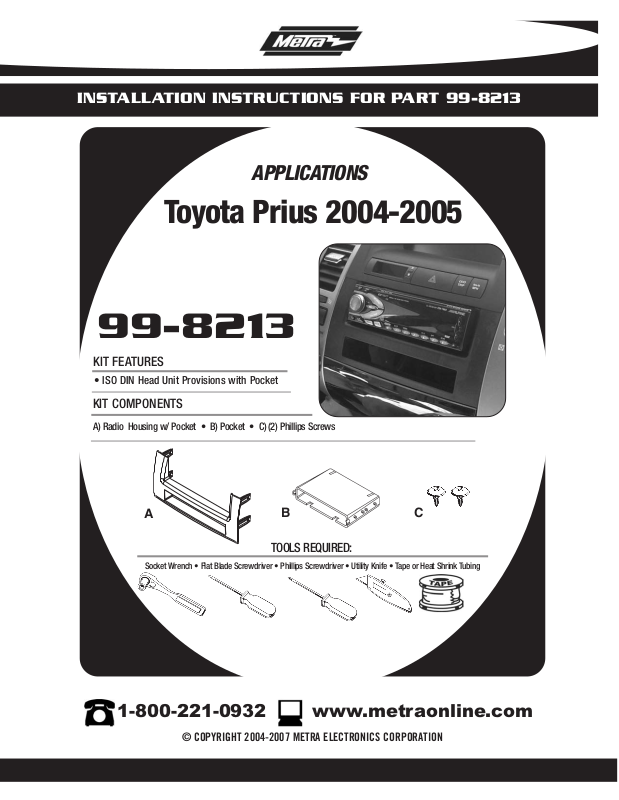

INSTALLATION INSTRUCTIONS FOR PART 99-8213
APPLICA TIONS
Toyota Prius 2004-2005
99-8213
KIT FEATURES
• ISO DIN Head Unit Pro
KIT COMPONENTS
A) Radio Housing w/ Pocket • B) Pocket • C) (2) Phillips Screws
A
et
Sock
visions with Pocket
B
TOOLS REQUIRED:
Wrench • Flat Blade Screwdriver • Phillips Screwdriver • Utility Knife • Tape or Heat Shrink Tubing
C
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
Page 2
99-8213
Dash Disassembly .....................................1-2
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Climate Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TABLE OF CONTENTS
Page 3
99-8213
TOYOTA PRIUS 2004-2005
A
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2

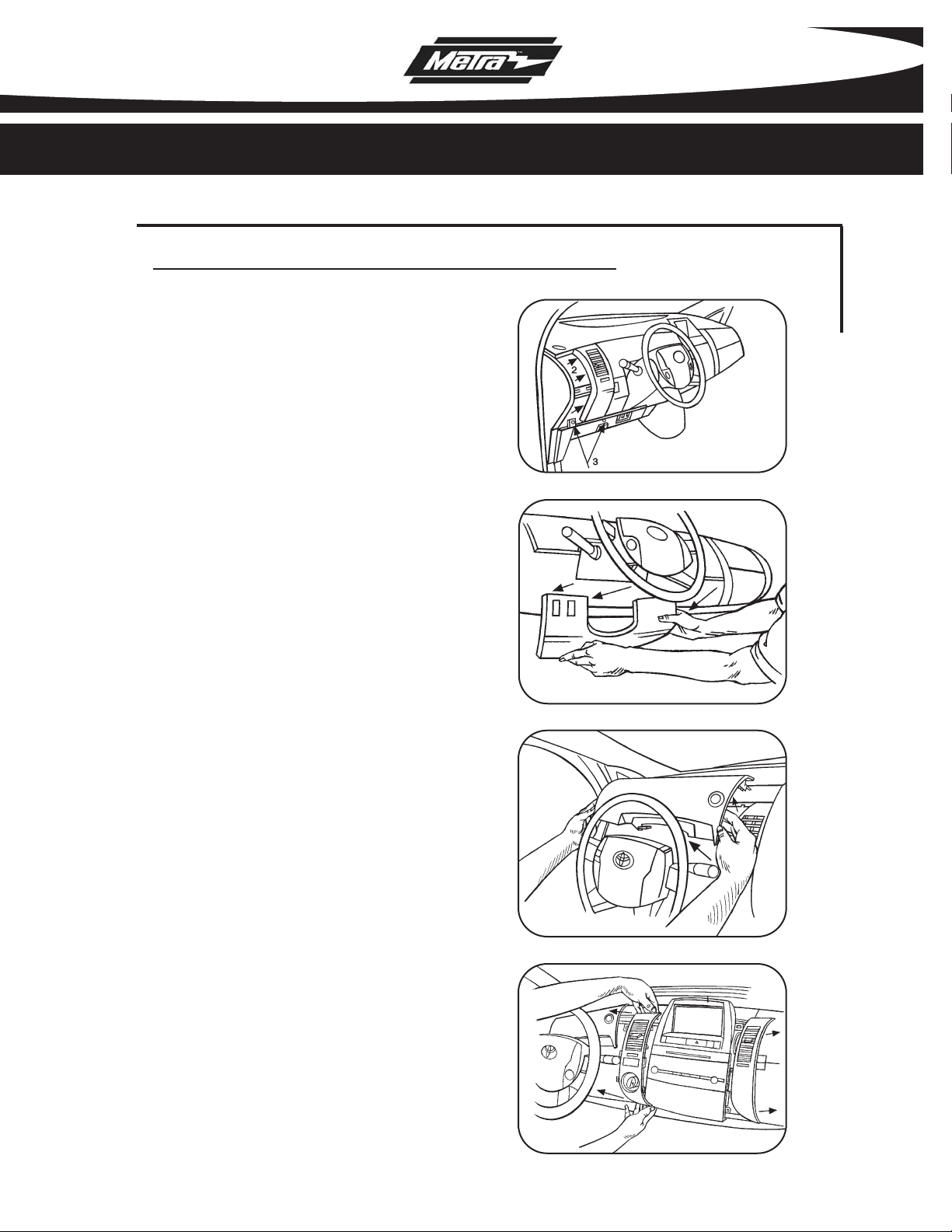

Unsnap panel with vent on driver’s
side and remove.
Remove (2) Phillips screws on panel
3
below steering column with hood
release on it and remove panel.
(Figure A)
(Figure A)
B
DASH DISASSEMBLY
Unclip and remove panel surrounding
4
under side of steering column..
(Figure B)
Unclip and remove panel above
5
steering column.
Unclip and remove vent panel sur-
6
rounding the shifter.
Open glove box and remove vent
7
panel next to the radio.
(Figure C)
(Figure D)
(Figure D)
C
D
1
Page 4
99-8213
TOYOTA PRIUS 2004-2005 (CON’T)
E

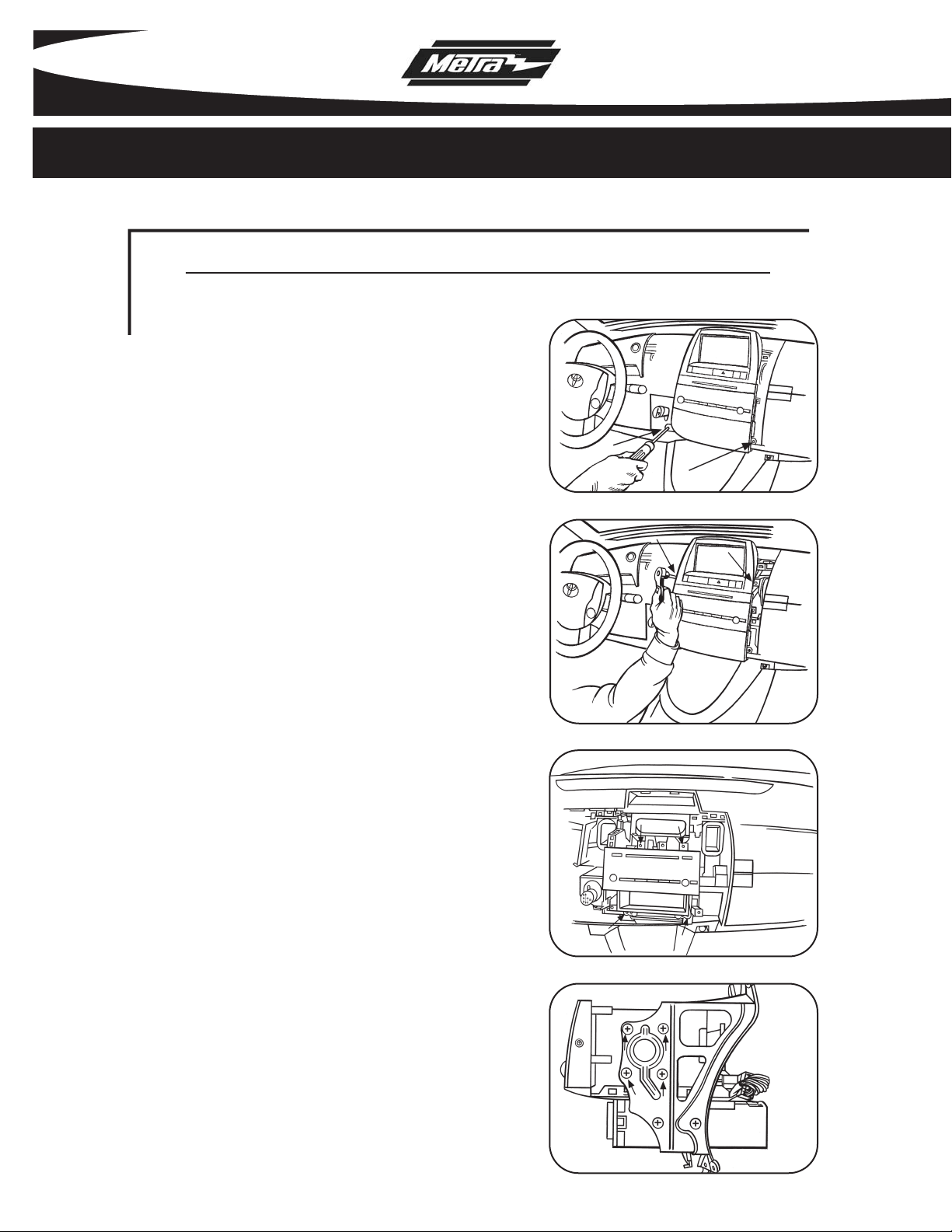

Remove (2) Phillips screws from flip
8
open panel below radio, unclip and
remove.
Remove (2) 10mm bolts from info
9
center display above radio, unclip and
remove.
Remove (2) 10mm bolts from top of
10
radio assembly.
(Figure E)
(Figure F)
F
(Figure G)
DASH DISASSEMBLY
Remove (2) 10mm bolts from bottom
11
of radio assembly, unclip radio and
remove.
Remove (4) Phillips screws to remove
12
factory radio from bracket assembly.
Note position of factory radio in
bracket assembly for reference in
step 1 of Kit Assembly.
(Figure G)
(Figure H)
G
H
2
Page 5
99-8213
ISO DIN HEAD UNIT PROVISIONS
For the pocket to fit properly inside
1
the dash the sides of the pocket
need to be trimmed.
Using a utility knife carefully cut off
2
the 4 round pieces on each side of
the pocket.
(Figure A)
(Figure A)
A
KIT ASSEMBLY

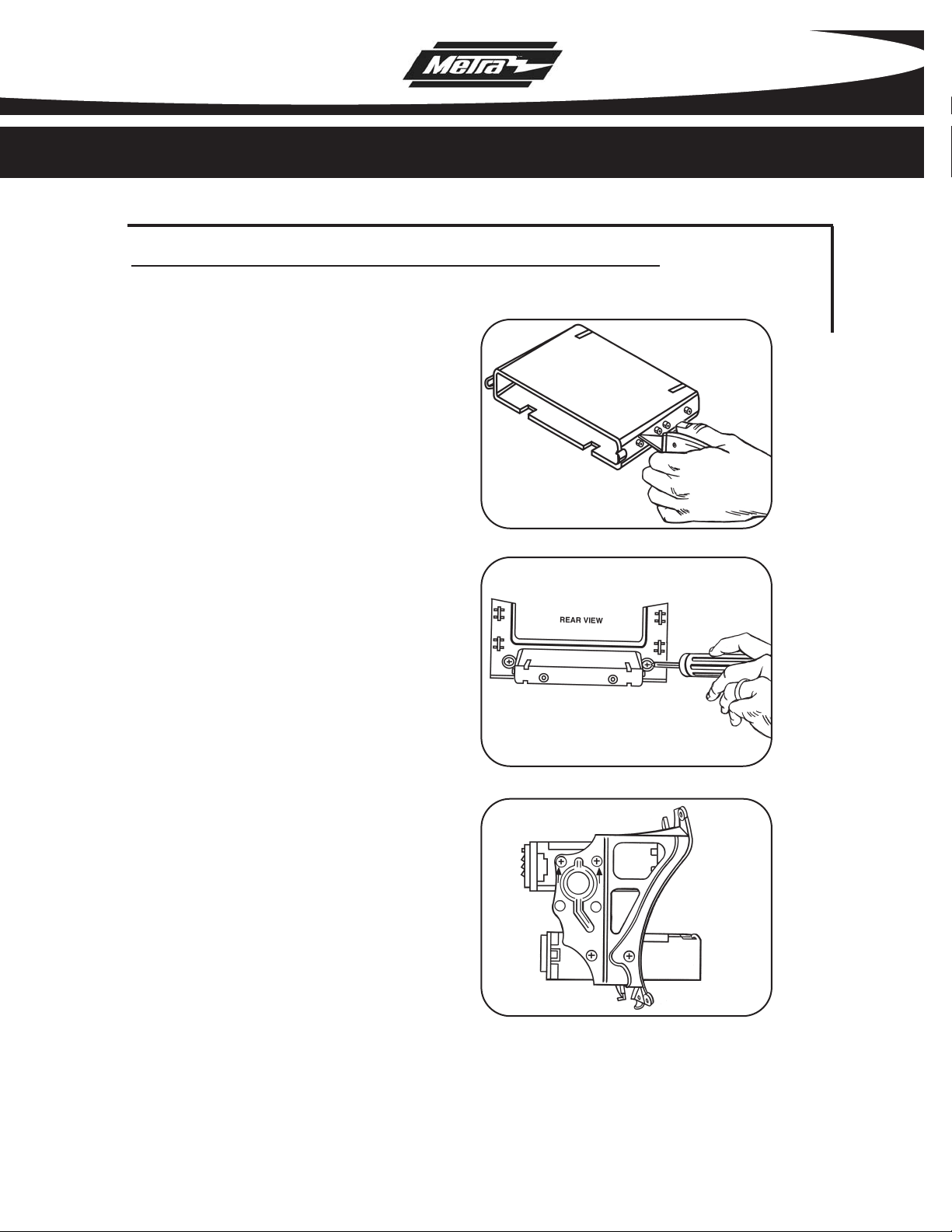

Attach the pocket to the back of the
3
trim plate using the Phillips Screws
supplied with the kit.
Position aftermarket head unit into
4
factory audio bracket assembly and
secure using the top (2) screw
positions and the hardware supplied
with the new head unit.
(Figure B)
(Figure C)
B
C
3
Page 6
99-8213
CLIMATE CONTROL WIRING
For the climate controls to operate properly, the following steps
need to be followed:
Locate the 20 way white connector
1
that has 5 wires in it that was
plugged into the factory radio.

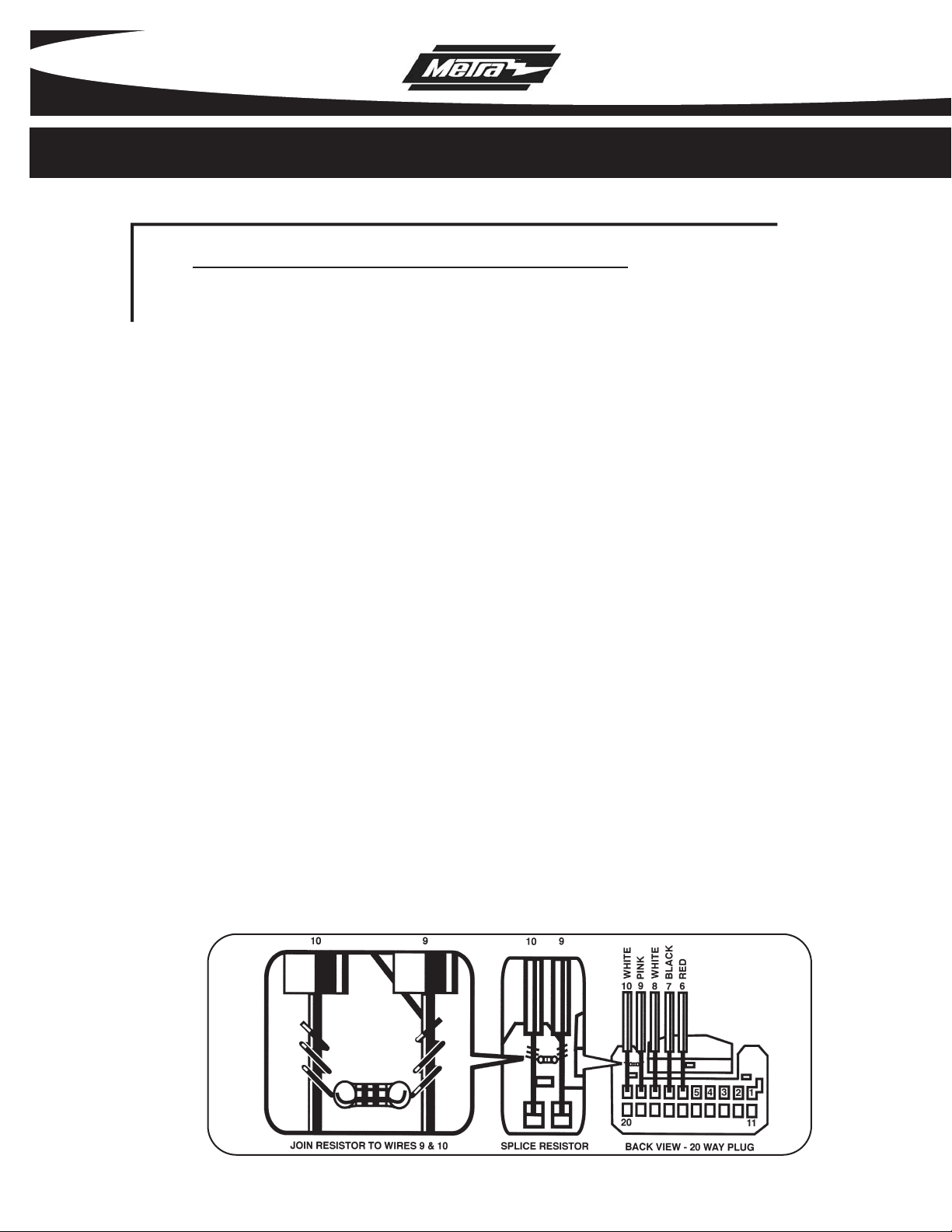

(see diagram)
You will need the small gauge white
2
wire in pin 10 and the small gauge
pink wire in pin 9. The 3 remaining
larger gauge wires are not needed
at this time. (see diagram)
CLIMATE CONTROL WIRING
Strip back the white and pink wires,
3
connect one side of the 68 OHM
resistor to the white wire and
connect the other side of the resistor
to the pink wire (see diagram).
When completed be sure to tape up
4
the wires including the resistor to
protect them from coming into
contact with any metal, and push
the 20 way connector back into
the dash. (see diagram)
4
Page 7
99-8213
A
B
C
D
Locate the factory wiring harness in the
1
dash. Metra recommends using the proper
mating adapter and making the connections
as shown. (Isolate and individually tape off
the ends of any unused wires to prevent
electrical short circuit)
Re-connect the negative battery terminal
2
and test the unit for proper operation.

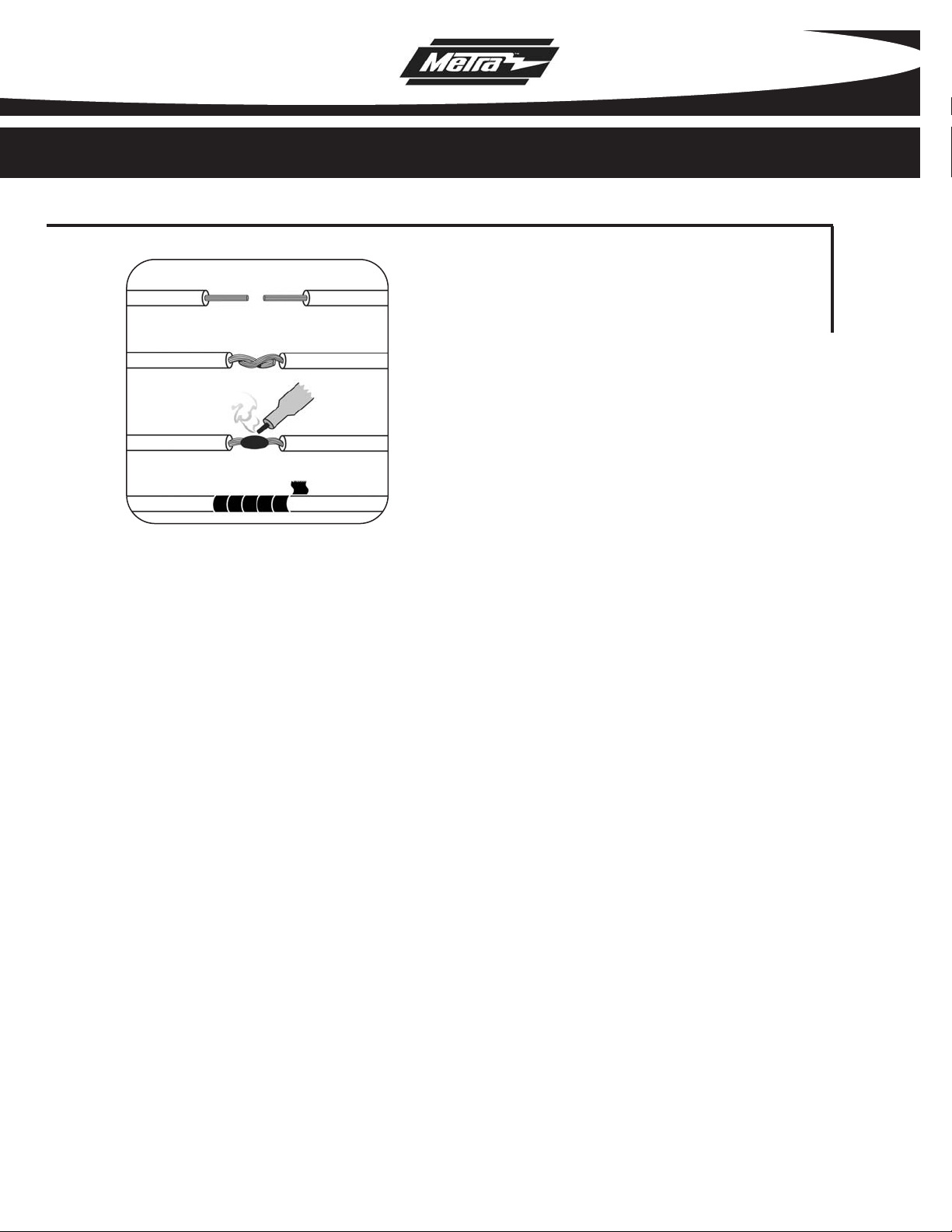

A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL ASSEMBLY
Reassemble radio and dash assemblies in
3
reverse order of disassembly using the
99-8213 in place of the factory panel.
5
Page 8
INST998213
1-800-221-0932 www.metraonline.com
Rev. 04/12/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST99-8213
