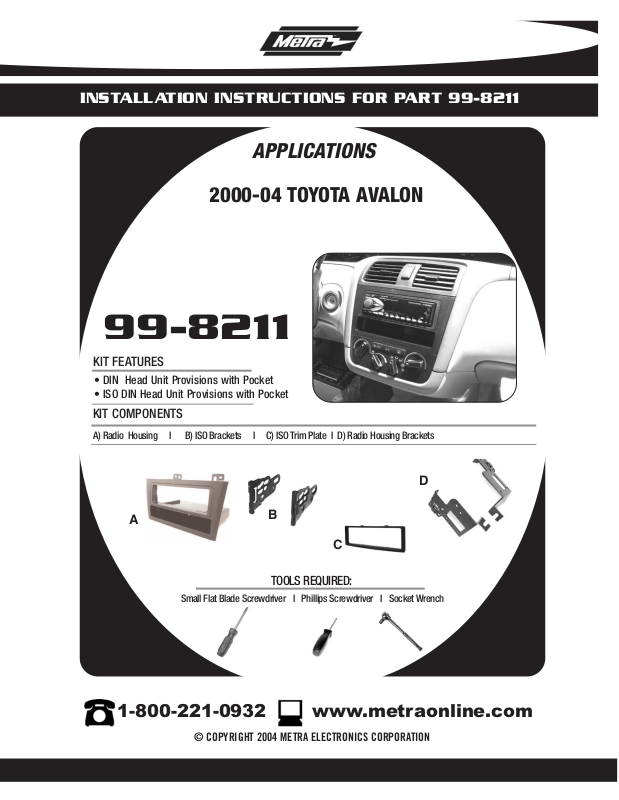

INSTALLATION INSTRUCTIONS FOR PART 99-8211
Small Flat Blade Screwdriver I Phillips Screwdriver I Socket Wrench
1-800-221-0932 www.metraonline.com
KIT FEATURES
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
APPLICATIONS
2000-04 TOYOTA AVALON
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
A) Radio Housing I B) ISO Brackets I C) ISO Trim Plate I D) Radio Housing Brackets
KIT COMPONENTS
TOOLS REQUIRED:
99-8211
A
B
C
D
99-8211
•
Dash Disassembly
- 2000-2004 Toyota Avalon (column shift models) . . . . . . . . . . . 1
- 2000-2004 Toyota Avalon (console shift models) . . . . . . . . . . 2
•
Kit Assembly
- DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
•
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
- Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 & 7
TABLE OF CONTENTS
99-8211
1

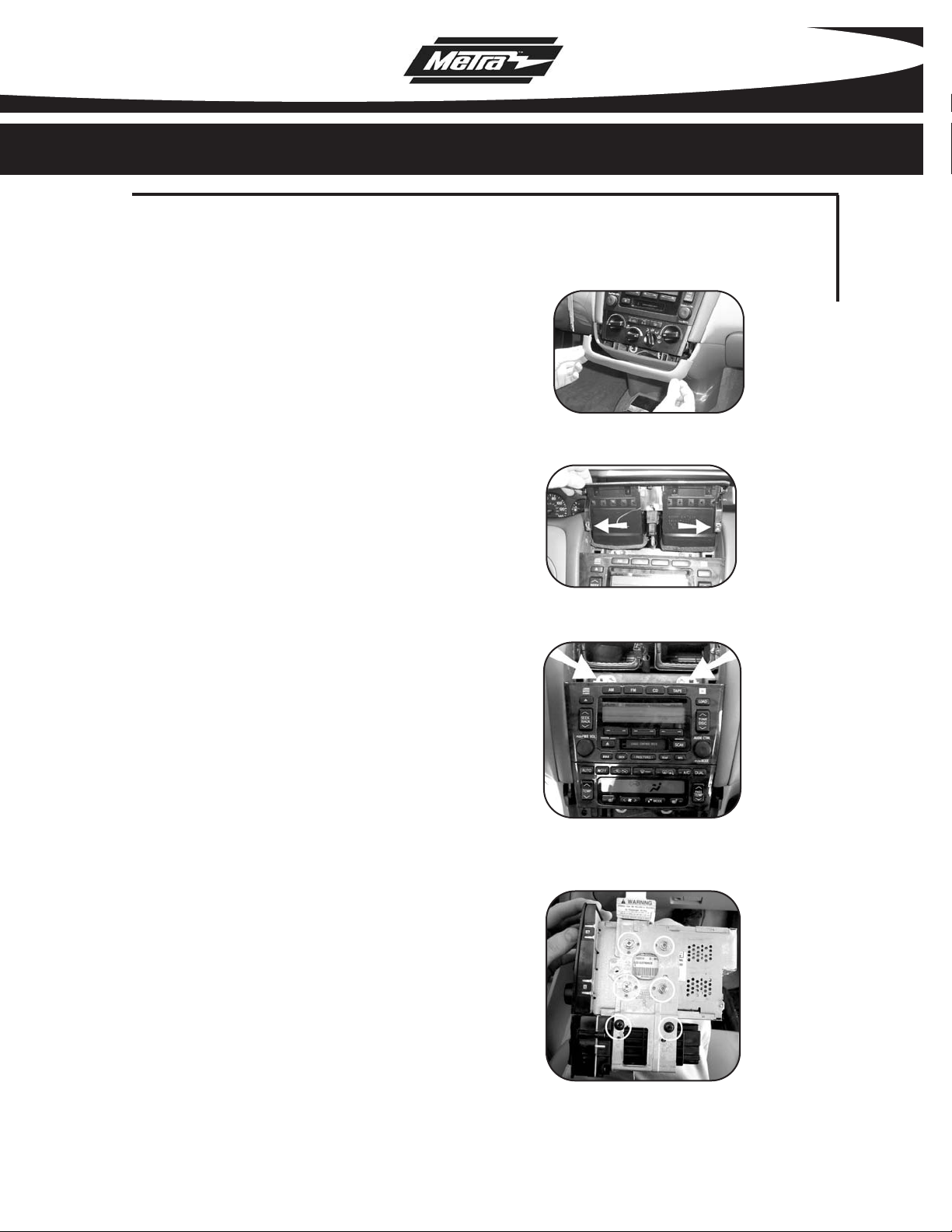

DASH DISASSEMBLY
2000-2004 TOYOTA AVALON (column shift models)
Disconnect the negative battery terminal
to prevent an accidental short circuit.
Unsnap the trim below the climate
control to reveal (2) 10 MM bolts
and remove.
(Figure A)
1
2
A
Carefully pull air vents above radio
towards rear of car to unsnap. Note:
There are (3) snaps, (2) are at the bottom
sides and (1) is at the top middle of the
vent assembly.
(Figure B)
3
Remove (2) 10 MM bolts from above
radio/climate control assembly and
remove assembly together.
(Figure C)
4
Remove (6) Phillips screws (4 from radio
and 2 from climate control) from each
side bracket to separate radio and climate control.
(Figure D)
5
B
C
D
2
99-8211
DASH DISASSEMBLY
2000-2004 TOYOTA AVALON (console shift models)
Disconnect the negative battery terminal
to prevent an accidental short circuit.
Open the center console armrest,
unsnap cover above cup holder and
remove (2) Phillips screws toward
the outside of the panel.
(Figure A)
1
2
A
Carefully pull air vents above radio
towards rear of car to unsnap. Note:
There are (3) snaps, (2) are at the bottom
sides and (1) is at the top middle of the
vent assembly.
(Figure D)
3
Remove (2) 10 MM bolts from above
radio/climate control assembly and
remove assembly together.
(Figure E)
4
Remove (6) Phillips screws (4 from radio
and 2 from climate control) from each
side bracket to separate radio and climate control.
(Figure F)
5
D
E F
Lift up and remove shifter trim/ashtray
assembly.
(Figure B)
3
Unsnap black cover from under climate
controls and remove (2) 10 MM bolts.
(Figure C)
4
B
C
3
99-8211
KIT ASSEMBLY
DIN Head Unit Provision
1
Slide the mounting bracket
onto the 99-8211 until side
clips engage.
(Figure A)
2
Slide factory climate controls
into the 99-8211 and secure
using the factory hardware.
(Figure B)
3
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down.
(Figure C)
4
Slide the aftermarket head unit
into the cage and secure.
5
Snap the Trim plate into the
Radio Housing.
A
B
C
4
99-8211
KIT ASSEMBLY
ISO DIN HEAD UNIT PROVISION
1
Slide the mounting bracket onto
the 99-8211 until side clips
engage.
(Figure A)
2
Slide factory climate controls
into the 99-8211 and secure
using the factory hardware.
(Figure B)
3
Mount the ISO Brackets to the
head unit with the screws supplied with the unit.
4
Slide the head unit into the radio
opening until the side clips
engage.
(Figure C)
5
Snap the Trim plate into the
Radio Housing.
A
B
C
5
99-8211
FINAL ASSEMBLY
A
Locate the factory wiring harness in the dash.
Metra recommends using the proper mating
adapter and making the connections as shown.
(Isolate and individually tape off the ends of
any unused wires to prevent electrical short
circuit)
Re-connect the negative battery terminal and test
the unit for proper operation.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
1
2
Reassemble radio and dash assemblies in
reverse order of disassembly.
3
B
C
D
6
NOTES
99-8211
7
NOTES
99-8211
