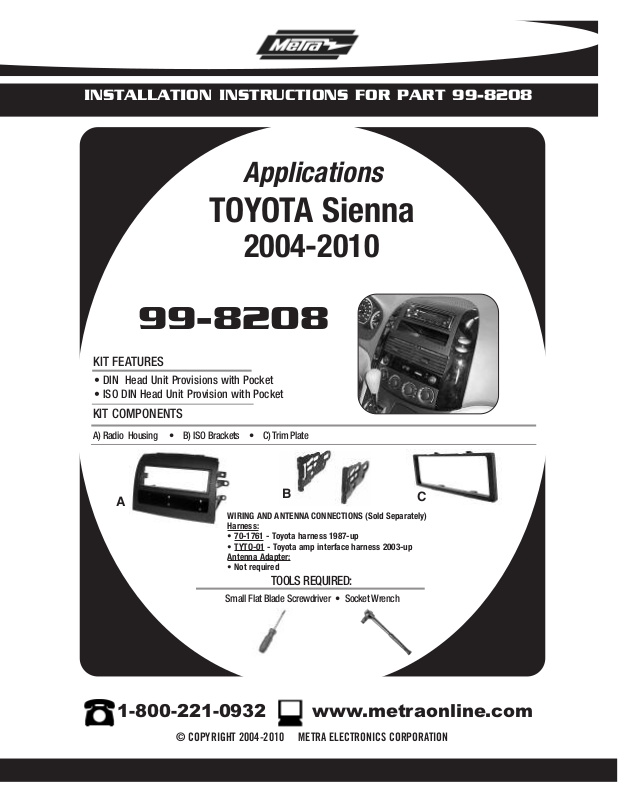

INSTALLATION INSTRUCTIONS FOR PART 99-8208
Applications
TOYOTA Sienna
2004-2010
99-8208
KIT FEATURES
• DIN Head Unit Pro
• ISO DIN Head Unit Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Trim Plate
A
visions with Pocket
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
70-1761
•
TYTO-01
•
Antenna Adapter:
• Not required
Small Flat Blade Screwdriver • Socket Wrench
B
oyota harness 1987-up
- T
- Toyota amp interface harness 2003-up
TOOLS REQUIRED:
C
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
99-8208
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
•
Dash Disassembly
- 2004-2010 Toyota Sienna ---------------------------------------- 1
•
Kit Assembly
- DIN Head Unit Provision with Pocket ---------------------------- 2
- ISO DIN Head Unit Provision with Pocket ------------------------ 3
•
Final Assembly ------------------------------------------------------ 4
•
Notes ----------------------------------------------------------------- 5
TABLE OF CONTENTS
99-8208
2004-2010 TOYOTA SIENNA
Disconnect the negative battery terminal
1
to prevent an accidental short circuit.
Unclip and remove panels from left and
2
right side of radio.
3
Unclip and remove panel or speaker cover
above radio. Figure B
4
Remove (4) 10MM bolts from radio to
remove. Figure C
Figure A
A
DASH DISASSEMBLY
B
C
1
99-8208
DIN Head Unit Provision with Pocket

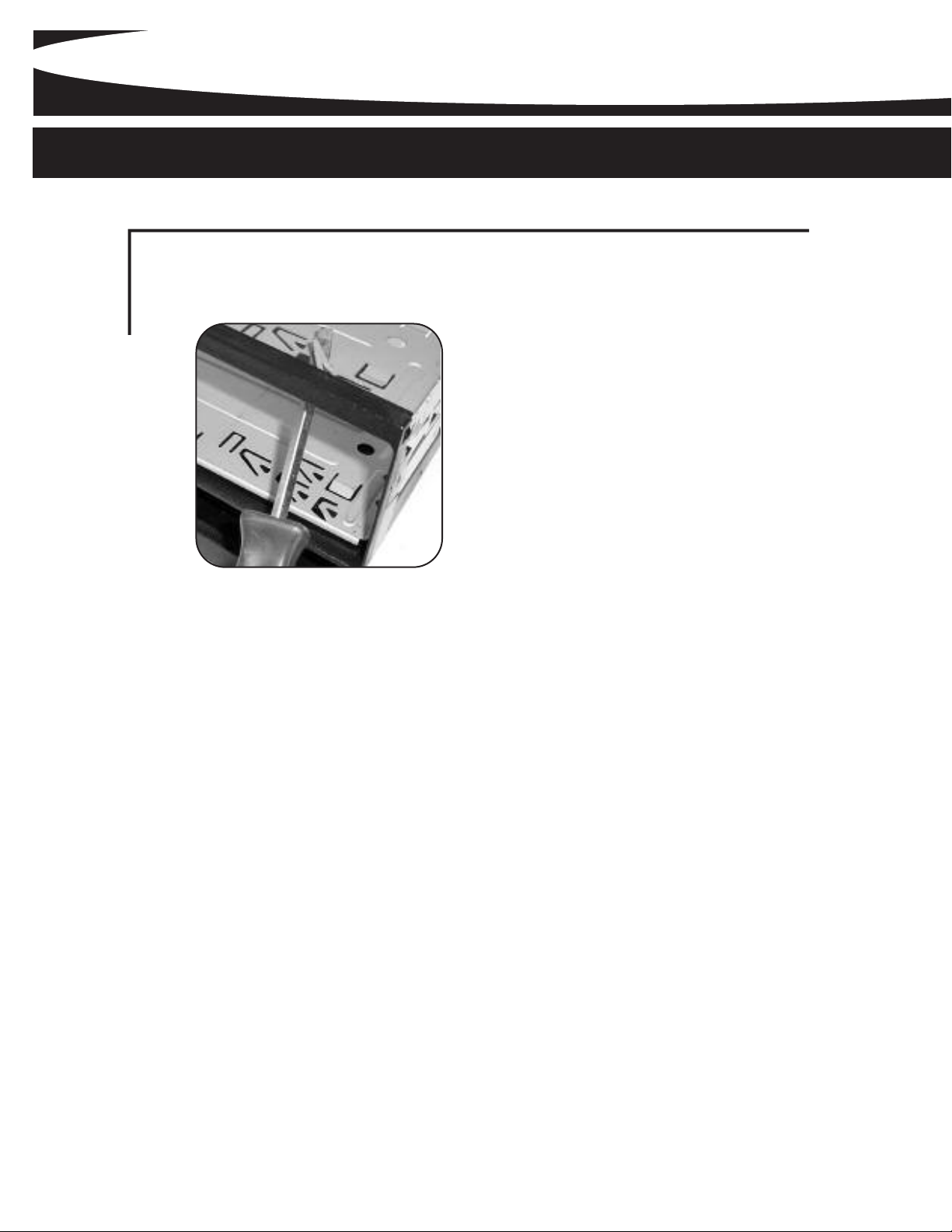

Slide the DIN cage into the Radio
1
Housing and secure by bending
the metal locking tabs down.
Slide the after-market head unit
2
into the cage until secure.
KIT ASSEMBLY
2
99-8208
ISO DIN HEAD UNIT PROVISIONS

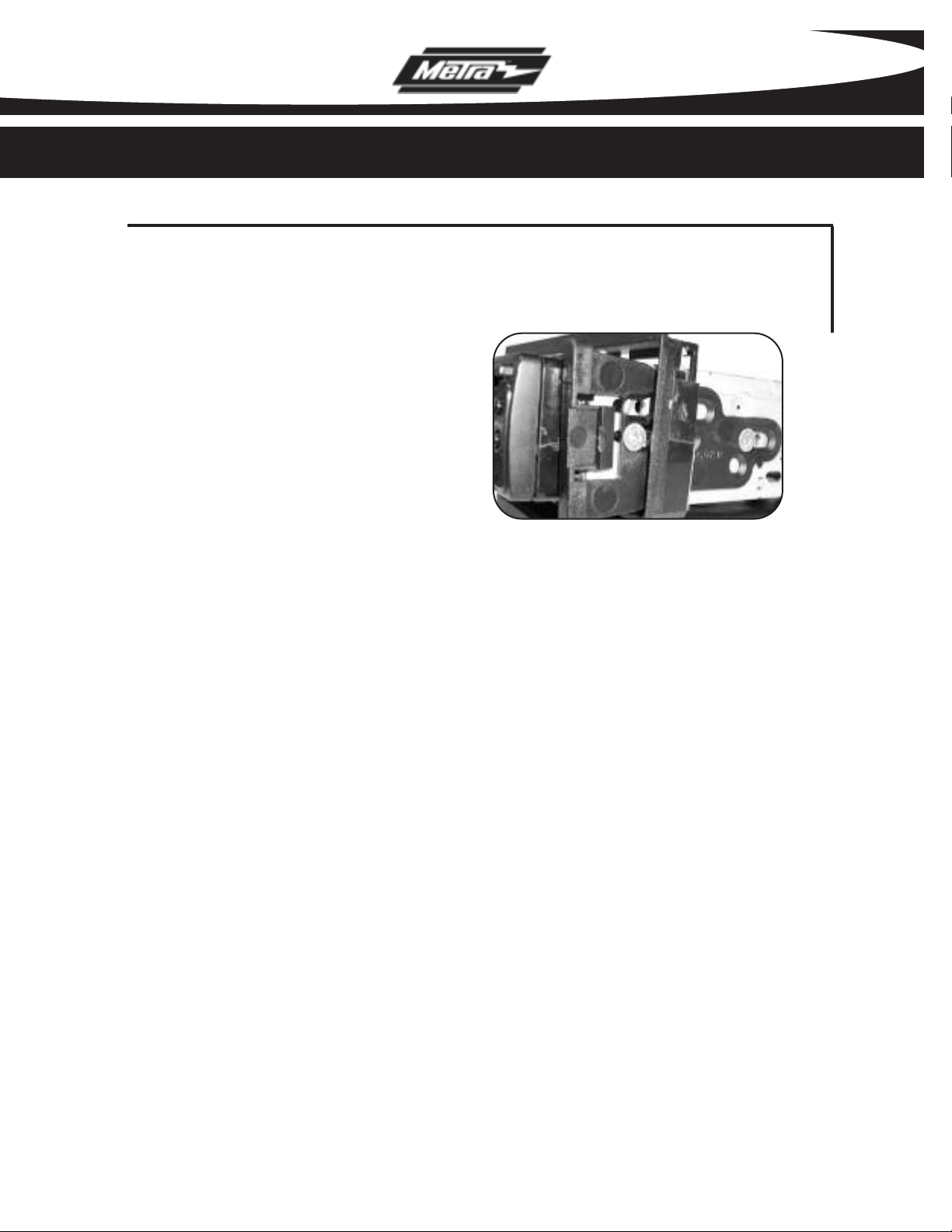

Mount the ISO Brackets to the head
1
unit with the screw supplied with
the unit.
Slide the head unit into the radio
2
opening until the side clips engage.
3
Snap the trim plate into the radio Housing.
KIT ASSEMBLY
3
99-8208
A
FINAL ASSEMBLY
B
C
D
Locate the factory wiring harness in the dash.
1
Metra recommends using the proper mating
adapter and making the connections as
shown. (Isolate and individually tape off the
ends of any unused wires to prevent electrical
short circuit)
2
Re-connect the negative battery terminal and test
the unit for proper operation.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
3
Reassemble in reverse order of disassembly.
4
99-8208
NOTES
5
INST99-8208
1-800-221-0932 www.metraonline.com
REV. 04-27-10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-8208
