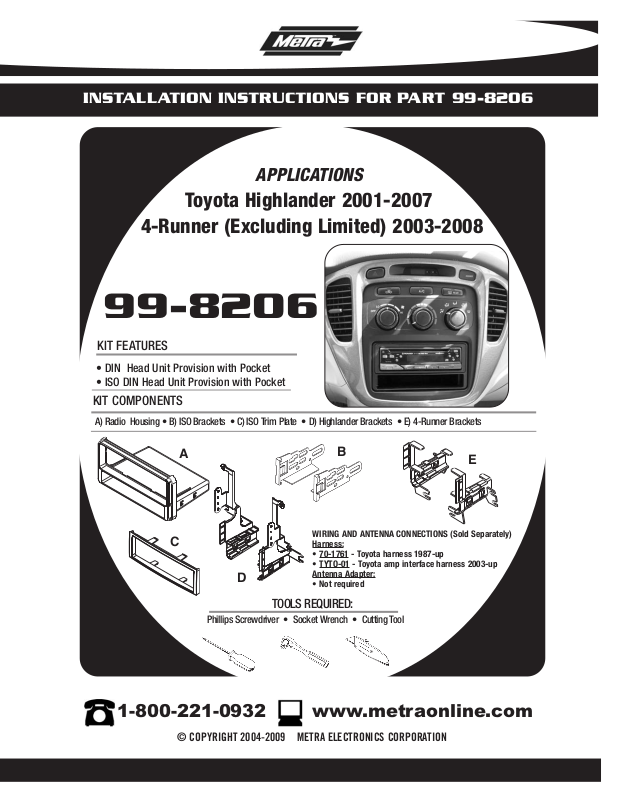

INSTALLATION INSTRUCTIONS FOR PART 99-8206
APPLICATIONS
Toyota Highlander 2001-2007
4-Runner (Excluding Limited) 2003-2008
99-8206
KIT FEATURES
• DIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Highlander Brackets • E) 4-Runner Brackets
A
C
D
TOOLS REQUIRED:
Phillips Screwdriver • Socket Wrench • Cutting Tool
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1761
• TYTO-01
Antenna Adapter:
• Not required
- Toyota harness 1987-up
- Toyota amp interface harness 2003-up
E
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
99-8206
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
- 2003-2008 Toyota 4 Runner (Excluding Limited) . . . . . . . . . 1
- 2001-2007 Toyota Highlander . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly
Kit
- 4 Runner Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Toyota Highlander Bracket Assembly . . . . . . . . . . . . . . . . . . 3
- DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
- ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . 5
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
99-8206
TOYOTA 4 RUNNER 2003-2008
(EXCLUDING LIMITED)
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unsnap and remove trim from around
2
shifter.
Unsnap and remove trim covers from
3
around center console pocket edge
at front and rear of console.
Unsnap and remove center console
4
cover.
(Figure A)
DASH DISASSEMBLY
A
B
5
Unsnap trim ring from around ignition
key cylinder.
6
Remove (1) 10 mm bolt from bottom
right of panel below steering column.
Unsnap panel and pull away to gain
access behind panel.
Remove (1) 10 mm bolt on bottom
7
left of center panel behind panel
below steering column.
Remove (1) 10 mm bolt beneath cli-
8
mate control behind pocket door.
Unsnap and remove climate control.
(Figure C)
Remove (2) 10 mm bolts beneath
9
radio behind climate controls.
10
Unsnap and remove entire center
panel around radio.
(Figure B)
(Figure B)
(Figure D)
C
D
11
Remove (2) 10 mm bolts securing
radio to remove.
1
99-8206
TOYOTA HIGHLANDER 2001-2007
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Pull and remove dash panel from
2
radio and climate controls. Tip: There
are 8 clips.
Remove (6) 10mm bolts from radio
3
and climate controls assembly.
(Figure B)
(Figure A)
DASH DISASSEMBLY
A
B
Remove assembly and disconnect
4
the wiring.
Remove (8)
5
screws to separate brackets from assem-
(Figure C)
bly.
Phillips bolts and (4) Phillips
C
2
99-8206
KIT DISASSEMBLY
4 RUNNER BRACKET ASSEMBLY
TOYOTA HIGHLANDER BRACKET ASSEMBLY
A
Snap the appropriately marked Mounting
1
Brackets for your application onto the
sides of the Radio Housing. The brackets
are marked 4-Runner or Highlander and
left or right.
(Figure B - HIGHLANDER)
(Figure A - 4 RUNNER)
B
3
99-8206
KIT ASSEMBLY
DIN HEAD UNIT PROVISION WITH POCKET
A
Slide the DIN cage into the Radio
1
Housing and secure by bending the
metal locking tabs outward.
Snap the aftermarket radio into the
2
cage and secure.
(Figure B)
(Figure A)
B
4
99-8206
KIT ASSEMBLY
ISO DIN HEAD UNIT PROVISION
Mount the ISO Brackets to the head
1
unit with the screws supplied with
the radio.
Snap the radio into the radio housing
2
until the side clips engage.
Snap the ISO Trim Plate onto the
3
Radio/Housing assembly.
(Figure A)
(Figure B)
A
(Figure B)
B
5
99-8206
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Dimmer . . . . . . . . . . Orange / White
Right Front (+) . . . . . White
Left Front (-). . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
1-800-221-0932 www.metraonline.com
REV. 07/01/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATIO INST99-8206
