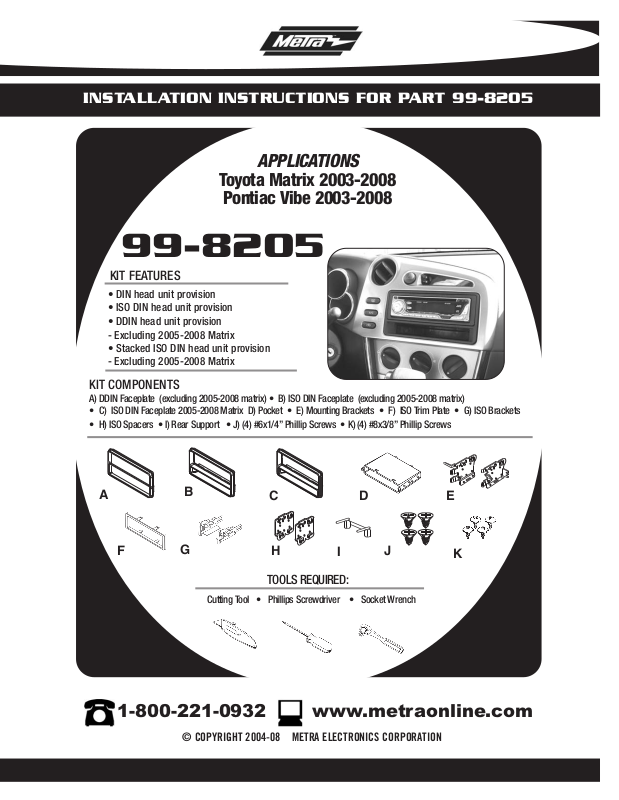

INSTALLATION INSTRUCTIONS FOR PART 99-8205
APPLICA TIONS
Toyota Matrix 2003-2008
Pontiac Vibe 2003-2008
99-8205
KIT FEATURES
• DIN head unit provision
• ISO DIN head unit provision
• DDIN head unit provision
- Excluding 2005-2008 Matrix
• Stacked ISO DIN head unit provision
- Excluding 2005-2008 Matrix
KIT COMPONENTS
A) DDIN Faceplate (excluding 2005-2008 matrix) • B) ISO DIN Faceplate (excluding 2005-2008 matrix)
• C) ISO DIN Faceplate 2005-2008 Matrix D) Pocket • E) Mounting Brackets • F) ISO Trim Plate • G) ISO Brackets
• H) ISO Spacers • I) Rear Support • J) (4) #6x1/4” Phillip Screws • K) (4) #8x3/8” Phillip Screws
A
F
B
G
Cutting Tool • Phillips Screwdriver • Socket Wrench
C
H
TOOLS REQUIRED:
I
D
E
J
K
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
99-8205
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4, 5, 6, 7,8
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
99-8205
SCAN
SEEK
TRA
CK
TUN
E
AM
FM1
FM2
DISK
TOYOTA MATRIX 2003-2008
PONTIAC VIBE 2003-2008
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip the bottom edge of the radio
trim panel then lift up and out to
remove.
Remove (4) 10 MM bolts securing
3
the factory radio.
(Figure A)
(Figure B)
DASH DISASSEMBLY
A
B
1
99-8205
#8x3/8” Screw
#8x3/8” Screw
#6x1/4” Screws
#6x1/4” Screws
Two
#8x3/8” Screws
DIN HEAD UNIT PROVISION
Choose the correct faceplate for your
1
application. The 2005-2008 Matrix
faceplate is smaller than the other
supplied faceplate.
Attach the pocket to the back of the
2
ISO/DIN Faceplate (by holding the
faceplate upside down and inserting
the right edge of the pocket into
place then pushing the rest of the
pocket onto the lip) and mount with
(2) #8X3/8” Phillips screws.
(Figure A)

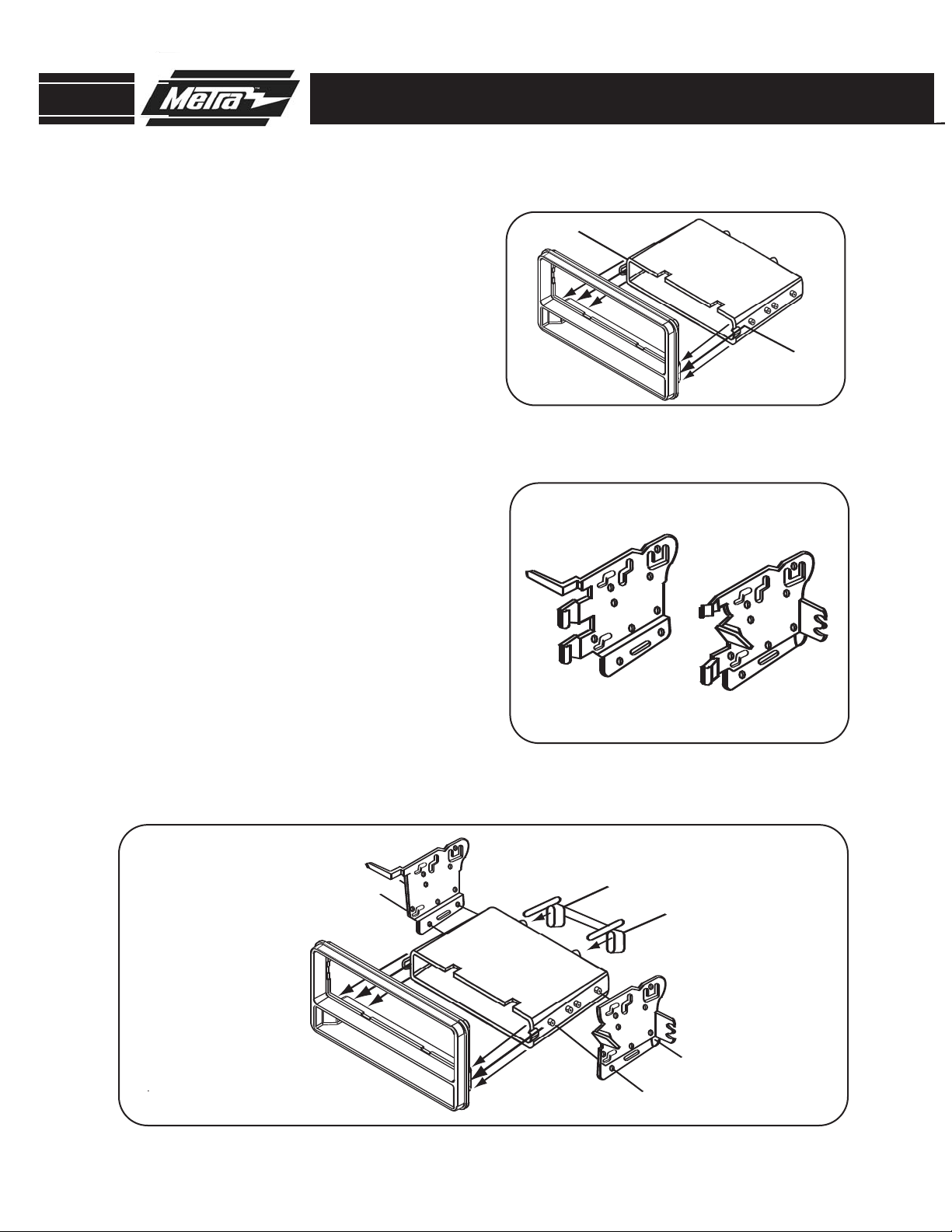

KIT ASSEMBLY
A
B
NOTE: For the 2005-2008 Matrix,
break away the shaded clips along
the scored lines. (
Secure the mounting brackets to the
3
pocket with (4) #6X1/4” Phillips
screws. (
C
Figure C)
Figure B)
2
99-8205
Two
#8x3/8” Screws

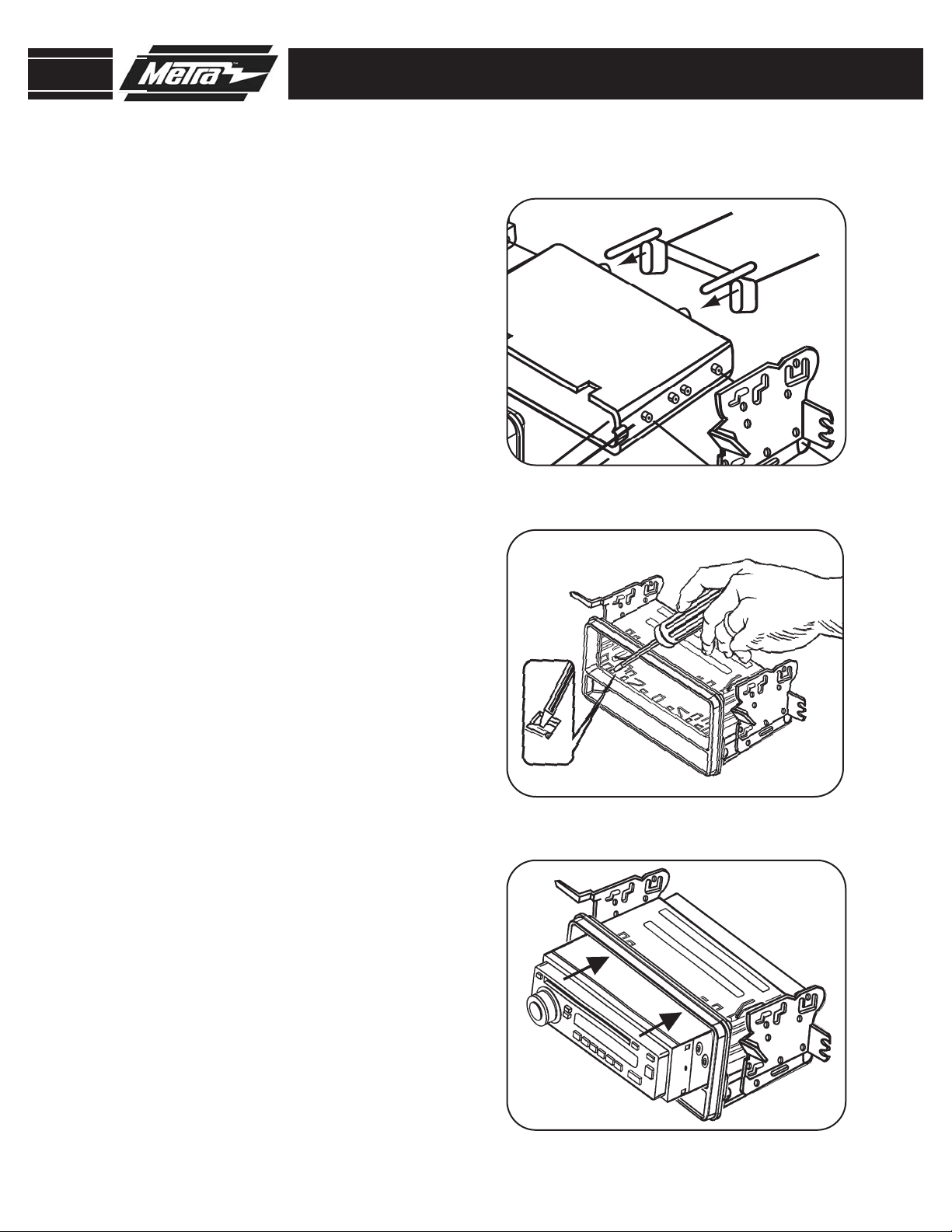

DIN HEAD UNIT PROVISION
Mount the rear support to the back
4
of the pocket with (2) #8X3/8”
Phillips screws. (
Slide the DIN cage into the Radio
5
Housing and secure by bending the
metal locking tabs down. (
Slide the aftermarket head unit into
6
the cage and secure. (
Figure D)
Figure F)
KIT ASSEMBLY
D
Figure E)
E
F
3
99-8205
#
8x3/8” Screw
#
8x3/8” Screw
#6x1/4” Screws
#6x1/4” Screws
Two
#8x3/8” Screws
ISO DIN HEAD UNIT PROVISION
Choose the correct faceplate for your
1
application. The 2005-2008 Matrix
faceplate is smaller than the other
supplied faceplate.
KIT ASSEMBLY
A
Attach the
2
ISO/DIN Faceplate (by holding the faceplate upside down and inserting the right
edge of the pocket into place then pushing the rest of the pocket onto the lip)
and mount with (2) #8X3/8” Phillips
screws.
NOTE: For the 2005-2008 Matrix,
break away the shaded clips along
the scored lines.
Secure the mounting brackets to the
3
pocket with (4) #6X1/4” Phillips
screws.
C
the pocket to the back of the
(Figure A)
(
Figure B)
(
Figure C)
B
4
99-8205
Two
#8x3/8” Screws

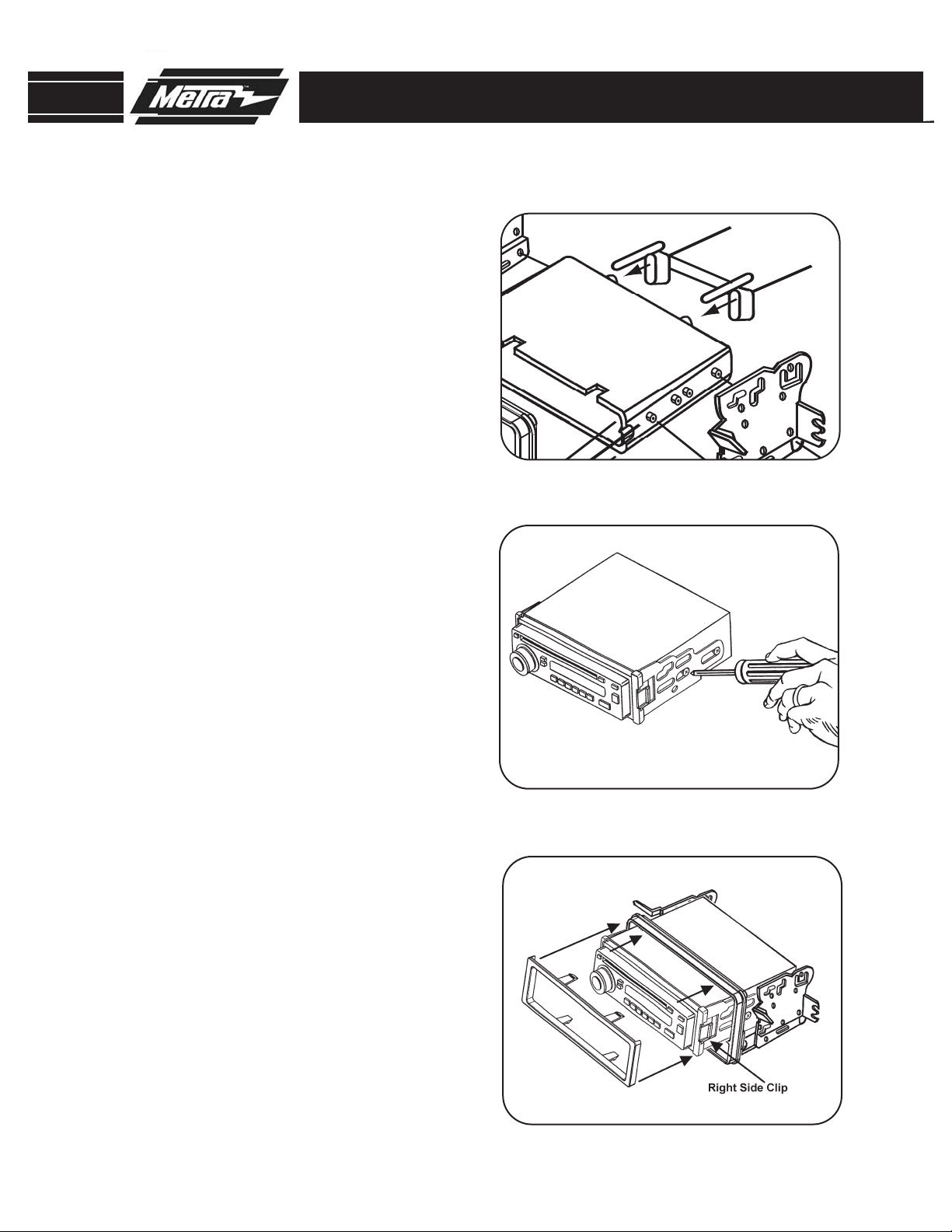

ISO DIN HEAD UNIT PROVISION
Mount the rear support to the back
4
of the pocket with (2) #8x3/8”
Phillips screws.
Mount the ISO Brackets to the head
5
unit with the screws supplied with
(
the unit.
Slide the the head unit into the radio
6
opening until the side clips engage.
(
Figure F)
Figure E)
(
Figure D)
KIT ASSEMBLY
D
E
Snap the Trim plate into the Radio
7
(
Housing.
Figure F)
F
5
99-8205

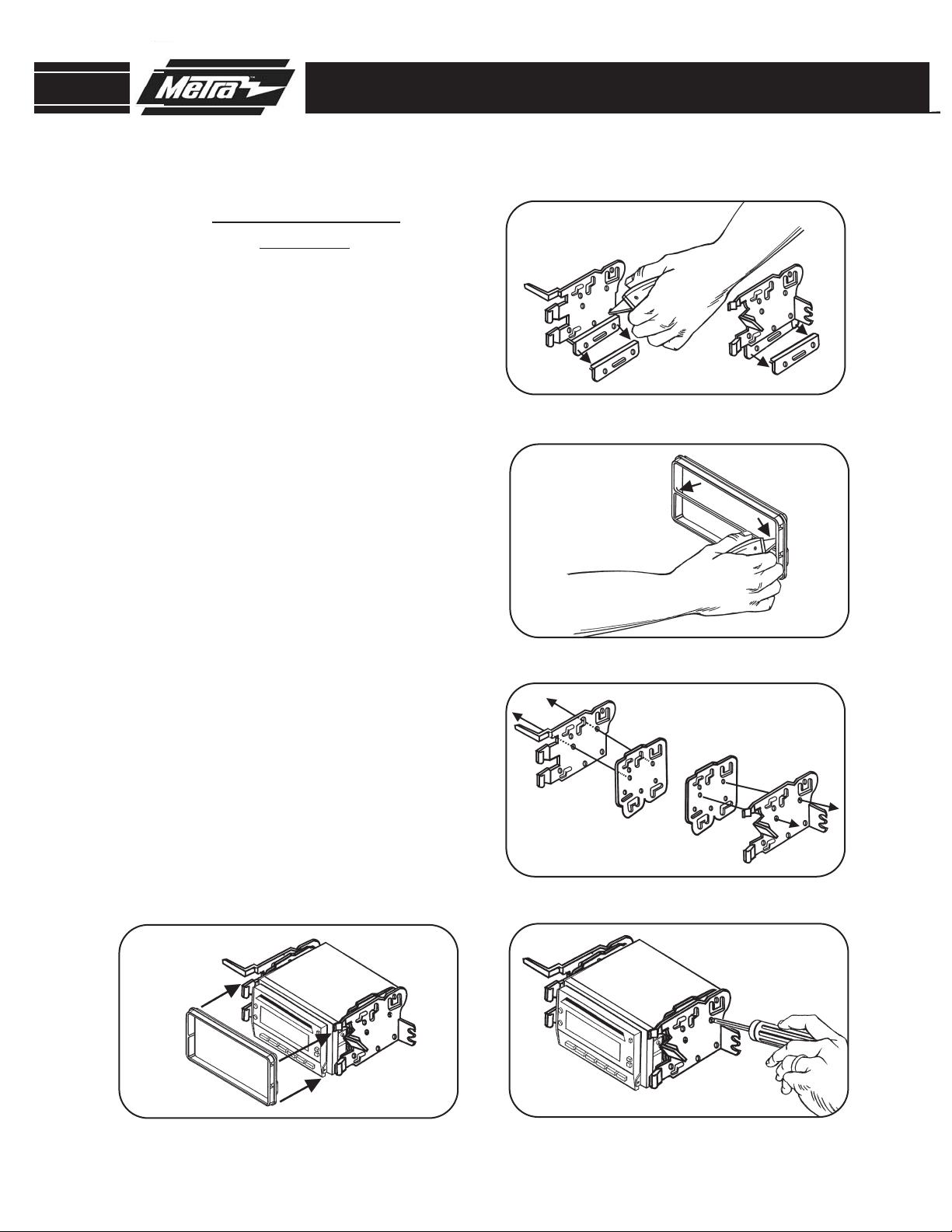

DOUBLE DIN HEAD UNIT PROVISION
NOTE: 2005-2008 Matrix not
applicable.
Cut and remove the bottom portion
1
(Displayed) of the mounting brackets. (
Figure A)
2
Cut and remove the center bar from
the DDIN faceplate. (
Attach the ISO spacers to the
3
mounting brackets by inserting the
(4) bosses on each spacer into the
(4) holes in each bracket. (
Figure B)
KIT ASSEMBLY
A
B
Figure C)
Attach the mounting brackets to the
4
DDIN head unit with the screws supplied with the unit. (
Attach the DDIN faceplate over the
5
head unit by snapping the bracket
clips into the faceplate slots.
(
Figure E)
E
Figure D)
C
D
6

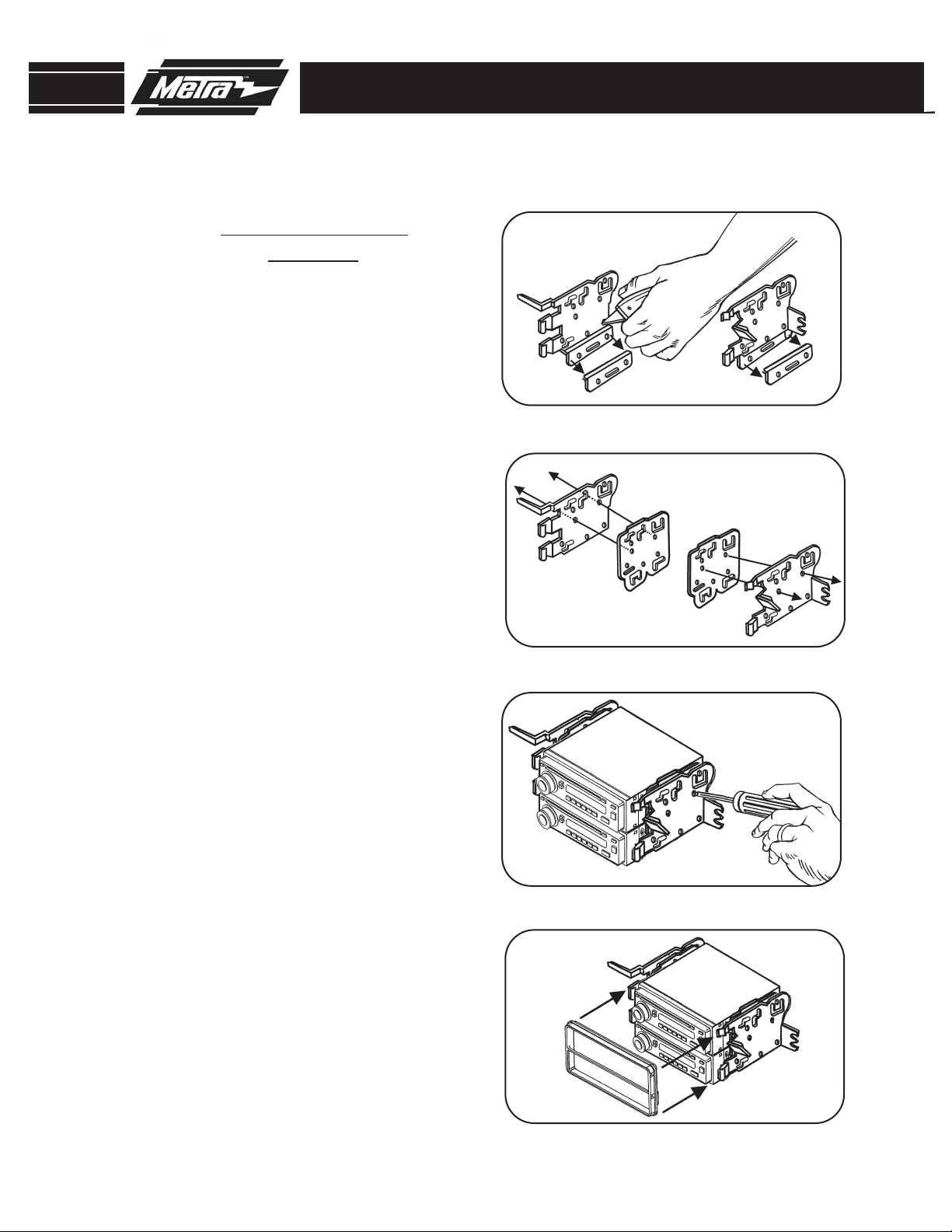

99-8205
KIT ASSEMBLY
STACKED ISO DIN HEAD UNIT PROVISION
A
NOTE: 2005-2008 Matrix not
applicable.
Cut and remove the bottom portion
1
(Displayed) of the mounting brackets. (
Figure A)
Attach the ISO spacers to the mount-
2
ing brackets by inserting the (4)
bosses on each spacer into the (4)
holes in each bracket. (
Attach the mounting brackets to the
3
DDIN head unit with the screws supplied with the unit. (
Figure B)
Figure C)
B
Attach the DDIN faceplate over the
4
head unit by snapping the bracket
clips into the faceplate slots.
Figure D)
(
C
D
7
99-8205
KIT ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.

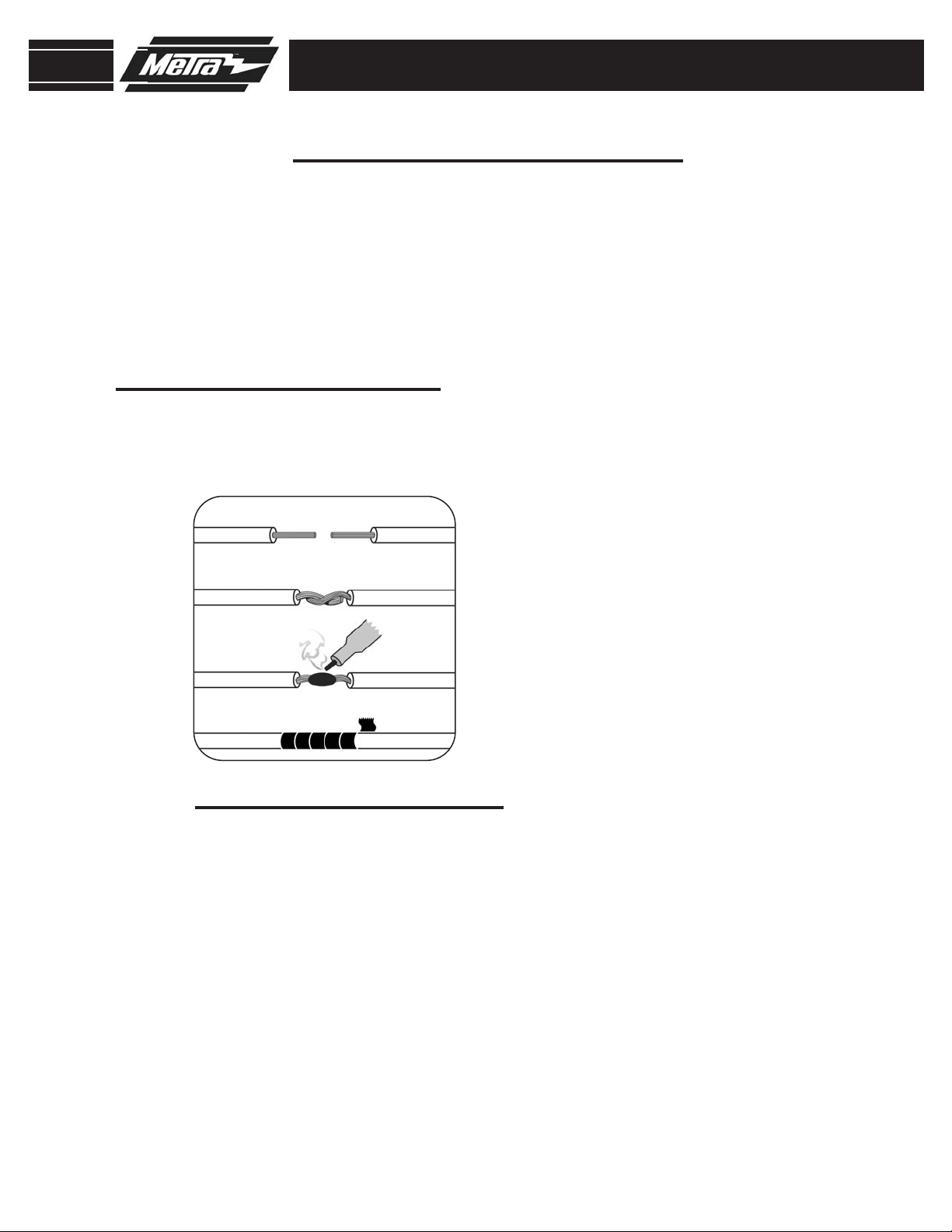

FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
8
99-8205

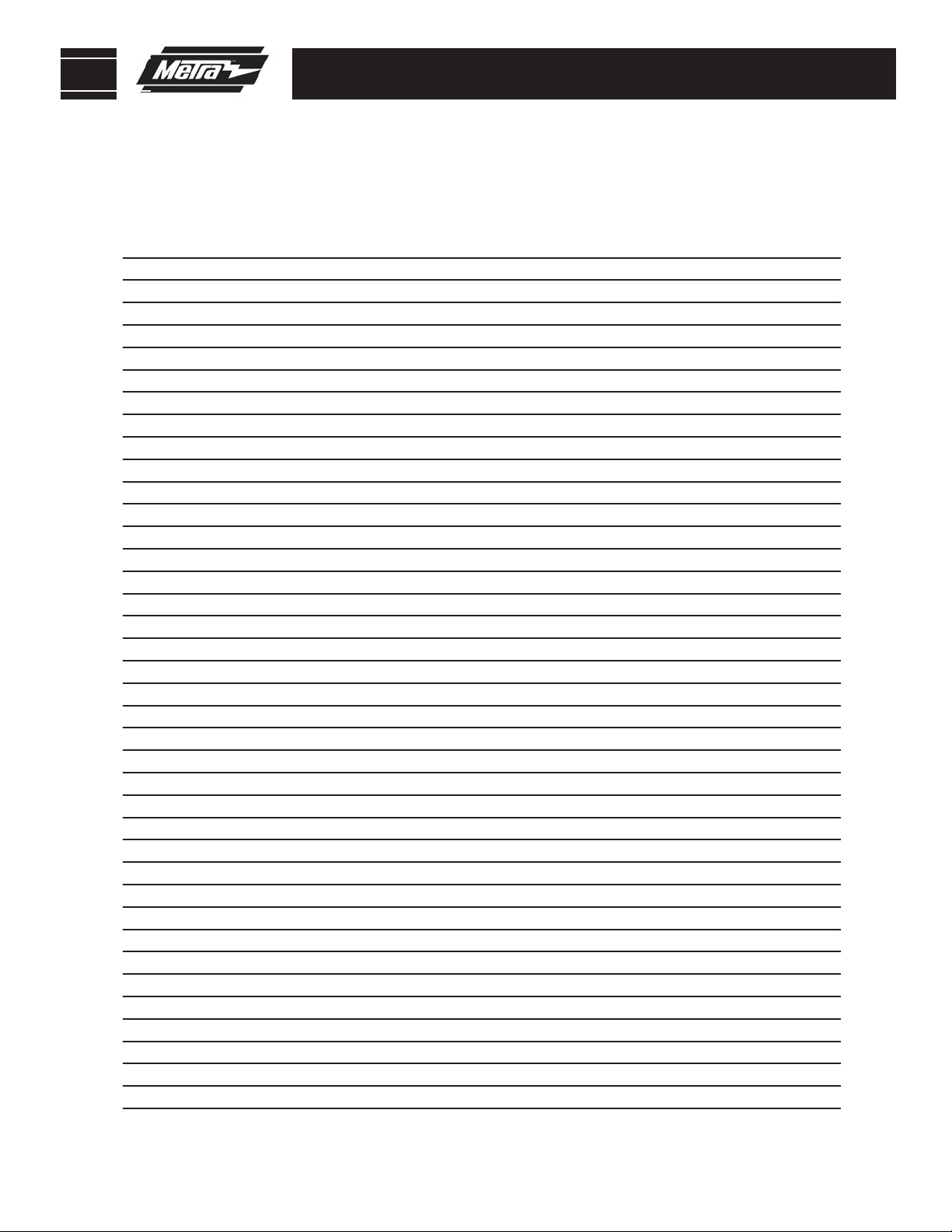

NOTES
9
INST998205
1-800-221-0932 www.metraonline.com
REV. 09/26/08
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
INST99-8205
