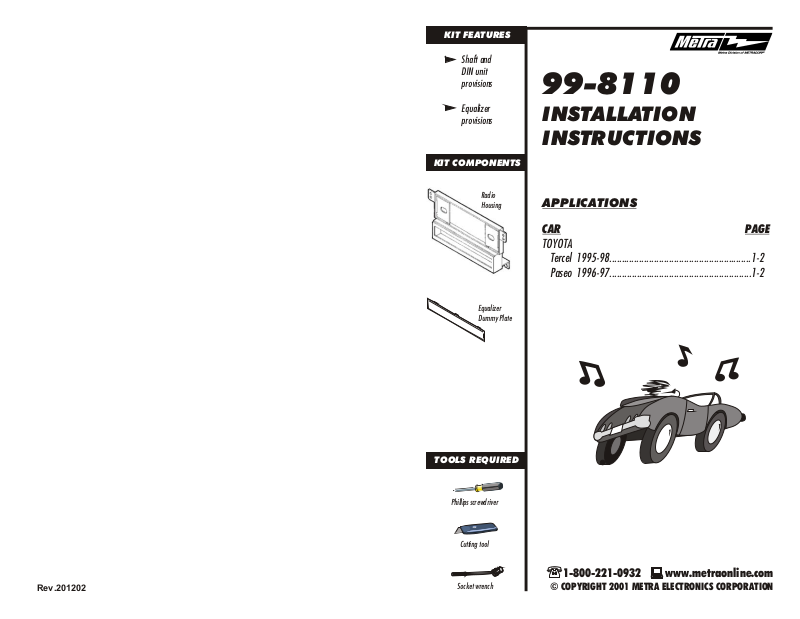

Metra Electronics 99-8110 User Manual
KIT FEATURES
Shaft and
DIN unit
provisions
99-8110
Equalizer
provisions
KIT COMPONENTS
Radio
Housing
Equalizer
Dummy Plate
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR PAGE
TOYOTA
Tercel 1995-98.........................................................1-2
Paseo 1996-97.........................................................1-2
Rev.201202
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Socket wrench
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
ALL VEHICLES
1
Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the
bottom of the radio trim bezel. Unhook the top of the radio trim bezel and remove the bezel.
Remove (4) 8mm Phillips screws securing the factory head unit and disconnect the wiring.
3
Fig. A
Fig. B
IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the
Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.
(see Fig. A)
IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the
Radio Housing. (see Fig. B)
2
Fig. A
Fig. B
DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the
DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket
head unit into the cage until secure. (see Fig. B)
1
4
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
5
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) screws
previously removed in step #1.
2
