INSTALLATION INSTRUCTIONS FOR PART 99-7954
APPLICATIONS
Suzuki SX4 2007-up
99-7954

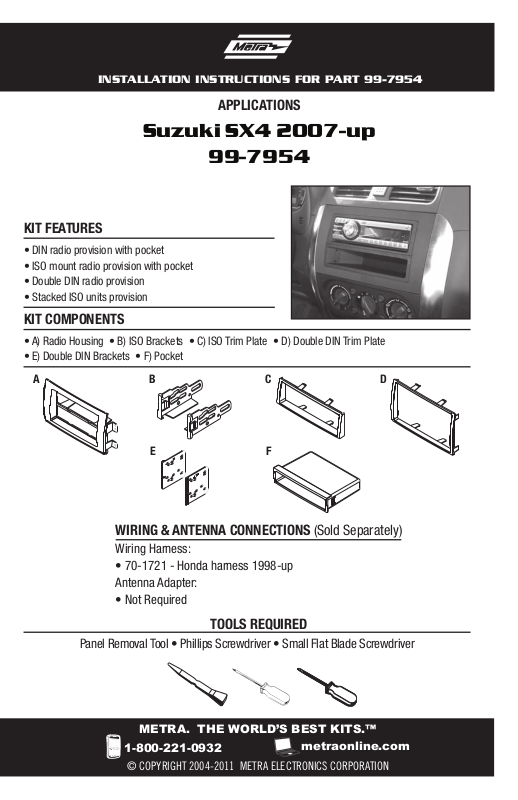

KIT FEATURES
• DIN radio provision with pocket
• ISO mount radio provision with pocket
• Double DIN radio provision
• Stacked ISO units provision
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Trim Plate
• E) Double DIN Brackets • F) Pocket
A
B C
D
E
F
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1721 - Honda harness 1998-up
Antenna Adapter:
• Not Required
TOOLS REQUIRED
Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
metraonline.com
99-7954
Table of Contents
Dash Disassembly
– Suzuki SX4 2007-up 3
Kit Assembly
– DIN radio provision with pocket 4
– ISO mount radio provision with pocket 5
– Double DIN radio provision 6
– Stacked ISO units provision 7
Caution
Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.
*NOTE: Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Dash Disassembly
1. Unclip and remove the (2) outside
trim panels. (Figure A)
2. Remove (4) Phillips screws securing
the radio to the sub dash. Unplug and
remove radio. (Figure B)
Continue to kit assembly
99-7954
(Figure A)
3
(Figure B)
Kit Assembly 99-7954
DIN radio provision with pocket
1. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.

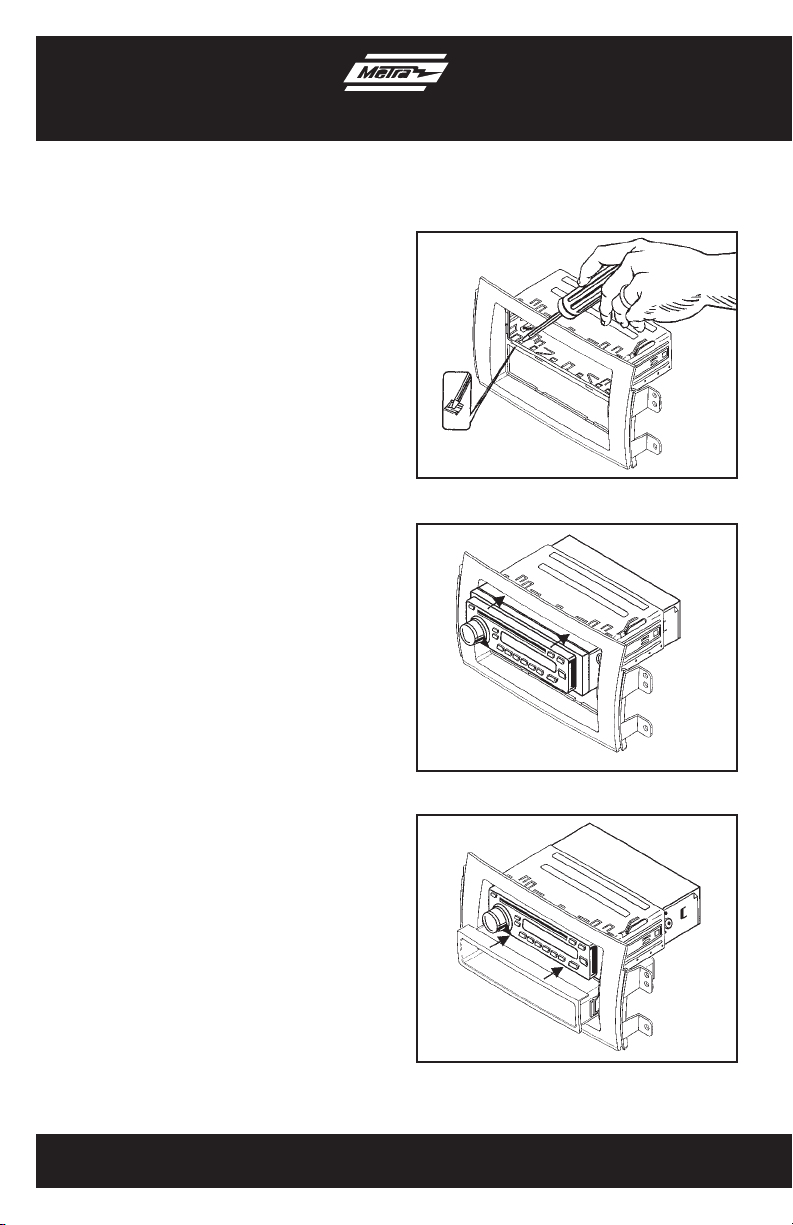

2. Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs outward. (Figure A)
3. Slide the aftermarket radio into the
cage until it snaps into place.
(Figure B)
4. Snap the pocket into the radio
housing. (Figure C)
5. Reassemble dash in reverse order
of disassembly.
(Figure A)
4
(Figure B)
(Figure C)
Kit Assembly 99-7954
ISO mount radio provision with pocket
1. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.

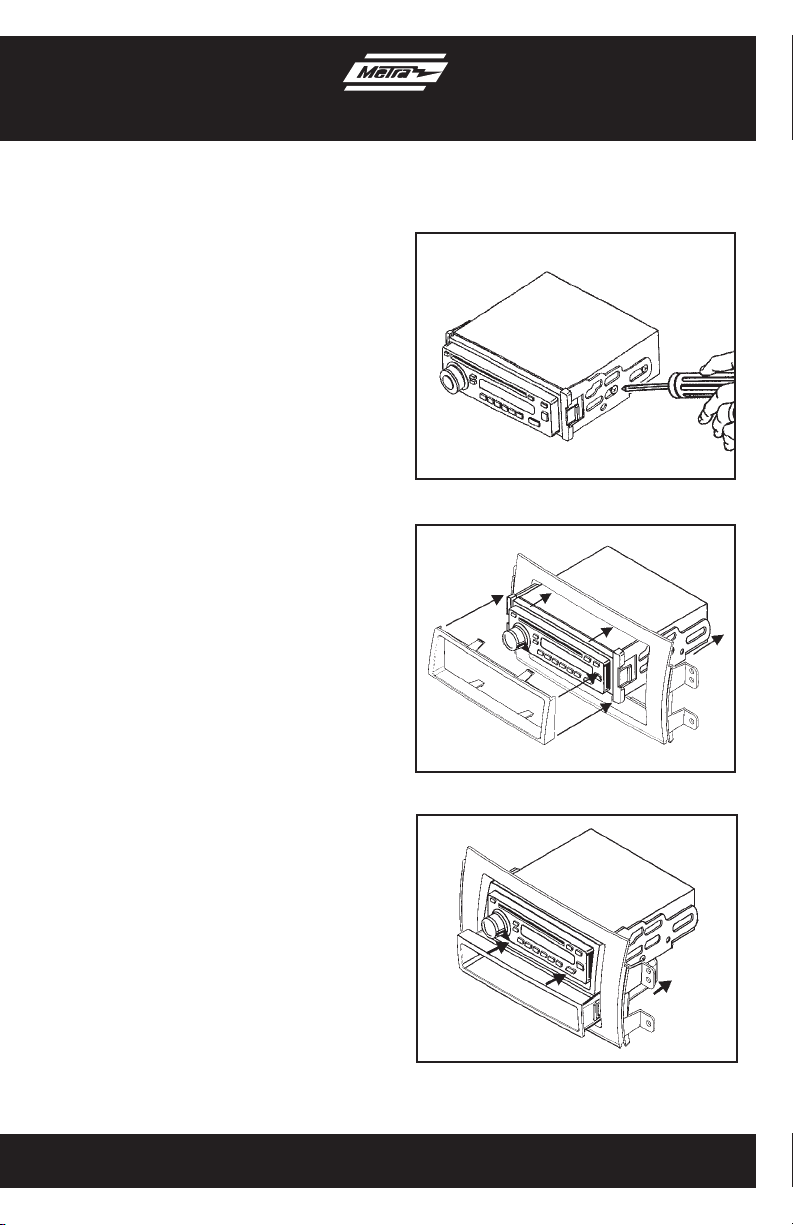

2. Mount the ISO brackets to the radio
with the screws supplied with the radio.
(Figure A)
3. Slide the radio into the radio housing
until it snaps into place. (Figure B)
4. Snap the ISO trim plate onto the front of
the radio housing. (Figure B
5. Snap the pocket into the radio housing.
(Figure C)
6. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
5
(Figure C)
Kit Assembly 99-7954
Double DIN radio provision
1. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.

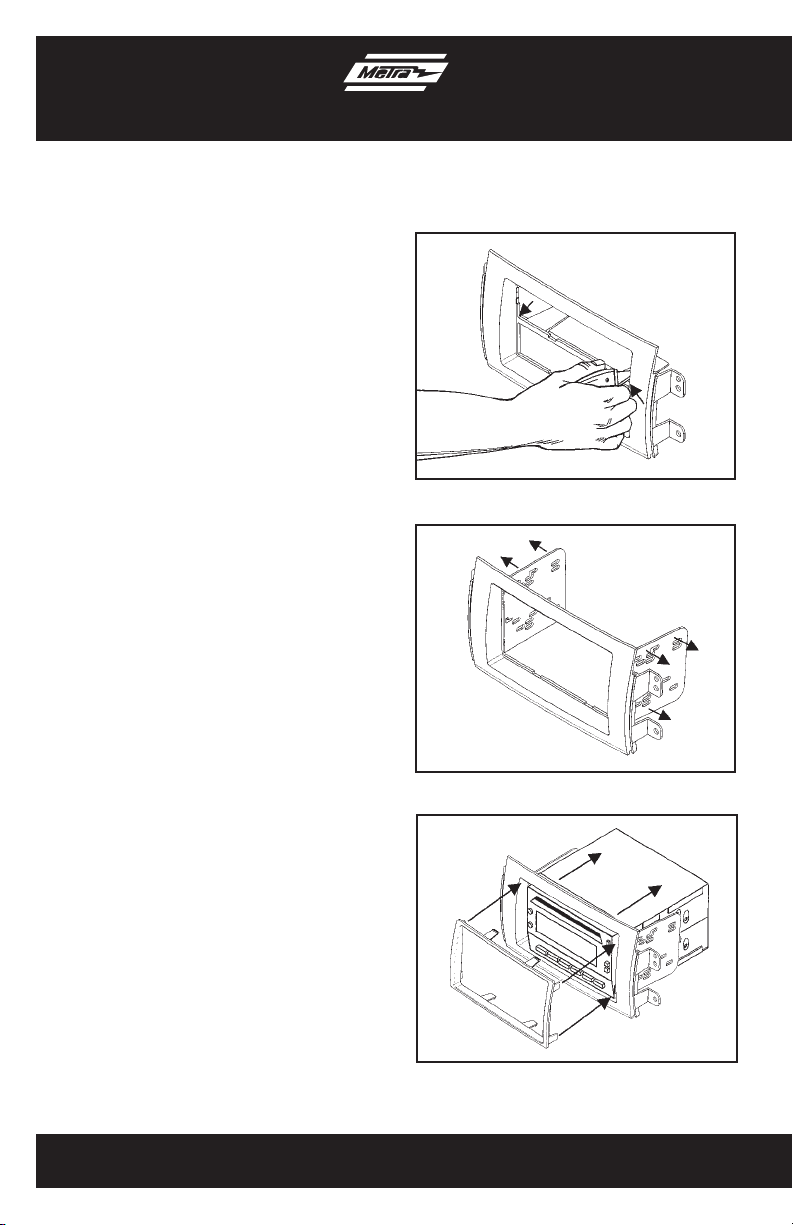

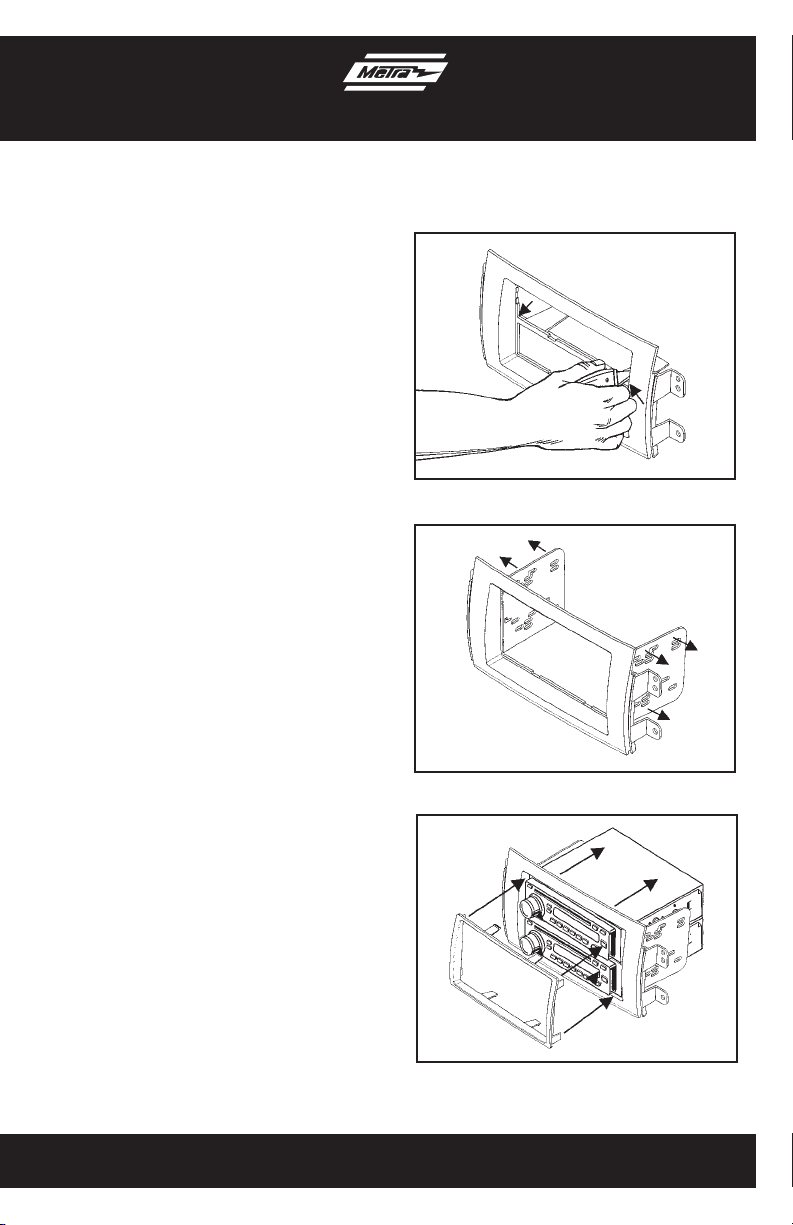

2. Cut and remove the center bar from the
radio housing. (Figure A)
3. Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
4. Slide the Double DIN radio into the
bracket/trim plate assembly and secure
the radio to the assembly using the
screws supplied with the radio.
(Figure C)
5. Snap the Double DIN trim plate into the
radio housing. (Figure C)
6. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
(Figure C)
6
Kit Assembly 99-7954
Stacked ISO units provision
1. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2. Cut and remove the center bar from the
radio housing. (Figure A)
3. Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
4. Slide the stacked ISO units into the
bracket/radio housing assembly and
secure the units to the kit using the
screws supplied with the units.
(Figure C)
5. Snap the Double DIN trim plate into the
radio housing. (Figure C)
6. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
(Figure C)
7
INSTALLATION INSTRUCTIONS FOR PART 99-7954
REV. 5/18/11
