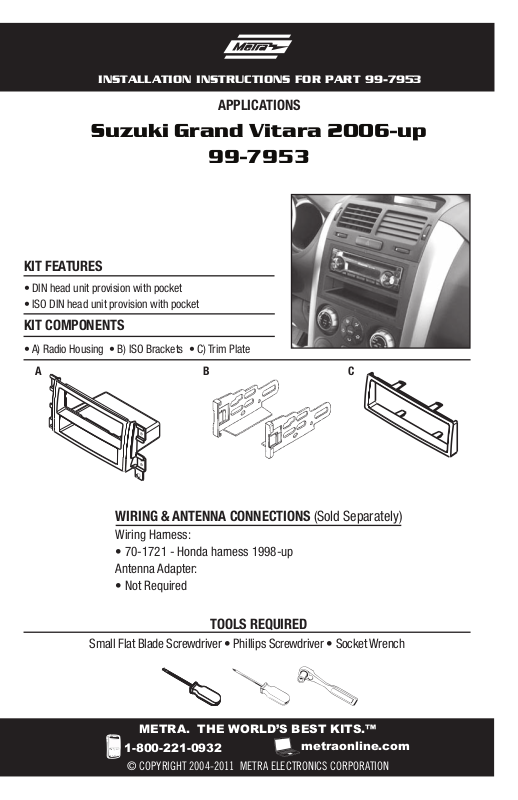

INSTALLATION INSTRUCTIONS FOR PART 99-7953
APPLICATIONS
Suzuki Grand Vitara 2006-up
99-7953
KIT FEATURES
• DIN head unit provision with pocket
• ISO DIN head unit provision with pocket
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) Trim Plate
B CA
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1721 - Honda harness 1998-up
Antenna Adapter:
• Not Required
TOOLS REQUIRED
Small Flat Blade Screwdriver • Phillips Screwdriver • Socket Wrench
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
metraonline.com
Page 2
99-7953
Table of Contents
Dash Disassembly
– Suzuki Grand Vitara 2006-up 3
Kit Assembly
– DIN head unit provision 4
– ISO DIN head unit provision 5
Caution
Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.
*NOTE: Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Page 3
99-7953
Dash Disassembly
1. Unclip and remove the (2) outside trim
panels. (Figure A)
2. Remove (6) Phillips screws securing the
radio and climate controls to the sub
dash. (Figure B)
3. Remove the (2) Phillips screws securing
the factory radio bracket to the radio/
climate control assembly. (Figure C)
4. Separate the bracket and factory radio
from the climate control. (Figure D)
Continued on next page
(Figure B)
(Figure A)
(Figure C)
(Figure D)
3
Page 4
Kit Assembly 99-7953
DIN head unit provision
1. Locate the factory wiring harness
and antenna plug in the dash. Metra
recommends using the proper mating
adapters from Metra and/or AXXESS.
2. Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs down. (Figure A)
3. Slide the aftermarket head unit into the
cage until secure. (Figure B)
4. Reassemble dash in reverse order
of disassembly.
(Figure A)
4
(Figure B)
Page 5
Kit Assembly 99-7953
ISO DIN head unit provision
1. Locate the factory wiring harness
and antenna plug in the dash. Metra
recommends using the proper mating
adapters from Metra and/or AXXESS.
2. Mount the ISO brackets to the head unit
with the screws supplied with the unit.
(Figure A)
3. Slide the head unit into the radio
opening until the side clips engage.
(Figure B)
4. Snap the trim plate into the radio
housing. (Figure B)
5. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
5
Right
Side Clip
Page 6
Notes
Page 7
Notes
Page 8
