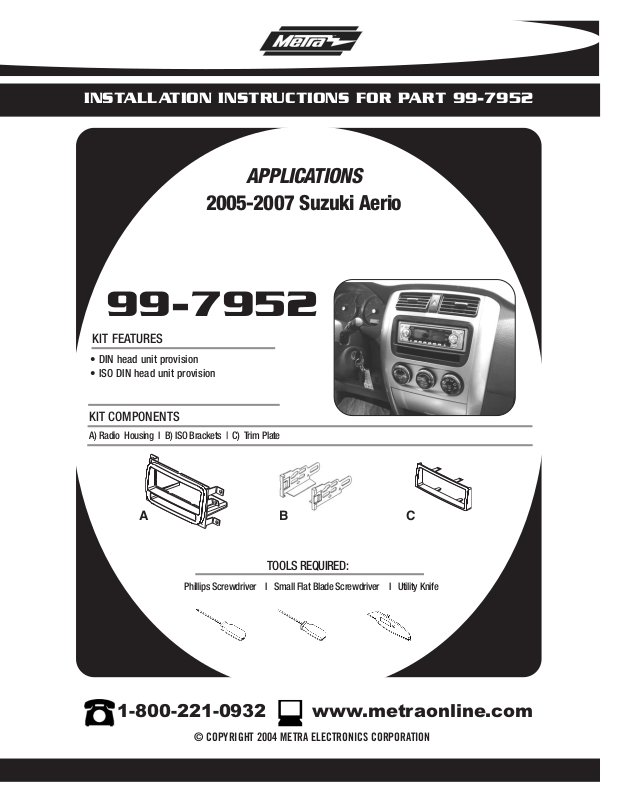

INSTALLATION INSTRUCTIONS FOR PART 99-7952
APPLICA TIONS
2005-2007 Suzuki Aerio
99-7952
KIT FEATURES
• DIN head unit provision
• ISO DIN head unit pro
vision
KIT COMPONENTS
A) Radio Housing l B) ISO Brackets | C) Trim Plate
A
TOOLS REQUIRED:
Phillips Screwdriver I Small Flat Blade Screwdriver I Utility Knife
B
C
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
99-7952
TABLE OF CONTENTS
Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
99-7952
A/C
AUTO
AUTO
OFF
75
65
85
PUSH
PUSH
PUSH
Rear View
2005-2007 SUZUKI AERIO
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove the trim panels
from both sides of radio/climate
controls.
Remove (4) Phillips screws holding
3
radio to sub dash and remove radio.
(Figure B)
(Figure A)
DASH DISASSEMBLY
A
B
Remove (4) )Phillips screws securing
4
the radio and brackets to the factory
radio trim panel.
(Figure C)
C
1
99-7952
KIT ASSEMBLY
DIN HEAD UNIT PROVISION
Cut and remove the center bar in
1
the DIN opening of the 99-7952
Radio Housing.
Secure the 99-7952 radio housing to
2
the factory radio trim panel using
the factory hardware.
Slide the DIN cage into the Radio
3
Housing and secure by bending the
metal locking tabs down.
Slide the aftermarket head unit into
4
the cage and secure. (
(Figure A)
Figure B)
A
B
2
99-7952
ISO DIN HEAD UNIT PROVISION
Cut and remove the center bar in
1
the DIN opening of the 99-7952
Radio Housing.
Secure the 99-7952 radio housing
2
to the factory radio trim panel using
the factory hardware.
Mount the ISO Brackets to the head
3
unit with the screws supplied with
the unit.
(Figure A)
KIT ASSEMBLY
A
B
Slide the head unit into the radio
4
opening until the side clips engage.
Figure B)
(
Snap the Trim plate into the Radio
5
Housing.
(Figure B)
3
99-7952
KIT ASSEMBLY
FINAL ASSEMBLY
Locate the factory wiring harness in the dash and make the connection as shown.
1
Metra recomends using the proper mating adapter and making the connections as
shown. (Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
3
Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
A
B
C
D
A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray / Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Dimmer . . . . . . . . . . Orange / White
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Left Rear (-) . . . . . . . Green / Black
4
99-7952
NOTES
5
INST997952
1-800-221-0932 www.metraonline.com
REV. 04/10/07
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
