INSTALLATION INSTRUCTIONS FOR PART 99-7878B
APPLICATIONS
HONDA Insight
2010
99-7878B
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted A Matte Black Finish
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
B
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Wrench
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
C
D
F
www.metraonline.com
Page 2
99-7878B
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
Honda Insight 2010 .................................
1,2
Kit Assembly
- Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . .4
- ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 5
- Double DIN /Stacked ISO Mount Units Radio Provision . . . . . . . . . . . . .6
Note:
Refer also to the instructions included with the aftermarket radio.
Page 3
95-7878B DASH DISASSEMBLY
O
FF
R
E
AR
FRO
N
T
A
UTO
PU
SH
P
OWE
R
O
UT
L
E
T
O
FF
R
EAR
F
RON
T
A
UTO
PUS
H

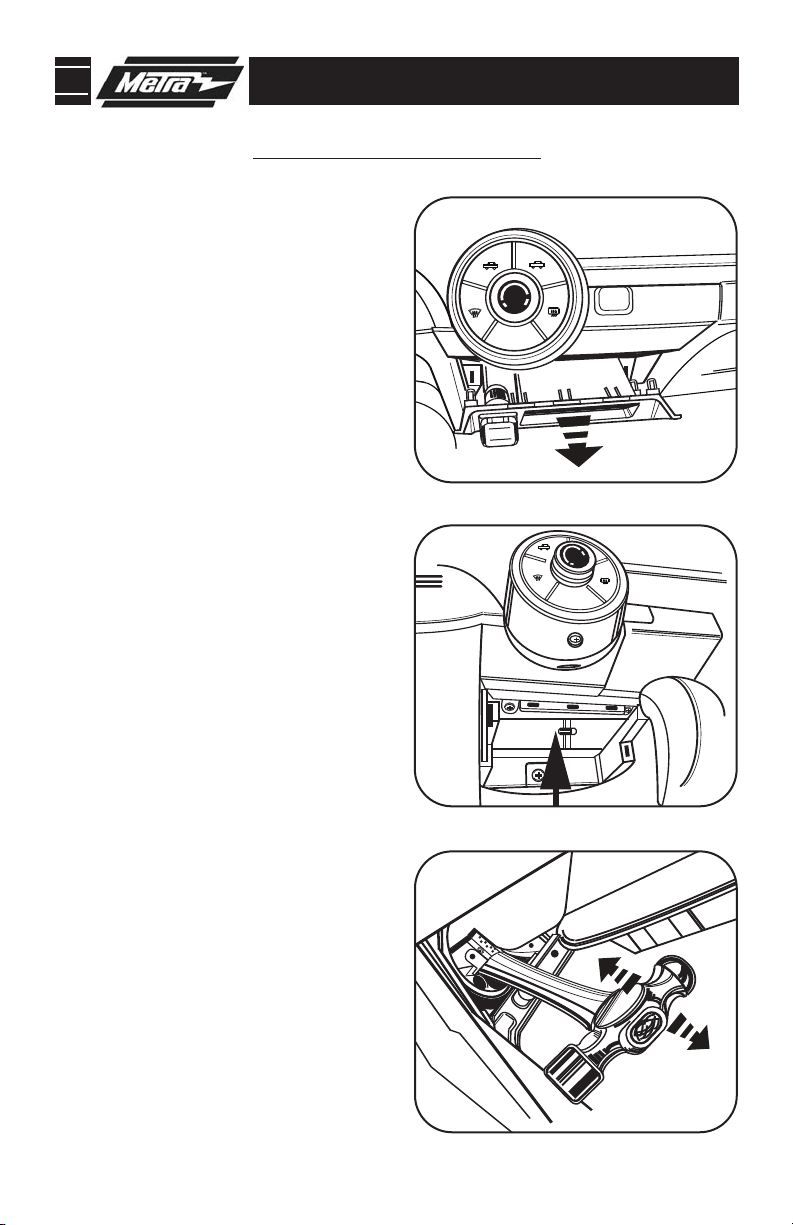

HONDA INSIGHT 2010
Disconnect the negative battery
1
terminal to prevent an accidental short
circuit.
Unclip and remove the pocket/acces-
2
sory socket panel below the factory
radio.
(Figure A)
Remove (1) 8 MM bolt facing up
3
behind panel.
Open the glove box then use a small
4
blunt tool (ie: the wooden handle of a
hammer) to put pressure on the back
of the radio chassis to unclip and
remove the radio.
Continued on page 2.
Figure B)
(Figure C)
A
B
C
1
Page 4
95-7878B DASH DISASSEMBLY
HAZARD
SWITCH
TWO
SCREWS
AIR BAG
SWITCH
TWO
SCREWS
8 RETAINING CLIPS

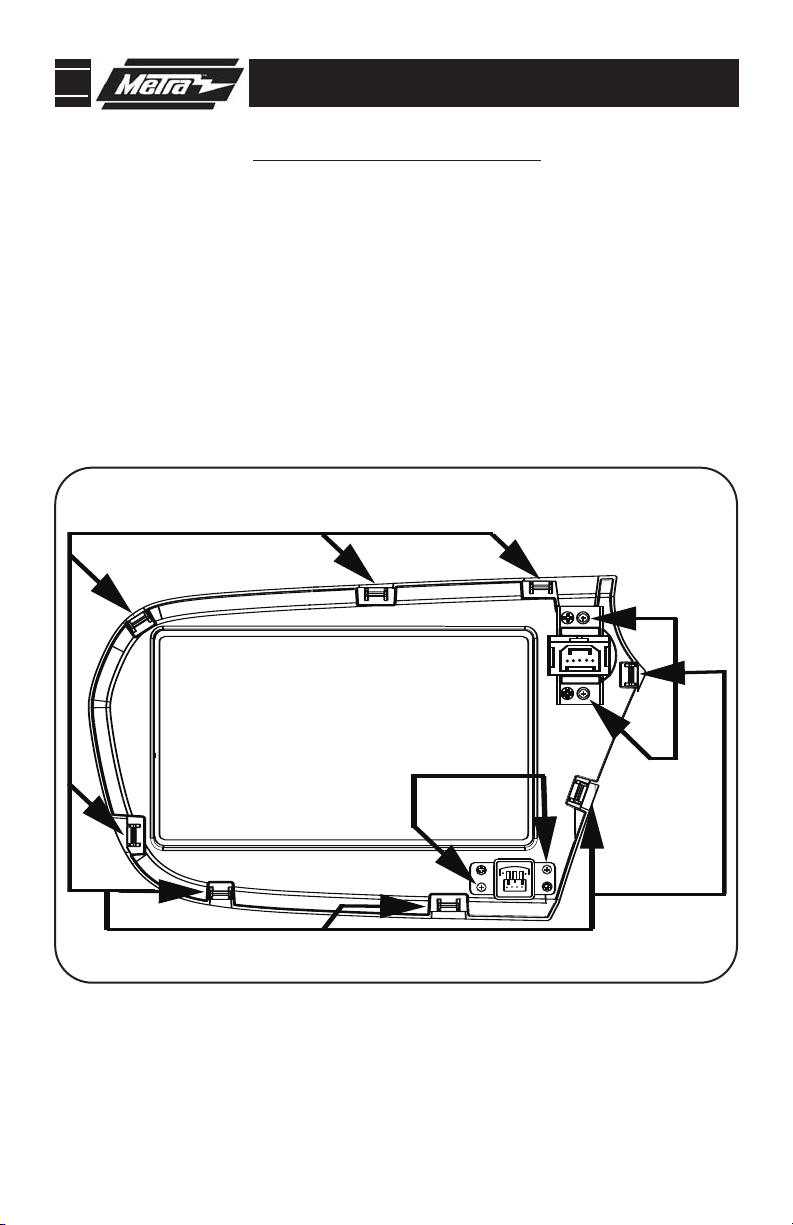

HONDA INSIGHT 2010
Remove (2) Phillips screws securing the hazard switch to the back of the factory
5
radio panel. (Figure D)
Remove (2) Phillips screws securing the air bag light to the back of the factory radio
6
panel.
(Figure D)
Remove the (8) retaining clips from the factory radio panel.
7
Continue to kit preparartion.
D
(Figure D)
2
Page 5
99-7878B KIT PREPARATION
HAZARD
SWITCH
TWO
SCREWS
AIR BAG
SWITCH
TWO
SCREWS
8 RETAINING CLIPS

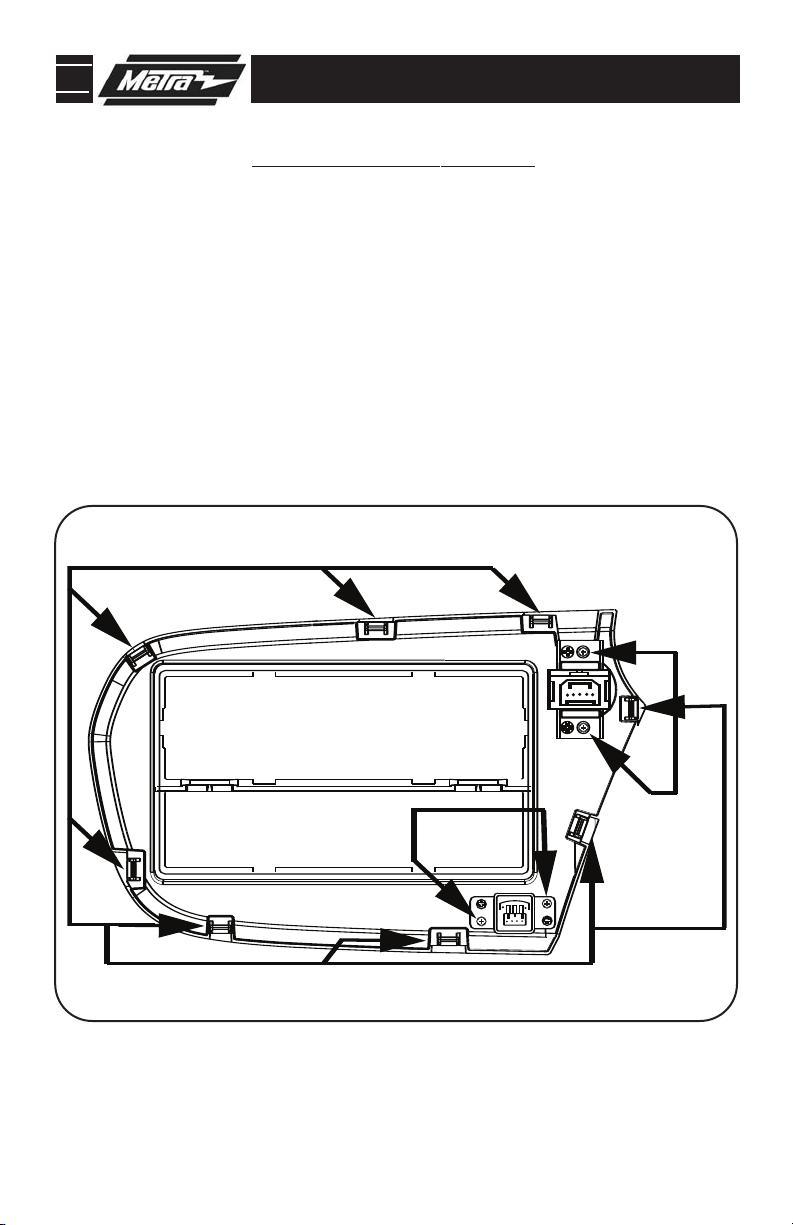

KIT PREPARATION
Secure the hazard switch into the radio housing panel using the factory hardware.
1
(
Figure A)
Secure the air bag light into the radio housing panel using the factory hardware.
2
(
Figure A)
Attach the (8) retaining clips to the radio housing panel in the same location as
3
removed from the factory radio panel. (
Continue to kit assembly.
A
Figure A)
3
Page 6
99-7878B KIT ASSEMBLY

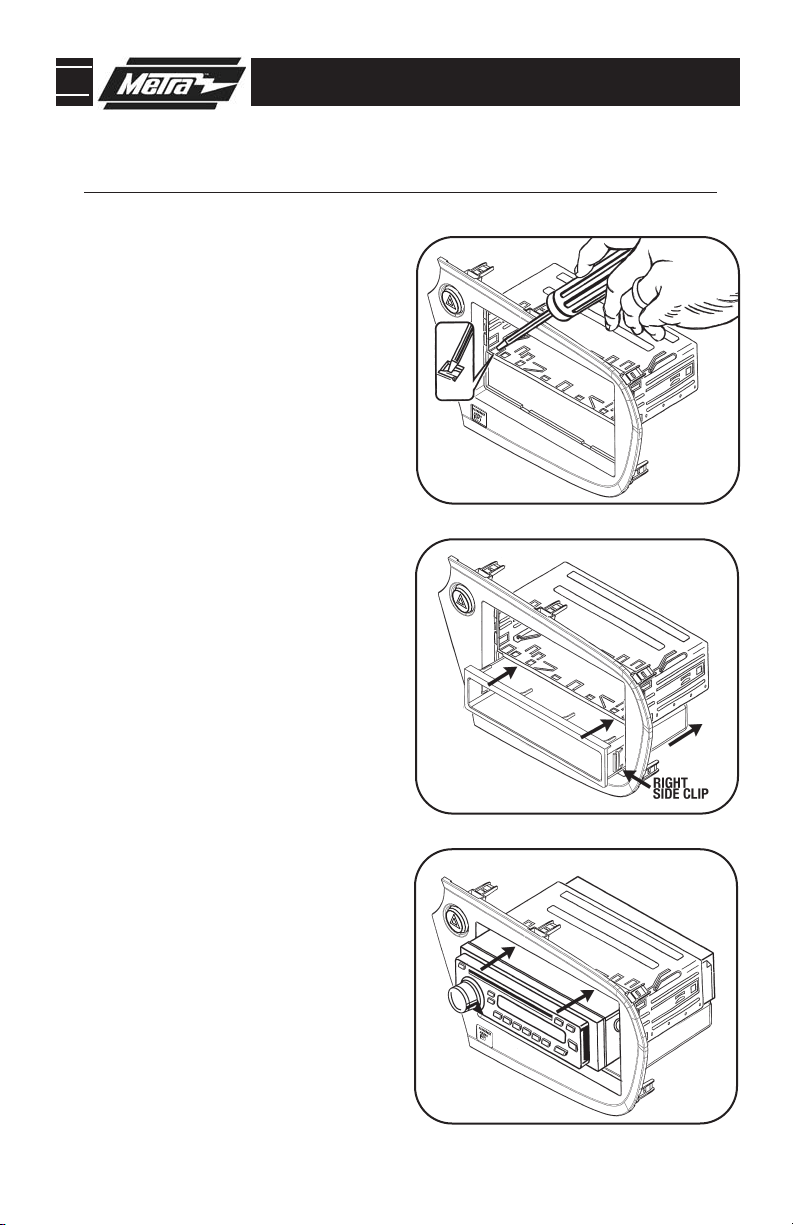

DIN MOUNT RADIO PROVISION WITH POCKET
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Slide the DIN cage into the Radio
2
Housing and secure by bending the
metal locking tabs down.
Snap the pocket into the bottom
3
opening of the radio housing.
(Figure B)
Slide the aftermarket head unit into
4
the cage and secure.
(Figure A)
B
(Figure C)
Reassemble dash in reverse order of
5
disassembly.
C
4
Page 7
99-7878B KIT ASSEMBLY

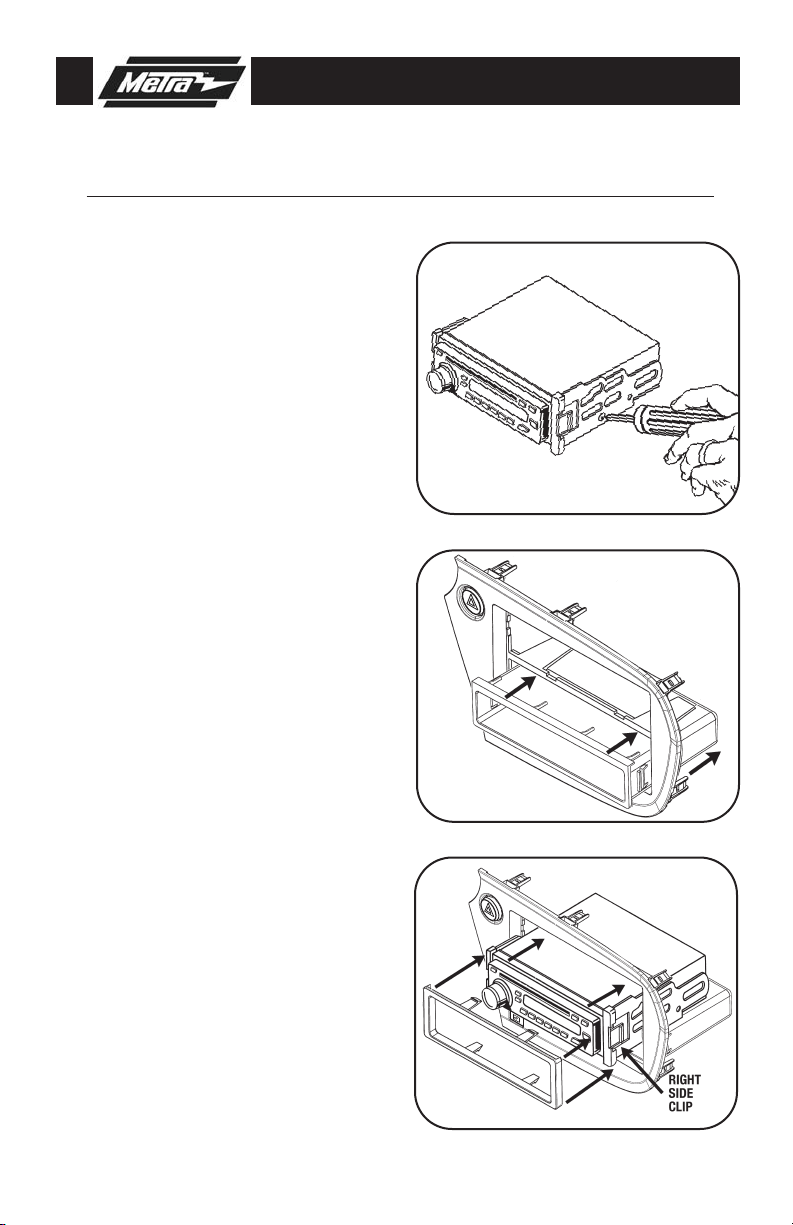

ISO MOUNT RADIO PROVISION WITH POCKET
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Mount the ISO Brackets to the head
2
unit with the screws supplied with
the unit.
Snap the pocket into the bottom
3
opening of the radio housing.
(Figure B)
Slide the head unit into the radio
4
opening until the side clips engage.
(Figure C)
(Figure A)
B
Snap the Trim plate into the Radio
5
Housing.
Reassemble dash in reverse order of
6
disassembly.
(Figure C)
C
5
Page 8
99-7878B KIT ASSEMBLY

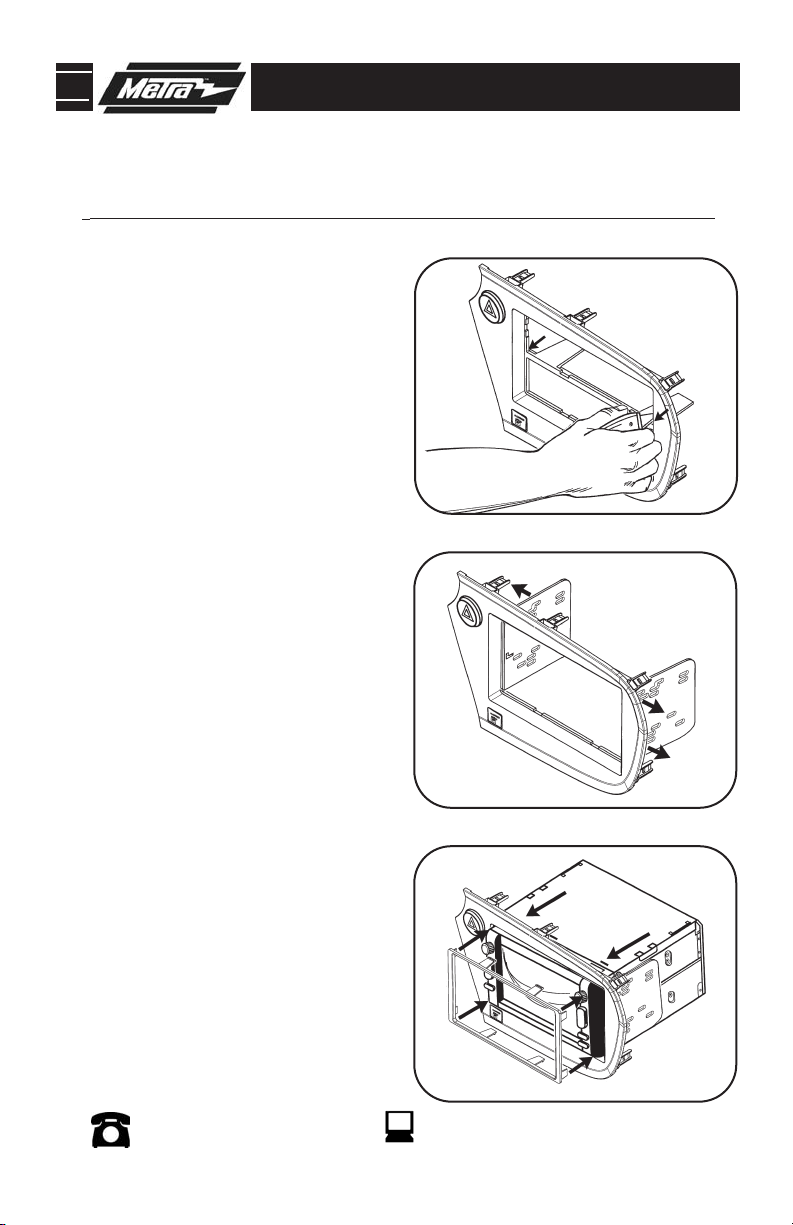

DOUBLE DIN/STACKED ISO MOUNT
UNITS RADIO PROVISION
*
Note: Refer also to the instructions included with the aftermarket radio.
A
Locate the factory wiring harness in
1
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Cut and remove the center bar from
2
the radio housing.
Snap the Double DIN brackets to the
3
inside edge of the Double DIN trim
(Figure B)
plate.
Slide the Double DIN head unit or
4
stacked ISO head units into the
bracket/radio housing assembly and
secure the Double DIN head unit or
stacked ISO head units to the
assembly using the screws supplied
with the radio.
(Figure A)
B
(Figure C)
Snap the Double DIN trim plate into the
5
Radio Housing.
Reassemble dash in reverse order of
6
disassembly.
(Figure C)
1-800-221-0932
REV. 07/15/09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST99-7878B
C
www.metraonline.com
