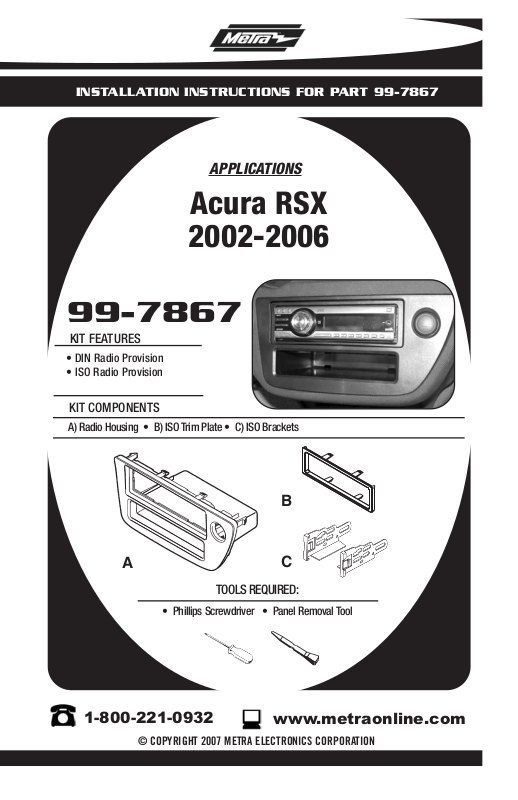

INSTALLATION INSTRUCTIONS FOR PART 99-7867
APPLICATIONS
Acura RSX
2002-2006
99-7867
KIT FEATURES
• DIN Radio Provision
• ISO Radio Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Trim Plate • C) ISO Brackets
A
TOOLS REQUIRED:
• Phillips Screwdriver • Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007 METRA ELECTRONICS CORPORA
B
C
www.metr
aonline.com
TION
99-7867
TABLE OF CONTENTS
Dash Disassembly
- Acura RSX 2002-2006 ............................................1
Kit Preparation . . . . .............................................2
Kit Assembly
- DIN Radio Provision .............................................3
- ISO Radio Provision . . . . ........ .................................3
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
*Note:
Refer also to the instructions included with the aftermarket radio.
99-7867 DASH DISASSEMBLY
"C"
"C"
"C"
"C"
"D"
"D"
ACURA RSX 2002-2006
Disconnect the negative battery ter-
1
minal to prevent an accidental short
circuit.
Unclip the power outlet panel and
2
remove (2) Phillips screws exposed
facing up.
Unclip the radio trim panel assembly
3
(including the head unit and the hazard switch) then unplug and remove
the assembly. (
(“A” in Figure A)
Figure A)
A
Remove (4) Phillips screws securing
4
the factory head unit to the bracket
assembly and remove the unit.
(“B” in Figure A)
If a factory pocket is present,
5
remove (4) Phillips screws securing
the pocket to the bracket assembly
and remove.
Remove (4) Phillips screws securing
6
the bracket assembly to the back of
the radio trim bezel and remove the
bezel. (Retain the bracket assembly
and screws to be reinstalled into the
double DIN trim plate during kit
assembly).
Remove (2) Phillips screws securing
7
the hazard switch to the back of the
radio trim panel and remove the
switch. (Retain the switch and screws
to be reinstalled into the double DIN
trim plate during kit assembly).
(“D” in Figure C)
(“C” in Figure B)
B
C
Continue to kit assembly.
1
99-7867 KIT PREPARATION
ACURA RSX 2002-2006
Mount the hazard switch to the back
1
of the radio housing with (2) Phillips
screws previously removed in Step 7
of the disassembly. (
Mount the factory bracket assembly
2
to the back of the radio housing with
(4) Phillip screws previously removed
in Step 6 of the disassembly.
( Figure B)
Continue to kit assembly.
Figure A)
A
B
2
99-7867 KIT ASSEMBLY
DIN RADIO PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
A
Slide the DIN cage into the radio hous-
1
ing and secure by bending the metal
locking tabs outward.
Slide the aftermarket radio into the
2
cage until it snaps into place.
Continue to final assembly.
(Figure A)
(Figure A)
ISO RADIO PROVISION
Mount the ISO brackets to the radio
1
using the screws supplied with the
(Figure A)
radio.
Slide the radio into the radio housing
2
until the ISO brackets snap into place.
(Figure A)
Snap the trim plate onto the front of
3
the radio housing.
Continue to final assembly.
(Figure A)
A
3
99-7867 FINAL ASSEMBLY
FINAL ASSEMBLY
A
(A) Strip wire ends back 1/2"
B
B) Twist ends together
C) Solder
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
1
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly.
3
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’
s specifications.
4
99-7867
