INSTALLATION INSTRUCTIONS FOR PART 99-7861
APPLICATIONS
Honda Pilot
•2003-2008
•2006-2008
(Without Factory Navigation)
99-7861
KIT FEATURES
• Recessed DIN
• Pocket
• ISO Head Unit Provision With Pocket
KIT COMPONENTS
A) “L” Radio Housing • B) “E” Radio Housing • C) Pocket • D) Rear Support Bracket • E) ISO Brackets
F) ISO Trimplate • G) (2) # 8x3/8” Phillips Truss Head Screws H) (2) # 8x3/8” Phillips Pan Head Screws
A
B
C
D
E
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1721 - Honda/Acura harness 1998-up
Antenna Adapter:
• 40-HD10
Small Flat Blade Screwdriver/ • Panel Removal Tool • Phillips Screwdriver • Socket Set
- Honda antenna adapter 2005-up
F
TOOLS REQUIRED:
G
H
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION REV. 06-29-09
Page 2
99-7861
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
Honda Pilot 2003-2008. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Honda Pilot 2006-2008 (Without Factory Navigation) . . . . . . . . . . 2
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Kit
DIN Head Unit Provision With Pocket . . . . . . . . . . . . . . . . . . . . . . 4
ISO Head Unit Provision With Pocket . . . . . . . . . . . . . . . . . . . . . . 5
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..6
Page 3
99-7861
HONDA PILOT 2003-2008
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2

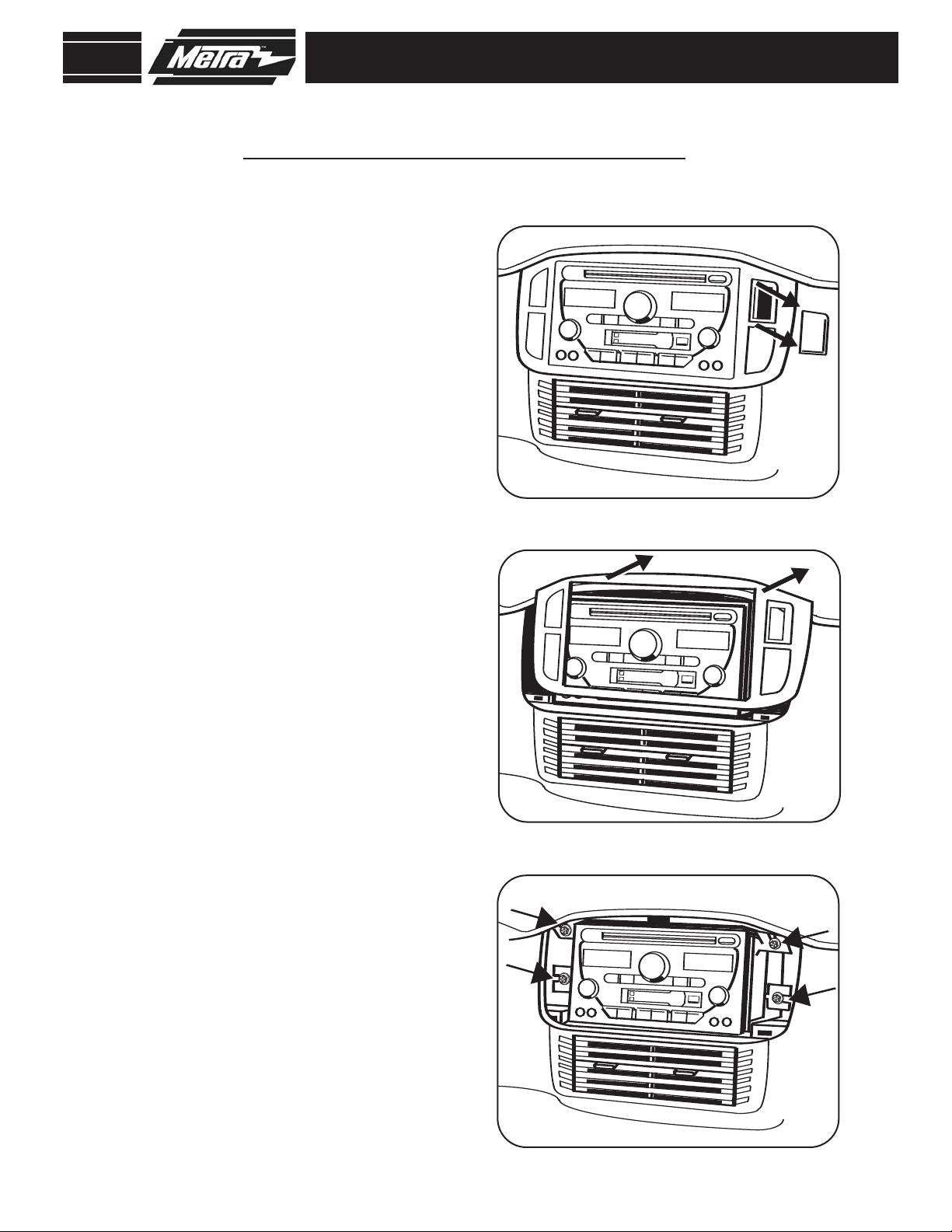

Using a small flat blade screwdriver
remove the blank plate from upper
right side of radio trim panel.
(Figure A)
Unsnap radio trim panel. Unplug
3
switches and remove panel.
(Figure B)
DASH DISASSEMBLY
A
B
4
Remove (4)10mm bolts securing
radio, unplug and remove radio.
(Figure C)
C
1
Page 4
99-7861
HONDA PILOT 2006-2008
(Without Factory Navigation)
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2

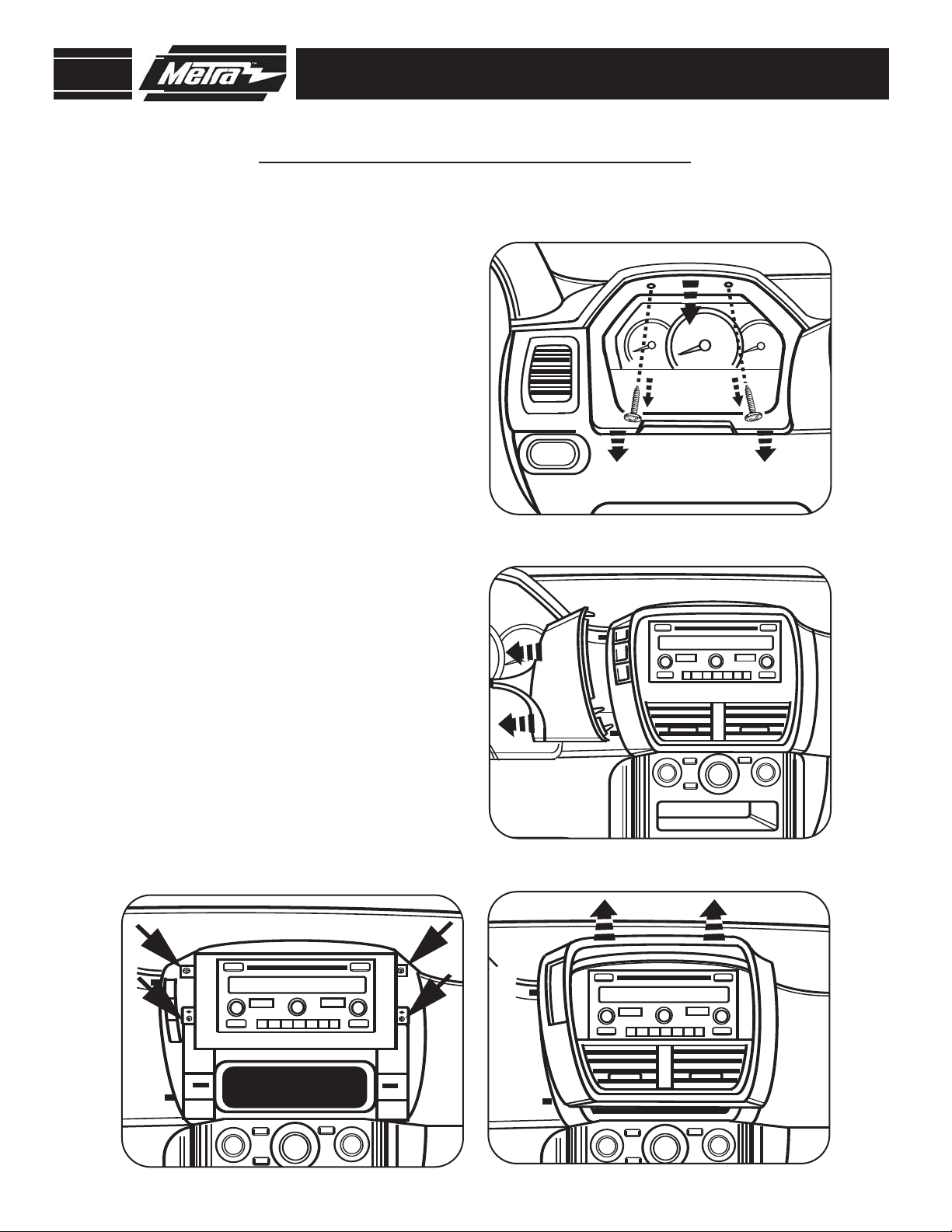

Remove (2) screws from the top
of the instrument panel trim.
Unclip and remove the instrument panel trim.
Unclip and remove the left center
3
trim panel.
(Figure B)
(Figure A)
DASH DISASSEMBLY
A
B
4
Unclip the radio trim panel.
Unplug and remove the panel.
(Figure C)
5
Remove the (4) screws securing
the radio. Unplug and remove
the radio.
Continue to kit assembly.
D
(Figure D)
C
2
Page 5
99-7861
HONDA PILOT
•2003-2008
KIT ASSEMBLY
•2006-2008
1

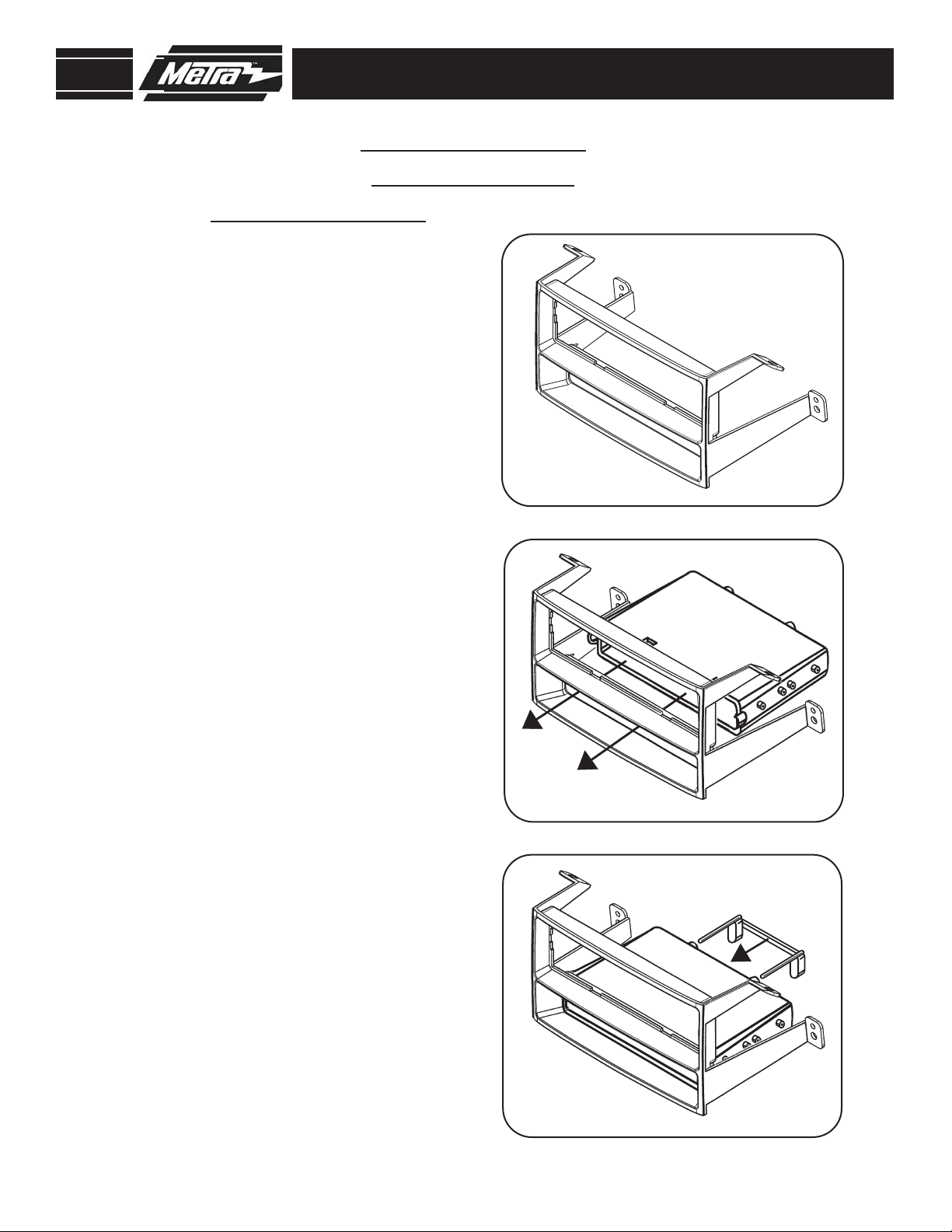

Select the proper radio housing for
your vehicle. EX models use radio
housing (E) and LX models use radio
housing (L). The radio housings are
labeled on one of the mounting tabs.
(Figure A)
Mount the pocket to the back of the
2
radio housing with the (2) #8x3/8”
phillips pan head screws supplied.
(Notches on the pocket must be on
(Figure B)
top.)
3
Mount the rear support bracket to
the back of the pocket with the (2)
#8x3/8” Phillips truss head screws
supplied.
(Figure C)
(Without Factory Navigation)
A
B
3
C
Page 6
99-7861
KIT ASSEMBLY
DIN HEAD UNIT PROVISION WITH POCKET
A

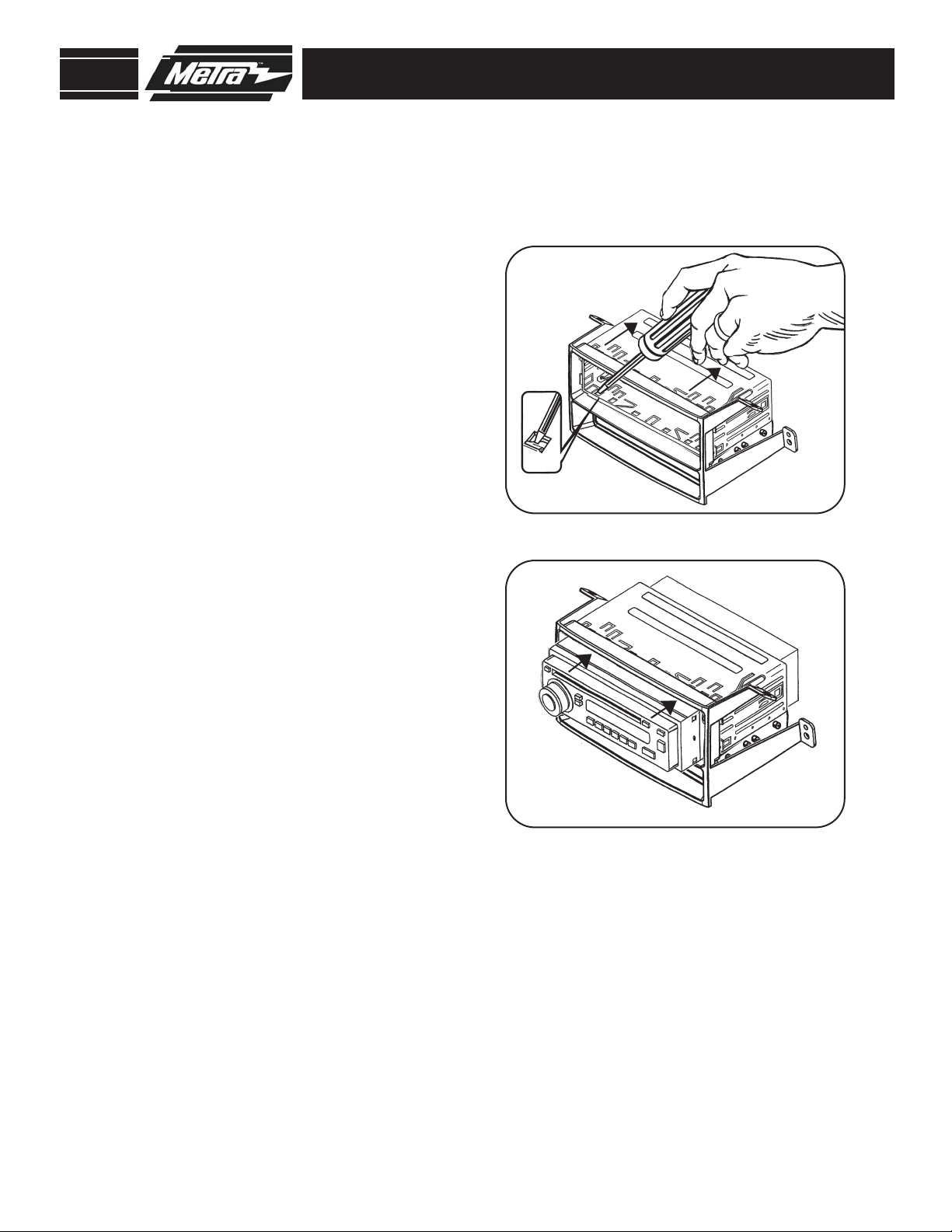

Slide DIN cage (supplied with radio)
1
into the assembled radio housing
from the front.
Secure DIN cage to radio housing by
2
bending the locking tabs outward.
(Figure A)
Slide the radio into the DIN cage
3
until it snaps into place.
(Figure A)
(Figure B)
B
4
Page 7
99-7861
KIT ASSEMBLY
ISO HEAD UNIT PROVISION WITH POCKET
A

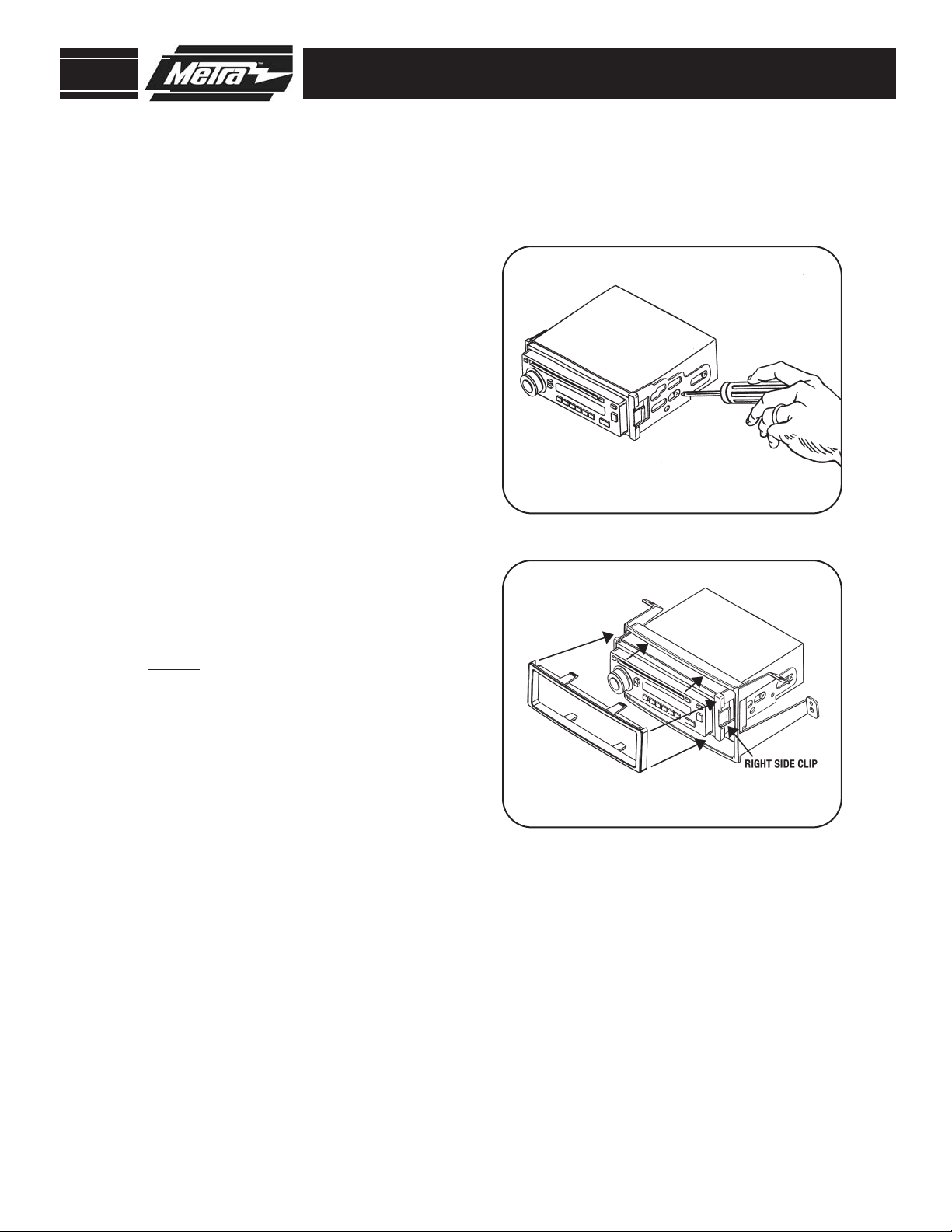

Align the holes in the ISO brackets
1
with the holes in the radio. Mount
the brackets to the radio using
screws supplied with the radio.
(Figure A)
Slide the radio/bracket assembly into
2
the assembled radio housing until it
snaps into place.
(Figure B)
Snap the ISO trimplate onto the front
3
of the assembled radio and housing.
(Figure B)
NOTE: To remove the radio unsnap
and remove the ISO trimplate. Using
a flat blade screwdriver disengage
ISO brackets from the radio housing
and slide radio out of radio housing.
B
5
Page 8
99-7861
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent
electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.

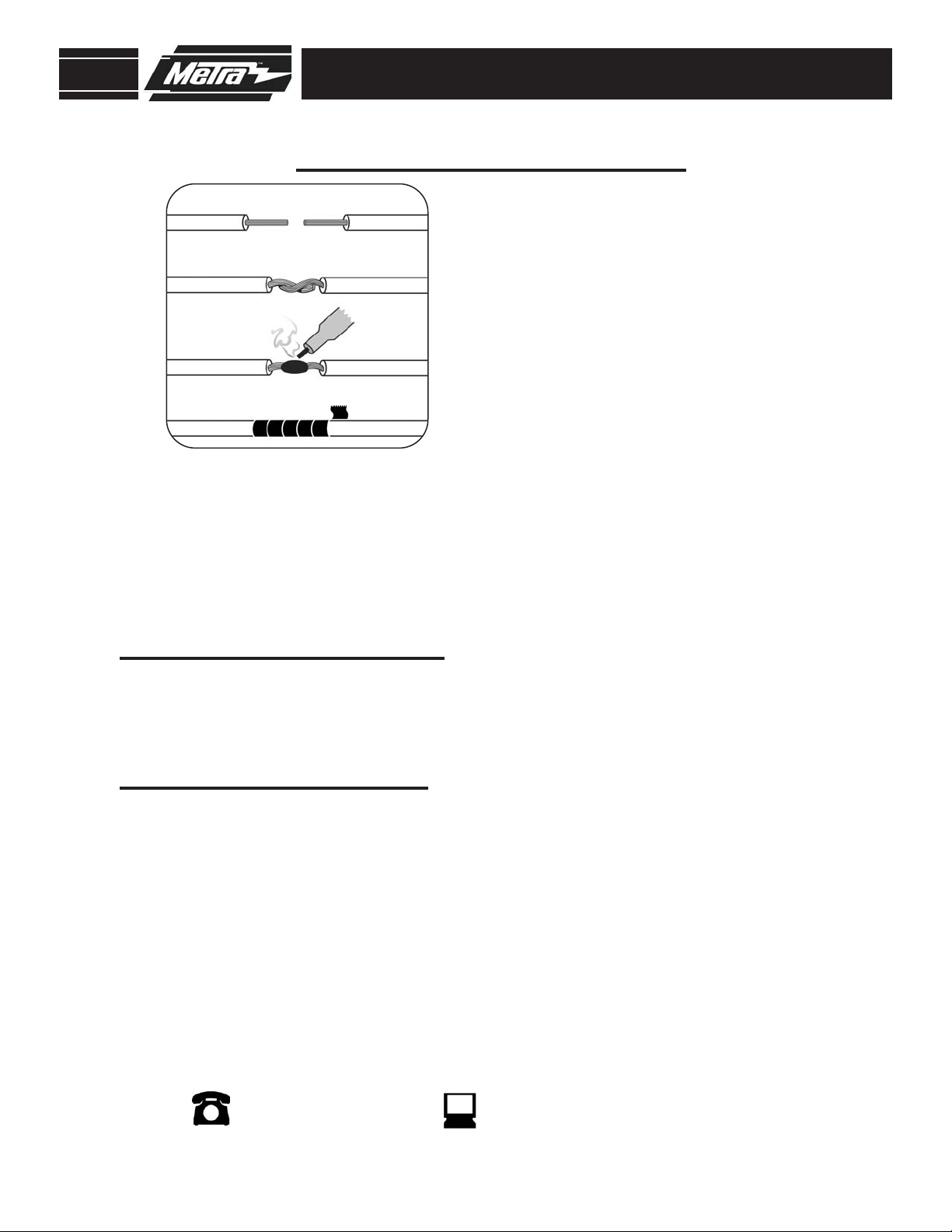

A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
*NOTE: When Black a wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
1-800-221-0932 www.metraonline.com
Rev. 06/29/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-7861
Dimmer . . . . . . . . . . Orange / White
Right Front (+) . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
6
