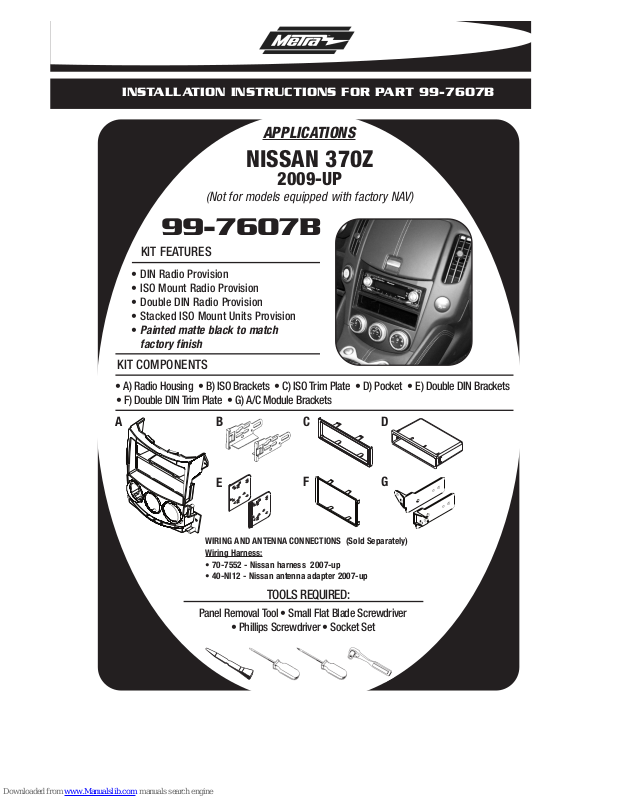

INSTALLATION INSTRUCTIONS FOR PART 99-7607B
99-7607B
KIT FEATURES
• DIN Radio Provision
• ISO Mount Radio Provision
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted matte black to match
factory finish
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Pocket • E) Double DIN Brackets
• F) Double DIN Trim Plate • G) A/C Module Brackets
KIT COMPONENTS
ABEC
F
D
G
Panel Removal Tool • Small Flat Blade Screwdriver
• Phillips Screwdriver • Socket Set
TOOLS REQUIRED:
APPLICATIONS
NISSAN 370Z
2009-UP
(Not for models equipped with factory NAV)
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-7552 - Nissan harness 2007-up
• 40-NI12 - Nissan antenna adapter 2007-up

99-7607B DASH DISASSEMBLY
NISSAN 370Z 2009-UP
D
isconnect the negative battery
terminal to prevent an accidental
short circuit.
1
AUTOMATIC SHIFT MODELS:
Unclip and remove the small shifter
trim panel including the hazard
switch.
(Figure A)
Unclip and remove the large shifter
trim panel.
(Figure B)
NOTE:
MANUAL SHIFT MODELS:
The shift trim is one piece, unsnap carefully and set aside.
2
Continue on page 2 .
3
Remove (1) Phillips screws from each
side panel on the center console at
the bottom of the radio panel then
unclip and remove the panels.
(Figure C)
A
B
C

99-7607B DASH DISASSEMBLY
NISSAN 370Z 2009-UP
Continue on kit assembly.
6
Remove (5) Phillips screws securing
the a/c control to the factory radio
trim panel.
7
Remove (2) Phillips screws securing
the a/c module to the factory radio
bracket assembly.
4
Remove (2) Phillips screws from the
bottom of the large trim panel including the a/c vents and pocket assembly then unclip and remove the
panel.
(Figure D)
5
Remove (4) Phillips screws securing
the factory radio and a/c control.
(Figure E)
D
E

99-7607B KIT PREPARATION
NISSAN 370Z 2009-UP
1
Secure the a/c control into the
99-7607 radio housing using the
factory hardware.
(Figure A)
2
Attach the included brackets to the
a/c module then secure it into the
dash using the factory hardware.
(Figure B)
PUSH
A/CV
TEMP
PUSH
PUSH
AUTO
5O
9O
A
B

99-7607B KIT ASSEMBLY
B
C
A
DIN RADIO PROVISION WITH POCKET
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down.
(Figure A)
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2
Snap the pocket into the bottom
opening of the radio housing.
(Figure B)
3
*
Note: Refer also to the instructions included with the aftermarket radio.
Slide the aftermarket head unit into
the cage and secure.
(Figure C)
4
Reassemble dash in reverse order of
disassembly.
5

99-7607B KIT ASSEMBLY
B
A
ISO MOUNT RADIO PROVISION WITH POCKET
Mount the ISO brackets to the head
unit with the screws supplied with
the radio.
(Figure A)
2
Snap the pocket into the bottom
opening of the radio housing.
(Figure B)
3
Slide the head unit into the radio
opening until the side clips engage.
(Figure C)
4
*
Note: Refer also to the instructions included with the aftermarket radio.
Snap the Trim plate into the Radio
Housing.
(Figure C)
5
C
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
Reassemble dash in reverse order of
disassembly.
6

99-7607B KIT ASSEMBLY
B
C
A
DOUBLE DIN/STACKED ISO UNITS RADIO PROVISION
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
3
2
Slide the Double DIN radio into the
bracket/trim plate assembly and
secure the radio to the assembly
using the screws supplied with the
radio.
(Figure C)
4
Reassemble dash in reverse order of
disassembly.
6
5
*
Note: Refer also to the instructions included with the aftermarket radio.
Cut and remove the center bar from
the radio housing.
(Figure A)
1
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Re-connect the
negative battery terminal and test
the unit for proper operation.
Snap the Double DIN trim-plate onto
the housing/radio assembly.
(Figure C)
