INSTALLATION INSTRUCTIONS FOR PART 99-7606
APPLICATIONS
Nissan Titan
(With Dual Zone Climate Controls) 2006-07
Nissan Pathfinder Armada 2006-07
99-7606
KIT FEATURES
• DIN Radio Provision with pocket
• ISO Radio Unit Provision with pocket
• Double DIN Radio Provision
• Stacked ISO Head Units Provision

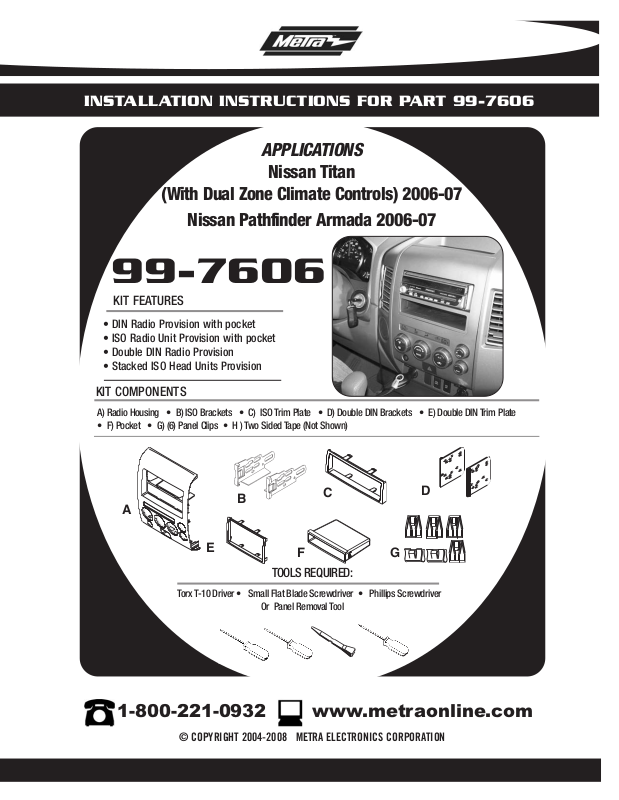

KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets • E) Double DIN Trim Plate
• F) Pocket • G) (6) Panel Clips • H ) Two Sided Tape (Not Shown)
D
ewdriver
A
B
E
TOOLS REQUIRED:
-10 Driver • Small Flat Blade Scr
T
orx
T
Or Panel Removal Tool
C
F
ewdriver • Phillips Scr
G
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION
99-7606
TABLE OF CONTENTS
•
Dash Disassembly
- Nissan Titan 2006 -07................................................................1, 2
- Nissan Pathfinder Armada 2006-07...........................................1, 2
•
Kit Assembly:
-
Pre-Kit Assembly............................................................................3
- DIN Radio Provision with Pocket ...................................................4
- ISO Radio Provision with Pocket ...................................................5
- Double DIN Radio Provision ...........................................................6
- Stacked ISO Head Units Provision..................................................7
•
Final Assembly ...............................................................................8
99-7606
OFF
DASH DISASSEMBLY
NISSAN TITAN 2006-07
NISSAN PATHFINDER ARMADA 2006-07
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove entire panel
including radio and climate controls.
(Figure A)
Remove (4) Phillips screws to
3
remove radio from sub-dash.
(Figure B)
A
Unsnap and remove the outer trim
4
rings around a/c control knobs.
(Figure C)
NOTE: The small round Airbag sticker also needs to be removed from
the factory panel and placed onto
the 99-7606 radio housing panel.
(A round piece of double-sided tape
is provided in case the factory sticker is not strong enough.)
Remove (4) T-10 Torx screws from
5
the a/c controls to remove from the
factory radio trim panel.
(Figure C)
(Figure D)
B
C
Continued on next page.
1
99-7606
CLIP
HAZARD SWITCH
PASSENGER AIR BAG LIGHT
T-10 TORX
SCREW
T-10 TORX
SCREW
A/C CONTROL PANEL
INSIDE VIEW - RADIO TRIM PANEL BACK
1
2
3
4
T-10 TORX SCREWS
T-10 TORX SCREWS
1
2
DASH DISASSEMBLY
NISSAN TITAN 2006-07
NISSAN PATHFINDER ARMADA 2006-07
Unclip and remove the Hazard Light
6
switch assembly.
Remove (2) T10 Torx screws from
7
(Figure D)
the passenger air bag off light
assembly and remove.
Note:
The small round sticker
(Figure D)
also needs to be removed from
the factory panel and placed
onto the 99-7606 radio housing.
D
Continue to kit assembly.
2
99-7606
A/C
1
2
3
4
0
1
2
3
4
0
M
A
X
A
/
C
R
R
R
A
/C
1
2
3
4
0
1
2
3
4
0
MA
X
A/
C
R
R
R
A/C
OFF
1
2
3
4
0
1
2
3
4
0
MAX
A/
C
R
R
R
A/C
OFF
1
2
3
4
0
1
2
3
4
0
MAX
A/
C
R
R
R

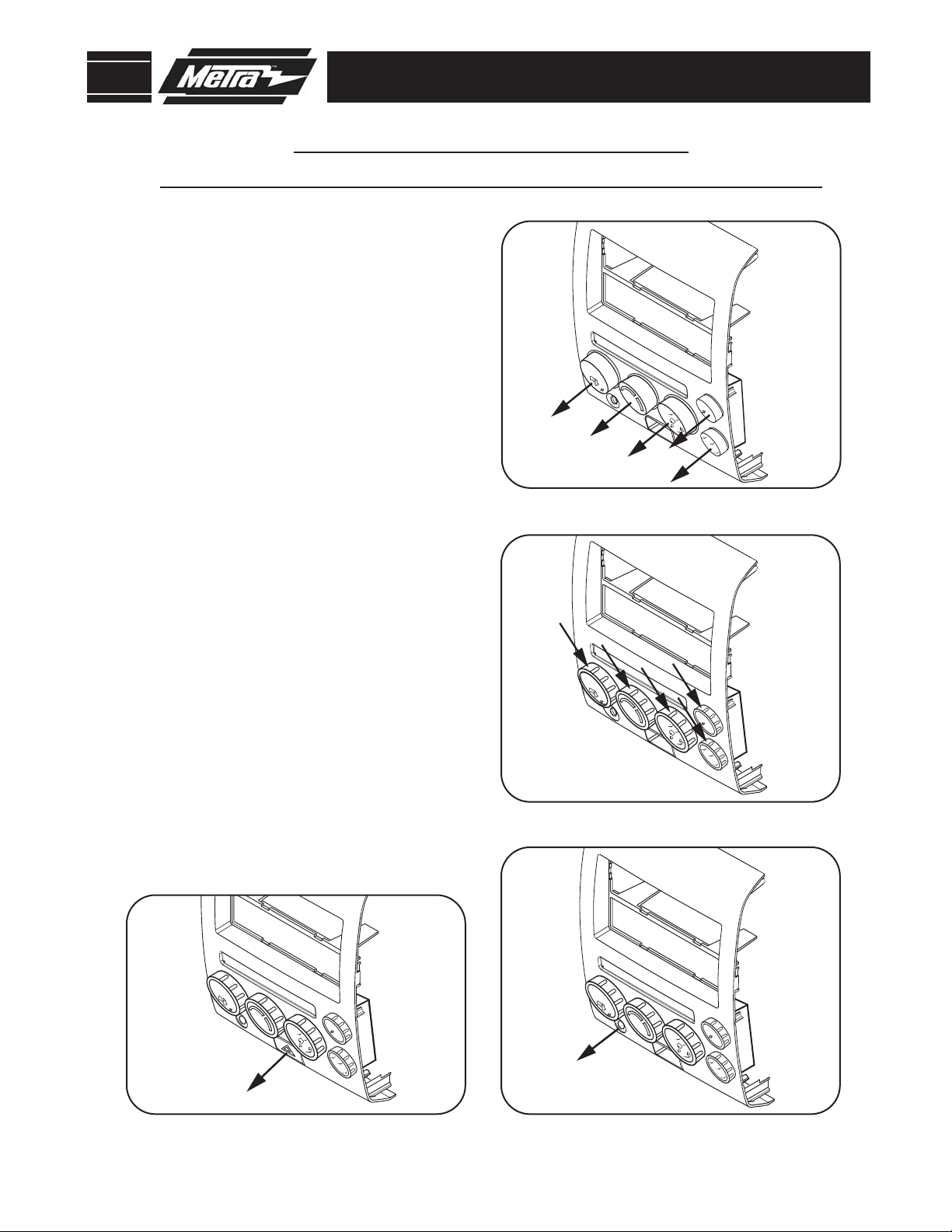

PRE-KIT ASSEMBLY
NISSAN TITAN 2006-07
NISSAN PATHFINDER ARMADA 2006-07
Attach the a/c control to the 99-7606
1
Radio Housing using the factory
hardware removed in the dash disassembly.
Snap the outer trim rings onto the
2
a/c control knobs.
Attach the passenger air bag off light
3
(Figure A)
(Figure B)
assembly to the 99-7606 Radio
Housing using the factory hardware
removed in the dash disassembly.
Also, apply to air bag button the
small round airbag sticker previously
removed in Step 4 dash disassembly.
(Figure C)
A
B
Snap the hazard light switch into the
4
99-7606 Radio Housing. (Figure D)
Attach the (6) panel clips to the 99-
5
7606 radio housing panel using the
factory radio panel as a reference for
clip positioning.
Continue to kit assembly.
D
3
C
99-7606

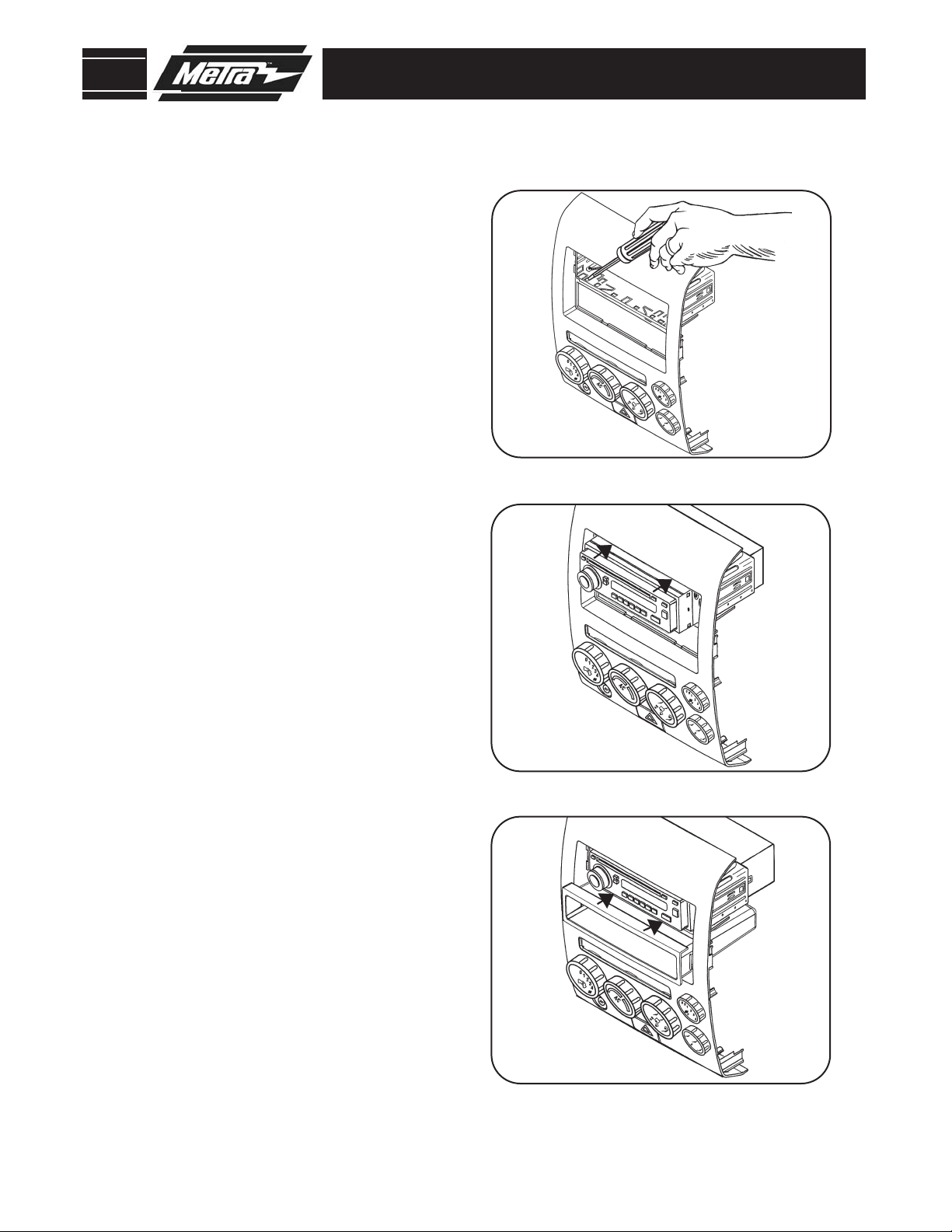

DIN RADIO PROVISION WITH POCKET
Slide the DIN cage into the Radio
1
Housing and secure by bending
the metal locking tabs down.
(Figure A)
Slide the aftermarket radio unit
2
into the cage and secure.
(Figure B)
Snap the pocket into the radio
3
housing.
Continue to final assembly.
(Figure C)
KIT ASSEMBLY
A
B
4
C
99-7606

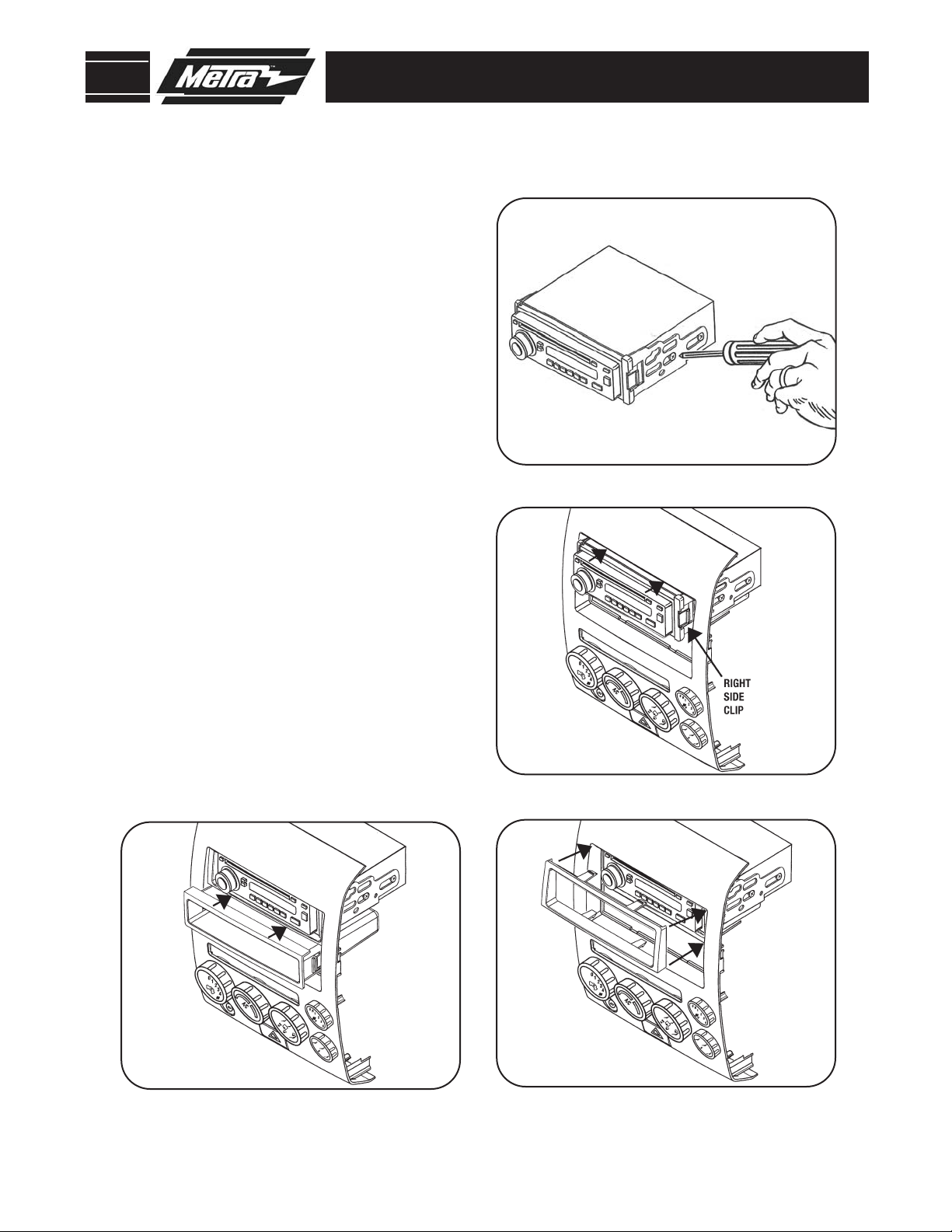

ISO RADIO PROVISION WITH POCKET
Mount the ISO Brackets to the
1
radio with the screws supplied
with the radio.
Slide the radio into the radio
2
opening until the side clips
engage.
Snap the Trim plate into the Radio
3
Housing.
(Figure B)
(Figure C)
(Figure A)
KIT ASSEMBLY
A
Snap the pocket into the radio hous-
4
(Figure D)
ing.
Continue to final assembly.
D
B
C
5
99-7606

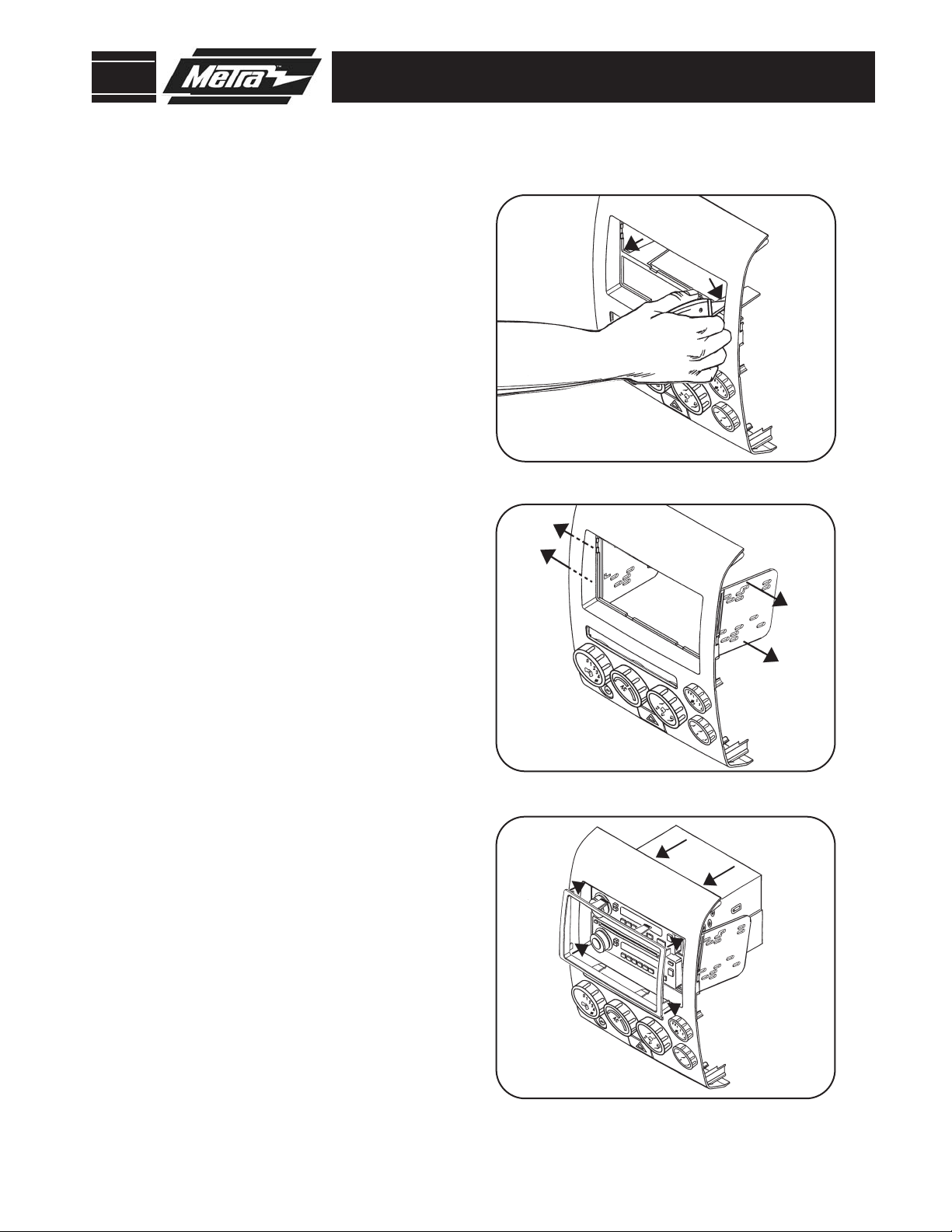

DOUBLE DIN RADIO UNIT PROVISION
Cut and remove center divider
1
from radio housing.
Snap the Double DIN brackets to
2
the inside edge of the radio housing.
(Figure B)
Slide the Double DIN radio into the
3
Double DIN bracket/radio housing
assembly and secure the radio to the
kit using the screws supplied with
the head unit.
(Figure C)
(Figure A)
KIT ASSEMBLY
A
B
Snap the Double DIN trim plate
4
onto the housing/radio assembly.
(Figure C)
Continue to final assembly.
C
6
99-7606
KIT ASSEMBLY
STACKED ISO HEAD UNITS PROVISION
Cut and remove center divider
1
from radio housing.
Snap the Double DIN brackets to
2
the inside edge of the radio hous-
(Figure B)
ing.
Slide the stacked ISO units into the
3
Double DIN bracket/radio housing
assembly and secure the units to the
kit using the screws supplied with
the head units.
(Figure C)
(Figure A)
A
B
Snap the Double DIN trim-plate onto
4
the housing/radio assembly.
(Figure C)
Continue to final assembly.
C
7
99-7606
FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
C
D
1
2
3
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually
tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble in reverse order of disassembly.

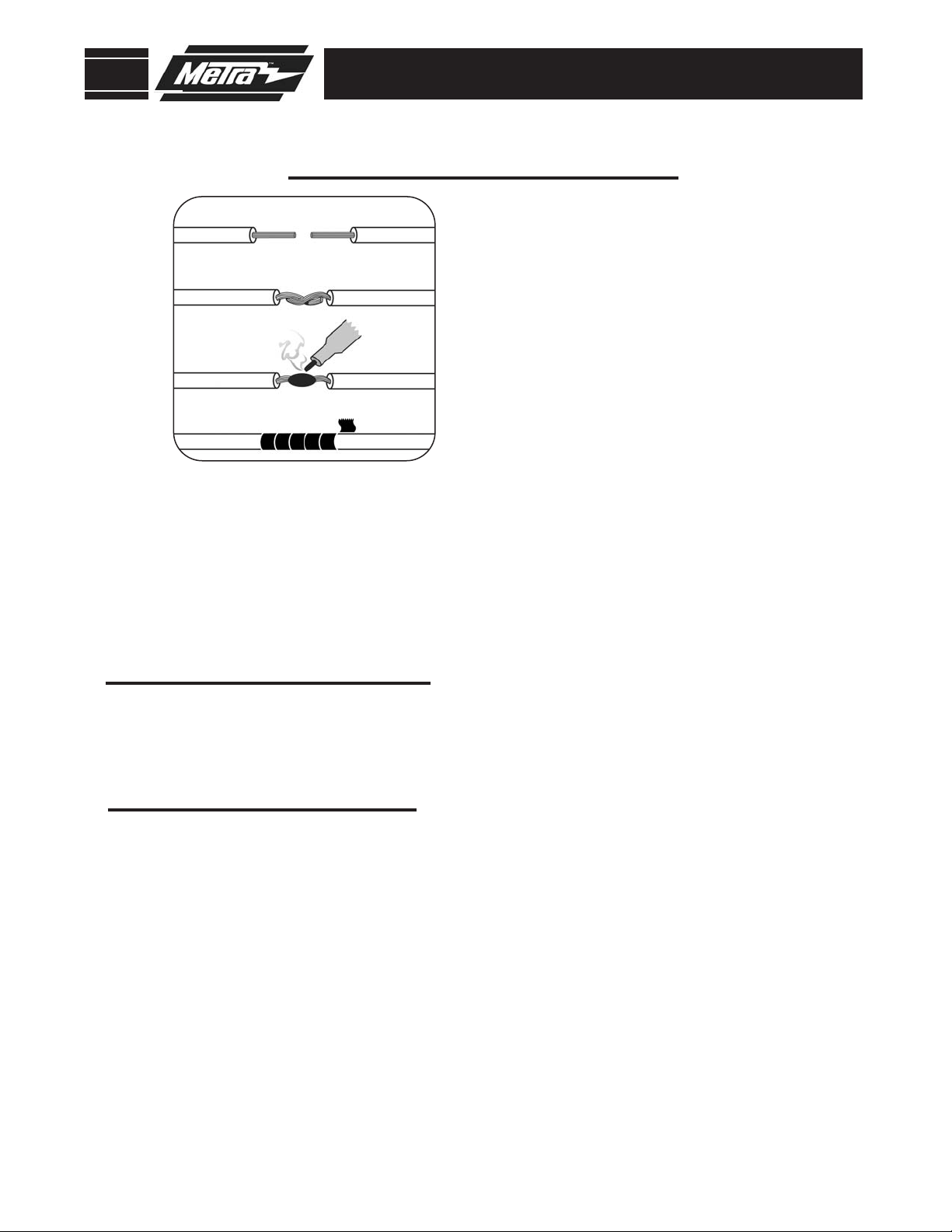

A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head
unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually
tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . Red
12V Batt / Memory . . Yellow
Ground . . . . . . . . . . . Black*
Power Antenna . . . . . Blue
Amp Turn-On . . . . . . Blue / White
Amp Ground . . . . . . . Black / White
Illumination. . . . . . . . Orange
Dimmer . . . . . . . . . . Orange / White
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . Gray
Right Front (-) . . . . . . Gray/ Black
Left Front (+) . . . . . . White
Left Front (-) . . . . . . . White / Black
Right Rear (+). . . . . . Violet
Right Rear (-) . . . . . . Violet / Black
Left Rear (+). . . . . . . Green
Left Rear (-) . . . . . . . Green / Black
8
99-7606
NOTES
9
99-7606 INSTRUCTIONS
1-800-221-0932 www.metraonline.com
REV. 02/22/08 © COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORA
TION INST99-7606
