INSTALLATION INSTRUCTIONS FOR PART 99-7604

APPLICATIONS

INFINITI G35

2003-2004

99-7604/99-7604B/
99-7604T

KIT FEATURES

• DIN Radio Provision

• ISO Mount Radio Provision

• Double DIN Radio Provision

• Stacked ISO Mount Units Provision

• Painted To Match Factory Dash
99-7604= SILVER
99-7604B= BLACK
99-7604T=TAN

KIT COMPONENTS

A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Pocket • E) Double DIN Brackets

• F) Double DIN Trim Plate • G) Top Radio Housing Bracket • H) (2) #8 X 3/8” Phillip Screws

• I) Climate Control Cable

B

F

A

E

D

TOOLS REQUIRED:

Hook Tool • Panel Removal Tool • (2) Small Flat Blade Screwdrivers

• Phillips Screwdriver • Socket set

1-800-221-0932

© COPYRIGHT 2008 METRA ELECTRONICS CORPORA

G

www.metraonline.com

C

H

I

TION

99-7604

K

NOWLEDGE IS POWER

Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.

TABLE OF CONTENTS

Dash Disassembly

- INFINITI G35 2003-2004 .......................................1,2,3

Kit Preparation . . . . . . . . . . . . . . ..................................4

Kit Assembly

- DIN Radio Provision with Pocket ..................................5

- ISO Mount Radio Provision with Pocket . . . . ......................... 6

- Double DIN Radio Provision .......................................7

- Stacked ISO Units Provision ......................................8

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

*Note:
Refer also to the instructions included with the aftermarket radio.

99-7604 DASH DISASSEMBLY

2

3

1

INFINITI G35 2003-2004

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unclip the collar below the shift knob

2

and slide down. Using a small screw­driver or hook tool remove the spring
clip to release and remove the shift

(Figure A)

knob.

3

Unclip the cup holder/shifter trim
panel. Unplug and remove panel.

(Figure B)

4

Remove (2) Phillips screws from the
bottom of the radio/climate control
panel.

(Figure C)

5

Remove (2) Phillips screws from the
panel below the steering column then
unclip and let the panel hang.

A

B

6

Remove (2) Phillips screws from the
accessory plug panel then unclip and
remove the panel.

7

Unclip and remove the passenger side

(Figure D)

C

kick panel then remove (1) Phillips
screw exposed behind the panel on
bottom right side of glove box.

(Figure E)

Continue on page 2 .

E

D

1

99-7604 DASH DISASSEMBLY

INFINITI G35 2003-2004

8

Open glove box and remove (4)
Phillips screws from the top edge of
box opening.

9

Unclip and remove the black cover
panel below glove box and remove (1)
Phillips screw from bottom of glove
box exposed on left side next to
accessory plug panel.

Remove (2) Phillips screws from the

10

accessory plug panel then unclip and
remove the panel.

Unclip and remove the trim panel sur-

11

rounding the clock and display on top
of the dash.

12

Remove (2) Phillips screws securing
the clock and clock bracket. Unplug
and remove clock and bracket.

(Figure I)

(Figure F)

(Figure G)

(Figure H)

F

G

H

13

Remove (1) Phillips screw at the top
of the radio/climate control panel.

(Figure J)

Continue on page 3.

J

I

2

99-7604 DASH DISASSEMBLY

INFINITI G35 2003-2004

K

14

Unsnap radio/climate control panel
including climate control vents at the
top left and right and pocket assem­bly. Unplug and remove panel.

(Figure K)

15

Remove (6) Phillips screws securing
the radio chassis to the factory panel
and remove radio chassis to access
the factory pocket.

Remove (2) Phillips screws securing

16

the pocket to the radio/climate con­trol panel and remove pocket. (Retain
pocket for use during kit assembly.)

Use (2) small flat blade screwdrivers

17

to gently pry the vents from radio/cli­mate control panel to remove. (Retain
vents for use during kit assembly.)

ve the thin plastic

Unclip and r

18

trim at the top edge of the radio/cli­mate control panel.

Continue to kit preparation.

emo

3

99-7604 KIT PREPARATION

KIT PREPARATION

*Note: Refer also to the instructions included with the aftermarket radio.

A

Attach the vents into the radio housing

1

in the same location as the factory
panel.

(Figure A)

Secure the factory pocket removed in

2

step 16 of the dash disassembly into
the radio housing using the factory
hardware.

Attach the top radio housing bracket to

3

the radio housing using the (2) #8 X
3/8” Phillips screws provided with this
kit.

Clip the thin plastic trim removed in

4

step18 (of page 3) to the top edge of
the radio housing.

Connect the black end of the climate

5

control cable to the climate controls in
the radio housing and connect the
other end of the cable to the factory
climate control harness during final
assembly.

(Figure B)

(Figure C)

B

Continue to kit assembly.

C

4

99-7604 KIT ASSEMBLY

DIN RADIO PROVISION WITH POCKET

*Note: Refer also to the instructions included with the aftermarket radio.

A

Slide the DIN cage into the Radio

1

Housing and secure by bending the
metal locking tabs outward.

Slide the aftermarket radio into the

2

cage until it snaps into place.

Snap the pocket into the radio housing.

3

(Figure C)

Continue to final assembly.

(Figure A)

(Figure B)

B

5

C

99-7604 KIT ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

*Note: Refer also to the instructions included with the aftermarket radio.

A

Mount the ISO Brackets to the radio

1

with the screws supplied with the
radio.

(Figure A)

Slide the radio into the radio housing

2

until it snaps into place.

Snap the ISO trim plate onto the front

3

of the Radio Housing.

Snap the pocket into the radio housing.

4

(Figure C)

Continue to final assembly.

(Figure B)

(Figure B)

B

6

C

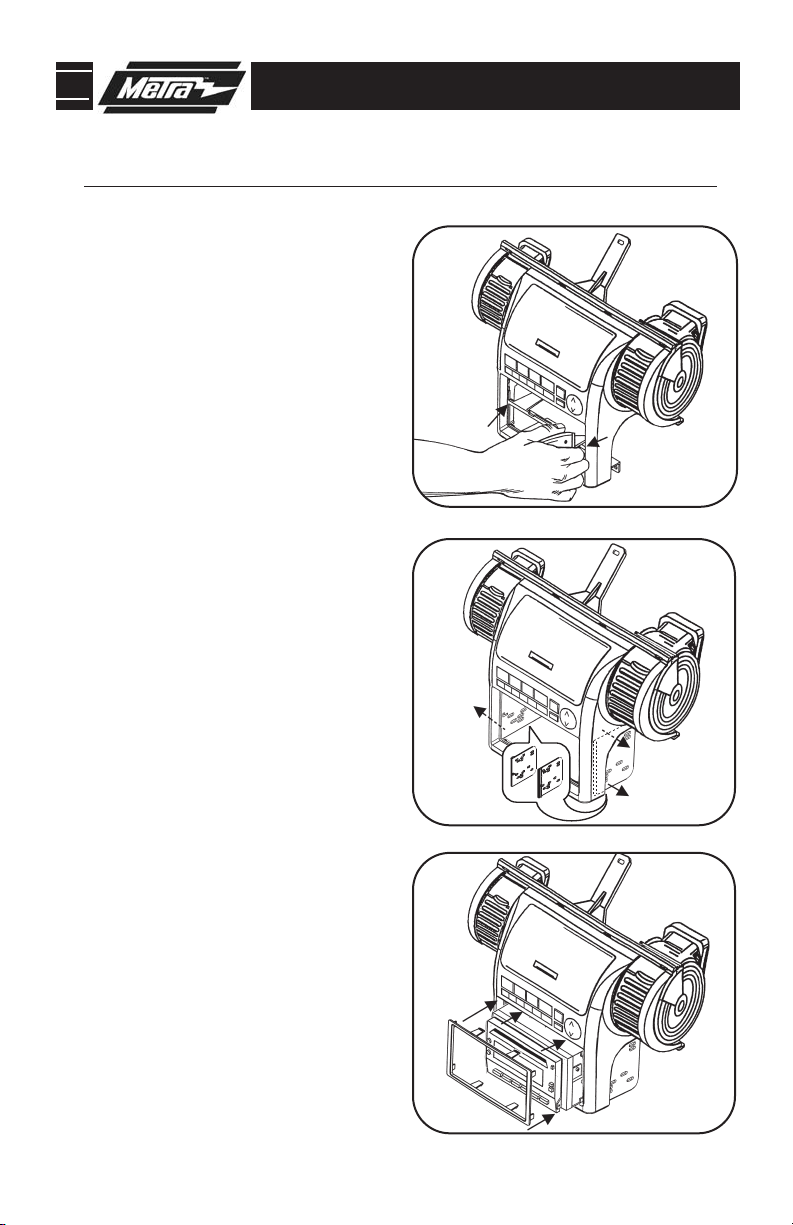

99-7604 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

A

Cut and remove the center bar from

1

the radio housing.

Snap the Double DIN brackets to the

2

inside edge of the radio housing.

(Figure B)

Slide the Double DIN radio into the

3

bracket/trim plate assembly and
secure the radio to the assembly using
the screws supplied with the radio.

(Figure C)

Snap the Double DIN trim plate into the

4

radio housing.

Continue to final assembly.

(Figure A)

B

(Figure C)

7

C

99-7604 KIT ASSEMBLY

STACKED ISO UNITS PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

A

Cut and remove the center bar from

1

the radio housing.

Snap the Double DIN brackets to the

2

inside edge of the radio housing.

(Figure B)

Slide the stacked ISO units into the

3

bracket/radio housing assembly and
secure the units to the kit using the
screws supplied with the units.

(Figure C)

Snap the Double DIN trim plate into the

4

radio housing.

Continue to final assembly.

(Figure A)

B

(Figure C)

8

C

99-7604 FINAL ASSEMBLY

FINAL ASSEMBLY

A

(A) Strip wire ends back 1/2"

B

B) Twist ends together

C) Solder

C

D

Locate the factory wiring harness in the dash. Metra recommends using the

1

proper mating adapter and making connections as shown. (Isolate and individ­ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

2

Reassemble radio and dash assemblies in reverse order of disassembly.

3

D) Tape

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc . . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

White

Dimmer . . . . . . . . . . . . . . . . .

Orange /

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-)

. . . . . . . . . . . . . .

Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

9

99-7604 INSTRUCTIONS

1-800-221-0932

REV. 08/04/08 © COPYRIGHT 2008 METRA ELECTRONICS CORPORATION INST99-7604
